The network function on the camcorder

Congratulations on your purchase of this Sony Handycam. This Handycam can access to the Internet through your provider using a dial-up networking connection with a Bluetooth device. You can view web pages, receive email, and send email with images recorded on your camcorder attached. Customer registration allows you to use the “Sonet” option for setting network preferences easily, as well as an “album on the Web”, your own private Internet-based photo album. The “album on the Web” uses the “ImageStation” function. The communication system is Bluetooth Ver.1.1 and its compatible Bluetooth profiles are the “Generic Access Profile” and the “Dial-up Networking Profiles”.

Easy access to

the Internet

You can view a web page via the Internet.

Send/receive your emails

You can send or receive email anytime, and attach images to email messages.

DCR-TRV50 Network 3-074-603-11(1).US

The network function on the camcorder

Making your album

on the Web

You can upload images to your album, and view or edit your album.

Using the “So-net” option, you can easily set the required Internet and email preferences. For details on “So-net,” see “Using the recommended provider (So-net)” (p. 32), or the supplied flyer “Getting Online with your Sony Network Handycam® camcorder.”

Introduction

Easy network

preferences (So-net)

Set the camcorder’s clock setting before using the Network functions. (The default setting is OFF.) If you do not set the clock setting, you cannot send and receive emails or view web pages. You also have to set up your camcorder and the peripheral device, and complete required registrations (DI customer registration, etc.). For more information, see the supplied flyer “Getting Online with your Sony Network Handycam® camcorder”. “DI” in “DI customer ID” stands for “Digital Imaging”.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

This section describes basic control ways to operate your camcorder, those which are used for network operations.

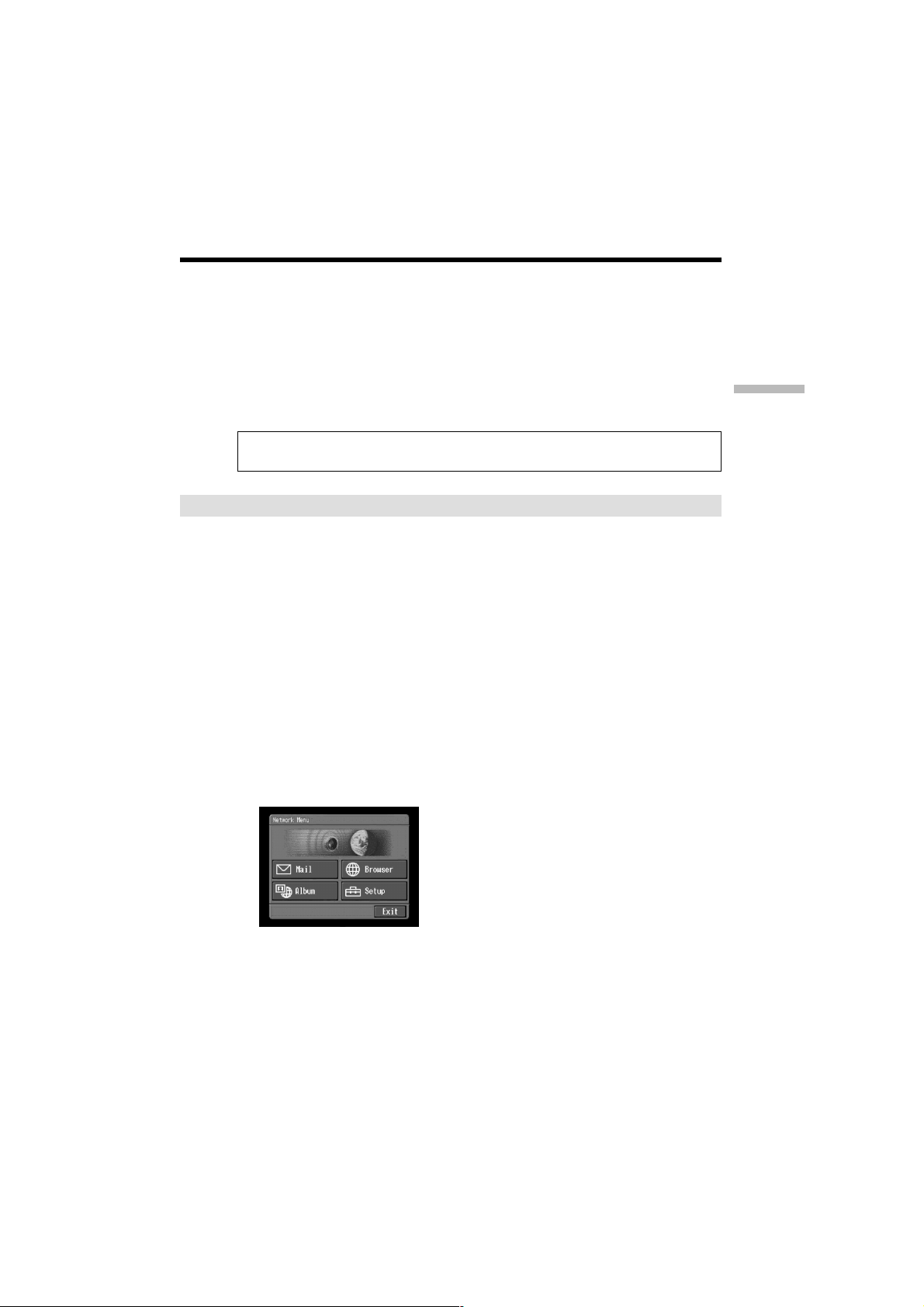

How to use the Network Menu

To access the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

[a]

[b]

[c]

[d]

[e]

[a]: Send and receive email. For details, see “Using email” (p. 58). [b]: View a web page through the Internet. For details, see “Viewing web pages”

(p. 82).

[c]: You have to make various settings using this menu before using the network

function. For details, see “Setting network preferences” (p. 34).

[d]: Exit the NETWORK mode. [e]: Upload images to your album on the Web and post the images on the Internet. For

details, see “Making your album on the Web” (p. 45).

The actual screens may differ slightly from the illustrations in this network function operating instructions.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

How to hold your camcorder when operating in the NETWORK mode

When operating in the NETWORK mode, you can turn the LCD panel over and move it back to your camcorder with the LCD screen facing over to use the stylus (for touch panel operation, supplied).

1 Turn the LCD panel over and move it back to your camcorder with the LCD

screen facing over.

2 Hold your camcorder as illustrated below.

Introduction

The way to hold and operate your camcorder varies depending on the model. For detail, refer to the “Operating Instructions” supplied with your camcorder.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

How to use the stylus

The buttons required for operating your camcorder are displayed on the LCD screen. Operate by pressing the buttons on the screen directly but lightly with the stylus provided. In this manual, pressing the buttons in this way using the stylus is referred to as “tapping”.

Tap the desired button on the screen with the stylus.

The selected button turns orange.

Notes

•Do not tap them with sharp-pointed objects other than the stylus supplied.

•Do not tap the LCD screen too hard.

•Do not touch the LCD screen with wet hands.

•When the LCD screen gets dirty, use the supplied cleaning cloth.

•You cannot drag icons, like on a computer, by touching and sliding across your camcorder screen with the stylus.

•Refer to the operating instructions supplied with your camcorder for the stylus storage location. To avoid losing the stylus, we recommend that you return it to the storage location after use.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

How to input characters

You have to frequently enter characters, such as email addresses, or web pages addresses (URL), to use the network function. This section describes how to input characters.

Introduction

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Tap [

The Send screen appears.

Mail].

(3) Tap [To].

(4) Tap [ New].

The character input screen appears.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

2 Selecting the character type

Tap [abcy123], then tap the desired character type.

abc: When inputting alphabetical characters. 123: When inputting numerical characters.

When you selected abc When you selected 123

3 Inputting characters

(1) Tap the character you want to input.

(2) After you input the characters, tap [Enter].

The screen which is displayed before you display the character input screen appears.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

Character input display

1 [a/A] button

[a/A] button is displayed when you input alphabetical characters. You can switch between upper case and lower case.

2 [abcy123] button

A list box appears when you tap the [abcy123] button. Tap the desired type of letter from the list box.

3 Input byte number/maximum byte number

4 Preferences

You can change the keyboard type for alphabet input.

5 Text area

You can scroll up or down the display by tapping v or V.

6 [Space] button

A space is entered.

4 5

Introduction

7 [Back space] button

The letter right before the cursor is deleted. If you tap the button for about three seconds, all the characters before the cursor are deleted.

9 [Enter] button

button

The cursor moves to a new line.

Tap this button to decide or close the input screen.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

The available characters list

When selecting [abc]

Alphabetical characters

The alphabet keyboard has 2 types (PC Style and Alphabetical order). The default setting is PC arrangement. You can change the keyboard setting in . Refer to page 17 for more information.

(PC Style) (Alphabetical order)

abcdefghi jklm

nopqr stuvwxy z ABCDEFGHI J KLM NOPQR S TUVWXY Z

Symbol characters

The symbol characters below are inputted by single tapping:

~ – _

The green keys input the symbol characters. The symbol characters change as follows:

Key Character

` ´ ˆ

* a: à t á t â t a t... A: À t Á t Â t A t...

e: è t é t ê t e t... E: È t É t Ê t E t... i: ì t í t î t i t... I: Ì t Í t Î t I t... o: ò t ó t ô t o t... O: Ò t Ó t Ô t O t... u: ù t ú t û t u t... U: Ù t Ú t Û t U t... y: ´y t y t... Y:

¨ ˜

* a: ä t ã t a t... A: Ä t Ã t A t...

e: ë t e t... E: Ë t E t... i: ï t i t... I: Ï t I t... n: ñ t n t... N: Ñ t N t... o: ö t õ t o t... O: Ö t Õ t O t... u: ü t u t... U: Ü t U t... y: ÿ t y t...

’ ”

’ t ” t ’ t ...

? ¿

? t ¿ t ? t ...

! ¡

! t ¡ t ! t ...

ç Ç ß

ç t Ç t ß t ç t...

. ,

. t , t . t ...

/ \

/ t \ t / t ...

t Y t...

* You can input the alphabet characters with accent symbols. When you input the

characters, tap

¨ ˜

` ´ ˆ

after inputting a, e, i, n, o, u, y, A, E, I, N, O, U or Y.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

When selecting [123]

Symbol characters

(Numerical order)

123+()$ 456– []&ˆ | ˜ 789/{}`”’ , * 0 #=<> . : ; _

To switch between upper and lower case alphabet letters

Tap [a/A] to change the alphabetical keyboard, then enter characters.

To delete a character

Move the cursor with the stylus to the right of the character at which you want to delete, tap [Back space]. The character at the left of the cursor is deleted.

To add a character

Move the cursor with the stylus to the position at which you want to add a character, then input characters.

To start a new line

Tap [ ].

Introduction

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

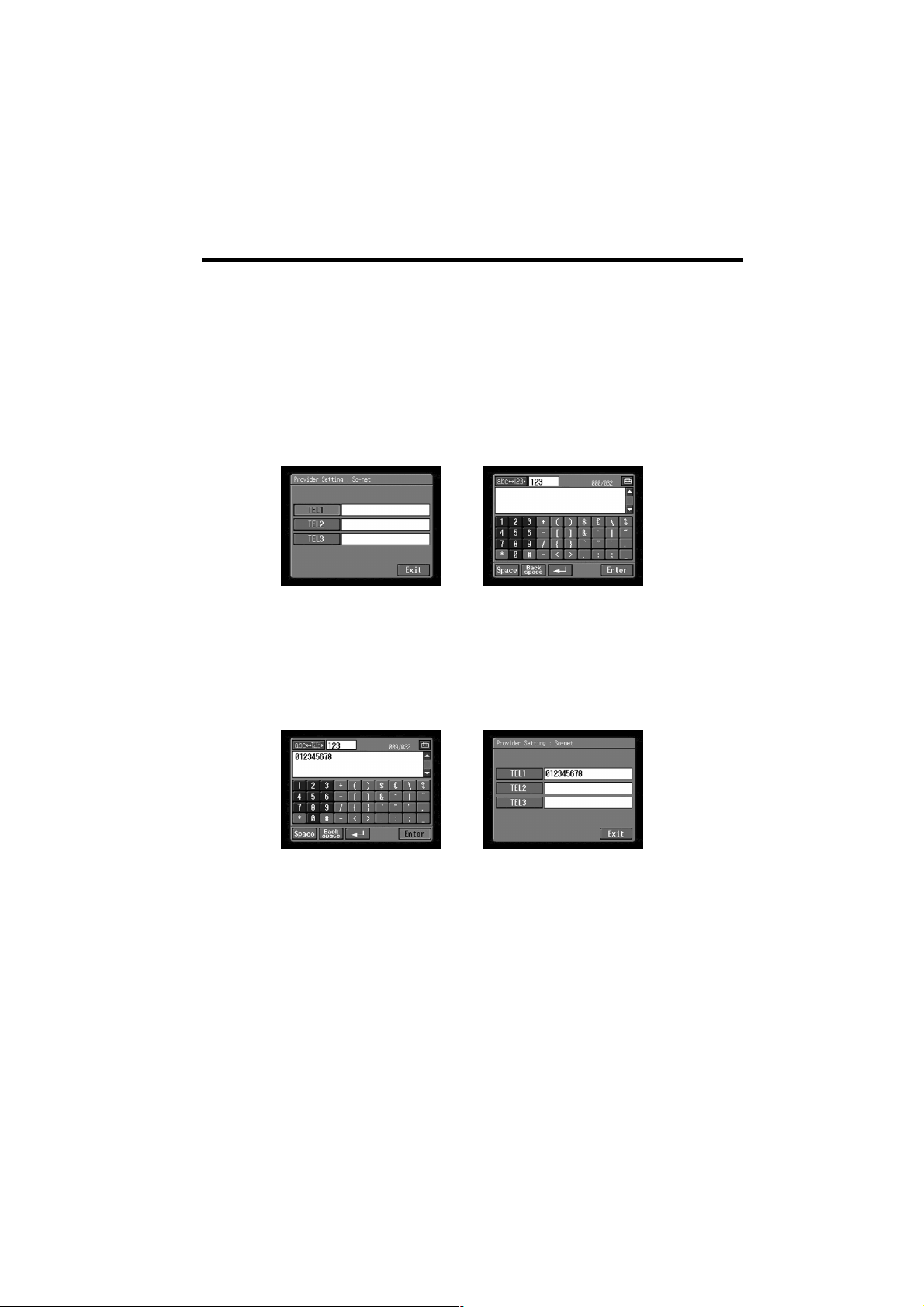

E.g., Enter “Hello” into the Subject item on the Send screen

(1) Open the Network Menu.

For details on how to open the Network Menu, refer to “Accessing the network” in the operating instructions supplied with your camcorder.

(2) Tap [

The Send screen appears.

Mail].

2 Entering the subject of a message

(1) Tap [Subject].

(2) Tap [

New].

The character input screen appears.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

(1) Tap [abcy123], then tap [abc].

Introduction

(2) Tap [a/A] to be able to enter upper-case letters.

(3) Tap [H].

“H” is entered.

(4) Tap [a/A] to be able to enter lower-case letters.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

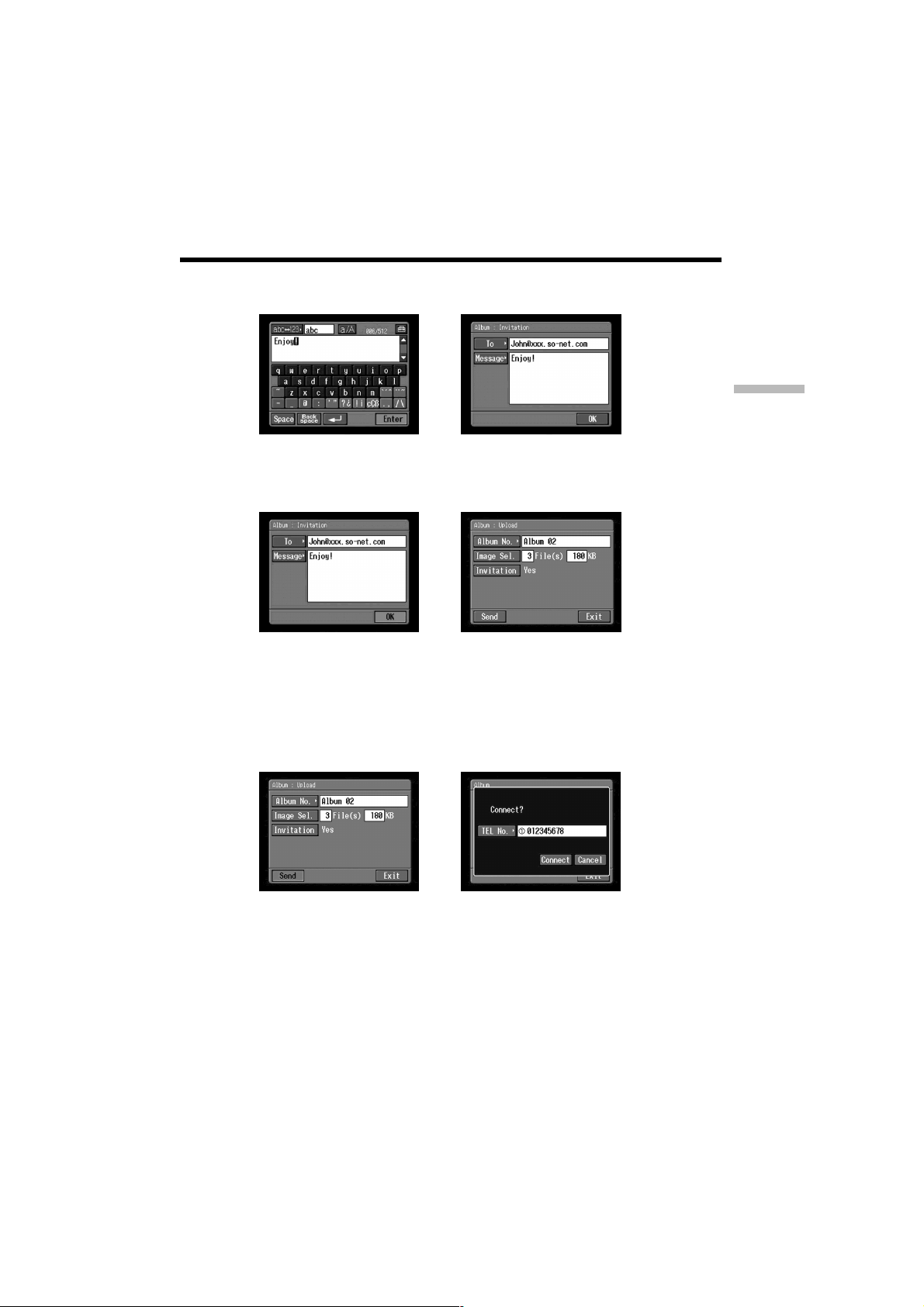

(5) Tap [e].

“e” is entered.

(6) Tap [l], [l] and [o].

“llo” is entered.

(7) Tap [Enter].

“Hello” is entered and the Send screen appears again.

DCR-TRV50 Network 3-074-603-11(1).US

Basic operations in the NETWORK mode

Character input setting

Keyboard

You can change the display of the alphabet, PC arrangement keyboard or ABC arrangement keyboard into a setup you want when you input characters.

1 Tap in the character input screen.

2 Tap the desired setting.

You can set as the following two displays when [abcy123] is set as [abc]. (PC Style is the default setting.)

– PC Style (PC arrangement keyboard) – Alphabetical order (ABC arrangement keyboard)

Introduction

Alphabetical orderPC Style

To switch the setting, tap on the upper-right LCD screen.

DCR-TRV50 Network 3-074-603-11(1).US

– Preparation –

Using the NETWORK functions

There are three Network functions, namely album on the Web, email, and browser. To use the album on the Web and So-net, you need to complete customer registration.

“So-net” is charged service. For more information, see the supplied flyer “Getting Online with your Sony Network Handycam® camcorder”.

To fully use the function in the NETWORK mode, you have to complete the following registrations and setup tasks via your camcorder:

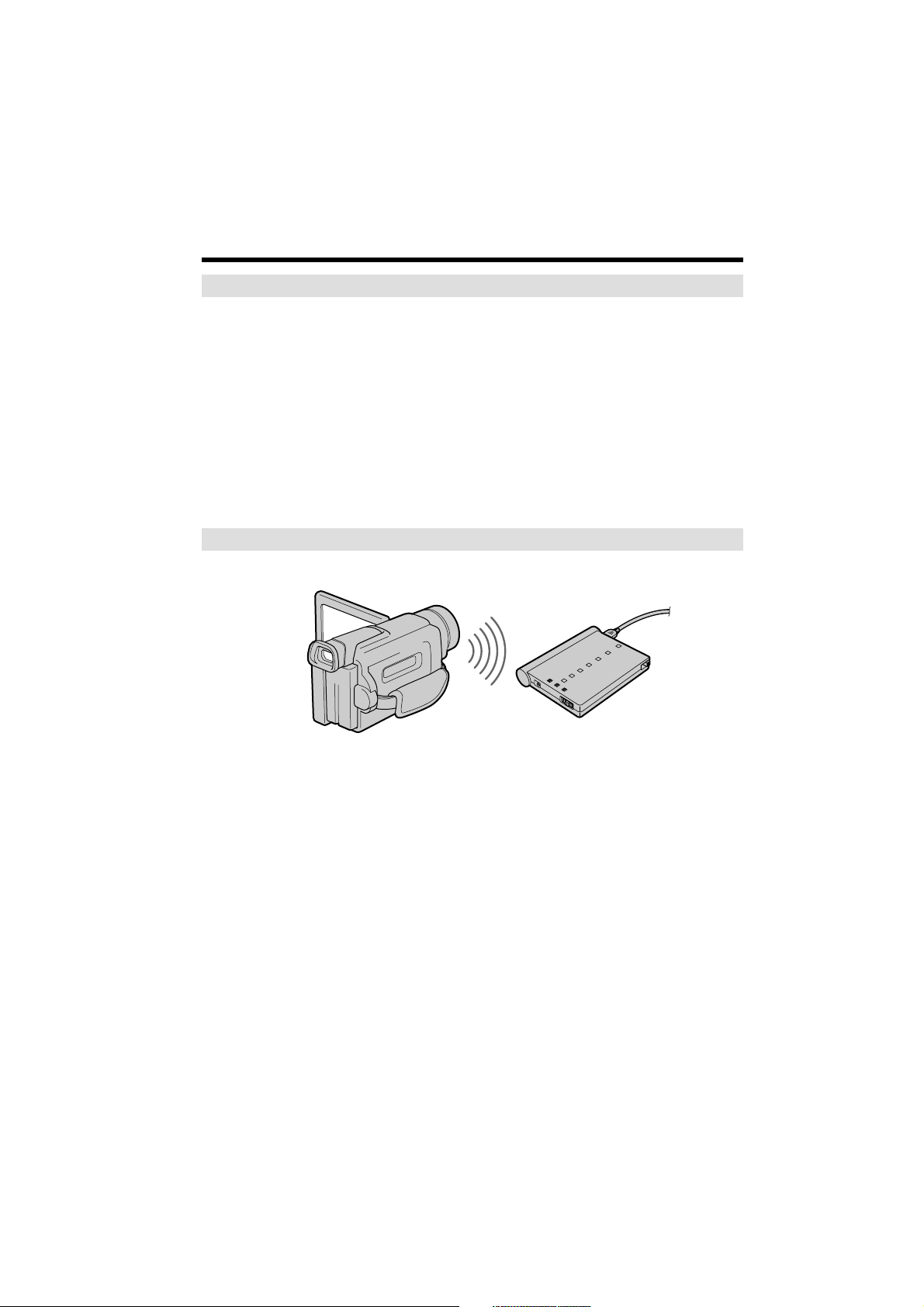

1 Bluetooth device registration (p. 20) 2 DI customer registration (p. 28) 3 Album registration (p. 31) 4 So-net registration* (p. 33) 5 Network Setup (p. 34)

* So-net registration is not necessary to use the other provider.

The above registrations can also be done on the web site using a computer. Access to the following URL: “http://www.myimagecam.com/”

DCR-TRV50 Network 3-074-603-11(1).US

+ 39 hidden pages
