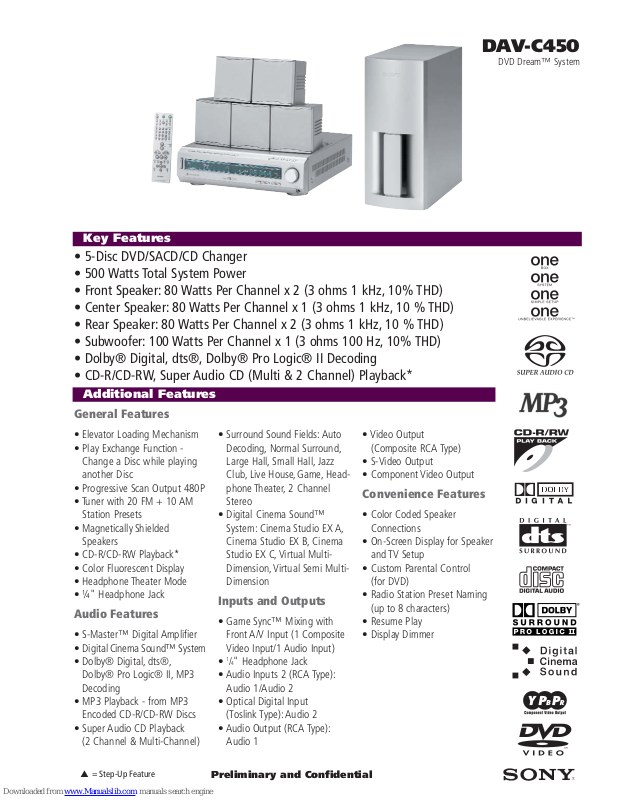

Sony DAV-C450 Marketing Specifications
General Features
• Elevator Loading Mechanism
• Play Exchange Function Change a Disc while playing
another Disc
• Progressive Scan Output 480P
• Tuner with 20 FM + 10 AM
Station Presets
• MagneticallyShielded
Speakers
• CD-R/CD-RW Playback*
• Color Fluorescent Display
• Headphone Theater Mode
• ¼" Headphone Jack
Audio Features
• S-Master™ Digital Amplifier
• DigitalCinema Sound™ System
• Dolby® Digital, dts®,
Dolby® Pro Logic® II, MP3
Decoding
• MP3 Playback - from MP3
Encoded CD-R/CD-RW Discs
• Super Audio CD Playback
(2 Channel & Multi-Channel)
• Surround Sound Fields: Auto
Decoding, Normal Surround,
Large Hall, Small Hall, Jazz
Club, Live House,Game, Headphone Theater, 2 Channel
Stereo
• Digital Cinema Sound™
System: Cinema Studio EX A,
Cinema Studio EX B, Cinema
Studio EX C, Virtual MultiDimension, Virtual Semi MultiDimension
Inputs and Outputs
• Game Sync™ Mixing with
Front A/V Input (1 Composite
Video Input/1 Audio Input)
•
1
/4" Headphone Jack
• Audio Inputs 2 (RCA Type):
Audio 1/Audio 2
• Optical Digital Input
(Toslink Type): Audio 2
• Audio Output (RCA Type):
Audio 1
• Video Output
(Composite RCA Type)
• S-Video Output
• Component Video Output
Convenience Features
• Color Coded Speaker
Connections
• On-Screen Display for Speaker
and TV Setup
• Custom Parental Control
(for DVD)
• Radio Station Preset Naming
(up to 8 characters)
• Resume Play
• Display Dimmer
• 5-Disc DVD/SACD/CD Changer
• 500 Watts Total System Power
• Front Speaker: 80 Watts Per Channel x 2 (3 ohms 1 kHz, 10% THD)
• Center Speaker: 80 Watts Per Channel x 1 (3 ohms 1 kHz, 10 % THD)
• Rear Speaker: 80 Watts Per Channel x 2 (3 ohms 1 kHz, 10 % THD)
• Subwoofer: 100 Watts Per Channel x 1 (3 ohms 100 Hz, 10% THD)
• Dolby® Digital, dts®, Dolby® Pro Logic® II Decoding
• CD-R/CD-RW, Super Audio CD (Multi & 2 Channel) Playback*
DAV-C450
DVD Dream™ System
Key Features
Additional Features
Preliminary and Confidential
S = Step-Up Feature
Color Coded Speaker Connections
Connecting a full 5.1 Channel surround system requires
no less than SIX connections to be made from the receiver to the speakers (Front Left and Right, Center, Rear Left
and Right and Subwoofer). With color coded connections, a user simply has to match green with green, etc.
to finish connecting a full 5.1 channel surround system.
Amplifier Section
• Front Speaker:
80 Watts Per Channel x 2
(3 ohms 1 kHz, 10% THD)
• Center Speaker:
80 Watts Per Channel x 1
(3 ohms 1 kHz, 10% THD)
• Rear Speaker:
80 Watts Per Channel x 2
(3 ohms 1 kHz, 10% THD)
• Subwoofer:
100 Watts Per Channel x 1
(3 ohms100 Hz, 10% THD)
• Input Sensitivity,
Impedance: Inputs Audio
1 & Audio 2: 150 mV/50k
ohm; Inputs Audio 2
Digital Audio
• Output Impedance:
Composite Video
Outputs: 1 Vp-p 75 ohms;
S-Video Output: (Y) 1 Vpp 75 ohms (C) 0.286 Vp-p
75 ohms; Component
Video Output: (Y) 1 Vp-p
75 ohms (Pb/Cr, Pr/Cr) 0.7
Vp-p 75 ohms; Phones
(Stereo ¼" Jack): Accepts
Low and High Impedance
Headphones
DVD/SACD/CD Player
Section
• Laser (semiconductor
Laser): 780 nm (CD)/650
nm (SACD/DVD)
• DVD Frequency Response:
2 Hz - 22 kHz (±1.0 dB)
• CD Frequency Response:
2 Hz - 20 kHz (±1.0 dB)
• Signal-to-noise Ratio:
>80 dB (Audio 1 (Audio)
connectors only)
• Harmonic Distortion:
<.03%
Tuner Section
• PLL Quartz-Locked Digital
Synthesizer System
FM Tuner Section
• Tuning Range:
87.5 - 108.0 MHz
• Antenna:
FM Lead Antenna
• Antenna Terminals:
75 ohms unbalanced
AM Tuning Section
• Tuning Range:
530 - 1,710 kHz
• Antenna:
AM Loop Antenna
• Antenna Terminals:
External Antenna
Terminal
Speaker Overview
Front/Center/Rear
Speakers
• Speaker System: Bass
Reflex Magnetically
Shielded Type
• Speaker Units:
3
1
/4
" Woofer
• Nominal Impedance:
3 ohms
Subwoofer Speaker
• Speaker System:
Subwoofer
• Speaker Unit: 7
7
/8"
• Nominal Impedance:
3 ohms
General
• Power Requirements:
AC120V, 60 Hz
• Power Consumption: (In
Operation): 120W
Supplied Accessories
• Instruction Manual
• Speakers-connection and
Installation Card
• Remote Commander®
Remote Control:
RM-SS450
• Batteries: AA x 2
• Speakers (5)
• Subwoofer (1)
• AM Loop Antenna
• FM Lead Antenna
• Video Cable x 1
• Rear Speaker Cords x 2
(49')
• Front/Center/Subwoofer
Cords x 4 (16')
• Foot Pads (24)
Weights & Measures
Main Unit
• Approx. Dimensions (w/h/d):
14" x 4" x 15
5
/8"
(includingprojecting parts)
• Approx. Weight:
12 lbs. 3 oz.
Front/Center/Rear
Speakers
• Approx. Dimensions (w/h/d):
4
3
/8" x 45/8" x 43/8"
• Approx. Weight:
1 lb. 6 oz.
Subwoofer Speaker
• Approx. Dimensions (w/h/d):
6
7
/8" x 14" x 14"
• Approx Weight:
11 lbs. 11 oz.
UPC Code
• 027242603646
Key Technology
Specifications
©2003 Sony Electronics Inc. All rights reserved. Features and specifications are subject to change without notice. Sony, Digital Cinema Sound, DVD Dream, One Box, One System, One Simple SetUp, One Unbelievable Experience, Precision Drive 2, Remote Commander, and the Super Audio CD logo are trademarks of Sony. Dolby Digital and Dolby Pro Logic II are registered trademarks of
Dolby Laboratories Licensing Corporation. dts is a registered trademark of Digital Theater Systems, Inc. All other trademarks and logos are property of their respective owner.
*CD-R/RW playback may not be compatible with all discs, depending on recording conditions.
DAV-C450
DVD Dream™ System
