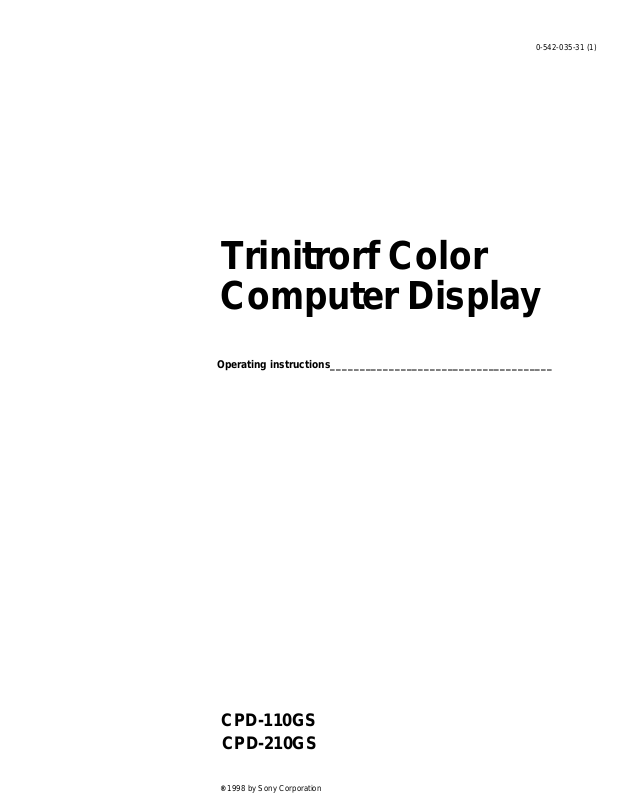

Sony CPD-110GS User Manual

Trinitrorf Color

Computer Display

0-542-035-31 (1)

Operating instructions

______________________________________

CPD-110GS

CPD-210GS

® 1998 by Sony Corporation

Owner’s Record

The model and serial numbers are located at the rear of the unit.
Record these numbers In the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.

Model No.____________ Serial No.

_________________

WARNING

Tо prevent fire or shock hazar<^, do not expose the

unit to rain or moisture.
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits
for a Class В digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
Installed and used in acœrdance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.

If this equipment does cause hanuful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.

IMPORTADOR (Para Mexico unicamente/For Mexico only)

Sony Electrónicos de Mexico, S.A. de C.V.
Hem y .-ord No.2S
Fraccionamiento San Nicolas, TIalnepantia
Estado de Mexico, CP54030
Tel.: [phone]
R.F.C. SEM-941001-BJA

Hinweise

• Aus ergonomischen Gründen wird empfohlen, die
Gaindfarbe Blau nicht auf dunklem Untergrund zu verwenden
(schlechte Erkennbarkeit, Augenbelastunq bei zu genngem
Zeichenkontrast).

• Aus ergonomischen Gründen (flimmen
Darstellungen bei Vertikalfrequenzen e
Zeilensprung) verwendet werden.

• Die Konvergenz des Bildes kann sich ;
Magnetfeldes am Ort der Aufstellung s
Qrundeinstellung verändern. Zur Korr
deshalb, die Regler an der Frontseite
einzustellen, daß die getrennt sichtbn

Grün und Blau bei z.B. der Darstellr
zur Deckung (Konvergenz) gelanoc
Siehe hierzu auch die Erklärunge:

iten nur

' Hz (ohne
irund des

¡er korrekten

empfiehlt es sich

.onveraenz so

Farblinien für Rot.

äines Buchstabens

■Konvergenz.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS

Plug Type Nema-Plug 5-15p
Cord Type SVT or SJT, minimum 3x18 AWG
Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

Cette notice s’applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est export* aux Etats-Unis ou au Canada,
utiliser le cordon d'alimentation portant la mention UL LISTED/
CSA LABELLED et remplissant les conditions suivantes:

SPECIFICATIONS

Type de fiche Rche Nema 5-15 broches
Cordon Type SVT ou SJT, minimum 3x18 AWG

Longueur Maximum 15 pieds

Tension Minimum 7 A, 125 V

HIIHIII .

llllllllll V

______

______

-------------------

_

1

IMPORTANTE

Para prevenir cualquier mal funcionamiento y evitar daños, por
favor, lea detalladamente este manual de instrucciones antes
de conectar y operar este equipo.

INFORMATION
This product complies with Swedish National Council for Metrology
(MPR) standards issued in December 1990 (MPR II) for very low
frequency (VLF) and extremely low frequency (ELF).

INFORMATION
Ce produit est conforme aux normes du Swedish National Council
for Metrology de décembre 1990 (MPR 11) en ce qui concerne les
fréquences très basses (VLF) et extrêmement basses (ELF).

Hinweis

Dieses Gerät erfüllt bezüglich tieffrequenter (very low frequency)

und tiefstfrequenter (extremely low frequency) Strahlung die

Vorschriften des .Swedish National Council tor Metrology (MPR)“

vom Dezember 1990 (MPR II).

INFORMACIÓN
Este producto cumple las normas del Consejo Nacional Sueco
para Metrología (MPR) emitidas en diciembre de 1990 (MPR II)
para frecuencias muy bajas (VLF) y frecuencias extremadamente
bajas (ELF).

Dieses Garât entspricht den folgenden europäischen EMV­Vorschriften für Betrieb in Wohngebieten, gewerblicher Gebieten
und Leichtindustriegebieten.

EN55022/1994 Klasse В
EN50082-1/1992
EN61000-3-2yi995

As an ENERGY STAR Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.

This monitor complies with the TCO

1992 guidelines for power saving
when used with a computer equipped
with VESA Display Power
Management Signaling (DPMS).

Declaration of Conformity

Trade Name: Sony
Model No.: CPD-110GS, CPD-21OGS
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive, Park Ridge, NJ. 07656 USA
Telephone No.: 201-930-6970

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful Interference, and (2) this device must accept
any interference received. Including interference that may
cause undesired operation.

Table of Contents

Precautions...............................................................................................4

Identifying parts and controls

.................................................................

Setup.....................................................................................6

5

step 1: Connect your monitor to your computer

...................................

Step 2; Connect the power cord..............................................................6

Step 3: Turn on the monitor and computer............................................6

Selecting the on-screen menu language

(LANGUAGE/INFORMATION)

..................................................................

Customizing Your Monitor..................................................8

Navigating the menu
Adjusting the contrast and brightness

(CONTRAST/BRIGHTNESS).....................................................................9

Adjusting the horizontal size or centering of the picture

(H-SIZE/CENTER)....................................................................................10

Adjusting the vertical size or centering of the picture

(V-SIZE/CENTER)....................................................................................10

Adjusting the curvature of the picture’s sides

(PIN/PIN BALANCE)................................................................................10

Adjusting the angle of the picture’s sides

(KEY/KEY BALANCE).............................................................................10

Adjusting the picture’s rotation (ROTATION)......................................11

Enlarging or reducing the picture (ZOOM)
Adjusting the color of the picture (COLOR)

Additional settings (DEGAUSS/CANCEL MOIRE)................................12

Resetting the adjustments (RESET)......................................................12

................................................................................

..........................................

........................................

11
11

6

7

8

Trinitron® is a registered trademark of
Sony Corporation.
Macintosh is a trademark licensed to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
Windows® and MS-DOS are registered
trademarks of Microsoft Corporation in

the United States and other countnes.
IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
VESA and DDC™ are trademarks of the

Video Electronics Standard

Association.

ENERGY STAR is a U S. registered
mark.
All other product names mentioned
herein may be the trademarks or
registered trademarks of their respective
companies.

Furthermore, "™” and "®" are not
mentioned in each case in this manual.

Technical Features.............................................................13

Preset and user modes

Power saving function

..........................................................................

...........................................................................

Troubleshooting................................................................ 13

If thin lines appear on your screen (damper wires)

On-screen messages..............................................................................13

Trouble symptoms and remedies..........................................................14

Self-diagnosis function..........................................................................16

............................

Specifications.....................................................................16

Appendix................................................................................i

Preset mode timing table............................................................................i

13
13

13

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropnate card, this monitor will not
conform to mandatory FCC standards.

Example of plug types

Use of the tilt-swivel

This monitor can be adjusted within the angles shown below. To

turn the monitor venically or horizontally, hold it at the bottom
with both hands.

for 100 to 120 V AC

Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the
screen's surface to discharge.
After the power is turned on. the screen is demagnetized
(degaussed) for about 5 seconds. This generates a strong
magnetic field around the screen which may affect data stored
on magnetic tapes and disks placed near the monitor. Be sure to
keep magnetic recording equipment, tapes, and disks away

from the monitor.

The equipment should be installed near an easily accessible
outlet.

for 200 to 240 V AC

Installation

Do not install the monitor in the following places:

• t n surfaces f-gs. blankets, etc.) or near materials (curtains,
draperies, etc.) that may block the ventilation holes

• near heat sources such as radiators or air ducts, or in a place

subject to direct sunlight

• in a place subject to severe temperature changes

• in a place subject to mechanical vibration or shock

• on an unstable surface

• near equipment which generates magnetism, such as a
transformer or high voltage power lines

• near or on an electrically charged metal surface

Maintenance

• Clean the screen with a soft cloth. If you use a glass cleaning
liquid, do not use any type of cleaner containing an anti-static
solution or similar additive as this may scratch the screen’s
coating.

• Do not rub. touch, or tap the surface of the screen with sharp or

abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.

• Clean the cabinet, panel and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type

of abrasive pad. scouring powder or solvent, such as alcohol or

benzene.

Transportation

When you transport this monitor for repair or shipment, use the
original carton and packing matenals.

Identifying parts and controls

See the pages in parentheses tor further details.

Front

Q] MENU button (page 9)

This button displays the MENU OSD.

[2] ENTER button (page 9)

This button selects the menu and adjustment items.

[3] O (contrast) -W- buttons (page 9)

These buttons display the CONTRAST/B RIGHTNESS menu
and function as the +/- buttons when adjusting other items.

S (!) (power) switch and indicator (pages 6,13,16)

This button turns the monitor on and off. The power indicator
lights up in green when the monitor is turned on, and either
flashes in green and orange, or lights up in orange when the

monitor is in power saving mode.

Rear

AC IN connector (page 6)

This connector provides AC power to the monitor.

Video input connector (HD15) (page 6)

This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.

( ©d)(3)@(D )

\(§)(z)(D@® /

V

Pin No.

1 Red

2
3

4
5
6
7
8
9

10
11 ID (Ground)
12
13
14

15

Signal

Green
Blue

ID (Ground)
DDC Ground*
Red Ground

Green Ground

Blue Ground

- ­Ground

Bi-Directional Data ISDA)*
H. Sync
V. Sync

Data Clock (SCD*

DDC (Display Data Channel) is a standard of VESA.

Setup

Before using your monitor, check that the following accessones

are included in your carton:

• Power cord (1)

• Windows Monitor Information Disk (1)

• Warranty card (1)

• Notes on cleaning the screen s surface (1)

• This instruction manual 11)

Step 1: Connect your monitor to

your computer

Turn off the monitor and computer before connecting.

■ Connecting to an IBM PC/AT or compatible

computer

■

Step 2: Connect the power cord

With the monitor and computer switched off. first connect the

power cord to the monitor, then connect it to a power outlet.

Step 3:Turn on the monitor and

computer

First turn on the monitor, then turn on the computer.

IBM PC/AT or

compatible computer

■ Connecting to a Macintosh or compatible

computer

You will need a Macintosh adapter (not supplied).

The installation of your monitor is complete.
If necessary, use the monitor’s controls to adjust the picmre.

Macintosh or to video
compatible computer output

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.

• If NO INPUT SIGNAL appears on the screen, confirm that
your computer's graphic board is completely seated in the
correct bus slot.

• If you are replacing an old monitor with this model and OUT
OF SCAN RANGE appears on the screen, reconnect the old
monitor. Then adjust the computer's graphTc board so that the

horizontal frequency is between 30 - 70 kHz. and the venicai
frequency is between 48 - 120 Hz.

For more information about the on-screen messages, see "Trouble
symptoms and remedies" on page 14.

For customers using Windows 95/98

To maximize the potemiai of your monitor, install the new model
information file from the supplied Windows Monitor information Disk
onto your PC.
This monitor complies with the “VESA DDC" Plug & Play standard, if
your PC/graphics board complies with DDC. select "Plug & Play Monitor
(VESA DDC)" or this monitor's model name as the monitor type in the
"Control Panel” of Windows 95/98. If your PC/graphics board has
difficulty communicating with this monitor, load the Windows Monitor

Information Disk and select this monitor’s model name as the monitor
type.

For customers using Windows NT4.0

Monitor setup in Windows NT4.0 is different from Windows 95/98 and
does not involve the selection of monitor type. Refer to the Windows
NT4.0 instniction manual for further details on adjusting the resolution,
refresh tale, and number of colors.

Adjusting the monitor’s fbsolutlon and color number

Adjust the monitor’s resolution and color number by referring to your
computer’s instruction manuai. The color number may vary according to
your computer or video board. The color palette setting and the actual
number of colors are as follows:

• High Color (16 bit)—► 65.535 colors

• True Color (24 bit) —► about 16.77 million colors
In true color mode (24 bit), speed may be slower.

Selecting the on-screen menu language (LANGUAGE/ INFORMATION)

English. French. German. Spanish, and Italian versions of the on
screen menus are available. The default setting is English.

1 Press the MENU button.

See page 9 for more information on using the MENU button.

rj CONTRAST / BR IGHTNESS

SH-$i2S/CEtO№R

tBV-SIZE/CENTER
nPIN/PIN BALANCE

QKEY/KEY BALANCE

Orotation

SZOOM

G3 COLOR

--♦RESET
Q LANGUAGE/INFORMATI ON
nDEGAUSS/CANCEL MOIRE

Press the +!- buttons to highlight Q LANGUAGE/ iNFORMATION and press the ENTER button.

See page 9 for more information on using the -W- and ENTER
buttons.

WSi

•ENGLISH -FRANÇAIS

•DEUTSCH -ITALIANO

•ESPAÑOL

sELECT-tga ExiT-»m

3 Press the ENTER button to seiect Q (LANGUAGE)

and press -U- buttons to seiect a language.

• ENGLISH

• FRANÇAIS: French

• DEUTSCH; German

• ESPAÑOL; Spanish

• ITALIANO: Italian

To close the menu

Press the MENU button once to return to the main menu, and twice to
return to normal viewing. If no bunons are pressed, the menu closes
automaticaliv after about 30 seconds.

To reset to English

See “Resetting the adjustments (RESET)" on page 12.

Customizing Your Monitor

You can make numerous adjustments to your monitor using the
on-screen menu.

\7] ZOOM (page 11)

Select the ZOOM menu to enlarge

or reduce the picture.

.SFI '

89 В

ZOOM

----------­1 26

=r¡ B

B

Navigating the menu ^

Press the MENU button to display the main MENU on your
screen. See page 9 for more information on using the MENU
button.

m-

m-

Hh—

Use the +/- and ENTER buttons to select one of the following
menus. See page 9 for more information on using the +/- and
ENTER buttons.

Q] CONTRAST/BRIGHTNESS

(page 9)

Select the CONTRAST/
BRIGHTNESS menu to adjust
the piaure’s contrast and

brightness.

•P CONTRAST/BRIGHTNESS

SH-5IZEfCENTEB»

itnV-SIZE/CENTER

nPIN/PIN BALANCE»—

• QKEY/KEY BALANCE
QROTATION«

>SZOOM

Q COLOR«------------------------------------

*^*^RESET

Q LANGUAGE/INFORMATIOHi

DEGAUSS/CANCEL MOIRE

.......................

.....................

...................

...............

CONTRAST/BRIGHTNESS

SELECT-»^ FXIT«BCT

I'i"

-Ö1

CONTRAST

В 26 О

60.0kHz/70.0Hz

1024X768

3] CCL:.~. 'page 11)

Select the COLOR menu to adjust
the picture s color temperature.
You car. use this to match the
monitor's colors to a pnnted
picture's colors.

RESET (page 12)

Select the RESET menu to reset
the adjustments.

53 LANGUAGE/INFORMATION

(page 7,15)

Select the LANGUAGE/
INFORMATION menu to choose
the on-screen menu's language
and display this monitor's

information box.

53 DEGAUSS/CANCEL MOIRE

(page 12)

Select the DEGAUSS/CANCEL
MOIRE menu to degauss the
screen and cancel the moire.

■usti- ЯН

тк

H "
G

B

MODE ALL В

____________EX I T«aiaa

LANGUAGE/ INFORMATION

■ENGLISH

•DEUTSCH

•ESPAÑOL

c;fi ргт^аяя

DEGAUSS'CANCEL MOIRE

SELECT«

6S00K 93»K

.... J П 5C

TT”: D 50

T«BQ

RESET

•FRANÇAIS

•ITALIANO

üg eg

DEGAUSS

ON В

Q 5 0

EX 1 Т«И1Ш

ЕХ1Т-*1ВЮ

ЕХ|Т«ВД

[2] H-SIZE/CENTER (page 10)

Select the H-SIZE/CENTER
menu to adjust the picture's
horizontal size and centering.

[a] V-SIZeCENTER (page 10)

Select the V-SIZE/CENTER
menu to adjust the picture's
vertical size and centering.

[4] PIN/PIN BALANCE (page 10)

Select the PIN/PIN BALANCE
menu to adjust the curvature
picture's sides.

KEY/KEY BALANCE (page 10)

Select the KEY/KEY BALANCE
menu to adjust the angle of the
picture's sides.

ROTATION (page 11)

Select the ROTATION menu to
adjust the picture's rotation.

H-SIZE/CENTER

e CD

H-SIZE

В

в 26 в

SFIFCT««a ЕХ1Т«ШЛ1

V-SIZE/CENTÊR

ITÌ

SELECT-авЯВ FYI

PIN/PIN BALANCE

ш в

V-SIZE

О 26 □

ш о

PIN

1 Т'фВВВВ

в 26 в

SELECT«®® EXIT«C3ZB

KEY/KEY BALANCE

Ct Q

KEY

В 26 □

В

О

a

SELECT«aüña ЕХ1Т«ШЯЧ

ROTATION 1

SELECT-»Srfra

ROTAT

О ■■=

в 26

а

ION

' " ; Qj \

в

ЕХ1Т«еЯ!Я 1

■ Displaying the current input signal

The horizontal and vertical frequencies of the current input signal
arc displayed in the CONTRAST/BRIGHTNESS menu. If the
signal matches one of this monitor's factory preset modes, the
resolution is also displayed.

the resolution­of the current

Input signal

CONTRAST/BRIGHTNESS

в; О-

CONTRAST

-the honzontal
and vertical
frequencies of
the current
Input signal

■ Using the MENU, ENTER, and +/- buttons

1 Select the menu you want to adjust.

Press the +/- buttons to highlight the desired menu. Press the
ENTER button to select the menu and adjustment items.

Adjusting the contrast and
brightness (CONTRAST/

BRIGHTNESS)

These settings are stored in memory for all input signals.

1 Press either one of the 3 (CONTRAST) +/- buttons.

The CONTRAST/BRIGHTNESS menu appears on the
screen.

2 Adjust the menu.

Press the +/- buttons to make the adjustment.

Close the menu.

Press the MENU button once to return to the mam menu, and
twice to return to normal viewing. If no buttons are pressed,
the menu closes automatically after about 30 seconds.

Resetting the adjustments

You can reset the adjustments using the RESET menu. See
page 12 for more information on resetting the adjustments.

CONTRAST/BRIGHTNESS

<t a

CONTRAST

B 26 0

60.OkHz/70.OHz
1024X768

■SELECT-kSM FXIT^tmi

2 Press the ENTER button to select ® (CONTRAST) or

9 (BRIGHTNESS).

3 Press the +/- buttons to adjust either the contrast

(O) or brightness (Q).

The menu automatically disappears after about 30 seconds.

Adjusting the horizontal size or
centering of the picture (H-SIZE/
CENTER)

These settings are stored in memory for the current input signal.

•

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the +/- buttons to highlight E H-SIZE/

CENTER, and press the ENTER button.

The H-SIZE/CENTER menu appears on the screen.

3 First press the ENTER button to select the desired

adjustment item. Then press the +!- buttons to make
the ad|ustment.

Select To n PIN

S H-SIZE adjust the horizontal size

pgj H-CENTER adjust the horizontal centering

Adjusting the curvature of the

picture’s sides (PIN/PIN BALANCE)

These settings are stored in memory to- ; current input signal.

1 Press the MENU button.

2 Press the +!- buttons to highr nt O PIN/PIN

3 First press the ENTER bi n to select the desired

Select

□ PIN BALANCE

Adjusting the angle of the picture’s

The main MENU appears on the sc- n.

BALANCE, and press the Eh “ IR button.

The PIN/PIN BALANCE menu oears on the screen.

adjustment item. Then prc :s the -H- buttons to make
the adjustment.

To

expand or contract the picture sides
shift the picture sides to the left or right

Adjusting the vertical size or
centering of the picture (V-SIZE/

CENTER)

These settings are stored in memory for the current input signal.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the -H- buttons to highlight (T| V-SIZE/

CENTER, and press the ENTER button.

The V-SIZE/CENTER menu appears on the screen.

3 First press the ENTER button to select the desired

adjustment item. Then press the +/- buttons to make
the adjustment.

Select To

HD
Q

V-SIZE
V-CENTER

adjust the vertical size
adjust the vertical centenng

sides (KEY/KEY BALANCE)

These settings are stored in memory for the current input signal.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the -t7- buttons to highlight O KEY/KEY

BALANCE, and press the ENTER button.

The KEY/KEY BALANCE menu appears on the screen.

3 First press the ENTER button to select the desired

adjustment item. Then press the -f/- buttons to make
the adjustment.

Select

OKEY

Q KEY BALANCE

To

adjust the picture width at the top of
the screen

shift the picture to the left or right at
the top of the screen

in

Adjusting the picture’s rotation (ROTATION)

Adjusting the coior of the picture (COLOR)

This setting is stored in memory for all input signals.

1 Press the MENU button.

The mam MENU appears on the screen.

2 Press the V- buttons to highlight O ROTATION,

and press the ENTER button.

The ROTATION menu appears on the screen.

3 Press the 47- buttons to rotate the picture.

Eniarging or reducing the picture (ZOOM)

This setting is stored in memory for the current input signal.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the 47- buttons to highlight ® ZOOM and

press the ENTER button.

The ZOOM menu appears on the screen.

3 Press the 47- buttons to enlarge or reduce the

picture.

Note

Adjustment .¡ops when the horizontal or venical size reaches its
maximum or minimum value:

The COLOR settings allow you to adjust the picture’s color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low. and bluish if the

temperature is high. This adjustment is useful for matching the
monitor's colors to a printed picture's colors.
This setting is stored in memory for all input signals.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the 47- buttons to highlight @ COLOR and

press the ENTER button.

The COLOR menu appears on the screen.

3 Press the 47- buttons to select a coior temperature.

The preset color temperatures are 5000K. 6500K, and 9300K.
Since the default setting is 9300K. the whites will change

from a bluish hue to a reddish hue as the temperature is
lowered to 6500K and 5000K.

4 If necessary, fine tune the color temperature.

First press the 47- buttons to select USER. Then press the
ENTER button to select R (red), G (green), or B (blue) and
press the 47- buttons to make the adjustment.

COLOR

I tm soooK

3 ; i • - f

G B

B B M
usFR.G-*esa

KOOK nOOK I
—I a so

----1 B 50

...

.

ExiT-»cBa

If you fine tune the color temperature, the new color settings
are stored in memory and recalled whenever you select
USER.

11

Additional settings (DEGAUSS/ CANCEL MOIRE)

You can manually degauss (demagnetize) the screen, and cancel
the moire.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the +!- buttons to highlight th DEGAUSS/

CANCEL MOIRE and press the ENTER button.

The DEGAUSS/CANCEL MOIRE menu appears on the
screen.

3 Press the ENTER button to select the desired

adjustment item.

Adjust the selected item according to the following

instructions.

Degaussing the screen

The monitor is automatically demagnetized when the power ts

turned on.

To manually degauss the monitor, first press the
ENTER button to select tf (DEGAUSS). Then press the
+ button.

The screen is degaussed for about 5 seconds. If a second degauss
cycle is needed, allow a minimum interval of 20 minutes for the
best result.

Cancelling the moire

If elliptical or wavy patterns appear on the screen, adjust the
moire cancellation ieyei.

To adjust the amount of moire cancellation, first press

the ENTER button to select HI (CANCEL MOIRE). Then
press the -t/- buttons until the moire effect is at a

minimum.

Resetting the adjustments (RESET)

This monitor has the following two reset methods. Use the

RESET menu to reset the adjustments.

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the +/- buttons to highlight RESET and

press the ENTER button.

The RESET menu appears on the screen.

Reset the settings according to the following instructions.

Resetting all of the adjustment data for the current input signal (MODE)

Press the - button.

The MODE item is selected. All of the adjustment data for the

current input signal is reset.
Note that the following items are not reset by this method:

• on-screen menu language (page 7)

• picture s rotation (page 11)

Resetting all of the adjustment data to factory

preset levels (ALL)

Press the + button.

The ALL item is selected. With the exception of the USER

settings in the COLOR menu, all of the adjustment data for all
input signals is reset to the factory preset levels.

Note

The monitor's buttons will not operate for about 5 seconds when ALL is
selected.

Moire is a type of natural interference which produces soh. wavy lines
on your screen. It may appear due to interference cietween the pattern
of the picture on the screen and the phosphor pitch pattern of the
monitor.

Example of moire

19

Trouble symptoms and remedies

If the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual.

Use the self-diagnosis function (page 16) if the following recommendations do not resolve the problem.

Symptom

No picture ^

If the (!) (power) indicator is not lit • Check that the power cord is properly connected.

If the NO INPUT SIGNAL message
appears on the screen, or if the (!)
(power) indicator is either orange or
alternating between green and
orange

If the OUT OF SCAN RANGE
message appears on the screen

If no message is displayed and the (!)
(power) indicator is green or flashing
orange

If using Windows 95/98

■f using a Micintosh system

Picture flickers, bounces,
oscillates, or is scrambled

Check these items

• Check that the (!) (poweri switch is in the ’on" position.

• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 6).

• Check that the HD 15 video input connector's pins are not bent or pushed in.

■Problems caused by the connected computer or other equipment

• The computer is in power saving mode. Try pressing any key on the computer keyboard.

• Check that the computer's power is "on."

• Check that the graphic board is completely seated in the proper bus slot.

■Problems caused by the connected computer or other equipment

• Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
frequency range to the following.
Horizontal; 30-70 kHz
Vertical: 48-120 Hz

• Use the Self-diagnosis function (page 16).

• If you replaced an old monitor with this monitor, reconnect the old monitor and do the
following. Install the Windows Monitor Information Disk (page 7) and select this monitor
(“CPD-1 lOGS” or “CPD-210GS”) from among the Sony monitors in the Windows 95/98
monitor selection screen.

• Check that the Macintosh adapter (not supplied) and the video signal cable are properly
connected (page 6).

• Isolate and eliminate any piotential sources of electric or magnetic fields such as other

monitors, laser printers, electric fans, fluorescent lighting, or televisions.

• Move the monitor away from power lines or place a magnetic shield near the monitor.

• Try plugging the monitor into a different AC outlet, preferably on a different circuit.

• Try niming the monitor 90° to the left or right.

Picture is fuzzy

14

■Problems caused by the connected computer or other equipment

• Check your graphics board manual for the proper monitor setting.

• Confirm that the graphics mode (VESA. Macintosh 16" Color, etc.) and the frequency of
the input signal are supported by this monitor (Appendix). Even if the frequency is within
the proper range, some video boards may have a sync pulse that is too narrow for the

monitor to sync correctly.

• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible piemre.

• Adjust the contrast and brightness (page 9).

• Degauss the monitor* (page 12).

• Decrease the moire cancellation effect (page 12).

Technical Features

Preset and user modes

When the monitor receives an input signal, ifrautomatically
matches the signal to one of the factory preset modes stored in the
monitor's memory to provide a high quality picture at the center
of the screen, (See Appendix for a list of the factory preset

modes.) For input signals that do not match one of the factory
preset modes, the digital Multiscan technology of this monitor
ensures that a clear picture appears on the screen for any timing in

the monitor s frequency range (horizontal: 30 - 70 kHz. vertical;
48 - 120 Hz). If the picture is adjusted, the adjustment data is

stored as a user mode and automatically recalled whenever the

same input signal is received.

Troubleshooting

Before contacting technical support, refer to this section.

If thin lines appear on your screen (damper wires)

The lines you are experiencing on your screen ar ormal for the

Trinitron monitor and are not a malfunction. T e are shadows
from the damper wires used to stabilize the ape :re grille and are
most noticeable when the screen's backgrour... ,s light (usually
white). The apenure grille is the essential element that makes a
Trinitron picture tube unique by allowing more light to reach the
screen, resulting in a brighter, more detailed picture.

Note for Windows users

For Windows users, check your video board manual or the utility

program which comes with your graphic board and select the

highest available refresh rate to maximize monitor perl'ormance.

Power saving function

This monitor meets the power-saving guidelines set by VESA.

ENERGY STAR, and NUTEK. If the monitor is connected to a
computer or video graphics board that is DPMS (Display Power

Management Signaling) compliant, the monitor will
automatically reduce power consumption in three stages as shown
below.

Power mode

normal

operation

I standby

2 suspend

3 active off*
power off

Power

consumption
< now

(CPD-2I0GS)
< 105 W

(CPD-1 lOGS)

< 15 W green and orange

< 15 W

<5 W

0 W

(i) (power) indicator

green

alternate
green and orange

alternate
orange
off

Damper wires

On-screen messages

If there is something wrong with the input signal, one of the
following messages appears on the screen. To solve the problem,
see ‘Trouble symptoms and remedies" on page 14.

»INFORMATION

OUT OF SCAN RANGE

The input signal condition

OUT OF SCAN RANGE

indicates that the input signal is not supported by the
monitor’s specifications.

NO INPUT SIGNAL

indicates that no signal is being input to the monitor.

’ Input signal condition

• When your computer enters the "active off mode, the input signal is
cut and NO INPUT SIGNAL appears on the screen. After 20 seconds,

the monitor enters the power saving mode.

13

Seif-diagnosis function

This monitor is equipped with a sell-diagnosis function, if there is

a problem with your monitor or computer, the screen will go
blank and the (1) (power) indicator will either light up green or

Hash orange. If the (1) (power) indicator is lit in orange, the

computer is in power saving mode. Tr^ pressing any key on the

keyboard.

3

(power) indicator

If the (power) indicator is green

1 Disconnect the video input cable, or turn off the

connected computer.

2 Press the Cl) (power) button to turn the monitor off

and on.

Specifications

CPD-110GS

CRT

Viewable image size

Resolution

Standard image area

Deflection frequency*

AC input voltage/current
Power consumption Max. 105 W

Dimensions Approx. 368 X 393 X 389 mm (w/h/d)

Mass
Plug and Play DDC1/DDC2B
Supplied accessories See page 6

0.25 mm aperture grille pitch
15 inches measured diagonally

90-degree deflection

Approx. 285 x2l4 mm (w/h)

(II */4x8 ’/2 inches)

14.0" viewing image
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines

Approx. 270 X 202 mm (w/h)
( 10 ^4 X 8 inches)
Horizontal: 30 to 70 kHz
Venical: 48 to 120 Hz

100 to 240 V.50-60 Hz. 1.6-0.8 A

( 14 ‘/2 X 15 ‘/2 X 15 -Vs inches)
Approx. 14 kg (30 lb 14 oz)

3 Press and hold the -i- button for 2 seconds before the

monitor enters power saving mode.

If all three color bars appear (red. green, blue), the monitor is
working properly. Reconnect the video input cables and check the
condition of your computer.

If the color bars do not appear, there is a potential monitor failure.

' inform your authorized Sony dealer of the monitor s condition.

If the c!) (power) indicator is flashing orange

Press the (!) (power) button to turn the monitor off and on.

If the (!) (power) indicator lights up green, the monitor is working
properly.

If the (!) (power) Indicator is still flashing, there is a potential
monitor failure. Count the number of seconds between orange
flashes of the (!) (power) indicator and inform your authorized
Sony dealer of the monitor's condition. Be sure to note the model
name and serial number of your monitor. Also note the make and

model of your computer and video board.

* Recommended horizontal and vertical timing condition

• Horizontal sync width should be more than 1.0 psec.

• Horizontal blanking width should be more than 3.6 psec.

• Vertical blanking width should be more than 5(X) psec.

CPD-210GS

CRT 0.25 mm aperture grille pitch

17 inches measured diagonally

90-degree deflection

Viewable image size

Resolution

Standard image area

Deflection frequency*

AC input voltage/current
Power consumption

Dimensions

Mass
Plug and Play
Supplied accessones See page 6

Recommended honzontal and vertical timing condition

• Horizontal sync width should be more than 1.0 psec.

• Horizontal blanking width should be more than 3.0 psec.

• Vertical blanking width should be more than 500 psec.

Approx. 327 X 243 mm (w/h)
(12^/8 X 9 ^/8 inches)

16.0" viewing image
Horizontal; Max. 1280 dots

Vertical: Max. 1024 lines

Approx. 312 X 234 mm (w/h)
(12^/8 X 9 */4 inches)
Horizontal: 30 to 70 kHz
Vertical: 48 to 120 Hz

100 to 240 V, 50 - 60 Hz. 1.7 - 0.9 A

Max. HOW

Approx. 406 X 431.5 X 420 mm (w/h/d)
(16 X 17 X 16^/8 inches)
Approx. 18.5 kg (40 lb 13 oz)
DDCI/DDC2B

1R

Design and specifications are subject to change without notice.

Symptom

Picture is ghosting

Check these items

• Eliminate the use of video cable extensions and/or video switch boxes.

• Check that all plugs are firmly seated in their sockets.

Picture is not centered or sized
properly

• Adjust the size or centenng (page 10). Note that some video modes do not fill the screen
to the edges.

Edges of the image are curved • Adjust the shape of the picture (page 10).
Wavy or elliptical pattern (moire)

is visible

• Cancel the moire (page 12).

■Problems caused by the connected computer or other equipment

• Change your desktop pattern.

Color is not uniform

• Degauss the monitor* (page 12). If you place equipment that generates a magnetic field,
such as a speaker, near the monitor, or if you change the direction the monitor faces, color
may lose uniformity.

White does not look white • Adjust the color temperature (page 11 ).

A hum is heard right after the
power is turned on

* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a

malfunction.

• This is the sound of the auto-degauss cycle. When the power is turned on. the monitor is
automatically degaussed for 5 seconds.

Displaying this monitor’s name, serial number,

and date of manufacture (INFORMATION)

1 Press the MENU button.

The main MENU appears on the screen.

2 Press the -W- buttons to highlight @ LANGUAGE/

INFORMATION and press the ENTER button.

The LANGUAGE/INFORMATION menu appears on the

screen.

3 Press the ENTER button to select O

(INFORMATION).

This monitor’s information box appears on the screen.

Example

LANGUAGE/ INFORMATION

6 e

MODEL :CPD*110GS

SERIAL:12345678
MANUFACTURED;1998-52

SELECT-HPga FXlT-»ggW

If the problem persists, call your authorized Sony dealer and give
the following information.

• Model name: CPD-llOGS or CPD-210GS

• Serial number

• Name and specifications of your computer and graphics board.

Appendix

Preset mode timing tabie

No. Resolution Horizontal

(dots X lines) Frequency Frequency Mode

1 640 X 480 31.5 kHz

640 X 480

720 X 400 31.5 kHz 70 Hz VGA-Text

3
4 800x600

800x600 53.7 kHz 85 Hz

5

832 X 624 49.7 kHz 75 Hz Macintosh 16"

6

7 1024x768
8 1024 x 768

1280X 1024 64.0 kHz

9

43.3 kHz 85 Hz

46.9 kHz 75 Hz

60.0 kHz 75 Hz

68.7 kHz

Vertical Graphics

60 Hz

85 Hz VESA
60 Hz VESA

VGA-G
VESA

VESA
VESA

Color

VESA

Sony^Mline http://www.wor1d.sony.com/

Sony Corporation

Printed in Japan
