Channel spacing200 kHz
Number of channelsE-GSM:174
DCS:374
Frequency stabilityTransmit frequency drift (synchronized)
< ± 0.1 p.p.m
RF output powerGSM: 2W
DCS: 1W
Battery lifeStandby: 30h – 130h standard battery
Talk time:1h30 – 3h40standard battery
Power requirements4.0 V (nominal)
Operating temperature-10°C to +55°C
Accessories operating temperature±0°C to +45°C
Battery pack charging temperature±0°C to +40°C
Dimensions88 mm × 49 mm × 21.5 mm
Weight82.5 g
Volume78 cm
E Model
Receive: 925 – 960 MHz
Receive: 1805 – 1880 MHz
50h – 220h extended battery
2h30 – 6h extended battery
3
<Supplied accessories>
• AC AdaptorQN-2TC
• Battery (std.)QN-Z5BPS
• Desk Top ChargerQN-Z5DTC
• Hand Strap
• AC Cable
Design and specifications are subject to change
without notice.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandøren.
Benytt samme batteritype eller en tilsvarende type
anbefalt av apparatfabrikanten.
Brukte batterier kasseres i henhold til fabrikantens
instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en likvärdig typ som
rekommenderas av apparattillverkaren.
Kassera använt batteri enligt gällande föreskrifter.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
V aihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
P ART NUMBERS APPEAR AS SHOWN IN THIS MANU AL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
2
Page 3
SECTION 1
GENERAL
Ver 1.1 2001.04
3
Page 4
Ver 1.1 2001.04
SECTION 2
GENERAL DESCRIPTIONS
2-1Multi-band :
CMD-Z5/Z18 support E-GSM 900 and DCS 1800 multi-band functionality.
Because the usage of multi-band depends on network capabilities, the phone is able to operate as a single band mobile in GSM 900 as well
as in DCS 1800; In addition, it supports the extra functionality required for multi-band mobile stations: Inter-band/ “seamless” hand-over,
channel assignment, cell selection and re-selection, all between both bands within a Public Land Mobile Network.
The manual and automatic PLMN selection in both bands is given.
The user does not need any special action to use the multi-band functionality of the phone.
Users are able to manually roam between PLMN’s operating in GSM 900 and DCS 1800 bands.
The CMD-Z18 is a phase II, GSM 900 class 4, DCS 1800 class 1 mobile phone.
The nominal maximum output power for GSM 900 is 2 W, for DCS 1800 1 W.
2-2Real Time Clock (RTC):
The real time clock is integrated into the phone.
When the mobile is switched on the RTC is powered via the CPP.
When the phone is powered down, the RTC is powered from the main battery via it’s own low quiescent current regulator.
When the main battery is low or removed, a back-up battery keeps the clock alive.
After the main battery is removed the RTC keeps the time for 20 days (ability value).
2-3Vibra Functionality
The vibrator is a 1.3 V device.
A general port pin of the SC1 controls the switch mode of the vibration motor. It is pow ered through regulator by an interf ace control unit.
If the mobile is in the phase of switching on or off the vibrator is off at all times.
2-4Battery Safety
The battery pack contains a safety circuitry. The charging circuitry and the safety circuitry together guarantee a double fail-safe battery
pack. This means that each component can be either short or open and still all the safety requirements will not be violated.
The safety concept protects against:
Over voltage: The charging is stopped when Battery Voltage (Vbat) reaches (4.24 V- 4.3 V). The char ging resumes when Vbat falls below
(4.06 V – 4.15 V).
Under voltage: When the cell voltage drops below (2.5 V – 2.7 V) the cell is disconnected for discharging.
Charging is still possible.
2-5Battery Capacity:
Standard Battery620 mAh typicalLi-ion QN-Z5BPS
Extended Battery1000 mAh typicalLi-ion QN-Z5BPE
The phone can be charged even during making phone calls.
However, the shortest charging time will be reached when the phone is switched off.
As the charging circuit is integrated in the battery pack, the phone cannot be powered up by the charger without the battery pack being
attached.
4
Page 5
2-6Accessory Interface
The table explains what kind of pins the phone supplies to the different accessories.
GNDCharge ACC_AudioAudioACCACCTXRXAGNDRFRF
PinspowerINOutIDDetect (OUT)(IN)GNDOUT
181/2314131169101219/2220
Travel charger
(QN-2TC)
CLC (QN-2CC)√√
√√
Desktop charger
(QN-Z5DTC)
Head set
(QN-2HS)
HFK
(QN-Z5HFK)
PCMCIA
(QN-2PCM)
EasyCom
(QN-2EC)
I/O connector layout
Connector view from base of phone
√√
√√√√√√√
√√√√√√√√√√
√√√√√√
√√√√√√
117
218
5
Page 6
Ver 1.1 2001.04
The connector comprises the following pins:
Detection:
The detection of accessory is done by the charge pin and the detect pin.
Any accessory with an active charge will wake up the phone, indicating the battery icon but can not be operated.
The insertion and removal of the charger (Cigar Lighter Charger, Desktop-Charger, AC-Charger) is detected via polling. To reduce the
power consumption the polling can take up to 5 sec.
The insertion and removal of other accessory is detected via an Interrupt. This detection is only possible when the phone is powered up.
ID:
The ID pin indicates what kind of accessory is connected.
ACC Power:
ACC-power has dif ferent functionality with different accessories. ACC-power supplies power to the headset (min.2.7 V and min. 10 mA)
or will be used as a signaling pin for the Hands Free Kit.
In the car-kit environment the ext. Vbat indicates that a phone call is accepted/in progress. This information is used by the car-kit to power
up the audio section of the car-kit, mute the car stereo and keep the car-kit powered up even when the ignition is switched off.
Due to the fact that the ID of the accessory is detected first, the ACC power is not current limited (protected).
RX and TX:
This is the communication interface to the PCMCIA card “QN-2PCM” or the PC-link cable “QN-2EC”.
Audio In and Audio Out
These pins build the audio interface to the Head-Set and the Hands Free Kit.
Audio IN:
T o limit the noise which is coupled on the Mic-line, the Mic amplif ier in the Hands Free Kit “QN-Z5HFK” and Head-set “QN-2HS” have
an output 220 mVrms into 40 kΩ.
Audio OUT:
The single ended output delivers 350 mV into a 10 kΩ load.
2-7RF Antenna Connector / Antenna Switch
T o connect an external antenna for accessory use, the CMD-Z5/Z18 contains a stable RF connector with an inte grated mechanical switch.
This connector is placed on the I/O connector. The integrated mechanical switch switches between the helix antenna and the external RF
antenna connection. The switching criterium is mechanical pressure from the RF accessory connector.
2-8Languages
The CMD-Z5 supports the following languages:
• Bulgarian• French• Portuguese
• Croatian• German• Rumanian
• Czech• Greek• Russian
• Danish• Hungarian• Slovakian
• Dutch• Italian• Spanish
• English• Norwegian• Swedish
• Finnish• Polish• Turkish
The CMD-Z18 supports the following languages:
• English
• Chinese (Simplified)
• Chinese (Traditional)
6
Page 7
SECTION 3
ACCESSORIES
3-1Hands Free Kit
The Hands Free Car Kit QN-Z5HFK is designed to offer superior speech quality and Full Duplex speech transmission. In Full Duplex
operation both parties can speak simultaneously. The Car Kit has a RF connector for the use of an external antenna to offer a high quality
radio link to the base station. It is a one box design for quick and easy installation.
Specifications:
Input voltageDC 12 V – 24 V, negative ground
Rated output voltage5.0 V
Rated output current500 mA
3-2Cigar Lighter Charger
The QN-2CC Cigar Lighter Charger is only for use in vehicles equipped with a 12-24 volt negative ground electrical system. This Charger
is intended for charging purposes only and not for making/receiving phone calls in the car.
Charging Time:
Full charging can take up to ~3 hours, but occasionally the battery icon is not indicated as charged completely if the CMD-Z18 is switched
on or if the temperature is outside the 0°C – 45°C operating range.
Specifications:
Input voltageDC 12 – 24 V, negative ground
Rated output voltage5.0 V
Rated output current500 mA
3-3Travel Charger
The Travel Charger QN-2TC is a small and lightweight device. It has a full Input Voltage Range from 110 – 240 Volts.
Using a standard cable makes the connection to the mains socket.
Specifications:
Input voltage110 to 240 V
Rated output voltage5.0 V
Rated output current500 mA
3-4EasyCom (Soft Modem)
The EasyCom QN-2EC Data Cable connects the phone to a PC via a RS 232 cable. It supports SMS and Phonebook function as well as
Full Data/Fax Capability 9.6 Kbps.
This configuration is available for Windows 95/98.
3-5PCMCIA Card
The functionality of the PC Card QN-2PCM is the same as the Data Cable QN-2EC.
3-6Headset
The Headset QN-2 HS supports full Handsfree Operation, Auto Answering to incoming calls, as well as with microphone muting function.
3-7Desk Top Charger (not for sale by itself)
The desktop charger QN-Z5 DTC can charge either the Standard or Extended battery with the phone attached.
The Desk Top Charger gets its power supply via the Power adapter or the Travel Charger QN-2TC.
Specifications:
Input voltageDC 5 V
Rated output voltage5.0 V
Rated output current500 mA
7
Page 8
3-8Extended Battery
Specifications:
Lithium Ion BatteryQN-Z5 BPE
Maximum output voltageDC 4.2 V
Nominal output voltageDC 4.0 V
Capacity1000 mAh
3-9Standard Battery
Specifications:
Lithium Ion BatteryQN-Z5 BPS
Maximum output voltageDC 4.2 V
Nominal output voltageDC 4.0 V
Capacity620 mAh
8
Page 9
SECTION 4
JIGS AND TOOLS

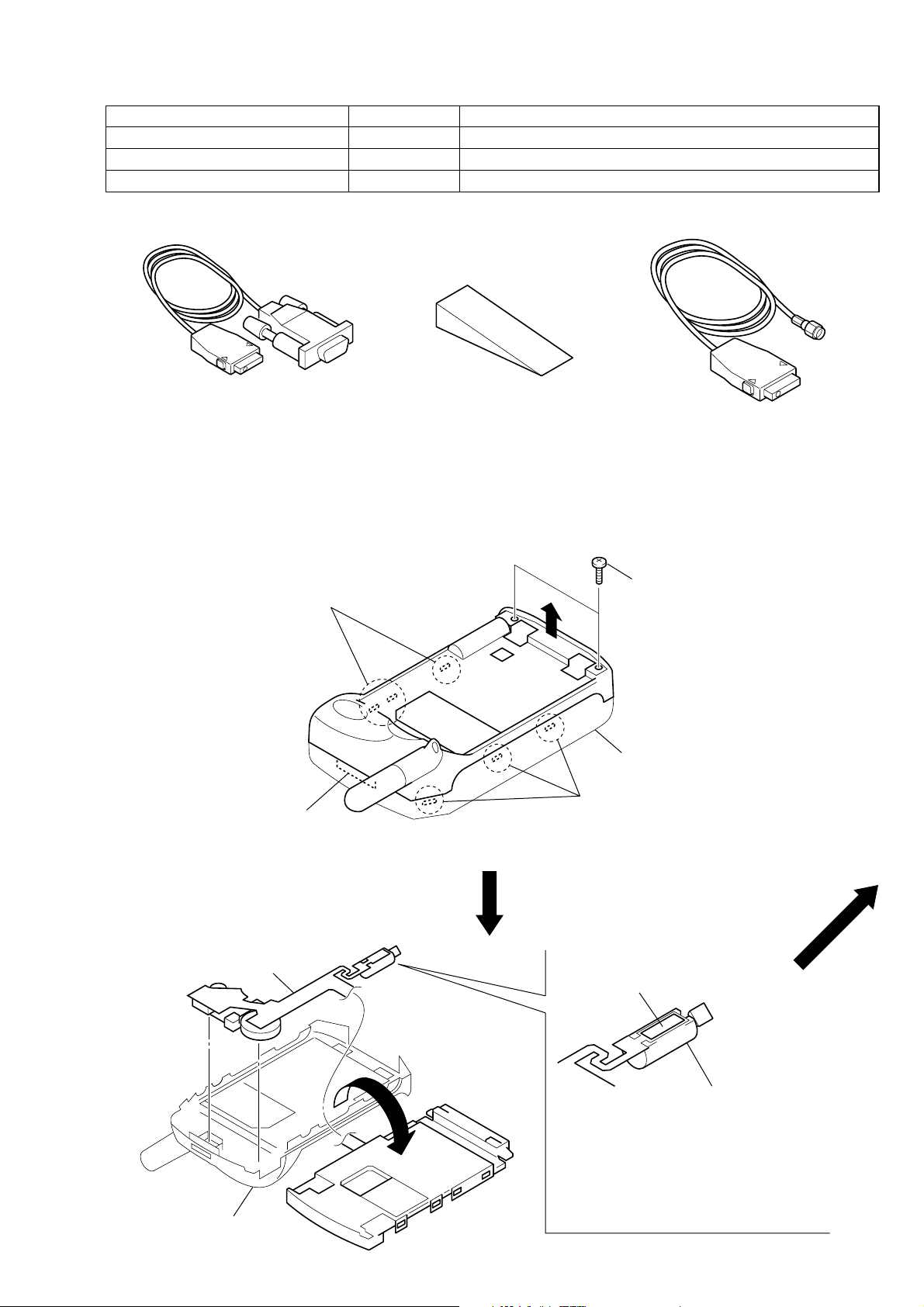

DescriptionPart No.Remark
DATA TRANSFER JIG1-792-172-11NECESSARY FOR SOFTWARE UPDATE
HOOK RELEASE JIG3-043-180-01FOR HOUSING OPENING
TESTER CONNECTION CABLE1-792-726-11FOR CONNECTION TO GSM MEASURE EQUPMENT
DATA TRANSFER JIG
HOOK RELEASE JIG
SECTION 5
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
CABINET (UPPER)
2 three claws
4 claw
TESTER CONNECTION CABLE
1 two screws
3
5 cabinet (upper)
2 three claws
CABINET LOWER
2 flex PWB, ass’y
3 cabinet lower
1
ground terminal point of contact
cushion (vibra-motor)
Note 1: Do not touch the ground point of contact
on the flex PWB, ass’y.
Note 2: Do not make the ground point of contact
get into the cushion (vibra-motor).
Note 3: Clearn the ground point of contact
with alcohol by cotton fixed to a stick
when it is touched by greasy hands.
9
Page 10
D
w
Ver 1.1 2001.04
LCD
3 LCD guide
2 two claws
4 LC
1
2 two claws
MAIN BOARD ASS’Y
3
6
conductive sheet (speaker)
5
net (speaker)
4
main board ass’y
flex PWB ass’y
2
claw
2
cla
1
Open connector.
10
Page 11
INTERFACE TO GSM-TESTER
CMD-Z5/Z18 Level 1 Testing with GSM Tester
CMD-Z5/Z18
Battery Pack
Test SIM Card
SECTION 6
+
+
Ver 1.1 2001.04
Tester Connection
Cable
1-792-726-11
GSM – TESTER
RF cable output
RF input Connector
Level Test Procedure with GSM TESTER recommendation:
•Simulate GSM call processing – to check the functionality of transmit and receive audio of loudspeaker and microphone.
•Basic GSM transmission & reception parameter testing – to ensure handset's performance compile with standard GSM specification.
11
Page 12
Ver 1.1 2001.04
SECTION 7
PROGRAMMING INSTRUCTIONS
7-1Requirement
• PC (486 type or higher) with Microsoft “Windows” Operating System
• One COM-port free for usage
• The Data Transfer Jig (p/n 1-792-172-11)
PREPARATION FOR SOFTWARE UPDATE
7-2Hardware Set-up
• Copy all the files to the PC (define own directory).
• Connect the Data Transfer Jig to the PC COM-port (COM 1 or COM 2) and the CMD-Z18 external connector.
• Attach battery pack to CMD-Z18; the CMD-Z5/Z18 is powered up from the battery pack.
• The initial settings of the flash.exe program may not correspond with the normally correct settings. It is highly advisable to
check the settings first (See page 12 for Software Set-up).
7-3Software Set-up
Start the program Gl1Loader.exe by double-clicking its icon on the Explorer in Windows.
• Download Software to Mobile
• Check Load Option to “Download to Mobile”
• Click “START”
• Select a file to download
Usually, you can download only a kind of file.
“nonvm.sre” Software without NVM area.
• Flash erase area is automatically calculated with the contents of the file.
• Connect CMD-Z5/Z18 and set battery pack, and then start loading.
Settings can be saved to
“flash.ini” in the windows
directory.
12
Page 13
SECTION 8
SAVE PERSONAL DAT A IN MOBILE
Check Load Option to “Save Data in Mobile”
Click “ST ART”
Select or input file to save data.
Connect CMD-Z5/Z18 and set battery pack, then start reading data from Mobile.
And then save read data in the selected file.
The read data can be downloaded to Mobile with this loader.
Ver 1.1 2001.04
13
Page 14
CMD-Z5/Z18
Ver 1.1 2001.04
SECTION 9
EXPLODED VIEW
NOTE:
• The parts with no reference in the exploded
view are not supplied.
• The construction parts of an assembled part
are indicated with a collation number in the
remark column.
LCD1
3
7
4
6
5
2
• Abbreviation
HK : Hong Kong model
MY: Malaysia model
SP : Singapore model
TW : Taiwan model
main board ass'y
8
20
9
22
10
14
ANT101
23
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
