FM/AM
TOP

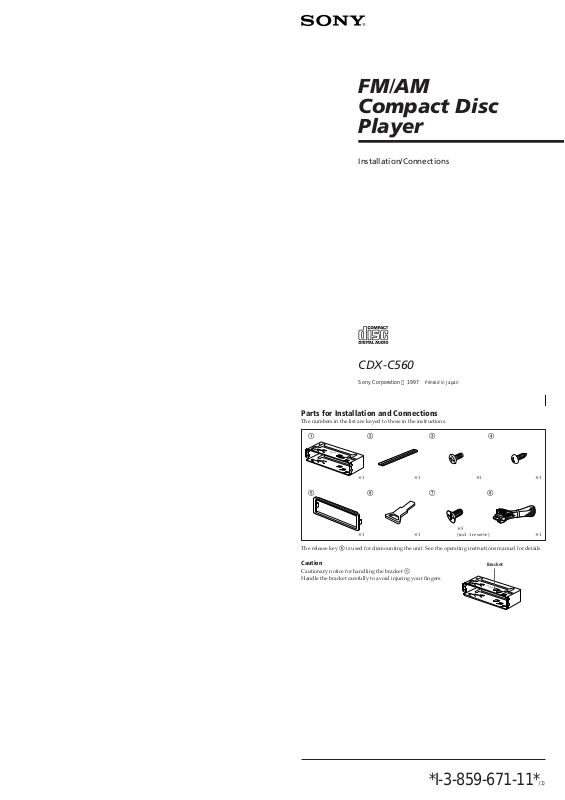

Compact Disc
Player
Installation/Connections
CDX-C560
Sony Corporation 1997 Printed in Japan
Parts for Installation and Connections
The numbers in the list are keyed to those in the instructions.
1
TOP
5
The release key 6 is used for dismounting the unit. See the operating instructions manual for details.
× 1
× 1
2
6
× 1
× 1
3
7
× 1
× 5
(incl. 1 reserve)
4
× 1
8
× 1
Caution
Cautionary notice for handling the bracket 1.
Handle the bracket carefully to avoid injuring your fingers.
Bracket
*I-3-859-671-11*(1)
Installation
TOP
Precautions
• Do not tamper with the four holes on the upper surface of the unit. They are for tuner adjustments to be
done only by service technicians.
• Choose the installation location carefully so that the unit will not hamper the driver during driving.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or
hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
How to Detach and Attach the Front Panel
Before installing the unit, detach the front panel.
Mounting angle adjustment
Adjust the mounting angle to less than 20°.
To detach
Before detaching the front panel, be sure to press (OFF) to turn the unit. Then press (RELEASE), slide the
front panel a little to the left, and pull it off toward you.
To detach
(OFF)
(RELEASE)
Mounting Example
Installation in the dashboard
182 mm
231
To attach
Align the parts A and B, and push the front panel until it clicks.
To attach
Fire wall
Dashboard
B
A
2
max. size M4 × 6 mm
3
TOP
1
With the TOP marking up
53 mm
Bend these claws, if necessary.
Mounting the Unit in a Japanese Car
You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.
With nippers or similar,
1
cut off the claws on
both side of the unit.
2
7*
max. size
5 × 8 mm
TOYOTA
to dashboard/center console
4
1
5
First attach 5 to the unit, then insert the unit into 1.
NISSAN
7*
max. size
5 × 8 mm
to dashboard/center console
Claws
7*
max. size
Bracket
Bracket
Support
Existing parts supplied to your car
* To prevent malfunction, install only with the supplied screws 7 . Do not use an electric or impact screwdriver.
5 × 8 mm
Bracket
Bracket
Existing parts supplied to your car
7*
max. size
5 × 8 mm
Connections
Caution
•This unit is designed for negative ground 12 V DC operation only.
•Before making connections, disconnect the ground terminal of the car battery to avoid short circuits.
•Connect the yellow and red power input leads only after all other leads have been connected.
•Be sure to connect the red power input lead to the positive 12 V power terminal which is energized
when the ignition key is in the accessory position.
•Run all ground wires to a common ground point.
•Connect the yellow cord to a free car circuit rated higher than the unit’s fuse rating. If you connect this
unit in series with other stereo components, the car circuit they are connected to must be rated higher
than the sum of the individual component’s fuse rating. If there are no car circuits rated as high as the
unit’s fuse rating, connect the unit directly to the battery. If no car circuits are available for connecting
this unit, connect the unit to a car circuit rated higher than the unit’s fuse rating in such a way that if the
unit blows its fuse, no other circuits will be cut off.
•The use of optional instruments with this product will increase eye hazard.
If Your Car has No Accessory Position on the Ignition Key Switch
— POWER SELECT Switch
The illumination on the front panel is factory-set to be turned on even when the unit is not being played.
However, this setting may cause some car battery wear if your car has no accessory position on the
ignition key switch. To avoid this battery wear, set the POWER SELECT switch located on the bottom
of the unit to the B position, then press the reset button. The illumination is reset to stay off while
the unit is not being played.
Note
The caution alarm for the front panel is not activated when the POWER SELECT switch is set to the B position.
Connection Diagram
For connecting two or more changers, the source selector XA-C30 (optional) and the BUS cable RC-61
(1 m) or RC-62 (2 m) (optional) are necessary.
Example 1 Set the LINE OUT/IN SELECT switch to position 2
EQ OUT
CDX-C560
BUS CONTROL
IN
Digital pre-amplifier
Préamplificateur
numérique
XDP-U50D
LINE IN
(EQ IN)
FRONT
LINE IN
(EQ IN)
REAR
Example 2 Set the LINE OUT/IN SELECT switch to position 1
BUS
CONTROL IN
Front speakers
Rear speakers
Front speakers
When a Equalizer or DSP (Digital Signal Processor) etc. is Connected
— LINE OUT/IN SELECT Switch
Set the LINE OUT/IN SELECT switch, which is on the underside of the unit, to position 2, so that the
LINE OUT/LINE IN (EQ IN) terminal will function as LINE IN (EQ IN) terminal.
Change the position with a jeweler’s screwdriver, etc.
Reset Button
When the installation and connections are over, be sure to press the reset button with a ball-point pen etc.
TV tuner unit
XT-40V
BUS
AUDIO IN
CD/MD changer
CDX-C560
Example 3 Set the LINE OUT/IN SELECT switch to position 1
BUS
AUDIO IN
CD/MD changer
Changeur CD/MD
BUS
CONTROL IN
LINE OUT
FRONT
CDX-C560
LINE OUT
REAR
Rear speakers
Front speakers
Rear speakers
Reset button
Power amplifier
Front speakers Rear speakers
Power amplifier
Example 4 Set the LINE OUT/IN SELECT switch to position 2
CD/MD changer
Power amplifier
Digital pre-amplifier
XDP-U50D
Power amplifier
CD/MD changer
Front speakers
Rear speakers
EQ OUTBUS CONTROL IN
CDX-C560
For details about the connection, refer to the operating instructions of XDP-U50D (not supplied).
Connection Example
BUS cable (not supplied)
CD/MD changer
Rotary remote RM-X2S
(not supplied)
RCA pin cord (not supplied)
BUS CONTROL IN
REMOTE IN
Fuse (10 A)
BUS
AUDIO IN
LINE OUT
FRONT/LINE
IN (EQ IN)
FRONT
8
RCA pin cord (RC-63 (1 m), RC-64 (2 m) or RC-65 (5 m)) (not supplied)
EQ OUT
When connecting digital
pre-amplifier
LINE OUT
REAR/LINE
IN (EQ IN)
Digital pre-amplifier
XDP-U50D
REAR
L
from car antenna
Rear speakers
R
Power amplifier
Power amplifier
to a car’s illumination signal
Be sure to connect the black ground to it first
Left
Front speakers
Right
ILLUMINATION
Orange/white
White
Gray Red
Blue/white striped
Blue
Sky blue
RCA pin cord (RC-63 (1 m), RC-64 (2 m) or
RC-65 (5 m)) (not supplied)
Max. supply current 0.3 A
Max. supply current 0.1 A
AMP REM
ANT REM
TEL MUTE
Front speakers
To connect to AMP REMOTE IN of the optional power amplifier.
This connection is only for amplifiers. Connecting any other system may
damage the unit.
to the power antenna control lead or power supply lead of antenna
booster amplifier
<Note> In case of without power antenna, or antenna booster, not
necessary to connect this lead.
to the interface cable of a car telephone
to the +12 V power terminal which is energized in the accessory
position of the ignition key
Be sure to connect the black earth lead to it first
Left
Rear speakers
Right
Notes on the control leads
• The power antenna control lead (blue) supplies +12 V DC when you turn on the tuner.
• A power antenna without relay box cannot be used with this unit.
Memory hold connection
When the yellow power input lead is connected, power will always be supplied to the memory circuit even when the ignition key
is turned off.
Green
Purple
Yellow
Black
to the +12 V power terminal which is energized at all times
Be sure to connect the black earth lead to it first.
to a metal point of the car
First connect the black earth lead, then connect the yellow and red
power input leads.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities. Otherwise, the speakers may be
damaged.
• Do not connect the terminals of the speaker system to the car chassis, and do not connect the terminals of the right speaker with
those of the left speaker.
• Do not attempt to connect the speakers in parallel.
• Do not connect any active speakers (with built-in amplifiers) to the speaker terminals of the unit. Doing so may damage the
active speakers. Therefore, be sure to connect passive speakers to these terminals.
