OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D’EMPLOI

CDC-Z127 YU

STEREO CAR CD RECEIVER RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA AUTOMOVIL

ENGLISH ESPAÑOL FRANÇAIS

OWNER’S RECORD

For your convenience, record the model number and serial number (you will find them on the bottom side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. CDC-Z127 Serial No.

8C-KCH-901-01 011120ATM-OX

PRECAUTIONS

• Use only in a 12-volt DC negative-ground electrical system.

• Disconnect the vehicle’s negative battery terminal while mounting and connecting the unit.

• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

• Do NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.

• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

• When your vehicle has been parked in direct sunlight resulting in a considerable rise in the temperature inside, allow the unit to cool off before operating it.

• Keep the volume at a level at which you can hear outside warning sounds (horns, sirens, etc.).

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna. — Increase the separation between the equipment

and receiver.

— Connect the equipment into an outlet on circuit

different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV

technician for help.

TABLE OF CONTENTS

BASIC OPERATION, AUDIO AND CLOCK

ADJUSTMENT ..................................................... 2

RADIO OPERATION ................................................. 3

CD PLAYER OPERATION ........................................ 4

AUXILIARY EQUIPMENT ......................................... 5

OTHER FUNCTION .................................................. 5

TROUBLESHOOTING .............................................. 5

MAINTENANCE ........................................................ 5

SPECIFICATIONS .................................................... 6

Note

Some buttons are assigned two or more functions. For detailed descriptions, refer to the related pages.

CD Notes

• Playing a defective or dusty CD can

cause dropouts in sound.

• Hold CDs as illustrated.

• Do NOT touch the unlabeled side.

• Do NOT attach any seal, label or data protection sheet

to either side of CD.

• Do NOT expose a CD to direct sunlight or excessive

heat.

• Wipe a dirty CD from the center outward with a

cleaning cloth. Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch (8 cm) CDs.

• NEVER insert a 3-inch CD contained in the adapter or

any irregularly shaped CD. The unit may not be able to eject it, resulting in a malfunction.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

In addition to ordinary CDs, CD-Rs or CD-RWs can be read by this unit. However, NEVER use a CD-R or CD-RW that contains no data or data in the wrong format, such as MP3 or other computer files.

ENGLISH

BASIC OPERATION, AUDIO AND CLOCK ADJUSTMENT

PWR/MUTE SEL

AUDIO CONTROL

i/k

BAND

Turning the unit on/off

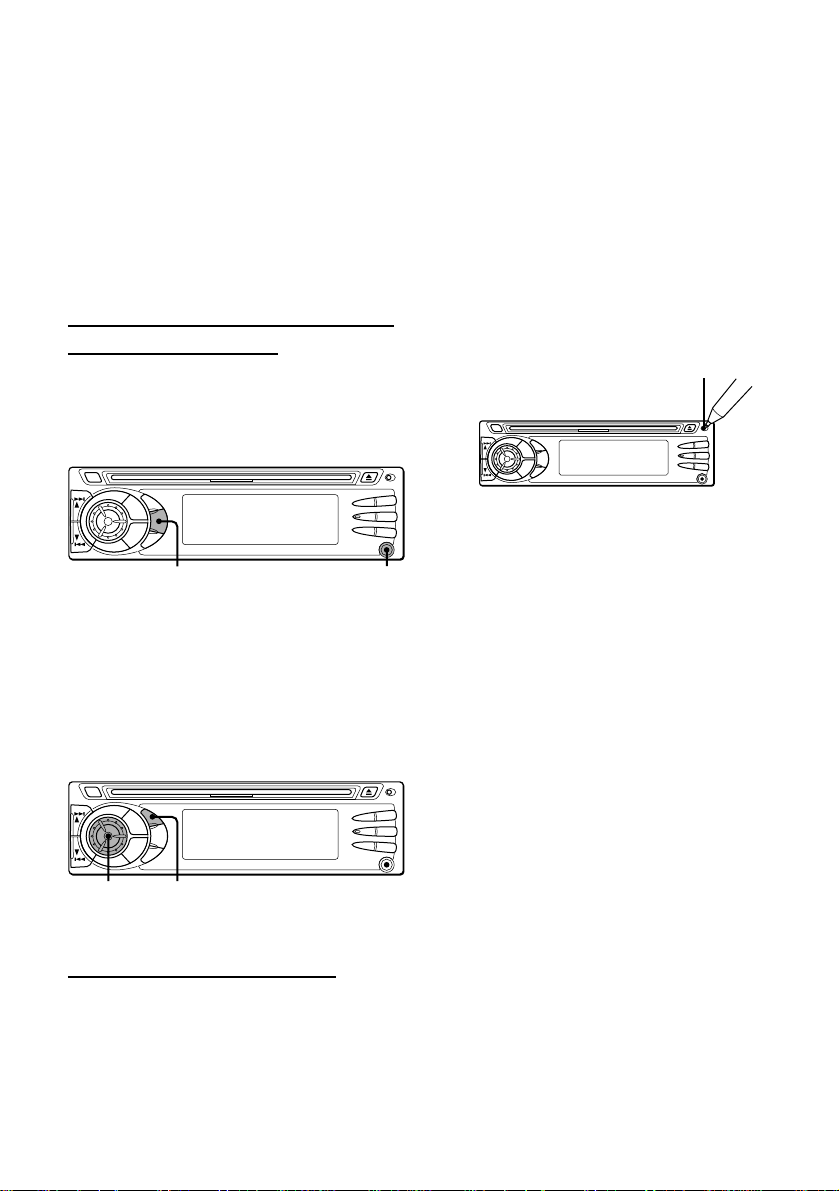

• Press PWR/MUTE to turn on the unit. The unit also turns on when you insert a CD.

• Press and hold PWR/MUTE until the unit turns off.

Note

Most operations described in this manual require the unit to be turned on before starting the operation, unless explicitly stated otherwise.

DISP

SRC

1 Press SEL repeatedly to select the mode to be

adjusted. Pressing SEL cycles through the modes. The selected mode’s indicator flashes.

2 Turn AUDIO CONTROL to increase/decrease the

level or to select on/off for the selected mode.

Note

Adjust the level or select on/off within 5 seconds, or the selected mode will return to previous state.

Aligning the source levels

(Source Level Adjuster)

Volume may vary each time you change the source mode. In this case, you can align each source mode’s volume to almost the same level.

1 Press SRC or BAND repeatedly to select the desired

mode.

2 Press DISP while pressing SEL.

“LA 0” appears in the display.

3 Turn AUDIO CONTROL to adjust the level.

Note

Adjust the level within 5 seconds, or the selected mode will be canceled.

Changing the source mode

1 Press SRC.

Pressing SRC cycles through source modes in the following order:

FM1 (FM2/FM3/AM1/AM2) → CD* → AUX

↑

* “CD” does not appear in the display when there is no

CD in the unit.

Adjusting the volume

1 Turn AUDIO CONTROL.

VOL (volume) indicator flashes.

Muting the sound

1 Press PWR/MUTE briefly.

MUTE indicator flashes.

To restore volume, briefly press PWR/MUTE again.

Adjusting sound

You can select the following modes for adjusting sound depending on the music you listen to: BASS (low frequencies), TRE (high frequencies), BAL (left/right), FAD (front/ rear) and H-BASS (high bass).

Restoring the factory settings

1 Turn off the unit. 2 Press and hold DISP until “LA --” appears in the

display.

Note

You can restore the factory settings only for VOL, BASS, TRE, BAL, FAD, and H-BASS, and aligned source volume levels.

Muting button beep sounds

1 Turn off the unit. 2 Press and hold SEL until “bEEP” appears in the

display.

3 Turn AUDIO CONTROL to select on (level indicators

appear) or off (level indicators disappear).

4 Press SEL.
