OWNER’S RECORD

For your convenience, record the model number and serial number (you will find them on the right side of yourset) inthespace provided below. Please referto them when you contact your AIWA dealer in case of difficulty.

45Yu

Model No. [CDC-X145 ‘eria’ ‘“ ~

Welcome

Thank you foryourpurchasing thisAIWA product. To optimize the performance of this unit, please read through this manual carefully.

In addition to this operating instructions manual, be sure to refer to the separate installation and connections manuals as well.

PRECAUTIONS

● This unit is designed to be operated ona 12-volt

DC negative-ground electrical system only.

● To prevent short-circuiting, disconnect the

negative car battery terminal until the unit has been mounted and connected completely.

● When replacing the fuse, be sure to use one

whose amperage rating is identical. Use of a fuse of higher amperage may cause serious damage to the unit.

● Do NOT attempt to disassemble this unit. Laser

rays from the optical pickup are dangerous to the eyes.

● Make sure that pins or other foreign objects do

not get inside the unit; they may cause malfunctioning, or a safety hazard such as electrical shock or exposure of laser rays.

● When your car was parked in direct suntight

resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.

● Keep the volume at such a level that you can

hear outside warning sounds (horns, sirens, etc.).

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there isno guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures

— Reorient or relocate the receiving antenna. — Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on

circuit different from that towhich the receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

CAUTION

Modificafionsoradjustmentstothis product, which are not expressly approved bythe manufacturer, may void the user’s right or authority to operate this product.

1 ENGLISH

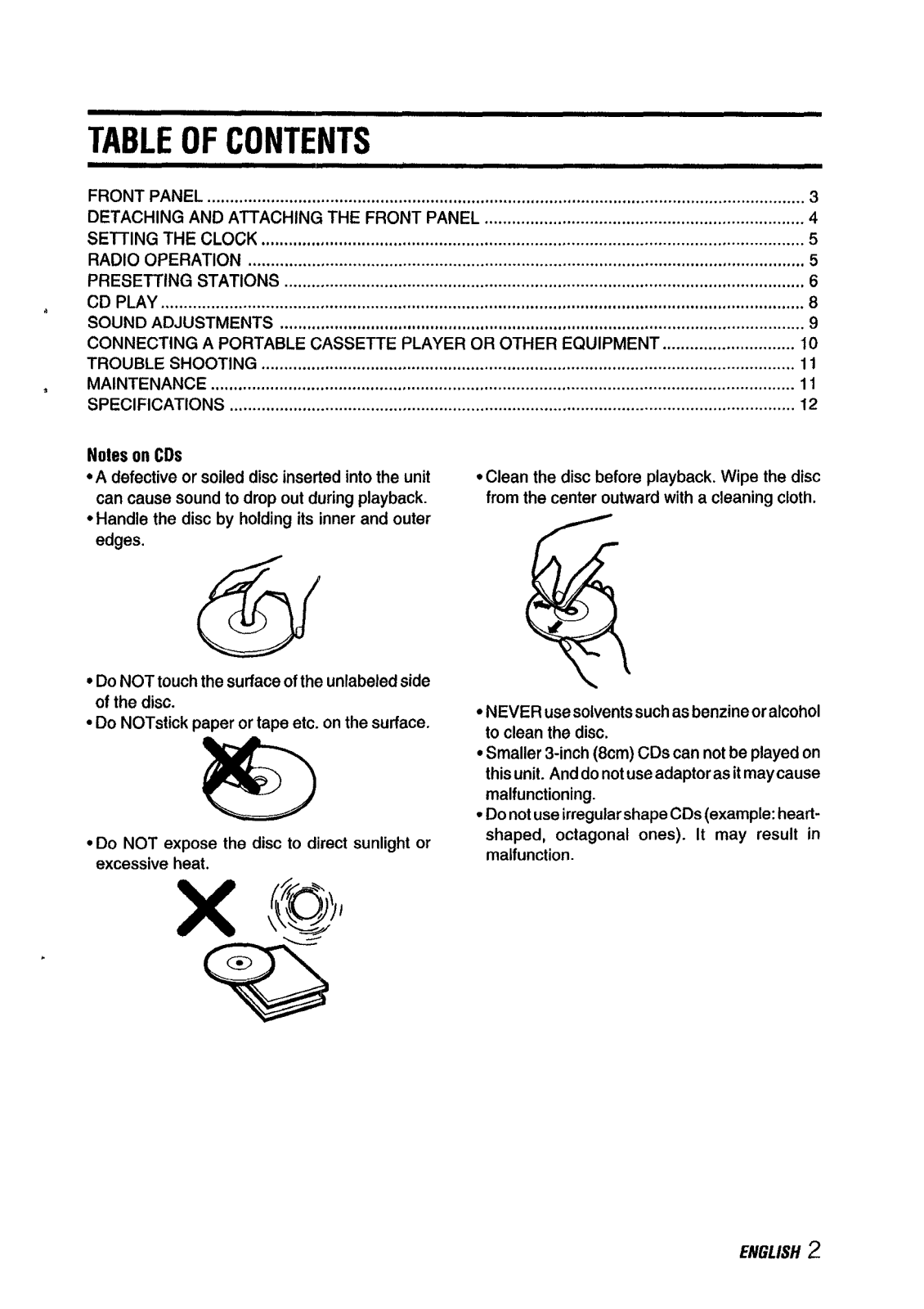

TABLE OF CONTENTS

FRONT PANEL ................................................................................................................................... 3

DETACHING AND ATTACHING THE FRONT PANEL ...................................................................... 4

SE17NG THE CLOCK .......................................................................................................................5

RADIO OPERATION .......................................................................................................................... 5

PRESETTING STATIONS .................................................................................................................. 6

CD PLAY ............................................................................................................................................. 8

SOUND ADJUSTMENTS ................................................................................................................... 9

CONNECTING A PORTABLE CASSETTE PLAYER OR OTHER EQUIPMENT ............................. 10

TROUBLE SHOOTING ..................................................................................................................... 11

MAINTENANCE ................................................................................................................................ 11

SPECIFICATIONS ............................................................................................................................ 12

Notes on CDs

● A defective or soiled disc inserted into the unit

can cause sound to drop out during playback.

●Handle the disc by holding its inner and outer

edges.

@!ii

● Do NOT touch the surface of the unlabeled side

of the disc.

● Do NOTstick paper or tape etc. on the surface.

?!!9

●DO NOT expose the disc to direct sunlight or

excessive heat.

● Clean the disc before playback. Wipe the disc

from the center outward with a cleaning cloth.

c NEVER use solvents such as benzine oralcohol

to clean the disc.

● Smaller 3-inch (8cm) CDS can not be played on

this unit. And do not use adaptor as it maycause malfunctioning.

● Do not use irregular shape CDs (example heart-

shaped, octagonal ones). It may result in malfunction.

ENGLISH 2

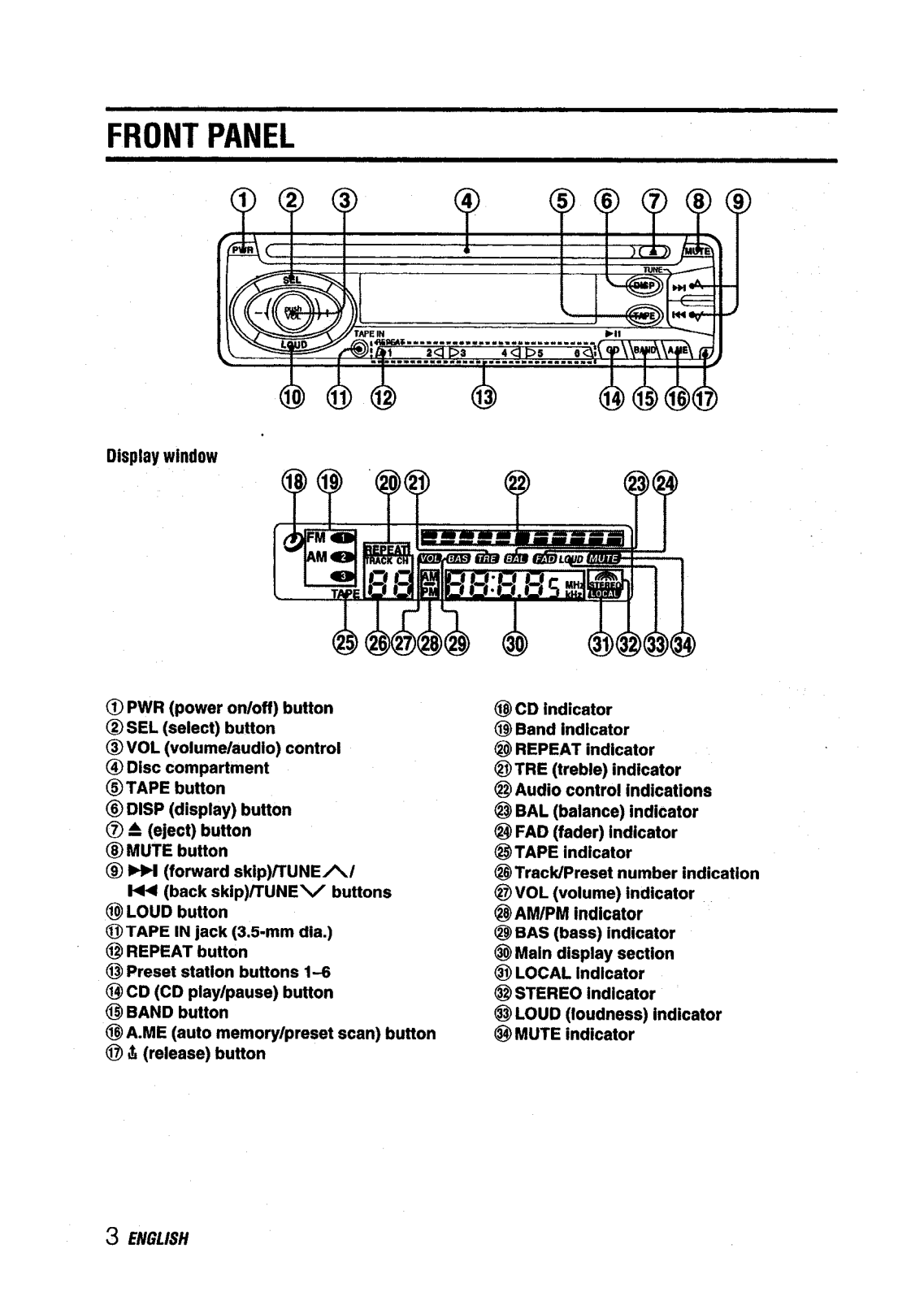

FRONT PANEL

Display whtdow

@)PWR (power otioff) button

@ SEL (select) button

@VOL (voIume/eudio) control

@Diet compartment

@TAPE button

@ DISP (display) button

@)= (eject) button

@MUTE button

@)W (forward skip)/TUNEA/

W (back akip)fiUNEV buttons @LOUD button @TApE IN jack (3.5-mm dia.)

@ REPEAT button @Preset station buttons 1-6

@CD (CD play/pause) button @BAND button @ A.ME (auto memorylpreset scan) bunon @ I?I(release) button

3 ENGLISH

@CD indicator @Band indicator

@ REPEAT indicator @TRE (treble) indicator @Audio control indications

@ BAL (balance) indicator @ FAD (fader) indicator @ITAPE indicator @Track/Preset number indication @ VOL (volume) indicator

@AM/PM indicator @ BAS (bass) indicator @Main display section

@LOCAL indicator @STEREO indicator @LOUD (Ioudnesa) indicator @MUTE indicator

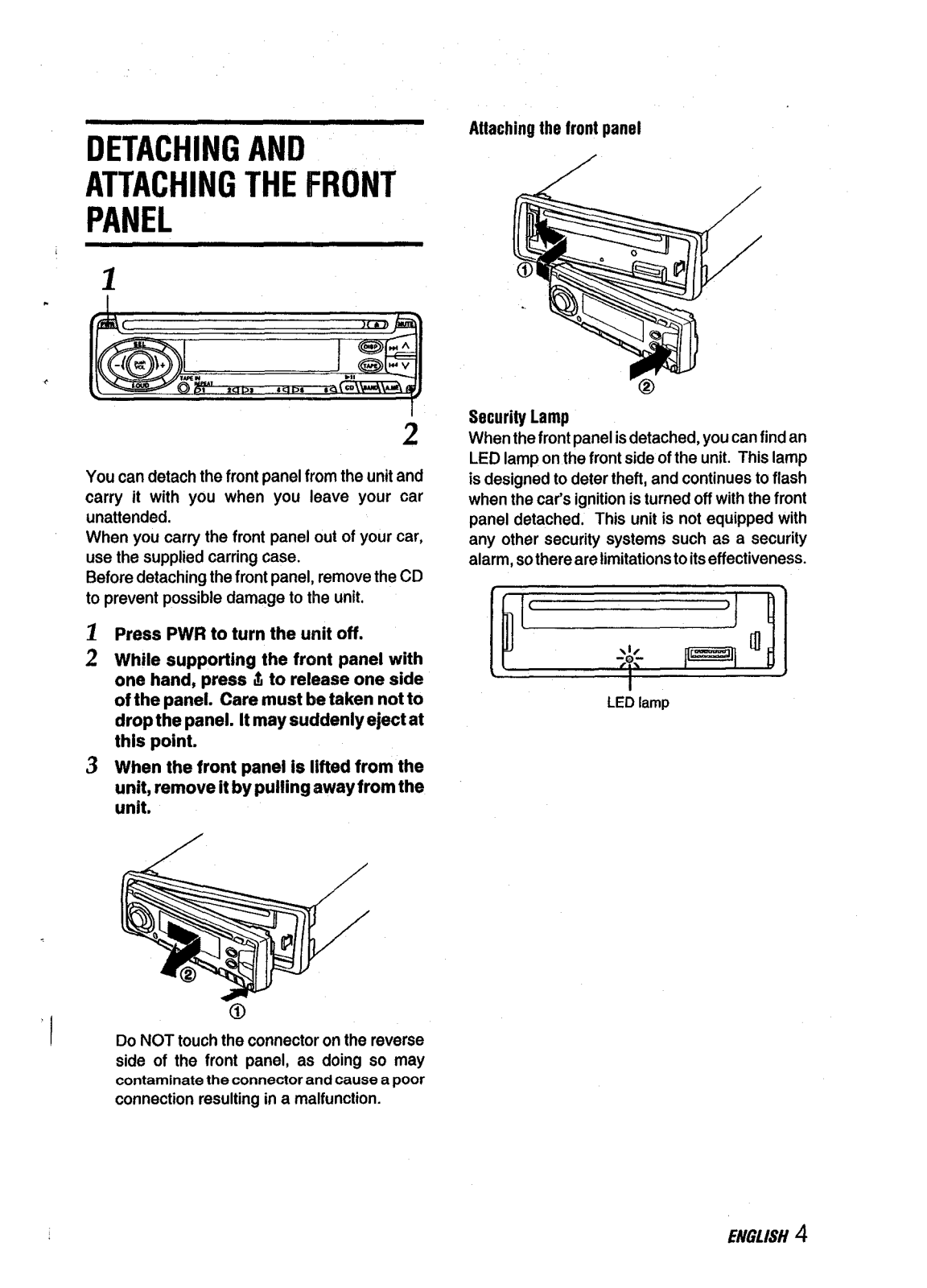

DETACHING AND

ATTACHING THE FRONT

PANEL

You can detach the front panel from the unit and carry it with you when you leave your car

unattended.

When you carry the front panel out of your car,

use the supplied earring case. Before detaching the front panel, remove the CD

to prevent possible damage to the unit.

Prees PWR to turn the unit off.

While supporting the front psnel with

one hand, prese * to release one side

of the penel. Csre must be taken not to

drop the panel. [t msysuddenlyeject at this point.

When the front panel ie lifted from the

unit, remove it by pulling swsyfrom the unit.

Attachingthe frontpanei

SecurityLamp

When the front panel is detached, you can find an

LED lamp on the front side of the unit. This lamp is designed to deter theft, and continues to flash when the car’s ignition is turned off with the front panel detached, This unit is not equipped with any other security systems such as a security alarm, sothere are limitations to its effectiveness.

LEDlamp

‘1

Do NOT touch the connector on the reverse side of the front panel, as doing so may contaminate the connector and cause a poor connection resulting in a malfunction.

ENGLISH 4
