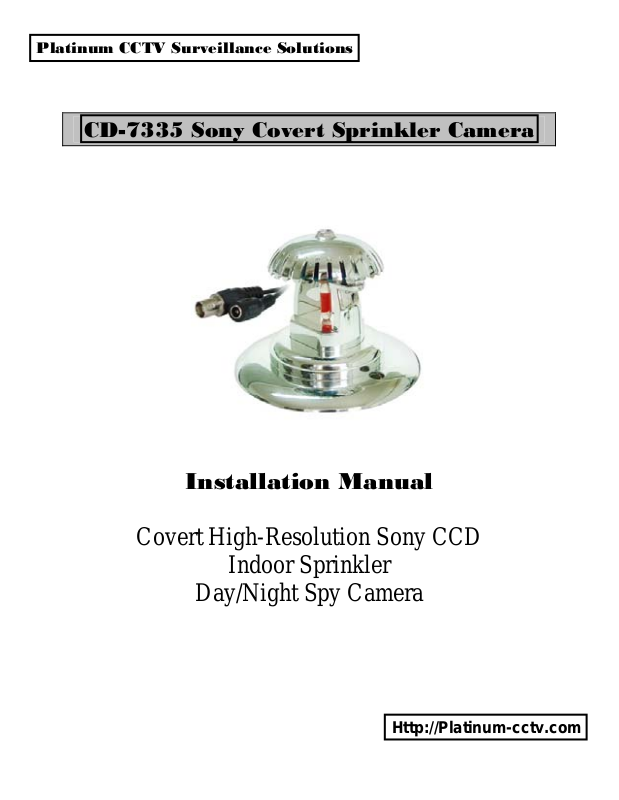

Platinum CCTV Surveillance Solutions
CD-7335 Sony Covert Sprinkler Camera
Installation Manual
Covert High-Resolution Sony CCD
Indoor Sprinkler
Day/Night Spy Camera
Http://Platinum-cctv.com
Platinum CCTV Surveillance Solutions
CD-7335 Sony Covert Sprinkler Camera
Image Sensor 1/4” SONY CCD Sensor
Number of Pixels NTSC: 537 (H) x 505 (V)
Lens 4.3mm (~80 degrees) Pinhole Lens
Sync System Internal Synchronization
Resolution 420 TVL
Picture Area 4.9 x 3.7mm
Video Output 1.0Vp-p75Ω
S/N Ratio More than 48 dB
Scan Frequency 60 Hz
Exposure Automatic
White Balance Automatic
Useable
Illumination
Power Source DC 12V 100mA
0.5 Lux (F:1.2)
Installation Notes
• For Indoor Use Only
• Disassembly of camera is not recommended
• Handle lens carefully with gloves to prevent damage
from oil on your hands
• Handle with care
• Never touch lens directly
• Clean the lens occasionally with a dry micro-fiber
cloth, or plastic cleaner only – Do not use abrasivetype cleaners as they will scratch the lens
