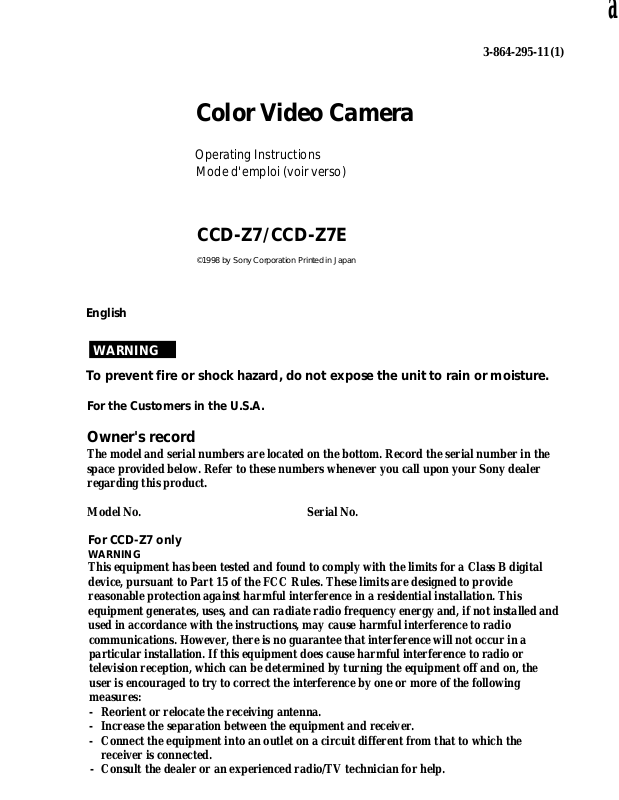

Sony CCD-Z7 User Manual

Color Video Camera

Operating Instructions
Mode d'emploi (voir verso)

CCD-Z7/CCD-Z7E

©1998 by Sony Corporation Printed in Japan

a

3-864-295-11(1)

English

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

For the Customers in the U.S.A.

Owner's record

The model and serial numbers are located on the bottom. Record the serial number in the
space provided below. Refer to these numbers whenever you call upon your Sony dealer

regarding this product.

Model No.

For CCD-Z7 only

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Serial No.

CAUTION

You are cautiorrecfffiat'ariy changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.

Note on TV color systems

The TV color systems differ from country to country.
CCD-Z7 is an NTSC system Color Video Camera.
CCD-Z7E is a PAL system Color Video Camera.
To view the playback picture on a TV, use the correct color system TV.

Connections

This video camera is designed exclusively for the Digital Still Image Capture Adaptor.
When using the video camera, be sure to connect it to the CAMERA terminal as illustrated.
Incorrect connection might cause the video camera or the capture adaptor to break down.

Refer to the operating instructions of the Digital Still Image Capture Adaptor.
