Sony BDV-T77, BDV-E770W User Manual

4-178-242-11(1)

The software of this system may be updated in the future. To find out details on any available updates, please visit: http://www.sony.com/bluraysupport/

Printed in Malaysia

Blu-ray Disc/DVD Home Theatre System

Operating Instructions

BDV-E770W / T77

(1)

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ven tilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Indoor use only.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc / DVD Home Theatre System is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This appliance is classified as a CLASS 3R LASER product. Visible and invisible laser radiation is emitted when the laser protective

housing is opened, so be sure to avoid direct eye exposure.

This marking is located on the laser protective housing inside the enclosure.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.

Precautions

On power sources

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

These following indications are located on the rear exterior.

This symbol is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to

alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located at the rear exterior of the control unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. BDV-E770W/BDVT77

Serial No.______________

The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with FCC technical regulations.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursu ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving

antenna (aerial).

– Increase the separation between

the equipment and receiver.

– Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an

experienced radio/TV technician for help.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider th an the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/ accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ENERGY STAR is a U.S. registered mark.

As an ENERGY

STAR Sony Corporation has determined that this product meets the ENERGY STAR energy efficiency.

partner,

guidelines for

For the wireless transceiver (EZWRT10/EZW-RT10A)

This equipment must not be colocated or operated in conjunction with any other antenna or transmitter.

This equipment com plies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65.

This equipment should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

For the USB Wireless LAN Adapter (UWABR100)

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

To prevent radio interference to the licensed service, this device is intended to be operated ind oors and away from windows to provide maximum shielding. E quipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Only use Wireless LAN indoors when using it with IEEE 802.11a (5 GHz).

High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and

5650-5850 MHz and these radars could cause interference and/or damage to this device.

This device uses 5 GHz band for wireless LAN communication and the maximum gain of th e antenna in this device is 5 dBi.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body (excluding extremities: hands, wrists and feet).

This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.

If you have any questions about this product, contact Sony Customer Information Service Center at 1800-222-7669 or visit http:// www.sony.com/ on the Internet.

The telephone number below is for FCC-related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model: UWA-BR100

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-9422230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Copyrights and Trademarks

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license

from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license

under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535;

7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

• This system incorporates HighDefinition Multimedia Interface

(HDMI

) technology. HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc.

• “BD-LIVE” and “BONUSVIEW” are trademarks of Blu-ray Disc Association.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,” “DVD+R,” “DVDR,” “DVD VIDEO,” and “CD” logos are trademarks.

• “BRAVIA” is a trademark of Sony Corporation.

• “AVCHD” and the “AVCHD” logo are trademarks of Matsushita Electric Industrial Co., Ltd. and Sony Corporation.

• “S-AIR” and its logo are trademarks of Sony Corporation.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

• “PLAYSTATION” is a trademark of Sony Computer Entertainment Inc.

• Music and video recognition technology and related data are provided by Gracenote

. Gracenote is the industry s tandard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Grac enote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• “PhotoTV HD” an d the “PhotoTV HD” logo are trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

About These Operating Instructions

• The instructions in these Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• In this manual, “disc” is used as a general reference for BDs, DVDs, Super Audio CDs, or CDs unless otherwise specified by the text or illustrations.

• The instructions in this manual are for BDV-E770W and BDV-T77. BDV-E770W is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, “BDVE770W.”

• The items displayed on the TV screen may vary depending on the area.

• The default setting is underlined.

• The system is compatible with the S-AIR function, which allows transmission of sound between S-AIR products wirelessly. For details on the S-AIR funct ion, see “Using an S-AIR Product” (page 39).

• Notes or instructions for the surround amplifier, surround back amplifier, or S-AIR receiver in these Operating Instructions refer only to when the surround amplifier, surround back amplifier, or S-AIR receiver is used.

Table of Contents

About These Operating Instructions ....... 5

Unpacking............................................... 7

Index to Parts and Control ...................... 8

Getting Started

Step 1: Installing the System .......14

Step 2: Connecting the System ... 17 Step 3: Setting up the

S-AIR Wireless System...........24

Step 4: Performing the Easy

Setup ........................................25

Step 5: Selecting the Source .......26

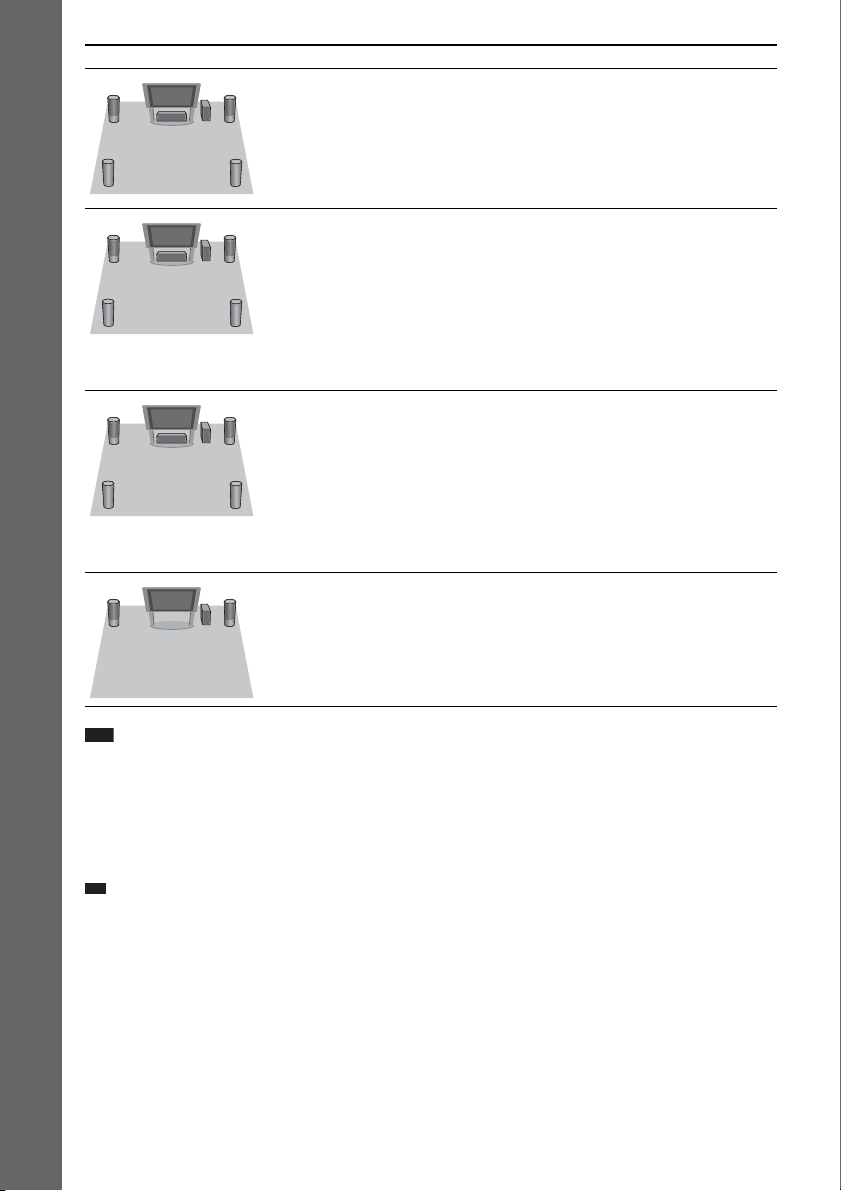

Step 6: Enjoying Surround

Sound .......................................27

Playback

Playing a Disc ....................................... 29

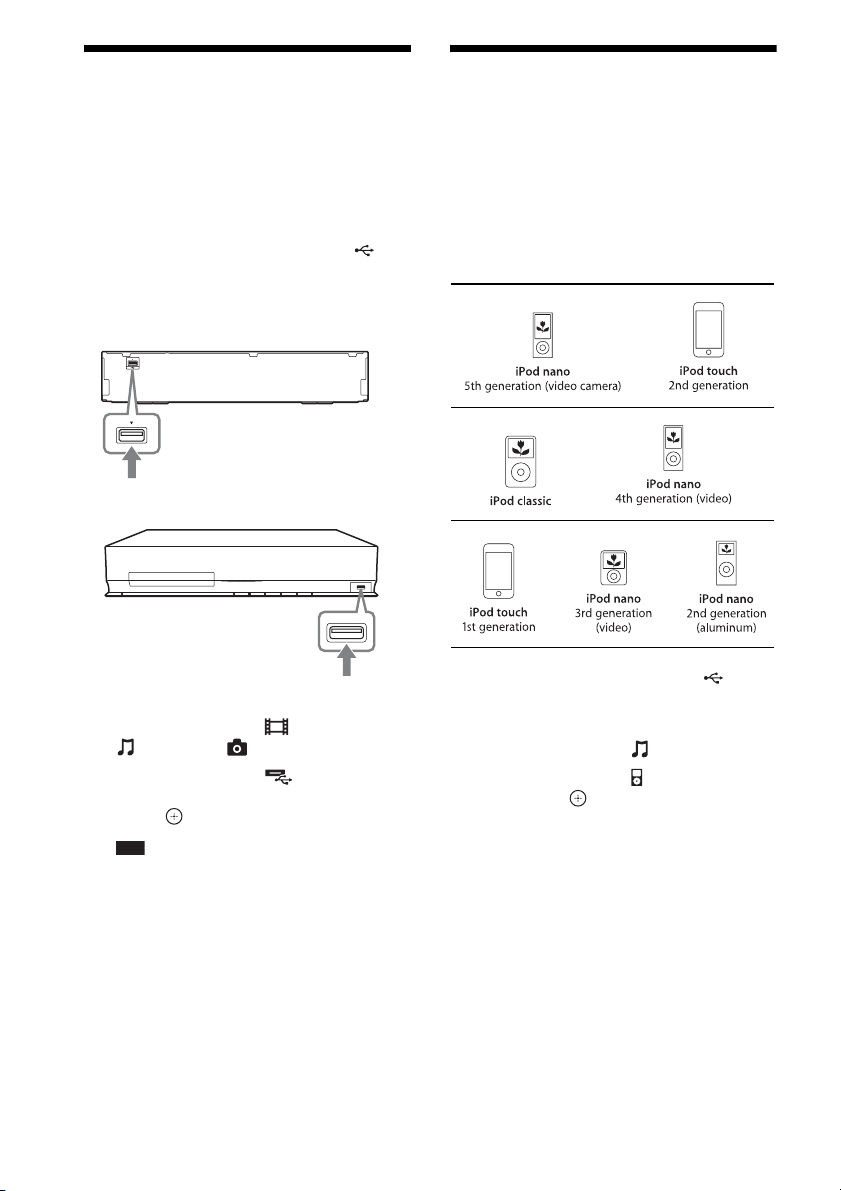

Playing from a USB Device.................. 30

Enjoying an iPod...................................30

Playing via a Network........................... 31

Available Options ................................. 32

Sound Adjustment

Selecting the Effect to Suit

the Source ....................................... 34

Selecting the Audio Format, Multilingual

Tracks, or Channel..........................34

Enjoying Multiplex Broadcast

Sound..............................................35

Using the Sound Effect......................... 35

Tuner

Listening to the Radio...........................37

External Audio Device

Using an S-AIR Product ....................... 39

Other Operations

Using the Control for HDMI Function for

“BRAVIA” Sync ............................43

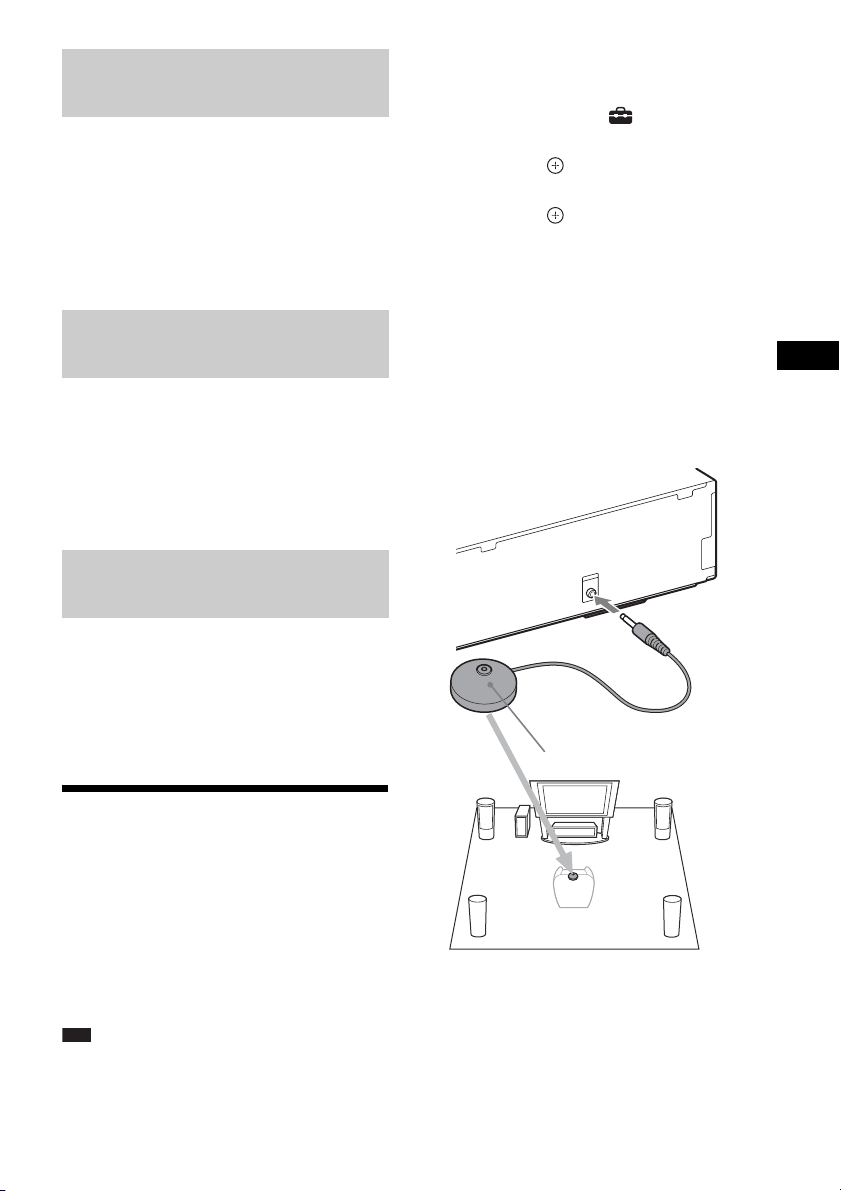

Calibrating the Appropriate Settings

Automatically .................................45

Setting the Speakers .............................. 46

Using the Sleep Timer ..........................48

Deactivating the Buttons on

the Unit ........................................... 48

Controlling Your TV with the Supplied

Remote ........................................... 48

Saving Power in Standby Mode ........... 49

Settings and Adjustments

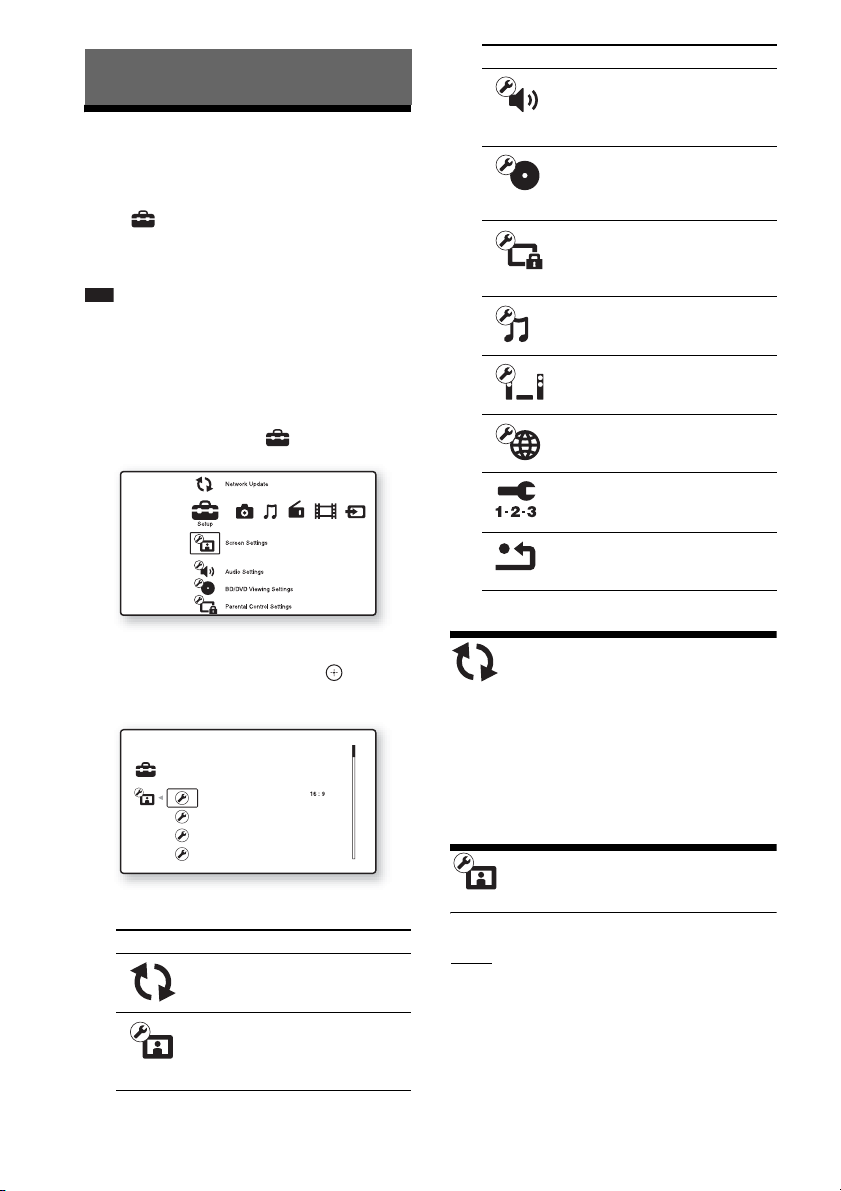

Using the Setup Display ....................... 50

[Network Update]................................. 50

[Screen Settings]................................... 50

[Audio Settings].................................... 51

[BD/DVD Viewing Settings] ............... 52

[Parental Control Settings] ................... 53

[Music Settings].................................... 53

[System Settings].................................. 53

[Network Settings]................................ 55

[Easy Setup].......................................... 55

[Resetting] ............................................ 55

Additional Information

Precautions ........................................... 56

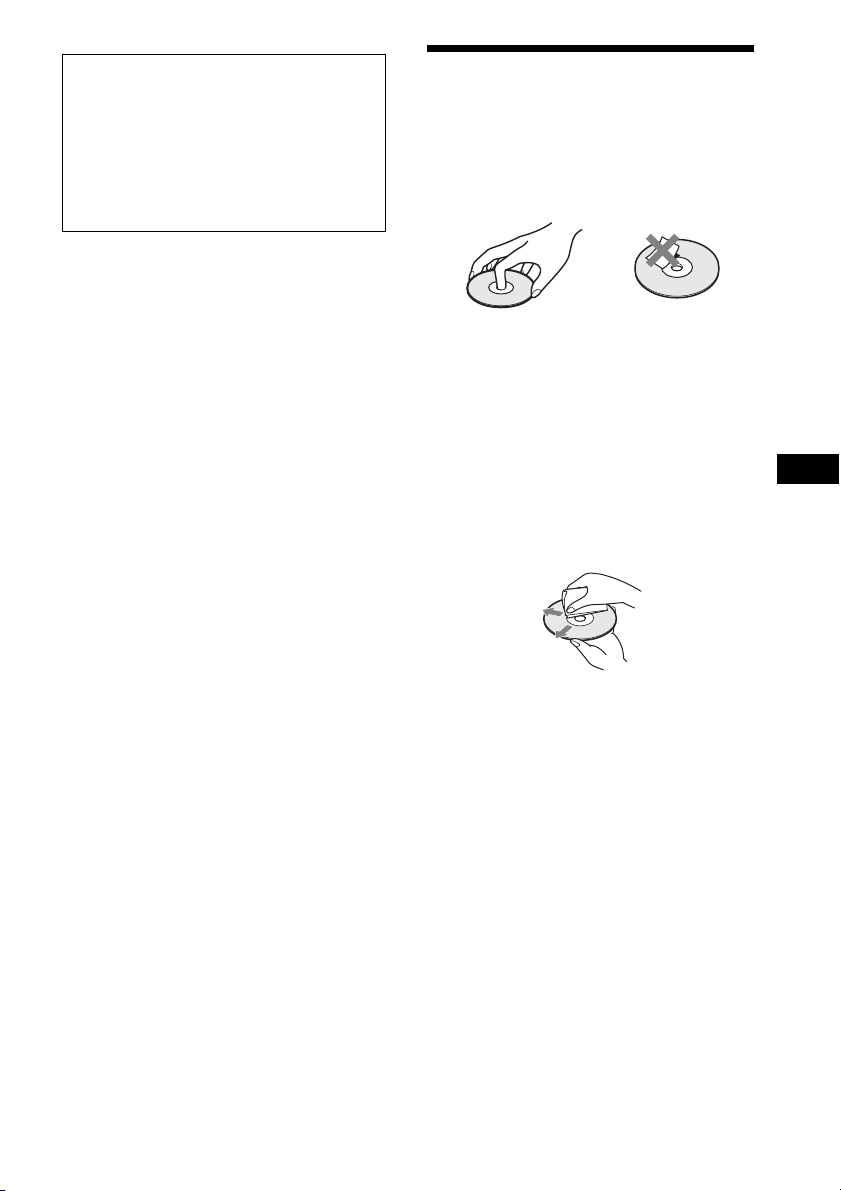

Notes about the Discs ........................... 57

Troubleshooting.................................... 58

Playable Discs ...................................... 65

Playable Types of Files ........................ 66

Supported Audio Formats..................... 67

Video Output Resolution ...................... 67

Specifications ....................................... 68

Language Code List.............................. 70

Glossary................................................ 71

Index ..................................................... 74

Unpacking

• Front speakers (2)

• Surround speakers (2)

• Center speaker (1)

• Subwoofer (1)

• FM wire antenna (aerial) (1)

• Speaker cords (6, white/red/ blue/gray/green/purple)

• Video cord (1)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Surround amplifier (1)

• Wireless transceivers (2)

• Operating Instructions

• Quick Setup Guide

• To stabilize S-AIR reception

• End user license agreement

• Easy Setup Disc (DVD)

• USB Wireless LAN Adapter (UWA-BR100)

• UWA-BR100 External cable

For BDV-T77

• HDMI cable (1)

Preparing the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment.

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

Front panel

FUNCTION VOLUME VOLUME

A "/1 (on/standby)

Turns on the unit, or sets it to standby mode.

B Play operation buttons

Z (open/close) (page 29)

Opens or closes the disc tray.

N (play)

Starts or re-starts playback (resume play). Plays a slideshow when a disc containing

JPEG image files is inserted.

x (stop)

Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.

FUNCTION

Selects the playback source.

VOLUME +/–

Adjusts the system’s volume.

C (USB) port (page 30)

Used for connecting a USB device.

D Front panel display E (remote sensor) F Power indicator

Lights up while the system is turned on.

G Disc tray (page 29)

Front panel display

About the indications in the front panel display

A Displays the current sound format. B Lights up when outputting 1920 ×

1080p/24 Hz video signals.

C Lights up when outputting 720p/1080i/

1080p video signals from the HDMI OUT jack or 720p/1080i video signals from the COMPONENT VIDEO OUT jacks.

D Lights up when the HDMI OUT jack is

correctly connected to an HDCP (Highbandwidth Digital Content Protection)compliant device with HDMI or DVI (Digital Visual Interface) input.

E Lights up when a station is received.

(Radio only) (page 37)

F Lights up when stereo sound is

received. (Radio only) (page 37)

G Flashes when the sleep timer is set.

(page 48)

H S-AIR indicator (only when the wireless

transceiver is inserted into the unit)

Lights up during wireless transmission. Flashes when [Standby] is set to [On] and the system is in standby mode while wireless transmission between the unit and S-AIR receiver is not activated. (page

39)

I Displays system’s status such as

chapter, title, or track number, time information, radio frequency, playing status, surround setting, etc.

J Lights up when repeat play is

activated.

K Displays system’s playing status. L Lights up when muting is on.

Rear panel

SPEAKERS

FRONT R

FRONT L

SUBWOOFER CENTER

LAN(100)

COMPONENT VIDEO OUT

SAT/CABLE

DIGITAL IN

COAXIAL

VIDEO OUT

PB / CBPR / C

DIGITAL IN

OPTICAL

ARC

OUT

COAXIAL

ANTENNA

A. CAL MIC

ECM-AC2

S-AIR ID

ABC

EZW-RT10

AUDIO

AUDIO INRL

A (USB) port (page 30) B LAN (100) terminal (page 23) C COMPONENT VIDEO OUT jacks (page

18)

D VIDEO OUT jack (page 18) E HDMI OUT jack (page 18) F EZW-RT10 slot (page 22) G AUDIO (AUDIO IN L/R) jacks (page 20)

H S-AIR ID switch (pages 24, 39) I A.CAL MIC jack (pages 25, 45) J ANTENNA (FM COAXIAL 75Ω) jack

(page 21)

K TV (DIGITAL IN OPTICAL) jack (page

19)

L SAT/CABLE (DIGITAL IN COAXIAL)

jack (page 20)

M SPEAKERS jacks (page 17)

Surround amplifier

Front panel

S-AIR/STANDBY

A "/1 (Power)

Turns the surround amplifier on/off.

B S-AIR/STANDBY indicator

You can check the status of wireless transmission between the main unit and surround amplifier.

Indicator Status

Turns green. The system is turned on,

Flashes green quickly.

Flashes green slowly.

Turns red. The surround amplifier is in

Turns off. The surround amplifier is

Flashes orange. The wireless transceiver is not

Flashes red. The surround amplifier’s

wireless transmission is activated and surround signals are transmitting.

The system is turned on and wireless transmission is activated, but surround signals are not transmitting.

The system is turned on and wireless transmission is deactivated.

standby mode while the system is in standby mode or wireless transmission is deactivated.

turned off.

connected.

protection is active.

Rear panel

ABC

S-AIR ID

PAIRING

SURROUND SELECTOR

SURROUND

EZW-RT10

SURROUND BACK

IMPEDANCE USE

SPEAKERS

L R

3-16

C S-AIR ID switch

Selects the S-AIR ID.

D PAIRING button

Starts pairing.

E PAIRING indicator

Indicates the pairing status.

F SURROUND SELECTOR switch

Selects the mode for the surround amplifier.

G SPEAKERS jacks H Wireless transceiver (EZW-RT10) slot

Remote control

ONE-TOUCH

PLAY

THEATER

BRAVIA Sync

231

564

8097

AUDIO SUBTITLE

D.TUNING

GREENREDBLUE

POP UP/ MENU

SOUND MODE

HOME

REPLAY ADVANCE

VOL

PLAY

PAUSE

PRESET

TUNING

STOP

TV VOL

TV INPUT

FAVORITES

TOP MENU

RETURN OPTIONS

FUNCTION

PRESET

TUNING

MUTING

SLEEP

SYSTEM

YELLOW

DISPLAY

Number 5, AUDIO, VOL +, and N buttons have a tactile dot. Use the tactile dot as a reference when operating the remote.

• : For TV operations (For details, see “Controlling Your TV with the Supplied Remote” (page 48).)

A THEATER (page 44)

Switches to the optimum video mode for watching movies automatically.

ONE-TOUCH PLAY (page 44)

Activates One-Touch Play.

TV "/1 (on/standby) (page 48)

Turns on the TV or sets it to standby mode.

"/1 (on/standby) (pages 25, 37)

Turns on the system or sets it to standby mode.

B Number buttons (pages 38, 48)

Enters the title/chapter numbers, radio frequencies, etc.

AUDIO (pages 34, 35)

Selects the audio format/track.

SUBTITLE (page 52)

Selects the subtitle language when multilingual subtitles are recorded on a BDROM/DVD VIDEO.

D.TUNING (page 37)

Selects the radio frequencies.

C Color buttons (YELLOW/BLUE/RED/

GREEN)

Short cut keys for selecting items on some BD menus (can also be used for Java interactive operations on BDs).

D TOP MENU

Opens or closes the BD’s or DVD’s Top Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Pop-up Menu, or the DVD’s menu.

OPTIONS (page 32)

Displays the options menu on the TV screen.

RETURN

Returns to the previous display.

C/X/x/c

Moves the highlight to a displayed item.

(ENTER)

Enters the selected item.

E FUNCTION (pages 26, 37)

Selects the playback source.

HOME (pages 25, 37, 39, 45, 46, 50)

Enters or exits the system’s home menu.

SOUND MODE (page 34)

Selects the sound mode.

F Playback operation buttons

See “Playback” (page 29).

./> (previous/next)

Skip to the previous/next chapter, track, or file.

(replay/advance)

Briefly replay the current scenes for 10 seconds./Briefly fast forwards the current scenes for 15 seconds.

m/M (fast reverse/fast forward)

Fast reverse/fast forward the disc during playback. Each time you press the button, search speed changes.

Activates slow-motion play when pressed for more than one second in pause mode. Plays one frame at a time when pressed in pause mode.

N (play)

Starts or re-starts playback (resume play). Plays a slideshow when a disc containing JPEG image files is inserted.

X (pause)

Pauses or re-starts playback.

x (stop)

Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.

H DISPLAY (pages 29, 31)

Displays the playback information on the TV screen.

When the function is “TV” or “SAT/ CABLE” and digital signals are input via the DIGITAL IN jack, displays the stream information in the front panel display.

I Z (open/close)

Opens or closes the disc tray.

SLEEP (page 48)

Sets the sleep timer.

SYSTEM MENU (pages 27, 32, 35, 37)

Enters the system menu.

FAVORITES

Displays the Internet contents added to the Favorites List. You can save 18 favorite Internet contents.

Radio operation buttons

See “Tuner” (page 37).

PRESET +/–

TUNING +/–

G MUTING

Turns off the sound temporarily.

VOL +/– (page 37)

Adjusts the volume.

TV VOL +/–

Adjusts the TV volume.

TV INPUT

Switches the TV’s input source between the TV and other input sources.

Getting Started

Step 1: Installing the System

Getting Started

Positioning the speakers

For the best possible surround sound, place all speakers at the same distance from the listening position (A). The distance can be between 0 to 23 feet (0.0 to 7.0 meters). If you cannot place the center speaker and surround speakers at the same distance as (A), place them within 23 feet (7.0 meters) of the listening position. Place the surround speakers to the rear of the listening position (B). The subwoofer can be placed anywhere in the room.

Subwoofer

Center speaker

Front left speaker (L)

Front right speaker (R)

30 30

B B

Surround left speaker (L)

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

Surround right speaker (R)

To add the optional surround back speakers

You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2, optional). The optional product lineup differs depending on the area.

For the position of the surround back speakers, refer the illustration below (C).

Subwoofer

Center speaker

Getting Started

Front left speaker (L)

Surround left

speaker (L)

30 30

45 45

Surround back left speaker (L)

Note

• To use the surround back speakers, set [Surround Back] (page 46) in [Speaker Settings] to [Yes] while performing the Easy Setup (page 25).

(optional)

Front right speaker (R)

Surround right speaker (R)

Surround back right speaker (R) (optional)

Installing the speakers on a wall

Caution

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #.

Color tube Front left speaker (L): White Front right speaker (R): Red Center speaker: Green

Getting Started

Surround left speaker (L): Blue Surround right speaker (R): Gray

1 Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

4 mm (

/16 inch)

30 mm (1 3/16 inches)

2 Fasten the screws to the wall.

For the center speaker

219 mm

8 5/8 inches)

(

8 to 10 mm

/32 to 13/32

(

inch

)

3 Hang the speakers on the screws.

5 mm

/32 inch)

(

10 mm

/32 inch)

(

For the other speakers

/32 to 13/32

(

Hole on the back of the speaker

5 mm

/32 inch)

(

10 mm

(

/32 inch)

8 to 10 mm

inch

Hole on the back of the speaker

)

Rear of the speaker

Step 2: Connecting the System

For connecting the system, read the information on the following pages. Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other connections are made.

Note

• When you connect another component with a volume control, turn down the volume of the other components to a level where sound is not distorted.

Connecting the speakers

The connector of the speaker cords and the color tube are color-coded depending on the type of speaker. Connect the speaker cords to match the color of the SPEAKERS jacks of the unit. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

To connect speaker cords to the unit and surround amplifier

When connecting to the unit and surround amplifier, insert the connector until it clicks.

Getting Started

Rear panel of the unit

White (Front left speaker (L))

Red (Front right

Green (Center speaker)

Purple (Subwoofer)

speaker (R))

To connect speaker cords to the speaker

Color tube

Connector

(+)

(–)

Rear panel of the surround amplifier

Gray (Surround right speaker (R))

E C N

A D E

3-16

Blue (Surround left speaker (L))

Rear or bottom of the speaker

Connecting the TV (Video connection)

This connection sends a video signal to the TV. Depending on the jacks on your TV, select the connection method.

Rear panel of the unit

Getting Started

B Component video cable (not supplied)

ARC

OUT

/ C

A HDMI cable*

C Video cord (supplied)

To the component video input jacks of the TV.

To the video input jack of the TV.

To the HDMI IN jack of the TV.

* The HDMI cable is supplied with BDV-T77 only.

Method 1: HDMI cable (A) connection

If your TV has an HDMI jack, connect to the TV with an HDMI cable. Picture quality will be improved compared to using the component video cable connection or the video cord connection. When connecting with the HDMI cable, you need to select the type of output signal (page 51).

Method 2: Component video cable (B) connection

If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with a component video cable. Picture quality will be improved compared to using the video cord connection. When connecting with the component video cable, you need to select the type of output signal (page

51).

Method 3: Video cord (C) connection

If you do not have an HDMI cable or a component video cable, temporarily make this connection.

Connecting the TV (Audio connection)

This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system, perform this connection.

Rear panel of the unit

Digital optical cord (not supplied)

To the digital optical out jack of the TV.

With a digital audio connection, the system receives a Dolby Digital multiplex broadcast signal and you can enjoy multiplex broadcast sound.

Note

• When you connect the TV and the unit with an audio cord, see “Connecting the other components” (page 20).

Getting Started

About Audio Return Channel

If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also sends a digital audio signal from the TV. You do not need to make a separate audio connection for listening to TV sound. For details of the Audio Return Channel function, see [Audio Return Channel] (page 54).

Note

• A digital optical cable connection has priority over the Audio Return Channel function via HDMI cable connection.

Connecting the other components

When you connect the system and other components to the TV, video signals from the system and the components are sent to the TV, and audio signals from the components are sent to the system as follows.

Getting Started

System

Signal flow

: Video signal

: Audio signal

You can enjoy connected components via the system’s speakers.

• VCR or digital satellite receiver, etc. (not supplied), which has a digital coaxial output jack: D

• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied): E

Rear panel of the unit

To the digital coaxial out jack of the VCR or digital satellite receiver, etc.

D Digital coaxial cord (not supplied)

E Audio cord (not supplied)

To the audio out jacks of the VCR, digital satellite receiver, PlayStation, or portable audio source, etc.

Connecting the antenna (aerial)

To connect the antenna (aerial)

Rear panel of the unit

FM wire antenna (aerial) (supplied)

Note

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial) as shown below.

Outdoor FM antenna (aerial)

Unit

Getting Started

COAXIAL

ANTENNA

Inserting the wireless transceiver

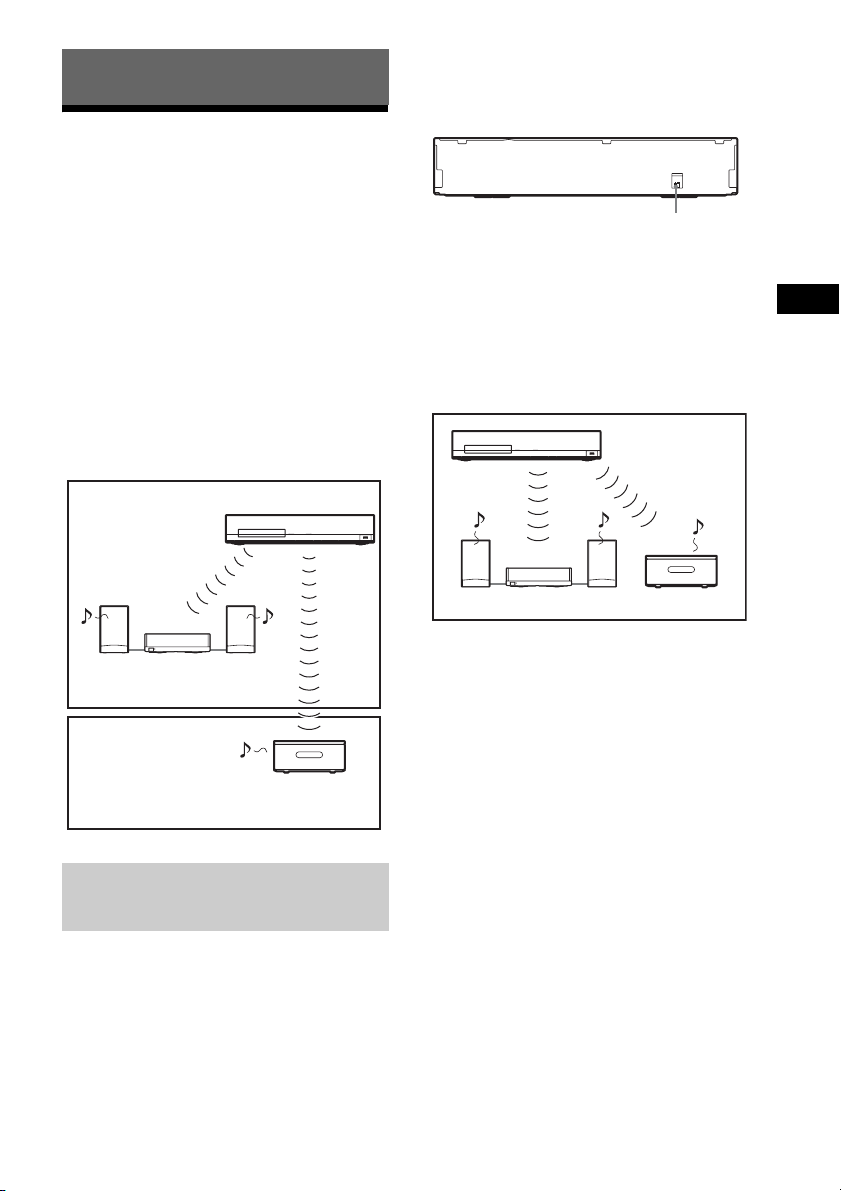

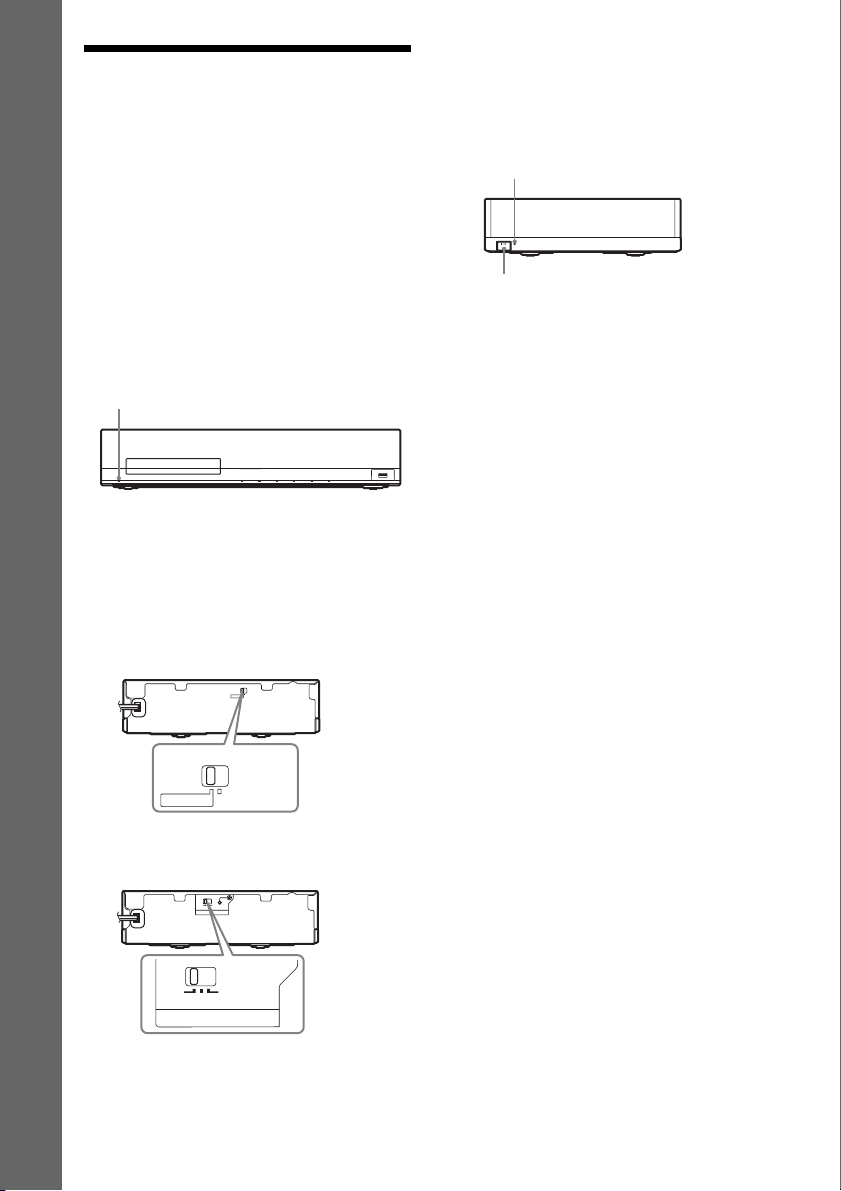

You can transmit sound from the unit to an S-AIR product, such as the surround amplifier or S-AIR receiver. To transmit sound from the unit, you need to insert the wireless transceivers into the unit and S-AIR product. For details of S-AIR products, see “Using an S-AIR Product” (page 39).

Getting Started

Rear panel of the unit

-R

Wireless transceiver

Rear panel of the surround amplifier

Wireless transceiver

Connecting to the network

Wired Setup

Use a LAN cable to connect to the LAN (100) terminal on the unit.

LAN cable (not supplied)

ARC

OUT

Internet

EZW-T100

A. CAL MIC

ECM-AC2

COAXIAL

ANTENNA

Wireless LAN router

AUDIO

AUDIO INRL

Broadband router

ADSL modem/ cable modem

USB Wireless Setup

Use a wireless LAN via the USB Wireless LAN Adapter (Sony UWA-BR100 only).

Turn the unit off before connecting the extension cable or inserting the USB Wireless LAN Adapter. After inserting the USB Wireless LAN Adapter to the base of the extension cable and connecting the extension cable to the (USB) port (front or rear), turn the unit on again.

VIDEO OUT

LAN(100)

PB / CBPR / C

COMPONENT VIDEO OUT

SAT/CABLE

SPEAKERS

FRONT R

FRONT L

SUBWOOFER CENTER

USB Wireless LAN Adapter

Internet

Note

• The placement distance between the USB Wireless LAN Adapter and your wireless LAN router differs depending on the usage environment. If the system cannot connect to the network or the network connection is unstable, move the USB Wireless LAN Adapter to a different position or place the USB Wireless LAN Adapter and the wireless LAN router closer to each other.

SPEAKERS

DIGITAL IN

SUR R SUR L

COAXIAL

OPTICAL

LAN cable (not supplied)

ADSL modem/ cable modem

To set the network settings

For details, see [Network Settings] (page 55) and follow the on-screen instructions to complete the setup.

About wireless LAN security

Since communication via the wireless LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this system supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network. WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct for the deficiencies of WEP. TKIP assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP. AES assures a higher security level than WEP or TKIP.

Getting Started

+ 52 hidden pages
