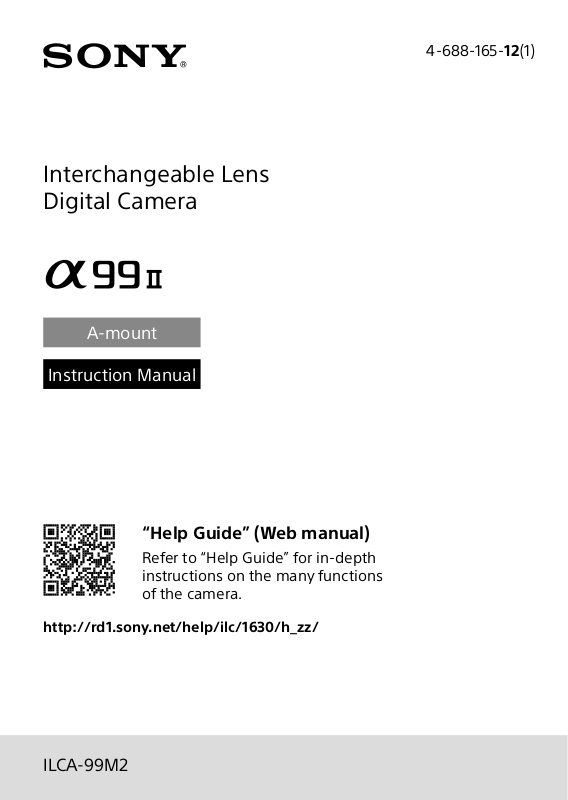

Sony Alpha a99 II User Manual

Interchangeable Lens Digital Camera

A-mount

Instruction Manual

“Help Guide” (Web manual)

Refer to “Help Guide” for in-depth instructions on the many functions of the camera.

4-688-165-12(1)

http://rd1.sony.net/help/ilc/1630/h_zz/

ILCA-99M2

English

Check out the Help Guide!

The “Help Guide” is an on-line manual that you can read on your computer or smartphone. Refer to it for details on menu items, advanced usage, and the latest information on the camera.

Scan here

http://rd1.sony.net/help/ilc/1630/h_zz/

ILCA-99M2 Help Guide

Instruction Manual

(this book)

This manual introduces some basic functions.

For the quick start guide, see “Startup guide” (page28). The “Startup guide” introduces the initial procedures from when you open the package until you release the shutter for the first shot.

In-Camera Guide

The [In-Camera Guide] shows explanations of the menu items on the monitor of the camera.

You can quickly pull up information during shooting. To use the [In-Camera Guide] function, some settings must be made beforehand. For details, search “In-Camera Guide” in the Help Guide.

Owner’s Record

Record the model and serial number (which are located on the product) in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. ILCASerial No.

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.

• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.

• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.

• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions.

Use a nearby wall outlet (wall socket) when using the supplied or recommended AC Adaptor/battery charger. If any malfunction occurs while using this product, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source. If you use the product with a charge lamp, note that the product is not disconnected from the power source even when the lamp turns off.

The power cord (mains lead), if supplied, is designed specifically for use with this equipment only, and should not be used with other electrical equipment.

Power Cord

For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there. For the customers in other EU countries/regions Use the power cord (B).

(A) (B)

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3meters (9.8feet).

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

For Customers in the U.S.A. and Canada

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.call2recycle.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

For supplied accessories

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3 B/NMB-3 B

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate(SAR). The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This equipment has been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules.

For Customers in the U.S.A.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669). The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY Model No.: WW067022 Responsible Party: Sony Electronics

Inc.

Address: 16535 Via Esprillo, San

Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment must not be colocated or operated in conjunction with any other antenna or transmitter.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

–Reorient or relocate the receiving

antenna.

–Increase the separation between

the equipment and receiver.

–Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

–Consult the dealer or an

experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Canada

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium

Hereby, Sony Corporation, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the

battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than

0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable

collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

For Customers in Singapore

For Customers in U.A.E.

For Customers in Malaysia

For Customers in India

Battery Pack

Table of contents

Check out the Help Guide!....................................................... 2

Notes on using your camera .................................................. 11

Preparations for shooting

Checking the camera and the supplied items .......................15

Identifying parts ......................................................................16

Front side .......................................................................16

Rear side ........................................................................ 17

Top side .........................................................................19

Sides .............................................................................. 20

Bottom .......................................................................... 22

Basic operations..................................................................... 23

Using the multi-selector ............................................... 23

Using the front multi-controller ................................... 23

Using the Fn (Function) button .................................... 25

How to use the Quick Navi screen ............................... 26

Startup guide ......................................................................... 28

Step 1: Charging the battery pack ................................ 28

Step 2: Inserting the battery pack into the camera .... 29

Step 3: Inserting a memory card .................................. 30

Step 4: Attaching a lens ............................................... 32

Step 5: Setting the language and the clock ................ 34

Step 6: Shooting images in auto mode ....................... 35

Shooting

Focusing ..................................................................................37

Focus Mode ...................................................................37

Auto focus .............................................................................. 39

Auto focus mechanism ................................................ 39

Focus Area .....................................................................41

Manual Focus ......................................................................... 43

Direct manual focus (DMF) ........................................... 44

Continuous shooting ............................................................. 45

Selecting a still image size/image quality ............................ 48

Image Size .............................................................. 48

Quality .................................................................... 49

Shooting movies

Movie recording formats .............................................. 50

File Format ...............................................................51

Record Setting ........................................................ 53

Using wireless functions

Using the Wi-Fi/One-touch (NFC)/Bluetooth functions ....... 56

Connecting the camera to a wireless access point .............. 57

Using a computer

Connecting the camera to a computer ................................. 58

Connecting to a computer ........................................... 58

Disconnecting the camera from the computer ........... 59

Introduction to computer software ....................................... 60

PlayMemories Home .................................................... 60

Image Data Converter .................................................. 60

Remote Camera Control ................................................61

MENU items/List of icons

Using MENU items ................................................................. 62

List of MENU items ................................................................. 63

List of icons on the monitor ................................................... 82

(Camera Settings1)................................................. 63

(Camera Settings2) ............................................... 70

(Wireless) ................................................................. 75

(Playback) ............................................................... 76

(Setup) .................................................................... 78

Indicators on the display panel .................................... 87

About this product

Specifications ......................................................................... 88

Battery life and number of recordable images ........... 88

Memory cards that can be used .................................. 89

Number of recordable images ..................................... 90

Recordable movie times .............................................. 92

Specifications................................................................ 95

Index ....................................................................100

For details on the Wi-Fi functions and NFC One-touch functions, refer to the attached document “Wi-Fi Connection/One-touch (NFC) Guide” or to the “Help Guide” (page 2).

Notes on using your camera

Along with this section, also see “Precautions” in the Help Guide (page2).

Screen language

You can select the language displayed on the screen using the menu (page 80).

Notes on recording/playback

• Once you format the memory card, all the data recorded on the memory card will be deleted and cannot be restored. Before formatting, copy the data to a computer or other device.

• Before you start recording, make a trial recording to make sure that the camera is working correctly.

Notes on handling the product

• This camera is designed to be dust and moisture-resistant, but is not waterproof or splash-proof.

• Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

No compensation for damaged content or recording failure

Sony can provide no guarantees in the event of failure to record or loss or damage of recorded images or audio data due to a malfunction of the camera or recording media, etc. We recommend backing up important data.

Notes on the monitor, electronic viewfinder, lens, and image sensor

• The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These dots are normal due to the manufacturing process and do not affect the images in any way.

• Do not hold the camera by the monitor.

• Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens’s condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.

• When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.

• Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.

• Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction.

• Do not use the camera in areas where strong radio waves or radiation are being emitted. Recording and playback may not function correctly.

• Images may trail across on the screen in a cold location. This is not a malfunction.

• The recorded image may be different from the image you monitored before recording.

Notes on using lenses and accessories

It is recommended that you use Sony lenses/accessories designed to suit the characteristics of this camera. Using this camera with products from other manufacturers may affect its performance, leading to accidents or malfunction. Sony bears no responsibility for such accidents or malfunction.

Notes on the Multi Interface Shoe

• When attaching or detaching accessories such as an external flash to the Multi Interface Shoe, first turn the power to OFF. When attaching the accessory, confirm that it is firmly fastened to the camera.

• Do not use the Multi Interface Shoe with a commercially available flash that applies voltages of 250 V or more or has the opposite polarity of the camera. It may cause a malfunction.

Notes on shooting with the viewfinder

• The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to see the full composition with all its details, you can also use the monitor.

• If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder.

• When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder. In case you may feel uncomfortable, refrain from using the viewfinder until your condition recovers, and consult your doctor as necessary.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

• Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

• Under high ambient temperatures, the temperature of the camera rises quickly.

• When the temperature of the camera rises, the image quality may deteriorate. It is recommended that you wait until the temperature of the camera drops before continuing to shoot.

• The surface of the camera may get warm. This is not a malfunction.

• Especially during 4K movie shooting, the recording time may be shorter under low temperature conditions. Warm up the battery pack or replace it with a new battery.

Notes on playing back movies on other devices

Movies recorded with this camera may not be played back correctly on other devices. Also, movies recorded with other devices may not be played back correctly on this camera.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

On the data specifications described in this manual

The data on performance and specifications are defined under the following conditions, except as described in this manual: at an ordinary ambient temperature of 25ºC (77°F), and using a battery pack that has been fully charged until the charge lamp has turned off.

How to turn off wireless network functions (Wi-Fi, NFC and Bluetooth function, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily. Select MENU button   [Airplane Mode]  [On]. If you set [Airplane Mode] to [On], an

(airplane) mark will be displayed

on the screen.

(Wireless)

Notes on wireless LAN

If your camera is lost or stolen, Sony bears no responsibility for the loss or damage caused by illegal access or use of the registered access point on the camera.

Notes on security when using wireless LAN products

• Always make sure that you are using a secure wireless LAN to avoid hacking, access by malicious third parties, or other vulnerabilities.

• It is important that you set the security settings when using a wireless LAN.

• If a security problem arises because no security precautions are in place or due to any inevitable circumstances when using a wireless LAN, Sony bears no responsibility for the loss or damage.

Preparations for shooting

Checking the camera and the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)

• Battery charger (1)

• Power cord (mains lead) (1)* (supplied in some countries/ regions)

* Multiple power cords may be

supplied with your camera. Use the appropriate one that matches your country/region. See page 4.

• NP-FM500H Rechargeable battery pack (1)

• Micro USB cable (1)

• Shoulder strap (1)

• Body cap (1) (Attached to the camera)

• Shoe cap (1) (Attached to the camera)

• Eyepiece cup (1) (Attached to the camera)

• Instruction Manual (1) (this manual)

• Wi-Fi Connection/One-touch (NFC) Guide (1)

Preparations for shooting

Identifying parts

See the pages in parentheses for details.

Front side



Shutter button (35)



ON/OFF (Power) switch (34)



Front dial

You can quickly adjust the settings for each shooting mode.



Remote sensor/Self-timer

lamp



Wi-Fi antenna (built-in)



Preview button



Mount



Lens contacts *



Mirror*



Microphone**



Mode dial lock release button



Mode dial (36)



C2 button (Custom button 2)

(74)



Mounting index (32)



Lens release button (33)



Front multi-controller (23)



Front multi-controller click

switch (23)

* Do not directly touch these parts. ** Do not cover this part during

movie recording. Doing so may cause noise or lower the volume.

Rear side



Diopter-adjustment dial

Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder. If it is hard to operate the diopteradjustment dial, remove the eyepiece cup before operating the dial.

Preparations for shooting



Eye sensor



Eyepiece cup



MENU button (62)



Viewfinder*



Monitor

You can adjust the monitor to an easily viewable angle and shoot from any position.



MOVIE (Movie) button (36)



For shooting: AEL button/

SLOW SYNC button For viewing:

(Image index)

button

When shooting with a flash, shoot images while pressing and holding the SLOW SYNC button to brightly capture not only the subject but also the background.



For shooting: AF/MF button

For viewing:

(Enlarge)

button



Rear dial

You can quickly adjust the settings for each shooting mode.



Multi-selector/Center button

(23)



DISP (Display) button (73)



Access lamp



For shooting: Fn (Function)

button (25, 74) For viewing:

(Send to

Smartphone) button

• You can display the screen for [Send to Smartphone] by pressing this button.

• When you attach a vertical grip (sold separately), pressing the

(Image rotation) button on the vertical grip displays the [Send to Smartphone] screen.



(Smart Telecon.) button

Smart Teleconverter magnifies and trims the center of the image, then records it.



(Playback) button (36)



For shooting: C1 button

(Custom button 1) (74) For viewing:

(Delete) button

(36)

* Do not directly touch these parts.

Top side

Preparations for shooting



FINDER/MONITOR button

(73)



Multi Interface Shoe*

Some accessories may not go in all the way and protrude backward from the Multi interface shoe. However, when the accessory reaches the front end of the shoe, the connection is completed.



Light sensor



(Drive mode) button

(64)



WB (White balance) button

(68)



(Exposure compensation)

button (67)



ISO button (67)



(Display panel illumination)

button (87)



Image sensor position

mark

The image sensor is the sensor that converts light into an electric signal. The mark shows the location of the image sensor. When you measure the exact distance between the camera and the subject, refer to the position of the horizontal line.

If the subject is closer than the minimum shooting distance of the lens, the focus cannot be confirmed. Make sure you put enough distance between the subject and the camera.



Display panel (87)

* For details on compatible

accessories for the multi interface shoe, visit the Sony website, or

Sides

consult your Sony dealer or local authorized Sony service facility. Accessories for the Accessory Shoe can also be used. Operations with other manufactures’ accessories are not guaranteed.



(Flash sync) terminal



Speaker



REMOTE terminal

When connecting the Remote Commander (sold separately) to the camera, insert the plug of the Remote Commander into the REMOTE terminal, aligning the guide of the plug with the guide of the REMOTE terminal. Make sure that the cord of the Remote

Commander faces forward.



 Microphone jack

When an external microphone is connected, the internal microphone turns off automatically. When the external microphone is a plugin-power type, the power of the microphone is supplied by the camera.



 Headphones jack

You can check the sound while recording or playing back movies.



HDMI micro jack



Multi/Micro USB Terminal*

(58)

This terminal supports Micro USB-compatible devices.



DC IN terminal

Use an AC Adaptor (sold separately) that supports shooting and playback to supply power while shooting or playing back images. When connecting the AC Adaptor (sold separately) to the camera, turn the camera off, then plug the connector of the AC Adaptor into the DC IN terminal on the camera.

Preparations for shooting



Hooks for shoulder strap

Attach both ends of the strap onto the camera.



(N mark) (56)

This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone.

• NFC (Near Field Communication) is an international standard of short-range wireless communication technology.

Bottom



SLOT1 (Memory card slot 1)

(30)

Supports SD cards and Memory Stick PRO Duo



SLOT2 (Memory card slot 2)

(32)

Supports SD cards only

* For details on compatible

accessories for the Multi/Micro USB Terminal, visit the Sony website, or consult your Sony dealer or local authorized Sony service facility.



Battery insertion slot (29)



Battery cover (29)



Tripod socket hole

Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

Basic operations

Using the multi-selector

• Put your finger right on top of the multi-selector to manipulate it more precisely.

• You can move the selection frame by pressing the multi-selector up/ down/left/right. The selection frame can be moved in eight directions in some situations. The item selected with the multi-selector can be entered by pressing the center of the multi-selector.

• Press the multi-selector left/right while playing back images to display the previous or next image.

• The [Focus Standard] function is assigned to the center of the multiselector in the default settings.

Using the front multi-controller

You can change settings using the front multi-controller. The front-multi controller can be assigned different functions in the still image and movie recording modes.

Press the button on the front multi-controller during shooting to display the setting screen.

Preparations for shooting

Select the desired setting by turning the front multi-controller.

Press the button on the front multi-controller to enter the selection.

To change the assigned function

You can change the assigned function by pressing and holding the button on the front multi-controller. The assigned function can also be changed by selecting MENU 

(Camera Settings2)  [Custom Key(Shoot.)]  [ Front Multi Ctrl.]

Front Multi Ctrl.].

or [

Functions that can be assigned

Focus Mode Focus Area Select Focus Area Shutter Speed Aperture Exposure Comp. ISO Metering Mode White Balance

Creative Style Picture Effect

Hint

• You can change the clicking pressure of the front multi-controller using the click switch. By setting the click switch to “OFF,” you can change the setting silently during movie recording.

Audio Rec Level (only in movie mode)

Using the Fn (Function) button

You can register frequently used functions to the Fn (function) button and recall them while shooting. Up to 12 frequently used functions can be registered to the Fn (Function) button.

When using the monitor, press the DISP button repeatedly to display a screen mode other than [For viewfinder], and then press the Fn (Function) button.

• When using the viewfinder, this procedure is not necessary.

Select a function to set by pressing the multi-selector up/

Fn button

down/left/right.

Select the desired setting by turning the front dial, and press the center of the multiselector.

• Some functions can be finetuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 2, then press the center of the multiselector. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

Preparations for shooting

Operation guide

How to use the Quick Navi screen

The Quick Navi screen is a function optimized for shooting with the viewfinder, that lets you control settings directly.

Select MENU  (Camera Settings2)  [DISP Button]  [Monitor]  [For viewfinder], then select [Enter].

Press the DISP button to set the screen mode to [For viewfinder].

Press the Fn button to switch to the Quick Navi screen.

• The displayed contents and their positions in the illustrations are just guidelines, and may differ from the actual displays.

Auto mode

P/A/S/M/Sweep Panorama mode

Select a function to set by pressing the multi-selector up/ down/left/right.

Select the desired setting by turning the front dial.

• Some functions can be fine-tuned using the rear dial.

To adjust settings from the dedicated setting screens

Select the desired function in step 4, then press the center of the multiselector. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

Operation guide

Note

• Items that are gray on the Quick Navi screen are not adjustable.

• When using [Creative Style], some settings can only be controlled from the dedicated screen.

Preparations for shooting

Startup guide

Step 1: Charging the battery pack

Insert the battery pack into the battery charger.

Connect the battery charger to the wall outlet (wall socket).

The CHARGE lamp on the battery charger will light up in orange and charging will start.

• How to connect the battery charger may differ depending on the country/region.

CHARGE lamp (orange)

Lit: Charging Off: Charging finished Flashing: Charging error or charging paused temporarily because the camera is not within the proper temperature range

With the battery charger that can be connected to the wall outlet (wall socket) directly

CHARGE lamp

• Charging time (full charge): approximately 175 min (when charging a fully depleted battery pack at a temperature of 25°C (77°F))

• When the camera is being used for the first time or when you use a battery pack that has not been used for a long time, the CHARGE lamp may flash quickly when the battery is charged for the first time. If this happens, remove the battery pack and then re-insert it to recharge.

• Connect the battery charger to the nearest wall outlet (wall socket). If malfunctions occur while using the battery charger, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source. The battery charger is not disconnected from the power source even when the charge lamp turns off.

With the battery charger that requires the power cord to connect to the wall outlet (wall socket)

CHARGE lamp

To a wall outlet (wall socket)

Step 2: Inserting the battery pack into the camera

Open the battery cover.

Preparations for shooting

Insert the battery pack while pressing the lock lever with the tip of the battery until the battery locks into place.

Lock lever

Close the cover.

To remove the battery pack

Make sure that the access lamp (page 18) is not lit, and turn off the camera. Then, slide the lock lever and remove the battery pack. Be careful not to drop the battery pack.

Lock lever

Step 3: Inserting a memory card

For details on memory cards that can be used with this camera, refer to page 89.

Open the memory card cover.

+ 74 hidden pages
