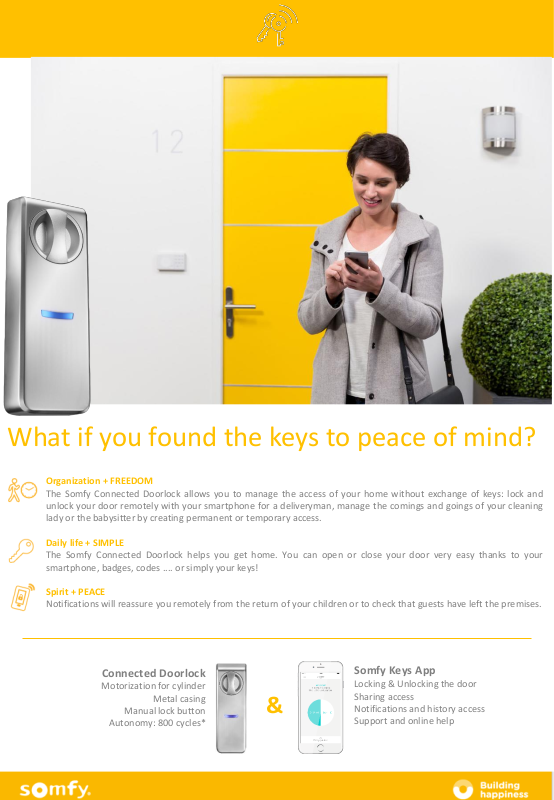

SOMFY Doorlock Quick Start Manual

What if you found the keys to peace of mind?

Organization + FREEDOM

The Somfy Connected Doorlock allows you to manage the access of your home without exchange of keys: lock and
unlock your door remotely with your smartphone for a deliveryman, manage the comings and goings of your cleaning
lady or the babysitter by creating permanent or temporary access.

Daily life + SIMPLE

The Somfy Connected Doorlock helps you get home. You can open or close your door very easy thanks to your

smartphone, badges, codes .... or simply your keys!

Spirit + PEACE

Notifications will reassure you remotely from the return of your children or to check that guests have left the premises.

Connected Doorlock

Motorization for cylinder

Metal casing

Manual lock button

Autonomy: 800 cycles*

Somfy Keys App

Locking & Unlocking the door
Sharing access
Notifications and history access
Support and online help

&

Compatibility:

• Requires a lock compatible with European

cylinders

• Door with a thickness less than 9cm

• Door compatibility test on www.somfy.com

• List of compatible smartphones with Somfy

Keys App on www.somfy.com

Composition of the pack:

• Motor

• Metal Casing and backplate

• Cylinder (different lenght according to reference) +

3 keys + Property card

• 4 lithium AAA battery

• Screw kit+ Adhesive

• Quick Start Guide

Dimensions & Product Weight :

• 173x60x38mm

• 330g

Technical characteristics of the cylinder:

• Comply with the standard EN1303 (2006)

• Classification: 16000C32

• Number of pins: 5

• Anti breaks

• Anti pull out

• Anti drilling

• Supply 3 keys + Property card

From 5 to 7 cm : Standards doors

From 7 to 9 cm : Thick doors

Technical characteristics of the motor:

• Bluetooth 4.0

• Radio frequency : 2.4 GHz

• Bluetooth range : ≈7m

• Engine with automatic clutch

• 4 x Lithium AAA battery

• Operating temperature: 0°C à +60°C

• Automatic learning of end positions

• Maximum 20 users per lock

* A cycle means a rotation of 2 turns made by the motor on a door
with a standard lock

Installation:

• Inside of the door (invisible from the

outside)

• Simple, fast, guided step by step

• Without drilling or wiring

Available accessories :

• Internet Gateway

• Badge Reader (with or without keypad)

• Additional badges

CONNECTED DOORLOCK

DOORLOCK METAL CASING STANDARD DOORS B2B 1811675

DOORLOCK METAL CASING THICK DOORS B2B 1811703

Available packs:

• Doorlock for standard doors

+ Internet Gateway: 1811699

• Doorlock for thick doors

• + Internet Gateway : 1811704

SOMFY KEYS

Application dedicated to access management:

• Motor control (nearby or remotely)

• Engine control (near or remote)

• Creation of guest profil, sharing and access control

• Add / Remove products and accessories

• Online support
