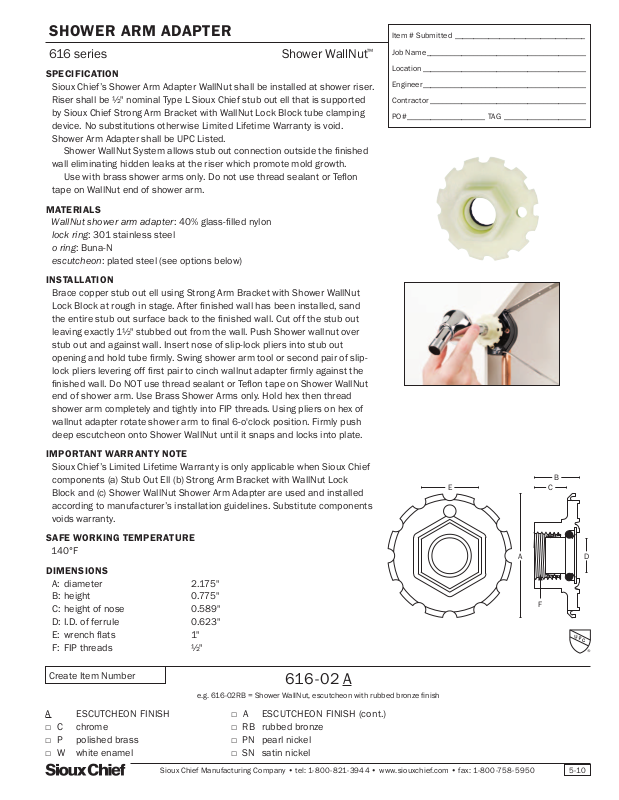

ShOWER ARM ADAPTER

616 series Shower WallNut

SPE CIFICATION

Sioux Chief’s Shower Arm Adapter WallNut shall be installed at shower riser.
Riser shall be ½" nominal Type L Sioux Chief stub out ell that is supported
by Sioux Chief Strong Arm Bracket with WallNut Lock Block tube clamping
device. No substitutions otherwise Limited Lifetime Warranty is void.
Shower Arm Adapter shall be UPC Listed.
Shower WallNut System allows stub out connection outside the nished
wall eliminating hidden leaks at the riser which promote mold growth.
Use with brass shower arms only. Do not use thread sealant or Teon
tape on WallNut end of shower arm.

MATERIALS

WallNut shower arm adapter: 40% glass-lled nylon
lock ring: 301 stainless steel
o ring: Buna-N
escutcheon: plated steel (see options below)

INSTALLATION

Brace copper stub out ell using Strong Arm Bracket with Shower WallNut
Lock Block at rough in stage. After nished wall has been installed, sand
the entire stub out surface back to the nished wall. Cut off the stub out
leaving exactly 1½" stubbed out from the wall. Push Shower wallnut over
stub out and against wall. Insert nose of slip-lock pliers into stub out
opening and hold tube rmly. Swing shower arm tool or second pair of slip­lock pliers levering off rst pair to cinch wallnut adapter rmly against the
nished wall. Do NOT use thread sealant or Teon tape on Shower WallNut
end of shower arm. Use Brass Shower Arms only. Hold hex then thread
shower arm completely and tightly into FIP threads. Using pliers on hex of
wallnut adapter rotate shower arm to nal 6-o'clock position. Firmly push
deep escutcheon onto Shower WallNut until it snaps and locks into plate.

Item # Submitted �����������������������������������

™

Job Name �����������������������������������������

Location ������������������������������������������

Engineer ������������������������������������������

Contractor ����������������������������������������

PO# �������������������� TAG ���������������������

IMPOR TANT WARRA NT Y NOTE

Sioux Chief’s Limited Lifetime Warranty is only applicable when Sioux Chief
components (a) Stub Out Ell (b) Strong Arm Bracket with WallNut Lock
Block and (c) Shower WallNut Shower Arm Adapter are used and installed
according to manufacturer’s installation guidelines. Substitute components
voids warranty.

SAFE WORKING TEMPERATURE

140°F

DIMEN SIONS

A: diameter 2.175"
B: height 0.775"
C: height of nose 0.589"
D: I.D. of ferrule 0.623"
E: wrench ats 1"
F: FIP threads ½"

Create Item Number

A ESCUTCHEON FINISH

□ C chrome
□ P polished brass
□ W white enamel

Sioux Chief Manufacturing Company • tel: [phone] • www.siouxchief.com • fax: [phone]

e.g. 616-02RB = Shower WallNut, escutcheon with rubbed bronze nish

□ A ESCUTCHEON FINISH (cont.)
□ RB rubbed bronze
□ PN pearl nickel
□ SN satin nickel

616-02 A

B

CE

A

F

D

5-10
