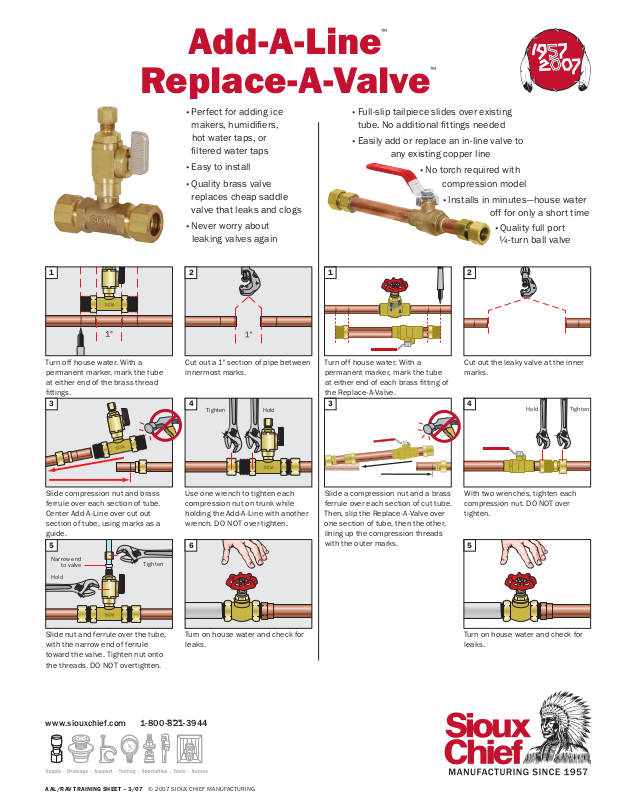

Add-A-Line
Replace-A-Valve
Perfect for adding ice
•
makers, humidifi ers,
hot water taps, or
fi ltered water taps
Easy to install
•
Quality brass valve
•
replaces cheap saddle
valve that leaks and clogs
Never worry about
•
leaking valves again
Full-slip tailpiece slides over existing
•
tube. No additional fi ttings needed
Easily add or replace an in-line valve to
•
any existing copper line
•
™
No torch required with
compression model
Installs in minutes—house water
•
off for only a short time
Quality full port
•
¼-turn ball valve
1
Turn off house water. With a
permanent marker, mark the tube
at either end of the brass thread
fi t t i n g s .
Slide compression nut and brass
ferrule over each section of tube.
Center Add-A-Line over cut out
section of tube, using marks as a
guide.
5 6
Narrow end
to valve
Hold
Tighten
2
Cut out a 1" section of pipe between
innermost marks.
43
Use one wrench to tighten each
compression nut on trunk while
holding the Add-A-Line with another
wrench. DO NOT over-tighten.
HoldTighten
1
Turn off house water. With a
permanent marker, mark the tube
at either end of each brass fi tting of
the Replace-A-Valve.
Slide a compression nut and a brass
ferrule over each section of cut tube.
Then, slip the Replace-A-Valve over
one section of tube, then the other,
lining up the compression threads
with the outer marks.
2
Cut out the leaky valve at the inner
marks.
43
With two wrenches, tighten each
compression nut. DO NOT over
tighten.
5
Hold Tighten
Slide nut and ferrule over the tube,
with the narrow end of ferrule
toward the valve. Tighten nut onto
the threads. DO NOT overtighten.
Turn on house water and check for
leaks.
www.siouxchief.com 1-800- 821-3944
AAL /RAV TR AININ G SHEE T – 3/07 © 2007 SIOUX C HIEF MAN UFACTURING
Turn on house water and check for
leaks.
