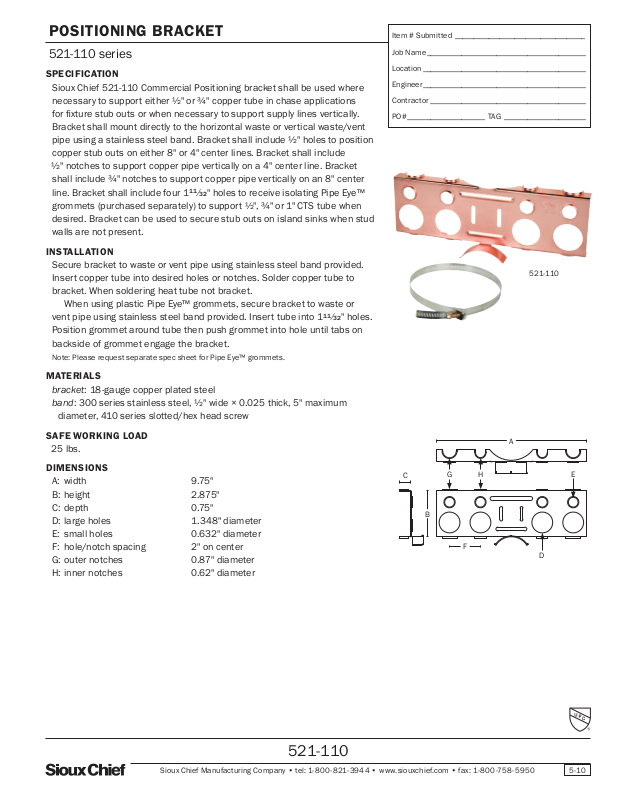

POSITIONING BRACKET
521-110 series
SPE CIFICATION
Sioux Chief 521-110 Commercial Positioning bracket shall be used where
necessary to support either ½" or ¾" copper tube in chase applications
for xture stub outs or when necessary to support supply lines vertically.
Bracket shall mount directly to the horizontal waste or vertical waste/vent
pipe using a stainless steel band. Bracket shall include ½" holes to position
copper stub outs on either 8" or 4" center lines. Bracket shall include
½" notches to support copper pipe vertically on a 4" center line. Bracket
shall include ¾" notches to support copper pipe vertically on an 8" center
line. Bracket shall include four 111⁄32" holes to receive isolating Pipe Eye™
grommets (purchased separately) to support ½", ¾" or 1" CTS tube when
desired. Bracket can be used to secure stub outs on island sinks when stud
walls are not present.
INSTALLATION
Secure bracket to waste or vent pipe using stainless steel band provided.
Insert copper tube into desired holes or notches. Solder copper tube to
bracket. When soldering heat tube not bracket.
When using plastic Pipe Eye™ grommets, secure bracket to waste or
vent pipe using stainless steel band provided. Insert tube into 111⁄32" holes.
Position grommet around tube then push grommet into hole until tabs on
backside of grommet engage the bracket.
Note: Please request separate spec sheet for Pipe Eye™ grommets.
Item # Submitted �����������������������������������
Job Name �����������������������������������������
Location ������������������������������������������
Engineer ������������������������������������������
Contractor ����������������������������������������
PO# �������������������� TAG ���������������������
521-110
MATERIALS
bracket: 18-gauge copper plated steel
band: 300 series stainless steel, ½" wide × 0.025 thick, 5" maximum
diameter, 410 series slotted/hex head screw
SAFE WORKING LOAD
25 lbs.
DIMEN SIONS
A: width 9.75"
B: height 2.875"
C: depth 0.75"
D: large holes 1.348" diameter
E: small holes 0.632" diameter
F: hole/notch spacing 2" on center
G: outer notches 0.87" diameter
H: inner notches 0.62" diameter
A
C
G H
B
F
D
E
521-110
Sioux Chief Manufacturing Company • tel: 1-800- 821-3944 • www.siouxchief.com • fax: 1-800-758- 5950
