SINGER 9100 User Manual
Model 9100 Instruction Manual
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be followed, including the following:
Read all instructions before using this sewing machine.
DANGER
1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately after using and before
cleaning.
WARNING
1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or
near children.
2. Use this appliance only for its intended use as described in this manual. Use only the
attachments recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
Never operate the appliance with any air openings blocked
4. . Keep ventilation openings of the
sewing machine and foot controller free from accumulation of lint, dust, and loose cloth.
5. Keep fingers away from all moving parts. Special care is required around the sewing machine
needle.
Always use the proper needle plate, as using the wrong needle plate may cause the needle to
6.
break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
Switch the sewing machine off ("O") when making any adjustments in the needle area, such as
9.
threading needle, changing needle, threading bobbin, changing presser foot or changing the
light.
10. Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
11. Never drop or insert any object into any opening.
12. Do not use outdoors.
13. Do not operate where aerosol spray products are being used or where oxygen is being
administered.
14. To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
16. The sound pressure level under normal operating conditions is 75dB(A).
Please turn off or unplug the machine if it is not operating properly.
17.
18. Never place anything on the foot controller.
19. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
20. Children should be supervised to ensure that they do not play with the appliance.
-To reduce the risk of electrical shock:
-To reduce the risk of burns, fire, electrical shock, or injury to persons:
SAVE THESE INSTRUCTIONS
This sewing machine is intended for household use only.
CONTENTS
PRINCIPAL PARTS OF THE MACHINE
MACHINE CONTROL BUTTONS
Operation buttons (see page 24/25)..................................................2
Function buttons (see page 26/27/28) ................................................2
Selection buttons (see page 29/30) ..................................................3
LCD SCREEN

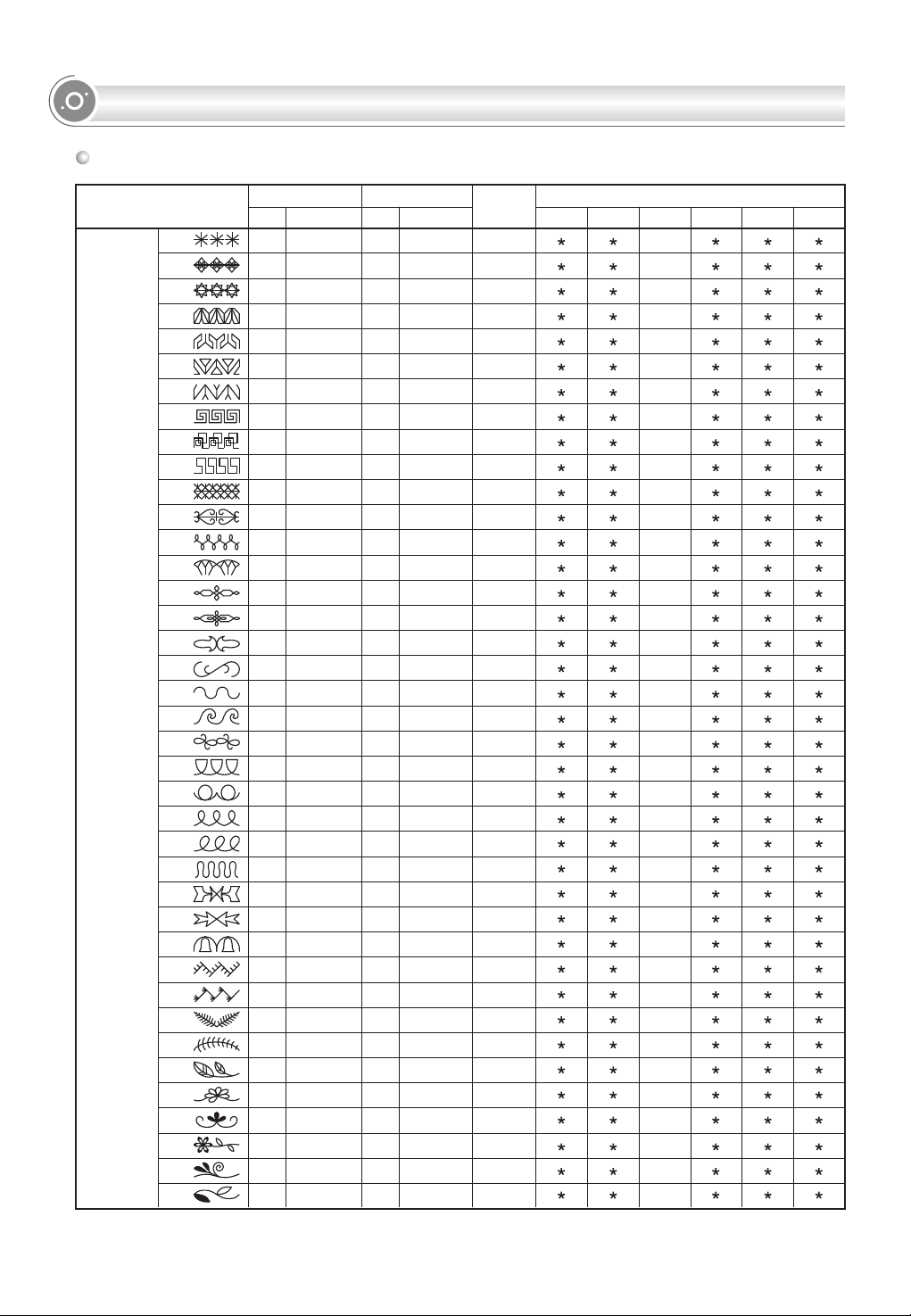

PATTERN CHART
ACCESSORIES
CONNECTING THE MACHINE TO THE POWER SOURCE
Connecting the machine ..........................................................9

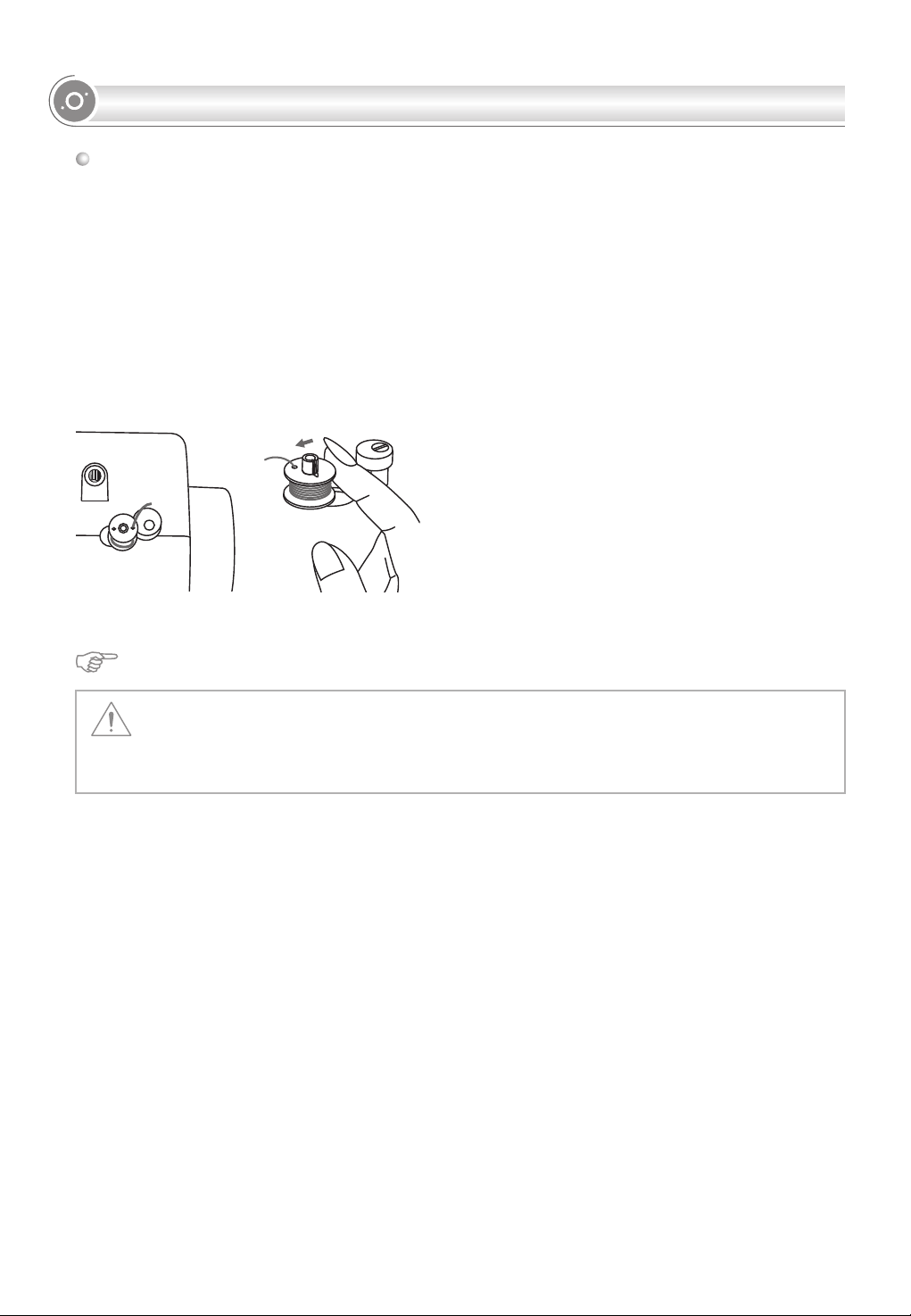

WINDING THE BOBBIN
Bobbin winding .............................................................10-11
INSERTING THE BOBBIN
THREADING THE UPPER THREAD
USING THE NEEDLE THREADER
DRAWING UP THE LOWER THREAD ..................................................16
CUTTING THE THREAD
TWO-STEP PRESSER FOOT LIFTER
STARTING SEWING
Start/stop button ...............................................................18
Foot control...................................................................18
THREAD TENSION
CHANGING THE PRESSER FOOT
PRESSER FOOT CHART
MATCHING NEEDLE/ FABRIC/ THREAD

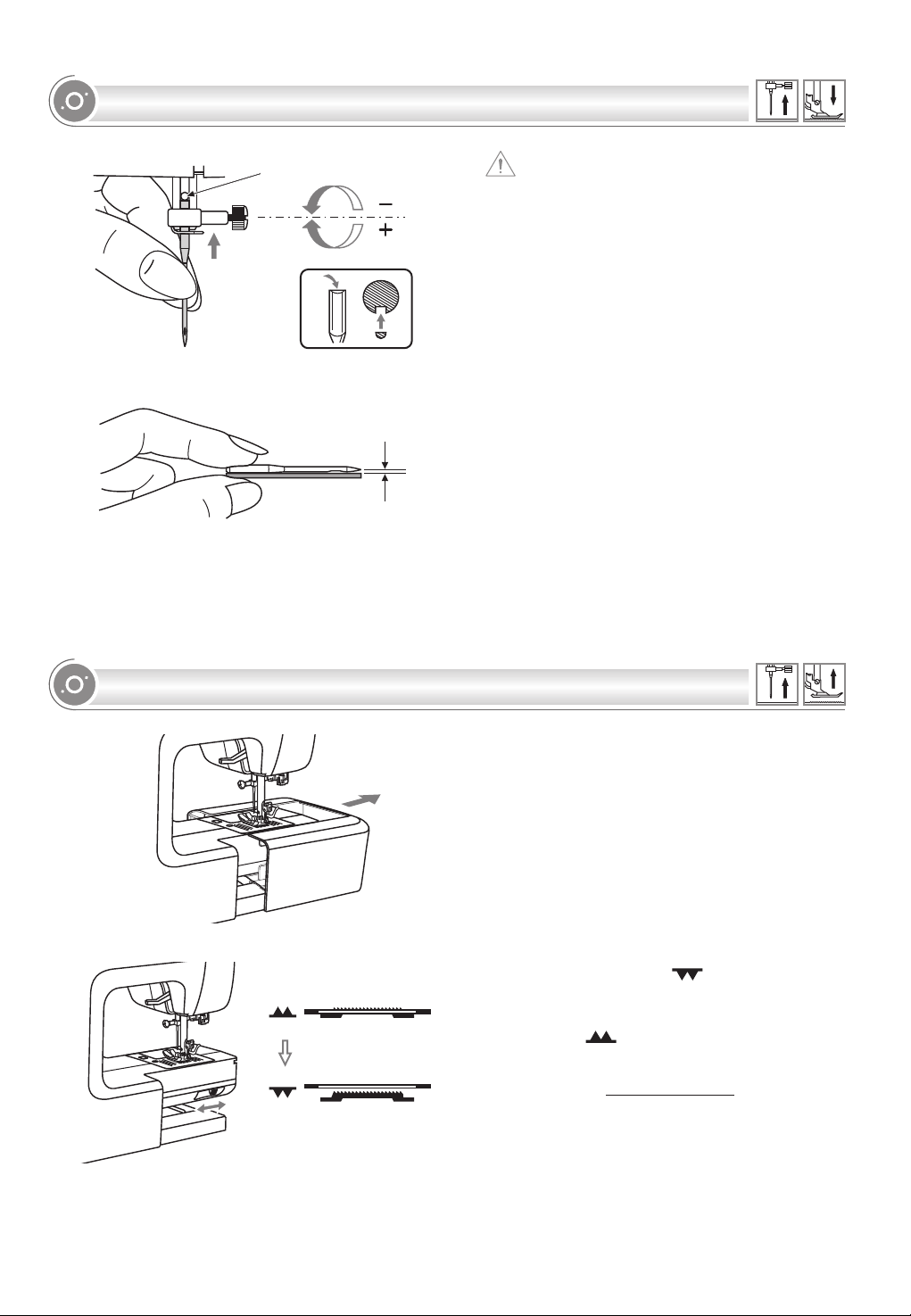

REPLACING THE NEEDLE
RAISE OR LOWER FEED DOGS

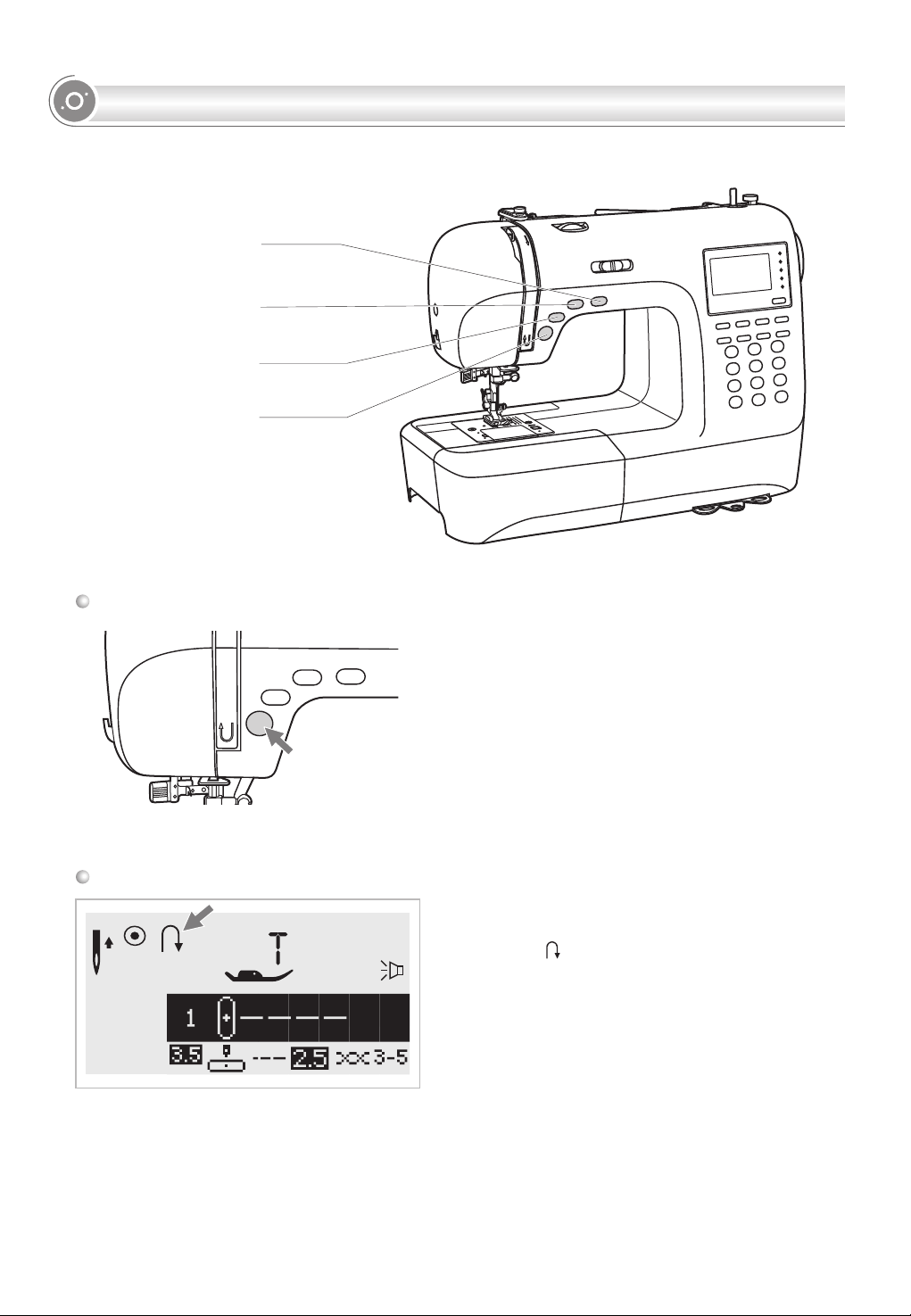

OPERATION BUTTONS
Start/stop button ...............................................................24
Reverse button.................................................................24
Auto-lock button ...............................................................25

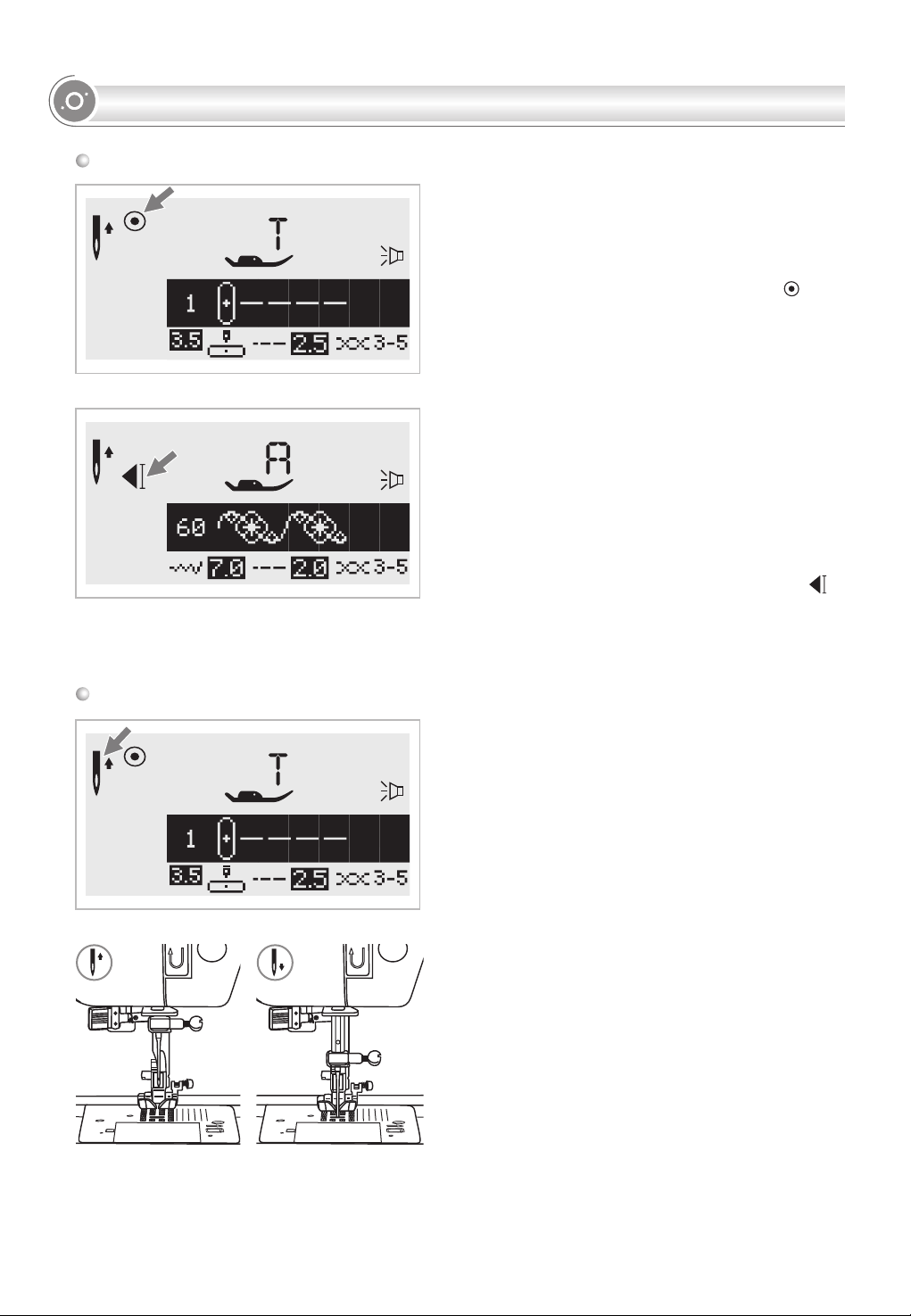

Needle up/ down position button ...................................................25

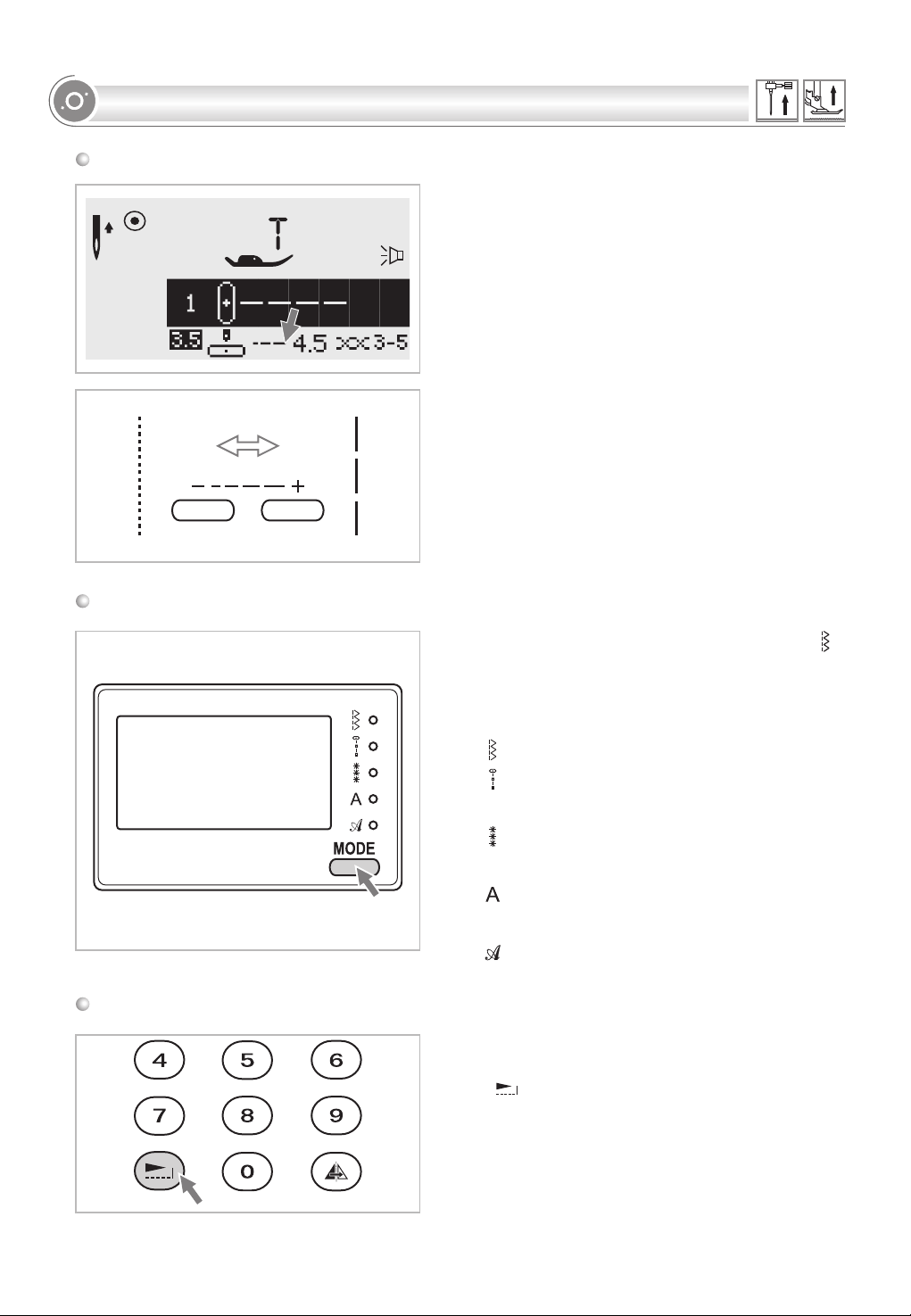

FUNCTION BUTTONS
Stitch width adjustment button .....................................................26
Stitch length adjustment button .....................................................27
MODE selection button ..........................................................27
Elongation button (see page 59)....................................................27

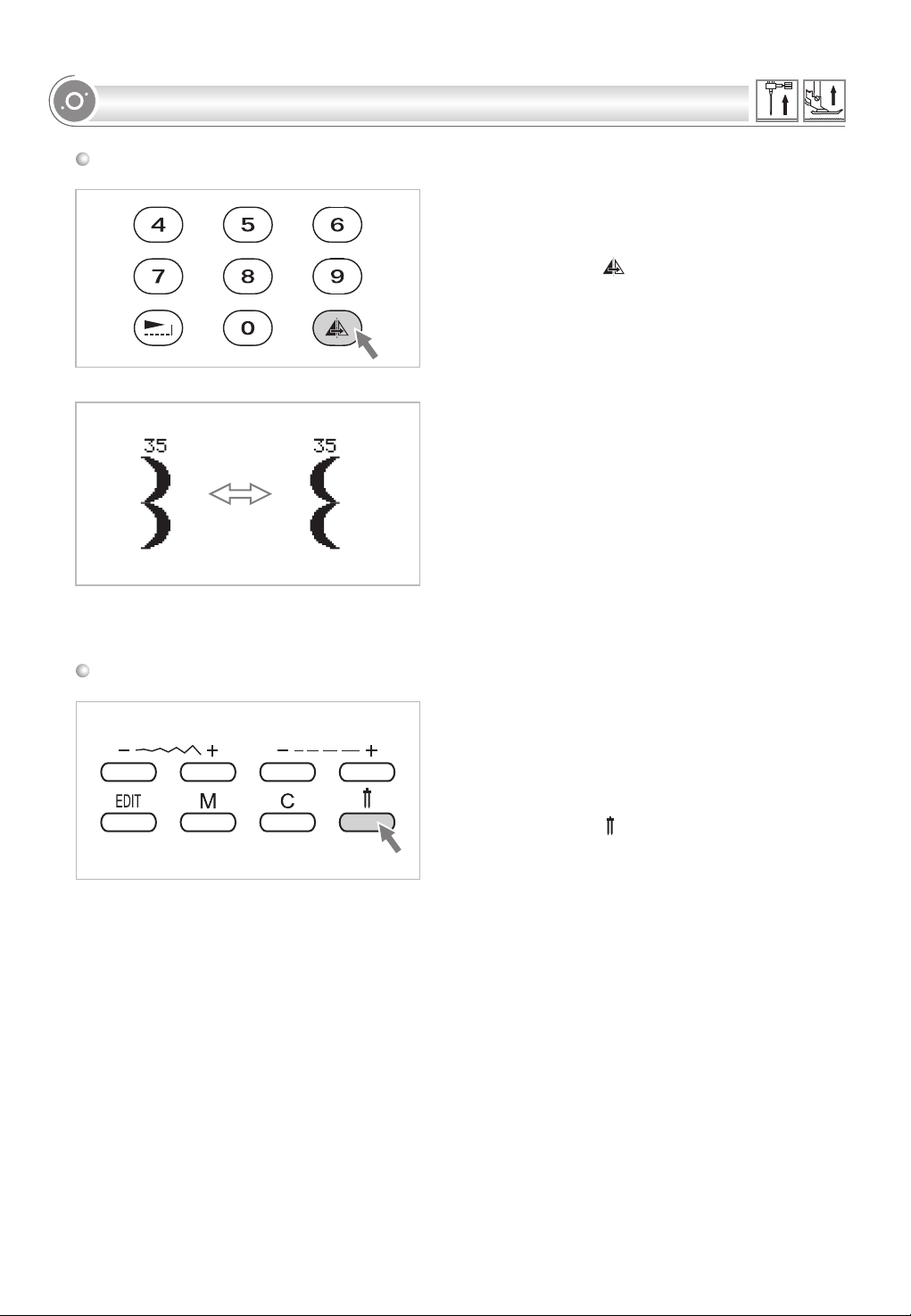

Mirror button (see page 60) ......................................................28
Twin needle button (see page 61) ..................................................28

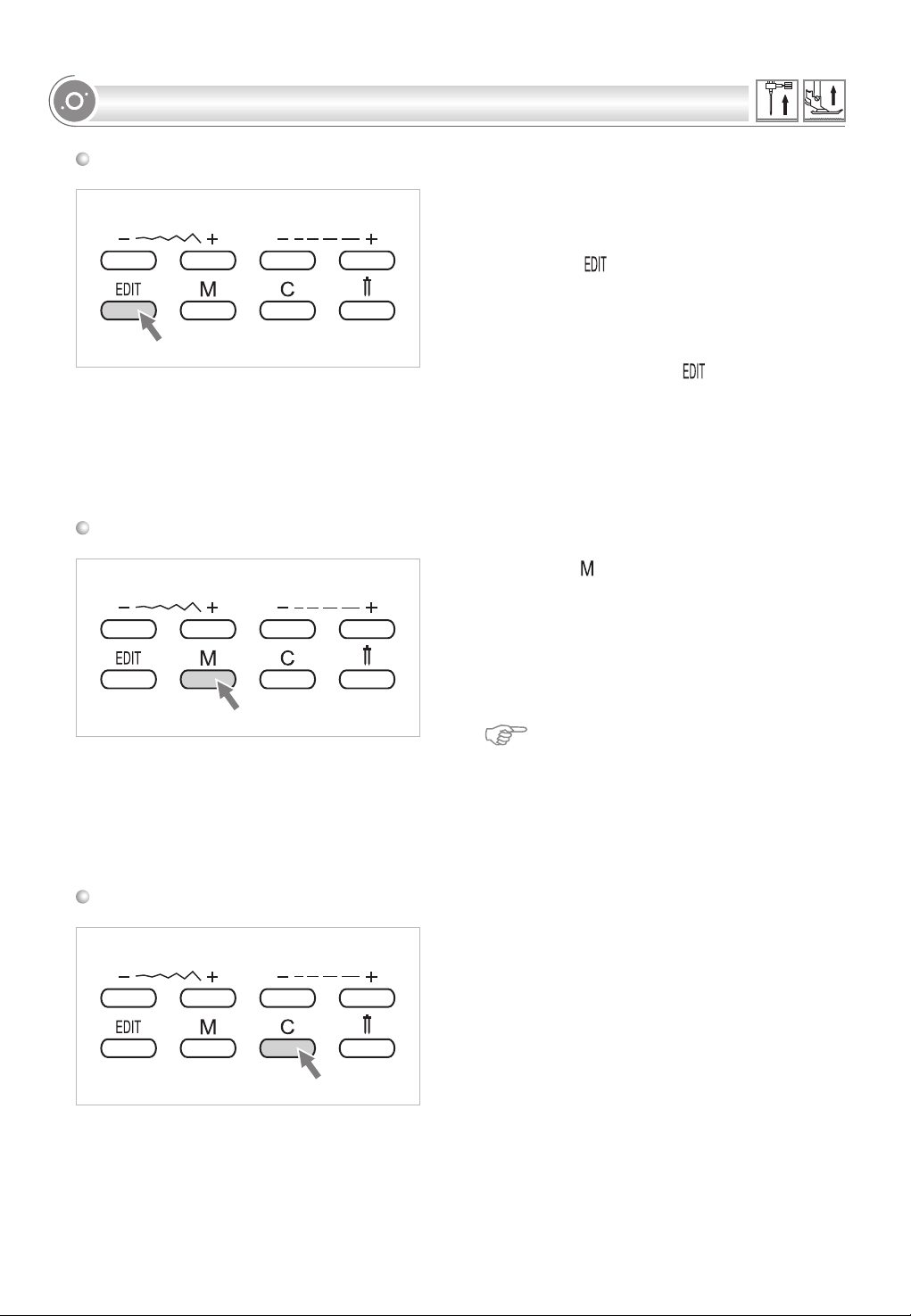

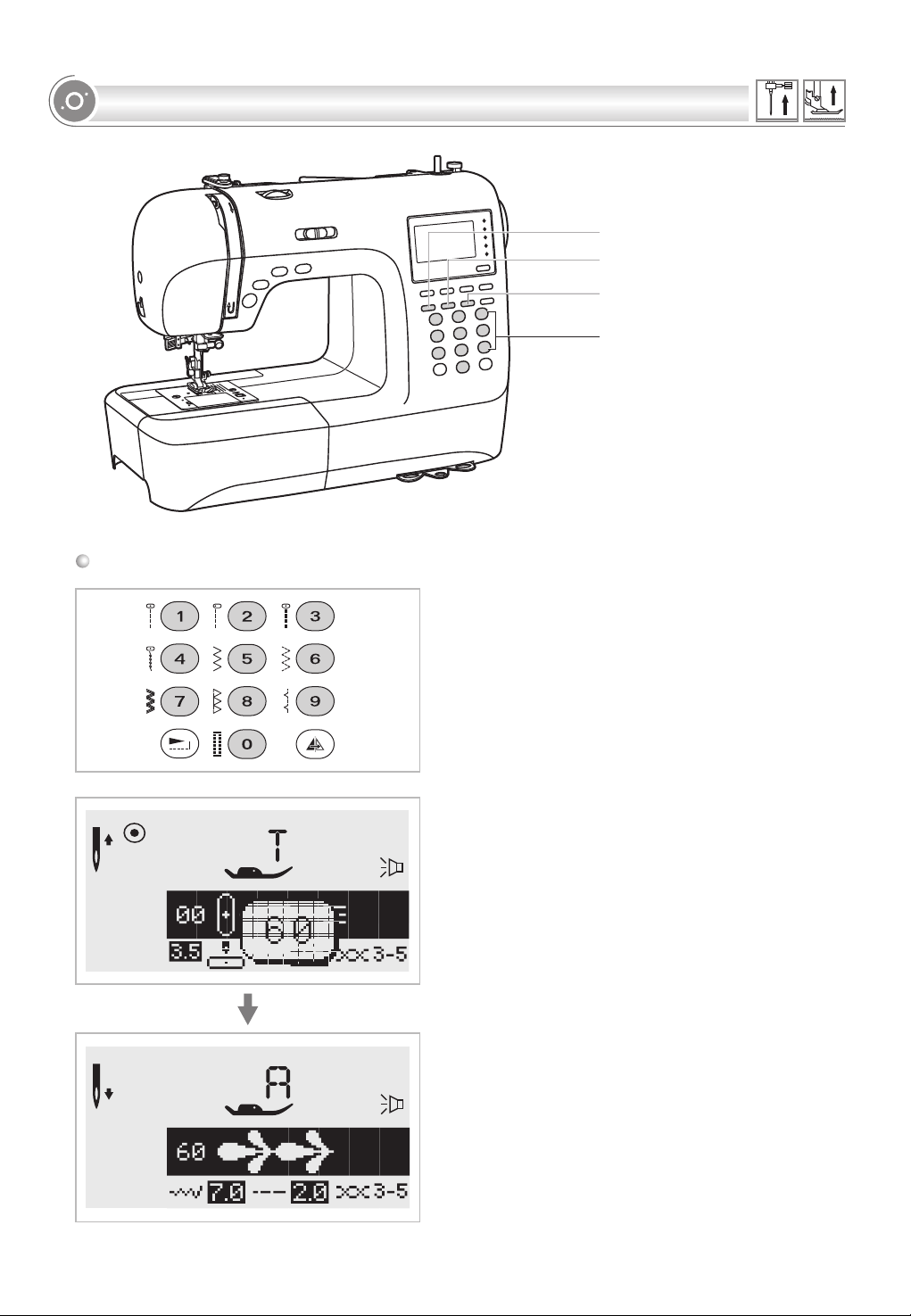

SELECTION BUTTONS
Direct pattern selection and number buttons ...........................................29
Edit button....................................................................30
Memory button ................................................................30
Clear button ..................................................................30

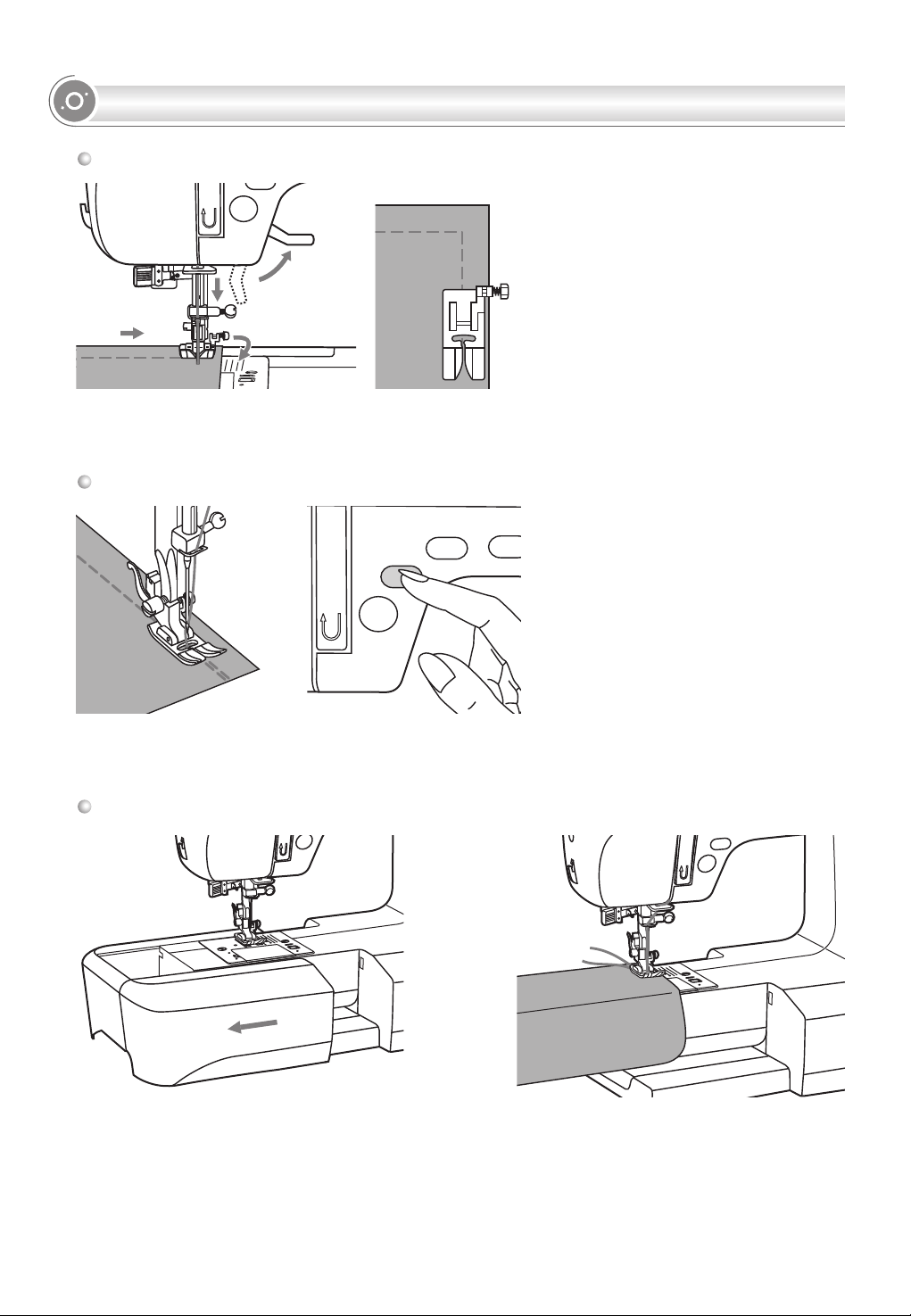

SEWING TIPS
Sewing corners ................................................................31
Reverse ......................................................................31
Freearm.....................................................................31

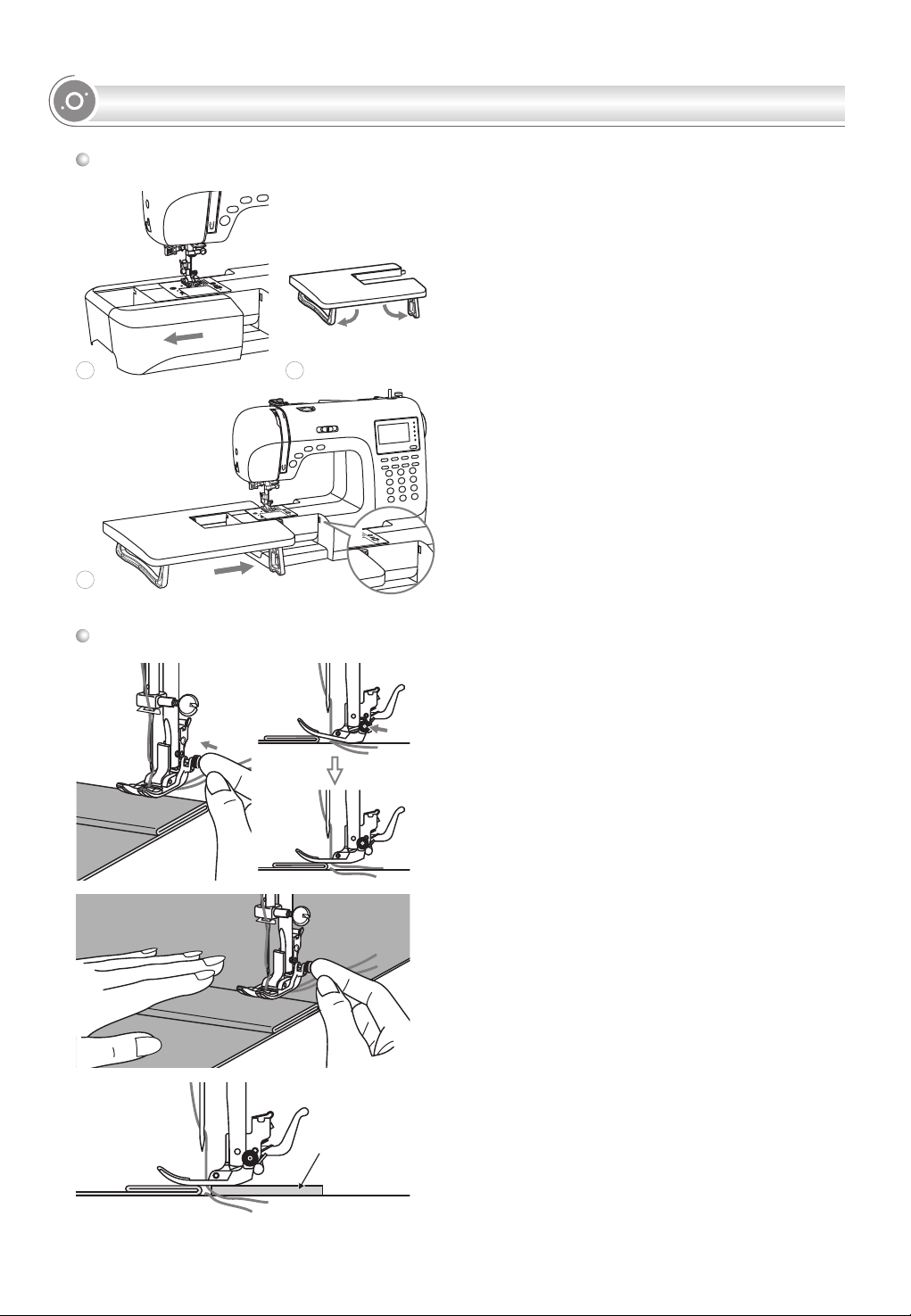

Installing the extension table.......................................................32
Sewing on heavy fabric ..........................................................32

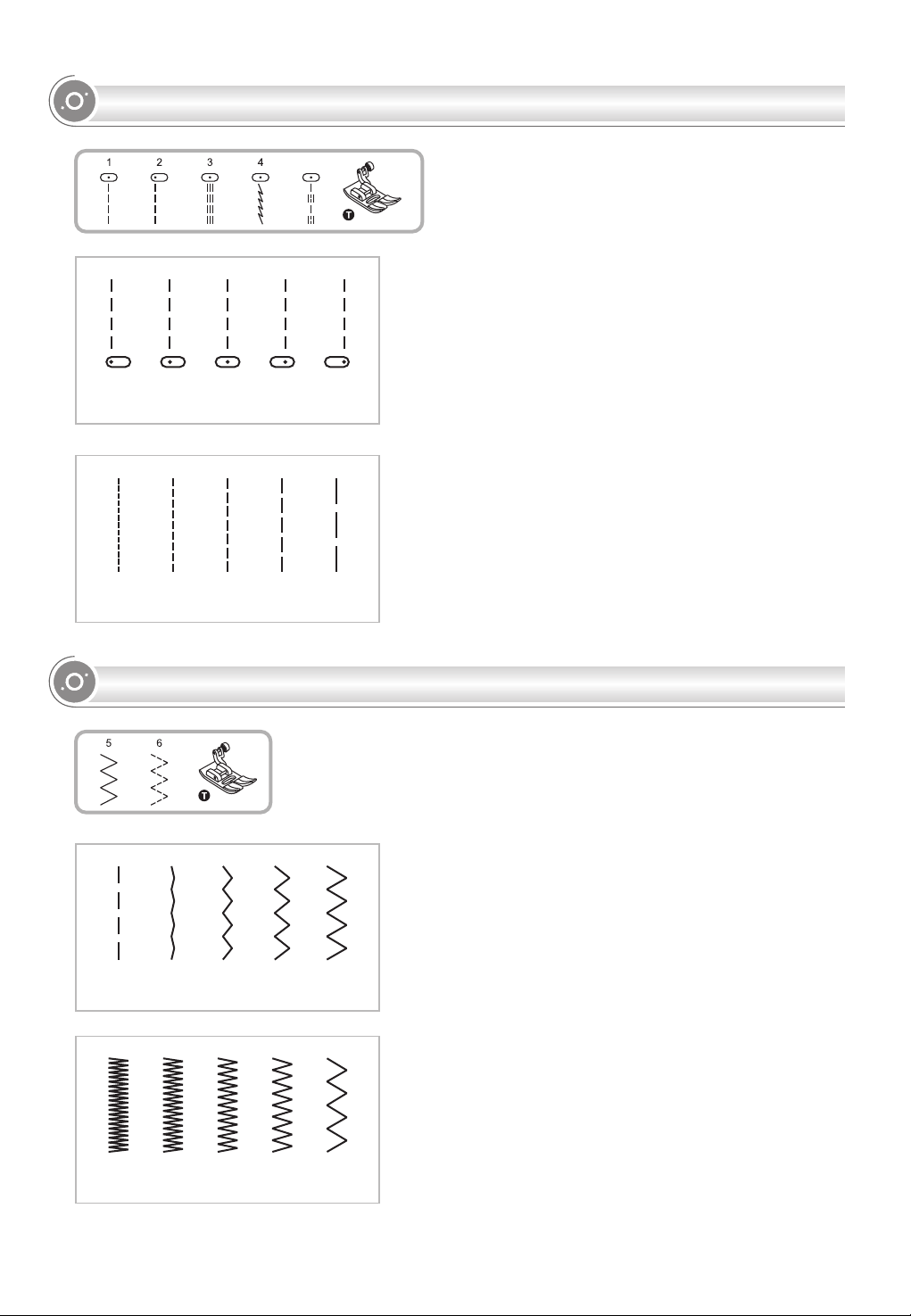

NEEDLE POSITION AND STITCH LENGTH
ZIGZAG STITCHES

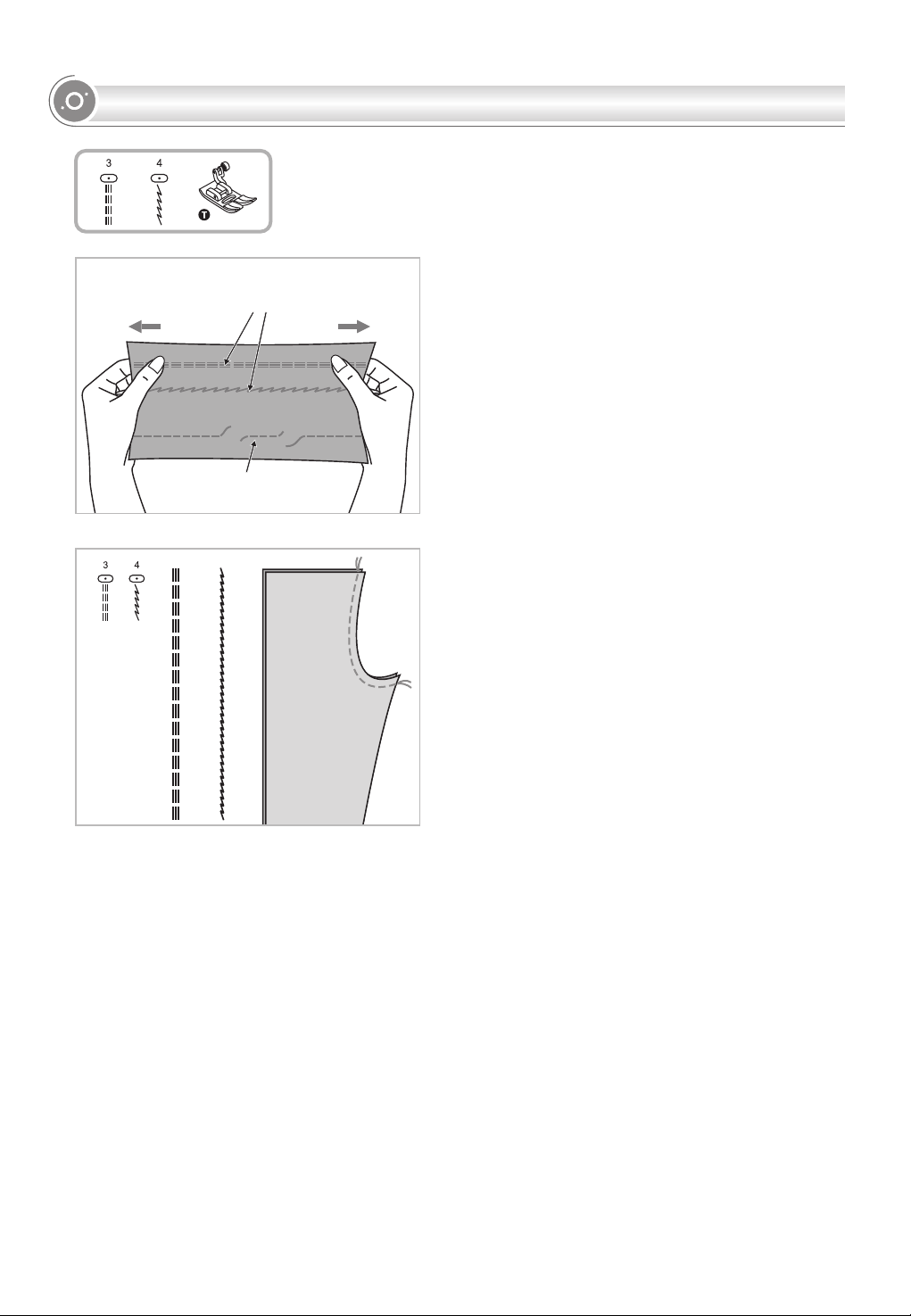

STRETCH STITCHES
....................................................................4-5
.................................................................6-7
....................................................................8
..........................................................10-11
...........................................................12
.............................................................16
...............................................................18
................................................................19
.............................................................21
...........................................................23
..........................................................24-25
...........................................................26-28
...........................................................29-30
.................................................................31-32
................................................................33
................................................................34
...................................................1
.....................................................2-3
....................................9
..................................................13-14
......................................................15
.....................................................17
.....................................................20
................................................22
.......................................................23
..............................................33
CONTENTS

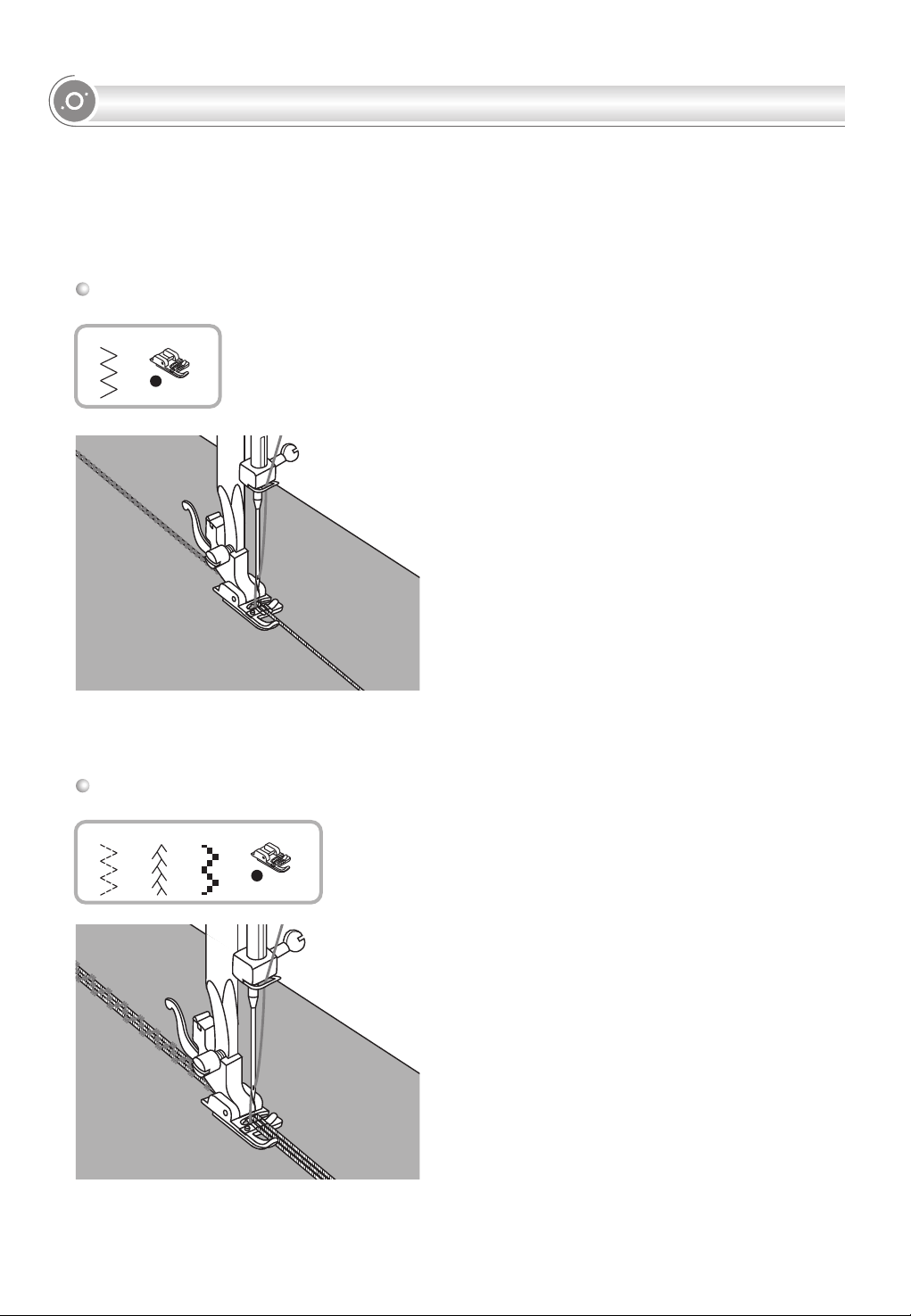

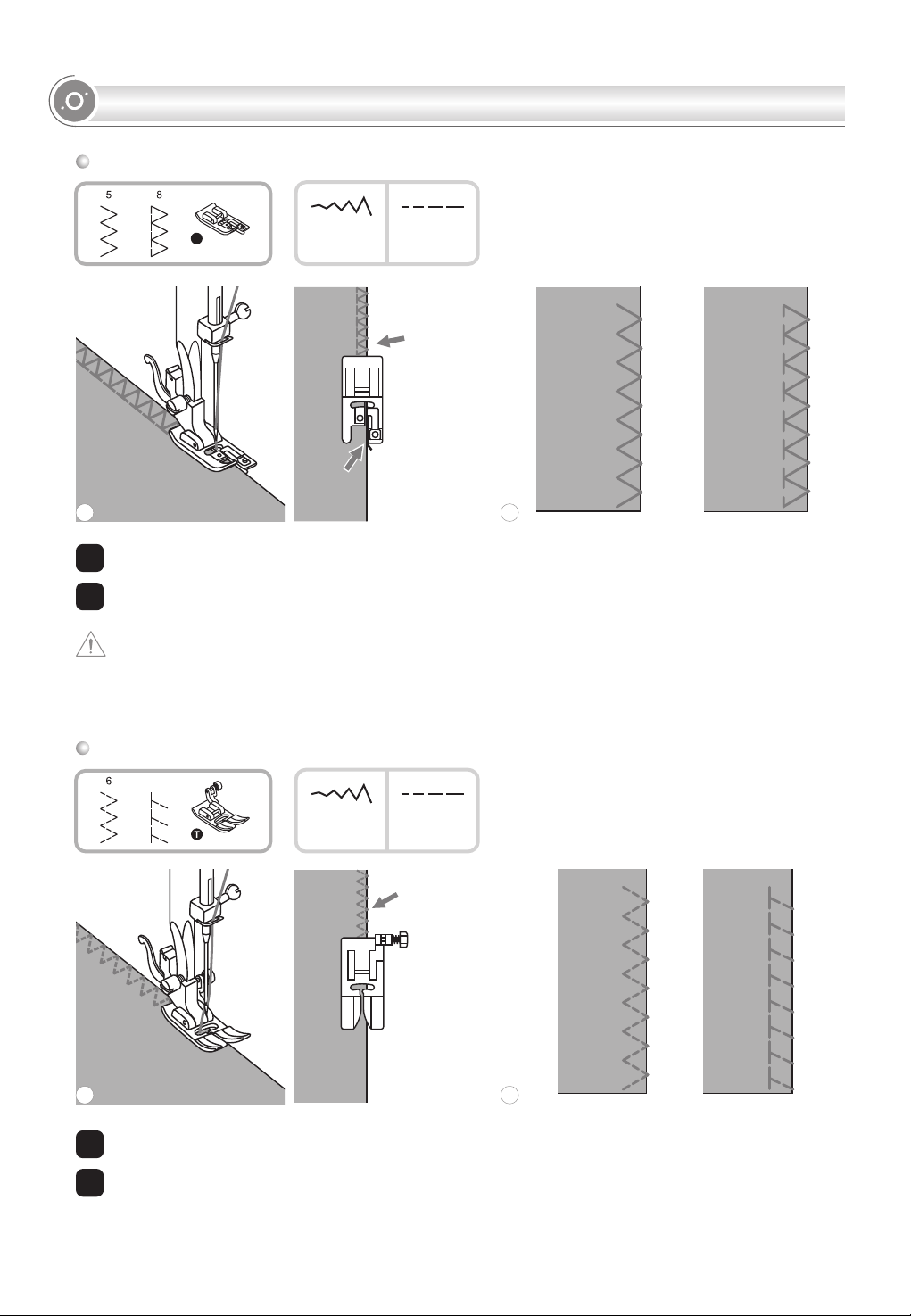

OVERCASTING STITCHES
Using the overcasting foot ........................................................35
Using the all purpose foot ........................................................35

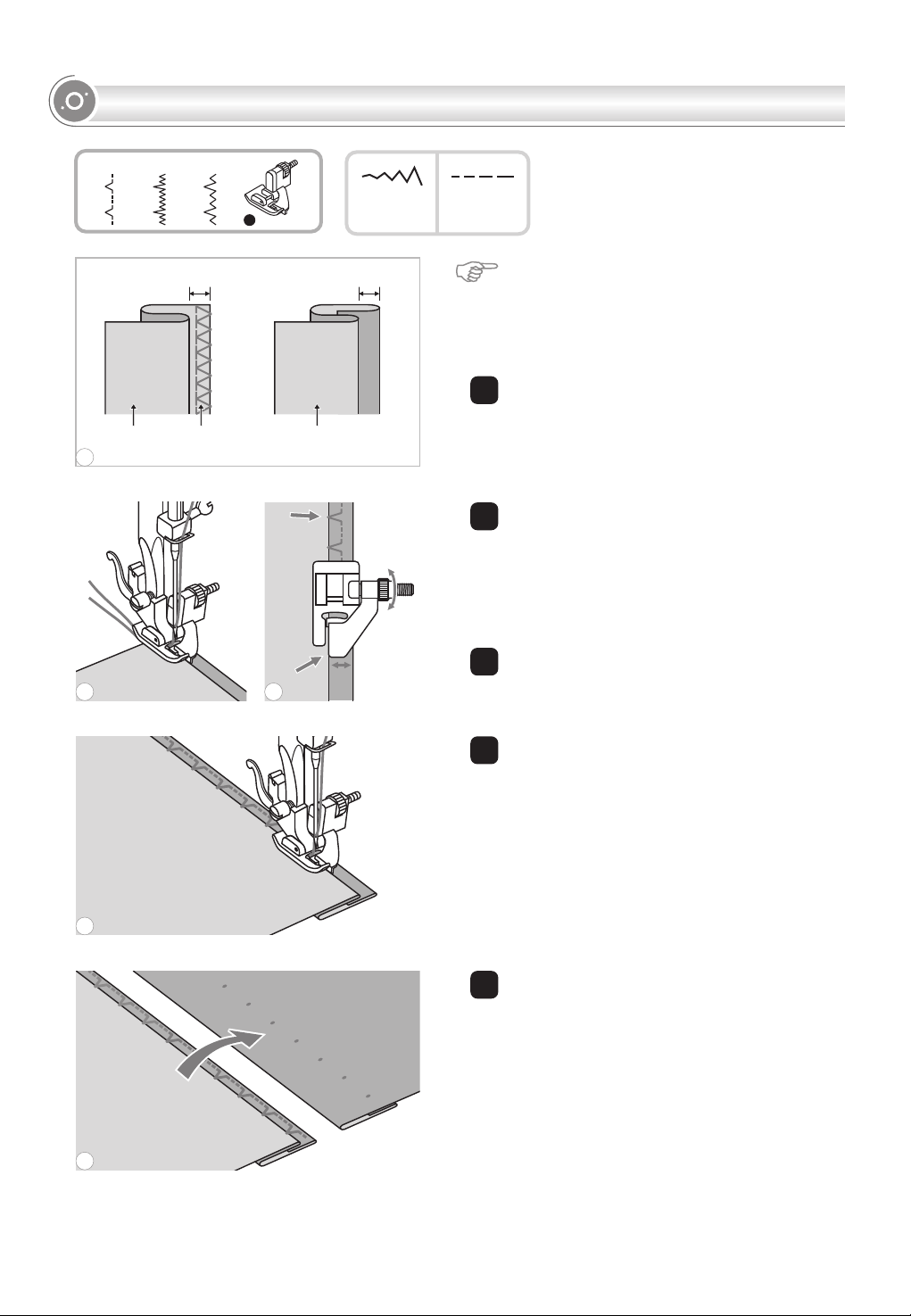

BLIND HEMS

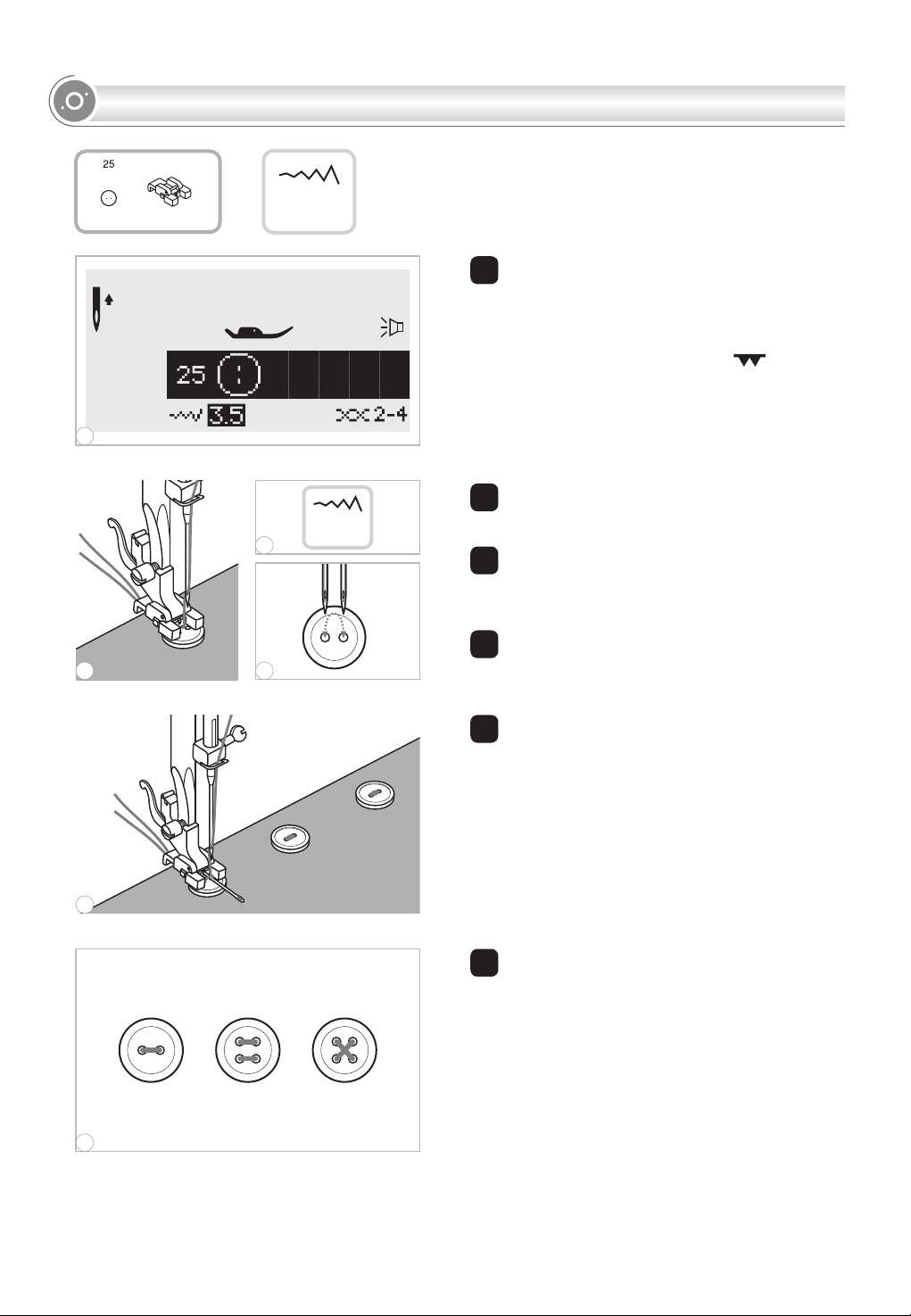

BUTTON SEWING

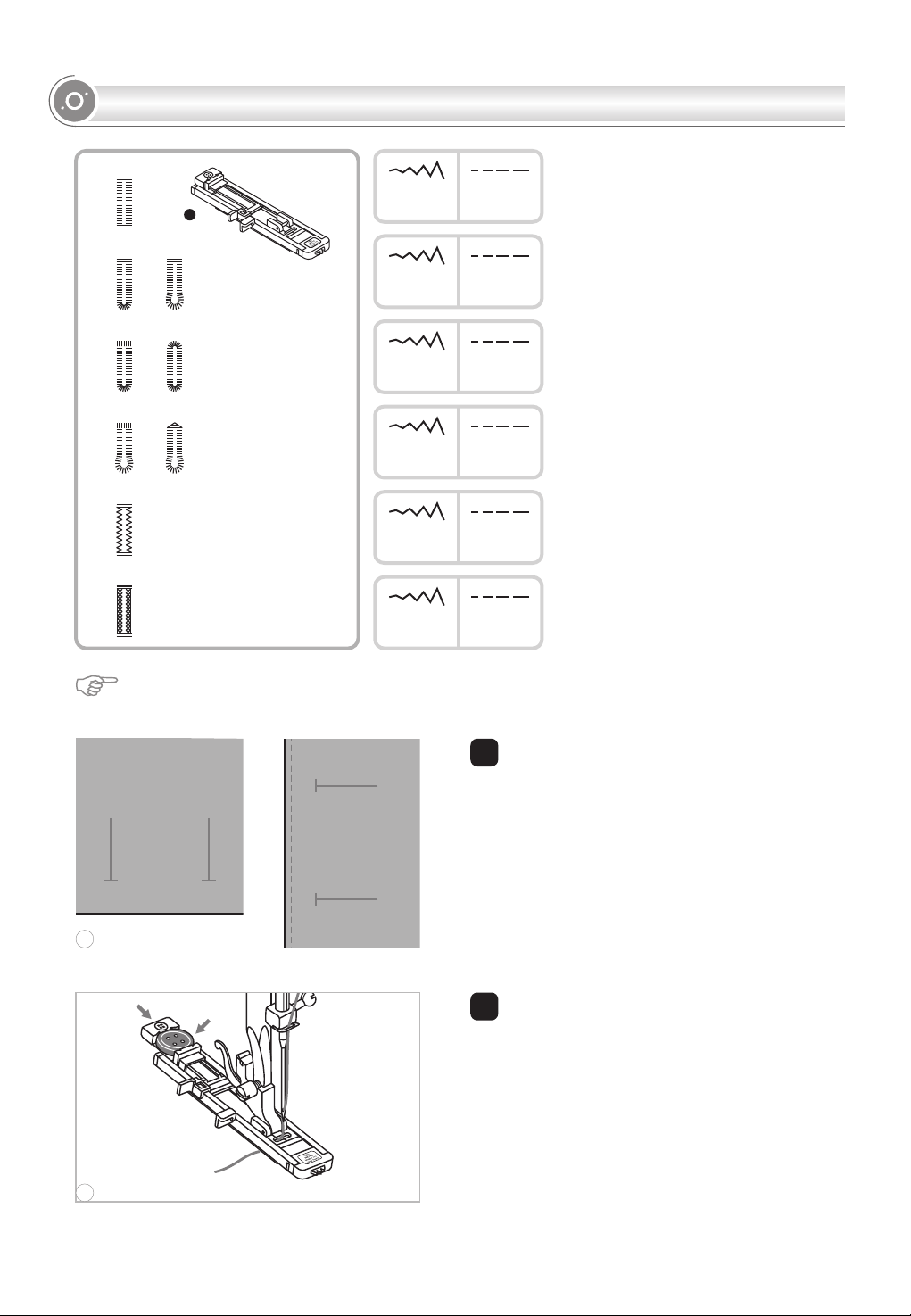

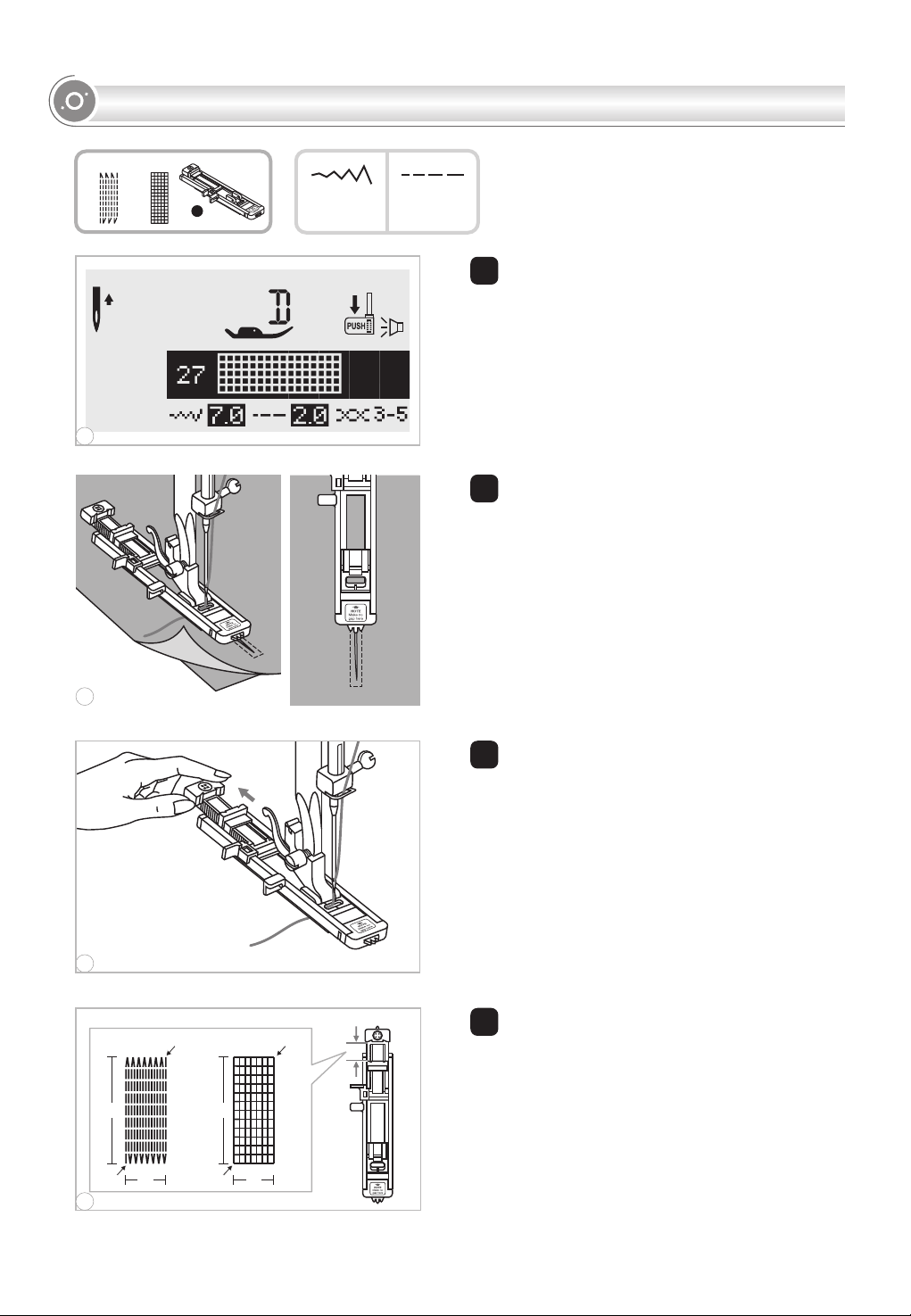

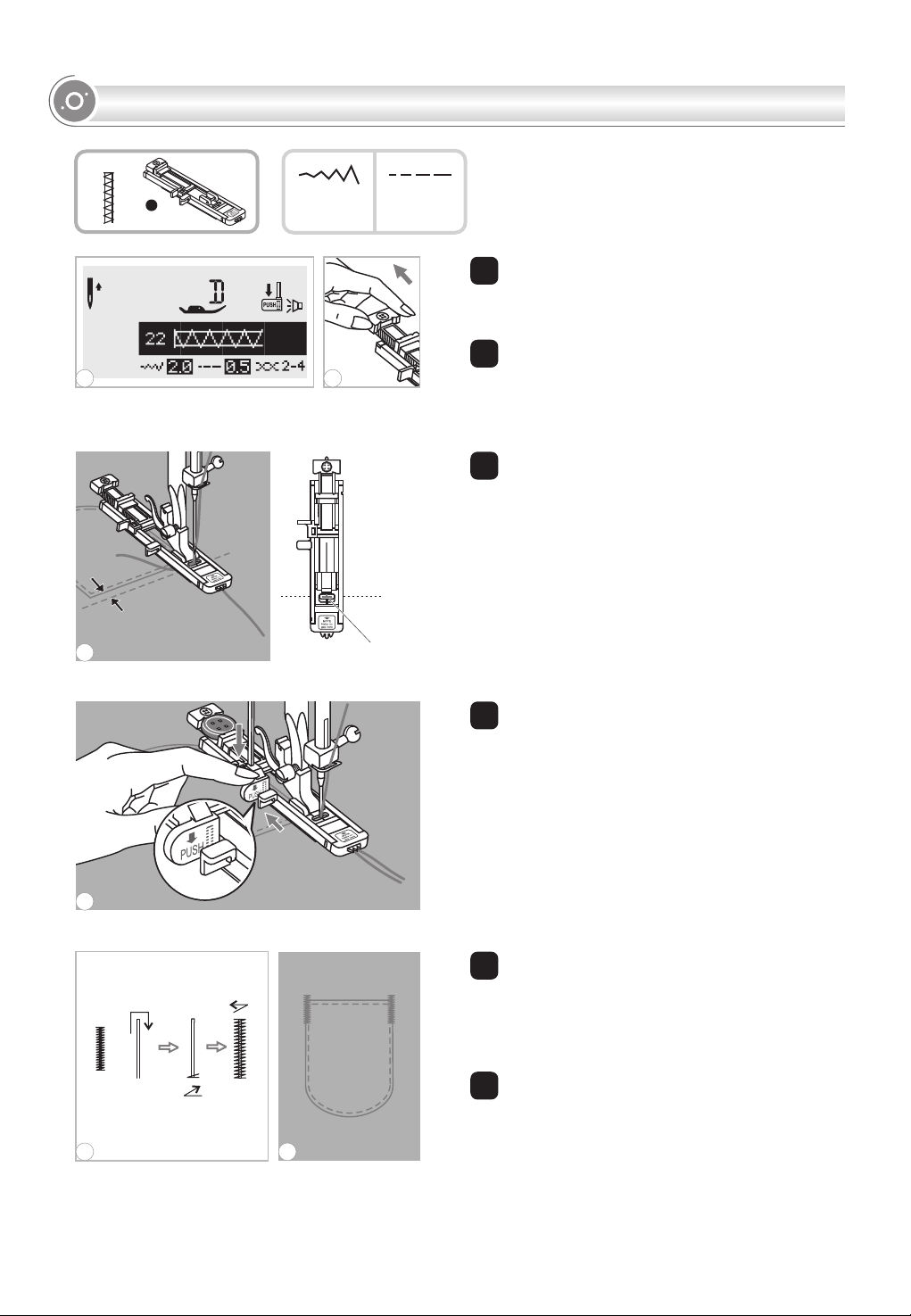

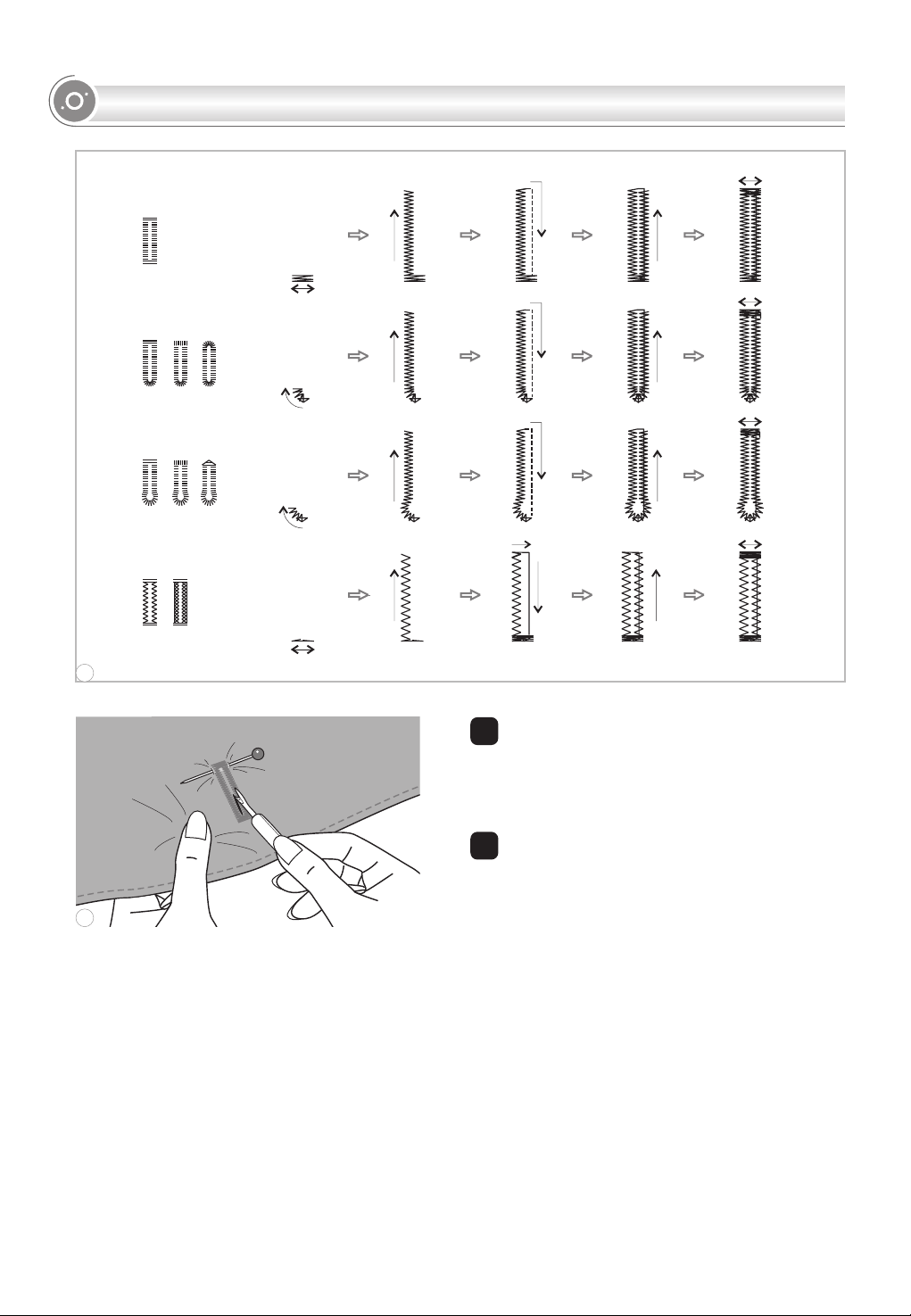

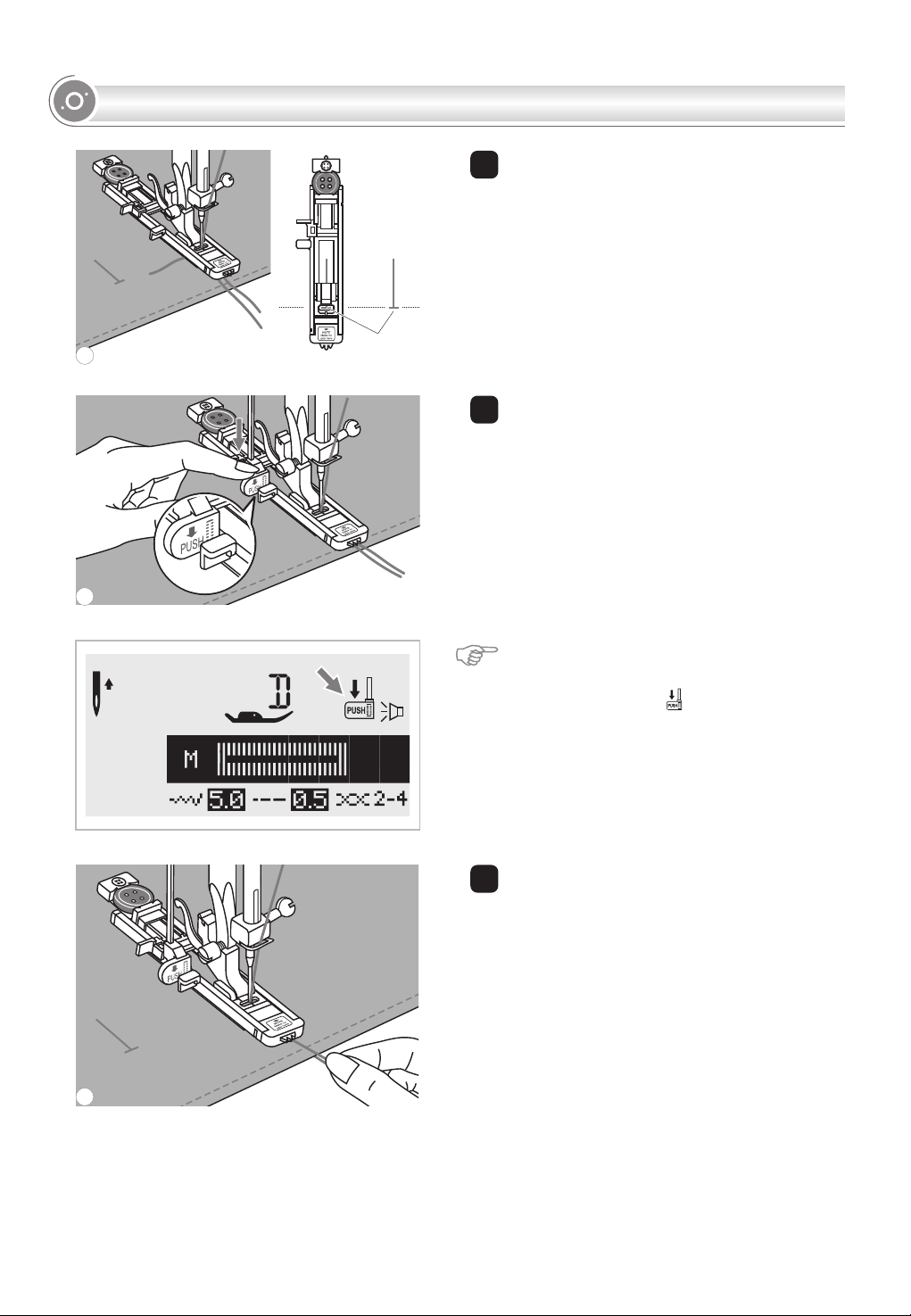

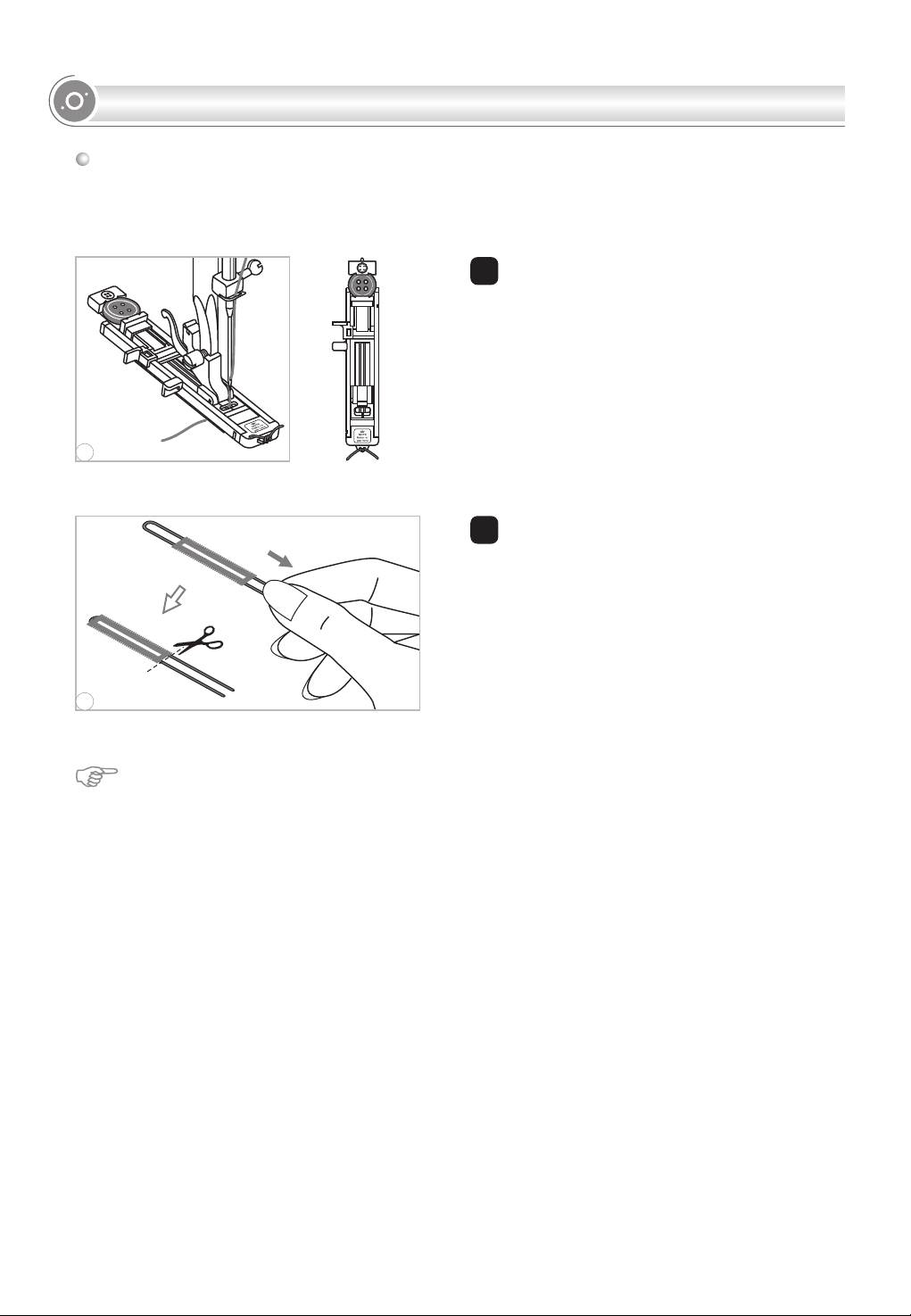

CORDED BUTTONHOLES ........................................................38-41
Making a buttonhole on stretch fabrics ...............................................41
BAR TACK STITCH

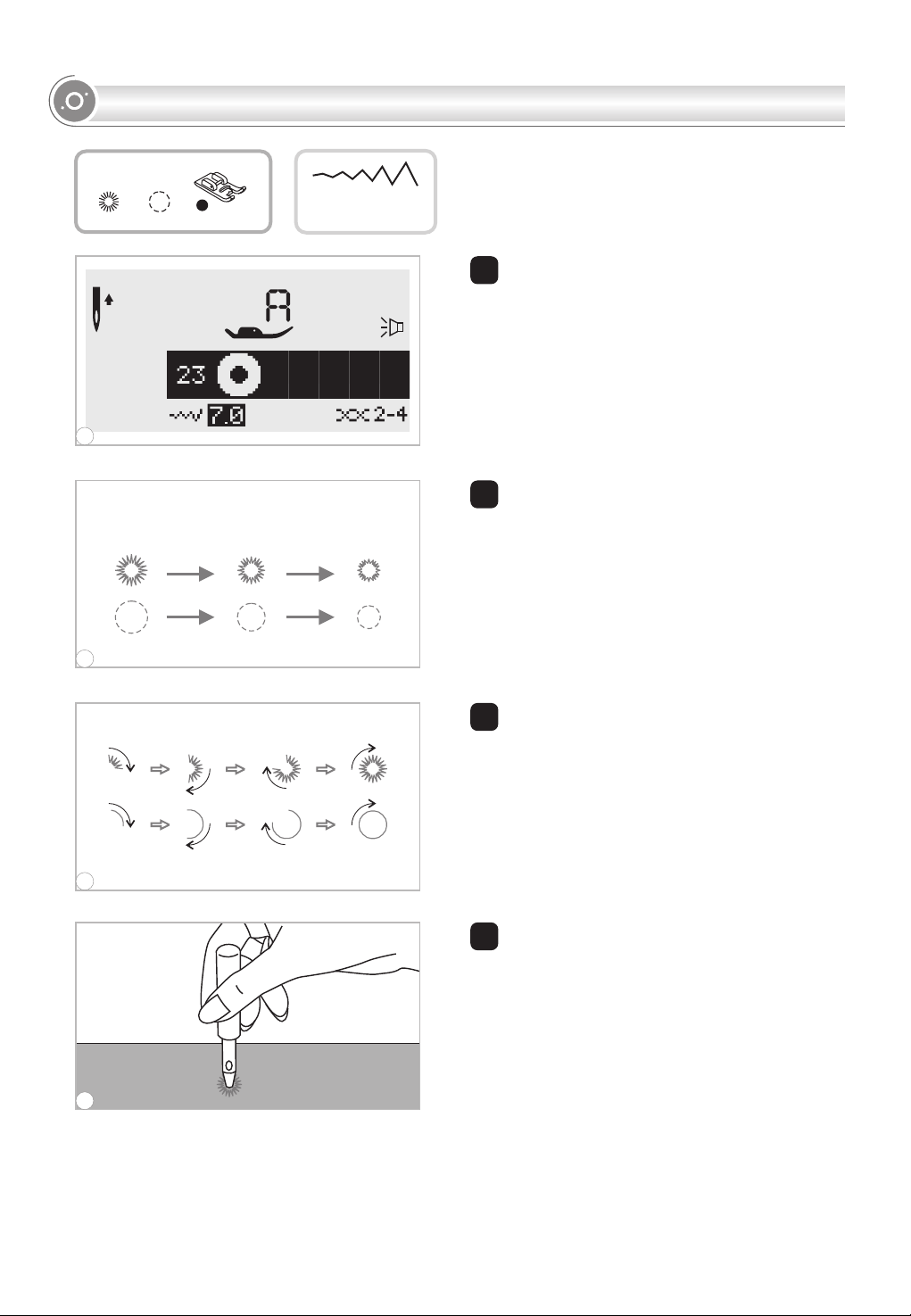

EYELET STITCH

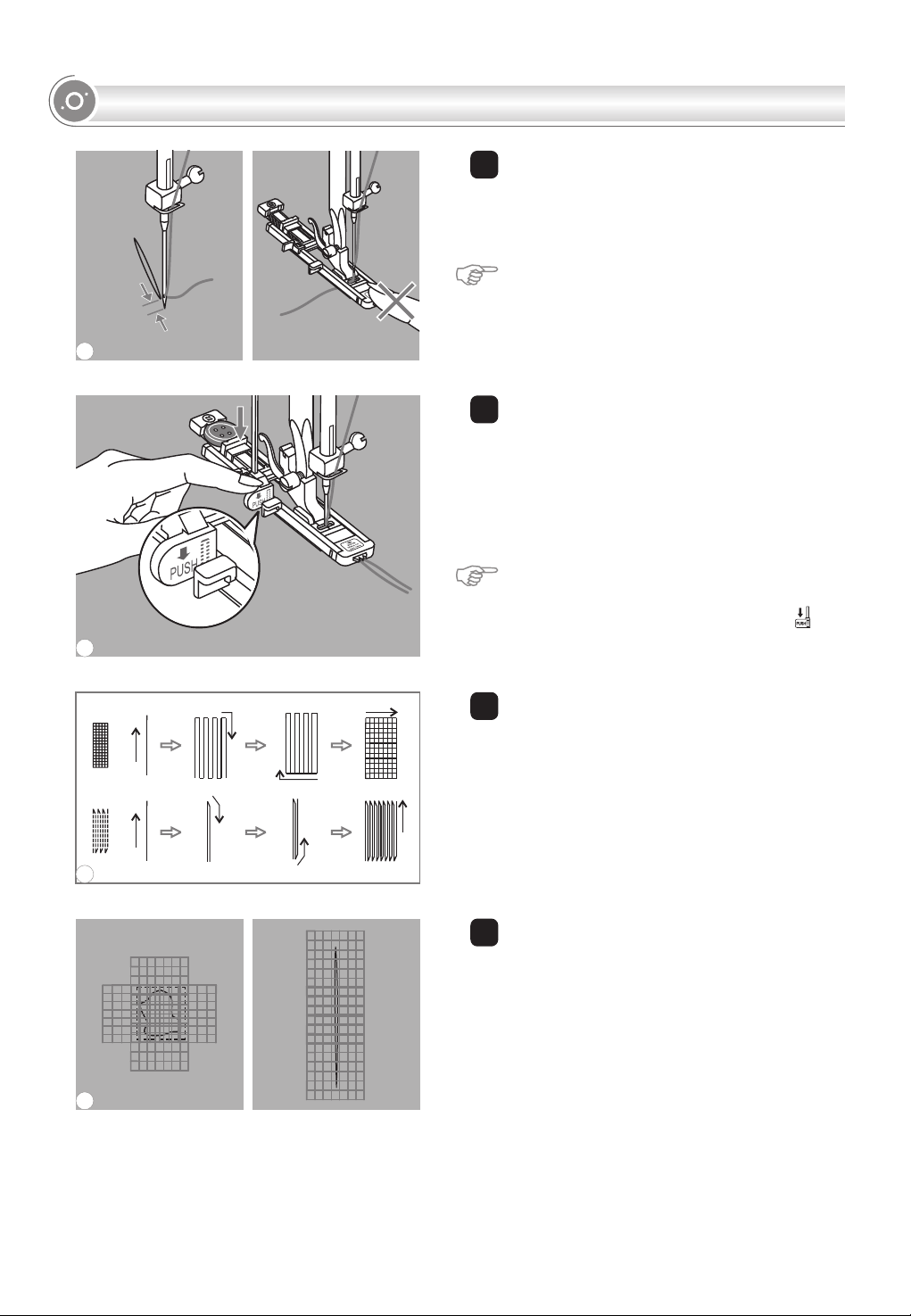

DARNING STITCH

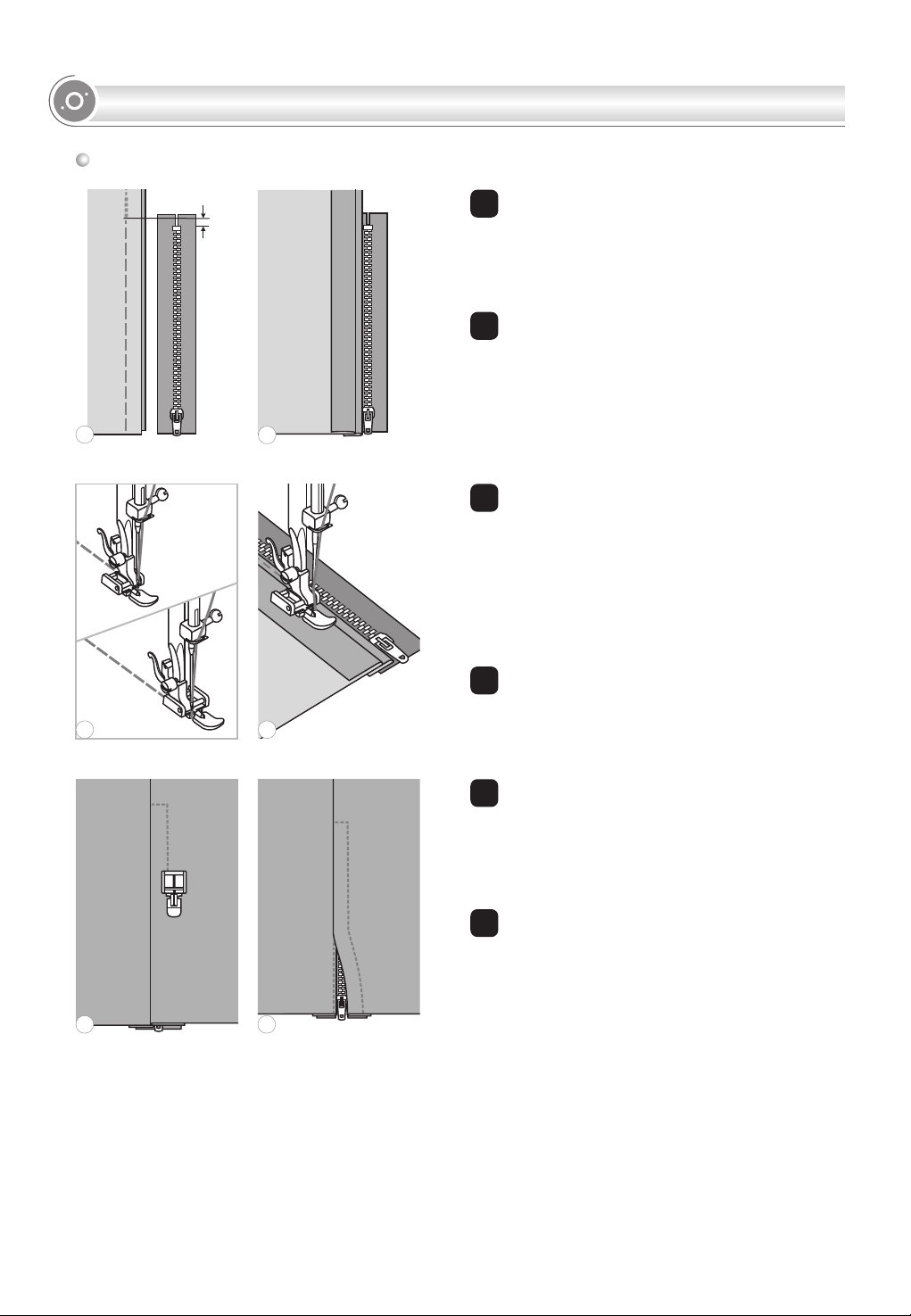

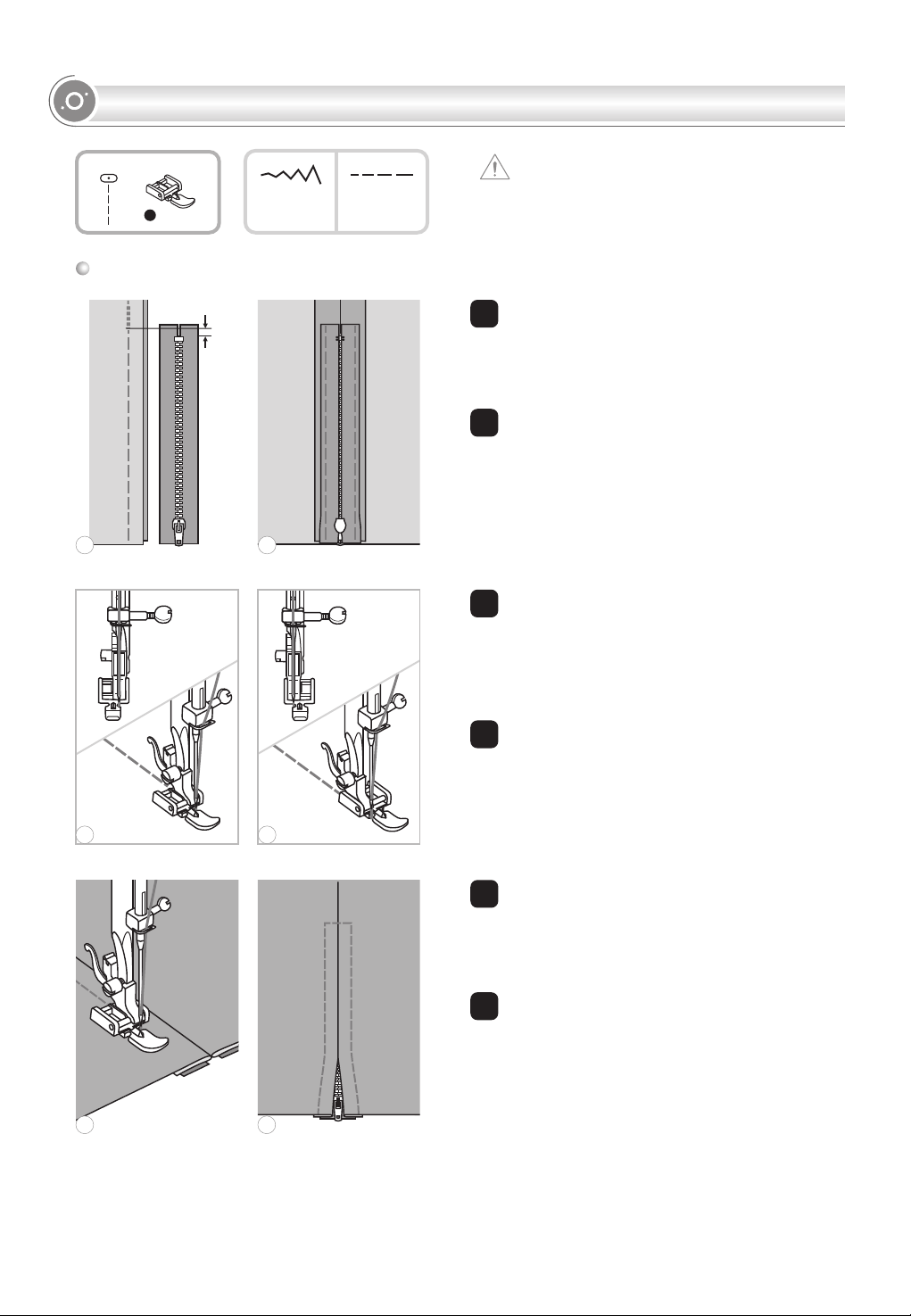

ZIPPER INSERTION
Inserting a centered zipper ........................................................46
Inserting a lapped zipper .........................................................47

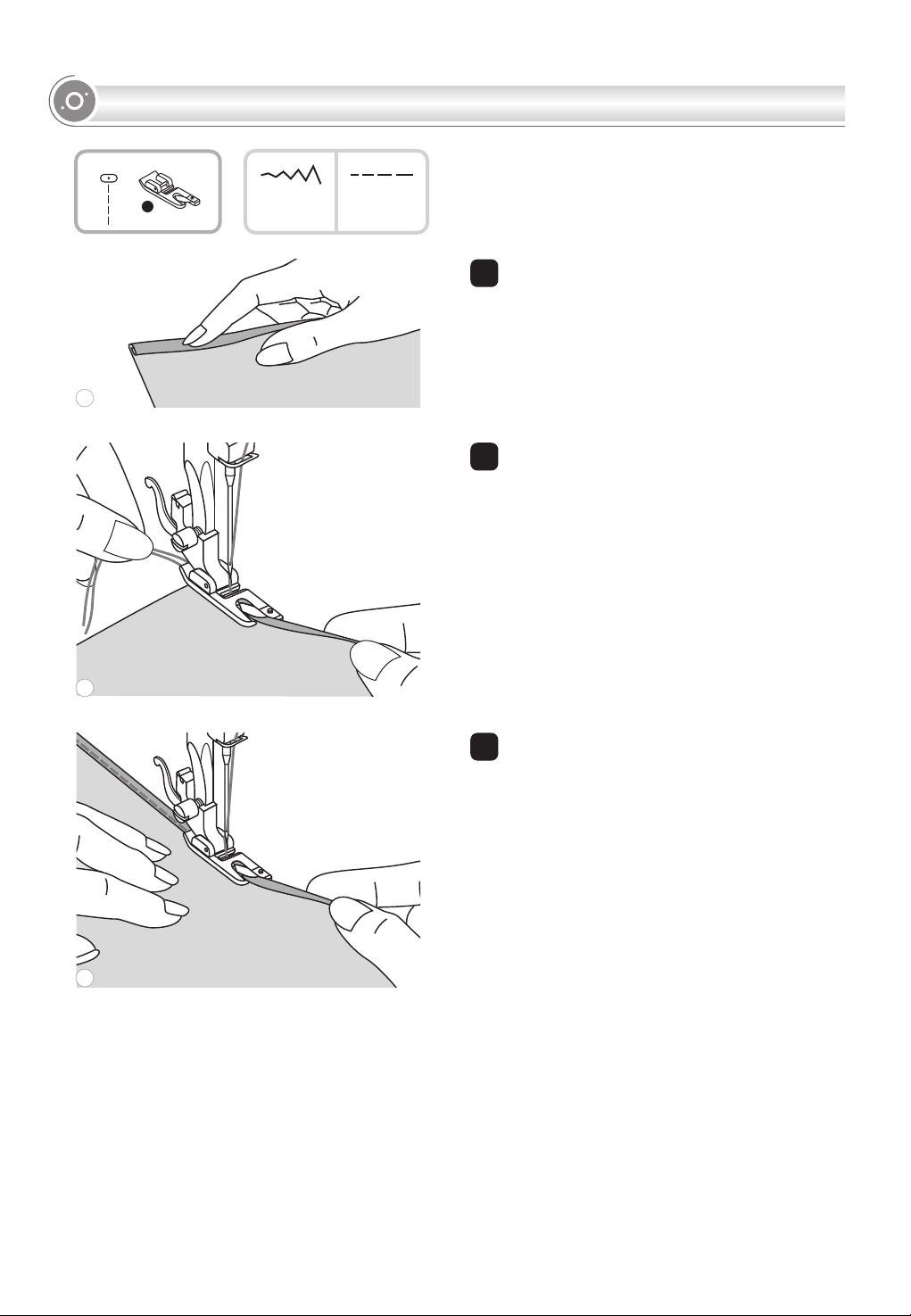

NARROW HEMMING
CORDING
Single cording .................................................................49
Triple cording .................................................................49
SATIN STITCH SEWING

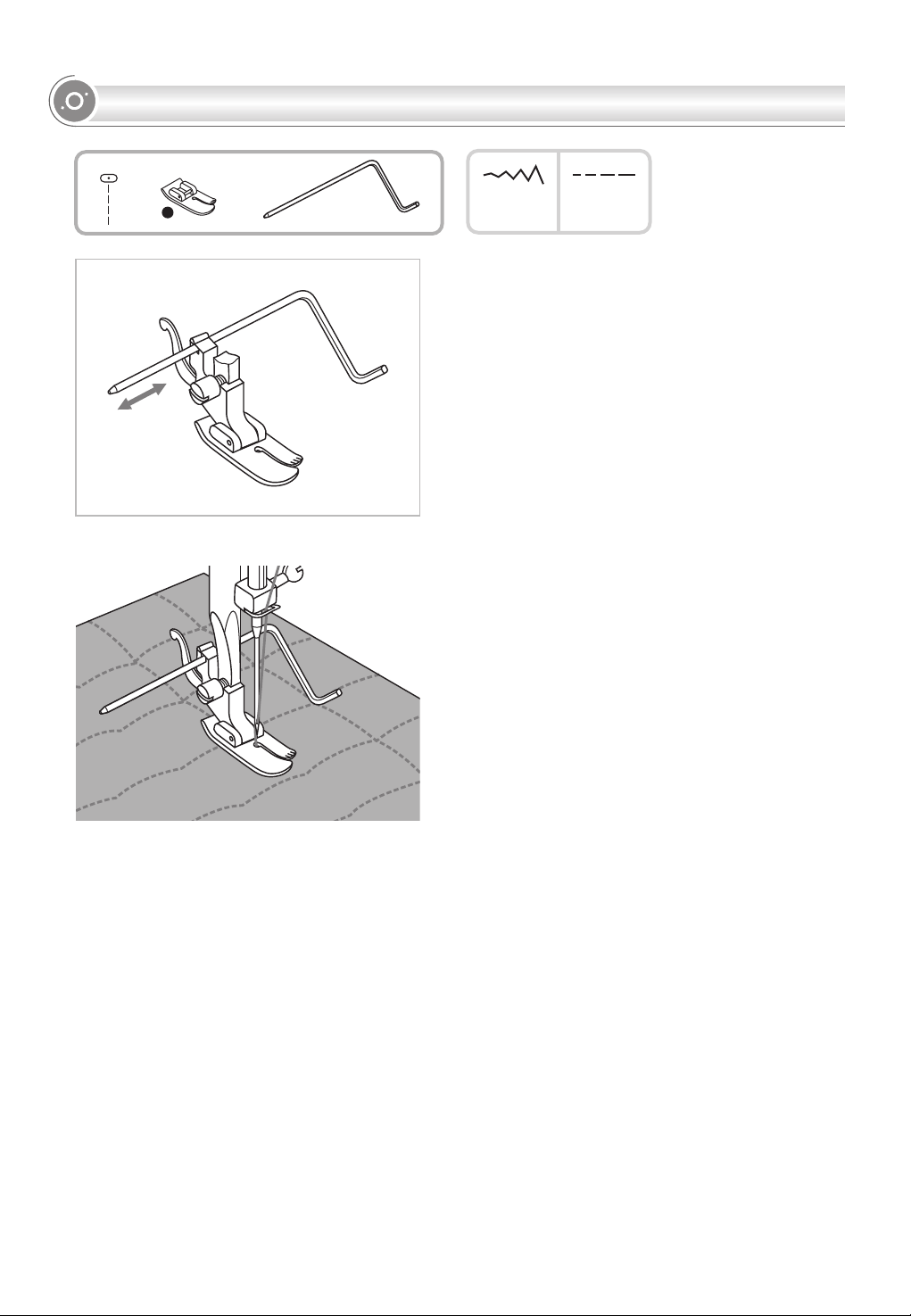

EDGE/QUILTING GUIDE ............................................................51

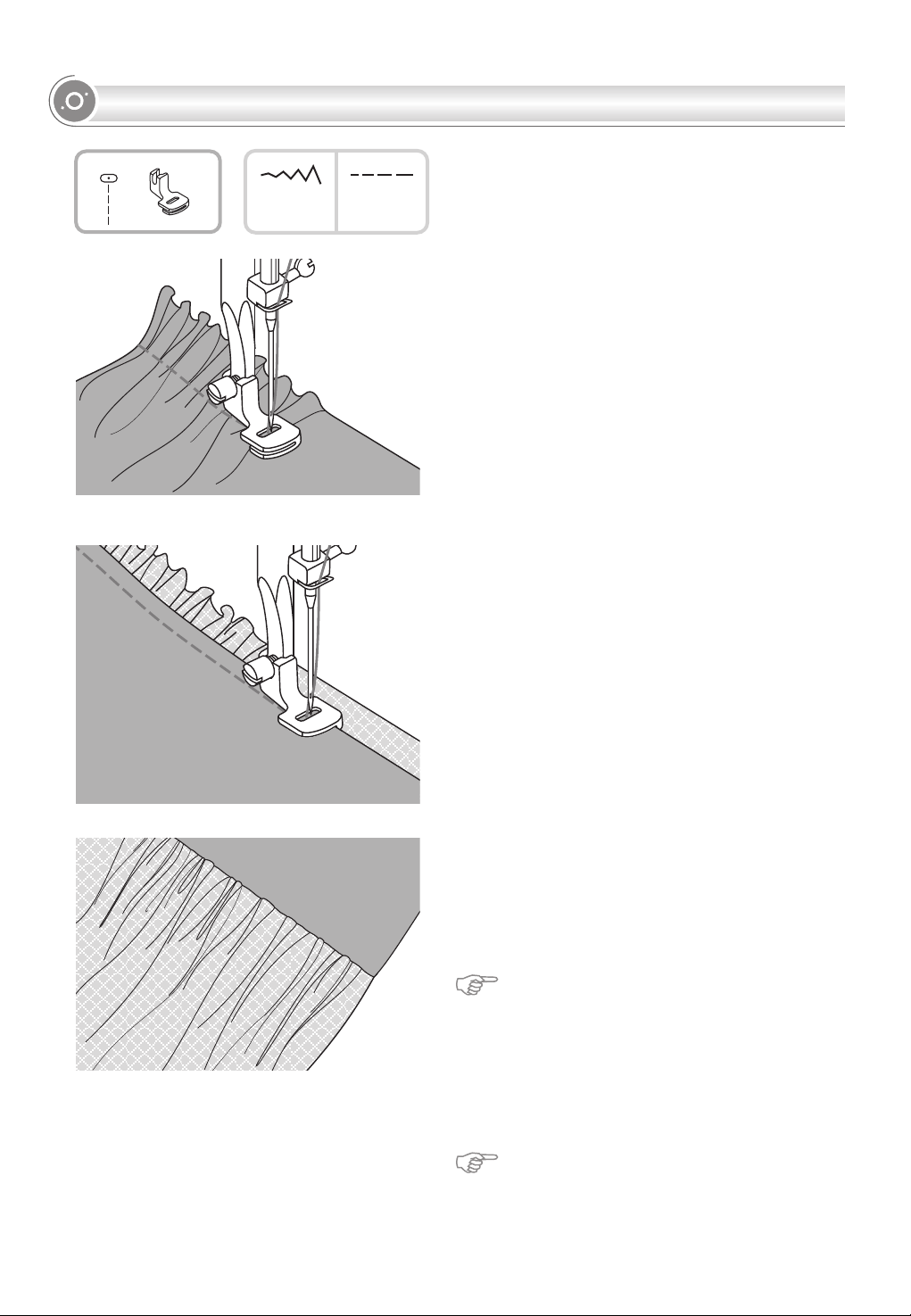

GATHERING

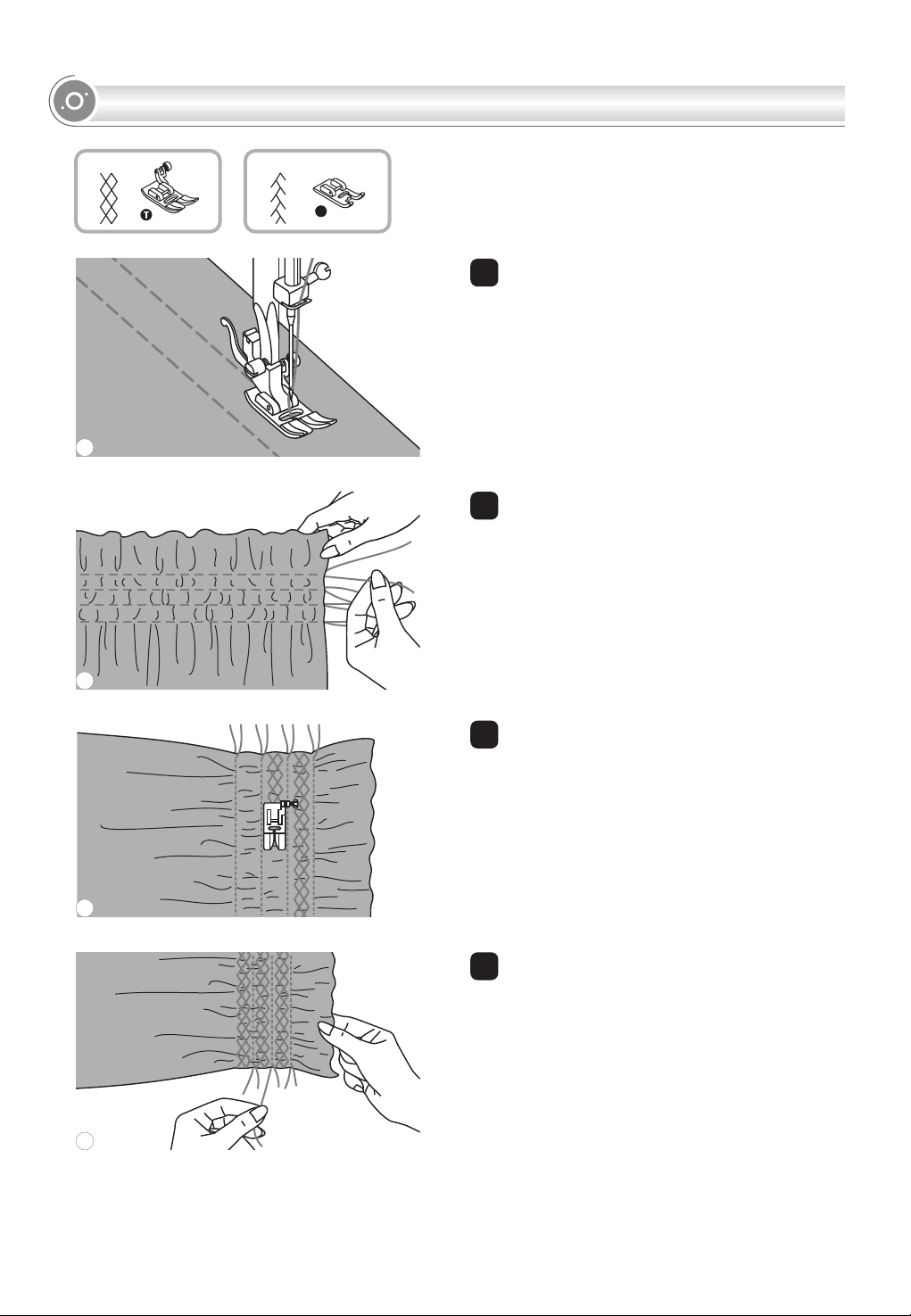

SMOCKING

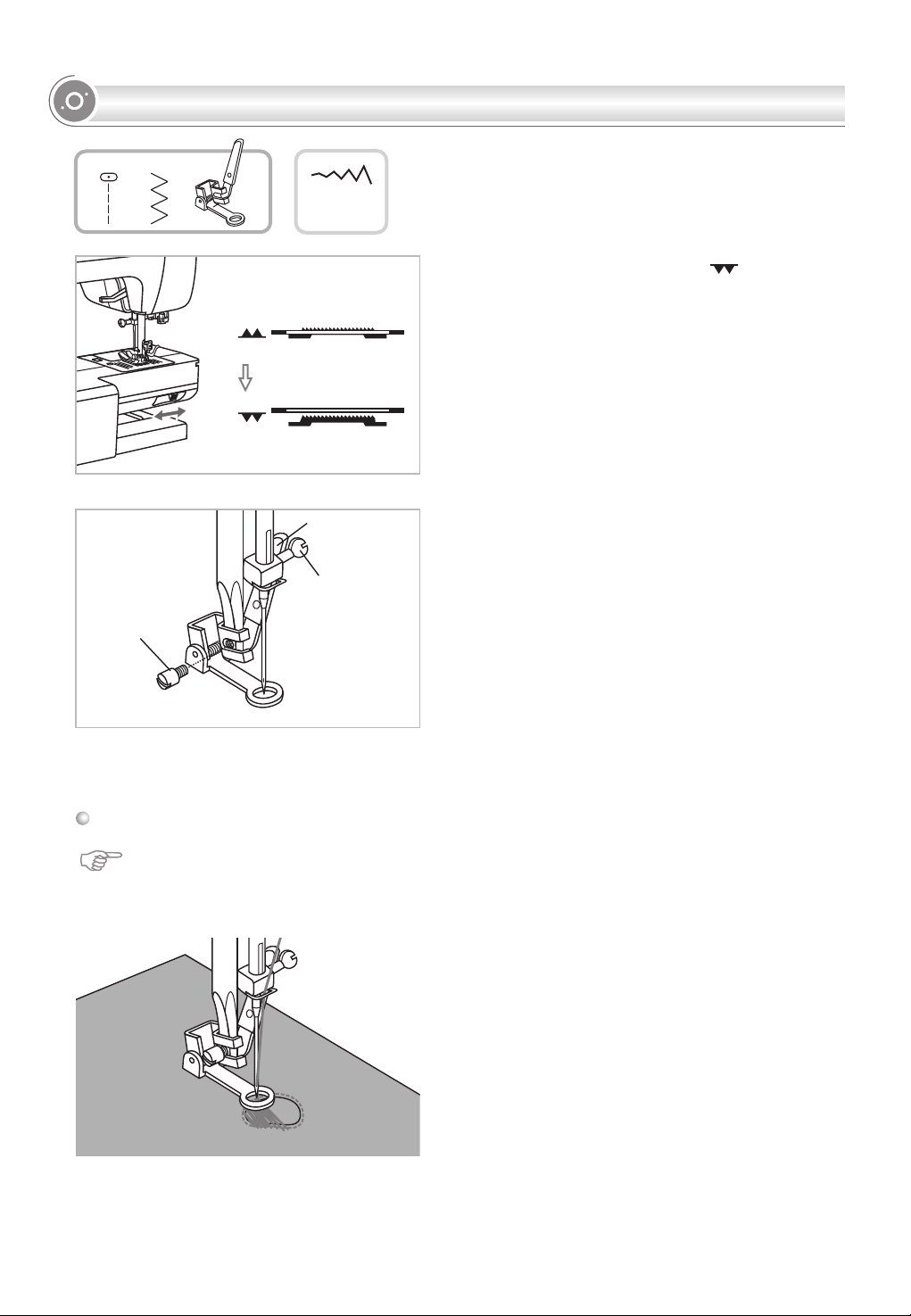

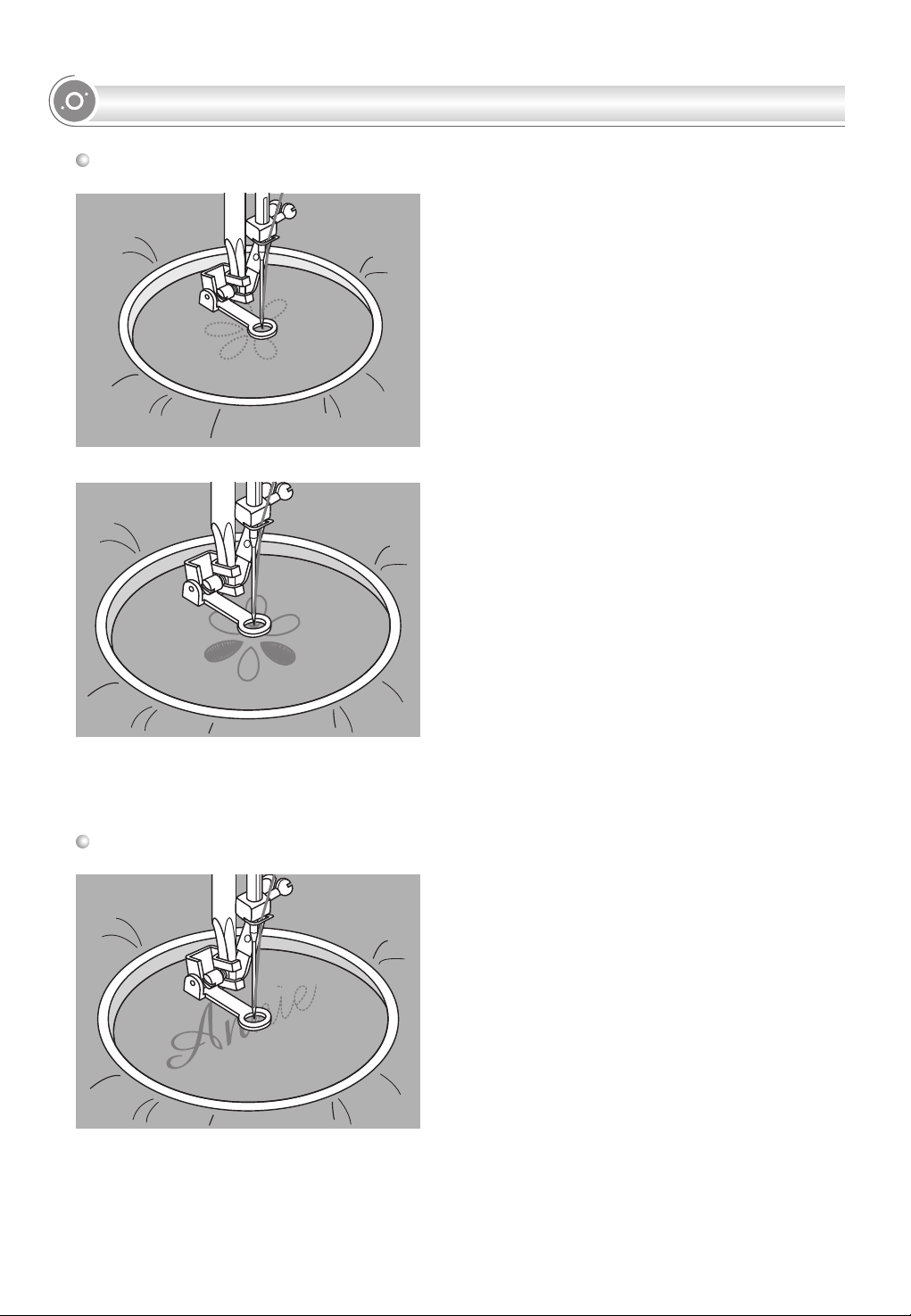

FREE MOTION SEWING
Darning .....................................................................54
Embroidery ...................................................................55
Monogramming ...............................................................55

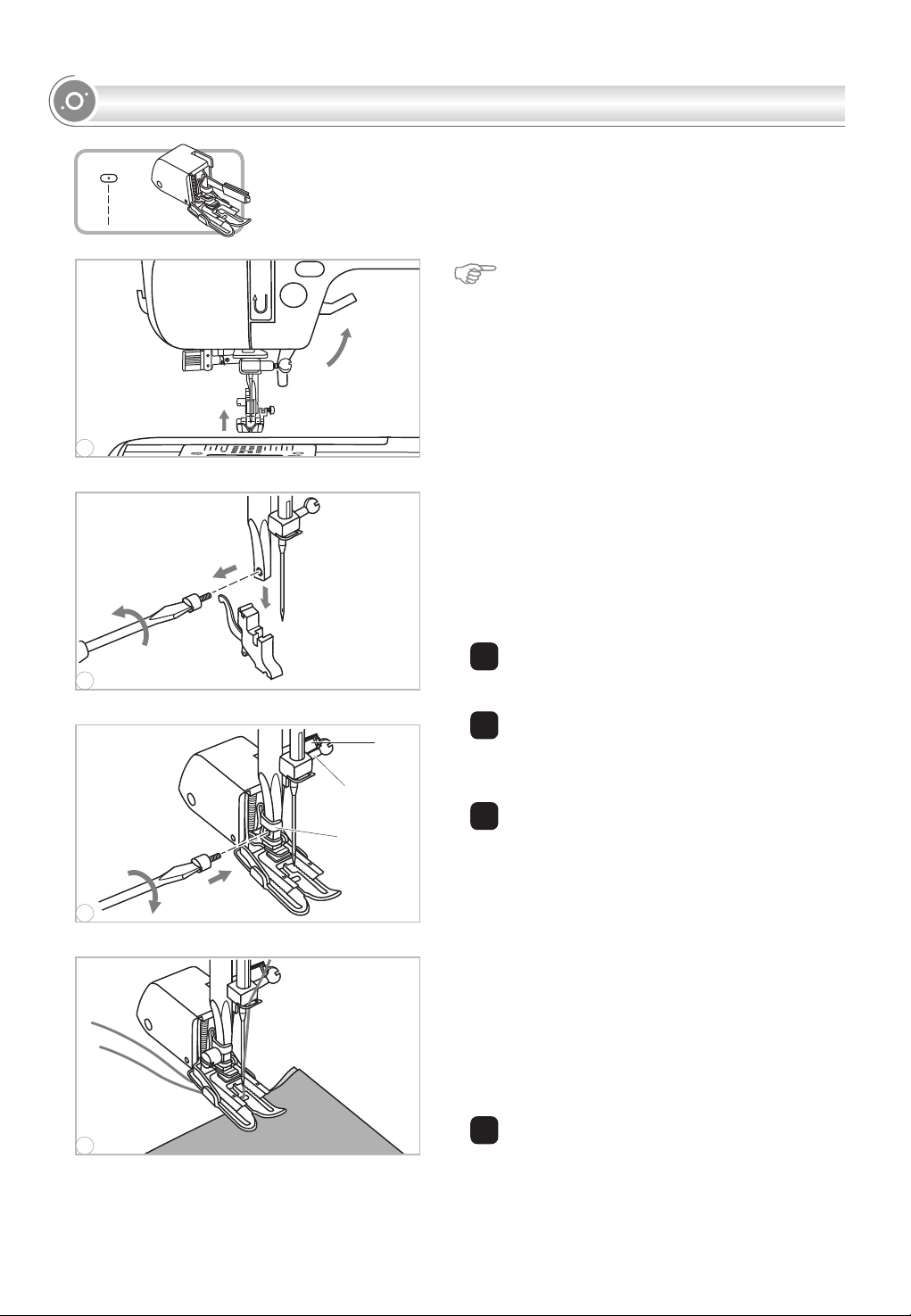

WALKING FOOT

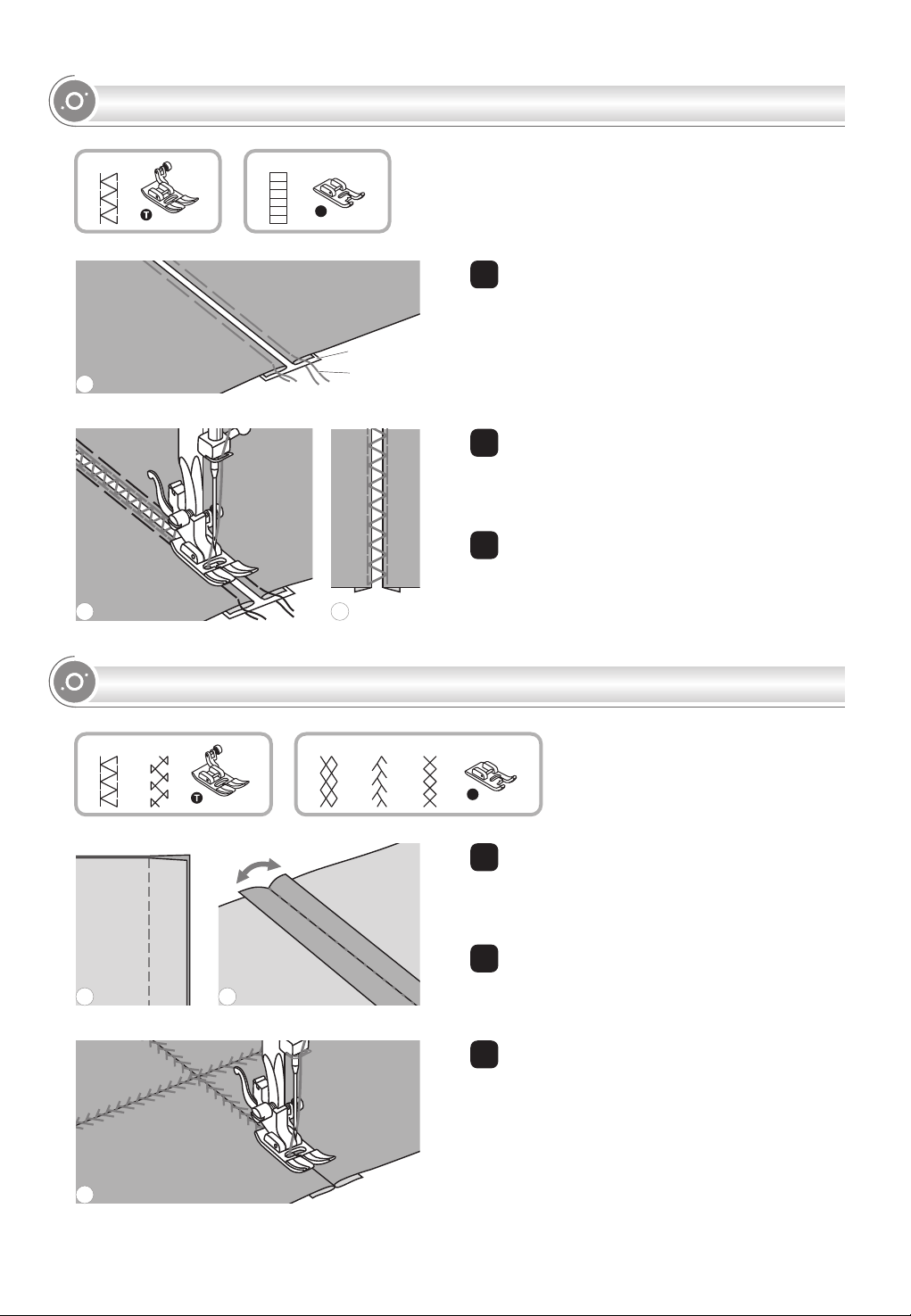

FAGOTING ......................................................................57
DECORATIVE TOPSTITCHING

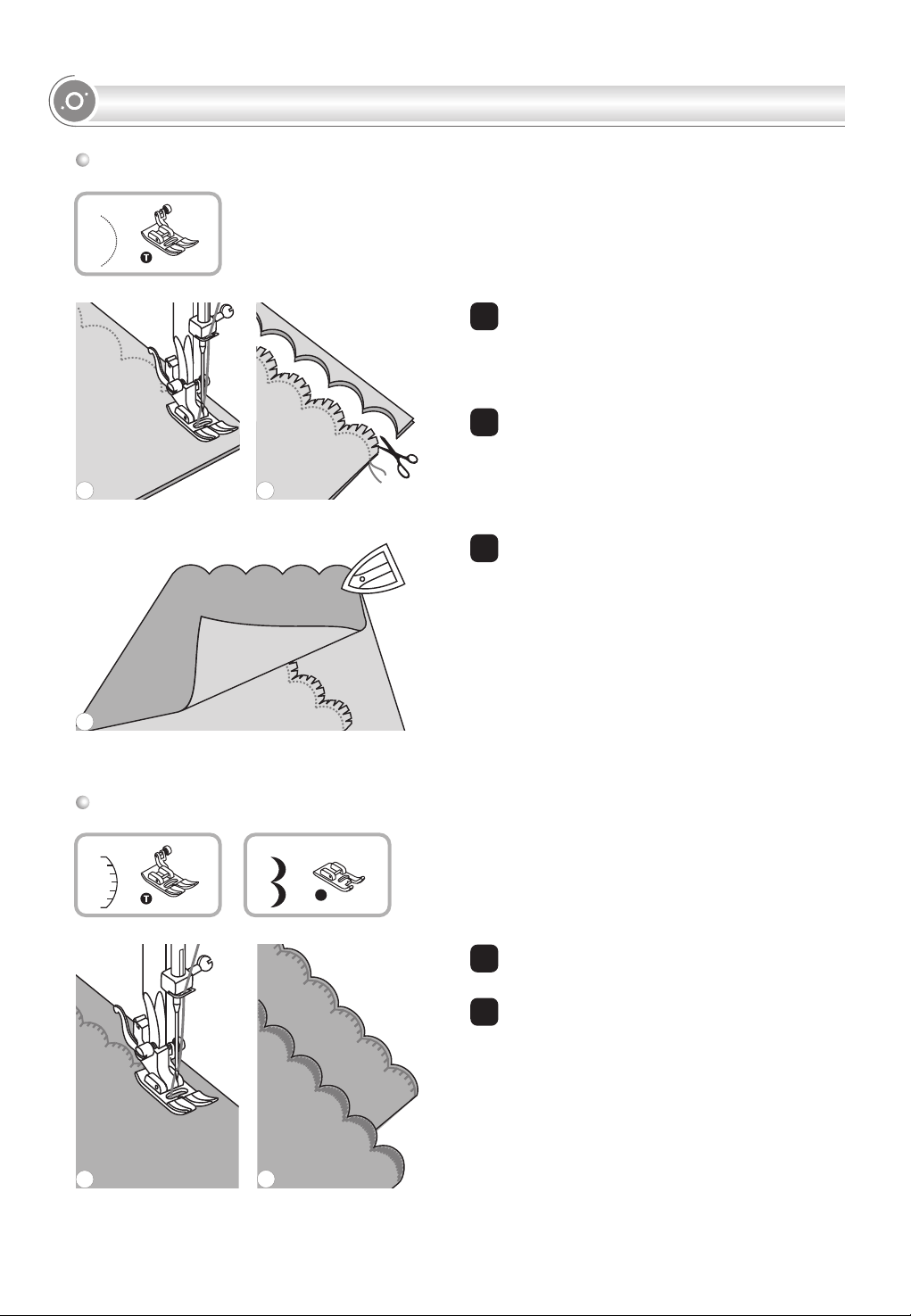

SCALLOP STITCH
Scallop hem ..................................................................58
Scallop edging ................................................................58

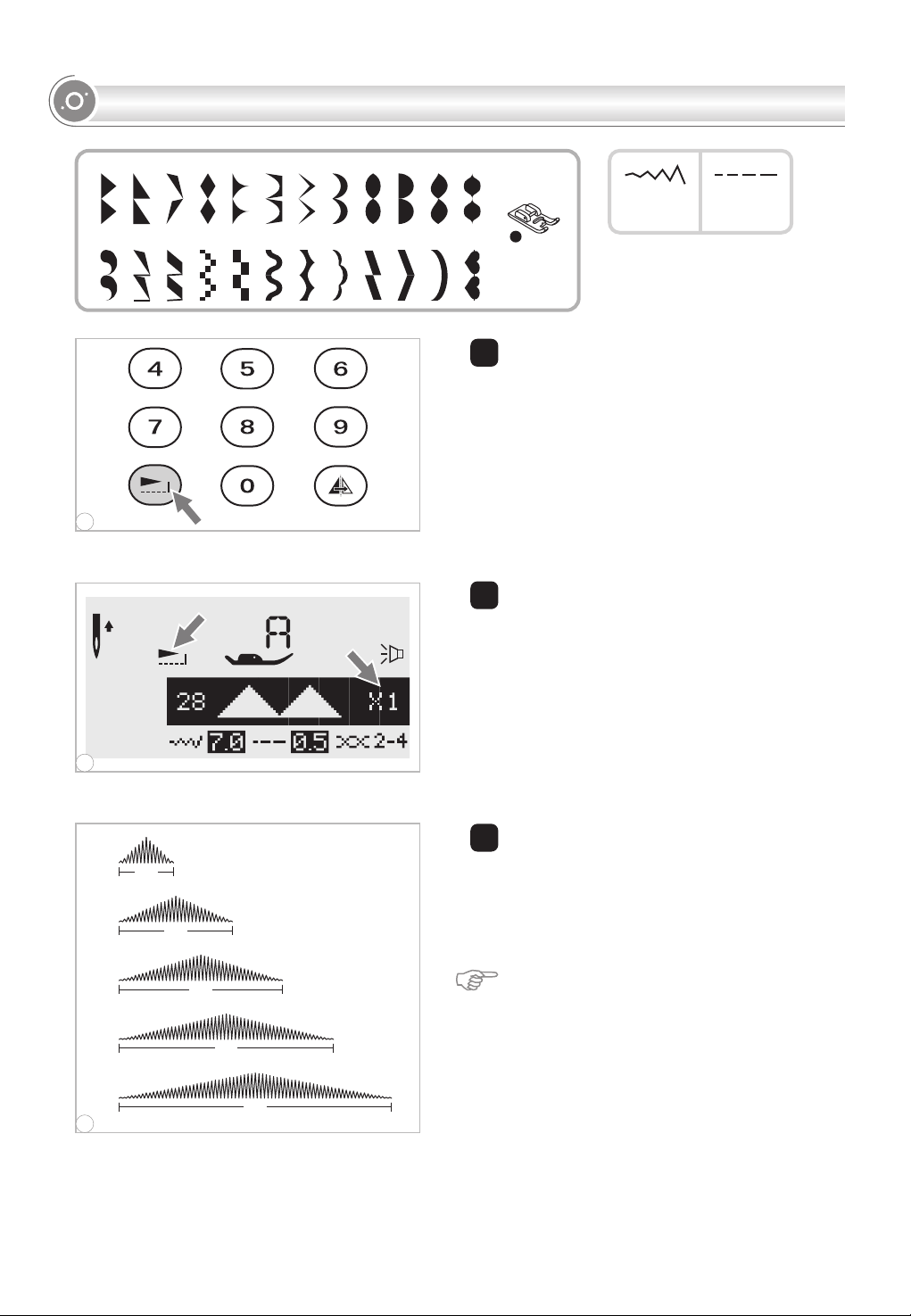

ELONGATION

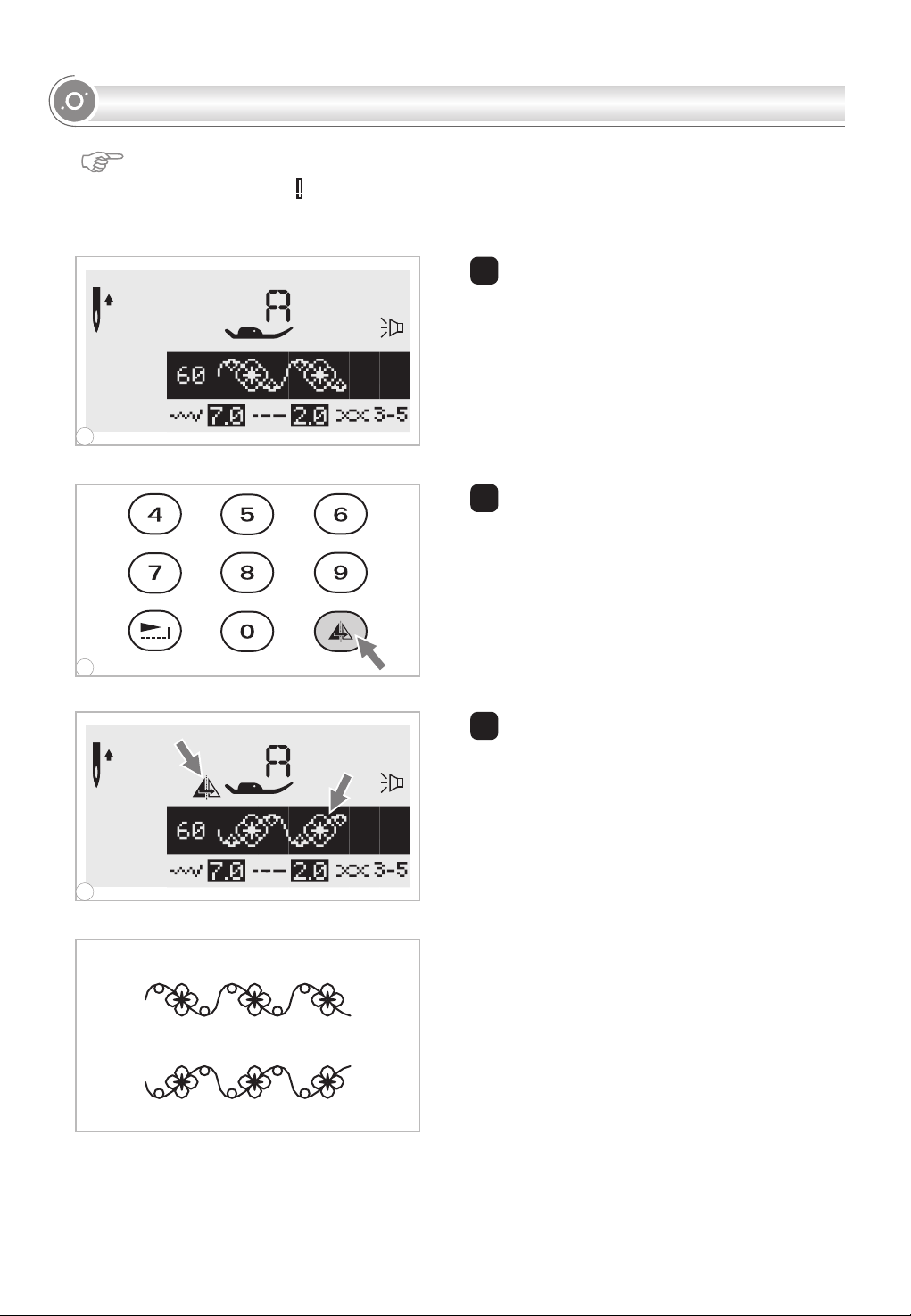

MIRROR IMAGE

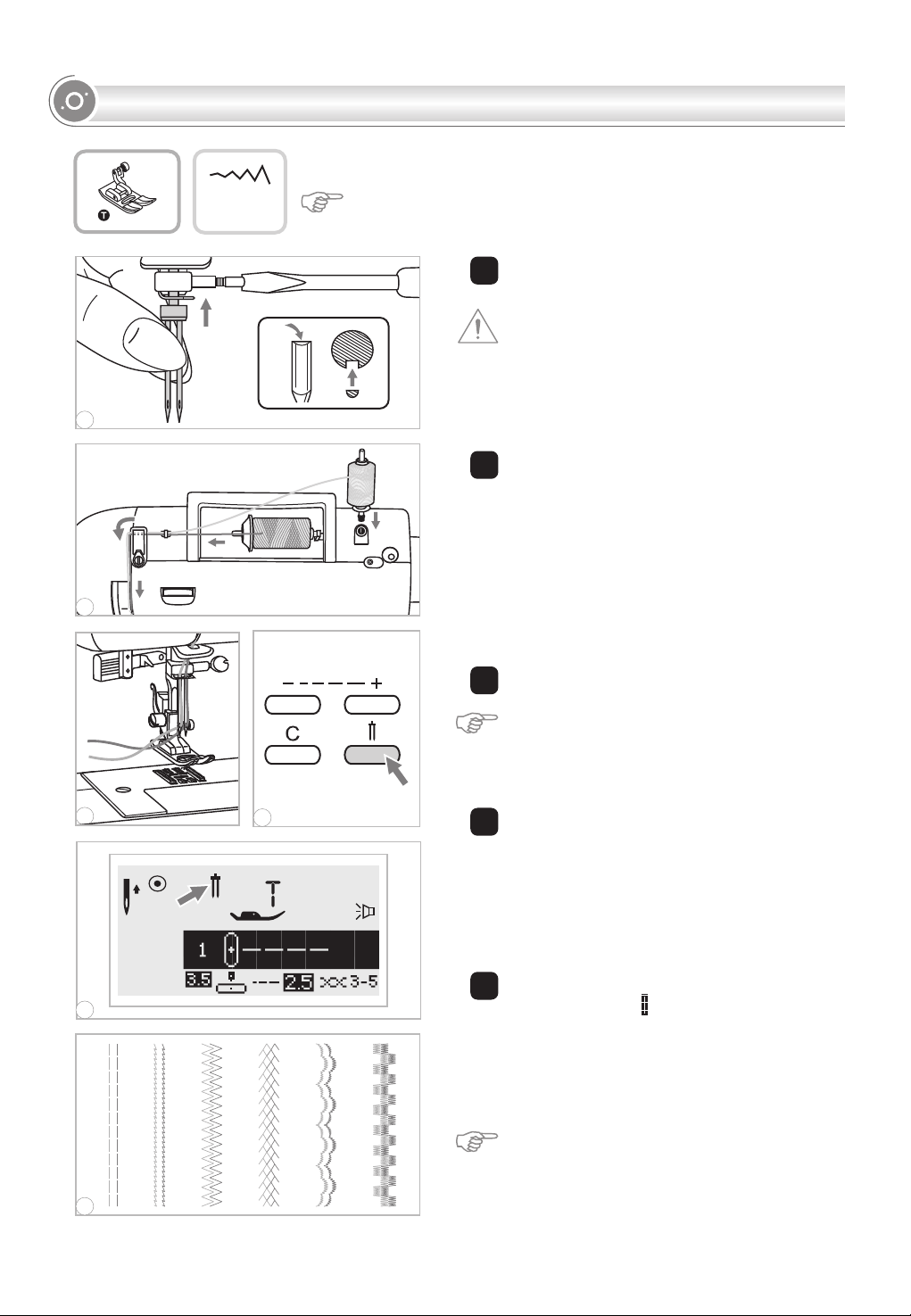

USING THE TWIN NEEDLE

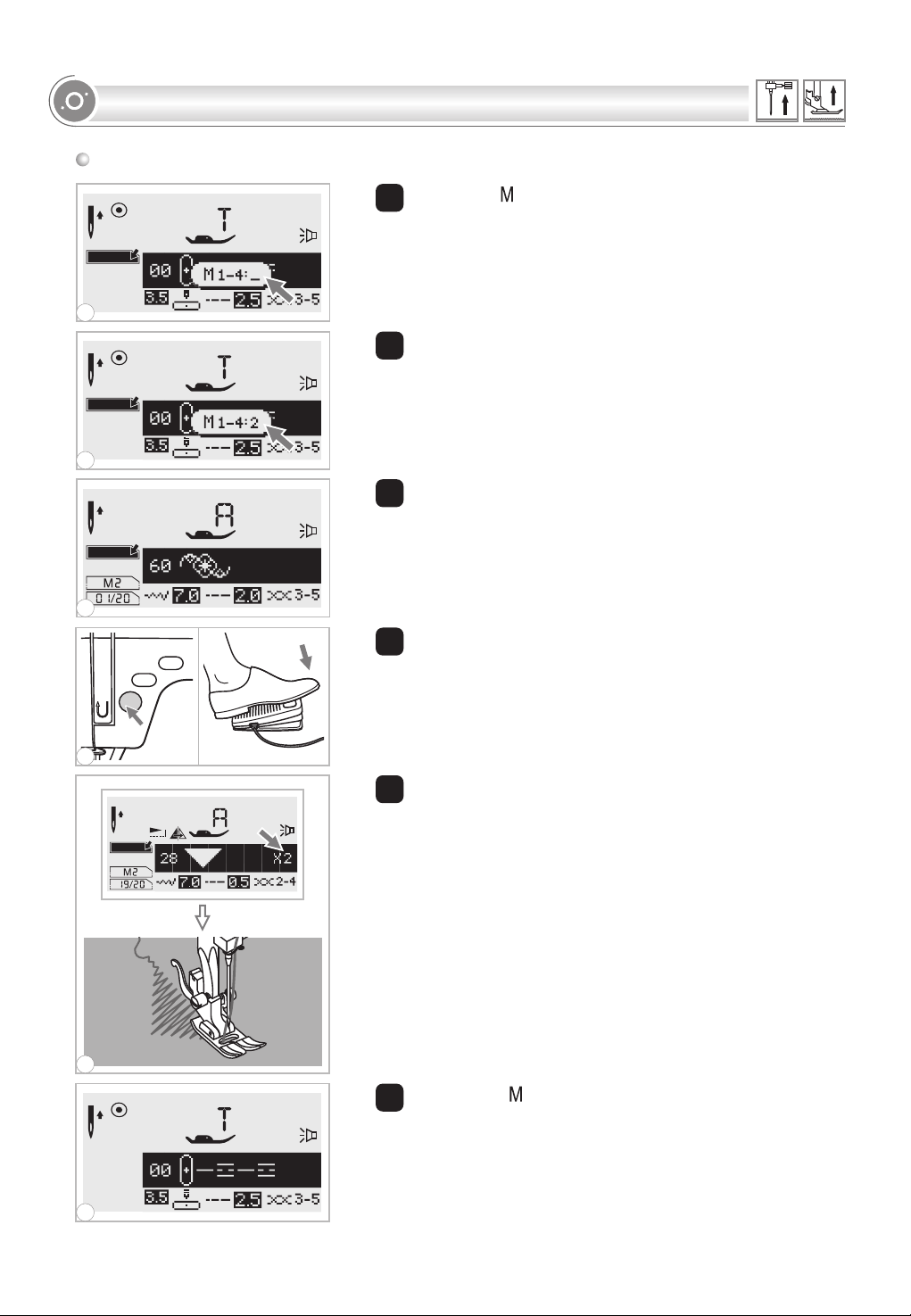

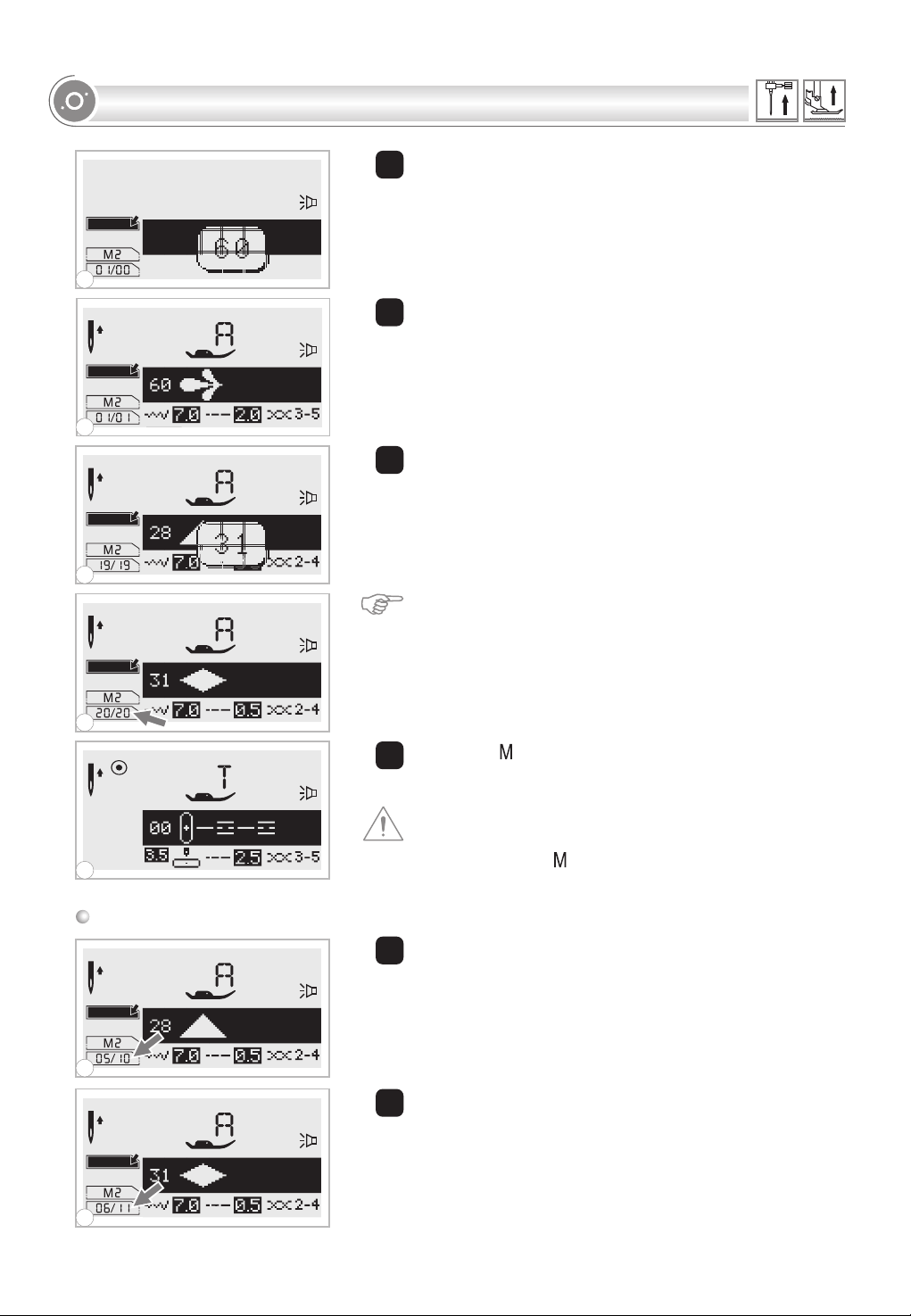

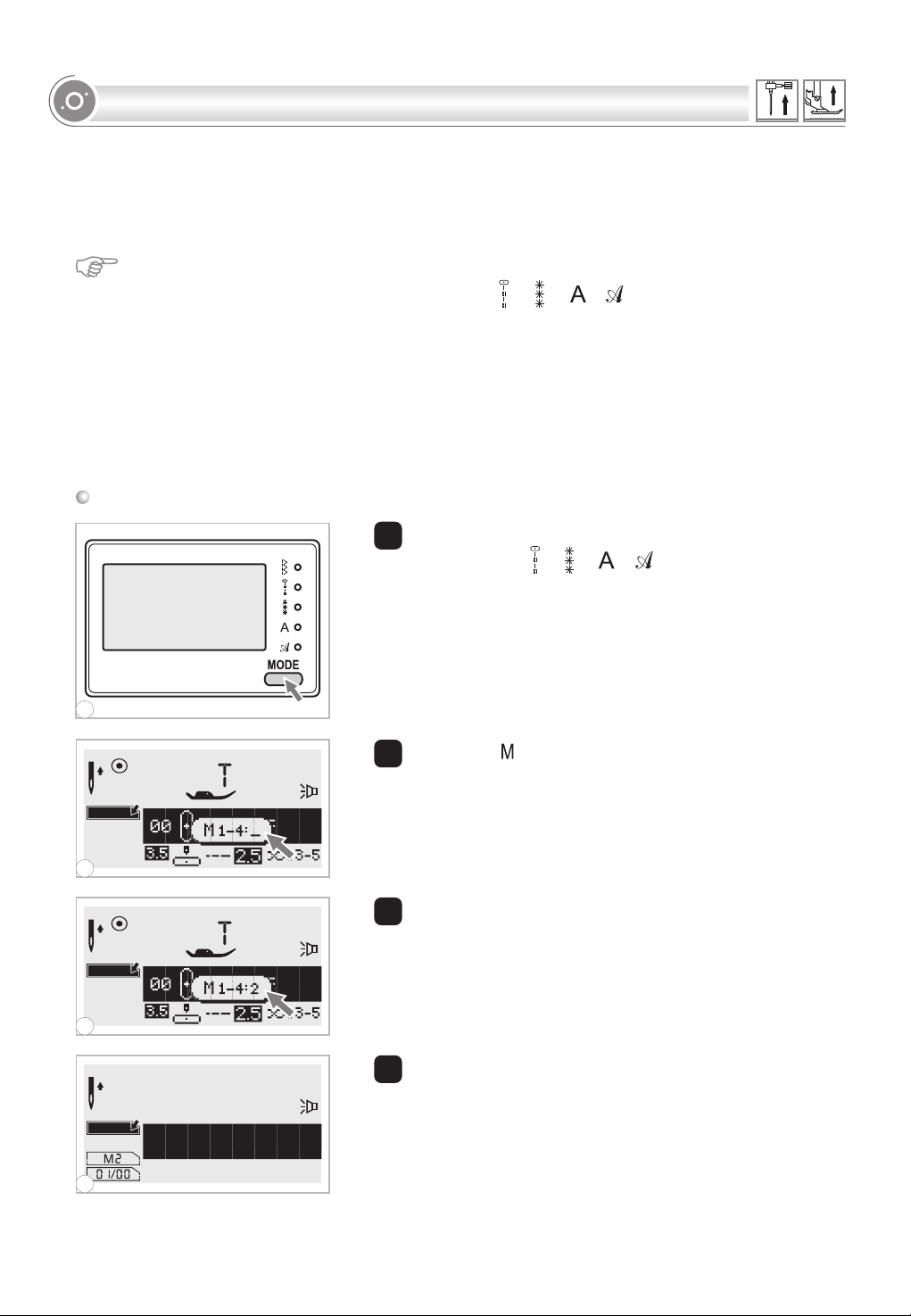

MEMORY
Combining patterns or letters ...................................................62-63
Adding patterns or letters .........................................................63

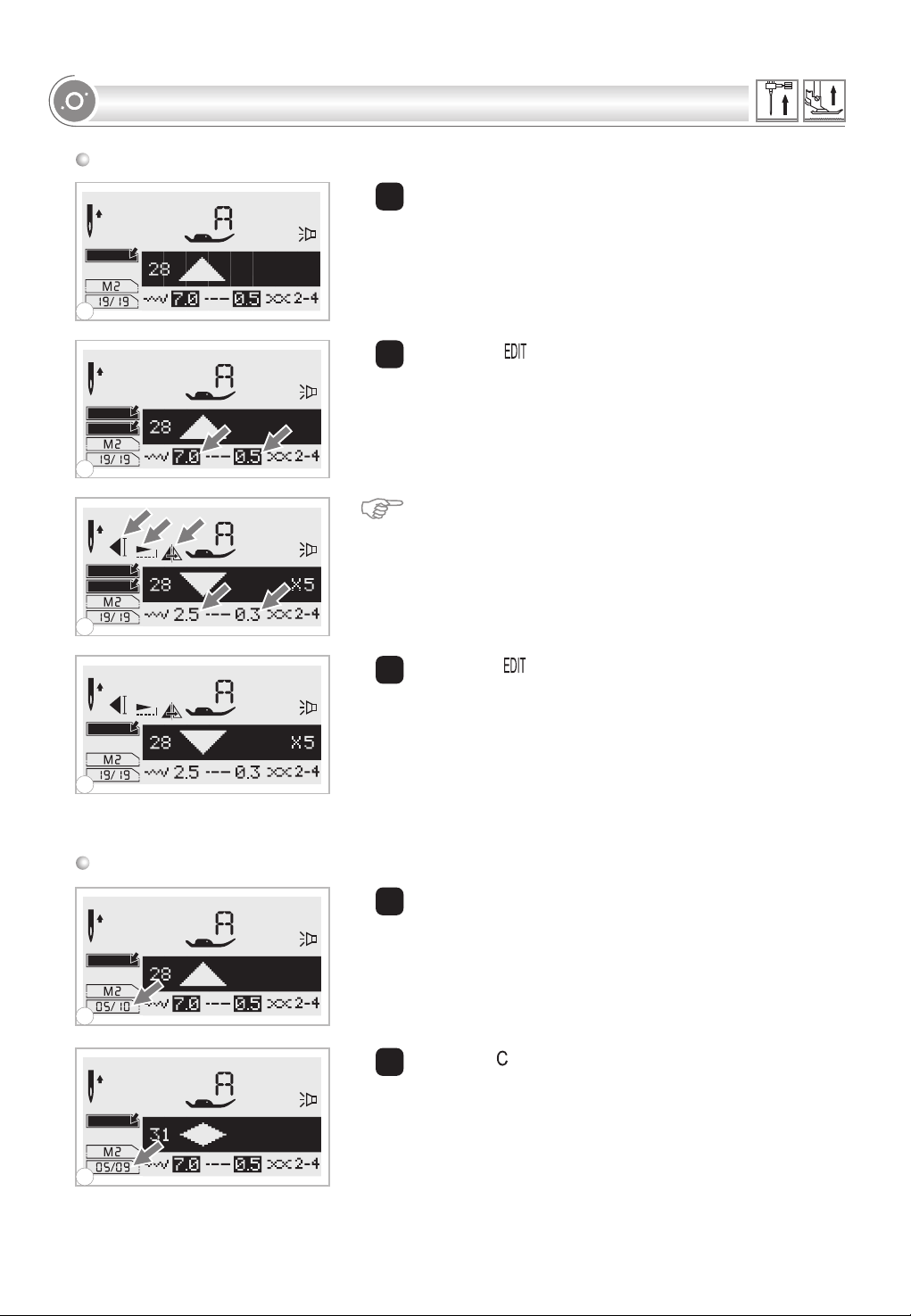

Editing patterns ................................................................64
Clearing patterns or letters ........................................................64
Recalling and sewing the memorized pattern...........................................65

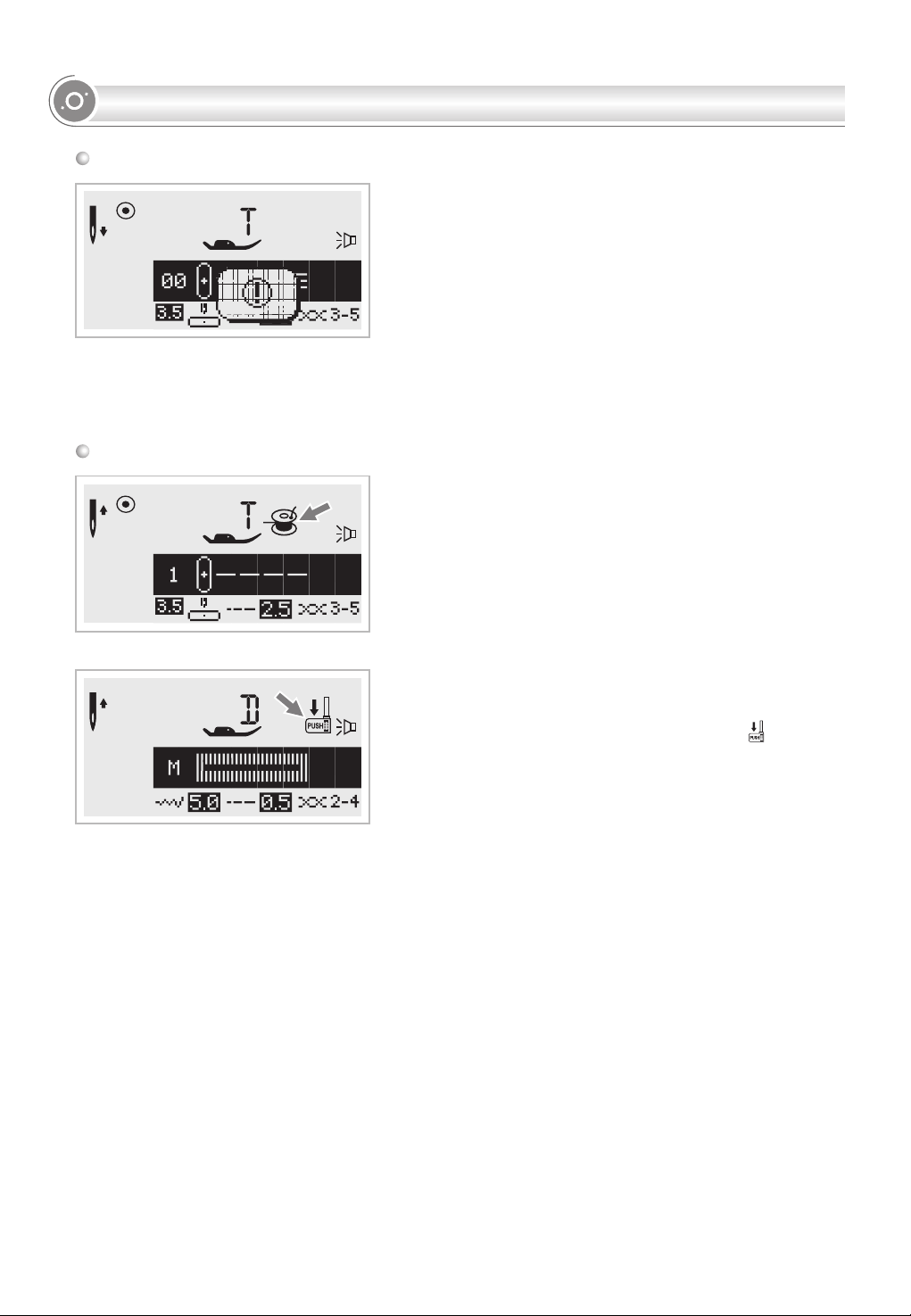

WARNING FUNCTIONS
Warning animation message display.................................................66
Instruction animation message display ...............................................66
Warning beeping sound..........................................................67

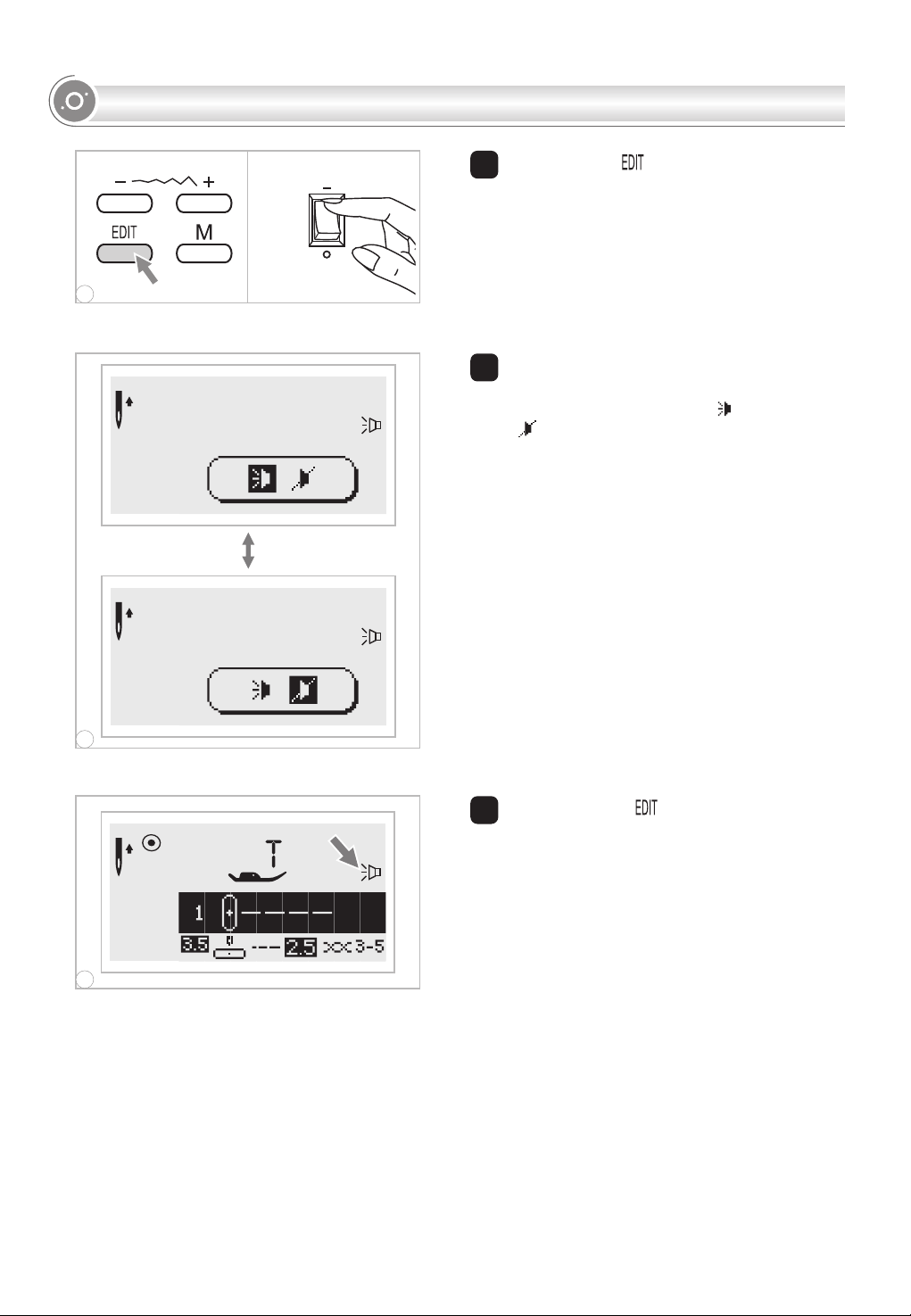

BUZZER SOUND

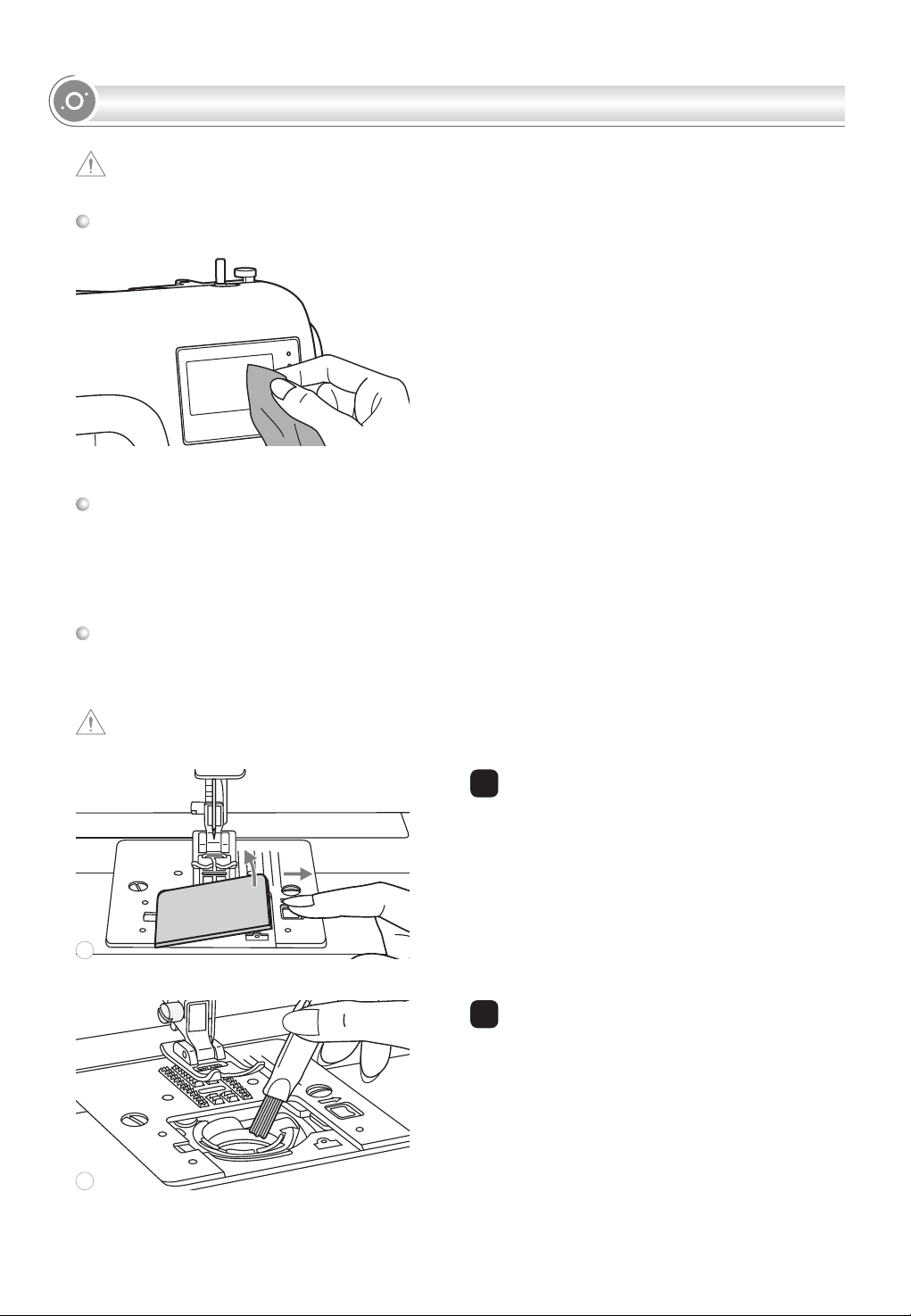

MAINTENANCE
Cleaning the screen .............................................................69
Cleaning the sewing machine surface ................................................69

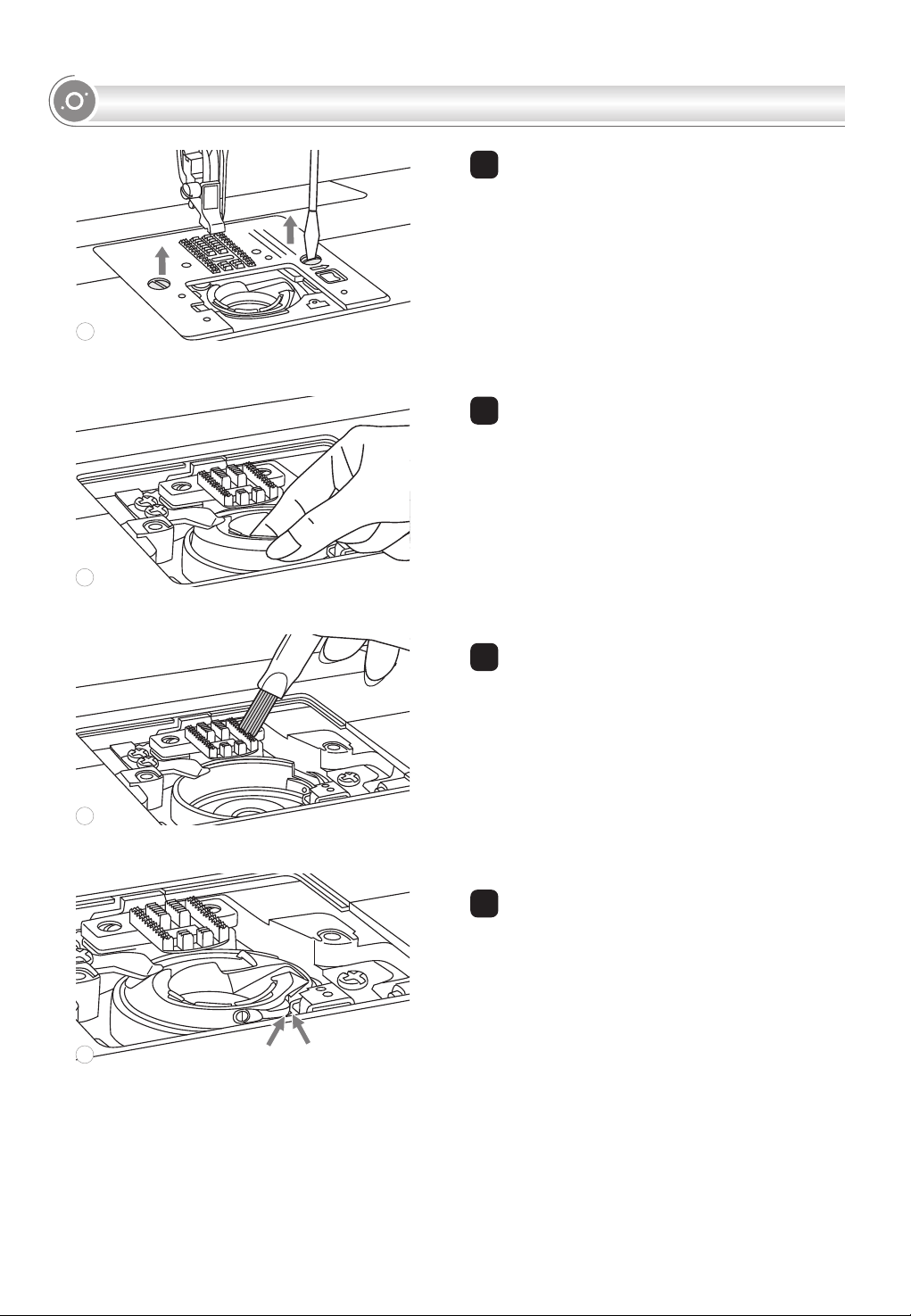

Cleaning the hook ...........................................................69-70
TROUBLE SHOOTING GUIDE

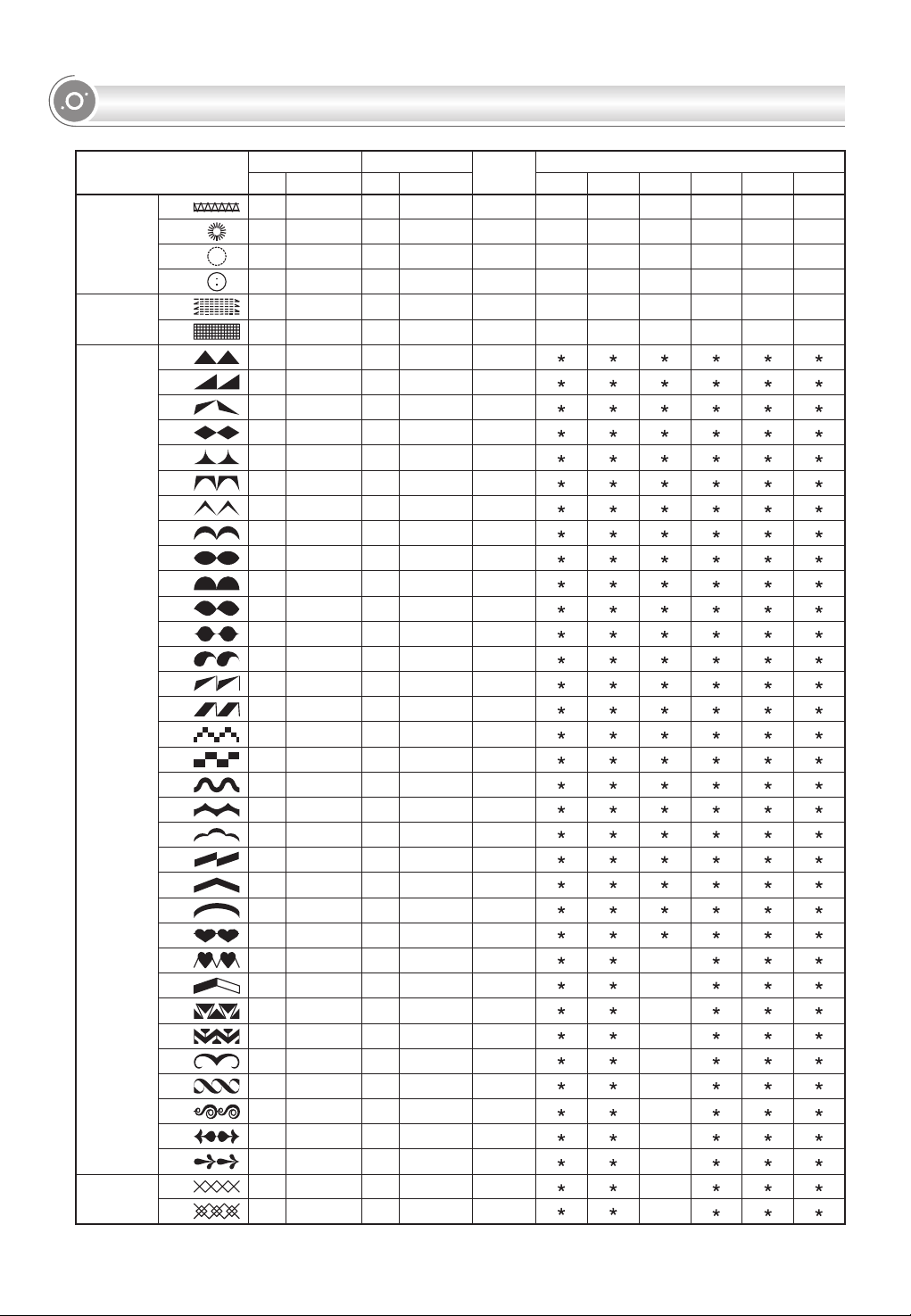

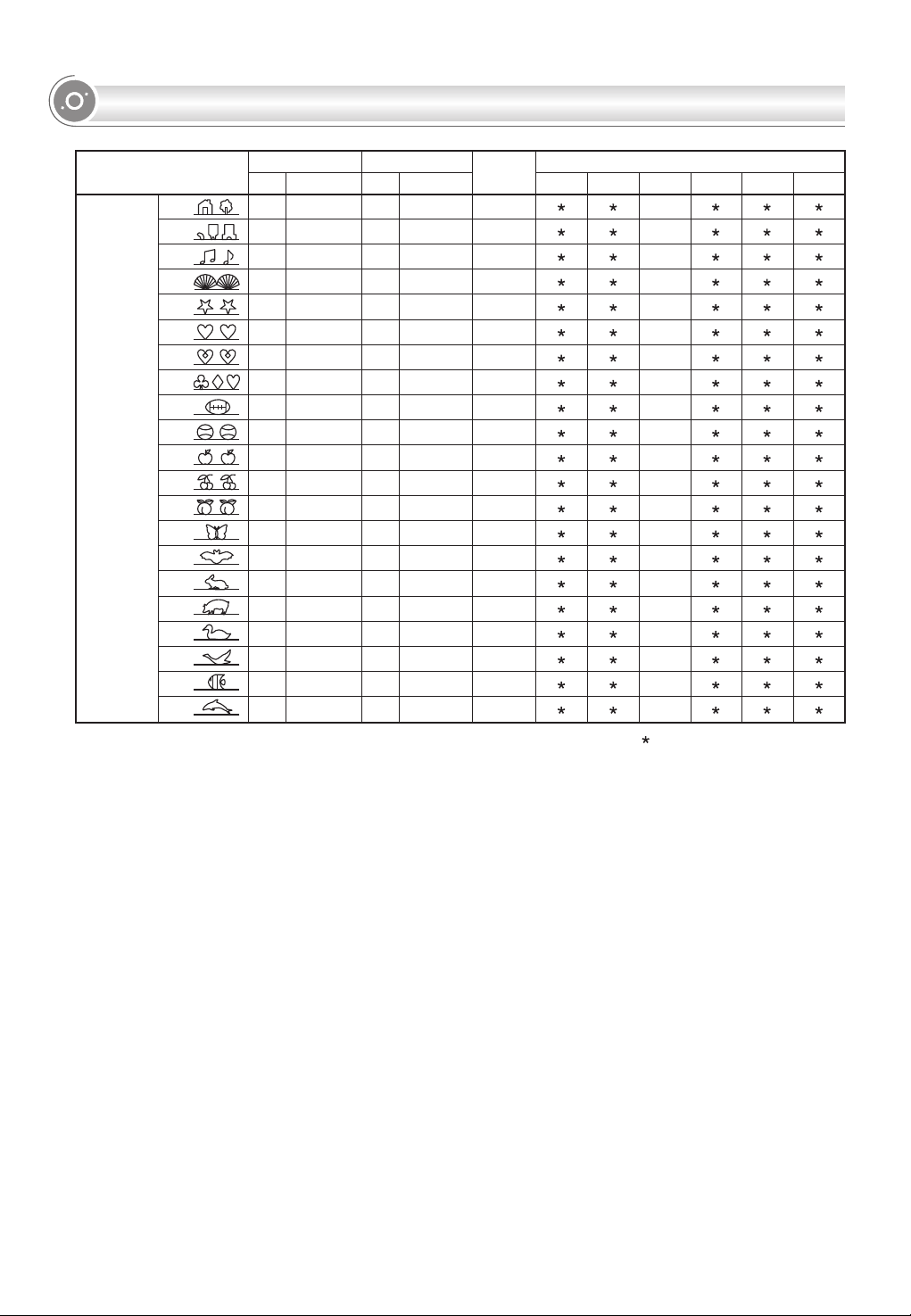

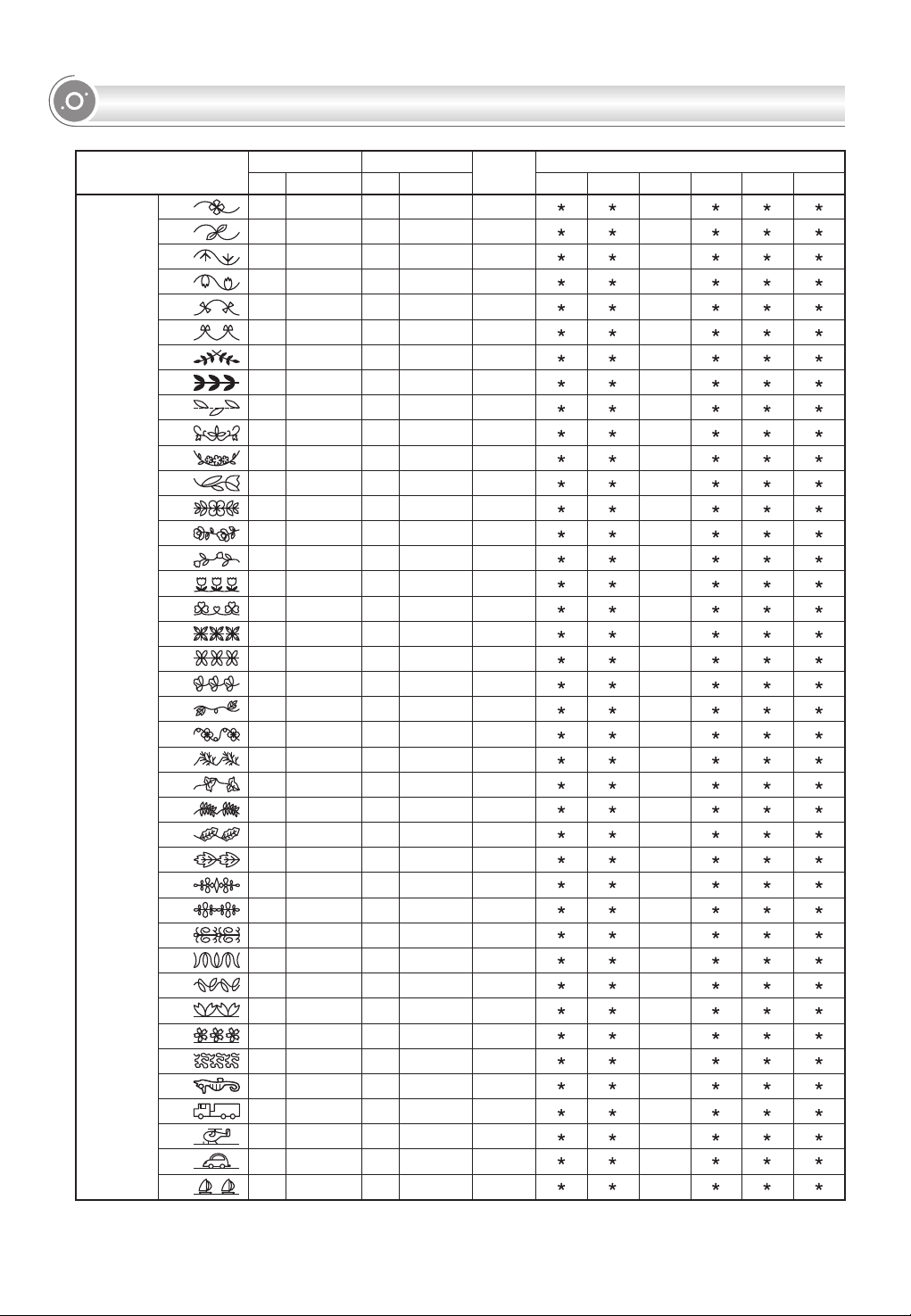

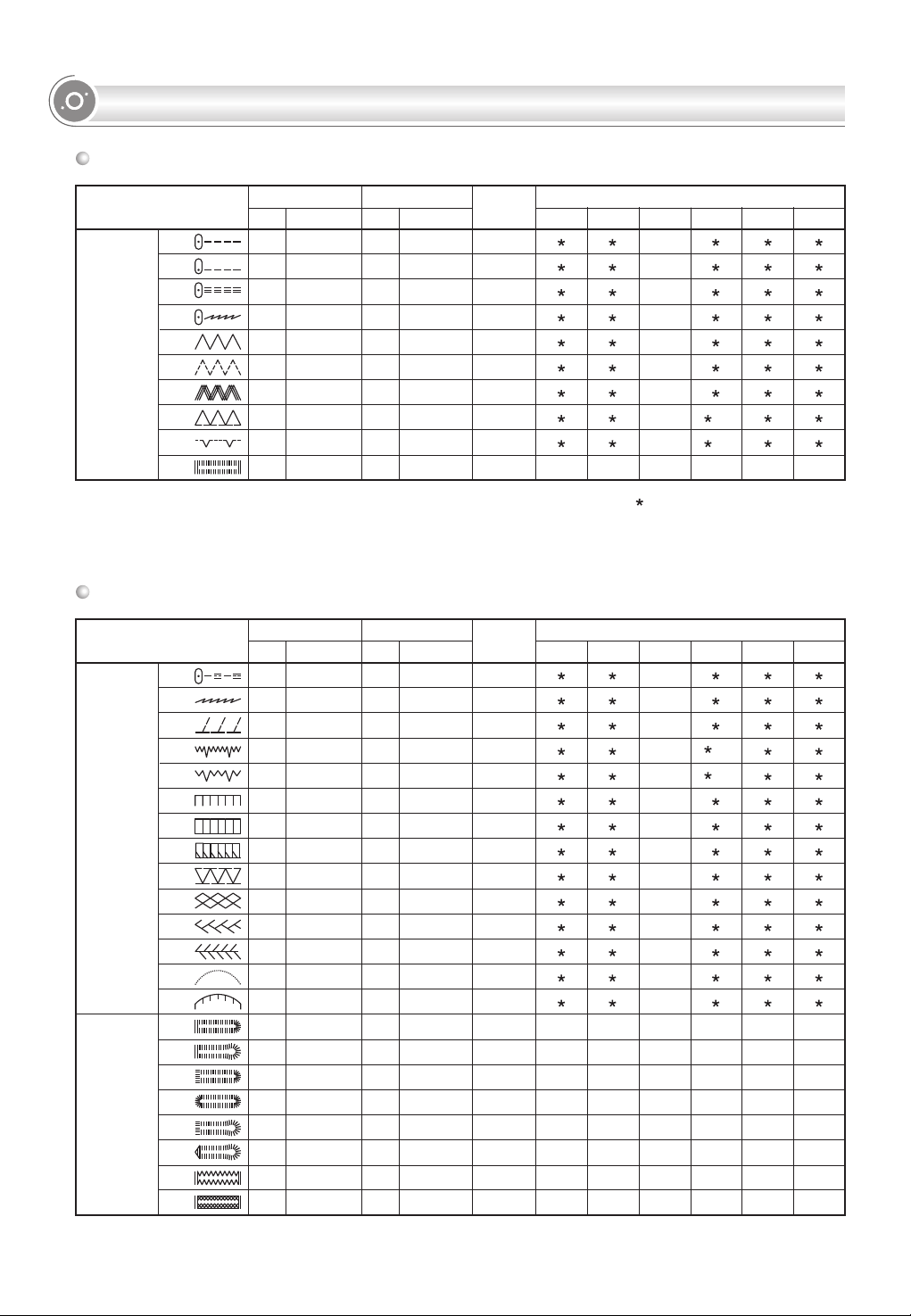

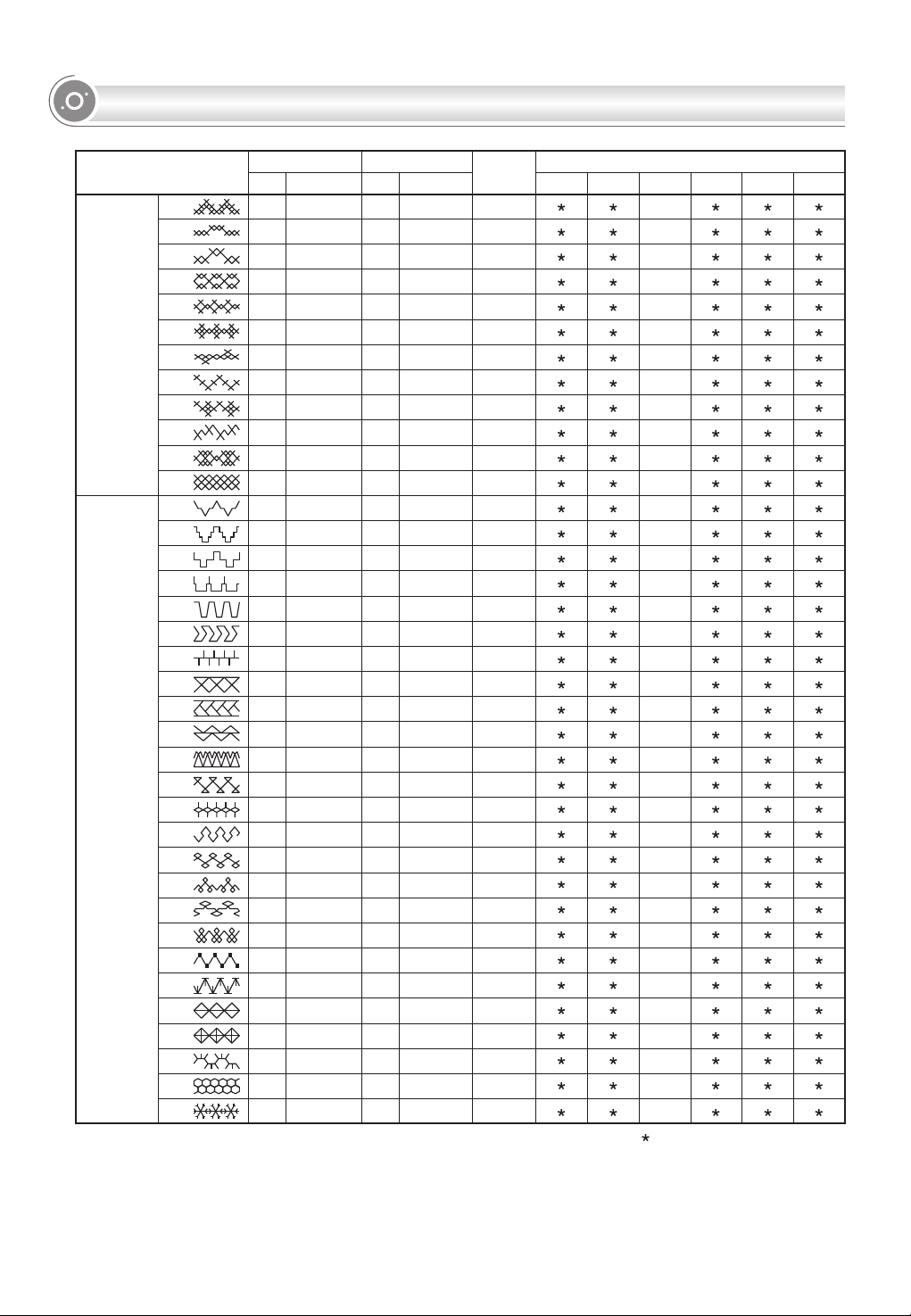

STITCH ADJUSTMENT REFERENCE CHART
....................................................................36
.................................................................37
.................................................................42
...................................................................43
......................................................................49
.....................................................................52
.....................................................................53
..................................................................56
.................................................................58
...................................................................59
..................................................................60
.....................................................................62-65
..................................................................68
................................................................69-70
...........................................................35
..............................................................44-45
.............................................................46-47
..............................................................48
............................................................50
.........................................................54-55
........................................................57
..........................................................61
.........................................................66-67
.....................................................71-72
............................................73-78
PRINCIPAL PARTS OF THE MACHINE
Tension dial
Face plate
Operation buttons
Thread cutter
Buttonhole lever
Auto needle threader
Needle plate cover
Sewing table and
accessory box
Bobbin winder spindle
Speed limiting
adjustment lever
LCD screen
A
B
Function buttons
C
Selection buttons
B
Function buttons
Pattern plates
Hole for second spool pin
Handwheel
Main power switch
Power cord socket
Foot controller connector
Horizontal spool pin
Handle
Presser foot lifter
Drop feed lever
1

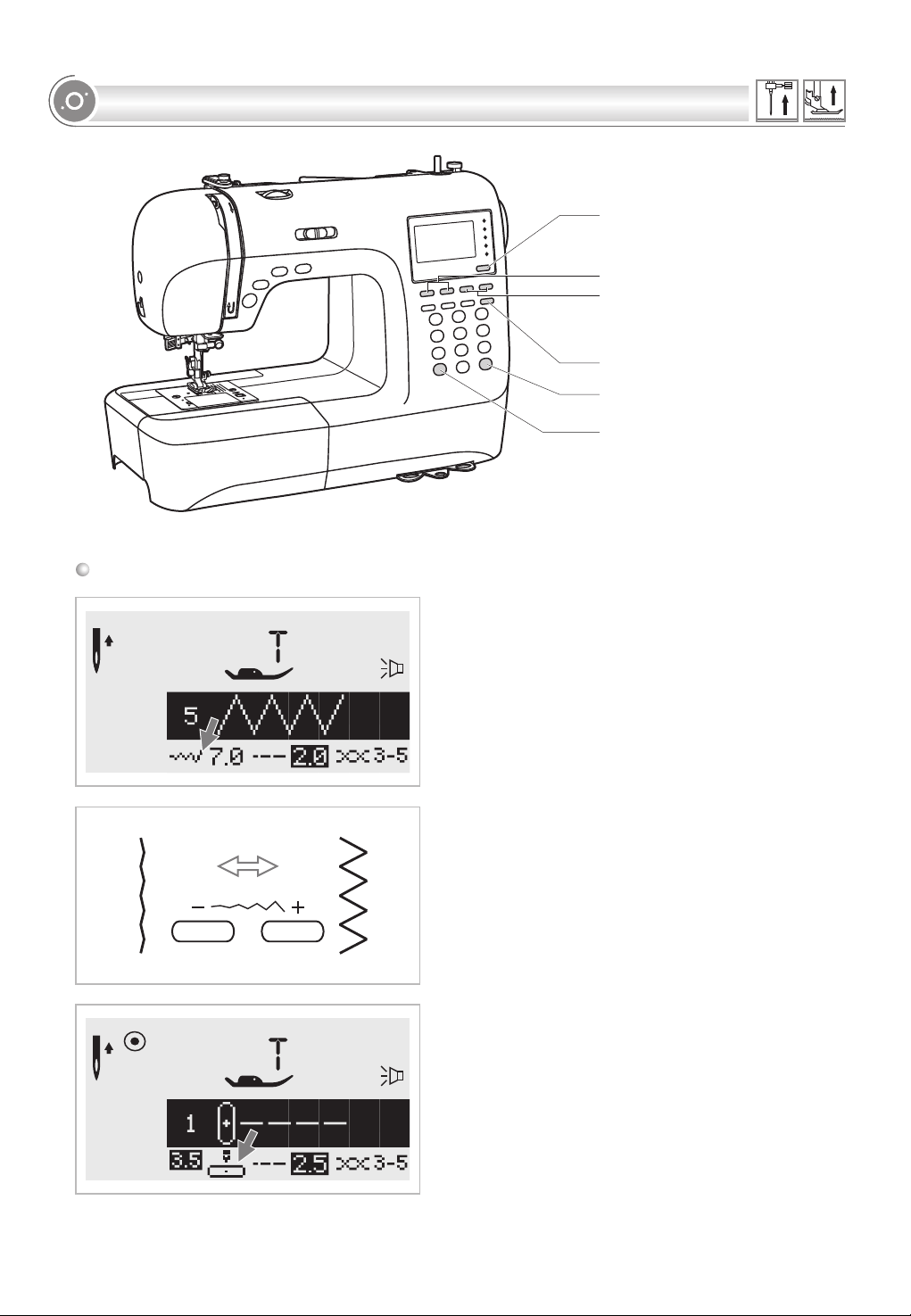

MACHINE CONTROL BUTTONS
15
4
3
11
6
12
23
1
4
75869
0
13
14
2
START
STOP
1
A. Operation buttons (see page 24/25)
1. Start/stop button
Press this button to start or stop the machine.
2. Reverse button
Hold down this button to sew stitches in reverse or sew reinforcement stitches at a low speed.
5
7
8
9
10
3. Auto-lock button
Hold down this button to sew locking stitches immediately or at the end of the current patterns
and automatically stop.
4. Needle up/down position button
Press this button to move the needle to either up or down position. Needle will be programmed
to stop in selected position until button is pressed again.
B. Function buttons (see page 26/27/28)
5. Mode selection button
Press this button to select direct mode, utility and decorative pattern mode, block letter mode,
script letter mode and outline letter mode.
6. Stitch width adjustment buttons
Press this button to adjust the width of the zigzag stitch.
2
MACHINE CONTROL BUTTONS
7. Stitch length adjustment buttons
Press this button to adjust the length of the stitch.
8. Twin needle button
Press this button to fix the width range when using the twin needle to sew.
9. Mirror button
Press this button to sew a reflection pattern.
10. Elongation button
Pattern 28 to 51 can be elongated up to five times its normal length by pressing this button.
C. Selection buttons (see page 29/30)
11. Edit button
Press this button to set an added pattern when sewing combinations of decorative stitches.
12. Memory button
Press this button to enter or store the created pattern combination in the memory.
13. Clear button
If an incorrect pattern is selected or memorized, pressing this button will clear it.
14. Direct pattern selection and number buttons
Instant access to direct pattern or press number buttons of the pattern number to select the
desired pattern.
15. Speed limiting adjustment lever
Slide this lever to change the sewing speed.
3
SYMBOL INSTRUCTIONS
Raise needle
Raise presser foot Lower presser foot
LCD SCREEN
Pattern
Pattern
Reverse
Auto-lock
Needle up
position
Needle
Twin needle
down
position
Pattern
number
Suggested presser foot and
identification letter
Bobbin winding
Buttonhole lever
Sound on
Pattern
TensionNeedle position
Stitch length
MirrorAuto-stop
Sound off
Alphabet
Pattern number
Stitch width
Stitch length
Suggested presser foot and
identification letter
TensionStitch width
4
LCD SCREEN
Memory
Editing patterns
Edit mode
Memory group
Number of
current unit
M
EDIT
Total number
of unit
Sewing the memorized pattern
Memory mode
Elongation
Pattern to edit
M
Elongation
Amount of elongation
5
PATTERN CHART
The portions marked in gray (on the chart below) show the single unit of each stitch.
Patterns
Direct Patterns-10
123456 7 8 9 0
A Group Patterns-100
01
20
40
41 42 49
60
61 62 63 64 66 67 68 69 70
03
23
2221
43
83
25 26
24
45
44
65
84 85 86 88 89 9187 90
46
07 08
28
27
47
48
111512
30 31 32 33 34 36 3735 38 39
29
50
51
71
13
14
52 53 54
73
93
74
94 95 96 97 98 999280 81 82
72
16 18171900 02 04 05 06 09 10
57
56
55
75
76 77 78 79
58
59
B Group Patterns-100
01 07 08
20
03
02 04
23
2221
24
25 26
27
28
111512
30 31 32 33 34 36 3735 38 39
29
13
14
16 18171900 05 06 09 10
6
PATTERN CHART
45
44
40
41 42 49
43
46
47
48
50
52 53 54
51
55
56
57
58
59
60
61 62 63 64 66 67 68 69 70
Alphabets
Block style
64
03
04 05 06 07 08 09 10
13
14
39
40
65
66
01 02
11 1 2
37 38
63
82
65
83
84 85 86 88 89 9187 90
15 16
41 42
67
68 69 70
18 19 20
17
43
44
45
46
71 72
21 22
47
73
23
24
48 49 50 51 52
75
74
76
71
25 26
77
78
72
27
53
79
73
93
28 29
54
80 81
75
74
94 95 96 97 98 999280 81
55
76 77 78 79
30 31 32 33 34 35 36
57
56
82
58 59 60 61 62
83
84 85 86 87 88
89
90 91 92
Script style
01 02
11 1 2
37 38
63
89
03
13
39
65
64
90 91 92
93
94 95 96 97
04 05 06 07 08 09 10
14
40
66
15 16
41 42
67
68 69 70
93
94 95 96 97
18 19 20
17
43
44
45
46
71 72
21 22
47
73
23
24
48 49 50 51 52
75
74
76
7
25 26
77
78
27
53
79
28 29
55
54
80 81
30 31 32 33 34 35 36
57
56
82
58 59 60 61 62
83
84 85 86 87 88
ACCESSORIES
Standard
All purpose foot
006186008
T
Blind hem foot
006904008
F
Spool holders (L & S)
R12373209(L) TA10943209(S)
Spool pin felt
006015009
Zipper foot
006905008
I
Satin stitch foot
006172008
A
Edge/quilting guide
006008001
Auxiliary spool pin
R60033209
Buttonhole foot
006H1A0004
D
Button sewing foot
006914008
Bobbin (3x)
006084009
Screwdriver (L & S)
006012008
Rolled hem foot
006900008
K
Overcasting foot
006907008
E
Brush/ Seam ripper
006099008
Pack of needles
006V880010
Darning/
Embroidery foot
006016008
Gathering foot
006917008
Optional
Cording foot
006813008
M
Extension table
H1A1464209
Quilting foot
006916008
P
Soft cover
020L004000
SINGER style 2025
twin needle
006161008
8
Walking foot
0061850081
CONNECTING THE MACHINE TO THE POWER SOURCE
Caution: Always make sure that the machine is unplugged from power source and the main
switch is on "O" when the machine is not in use and before inserting or removing parts.
ON
OFF
Connecting the machine
Before connecting the power supply, make sure that the voltage and frequency shown on the
machine is conforming with your electrical power.
Place machine on a stable surface.
1. Connect the power line cord to the machine by inserting the 2-hole plug into the power cord
socket.
2. Connect the power line plug to the electric outlet.
3. Turn on the power switch.
4. The sewing lamp will light up when the switch is turned on.
To disconnect, turn the power switch to the off position, then remove plug from outlet.
Polarized plug information
This appliance has a polarized plug (one blade wider than the other),
to reduce the risk of electrical shock; this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not
modify the plug in any way.
9
WINDING THE BOBBIN
Bobbin winding
1
2
3
1
10
4
Place the thread and spool holder onto the spool pin.
1
For larger spools of thread, place the large side of the
spool holder toward the spool. For smaller spools of
thread, place the small side of the spool holder toward
the spool, or use the small spool holder. If the thread
spool has a thread retaining slit, place this end of the
spool toward the right, so the thread doesn't get caught
while winding the bobbin.
Snap the thread into the thread guide.
2
2
Wind the thread counter-clockwise around the bobbin
3
winder tension disks.
3
Place the thread end through one of the inner holes in
4
the bobbin as illustrated and place empty bobbin on
the spindle.
4
Push the bobbin to right.
5
5
10
WINDING THE BOBBIN
6
7
When the bobbin winder spindle is pushed to the right,
6
which is the "bobbin winding position", the symbol
" " appears on the LCD screen.
The symbol will disappear from the LCD screen when the
bobbin winder spindle is pushed to the left, which is the
"sewing position".
Hold the thread tail securely in one hand.
7
Press the Start/stop button or the foot control.
8
8
After the bobbin has wound a few turns stop the machine
9
and cut the thread near the hole of the bobbin. Continue
winding the bobbin until it is full. The motor stops
automatically when the bobbin is full. Stop the machine.
Push the bobbin winder spindle to left.
9
Cut the thread and then remove the bobbin.
10
10
Please Note: When the bobbin winder switch is placed on the right, "bobbin winding
position", the machine will not sew and the handwheel will not turn. To start sewing, push the
bobbin winder switch to the left "sewing position".
11
INSERTING THE BOBBIN
1
Attention: Turn power switch to off ("O")
before inserting or removing the bobbin.
When inserting or removing the bobbin,
the needle and presser foot must be fully
raised.
1 Insert the bobbin in the bobbin case with
1
the thread running in a counterclockwise
direction (arrow).
2 Pull the thread through the slit (A).
2
2
A
3
With a finger held gently on top of the
3
bobbin.
B
A
3
B
Draw
the thread at the arrow markings into
the stitch plate thread guide from (A) to (B)
4 Pull the thread at the arrow markings into
4
the stitch plate thread guide from (B) to (C).
.
To cut off excess thread pull thread back
over the cutting off blade at point (C).
Close the bobbin cover plate.
C
4
12
THREADING THE UPPER THREAD
12
3
4
6
5
7
8
Please Note: It is important to carry out the threading correctly as by not doing so several
sewing problems could result.
Start by raising the needle to its highest point, and
1
2
also raise the presser foot to release the tension discs.
1 Lift up the spool pin. Place the spool of thread on the spool
1
pin so that the thread comes from the front of the spool,
then place the spool cap at the end of the spool pin.
2 Draw the thread from the spool through the upper
2
thread guide.
13
THREADING THE UPPER THREAD
3
3
4
4
5
3 Guide the thread around the thread guide pulling the
thread through the pre-tension spring as illustrated.
4. Thread the tension module by passing the thread between
the silver discs.
5. Then, down and around the check spring holder.
5
6. At the top of this movement, pass the thread from right to
6
the left through the slotted eye of the take-up lever and
then downwards again.
6
7. Pass the thread behind the flat, horizontal thread guide.
7
Guide the thread through the thread guide located above
the needle.
Pull the end of the thread through the needle from front to
rear, and pull out about 10 cm of thread.
Use the needle threader to thread the needle. (On the next
page.)
7
14
USING THE NEEDLE THREADER
1
Attention: Turn power switch to the off
position ("O").
Raise the needle to its highest position and
lower the presser foot.
1 Lower the needle threader lever slowly and
1
draw the thread through the thread guide as
illustrated and then to the right.
2 The needle threader automatically turns to the
2
threading position and the hook pin passes
through the needle eye.
2
3 Take the thread in front of the needle.
3
3
4 Hold the thread loosely and release the lever
4
slowly. The hook will turn and pass the thread
through the needle eye forming a loop.
Pull the thread through the needle eye.
4
15
DRAWING UP THE LOWER THREAD
1
2
1 Hold the upper thread with the left hand.
1
Turn the handwheel towards you
(counterclockwise) lowering, then raising the
needle.
2 Gently pull on the upper thread to bring the
2
bobbin thread up through the needle plate
hole. The bobbin thread will come up in a
loop.
3
CUTTING THE THREAD
3 Pull both threads to the back under the
3
presser foot.
Raise the presser foot. Remove the fabric, draw
the threads to the left side of the face cover
and cut using the thread cutter.
The threads are cut at the proper length to
start the next seam.
16
TWO-STEP PRESSER FOOT LIFTER
The presser foot lifter raises and lowers the
presser foot.
When sewing several layers or thick fabrics,
the presser foot can be raised a second stage
for easy positioning of the work.
17
STARTING SEWING
Start/stop button
Foot control
The Start/Stop button can be used to run the
machine when the foot controller is unplugged
from the machine. Press the button to start
sewing, then press it again to stop sewing. The
machine will run slowly at the start of sewing.
The speed limiting adjustment lever can control
the sewing speed. To increase the sewing speed,
slide the lever to the right, To decrease the
sewing speed, slide the lever to the left.
With the sewing machine turned off, insert the
foot control plug into its connector on the sewing
machine.
Turn on the sewing machine, and then slowly
depress the foot control to start sewing.
Release the foot control to stop the sewing
machine.
Please Note: The setting of the speed limiting adjustment lever will limit the maximum speed of
the machine.
18
THREAD TENSION
- Basic thread tension setting is "4". To increase the tension, turn the dial to the next number up. To
decrease the tension, turn the dial to the next number down.
- Proper setting of tension is important for good sewing. There is no single tension setting
appropriate for all the stitch functions and fabrics. However, 90% of all sewing will be between
the "3" and "5" ("4" is the basic setting).
- For decorative sewing you will always obtain a nicer stitch and less fabric puckering when the
upper thread appears on the bottom side of your fabric.
1 Normal thread tension for straight stitch sewing.
1
Reverse
side
1
Surface
Upper thread
Bobbin thread
Reverse
side
2
Reverse
side
3
Reverse
side
4
Upper thread
Bobbin thread
Upper thread
Bobbin thread
Upper thread
Bobbin thread
Surface
Surface
Surface
2 Thread tension is too loose for straight stitch
2
sewing. Turn dial to higher number.
3 Thread tension is too tight for straight stitch
3
sewing.Turndialtolowernumber.
4 Normal thread tension for zig zag and
4
decorative sewing.
19
CHANGING THE PRESSER FOOT
b
a
d
c
f
b
e
a
e
g
Attention:
Turn power switch of off
("O") position when carrying out any
of the operations shown below.
Attaching the presser foot holder
1
Raise the presser foot bar (a) by raising
the presser foot lifter. Attach the presser
foot holder (b) as illustrated.
1
Attaching the presser foot
2
Lower the presser foot holder (b) until
the cut-out (c) is directly above the pin
(d).
Raise the lever (e).
Lower the presser foot holder (b) and
the presser foot (f) will engage
automatically.
2
Removing the presser foot
3
Raise the presser foot.
Raise the lever (e) and the foot will
disengage.
3
Attaching the edge/guilting guide
4
The edge/quilting guide (g) can be
attached as illustrated. Adjust as
needed for hems, pleats, quilting, etc.
4
20
PRESSER FOOT CHART
(The twin needle can be used for some stitches, offering more stitching options.
For more information, go to the section: USING THE TWIN NEEDLE)
PRESSER FOOT PRESSER FOOT
All purpose foot (T)
Zipper foot (I)
Buttonhole foot
(D)
APPLICATION
General sewing,
Patchwork stitches,
Decorative stitching,
Smocking, Fagoting,
etc.
Inserting zippers
Buttonhole sewing,
Darning-stitch sewing
Cording
NEEDLE NEEDLE
Satin stitch foot (A)
Quilting foot (P)
(Optional)
APPLICATION
Satin stitch sewing
Quilting
Free-motion darning,
embroidery,
monogramming
Cording foot (M)
(Optional)
Overcasting foot
(E)
Blind hem foot (F)
Rolled hem foot (K)
Overcasting
Blind hem stitching
Narrow hemming
Darning/
Embroidery foot
Gathering foot
Button sewing foot
Walking foot
(Optional)
Gathering
Button sewing
This foot helps to
prevent uneven
feeding of quilt
layers, napped
fabrics, and difficultÂto-handle fabrics.
21
