Sindoh 3D WOX 5X, 3D WOX 7X User guide

USER MANUAL

Read the User Manual before operating the
product, and keep the manual at a convenient
place near the product.

3dprinter.sindoh.com

Safety Instructions

Be sure to observe the followIng instructions when using the device.

Warning:

Directly plug the power cord in the receptacle on the wall. Do not use extension cord.

If the power cable or plug is worn or damaged, pull out the power plug.

The exposure of the interior of the machine can cause electric shock or burns.

Do not remove covers or screws other than specified in this manual.

Please be cautious. In the process of printing, the temperature of the nozzle and the heated

bed rise higher than 100 degrees Celsius.

Do not place the machine in a highly moist environment as it may cause deformation and

malfunction.

Avoid contact of electrical terminal with metal product such as necklaces, coins, keys,

watches, etc.

Do not hold the shaft for lifting or moving of the printer.

For the following situations turn off power and pull out the power plug

-

When in contact with liquid

-

When in need for a service or repair request

-

When the device cover is damaged

For the method of disposal contact local service center or use a proper collection site.

Please turn off power when leaving the office after business hours or in circumstances where

machine is unoccupied for a long period of time as it may cause abrupt fire accidents.

Failure to observe the instructions may lead to death or serious injury.

Caution:

Protect device from humid or wet conditions eg. rain, snow, etc

Remove power cord from receptacle on the wall before moving device.

Be careful not to damage power cord while device is being translocated.

When removing the power cord, please pull the plug and not the power cable.

Be cautious of clips, staples and any other small metal objects from falling inside the device.

Please be cautious on safety when touching the interior of the machine, e.g. cleaning the

interior.

Do not dispose of device or consumables together with household waste.

For the method of disposal, please contact local service center or use a proper collection site.

Interior of device may be very hot. Please do not touch the part with “Caution: High

Temperature” sign or its surrounding areas as it may cause burns.

Our product maintains high quality standards and performance.

It is recommended to use genuine components only, components can be acquired from any

authorized distributors.

This machine is not suitable for use in areas that are easily accessible by children.

Failure to observe instructions may cause injuries or damages to property.

Before use

Thank you for purchasing our product.

This user manual contains detailed information about correct use of device and easy

maintenance to maintain the optimal state, and to contribute to the rationalization of office

work of your company.

Carefully read the user manual before using the device and keep close at hand.

In order to use device correctly and safely, please carefully note the precautions before use.

Prohibition and limitation

1. This User Manual has been created for the convenience of the user, actual product

may differ from image and explanations shown.

2. The contents of this user manual is subject to change without notice. We are not

responsible for the direct and/or indirect loss or damages caused by results of handling

or operating the product in any case and for results occurring from user’s negligence.

3. The copyrighted literary works can be duplicated and used for personal use or

household use and within the same parameter. In other cases than the

aforementioned, it is prohibited by law.

4. The above details present only a part of the applicable laws and regulations.

Details on these laws/regulations may not be stated as they are. We do not guarantee

its correctness and completeness. Please consult a legal advisor to check if the object

you intend to print is legal.

5. User is responsible for all loss derived from modification of the product executed by

the user or third party.

6. Font used in the printer GUI and the user manual is the “NANUM” font provided by NAVER.

Contents

Before using the Machine

1. Preface -------------------------------------------------------------------------------------------------------------------------- 1

2. Conventions ------------------------------------------------------------------------------------------------------------------ 2

Symbols ------------------------------------------------------------------------------------------------------------------------ 2

Other Information ------------------------------------------------------------------------------------------------------------- 2

3. Safety Information ----------------------------------------------------------------------------------------------------------3

4. Precautions ------------------------------------------------------------------------------------------------------------------- 5

4.1 Installation ---------------------------------------------------------------------------------------------------------------------- 5

4.2 Moving the Machine ---------------------------------------------------------------------------------------------------------- 6

4.3 Power Switch ------------------------------------------------------------------------------------------------------------------- 7

5. Consumables Handling ---------------------------------------------------------------------------------------------------8

5.1 PLA ----------------------------------------------------------------------------------------------------------------------------- 8

5.2 ABS ----------------------------------------------------------------------------------------------------------------------------- 8

5.3 Flexible -------------------------------------------------------------------------------------------------------------------------- 9

5.4 PVA, PVA+ ---------------------------------------------------------------------------------------------------------------------- 9

6. Instructions for Use ------------------------------------------------------------------------------------------------------ 10

7. Ventilation ------------------------------------------------------------------------------------------------------------------- 11

8. Notices ----------------------------------------------------------------------------------------------------------------------- 12

9. Disposal of Used Battery ---------------------------------------------------------------------------------------------- 14

10. Wifi Module Disclaimer ------------------------------------------------------------------------------------------------- 15

11. USB Memory Disclaimer ----------------------------------------------------------------------------------------------- 17

Chapter 1 Preparations for Machine Operation

1. Machine Specifications ------------------------------------------------------------------------------------------------ 1-2

1.1 Printing ----------------------------------------------------------------------------------------------------------------------- 1-2

1.2 Temperature/Speed ------------------------------------------------------------------------------------------------------ 1-2

1.3 Machine ---------------------------------------------------------------------------------------------------------------------- 1-2

1.4 Software/Support --------------------------------------------------------------------------------------------------------- 1-2

1.5 Default Setting of Print layer Width ----------------------------------------------------------------------------------- 1-3

2. Basic Components ------------------------------------------------------------------------------------------------------ 1-4

3. Understanding the Device Parts ------------------------------------------------------------------------------------ 1-5

4. Installation (Product connection, Cartridge Setup and includes Software Installation) -------- 1-7

4.1 Device Connection -------------------------------------------------------------------------------------------------------- 1-7

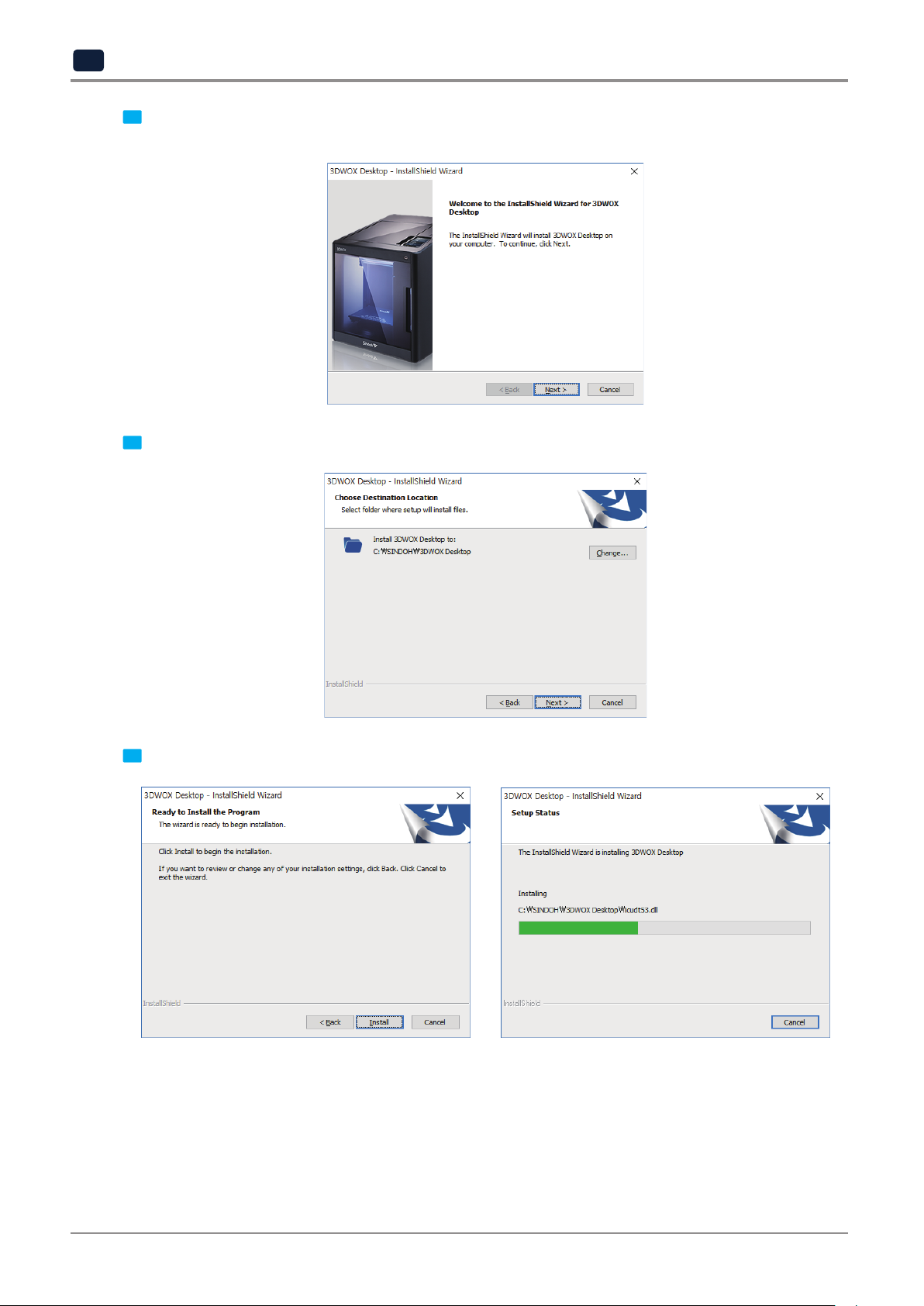

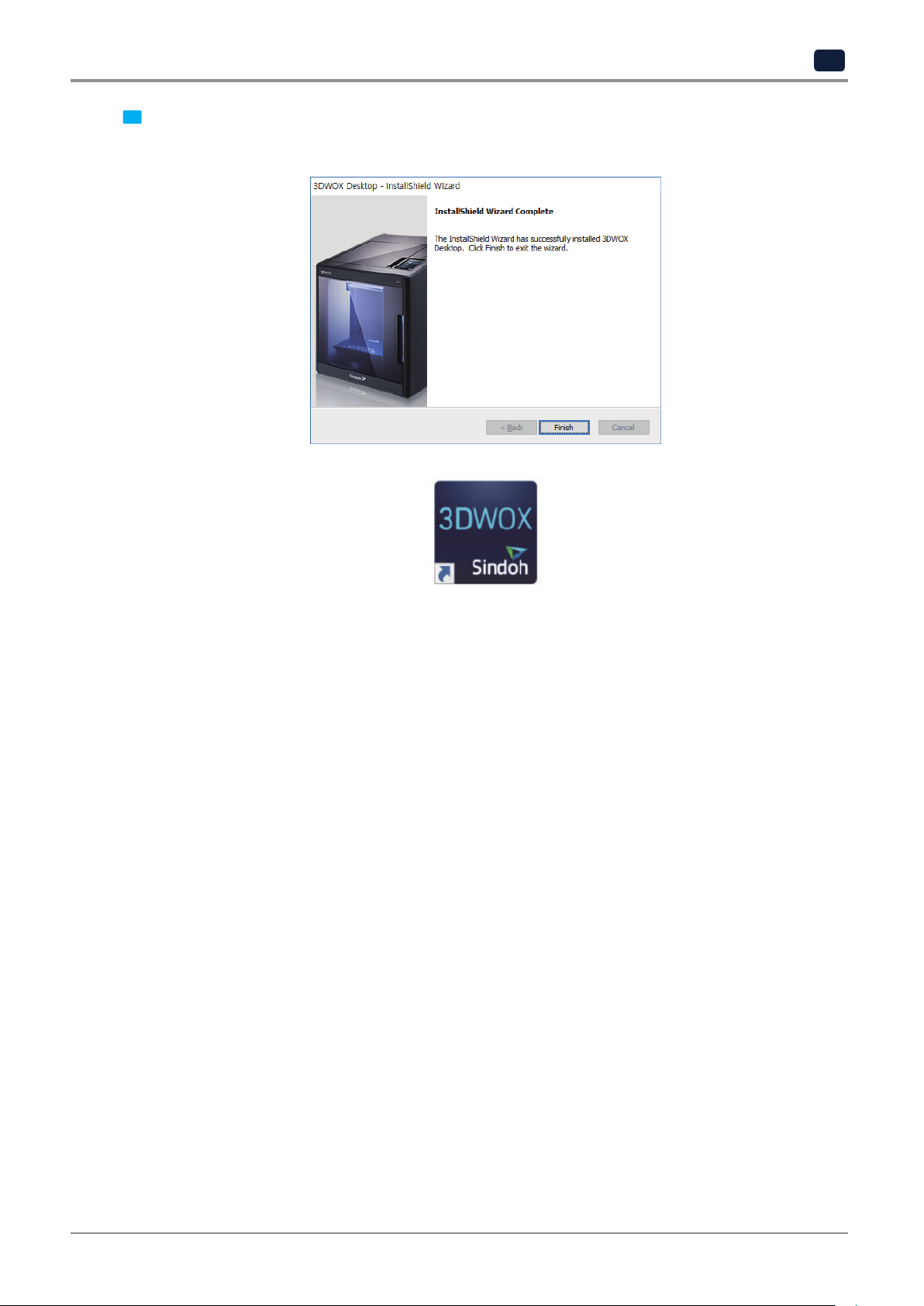

4.2 Program Installation ------------------------------------------------------------------------------------------------------ 1-7

Chapter 2 UI Menu Functions

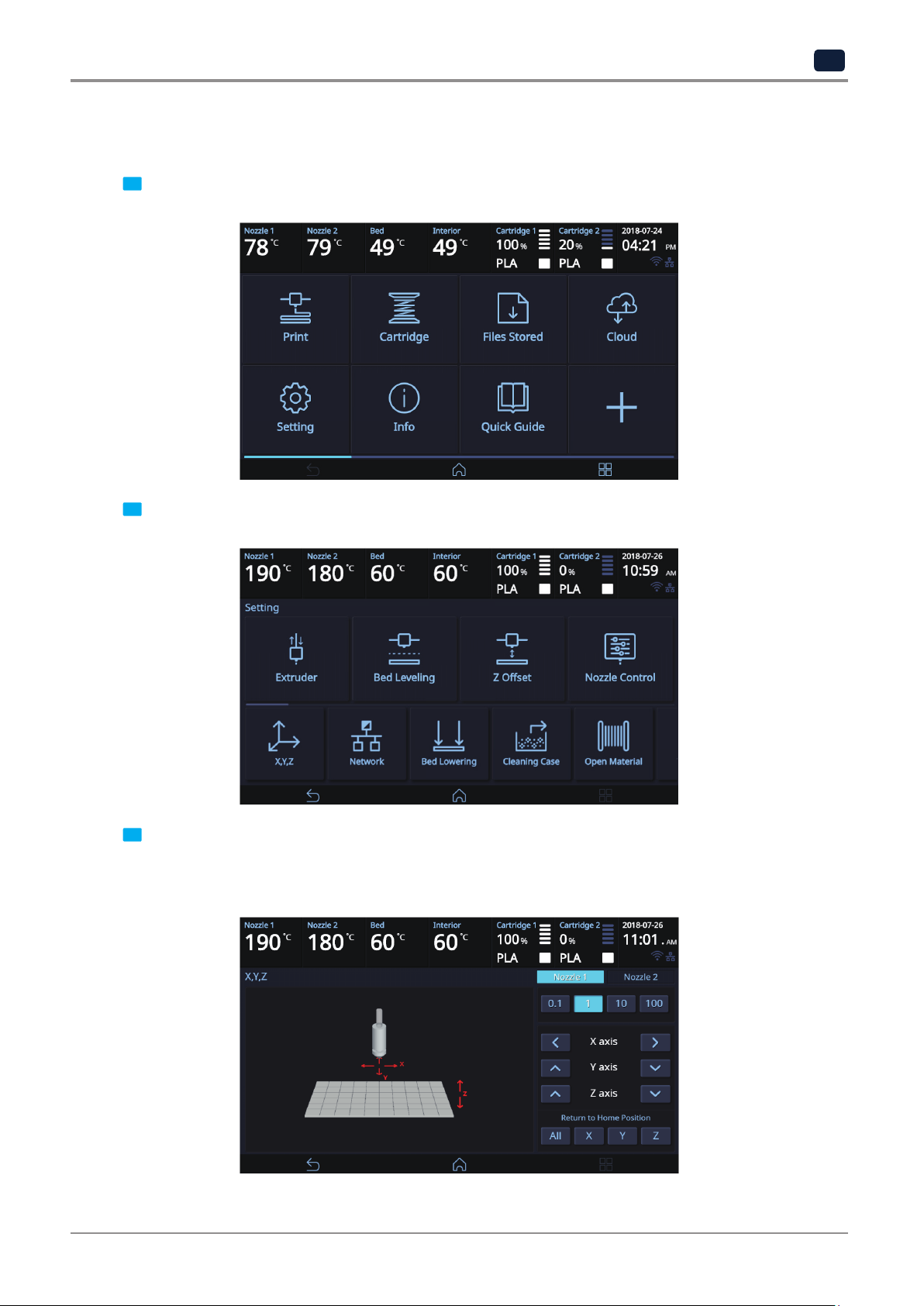

1. UI Home Screen Functions -------------------------------------------------------------------------------------------- 2-2

1.1 Device Status Display ----------------------------------------------------------------------------------------------------- 2-2

1.2 UI Function Control -------------------------------------------------------------------------------------------------------- 2-2

1.3 Changing Screen / Application Functions ---------------------------------------------------------------------------- 2-3

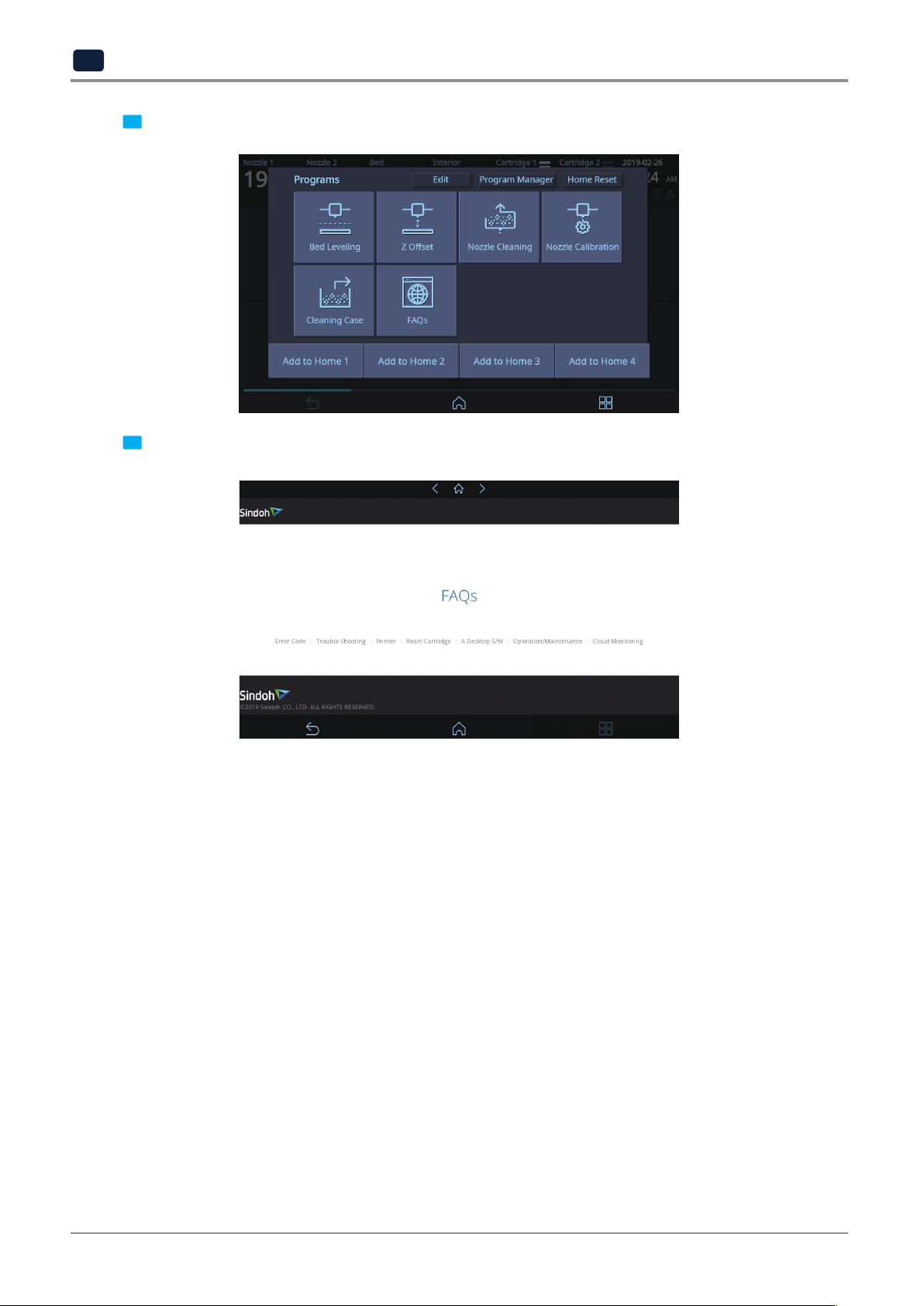

Programs --------------------------------------------------------------------------------------------------------------------- 2-3

2. UI Menu Function description ---------------------------------------------------------------------------------------- 2-4

2.1 PRINTE ----------------------------------------------------------------------------------------------------------------------- 2-5

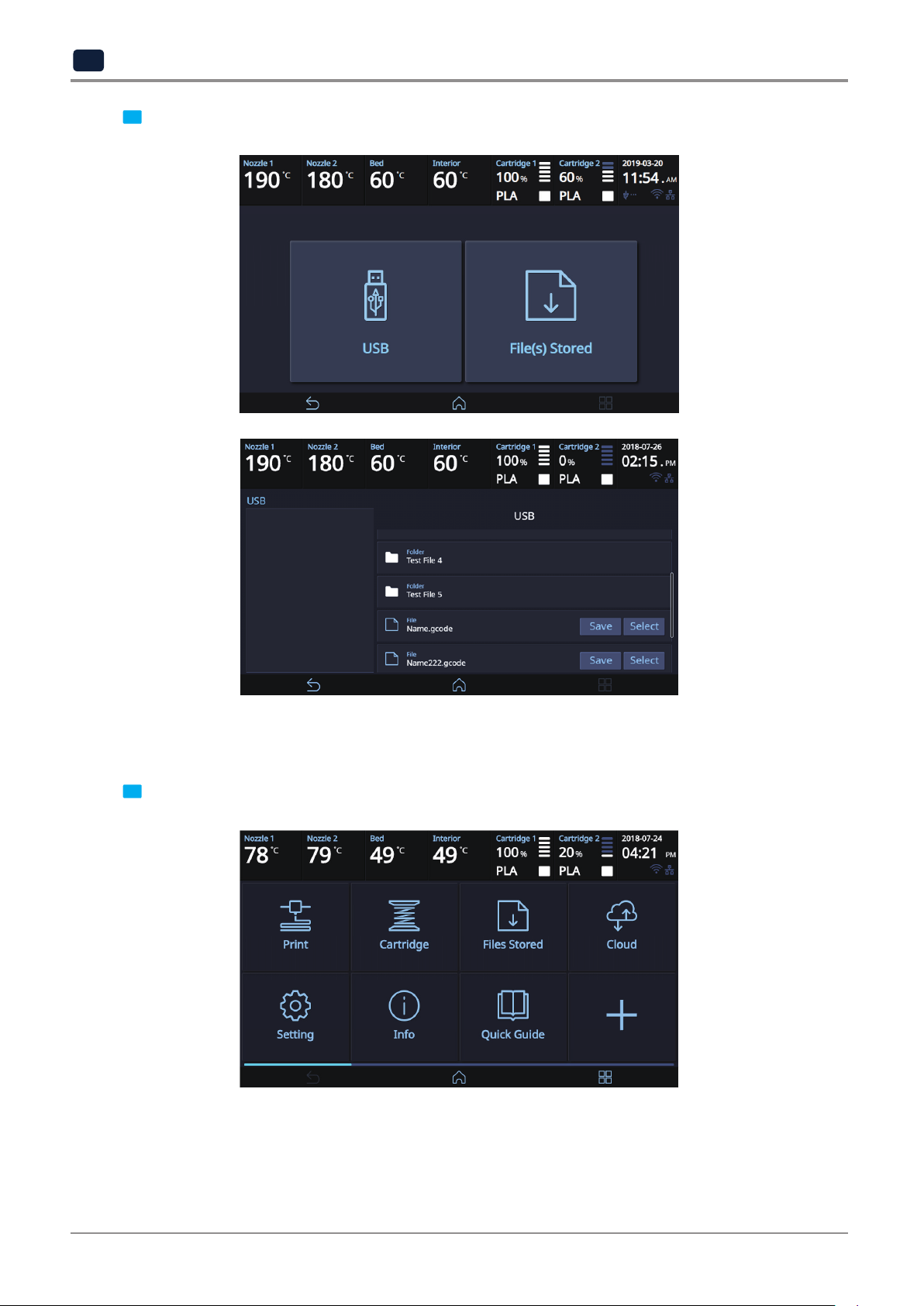

USB ------------------------------------------------------------------------------------------------------------------------- 2-5

FILES STORED ----------------------------------------------------------------------------------------------------------- 2-6

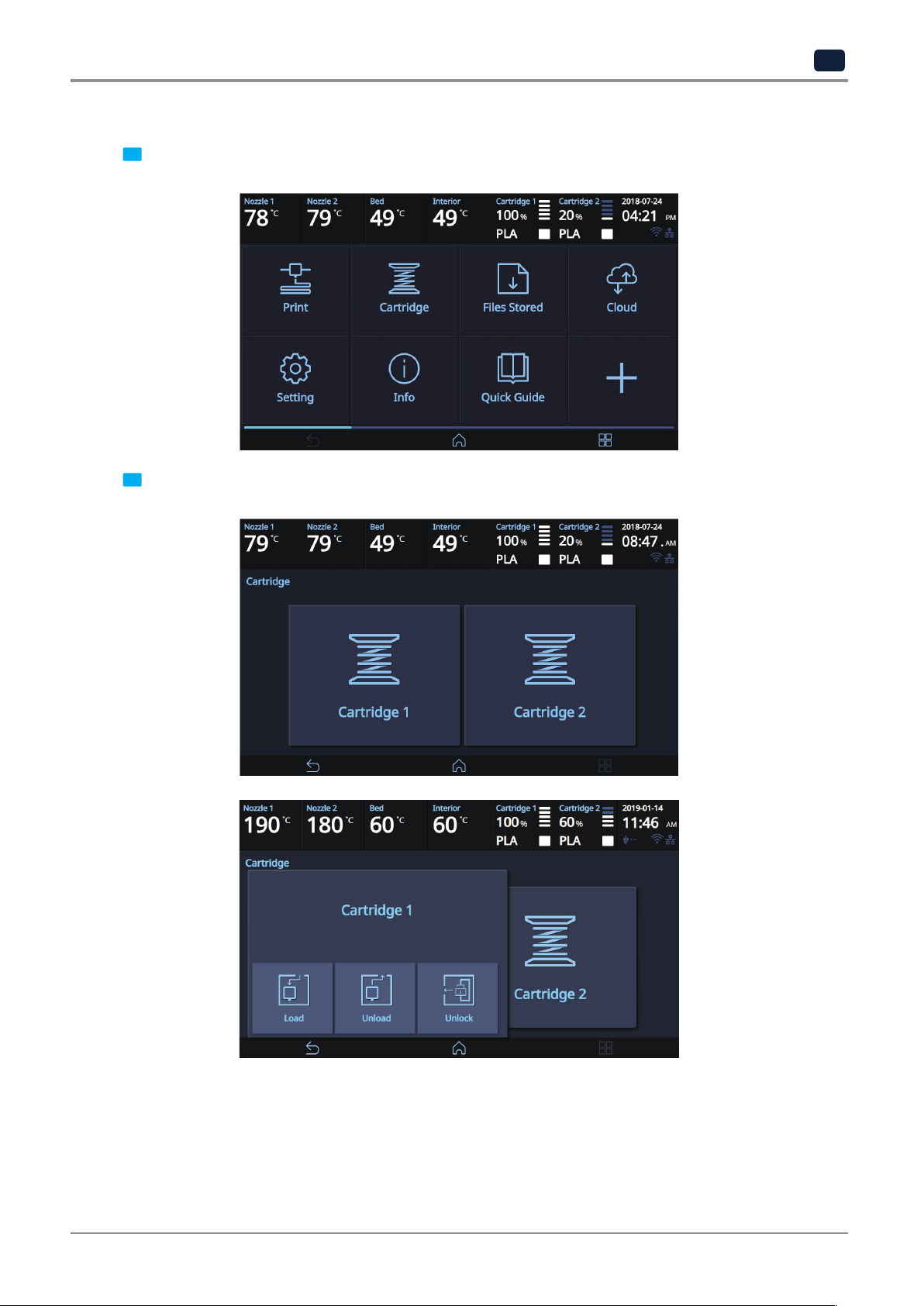

2.2 CARTRIDGE ---------------------------------------------------------------------------------------------------------------- 2-7

LOAD ------------------------------------------------------------------------------------------------------------------------- 2-8

UNLOAD -------------------------------------------------------------------------------------------------------------------- 2-9

UNLOCK -------------------------------------------------------------------------------------------------------------------2-14

2.3 CLOUD ---------------------------------------------------------------------------------------------------------------------2-17

2.4 Settings -------------------------------------------------------------------------------------------------------------------2-18

Extruder ---------------------------------------------------------------------------------------------------------------------2-19

Bed Leveling ---------------------------------------------------------------------------------------------------------------2-20

Z Offset ---------------------------------------------------------------------------------------------------------------------2-22

Nozzle Control -------------------------------------------------------------------------------------------------------------2-23

X, Y, Z -----------------------------------------------------------------------------------------------------------------------2-35

NETWORK -----------------------------------------------------------------------------------------------------------------2-36

Bed Lowering --------------------------------------------------------------------------------------------------------------2-40

Cleaning Case ------------------------------------------------------------------------------------------------------------2-41

OPEN MATERIAL --------------------------------------------------------------------------------------------------------2-43

Test Print --------------------------------------------------------------------------------------------------------------------2-45

S/W Update -----------------------------------------------------------------------------------------------------------------2-47

General Setting ------------------------------------------------------------------------------------------------------------2-48

FAQ -------------------------------------------------------------------------------------------------------------------------2-53

2.5 Information -----------------------------------------------------------------------------------------------------------------2-55

Quick Guide ---------------------------------------------------------------------------------------------------------------2-57

Chapter 3 Printing

1. Printing ---------------------------------------------------------------------------------------------------------------------- 3-2

1.1 Printing from USB Flash Drive ----------------------------------------------------------------------------------------- 3-2

1.2 Printing Via PC ------------------------------------------------------------------------------------------------------------- 3-8

1.3 CLOUD Printing ----------------------------------------------------------------------------------------------------------- 3-8

1.4 Print Job Management -------------------------------------------------------------------------------------------------3-13

1.5 Printing with Two Types of Filamentst ------------------------------------------------------------------------------3-14

1.6 Changing Filaments ----------------------------------------------------------------------------------------------------3-14

Chapter 4 Printed Output Check

1. Printed Output Check --------------------------------------------------------------------------------------------------- 4-2

1.1 Detaching Printed Output ----------------------------------------------------------------------------------------------- 4-2

1.2 PVA(PVA+) Filament Removal Guide ------------------------------------------------------------------------------- 4-4

1.3 Improving Printing Quality ---------------------------------------------------------------------------------------------- 4-4

2. If problems persist ------------------------------------------------------------------------------------------------------ 4-5

Chapter 5 Maintenance

1. Machine Cleaning ------------------------------------------------------------------------------------------------------- 5-2

1.1 Cleaning Case Maintenance ------------------------------------------------------------------------------------------- 5-2

1.2 Printer Interior Cleaning ------------------------------------------------------------------------------------------------- 5-2

1.3 Periodical Inspection ----------------------------------------------------------------------------------------------------- 5-2

Oil/Grease Inspection ----------------------------------------------------------------------------------------------------- 5-2

1.4 Flexible bed and Nozzle Cleaning ------------------------------------------------------------------------------------ 5-2

1.5 Cleaning the inside of the Nozzle -------------------------------------------------------------------------------------- 5-3

1.6 Nozzle Tip Cleaning ------------------------------------------------------------------------------------------------------5-10

2. Error Message and Solutions --------------------------------------------------------------------------------------5-13

3. Problems and Solutions ---------------------------------------------------------------------------------------------5-15

3.1 In Cases where Filament is Cut Between the Extruder and Nozzle -----------------------------------------5-15

3.2 When Filament End is Visible Outside the Cartridge After Unloading --------------------------------------5-15

3.3 Solution for Notification 401, 601 -------------------------------------------------------------------------------------5-16

4. Replenishing Consumables ----------------------------------------------------------------------------------------5-19

4.1 Bed Replacement --------------------------------------------------------------------------------------------------------5-19

Removing Flexible Bed -------------------------------------------------------------------------------------------------5-19

Installing Flexible Bed ---------------------------------------------------------------------------------------------------5-19

4.2 Filter Replacement -------------------------------------------------------------------------------------------------------5-19

4.3 Cartridge Replacement -------------------------------------------------------------------------------------------------5-21

4.4 Nozzle Replacement ----------------------------------------------------------------------------------------------------5-21

Chapter 6 Appendix

1. Type of Filaments (Material, Color) ------------------------------------------------------------------------------- 6-2

2. Using an open material ----------------------------------------------------------------------------------------------- 6-3

2.1 Installing from the front -------------------------------------------------------------------------------------------------- 6-3

2.2 Installing from the top ---------------------------------------------------------------------------------------------------- 6-6

Before using the Machine

1. Preface

This User Manual describes detailed explanations and points to note in connection with operating and using

the machine. Please read the User Manual carefully before using machine, and keep it for reference purpose.

Sindoh shall not be liable for consequential, special, indirect damages or losses caused by the handling or

operating of the machine or by the user’s negligence.

law.

may not be stated as they are. Sindoh is not responsible for its correctness and completeness.

Please consult your legal advisor to check if the object you intend to print is legal.

Important

-

The content of the User Manual is subject to change without any prior notification.

-

Copyrighted works can be printed and used for home and/or personal use; other usage is prohibited by

-

The above details present only a part of the applicable laws and regulations and the details of the law

Note

Some options may not be available in some countries. Please contact local distributor for details.

Some standard units are optional in some countries.

Please consult your local service center.

Please consult your local sales office.

-

The User Manual may include a little different descriptions of the machine from the actual one.

-

In some countries some models are not available.

-

Naver Nanum font is applied to the GUI of the device and the user manual.

1

Before using the Machine

2. Conventions

Symbols

This manual uses the following symbols and meanings.

Ignoring these notes could result in serious injury or death.

Be sure to read these notes carefully for your safe operations of the machine.

Ignoring these notes could result in minor injury, or damage to the machine or to property.

Be sure to read these notes for your safe operations of the machine.

misfeeds, damage to originals, or loss of data.

Be sure to read these explanations before operating the machine.

Warning

-

Indicates importance safety notes.

Caution

-

Indicates important safety notes.

Important

-

Indicates points to pay attention to when using the machine, and explanations of likely causes of filament

Note

-

Indicates supplementary explanations of the machine`s functions, and instructions on resolving user errors.

Reference

-

This symbol is located at the end of sections. It indicates where you can find further relevant information.

[ ]

Indicates the messages or menus that appear on the machine`s LCD display panel.

Indicates the names of each function key on the machine control panel and the display window.

Some of the pictures used in this manual have been omitted to make it easier to see.

The contents of the UI in this manual may differ from what it actually appears.

Other Information

2

Before using the Machine

3. Safety Information

Plug the power cord into a properly grounded outlet which is near and quickly accessible from the machine.

Do not use or place the machine in wet or humid environment.

Caution

-

When you touch your body with this part, you are burned.

-

To avoid burns, follow the instructions below.

󱇱

The inside of the machine may be hot. To reduce the risk of injury from a hot

Hot Surface

component, allow some time to cool down.

(Please be cautious of getting burns during printing as the Nozzle and the heating

bed will maintain a high temperature of over 100 degrees.)

󱇱

Do not put any portion of your body or objects on any part during machine operation as the motor and

bed can be in very high temperature and can cause burns/injuries. Please be cautious.

󱇱

When the power is on, do not let any of your body touch the machine except the bed.

If you have to touch the bed while the power is on, please do so after the bed temperature has been

lowered to room temperature.

󱇱

If you have to touch any parts other than the bed, please do so after the bed and nozzle temperature

have been lowered to room temperature.

󱇱

After the printer has finished printing, check the LCD screen and built-in speaker.

Do not touch the bed or the bed handle unitl you are told you can touch the bed.

Caution

-

Contact with this part may result in electric shock.

-

To avoid electric shock, follow the instructions below.

󱇱

Proceed your work after turning off the machine and unplugging the power cord

Electric Shock

from the outlet in case of accessing the system board, or installing hardware or

optional memory devices. If the machine is connected with other device, turn it off

and separate the cables from the machine.

󱇱

This product has been designed, tested and approved to meet strict safety

requirementsof international safety standard. Some safety features of parts may not be guaranteed.

Sindoh is not liable for problems caused by using an unauthorized spare parts or consumables.

󱇱

Disconnect the power cord and all the cables connected to the machine to prevent from any electrical

shock when cleaning the outside or inside of the machine.

󱇱

Be sure to turn off the power before removing the nozzle from the machine. Electrical damage to the

internal parts of the nozzle may occur.

Caution

-

Do not twist, fold, step or place heavy objects on the power cord.

-

Be careful with the power cord peeled off or overloaded.

-

Do not let the power cord pinched by furniture or walls.

-

Misusing the cord could result in fire or electrical shock.

-

Check the cord regularly. When checking the cord, unplug the cord from the outlet first.

-

Please consult a qualified engineer for services or repairs not stated in this User Manual.

Pain

3

Before using the Machine

Caution

-

To prevent personal injuries or damages to the machine, you need to follow the

Pain

below instructions before moving the machine.

󱇱

Do not open the front and top door during machine operation.

󱇱

When the power is on, do not let any of your body touch the machine except

the bed.

󱇱

If you have to touch any parts other than the bed, please do so after turning the power off, removing

the power cord from the plug and after the bed and nozzle temperature have been lowered to room

temperature.

󱇱

Turn the power switch off, then unplug the power cord from the power outlet.

󱇱

Unplug and release all the cords and cables before moving the machine.

󱇱

Only use the power cords provided with this machine or cords that are approved by the manufacturer.

󱇱

Do not put any portion of your body or objects during machine operation, as the bed, motor, nozzle

will be in operation and moving. Small objects such as neckless, hair, etc may cause personal injuries

or damages to the machine.

󱇱

If any problems occur(malfunction, body part being caught inside the machine, etc) during machine

operation, quickly press the [Pause] or [stop] button on the touch screen.

Nozzle

Bed

UI

Caution

-

When you put the head in the machine during operation, it may cause pain.

-

To prevent pain or damage to the equipment, follow the instructions below.

󱇱

󱇱

󱇱

This part moves up and down. Do not put the head in the machine during operation.

Do not open the front door during printing.

If you have to get in the machine for maintenance, please do so after turning the power off, removing

Pain

the power cord from the plug and after the bed and nozzle temperature have been lowered to room

temperature.

Caution

-

When working on the top of the machine, you may get caught or fall and cause pain.

-

To prevent pain or damage to the equipment, follow the instructions below.

󱇱

󱇱

Caution

-

Contact with this part may cause pain.

Be careful not to fall when operating the top door or nozzles from the top of the machine.

Be careful of pain or nozzle tube jamming when closing the top door.

Pain

Pain

- To prevent injury or damage to the equipment, keep away from this part during operation.

4

4. Precautions

4.1 Installation

Before using the Machine

You can small odor during machine operation. It should not be harmful; however, if the area of where the

machine is located is not ventilated, make sure to ventilate the area appropriately time to time.

Secure properly sufficient space around the machine for easy ventilation and operation.

Use the machine at temperatures of 16 °C ~ 29 °C and relative humidity of 20% ~ 70%.

Do not install or use the machine outdoor.

Warning

-

Install the machine in a well ventilated area.

Important

-

Install the machine with its vents spaced at least 10 cm away from walls and other equipments.

Top View Side View

100 mm

100 mm 100 mm 500 mm

1300 mm

853 mm

100 mm

1690 mm

5

Before using the Machine

4.2 Moving the Machine

down.

When moving the printer, it is recommended that two people lift and move the printer for safety.

Bend your knees enough to protect your spine when lifting the machine.

1 Power off the device.

2 Disconnect the power cord and cables from the device.

3 Make sure that the FLEXIBLE bed and cartridge are installed in the device, and close the front and top doors.

4 Four people are required to hold the transport handles on both sides to move the device with the bottom facing

Warning

-

Before moving the machine, be sure to unplug the power cord from the outlet.

-

Hold the bottom handles of the machine when moving it.

-

The unit is heavy. Make sure to carry with four or more people.

Handle

6

Before using the Machine

4.3 Power Switch

Before turning the power switch on, check that the power cord is connected to the socket tightly. Then, turn the power

 onbypushthepowerswitchto“│”(ON)positionattherightonrearsideoftheMachine.Toturnthepoweroff,push
 thepowerswitchto“○”(OFF)position.
 │for“ON”IEC60417-5007(DB:2002-10)
 ○for“OFF”IEC60417-5008(DB:2002-10)

The Switch used for this machine meets the requirements on the symbols and complies with its standard. But the

 horizontalstraightbarismeaningthePower“ON”becauseitsorientationisturned90ºtothecounterclockwise.Plea
 sedon’tconfusethemeaningofthehorizontalstraightbar“─”.

Switch standard

IEC 61058-1

 Symbolforthe“OFF”positionorthedirectionofactuationtothe“OFF”position–circle,○
 Symbolforthe“ON”positionorthedirectionofactuationtothe“ON”position-straightbar,│

electrical shock.

power cord from the outlet.

Warning

-

Do not plug or unplug the power cord or touch the power switch with wet hands. It may cause an

Important

-

 Onceyouturnthepoweroff,wait5secondsorlongertoturnthepoweronagain.

-

If you are not using the device for a long time or if you are moving the device, turn the power off and unplug the

7

Before using the Machine

5. Consumables Handling

Warning

-

Do not burn the Cartridge unit or filament. It may be a cause of big fire or burn by ignition.

Caution

-

Keep them out of the reach of children.

-

If skin irritation occurs after touching the filament, please see a doctor.

Important

-

Do not keep the cartridge unit in the following places.

󱇱

Exposed to fire

󱇱

Exposed to direct sunlight;

󱇱

Where temperature or humidity may rise;

󱇱

Where sharp change of temperature may occur;

󱇱

Covered with dust;

󱇱

Inside a vehicle for extended time.

-

Keep cartridges away from physical impact or vibration.

-

Do not unpack cartridges until you are just ready to use them.

5.1 PLA

It is a material that can be easily printed by the users using the 3D printer for the first time. You can easily print va-

rious colors and complex shapes. Ambient temperatures above 50 ° C can cause material properties to change,

causing the material to expand or scatter. PVA can be used as a support material.

Nozzle temperature: 200 ° C

Bed temperature: 55 ° C

Recommended direction of the bed : Side A

Color: White, Black, Gray, Red, Yellow, Green, Blue, Pink, Purple

Storage : Store in cartridges with the silica gel that was included in the purchase.

5.2 ABS

Widely used in 3D printers, it has more rigidity and heat resistance than PLA. Due to the high temperature of the

nozzle and the air when printing, printing are not available with other materials. ABS material can be deformed by

shrinkage when the temperature in the cabin drops during printing. Particularly when printing a wide output surface to

the bed, shrinkage may occur at the corners.

IfprintingABSmaterialonSideAofthebedsheet,thePrintedOutputmaynotdetachedfromthebedsheeteasily.

It is recommended to using Side B of the bed sheet when printing ABS material.

(IfusingSideBonthebedsheet,adjusttheprofileintheslicerprogramtocreateaG-code.)

Nozzle temperature: 230 ° C
Bed temperature:90°C(SideA),100°C(SideB)

Color: white, black, gray, red, yellow, green, blue

Storage: Store in cartridges with the silica gel that was included in the purchase.

8

5.3 Flexible

When using flexible materials, clean the inside of the nozzle after the filament load. Even if the inside of the nozzle is

cleaned,iftheinsideofthenozzlehasdebris,thenozzlemaybecloggedorthefilamentmaybetransported.(Refer
toP.5-3“1.5CleaningtheInsideoftheNozzle”.)

Be careful because it is difficult to set the output condition compared with PLA and ABS materials. Warp or spider

web may occur at output.

Flexiblematerialscancausetwistsintheextruderorinsidethecartridgerollers.(RefertoP.5-16“3.3Solutionfor
Notification401”.)

Nozzle temperature: 235 ° C

Bed temperature: 60 ° C

Recommended direction of the bed : Side A

Color: white, red, yellow, green, black, orange

Storage: Store in cartridges with the silica gel that was included in the purchase.

5.4 PVA, PVA+

PVA is a water-soluble support material. PVA can be used with PLA and it can be removed from the print by

dissolvingitunderthewater(refertoP.4-4“1.2PVAFilamentRemovalGuide”).

Before using the Machine

This material is very sensitive to moisture, so it should only be used in environments with humidity below 50%.

Becarefulwhenusinginahumidenvironmentbecauseitmaycauseproblemsinfilamenttransport(refertoP.5-16
“3.5SolutionforNotification401”.).

Carbonization may occur inside the nozzle during long hour printing. Please periodically clean the inside of the nozzle

(refertoP.5-3“1.5CleaningtheinsideoftheNozzle”).

Storage:Whennotinuse,putthePVAfilamentandsilicagelinthezipperbagthatwasincludedinthepurchase,

and keep it away from outside air. If the PVA filament is already exposed to moisture for a long time, it

shouldbestoredfor48hoursormorewithsilicagelinasealedcontainer.

Nozzle temperature:215°C(PVA),200°C(PVA+),
Bed temperature:55°C

Recommended direction of the bed : Side A

and risk.

We are not responsible for the use and handling of PVA filaments other than those described in this manual.

PVA filament specifications can be changed without any notice.

Important

-

Please note that you shall follow our technical information or support in this manual at your own discretion

9

Before using the Machine

6. Instructions for Use

Please be cautious not to touch the nozzle or the bed during removal of the printed objected or during

inspection of the machine inside. It may become the cause of injuries or burns.

reproductive harm. This appliance and its accessories can cause low-level exposure to chemicals

during operation, which can be reduced by operating the appliance in a well ventilated area.

personal injuries of damages.

the instructions below.

Caution

-

The nozzle and the bed that are inside the machine are very hot during machine operation.

-

Never operate the machine in the way this manual does not specifically instruct.

Notification for California customers, USA

Warning

-

This product uses chemicals known to the State of California to cause cancer and birth defects or other

Caution

-

Do not open the side cover or touch any parts of the extruder unit during machine operation to prevent

-

If you need inspection of the extruder unit, turn off the power and disconnect the power cord and follow

Openthesidedoor.

If the filament is clogged in the extruder while using the device, follow the instructions below.

① ②

③ ④

Remove 5 screws.

Removing filaments in the path

Removing filaments in the path

Make sure that there are no missing parts
during filament removal, then reassemble

* If the brass bushing comes out of the cover,

insert the bushing as shown in the right figure
and then assemble the cover.

Remove 2 covers

10

7. Ventilation

Before using the Machine

ventilation, this may be harmful for your health. Ventilate it on a regular basis.

ventilation when the machine is used for the first time. If the machine is in operation for an extended

time, do not stay in the same room for a long time.

Caution

-

Use the machine in a place with good ventilation. If the machine is used in a place without good

-

Do not block vents. Inappropriate cooling may lead to high temperatures inside the machine.

-

In general, a new machine may produce small amount of gaseous components, so ensure good

11

Before using the Machine

8. Notices

 ❖

   ThefollowingaremeasuredinaccordanceofISO7779andreportedtomeetISO9296.

Some modes may not be available in your purchased products.

Do not dispose the machine and consumables together with household wastes.

For disposal or recycling, contact your local sales office.

This machine complies with the limits for Class A.
ClassA(IndustrialDevice):ThisisaclassAproduct.Inadomesticenvironmentthisproductmaycauseradio

interference in which case the user may be required to take adequate measures.

Noise Emission Level

Average Sound Pressure at 1 Meter Away

Printing 55dBA(NormalPrintCondition-Printingspeed40mm/s,Travelspeed130mm/s)

Standby under40dBA

Temperature/Humidity

❖

Operation 16 °C ~ 29 °C 20%RH~70%RH

Storage -30°C~40°C,15%RH~85%RH(Nocondensation,mustnottouchthefloor)

Disposal of The Products

❖

EMI(Electromagnetic Interference) Notice

❖

    Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
    (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference 

received, Including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

accordance with the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the

    userisencouragedtotrytocorrecttheinterferencebyonemoreofthefollowingmeasures:

- Reorient or relocate the receiving antenna.

Any changes or modifications not expressly approved by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment.

FCC COMPLIANCE STATEMET

INFORMATION TO USER

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

-

Increase the separation between the equipment and receiver.

-

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

The wireless device may be affected by electromagnetic interference so it should not be used for life

saving services.

DECLARATION OF CONFORMITY (DOC Letter): 12page

Wireless LAN Specifications

❖

12

Before using the Machine

Exposure to radio frequency radiation

The following notice is applicable if your printer has a wireless network card installed.

The radiated output power of this device is far below the FCC radio frequency exposure limits.

   Aminimumclearanceof20cm(8inches)mustbemaintainedbetweentheantennaandanypersonsfor

this device to satisfy the RF exposure requirements of the FCC.

Power Consumption of the Products

The below table shows power consumption.

The above power consumption is the hourly average value.

Instant power consumption can be much higher than the average value.

WLAN Notice

❖

Power Consumption

❖

Mode Description Power Consumption(W)

Printing A device is printing using electronic input data. Max. 1000W

Standby A device is in standby mode. Max. 750W

Power On A power plug is plugged into the outlet with the machine’s

switch on.

Power Off A power plug is plugged into the outlet with the machine’s

switch off .

15W

0.5W

Deactivated Mode

The machine consumes power even in the deactivated mode. Unplug the power cord to completely stop the

power consumption.

Total Energy Usage

It would be useful to calculate the Total energy usage of the machine.

Since the electricity bill is charged in Watt unit, you have to multiply time spent in each mode by power

consumption in order to calculate the energy use.

Total energy usage is the sum of energy used in each mode.

Condensation

Dramatic change of the ambient temperature may produces water droplets on the interior and exterior of the

machine.

door and cover opened.

Wipe the water droplets on the outer surface, but for the inside please let them dry off by leaving front

13

Before using the Machine

9. Disposal of Used Battery

Control board uses a Lithium battery.

Please discard used batteries following the environmentally friendly procedure stated on the manufacturer

guidelines.

To replace batteries, please contact a qualified service engineer.

14

10. Wifi Module Disclaimer

Before using the Machine

 ❖

to human lives.

This module includes a Wifi module, compatible only with Sindoh 3DWOX models.

Important

-

This Wifi module can cause radio interference, therefore it should not be used for any purposes related

-

Do not expose this product to water, humidity or liquid.

-

Do not expose this product to direct light, hot temperature or fire.

Wifi module inside

machine trouble or failure.

has been mounted in a place that minimizes human access.

Warning

- If the machine has been modified by an unauthorized personnel, Sindoh is not liable for the

Caution

-

To prevent RF signals that exceed FCC RF exposure limits from being exposed to human, this module

15

Before using the Machine

 ❖

Frequency

Antenna Power Density IEEE802.11b:10mW(10dbm)/MHz

No. of Channels IEEE802.11b:11

Modulation IEEE802.11b:DSSS/CCK

Power Consumption 5V500mA(Maximum)

Precautions

IEEE802.11b:2412MHz~2462MHz
IEEE802.11g:2412MHz~2462MHz
IEEE802.11n(20MHz):2412MHz~2462MHz
IEEE802.11n(40MHz):2422MHz~2452MHz

IEEE802.11g:10mW(10dbm)/MHz
IEEE802.11n(20MHz):10mW(10dbm)/MHz
IEEE802.11n(40MHz):10mW(10dbm)/MHz

IEEE802.11g:11
IEEE802.11n(20MHz):11
IEEE802.11n(40MHz):7

IEEE802.11g:OFDM
IEEE802.11n(20MHz):OFDM
IEEE802.11n(40MHz):OFDM

Dimension 37.0mm X 28.0mm X 3.7 mm

Operation Temperature 0 ~ 60 °C

Storage Temperature -10 ~ 80 °C

16

11. USB Memory Disclaimer

Before using the Machine

 ❖

   Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
   (1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the

   followingmeasures:

FCC COMPLIANCE STATEMENT

INFORMATION TO USER

❖

-

Reorient or relocate the receiving antenna.

-

Increase the separation between the equipment and receiver.

-

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-

Consult the dealer or an experienced radio/TV technician for help.

 ❖

Any changes or modifications not expressly approved by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment.

 ❖

- Please use the enclosed USB flash drive.

    The3DWOX3DprinterdoesnotsupportUSBflashdrivesinNTFSformat.

CAUTION

Specification of compatible USB flash drive for 3DWOX

-

The enclosed USB flash drive is in FAT32 format.

-

The warranty will not be valid if a 3rd party USB drive is used.

17

Before using the Machine

IC Identification on Class of ITE

❖

   CANICES-3(B)/NMB-3(B)

Productname:USBFlashDrive

name:8GB-WJ004,4GB-WJ004

Model
FCCRules:TestedtocomplywithFCCPart15,Class

Environment:ForHOMEOROFFICEUSE

thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

ARTY

America,

Operating

FCC COMPLIANCE STATEMENT

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
(1)

received, including interference that may cause undesired operation.

RESPONSIBLE P

Name:Sindoh
Address:6047TyvolaGlenCircle,Suite#115,Charlotte,NC28217
PhoneNo.:1-704-414-6690

We hereby declare that the above specified equipment with the trade name and model number was tes

ted conforming to the applicable FCC Rules under the most accurate measurement standards possible,

and that all the necessary steps have been taken and are in force to assure that production units of the

same equipment will continue to comply with the Commission’

Manufacturer:SindohCo.,Ltd.
Address:3,Seongsuiro24(isipsa)-gil,Seongdong-gu,Seoul,04797REPUBLICOFKOREA

DECLARATION OF CONFORMITY

A

Ltd.

-

s requirements.

18

3DWOX 5X / 7X

USER MANUAL

Preparations for
Machine Operation

1

Preparations for Machine Operation

1

1. Machine Specifications

1.1 Printing

Printing Method Fused Filament Fabrication

Max. Print Length(mm) 5X : W(max):350, D(max):350, H(max):350

7X : W(max):370, D(max):390, H(max):450
W(max):380, D(max):390, H(max):450 (Expanded print mode)

Print Layer Thickness Setting 0.05~0.4mm

Basic Nozzle diameter 0.4mm

Filament width 1.75mm

Printable materials * Sindoh : PLA, ABS, FLEXIBLE, PVA(Water-soluble) PVA+(Water-soluble)

* Open Material : PLA, ABS, FLEXIBLE, PVA(Water-soluble), ASA, PETG, etc

Printable color White, Black, Gray, Red, Yellow, Green, Blue, Pink(PLA), Purple(PLA)

Bed leveling Auto leveling

Print Head Two Nozzle

* Using filament containing abrasive additives (e.g. metal component, carbon fiber) may cause the breakdown
of the machine and will shorten its life time drastically.

1.2 Temperature/Speed

Continuous Nozzle Usage/ Maximum
Temperature

Continuous Bed Usage/ Maximum
Temperature

Recommended printing speed/
maximum speed

* Continuous operation at maximum temperature can cause malfunction, Please use in case of nozzle clogging or

other troubles.

Recommended Temperature(Nozzle): PLA 200℃, ABS 230℃, Flexible
235℃, PVA 215℃, PVA+ 200℃ / Max 250℃

Recommended Temperature(Bed): PLA 55℃, ABS(Side A) 90℃,
ABS(Side B) 100℃, Flexible 55℃ , PVA(PVA+) 55℃ / Max 110℃

PLA 80mm/s, ABS 80mm/s, PVA(PVA+) 25mm/s,
FLEXIBLE 30mm/s Recommended / 200mm/s max

1.3 Machine

Power Max. 1000W

Dimensions 864 x 810 x 1690(W x D x H)

Weight 167kg (excluding cartridge)

Port USB Device, USB Host , Wifi, Ethernet

Cartridge Auto Load / Unload

1.4 Software/Support

Supported Software Sindoh Exclusive Slicer

Supported File Format *.stl, *.ply, *.obj, *.gcode, *.amf

Supported Operating System Windows 7 or above, Mac OSX 10.10 or above

Recommended Memory Requirements DRAM 8 GB+ / VRAM 2 GB+ (5X, 7X model only)

details on how to use.(https://3dprinter.sindoh.com/support/downloads)

Note

-

Graphics must support OpenGL 2.0 or higher.

-

This product can be utilized with Alexa Echo for hands-free control. Please refer to the below URL for more

1-2

1.5 Default Setting of Print layer Width

Nozzle Width 0.4mm

Print Layer Width 0.2mm

Preparations for Machine Operation

1

1-3

Preparations for Machine Operation

1

2. Basic Components

Please check all basic components are in the box.

Caution

-

Please keep the box and packaging material; they are needed for product exchange or repair service.

3D Printer

*Spool holder

Table

USB Cable

Cartridge

Power Cable(3EA)

Z-offset Calibration

Sheet(2EA)

Tube for

Cleaning(4EA)

*Included only on 7X model.

- The blades of the scrapper can be very sharp. Please be cautious. Please do not use for other than

removing printables.
Please do not touch the blade of the scrapper.

Warning

Encoder

Cleaning Brush

ScrapperReference Guide

Nozzle Cleaner

Spring Nozzle

Cleaner

USB Drive

Nozzle Cleaning Pads
(5EA for replacement)

1-4

3. Understanding the Device Parts

Preparations for Machine Operation

1

<Front> <Rear>

5

4

3
2

1

6

8

7

9

10

12

11

13

No. Part Name Description

1 Front door handle A handle to open the front door.

2

USB port

Connect USB flash drive containing printing information and print directly from
USB flash drive.

3 LCD Control panel Screen used to control printer.

Caution

-

Usage of printer is recommended after removing the protection film on LCD control panel.

If the film is not removed, the touch screen may not work properly.

4 Power Button

Briefly press this button to turn on printer.
Press and hold for 2 seconds to turn off the printer

Power Button Indicator Lamp On Power is On.

1 second interval flickering Can be turned on instantly.

(power cable is connected)

Caution

-

If in case of not using the printer for long period of time,

please unplug the power cord.

-

The lamp may flicker for a few seconds after the

power cord is disconnected.

Lamp Off Inactive Mode. (Power cord is unplugged)

5 Top door handle A handle to open top door.

6 Ventilator fan(Odor re-

moving filter)

Discharges heat from interior.
Filters out odor created through printing.

7 Lan Port Allows a device to connect to a network using a LAN cable.

8 USB Port Used to connect printer to computer with a USB cable.

9 Power port Power cord connector.

10 Carrying Handles Handles to use when moving the printer.

11 Extruder door Door for maintaining extruder unit.

12 Nozzle tube guiding rod Prevents the nozzle tube from twisting.

13 Main power switch (l /O) Turn the power on or off by pressing “I” (ON) or “O” (OFF).

1-5

Preparations for Machine Operation

1

<Interior>

3

1

2

No. Part Name Description

1 Bed height adjustment Knob Used to level the Flexible bed.

2 Removable bed handle Used to assemble and dismantle Flexible bed

3 Bed heater Heats the printables' bottom surface to stabilize it on the bed.

4 Flexible bed (bed sheet) Seating space for printable. It has both sides of A and B.

- Side A is a general purpose sheet for various materials.

- Side B is recommended for printing materials which requires high
temperature of the bed, such as ABS etc.

<Nozzle>

3

9

8

7

4

1

2

1

4

No. Part Name Description

1 Fan 1 Used to cool down models

2 Fan 2 Used to cool down the heat sink of the nozzle part

3 Fan 3 Used to cool down the nozzle motor

4 Nozzle Used to print.

5 Sensor Used to level the bed

6 Nozzle mount hook Used to mount and fix the nozzle

7 Nozzle fixing handle Used to fix the nozzle

8 Nozzle drive pressurization handle Pressurizing handle to drive the filament

9 Depressurization handle lever Used to depressurize the nozzle drive pressurization handle

10 Nozzle cleaning pads These are used for removing foreign matters from the nozzle.

6

5

10

1-6

Preparations for Machine Operation

4. Installation(Product connection, Cartridge Setup and Software installation)

4.1 Device Connection

1

Next, connect the power cable to the power outlet.

1) Direct Connection: Connect one end of the enclosed USB cable to the back of the 3DWOX and the other end

to the PC.

2) Network Connection: Refer to 2-34(Network) of the User Manual.

1 On the rear side of the machine, connect the power cable to the power socket.

2 Press the power button, located on top of the machine.

3 After main menu is displayed on the LCD screen, install the cartridge (Refer to UI manual “LOAD”).

4 Connection to PC

5 Plug USB flash drive in, and install machine drivers and Slicer program.

4.2 Program Installation

USB.

1 Start the installation of 3DWOX Desktop program by clicking on “3DWOX Desktop.exe” file in the enclosed

2 Install the additional files required by the software first.

1-7

Preparations for Machine Operation

1

Press [Next] button to initiate the installation of 3DWOX Desktop program.

3 When installation of the file is complete, a pop-up window shows up as picture below.

4 Choose the destination location of the file and press [Next] to proceed.

5 The file gets saved and the installation starts.

1-8

Preparations for Machine Operation

1

computer.

6 After all installation is complete, you can see that the “3DWOX Desktop” created on the desktop of your

1-9

3DWOX 5X / 7X

USER MANUAL

UI Menu Function

2

UI Menu Function

2

1. UI Home Screen Functions

1.1 Device Status Display

Displays information about the current state of the device.

1 2 3

No. Name Description

1 Termperature Display

2 Cartridge Status Display

3 Time and Connection

Status Display

Displays the current temperature inside the nozzle, bed and device.

Displays the material, color, and remaining amount of the filament.

Reference

-

Does not display the remaining amount while operating under "Open Material Mode".

Displays the current time and various connection status set on the device.

USB Memory

Connection

Wifi Connection Not connected Connected

LAN Connection

Not connected Connected

Important

-

The dotted line blinks during the file transfer. While the dotted line is

flashing, do not remove the USB Flash Drive.

Not connected Connected

1.2 UI Function Control

Under this menu, various UI functions can be operated.

You can run the functions you want to use by tapping the screen.

2-2

UI Menu Function

1.3 Changing Screen / Application Functions

You can change the screens or go to the application management screen for additional functions.

Display Name Description

2

Return Return to the previous page

Home Return to the home screen

Programs Enter to the program management screen.

Programs

You can change the screens or go to the application management screen for additional functions.

No. Name Description

You can edit the layout of the function buttons on the Home screen.

1 Edit

2 Application Manager Installs or removes programs for add-ons.

3 Home Reset Initializes the layout of the Home screen.

Press Edit and drag the function button to place it on the home screen you want
to place between the home 1 ~ home 4.

2-3

UI Menu Function

2

2. UI Menu Function description

PRINT USB

FILES STORED

CARTRIDGE CARTRIDGE 1, CARTRIDGE 2 LOAD

UNLOAD

UNLOCK

CLOUD

SETTING Extruder

Bed Leveling

Z Offset

Nozzle Control Nozzle Cleaning Auto

Nozzle Cleaning Manual

Nozzle Calibration XY Calibration

Nozzle change

X,Y,Z

Network Wifi

Wired

Bed Lowering

Cleaning Case

Open Material

Test Print

S/W Update

General Active Leveling

Lamp

Power Saving

Beep

Unit Temperature

Voice Guide Speech

Language

Time setting

Time zone

E -mail

Security

Camera Frame Rate Setting

*SSD Format

Programs FAQ

Enter Pattern Value

Length

Volume

Speed

2-4

* Included only on 7X models.

Information NAME

Quick Guide

2.1 PRINT

PRINT USB

CHANGE NAME & PW

MODEL NAME

SERIAL NO.

VERSION

WEB SITE

WIRED IP

WIRED MAC IP

WIRELESS IP

WIRELESS MAC IP

HISTORY

FILES STORED

UI Menu Function

2

USB

This function is to print files stored in the USB memory.

1 From the HOME screen press [Print].

2-5

UI Menu Function

2

2 Press the [USB] button, and select the file you want to print from the list.

FILES STORED

This function is to print files stored in the machine.

1 From the HOME screen press [Print].

2-6

UI Menu Function

2 Press the [Files Stored] button, and select the file you want to print from the list.

2

2.2 CARTRIDGE

CARTRIDGE CARTRIDGE 1, CARTRIDGE 2 LOAD

UNLOAD

UNLOCK

2-7

UI Menu Function

2

LOAD

This function automatically loads filament to the Nozzle.

1 From the HOME screen press [Cartridge].

2 Select the cartridge and press [Load] to load the cartridge.

2-8

UI Menu Function

2

The filament reaches to the nozzle and it is heated up to the specified temperature. Then the filament is

inserted into the heated nozzle. After the process has finished, screen will automatically return to the [HOME]

screen.

3 When [OK] is pressed at the cartridge load confirming message, cartridge load will automatically proceed.

UNLOAD

This function automatically unloads filament from the nozzle.

1 From the HOME screen press [Cartridge].

2-9

UI Menu Function

2

2 Select the cartridge and press [Unload] to unload the cartridge.

procceed. To remove filament, the nozzle is heated up to the specified temperature and the filament unload

starts.

After the filament has been removed, the screen will automatically turn to the [Unlock] screen to let the

user remove the cartridge.

3 When [OK] is pressed at the cartridge unload confirming message, cartridge unloading will automatically

2-10

UI Menu Function

2

❖

Follow the instructions when you unload soft-materials such as PVA(PVA+), Flexible.

Unload PVA(PVA+), Flexible Filament.

1 From the HOME screen press [Cartridge].

2 Select the cartridge and press [Unload] to unload the cartridge.

2-11

UI Menu Function

2

button.

3 As shown in the following UI screen, remove the snap ring and tube from the nozzle and then press the [OK]

Snap Ring

TUBE

2-12

TUBE HOLDER

UI Menu Function

2

4 Cut the filament that came out of the tube as shown below and press the [OK] button.

press the [OK] button.

5 Reinsert the tube into the nozzle and then install the snap ring. Push the tube toward the nozzle again. Then,

TUBE

SNAP-RING

SNAP-RING
INSERTION

POINT

2-13

UI Menu Function

2

remove the cartridge.

UNLOCK

This Function is to remove the cartridge out of the printer. Cartridge unlock automatically initiates when

filament unload is finished. Cartridge unlock can also be manually done by the user.

6 After the filament has been removed, the screen will automatically turn to the [Unlock] screen to let the user

When unlock screen automatically appears after cartridge unload.

❖

can’t be pulled out even after “unlock”, gently push it forward and then try to pull out again.

1 For 10 seconds [Lock] state is deactivated and the user can detach cartridge from printer. If the cartridge

2 After 10 seconds printer will automatically change to [Lock] state and [Unlock] appears.

2-14

UI Menu Function

2

To manually unlock later.

❖

1 From home screen press [Cartridge].

2 Select the cartridge and press [Unlock] to unlock the cartridge.

2-15

UI Menu Function

2

If the cartridge can’t be pulled out even after “unlock”, gently push it forward and then try to pull out again.

3 For 10 seconds [Lock] state is deactivated and the user can detach cartridge from printer.

4 After 10 seconds printer will automatically change to [Lock] state and [Unlock] appears.

2-16

UI Menu Function

2.3 CLOUD

This function enables calling and printing files stored in the server using cloud apps under network connection.

2

On the Home window, click the [Cloud] button.

1

Cloud apps available for users will be listed.

2

Reference

-

For more details on the cloud function, see p. 3–8, “Cloud-based printing.”

2-17

UI Menu Function

2

2.4 Settings

Setting Extruder

Bed Leveling

Z Offset

Nozzle Control Nozzle Cleaning Auto

Nozzle Cleaning Manual

Nozzle Calibration XY Calibration

Enter Pattern Value

Nozzle change

X,Y,Z

Network Wifi

Wired

Bed Lowering

Cleaning Case

Open Material

Test Print

S/W Update

General Active Leveling

Lamp

Power Saving

Beep

Unit Temperature

Length

Programs FA Q

* Included only on 7X models.

Voice Guide Speech

Volume

Speed

Language

Time setting

Time zone

E -mail

Security

Camera Frame Rate Setting

*SSD Format

2-18

Extruder

This function is used to fine control the filament to its position.

UI Menu Function

2

1 From home screen press [Setting].

2 Press [Extruder] to enter Extruder settings.

Press the [Cancel] button to cancel temperature increase during the operation.

3 To Control [Extruder], Nozzle temperature needs to be raised.

2-19

UI Menu Function

2

Press [10], [50], [100], [200] to select an amount.

In the image shown below, press the direction to move the filament.

4 Select the nozzle that you will use to move the filament.

Bed Leveling

This function is used to perform the leveling of the bed.

1 From home screen press [Setting].

2-20

UI Menu Function

2

If the current Nozzle temperature is too high, process for cooling down the Nozzle temperature is added.

2 Press the [Bed Leveling] button to enter Bed Leveling settings.

3 Leveling will be automatically done and after completion, the screen will return to its previous page.

2-21

UI Menu Function

2

Z Offset

※ After bed leveling, it is highly recommended to check the z-offset.

This Menu allows user to control the GAP in between Nozzle and BED. Standard is 0.25mm and can be customi

zed. [+] button widens the GAP, [-] button shortens the GAP.

※ For higher adhesive strength between the print output and the bed, shorten the distance of the z-offset.

For less adhesive strength, widen the distance of the z-offset.

1 From home screen press [Setting].

2 Press the [Z Offset] button to access Z Offset screen.

Default value is 0.25mm, Use [+], [-] buttons to move in 0.05 mm unit.

3 Select the nozzle that you will use to adjust the gap.

2-22

UI Menu Function

2

The saved value is applied when next time the print starts.

4 Use the [Move] and [Save] buttons to adjust the gap and to save the setting.

Nozzle Control

Nozzle controls include [Nozzle Cleaning (Auto)], [Nozzle Cleaning (Manual)], [Nozzle Calibration], and

[Nozzle Replacement].

Nozzle controls can be used to clean, correct the location of, and replace nozzles.

1 From home screen press [Setting].

2-23

UI Menu Function

2

❖

Use Automatic nozzle cleaning to remove the remaining debris inside the nozzle.

Select the nozzle that you want to clean.

2 Press the [Nozzle Control].

Nozzle Cleaning (Auto)

1 Press [Nozzle Cleaning Auto] button to access nozzle cleaning settings.

2-24

UI Menu Function

2

When the specified temperature is reached, it moves on to the next step to remove filament residue.

Once finished message will appear, printer will return to the settings screen.

3 In order to get rid of filament residue, the nozzle needs to be heated.

2-25

UI Menu Function

2

❖ Nozzle Cleaning (Manual)

Use Manual nozzle cleaning to remove the remaining debris inside the nozzle.

clean.

1 Press [Nozzle cleaning Manual] button to access nozzle cleaning settings. Select the nozzle that you want to

nozzle.

2 Enter the temperature and press the [OK] button. Press the heating nozzle button to set the temperature of the

2-26

UI Menu Function

2

Press the [Nozzle Disconnect] and [Disconnect] button to disconnect the nozzle.

3 Remove the nozzles to clean its interior.

Note

-

Refer to P.3-6 “Nozzle Cleaning” for the details of the operation of each button.

-

Refer to P.5-3 “1.5 Nozzle Inside Cleaning” for the details of cleaning inside nozzles.

4 Then press the [Connect] button to connect the nozzle.

2-27

UI Menu Function

2

❖ Nozzle Calibration

The location of the nozzle can be corrected.



▣

Printing of the XY Calibration Patt

1 Press [Nozzle Calibration] button to access the Nozzle Calibration screen.

2 To print the XY calibration pattern, press the [XY Calibration] button.

2-28

UI Menu Function

2

3 Press the [Yes] button to access the XY Calibration printing screen.

4 When the temperature of the nozzle and the bed rises and reaches the target temperature, printing will begin.

printed by Nozzle # 1 and # 2 and press [Save] button. If there is no straight line, enter the number of the nearest

straight line. (The line number starts from the top for horizontal line and left for vertical line).

5 When printing pattern is completed, enter the number of the line that is the most straight line among the lines

2-29

UI Menu Function

2

Home screen.

using ABS material is also possible.

6 To print the pattern for the calibrating nozzle again, press the [Yes] button. Press the [No] button to return to the

Note

-

Generally, the use of PLA material is recommended when performing XY-Calibration. Inevitably, XY-Calibration

After the calibration is complete, there may be remainders on the bed during the process of removing the

calibration pattern. (Pattern marks do not affect the function of the bed.)

▣ Entering the Pattern Value

2-30

Press the

1

[Nozzle Calibration]

button to access the Nozzle Calibration screen.

UI Menu Function

2

Press the

2

Enter the values for the horizontal and vertical lines. And press

3

[Enter Pattern Value]

button to access the Enter Pattern Value.

button.

[Save]

To print the pattern for the calibrating nozzle, press the

4

previous screen.

button. Press the

[Yes]

button to return to the

[No]

2-31

UI Menu Function

2

❖ Nozzle Change

Follow the steps below when replacing a nozzle.

1 Press [Nozzle Change] button and access Nozzle Change screen.

2 Choose the nozzle for replacement. Once selected, the nozzle will move to a proper position for replacement.

2-32

UI Menu Function

2

3 Press the [Nozzle Disconnect] and [Disconnect] to disconnect the nozzle.

4 Once released, replace the nozzle. After installing the nozzle, press the [Connect] button to connect the nozzle.

Note

-

Refer to P.5-21 “4.4 Nozzle Change” for the details.

2-33

UI Menu Function

2

2-34

X, Y, Z

Use to change the positions of the X, Y axes of Nozzle, and the Z axis of Bed.

UI Menu Function

2

1 From home screen press [Setting].

2 Press the [X,Y,Z] button to enter X, Y, Z.

the Nozzle in the respective position.

To move to each axis' home location, press [All], [X], [Y] or [Z].

3 Press either [0.1], [1], [10], [100]to select the length of trasnfer, and press the arrows to move the Bed and

2-35

UI Menu Function

2

NETWORK

This is a menu to configure users network setting. IP address can be set up manually or automatically via DHCP

setting. Wifi network is also supported.

1 From home screen press [Setting].

2 Press the [Network] button.

2-36

UI Menu Function

2

Press [DHCP] for automatic IP address setup. To manually input a fixed IP address press [Static] and enter an

IP address. Press [Connect] to save the changes.

Press the [Setup] button to set the Ethernet speed and full/half duplex mode for the network environment.

In general, when set to [Auto], the speed and duplex/half-duplex mode are automatically selected for the

network environment.

3 The default network setting is Wired (connection using LAN line).

2-37

UI Menu Function

2

Wifi setting can be turned ON or OFF.

4 In any case to use Wifi press the [Wifi] button.

5 To select a Wifi network, you can call up the list of available Wifi by pressing [Search Connections].

a dialog pops up and asks for the password.

You can refresh the network list by clicking [Search Connections].

6 Select a wireless network from the list to connect to the network. For a password-protected network,

2-38

UI Menu Function

2

setting.

Once set, press the [OK] button to save the setting.

- Using both network cable and Wifi module together is not recommended for electronic devices which can be

connected to a network. Due to characteristics of network communication, data may not be processed properly

when data is coming in via both wired and wireless network.

Using both wired and wireless network is not recommended for this device.

7 Once successfully connected to the selected Wi-Fi, [DHCP] and [Fixed] can be set the same as the wired

Important

2-39

UI Menu Function

2

Bed Lowering

Use this function, in times of moving printer to a different location.

Bed will be lowered to the bottom and will be locked into position.

1 Press [Setting] from the home screen.

2 Press the [Bed Lowering] button to enter Bed Lowering settings.

2-40

UI Menu Function

2

3 The bed will automatically be lowered.

Cleaning Case

Function used to clean out the case for the collected filament residue.

1 From home screen press [Setting].

2 Press the [Cleaning Case] button to enter Cleaning Case settings.

2-41

UI Menu Function

2

Clear the case according to the image on the screen and press [OK] button to return to the home screen.

3 After entering the screen, press [Start] button to automatically move the bed.

2-42

UI Menu Function

2

OPEN MATERIAL

The OPEN MATERIAL enables the usage of a third-party filament without any cartridge and smart chip.

In the cartridge mode, the filament is automatically loaded and unloaded in optimal conditions, with our filament and

smart chip. On the other hand, the OPEN MATERIAL requires some manual operations by users for loading and

unloading the filament.

To use the OPEN MATERIAL, change the machine settings in the following procedure. Then, follow the UI guide to

load the filament.

1 Press the [Setting] button on the home screen to access the settings.

2 Press the [Open Material] button to access the open material screen.

3 Press the [Open Material] button to set the open material.

2-43

UI Menu Function

2

Therefore, it is important to create a correct gcode and apply it to a device by fully understanding

the characteristics of a third-party filament, including the recommended printing temperature and speed.

not applicable. (TPE is not available for the 5X model, but it needs to be directly inserted into a nozzle

after opening the top door for the 7X model.)

A filament containing abrasive additives (metal component, carbon fiber) may cause transfer problem

and reduce the service life of nozzles. (Wear-resistance nozzles are optional.)

Make sure that the spool to be used has the width of 95 mm or less and an outer diameter of 265 mm

or less.

this tends to cause the filament feeding problem (Notification 401). If Notification 401 occurs, in order to

continue printing, please load new filament spool after unloading the left-over filament previously used

in the machine.

4 Check the pop-up notice and press the [OK] button.

Caution

-

Improper usage of a third-party filament may cause device failure and poor printing quality.

-

As soft filament with shore hardness of 65 D or less (TPU, TPE, etc.) may cause transfer problem, it is

-

If a third-party filament has a too large spool, it would not be usable with it inserted.

-

When 3rd Party Filament gets all consumed, the filament end sometimes gets stuck in the machine and

5 [Spool] will be displayed on top of the screen.

2-44

UI Menu Function

Although the supports open material mode, we recommend the use of Sindoh filament on the printer.

The filament available for use in Open Material Mode is shown below.

2

Filament

Recommended

Nozzle Temp(℃)

PLA 200 55 Sindoh / 3

ABS 230 Side A : 90

Recommended

Bed Temp(℃)

Sindoh / 3

rd

party

rd

party

Side B : 100

FLEX 235 60 Sindoh / 3

PVA(PVA+) 215 55 Sindoh / 3

rd

PETG 230-250 80 3

ASA 235-255 100 3

party

rd

party

rd

party

rd

party

Test Print

This function allows the user to test print a sample model already saved in the printer.

1 From home screen press [Setting].

Remark

2 Press the [Test Print] button.

2-45

UI Menu Function

2

3 Select the test file to print.

2-46

S/W Update

With the printer connected to the internet user is able to download the latest software.

1 From the home screen, press [Setting].

UI Menu Function

2

updates will be applied.

2 Press [Software Update] button.

3 Press the [Start Update] button, and printer will start updating. After it has finished, restart the printer and

2-47

UI Menu Function

2

General Setting

This menu is used to set various statuses of the printer.

1 From home screen, press [Setting].

Press the

2

[General]

button.

2-48

UI Menu Function

Menu Description Value

2

Active Leveling This function executes Bed leveling before printing

starts and offset the bed leveling by moving the bed
in the direction the Z-axis during the printing.

Lamp Menu to configure settings for machine lamp.

Note

- Lamp will be activated as connecting the Web
Monitor

Power Saving The volume level of beep sound can be adjusted

using this menu.

Beep Settings for the units of measurments displayed on

the printer.

Unit This menu enables you to configure the sound of

Voice Guide in the machine.

Voice Guide This menu enables you to configure the sound of

Voice Guide in the machine.

Language Menu to set language for machine. English, 한국어, 中文,

Time Setting You can view or change the time setting. Refer to “Time Setting” section

Time Zone You can view or change the time zone setting. Refer to “Time Zone” section

E-mail The printer takes an image of the current printing

status and sends the information to the email
address specified.
Printer will send information of completion (%)
based on the PC program standard settings.
Maximum of 10 emails can be sent.

Security This menu enables you to set up the Security menu

whether to use the 3D printer or not.

Camera Frame
Rate Setting

*SSD Format Format the machine's storage memory. Start

You can set the frame rate of the web monitor
camera.

On, Off

Always On,
On only in Printing, Always Off,

0 ~ 100 Min
0 Min : Do not use Power Saving Mode.
5~100Min : Power Saving Mode in
5~100Min. of Inactivity.

Off, Low, Middle, High

Temp : ˚C, ˚F

Length : m, feet

Speech : On, Off
Volume : Lower, Low, Normal, High,
Highest
Speed : Very Slow, Slow, Normal, Fast,
Very Fast

Español, Français, 日本語, Deutsch

Refer to “E-Mail” section

On, Off

1 ~ 5 fps

* Included only on 7X model.

2-49

UI Menu Function

2

❖ Time Setting

It shows the time of the current device, which can be changed by a user.

If set and the current times are different, it can be changed.

❖ Time Zone

The current time zone is displayed, and it can be changed by a user.

The current time zone is displayed, and it can be selected and changed by a user.

Once a time zone is set, the device will reboot to set the time zone.

❖ E-mail

The current printing state of the device will be captured and then e-mailed.

Configure the settings to send an e-mail from the 3DWOX device.

The device provides settings to send mails only, while information to receive mails can be set with the Slicer program.

2-50

UI Menu Function

Menu Description

E-mail Address The sender info to be seen by the recipient(e.g. [email protected])

The recipient can reply to this email address

Address SMTP server address (e.g. smtp.domain.com)

- This is the server address of the email service ([email protected])

Port SMTP Server Port (e.g. 25)

- Normally the port number 25, 587 or 465 is used.
Due to the increased security, some service providers do not allow the use of port number

465. If port number 465 is not available, please use 25, 587 or the port number that the
service provider recommends.

ID SMTP server login ID (e.g. sender)

- Enter the ID for your email.

- Depending on the service provider, a full email address may be requested.
Please contact server administrator or email service provider for more information.

PW SMTP server login password (e.g. ********)

- Enter the password for your email.

Security Security method used when sending mail to SMTP server

- The default value is [None]. For further details, contact your server hosting company or
mail service provider.

2

Inquire your email server administrator or services provider for detailed information of the input information on each

category. Especially for SMTP server log in ID, it may be needed to enter the entire email address which includes the

domain name.

This setting is for the SMTP (Simple Mail Transfer Protocol) server to be used for sending emails. The SMTP setting

may have to be enabled depending on the system.

To check the detailed setting values, please refer to the setup information from your email service provider.

For the set up to use the outgoing email service, please find information by internet search or your email service

provider’s instructions.

A certain amount of interval time may be required after setting up the SMTP service before using. For more details,

please inquire your email provider for the service policies.

A certain amount of interval time may be required after setting up the SMTP service before using. For more details,

please inquire your email provider for the service policies.

4 Configure the recipient email information from the 3DWOX slicer program.

2-51

UI Menu Function

2

Under [E-mail], input the recipient email address(es) and select the number times that you wish to send the

notification emails.

Additional recipient addresses can be added by using semicolon.

e.g. [email protected]; [email protected]; [email protected]

The maximum number of notification emails that can be sent is 10.

Regardless of the number entered for the email notification, an email will be sent out for the user to see if the initial

email notification is working properly by default. e-mail will be sent out one more time than the number that the

user entered. However, the total number of e-mail that is sent will not exceed 10 times. (When user selects 10 times,

the notification e-mail will be sent out 10 times)

According to Gmail policies, the following settings have to be met.

After click on "My Account"

In the case of using a Google email account.

❖

▣

Google account setting

1 Log into your Google account that you are planning to use.

2 Click on the apps button on the top right hand corner.

2-52

3 Under "Sign-In&Secruity" click "Device activity & notifications"

UI Menu Function

2

information please contact service administrator.

4 Scroll down and there is a "Allow less scure apps" criteria. Set it to "On" to enable the option.

▣

Printer Setting

1 Set "smtp.google.com" for the settings of the email address.

2 For Google, 25 and 587 ports are compatible.

Caution

-

According to the service provider, the email address and port number may be changed. For more

FAQ

With a network connection, the FAQ home page can be connected to check information.

1 Press a rectangle button on the bottom right side of the home screen to access the program menu.

2-53

UI Menu Function

2

Press the

2

3 The FAQ home page will be displayed, and the user can check any information.

[FAQs]

button to connect to the FAQ home page.

2-54

UI Menu Function

2.5 Information

INFORMATION NAME

CHANGE NAME & PW

MODEL NAME

SERIAL NO.

VERSION

WEB SITE

WIRED IP

WIRED MAC IP

WIRELESS IP

WIRELESS MAC IP

HISTORY

Quick Guide

In this menu user is able to view the detail information of the printer, and set device name & password.

In [HISTORY] screen, user is able to view all the records of past works.

2

1 From home screen, press [Info].

2 To set password and name for printer, select [Change Name & PW].

2-55

UI Menu Function

2

3 By entering the password, you can edit name and set a new password. Pressing [Save] saves the changes.

Reference

-

Initial password is ‘0000’.

-

Password is used for security function and web monitoring function.

4 In [Info] screen, press [History] to access to view all the records of past works.

2-56

Quick Guide

UI Menu Function

2

The quick guide for this device can be glanced at.

1 Press the [Quick Guide] button in the home screen to access the quick guide screen.

Press a button on the left side to see the description of individual items.

2

2-57

3DWOX 5X / 7X

USER MANUAL

Printing

3

Printing

3

1. Printing

User can print printables via USB flash drive, USB cable, or over the network.

The following on the printer means it is ready to start print.

1.1 Printing from USB Flash Drive

In order to print using an USB flash drive, insert the flash drive into the USB port.

When the USB flash drive is connected while in the home screen, a list of files in the USB appears.

When [Print] is selected without the USB flash drive connected, a message requesting for USB connection

will pop up and once USB flash drive is connected a list of the USB files will emerge.

1 Connecting USB flash drive to the printer.

3-2

Printing

3

Select a file to print in the USB list.

Once selected, a preview of the model appears on the screen.

2 Printing Files

3 Print Preview

Once [Print] is pressed the nozzle starts to be heated. When the specified temperature is reached, the printing

starts.

4 Printing

3-3

3

Printing

Pressing [Pause] during a print will pause the progress.

Press [Resume] again and nozzle is heated again, and the printer will continue printing.

5 Pausing Print

3-4

Printing

3

When the [Pause] button is pressed during printing, buttons appear in the upper right corner to execute additional

function actions.

6 Additional Functions of Pausing

Additional functions include [Nozzle cleaning], [Bed Height Adjustment], [Extruder], [Cartridge] and so on.

These additional functions are used for any mechanical problem or if the user needs them.

3-5

Printing

3

❖

Nozzle Cleaning

① This menu can be used to clean a nozzle manually if the filament does not come out of the nozzle for printing.
② Select a nozzle to clean.
③ Enter the temperature and press the

nozzle.

④ Press the
⑤ Press an arrow button to move the filament to a desired direction.
⑥ Press the

[1], [10], [50],

[Disconnect Nozzle]

or

button to select the desired moving amount.

[100]

and

button. Press the heating nozzle button to set the temperature of the

[OK]

[Disconnect]

buttons to disconnect the nozzles if they need to be cleaned.

❖ Bed Height Adjustment

① This menu is used to adjust the height of the bed during printing for a high-quality outcome.
② [Save] the adjusted bed height and return to the printing screen to print the adjusted bed height.
③ Press the [Reset] button to return the bed to its previous position.

❖ Extruder

It functions just like the extruder operation in your printer’s settings.

❖ Cartridge

The cartridge can be loaded, unloaded, or unlocked during printing.

During print pressing [Stop] button a message pops up and asks for confirmation on the print canceling.

When confirmed, the rest printing job is canceled.

Another message requesting the removable of left print will popup press [OK] and screen will return to home

screen.

7 Print Cancelation

3-6

Printing

3

After printing has completed, follow the instructions and remove the printed product. Press the [OK] to return to

home screen.

- Do not touch the bed or the output until the bed has cooled down.

then remove the output.

8 Printing Completion

Caution

-

To remove the printed output before the bed is cold, press the [Cancel] button, wear protective gear, and

3-7

3

Printing

Reference

-

Methods of removing printables refer to P. 4-2 “1. Printed Output Check”.

1.2 Printing Via PC

- Pause, print cancelation, please refer to P.3-2 Printing from USB Flash Drive.

1 Prepare PC connected to the same network where the printer is connected to.

2 Run 3DWOX Slicer program.

3 Press the [Print] button.

4 Following Steps (Same as steps 3~9 of printing via USB)

Note

-

Refer to “3DWOX Desktop Manual” for the details.

1.3 CLOUD Printing

To begin using the Cloud Print function, users must register the printer to the server.



- When the user clicks [CLOUD] on the Home screen, the available CLOUD App is listed.

 On the Home window, click the

1

[Cloud]

button.



3-8
