Simrad CP42, CP50, CP52 User Manual

02244.30

Note! Insert or remove C-MAP cartridges ONLY through CHART menu or when unit is off. All electronic navigation equipment is subject to external factors beyond the control of the manufacturer. Therefore such equipment must be regarded as an aid to navigation. The prudent navigator will, for that reason, never rely on a single source for position fixing and navigation.

M A N U A L

SIMRAD CP42/50/52

Chartplotter

183-0200-202 English

MOB ‘MAN OVERBOARD’ function

MOB

In case someone falls overboard, press the [MOB] key and hold for two seconds, or activate an external MOB switch – hold for five seconds.

CLR

Press [CLR] to confirm and reset the alarm if activated by mistake.

ENT

Pressing

[ENT]

will provide all relevant data for an efficient rescue

operation.

Display 1

Display 3

Display 2

Screen layout default after activating MOB.

Display 1: The MOB display will provide the position where the man fell overboard, together with present course (C), bearing (B), and distance (DIST) to the MOB position. Elapsed time - first in seconds and then in minutes. If “*” is shown instead of number of minutes, means that the elapsed time has exceeded 9999 minutes.

Display 2: Data display will provide information of: Date, time and position of MOB incident.

Display 3: The CHART display will provide a graphical impression of the MOB position – a man waving his arms in relation to the ship.

To turn MOB navigation off (two ways):

Either press [GOTO], [3] or... press [MENU], [4], [2].

To recall last MOB position, see section 8.2.

CP42/50/52 DGPS Chartplotter Table of contents

1. Introduction and system familiarization

1.1 Introduction and system familiarization, 5

1.2 Safety summary, 6

2. Fundamentals & initial start-up

2.1 Fundamentals of the PAGE and

WINdow system, 7

2.2 Key functions, 10

2.3 Menu bar, 12

2.4 Menu layout, 13

2.5 Choice of symbols, 14

2.6 Naming of routes, points, etc., 14

2.7 Initial start-up, 15

2.8 Turn power off, 16

3. Chart menus and

INFO windows

3.1 Chart menu, 17

3.1.1 Charts, 17

3.2 C-MAP cartridges, 20

3.3 INFO windows, 22

3.3.1 Cursor inactive, 22

3.3.2 Cursor not placed on object

or user data, 23

3.3.3 Cursor placed on waypoint, 24

3.3.4 Cursor placed on route leg

or line leg, 25

3.3.5 Cursor placed on routepoint

or linepoint, 26

3.3.6 Cursor placed on trackpoint, 27

3.3.7 Cursor placed on target, 28

3.3.8 GOTO function, 29

3.3.9 PLOT function, 30

3.4 Chart setup, 32

4. Position menus

4.1 Position display, 35

4.2 Dual speed display, 39

4.3 Speed, course & depth, 40

4.4 Speed diagram, 41

4.5 Satellite status, 43

4.6 DGPS setup, 45

4.7 SDGPS setup, 47

4.7.1 Satellites in SDGPS system, 49

5. Waypoint / route menus

5.1 WP list, 51

5.1.1 Delete waypoint via menu, 52

5.2 Routes stored in the memory, 52

5.2.1 Delete route via menu, 55

5.2.2 Make new route from WP list, 55

5.3 Route calculation, 57

5.4 Lines stored in the memory, 58

5.4.1 Delete lines via menu, 59

5.5 Start / stop track, 60

5.6 Tracks stored in the memory, 61

5.6.1 Delete tracks via menu, 62

5.7 Targets stored in the memory, 63

5.7.1 Delete target via menu, 64

6. Navigation menus

6.1 NAV menu (NAV inactive), 65

6.1.1 - Highway display, 65

6.2 NAV menu – (NAV active), 67

6.2.1 - Highway display, 68

6.2.2 - Navigation setup, 66

6.2.3 - Turn NAV off, 69

6.2.4 - Waypoint advance, 69

6.2.5 - Restart to approaching point, 69

6.2.6 - ETA & AVN, 70

6.2.7 – Trim & highway display, 71

6.2.8 - Set & drift, 72

6.3 Anchor guard, 73

6.4 MOB navigation, 74

6.5 Navigation examples, 74

CP42/50/52 DGPS Chartplotter Table of contents

6.5.1 Chart/cursor navigation, 75

6.5.2 Waypoint navigation, 76

6.5.3 Route navigation, 77

6.5.4 Track navigation, 79

7. ECHO menu

7.1 Depth & temperature diagram, 83

8. Miscellaneous menu

8.1 Wind display, 85

8.2 MOB position, 87

8.3 DSC alarm, 87

8.4 Data transfer via DataCard or disc, 88

8.5 Data transfer via PC interface, 90

9. SETUP menu

9.1 Speed alarm, units & language, 95

9.2 Interface setup, NMEA, 97

9.3 Interface setup, alarm/log, 101

9.4 Decca lanes, 102

9.5 Loran C, 103

9.6 Display color, 104

9.7 Factory settings, 105

10. Installation and service

10.1 Installation of CP42, 107

10.2 Installation of CP50, 109

10.3 Installation of CP52, 111

10.4 Place of installation of display unit, 113

10.5 Installation of DS42/50/52, 113

10.5.1 Operation of DS42/50/52, 114

10.6 Installation of antenna, 115

10.7 Electrical connections, 116

10.7.1 Power supply connections, 117

10.7.2 Fuse, 117

10.7.3 NMEA0183 interface conn., 117

10.7.4 PC up/download via PC interface, 117

10.8 Optional connections, 118

10.9 Preventive maintenance, 119

10.10 Repair and service, 120

10.11 Troubleshooting, 121

10.12 Specifications, 122

Appendix A

Glossary of terms, 125

Appendix B

List of datums, 129

Appendix C

C-MAP attributes, 131

Index, 139

CE Declaration, 143

International warranty, 145

List of Simrad distributors

CP42/50/52 Introduction and safety summary Chapter 1

1.1 Introduction and system familiarization

Congratulations on your purchase of SIMRAD CP42/50/52 MKII DGPS Chartplotter - a combination of the latest GPS receiver technology and

built-in differential receiver for accurate positioning and prepared for SDGPS, plus: detailed cartography; all in a unique slim-line design with a 10” ATFT (CP42), 14” TFT (CP50), or 15” TFT (CP52) large LCD display in color.

The CP42/50/52 MKII chart system includes a built-in world chart for rough planning and overview. The choice of chart system best suitable for the CP42/50/52 MKII was carefully singled out to be the C-MAP NT+ mini cards. The optional C-MAP cards are available world-wide at your local Simrad dealer.

The Global Positioning System is at this time and age the most common system used for navigation and positioning all over the world. Not only for maritime use, but also for land-based applications and aviation. The satellite-based system has been developed and is operated by the US Department of Defense in order to provide an accurate and reliable service, which include a 24-hour global coverage. The GPS system consists of approx. 24 satellites which orbit around the Earth at an altitude of approx. 20,200 km. The satellites transmit perfectly synchronized data. However, depending on the position, the signals will reach the receiver at a slightly different time. By adding the measured time difference to the known position of the satellites it is possible to calculate the ship’s position to within a few meters.

DS42/50 Dual Station for the CP42/50/52 is available in 10” ATFT color, 14” TFT color and 15” TFT color.

How to use this manual? The manual is written for the products: CP42, CP50 and CP52, which all share the same type of software. From hereon, these models are referred to as: CPXX. It is a good idea if you make yourself familiar with the key functions, menu structure and rotation of pages (screens) described in chapter 2 before you start out, and then proceed with section 2.7 Initial start-up. For quick location of a certain term, please check the ”Glossary of terms” and the ”Index” at the back of the manual.

CP42/50/52 Introduction and safety summary Chapter 1

How to interpret special marked key symbols, etc. in the manual:

+/-

Either the + (plus) or – (minus) key may be applied.

0-9

Alpha-numeric keys for insertion of figures.

A-Z

Alpha-numeric keys for insertion of letters.

)

Emphasizes important points.

1,3

Indicates that you should press the keys [1] and [3] to obtain what is written in italic next to the keys.

1.2 Safety summar y

Precaution The operating unit should not be exposed to direct sunlight, as

“boiling” the display may cause too high temperatures internally and subsequently damage parts of the unit beyond repair.

Quality service personnel The CPXX is sealed and does not contain any user serviceable parts. Opening of the unit will void its warranty. Touching electrical parts inside may cause bodily harm or death. If the unit is not working properly, please check section 10.11 Troubleshooting. If your CPXX requires servicing or repair, call your authorized SIMRAD dealer.

Power source, fuse and power cable Check that the DC power supplied to the unit is within the range of 10 to 32 volts. Note that the appropriate fuse must be employed (F6.3A). Ensure that the power cord is firmly attached.

Grounding To reduce electrical interference and risk of electrical shock, properly ground the unit to the ship’s ground using the ground screw on the back of the unit. Good grounding should also be exercised for connected equipment.

Default settings All user implemented data in the CPXX can be erased by making a reset of the unit and thus return to factory default settings.

CP42/50/52 Fundamentals & initial start-up Chapter 2

2.1 Fundamentals of the PAGE and WINdow system

The CPXX DGPS Chartplotter has a multi-function screen data presentation system. You can choose to have a full screen, or a screen divided into e.g. a chart display and two data/chart displays, etc. The display which is currently activated is indicated by a highlighted frame around the active window. There are five screen combinations to choose from:

WINdow 0

1. Full (1/1) screen. 2. Four ¼ displays. 3. Two ½ displays.

4. & 5. Combination displays of one ½ and two ¼ displays shown together in the same screen. ) Not all displays are available in WINdows 5 and 6.

CP42/50/52 Fundamentals & initial start-up Chapter 2

As many as 4 screen combinations or full screens can be saved in 4 pages (layers).

Press the

[PAGE] key to toggle between the 4

pages, or hold the [

PAGE] key depressed for

two seconds to start a rotation of the 4 pages. Press [

PAGE]

again to return to manual

operation.

To mix and match the various chart and data displays you wish to have in the PAGE and WINdows presentation, you will first need to know what is pre-set from the factory:

PAGE

Scroll through the four pre-set pages to see if you wish to exchange any of the displays with a different one.

Example of how to edit a pre-set page:

window

We pretend that in this page, window 2 contains the navigation display (highway), window 3 a chart display in a large scale for overview, and window 5 a chart display in a smaller scale to enlarge a

certain area. You now wish to insert the Position display in window 3 instead of the chart display. This is the procedure:

WIN

Press the

[WIN]

key until the frame around window 3 is highlighted

Call up the menu bar, and…

2,1

then call up the POS menu and select “Position”

- you will now have the Position display in window 3 instead of the chart display.

Example of how to edit a full screen to four ¼ displays:

We pretend that you are looking at a full screen which you wish to divide into four ¼ displays. This is the procedure:

First call up the menu bar, and…

then call up the POS menu - see example next page.

CP42/50/52 Fundamentals & initial start-up Chapter 2

POSITION

WIN

_2_

POS

_1_ Position _2_ Dual speed _3_ Speed, course & depth, etc. …

What you do now will determine which WINdow the display you are about to select will appear in.

Press the

[WIN] keyrepeatedlyto

scroll through the window system.

WIN

Press the [WIN] key once to select WINdow 1

-which is the left top quarter of the screen.

Select the Position display

- you will now have the position display presented in window 1. The rest of the windows in this page i.e. window 2, 3 and 4 will contain the displays which were pre-set from the factory. They can all be exchanged with new displays at your choice.

) However, the same display can not appear twice on the same page, so in case you are trying to select the same display in a second window, this is what will happen:

As per above example, you have selected the Position display in window 1, but it may just happen that the Position display was pre-set to window 2 – therefore window 2 will now show the legend: “ Select display via MENU.”

You may select the same display to appear on different pages, but not on the same page.

CP42/50/52 Fundamentals & initial start-up Chapter 2

2.2 Key functions

A description of the key functions is available at the start-up display in the Quick guide. Some of the key functions are general and can be applied at any time, other key functions are related to a certain menu(s) and can only be applied when in the appropriate menu.

WIN

Toggles between windows. The active window will have a highlighted frame. Only activated windows are operable.

PAGE

Toggles between four pre-selected pages (screens). Hold two seconds for automatic rotation of pre-selected pages. A new, single press on [

PAGE]

will return to normal operation.

Turns the menu bar on/off. Exits any data display without taking any action.

ENT

Opens for/confirms insertion and editing of data. Calls up information on marks, waypoints, etc. on chart together with several INFO windows from a chart display. Gives access to setup displays.

Moves cursor in data displays and charts + activates cursor on chart. Moves left and right in the menu bar.

CLR

Turns cursor off in chart display. Deletes data in enter or edit mode.

PWR



Calls up a window where you can adjust the lighting in the screen, background light in keypad, and select Daylight displays, Night display or custom made display. Hold two seconds to turn the power off.

MOB

Hold two seconds to activate the MOB –“Man overboard” function, which starts a track and provides guidance back to the MOB position.

ZOOM

+ IN

Zooms in for greater chart details (smaller scale) / zooms out for better

ZOOM

- OUT

overview (larger scale). + and – toggles between available values.

CP42/50/52 Fundamentals & initial start-up Chapter 2

1-9

A-Z

The alpha-numeric keys inserts and selects data in data displays. Keys 1-9 are also Quick scales i.e. selects fixed chart scales, and key 0 will center the cursor/ship on the chart.

CHART

GOTO

Hotkey to Chart 1 i.e. jumps to window on the screen with Chart 1 display; if none: inserts Chart 1 in active window. Activates INFO window with choice of navigation modes.

PLOT

Plots down the actual ship/cursor position on chart. Activates INFO window with the possibility of plotting a waypoint, route, line, etc.

POS

Hotkey to Position display i.e. jumps to window on the screen with Position display; if none: inserts Position display in active window, except for Window 5 and 6, which are ½ screen sizes.

NAV

Hotkey to Navigation display i.e. jumps to window on the screen with Navigation display; if none: inserts Navigation display in active window, except for Window 5 and 6, which are ½ screen sizes.

Hotkey to WP list i.e. jumps to window on the screen with WP list; if none: inserts WP list in active window.

ROUTE

Hotkey to Route list i.e. jumps to window on the screen with Route list; if none: inserts Route list in active window.

TRACK

Direct access to ‘Start track’ function.

CP42/50/52 Fundamentals & initial start-up Chapter 2

2.3 Menu bar

Toggles the menu bar on/off

To fit in the complete menu bar across the screen, some of the menus have been abbreviated. However, the last selected menu will be highlighted, and if it’s an abbreviation of the menu, then the complete menu title is written above the menu bar e.g.:

NAVIGATION

WIN

_1_

CHART

_2_

POS

_3_

WP/RTE

_4_

NAV

_5_

ECHO

_6_

MISC

_7_

SETUP

_1_ Highway

_2_ Waypoint navigation, etc. …

Having selected e.g.

4:NAVIGATION

from the menu bar, its associated menus will drop down. Key in the number next to the function you wish to call forward, or use the cursor key to highlight the function and press

[ENT].

If you want to switch to a different menu, use the cursor key to move to the adjacent menu.

Most functions in the menus are general, and can be called forward at any time, but a few are related to a certain menu(s) and can only be called forward or activated in the appropriate menu. Inactive functions in the menu will have a different color from the rest of the functions. Which window is active (see top line of the menu to the right) can also have something to do with what functions are available. Use the

[WIN]

key to toggle between active windows and keep an eye on the functions in the menu to see how they may change color.

The menu bar will disappear from the screen at the selection of a function, or by pressing the

[MENU] key. Besides, if not used, it

automatically turns off after 30 seconds.

CP42/50/52 Fundamentals & initial start-up Chapter 2

2.4 Menu layout

_1_

CHART

_2_

POS

_3_

WP/RTE

_1_ Chart 1 1:26400000 _1_ Position _1_ WP list

_2_ Chart 2 1:6600000 _2_ Dual speed _2_ Routes

_3_ C-MAP cartridges _3_ Speed, course & depth _3_ Route calculation

_4_ Speed diagram _4_ Lines

_5_ Satellites _5_ Start track

_6_ DGPS _6_ Stop track

_7_ SDGPS _7_ Tracks

_8_ Targets

_4_

NAV*

_5_

ECHO

_6_

MISC

_1_ Highway _1_ Depth & temperature diagram _1_ Wind

_2_ Waypoint navigation _2_ MOB position

_3_ Route navigation _3_ DSC alarm

_4_ Track navigation _4_ Data transfer

_5_ Anchor guard

_6_ Trim & highway

_7_ Set & drift

_4_

NAV**

_1_ Highway

_2_ Turn NAV off

_3_ WP advance

_4_ Restart to approaching point

_5_ ETA & AVN

* No Navigation mode is activated.

** One of the Navigation modes is activated.

_6_ Trim & highway

The NAV menu is dynamic and will adapt to the function which is currently active.

_7_ Set & drift

CP42/50/52 Fundamentals & initial start-up Chapter 2

_7_

SETUP

_1_ Speed alarm, units & language

_2_ NMEA interface

_3_ Alarm/log output

_4_ Decca lanes

_5_ Loran C

_6_ Display color

_7_ Factory settings

When selecting a sub-menu in the SETUP menu, the display will always appear in a popup window. Which means that it will not take the place of another display, and it will not mess up the pre-set displays on the screen. And once you have confirmed the changes, or just want to exit the display, the display will disappear from the screen, as you have no further use for it.

2.5 Choice of symbols

Waypoints and other points appearing on the screen can be marked by one of 18 symbols + 8 EVENT marks in small and large symbols:

Waypoint

Red buoy

Green buoy

Wreck

Danger

Beacon

Fish

Platform

Rock awash

Harbour

Marker

North

South

East

West

Starboard

Port

MOB

EVENT 4

(1 of 8 types in diamond shape)

CP42/50/52 Fundamentals & initial start-up Chapter 2

2.6 Naming of routes, points, etc.

First select the key with the desired letter, then you can either repeat the keystrokes, which will toggle between e.g. A,B,C,1, or once you have selected one letter you can go back and forth in the alphabet by means of the +/- keys. Use the cursor key to go to next space or to go back one space if you make a mistake. Depending on the selected language the 0 (zero) key will hold special characters e.g. ЖШЕДЦЬС, and the 9 (nine) key will hold: (empty space) . Press the

[CLR]

key to delete everything from cursor position and to the

right of cursor on that row.

2.7 Initial start-up

PWR



To turn on the power, press and hold the

[PWR]

key till a picture

appears on the screen

PAGE

Press [PAGE] to scroll through a quick guide which informs of the use of the keys and where you can enter owner’ssetup

ENT

Press [ENT] when ready to assume normal operation

PWR



Press

[PWR]

again to adjust the lighting in the screen and select day or night display, etc., move around in display by means of the cursor key and change settings with +/- keys, and…

ENT

Confirm with

[ENT]

The unit will now perform a fully automatic start-up and find the correct position without further data entries. The start-up phase is completed when a position appears in the position display – see section 4.1.

CP42/50/52 Fundamentals & initial start-up Chapter 2

Select display language:

Call up the menu bar, and…

7,1

press

[7]

and

[1]

to call up the language display

Go to the bottom line in the display

+/-

Select language

ENT

Confirm entry

2.8 Turn power off

PWR



Call up INFO window, and…

PWR



Press and hold until screen turns black

The CPXX is now turned off. All data and setups are saved and stored in the internal memory and, of course, will be available next time the unit is turned on.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.1 Chart menu

_1_

CHART

_1_ Chart 1 1:26400000

- see section 3.1.1.

_2_ Chart 2 1:6600000

- see section 3.1.1.

_3_ C-MAP cartridges

- see section 3.2.

) Forsafetyreasons,navigationwithelectronicchartsshouldalways be combined with authorized paper charts.

3.1.1 Charts

It is possible to have two charts in different scales on the screen at the same time. Each chart can be operated individually, and each will have it’s own cursor and individual chart setup.

Call up the menu bar, and…

WIN

select the WINdow in which the large-scale chart should appear, and…

1,1

press

[1]

and

[1]

to call up Chart 1in scale 1:26400000

Call up the menu bar, and…

WIN

select the WINdow in which the detailed chart should appear, and…

1,2

press

[1]

and

[2]

to call up Chart 2 in scale 1:6600000

The chart display opens for the built-in world chart, as well as the optional, detailed C-MAP electronic charts (C-MAP cart must be inserted in the drawers below the CPXX’s keypad).

) Shortcut feature:

CHART

GOTO

Hotkey to Chart 1 i.e. jumps to window on the screen with Chart 1 display; if none: inserts Chart 1 in active window.

CP42/50/52 Chart menus and INFO windows Chapter 3

Chart range indicator (5.1nm) can be set ON/OFF in “Chart setup”.

The top line of the chart display (with cursor off) will give you ship’s position, speed, course and status of differential data – refer to section

4.1 Status indicator and accuracy. With cursor on, the top line will show the cursor position in lat/long, bearing and distance from actual position to cursor position.

The ship symbol indicates the present position on the chart and the pointer informs of the actual true course (course over ground). There is a built-in autohome function which automatically moves the chart to maintain the ship symbol in the display (with cursor off). ) Press

[ENT], [0]

to center the ship on the chart.

Cursor function

With chart display active, press the cursor key to activate the cursor and…

CLR

Press

[CLR]

to turn the cursor off.

) The chart cursor will automatically switch off if not used in the last five minutes. The chart will update and bring the ship’s position to the center of the screen.

CP42/50/52 Chart menus and INFO windows Chapter 3

Use the cursor key to move cursor in any direction on the screen – the chart will automatically adjust when cursor reaches the edge of the screen. ) Press

[0] to center the cursor on the chart.

) In data displays the cursor will be shown in form of either a ruling box around the active field, or the active field will be highlighted.

Zoom function – with cursor on, the zoom function will zoom around the cursor. With cursor off, the zoom function will zoom around the ship´s position.

ZOOM

+ IN

Zoom in for details (smaller scale)

ZOOM

- OUT

Zoom out for overview (greater scale)

1-9

) Use one of the shortcut keys to quickly change the chart scale:

Press [1] = 1:6.600.000,

[4] = 1:200.000, [7] = 1:6.000,

[2] = 1:2.000.000, [5] = 1:60.000, [8] = 1:2.000,

[3] = 1:600.000, [6] = 1:20.000, [9] = 1:600

Chart details may not be available in all scales in all areas. Noncovered areas will be marked as hatched or all blue with coordinate grid (with grid set to AUTO in chart setup), depending on the actual scale. See section 3.4 Chart setup for more details on what you might want to see in the chart and not see.

The built-in world chart can be zoomed up/down in six steps from a scale of approx. 1:33,000,000 to 1:2,000,000.

An over-zoom function enables you to zoom beyond the chart, which automatically is switched off and replaced by a lat/long coordinate grid.Inthismodethescalecangodownto1:600.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.2 C-MAP cartridges

On the front of the CPXX below the keypad are two small watertight drawers wherein you place the C-MAP cartridge(s) you wish to load.

) Do not attempt to insert or remove cartridges unless the CPXX is turned off, or chart reading is in stand-by:

Call up the menu bar, and…

1,3

load the pop-up window for C-MAP cartridge(s)

Example:

C-MAP cartridges

UPPER Name: P&T: MELBOURNE BEACH TO LAKE WORTH INL Code: NA-B502.02 Date: 13/11/1998

LOWER Name: DENMARK NORTH COAST & LIMFJORDEN Code: EN-B102.03 Date: 01/03/1999

Chart reading is now in stand-by, and you may insert/ remove cartridges.

Exit Test

ENT

To open the drawer below the keypad, press the eject key next to the drawer. Place the cartridge in the tray with the terminals pointing towards the unit, and push the drawer back in place – it has to make a “click” sound to be closed tight and remain watertight.

ENT

Press

[ENT]

to test the data on the C-MAP cartridge which you have

just placed in one of the drawers

The CPXX will now test the data on the cartridge(s) to see if its valid and free from faults.

) If a cartridge is defect, it must be removed before you can exit the display.

CP42/50/52 Chart menus and INFO windows Chapter 3

Return to chart display

In addition to the larger boundaries of the world chart there will be separate boundary lines for the individual charts stored on the same cartridge. However, the boundary lines for the C-MAP chart areas can be turned off, so they will not be visible on the chart – refer to Chart setup. Other chart areas can quickly be reached by means of the zoom keys:

ZOOM

- OUT

Zoom out until desired area becomes visible

Move cursor to approximate area, and…

ZOOM

+ IN

Zoom in

The chart will automatically start to move when cursor reaches the edge of the screen. When cursor is switched off

[CLR],

the chart will

return to ship’s position.

) See also section 3.4 Chart setup.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3 INFO windows

A number of pop-up INFO windows are available mainly from active chart display. Only a few of the functions in the INFO windows can be accessed from data displays and other displays. Refer to sections 3.3.x.

3.3.1 Cursor inactive

ENT

With chart in active window, and with cursor off, press

[ENT]

to call

up an info window with the following to choose from:

Scale: 1:6600000

-Actual chart scale.

No user data

at ship’s position

Edit user data

-Inactive function.

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Inactive function.

Lock cursors

-Inactive function.

Chart setup

-Refer to section 3.4.

Ship to center

GOTO

Select NAV mode

PLOT

Plot new data

PAGE

More user data

Exit

-Exit info window.

Ship to center will adjust the chart to place the ship’s position in the center of the chart display.

GOTO

Select NAV mode will activate Navigation mode.

PLOT

Plot new data will give you the choice of entering the ship’s position as Eventmark, waypoint or target.

PAGE

More user data will toggle between available data on the ship’s position.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.2 Cursor active but not placed on any object or data

ENT

With chart in active window, and cursor not placed on any object or user data, press

[ENT]

to call up an info window with the following to

choose from:

Scale: 1:6600000

-Actual chart scale.

No user data

at cursor position

Edit user data

-Inactive function.

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

Lock cursors

Chart setup

-Refer to section 3.4.

Cursor to center

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

-Inactive function.

Exit

-Exit info window.

Bearing & dist. from A to B will quickly provide the bearing and distance from your current cursor position (A) to an arbitrary point (B). Move cursor to point B and see the calculation in the small info window. Press

[MENU]

to exit the function.

Lock cursors will lock the cursors in two chart displays on the same screen and thus make the cursor movements synchronized. To return to individual cursor control in each chart display, press

[ENT]

and

[5]

“Release cursors” again. ) See also “Lock cursors” in Appendix A.

Cursor to center will adjust the chart to place the cursor position in the center of the chart display.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.3 Cursor placed on waypoint

ENT

With chart in active window, and cursor placed on a waypoint, press

[ENT]

to call up an info window with the following to choose from:

WP found

Name: WP 1 LAT 51°49.107N LON 5°16.007W

-Example.

Edit user data

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Refer to section 3.3.2.

Lock cursors

-Refer to section 3.3.2.

Chart setup

-Refer to section 3.4.

Cursor to center

-Refer to section 3.3.2.

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

Exit

-Exit info window.

Edit user data opens for a new info window:

Waypoint

Edit

Change the name, symbol, color, etc.

Move

Move waypoint with cursor, and press

[ENT].

CLR

Delete

Delete waypoint ? “YES” / “NO”.

Exit

Exit info window.

PAGE

More user data will be available if more than one point is plotted on the same position, where the [PAGE] key then will toggle between data for each point.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.4 Cursor placed on route leg or line section

ENT

With chart in active display and cursor placed on a route leg or line leg, press

[ENT]

to call up an info window with the following to choose

from:

Route leg found

Name: RTE 1 Leg: B336° 77.16nm Total: 4 legs 215.6nm

-Example.

Edit user data

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Refer to section 3.3.2.

Lock cursors

-Refer to section 3.3.2.

Chart setup

-Refer to section 3.4.

Cursor to center

-Refer to section 3.3.2.

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

-Inactive function.

Exit

-Exit info window.

Edit user data opens for a new info window:

Route leg

Edit leg

New info window to edit route leg.

Insert point

Move cursor and press

[ENT]

to insert point.

Edit

New info window to edit route.

CLR

Delete

Delete whole route ? “YES” / “NO”.

Exit

Exit info window.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.5 Cursor placed on routepoint or linepoint

ENT

With chart in active display and cursor placed on a routepoint or linepoint, press

[ENT]

to call up an info window with the following to

choose from:

Routepoint found: 2

Name: RTE 1 From start: To end:

-Example.

Edit user data

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Refer to section 3.3.2.

Lock cursors

-Refer to section 3.3.2.

Chart setup

-Refer to section 3.4.

Cursor to center

-Refer to section 3.3.2.

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

Exit

-Exit info window.

Edit user data opens for a new info window:

Routepoint

Edit point

New info window to edit routepoint’s position.

Move point

Move cursor and press

[ENT]

to move point.

CLR

Delete point

Delete routepoint ? “YES” / “NO”.

Add point

Only from first or last point in route.

Edit

New info window to edit route.

Delete

Delete whole route ? “YES” / “NO”.

Exit

Exit info window.

PAGE

More user data will toggle between data on routepoint and route leg.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.6 Cursor placed on trackpoint

Trackpoints are not as easily recognized as Routepoints, you may have to move the cursor along on the track to locate a trackpoint.

ENT

With chart in active display and cursor placed on a trackpoint, press

[ENT]

to call up an info window with the following to choose from:

Trackpoint found: 3

Name: TRACK 1 Total: 836 points – 83.6nm

-Example.

Edit user data

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Refer to section 3.3.2.

Lock cursors

-Refer to section 3.3.2.

Chart setup

-Refer to section 3.4.

Cursor to center

-Refer to section 3.3.2.

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

Exit

-Exit info window.

Edit user data opens for a new info window:

Trackpoint

CLR

Delete point

Delete trackpoint ? “YES” / ”NO”

Delete points from A to B

*) see below.

Edit

New info window to edit track.

Delete

Delete whole track ?

“YES”/”NO”

Exit

Exit info window.

*) Move cursor to point B and press [ENT] to delete all trackpoints between cursor position on chart and point B.

CP42/50/52 Chart menus and INFO windows Chapter 3

PAGE

More user data if cursor is placed on a MOB track you can toggle between data on MOB symbol and data on MOB track. ) The symbol and track are edited separately.

3.3.7 Cursor placed on target

ENT

With chart in active display and cursor placed on a marked target, press

[ENT]

to call up an info window with the following to choose from:

Target found

Name: TARGET 1 LAT 57°40.636N LON 10°34.767W

-Example.

Edit user data

Chart info

-Refer to Appendix C.

Find nearest port services

-Refer to Appendix C.

Bearing & dist. from A to B

-Refer to section 3.3.2.

Lock cursors

-Refer to section 3.3.2.

Chart setup

-Refer to section 3.4.

Cursor to center

-Refer to section 3.3.2.

GOTO

Select NAV mode

-Refer to section 3.3.8.

PLOT

Plot new data

-Refer to section 3.3.9.

PAGE

More user data

-Inactive function.

Exit

-Exit info window.

Edit user data opens for a new info window:

Target

Edit

Change the name, color, position, etc.

Move

Move target with cursor, and press

[ENT].

CLR

Delete

Delete target ? “YES” / “NO”.

Exit

Exit info window.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.8 GOTO function

CHART

GOTO

Shortcut to Chart 1, press again to call up INFO window with available navigation modes:

Select NAV mode

Cursor

Waypoint

Route

Track

Anchor guard

Exit

To select “Cursor” navigation will require that the cursor is active. “Waypoint”, “Route” and “Track” navigation will require there is one stored in the memory before it can be activated. The NAV mode can also be activated from the NAV menu.

For further details on the different NAV modes, refer to chapter 4. Waypoints and navigation.

Anchor guard – When setting anchor, check/change the preset alarm distance etc., so you will be warned in case you drift too far from the anchored position. The alarm distance can be set anywhere from 0.01 to 9.99 nm in Navigation setup display. See also section 6.3 Anchor guard.

If pressing the

[GOTO]

key while one of the NAV modes is active, this

pop-up window will appear on the screen:

Navigation is ON

Advance

Restart to approaching point

Turn NAV off

Exit

Press [1] to advance to next waypoint in the route (Route navigation). Press [2] if you for some reason have drifted off course and wish to restart navigation from your actual position to the approaching point.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.3.9 PLOT function

The CPXX Chartplotter is designed to make navigation easy and safe. Making routes, drawing lines and plotting waypoints, etc. are all done directly on the chart. Very straightforward and uncomplicated.

The PLOT function is available from various displays as indicated below.

PLOT

With any other display than chart in active display, press

[PLOT]

insert ship’s / cursor’s position as waypoint

PLOT

With chart in active display, press

[PLOT]

to call up an INFO window

with the following to choose from:

PLOT new data

PLOT

Plot eventmark - ship

Plot waypoint - cursor

Insert waypoint - ship

Insert waypoint - cursor

Make route

Draw line

Plot target - cursor

Exit

PLOT

From any display: Plot and save ship’s position as a waypoint including actual depth.

From active chart display with cursor ON: Plot and save cursor position as a waypoint.

From active chart display: Plot and save ship’s position as a waypoint including actual depth; insert a location name (cf.section 2.6), adjust the position by keying in new figures, change the symbol (cf.section 2.5).

CP42/50/52 Chart menus and INFO windows Chapter 3

From active chart display with cursor ON: Plot and save cursor position as a waypoint; insert a location name (cf.section 2.6), adjust the position by keying in new figures, change the symbol (cf.section 2.5).

From active chart display with cursor ON: You can quickly make a route by plotting cursor’s position, one after another i.e. the present cursor position will be the first position of the route you are about to make. Move cursor to next position, and press

[PLOT].

Continue in this manner till the route is completed. In case you

make a wrong plot, press

[CLR]

to erase the last plotted position.

Savetheroutewith

[ENT]

or exit the function with

[MENU]

to abandon

the route.

From active chart display with cursor ON: To draw lines or to make a route is the same procedure, please refer to point 4.

From active chart display with cursor ON: Plot target at cursor position with preset target name, etc.

From chart display with cursor OFF: The ship’s position will be plotted as target.

After plotting the target it will be saved in the memory, and you can edit the target later on, either via the menu or directly from the chart:

Place cursor on the target symbol and press

[ENT]

to open an info

window with the heading “Target found”.Press

[1]

Edit user data to open for new options of editing i.e. move target, delete target, alter the position, insert a location name (cf.section 2.6) or select a new color for the target number and symbol (cf.section 2.5).

) See also target display in section 5.7.

CP42/50/52 Chart menus and INFO windows Chapter 3

3.4 Chart setup

ENT

With chart 1 or chart 2 in active window, press [ENT], [9], to load the chart setup for the selected chart (1 or 2)

Chart setup

Land settings Features ON Landmarks ON Marine settings Tides, currents ON Depths ON Underwater objects ON Soundings ON Nature of seabed ON Naval aids settings Ports ON Caution areas ON Tracks, routes ON Lights ON Buoys ON Signals ON Paper chart settings Names ON Compass distance ON Chart settings Chart NORMAL Boundary lines ON Mixing levels OFF Marine presentation INTERNATIONAL

Simplified draw mode OFF Quick chart info ON Chart area SMALL Orientation NORTH UP TRUE Rotation resolution 15° Depth Level 1 0 – 002m Level 2 2 – 006m Level 3 6 – MAX Grid AUTO Show range WITH BACKGROUND Auto chart select ON Extended level range ON Non active waypoints ON Waypoint names ON Waypoint depths ON Non active routes AS SELECTED Route names ON Non active tracks AS SELECTED Track names ON Lines AS SELECTED Line names ON Targets AS SELECTED Target names ON

The settings are dedicated to the chart in the active window and does not affect the second chart. This enables simultaneous viewing of a very detailed chart and a less detailed chart.

ENT

Confirm changes and return to chart, or…

abandon Chart setup and return to chart without making any changes

All C-MAP feature groups i.e. Land settings, Marine settings, Naval aids settings and Paper chart settings are described in Appendix C. To obtain a “cleaner” view of the chart details, you can turn some of the settings OFF if they do not contribute to the clarity of the chart area you wish to explore. All the listed objects that can be turned on and off speaks for themselves – they are either “shown on the chart” or “not shown on the chart”.

CP42/50/52 Chart menus and INFO windows Chapter 3

All user data in the chart system are listed under ‘Chart settings’ in the display example and are described below:

Chart can be set to

NORMAL, COMPRESSED and CHART OFF:

NORMAL

- will automatically select the chart level appropriate for the selected

range/scale.

COMPRESSED

- will change the range (scale) / chart level ratio one step, which,

depending on the actual chart, will select a more detailed level.

CHART OFF - will only show all the user-made data such as waypoints, routes,

lines and tracks, etc.

Boundary lines will indicate available C-MAP chart areas.

Mixing levels – when set to ON you will no longer see any blank chart areas, as

the C-MAP library will find the missing area in a different level to cover the blank area otherwise left on the screen. However, when using this feature, chart re-draw time will be increased a little.

Marine presentation can be set to INTERNATIONAL or AMERICAN: INTERNATIONAL – will present NavAids in ‘real life’ shapes and colors for quick visual recognition (as per official INT1 standard paper chart presentation). AMERICAN – will present NavAids in simplified shapes and real colors (as generally found on NOAA paper charts).

Simplified draw mode – when set to ON the NavAids will be shown in generic symbols for minimum visual clutter on-screen.

Quick chart info – placing the chart cursor on a C-MAP object will activate a small info window with details on the object. Info window will automatically close after 10 seconds or when cursor is moved away.

Chart area can be set to

SMALL, MEDIUMorLARGE.

SMALL

– Opens a small chart area big enough to just fill the size of the screen.

When panning and scrolling, the chart will automatically be redrawn.

MEDIUM

– Opens a medium-size chart area for pan and scroll which goes beyond

the size of the screen. The chart redraw time increases equally.

LARGE

– Opens a large chart area for pan and scroll in a size which goes well

beyond the size of the screen. The chart redraw time increases equally.

CP42/50/52 Chart menus and INFO windows Chapter 3

Orientation can be set to

NORTH UP, HEAD UPorNAV UP

, and the mode can be

RELATIVE or TRUE motion. NORTH UP

– The chart will always be presented as north up.

HEAD UP – The chart will automatically turn, so your actual course (COG) is up.

If a compass is connected, the reference will automatically change to heading (compass).

NAV UP

– The chart will automatically turn, so your bearing to destination is up.

) To enable chart rotation the chart cursor must be turned off [CLR].

TRUE

motion – The ‘ship’ will move across the chart.

RELATIVE motion – (‘Chart area’ will default to MEDIUM). The ‘ship’ is locked

to the center of the screen and the chart will move.

Rotation resolution can be set to adjust the chart for each 5, 10, 15, 20 or 25° changes in present course or heading.

Depth–Level1,2and3 are identified by different colors. The number of meters in the levels can be changed. The colors are preset, see section 9.6.

Grid the LAT/LON grid can be set AUTO/ON/OFF. The color of the grid is preset in Palette setup, section 9.6.

Show range ON will add a small line to the chart display indicating that the length of the line equals a certain number of nautical miles/km.

Auto chart select When sailing with “Auto chart select” ON and cursor turned OFF, the scale will automatically change to the chart which is available. But when set to OFF, then the selected scale will remain, also when sailing “out of the chart”.

Extended level range ON will enable changing range 3-4 steps within the same chart level after having selected the range via a numeric key.

The remainder of the objects from ‘Non active waypoints’ can all be set to: ON =shownonchart;OFF = not shown on chart; AS SELECTED =the choices made for a particular route etc. via the menu e.g.

MENU, 3, 2, ENT, ENT

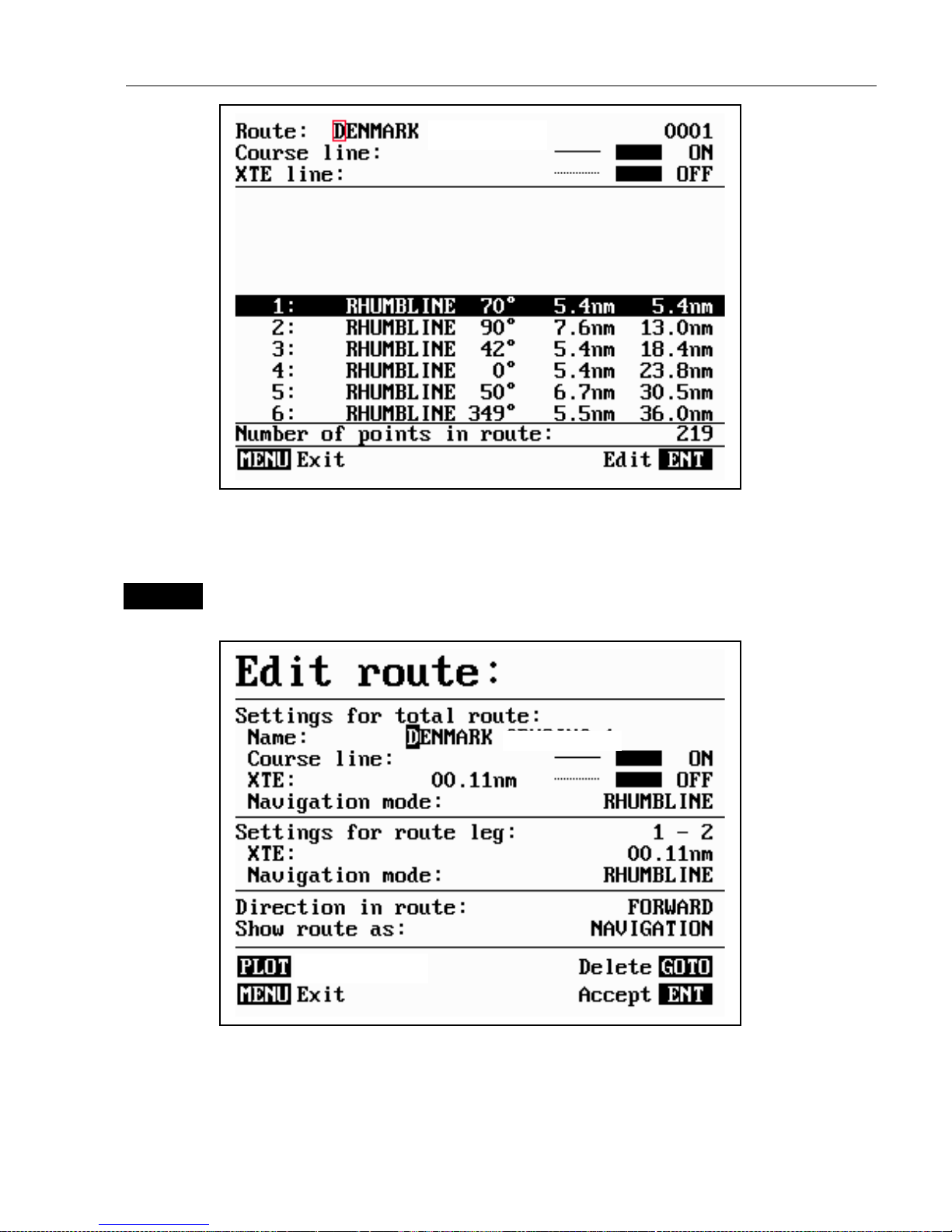

Edit route, where ‘Course line’ can be set ON or OFF.

CP42/50/52 Position menus Chapter 4

4. Position menu

_2_

POS

_1_ Position

- see section 4.1.

_2_ Dual speed

- see section 4.2.

_3_ Speed, course & depth

- see section 4.3.

_4_ Speed diagram

- see section 4.4.

_5_ Satellites

- see section 4.5.

_6_ DGPS

- see section 4.6.

_7_ SDGPS

- see section 4.7.

4.1 Position d isplay

POS

Direct access to Position display…

- also available via [MENU],[2],[1]

Indicates the datum currently selected.

Datum 000

WGS 1984

Log 1

1.1nm

Log 2

1.1nm

LAT 56°52.500N LON 9°50.700E

Speed Course Compass

0.4kn 17° °

Status

DGPS a

UTC time

8:02:43

UTC date

12-02-2001

Trip log 1 and 2.

Position with three decimals in minutes.

CP42/50/52 Position menus Chapter 4

Speed indicates Speed over ground.

Course, magnetic or true.

Depth or Compass from external sensor, or actual antenna altitude.

UTC or local time and date

Time and date in UTC – Universal Time Coordinates – is equal to standard time in London (GMT). UTC is not affected by the local summertime adjustments.

Status indicator for reception of satellites: a(A)= good, b(B)= acceptable, c(C)= fair, or *= no update - see also “Status indicator and accuracy” below.

With built-in or connected DGPS receiver: dGPS= differential data received. DGPS= differential data received and used for corrections. SDGPS= satellite differential data received and used for corrections.

Status indicator and accuracy

Small letters (a,b,c,) indicate that SA is active, and the position accuracy is expected to be better than 100 meters in 95% of the time. Capital letters indicate that SA is OFF, and the position accuracy is then expected to be 15 meters or better in 95% of the time. dGPS indicates that differential data is received, either via built-in differential receiver or from external receiver. DGPS or SDGPS indicates that the position is corrected by the differential data. The accuracy will typically be 1-3 meters for DGPS and 2-6 meters for SDGPS.

In order to utilize the high accuracy of the GPS system, it is necessary to align the lat/long calculations to the paper charts you are using. RefertoPositionsetupdisplayonnextpage. ) When using C-MAP electronic charts, the datum will be aligned automatically.

CP42/50/52 Position menus Chapter 4

Position setup

ENT

From position display, press

[ENT]

to load Position setup

Datum 000: World Geodetic System 1984 Log 1: 00001.1nm Log 2: 00001.1nm

Display position as: LAT/LON Delta position: 0°00.000N 0°00.000E Start position: Lat 56°52N Lon 009°50E

Speed and course filter level: 3 Display speed as: SOG Course and bearing as: MAGNETIC Additional data: COMPASS

Time: UTC Time: 08:06:01 Date: 12-02-2001

Go to the function you wish to change

CLR

Reset log

0-9

Key in new values, or…

+/-

Toggle between available values

ENT

Confirm editing and return to Position display

Datum – is preset to WGS 1984 (World Geodetic System 1984), but can be changed to any of the 118 datums listed in Appendix B e.g. to match old paper charts or trackplotter data from RS2500/RS4000 (datum #002 European 1950). The position in the position display and NMEA output will refer to the selected datum. To select a new datum: Place the cursor next to “Datum” and leaf through the datum list with +/-, or key in the number. ) The datum in the chart display is fixed i.e. WGS84.

Log – reset log or insert alternative start figure by altering the value in the “log 1” and/or “log 2” line. Press

[CLR]

to reset the figure, and

press the numeric keys 0-9 to alter the figure.

CP42/50/52 Position menus Chapter 4

Display position as – the position can be shown in latitude/longitude, Loran C or decca coordinates (after selecting chain). Toggle with +/-.

Delta position – some paper charts do not indicate a datum, but instead they have a notation to an offset or delta position to WGS84. Use numeric keys to key in the position correction.

Start position – can be inserted if exact start position is known.

Speed and course filter level – thereisafilterof10stepsavailable

(0= fast response, 9= stable reading).

Display speed as – SOG Speed Over Ground or STW Speed Through Water. Toggle with +/-. ) to receive STW information from external instrument (via NMEA port) will require that NMEA sentence VHW and “Log speed sensor” are set to ON. Refer to section 9.1 and 9.2.

Course and bearing – readings of course and bearing can be made in either

MAGNETICorTRUE

. Toggle with +/-.

Additional data – can be set to COMPASS, DEPTH or ANT. HEIGHT. COMPASS will show heading from connected sensor. DEPTH will be shown when NMEA depth data is received from connected depth instrument. ANT. HEIGHT will indicate the actual antenna altitude (height above sea level).

Time – can be set to UTC or local. Toggle with +/-. Correct actual time and date by means of the numeric keys.

CP42/50/52 Position menus Chapter 4

4.2 Dual speed display

(trawling speed display)

The analogue differential speed indicator will show how much the present speed varies from the average speed. If the difference exceeds +/- 3 knots (or km/h or miles/h), an arrow will appear which will be pointing out of the scale.

Call up the menu bar, and…

2,2

load dual speed display

Status GPS a

UTC time 10:02:43

Water speed

*.*kn

LAT 56°52.500N LON 9°50.700E

-3 -2 -1 1 2 3

Speed/kn

0.8

Average Spd

0.6

Course

17°

Water speed readout from connected log transducer.

Position with three decimals in minutes. Analogue differential speed indicator (scale). Dynamic speed with short filtering time is reacting quickly to changes, but is also more unsteady. Average speed with long filtering time gives a very stable reading. Course over ground, magnetic (m) or true (°).

How to reset dual speed:

ENT

Open for change

ENT

Press

[ENT]

to reset dual speed, or…

Press

[MENU]

to exit function without making any changes

CP42/50/52 Position menus Chapter 4

4.3 Speed, course & depth

Call up the menu bar, and…

2,3

load Speed, course & depth display

Speed over ground

*.*kn

Course

Depth below keel

*.*m

This display is preset to show:

Speed over ground in knots.

Magnetic course.

Depth below keel in meters (via connected sensor).

To change the settings for this display:

• Speed over ground can be changed from the Position display settings to show Speed through water: Press [MENU], [2], [1], [ENT], go to the line “Display speed as: SOG”, press the [+] key to toggle to STW, press [ENT] to accept the change. The top line in above display will now show Speed through water.

• Course can be shown as magnetic or true. Toggle between the two settings from the Position display: Press [MENU], [2], [1], [ENT], go to the line “Course and bearing as: MAGNETIC”,pressthe[+]keyto toggle to TRUE, press [ENT] to accept the change. The middle part in above display will now show True course e.g. 17°.

• To obtain a depth readout in this display will require that a depth sensor is connected. The readout is selected from the Interface setup: [MENU],[7],[2],goto“Depth” in the Water data section and toggle betweenDBKDepthBelowKeel,DBTDepthBelowTransducerand DBS Depth Below Surface, press [ENT], [ENT] to accept the change. The new setting will be shown in the lower part of the display.

CP42/50/52 Position menus Chapter 4

S 6.2

V 4.8

W 2.2

[kn] 22:03 22:08 10

SD:S *.*kn T *° R *° WIND: *.*ms *°R

4.4 Speed diagr a m

Call up the menu bar, and…

2,4

load “Speed diagram”

S= Speed over ground.

V= Velocity towards waypoint.

W*= Speed through water.

SD (Set and drift)*= Speed and direction, true or relative.

WIND*= Speed and direction.

* Connection to external sensors is required.

ENT

Call “Speed diagram setup”

- see next page

CP42/50/52 Position menus Chapter 4

Speed diagram setup:

Scale for speed, max: +005kn Scale for speed, min: -000kn

Speed over ground (SOG): ON

Velocity made good (V): ON

Water speed (W): ON

Time interval: 5 MIN.

The scale for the speed diagram can be adjusted in this display.

Time interval can be set in 8 intervals from 1 minute to 3 hours and freeze.

Go to the function you wish to change

+/-

Key in new figure or change setting

ENT

Confirm entry and return to Speed diagram

CP42/50/52 Position menus Chapter 4

4.5 Satellite stat u s

Call up the menu bar, and…

2,5

load satellite status display

The display will show which satellites are currently being used for computation of data. It will show their position together with SNR – Signal to Noise Ratio. The bottom line shows the status of all the satellites in the GPS system, starting from left to right with the numbers 1 to 32, or the legend: No almanac.

Satellite status (bottom line): + indicates the satellite is healthy

- excluded or non-existing satellite 0 satellite data is faulty * satellite is manually excluded

You may want to exclude a satellite manually in case a particular satellite is disturbing the navigation.

ENT

Open for change, and…

Place the cursor on the satellite in the bottom line you wish to exclude

GPS: D HDOP: 1.6 DOP limit: 8

SAT

>++++++++ ++ - - ++++ +++++ - ++ + +++-+++-<

2 4 7 8 9 11 13 15 16 21

SNR

050100

SAlarm:OFF

CP42/50/52 Position menus Chapter 4



HDOP: High

HDOP: Low

The minus key will exclude the satellite, and…

the plus key will reinstate it

- these two plus and minus keys are also the

ZOOM

keys!

ENT

Confirm entry

HDOP, PDOP and DOP limits:

Call up the menu bar, and…

2,5

load satellite status display

The value of HDOP (horizontal dilution of precision) expresses “the quality” of the satellite geometry in relation to 2D positioning and a fixed antenna altitude.

PDOP (position dilution of precision) is equivalent to 3D positioning. The values will typically stay between 1.3 and 8. The lower the value the higher the “quality”. A poor geometry might produce a value of more than 20.

If the preset DOP limit is exceeded (indicated by * in the position display) it will cause the position updating to stop until it once again is within the limit.

The DOP limit can be changed manually, but should not be set higher than 8 (factory setup), as this may result in poor accuracy – false position.

Position update alarm - go to “Alarm” in the display and set it to “ON” if you wish to be alerted when there is no position update.

ENT

Open for change

Go to DOP limit (6-99), and…

0-9

Insert new limit

ENT

Confirm entry

CP42/50/52 Position menus Chapter 4

4.6 DGPS information

The DGPS – differential position corrections – canbeprovidedfroma built-in module, which is preset to full automatic operation, or from connected DGPS receiver – see ‘Status indicator’ in position display. ) List of beacon stations is available in addendum, part no.

183.0122.501.

Call up the menu bar, and…

2,6

load DGPS setup display (with built-in module)

DGPS setup:

Beacon: SKAGEN B312° D87.3nm Status: LOCKED Beacon is monitored: YES

Frequency: 298.5kHz MANUAL Bit rate: 100bps AUTO

Signal strength: 17 Signal to noise ratio (SNR): 23dB

Message:

To receive valid differential data will require that the navigator is locked in on abeacon station.

ENT

Open for change, and…

Go to the function you wish to alter

+/-

Toggle the function, or…

0-9

insert new figures

ENT

Confirm entry

Beacon – informs the name of the beacon the navigator is locked on to (if any), together with indication of bearing and distance.

CP42/50/52 Position menus Chapter 4

Status – can either be:

LOCKED = locked on a beacon and receiving differential data

NOT LOCKED =

not locked on a beacon and receiving no differential

data.

NOT INSTALLED = there is no built-in DGPS module in unit. NOT IN USE

= external DGPS receiver applied.

Beacon is monitored –

YESorNO

YES

it should be safe to rely on the received differential data, because the beacon station’s performance is under observation. If

, then you have to use the received differential data with caution,

as there is no guarantee it is not faulty.

Frequency – the frequency of the beacon station can be set manually if known. However, when left in

AUTO

the navigator will always search

for the nearest station with a good signal strength.

Bit rate – indicates bits per second, and can be set manually to 25, 50, 100 or 200 bps.

Signal strength – a good signal strength is 20 and up.

Signal to noise ratio (SNR) – should be 8dB and up.

Message – type 16 message will be displayed when received from the

DGPS system. The contents of this message could be something to do with the performance of the system. Temporarily out of service, etc.

CP42/50/52 Position menus Chapter 4

4.7 SDGPS inf or m at ion

The SDGPS – satellite differential GPS - is preset to full automatic operation, which means that the system will utilize the position corrections from either differential GPS stations (refer to section 4.6) or satellite differential GPS signals from WAAS, EGNOS or MSAS (refer to section 4.7.1).

Call up the menu bar, and…

2,7

load SDGPS setup display (with built-in module)

SDGPS setup:

SDGPS select mode: AUTO Uses corrections from: ***** CHANNEL 1: sat.no.: **** **** Corrections: NONE Integrity messages ok: NO Range used for position fix: NO Type 0 warning received: NO CHANNEL 2: sat.no.: **** **** Corrections: NONE Integrity messages ok: NO Range used for position fix: NO Type 0 warning received: NO Ignore type 0 warnings: NO

ENT

Open for change

Go to the function you wish to alter (see below)

+/-

Toggle the function

ENT

Confirm entry

SDGPS select mode determines which differential corrections can be used in the position determination: AUTO is default mode. Local area DGPS corrections are used when available. If not available, then SDGPS corrections are used (if these are available). MANUAL mode: SDGPS corrections are used (if available). Local area DGPS corrections are not used. PASSIVE mode: SDGPS corrections are never used.

CP42/50/52 Position menus Chapter 4

Uses corrections from - indicates which differential corrections (DGPS or SDGPS) are currently used for position determination.

CHANNEL 1: sat.no. - indicates which satellite number and name is currently tracked/searched by channel 1, and what is the tracking state.

Corrections - indicates if corrections are being received on this channel. If YES: is the quality of the reception sufficiently high for the corrections to be usable.

NONE: no corrections are received. RECEIVED: corrections are received, but of insufficient quality. USABLE: corrections are received and of sufficient quality. USED: corrections received on this channel are used in the position

determination.

Integrity messages ok - the SDGPS system will transmit messages concerning the integrity of the GPS satellites. This line will indicate whether such messages are received and reliable.

Range used for position fix - if the receiver is tracking a particular SDGPS satellite, it “knows” the distance to that satellite. This line will indicate whether the distance is used in the position determination.

Type 0 warning received - if an SDGPS satellite is not operating according to specifications it will transmit a so-called “Type 0 warning”. In this situation, the receiver will not use any information that it might receive from that satellite. Until the SDGPS system is declared operational, the SDGPS satellites will always transmit Type 0 warnings. ) It is possible (but not recommendable) to override the Type 0 warnings - refer to last line in SDGPS setup.

CP42/50/52 Position menus Chapter 4

4.7.1 Satellites in SDGPS system

The SDGPS system consist of eight orbiting geostationary satellites. It is, however, not expected to become fully employed till sometime in

2003. In the meantime, the system will have limited usage but will be available to all users with e.g. Simrad XX42/50/52 MKII software, version 4.20 and up.

Number

Name System Area

120 AOR-E EGNOS - EU Atlantic ocean region east 122 AOR-W WAAS - US Atlantic ocean region west 124 ARTEMIS EGNOS - EU 126 INMARSAT EGNOS - EU 129 MTSAT-1 MSAS - JAPAN 131 IOR EGNOS - EU Indian ocean region 134 POR WAAS - US Pacific ocean region 137 MTSAT-2 MSAS - JAPAN

Tracking state

The letter indicating the tracking state will appear immediately after the satellite number in the display.

Letter indication: - means that the receiver is:

S searching for satellite.

D trying to synchronize to data stream.

C code locked to signal. P phase locked to signal.

CP42/50/52 Position menus Chapter 4

CP42/50/52 Waypoint/route menus Chapter 5

5. Waypoint / route menus

_3_

WP/RTE

_1_ WP list

- see section 5.1.

_2_

Routes

- see section 5.2.

_3_

Route calculation

- see section 5.3.

_4_

Lines

- see section 5.4.

_5_

Start track

- see section 5.5.

_6_

Stop track

- see section 5.5.

_7_

Tracks

- see section 5.6.

_8_

Targets

- see section 5.7.

5.1 WP list

(waypoints stored in the memory)

The waypoint list will appear in alphabetical order and will include the waypoint’s position in lat/long. To edit one of the stored waypoints:

Call up the menu bar, and…

3,1

load WP list

A-Z

Insert name of waypoint you wish to edit, or…

+/-

Leaf through waypoints with +/- keys or up/down cursor

ENT

Open for editing

Place the cursor on the function you wish to change

0-9

Key in new figures, or…

+/-

toggle between available values

PLOT

Move the position to ship’s position, or…

ENT

Confirm entry and return to WP list

) Plot new waypoints with the [PLOT] key. Refer to section 3.3.9.

CP42/50/52 Waypoint/route menus Chapter 5

5.1.1 Delete waypoints via menu

Call up the menu bar, and…

3,1

load WP list

+/-

Select waypoint you wish to delete

ENT

Press

[ENT]

to open for editing

WIN

Press [WIN] to delete waypoint

CLR

Confirm entry and return to WP list

) Edit waypoints directly on the chart via info windows. Refer to section 3.3.3.

5.2 Routes stored in the memory

The route list will keep a record of all the saved routes in the system. It will provide information on number of waypoints in the route, etc. Existing routes can be altered via the route list – see further on in this chapter, or directly on the chart via info windows – refer to sections

3.3.4 and 3.3.5. To delete a route – refer to section 5.2.1.

) Making new routes can be done directly on the chart with the PLOT function – refer to section 3.3.9, or from the WP list using existing waypoints – refer to section 5.2.2.

Call up the menu bar, and…

3,2

load route list

+/-

Toggle through the stored routes with the +/- keys, or…

A-Z

Select route by entering its name (existing route)

Move cursor up/down to select a specific route

ENT

Call up the route details on highlighted route – see next page.

CP42/50/52 Waypoint/route menus Chapter 5

This display provides information on course line, XTE line, route legs, routepoints, etc.

ENT

Call up the Edit route display – ifyouwishtomakeanychanges.

Turning “Course line” OFF in the Route display will make the route invisible on the screen. Put it back on the screen by turning it ON again. The course line and XTE line can be changed in color – there are a total of 14 colors to choose from, and 9 different line types.

Routepoints

CP42/50/52 Waypoint/route menus Chapter 5

If the XTE distance is not the same in all legs, the value will be *.* instead of the 0.10nm. Navigation mode can be either Rhumbline or Great circle, or … if not set to the same in all legs in a route, the mode will be:

COMPOSITE.

Direction in route: can be set to either

FORWARDorREVERSE

direction.

Show route as:

NAVIGATION for navigational data in the route display

(example on the previous page), or

POINTS

for a list of route points

together with the points’ position in lat/lon and the XTE limit.

Place the cursor on the function you wish to change

0-9

Key in new figures, and…

+/-

toggle between available values

- if no more alterations are required, go to [ENT], or you can insert/remove routepoints from the route by entering a new display:

PLOT

Open for the function: Remove/insert routepoints

+/-

Existing routepoints can be removed, by using the +/- keys to highlight

CLR

the routepoint you wish to remove, and press [CLR]

New routepoints can be added to the route by using the cursor to go up/down in the WP list to select the position you wish to add to the route, then…

+/-

By means of the +/- keys highlight the routepoint where you wish the

PLOT

new position should be placed in the route, and press [PLOT]

- the last point in the RtePt panel is empty, and as such will allow you to enter a new final routepoint.

ENT

Confirm modification of route and return to the Edit display

- or abandon modification by pressing [MENU]

ENT

Confirm editing

Return to route list

CP42/50/52 Waypoint/route menus Chapter 5

5.2.1 Delete route via menu

Call up the menu bar, and…

3,2

load route list

+/-

Select the route you wish to delete

ENT

Press

[ENT]

to open for editing

WIN

Press [WIN] to delete route

CLR

Confirm

) Edit routes directly on the chart via info windows. Refer to section

3.3.4 and 3.3.5.

5.2.2 Make new route from WP list

When you have a number of waypoints stored in the WP list which would be convenient to link together as a route it is easily done via the route list.

Call up the menu bar, and…

3,2

load route list

CLR

Make new route from WP list

Use the cursor to go up/down in the WP list to select the position you wish to add to the route, then…

+/-

By means of the +/- keys you can control where the highlighted posi-

PLOT

Tion is placed in the route,press [PLOT]

- the last point in the RtePt panel is empty, and as such will allow you to enter a new final routepoint. Once a WP position is transferred to the routepoint section, there is no longer any connection between the position and the waypoint in the WP list.

Select the next position and press [PLOT]. Continue in this manner until the route is completed. In case you make a wrong plot, you can

CP42/50/52 Waypoint/route menus Chapter 5

delete the routepoint by highlighting the RtePt number by means of the +/- keys and then press [CLR] to remove the point from the route.

Display example:

ENT

Save the route with

[ENT]

and go to the Edit display

- or leave the function with [MENU] to abandon the route.

In the Edit route display you can set up the route preferences you need and also change the name of the route.

Place the cursor on the function you wish to change

0-9

Key in new figures, and…

+/-

toggle between available values

ENT

Confirm editing

Return to route list

CP42/50/52 Waypoint/route menus Chapter 5

5.3 Route calculation

To stay well informed during navigation, the Route calculation display will provide information on how long it takes to go from one point to another, total distance, arrival time, etc.

Call up the menu bar, and…

3,3

load route calculation display

Route calculation:

Route: RTE 37 Course line: ON XTE: ON

Routepoint A: 0001 Routepoint B: 0003

ETA speed: 10.0kn AUTO

Total distance from A to B: 110.5nm Time to go from A to B: 2h35m Arrival time: 11:41 Date: 12-02-2001

+/-

Toggle between available routes in the memory

Go to Routepoint A, and

0-9

Select the first route point (A) from where you wish to start the calculation in the route, and then select the second point (B)

Present speed is automatically used for calculating the arrival time, but if required, an alternative speed can be inserted:

ENT

Open for change

0-9

and insert new speed value

+/-

Toggle between AUTO and MANUAL

ENT

Confirm entry

CP42/50/52 Waypoint/route menus Chapter 5

5.4 Lines stored in the memory

The line list will keep a record of all the saved lines in the system. It will provide information on number of line sections in line, etc.

“Lines” are used for defining a certain area on the chart, e.g. a fishing ground, a shipwreck, large rocks, restricted areas, etc., or defining a channel to sail through narrow passages, making your own coast line or for whatever reason you could use a drawing on the chart.

) To draw new lines you need a chart in the active window, place the cursor where you wish to start the line, and press

[PLOT].

Then follow the instructions in the info windows. Refer to section 3.3.9. Lines can also be edited directly on the chart via info windows. Refer to section 3.3.4 and 3.3.5.

Call up the menu bar, and…

3,4

load line display

) Only plotted lines saved in the memory can be called forward.

Line: FISHING BORDER 0005 Line: ON

1: 56°52.700N 009°50.230E 2: 56°52.712N 009°50.431E 3: 56°52.723N 009°50.654E 4: 56°52.756N 009°50.760E

5: 56°52.856N 009°50.899E

6: 56°52.901N 009°51.232E 7: 56°53.230N 009°51.400E 8: 56°53.650N 009°51.432E 9: 56°53.897N 009°51.230E 10: 56°54.220N 009°52.110E

Number of sections in line: 16

This display indicates how many line sections are used for the drawing.

+/-

Toggle through the stored lines with the +/- keys, or…

Leaf through the line points by moving cursor up/down

CP42/50/52 Waypoint/route menus Chapter 5

ENT

Call up the Edit line display - if you wish to make any changes.

Edit line:

Name: FISHING BORDER

Line: ON

Turning “Line” OFF will make the line drawing invisible on the screen. Putitback on the screen by turning it ON again.

WIN

Delete

Exit

ENT

Place the cursor on the function you wish to change i.e. name, line type or color

+/-

Toggle between available values

ENT

Confirm entry

5.4.1 Delete lines via menu

Call up the menu bar, and…

3,4

load line display

+/-

Select the line you wish to delete

ENT

Press

[ENT]

to open for editing

WIN

Press [WIN] to delete the line

CLR

Confirm

) Edit lines directly on the chart via info windows. Refer to section

3.3.4 and 3.3.5.

CP42/50/52 Waypoint/route menus Chapter 5

5.5 Start / stop track

The track function will provide a track trailing the movement of your ship. With a Simrad TL50 Turbo Loader + ARPA radar connected, you will also be able to track ARPA targets on the CPXX chart display refer to the TL50 manual for further details.

To start track function from own ship:

Call up the menu bar, and…

3,5

load Start track pop-up window

Start track:

Name: TRACK 1 Display track: ON Update: DISTANCE Interval: 0.100nm Trackpoints: 0 Type:

As default from the factory: The first track is stored as TRACK1, the next as TRACK2, etc.

Exit Start

ENT

If you wish to change the default values:

Move cursor to where you wish to make a change

+/-

Toggle between available values, or…

0-9

key in new values

ENT

Start track by pressing

[ENT]

Name of track can be altered (max. 25 characters).

Display track can be set ON and OFF, where OFF will make it

invisible on the screen. Turn ON to put it back on the screen.

CP42/50/52 Waypoint/route menus Chapter 5

Update of the track can be performed by distance in nautical miles, or by time interval.

Type of track line i.e. full, dotted, etc. has 9 different types to choose from in 15 different colors.

To stop track:

Call up the menu bar, and…

3,6

load Stop track pop-up window

ENT

Press [ENT] to stop the highlighted track

5.6 Tracks stored in the memory

All tracks (of more than 1 trackpoint) will automatically be stored in the memory. To see which tracks are registered, you can scroll through the list by:

Call up the menu bar, and…

3,7

load “Tracks” in active window

Track: TRACK 1

Tracking: OFF

Display track: ON

Trackpoints: 25

Type:

As default from the factory: The first track is stored as TRACK1, the next as TRACK2, etc.

A-Z

Select name of track

- or if a number is included in the track name, place cursor on the number, and …

+/-

Toggle up/down in the track numbers

CP42/50/52 Waypoint/route menus Chapter 5

ENT

Open for change

“Display track” can be set ON/OFF, where OFF will make it invisible on the screen. Turn ON to put it back on the screen.

+/-

Toggle between available values

ENT

Confirm changes

5.6.1 Delete tracks via menu

Call up the menu bar, and…

3,7

load track display

+/-

Select the track you wish to delete

ENT

Press [ENT] to open for editing

WIN

Press [WIN] to delete the track

CLR

Confirm

) Edit tracks directly on the chart via info windows. Refer to section

3.3.6.

CP42/50/52 Waypoint/route menus Chapter 5

5.7 Targets stored in the memory

The CPXX can display the bearing and distance of up to three targets at a time in relation to the vessel e.g. harbors or important navigational points. A target is a fixed point on the chart which can be plotted by the cursor or from the ship’s position, or keyed in via the keypad.

Set up targets

The plotted target position is automatically preset to actual position of ship, or to cursor position when the chart display is active and the cursor is on – see INFO windows, section 3.3.7.

Call up the menu bar, and…

3,8

load target display

Targets:

Name: TARGET 1 ON Position: 56°52.700N 9°50.500E

B 213° D 195.7nm

Name: TARGET 2 ON Position: 54°51.500N 9°52.135E

B 130° D 215.7nm

Name: TARGET 3 ON

Make the target invisible on the screen by turning it OFF.

Putitback on the screen by turning it ON again.

Position: 56°52.700N 9°50.500E

B 345° D 295.7nm

Select the target you wish to change or replace with a different target by moving the cursor up/down

+/-

Leaf through the targets in the memory

ENT

Open for change, and…

Place cursor where you wish to make a change i.e. name, color, etc.

CP42/50/52 Waypoint/route menus Chapter 5

A-Z

Key in new values, alphabetical or

0-9

numerical

+/-

Toggle between available values

ENT

Confirm entry

5.7.1 Delete target via menu

Call up the menu bar, and…

3,8

load target display

+/-

Select the target you wish to delete

ENT

Press

[ENT]

to open for editing

WIN

Press [WIN] to delete the target

CLR

Confirm

) Edit targets directly on the chart via info windows. Refer to section

3.3.7.

CP42/50/52 NAV menus & navigation examples Chapter 6

6.1 NAV menu – (NAV inactive)

_4_

NAV

_1_ Highway

- see section 6.1.1.

_2_ Waypoint navigation

- see section 6.5.2.

_3_ Route navigation

- see section 6.5.3.

_4_ Track navigation

- see section 6.5.4.

_5_ Anchor guard

- see section 6.3.

_6_ Trim & highway

- see section 6.2.7.

_7_ Set & drift

- see section 6.2.8.

This NAV menu will appear when there is no navigation mode active.

See also section 6.2 –whennavigationmodeisactive,section6.3 Anchor guard, 6.4 MOB navigation, and 6.5 Navigation examples.

6.1.1 Highway display

NAV

Direct access to Highway display

- or gain access via the menu:

Call up the menu bar, and…

4,1

load Highway display

Since there is no navigation mode active, you will receive the legend: NAVIGATION IS OFF. To enter the basic Navigation setup display:

ENT

Press

[ENT]

to call up Navigation setup

- see display example next page.

Before starting out in one of the navigation modes, it may be a good idea to check out the Navigation setup display and see if the default settings will suit your need.

CP42/50/52 NAV menus & navigation examples Chapter 6

Navigation setup:

Anchor alarm distance: 00.50nm WP circle alarm: 00.10nm OFF WP and cursor navigation: XTE alarm: 00.10nm OFF Navigation mode: RHUMBLINE

Route navigation: XTE alarm: OFF Auto waypoint shift: WP-circle Track navigation: XTE alarm: 00.10nm OFF Auto trackpoint shift: WP-line Navigation mode: RHUMBLINE

+/-

Toggle between available values, or…

0-9

key in a new alarm limit

ENT

Confirm entry

Anchor alarm distance – When setting the anchor it is possible to set up an alarm at the same time, so you will be warned in case you drift too far from the anchored position. The alarm distance can be set to anywhere from 0.01 to 9.99nm. The alarm will automatically be reset once you are inside the limits again.

WP circle alarm – forms a circle around each waypoint, and the alarm distance can be set to anywhere between 0.01 and 9.99nm. The waypoint alarm will be activated when you reach the circle or the perpendicular line – WP line alarm – crossing through the waypoint. When “Auto waypoint shift” is set to “WP-circle” it will override the “WP circle alarm” function.

XTE alarm – forms a corridor along the ideal track. When crossing one of the boundaries the XTE alarm will be activated. The alarm will automatically reset once you are inside the limits again. The alarm distance can be set to anywhere between 0.01 and 9.99nm.

) In Route navigation the XTE alarm value can be specified for each route leg – see section 5.2.

CP42/50/52 NAV menus & navigation examples Chapter 6

Navigation mode –

RHUMBLINE

navigation is used for shorter

distances, and

GREAT CIRCLE for long trips, especially when crossing

at high latitudes.

COMPOSITE

navigation is used when not all legs in a

route are set to the same navigation mode.

Auto waypoint shift – can be set to “WP-circle”, “WP-line” or “OFF”. When set to WP-circle, the system will change to the next waypoint in the route after passing the circle line (border). When set to WP-line, the system will change to next waypoint in the route after passing the waypoint line (border). When “Auto waypoint shift” is set to “WP-circle”,thenthealarm function at the waypoint’s circle will not be activated.

6.2 NAV menu – (NAV active)

_4_

NAV

_1_ Highway

- see section 6.2.1.

_2_ Turn NAV off

- see section 6.2.3.

_3_ WP advance

- see section 6.2.4.

_4_ Restart to approaching point

- see section 6.2.5.

_5_ ETA & AVN

- see section 6.2.6.

_6_ Trim & highway

- see section 6.2.7.

_7_ Set & drift

- see section 6.2.8.

This NAV menu will appear when navigation mode is active. If the selected navigation mode is Waypoint navigation, then point 3:Waypoint advance will not be available and therefore the color of the text will differ from the rest of the menu text.

See also section 6.1 NAV menu – (NAV inactive), section 6.3 Anchor guard, 6.4 MOB navigation, and 6.5 Navigation examples.

CP42/50/52 NAV menus & navigation examples Chapter 6

Route: RTE 3 5 BN: 16.4° TDG: 35.7nm TTG: 2h34m

S8.2 V7.4

C359

°°°°

B314

°°°°

X0.011 D17.3

0.04nm

0.02nm

0.04nm

0.02nm

6.2.1 Highway display

NAV

Direct access to Highway display

- or gain access via

[MENU],[4],[1]

With navigation mode active, the highway display will provide a graphical steering display:

C: Course over ground X: XTE – Cross-track-error S: Speed over ground B: Bearing to approaching point D: Distance to approaching point V: Speed towards point Route: Name of active route Point: No. of approaching point TDG: Total distance to go BN: Bearing to next point TTG:Timetogo(onlyfor waypoint navigation).

Ship’s position and course in relation to intended track.

Intended track between two waypoints or from ship’s position when NAV is activated.

XTE alarm lines – an alarm will be activated if the ship moves across the lines (if the alarm is enabled).

Refer to section 6.1.1 for alarm setup.

CP42/50/52 NAV menus & navigation examples Chapter 6

6.2.2 Navigation setup

If you wish to make any changes in the navigation setup, you can quickly enter the navigation setup display by pressing

[ENT]

from the

highway display (graphical steering display).

ENT

Quick access to navigation setup from active highway display, or…

-refer to display example and description of functions in section 6.1.1.

6.2.3 NAV mode – Turn NAV off

Call up the menu bar, and…

4,2

turn off navigation mode

6.2.4 NAV mode – Waypoint advance

Call up the menu bar, and…

4,3

activate shift to next waypoint

- it will require that navigation mode is active and that “anext waypoint” exists.

6.2.5 NAV mode – Restart to approaching point

Call up the menu bar, and…

4,4

activate restart to approaching point

- if you for some reason have drifted off course and wish to restart navigation from your actual position to the approaching point.

CP42/50/52 NAV menus & navigation examples Chapter 6

6.2.6 NAV mode – ETA & AVN

) Navigation mode must be active to call up the ETA & AVN display.

Call up the menu bar, and…

4,5

load the ETA & AVN display

ETA:

Arrival time: 12:46 Date: 12-02-2001

ETA mode: AUTO ETA speed: 10.0kn

AVN:

Velocity: 12.5kn

Planned arrival time: 09:24 Date: 12-02-2001

Route: RTE 3 1

ETA – Estimated Time of Arrival - refers to the inserted local time, and can be calculated to any point used for navigation.

AVN – Approximate Velocity Necessary – is automatically calculated in knots after you key in the planned arrival time and date.

In route navigation the approaching point and present speed over ground (AUTO) is automatically used for the calculation.

You can change to any waypoint in the route and also insert an alternative ETA speed (MANUAL).

ENT

Open for change – in route navigation the approaching point is automatically suggested and present speed is used for calculation.

If required – go to, and…

0-9

Insert alternative routepoint – only in Route navigation.

CP42/50/52 NAV menus & navigation examples Chapter 6

Go to ETA mode, and…

+/-

Select

AUTO

or MANUAL

Go to AVN, and…

0-9

Insert time and date

ENT

Confirm entry

6.2.7 NAV mode – Trim & highway display

) The readings rely on data from external log and compass, and navigation mode must be active.

The Trim & highway display will provide information on actual and mean speed, velocity and wind

- see also section 6.2.8 Set & drift display.

Call up the menu bar, and…

4,6

load the Trim & highway display

B: Bearing.

X: XTE Cross-trackerror.

D: Distance to point.

ENT

Open for change

ENT

Reset mean speed indication in display

Route: RTE 3 5

-3 -2 -1 1 2 3

B: 258° X: 0.011nm D: 1.18nm

-3 -2 -1 1 2 3

W/kn

7.6

Av. W

7.2

Av. V

7.4

V/kn

7.2

Av. S

6.3

S/kn

7.4

0.02nm0.02nm

CP42/50/52 NAV menus & navigation examples Chapter 6

6.2.8 Set & drift

) The readings rely on data from external log and compass.

Load menu bar, and…

4,7

load display for “Set & drift”

Set & drift

0.6 kn

Relative direction.

Speed.

True direction

The set & drift display will show how fast the current is moving in knots; in what direction (true) it is moving and what direction in relation to the vessel (relative).

) To obtain information on actual and mean speed, velocity and water speed – see the “Trim & highway display” in section 6.2.7.

CP42/50/52 NAV menus & navigation examples Chapter 6

6.3 Anchor guard

Call up the menu bar, and…

4,5

activate the anchor guard function

- the chart display will provide an impression of the vessel’s position in relation to the alarm circle.

To check/change the preset alarm distance:

NAV

Direct access to Highway display

- or gain access via the menu:

Call up the menu bar, and…

4,1

load the highway display

ENT

Press

[ENT]

to call up the navigation setup display

Move cursor to the Anchor alarm distance

0-9

Enter new value with numeric keys

ENT

Confirm the change

To turn Anchor guard off again:

Call up the menu bar, and…

4,2

turn anchor guard off

CP42/50/52 NAV menus & navigation examples Chapter 6

6.4 MOB na vig a tion

The MOB – Man overboard – display will be activated if you press the blue

[MOB] key on the CPXX keypad and hold it depressed for two

seconds, or activate an external MOB switch. The MOB display will provide all relevant data for an efficient rescue operation – see display examples on the rear of the first page of the manual.

To turn the MOB function off again:

Call up the menu bar, and…

4,2

turn the MOB function off

To check the last activated MOB position:

Call up the menu bar, and…

6,2

select MOB position

6.5 Navigation examples

Relevant for all navigation modes are:

- the navigation display with graphical steering – section 6.2.1.

- the ETA & AVN display with Estimated Time of Arrival and

Approximate Velocity Necessary to reach a given point at a specific time – section 6.2.6.

- the *Set & drift display with indication of how fast the current is

moving in knots, in what direction (true) it is moving and what direction in relation to the vessel (relative) – section 6.2.8.

- the *Trim & highway display with information on actual and mean

speed over ground, velocity

(VMG)

and water speed – section 6.2.7.

* These readings rely on data from external log and compass.

6.5.1 Chart/cursor navigation. 6.5.2 Waypoint navigation.

6.5.3 Route navigation. 6.5.4 Track navigation.

CP42/50/52 NAV menus & navigation examples Chapter 6

6.5.1 Chart/cursor navigation

Cursor navigation is the easiest and most straightforward way of navigation – point and go.

CHART

Shortcut to chart 1 display Press the cursor key to activate the cursor, then move the cursor to your destination

GOTO

Call up “Select NAV mode” window, and…

select “Cursor”

A course line will now be drawn from actual position (ship’s position) to destination point (cursor’s position).

Next destination: While on the way, you can easily move the cursor to the next destination, and when ready to change navigation leg…

GOTO

Press

[GOTO]

and

[2]

to…

“Restart to approaching point”

- A new course line will be drawn from ship’s position to destination.

It is possible to mix and match the data you require to have on the screen e.g. ½ window for the chart display, ¼ window for the navigation display, and ¼ window for the Trim & highway display, maybe. The choice is yours. Refer to section 2.1 Fundamentals of the PAGE and WINdow system.

To turn NAV mode off again:

GOTO

Press

[GOTO]

and

[3]

to…

“Turn NAV off” from active chart display

or…

Press

[MENU]

and

[4], [2]

to…

4,2

“Turn NAV off” via the menu

CP42/50/52 NAV menus & navigation examples Chapter 6

6.5.2 Wayp oint navig a tion

There are two ways of activating Waypoint navigation: From the chart or from the menu.

From the chart:

CHART

Shortcut to chart 1 display

Press the cursor key to activate the cursor, then move the chart cursor to your destination waypoint (or select it from the WPlist - see below)

GOTO

Select NAV mode, and…

Select Waypoint from WPlist (if chart cursor is placed on a WP, this WP will be highlighted in the WPlist.

This will activate the pop-up window “Navigate to WP” - now follow the procedure from the ) a few lines down.

From the menu:

Call up the menu bar, and…

4,2

select Waypoint navigation

) This will activate the pop-up window “Navigate to WP” from where you can choose which waypoint you wish to sail to:

Use the cursor to scroll up/down in the waypoint list, or place cursor on the WP number, and…

+/-

Scroll up/down with +/- keys, or…

0-9

Key in the number of the waypoint you wish to sail to

ENT

Start navigation

A course line will now be drawn from ship’s position to destination waypoint.

It is possible to mix and match the data you require to have on the

CP42/50/52 NAV menus & navigation examples Chapter 6

screen e.g. ½ window for the chart display, ¼ window for the navigation display, and ¼ window for the Trim & highway display, maybe. The choice is yours. Refer to section 2.1 Fundamentals of the PAGE and WINdow system.

To turn NAV mode off again:

GOTO

Press

[GOTO]

and

[3]

to…

“Turn NAV off” from active chart display with cursor on

or…

Press

[MENU]

and

[4], [2]

to…

4,2

“Turn NAV off” via the menu

6.5.3 Route navigation

To start Route navigation will require that at least one route is stored in the memory. Refer to section 3.3.9 PLOT function.

When navigating in a route, you will have a graphical steering display to navigate by, see section 6.2.1. Know your ETA – Estimated Time of Arrival, and your AVN – Average Velocity Necessary, see section

6.2.6. Call up the Set & drift display, see section 6.2.8.

There are two ways of activating Route navigation: From the chart or from the menu.

From the chart:

CHART

Shortcut to chart 1 display

Press cursor key to activate the cursor

GOTO

Select NAV mode

Select Route (if chart cursor is placed on a route, this route will be

CP42/50/52 NAV menus & navigation examples Chapter 6

suggested).

This will activate the pop-up window “Navigate in route” - now follow the procedure from the ) a few lines further ahead.

From the menu:

Call up the menu bar, and…

4,3

select Route navigation

) This will activate the pop-up window “Navigate in route” from where you can choose which route you wish to select for navigation:

+/-

Scroll up/down in the route list until the correct route number / name appears

Use the cursor to move around in the window if anything needs to be changed – such as Direction in route, etc.

0-9

Key in the number of the waypoint you wish to sail to

ENT

Start navigation

A course line will now be drawn from ship’s position to the first waypoint in the route.

It is possible to mix and match the data you require to have on the screen e.g. ½ window for the chart display, ¼ window for the navigation display, and ¼ window for the Trim & highway display or ETA & AVN display, maybe. The choice is yours. Refer to section 2.1 Fundamentals of the PAGE and WINdow system.

GOTO

Pressing

[GOTO]

from chart display during navigation will activate an

INFO window with the following functions to choose from:

1. Advance (to next waypoint in route)

2. Restart to approaching point (in case you have drifted off course)

3. Turn NAV OFF.

CP42/50/52 NAV menus & navigation examples Chapter 6

Pressing [MENU] and [4], from an active data display during navigation

will give access to the following displays / feature:

1. Highway

2. Turn NAV off

3. WP advance (to next waypoint in route)

4. Restart to approaching point (in case you have drifted off course)

5. ETA & AVN

6. Trim & highway

7. Set & drift

6.5.4 Track navigation

A track is created by a series of trackpoints connected by track lines. Using a track for navigation is somewhat like navigating in a route with many waypoints.

) To start Track navigation will require that at least one track is stored in the memory. Tracks which are not yet completed can not be used for navigation. Refer to section 5.5 Start / Stop track.

When navigating in a track, you will have a graphical steering display to navigate by, see section 6.2.1. Know your ETA – Estimated Time of Arrival, and your AVN – Average Velocity Necessary, see section

6.2.6. Call up the Set & drift display, see section 6.2.8.

There are two ways of activating Track navigation: From the chart or from the menu.

From the chart:

CHART

Load chart display in active window, and…

Press cursor key to activate the cursor

GOTO

Select NAV mode

Select Track (if chart cursor is placed on a track, this track will be

CP42/50/52 NAV menus & navigation examples Chapter 6

suggested).

This will activate the pop-up window “Navigate in track” - now follow the procedure from the ) a few lines further ahead.

From the menu:

Call up the menu bar, and…

4,4

select Track navigation

) This will activate the pop-up window “Navigate in track” from where you can choose which track you wish to select for navigation:

+/-

Scroll up/down in the track list until the correct track number / name appears

Use the cursor to move around in the window if anything needs to be changed – such as Direction in track, etc.

0-9

Key in the number of the first trackpoint you wish to sail to

Navigate in track:

Track: TRACK 1 0001 Trackpoint: 00001 Bearing: 224° Distance: 0.000nm Direction in track: FORWARD XTE alarm: 00.10 OFF Auto trackpoint shift: WP-circle Navigation mode: RHUMBLINE Beep at trackpoint shift: OFF

ENT

Start navigation

A course line will now be drawn from ship’s position to the first point of destination.

It is possible to mix and match the data you require to have on the

CP42/50/52 NAV menus & navigation examples Chapter 6

screen e.g. ½ window for the chart display, ¼ window for the navigation display, and ¼ window for the Trim & highway display or ETA & AVN display, maybe. The choice is yours. Refer to section 2.1 Fundamentals of the PAGE and WINdow system.

GOTO

Pressing

[GOTO]

from chart display during navigation will activate an

INFO window with the following functions to choose from:

1. Advance (to next trackpoint)

2. Restart to approaching point (in case you have drifted off course)

3. Turn NAV OFF.

Pressing [MENU] and [4], from an active data display during navigation

will give access to the following displays / feature:

1. Highway

2. Turn NAV off

3. WP advance (to next trackpoint)

4. Restart to approaching point (in case you have drifted off course)

5. ETA & AVN

6. Trim & highway

7. Set & drift

CP42/50/52 NAV menus & navigation examples Chapter 6

CP42/50/52 ECHO menu Chapter 7

7. Echo menu

_5_

ECHO

_1_ Depth & temperature diagram

The depth and temperature “instrument” provides a graphical presentation of depth and water temperature from external equipment in relation to time or distance.

7.1 Depth & temperature diagram

Call up the menu bar, and…

5,1

load Depth & temperature diagram

Present water temperature.

8.3°C 12:05 27.2m

[°C] 7:00 7:05 [m] 30 - - 0

- 25 20 -

- 50

10 -

- 75

0 - - 100 Alarm: min 10 m ON. max 100 m OFF

Present depth.

Depth over time or distance.

Temperature over time or distance.

Depth alarm setting.

ENT

Call Setup for depth display

- see next page.

CP42/50/52 ECHO menu Chapter 7

Setup for Depth:

Scale for depth: 0 →→→→ 100 m Depth min. alarm: 0010 m OFF Depth max. alarm: 0100 m OFF

Color for depth:

Scale for temperature: 0 →→→→ 20 °C

Color for temperature:

Interval of screen: TIME Time interval: 5 MIN.

Go to the function you wish to change

0-9

Key in new figure, or…

+/-

change setting

ENT

Confirm entry

Scale for depth – there are six depth scales to choose from, ranging from 0-10m to 0-3000m. Toggle with +/- keys.

Alarm – figures for minimum and maximum depths can be inserted, and alarms can be activated/deactivated.

Color – for depth and temperature can be changed. Toggle between available colors by means of the +/- keys.

Scale for temperature – can be set to 0-10°,0-20°,0-30°,10-20° and –10 to 10 °C. The source for temperature is selected in NMEA setup 1

or 2.

Interval of screen – Interval for updating of screen can be related to

TIMEorDISTANCE. TIME

interval can be set in 6 intervals from 5 minutes to 3 hours

(+ freeze) for refreshing of the screen.

DISTANCE

can be set in 7 intervals ranging from 0.5 nm to 90 nm in

order to adjust to the boat’s speed, and you can freeze the reading.

CP42/50/52 Miscellaneous menu Chapter 8

Wind display

9.8 ms

8. Miscellaneous menu

_6_

MISC

_1_ Wind

- section 8.1

_2_ MOB position

- section 8.2

_3_ DSC alarm

- section 8.3

_4_ Data transfer

- section 8.4

8.1 Wind display

The CPXX is ready to present wind data from connected instruments.

Wind data – the “wind instrument” can provide both wind direction and wind speed, and the readings can be shown in relative or true (when the data is supplied from connected wind instrument).

Call up the menu bar, and…

6,1

load the “Wind instrument” display

True wind direction.

Wind relative to vessel.

Wind speed, relative or true.

CP42/50/52 Miscellaneous menu Chapter 8

ENT

Load “Setup for Wind” display

Setup for Wind:

Damping level: MEDIUM

Relative wind scale: NORMAL

Wind angle offset: 000°

Show wind speed as: RELATIVE

Wind speed unit: METERS/SECOND

The settings available for each function are described on the next page.

Go to the function you wish to change

+/-

Toggle between settings, or…

0-9

key in new figure

ENT

Confirm entry and return to Wind display

Damping level – can be set to

LOW, MEDIUMorHIGH

. The higher

level the more steady and slow reacting reading.

Relative wind scale – can either be set to

NORMAL

(0-180°)or

MAGNIFIED

(0-60°).

Wind angle offset – can be from 0 to 360°.

Show wind speed as –

TRUEorRELATIVE.

Wind speed unit – can be either

METERS/SECOND, KNOTS,

KILOMETERS/HOUR

MILES/HOUR.

CP42/50/52 Miscellaneous menu Chapter 8

8.2 MOB posit ion

Call up the menu bar, and…

6,2

load MOB position display

MAN OVERBOARD

DATE 12-02-2002

TIME 14:23:34

MOB 56°52.489N

POS 009°50.305E

The MOB display will provide information of the last activated MOB position.

To delete a MOB track from the memory, see section 3.3.6.

8.3 DSC alarm

(feature prepared for future DSC VHF)

) To receive a DSC Alarm and Message from VHF will require that the CPXX is connected to a compatible Simrad Shipmate VHF radiotelephone.

The message from the VHF will appear in a pop-up window together with an acoustic alarm. Press [CLR] to reset the alarm.

To view the last received message:

Call up the menu bar, and…

6,3

press

[6]

and

[3]

to call up the message display

CP42/50/52 Miscellaneous menu Chapter 8

8.4 Data transfer via DataCard or disc

Data transfer to and from external memory can be performed via DataCard,orwithaSimradTL50TurboLoader:viaanordinary

1.44Mb disc.

DataCards and TL50 Turbo Loader are optional equipment available from you local Simrad dealer. How to perform data transfers via TL50 Turbo Loader (inclusive data from Shipmate RS2500 Trackplotter) is described in the TL50 manual.

Use the Simrad DataCard or TL50 Turbo Loader to make backup files of all the user data you have created plus the current setups in the internal memory of the unit. Do it whenever you have added important data, or when you wish to transfer routes and waypoints, etc. to another compatible unit. The storage capacity of the DataCard/TL50 disc is divided into two databanks of each 450 Kb, meaning that the entire internal memory can be stored in one databank.

• External memory with data transfer via DataCard:

Call up the menu bar, and…

6,4

load the ‘Data transfer’ window

Data transfer _1_ DataCard upper drawer _3_ DataCard lower drawer

_7_ NMEA connection

- section 8.5

_MENU_ Exit

Select the drawer where you have inserted the DataCard i.e. [1] for the upper drawer, and [3] for the lower drawer.

You now have a choice of:

[1] DataCard status [3] Save on DataCard [9] Load from DataCard

CP42/50/52 Miscellaneous menu Chapter 8

DataCard status

Press [1] to find out what data (if any) is stored on the DataCard The capacity is divided into two databanks: DATABANK 1 and 2 whichcanholdapprox.2x450Kbdata.Togglebetweenthetwo databanks with the +/- zoom keys.

Save on DataCard

Press [3] to call up a new INFO window where you can see which data will be transferred i.e. how many routes, waypoints, etc. and how much space it will take up in bytes + percentage of max. storage capacity. Choose which databank you wish to transfer the data to (use the +/zoom keys). The actual date and time will be saved with the data transfer. A name can be added for easy identification later on.

ENT

Press [ENT] to activate ‘Save on DataCard’

) You will now receive a warning that existing data on the DataCard, in the databank you have chosen, will be overwritten. You can not ‘add more information’ to data already transferred. Whenever transferring data either from an XX42/50/52 to Databank 1 or 2 on DataCard, or from Databank 1 or 2 on DataCard to an XX42/50/52, the data package will replace the entire capacity in the receiving unit, except when a TL50 Turbo Loader is connected to the unit, then you can decide how much data you want to transfer - refer to TL50 manual.

Load from DataCard

Press [9] to call up a new INFO window where you can see which data is stored in Databank 1 or 2 on the DataCard - see example of display on next page, without TL50 connected.

+/-

Use the +/- zoom keys to toggle between DATABANK 1 and 2

ENT

Press [ENT] x 2 to transfer a copy of the data in DATABANK 1 to the internal memory in the unit. Any existing data in the internal memory will be overwritten, except when a TL50 Turbo Loader is connected to the unit, then you can decide which data should be overwritten - refer to TL50 manual

CP42/50/52 Miscellaneous menu Chapter 8

Press [MENU] to Exit, and reboot*

* When the system makes a ‘reboot’ (only if loading “Setup”)the screen will turn black for a brief moment, then the system will re-start and automatically return to the active display which was on the screen before you made the transfer.

Load from DataCard:

DATABANK-1

Data generated by: Simrad CP42 Used internal memory: 672 bytes = 0% Used DataCard memory: 85332 bytes = 19% Used internal memory after operation: 85332 bytes = 19% Date saved: 24-08-2000 Time saved: 09:26:59 Name: MR14

Data type Amount Size

Marks/waypoints: 52

[byte]

1120 Lines: 2 284 Routes: 8 6280 Targets: 3 72 Tracks: 5 75287

Setup: 1 2289

Exit Load from DataCard

8.5 Data transfer via PC interface

Data transfer to and from a route planning program on a Personal Computer can be made via NMEA connection (Refer to Installation manual section 11.8) by means of the standard NMEA0183 sentences WPL and RTE. ) The data transfer on these two sentences does not include WP symbol, color, XTE limit, etc.

ENT

CP42/50/52 Miscellaneous menu Chapter 8

Call up the menu bar, and…

6,4

load the Data transfer window

Data transfer

_1_

DataCard upper drawer

- see section 8.4

_3_ DataCard lower drawer

- see section 8.4

_7_

NMEA connection

_MENU_ Exit

Select the NMEA connection

WARNING!

Normal NMEA communication on

selected channel will be

interrupted.

_1_ NMEA 1 _3_ NMEA 2 _MENU_

Exit

Press [1] or [3] to select the NMEA port where the PC data cable is connected. Example:

NMEA 1 connection

_1_

Transmit WPs

_3_

Transmit routes

_7_

Receive WPs and routes

_MENU_

Exit

The normal communication via this NMEA port is temporarily abrupted during the time of data transfer.

Transmit WPs

Press [1] to start transmission of all waypoints stored in the CP42/50/52 WP list to PC

When the transmission is completed you will receive a new info window informing of how many waypoints were transferred.

Exit function and return to normal NMEA communication

CP42/50/52 Miscellaneous menu Chapter 8

Transmit routes

Press [3] to start transmission of all routes stored in the CP42/50/52 route list to PC

When the transmission is completed you will receive a new info window informing of how many routes were transferred.

Exit function and return to normal NMEA communication

Receive WPs and routes

Press [7] to enable reception of waypoints and routes from the planning program

The transmission of waypoints and routes can now be activated from the PC program.

The info window below will inform you of the progress of the reception of data by keeping an eye on the counter. When the counter stops, means that all the data from the PC planner has been collected. However, some PC programs may continue to transmit the same data over and over again and will have to be stopped by pressing [ENT].

Receive WPs and routes

Reception in progress

37 WPs received

5 routes received

Stop and save

ENT

Stop and save

- will stop collecting data (if not already finished) and start saving the collected data.

) Waypoints/routes transmitted to the CP42/50/52 are added to the WP/route list. However, if two waypoint/route names are identical, the latest transferred one will not be saved, even though position(s) may be different. Routepoints will not be included in the WP list.

CP42/50/52 Miscellaneous menu Chapter 8

Saving the collected data can take anywhere from less than a second and up to a few minutes, depending on the amount of data. If it takes too long and you need the CP42/50/52 in a hurry, then press the [MENU]keytoStopsavinganymoredata– what has been saved until this point will stay in the memory, the rest will be lost.

Stop saving

Under normal circumstances we assume the saving procedure is allowedtofinishandwillindicate“Saving completed” in the info window. You are now ready to:

Exit function and return to normal NMEA communication

NB! PC-based planning systems differ in operation and performance beyond the control of Simrad.

CP42/50/52 Miscellaneous menu Chapter 8

CP42/50/52 SETUP menus Chapter 9

9. Setup menu

_7_

SETUP

_1_ Speed alarm, units & language

- section 9.1

_2_ NMEA interface

- section 9.2

_3_ Alarm/log output

- section 9.3

_4_ Decca lanes

- section 9.4

_5_ Loran C

- section 9.5

_6_ Display color

- section 9.6

_7_ Factory settings

- section 9.7

9.1 Speed alarm, units & language

Call up the menu bar, and…

7,1

load Speed alarm, units & language display

Setup for speed:

LOG speed sensor: ON LOG speed calibration: 019000 PULSES/nm Speed alarm maximum: 000.0kn OFF Speed alarm minimum: 000.0kn OFF

To select new values for this setup display – see next page.

Setup for units:

Depth/altitude in: METERS Distance in: NAUTICAL MILES Speed in: KNOTS Temperature in: DEGREE CELCIUS Software version: CP42 MKII 4.30 TL50 version: Not connected GPS receiver type: N12000 PAGE rotation interval: 05 sec. Display text in: English GB

Exit Accept

ENT

go to the function you wish to change

0-9

Key in new values, or…

+/-

toggle between available values

CP42/50/52 SETUP menus Chapter 9

ENT

Confirm entry, or…

exit function without making any changes

LOG speed sensor – set to ON, the dual speed display will show water speed from external log sensor (via ECHO1 port).

- set to OFF and NMEA sentence VHW set to ON, the readout will

show water speed from external water speed instrument (via NMEA port 1 or 2).

LOG speed calibration – calibrate log speed readout by increasing/ decreasing the number of pulses per nautical mile –

Simrad CP42, CP50, CP52 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
