M A N U A L
Simrad CE34/44/54
ChartSounder
183-3401-102 English 05082.20
Note!
Insert or remove C-MAP cartridges ONLY through SETUP menu or when
unit is off. All electronic navigation equipment is subject to external factors
beyond the control of the manufacturer. Therefore such equipment must be
regarded as an aid to navigation. The prudent navigator will, for that reason,
never rely on a single source for position fixing and navigation.
MOB ‘MAN OVERBOARD’ function
MOB
In case someone falls overboard, press the [MOB] key and hold for 2
seconds (or activate an external MOB switch - hold for 5 seconds).
CLR
Press [CLR] to confirm and reset the alarm if activated by mistake.
Before pressing [ENT] to start MOB navigation:
• Reduce speed.
• Turn off Autopilot.
ENT
Press [ENT] to start MOB navigation with all relevant data available
for an efficient rescue operation and a precise track record of the
vessel’s movements.
Window
1
Window
2
Screen layout default after activating MOB.
Window
3
Window 1: Data display will provide information of: Course, Bear-
ing and Distance to MOB position, time elapsed since the incident
occurred - first in seconds and then in minutes - if “*” is shown
instead of numbers of minutes, means that the elapsed time has
exceeded 9999 minutes. The two lines after the TIME shows the
MOB position in Lat/Long.
Window 2: The chart display will provide a graphical impression of
a man
floating in the water at the MOB position together with a
course line from actual position to the incident.
Window 3: Data display will provide information of: Date, time and
position of MOB incident.
To t ur n MOB nav ig at ion of f:
Press [GOTO], [3].
To recall the last registered MOB position, see section 7.8.
CE34/44/54 ChartSounder Table of contents
MOB ‘MAN OVERBOARD’ function.............................back of front cover
Chapter 1 Introduction and safety summary
1.1 Introduction and system familiarization ...................................... 1-1
1.2 Safety summary ........................................................................... 1-2
1.3 How to get started ........................................................................ 1-3
1.3.1 Dedicated function keys...............................................................1-4
1.3.2 Chart and chart functions............................................................. 1-6
1.3.3 Echosounder / Fishfinder ............................................................1-10
Chapter 2 Fundamentals and initial start-up
2.1 Fundamentals of the display and page system ............................. 2-1
2.1.1 Example of how to exchange a page in the PAGE system ........... 2-2
2.1.2 Example of how to select a new display in a custom screen........ 2-2
2.2 Key functions ............................................................................... 2-3
2.3 Menu bar....................................................................................... 2-5
2.4 Menu layout..................................................................................2-6
2.5 Choice of symbols ........................................................................ 2-7
2.6 Naming of routes, points etc......................................................... 2-7
2.7 Initial start-up............................................................................... 2-7
2.8 Turn power on............................................................................... 2-9
2.9 Turn power off..............................................................................2-9
Chapter 3 Chart menu and INFO windows
3. Chart menu ................................................................................... 3-1
3.1 Shortcut to the pages in the chart-series ...................................... 3-1
3.1.1 Data field on chart........................................................................ 3-2
3.1.2 Ship symbol.................................................................................. 3-3
3.1.3 Cursor function ............................................................................ 3-3
3.1.4 Range or zoom function ...............................................................3-4
3.2 Dual Chart display........................................................................ 3-5
3.3 Chart custom screens ...................................................................3-6
3.4 Chart quick menu ......................................................................... 3-7
3.4.1 Cursor inactive ............................................................................. 3-7
3.4.2 Cursor active but not placed on any object or data ......................3-8
3.4.3 Cursor placed on waypoint........................................................... 3-9
3.4.4 Cursor placed on route leg or line section.................................. 3-10
3.4.5 Cursor placed on routepoint or linepoint ....................................3-11
3.4.6 Cursor placed on trackpoint ....................................................... 3-12
3.4.7 Cursor placed on target .............................................................. 3-13
3.4.8 GOTO menu ................................................................................3-14
Table of contents CE34/44/54 ChartSounder
3.4.9 PLOT menu ................................................................................ 3-15
3.5 Chart setup ..................................................................................3-17
3.5.1 Display modes in the chart setup ................................................3-18
3.5.2 Description of chart features...................................................... 3-21
Chapter 4 Echo menu
4. Echosounder operation................................................................. 4-1
4.1 Echo menu.................................................................................... 4-2
4.2 Shortcut to the pages in the echo-series....................................... 4-2
4.3 Standard echo display................................................................... 4-3
4.4 Variable range marker ..................................................................4-4
4.5 Echo quick menu .......................................................................... 4-5
4.6 Plot waypoint or event mark via PLOT menu ..............................4-6
4.7 Presentation setup......................................................................... 4-7
4.8 How the echosounder works ...................................................... 4-10
4.9 Transducer beamwidth ................................................................4-11
4.10 Effects of the vessel’s speed ....................................................... 4-12
Chapter 5 Pilot menu & navigation examples
5. Pilot menu..................................................................................... 5-1
5.1 Shortcut to the pages in the pilot-series ....................................... 5-1
5.2 Highway display and Navigation setup ........................................ 5-3
5.2.1 Highway display when navigation mode is active........................ 5-5
5.3 Position display............................................................................. 5-6
5.4 Dual speed display (trawling speed display) ................................ 5-9
5.5 ETA & AVN display................................................................... 5-10
5.6 Trim & Highway display.............................................................5-11
5.7 Set & Drift display ..................................................................... 5-12
5.8 Pilot custom screens ................................................................... 5-13
5.9 Navigation examples ...................................................................5-14
5.9.1 Cursor navigation ........................................................................5-14
5.9.2 Waypoint navigation................................................................... 5-15
5.9.3 Route navigation..........................................................................5-16
5.9.4 Track navigation..........................................................................5-17
5.10 Anchor guard.............................................................................. 5-19
5.11 MOB alarm and navigation ........................................................ 5-19
Chapter 6 Miscellaneous menu
6. Miscellaneous menu ..................................................................... 6-1
6.1 Wind display................................................................................. 6-1
6.2 Speed diagram.............................................................................. 6-3
CE34/44/54 ChartSounder Table of contents
6.3 Decca lanes................................................................................... 6-5
6.4 Loran C.........................................................................................6-6
6.5 Satellite status............................................................................... 6-7
6.6 DGPS information........................................................................ 6-9
6.7 SDGPS information.................................................................... 6-11
6.7.1 Satellites in SDGPS system........................................................ 6-13
6.8 DSC VHF info ........................................................................... 6-14
6.9 Depth and temperature diagram................................................. 6-15
Chapter 7 Waypoint / route menu
7. Waypoint / route menu ................................................................. 7-1
7.1 Waypoints stored in the memory ................................................. 7-1
7.1.1 Delete waypoints via menu .......................................................... 7-2
7.2 Routes stored in the memory........................................................ 7-3
7.2.1 Delete route via menu................................................................... 7-6
7.2.2 Make new route from WP list ...................................................... 7-6
7.3 Route calculation .......................................................................... 7-8
7.4 Lines stored in the memory.......................................................... 7-9
7.4.1 Delete lines via menu ..................................................................7-10
7.5 Start / stop track ..........................................................................7-11
7.6 Tracks stored in the memory.......................................................7-12
7.6.1 Delete tracks via menu ................................................................7-13
7.7 Targets stored in the memory......................................................7-14
7.7.1 Delete target via menu.................................................................7-15
7.8 MOB data ....................................................................................7-15
7.9 Data transfer via DataCard or disc..............................................7-16
7.9.1 List of criteria for data transfer in the Action column ................7-19
7.10 Data transfer via PC interface.................................................... 7-20
Chapter 8 Setup menu
8. Setup menu................................................................................... 8-1
8.1 C-MAP cartridges........................................................................ 8-1
8.2 Echosounder setup........................................................................ 8-2
8.3 Pilot / Position setup ..................................................................... 8-5
8.4 Speed alarm, units & language .................................................... 8-7
8.5 Interface setup .............................................................................. 8-9
8.5.1 Description of sentences............................................................. 8-19
8.6 Palette setup................................................................................ 8-21
8.7 Factory settings .......................................................................... 8-22
8.8 QuickGuide ................................................................................ 8-24
Table of contents CE34/44/54 ChartSounder
Chapter 9 Troubleshooting, Maintenance and Service
9.1 Troubleshooting............................................................................ 9-1
9.2 Preventive maintenance................................................................ 9-2
9.3 Repair and service ........................................................................ 9-2
9.4 Specifications ............................................................................... 9-3
Appendix A Glossary of terms...................................................................A-1
Appendix B List of datum ..........................................................................B-1
Appendix C C-MAP attributes...................................................................C-1
Index .............................................................................. end of manual
Declarations of conformity....................................................... end of manual
International warranty .............................................................. end of manual
List of Simrad distributors........................................................ end of manual
CE34/44/54 Introduction and safety summary Chapter 1-1
1.1 Introduction and system familiarization
Congratulations on your purchase of SIMRAD CE34/44/54 ChartSounder
- a combination of the latest GPS and SDGPS receiver technology and optional
built-in differential receiver for accurate positioning, plus: detailed cartography
and high performance echosounder; all in a unique slim-line design with a bright
7” TFT (CE34), 10” ATFT/TFT (CE44) or 15” TFT (CE54) color display.
The electronic chart system includes a built-in world chart for rough planning
and overview. The choice of chart system best suitable for the CE34/44/54 was
carefully singled out to be the C-MAP NT+ mini cards. The optional C-MAP
charts are available world-wide at your local Simrad dealer.
The echosounder system with selectable frequencies will provide an impression
of Bottom expansion, VRM expansion, Shift, A-scope and White line.
The Global Positioning System is at this time and age the most common system
used for navigation and positioning all over the world. Not only for maritime use,
but also for land-based applications and aviation. The satellite-based system has
been developed and is operated by the US Department of Defense in order to
provide an accurate and reliable service, which include a 24-hour global coverage. The GPS system consists of approx. 24 satellites which orbit around the
Earth at an altitude of approx. 20,200 km.
The satellites transmit perfectly synchronized data. However, depending on the
position, the signals will reach the receiver at a slightly different time. By adding
the measured time difference to the known position of the satellites it is possible
to calculate the ship’s position to within a few meters.
The SimNet data and control network provides high speed data transfer and control between Simrad products that are integrated as a total navigation, steering
and communication system on board.
DS34/44/54 Dual Station for the CE34/44/54 is available with a bright 7” TFT,
10” ATFT/TFT or 15” TFT color display. The main unit and the dual station are
identical in design and operation.
How to use this manual? This manual is written for the products: CE34, CE44
and CE54, which mainly share the same type of software. From hereon, these
models will be referred to as: CEXX.
It is a good idea if you make yourself familiar with the key functions, menu
structure and rotation of pages (screens) described in chapter 2 before you start
out, and then proceed with section 2.7 Initial start-up. For quick location of a
certain term, please check the “Glossary of terms” and the “Index” at the back of
the manual. Also, “How to get started” further on in this chapter will give you a
Chapter 1-2 CE34/44/54 Introduction and safety summary
quick introduction to some of the features you have access to in your new chart
sounder. The display examples shown in this manual are not always an exact
copy of what you will see on the screen, as the presentation depends on your
system configuration and choices of setup.
How to interpret special marked key symbols etc. in the manual:
+/-
Either the + (plus) or - (minus) key may be applied.
0-9
Alpha-numeric keys for insertion of figures.
A-Z
Alpha-numeric keys for insertion of letters.
Emphasizes important points.
1,3
Indicates that you should press the keys [1] and [3] to obtain what is
written in italic next to the key.
1.2 Safety summary
Precaution: Do not open the equipment, only qualified persons should work
inside the equipment. If the glass in the screen breaks, be carefull not to get cut
on the sharp edges of the glass pieces.
The lifetime of the internal battery is minimum 5 years. If not exchanged
before it goes flat, all data in the unit’s memory will be lost. We strongly
recommend that you frequently store your data on a Simrad DataCard. For
exchange of battery, call your local Simrad workshop.
Power source, fuse and power cable: Check that the DC power supplied to the
unit is within the range of 10 to 32 volts. Note that the appropriate fuse must
be employed (see the fuse rating in section 9.4 Specifications). Ensure that the
power cord is firmly attached.
Grounding: To reduce electrical interference and risk of electrical shock, properly ground the unit to the ship’s ground using the ground screw at the rear of the
unit. Good grounding should also be exercised for connected equipment, refer to
separate Installation manual.
Cleaning:
Do not use any kind of strong solvents e.g. spirit, alcohol, gasoline or oils.
Software: The software version of the main unit (see start-up display) should
always be informed in a service situation, or when ordering a Dual Station.
Automatic input source setup
Interface has not been set up!
To start automatic input
source setup, make sure that
all connected products are
turned ON, and press ENT.
Start
ENT
∆
∆
CE34/44/54 Introduction and safety summary Chapter 1-3
1.3 How to get started
When starting up for the very first time, the first time after loading
a new software or after a master reset: Make sure that all hardware
installation and electrical connections are completed in accordance to
the installation instructions.
PWR
Press and hold the [PWR] key until you have a picture on the screen
The system will perform a software update and check for communication activity. When finished, a new start-up window will be presented
on the screen:
After making sure that all connected products are turned ON:
ENT
Press [ENT] to start automatic input source setup, - if a new product is
connected later on, refer to section 8.5 Interface setup.
New window: Automatic input source setup listing Data type, Group
and Source of connected units.
ENT
Press [ENT] to continue
PAGE
Press [PAGE] to scroll through a quick guide which informs of the use
of the keys and where you can enter owner’s setup, etc.
- the quick guide is also accessible via [MENU], [6], [5].
ENT
Press [ENT] when ready to assume normal operation
- go to [MENU], [6], [2] if you wish to make adjustments to the inter-
face setup.
Chapter 1-4 CE34/44/54 Introduction and safety summary
Heading is only available if a compass was detected at start-up.
Your present position will automatically be updated within a few minutes. When ready, the ship symbol on the chart will flash, the position
coordinates will stop flashing, and the *** will be replaced by actual
course and speed figures.
1.3.1 Dedicated function keys
TRACK
Short press will activate:
CHART
Short press will toggle between:

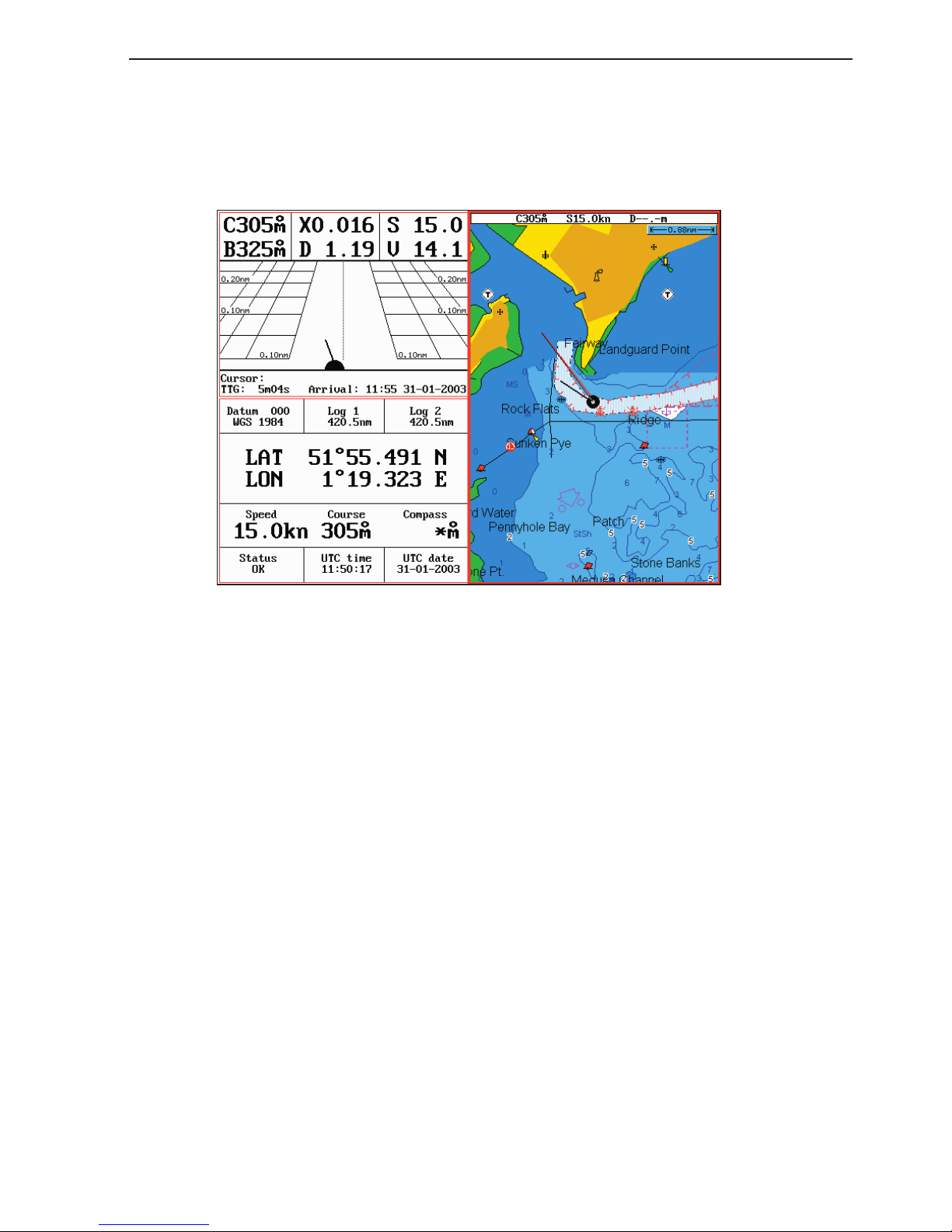

Chart + data field placed either at the right side or at the top, and echo data.
CHART
Long press will toggle between:
Chart in full screen Dual Chart Custom screen1 Custom screen2
ECHO
Long press will toggle between:
Echo + A-scope Dual frequencies Custom screen1 Custom screen2
(CE44/54)
CE34/44/54 Introduction and safety summary Chapter 1-5
PILOT
Short press will toggle between:
Highway Position Dual Speed Set & Drift
When navigation mode is active,

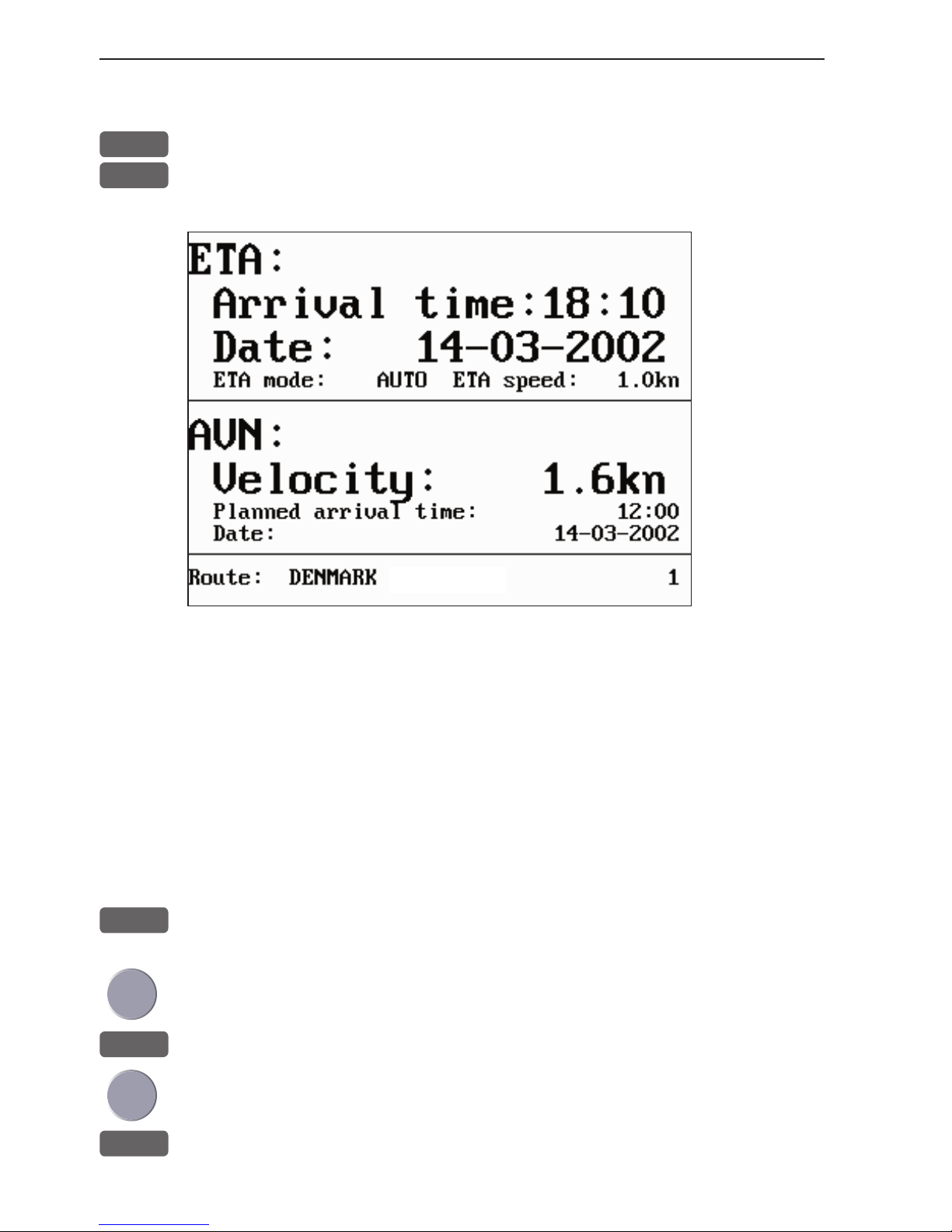

these two displays will be included:
ETA & AVN Trim & Highway
PILOT
Long press will toggle between:
Highway Custom screen1 Custom screen2
PAGE
Short press will toggle between the current active pages under the
main function keys. Long press will start a rotation of the three pages
(section 2.1).
Chapter 1-6 CE34/44/54 Introduction and safety summary
1.3.2 Chart and chart functions
CHART
Press the [CHART] key to call up a chart display. Press again to
toggle between the chart shortcut series
- see chart examples in section 1.3.1.
C-MAP cartridges (standby)
Press [MENU], [6], [CHART] whenever inserting or removing a C-MAP card.
Select and adjust chart or echosounder range
Press one of the numeric keys 1 - 9 to select a range (and chart level).
Key 9 will select the largest range and key 1 the smallest. Use the +/- keys to
adjust range in smaller steps.
Chart cursor and info windows
Press the cursor key to activate the cross hair cursor on the chart. Place the
cursor on a C-MAP object e.g. a buoy or light to call up a small data window
with details on the object. The data window will stay on screen for about 10
seconds or till cursor is moved. Press [ENT], [2] to access further details on CMAP objects or user data i.e. waypoints, routes, etc.
Press [ENT], [5] to lock cursors in Dual Chart screen and [ENT], [5] to release
cursors again. Press [CLR] to switch off cursor function. The ship symbol will
now automatically ‘home’ and stay on screen.
Find nearest tide station and port services
1. Press [ENT], [3]
2. Move cursor up/down to select e.g. the Port/Marina symbol
3. Locate alternative port with the +/- keys, and press [ENT]
4. Press [ENT], [2] for more details on the facilities at the selected port.
Navigate to cursor (point and go)
1. Move the cursor to where you wish to go (first point)
2. Press [GOTO]
3. Press [1] to start navigation.
You can now move the cursor to the next point and when ready to change leg,
just press [GOTO], [2].
CE34/44/54 Introduction and safety summary Chapter 1-7
How to plot or insert waypoints and marks
• With cursor OFF (press [CLR])
Press [PLOT] and choose from:
[PLOT] Plot ship’s position as mark.
[1] Insert ship’s position. You can change the lat/lon figures, the symbol and the
symbol’s size and color.
[3] Insert specific waypoint. Suggested name, symbol, etc. can be altered.
[6] Plot ship’s position as target.
• With cursor activated on the chart you also have access to:
[2] Plot waypoint - cursor position.
[6] Plot cursor position as target.
How to make a route on the chart
1. Place the cursor on the position for the first routepoint.
2. Press [PLOT], [4]: Make route.
3. Move cursor to next destination and press [PLOT] - (repeat).
4. Press [ENT] when ready to save the route. You can enter a new name for the
route, change type and color for the course line.
5. Press [ENT] to accept and save the route.
How to make a route from existing waypoints stored in the WP list
1. Press [MENU], [5], [2] to call up the route list.
2. Press [CLR] Make new route from WP list.
3. Move cursor up/down to select the WP position for the first routepoint, and
press [PLOT].
4. Repeat point 3 to add new WP positions to the route (the last routepoint in
the right column is always empty, allowing that a new final routepoint can
be added later on).
5. When the route is completed, press [ENT] to accept and go to Edit route.
6. In the Edit route display, you can give the route a new name, change type
and color for the course line, etc.
7. Press [ENT] to accept changes and save the route.
8. Press [MENU] to go to the route list, which will provide an overall view of
the total of routes stored in the CEXX.
Chapter 1-8 CE34/44/54 Introduction and safety summary
How to edit a route - rubberbanding
• To move a point on the chart:
1. Place cursor on the point you wish to move.
2. Press [ENT], [1], [2].
3. Move cursor to new location.
4. Press [ENT] to complete.
• To insert a new point on the chart:
1. Place cursor on the leg where the new point is to be inserted.
2. Press [ENT], [1], [2].
3. Move cursor to where the new routepoint is to be placed.
4. Press [ENT] to complete.
How to start waypoint navigation (two ways)
• Place cursor on the symbol of the WP you wish to go to:
1. Press [GOTO], [2].
2. Press [ENT] to start navigation.
• Without placing cursor on the symbol of the WP you wish to go to:
1. Press [GOTO], [2].
2. Use the +/- keys to select the WP you wish to go to.
3. Press [ENT] to start navigation.
How to start route navigation (two ways)
• Place cursor on the routepoint you wish to go to first:
1. Press [GOTO], [3].
2. Select direction in route: Forward or Reverse.
3. Press [ENT] to start navigation.
• Without placing cursor on the routepoint you wish to go to first:
1. Press [GOTO], [3].
2. Use the +/- keys to select the name of the route.
3. Use the cursor to go to routepoint number, and select which one you wish to
go to first by means of the +/- keys.
4. Select direction in route: Forward or Reverse.
5. Press [ENT] to start navigation.
CE34/44/54 Introduction and safety summary Chapter 1-9
Advance or stop navigation
• Press [GOTO], [1] to advance to next point in the route.
• Press [GOTO], [3] to stop navigation.
Start and stop track
1. Press [TRACK] to call up ‘Start track’ window.
2. Before tracking is started, you can give the track a new name, make changes
to track interval, track line type and color.
3. Press [ENT] to start track.
4. When you wish to stop tracking, press [TRACK], [ENT].
Chapter 1-10 CE34/44/54 Introduction and safety summary
1.3.3 Echosounder / Fishfinder
ECHO
Press the [ECHO] key to call up an echosounder display. Press again
to toggle between the echo shortcut series
- see display examples in section 1.3.1.
Select and adjust echosounder range
Press one of the numeric keys 1 - 9 to select a fixed range. Key 9 will select the
largest range and key 1 the smallest. Use the +/- keys to adjust range in smaller
steps. Key 0 will select Auto Range.
A-scope - Press [ENT], [2] to toggle A-scope on/off. The strength of the actual
echo is indicated by both width and color intensity.
Change frequency - Press [ENT], [1] to toggle between e.g. 50 and 200 kHz.
Gain - Adjust gain with cursor left/right to just below the point where you begin
to see speckles of ‘noise’ on the screen.
Bottom lock display* - Press [ENT], [4] Bottom lock is a combination of standard echo display and extended area around the bottom.
Zoom display* - Press [ENT], [5] The expansion is a combination of standard
echo display and extended area around the VRM - Variable Range Marker.
Shift display* - Press [ENT], [6] when operating in deep waters.
Select the range for an expansion window. The expansion window can automatically follow a changing bottom or be set manually by the +/- keys.
*Return to standard echosounder display by pressing [ENT], [3].
Echo setup (presentation) - Press [ADJ] from echo display to access the setup
display for either 38 (CE44/54), 50 or 200 kHz. Press [ENT] to confirm changes,
or leave the setup without having made any changes by pressing [MENU].
Echosounder setup - Press [MENU], [6], [ECHO] when you need to make any
general settings, selecting a transducer or selecting demo mode etc.
Transmit power off - Press [ENT], [ECHO] to stop transmission in order to
observe noise picked up by the transducer or reduce power consumption.
Echo display
with A-scope
Highway display Chart with
data field
SIMRAD CE44
CE34/44/54 Fundamentals & initial start-up Chapter 2-1
2.1 Fundamentals of the display and page system
The CE34/44/54 ChartSounder has a multi-function screen and
data presentation system with full screen and different types of split
screens. The series of pages under the function keys (situated in a
vertical row to the right of the display) will in most situations be sufficient information for the operator.
In split screens consisting of up to four displays, the active display
is indicated by a solid red frame. Use the [WIN] key to clockwise
toggle between which display on the screen is active. Only active
displays are operable.
The [PAGE] key differs from the other function keys. There are
three pages under the [PAGE] key which can be set up to the presentation you prefer by exchanging an existing display in the PAGE
system with a new one selected from a function key or via the menu
- see next page. Single press on the [PAGE] key will toggle between
the active pages under the function keys e.g.:
Chapter 2-2 CE34/44/54 Fundamentals & initial start-up
Long press on the [PAGE] key will start a
rotation of the three pages in intervals of
5 seconds (increase/decrease the time in
[MENU], [6], [1]). Press any key to stop
rotation.
2.1.1 Example of how to exchange a page in the PAGE system
The three pages in the PAGE system are collected from the CHART,
ECHO and PILOT menus in the sequence of which the function keys
appear on the keypad ie. the first page is from the CHART function,
the second page is from the ECHO function and the third page is
from the PILOT function. This sequence can not be changed, only
the choice of display collected from each function can be changed
e.g.:
PAGE
Press the [PAGE] key until the full screen Chart display appears
MENU
Call up the menu bar, and...
1,2
collect the Dual Chart display
- or you can toggle between the available displays in the CHART
function by pressing (long press) the [CHART] key repeatedly.
The same applies for the other two pages in the PAGE system ie.
press the [PAGE] key until a display from the ECHO or PILOT
function appears and then collect a new display from the appropriate
menu.
The display sequence under the function keys is the same as the
display sequence in the matching menu.
2.1.2 Example of how to select a new display in a custom screen
In custom screens with multiple window combinations, all displays, which are not main function displays, are exchangeable. It is
also possible to change the right half of the screen from half screen
window to two quarter windows and vice versa. Example:
MENU
Call up the menu bar, and...
CE34/44/54 Fundamentals & initial start-up Chapter 2-3
Highlight a function e.g. Route calculation in the WP/RTE menu.
WIN
Press [WIN] several times to check the screen image (situated to the
far right in the top line of the menu bar) which windows the function
can be placed into
ENT
Press [ENT] to enter the highlighted function into the highlighted
window
If the function text in the menu is red, the display will not be avail-
able for the selected window.
2.2 Key functions
Some of the key functions are general and can be applied at any
time, other key functions are related to a certain menu(s) and can
only be applied when in the appropriate menu.
MOB
Press for two seconds to activate the MOB - “Man overboard” function.
MENU
Turns the menu bar on/off. Exits any data display without taking any
action.
ENT
Confirms insertion and editing of data. Calls up information on
marks, waypoints, etc. on chart together with several INFO windows.
Moves cursor in data displays and charts + activates cursor on chart.
Moves left/right/up/down in the menu system. Adjusts gain (left/
right), activates and moves VRM (up/down) in echo display.
+/-
Changes chart or echosounder range i.e. + (plus) zooms out for better
overview (larger range) and - (minus) zooms in for greater chart
details (smaller range). Toggles between available values.
GOTO
Activates GOTO menu with choice of navigation modes, etc.
PLOT
Activates PLOT menu with choice of plotting and inserting way-
points, routes, lines etc. together with starting or stopping a track of
own ship.
Chapter 2-4 CE34/44/54 Fundamentals & initial start-up
TRACK
Shortcut to starting/stopping the track function.
CHART
Shortcut to Chart function. Short press will toggle between differ-
ent data fields on chart. Long press will toggle between Chart in full
screen, Dual Chart, and two custom screens.
ECHO
Shortcut to Echosounder functions. Long press will toggle between
Echo display in full screen with A-scope, Dual Frequency (CE44/
54), and two custom screens.
PILOT
Shortcut to Pilot displays. With navigation mode inactive: single
press will toggle between Highway, Position, Dual Speed and Set &
Drift displays. With navigation mode active: short press will toggle
between Highway, Position, Dual Speed, ETA & AVN, Trim &
Highway, and Set & Drift displays. Long press will toggle between
Pilot full screen and two custom screens.
PAGE
Toggles between active pages under the three main function keys i.e.
[CHART], [ECHO] and [PILOT]. Long press starts automatic rotation of these pages. Press any key to stop rotation.
ADJ
Gives access to setup displays related to active display.
A-B
Shortcut to the A-B function (with cursor active on chart display),
which provides bearing and distance from your current cursor position (A) to an arbitrary point (B).
WIN
Toggles between active windows in split screen. The active window
will have a solid red frame. Only active windows are operable.
0-9
The alphanumeric keys inserts and selects data in data displays.
Keys 1-9 are also Quick-range keys, which each represent a fixed
chart range or echosounder range. Key 0 will center the cursor/ship
on the chart or activate auto range in sounder mode.
CLR
Turns cursor off in active display. Deletes data in enter or edit mode.
PWR
Power on - hold key depressed till you have a picture on the screen.
Calls up a window where you can adjust the brightness in the screen,
background light in keypad, and select Daylight displays, Night
display or custom made color palettes. Hold two seconds to turn the
power off.
CE34/44/54 Fundamentals & initial start-up Chapter 2-5
2.3 Menu bar
MENU
Toggles the m enu ba r on /of f
To fit the complete menu bar across the screen, some of the menus
have been abbreviated. However, the last selected menu will be highlighted, and if it’s an abbreviation of the menu, then the complete
menu title is written above the menu bar.
MISCELLANEOUS
1
CHART
2
ECHO
3
PILOT
4
MISC
5
WP/RTE
6
SETUP
1
Wind
2
Speed diagram, etc.
Having selected e.g. 4:MISC from the menu bar, its associated
menus will drop down. Key in the number next to the function you
wish to call forward, or use the cursor key to highlight the function
and press [ENT].
If you want to switch to a different menu, use the cursor key left/
right to move to the adjacent menu.
Most functions in the menus are general, and can be called forward
at any time. Functions not currently available will have a different
color from the rest of the functions. Not all functions are available
in any window size i.e. full screen, half screen or quarter window.
Use the [WIN] key to toggle between the windows in which the
highlighted function can be presented. Keep an eye on the functions
in the menu to see how they may change color as you toggle from
window to window.
The menu bar will disappear from the screen at the selection of a
function, or by pressing the [MENU] key. Besides, if not used, it
automatically turns off after 30 seconds.
WIN
Chapter 2-6 CE34/44/54 Fundamentals & initial start-up
2.4 Menu layout
1
CHART
2
ECHO
3
PILOT
1
Chart
1
50kHz
1
Highway
2
Dual Chart
2
200kHz
2
Position
3
Custom screen 1
3
Dual Frequency (44/54)
3
Dual Speed
4
Custom screen 2
4
Custom screen 1
4
ETA & AVN
5
Custom screen 2
5
Trim & Highway
6
Set & Drift
7
Custom screen 1
8
Custom screen 2
4
MISC
5
WP/RTE
6
SETUP
1
Wind
1
Way points
CHART
C-MAP cartridge
2
Speed diagram
2
Routes
ECHO
Echosounder setup
3
Decca lanes
3
Route calculation
PILOT
Pilot/Position setup
4
Loran C
4
Lines
1
Speed alarm, units &
5
Satellites
5
Tracks
language
6
DGPS
6
Targets
2
Interface setup
7
SDGPS
7
MOB data
3
Palette setup
8
DSC info
8
Data transfer
4
Factory settings
9
Depth & temp.diagram
5
QuickGuide
When selecting a sub-menu in the SETUP menu, the display will always
appear in a pop-up window, so once you have accepted the changes or decided
to just exit the display, then the display will disappear from the screen.
CE34/44/54 Fundamentals & initial start-up Chapter 2-7
2.5 Choice of symbols
Waypoints and other points appearing on the screen can be marked by one of
18 symbols + 8 event marks in small or large symbols:
2.6 Naming of routes, points etc.
First select the key with the desired letter, then you can either repeat the
keystrokes, which will toggle between e.g. A,B,C,1, or once you have selected
one letter you can go back and forth in the alphabet by means of the +/- keys.
Use the cursor key to go to next space or to go back one space if you make a
mistake.
Depending on the selected language, the 0 (zero) key will hold special characters e.g. Æ Ø Å Ä Ö Ü Ñ, and the 9 (nine) key will hold: . - (empty space)
Press the [CLR] key to delete everything from cursor position and to the right
of cursor in that row.
2.7 Initial start-up
When starting up for the very first time, the first time after loading
a new software or after a master reset: Make sure that all hardware
installation and electrical connections are completed in accordance
to the installation instructions.
PWR
Press and hold the [PWR] key until you have a picture on the screen
The system will perform a software update and when finished, a
new start-up window will be presented on the screen (see example
on next page).
Automatic input source setup
Interface has not been set up!
To start automatic input
source setup, make sure that
all connected products are
turned ON, and press ENT.
Start
ENT
∆
∆
Chapter 2-8 CE34/44/54 Fundamentals & initial start-up
After making sure that all connected products are turned ON:
ENT
Press [ENT] to start automatic input source setup, - if a new product
is connected later on, refer to section 8.5 Interface setup.
New window: Automatic input source setup listing Data type, Group
and Source of connected units.
ENT
Press [ENT] to continue
PAGE
Press [PAGE] to scroll through a quick guide which informs of the
use of the keys and where you can enter owner’s setup, etc.
- the quick guide is also accessible via [MENU], [6], [5].
ENT
Press [ENT] when ready to assume normal operation
- go to [MENU], [6], [2] if you wish to make adjustments to the
interface setup.
Heading is only available if a compass was detected at start-up.
PWR
Press [PWR] again to adjust the lighting in the screen and select day
or night display etc., move around in display by means of the cursor
key and change settings with +/- keys, and...
ENT
Confirm with [ENT]
Your present position will automatically be updated within a few minutes. When ready, the ship symbol on the chart will flash, the position
coordinates will stop flashing, and the *** will be replaced by actual
course and speed figures - see section 6.3 Position display.
CE34/44/54 Fundamentals & initial start-up Chapter 2-9
Select display language:
MENU
Call up the menu bar, and...
6,1
press [6], [1] to call up the language display
Press up on the cursor to go to the bottom line in the display
+/-
Select language
ENT
Confirm entry
2.8 Turn power on
Starting up for the first time, or after loading a new software, or
after a master reset - see section 2.7. Starting up at any other time:
PWR
To turn on the CEXX, press and hold the [PWR] key until you have a
picture on the screen
ENT
Press [ENT] when the system is ready
2.9 Turn power off
PWR
Call up INFO window, and...
PWR
Press and hold until the curtains begin to close
The CEXX is now turned off. All the data and setups are saved and
stored in the internal memory and, of course, will be available next
time the unit is turned on.
Chapter 2-10 CE34/44/54 Fundamentals & initial start-up
CE34/44/54 Chart menu and INFO windows Chapter 3-1
3. Chart menu
1
CHART
The displays obtained from this menu
can easily be accessed from the main
function key [CHART] see section 3.1.
1
Chart
2
Dual Chart
3
Custom screen 1
4
Custom screen 2
For safety reasons, navigation with electronic charts should always
be combined with authorized paper charts.
The chart display opens for the built-in world chart, as well as the
optional, detailed C-MAP electronic chart system, which of course
will require that a C-MAP NT+ C-card is inserted in one of the
drawers below the keypad. The chart appearing in full screen with
smaller range as default, is the only chart which can be inserted into
a different display via the menu.
The Dual Chart display will provide a chart in two different scales,
one for detail (smaller range) and one for overview (greater range).
The two custom screens will present multiple window combinations (section 3.1), where the chart with greater range as default will
be fixed in a quarter window. The chart with smaller range will be
fixed in the left half window in both custom screens. Adjustments
can be made individually to each chart (section 3.5).
To access one of the displays via the menu e.g.:
MENU
Call up the menu bar, and...
1,1
press [1] and [1] to call up a Chart in full screen
3.1 Shortcut to the pages in the chart-series
The CHART function is one of the main functions in the CEXX.
Each page under the [CHART] key will include a window representing the chart function. It is not possible to exchange main function
displays with a new display. Refer to section 2.1, 2.1.1 and 2.1.2 for
further information on the display and page system.
Chapter 3-2 CE34/44/54 Chart menu and INFO windows
From any display:
CHART
Long press on the [CHART] key will toggle between:
Chart Dual Chart Custom screen 1 Custom screen 2
From full chart display:
CHART
Short press on the [CHART] key will toggle between different pres-
entations of the data field on the chart e.g.:
3.1.1 Data field on chart
Chart range indicator
(0.11nm) can be set
ON/OFF in ‘Show
range’ - section 3.5
Chart setup under
General.
During chart update/
redraw a progress bar
will cover the chart
range indicator.
Depending on different situations, the data field on the chart display will give
you the ship’s current speed, speed through water, course, *position in lat/
CE34/44/54 Chart menu and INFO windows Chapter 3-3
long, compass and depth indication, bearing and distance to either approaching point or cursor position; together with time and date in local or UTC.
*)Refer to section 5.3 Status indicator and accuracy.
3.1.2 Ship symbol
The ship symbol indicates the present position on the chart and the
vector informs of the actual heading (input from compass) or true
course (course over ground). There is a built-in autohome function
which automatically moves the chart to maintain the ship symbol in
the display (with cursor off).
0 ***
Press [0] to instantly center the ship on the chart (with cursor off).
3.1.3 Cursor function
With chart display active:
Press the cursor key to activate the chart cursor (cross hairs)
CLR
Press [CLR] to turn the chart cursor off
As default (section 3.5 Chart setup under General), the chart cursor
will automatically switch off if not used in the last five minutes. The
chart will update and bring the ship’s position to the center of the
screen.
Use the cursor key to move cursor in any direction on the screen
- the chart will automatically adjust when cursor reaches the edge of
the screen.
0 ***
Press [0] to instantly center the cursor on the chart (with cursor on).
In data displays the cursor will be shown in form of either a ruling
box around the active field, or the active field will be highlighted.
Chapter 3-4 CE34/44/54 Chart menu and INFO windows
3.1.4 Range or zoom function
With chart display active:
1-9
Press one of the numeric keys to quickly change the chart scale:
[1] = 1:600 [2] = 1:2,000 [3] = 1:6,000
[4] = 1:20,000 [5] = 1:60,000 [6] = 1:200,000
[7] = 1:600,000 [8] = 1:2,000,000 [9] = 1:6,600,000
-
Press the minus key to zoom in for details (smaller range)
+
Press the plus key to zoom out for overview (greater range)
Using the extended level range will give the best result when changing chart range. First use one of the numeric keys (Quick-Range
1-9) to select the required chart, then ‘fine tune’ the range within
the same chart level by using the +/- keys. Depending on the actual
chart, you can zoom in or out two to three times before the extended
level range is switched off and the chart changes to a new level of
details.
The extended level range can be toggled OFF/ON in General settings
(default = OFF) - see section 3.5 Chart setup.
Chart details may not be available in all scales in all areas. Noncovered areas will be marked as hatched or all blue/white with
coordinate grid (when Grid is set to AUTO (default) in chart setup),
depending on the actual scale - see section 3.5 Chart setup for more
details in regard to what can be shown on the chart and what you
may choose not to have shown.
The built-in world chart can be zoomed up/down in six steps, from
a scale of approx. 1:33,000,000 to 1:2,000,000.
An over-zoom function enables you to zoom beyond the chart,
which automatically is switched off and replaced by a lat/long coordinate grid. In this mode, the scale can go down to 1:600.
‘Auto chart select’ must be switched OFF, see section 3.5 Chart
setup.
CE34/44/54 Chart menu and INFO windows Chapter 3-5
3.2 Dual Chart display
It is possible to have two charts in different scales on the screen at
the same time, one for detail and one for overview. Each chart can be
operated individually, and each will have its own cursor and individual chart setup.
MENU
Call up the menu bar, and...
1,2
press [1] and [2] to call up the Dual Chart display
WIN
Press the [WIN] key to select active display (red frame).
ENT
Press the [ENT] key to call up the chart’s Quick menu with access to
e.g. Chart info, Lock cursors to the same position in both charts on
the screen, etc. - refer to section 3.4.2 for more details.
ADJ
Press the [ADJ] key to call up the chart setup for the active chart
- refer to section 3.5 for more details.
Chapter 3-6 CE34/44/54 Chart menu and INFO windows
3.3 Chart custom screens
The two custom screens in the chart menu consist of multiple
window combinations e.g.:
The displays, which are not related to the chart function, can be
exchanged with a different one. It is also possible to change the right
half of the screen from two quarter windows to half screen window,
and vice versa. See section 2.1.2 how you go about changing the
displays.
CE34/44/54 Chart menu and INFO windows Chapter 3-7
3.4 Chart quick menu
Access the chart quick menu from active chart display. The functions available depends on the actual situation - refer to sections 3.4.1
to 3.4.7.
3.4.1 Cursor inactive
ENT
With chart in active window, and with cursor off, press [ENT] to call
up the quick menu with the following to choose from:
Scale: 1:6600000 Actual chart scale
No user data
at ship’s position
1
Edit user data
Inactive function
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Inactive function
5
Lock cursors
Inactive function
0
Ship to center
PAGE
More user data
MENU
Exit
Exit info window
0
Ship to center will update the chart and place the ship’s position in
the center of the chart display.
PAGE
More user data will toggle between available data on the ship’s
position.
Chapter 3-8 CE34/44/54 Chart menu and INFO windows
3.4.2 Cursor active but not placed on any object or data
ENT
With chart in active window, and cursor active but not placed on any
object or user data, press [ENT] to call up the quick menu with the
following to choose from:
Scale: 1:6600000 Actual chart scale
No user data
at cursor position
1
Edit user data
Inactive function
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
5
Lock cursors
0
Cursor to center
PAGE
More user data
Inactive function
MENU
Exit
Exit info window
4
Bearing & dist. from A to B will quickly provide the bearing and
distance from your current cursor position (A) to an arbitrary point
(B). Move cursor to point B and see the calculation in the small info
window. Press [CLR] to exit the function.
5
Lock cursors will lock the cursors in two chart displays on the same
screen and thus make the cursor movements synchronized. To return
to individual cursor control in each chart display, press [ENT], [5] to
‘Release cursors’ again. See also ‘Lock cursors’ in Appendix A.
0
Cursor to center will update the chart and place the cursor position
in the center of the chart display.
CE34/44/54 Chart menu and INFO windows Chapter 3-9
3.4.3 Cursor placed on waypoint
ENT
With chart in active window, and cursor placed on a waypoint, press
[ENT] to call up the quick menu with the following to choose from:
WP found
Name: WP 1
LAT 57°15.504N
LON 9°17.249E
1
Edit user data
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Refer to section 3.4.2
5
Lock cursors
Refer to section 3.4.2
0
Cursor to center
Refer to section 3.4.2
PAGE
More user data
MENU
Exit
Exit info window
1
Edit user data opens a new info window:
Waypoint
1
Edit
Edit name, symbol, color etc.
2
Move
Move waypoint with cursor
CLR
Delete
Delete waypoint
MENU
Exit
Exit info window
PAGE
More user data will toggle between available data on cursor’s posi-
tion
Chapter 3-10 CE34/44/54 Chart menu and INFO windows
3.4.4 Cursor placed on route leg or line section
ENT
With chart in active window, and cursor placed on a route leg or line
section, press [ENT] to call up the quick menu with the following to
choose from:
Route leg found: 5-6
Name: RTE 1
Leg: B130° 34.26nm
Total: 5 legs 143.1nm
1
Edit user data
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Refer to section 3.4.2
5
Lock cursors
Refer to section 3.4.2
0
Cursor to center
Refer to section 3.4.2
PAGE
More user data
MENU
Exit
Exit info window
1
Edit user data opens a new info window:
Route leg
1
Edit leg
Open new info window to edit route leg
2
Insert point
Move cursor to insert new point
3
Edit
Open new info window to edit route
CLR
Delete
Delete the whole route
MENU
Exit
Exit info window
PAGE
More user data will toggle between data on routepoint and route
leg.
CE34/44/54 Chart menu and INFO windows Chapter 3-11
3.4.5 Cursor placed on routepoint or linepoint
ENT
With chart in active window, and cursor placed on a routepoint or
linepoint, press [ENT] to call up the quick menu with the following
to choose from:
Routepoint found 5
Name: RTE 1
From start: 108.8nm
To end: 34.26nm
1
Edit user data
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Refer to section 3.4.2
5
Lock cursors
Refer to section 3.4.2
0
Cursor to center
Refer to section 3.4.2
PAGE
More user data
MENU
Exit
Exit info window
1
Edit user data opens a new info window:
Routepoint
1
Edit point
Open new info window to edit routepoint
2
Move point
Move point with cursor
CLR
Delete point
Delete routepoint
3
Add point
Add point to route - in beginning or at end.
4
Edit
Open new info window to edit route
5
Delete
Delete the whole route
MENU
Exit
Exit info window
PAGE
More user data will toggle between data on routepoint and route leg
Chapter 3-12 CE34/44/54 Chart menu and INFO windows
3.4.6 Cursor placed on trackpoint
Trackpoints are not as easily recognized as Routepoints, you may
have to move the cursor along on the track to locate a trackpoint.
ENT
With chart in active window, and cursor placed on a trackpoint,
press [ENT] to call up the quick menu with the following to choose
from:
Trackpoint found 3
Name: TRACK 1
Total: 836 points
1
Edit user data
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Refer to section 3.4.2
5
Lock cursors
Refer to section 3.4.2
0
Cursor to center
Refer to section 3.4.2
PAGE
More user data
MENU
Exit
Exit info window
1
Edit user data opens a new info window:
Trackpoint
CLR
Delete point
Delete trackpoint
1
Delete points from A to B
See below
2
Edit
Open new info window
3
Delete
Delete the whole track
MENU
Exit
Exit info window
Press [1] to delete points from A to B - move cursor to point B, and
press [ENT] to delete all trackpoints between cursor position on
chart and point B.
PAGE
More user data if cursor is placed on a MOB track you can toggle
between data on MOB symbol and data on MOB track. The symbol
and track are edited separately.
CE34/44/54 Chart menu and INFO windows Chapter 3-13
3.4.7 Cursor placed on target
ENT
With chart in active window, and cursor placed on a target symbol,
press [ENT] to call up the quick menu with the following to choose
from:
Target fou nd
Name: TARGET 1
LAT 57°02.825N
LON 7°45.555E
1
Edit user data
2
Chart info
Refer to Appendix C
3
Find nearest port services
Refer to Appendix C
4
Bearing and dist from A to B
Refer to section 3.4.2
5
Lock cursors
Refer to section 3.4.2
0
Cursor to center
Refer to section 3.4.2
PAGE
More user data
MENU
Exit
Exit info window
1
Edit user data opens a new info window:
Target
1
Edit
Edit name, color, position etc.
2
Move
Move point with cursor
CLR
Delete
Delete target
MENU
Exit
Exit info window
PAGE
More user data will toggle between available data on cursor’s posi-
tion
Chapter 3-14 CE34/44/54 Chart menu and INFO windows
3.4.8 GOTO menu
GOTO
Call up the GOTO menu with access to navigation modes:
Select NAV mode To select “Cursor” navigation will require
that the chart cursor is active.
“Waypoint”, “Route” and “Track” navigation requires that a waypoint, route or
track is stored in the memory.
1
Cursor
2
Waypoint
3
Route
4
Track
5
Anchor guard
MENU
Exit
For further details on the different NAV modes, refer to section 5.9
Navigation examples.
Anchor guard - when setting anchor, a pre-set alarm distance will
be activated, so in case the ship is drifting too far away from the
anchored position, the system will initiate a visual and acoustic alert
- refer to section 5.10 Anchor guard.
If pressing the [GOTO] key while one of the NAV modes is active,
this pop-up window will appear on the screen:
Navigation is ON
1
Advance
2
Restart to approaching point
3
Turn NAV OFF
MENU
Exit
Press [1] to advance to next waypoint in the route (Route navigation).
Press [2] if you for some reason have drifted off course and wish to
restart navigation from your actual position to the approaching point.
CE34/44/54 Chart menu and INFO windows Chapter 3-15
3.4.9 PLOT menu
The CEXX is designed to make navigation easy and safe. Waypoints
can easily be plotted with a single keystroke, or be inserted via the
keypad. Making routes and drawing lines are done directly on the
chart. Very straightforward, uncomplicated and with a high level of
confidence as you can follow your actions ‘live’ on the chart.
PLOT
Call up the PLOT menu with the following to choose from:
PLOT new data
PLOT
Plot mark - ship
1
Insert mark - ship
2
Plot waypoint - cursor
3
Insert waypoint
4
Make route
5
Draw line
6
Plot target
7
Start track
8
Stop track
9
Set vertical mark
MENU
Exit
PLOT
From any display: Plot and save mark on ship’s position, including
actual depth indication. Preset name sequence: SHIP 1, SHIP 2 etc.
1
From any display: Plot and save waypoint. Ship’s position is sug-
gested, but you can key in a new position from keypad, change the
location name (cf.section 2.6), or change the symbol (cf.section 2.5)
and the color (select with +/- keys). Any changes made will be new
presets for plotting/insertion of ship’s position.
2
From active chart display with cursor on: Plot and save cursor posi-
tion as a waypoint. Preset name sequence: WP 1, WP 2 etc.
3
From any display: Plot and save waypoint. The position coordinates
are filled with zeroes, so you can key in the position you want from
Chapter 3-16 CE34/44/54 Chart menu and INFO windows
the keypad, change the location name (cf.section 2.6), or change
the symbol (cf.section 2.5) and the color (select with +/- keys). Any
changes made will be new presets for plotting/insertion of the cursor
position.
- From active chart display with cursor on: Same options as above,
except that the zeroes in the position coordinates have been
exchanged with the cursor position.
- From active echo display: Plot and save waypoint from echogram.
Move cursor and press [ENT] to register spot as waypoint, including
actual depth indication. Name, symbol, color etc. can be changed.
4
From active chart display with cursor on: You can quickly make a
route by means of the cursor and the [PLOT] key. The present cursor
position will be the first position of the route you are about to make.
Move cursor to next position, and press [PLOT]. Continue in this
manner until the route is completed.
Existing waypoints can be used for making the route, simply by
placing the cursor on the waypoints and plot the positions. In case
you make a wrong plot, press [CLR] to erase the last plotted position. Save the route with [ENT] or exit the function with [MENU] to
abandon the route.
Do not use the exact position of buoys, markers etc. as waypoints
and routepoints. The high accuracy of the system may result in a collision when sailing in the dark or navigating with an autopilot.
5
From active chart display with cursor on: To draw lines or to make a
route is the same procedure, please see above.
6
From active chart display: With cursor on, plot target at cursor posi-
tion and with cursor off, plot target at ship’s position.
After plotting the target it will be saved in the memory, and you can
edit the target later on, either via the menu (cf.section 7.7) or directly
from the chart (cf.section 3.4.7).
7
From any display: Call up info window to start track. To change
default values, see section 7.5.
8
From any display: Call up info window to stop track.
9
From active echo display: Plot vertical marker (line) at the current
ping in the echo display.
CE34/44/54 Chart menu and INFO windows Chapter 3-17
3.5 Chart setup
The settings are dedicated to the chart in the active window and does
not affect the second chart in dual chart mode.
ADJ
Load chart setup related to active chart
◄
GOTO
Presentation Dep
PLOT
►
Display mode FULL
Orientation NORTH UP
Rotation resolution 15°
Motion RELATIVE
Quick chart info ON
Cursor 5 min.time-limit ON
Auto chart select ON
Extended level range OFF
Show range WITH BACKGROUND
MENU
Exit Accept
ENT
The tabs indicate which groups are available in each display mode
e.g. the above example shows that in FULL display mode you have
access to the groups in black: General, Areas and User data. The
two groups in red i.e. Presentation and Depth are only adjustable
in CUSTOM display mode. See further on in this chapter for more
details.
+/-
Select display mode: FULL, CUSTOM, SIMPLE, FISHING, LOW,
GRID
PLOT
Go to the next group
GOTO
Step back to the previous group
Scroll up/down in the chart settings
∆
∆
General
Chapter 3-18 CE34/44/54 Chart menu and INFO windows
+/-
Toggle between available settings
ENT
Confirm changes and return to chart, or...
MENU
Abandon Chart setup and return to chart without making any
changes
3.5.1 Display modes in the chart setup
There are 6 different display modes to choose from: FULL (default), CUSTOM,
SIMPLE, FISHING, LOW, and GRID mode. When a group is shown in red or
a function is shown in light grey it means that it is not available in the selected
display mode. The default settings in the various display modes are:
Group: General - specification of chart display in general
The available functions are according to display example on previous page for
all display modes, except for GRID, which has three adjustable functions:
Motion = RELATIVE
Cursor 5 min. time-limit = ON
Show range = WITH BACKGROUND
Group: Presentation - specifies presentation of marine, land and chart topics
The default settings in this group are fixed in all display modes, except for
*Custom where it is possible by the user to turn a feature ON (shown on the
chart) or OFF (not shown on the chart), etc.
C-MAP features are not available in GRID display mode.
C-MAP features
Full *Custom Simple Fishing Low
Marine:
Names
Nav-Aids
Light Sectors
Attention Areas
Tides, currents
Nature of seabed
Ports
Tracks, routes
Buoys
Signals
ON
INT
ON
ON
ON
ON
ON
ON
ON
ON
ON
INT
ON
ON
ON
ON
ON
ON
ON
ON
ON
INT
OFF
ON
ON
OFF
ON
OFF
ON
ON
ON
INT
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
INT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
.....continued next page....
CE34/44/54 Chart menu and INFO windows Chapter 3-19
.....continued from previous page....
C-MAP features
Full *Custom Simple Fishing Low
Land:
Natural features rivers
Natural features
Cultural features
Landmarks
Chart:
Grid
Boundary lines
Mixing levels
Declutter
ON
ON
ON
ON
AUTO
AUTO
ON
ON
ON
ON
ON
ON
AUTO
AUTO
OFF
ON
ON
OFF
OFF
ON
AUTO
AUTO
OFF
ON
OFF
OFF
OFF
OFF
AUTO
OFF
ON
ON
OFF
OFF
OFF
OFF
AUTO
OFF
OFF
ON
Group: Depth - specifies the presentation of depth lines, levels, etc. on chart
The default settings in this group are fixed in all display modes, except for
*Custom where it is possible by the user to alter the features. The color indication for depth levels 1, 2 and 3 is determined by the color palette in the SETUP
menu.
C-MAP features are not available in GRID display mode.
C-MAP features
Full *Custom Simple Fishing Low
Soundings
Underwater objects
Depth Lines
Depth Lines>
Depth Lines<
Depth Areas
Depth
Level 1
Level 2
Level 3
ON
ON
ON
0000m
9999m
ON
0-002m
2-009m
9-MAX
ON
ON
ON
0000m
9999m
ON
0-002m
2-009m
9-MAX
ON
ON
ON
0000m
5m
ON
0-002m
2-009m
9-MAX
ON
ON
ON
0000m
9999m
ON
0-002m
2-009m
9-MAX
OFF
ON
OFF
0000m
5m
OFF
0-002m
2-009m
9-MAX
Chapter 3-20 CE34/44/54 Chart menu and INFO windows
Group: Areas - defines the presentation of different areas on chart.
The default settings in this group are the same for all display modes, except
GRID, which do not include C-MAP features. The features can be changed
from FILLED to CONTOUR:
C-MAP features
All display modes
Land areas
Depth areas
Caution areas
Dredged areas
FILLED
FILLED
FILLED
FILLED
Group: User data - user defined objects can be visible or invisible on chart.
The default settings in this group are the same for all display modes and any
change of the default settings will be applied in all display modes.
Chart features Defaults and choice of settings
Waypoints
Non active waypoints ON
Waypoint names ON
Waypoint depths ON
Routes
Non active routes AS SELECTED
Route names ON
Tracks
Non active tracks AS SELECTED
Track names ON
Lines
Lines AS SELECTED
Line names ON
Targets
Targets AS SELECTED
Target names ON
All the features in the user data
that are set as default to ON= shown
on chart, can be changed to OFF= not
shown on chart.
Non active routes and tracks, all lines
and all targets are default to:
AS SELECTED= the choices made
for a particular route etc via the menu
e.g. MENU, 5, 2, ENT, ENT - Edit
route, where ‘Course line’ can be set
ON or OFF.
‘AS SELECTED’ can also be changed
to ‘ALL ON’= shown on the chart,
or ‘ALL OFF’= not shown on the
chart.
CE34/44/54 Chart menu and INFO windows Chapter 3-21
3.5.2 Description of chart features
Auto chart select - When sailing with ‘Auto chart select’ ON and cursor
turned off, the range will automatically change to match the chart which is
available. But when set to OFF, then the selected range will remain, also when
sailing ‘out of the chart’.
Boundary lines - will indicate available C-MAP chart areas.
Caution areas - can be set to FILLED or CONTOUR.
FILLED= The caution areas will be filled with a preset color from C-MAP.
CONTOUR= The caution areas will be shown with a contour line only and the
fill will be the same as the background/water color on the chart.
Cursor 5 min. time-limit - can be set ON or OFF. When set to ON, the chart
cursor will automatically turn off if not used in a period of five minutes.
Declutter - when set to ON there will be no overlapping text on the chart e.g.
Names, Spot soundings etc.
Depth: Level 1, 2 and 3 - are identified by different colors. The number of
meters in the levels can be changed. The colors are preset in the Palette setup.
Depth areas - can be set ON or OFF= Not shown on chart.
FILLED - the depth areas will be filled with the color preset in the Palette
setup.
CONTOUR - the depth areas will be marked by a contour line only, and the
fill will be the same as the background/water color on the chart.
Depth lines - can be set ON or OFF= Not shown on chart.
Dredged areas - can be set to FILLED or CONTOUR.
FILLED= The dredged areas will be filled with a preset color from C-MAP.
CONTOUR= The dredged areas will be shown with a contour line only, and
the fill will be the same as the background/water color on the chart.
Extended level range - will enable changing range 3-4 steps within the same
chart level after having selected the range via a numeric key.
Grid - the LAT/LON grid can be set to ON or AUTO
ON= The LAT/LON grid will be visible on the chart display all the time.
AUTO= The LAT/LON grid will appear on the chart display when there is no
actual chart available in the selected scale.
The color of the grid is preset in the Palette setup.
Chapter 3-22 CE34/44/54 Chart menu and INFO windows
Land areas - can be set to FILLED or CONTOUR.
FILLED= The land areas will be filled with a preset color in the Palette setup.
CONTOUR= The land areas will be shown with a contour line only and the
landfill will be the same as the background/water color on the chart.
Land settings -
can all be set ON=Shown on chart or OFF=Not shown on chart.
Marine settings
- can all be set ON or OFF, except for Nav-Aids which can be
set to INTERNATIONAL, INT. SIMPLIFIED, US, US SIMPLIFIED or OFF.
INTERNATIONAL - will present NavAids in ‘real life’ shapes and colors for
quick visual recognition (as per official INT1 standard paper chart presentation).
INT. SIMPLIFIED - the NavAids will be shown in generic symbols for minimum visual clutter on-screen.
US - will present NavAids in simplified shapes and real colors (as generally
found on NOAA paper charts).
US SIMPLIFIED - the NavAids will be shown in generic symbols for minimum visual clutter on-screen.
OFF - will shown no Nav-Aids on the chart.
Mixing levels - when set to ON, the number of blank chart areas will be
reduced, as the C-MAP library will find the missing area in a different level
to cover the blank area otherwise left on the screen. However, when using this
feature, chart re-draw time will be increased a little.
Orientation - can be set to NORTH UP, COURSE UP or NAV UP, and the
mode can be RELATIVE or TRUE motion.
COURSE UP - the chart will always be presented as north up.
HEAD UP - the chart will automatically turn, so your actual course (COG)
is up. If chart cursor is active it will stop the chart from rotating, press [CLR]
to turn cursor off. If a compass is connected, the reference will automatically
change to heading (compass).
NAV UP - the chart will automatically turn, so your bearing to destination is
up. If chart cursor is active it will stop the chart from rotating, press [CLR] to
turn cursor off.
RELATIVE motion - the ‘ship is positioned at the center of the screen and the
chart will move.
TRUE motion - the ‘ship’ will move across the chart.
Quick chart info - placing the chart cursor on a C-MAP object will activate a
small info window with details on the object. Info window will automatically
close after 10 seconds or when cursor is moved away.
Rotation resolution - can be set to adjust the chart for each 5, 10, 15, 20 or
25° changes in relation to present course or heading.
CE34/44/54 Chart menu and INFO windows Chapter 3-23
Show range - can be set to WITH BACKGROUND, ON or OFF:
WITH BACKGROUND - will add a small line to the chart display indicating
that the length of the line equals a certain number of nautical miles/km - the
indication is highlighted with a background color.
ON - same as above, but without background color.
OFF - indication is not shown on chart.
Soundings -
can be set to ON or OFF.
ON - the information will be shown as selected i.e. in feet, fathoms or meters.
OFF - soundings are not shown on chart.
Underwater objects - can be set ON or OFF= Not shown on chart.
Chapter 3-24 CE34/44/54 Chart menu and INFO windows
CE34/44/54 Echo menu Chapter 4-1
4. Echosounder operation
The echosounder function of the CEXX determines the distance
between its transducer and underwater objects such as fish, lake
bottom or sea bed. It does this by utilizing the fact that an ultrasonic
wave transmitted through water travels at a nearly constant speed
of 4800 feet (1500 meters) per second. When a sound wave strikes
an underwater object such as fish or sea bottom, part of the sound
wave is reflected back toward the source. Thus by calculating the
time difference between the transmission of a sound wave and the
reception of the reflected sound wave, the depth to the object can be
determined.
The entire process begins in the display unit. Transmitter power is
sent to the transducer as a short pulse of electrical energy. The electrical signal produced by the transmitter is converted into an ultrasonic signal by the transducer and transmitted into the water. Any
reflected signals from intervening objects (such as a fish school)
are received by the transducer and converted back into an electrical signal. It is then amplified in the amplifier section, and finally,
displayed on the screen.
The picture displayed is made up of a series of vertical scan lines
(pings), one for each transmission. Each line represents a ‘snapshot’
of what has occurred beneath the boat. The series of snapshots are
accumulated side by side across the screen, and the resulting contours of the bottom and fish between the bottom and surface are
displayed.
Selecting echosounder displays
The CEXX provides various types of echosounder displays: standard echogram, bottom expansion (zoom), VRM expansion, and shift
mode. Each display has its special advantages. Select the appropriate setup for the echosounder display in the presentation “Setup”
and “Echosounder setup” displays, considering current sea area and
target fish.
Chapter 4-2 CE34/44/54 Echo menu
4.1 Echo menu
2
ECHO
1
50kHz (or 38kHz CE44/54)
2
200kHz
3
Dual frequency (CE44/54)
4
Custom screen 1
5
Custom screen 2
Low and high frequency echosounder display can be set up separately. The low frequency display will show deep water bottom
contours, and the high frequency display will show the mid-water
section with trawl targets or bait fish in a higher resolution.
The Dual frequency display (not available in CE34) will provide
both the 50kHz and the 200kHz echo displays in one screen.
The two custom screens will present multiple window combinations
(section 4.2), where one of the main echo displays i.e. 50kHz or
200kHz will be fixed in the left half of the screen. Adjustments can
be made individually to both displays (section 4.7).
To access one of the displays via the menu e.g.:
MENU
Call up the menu bar, and...
2,2
press [2] and [2] to call up the Echo display for 200kHz in full
screen - see display example on next page.
4.2 Shortcut to the pages in the echo-series
The ECHO function is one of the main functions in the CEXX. Each
page under the [ECHO] key will include a window representing the
echo function. It is not possible to exchange main function displays
with a new display. Refer to section 2.1, 2.1.1 and 2.1.2 for further
information on the display and page system.
CE34/44/54 Echo menu Chapter 4-3
From any display:
ECHO
Long press on the [ECHO] key will toggle between:
200kHz Dual Frequency Custom screen 1 Custom screen 2
(CE44/54)
4.3 Standard echo display
This is the basic presentation mode (standard display) for observing
fish schools and sea bed. Some surface noise may appear just below
the transmission line.
Transmission line.
Time scale.
Depth range is adjustable with +/- keys or
the Quick-range keys
1-9.
Press key 0 to return
to Auto range.
The data field is preset to show: Gain level, Frequency, Transmit
pulse length A- SHORT (set to AUTO), Transmit power A- 10W
(set to AUTO), see section 4.7.
Water temperature T in Celcius or Fahrenheit (in 1/10 degrees),
water or SOG speed S in knots or kilometers/hour or miles/hour,
actual depth *DK - units can be changed in Setup for units
(MENU,6,1).
*) Actual depth i.e. Depth below Keel/Surface/Transducer - settings
can be changed in Echosounder setup (MENU,6,ECHO).
Chapter 4-4 CE34/44/54 Echo menu
1-9
Select range in 9 steps
+/-
Adjust range with the + and - keys
0
Activate Auto range
Press cursor left/right to adjust gain
ADJ
Direct access to Setup display related to active echo display 50kHz
or 200kHz - (see section 4.7)
Use the cursor to go to the function you wish to change the value for
+/-
Toggle between available values
ENT
Confirm changes, or...
MENU
Abandon changes and exit Setup display
4.4 Variable range marker
The VRM (Variable Range Marker) refers to a horizontal black line
shown on the display screen. The user can measure the range to
targets shown on the display screen by use of the VRM. The depth
to the VRM can be seen in the top left side of the screen for a few
seconds after the VRM line is moved.
From active echo display:
Activate the Variable Range Marker function, and...
Move the VRM up/down
+/-
Adjust the range by means of the +/- keys
CLR
Turn VRM off again
CE34/44/54 Echo menu Chapter 4-5
4.5 Echo quick menu
A number of echo features can easily be accessed from the Echo
quick menu.
From active echo display:
ENT
Call up the Echo quick menu with access to the following features:
Echo quick menu
1
Change frequency
2
Hide A-scope
3
Standard Echo display
4
Bottom lock display
5
Zoom display
6
Shift display
ECHO
Transmit power off
MENU
Exit
1
Change frequency will toggle between 38 (CE44/54), 50 or 200 kHz
displays (Airmar transducers) to suit the task. 200 kHz is for general
purpose and offers optimum discrimination and a narrow transmitter beam. 38/50 kHz is for searching in a wider area, determining
bottom conditions and going the deepest.
2
Hide/Activate A-scope The amplitude scope at the right side of the
echo display indicates the precise amplitude or strength of the last
received ping (sounding), which often can be used for determining
individual species of fish or hardness of the bottom.
3
Standard Echo display Return to the basic presentation mode
(standard display) from echo display with an added feature e.g.
bottom expansion, VRM expansion, etc.
4
Bottom lock display The advanced bottom lock and expansion
feature ensures a reliable depth readout and provides a compressed
standard display in the upper half of the display. The bottom area
can be magnified for better separation of echoes. The actual range of
Chapter 4-6 CE34/44/54 Echo menu
the expansion window can be adjusted in the Setup display.
5
Zoom display This feature will provide an expanded view of the
area near the *Variable Range Marker which will give a better separation of echoes. The actual range of the expansion window can be
adjusted in the Setup display.
*) see section 4.4.
6
Shift display This feature can be applied when operating in deep
waters. Select the range for an expansion window. The expansion
window can automatically follow a changing bottom or be set manually by the +/- keys.
ECHO
Transmit power off Stop transmission in order to observe noise
picked up by the transducer.
MENU
Abandon the Echo quick menu without making any changes
4.6 Plot waypoint or event mark via PLOT menu
From active echo display:
PLOT
Call up the PLOT menu with the following to choose from:
9
Set vertical mark will plot a vertical marker (line) at the current
ping.
- or you can plot the position of a given echo on the chart:
3
Insert waypoint will activate a cursor on the echo display
Move cursor to the echo which position you wish to place as a way-
point
ENT
Press [ENT] to register the waypoint on the echo display
A new info window will open where you can change the name of the
waypoint, adjust the position if necessary, change symbol and color
of the waypoint. When satisfied with the information in the info
window:
ENT
Press [ENT] to save waypoint
CE34/44/54 Echo menu Chapter 4-7
4.7 Presentation setup
The general Echosounder setup e.g. Selecting transducer, Alarm settings, Demo mode etc. is placed in the SETUP menu (section 8.2).
The echo setup in this chapter are the most common settings for
adjusting the presentation of the high or low frequency echo picture,
and can be accessed by a single keystroke.
ADJ
Press [ADJ] from active echo display
Setup 200kHz:
Range start: 000 m
Range: AUTO 25 m
Gain: 050%
White line: OFF
Expansion window: 6 m
TVG: Normal (20 log R)
Ping to ping filter: ON
Signal threshold: OFF
Color threshold:
OFF
Depth grid: OFF
Transmit pulse length: AUTO
Transmit power: AUTO
Scroll synchronization: TIME
Scroll speed: HIGH
Use the cursor key to move cursor around in the display
0-9
Key in new figures, or...
+/-
Toggle between available values
ENT
Confirm changes, or...
MENU
Abandon changes and exit display
Range start – allows the user to set the displayed depth range to
begin at some point below the surface. For example, a 100 meter displayed range can be “phased” downwards, so that the screen shows
a 100 meter section beginning at, say, 200 meters and going to 300
meters depth.
Range – refers to the distance shown from the top to the bottom of
Chapter 4-8 CE34/44/54 Echo menu
the display screen. Selecting Auto range will cause the CEXX to
change the basic range setting(s) to keep the displayed bottom in
the lower half of the display. For instance, as your boat moves into
deeper waters, the system will automatically switch to a deeper
range, always keeping the displayed bottom in the lower half of the
display. Manual range allows the operator to set the range displayed
on the screen.
Gain – is another way of saying “sensitivity”, or possibly “volume”.
Increasing the gain setting of the CEXX will allow you to see smaller
and deeper targets. If the gain is set too high, however, you will begin
to see “noise” and unwanted targets. Generally speaking, you want to
set the gain control just below the point that you begin to see speckles
of “noise” between surface and the bottom on the screen.
White line – is a control which places a white/black line at the
displayed sea floor and blanks out 4 pixels just below the line. The
purpose of this is to help the user detect targets, such as fish, which
are very close to the sea floor and whose echoes tend to merge with
those of the sea floor itself.
Expansion window (zoom level) – can be selected in eight steps,
ranging from 1 to 50 meters, or converted to feet or fathoms (refer
to Setup for units, section 8.4). This function allows you to take a
closer look at a particular section of the water underneath your boat.
You can expand the view near the bottom (Bottom expansion) or
near the Variable Range Marker (VRM expansion).
TVG – Time Varying Gain – is a control that allows the CEXX to
make corrections for most of the losses and absorption that occurs as
sound energy passes through sea water. There are three settings to
choose from, Normal, Special and OFF.
The setting “Normal (20 log R) is for general fish finding at depths
down to 50m (150’) and it will also give a uniform bottom echo presentation at shallow, mid and deep water.
The setting “Special (40 log R) will adjust the TVG to show the same
echo strength for a given size fish at varying depths.
The OFF position is used for net sounders. In OFF position the TVG
is inactive which means that the sounder operates with a fixed gain
between each transmitter pulse. Auto range is switched to manual.
Ping to ping filter – can be set to either on or off. With the filter
“off”, then each received echo will be reflected on the screen.
Whereas with the filter “ON”, the system will compare every two
CE34/44/54 Echo menu Chapter 4-9
echoes received and only reflect on the screen what is received from
both echoes, which will give a more uncluttered recording.
Signal threshold – can be set to ON to eliminate the appearance
of unwanted noise. The threshold level is automatic and the feature
should be used with caution, as it may eliminate small fish and small
unidentified objects on the screen.
Color threshold – the color threshold function allows the “weaker”
targets and noise which may be shown on the display screen to be
eliminated from the display. These targets are usually shown in the
weaker target colors such as blues and greens. The Color threshold allows you to choose not to display the blues, or the blues and
greens, etc. Doing this will leave only the stronger targets on the
display screen.
Depth grid - enables a more precise reading of depth and target relations across the screen.
Transmit pulse leng th – can be set OFF to observe noise in the
water (Auto range will switch to manual mode). Set to AUTO, the
optimum setting will be applied according to the water depth. Or it
can be set manually, if a specific pulse length is required:
SHORT less than 10m deep water
MEDIUM between 10 and 50 m deep water
LONG more than 50m deep water
A long pulse will reach deeper but give less resolution.
Transmit power – should normally be left on AUTOmatic.
CE34 settings are: AUTO, 600W, 100W, 10W and OFF.
CE44/54 settings are: AUTO, 1000W, 500W, 100W, 10W and OFF.
Scroll synchronization – the screen can be updated on the basis of
time or distance (when data from last ping appears on the display).
Scroll speed – is the ping rate and movement of the presentation of
echoes on the screen, moving from right to left. It is adjustable (Low,
Medium, High, Freeze), to allow the user to show a longer “history”
on the display screen, if desired.
Chapter 4-10 CE34/44/54 Echo menu
4.8 How the echosounder works
When the CEXX is turned on, a transmitter begins
to send electrical pulses to the transducer. The
ceramic resonators in the transducer has a special
property which enables it to change dimensions
slightly when a varying voltage is applied.
The voltage is thus converted to mechanical vibrations (sound waves) which are then transmitted down
through the water.
See Fig. 1.
Fig. 1 Transmi ed ‘ping’
from the transmi er/receiver.
The sound waves move through the water until they
encounter a change in density, such as a fish or the
bottom. This causes the sound waves to ‘echo’ back
up through the water. When the reflected sound
waves (echoes) hit the transducer, the ceramic disk
vibrates at the same frequency. This generates a
varying voltage between the disk surfaces. This voltage goes back up through the cable to the receiver.
The CEXX amplifies and processes the signals and
presents them on the display screen.
See Fig. 2.
Fig. 2 The up arrow indicates:
Echo returning to the receiver.
The down arrow indicates:
Transmi ed pulse.
CE34/44/54 Echo menu Chapter 4-11
4.9 Transducer beamwidth
The transducer mounted to the hull of your vessel serves as both
a ‘speaker’ when transmitting, and as a ‘microphone’ when the
echosounder is receiving. Similar to the way a flashlight focuses
light, most of the sound from your transducer is focused downwards
with a smaller amount going out to the sides. The amount of focusing
of the sound beam is expressed as a ‘beamwidth’.
Transducer
Approximation of the sound
pattern below the transducer
This angle is the transducer’s
beamwidth
1/2 maximum intensity
Maximum intensity
Fig. 3 A representation of a transducer bemwidth.
The center of the sound beam is the most intense, then as you move
out towards the sides of the sound beam there is a point where the
intensity of the sound is half what it was in the center. The distance
moved is the ‘beamwidth’. See Fig. 3.
Chapter 4-12 CE34/44/54 Echo menu
4.10 Effects of the vessel’s speed
The presentation of fish on the CEXX depends directly on the vessel’s speed, as well as on the depth of the fish. When the vessel is
at rest, the echo traces will appear stretched and flattened. As the
vessel’s speed becomes greater, the echo traces will become shorter
and more arched. The reason for this change in appearance is that as
the vessel speed increases, fewer number of sound ‘pings’ strike each
fish. A low vessel speed will provide the most accurate information
of where fish are loacted.
CE34/44/54 Pilot menu & navigation examples Chapter 5-1
5. Pilot menu
3
PILOT
1
Highway - see section 5.2 & 5.2.1
2
Position - see section 5.3
3
Dual Speed - see section 5.4
4
ETA & AVN - see section 5.5
5
Trim & Highway - see section 5.6
6
Set & Drift - see section 5.7
7
Custom screen 1 - see section 5.8
8
Custom screen 2 - see section 5.8
See also section 5.10 Anchor guard, section 5.11 MOB navigation
and 5.9 Navigation examples.
All functions in the Pilot menu are relevant information to use for
navigation. The two custom screens will present multiple window
combinations (section 5.1), where the window in the top left quarter
of the screen will present a fixed display from the pilot menu.
To access one of the displays via the menu e.g.:
MENU
Call up the menu bar, and...
3,1
press [3] and [1] to call up the Highway display in full screen
5.1 Shortcut to the pages in the pilot-series
The PILOT function is one of the main functions in the CEXX. Each
page under the [PILOT] key will include a window representing the
pilot function. It is not possible to exchange main function displays
with a new display. Refer to section 2.1, 2.1.1 and 2.1.2 for further
information on the display and page system.
Chapter 5-2 CE34/44/54 Pilot menu & navigation examples
Press the [PILOT] key from any display to call up a display in the
pilot-series, and:
PILOT
Long press on the [PILOT] key will toggle between (default):
Highway Custom screen 1 Custom screen 2
From one of the pilot displays i.e. full screen and active window in
the top left quarter:
PILOT
Short press on the [PILOT] key will toggle between:
Highway Position Dual Speed
ETA & AVN Trim & Highway Set & Drift
The sequence of the six displays under the [PILOT] key is available
when a navigation mode is active. If no navigation mode is active,
then the ETA & AVN and the Trim & Highway displays will not be
present in the sequence.
CE34/44/54 Pilot menu & navigation examples Chapter 5-3
5.2 Highway display and Navigation setup
MENU
Call up the menu bar, and...
3,1
load Highway display
When there is no navigation mode active, you will receive the
legend: NAVIGATION IS OFF.
Before starting out in one of the navigation modes, it may be a good
idea to check out the Navigation setup display and see if the default
settings will suit your need.
ADJ
Load Navigation setup
Navigation setup:
Anchor alarm distance: 00.50nm
WP circle alarm: 00.10nm OFF
WP and cursor navigation:
XTE alarm: 00.10nm ON
Navigation mode: RHUMBLINE
Route navigation:
XTE alarm: OFF
Auto waypoint shift: WP-circle
Track navigation:
XTE alarm: 00.10nm OFF
Auto trackpoint shift: WP-circle
Navigation mode: RHUMBLINE
+/-
Toggle between available values, or...
0-9
key in a new alarm limit
ENT
Confirm entry
Anchor alarm distance - When setting anchor, check/change the
preset alarm distance, etc., so you will be warned in case you drift
too far from the anchored position. The alarm distance can be set to
anywhere between 0.01 and 9.99nm. See also section 5.10 Anchor
guard. The alarm will automatically reset once you are inside the
limits again.
WP circle alarm - forms a circle around each waypoint, and the
alarm distance can be set to anywhere between 0.01 and 9.99nm.
Chapter 5-4 CE34/44/54 Pilot menu & navigation examples
The waypoint alarm will be activated when you reach the circle
or the perpendicular line - WP line alarm - crossing through the
waypoint. When “Auto waypoint shift” is set to “WP-circle” it will
override the “WP circle alarm” function.
XTE alarm - forms a corridor along the ideal track. When crossing
one of the boundaries the XTE alarm will be activated.
The alarm will automatically reset once you are inside the limits
again. The alarm distance can be set to anywhere between 0.01 and
9.99nm.
In Route navigation the XTE alarm value can be specified for each
route leg - see section 7.2.
Navigation mode - RHUMBLINE navigation is used for shorter
distances, and GREAT CIRCLE for long trips, especially when
crossing at high latitudes. COMPOSITE navigation is used when all
the legs in a route are not set to the same navigation mode.
Auto waypoint shift - can be set to WP-circle, WP-line or OFF.
When set to WP-circle, the system will change to the next waypoint
in the route after passing the circle line (border).
When set to WP-line, the system will change to next waypoint in the
route after passing the waypoint line (border).
When “Auto waypoint shift” is set to WP-circle, then the alarm
function at the waypoint’s circle will not be activated.
CE34/44/54 Pilot menu & navigation examples Chapter 5-5
5.2.1 Highway display when navigation mode is active
MENU
Call up the menu bar, and...
3,1
load Highway display
With navigation mode active, the highway display will provide a
graphical steering display:
Intended
track
between two
waypoints.
XTE alarm
lines - refer
to sec.5.2 for
alarm setup.
Ship’s position and
course in
relation to
intended
track.
C: Course over ground
X: XTE - Cross-track-error
S: Speed over ground
B: Bearing to approaching point
D: Distance to approaching point
V: Speed towards point
Route: Name/number of active route and aproaching routepoint
BN: Bearing to next point
TDG: Total distance to go to end of route
TTG: Total time to go to end of route
Internal POS
15-03-2004
Chapter 5-6 CE34/44/54 Pilot menu & navigation examples
5.3 Position display
MENU
Call up the menu bar, and...
3,2
load the Position display
Datum currently
selected.
Trip log 1 and 2.
Position with three
decimals in minutes.
Speed over ground.
Course, magnetic or
true.
Depth or Compass
from external sensor.
UTC or local time and date - Time and date in UTC - Universal
Time Coordinates - is equal to standard time in London (GMT).
UTC is not affected by the local summertime adjustments.
Position update - if, for some reason, there is no position update
from GPS or external sensor, the displayed position will start to flash
and an alarm will be activated to alert the operator. Reset the ‘Position missing’ alarm by [CLR]. The alarm can be set ON/OFF - see
section 6.5. The displayed position will stop flashing once normal
position update is resumed.
Internal POS - indicates the source of position data i.e. Internal,
External or DeadReckoning.
GPS A - Status indicator for reception of satellites:
a (A)= good, b (B)= acceptable, c (C)= fair, or *= no update - see
also “Status indicator and accuracy” below.
With built-in or connected DGPS receiver:
dGPS= differential data received.
DGPS= differential data received and used for corrections.
SDGPS= satellite differential data received and used for corrections.
CE34/44/54 Pilot menu & navigation examples Chapter 5-7
Status indicator and accuracy
Small letters (a,b,c,) indicate that SA is active, and the position
accuracy is expected to be better than 100 meters in 95% of the time.
Capital letters indicate that SA is OFF, and the position accuracy is
then expected to be 15 meters or better in 95% of the time.
dGPS indicates that differential data is received, either via built-in
differential receiver or from external receiver.
DGPS or SDGPS indicates that the position is corrected by the differential data. The accuracy will typically be 2-5 meters for DGPS
and 3-7 meters for SDGPS.
In order to utilize the high accuracy of the GPS system, it is necessary to align the lat/long calculations to the paper charts you are
using. Refer to Position display setup below.
When using C-MAP electronic charts, the datum will be aligned
automatically.
Position display setup
The general Position setup e.g. Display position as: LAT/LON,
Decca or Loran C, etc. is placed in the SETUP menu (section 8.3).
ADJ
From position display, press [ADJ] to load Position display setup:
Pos display setup:
Datum: 000: World Geodetic System 1984
Log 1: 00000.0n m
Log 2: 00000.0nm
Additional data: COMPASS
Go to the function you wish to change
CLR
Reset log
Chapter 5-8 CE34/44/54 Pilot menu & navigation examples
0-9
Key in new values, or...
+/-
Toggle between available values
ENT
Confirm editing and return to the Position display
Datum - is preset to WGS 1984 (World Geodetic System 1984), but
can be changed to any of the 118 datums listed in Appendix B e.g.
to match old paper charts or trackplotter data from RS2500/RS4000
(datum #002 European 1950).
The position in the position display and NMEA output (GLL+GL2)
will refer to the selected datum. To select a new datum: place the
cursor next to “Datum” and key in a new number or go two spaces to
the right (000
) and leaf through the datum list with +/-.
The datum in the chart display is fixed i.e. WGS84.
Log - reset log or insert alternative start figure by altering the value
in the “Log 1” and/or “Log 2” line. Press [CLR] to reset the figure,
and press the numeric keys 0-9 to alter the figure.
Additional data - can be set to COMPASS, DEPTH or ANT.
HEIGHT.
COMPASS will show heading from connected sensor.
DEPTH will be shown from built-in echosounder.
ANT. HEIGHT will indicate the actual antenna altitude (height
above sea level).
Internal POS
CE34/44/54 Pilot menu & navigation examples Chapter 5-9
5.4 Dual speed display (trawling speed display)
The analogue differential speed indicator will show how much the
present speed varies from the average speed.
If the difference exceeds +/- 3 knots (or km/h or miles/h), an arrow
will appear which will be pointing out of the scale.
MENU
Call up the menu bar, and...
3,3
load Dual Speed display
Water speed
readout from
connected
log transducer.
Position with three decimals in minutes.
Analogue differential speed indicator (scale).
Dynamic speed with short filtering time is reacting quickly to
changes, but is also more unsteady.
Average speed with long filtering time gives a very stable reading.
Course over ground, magnetic (m) or true (°).
How to reset dual speed:
ADJ
Open for change
ENT
Reset dual speed, or...
MENU
exit function without making any changes
Chapter 5-10 CE34/44/54 Pilot menu & navigation examples
5.5 ETA & AVN display
MENU
Call up the menu bar, and...
3,4
load the ETA & AVN display
-to receive any data will require that navigation mode is active.
ETA - Estimated Time of Arrival - refers to the inserted local time,
and can be calculated to any point used for navigation.
AVN - Approximate Velocity Necessary - is automatically calculated
in knots after you key in the planned arrival time and date.
In route navigation the approaching point and present speed over
ground (AUTO) is automatically used for the calculation.
You can change to any waypoint in the route and also insert an alternative ETA speed (MANUAL).
ADJ
Open for change - in route navigation the approaching point is auto-
matically suggested and present speed is used for calculation.
If required - go to, and...
0-9
Insert alternative routepoint - only in Route navigation.
Go to ETA mode, and...
+/-
Select AUTO or MANUAL
CE34/44/54 Pilot menu & navigation examples Chapter 5-11
Go to AVN, and...
0-9
Insert time and date
ENT
Confirm entry
5.6 Trim & Highway display
Some of the readings rely on data from external log and compass.
The Trim & Highway display will provide information on actual and
mean speed, velocity and water speed - see also section 5.7 Set &
Drift display.
MENU
Call up the menu bar, and...
3,5
load the Trim & Highway display
B: Bearing.
X: XTE
Cross-trackerror.
D: Distance
to point.
ADJ
Open for change
ENT
Reset mean speed indication in display
Chapter 5-12 CE34/44/54 Pilot menu & navigation examples
5.7 Set & Drift display
The readings rely on data from external log and compass.
MENU
Call up the menu bar, and...
3,6
load the Set & Drift display
Relative
direction.
True
direction.
Speed.
The Set & Drift display will show how fast the current is moving
in knots; in what direction (true) it is moving and what direction in
relation to the vessel (relative).
To obtain information on actual and mean speed, velocity and water
speed - see the Trim & Highway display in section 5.6.
CE34/44/54 Pilot menu & navigation examples Chapter 5-13
5.8 Pilot custom screens
The two custom screens in the pilot menu consist of multiple
window combinations e.g.:
The displays presented in the example above are the default displays
for Custom screen 1 under the PILOT menu.
Top left quarter window shows the Highway display, which can be
exchanged with a different display from the pilot menu, either by
single press on the [PILOT] key which will toggle through all the
displays available from the pilot menu, or via the menu.
Bottom left quarter window shows the Position display, which can be
exchanged with any display that will fit into a quarter window.
Right half screen shows the Chart display, which can be exchanged
with a different one in same size window, or you can change the
window combination from half to two quarter windows.
These custom screens can actually have several displays presented
from the pilot menu. However, when the top left window is active
and you toggle through the available displays from the pilot menu,
the sequence will skip the displays already presented on the screen,
as they can not appear twice on the same screen.
See section 2.1.2 how you go about changing the displays.
Chapter 5-14 CE34/44/54 Pilot menu & navigation examples
5.9 Navigation examples
5.9.1 Chart/cursor navigation. 5.9.2 Waypoint navigation.
5.9.3 Route navigation. 5.9.4 Track navigation.
Relevant for all navigation modes are:
- the highway display with graphical steering - section 5.2.1.
- the ETA & AVN display with Estimated Time of Arrival and
Approximate Velocity Necessary to reach a given point at a specific
time - section 5.5.
- the *Trim & Highway display with information on actual and mean
speed over ground, velocity (VMG) and water speed - section 5.6.
- the *Set & Drift display with indication of how fast the current
is moving in knots, in what direction (true) it is moving and what
direction in relation to the vessel (relative) - see section 5.7.
* These readings rely on data from external log and compass.
With the [PILOT] key you can toggle between all the displays in the
pilot-serie - see section 5.1 Shortcut to the pages in the pilot-serie.
5.9.1 Cursor navigation
Cursor navigation is the easiest and most straightforward way of
navigation - point and go!
CHART
Shortcut to chart display
Press the cursor key to activate the cursor, then move the cursor to
your destination
GOTO
Call up the GOTO menu
1
Select Cursor navigation mode
A course line will now be drawn from actual position (ship’s position) to destination point (cursor’s position).
CE34/44/54 Pilot menu & navigation examples Chapter 5-15
Next destination: While on the way, you can easily move the cursor
to the next destination, and when ready to change navigation leg...
GOTO
Call up the GOTO menu
2
Restart to approaching point
- a new course line will be drawn from ship’s position to destination.
To turn NAV mode off again: Press [GOTO], [3].
5.9.2 Waypoint navigation
To start Waypoint navigation will require that at least one waypoint
is stored in the memory. Refer to section 3.4.9 PLOT menu.
CHART
Shortcut to chart display
Place cursor on destination waypoint
GOTO
Call up the GOTO menu, and...
2
Select Waypoint navigation mode
This will activate the pop-up window “Navigate to WP” - and if the
highlighted waypoint is the point you wish to sail to, then just press
[ENT] to start navigation.
However, if you wish to sail to a different waypoint:
+/-
Scroll up/down in the waypoint list, or...
0-9
Key in the number/name of the waypoint you wish to sail to
ENT
Start navigation
A course line will now be drawn from ship’s position to destination
waypoint.
To turn NAV mode off again: Press [GOTO], [3].
Chapter 5-16 CE34/44/54 Pilot menu & navigation examples
5.9.3 Route navigation
To start Route navigation will require that at least one route is stored
in the memory. Refer to section 3.4.9 PLOT menu.
There are two ways to start Route navigation:
• From the chart:
Place cursor on the routepoint you wish to start your navigation
from
GOTO
Call up the GOTO menu, and...
3
Select Route navigation mode
This will activate the pop-up window “Navigate in route” with the
selected routepoint as first destination point. Check if any of the current settings need to be changed e.g. forward or reverse direction in
route.
ENT
Start navigation
• From the chart, without first placing cursor on a routepoint:
GOTO
Call up the GOTO menu, and...
3
Select Route navigation mode
This will activate the pop-up window “Navigate in route” from
where you can choose which route you wish to select for navigation:
+/-
Scroll up/down in the route list until the correct route number /
name appears
Use the cursor to move around in the window if anything needs to be
changed - such as Direction in route, etc.
0-9
Key in the number of the first routepoint you wish to sail to
ENT
Start navigation
A course line will now be drawn from ship’s position to the first
CE34/44/54 Pilot menu & navigation examples Chapter 5-17
routepoint.
GOTO
Pressing [GOTO] from chart display during navigation will activate
an INFO window with the following functions to choose from:
1. Advance (to next routepoint)
2. Restart to approaching point (in case you have drifted off course)
3. Turn NAV OFF
5.9.4 Track navigation
A track is created by a series of trackpoints connected by track lines.
Using a track for navigation is somewhat like navigating in a route
with many waypoints.
To start Track navigation will require that at least one track is stored
in the memory. Tracks which are not yet completed can not be used
for navigation. Refer to section 7.5 Start / Stop track.
There are two ways to start Track navigation:
• From the chart:
Place cursor on the track at the point where you wish to start your
navigation from
GOTO
Call up the GOTO menu, and...
4
Select Track navigation mode
This will activate the pop-up window “Navigate in track” with the
selected trackpoint as first destination point. Check if any of the current settings need to be changed.
ENT
Start navigation
• From the chart, without first placing cursor on a track:
GOTO
Call up the GOTO menu, and...
4
Select Track navigation mode
Chapter 5-18 CE34/44/54 Pilot menu & navigation examples
This will activate the pop-up window “Navigate in track” from
where you can choose which track you wish to select for navigation:
+/-
Scroll up/down in the track list until the correct track number / name
appears
Use the cursor to move around in the window if anything needs to be
changed - such as Direction in track, etc.
0-9
Key in the number of the first trackpoint you wish to sail to
ENT
Start navigation
A course line will now be drawn from ship’s position to the first
point of destination.
GOTO
Pressing [GOTO] from chart display during navigation will activate
an INFO window with the following functions to choose from:
1. Advance (to next trackpoint)
2. Restart to approaching point (in case you have drifted off course)
3. Turn NAV OFF
CE34/44/54 Pilot menu & navigation examples Chapter 5-19
5.10 Anchor guard
GOTO
Call up the GOTO menu, and...
5
activate the anchor guard function
-the chart display will provide an impression of the vessel’s position
in relation to the alarm circle.
To check/change the preset alarm distance:
MENU
Call up the menu bar, and...
3,1
load the highway display
ADJ
Enter the navigation setup display
0-9
Key in a new value with numeric keys
ENT
Confirm the change
To turn Anchor guard off again:
GOTO
Call up the GOTO menu, and...
3
turn anchor guard off
5.11 MOB alarm and navigation
The MOB - Man overboard - alarm and display will be activated if
you press the [MOB] key on the CEXX keypad and hold it depressed
for two seconds, or activate an external MOB switch (hold five seconds) and then press the [ENT] key to start MOB navigation.
The MOB display will provide all relevant data for an efficient
rescue operation - refer to details on the rear of the first page of the
manual.
To turn the MOB function off again:
GOTO
Call up the GOTO menu, and...
3
turn the MOB function off
To check the last activated MOB position:
MENU
Call up the menu bar, and...
5,7
select MOB data
Chapter 5-20 CE34/44/54 Pilot menu & navigation examples
CE34/44/54 Miscellaneous menu Chapter 6-1
6. Miscellaneous menu
4
MISC
1
Wind - see section 6.1
2
Speed diagram - see section 6.2
3
Decca lanes - see section 6.3
4
Loran C - see section 6.4
5
Satellites - see section 6.5
6
DGPS - see section 6.6
7
SDGPS - see section 6.7
8
DSC info - see section 6.8
9
Depth & temperature diagram - see section 6.9
6.1 Wind display
The CEXX is ready to present wind data from connected instruments.
MENU
Call up the menu bar, and...
4,1
load the ‘Wind instrument’ display
True wind
direction.
Wind relative to vessel.
Wind speed,
apparent or
true.
Chapter 6-2 CE34/44/54 Miscellaneous menu
ADJ
Load Setup for Wind display
Setup for Wind:
Damping level: MEDIUM
Apparent wind scale: NORMAL
Wind angle offset: 000°
Show wind speed as: APPARENT
Wind speed unit: METERS/SECOND
Go to the function you wish to change
+/-
Toggle between settings, or...
0-9
Key in new figure
ENT
Confirm entry and return to Wind display
Damping level - can be set to LOW, MEDIUM or HIGH. The higher
level the more steady and slow reacting reading.
Apparent wind scale - can either be set to NORMAL (0-180°) or
MAGNIFIED (0-60°).
Wind angle offset - can be from 0 to 360°.
Show wind speed as - TRUE or APPARENT.
Wind speed unit - can be either METER/SECOND, KNOTS,
KILOMETERS/HOUR or MILES/HOUR.
CE34/44/54 Miscellaneous menu Chapter 6-3
6.2 Speed diagram
MENU
Call up the menu bar, and...
4,2
load “Speed diagram”
S= Speed over ground.
V= Velocity towards waypoint.
W*= Speed through water.
SD (Set and drift)*= Speed and direction, true or relative.
WIND*= Speed and direction.
* Connection to external sensors is required.
ADJ
Call “Speed diagram setup”
- see next page.
Chapter 6-4 CE34/44/54 Miscellaneous menu
The scale for the speed diagram can be adjusted in this display.
Time interval can be set in 8 intervals from 1 minute to 3 hours and
freeze.
Go to the function you wish to change
+/-
Key in new figure or change setting
ENT
Confirm entry and return to Speed diagram
CE34/44/54 Miscellaneous menu Chapter 6-5
6.3 Decca lanes
MENU
Call up the menu bar, and...
4,3
load decca chain display
ADJ
Open for change
+/-
Leaf through the available chains - see below.
ENT
Confirm entry
To change the position readouts to decca mode, see section 8.3 under
Pilot/Position setup, where ‘Display position as’ can be toggled to
‘Decca’.
List of decca chains:
00 S Baltic 0A 24 Skagerak 10B
01 Vestlandet 0E 25 N Persian 5C
02 SW British 1B 26 S Persian 1C
03 North Humber 2A 27 Bombay 7B
04 Holland 2E 28 Calcutta 8B
05 British 3B 29 Bangladesh 6C
06 Lofoten, Norway 3E 30 Hokkaido 9C
07 German 3F 31 Tohoku 6C
08 N Baltic 4B 32 Kyusyu 7C
09 NW Spanish 4C 33 Namaqua 4A
10 Trondelag (N) 4E 34 Cape chain 6A
11 English 5B 35 E Province 8A
12 N Bothnian 5F 36 Dampier 8E
13 S Spanish 6A 37 Port Hedld 4A
14 N Scottish 6C 38 Hokuriku 2C
15 Finland 6E 39 Newfoundld. 2C
16 Danish 7B 40 Cabot strt 6B
17 Irish 7D 41 Nova Scotia 7C
18 Finnmarken 7E 42 Salaya 2F
19 French 8B 43 Kanto 8C
20 S Bothnian 8C 44 SW Africa 9C
21 Hebridean 8E 45 Natal 10C
22 Frisian 9B 46 Shikoku 4C
23 Helgeland 9E
Chapter 6-6 CE34/44/54 Miscellaneous menu
6.4 Loran C
MENU
Call up the menu bar, and...
4,4
load Loran C chain display
ADJ
Open for change
+/-
Leaf through the available chains - see listing below.
If required, go to the slaves, and...
+/-
Toggle between available slaves (not all chains have more than one
slave)
0-9
...and it is possible to alter the figures in the time delay
If required, go to Offset, and key in a positive or negative offset
0-9
Key in a positive or negative offset to the time delay (toggle positive/
negative with +/-)
ENT
Confirm entry
To change the position readouts to Loran C mode, see section 8.3
under Pilot/Position setup, where ‘Display position as’ can be toggled to ‘Loran C’.
List of Loran C chains:
Central Pacific
Gulf of Alaska
Southeast U.S.
Great Lakes
Northeast U.S.
Canadian West Coast
Canadian East Coast
Labrador Sea
West Coast U.S.
North Pacific
4990
7960
7980
8970
9960
5990
5930
7930
9940
9990
Commando Lion
North West Pacific
Norwegian Sea
Mediterranean Sea
Icelandic
Saudi Arabia South
Saudi Arabia North
Eastern U.S.S.R.
Western U.S.S.R.
5970
9970
7970
7990
9980
7170
8990
7950
8000
CE34/44/54 Miscellaneous menu Chapter 6-7
6.5 Satellite status
MENU
Call up the menu bar, and...
4,5
load satellite status display
The display will show which satellites are currently being used for
computation of data. It will show their position together with SNR
- Signal to Noise Ratio. The bottom line shows the status of all the
satellites in the GPS system, starting from left to right with the numbers 1 to 32.
Satellite status (bottom line):
+ indicates the satellite is healthy.
- excluded or non-existing satellite.
0 satellite data is faulty.
* satellite is manually excluded.
You may want to exclude a satellite manually in case a particular
satellite is disturbing the navigation:
ADJ
Open for change, and...
Place the cursor on the satellite in the bottom line you wish to exclude
-
The minus key will exclude the satellite, and...
+
the plus key will reinstate it
ENT
Confirm entry
Chapter 6-8 CE34/44/54 Miscellaneous menu
Position update alarm
“Alarm” in the satellite status display is preset to “OFF”. If the
received position data is invalid, the position shown in the position
display will start to flash. A position update alarm can be set ON/
OFF from the satellite status display [MENU],[4],[5]:
ADJ
Open for change
Go to “Alarm”
+/-
Toggle a la rm ON/OFF
ENT
Confirm entry
Reset the alarm by [CLR].
Status indicator: GPS* - see section 5.3.
HDOP, PDOP and DOP limits
The value of HDOP (horizontal dilution of precision) expresses “the
quality” of the satellite geometry in relation to 2D positioning and a
fixed antenna altitude.
PDOP (position dilution of precision) is equivalent to 3D
positioning. The values will typically stay between 1.3
and 8. The lower the value the higher the “quality”. A
poor geometry might produce a value of more than 20.
If preset DOP limit is exceeded (indicated by * in the
position display) it will cause the position updating to
stop until it once again is within the limit.
The DOP limit can be changed manually, but should not be set to
higher than 8 (default), as this may result in poor accuracy i.e. false
position. To change the DOP limit from the satellite status display
[MENU], [4], [5] :
ADJ
Open for change
Go to DOP limit (6-20), and...
0-9
Insert new limit
ENT
Confirm entry
CE34/44/54 Miscellaneous menu Chapter 6-9
6.6 DGPS information (optional)
The DGPS - differential position corrections - can be provided from
a built-in module, which is preset to full automatic operation, or
from connected DGPS receiver - see “Status indicator” in position
display.
List of beacon stations is available in addendum, part no.
183-0122-501.
MENU
Call up the menu bar, and...
4,6
load DGPS setup display (with built-in module)
To receive
valid differential data
will require
that the
navigator
is locked in
on a beacon
station.
Frequency (station) and bit rate can be selected manually:
ADJ
Open for change, and...
Go to the function you wish to alter
+/-
Toggle the function, or...
0-9
insert new figures
ENT
Confirm entry
Beacon - informs the name of the beacon the navigator is locked on
to (if any), together with indication of bearing and distance.
Chapter 6-10 CE34/44/54 Miscellaneous menu
Status - can either be:
LOCKED = locked on a beacon and receiving differential data.
NOT LOCKED = not locked on a becon and receiving no differential data.
NOT INSTALLED = there is no built-in DGPS module in unit.
NOT IN USE = external DGPS receiver applied.
Beacon is monitored - YES or NO.
If YES it should be safe to rely on the received differential data,
because the beacon station’s performance is under observation.
If NO, then you have to use the received differential data with caution, as there is no guarantee it is not faulty.
Frequency - the frequency of the beacon station can be set manually
if known. However, when left in AUTO the navigator will always
search for the nearest station with a good signal strength.
Bit rate - indicates bits per second, and can be set manually to 25,
50, 100 or 200 bps.
Signal strength - a good signal strength is 20 and up.
Signal to noise ratio (SNR) - should be 8dB and up.
Message - type 16 message will be displayed when received from
the DGPS system. The contents of this message could be something
to do with the performance of the system. Temporarily out of service
etc.
CE34/44/54 Miscellaneous menu Chapter 6-11
6.7 SDGPS information
The SDGPS - satellite differential GPS - is preset to full automatic
operation, which means that the system will utilize the position corrections from either differential GPS stations (refer to section 6.6)
or satellite differential GPS signals from WAAS, EGNOS or MSAS
(refer to section 6.7.1).
MENU
Call up the menu bar, and...
4,7
load SDGPS setup display
SDGPS setup:
SDGPS select mode: AUTO
Uses corrections fro m: *****
CH ANNEL 1: sat.no.: **** ****
Corrections: NONE
Integrity messages ok: NO
Range used for position fix: NO
Type 0 warning received: NO
CH ANNEL 2: sat.no.: **** ****
Corrections: NONE
Integrity messages ok: NO
Range used for position fix: NO
Type 0 warning received: NO
Ignore type 0 warnings: NO
ADJ
Open for change
Go to the function you wish to alter (see below)
+/-
Toggle the fu nctio n
ENT
Confirm entry
SDGPS select mode determines which differential corrections can
be used in the position determination:
AUTO is default mode. Local area DGPS corrections are used when
available. If not available, then SDGPS corrections are used (if these
are available).
PAS SI VE mode: SDGPS corrections are never used (see sec.6.7.1).
MANUAL mode: SDGPS corrections are used (if available). Local
area DGPS corrections are not used.
Chapter 6-12 CE34/44/54 Miscellaneous menu
Uses corrections from - indicates which differential corrections
(DGPS or SDGPS) are currently used for position determination.
CHANNEL 1: sat.no. - indicates which satellite number and name
is currently tracked/searched by channel 1, and what is the tracking
state.
Corrections - indicates if corrections are being received on this
channel. If YES: is the quality of the reception sufficiently high for
the corrections to be usable.
NONE: no corrections are received.
RECEIVED: corrections are received, but of insufficient quality.
USABLE: corrections are received and of sufficient quality.
USED: corrections received on this channel are used in the position
determination.
Integrity messages ok - the SDGPS system will transmit messages
concerning the integrity of the GPS satellites. This line will indicate
whether such messages are received and reliable.
Range used for position fix - if the receiver is tracking a particular
SDGPS satellite, it “knows” the distance to that satellite. This line
will indicate whether the distance is used in the position determination.
Type 0 warning received - if an SDGPS satellite is not operating according to specifications it will transmit a so-called “Type 0
warning”. In this situation, the receiver will not use any information
that it might receive from that satellite. Until the SDGPS system is
declared operational, the SDGPS satellites will always transmit Type
0 warnings.
It is possible (but not recommendable) to override the Type 0 warn-
ings - refer to last line in SDGPS setup: “Ignore type 0 warnings:
NO” should be changed to “YES”.
CE34/44/54 Miscellaneous menu Chapter 6-13
6.7.1 Satellites in SDGPS system
The SDGPS system consist of eight orbiting geostationary satellites and is designed to form a seamless global augmentation system
consisting of Waas (USA), EGNOS (Europe) and MSAS (Japan). If
all three parts would become operative at the same time, there would
be no performance problem. However, since WAAS is the only
system currently in normal operation, the WAAS correction signals
can have a negative effect on receivers operating in Europe and Far
East outside the intended WAAS coverage area. In these areas, we
recommend that the ‘SDGPS select mode’ is changed from ‘AUTO’
to ‘PASSIVE’.
Refer to Addendum no. 183-0002-000 (included in the package) for
up-to-date information on the current status of the SDGPS system.
Number Name System Area
120
AOR-E EGNOS - EU
Atlantic ocean region east
122
AOR-W WAAS - US
Atlantic ocean region west
124
ARTEMIS EGNOS - EU
126
INMARSAT EGNOS - EU
129
MTSAT-1 MSAS - JAPAN
131
IOR EGNOS - EU
Indian ocean region
134
POR WAAS - US
Pacific ocean region
137
MTSAT-2 MSAS - JAPAN
Tracking st ate
The letter indicating the tracking state will appear immediately after
the satellite number in the display.
Letter indication: - means that the receiver is:
S searching for satellite.
D trying to synchronize to data stream.
C code locked to signal.
P phase locked to signal.
Chapter 6-14 CE34/44/54 Miscellaneous menu
6.8 DSC VHF info
To receive an iDSC Alarm and Message from VHF will require that
the CEXX is connected to a compatible Simrad VHF radiotelephone.
The data is transmitted via NMEA or SimNet.
The message from the VHF will appear in a pop-up window together
with an acoustic alarm. Press [CLR] to reset the alarm, or press [ENT]
to stop alarm and select the suggested channel for communication
- refer to the VHF manual for further details.
To view the last received message:
MENU
Call up the menu bar, and...
4,8
load the DSC info display
CE34/44/54 Miscellaneous menu Chapter 6-15
6.9 Depth & temperature diagram
MENU
Call up the menu bar, and...
4,9
activate Depth & temperature diagram
Present water
temperature
and depth.
Depth over
time or distance.
Tem per at ure
over time or
distance.
ADJ
Call Setup for Depth
Setup for Depth:
Scale for depth: 0 -> 100 m
Color for depth:
Scale for temperature: 0 -> 20 °C
Color for temperature:
Interval of screen: TIME
Time interval: 5 MIN.
Go to the function you wish to change
Chapter 6-16 CE34/44/54 Miscellaneous menu
0-9
Key in new figures, or...
+/-
change settings
ENT
Confirm changes
Scale for depth - there are six depth scales to choose from, ranging
from 0 -> 10m to 0 -> 3000m. Toggle between values with +/- keys.
Color - for depth and temperature can be changed. Toggle between
available colors by means of the +/- keys.
Scale for temperature - can be set to 0 -> 10°, 0 -> 20°, 0 -> 30°,
10 -> 20°, and -10 -> 10°.
Interval of screen - the interval for updating of screen can be
related to TIME or DISTANCE.
TIME interval can be set in 6 intervals from 5 minutes to 3 hours (+
freeze) for refreshing of the screen.
DISTANCE can be set in 7 intervals, ranging from 0.05nm to 90nm
in order to adjust to the speed of the ship, and you can freeze the
reading.
CE34/44/54 Waypoint / route menu Chapter 7-1
7. Waypoint / route menu
5
WP/RTE
1
Waypoints - see section 7.1
2
Routes - see section 7.2
3
Route calculation - see section 7.3
4
Lines - see section 7.4
5
Tracks - see section 7.6
6
Targets - see section 7.7
7
MOB data - see section 7.8
8
Data transfer - see section 7.9 + 7.10
7.1 Waypoints stored in the memory
The waypoint list will appear in alphabetical order and will include
the waypoint’s position in lat/long. To edit one of the stored waypoints:
MENU
Call up the menu bar, and...
5,1
load waypoint list
Waypoint: WP 2
x WP 1 57°14.853N 9°51.966E
x WP 10 55°59.954N 10°47.247E
x WP 11 55°59.203N 11°15.562E
x WP 2 57°20.289N 10°01.404E
x WP 3 57°24.990N 10°15.561E
x WP 4 57°24.990N 10°39.831E
x WP 5 57°14.490N 10°58.708E
x WP 6 57°01.385N 11°06.798E
x WP 7 56°50.773N 10°47.921E
Number of stored waypoints: 11
Chapter 7-2 CE34/44/54 Waypoint / route menu
A-Z
Insert name of waypoint you wish to edit, or...
+/-
Leaf through waypoints with +/- keys or up/down cursor
ENT
Open for editing
Place the cursor on the function you wish to change
0-9
Key in new figures, or...
+/-
toggle between available values
PLOT
Move the position to ship’s position
ENT
Confirm entry and return to WP list
Plot new waypoints with the [PLOT] key - refer to section 3.4.9.
7.1.1 Delete waypoints via menu
MENU
Call up the menu bar, and...
5,1
load waypoint list
+/-
Select waypoint you wish to delete
ENT
Open for editing
WIN
Delete waypoint
CLR
Confirm that you want to delete the selected waypoint, if not sure:
press [MENU] to exit the display without having made any changes.
Edit waypoints directly on the chart via info windows, refer to sec-
tion 3.4.3.
Loading...
