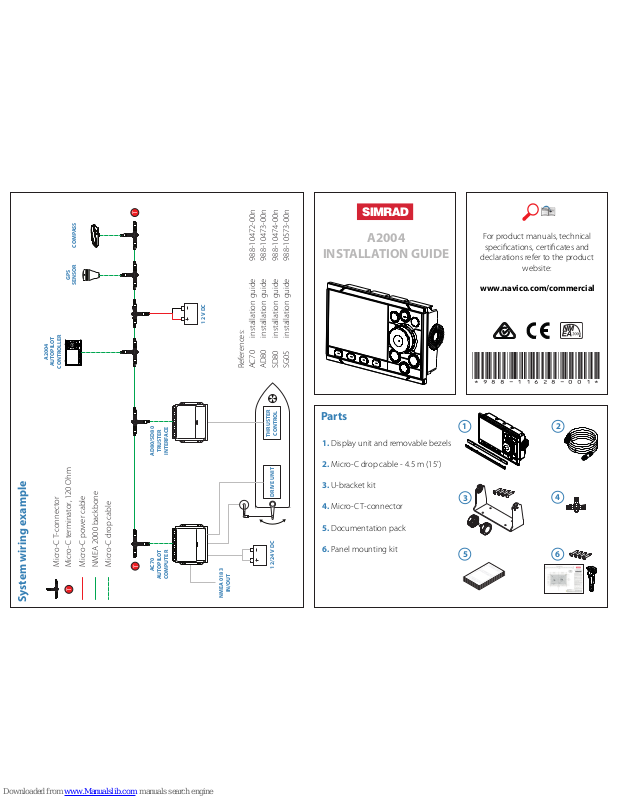

Simrad A2004 Installation Manual

1. Display unit and removable bezels

2. Micro-C drop cable - 4.5 m (15’)

3. U-bracket kit

4. Micro-C T-connector

5. Documentation pack

6. Panel mounting kit

A2004

INSTALLATION GUIDE

System wiring example

Parts

1

6

4

2

3

ENGLISH

Installation Manual

bandg.com

ENGLISH

Installation Manual

bandg.com

ENGLISH

Installation Manual

bandg.com

ENGLISH

Installation Manual

bandg.com

5

For product manuals, technical

specifications, certificates and

declarations refer to the product

website:

www.navico.com/commercial

*988-11628-001*

AD80/SD80

TRUSTER

INTERFACE

12/24 V DC

NMEA 0183

IN/OUT

COMPASS

GPS

SENSOR

THRUSTER

CONTROL

DRIVE UNIT

A2004

AUTOPILOT

CONTROLLER

12 V DC

AC70

AUTOPILOT

COMPUTER

T

T

Micro-C power cable

NMEA 2000 backbone

Micro-C drop cable

Micro-C terminator, 120 Ohm

Micro-C T-connector

T

References:

AC70 installation guide 988-10472-00n

AD80 installation guide 988-10473-00n

SD80 installation guide 988-10474-00n

SG05 installation guide 988-10573-00n

=

IPX7

-25°C to +65ºC

-13°F to +149 ºF

177.0mm
(6.97")

56.1mm
(2.21")

23.1mm
(0.91")

33.0mm
(1.30")

55.4mm
(2.18")

115.0mm
(4.53")

Mounting Mounting

204.8mm
(8.06")

56.1mm
(2.21")

55.4mm
(2.18")

84.6mm
(3.33")

124.5mm
(4.90")

2

4

1

Dimensions with bracket

3

Dimensions without bracket

2

4

1

3

=

IPX7

-25°C to +65ºC

-13°F to +149 ºF
