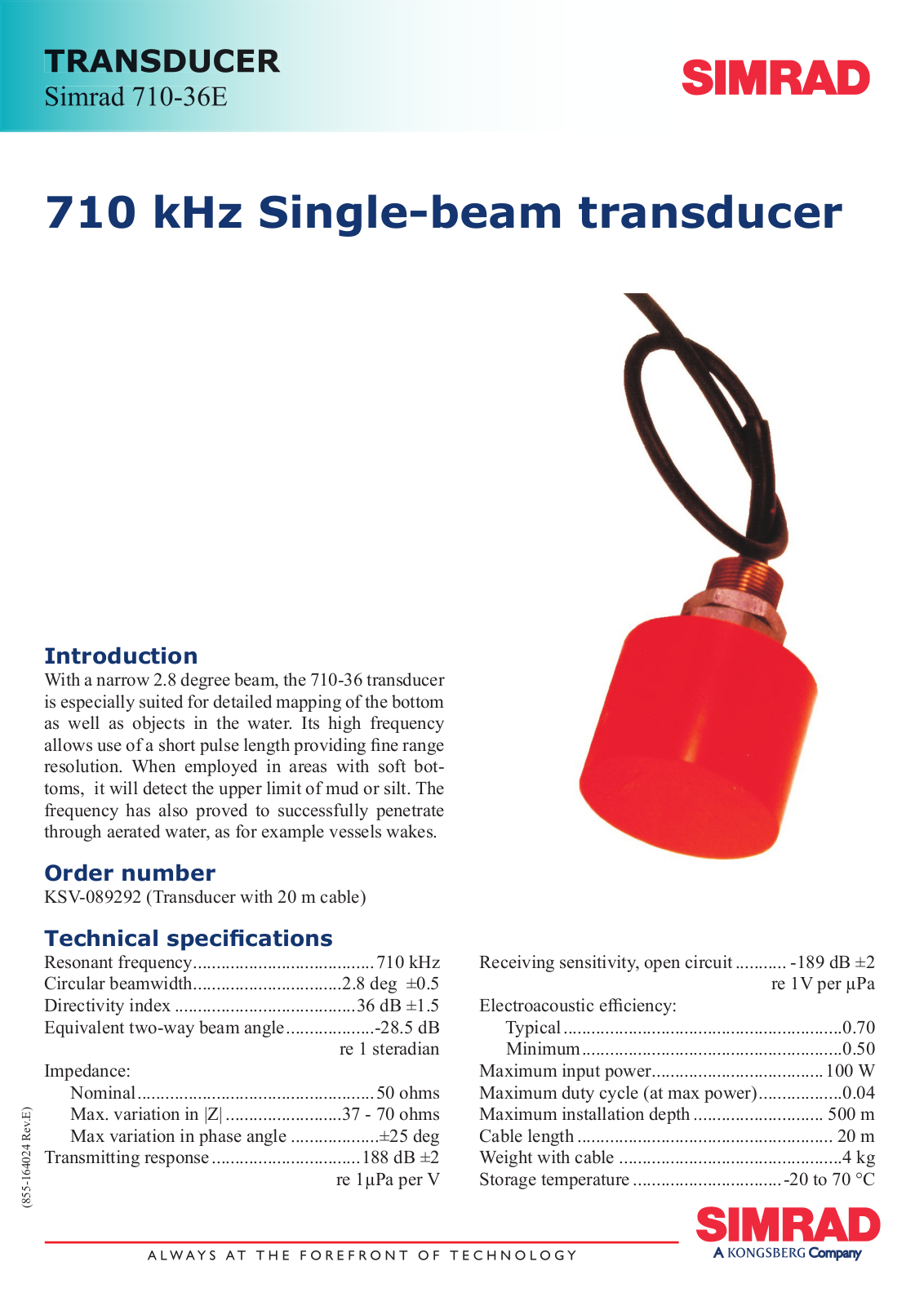

Simrad 710-36E DATASHEET

TRANSDUCER

710 kHz Single-beam transducer

Introduction

With a narrow 2.8 degree beam, the 710-36 transducer

is especially suited for detailed mapping of the bottom

as well as objects in the water. Its high frequency

allows use of a short pulse length providing  ne range

resolution. When employed in areas with soft bot-

toms, it will detect the upper limit of mud or silt. The

through aerated water, as for example vessels wakes.

Order number

KSV-089292 (Transducer with 20 m cable)

Technical speci cations

Resonant frequency

Circular beamwidth

2.8 deg ±0.5

Directivity index

Equivalent two-way beam angle

re 1 steradian

Impedance:

Nominal

Max. variation in |Z|

Max variation in phase angle

±25 deg

Transmitting response

re 1µPa per V

Receiving sensitivity, open circuit

re 1V per µPa

Electroacoustic ef ciency:

Typical

0.70

Minimum

0.50

Maximum input power

Maximum duty cycle (at max power)

0.04

Maximum installation depth

Cable length

20 m

Weight with cable

4 kg

Telephone:

Telefax:

ww w.simrad.com

Data

Installation

(CD4979C)

-10 dB

-20 dB

-30 dB

-40 dB

(CD5008B)

Mounting

ring

Steel

tank

Transducer
