Detail Sander 140mm

Detail Sander 140mm
Ponceuse delta 140 mm
Deltaschleifer, 140 mm

www.silverlinetools.com

Lijadora delta 140 mm
Levigatrice a dettaglio 140 mm
Detail schuurmachine 140 mm

2

1

5

3

4

6

2

R

E

L

I

V

N

L

I

E

S

R

E

A

G

N

®

160W

Detail Sander 140mm

English .................. 4

Français ................ 8

Deutsch ................. 12

Español ................. 16

Italiano .................. 20

Nederlands ............ 24

www.silverlinetools.com

3

GB

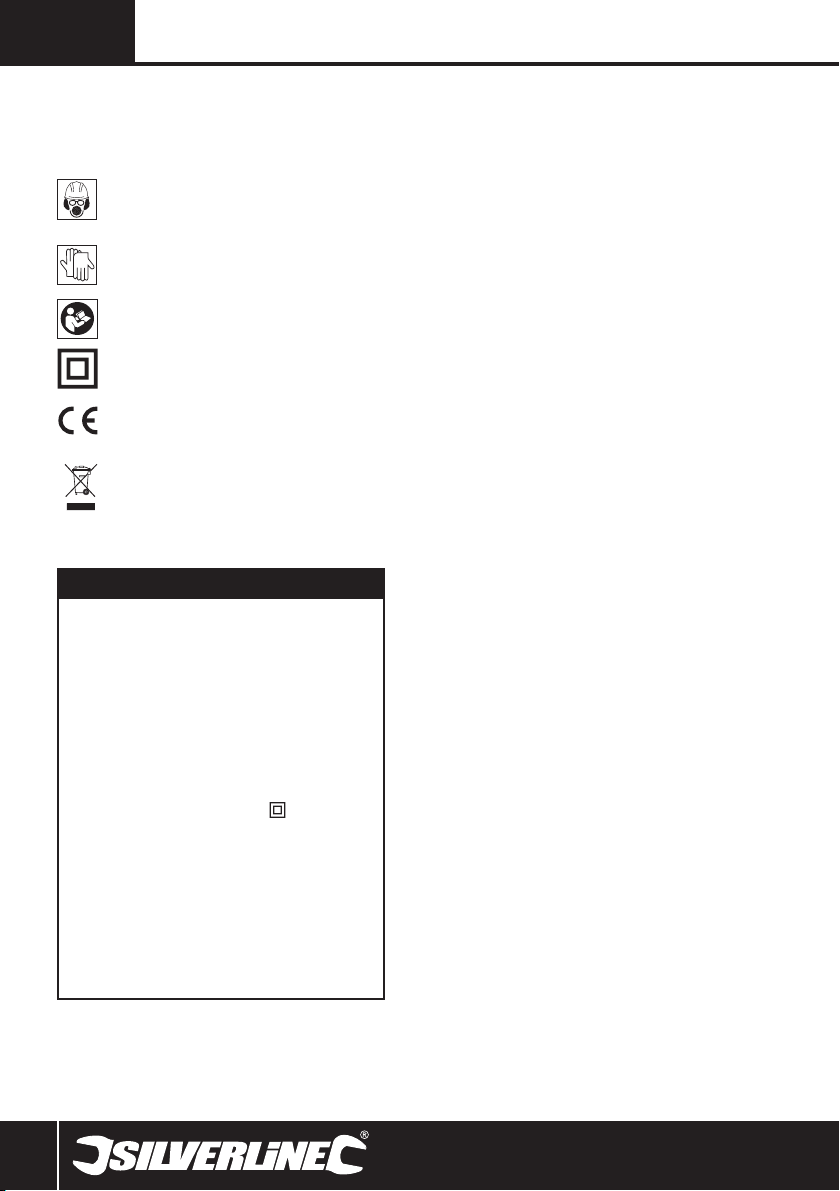

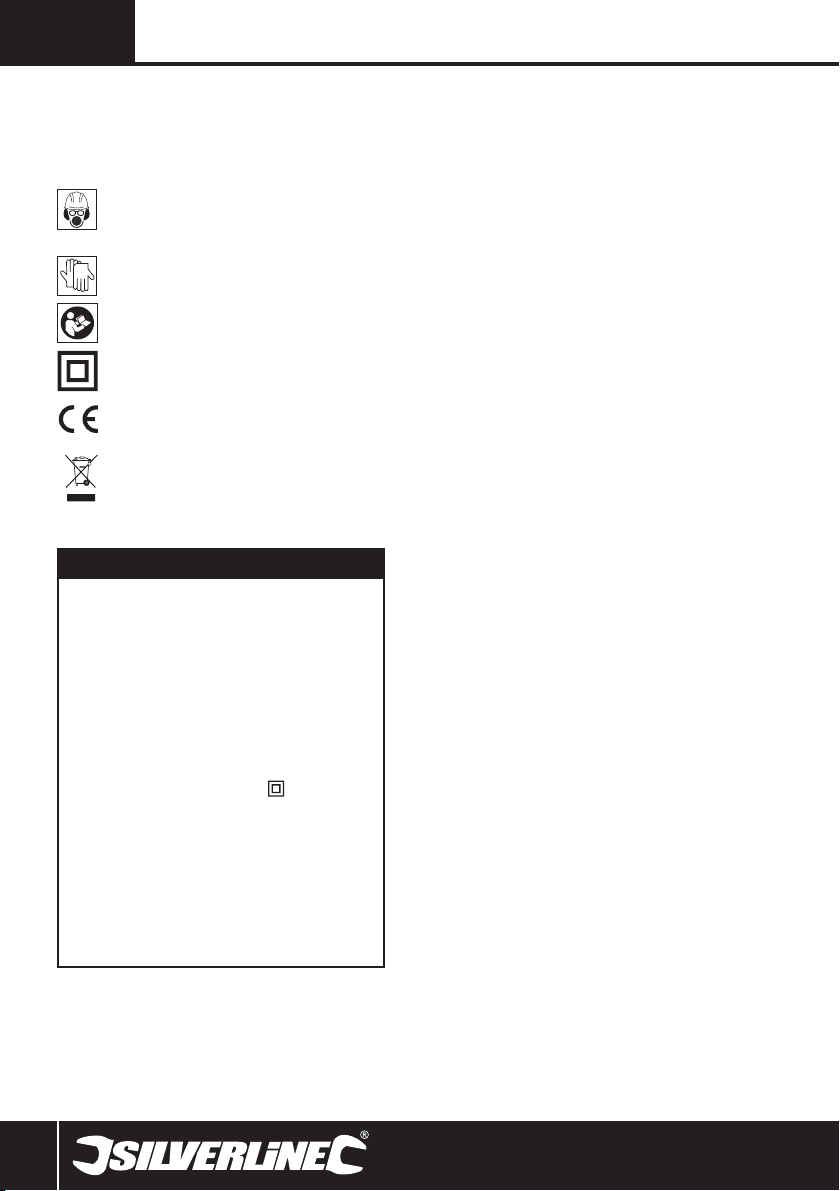

Description of Symbols

The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.

Wear hearing protection
Wear eye protection
Wear breathing protection
Wear head protection

Wear hand protection

Read instruction manual

Double insulated for additional protection

Conforms to relevant legislation and safety standards

Environmental Protection

Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice

Specification

Voltage: ................................................230V ~ 50Hz

Power: ..................................................160W

No load speed: .....................................13,000min

Pad size: ...............................................140 x 140 x 80mm

Paper fixing: .........................................Hook & loop

Weighted vibration: ..............................3.298m/s

Uncertainty: ..........................................3.0dB(A)

Sound pressure: ...................................73,6 dB(A)

Sound power: .......................................84,6 dB(A)

Uncertainty: ..........................................3.0 dB(A)

Protection class: ...................................

Ingress Protection:................................IP20

Cable Length: .......................................2m

Product Weight: ....................................1.1kg

The sound intensity level for the operator may exceed 85dB(A)

and sound protection measures are necessary.

As part of our ongoing product development, specifications of

Silverline products may alter without notice.

-¹

2

Carefully read and understand this manual and any label attached to
the tool before use. Keep these instructions with the product for future
reference. Ensure all persons who use this product are fully acquainted
with this manual.

Even when used as prescribed it is not possible to eliminate all residual risk
factors. Use with caution. If you are at all unsure of the correct and safe
manner in which to use this tool, do not attempt to use it.

General Power Tool Safety
Warnings

WARNING Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/
or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite

accidents

b) Do not operate power tools in explosive atmospheres, such as

in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in

any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk

of electric shock

b) Avoid body contact with earthed or grounded surfaces, such as

pipes, radiators, ranges and refrigerators. There is an increased

risk of electric shock if your body is earthed or grounded

c) Do not expose power tools to rain or wet conditions. Water

entering a power tool will increase the risk of electric shock

d) Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the

risk of electric shock

e) When operating a power tool outdoors, use an extension cord

suitable for outdoor use. Use of a cord suitable for outdoor use

reduces the risk of electric shock

f) If operating a power tool in a damp location is unavoidable, use

a residual current device (RCD) protected supply. Use of an RCD

reduces the risk of electric shock

NOTE: The term “residual current device (RCD)” may be replaced by
the term “ground fault circuit interrupter (GFCI)” or “earth leakage
circuit breaker (ELCB)”.

Personal Safety

a) Stay alert, watch what you are doing and use common sense

when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in
serious personal injury

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries

c) Prevent unintentional starting. Ensure the switch is in the

off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with your

finger on the switch or energising power tools that have the switch on
invites accidents

d) Remove any adjusting key or wrench before turning the power

tool on. A wrench or a key left attached to a rotating part of the power

tool may result in personal injury

4

310456

Detail Sander 140mm

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations

f) Dress properly. Do not wear loose clothing or jewellery. Keep your

hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts

g) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards

Power Tool Use & Care

a) Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at

the rate for which it was designed

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous
and must be repaired

c) Disconnect the plug from the power source and/or the battery

pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive

safety measures reduce the risk of starting the power tool accidentally

d) Store idle power tools out of the reach of children and do

not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous

in the hands of untrained users

e) Maintain power tools. Check for misalignment or binding of

moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly

maintained power tools

f) Keep cutting tools sharp and clean. Properly maintained cutting

tools with sharp cutting edges are less likely to bind and are easier
to control

g) Use the power tool, accessories and tool bits etc. in accordance

with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous
situation

Service

a) Have your power tool serviced by a qualified repair person using

only identical replacement parts. This will ensure that the safety of

the power tool is maintained

Sanding Tool Safety

• Before connecting the tool to a power source, ensure that the voltage
supply matches that specified on the rating plate of the tool

• Always wear appropriate protective equipment, including a dust mask
with a minimum FFP2 rating, safety goggles and ear defenders.

• Ensure all people in the vicinity of the work area are also equipped with
suitable personal protective equipment

• Take special care when sanding some woods (such as beech, oak,
mahogany and teak), as the dust produced is toxic and can cause
extreme reactions

• Do not sand magnesium or alloys containing a high percentage of
magnesium

• Be aware of paint finishes or treatments that may have been applied to
the material that is being sanded. Many treatments can create dust that
is toxic, or otherwise harmful. If working on a building constructed prior
to 1960, there is an increased chance of encountering lead-based paints

• The dust produced when sanding lead-based paints is particularly
hazardous to children, pregnant women, and people with high blood
pressure. Do not allow these people near to the work area, even if
wearing appropriate personal protective equipment

• Whenever possible, use a vacuum dust extraction system to control dust
and waste

• Be especially careful when using a machine for both wood and metal
sanding. Sparks from metal can easily ignite wood dust. Always clean
your machine thoroughly to reduce the risk of fire

• Work surfaces and sandpaper can become very hot during use, if there
is evidence of burning (smoke or ash), from the work surface, stop and
allow the material to cool. Do not touch work surface or sandpaper until
they have had time to cool

• Do not touch the moving sanding paper

• Always switch off before you put the sander down

• Always unplug the sander from the mains power supply before changing

or replacing sandpaper

• Even when this tool is used as prescribed it is not possible to eliminate
all residual risk factors. If you are in any doubt as to safe use of this tool,
do not use it

www.silverlinetools.com

5

GB

Product Familiarisation

1 Handle

2 Dust Box
3 Dust Box Catch
4 Sanding Pad
5 On/Off Switch
6 Sanding Sheets (x3)

Unpacking Your Tool

• Carefully unpack and inspect your tool. Fully familiarise yourself with all
its features and functions

• Ensure that all parts of the tool are present and in good condition. If
any parts are missing or damaged, have such parts replaced before
attempting to use this tool

Operating Instructions

Fitting sanding sheets

WARNING: Before fitting sanding sheets, ensure the sander is disconnected
from the power supply.

• Sanding sheets are a press fit onto the Sanding Pad (4). Ensure that
sanding sheets are secure before using the machine

Note: The lower the grit figure of the sanding sheet used the more abrasive
the coating.

Note: In use monitor the condition of the sanding sheet. If the paper
becomes damaged or parts come off it will expose the base and the base
surface could be damaged.

Dust extraction

• Use correctly punched hook & loop sanding sheets and align the holes
with those in the pad. This will ensure that the dust extraction function
operates correctly. While you can use sanding sheets without the correct
holes, the sander will not be able to collect the dust and the tool will be
less effective

• The detail sander is fitted with a Dust Box (2) which will collect the dust
created during sanding. Empty it regularly during use. To remove and
empty the dust box press in the Dust Box Catch (3) on each side and pull
the dust box away from the tool. Simply push on to re-fit

• The sander can also be connected to a vacuum cleaner or similar dust
extraction system. Remove the dust box to reveal the connector suitable
for connecting to a vacuum cleaner. Normally for a detail sander this isn’t
required but may be preferable in some circumstances

Important: Wear a suitable dust mask when operating this tool with a
minimum FFP2 rating. All wood and paint dust is hazardous to health and
may also be toxic, especially man-made composite woods such as MDF.
If you are working with such dust a vacuum connection to the sander is
advised

Switching on & off

• Always hold the sander securely

• Make sure the sanding sheet is securely fitted

• Connect the machine to the mains power supply

• To start the machine, slide the On/Off Switch (5) to the on position

• To stop the machine, slide the On/Off Switch (5) to the off position

Note: Always switch on the sander before making contact with surface
to be sanded, and always remove the sander from the surface before
switching off

Operation Notes

• Thissanderisnotsuitableforwetsandingorsandingplaster

• This detail sander has been designed to minimise vibration by using

an orbital motion and soft-grip surface, however if you experience
discomfort due to vibration, stop using this sander immediately

• This detail sander is normally used in combination with a standard
sander. Sand as much as possible with a standard sander, then use
the detail sander for other areas. For very small areas the detail sander
cannot reach, sand by hand

Sanding tips

• Always start with a coarse grit paper and work through progressively
finer grit papers until the desired finish is achieved especially for surfaces
that are exposed or will be varnished or lacquered

• Only apply moderate pressure to the sander. Excessive pressure may
damage the workpiece, or overheat the motor, shortening the service
life of your tool

• Sand evenly over the work surface. This tool works in a orbital motion, as
such it is not necessary to work with the grain

• Use this tool with the sanding base 'face down' directly onto the
workpiece. Tilting the sander onto its edge will damage your work

Note: Replacement Sanding sheets are available from your Silverline
Stockist.

Maintenance

WARNING: Always remove the plug from the mains power supply before
carrying out any maintenance/cleaning.

Note: This tool requires no lubrication and there are no user serviceable
parts inside the main body. In the event the tool requires new carbon
brushes these should be fitted by an authorised Silverline service centre.

Cleaning

• Keep your machine clean at all times. Dirt and dust will cause internal
parts to wear quickly, shortening the machine’s service life

• Clean the body of your machine with a soft brush, or dry cloth. If
available, use clean, dry, compressed air to blow through the ventilation
holes

Disposal

When the tool is no longer functional and non-repairable dispose of
according to your national regulations.

• Do not dispose of power tools, or other waste electrical and electronic
equipment, with household waste

• Contact your local waste disposal authority for information on the correct
way to dispose of tools

6

Silverline Tools Guarantee

This Silverline product comes with a 3 year
guarantee

Register this product at www.silverlinetools.com within 30 days of
purchase in order to qualify for the 3 year guarantee. Guarantee period
begins according to the date of purchase on your sales receipt.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as
detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the
stockist where it was purchased, with your receipt, stating details of the
fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date,

your name, address and place of purchase before any work can be
carried out.

You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools

to establish if the deficiencies are related to material or manufacturing of
the product.

Carriage will not be refunded. Items for return must be in a suitably clean
and safe state for repair, and should be packaged carefully to prevent
damage or injury during transportation. We may reject unsuitable or
unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized
repair agents.

The repair or replacement of the product will not extend the period
of guarantee

Defects recognised by us as being covered by the guarantee shall be
corrected by means of repair of the tool, free of charge (excluding carriage
charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will
become the property of Silverline Tools.

EC Declaration of Conformity

The undersigned: Mr Darrell Morris
as authorised by: Silverline Tools

Declares that the

Description: Detail Sander 140mm
Product Code: 310456
Net installed power: 160W

Conforms to the following Directives:

• Machinery Directive 2006/42/EC

• Low Voltage Directive 2006/95/EC

• EMC Directive 2004/108/EC

• RoHS Directive 2011/65/EU

• EN 60745-1:2009

• EN 60745-2-4:2009

• EN 55014-1:2006+A1:2009

• EN 55014-2:1997+A1:2001+A2:2008

• EN 61000-3-2:2006+A1:2009+A2:2009

• EN 61000-3-3:2008

Detail Sander 140mm310456

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee
Registration button. You will need to enter:-

• Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created
in PDF format for you to print out and keep with your purchase.

The repair or replacement of your product under guarantee provides
benefits which are additional to and do not affect your statutory rights as
a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline
Tools that the deficiencies were due to faulty materials or workmanship
within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will
replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating

instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding

sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse,

neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools

components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its

authorized repair agents.
Claims other than the right to correction of faults on the tool named in

these guarantee conditions are not covered by the guarantee.

The technical documentation is kept by: Silverline Tools

Notified body: LCIE Bureau Veritas

Place of declaration: Shanghai, China

Date: 14/11/12

Signed by:

Director

Name and address of Manufacturer or Authorised representative:

Silverline Tools, Boundary Way, Lufton Trading Estate, Yeovil, Somerset,

BA22 8HZ United Kingdom

www.silverlinetools.com

7

F

Description des symboles

La plaque signalétique figurant sur votre outil peut présenter des symboles.
Ces symboles constituent des informations importantes relatives au produit
ou des instructions concernant son utilisation.

Port de protection auditive
Port de lunettes de sécurité
Port de masques respiratoires
Port du casque

Port de gants

Lire le manuel d’instructions

Double isolation pour une protection supplémentaire

Conforme à la réglementation et aux normes de sécurité
pertinentes

Protection de l’environnement

Les produits électriques usagés ne doivent pas être jetés avec
les ordures ménagères. Veuillez les recycler dans les centres
prévus à cet effet. Pour de plus amples informations, veuillez
contacter votre municipalité ou point de vente.

Caractéristiques techniques

Tension : ...............................................230V ~ 50Hz

Puissance : ...........................................160 W

Vitesse à vide : .....................................13 000 min

Dimension du plateau :.........................140 x 140 x 80 mm

Feuilles abrasives : ..............................auto-agrippantes

Vibration pondérée : .............................3,298 m/s²

Incertitude : ..........................................3,0dB(A)

Pression acoustique : ..........................73,6 dB(A)

Puissance acoustique : ........................84,6 dB(A)

Incertitude : .........................................3,0 dB(A)

Classe de protection : ...........................

Indice de protection : ............................IP20

Longueur du câble : .............................2 m

Poids : ..................................................1,1 kg

L’intensité sonore peut dépasser 85 dB(A) et il est

recommandé que l’opérateur prenne des mesures de

Du fait de l’évolution constante de notre développement

produit, les spécifications des produits Silverline peuvent

Lisez attentivement ce manuel ainsi que toute étiquette apposée sur l’outil
et assurez-vous d’en comprendre le sens avant utilisation. Rangez ces
consignes avec l’outil, pour référence ultérieure. Assurez-vous que toute
personne venant à utiliser cet outil ait attentivement pris connaissance de
ce manuel.

Sachez qu’utiliser un outil conformément aux prescriptions ne garantit
pas l’élimination de tous les facteurs de risque. Procédez avec prudence.
N’utilisez pas cet outil si vous avez des doutes quant à la manière sûre et
correcte de procéder.

protection sonore.

changer sans notification préalable.

-¹

Consignes générales de
sécurité relatives aux appareils
électriques

AVERTISSEMENT Veuillez lire l’intégralité des consignes de sécurité
et des instructions. Le non-respect de ces consignes et instructions peut

entraîner un risque de choc électrique, d’incendie et/ou se traduire par des
blessures graves

Veuillez conserver ces instructions et consignes de sécurité pour
référence ultérieure.

L’expression « appareil électrique » employée dans les présentes consignes
recouvre aussi bien les appareils filaires à brancher sur le secteur que les
appareils sans fils fonctionnant sous batterie.

Sécurité sur la zone de travail

a) Maintenir une zone de travail propre et bien éclairée. Des zones

encombrées et mal éclairées sont sources d’accidents.

b) Ne pas utiliser d’outils électriques dans des environnements

explosifs, tels qu’à proximité de liquides, de gaz ou de poussières
inflammables. Les appareils électriques produisent des étincelles

susceptibles d’enflammer la poussière ou les vapeurs présentes.

c) Eloigner les enfants et les passants pendant l’utilisation d’un

appareil électrique. Ceux-ci peuvent provoquer une perte d’attention

et faire perdre la maîtrise de l’appareil.

Sécurité électrique

a) La prise d’un appareil électrique doit être adaptée à la prise du

secteur. Ne jamais modifier la prise en aucune façon. Ne jamais
utiliser d’adaptateur sur la prise électrique d’appareil mis à la
terre. Des prises non modifiées, adaptées aux boîtiers de prise de

courant, réduiront le risque de décharge électrique.

b) Eviter le contact corporel avec les surfaces mises à la terre telles

que tuyaux, radiateurs, cuisinières et réfrigérateurs. Le risque de

décharge électrique est plus important si le corps est mis à la terre.

c) Ne pas exposer l’appareil électrique à la pluie ou à l’humidité.

L’infiltration d’eau dans un appareil électrique accroît le risque de
décharge électrique.

d) Ne pas maltraiter le cordon électrique. Ne jamais utiliser le

cordon électrique pour porter, tirer ou débrancher l’appareil.
Protéger le cordon électrique de la chaleur, du contact avec
l’essence, des bords tranchants et pièces rotatives. Un cordon

électrique endommagé ou entortillé accroît le risque de décharge
électrique.

e) Lors d’une utilisation de l’appareil électrique en extérieur, se

servir d’une rallonge appropriée à une utilisation en extérieur.

Cela réduit le risque de décharge électrique.

f) Si une utilisation de l’appareil électrique dans un environnement

humide ne peut être évitée, utiliser une alimentation protégée par
un disjoncteur différentiel. L’utilisation d’un disjoncteur différentiel

réduit le risque de décharge électrique.

Sécurité des personnes

a) Rester vigilent et faire preuve de bon sens lors de la manipulation

de l’appareil. Ne pas utiliser un appareil électrique lorsque l’on
se trouve dans un état de fatigue, ou sous l’influence de drogues,
d’alcool ou de médicaments. Un moment d’inattention pendant

l’utilisation d’un outil électrique peut se traduire par des blessures
graves.

b) Porter un équipement de protection approprié. Toujours porter

une protection oculaire. Le port de masque à poussières, chaussures

de sécurité antidérapantes, casque de sécurité et protections antibruit
adaptés aux différentes conditions de travail réduit le risque de
blessures corporelles.

c) Eviter tout démarrage accidentel. S’assurer que l’interrupteur

marche-arrêt soit en position d’arrêt avant de brancher l’appareil
sur l’alimentation secteur ou d’installer la batterie, de prendre
l’appareil ou de le transporter. Porter un appareil électrique tout en

maintenant le doigt posé sur l’interrupteur ou brancher un appareil
électrique dont l’interrupteur est sur la position de marche est source
d’accidents.

8
