SILVA ADC Summit User Manual [en, de, fr, it, es]

06MAR THU

12:38.28

88.2% 28.0 C

User Manual

1.0 General Guide

Thank you for purchasing your new ADC. We recommend reading this manual, and practicing the operations before using your ADC in the field.

The ADC is designed to provide you with information essential to your needs. Data such as temperature, wind speed, barometric pressure, altitude and humidity are features specific to four different ADC models: Wind, Summit, Pro and JetSet.

Each ADC model is constructed to withstand water submersion and is ideal for conditions you endure during outdoor activities such as hiking, climbing, hunting, kayaking, skiing, and racing. Every ADC also includes current time, daily alarm, chronograph and race timer functions. ADCs are equipped with a propeller and other precise sensors to measure outdoor conditions.

WARNING !

Make sure that you fully understand the functions and limitations of the ADC before relying on it.

The ADC is an assisting device for the outdoor user, and is not a substitute for

weather advisories from a weather station. It is helpful to check the readings provided by this product periodically with those broadcasted by the weather station.

2.0 Care and Maintenance

Prevent getting dirt in the ADC propeller. It could clog the mechanism.

Avoid exposing this product to extreme heat or extreme cold for an unreasonable amount of time.

Avoid severe impacts to the ADC.

Store the ADC in a dry place when it is not in use.

Clean the ADC with a soft moistened cloth occasionally.

D O N O T e x p o s e t h e A D C t o s t r o n g chemicals such as gasoline and alcohol, as they will damage this product.

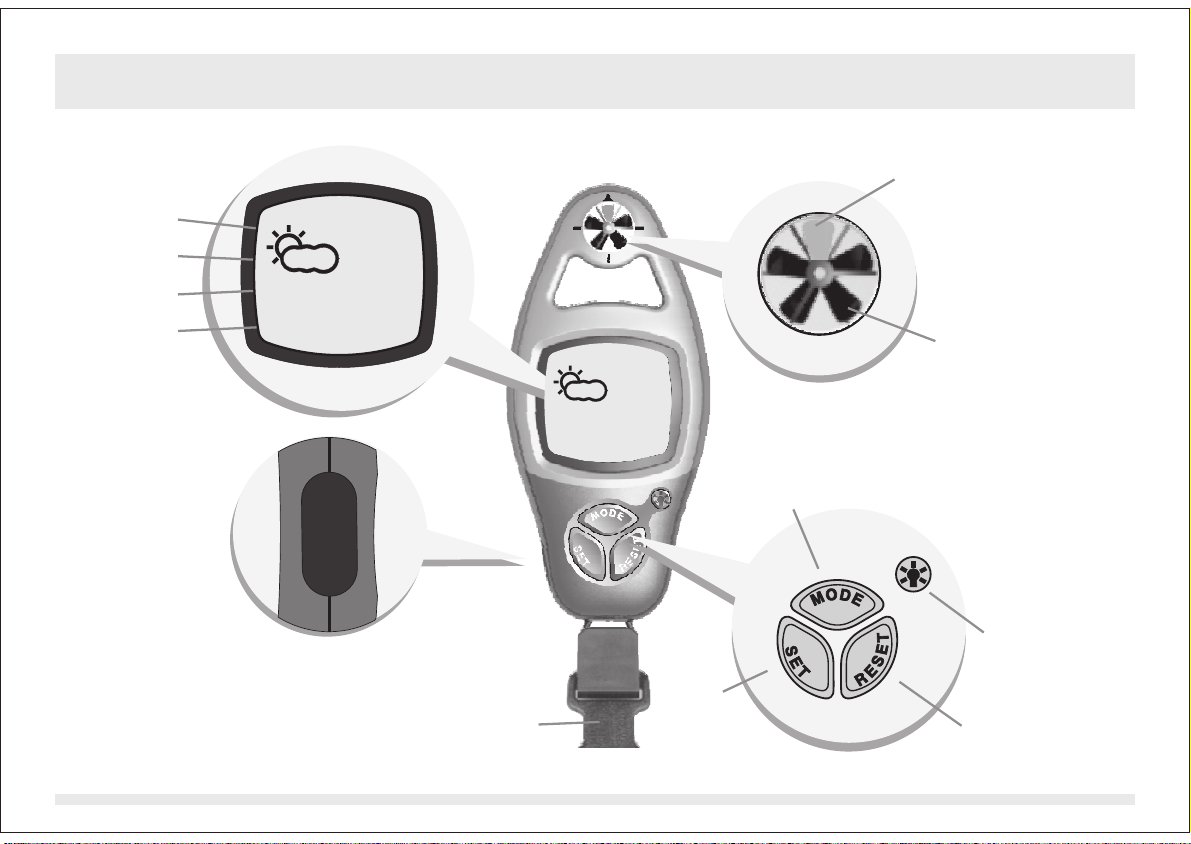

3.0 Part description

1st row

2nd row

3rd row

4nd row

06MAR THU

12:38.28

88.2% 28.0 C

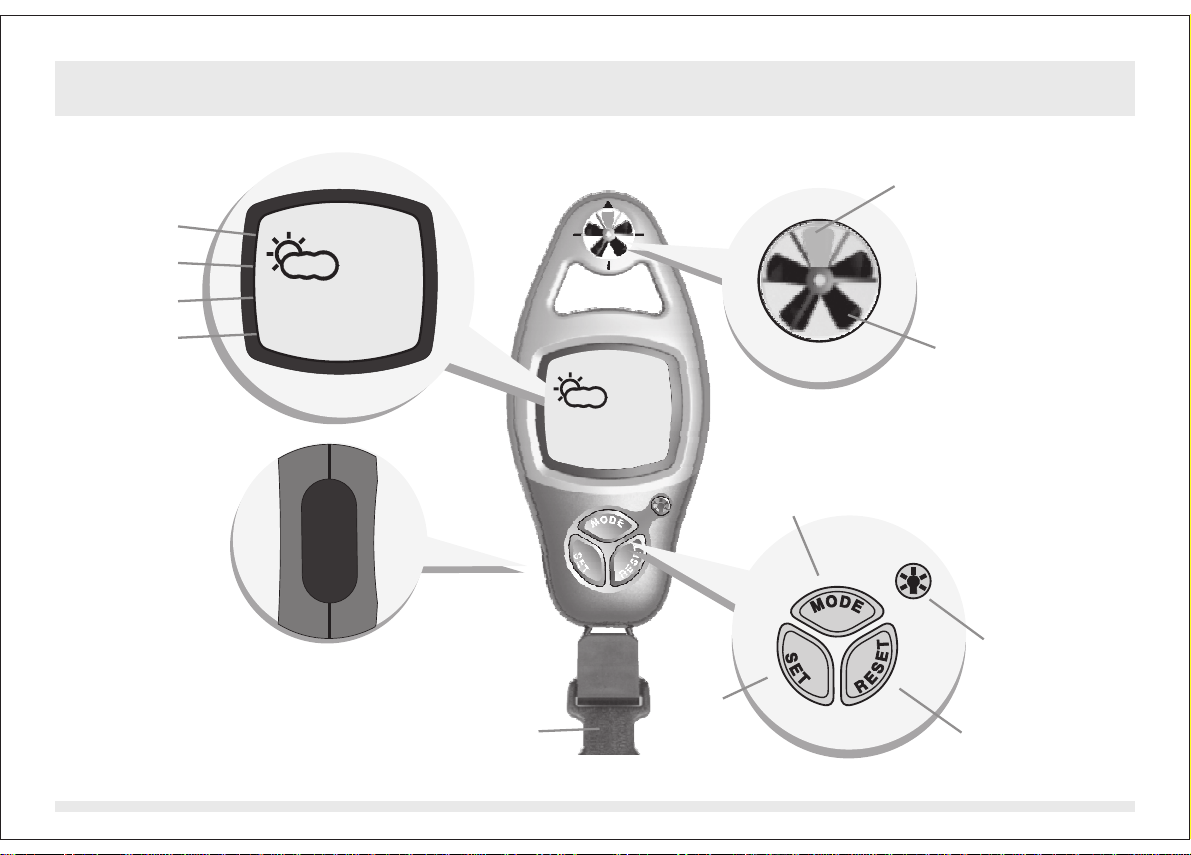

Display

Infrared Port

(send data from this product to PC via this port)

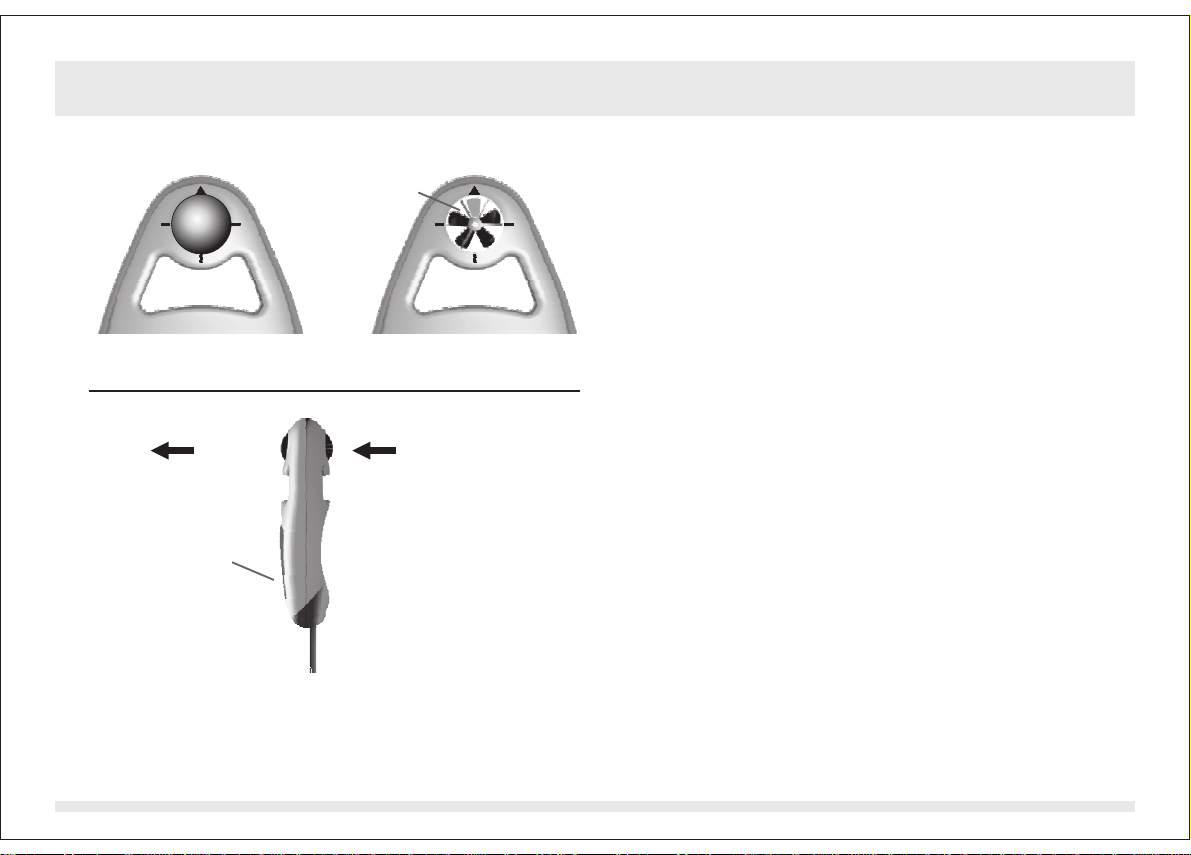

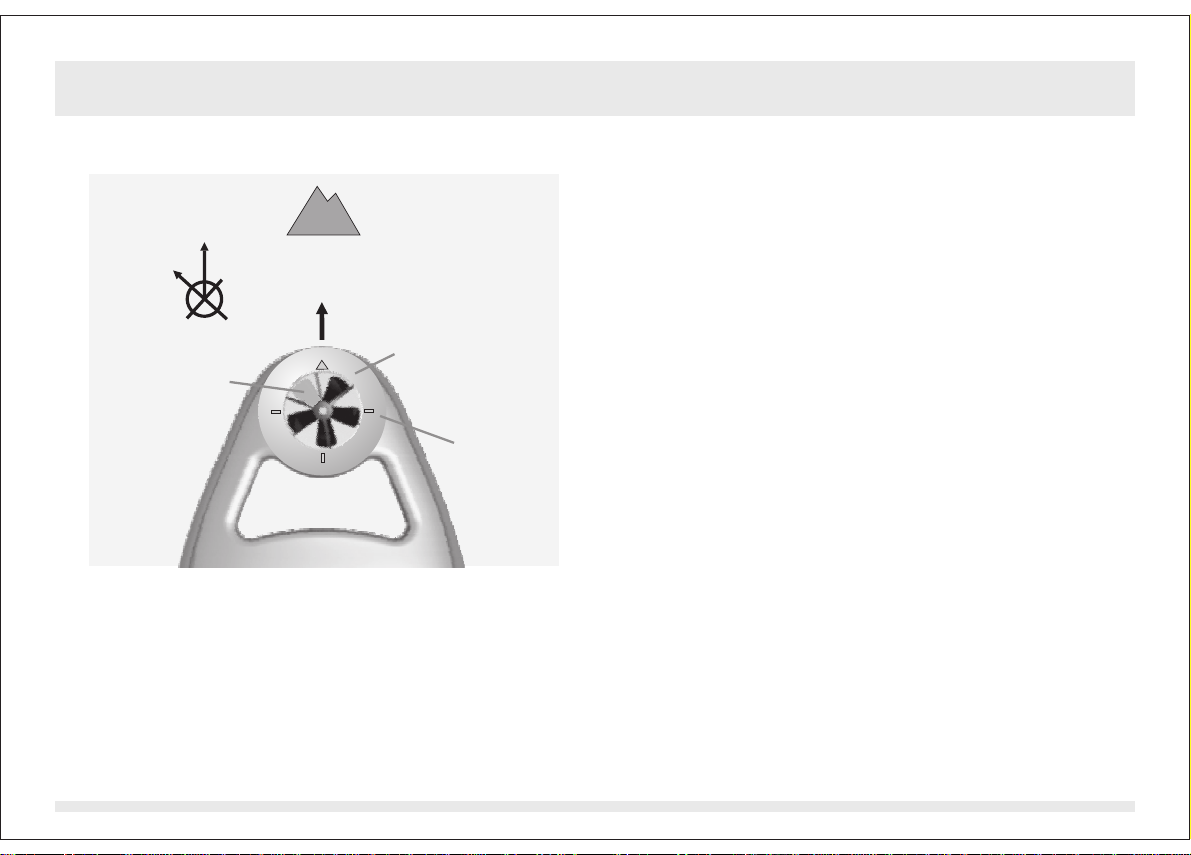

North Orientation blade (RED)

Propeller	Propeller
	blades
06MAR
THU
12:38.28
88.2% 28.0 C
[mode]

			[light]
	[set]	Buttons	[reset]
Detachable
Belt Clip

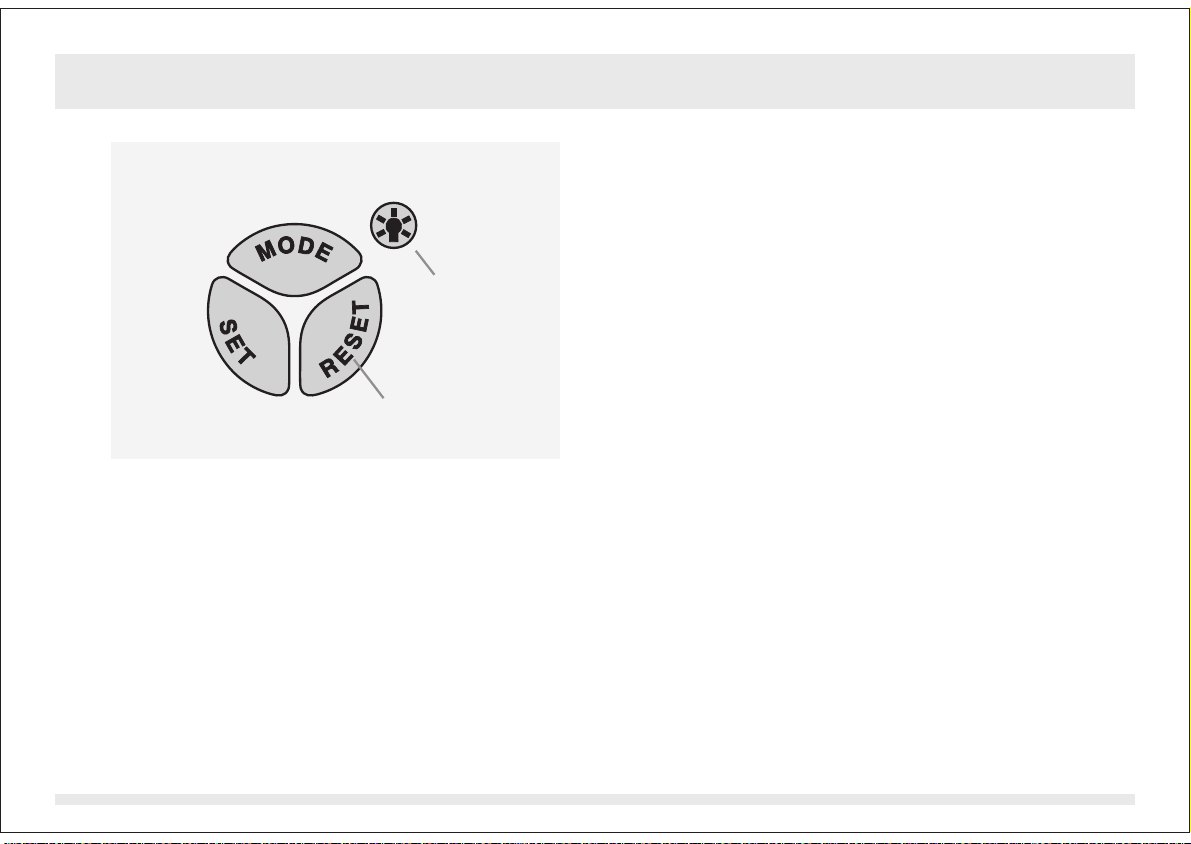

4.0 Button Operation Summary 1

[mode]

[set]

Note:

T h e b u t t o n o p e r a t i o n s a r e

summarized	in the	following
paragraphs,	for detail operating
instructions,	please	continue
reading.

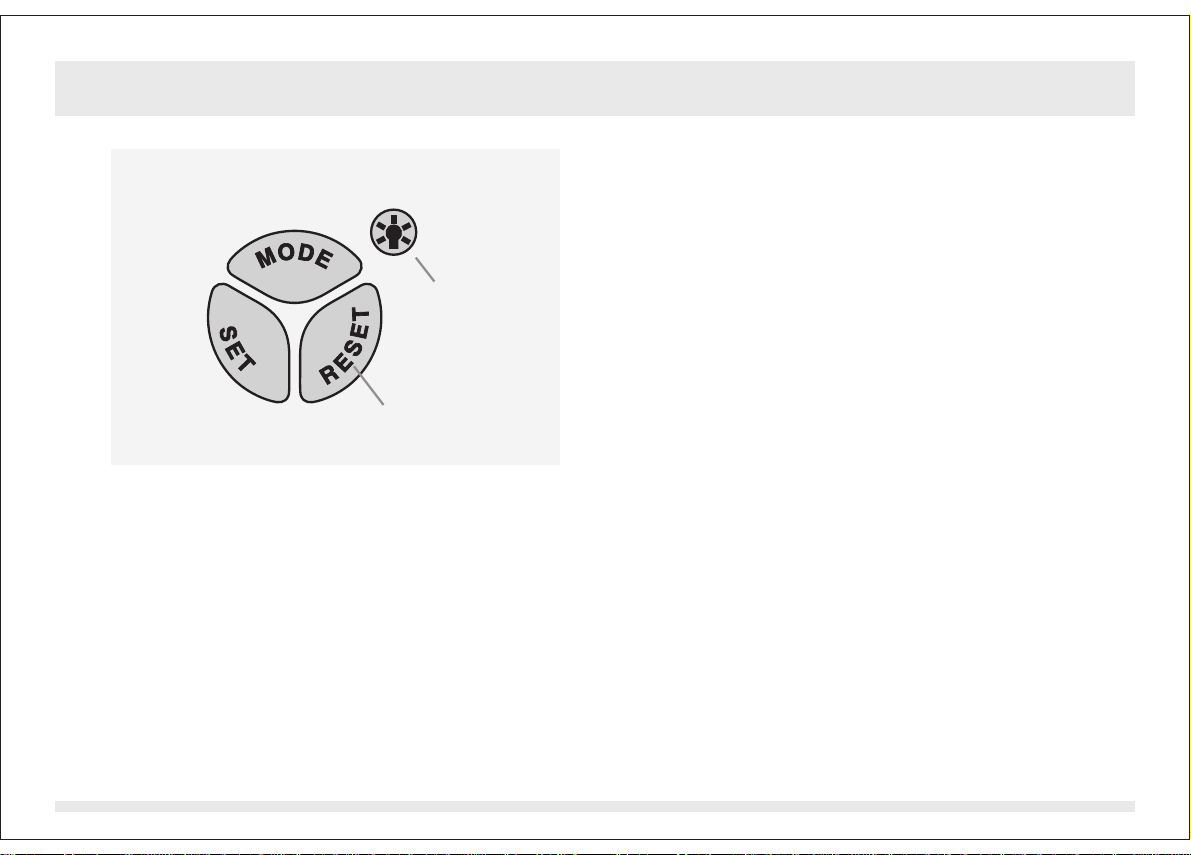

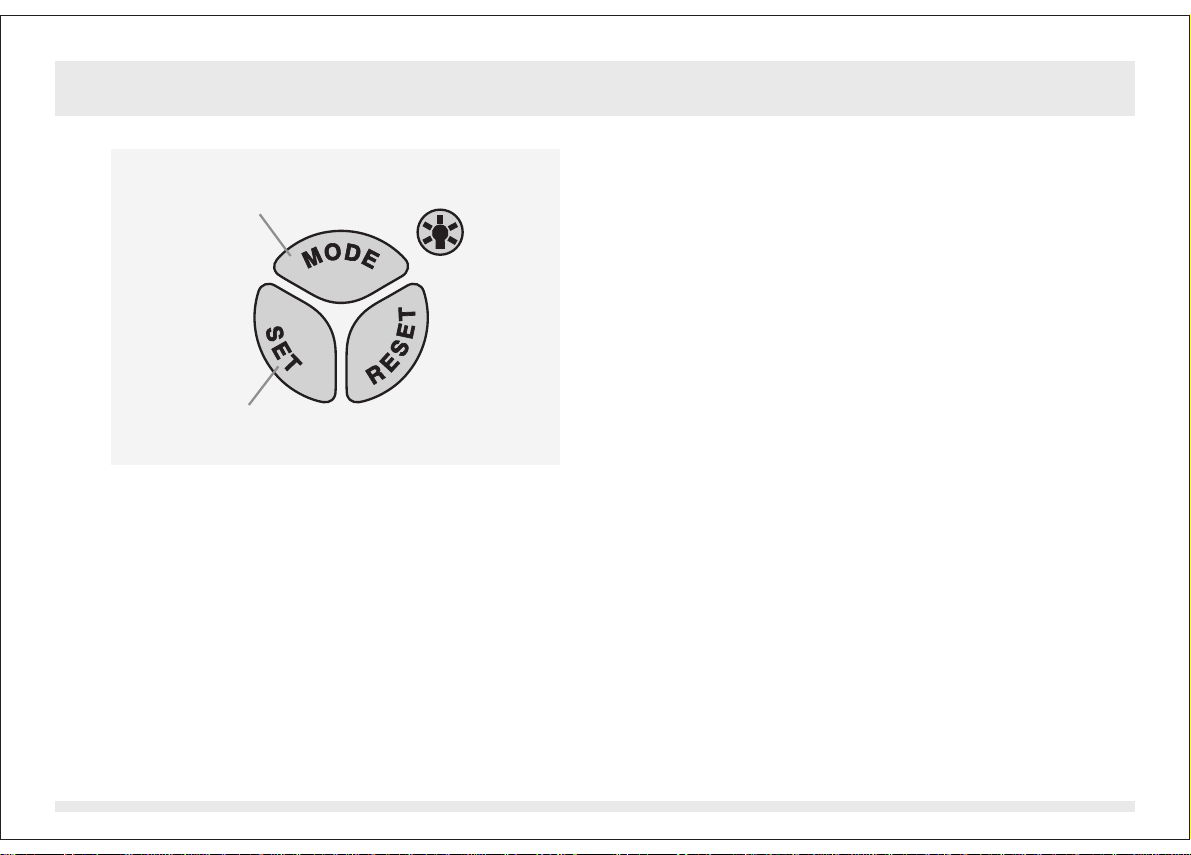

[mode] Button

Press the mode button to select among the major function modes

In function modes: Press and hold the mode button to select setting display

In any setting display: Press the mode button to select among different settings. Press and hold the mode button to exit setting sequence.

[set] Button

In Current Time Mode: press the set button to select the Daily Alarm Display.

In Daily Alarm Mode: Press the set button to switch the daily alarm between ON and OFF.

In Chronograph Mode and Race Timer Mode: Press the set button to start or stop the counting.

In Lap Time Recall Mode: Press the set button to select the available lap time(s).

In setting displays: press the set button to scroll the through the settings.

4.1 Button Operation Summary 2

[light]

[reset]

Note:

T h e b u t t o n o p e r a t i o n s a r e

summarized	in the	following
paragraphs,	for detail operating
instructions,	please	continue
reading.

[reset] Button

In Chronograph Mode (counting): Press the reset button to get Lap Time Display.

In Chronograph Mode (stop-counting): Press the reset button to reset the display to zero.

In Timer Mode (stop-counting): Press the reset button to reset the timer to target time.

In Lap Time Recall Mode: Press the reset button to select the available lap time(s).

In setting displays: press the reset button to scroll the through the settings.

[light] Button

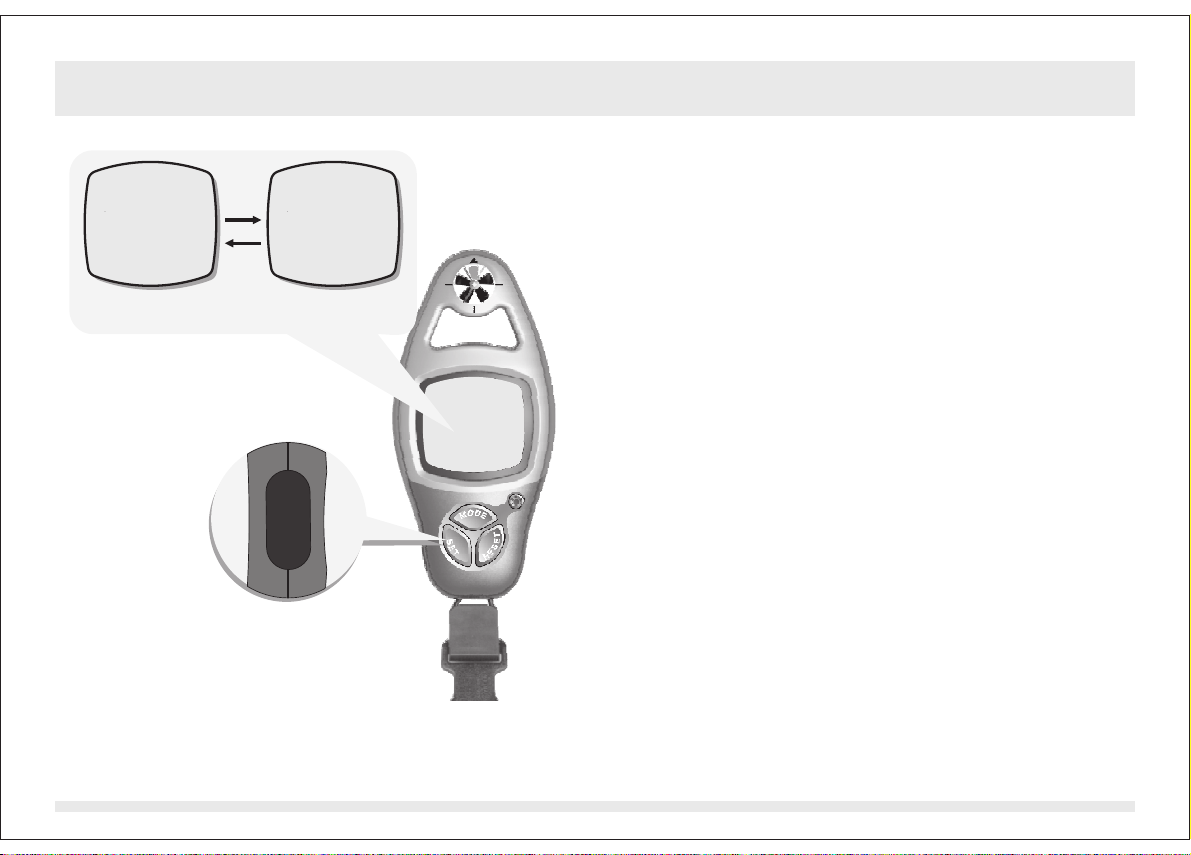

In any functional mode/display, press the light button once to turn ON the EL backlight for about 3 seconds.

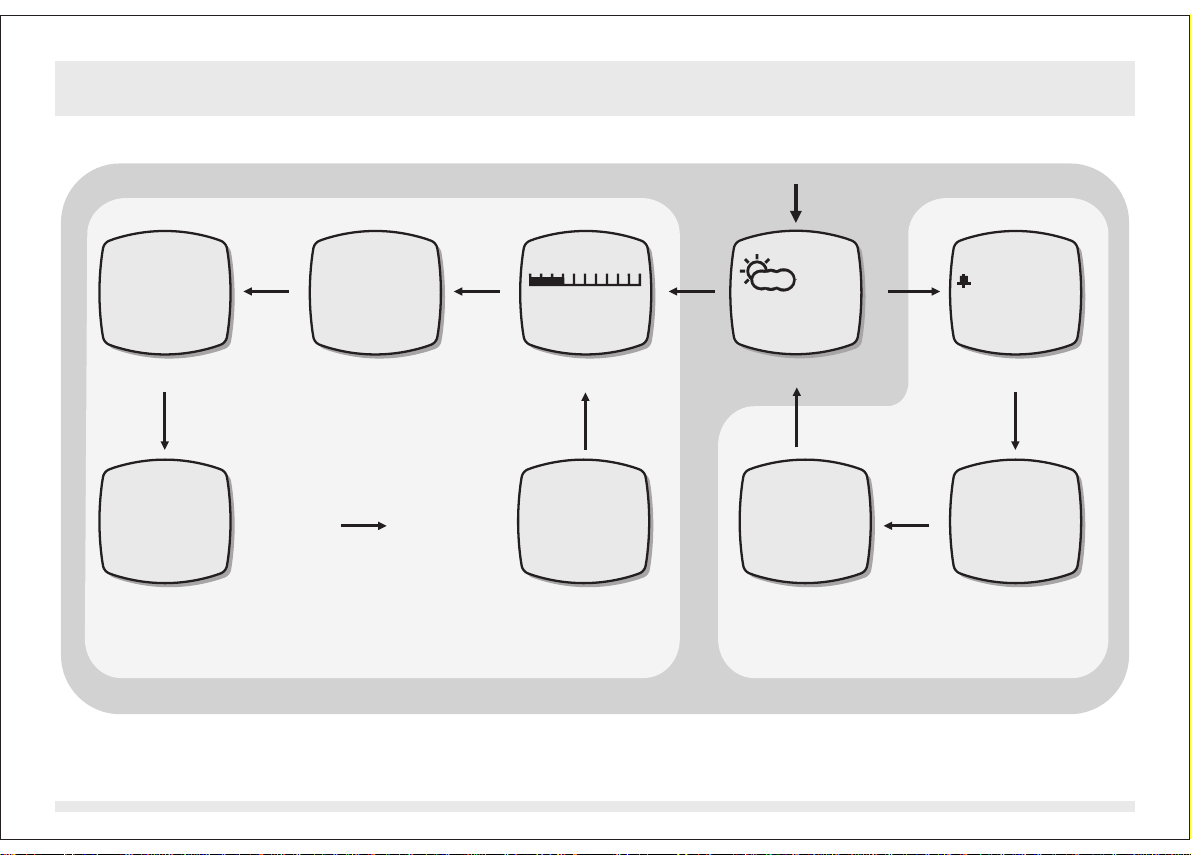

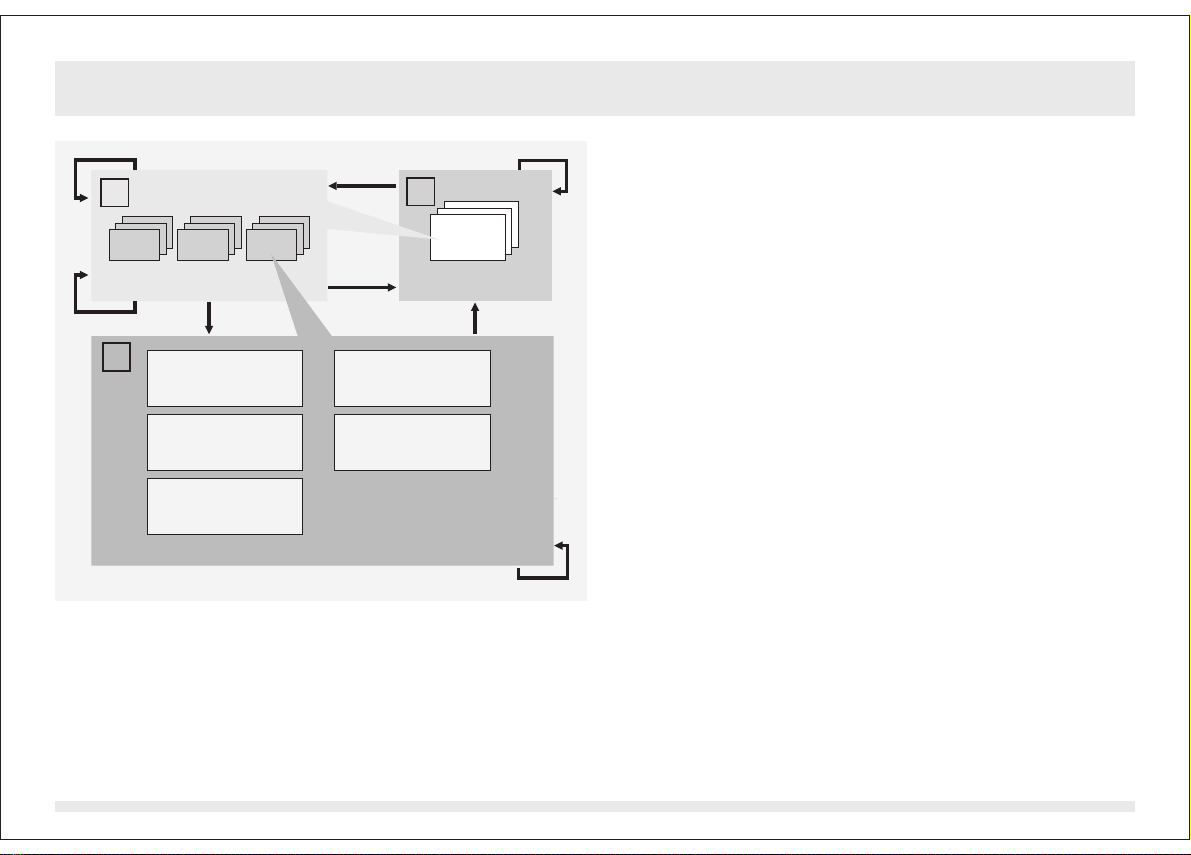

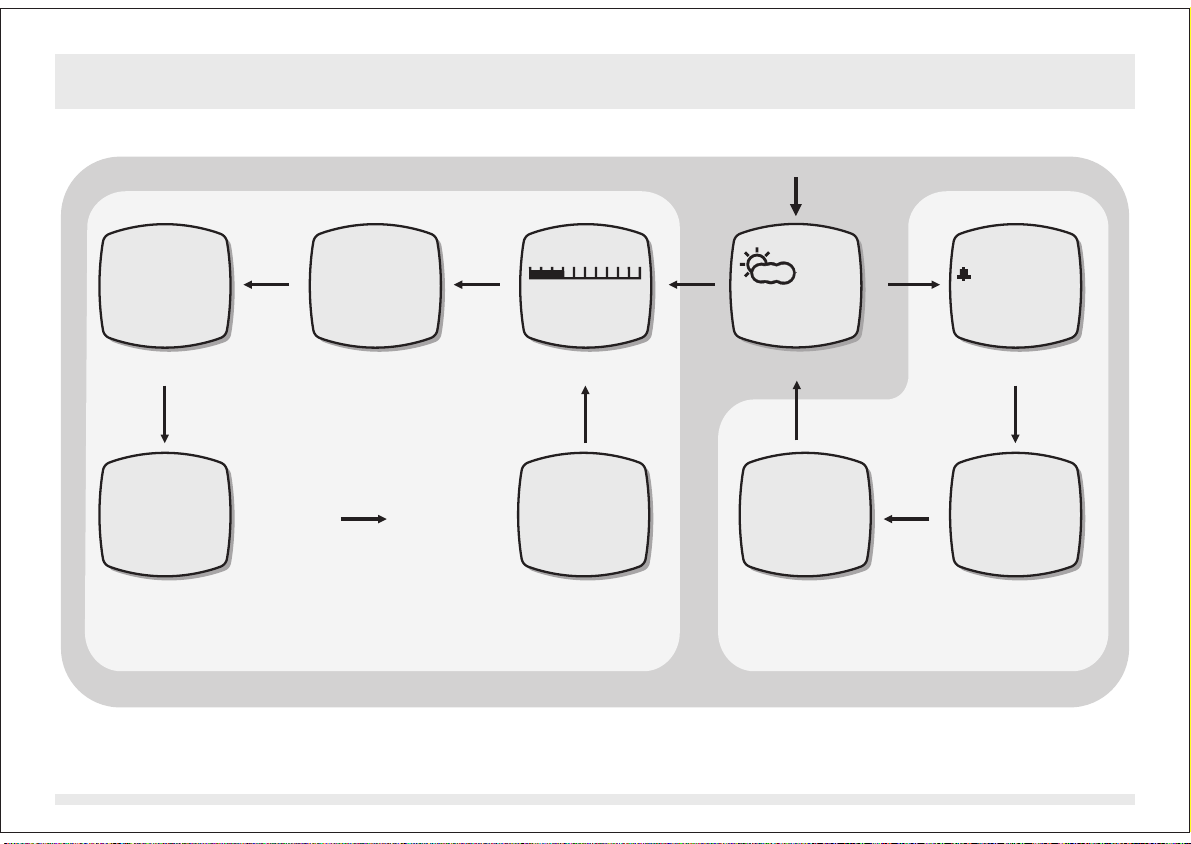

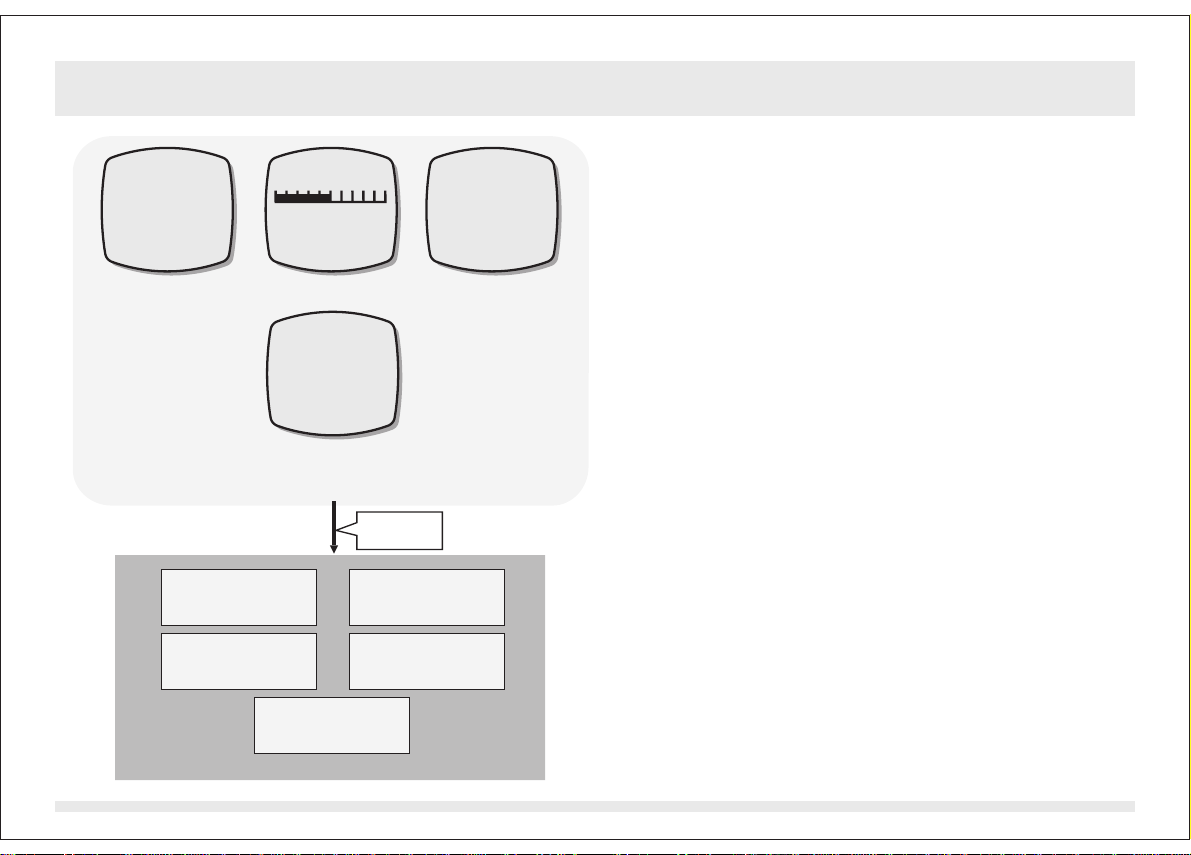

5.0 Major Functional Modes

BARO hPa [mode] TEMP	C [mode] WIND mph [mode]	06MAR	[set]	DAILY ALARM
		THU		ON

1001.3	28.3	21.3	12:38.28			12:00
	18.2 13.2	18.3 8.3	88.2% 28.0 C
Barometer Mode	Temperature Mode	Wind Mode	Current Time Mode		Daily Alarm Mode
[mode]		[mode]	[mode]			[mode]
ALTITUDE m	[mode]	DATALOG	RACE TIMER	[mode]		CHRONO
		06 MAR 2003				GRAPH
144		2:10.30	0:10.00			0:00.00
734 80		r001-0023				00
Altitude Mode		Data Log Mode	Race Timer Mode		Chronograph Mode
	Sensor Function		Time Function

Major Functional Modes

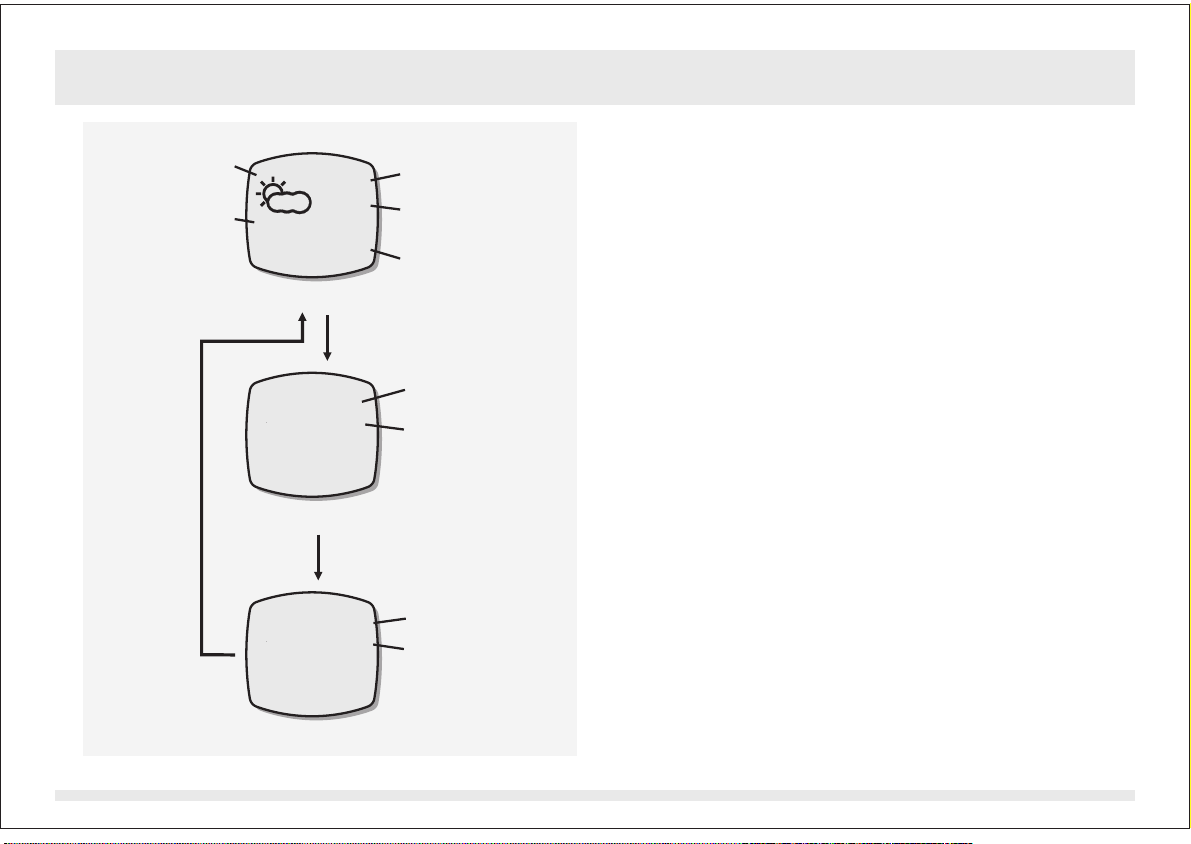

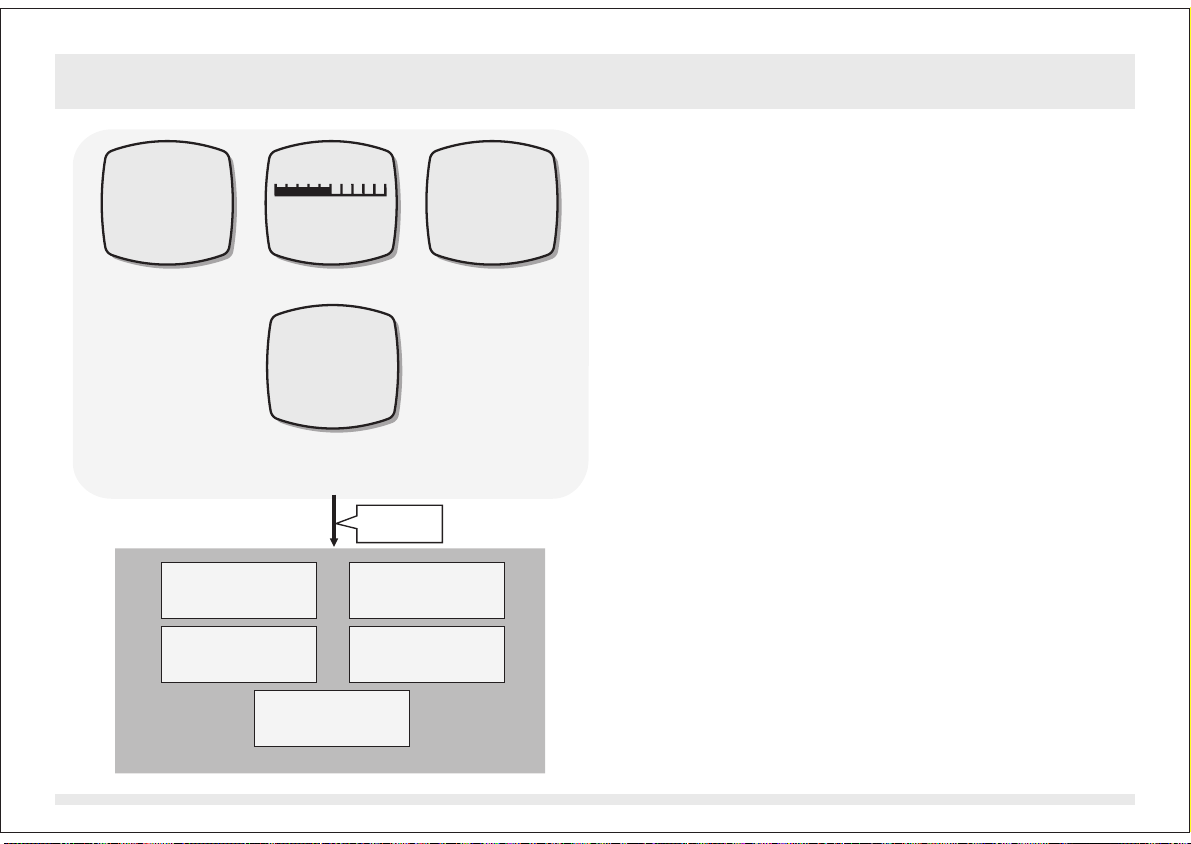

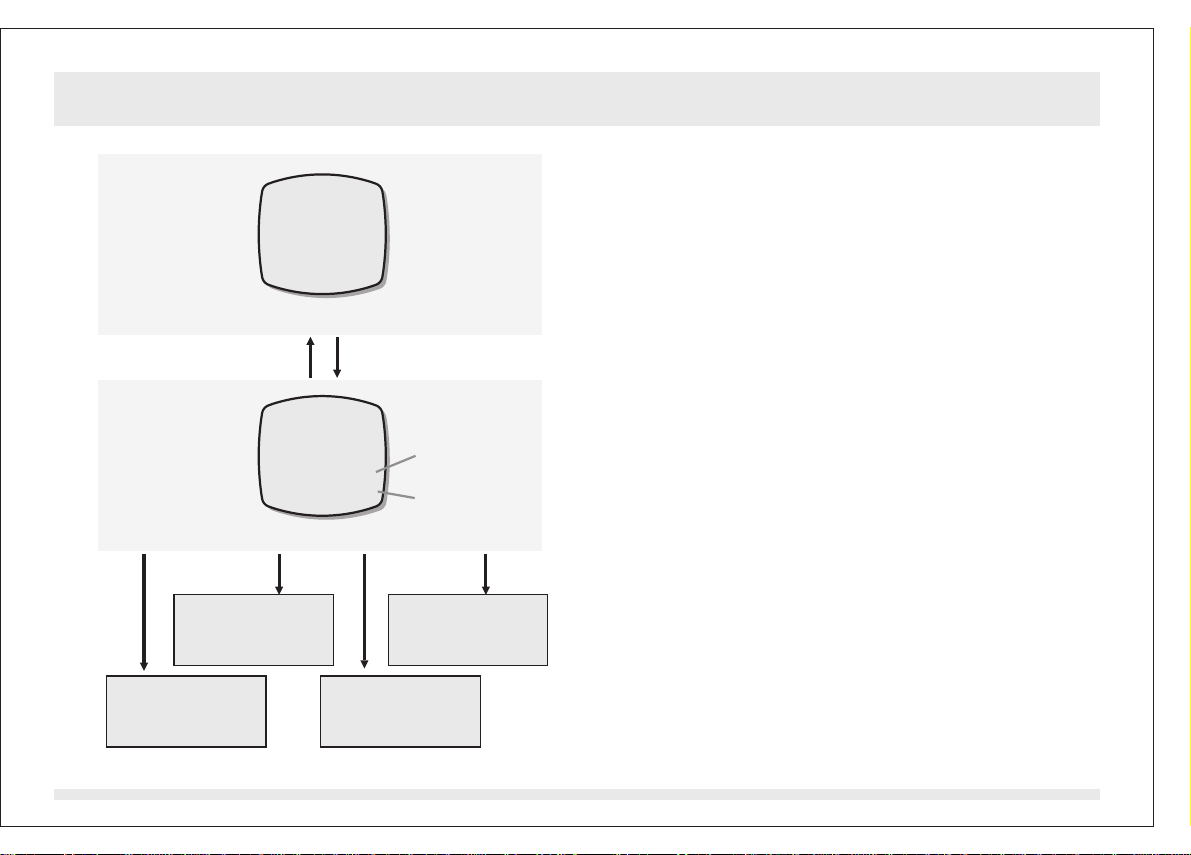

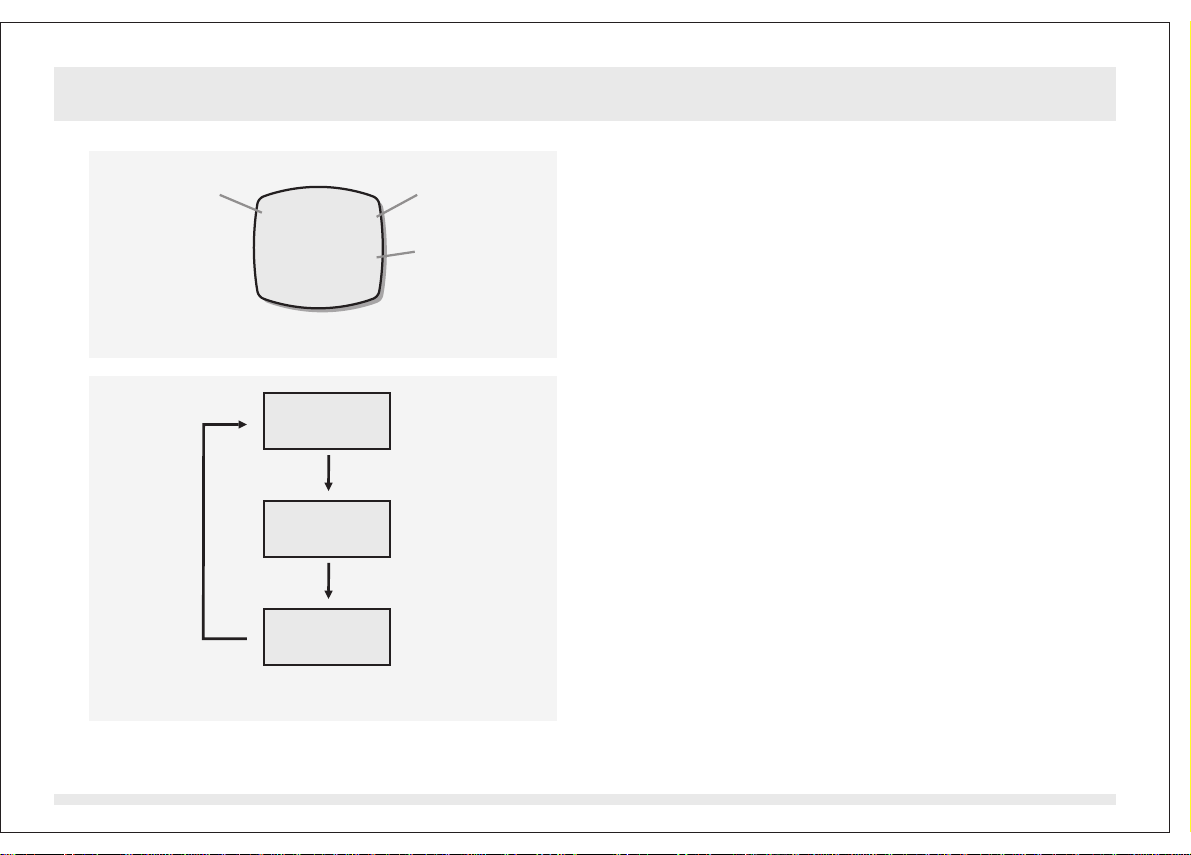

6.0 Current Time Mode - Functional Displays

	Weather
	Forecast	06MAR	Date
	Symbol
	Current	THU	Day of week
		12:38.28
	Time
		88.2% 28.0 C Current

Temperature

Weather Forecast Display

5 Seconds

Mode

ALTITUDE: Indicator

57m Current

12:38.28 Altitude

88.2% 28.0 C

Altitude Display

5 Seconds	5 Seconds

	BAROMETER:	Mode
		Indicator
	1001.3h Pa	Current
	12:38.28
		Barometric
	88.2% 28.0 C	Pressure
	Barometer Display
	Current Time Mode

Functional Displays

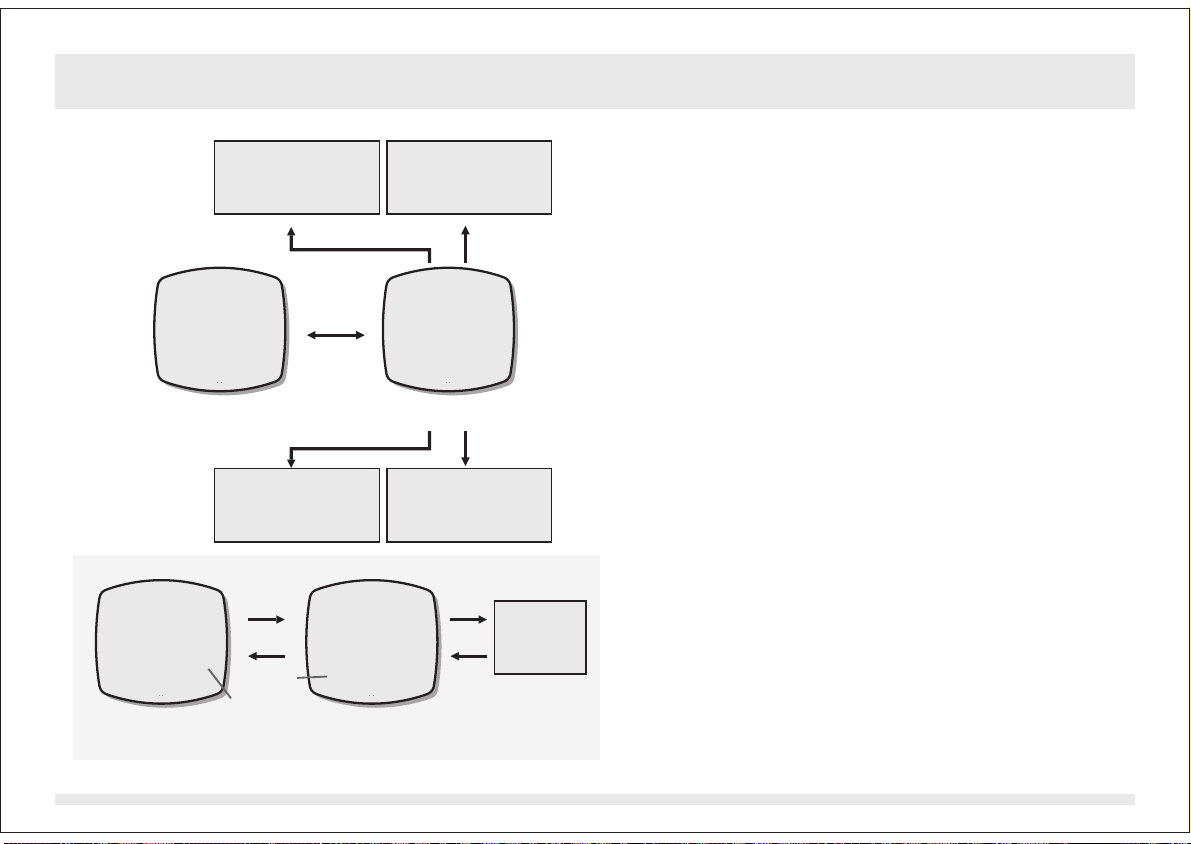

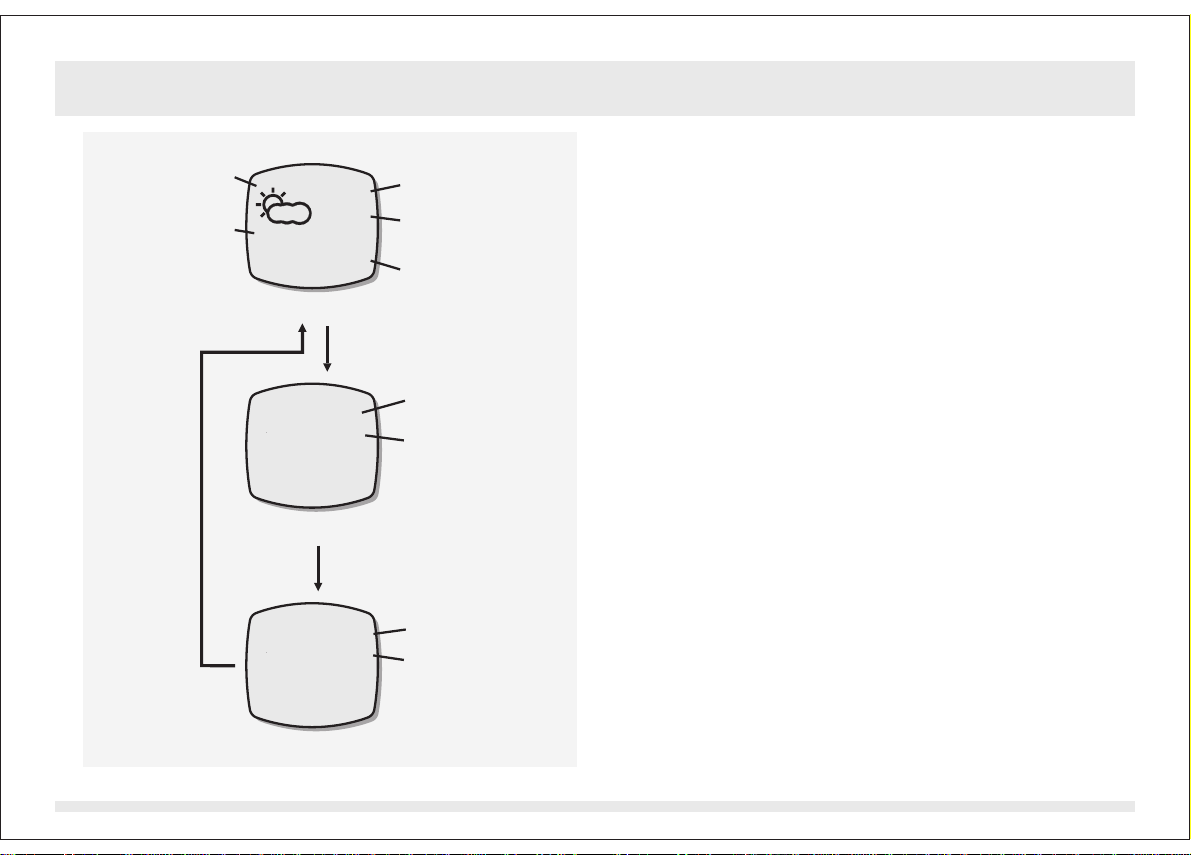

Current Time Mode includes three different displays: the Weather Forecast Display, Altitude Display and Barometer Display.

The above displays rotate through every 5 seconds.

The current time, relative humidity and current temperature appear on the 3rd and 4th row of the display respectively.

Weather Forecast Display

In Weather Forecast Display, the weather forecast symbol and day of week appear on the 1st and 2nd row of the display respectively. Check the coming 'Weather Forecast Symbols' section below for more detail on the means of the weather forecast symbols

Altitude Display

The indicator 'ALTITUDE' appears on the 1st row of the display. The altitude at the current location appears on the 2nd row of the display.

Barometer Display

The indicator 'BAROMETER' appears on the 1st row of the display. The current barometric pressure appears on the 2nd row of the display.

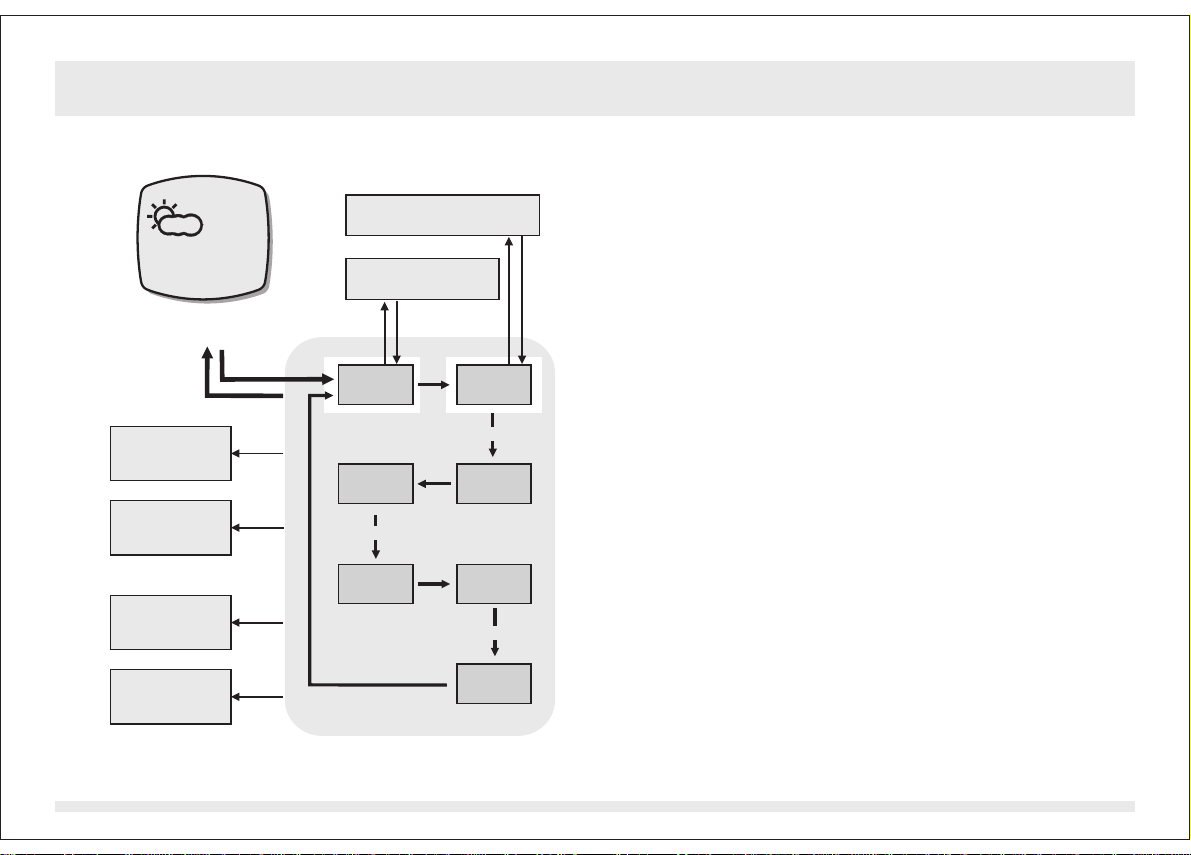

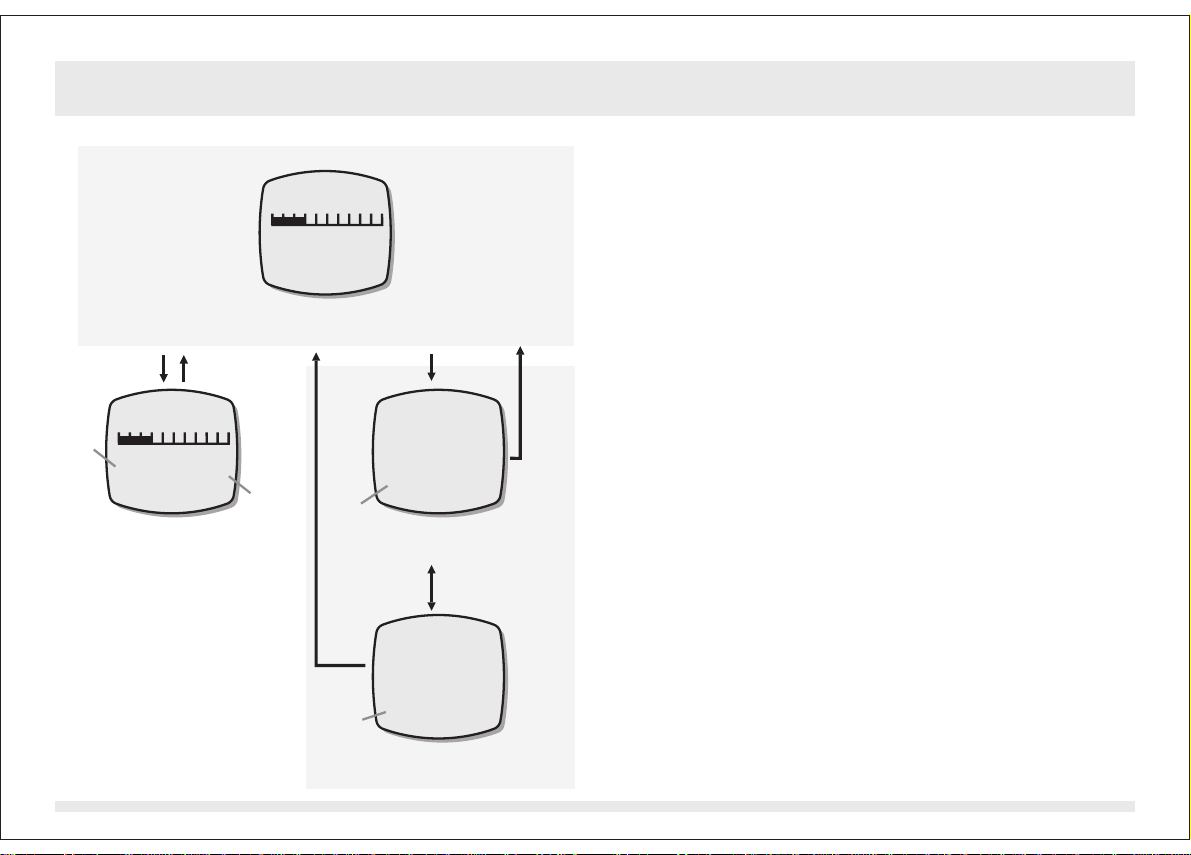

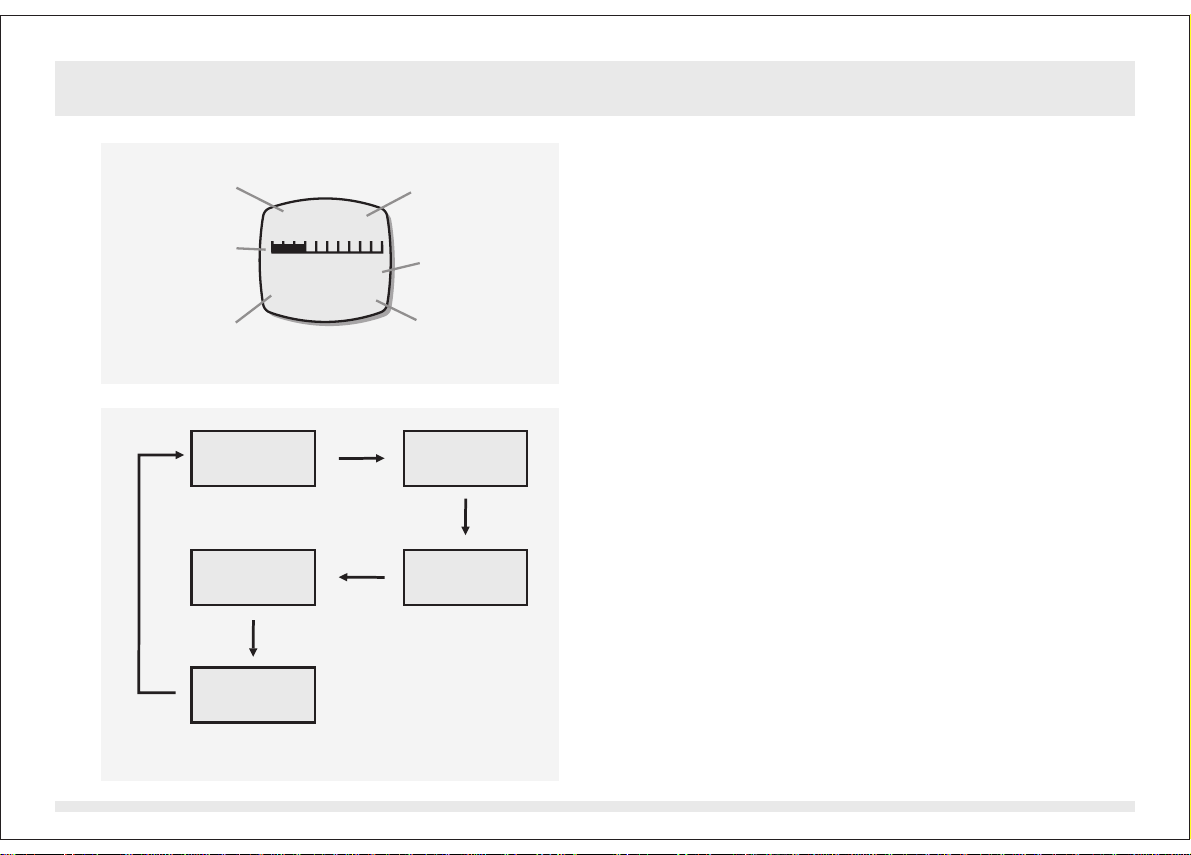

6.1 Current Time Mode - Setting the Current Time Mode

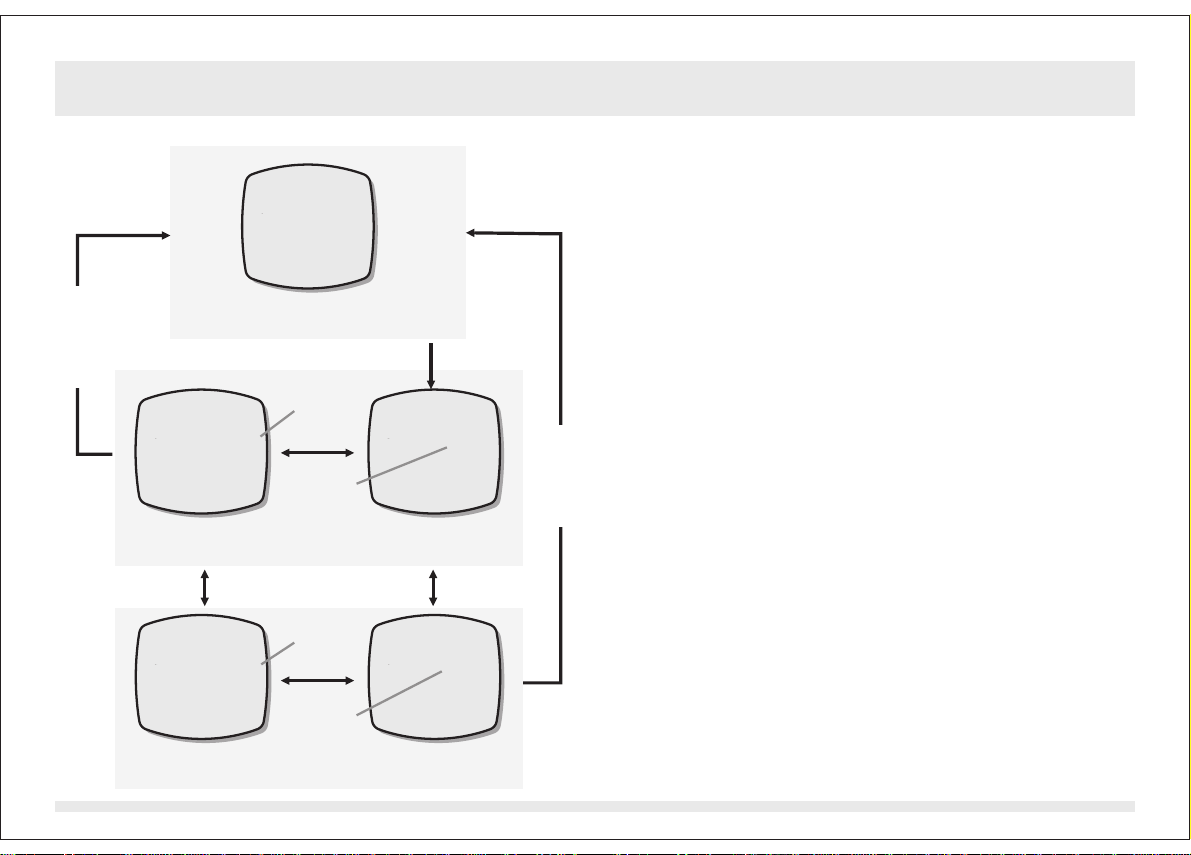

	06MAR		reset Second to zero
	THU
	12:38.28
	88.2% 28.0 C		'12' changes to '24';
			'24' changes to '12'.
	Current Time Mode		[set]	[set]
			or [reset]	or [reset]
	hold	hold		[mode]
	[mode]	[mode]
			12/24	second
		[reset]
	scroll through			[mode]
				[mode]
	the settings by
	increment		hour	minute
	hold [reset]
	scroll
	the setting at		[mode]
	a faster pace
				[mode]
		[set]	year	month
	scroll through
	the settings by			[mode]
	decrement
	hold [set]			[mode]
	scroll			date
	the setting at
	a faster pace

To Select Setting Display

Setting the current time and date, and their display formats, press and hold the [mode] button for about 2 seconds to select the setting display (the '12' indicator will start flashing).

The Setting Sequence

In setting display, press the [mode] button to move the setting following the adjacent diagram.

When the '12' or '24' digits starts flash, press the [set] or [reset] button to switch between '12' (12 hour format) and '24' (24 hour format). When the 'second' digits starts flash on the display, press [set] or [reset] button to reset the second to zero.

If one of the settings (minute, hour, year, month, date) starts flash, press the [set] or [reset] button to scroll through the setting (hold down the button to scroll the setting at a faster pace).

When the above settings finished, press and hold the [mode] button for about 2 seconds to exit the setting sequence.

Current Time Setting Sequence

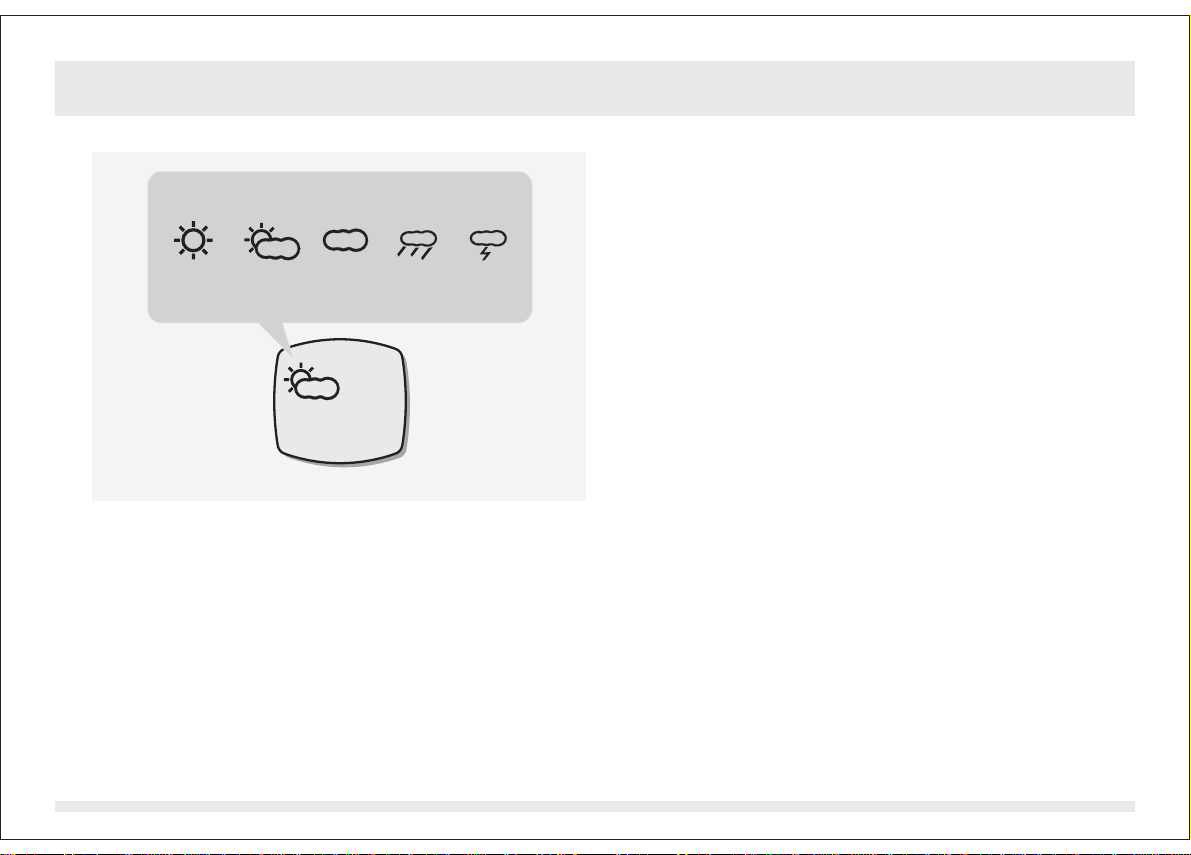

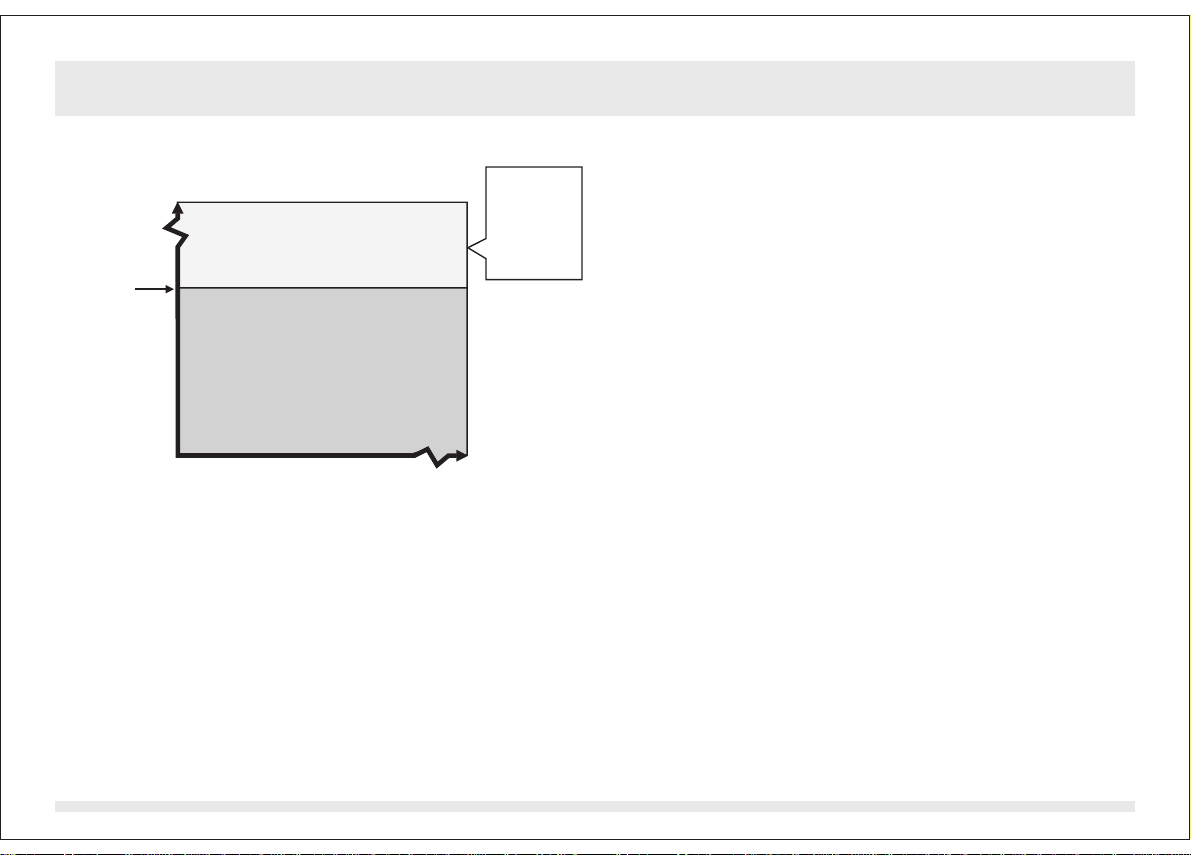

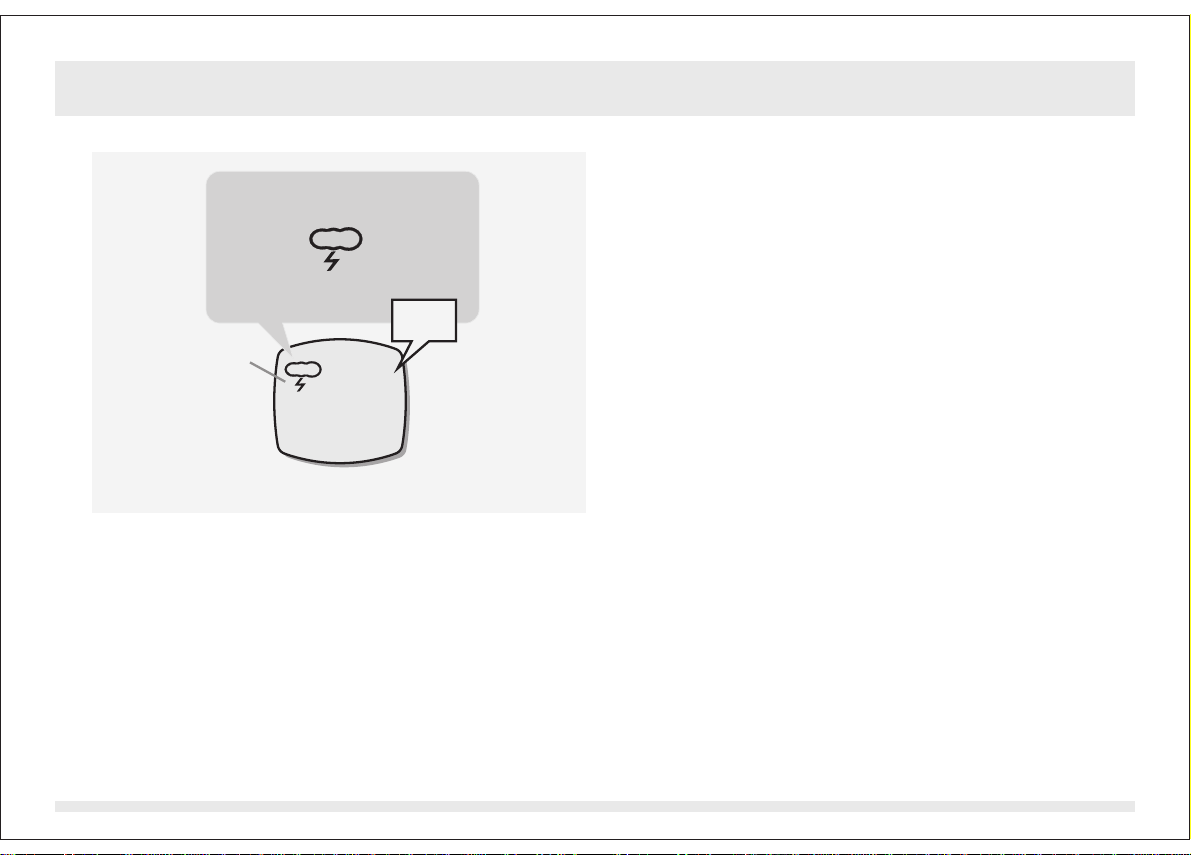

6.2 Current Time Mode - Weather Forecast Symbols

Weather Forecast Symbols

Sunny Partial Cloudy Rainy Stormy

Cloudy

06MAR THU

12:38.28

88.2% 28.0 C

Weather Forecast Display

Current Time Mode

Note:

When the ADC has been reset or the battery has been replaced, partial cloudy symbol will be displayed. To get an accurate weather forecasting, the ADC must stay at the same altitude for over 12 hours.

Weather Forecast Symbol

The ADC includes a weather forecast function that predicts the weather for the next 12 hours.

The ADC will display the forecasted weather by the weather forecast symbol. There are five kind of weather forecast symbols, they are the Sunny, Partial Cloudy, Cloudy, Rainy and Stormy.

What Does the Weather Forecast Symbol indicate

A 'Sunny' symbol generally indicates improving weather or sunny weather ahead.

A 'Partial Cloudy' symbol generally indicates slightly cloudy weather ahead.

A 'Cloudy' symbol generally indicates deteriorating weather or cloudy weather ahead.

A 'Rainy' symbol generally indicates adverse weather or rainy weather ahead.

A 'Stormy' symbol generally indicates stormy weather ahead.

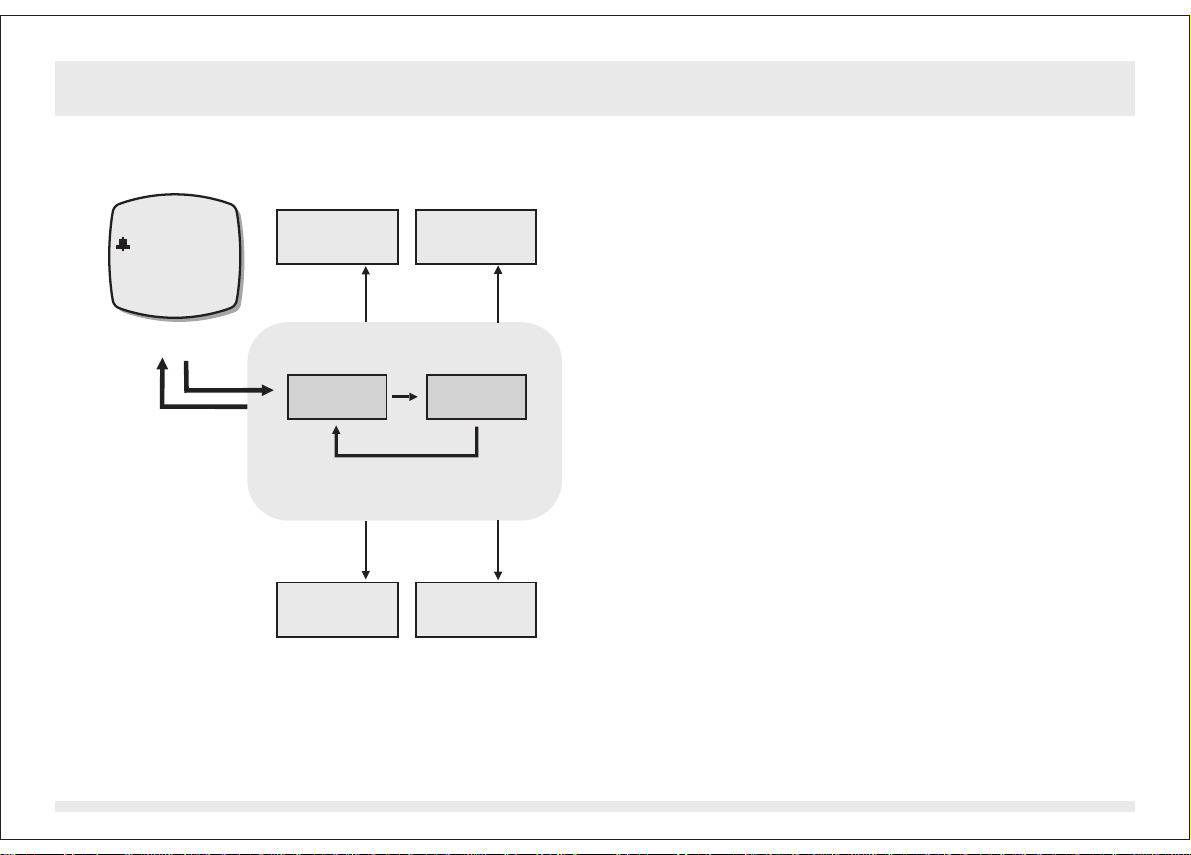

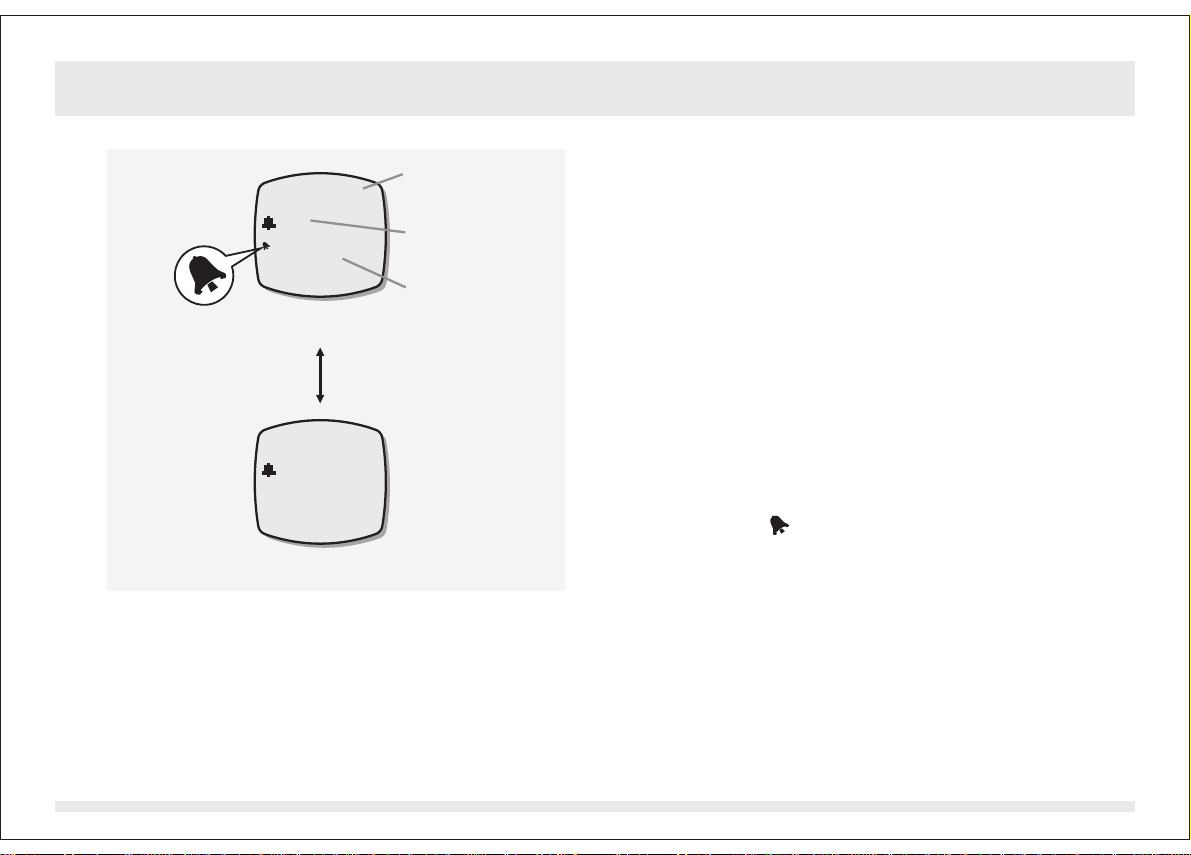

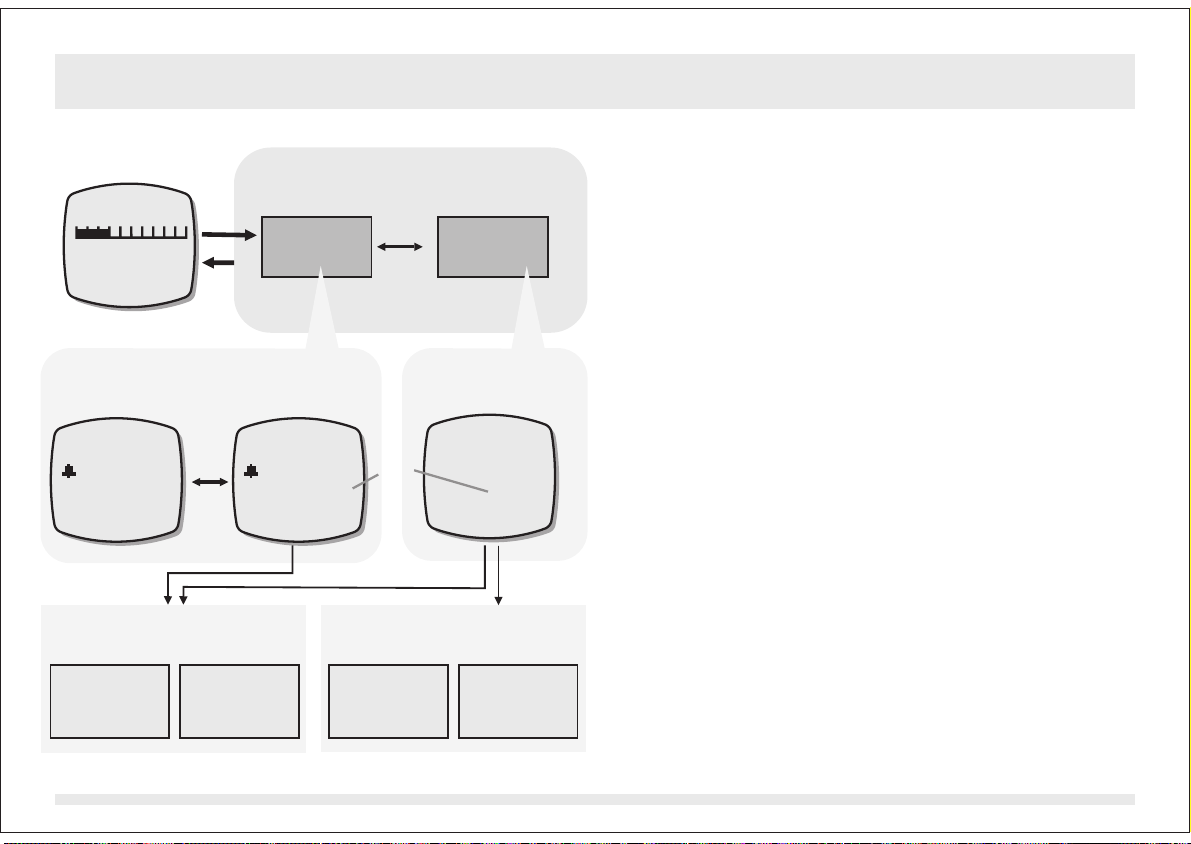

7.0 Daily Alarm Mode - Daily Alarm Display

		Mode indicator
	DAILY ALARM
	ON	Alarm ON/OFF
	12:00
		Status
		Alarm time
	Alarm ON Alarm ON Display
	Indicator
	[set]

DAILY ALARM OFF

-- : --

Alarm OFF Display

Daily Alarm Mode

Daily Alarm Display

In Daily Alarm Mode, the display will show the following:

1)The mode indicator 'DAILY ALARM' appears on the 1st row of the display.

2)The 'ON' or 'OFF' status indicator appears on the 2nd row of the display.

3)The alarm time (hour and minute) appears on the 3rd row of the display.

To Select Daily Alarm between ON and OFF

To select the daily alarm between ON and OFF, press the [set] button once.

When the daily alarm is ON, the Alarm ON

Indicator ' ' appear otherwise it is OFF.

Daily Alarm Sound

When the daily alarm is ON, the product will beep at the predefined alarm time for about 30 seconds.

When the beep sounds, it can be stopped prematurely by pressing any of the buttons except the [light] button.

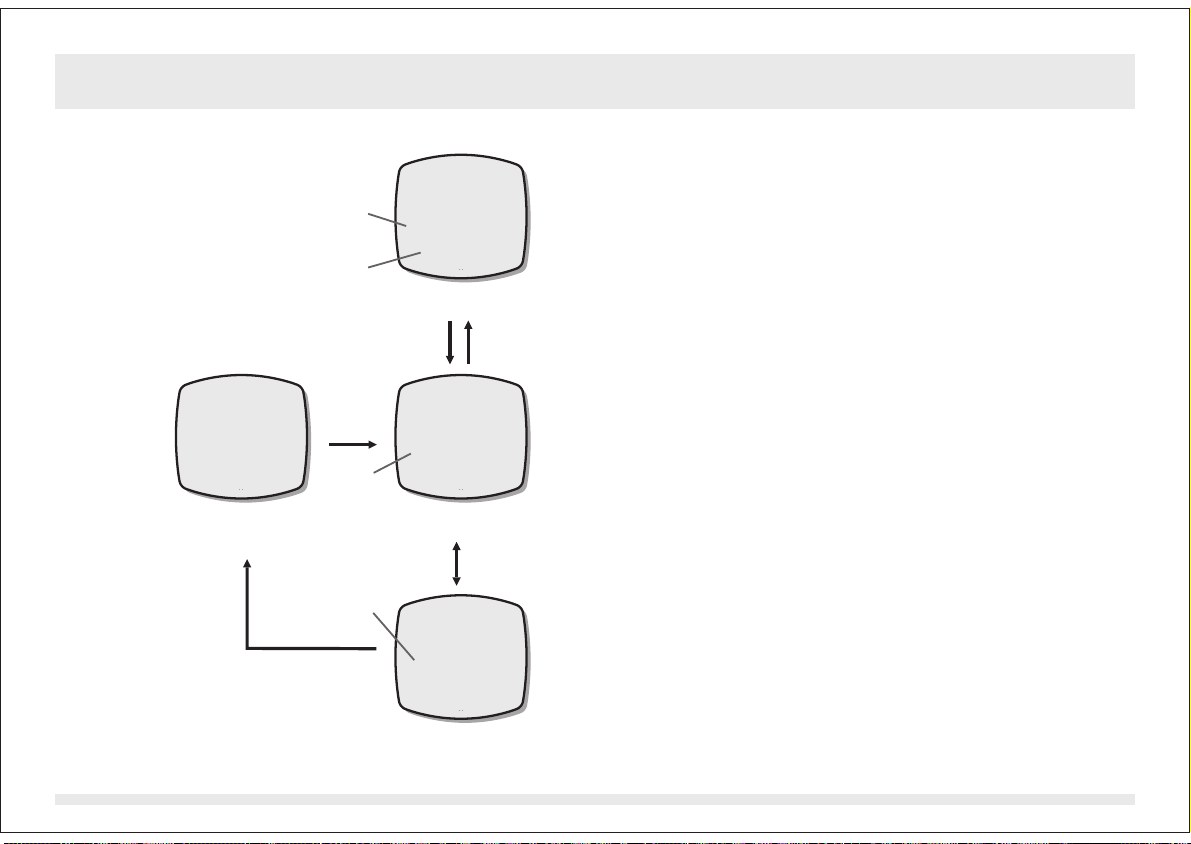

7.1 Daily Alarm Mode - Setting the Daily Alarm Mode

DAILY ALARM ON

12:00

Daily Alarm Mode

hold	hold
[mode]	[mode]

	scroll the								scroll
	setting by								the setting
	increment of 1								faster
	[reset]								hold
									[reset]
		[mode]
	Minute								Hour
		[mode]

Daily Alarm Mode

Setting Sequence

[set]			hold [set]
scroll the			scroll
setting by			the setting
decrement of 1			faster

To Select the Setting Display

Setting the Daily Alarm Time, press and hold the [mode] button for about 2 seconds to select the setting display (the 'minute' digits will start flashing).

The Setting Sequence

In setting display, press the [mode] button to move the setting between minute and hour settings.

When one of the settings (minute and hour) digits start to flash on the display, press the [set] or [reset] button to scroll through the setting (hold down the button to scroll the setting at a faster pace).

When the setting finished, press and hold the [mode] button to exit the setting sequence.

The setting display will change to Current Time Mode automatically if no key-stoke has been activated for about 1 minute.

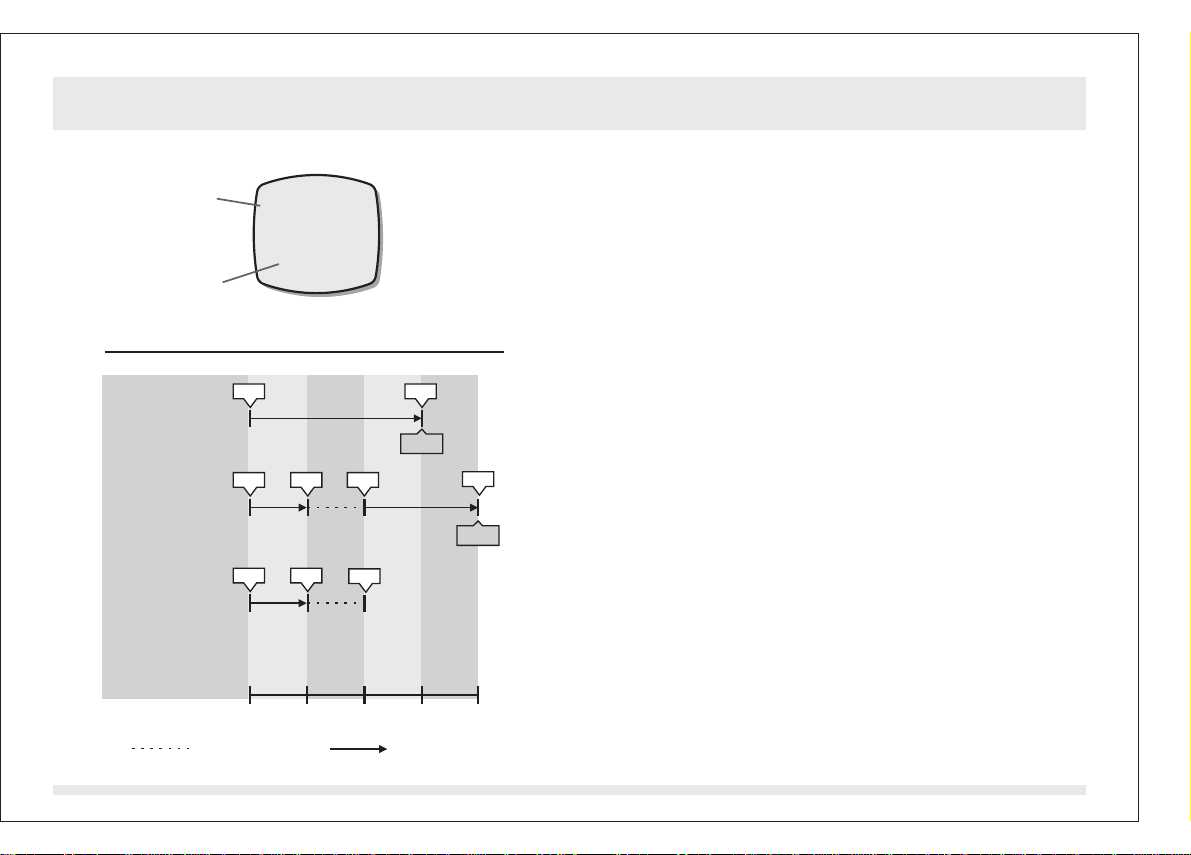

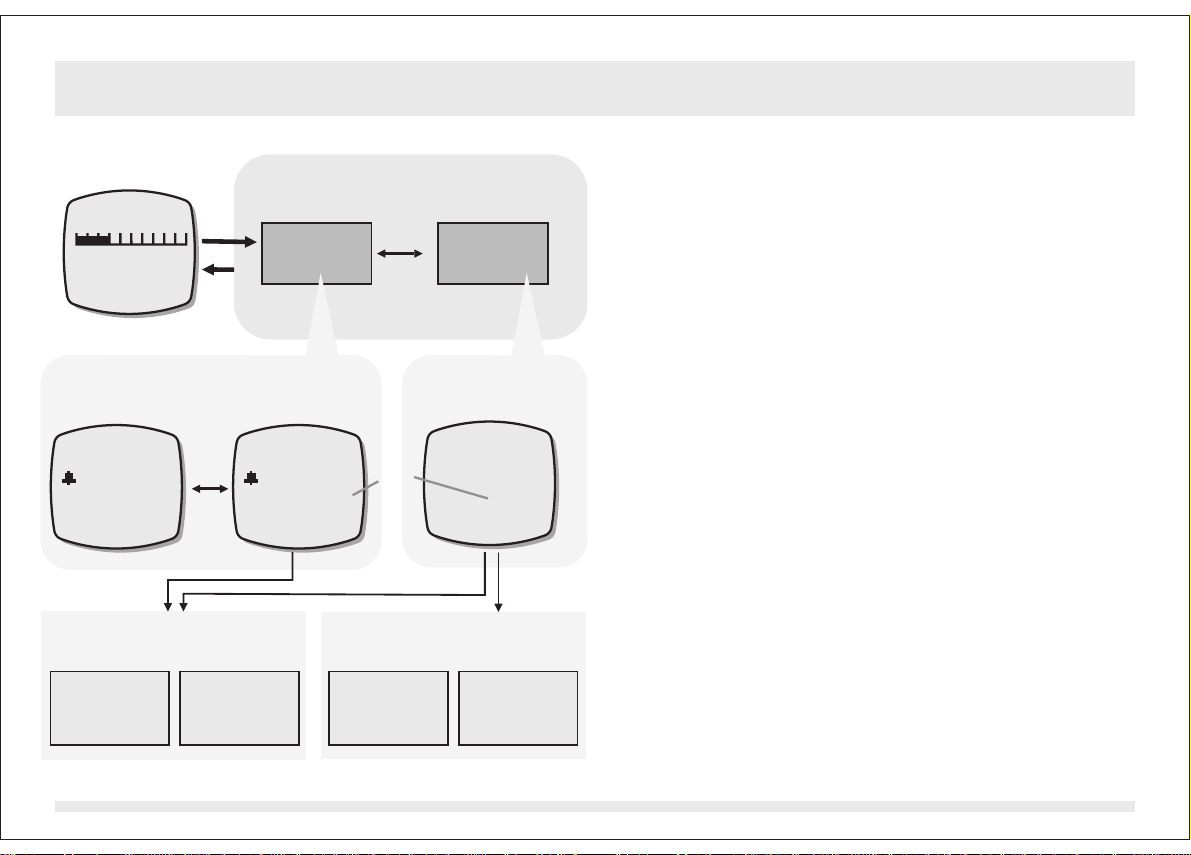

8.0 Chronograph Mode - Chronograph Display

Mode Indicator

CHRONO

Chronograph

GRAPH

Chronograph

Time (second)

0:00.00

Time (hour)

00

Chronograph

Chronograph Time

Chronograph Mode

(1/100 Second)

Time (minute)

(Zero Display)

0

30

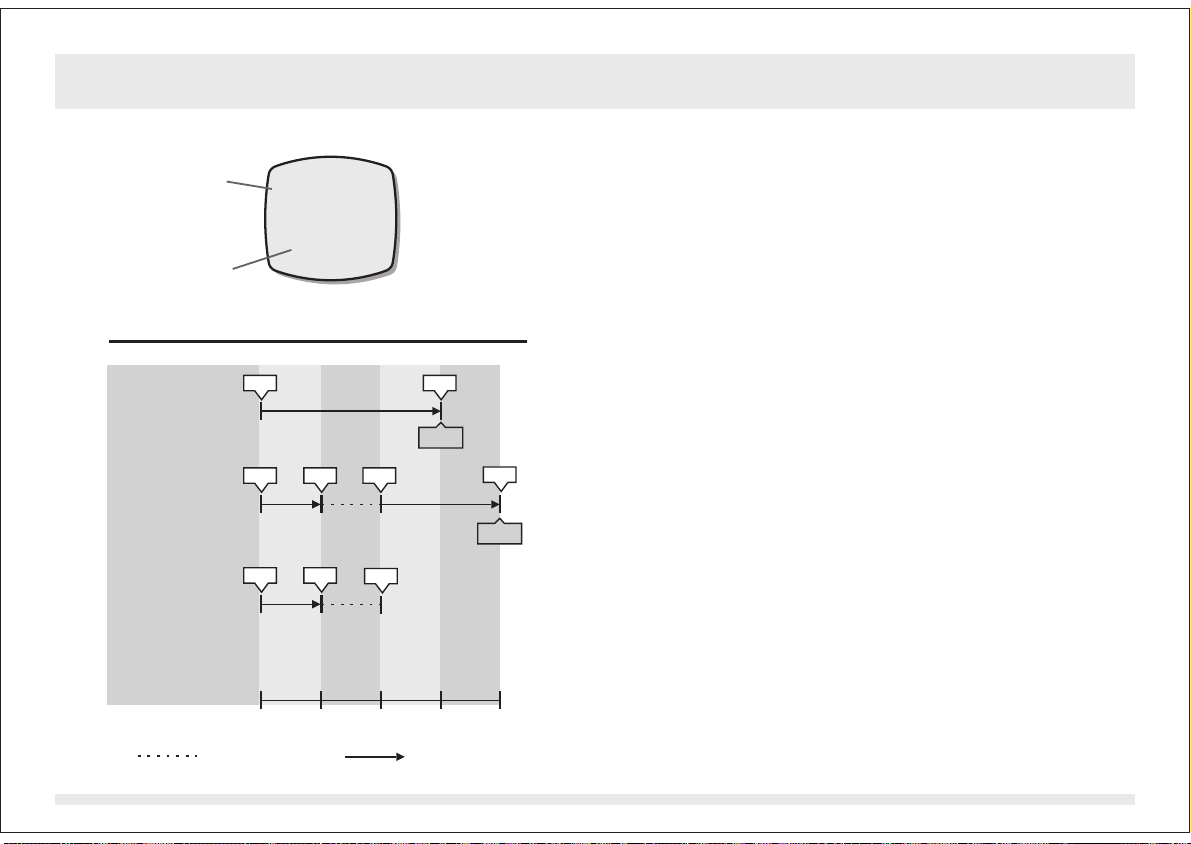

1. Elapsed time

[set]

[set]

0

10

10

20

2. Accumulative

elapsed time

[set]

[set]

[set]

[set]

0

10

10

3. Lap time

[set]

[reset]

[reset]

time 0

10

20

30

40

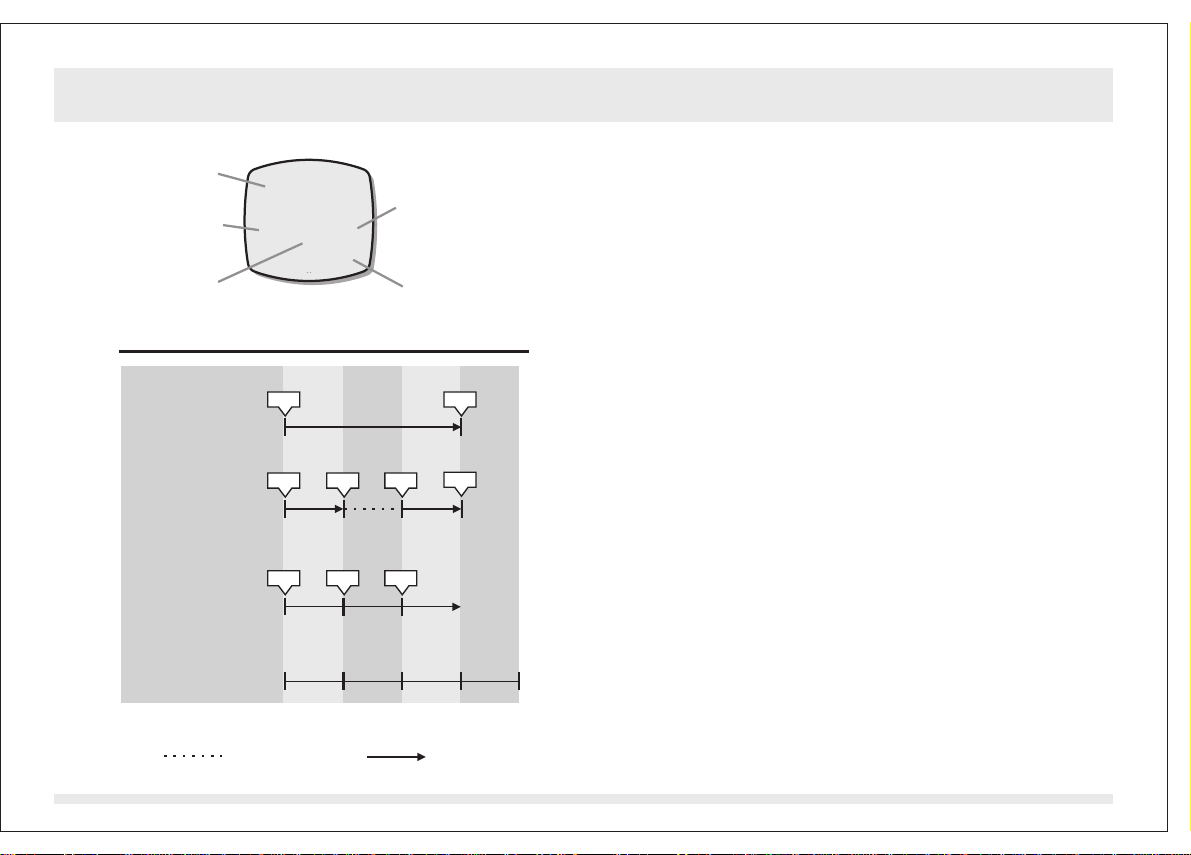

Elapsed Time, Accumulative Elapsed Time and Lap Time

: Stop Counting

: Counting

Chronograph Function

The ADC is equipped with a Chronograph Mode, it can measure 3 different periods of time. They are:

1)Elapsed time,

2)Accumulative elapsed time

3)Lap time

Chronograph Display

In Chronograph Mode, the display will show the following:

1)T h e m o d e i n d i c a t o r ' C H R O N O G R A P H ' appears on the 1st and 2nd row of the display.

2)The chronograph time (hours, minutes, seconds) appears on the 3rd row of the display.

3)The lap number and chronograph time (1/100 second) appears on 4th row of the display.

The display shows the 'Zero' display, if the product or the chronograph has been reset.

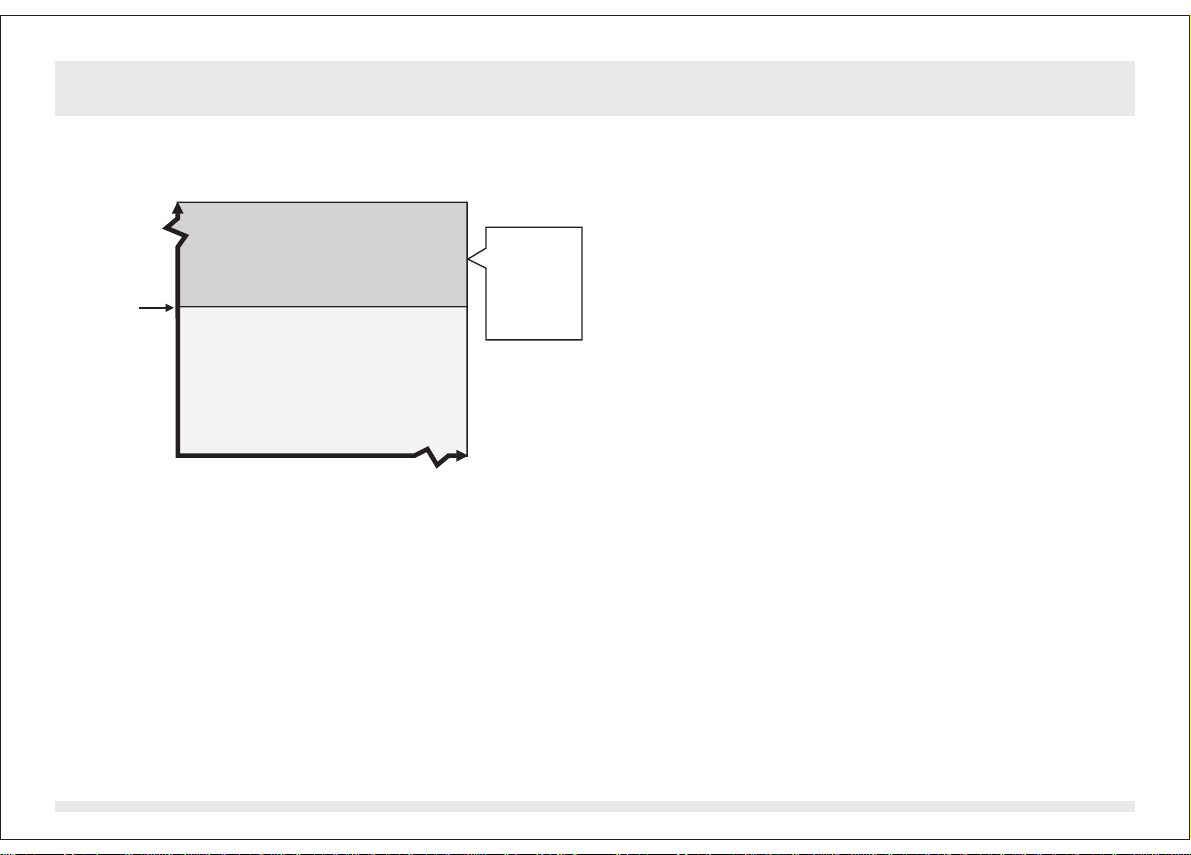

The maximum counting range of the chronograph is 99 hours, 59 minutes and 59.99 seconds. The chronograph can record up to 50 laps.

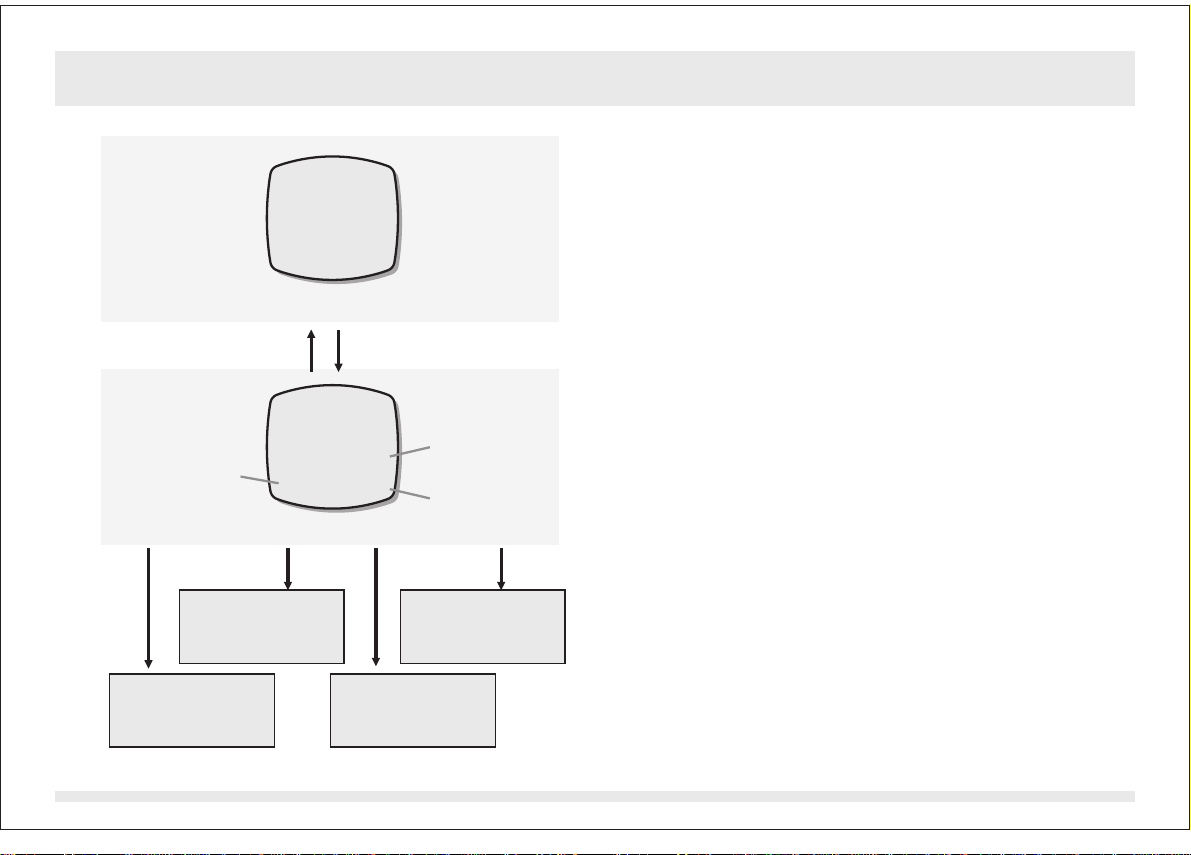

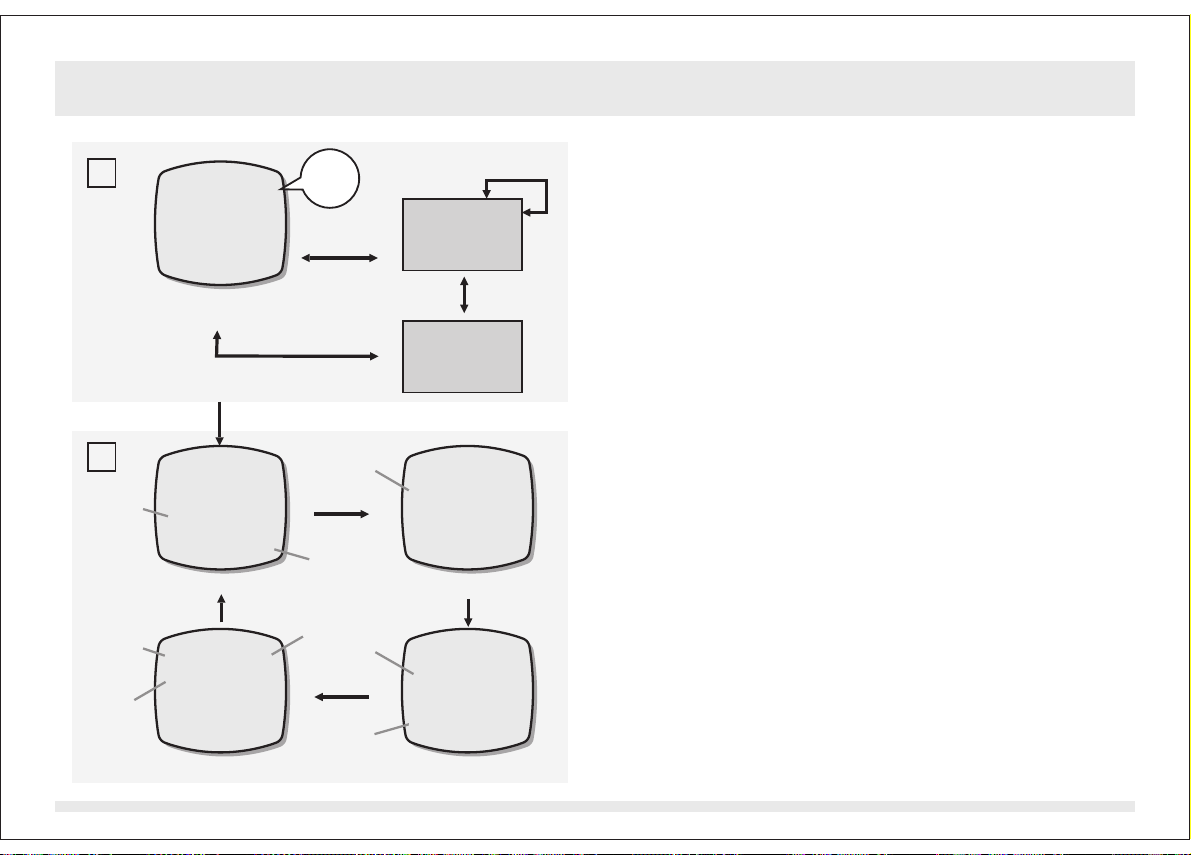

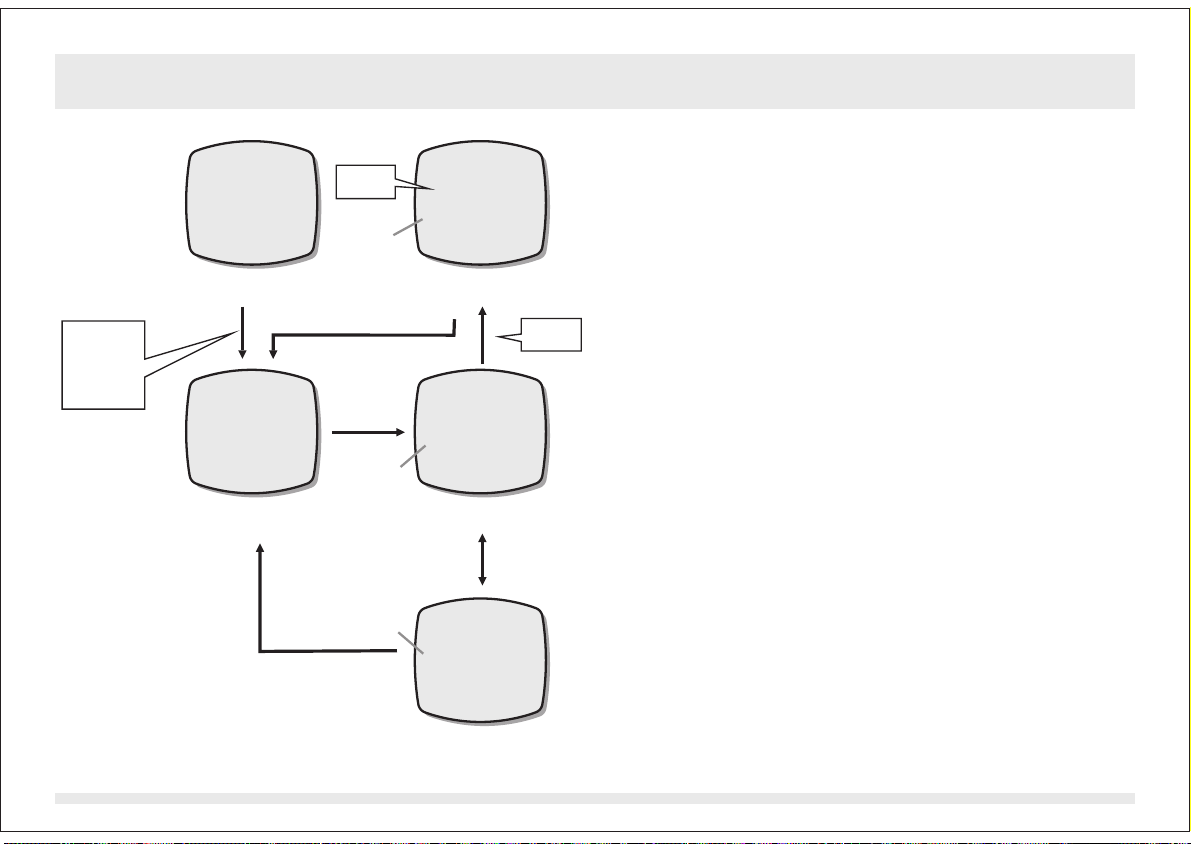

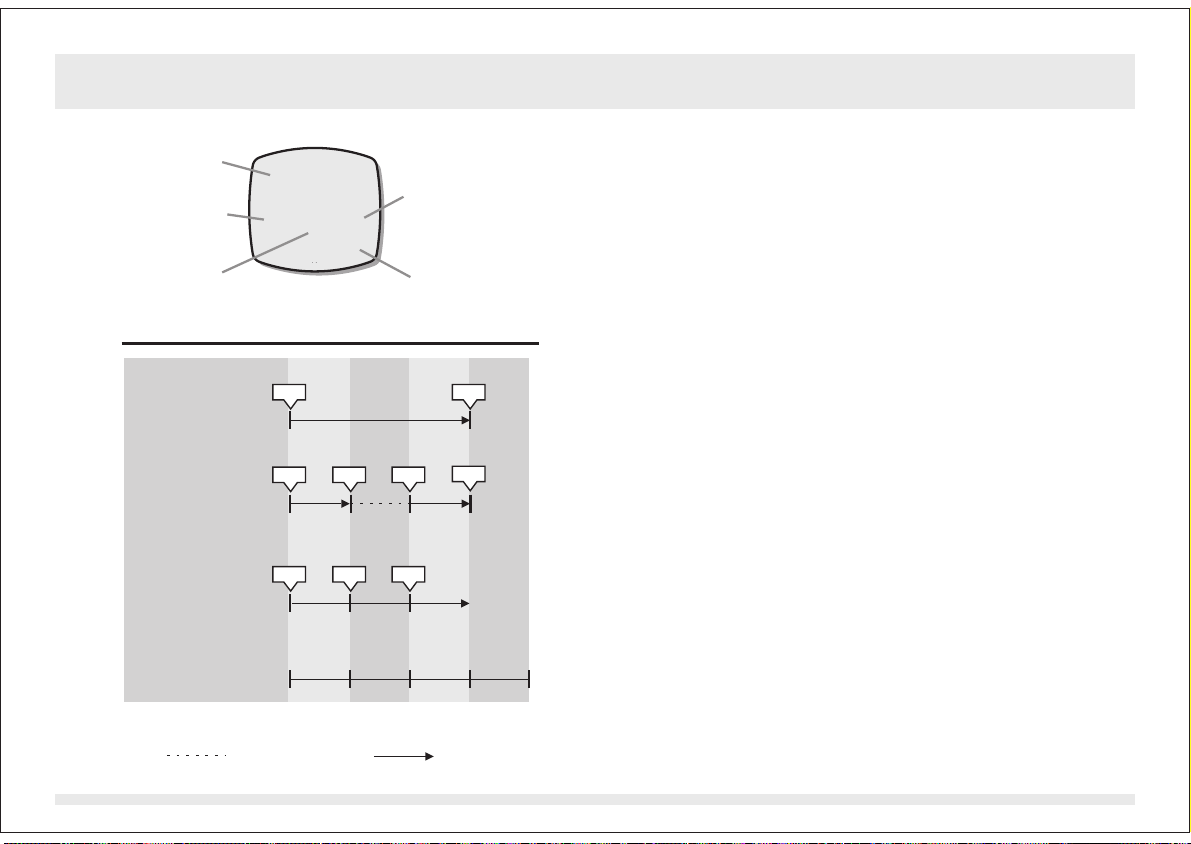

8.1 Chronograph Mode - Using the Chronograph

	Lap Time
	(the chronograph		CHRONO
	is counting in the		RUNNING
	background)
			0:00.00
		Lap No.	1L	01
			Chronograph Mode
			(Lap Time Display)
		10 seconds		[reset]
	CHRONO	[set]	CHRONO
	GRAPH		RUNNING
	0:00.00		0:00.00
	00	counting		01
	Chronograph Mode		Chronograph Mode
	('Zero' Display)		(Counting Display)
		Elapsed Time		[set]
		(the chronograph
		is stop counting)

[reset]

Note:

This diagram illustrates the general flow among different functional displays only, and may NOT conform to fact in all instances.

CHRONO

STOP

0:00.00

20

Chronograph Mode

(Stop Counting Display)

Chronograph Function

In 'Zero' Display, press the [set] button once to start the counting. When it is counting, press the [set] button again to stop the counting, and the elapsed time of which the chronograph is counting will appear.

When the elapsed time is displaying, repeat the key operations above to get the accumulative elapsed time or press the [reset] button to reset the chronograph. Check the below 'To Reset the Chronograph' section for more detail on how to reset the chronograph.

To Record a Lap Time

When the chronograph is counting in the previous operations, press the [reset] button to display Lap Time Display for 10 seconds.

When the Lap Time is displaying, the c h r o n o g r a p h r e m a i n s c o u n t i n g i n t h e background.

To Reset the Chronograph

To reset the chronograph, to be ready for a new operation, press the [reset] button once when the chronograph has stopped counting. The display will then return to 'Zero' Display.

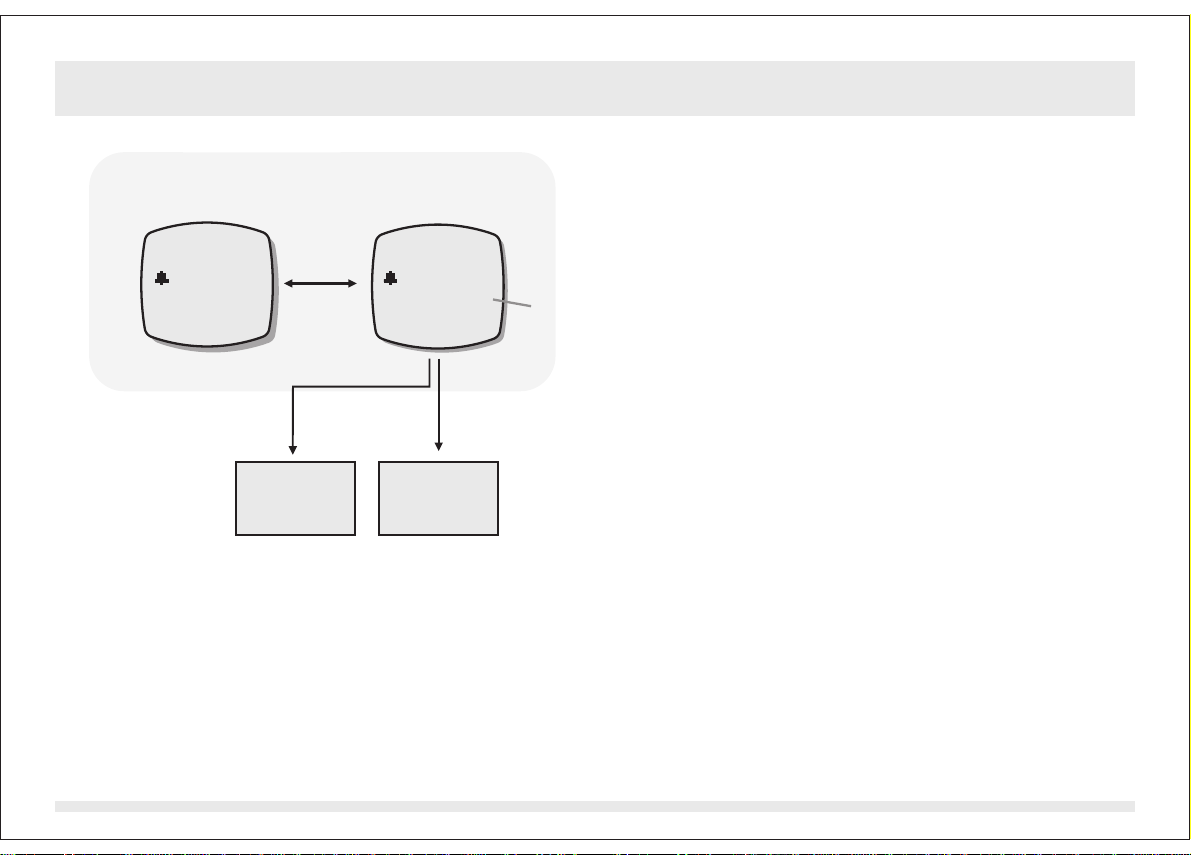

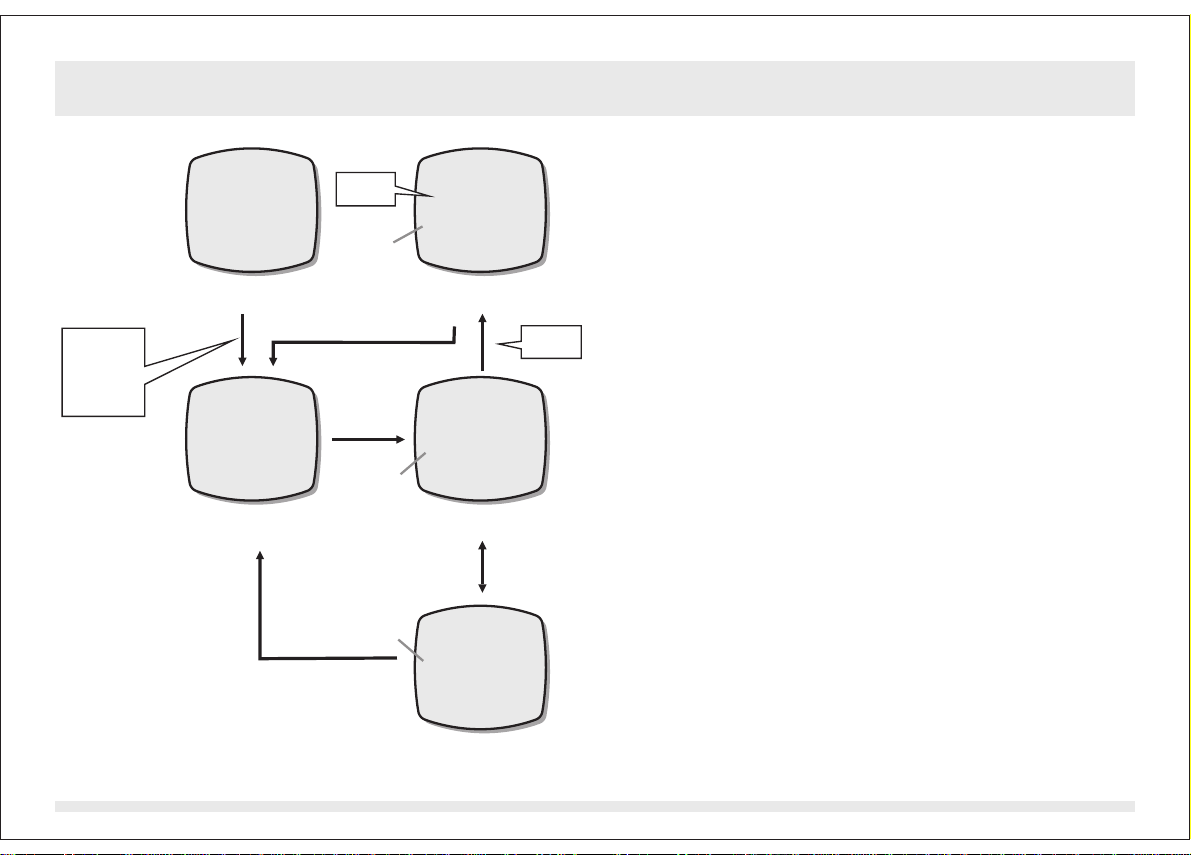

8.2 Chronograph Mode - Recall the Lap Time

Select the lap time by		Select the lap time by
backward scrolling		backward scrolling
(fast scrolling)		(1 lap per step)
hold [set]			[set]

	CHRONO		hold			CHRONO
	STOP		[mode]			RECALL
	0:00.00				0:02.02
		20				20
	Stop Counting Display			Lap Time Recall Display
		hold [reset]				(Total Time)
						[reset]
		Select the lap time by		Select the lap time by
		forward scrolling				forward scrolling
		(fast scrolling)				(1 lap per step)
CHRONO		[reset]	CHRONO			[reset]
							Next
RECALL			RECALL
		[set]				[set]	Available
0:02.02			0:04.02				Lap Time(s)
1L	20	Lap No.	2L	20
		Lap Time
Lap Time Recall Display Lap Time Recall Display
(Lap 1 Time)			(Lap 2 Time)

To Recall the Lap Time

In Stop Counting Display, press and hold the [mode] button to select the Chronograph Recall Display.

In Chronograph Recall Display, the total elapsed time will appear. To recall the individual lap time, press the [set] or [reset] button to select the target lap time (hold down the button to scroll the setting faster) following the adjacent diagram.

In Chronograph Recall Display, press and hold the [mode] button to return to the Stop Counting Display.

Chronograph Recall Display

In Chronograph Recall Display, the display will show the following:

1)The mode indicator 'CHRONO RECALL' appears on the 1st and 2nd row of the display.

2) T h e l a p t i m e ( h o u r s , m i n u t e s , seconds) appears on the 3rd row of the display.

3) The lap number and lap time (1/100 second) appears on the 4th row of the display.

9.0 Race Timer Mode - Race Timer Display

Mode
Indicator	RACE TIMER

0:10.00

Target Time (Hour, minute, second)

Race Timer Mode

30

0

1. Single-phase

down

[set]

beep

counting

30

20

20

0

2. Multi-phases

down

[set]

[set]

[set]

beep

counting

30

20

30

3. Reset to

preset

[set]

[set]

[reset]

target time

time

0

10

20

30

40

Single/multi-down Counting & Reset

: Stop Counting

: Counting

The Target Time

The ADC is equipped with a countdown timer to keep track of a fixed period of time (target time).

The user can set a target time of up to 99 hours, 59 minutes 59 seconds.

Check the coming 'Setting the Race Timer Mode' section for more detail on how to set the target time in Racer Timer Mode.

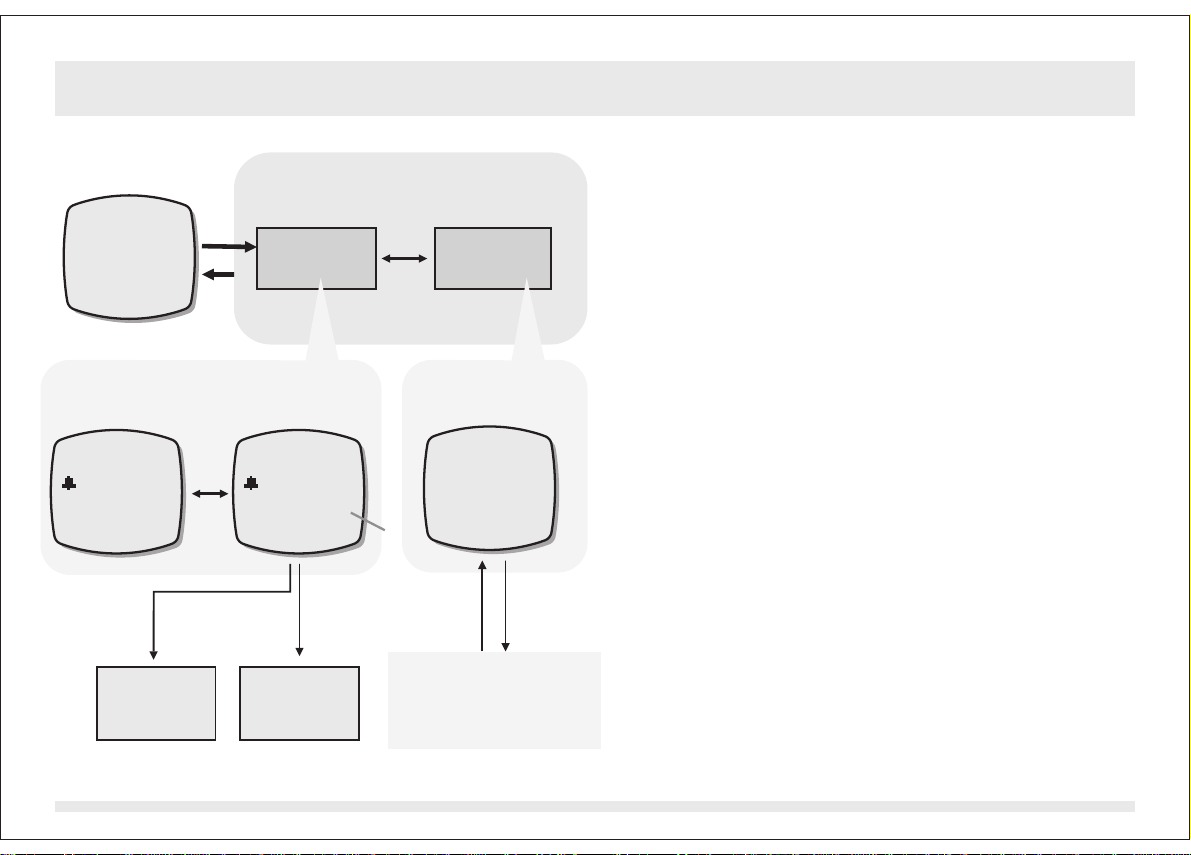

Race Timer Display

In Race Timer Mode, the display will show the following:

1)The mode indicator 'RACE TIMER' appears on the 1st row of the display.

2) T h e t a r g e t t i m e ( h o u r s , m i n u t e s , seconds) appears on the 3rd row of the display.

The maximum counting range of the Race Timer is 99 hours, 59 minutes and 59 seconds.

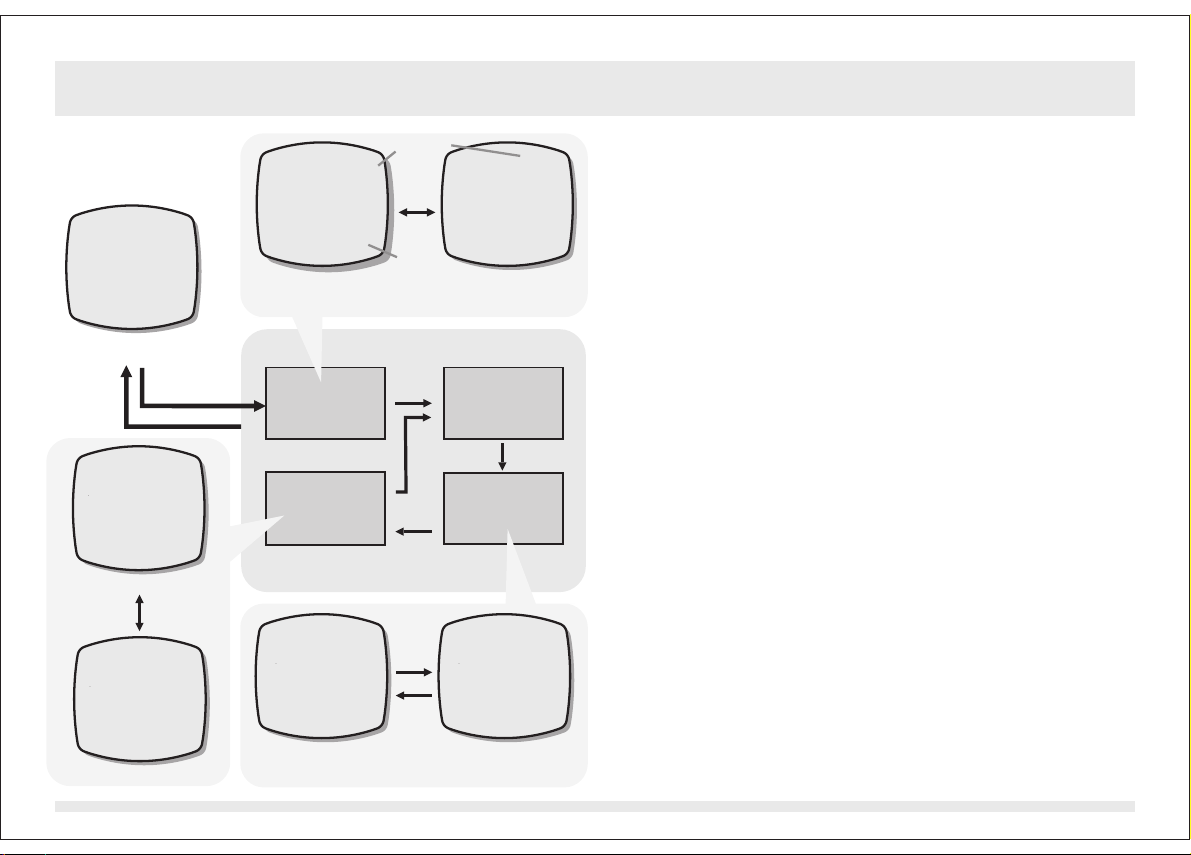

9.1 Race Timer Mode - Setting the Race Timer Mode

RACE TIMER

0:10.00

Race Timer Mode

hold	hold
[mode]	[mode]

scrollscrollthroughthe thesettingsbyby incrementof 1

[reset]

scroll thethesettingat a fasterfasterpace

hold [reset]

[mode]

Second Minute

[mode]

[mode]

Hour

Race Timer Mode

Setting Sequence

[set]

scrollscrollthroughthe thesettingsby by decrementof 1

hold [set]

scroll thethesettingat a fasterfasterpace

To Select the Setting Display

Setting the target time in Race Timer Mode, press and hold the [mode] button for about 2 seconds to select the setting display (the second digits will start flashing).

Setting Sequence

In setting display, press the [mode] button to move setting following the adjacent diagram.

When the one of the settings (second, minute, hour) start to flash, press the [set] or [reset] button to scroll through the settings (hold down the button to scroll at a faster pace).

When the setting finished, press and hold the [mode] button for about 2 seconds to exit the setting sequence.

The setting display will change to Race Timer Mode automatically if no key-stoke has been activated for about 1 minute.

9.2 Race Timer Mode - Using the Race Timer

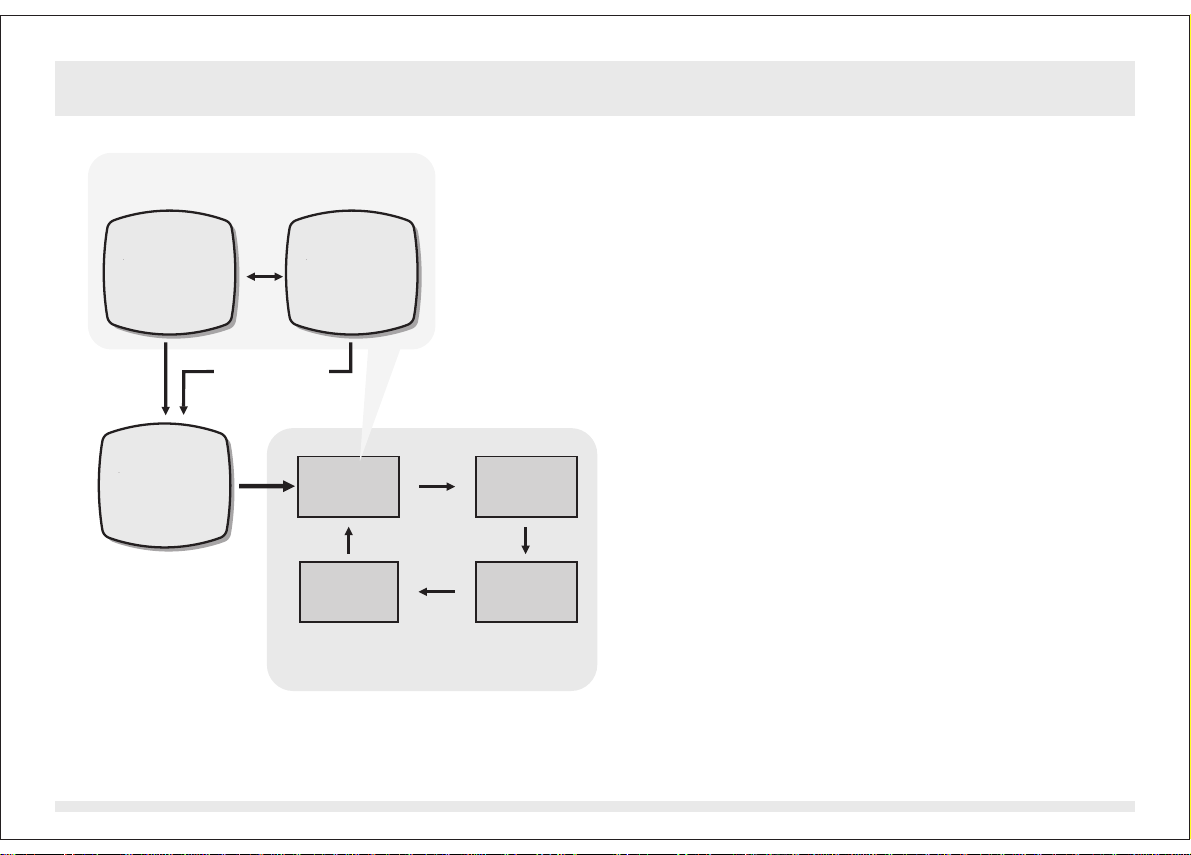

RACE TIMER	beeps	RACE TIMER
		STOPPED

	0:10.00	stop	0:00.00
		counting
	Stop-Counting Display		Stop-Counting Display
set the			29'59"
target
time to
30 minute	RACE TIMER		RACE TIMER
		[set]
			RUNNING
	0:30.00		0:29.59
		counting
	Stop-Counting Display		Counting Display
			[set]

[reset]

stop

counting RACE TIMER

STOP

Note:

This diagram illustrates the general flow among different functional displays only, and may NOT conform to fact in all instances.

0:29.59

Stop-Counting Display

To Use the Race Timer

Once a target time has been set, press the [set] button once to start the countdown. When it is running, press the [set] button again to stop the countdown.

The countdown time will be displayed continuously throughout the operation.

To Reset the Timer

To reset the timer to the preset target time before the countdown reaches zero, press the [reset] button once when the timer has been stopped.

To set a new value for the target time, check the previous 'Setting the Race Timer Mode' section for more detail on how to set the Racer Timer Mode.

Race Timer Alarm Sound

At the last 10 minutes, the Alarm will beep once for every minute.

At the last 10 seconds, the Alarm will beep once for every second.

At zero, the Alarm will beep for about 2 seconds.

10.0 Sensor Functions Mode - Manual Data Log Function

BARO hPa WIND Km/H TEMP C

1001.3		21.3		28.3
	18.3	8.3	18.2	13.2
Barometer Mode	Wind Mode		Temperature Mode

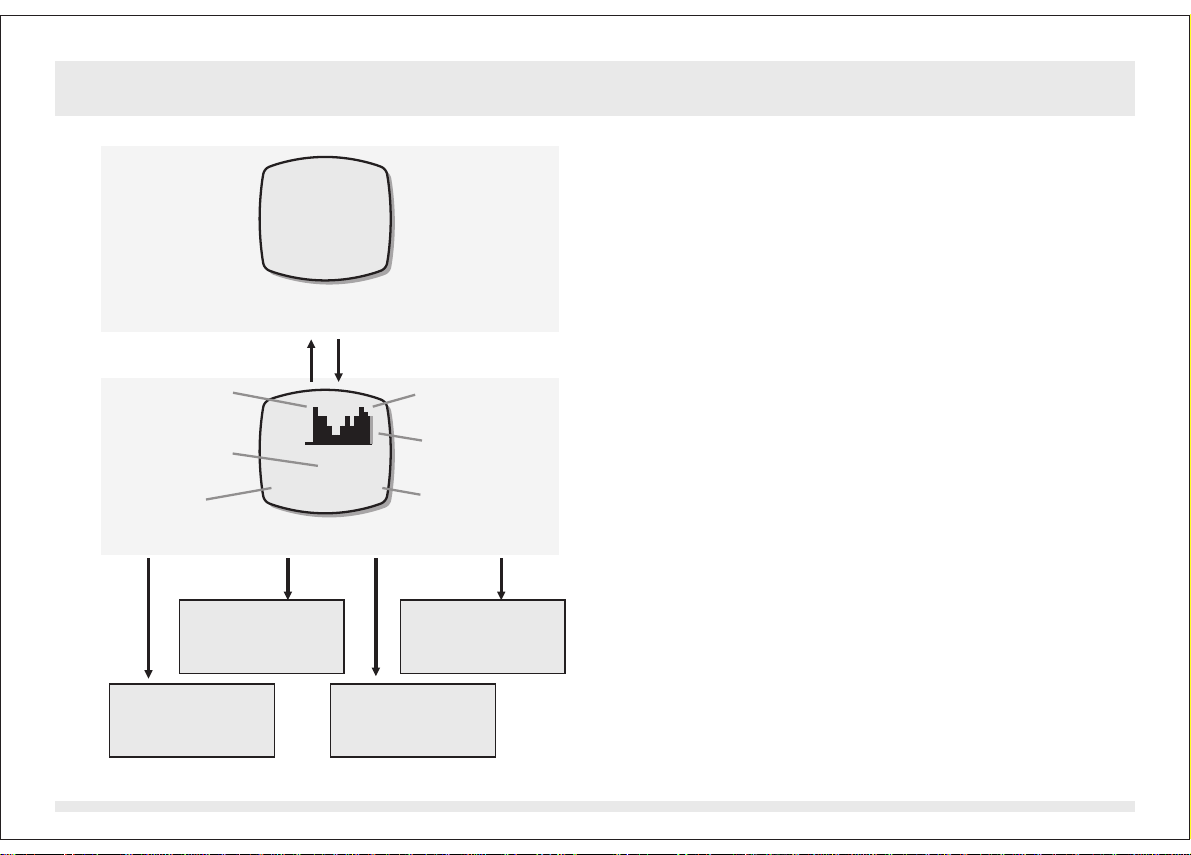

	ALTITUDE m
		144
	734	80

Altitude Mode

Sensor Functional Mode

hold [set]

2 beeps

Record no. & Data no Logging time & date

current wind speed

ambient temperature

altitude at the current location

ambient barometric pressure

Data (The Elements of a Data)

Data Log Function

The ADC is equipped with a function to log the sensor functional mode readings. They are the current wind speed, ambient temperature, barometric pressure and the altitude at current location.

The record also includes the time and date that data was logged.

The ADC can log data automatically or manually. Check the 'Automatic Data Log' section below for more detail on how to log data automatically.

To Log the Data Manually - Manual-Log

To log a data manually, press and hold the [set] button for about 2 seconds in one of the functional modes (Temperature, Wind Speed, Barometer and Altimeter).

When two beeps sounds, the record is logged.

You can log another record at any desirable moment as long as there is sufficient memory.

Check the coming 'Logged Record and Data' section for more detail on how to review the logged data.

11.0 Wind Speed Mode - Before Using the Wind Speed Mode

the propeller blades are entirely exposed to air

Propeller Closed Propeller Opened

wind wind

display

How Wind Speed is Measured

The ADC is equipped with a propeller that is similar to a traditional aerovane.

When the propeller faces the wind, it rotates and generates signal. This product will pick up the signal and converts it into wind speed.

Before and After Measuring a Wind Speed

Turn the ball-shape propeller by your thumb and index finger until the propeller blades are entirely exposed, and it is not sheltered by the case.

After a wind speed measurement, rotate the propeller to a closed position to prevent dirt from getting into it.

To Measure Wind Speed

Select Wind Speed Mode. Point the blades directly towards the wind direction, and make sure that the blades rotate freely.

When the wind passes through the propeller, the blades rotate. The ADC starts to measure, and shows the current, average and maximum wind-speed readings.

Point the Propeller towards the wind direction

11.1 Wind Speed Mode - Wind Speed Mode Function

Beaufort

Scale

Wind Speed

Display Lock

Time Span

Setting

Current, Max

and Average

Wind Speed

Wind

Speed

Alarm

Manual

Data Log

Wind Speed Mode Functions

Wind Speed Mode Functions

This ADC has the following wind speed functions:

1)The Beaufort Scale: The longest and most widely used set of criteria to describe the wind conditions. Check the coming 'Beaufort Scale' section for more detail on Beaufort Scale.

2)The Current, Maximum and Average Average Wind Speed.

3)Wind Speed Alarm: alarm that alerts the user when the current wind speed is higher than the predefined level.

4)Wind Speed Display Lock: This feature can lock the wind speed display for 5 seconds.

5)Time Span Setting: This feature defines the time for the Average Wind Speed Calculation. Check the coming 'Time Span Setting for Average Wind Speed' section for more detail on the setting.

6)Manual Data Log: The function to log the sensor functional mode readings that is currently obtained from sensors.

11.2 Wind Speed Mode - Wind Speed Display

	Mode	Wind
	Indicator
		Speed Unit

Beaufort	WIND	mph
Scale		21.3	Current
(by average			Wind Speed
wind speed)	18.3	8.3
Maximum			Average
			Wind Speed
Wind Speed
	Wind Speed Mode
		[reset]
	Km/h		mph
			[reset]
		[reset]
	m/s		feet/s
[reset]	[reset]
	Knots

Wind Speed Display

In Wind Speed Mode, the display will show the following:

1)The 'WIND' Indicator and the wind speed unit appear on the 1st row of the display.

2)T h e B e a u f o r t S c a l e ( c a l c u l a t e d b y average wind speed) appears on the 2nd row of the display.

3)The Current Wind Speed appears on the 3rd row of the display.

4)The maximum and average wind speed appears on the 4th row of the display.

To Change Wind Speed Unit

This ADC can display wind speed in the following wind speed units:

1)Km/h (Kilometer per hour),

2)mph (mile per hour),

3)feet/s (feet per second)

4)m/s (meter per second) and

5)Knots.

In Wind Speed Mode, press the [reset] button to change the wind speed unit following the adjacent diagram.

Wind Speed Unit Selection Sequence

11.3 Wind Speed Mode - What is Beaufort Scale?

Beaufort	WIND	mph
Scale
(by average		21.3	Average
wind speed)	18.3	8.3	Wind Speed

Wind Speed Mode

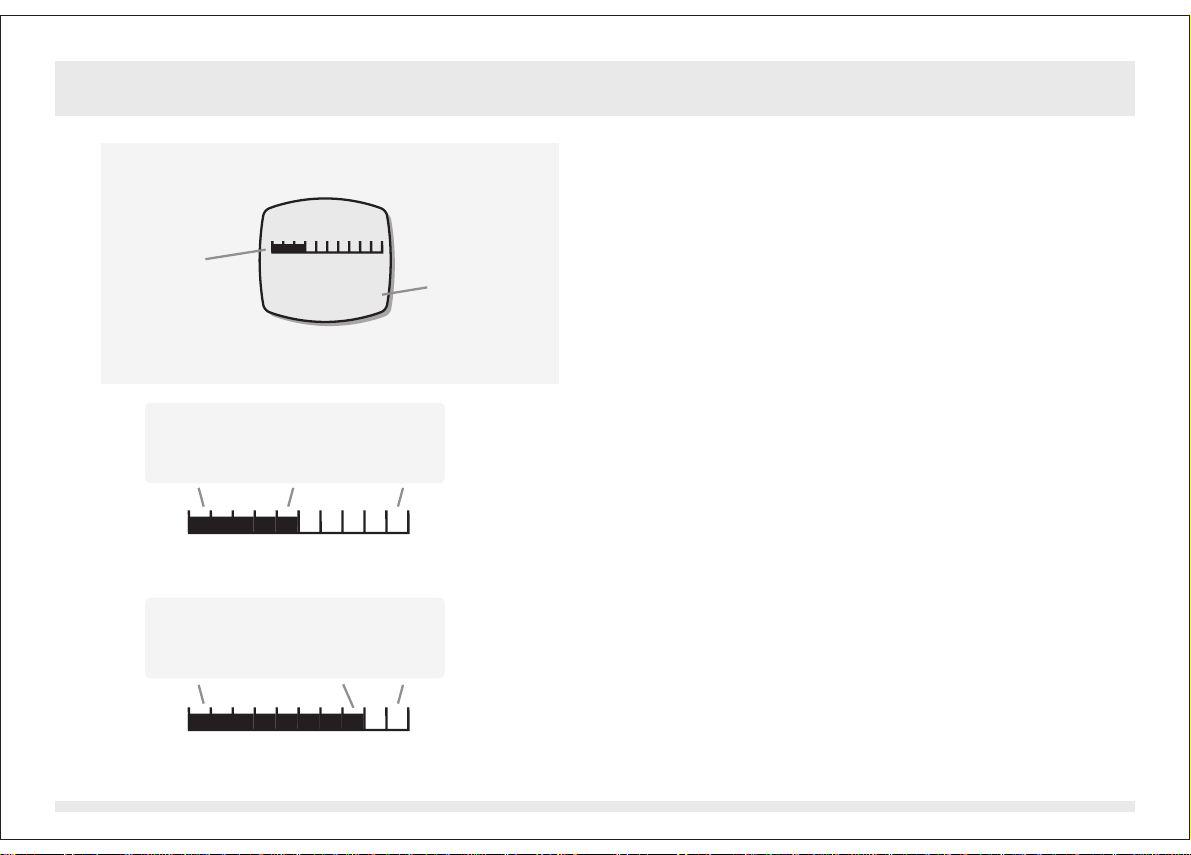

Beaufort Scale (calculated by average wind speed)

force		force		force
no. 1		no. 5		no. 10

Example A: Number 5 of Beaufort Scale

Beaufort Scale (calculated by average wind speed)

force		force	force
no. 1		no. 8	no. 10

What is Beaufort Scale?

Beaufort Scale is the longest and most widely used set of criteria to describe the wind conditions and its effects on land as well as on sea.

It categorizes the wind speed into 13 force numbers, from 0 (calm) to 12 (hurricane). Check the 'Beaufort Scale Table' section below for more detail on the Beaufort Scale.

Beaufort Scale Bar

For user's convenience, the ADC displays Beaufort Scale for average wind speed.

T h e A D C e x h i b i ts B e a u f o r t S c a l e b y displaying different number of bars on the upper row of the display. One exhibited bar is equivalent to one Beaufort Scale force number. For example, if there are 5 bars on the display, the average wind speed is equivalent to force number 5 of Beaufort Scale.

The ADC displays the Beaufort Scale force number from 0 to 10 (if the average wind speed is higher than force number 10, the ADC will display 10).

Example B: Number 8 of Beaufort Scale

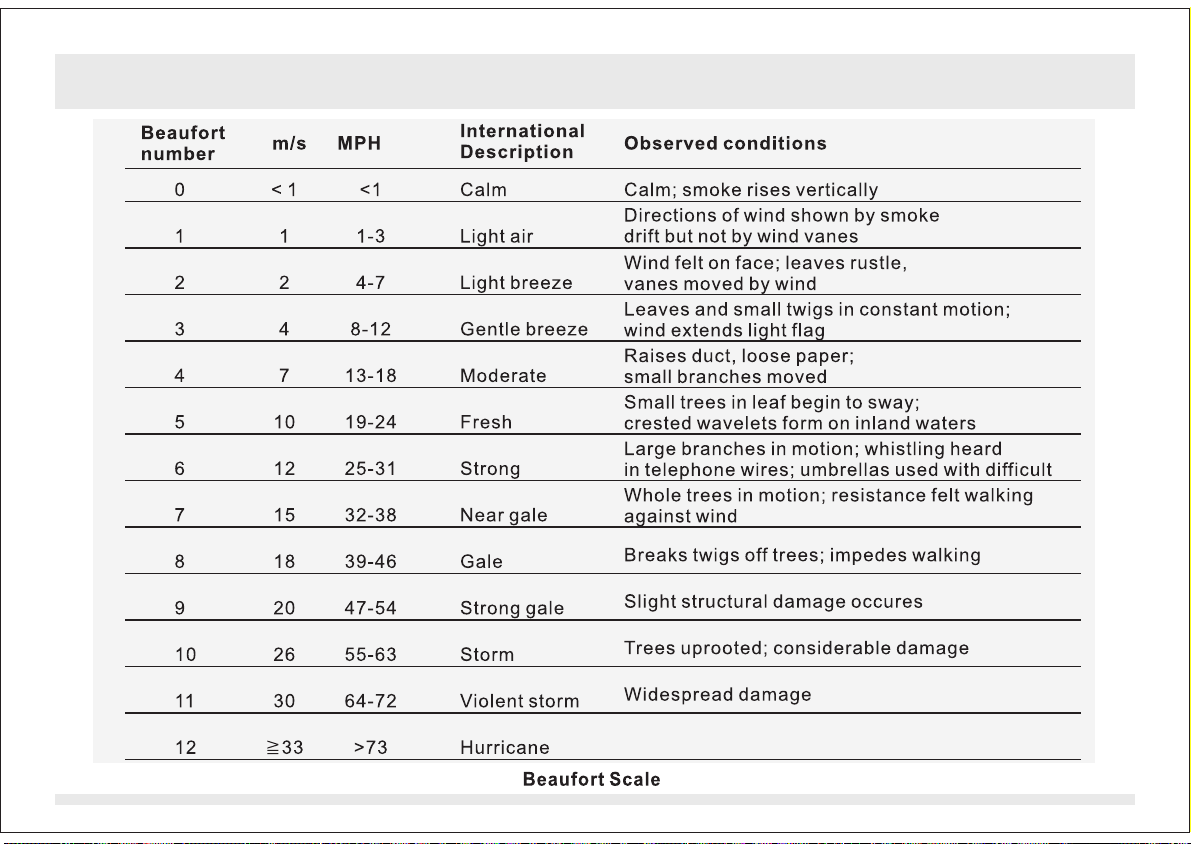

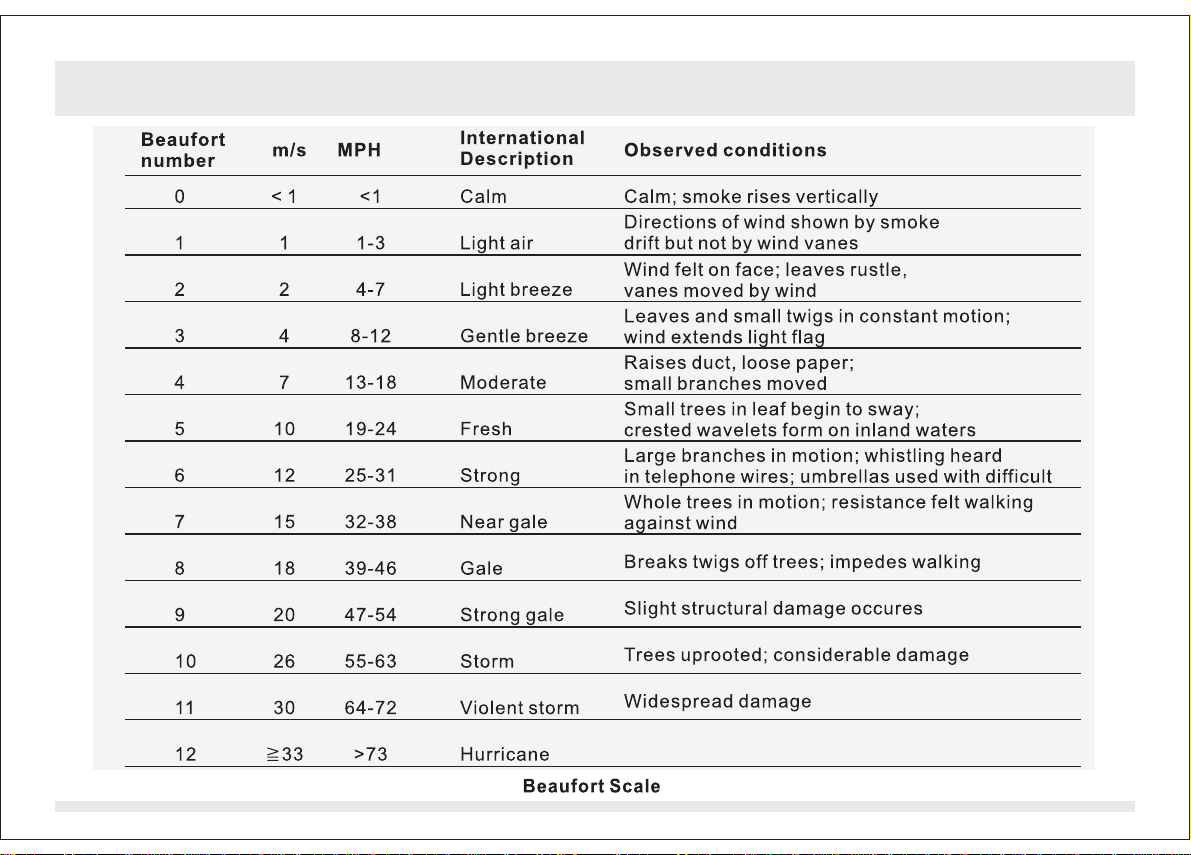

11.4 Wind Speed Mode - Beaufort Scale Table

11.5 Wind Speed Mode - Wind Speed Display Lock, Reset Max Wind Speed

WIND mph

21.3

18.38.3

Wind Speed Mode

[set] 5 seconds

	WIND	mph
lock	L	21.3
indicator

18.38.3

display

Wind Speed Mode keep still

(Display Locked)

Note:

This diagram illustrates the general flow among d i f f e r e n t f u n c t i o n a l displays only, and may NOT conform to fact in all instances.

hold

[reset]

RESET MAX

WIND? NO

18.38.3

flashing

Maximum Wind Speed

Reset Display - NO

hold

[mode] [set] (confirm

the

reset)

RESET MAX

WIND? YES

18.38.3

flashing

Maximum Wind Speed

Reset Display - Yes

hold [mode] (abort the reset)

Wind Speed Display Lock

The ADC is equipped with a function to hold the fluctuating wind speed reading on the display.

In Wind Speed Mode, press the [set] button to lock the wind speed reading (the display will hold the current reading for 5 seconds).

Reset the Maximum Wind Speed

To reset the maximum wind speed, press and hold the [reset] button for 2 second to select the Reset Display.

When the Reset Display is displayed, press the [set] button to select between 'YES' and 'NO'.

In the 'YES' display, press and hold the [mode] button for 2 about seconds to confirm the reset (the maximum wind speed will reset to zero).

To abort the reset, press and hold the [mode] button for 2 seconds in the 'NO' display.

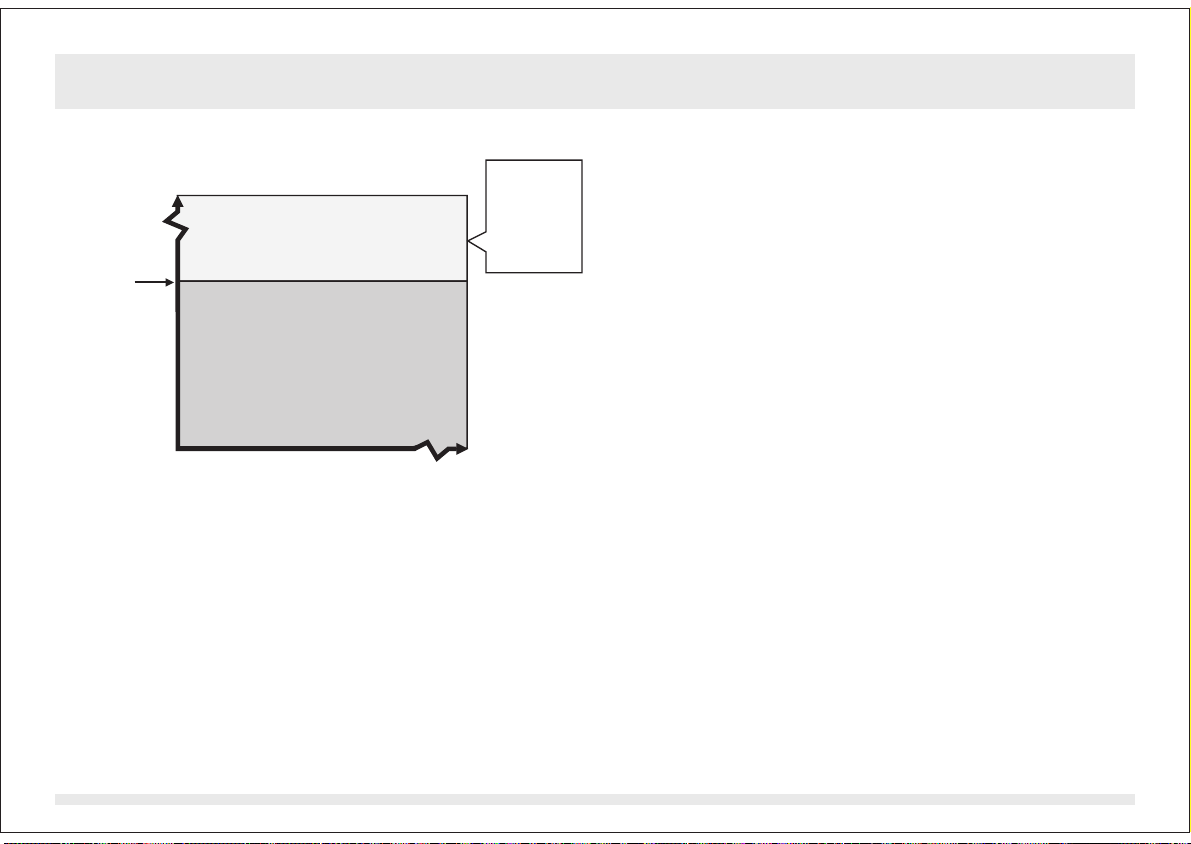

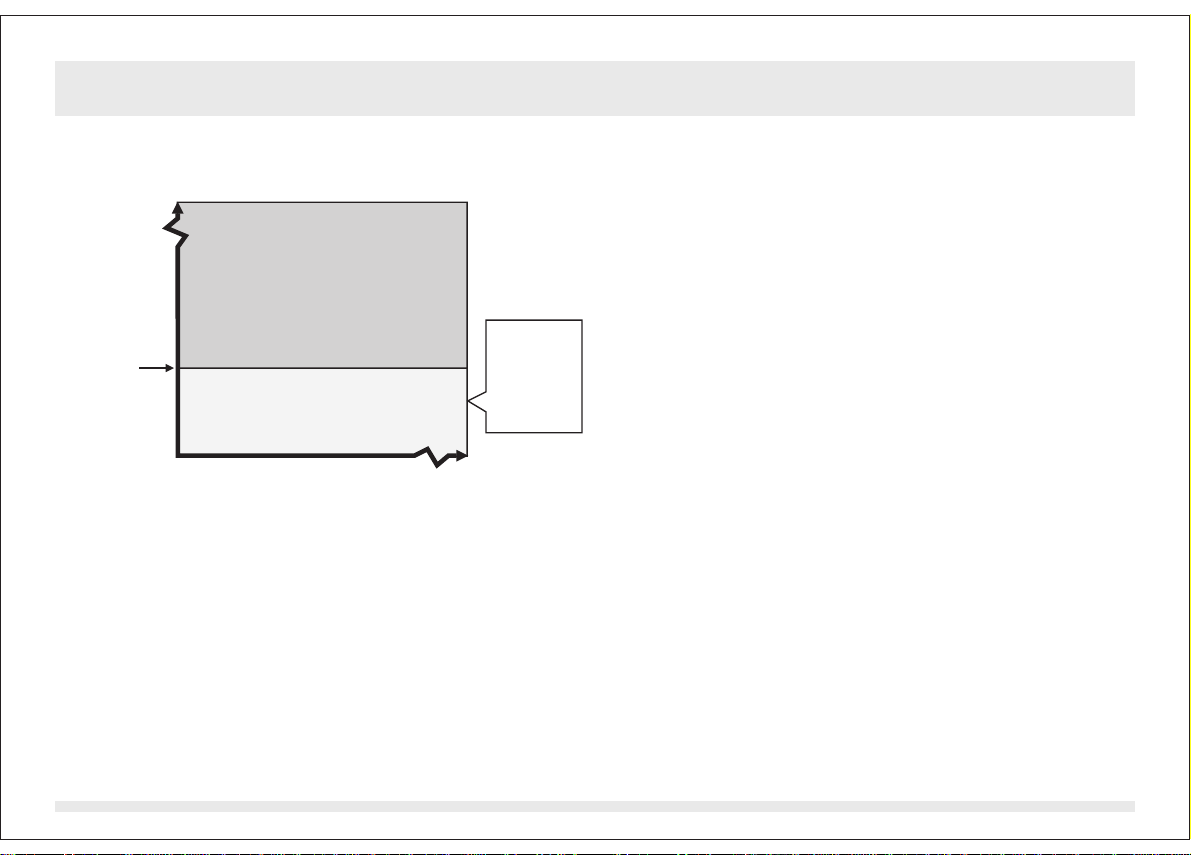

11.6 Wind Speed Mode - Wind Speed Alarm

Wind Speed

		'beep'
		for 5
		seconds
	Alarm Range	(every 2
		minutes)

preset wind speed level

Below Alarm Range

0	Time
	The Wind Speed Alarm Range

Wind Speed Alarm

The ADC is equipped with a wind speed alarm.

That alarm alerts user when the current wind speed is equal to or higher than the preset wind speed level.

Wind Speed Alarm Sound

In Wind Speed Mode, if the Current Wind Speed is equal to or larger than the preset wind speed level, the ADC will start beeping for about 5 seconds.

After the first beeping, the ADC will beep again for every 2 minutes if the current wind speed holds above the preset level.

The above repeated alarm will stop unless the wind speed again exceeds the preset level or the wind speed alarm is set to OFF.

11.7 Wind Speed Mode - Setting the Wind Speed Alarm and Time Span

hold Wind Speed Alarm and [mode] Time Span Setting Sequence

WIND	mph				[mode]
			Wind Speed			Time Span
	21.3		Alarm			Setting
18.3	8.3	hold
		[mode]
Wind Speed Mode
Wind Speed Alarm Setting						Time Span
Alarm OFF			Alarm ON			Setting
WIND	mph	[set]	WIND	mph	flash	WIND mph
OFF			ON			AVG PERIOD
- - - -				50.3		10
18.3	8.3		18.3	8.3		SEC

	hold [reset]		[reset]				hold [reset]		[reset]
	scroll		scroll through				scroll		scroll through
	thethesettingat		the settings by				the setting at		the settings by
	a fasterpace		increment				a faster pace		decrement

To Set the Wind Speed Alarm, and Time Span for Average Wind Speed Calculation

To set the wind speed alarm, press and hold the [mode] button for about 2 seconds to select the setting display (wind speed starts flashing).

When the 'wind speed' is flashing, press the [mode] button to select between time span setting and wind speed alarm setting.

When 'wind speed' is flashing, press the [reset] button to scroll the target wind speed level by 1 step (hold down the button to scroll the setting faster). To select the wind speed alarm between ON and OFF, press the [set] button.

When 'time' is flashing, press the [set] or [reset] button to scroll the target time span for average wind speed calculation by 1 (hold down the button to scroll the setting faster).

Press and hold the [mode] button for about 2 seconds to exit the setting sequence.

The setting display will change to Wind Mode automatically if no key-stoke has been activated for about 1 minute.

11.8 Wind Speed Mode - Using the Propeller as a Mechanical Compass

North East
North	Target object
pole
	propeller
red-colored
blade

reference points

Using the Propeller as a

Mechanical Compass

Propeller as a Mechanical Compass

The ADC measures ambient temperature, wind speed, and it also tells compass directions.

One of the propeller blades is red-colored to indicate the magnetic north pole.

Four reference points were engraved on the ADC as reference points.

To use the Mechanical Compass

To check bearing of an object, make sure that the propeller cover is opened, and the blades are entirely exposed to air.

Tilt the ADC until the propeller blades are parallel to the horizon, and the propeller blades rotate freely.

The red-colored blade of the propeller will points to the magnetic north pole. Make use of the reference points (marked on the product) to check the direction of the target object.

12.0 Temperature - Temperature Functions

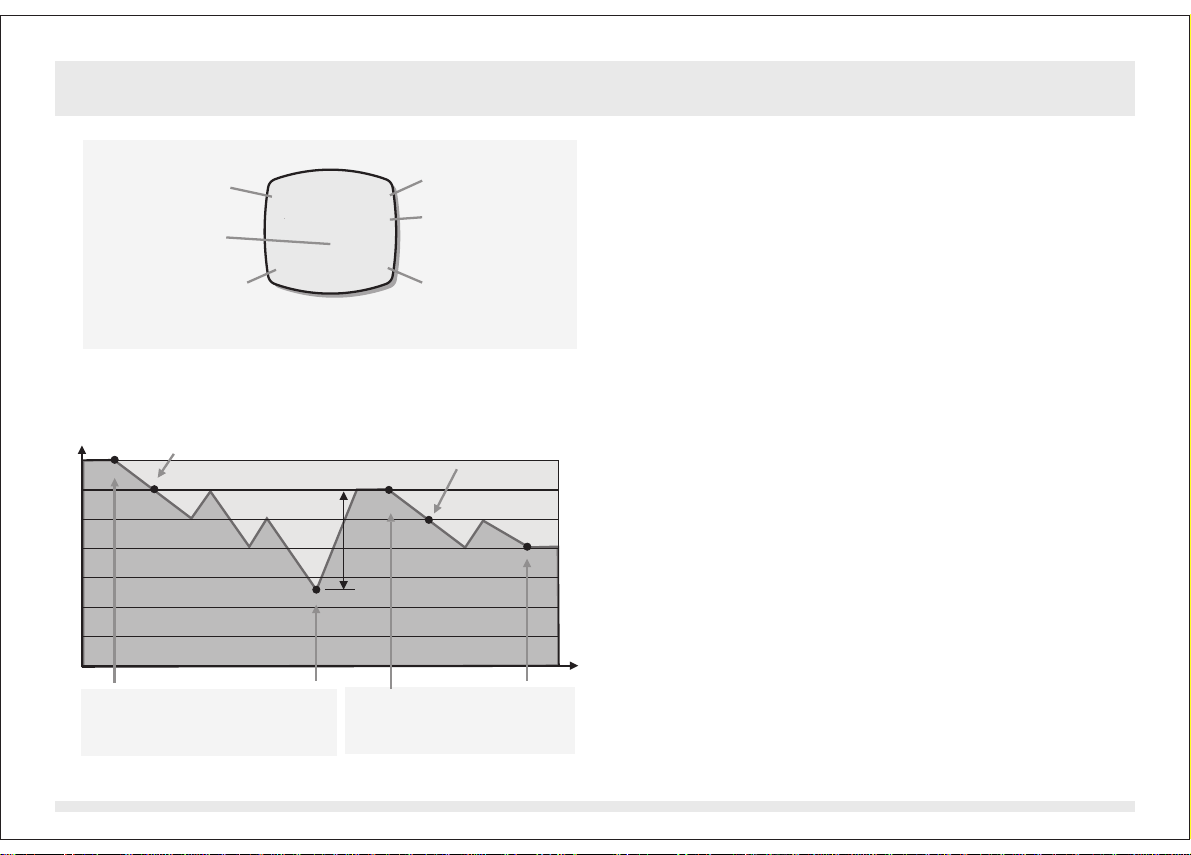

Current

Temperature

Temperature

History Graph

Current, Minimum

Wind Chill

Temperature

Wind Chill

Temperature

Alarm

	Temperature				Manual
	Calibration				Data Log

Temperature Mode Functions

Temperature Mode Functions

The ADC has the following temperature functions:

1)The Current Temperature: The Current Temperature readings.

2) The Current and Minimum Wind Chill t e m p e r a t u r e : T h e w i n d e f f e c t o n t e m p e r a t u r e . C h e c k t h e ' W i n d C h i l l Temperature' section below for more detail

on Wind Chill Temperature.

3)The Temperature History Graph: The temperature memory for the last 24 hours.

4)The Wind Chill Temperature Alarm: alarm to alert the user when the current Wind Chill Temperature is lower than the predefined limit.

5)The Calibration: The process to calibrate the temperature reading.

6)Manual Data Log: The function to log the sensor functional mode readings that is currently obtained from sensors.

12.1 Temperature - Temperature Display

Mode		Temperature
Indicator		Unit
TEMP	C
		Current
	28.3	Temperature
18.2	13.2	Minimum Wind Chill
Current Wind Chill
Temperature		Temperature

Temperature Mode

C

[reset]

F

Temperature Display

In Temperature Mode, the display will show the following:

1)The 'TEMP' Indicator and the temperature unit appear on the 1st row of the display.

2)The Current Temperature appears on the 3rd row of the display.

3)The Current and Minimum Wind Chill Temperature appear on the 4th row of the display.

To Change Temperature Unit

The ADC can display temperature in the following units:

1)Degree Celsius ( C)

2)Degree Fahrenheit ( F)

In Temperature Mode, press the [reset] button once to change the temperature unit. See adjacent figure.
