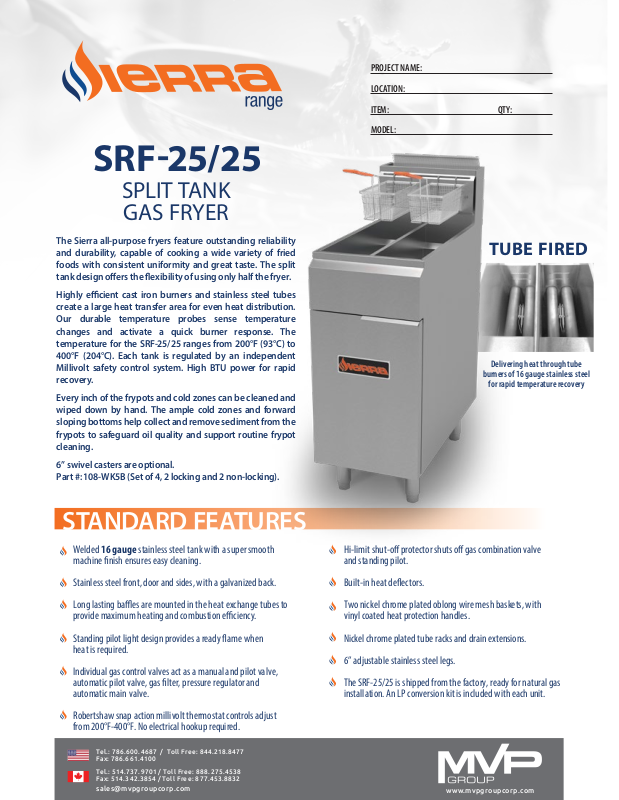

Sierra SRF2525 Specifications
PROJECT NAME:
LOCATION:
SRF-25/25
SPLIT TANK
GAS FRYER
The Sierra all-purpose fryers feature outstanding reliability
and durability, capable of cooking a wide variety of fried
foods with consistent uniformity and great taste. The split
tank design oers the exibility of using only half the fryer.
Highly ecient cast iron burners and stainless steel tubes
create a large heat transfer area for even heat distribution.
Our durable temperature probes sense temperature
changes and activate a quick burner response. The
temperature for the SRF-25/25 ranges from 200°F (93°C) to
400°F (204°C). Each tank is regulated by an independent
Millivolt safety control system. High BTU power for rapid
recovery.
Every inch of the frypots and cold zones can be cleaned and
wiped down by hand. The ample cold zones and forward
sloping bottoms help collect and remove sediment from the
frypots to safeguard oil quality and support routine frypot
cleaning.
ITEM:
MODEL:
QTY:
TUBE FIRED
Delivering heat through tube
burners of 16 gauge stainless steel
for rapid temperature recovery
6” swivel casters are optional.
Part #: 108-WK5B (Set of 4, 2 locking and 2 non-locking).
STANDARD FEATURES
Welded 16 gauge stainless steel tank with a super smooth
machine nish ensures easy cleaning.
Stainless steel front, door and sides, with a galvanized back.
Long lasting baes are mounted in the heat exchange tubes to
provide maximum heating and combustion eciency.
Standing pilot light design provides a ready ame when
heat is required.
Individual gas control valves act as a manual and pilot valve,
automatic pilot valve, gas lter, pressure regulator and
automatic main valve.
Robertshaw snap action millivolt thermostat controls adjust
from 200°F-400°F. No electrical hookup required.
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
Hi-limit shut-o protector shuts o gas combination valve
and standing pilot.
Built-in heat deectors.
Two nickel chrome plated oblong wire mesh baskets, with
vinyl coated heat protection handles.
Nickel chrome plated tube racks and drain extensions.
6” adjustable stainless steel legs.
The SRF-25/25 is shipped from the factory, ready for natural gas
installation. An LP conversion kit is included with each unit.
www.mvpgroupcorp.com
TECHNICAL DRAWINGS
Print Date:
02/2018
SPECIFICATIONS
3/4”
NPTM
14”
32.2”
32.2”
31.0”
14”
15.5”
MODEL NUMBER
EXTERNAL DIMENSIONS
INCLUDING HANDLE
NUMBER OF BURNERS
FRYER CAPACITY
EACH BURNER AT 5” W.C
BTU
TOTAL BTU
NET WEIGHT
SHIPPING WEIGHT
WxDxH
SRF25/25 NG OR LP
15.5” x 32.2” x 46“
4
2 x 25 LBS
30,000
120,000
170 LBS
190 LBS
40.0”
46”
36”
8”
6”
6”
15.5”
Warranty: 12 months parts & labor. Additional fry tank warranty to the original purchaser only: If the fry tank has leaked because of a
manufacturing defect, as conrmed by an MVP Group servicer within the rst two years of operation, MVP Group shall replace the fryer.
Refer to Operators Manual for full details. Freight or installation charges shall not be included.
Gas Connection: 2 x 3/4" NPT at rear of appliance. The pressure regulator (supplied) is to be connected here by the installer.
Gas pressure: 5” W.C. - Natural Gas | 10” W.C. - Propane
Clearances: Combustible: 6 inches sides, 6 inches rear, 16 inches to adjacent open ame burner units | Non-combustible: 0 inches sides,
0 inches rear, 16 inches to adjacent open burner ame units. Specify type of gas and altitude, if over 2,000 feet, when ordering.
SIERRA RANGE is a registered trademark of MVP Group.
Due to continuing product development, to ensure best possible performance, the specications are subject to change without prior notice.
