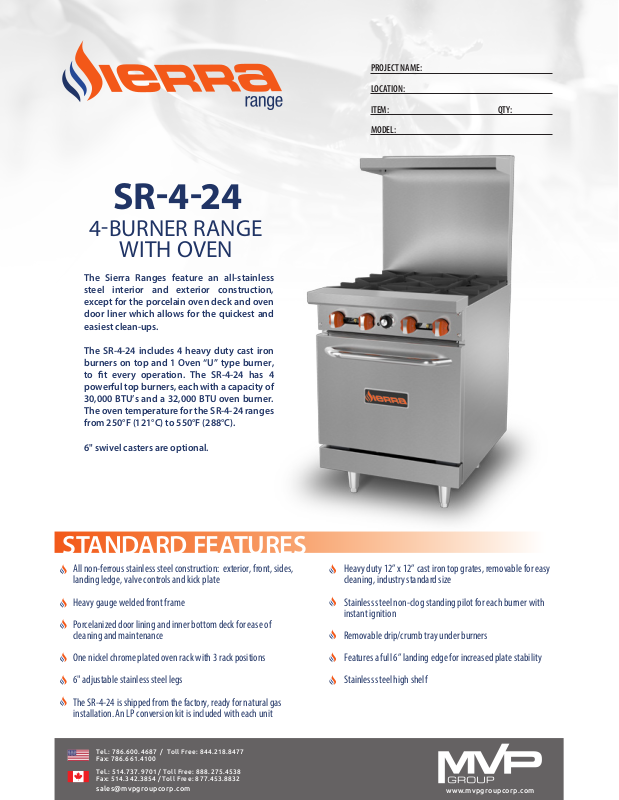

Sierra SR424 Specifications
PROJECT NAME:
LOCATION:
SR-4-24
4-BURNER RANGE
WITH OVEN
The Sierra Ranges feature an all-stainless
steel interior and exterior construction,
except for the porcelain oven deck and oven
door liner which allows for the quickest and
easiest clean-ups.
The SR-4-24 includes 4 heavy duty cast iron
burners on top and 1 Oven “U” type burner,
to t every operation. The SR-4-24 has 4
powerful top burners, each with a capacity of
30,000 BTU’s and a 32,000 BTU oven burner.
The oven temperature for the SR-4-24 ranges
from 250°F (121°C) to 550°F (288°C).
ITEM:
MODEL:
QTY:
6" swivel casters are optional.
STANDARD FEATURES
All non-ferrous stainless steel construction: exterior, front, sides,
landing ledge, valve controls and kick plate
Heavy gauge welded front frame
Porcelanized door lining and inner bottom deck for ease of
cleaning and maintenance
One nickel chrome plated oven rack with 3 rack positions
6" adjustable stainless steel legs
The SR-4-24 is shipped from the factory, ready for natural gas
installation. An LP conversion kit is included with each unit
Heavy duty 12” x 12” cast iron top grates, removable for easy
cleaning, industry standard size
Stainless steel non-clog standing pilot for each burner with
instant ignition
Removable drip/crumb tray under burners
Features a full 6” landing edge for increased plate stability
Stainless steel high shelf
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
www.mvpgroupcorp.com
TECHNICAL DRAWINGS
Print Date:
05/2016
SPECIFICATIONS
32.3”
24”
1.75”
12.4”
6”
MODEL NUMBER
EXTERNAL DIMENSIONS WxDxH
OVEN DIMENSIONS WxDxH
NUMBER OF BURNERS
BTU EACH TOP BURNERS
BTU OVEN
TOTAL BTU
NET WEIGHT
SHIPPING WEIGHT
12.4”
9”
SR424
24” X 32.3” X 56.75”
18” X 26” X 14.25”
4 TOP & 1 “U” BURNER OVEN
30,000
32,000
152,000
261 LBS
309 LBS
50.75”
6”
24”
Warranty: 12 months parts & labor.
Gas Connection: 3/4” NPT on the right hand rear of the appliance. The pressure regulator (supplied) is to be connected here by the installer.
Gas pressure: 5” W.C. - Natural Gas | 10” W.C. - Propane
Combustible Clearances: For use in non-combustible locations | Non-combustible Clearances: 0 inches sides, 0 inches rear
Specify type of gas and altitude, if over 2,000 feet, when ordering.
SIERRA RANGE is a registered trademark of MVP Group.
Due to continuing product development, to ensure best possible performance, the specications are subject to change without prior notice.
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
35.75”
29.75”
32.3”
www.mvpgroupcorp.com
