Ú Table of contents

[en]Instruction manual

Important safety information .................................................... 2

Causes of damage .............................................................................4

Installation and connection ...................................................... 4

The control panel....................................................................... 5

Accessories .........................................................................................5

The microwave........................................................................... 5

Notes regarding ovenware................................................................5

Microwave power settings.................................................................6

Setting the microwave........................................................................6

Care and cleaning...................................................................... 6

Cleaning agents ..................................................................................6

Malfunction table ....................................................................... 7

After-sales service..................................................................... 7

E number and FD number ................................................................7

Technical data .....................................................................................7

Environmentally-friendly disposal.....................................................8

: Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

Tested for you in our cooking studio ....................................... 8

Information regarding the tables......................................................8

Defrost...................................................................................................8

Defrosting, heating up or cooking frozen food .............................8

Heating food ........................................................................................9

Cooking food.................................................................................... 10

Microwave tips.................................................................................. 10

Test dishes in accordance with EN 60705............................. 11

Cooking and defrosting with microwave..................................... 11

Produktinfo

Additional information on products, accessories, replacement parts and services can be found at www.siemens-home.com and in the online shop www.siemens-eshop.com

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Always insert the accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.

Risk of fire!

■

Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.

Risk of fire!

■

Using the appliance for anything other than its intended purpose is dangerous and may cause damage. The following is not permitted: drying out food or clothing, heating slippers, grain or cereal pillows, sponges, damp cleaning cloths or similar. For example, heated slippers and grain or cereal pillows may catch fire, even several hours after they have been heated.The

appliance must only be used for the preparation of food and drinks.

Risk of fire!

■

Food may catch fire. Never heat food in heat-retaining packages. Do not leave food heating unattended in containers made of plastic, paper or other combustible materials. Do not select a microwave power or time setting that is higher than necessary. Follow the information provided in this instruction manual. Never use the microwave to dry food. Never defrost or heat food with a low water content, e.g. bread, at too high a microwave power or for too long.

Risk of fire!

■

Cooking oil may catch fire. Never use the microwave to heat cooking oil on its own.

Risk of explosion!

Liquids and other food may explode when in containers that have been tightly sealed. Never heat liquids or other food in containers that have been tightly sealed.

Risk of serious damage to health!

■

The surface of the appliance may become damaged if it is not cleaned properly. Microwave energy may escape. Clean the appliance on a regular basis, and remove any food residue immediately. Always keep the cooking compartment, door seal, door and door stop clean; see also section Care and cleaning.

Risk of serious damage to health!

■

Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance if the cooking compartment door or the door seal is damaged. Contact the aftersales service.

Risk of serious damage to health!

■

Microwave energy will escape from appliances that do not have any casing. Never remove the casing. For any maintenance or repair work, contact the after-sales service.

Risk of electric shock!

■

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Risk of electric shock and serious injury!

■

■

Heated food gives off heat. The ovenware may become hot. Always use oven gloves

■

Unsuitable ovenware may crack. Porcelain or ceramic ovenware can have small perforations in the handles or lids. These

perforations conceal a cavity below. Any moisture that penetrates this cavity could cause the ovenware to crack. Only use microwave-safe ovenware.

Causes of damage

Caution!

■ Heavily soiled seal: If the seal is very dirty, the appliance door

will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean.

■ Operating the microwave without food: Operating the

appliance without food in the cooking compartment may lead to overloading. Never switch on the appliance unless there is food in the cooking compartment. An exception to this rule is a short crockery test (see the section "Microwave, suitable crockery").

■ Microwave popcorn: Never set the microwave power too

high. Use a power setting no higher than 600 watts. Always place the popcorn bag on a glass plate. The disc may jump if overloaded.

■ Liquid that has boiled over must not be allowed to run

through the turntable drive into the interior of the appliance. Monitor the cooking process. Choose a shorter cooking time initially, and increase the cooking time as required.

■ Never use the microwave oven without the turntable.

■ Creation of sparks: Metal  e.g. a spoon in a glass  must be

kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably damage the glass on the inside of the door.

■ Foil containers: Do not use foil containers in the appliance.

They damage the appliance by producing sparks.

■ Cooling with the appliance door open: Only leave the

cooking compartment to cool with the door closed. Do not trap anything in the appliance door. Even if the door is only slightly ajar, the fronts of adjacent units may be damaged over time.

■ Condensation in the cooking compartment: Condensation

may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. To prevent corrosion, wipe off the condensation every time you cook.

Installation and connection

This appliance is intended for domestic use only. This appliance is only intended to be fully fitted in a kitchen. Please observe the special installation instructions. The appliance can be fitted in a 60 cm wide wall cabinet (min.

30 cm deep and 85 cm off the floor). The appliance is fitted with a plug and must only be connected

to a properly-installed earthed socket. The fuse protection must be rated at 10 amperes (L or B circuit breakers). The mains voltage must correspond to the voltage specified on the rating plate.

The socket must be installed and the power cable replaced by a qualified electrician only. If the plug is no longer accessible following installation, an all-pin disconnecting device must be present on the installation side, with a contact gap of at least 3 mm.

Multiple plugs, plug bars and extension leads must not be used. Overloading can result in a risk of fire.

The control panel

Here, you will see an overview of the control panel. Depending on the appliance model, individual details may differ.





1 Power selector

90 watts 180 watts 360 watts 600 watts 900 watts

2 Time switch

0 - 60 minutes

3 Door opener

Accessories

The turntable

How to fit the turntable:

1. Place the turntable ring a in the recess in the cooking

compartment.

2. Let the turntable b slot in place in the drive c in the centre of

the cooking compartment floor.



The microwave

Microwaves are converted to heat in foodstuffs. You will find information about ovenware and how to set the microwave.

Note: In the Tested for you in our cooking studio section, you will find examples for defrosting, heating and cooking with the microwave oven.

Try out the microwave straight away. You could heat up a cup of water for your tea, for example.

Use a large cup without any decorative gold or silver trim and place a teaspoon in it. Place the cup containing the water on the turntable.

1. Set the power selector to 900 W.

2. Use the time switch to set 2 minutes.

A signal sounds after 2 minutes. The water for the tea is hot. As you are drinking your tea, please take time to read again the

safety information that can be found at the front of the instruction manual. This is very important.

Note: Do not use the appliance if the turntable is not in place. Ensure that it is properly slotted into place. The turntable can turn clockwise or anti-clockwise.

Notes regarding ovenware

Suitable ovenware

Suitable dishes are heat-resistant ovenware made of glass, glass ceramic, porcelain, ceramic or heat-resistant plastic. These materials allow microwaves to pass through.

You can also use serving dishes. This saves you having to transfer food from one dish to another. You should only use ovenware with decorative gold or silver trim if the manufacturer guarantees that they are suitable for use in microwaves.

Unsuitable ovenware

Metal ovenware is unsuitable. Metal does not allow microwaves to pass through. Food in covered metal containers will remain cold.

Caution!

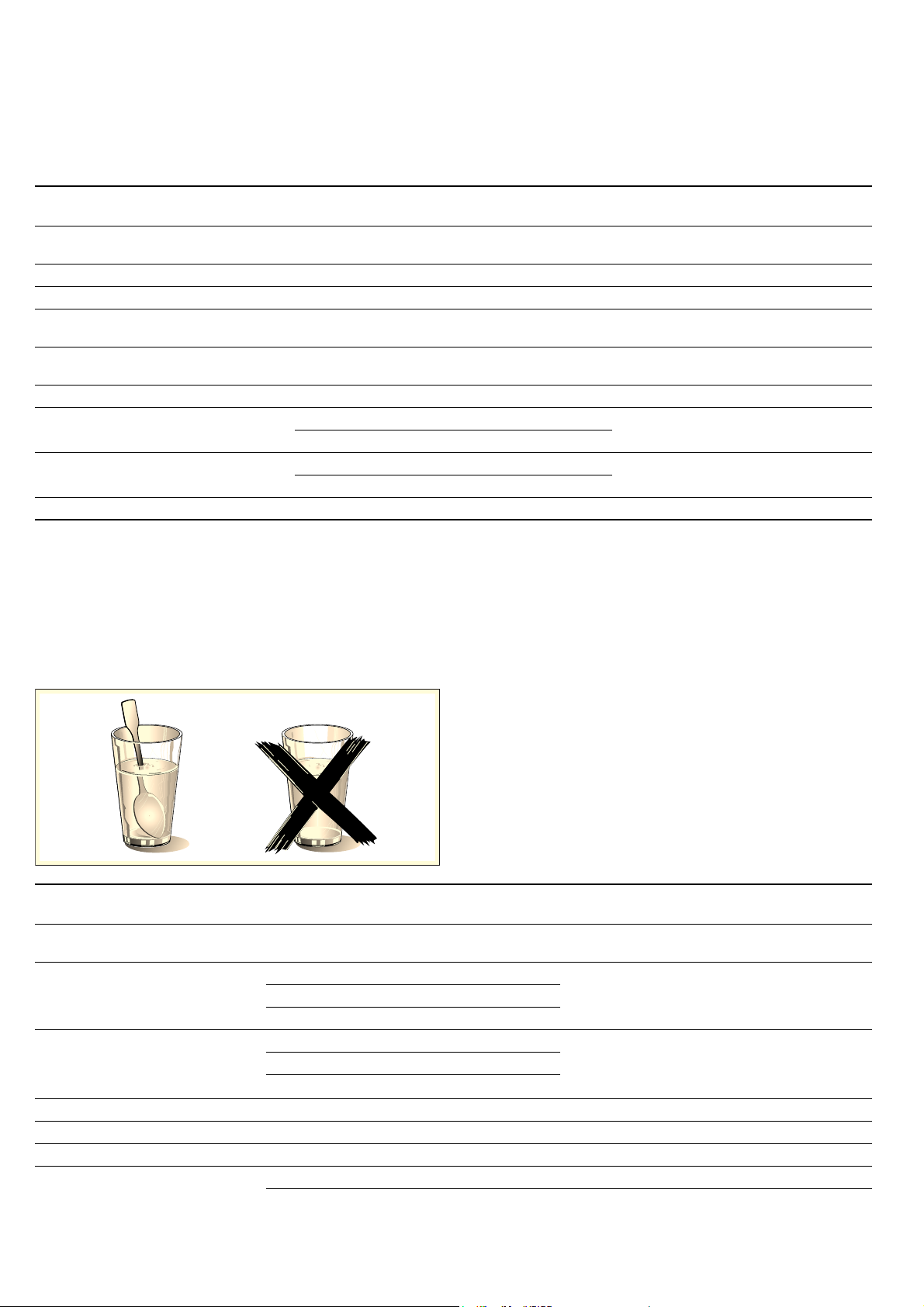

Creation of sparks: metal – e.g. a spoon in a glass – must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could destroy the glass on the inside of the door.

Ovenware test

Do not switch on the microwave unless there is food inside. The following ovenware test is the only exception to this rule.

Perform the following test if you are unsure whether your ovenware is suitable for use in the microwave:

1. Heat the empty ovenware at maximum power for ½ to

1 minute.

2. Check the temperature occasionally during that time.

The ovenware should still be cold or warm to the touch. The ovenware is unsuitable if it becomes hot or sparks are

generated.

Microwave power settings

Microwave power setting

90 W Defrosting delicate foods 180 W Defrosting and continued cooking 360 W Cooking meat and heating delicate foods 600 W Heating and cooking food 900 W Heating liquids

Suitable for

Setting the microwave

1. Set the power selector to the required microwave power

setting.

2. Set a cooking time using the time switch.

Note: If the cooking time is less than two minutes, first turn to

a longer time and then immediately back to the desired time.

The set cooking time counts down. A signal sounds once the time has elapsed.

Notes

■ If you open the appliance door during operation, microwave

operation is interrupted and the set time maintained. When closed again, operation resumes.

■ In the tables, there are two microwave power settings and

times: set the first microwave power setting and time initially, and after the signal, set the second.

Changing the cooking time

This can be done at any time. Change the cooking time using the time switch.

Cancelling operation

Microwave operation is ended when you set the time switch to

Care and cleaning

With careful care and cleaning your microwave oven will retain its looks and remain good order. We will explain here how you should care for and clean your appliance correctly.

: Risk of short circuit!

Never use high-pressure cleaners or steam cleaners to clean the oven.

: Risk of burns!

Never clean the appliance immediately after switching off. Let the appliance cool down.

: Risk of electric shock!

Do not immerse the appliance in water or clean under a jet of water.

Surfaces are different, and damage caused by using the wrong cleaning agent can be avoided by observing the information in the table below.

Do not use

■ sharp or abrasive cleaning agents.

The surface could be damaged. If such a substance comes into contact with the front of the appliance, wash it off immediately with water.

■ metal or glass scrapers to clean the glass in the appliance

door.

■ metal or glass scrapers for cleaning the seal.

■ hard scouring pads or cleaning sponges.

Wash new sponge cloths thoroughly before use.

■ cleaning agents with high concentrations of alcohol.

Cleaning agents

Caution!

Before cleaning, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Clean the outside of the appliance and the cooking compartment with a damp cloth and mild detergent. Dry with a clean cloth.

Area Cleaning agents

Appliance front Hot soapy water:

Appliance front with stainless steel

Cooking compartment made of stainless steel

Recess in cooking compartment

Turntable and turntable ring

Door panels Glass cleaner:

Seal Hot soapy water:

Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or metal or glass scrapers for cleaning.

Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Corrosion can form under such residues. Special stainless steel cleaning agents can be obtained from the after-sales service or from specialist shops. Do not use glass cleaners or metal or glass scrapers for cleaning.

Hot soapy water or a vinegar solution: Clean with a dish cloth and dry with a soft cloth. If the oven is very dirty: use oven cleaner, but only when cooking compartment is cold. It is best to use a stainless-steel sponge. Do not use oven spray or other aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan cleaners are also unsuitable. These items scratch the surface. Allow the interior surfaces to dry thoroughly.

Damp cloth: Ensure that no water seeps through the turntable drive into the appliance interior.

Hot soapy water: When putting the turntable back in place, make sure it slots in correctly.

Clean with a dish cloth. Do not use a glass scraper.

Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for cleaning.

Malfunction table

Malfunctions often have simple explanations. Please refer to the malfunction table before calling the after-sales service.

If a meal does not turn out exactly as you wanted, refer to the Tested for you in our cooking studio section, where you will find plenty of cooking tips and tricks.

Troubleshooting

Error message Possible cause Remedy/Note

The appliance does not work The plug is not plugged into the mains. Plug the plug in

Power cut Check whether the kitchen light works. Faulty circuit breaker Look in the fuse box to make sure that the

Incorrect operation Switch off the circuit breaker in the fuse box.

The microwave does not work. The door was not fully closed. Check whether food remains or foreign

The time switch has not been set. Set the time switch.

The food takes longer than usual to heat up

The turntable is making a scratching or grinding noise.

Microwave operation has been cancelled for no apparent reason.

The microwave power setting was too low. Select a higher microwave power setting. You have placed a larger amount of food

than normal in the appliance. The food was colder than usual. Stir or turn the food during cooking There is dirt or a foreign object in the area

around the turntable drive. The microwave has a fault. If this fault occurs repeatedly, please call the

: Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers.

You can take remedial action yourself for some error messages.

fuse for the appliance is OK.

Reconnect it after approx. 10 seconds.

material is trapped in the door.

Double the amount = double the cooking time.

Clean the roller ring and recess in the cooking compartment.

after-sales service.

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

E number and FD number

When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found on the right-hand side when you open the appliance door. To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required.

E no.

After-sales service

Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

FD no.

To book an engineer visit and product advice GB 0344 892 8999

Calls charged at local or mobile rate.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

This appliance corresponds to the standards EN 55011 and CISPR 11. It is a Group 2, Class B product.

Group 2 means that microwaves are produced for the purpose of heating food. Class B states that the appliance is suitable for private households.

Technical data

Input voltage AC 220 - 230 V, 50 Hz Power consumption 1450 W Maximum output power 900 W Microwave frequency 2450 MHz Fuse 10 A

Dimensions (HxWxD)

 appliance 382 x 594 x 388 mm  cooking compartment 208 x 328 x 369 mm

VDE approved yes CE mark yes

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

Tested for you in our cooking studio

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Here you will find a selection of recipes and the ideal settings for them. We show you which microwave power setting is best suited to your dish. There are also tips about ovenware and preparation methods.

Information regarding the tables

The following tables provide you with numerous options and settings for the microwave.

The times specified in the tables are only guidelines. They may vary according to the ovenware used, the quality, temperature and consistency of the food.

Time ranges are often specified in the tables. Set the shortest time first and then extend the time if necessary.

It may be that you have different quantities from those specified in the tables. A rule of thumb can be applied: Double the amount - almost twice the cooking time Half the amount - half the cooking time.

Always place the ovenware on the turntable.

Defrost Weight Microwave power setting in watts,

Whole pieces of meat (beef, veal or pork - on the bone or boned)

Meat in pieces or slices of beef, veal or pork

Minced meat, mixed 200 g 90 W, 10 mins Freeze food flat if possible

Poultry or poultry portions 600 g 180 W, 8 mins + 90 W, 10-15 mins -

Fish fillet, fish steak or slices 400 g 180 W, 5 mins + 90 W, 10-15 mins Separate any defrosted parts Vegetables, e.g. peas 300 g 180 W, 10-15 mins Fruit, e.g. raspberries 300 g 180 W, 710 mins Stir carefully during defrosting and

Butter, defrosting 125 g 180 W, 1 min. + 90 W, 2-3 mins Remove all packaging

Loaf of bread 500 g 180 W, 6 mins + 90 W, 5-10 mins -

Cakes, dry, e.g. sponge cake 500 g 90 W, 10-15 mins Only for cakes without icing, cream or

Cakes, moist, e.g. fruit flan, cheesecake

800 g 180 W, 15 mins + 90 W, 10-20 mins 1 kg 180 W, 20 mins + 90 W, 15-25 mins

1.5 kg 180 W, 30 mins + 90 W, 20-30 mins 200 g 180 W, 2 mins + 90 W, 4-6 mins Separate any defrosted parts when 500 g 180 W, 5 mins + 90 W, 5-10 mins 800 g 180 W, 8 mins + 90 W, 10-15 mins

500 g 180 W, 5 mins + 90 W, 10-15 mins 800 g 180 W, 8 mins + 90 W, 10-20 mins

1.2 kg 180 W, 15 mins + 90 W, 20-25 mins

500 g 180 W, 8 mins + 90 W, 5-10 mins

250 g 180 W, 1 min + 90 W, 3-4 mins

1 kg 180 W, 12 mins + 90 W, 10-20 mins

750 g 180 W, 5 mins + 90 W, 10-15 mins

500 g 180 W, 5 mins + 90 W, 15-20 mins Only for cakes without icing, cream or 750 g 180 W, 7 mins + 90 W, 15-20 mins

cooking time in minutes

Defrost

Notes

■ Place the frozen food in an open container on the turntable.

■ Delicate parts such as the legs and wings of chicken or fatty

outer layers of roasts can be covered with small pieces of aluminium foil. The foil must not touch the oven walls. You can remove the foil half way through the defrosting time.

■ Liquid will be produced when defrosting meat or poultry.

Drain off this liquid when turning meat and poultry and under no circumstances use it for other purposes or allow it to come into contact with other foods.

■ Turn or stir the food once or twice during the defrosting time.

Large pieces of food should be turned several times.

■ Leave defrosted items to stand at room temperature for a

further 10 to 20 minutes so that the temperature is even throughout. The giblets can be removed from poultry at this point. The meat can still be further prepared, even if it has a small frozen core.

Notes

turning

Turn several times, remove any defrosted meat

separate any defrosted parts

crème pâtissière, separate the pieces of cake

gelatine

Defrosting, heating up or cooking frozen food

Notes

■ Take ready meals out of the packaging. They will heat up

more quickly and evenly in microwaveable ovenware. The different components of the meal may not require the same amount of time to heat up .

+ 16 hidden pages
