Siemens GPS1000 User Manual

SICLOCK® GPS1000 Radio Clock

2XV9450-1AR82

User Manual

2.0

Revision: August 2012

Order No.: 2XV9450-1AR82-BA

User Manual SICLOCK GPS1000

Responsible Distributor: Siemens AG, I&S EDM, Germany

Contact person: local Siemens branch

Orders: local Siemens branch

Published by:

Siemens AG

I IA CE SE Würzburger Straße 121 D-90766 Fürth

SICLOCK-Hotline: Phone: +49 (9131) 7-2 88 66 Fax: +49 (9131) 18-8 06 04 E-Mail: siclock@siemens.com WWW: http://www.siemens.com/siclock

Technical subject to change without notice © Siemens AG 2012

2 Version 2.0 Order number 2XV9450-1AR82-BA

User manual SICLOCK GPS1000

Contents:

Safety instructions ........................................................................................................5

Brief Overview...............................................................................................................7

2.1.

Function ....................................................................................................................................7

2.2.

Scope of Delivery......................................................................................................................7

2.3.

Installation Procedure ..............................................................................................................7

2.4.

Operation and Maintenance....................................................................................................8

Installation instructions................................................................................................9

3.1.

Connection to SICLOCK TM or PC .............................................................................................9

3.2.

Connection to SICLOCK TC400 / TC100 or TS.........................................................................11

Lightning Protection ...................................................................................................13

4.1.

Lightning Theorie ...................................................................................................................13

4.2.

Parts of buildings in danger of being struck by lightning ...................................................14

4.3.

Inducting effect during lightning strikes..............................................................................15

4.4.

Choosing a safe location ........................................................................................................15

4.5.

Installation of the lightning protection module 2XV9450-1AR83 ......................................15

Mounting the antenna................................................................................................16

5.1.

Procedure for selecting the installation location.................................................................16

5.2.

Mounting procedures.............................................................................................................16

Appendix .....................................................................................................................18

6.1.

Technical data.........................................................................................................................18

6.2.

Ordering data..........................................................................................................................18

6.3.

Precision ..................................................................................................................................19

6.4.

Antenna stand.........................................................................................................................19

Index of Illustrations

Fig 1: Front view GPS1000 PS. ..................................................................................................................8

Fig 2: Installation diagram for SICLOCK TM and PC without lightning protection module.........................9

Fig 3: Installation diagram for SICLOCK TM and PC with lightning protection module............................10

Fig 4: Installation diagram for SICLOCK TS without lightning protection module....................................11

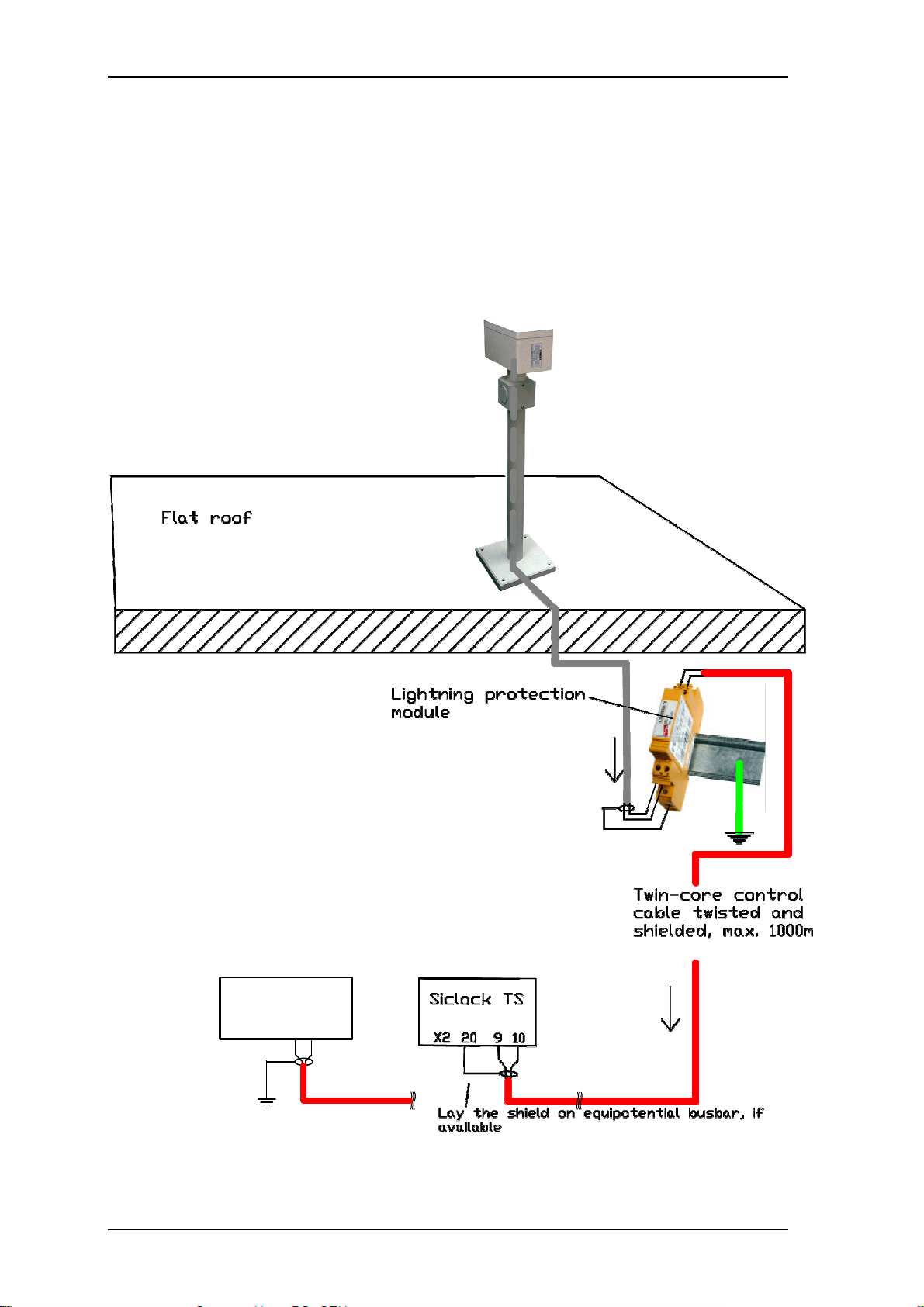

Fig 5: Installation diagram for SICLOCK TS with lightning protection module. ........................................12

Fig 6: The course of a lightning stroke ....................................................................................................13

Fig 7: Determination of potential areas where lightning could strike (normal buildings)........................14

Fig 8: Determination of potential areas where lightning could strike (industrial building)......................14

Fig 9: Flat roof installation ......................................................................................................................16

Fig 10: Wall mounting.............................................................................................................................17

Fig 11: Dimensioning Antenna Stand......................................................................................................19

Order number 2XV9450-1AR82-BA Version 1.0 3

User Manual SICLOCK GPS1000

4 Version 2.0 Order number 2XV9450-1AR82-BA

User manual SICLOCK GPS1000

1. Safety instructions

Caution

CautionCaution

Please observe the safety instructions on the back of the cover sheet of this documentation. You should not expand your device unless you have read the relevant safety instructions.

If you have questions about the validity of the installation in the planned environment, please contact your service representative. Smooth and safe operations demand proper transport, proper storage, installation and assembling as well as careful operations and maintenance.

Warning

WarningWarning

Danger from line voltage

• Connection and disconnection may only be performed by a qualified electrician!

• Connect or disconnect power supply cables only when the power is turned off.

Warning

WarningWarning

Life-threatening > 60 VDC/VAC dangerous contact voltage

Take the following safety precautions when supplying the device with a > 60 VDC/VAC dangerous contact voltage:

• Ensure that the protective conductor (PE) in the power supply cable is

connected to the PE terminal .

• There must be a means (main switch or circuit breaker) of

disconnecting the devices upstream in the supply system or the building installation.

Caution

CautionCaution

Danger from lines carrying a > 60 VDC/VAC dangerous contact voltage

Ensure that connection cables carrying a > 60 VDC/VAC dangerous contact voltage are secured against disconnection by being pulled out. Lay the cables in cable ducts or cable channels and, if necessary, secure the cables with cable ties.

Repairs

RepairsRepairs

Repairs to the device may only be performed by authorized specialists.

Warning

WarningWarning

Unauthorized opening or improperly performed repairs can cause considerable damage to property and/or danger to users.

Order number 2XV9450-1AR82-BA Version 1.0 5

User Manual SICLOCK GPS1000

ESD guidelines

ESD guidelinesESD guidelines

Modules containing electrostatic sensitive devices (ESDs) can be identified by the following label:

Strictly follow the guidelines mentioned below when handling modules containing ESDs:

• Before working with modules containing ESDs, you must discharge all your personal static e.g. by touching a grounded object.

• All devices and tools must be free of static charge.

• Always pull out the power plug before connecting or disconnecting modules containing ESDs.

• Handle modules containing ESDs by their edges only.

• Do not touch any pins.

6 Version 2.0 Order number 2XV9450-1AR82-BA

User Manual SICLOCK GPS1000

2. Brief Overview

2.1. Function

SICLOCK GPS1000 is a modern GPS radio-controlled clock which can be used worldwide for the reception of time signals from the 24 American GPS satellites. At the output of the GPS1000 antenna head a DCF77 time telegram with Greenwich Meantime is available.

The advantage of the GPS1000 is that the antenna, GPS receiver and GPS decoder are integrated in the antenna head as one unit and there is therefore no need to lay coaxial cables, nor to separately install the decoder together with a power supply.

Both the power supply of the antenna head and also the transmission of the DCF77 time telegram is done via loop current by means of a shielded twin-core control cable with a maximum length of approx. 1000 meters. The power supply module GPS1000 PS is at the process end of the control cable. The module feeds the loop current connection to the antenna head and extracts the DCF77 time telegram. For its own supply it has a long range power supply of 24 to 230V V/DC or 48-230 V/AC. SICLOCK GPS1000 does not require parameter settings.

2.2. Scope of Delivery

• GPS1000 antenna head E10433-E9910-H100 with integrated electronics and 2,5 m connecting cable

with end splices

• GPS1000 PS (power supply module) E10433-E0006-H100

(not included in the complete package SICLOCK TC400 with GPS1000, SICLOCK TC100 with GPS1000 and SICLOCK TS with GPS1000)

• Antenna holding frame for universal mounting, comprising:

antenna stand with base plate and holding arm, cube with 6 hexagon socket set screws, sealing cover

• Allan key for installation

• Conduit box for connection of control cables

• Connecting cable to PC COM interface (9-pole SUB D)

•

Operating manual German / English

2.3. Installation Procedure

1. First find a suitable location for the antenna. When doing this, please take the following into account: The antenna head should be able to “see” as much sky as possible and must be installed with the housing cover upwards, parallel to the sky. The antenna head should NOT be installed in places where there is lightning hazard! (see chap. 3) Make sure that there is easy access for servicing! (Electromagnetic interference fields from the plant do not need to be taken into account as the operating frequency of GPS1000 is above the industrial interference level.)

2. Mark the drill holes for installing the antenna stand, drill and insert dowels.

3. Make the bore hole for the connecting cable (for wall mounting preferably in the middle underneath the base plate).

4. Assemble the antenna according to figures 9 and 10 respectively.

5. Thread the cable into the bore hole and screw on the stand. For mounting on flat roofs, use additional IP67distribution box and additional control cable to extend if necessary.

6. Inside buildings, install the supplied conduit box near to the cable entry (alternatively, install the lightning protection module 2XV9450-1AR83 and omit the conduit box).

7. Mount the GPS1000 PS near the system to be synchronized (computer, SICLOCK TM, SPC or similar.) (on DIN rails, 19 inch frames or in table housing).

8. Control cable provided on site for GPS1000 PS (terminal X2/11,12) for installation of conduit box for the antenna and clamp with antenna connection cable (polarity is not important here).

9. Lay the shield of the control cable on the equipotential busbar in the control cabinet.

10. Set up the power supply connection to GPS1000 PS (terminal X1/13,14,15).

11. Setting up synchronization to the system: Connection to PC: via cable supplied for X3 at SICLOCK GPS1000 PS to free COM interface. (Driver software required: 2XV9450-1AR28). Connection to SICLOCK TM: via shielded twin-core control cable from the terminal X2/1,2 at SICLOCK GPS1000 PS to SICLOCK TM terminal X2/5,6. Connection to SICLOCK TS: via shielded twin-core control cable directly from the antenna head (SICLOCK GPS1000 PS is not necessary) to SICLOCK TS terminal X2/9,10.

Order numberr 2XV9450-1AR82-BA Version 2.0 7
