SIEMENS
Digital Multileaf Collimator
62107 DB
Description of Function
Register 7
/3X74-021.041 .Ol .01.02
Replaces:
Weitergabe sowie Vervielflltigung dieser Unterlage. Verwertung und
Mitteilung ihrer lnhalts nicht gestattet, soweit nicht aurdriicklich
zugestanden. Zuwiderhandlungen verpflichten zu Schadenerrati. Alle
Rechteftirden Fall derPatenterteilung oder GM-Eintragung vorbehalten
Copyright(C) Siemens AG 1995
Proprietarycompanydata. confidential All rights reserved
Confied titre de secret d’entreprire. Tous droits res@rv&
Confiado mm secret0 industrial Nos resewamos todor 10s derechos
Page 1 of 5
English
03.95
2 of 5 Description of Function
Generator
-,
-
-
i;/
Power Supply
M9
cm/in
-+ on
READY
PBL
MANUAL
cm/in
CPU
SELECTED
CALL
SERVICE
V185
l
El
012
Central Unit
LWL
u
AM4 AM3 AM2
y- RESET
51
Jr
Kl lK2
Dll
HI
Siemens AG
Medizinische Technik
RX74-021.041.01.01.02
Rev.01

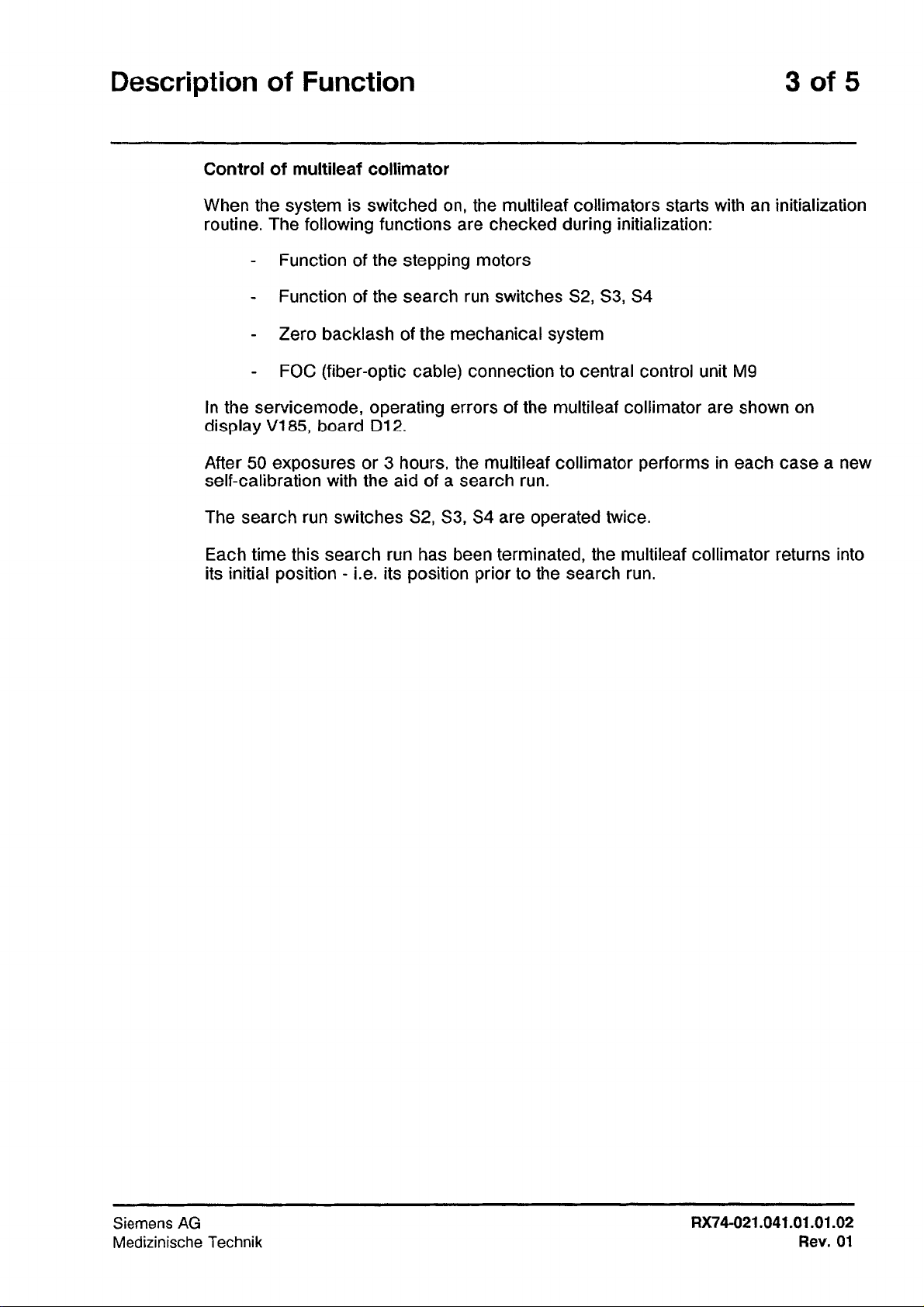

Description of Function 3 of 5
Control of multileaf collimator
When the system is switched on, the multileaf collimators starts with an initialization
routine. The following functions are checked during initialization:
- Function of the stepping motors
- Function of the search run switches S2, S3, S4
- Zero backlash of the mechanical system
- FOC (fiber-optic cable) connection to central control unit M9
In the servicemode, operating errors of the multileaf collimator are shown on
display V185, board D12.
After 50 exposures or 3 hours, the multileaf collimator performs in each case a new
self-calibration with the aid of a search run.
The search run switches S2, S3, S4 are operated twice.
Each time this search run has been terminated, the multileaf collimator returns into
its initial position - i.e. its position prior to the search run.
Siemens AG
Medizinische Technik
RX74-021.041.01 .01.02
Rev. 01

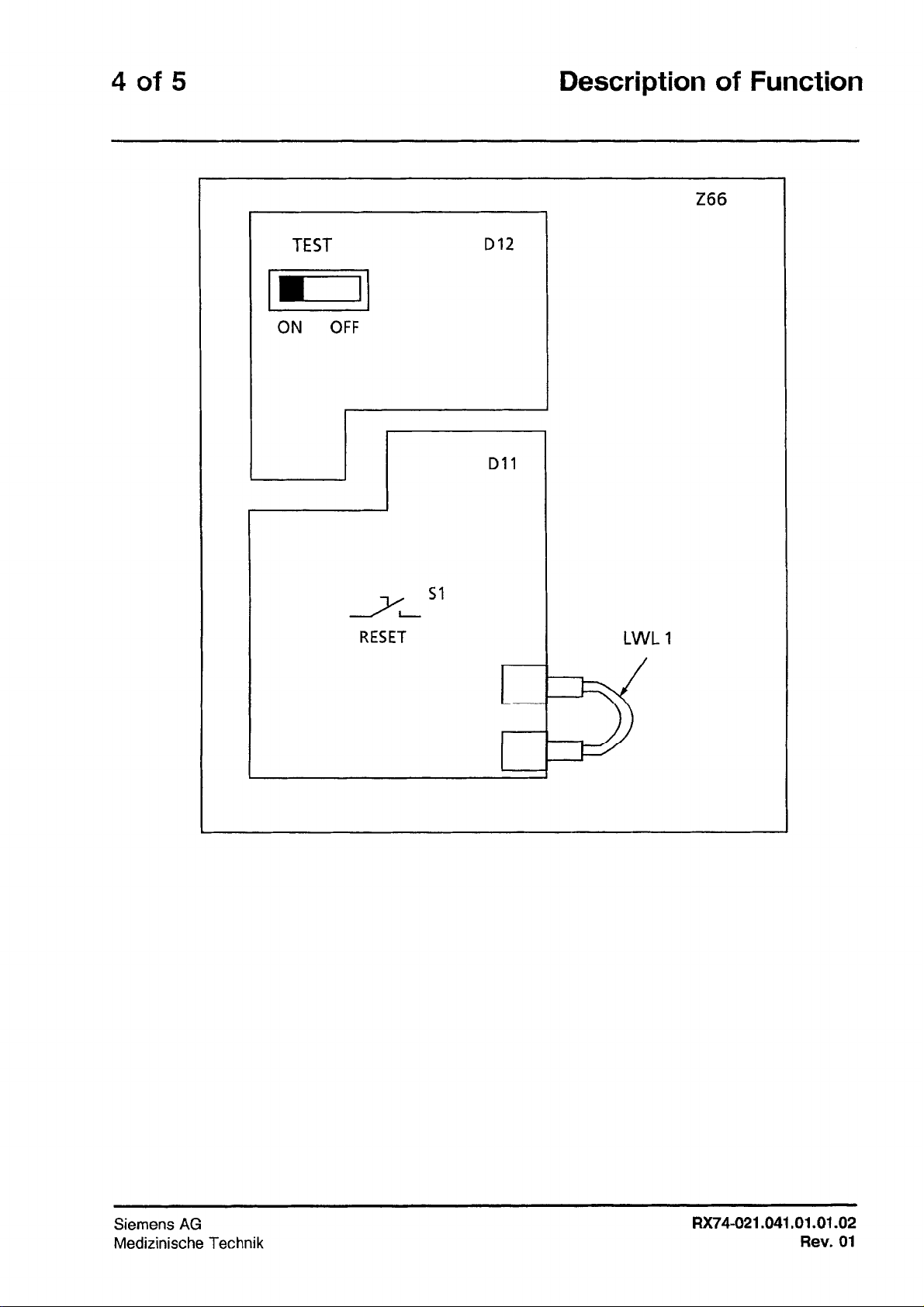

4 of 5 Description of Function
-2.L s1
RESET
Siemens AG
Medizinische Technik
RX74-021.041.01.01.02
Rev.01

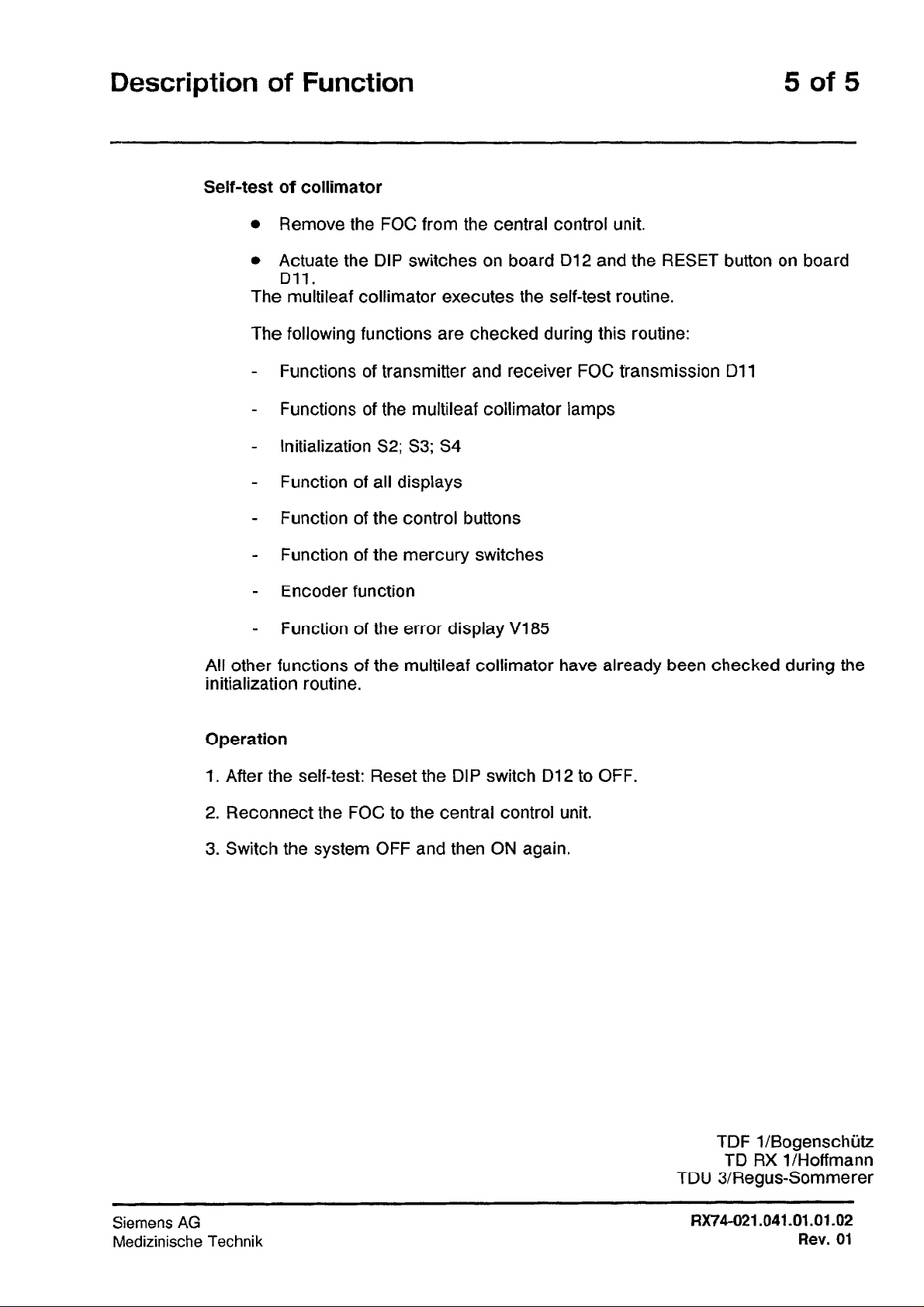

Description of Function
Self-test of collimator
l
Remove the FOC from the central control unit.
l
Actuate the DIP switches on board D12 and the RESET button on board
Dll.
The multileaf collimator executes the self-test routine.
The following functions are checked during this routine:
- Functions of transmitter and receiver FOC transmission Dll
- Functions of the multileaf collimator lamps
- lnitialization S2; S3; S4
- Function of all displays
- Function of the control buttons
5 of 5
- Function of the mercury switches
- Encoder function
- Function of the error display V185
All other functions of the multileaf collimator have already been checked during the
initialization routine.
Operation
1. After the self-test: Reset the DIP switch D12 to OFF.
2. Reconnect the FOG to the central control unit.
3. Switch the system OFF and then ON again.
Siemens AG
Medizinische Technik
TDF 1 Bogenschfitz
TD RX l/Hoffmann
TDU 3/Regus-Sommerer
RX74-021.041.01.01.02
Rev. 01
