Page 1
FT2011
Floor repeater display
Operation Manual
MP6
009311_k_en_--
Building Technologies
2015-12-15 Control Products and Systems
Page 2
Legal notice
2 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Legal notice
Technical specifications and availability subject to change without notice.
Transmittal, reproduction, dissemination and/or editing of this document as well as
utilization of its contents and communication thereof to others without express
authorization are prohibited. Offenders will be held liable for payment of damages.
All rights created by patent grant or registration of a utility model or design patent
are reserved.
Issued by:
Siemens Switzerland Ltd.
Building Technologies Division
International Headquarters
Gubelstrasse 22
CH-6301 Zug
Tel. +41 41 724-2424
www.siemens.com/buildingtechnologies
Edition: 2015-12-15
Document ID: 009311_k_en_--
© Siemens Switzerland Ltd, 2006
Page 3
3 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Table of contents
1 About this document ............................................................................. 5
1.1 Displays used in document ......................................................................... 7
1.2 Applicable documents ................................................................................. 7
1.3 Download center ......................................................................................... 8
1.4 Technical terms and abbreviations .............................................................. 8
1.5 Revision history .......................................................................................... 8
2 Safety ................................................................................................. 9
2.1 Safety instructions ...................................................................................... 9
2.2 Safety regulations for the method of operation ...........................................11
2.3 Standards and directives complied with......................................................13
2.3.1 CPR conformity and firmware version .........................................13
2.4 Release Notes ...........................................................................................13
3 Features ............................................................................................ 14
3.1 Maximum number of events that can be displayed .....................................14
4 PMI ................................................................................................... 15
4.1 Buttons on the PMI ....................................................................................15
4.2 Display ......................................................................................................16
4.3 LEDs .........................................................................................................16
5 Service menu ..................................................................................... 17
6 Operation .......................................................................................... 18
6.1 ALARM Procedure .....................................................................................18
6.2 Procedure in case of Fault .........................................................................19
6.3 Indicating and scrolling in lists ....................................................................20
6.4 Open service menu / Select menu item ......................................................21
7 Alarm verification concept (AVC) .......................................................... 22
7.1 Attendance check ......................................................................................23
7.2 Investigation time .......................................................................................23
7.3 Example of a verification process ...............................................................23
7.4 Fire alarming .............................................................................................25
8 Faults / Troubleshooting ...................................................................... 27
9 Maintenance ...................................................................................... 28
Glossary ..................................................................................................... 29
Index ........................................................................................................ 30
Page 4
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
4 | 32
Page 5
About this document
Displays used in document
1
5 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
1 About this document
Goal and purpose
This document describes the operation of the floor repeater display FT2011 in a
fire detection system. The reader shall become familiar with the possible
indications and operating functions on the floor repeater display, as well as with the
functionality of the floor repeater display in the overall system. This understanding
makes an adequate behaviour possible in the event of fire or fault.
Scope
This document applies to the floor repeater display type FT2011.
Target groups
The information in this document is intended for the following target groups:
Target group Activity Qualification
Operating personnel
● Carries out procedures to
correctly operate the product.
● No particular basic training is needed.
● Has been instructed by the
commissioning personnel.
Commissioning personnel
● Configure the product at the
place of installation according to
customer-specific requirements.
● Check the product operability
and release the product for use
by the operator.
● Searches for and corrects
malfunctions.
● Has obtained suitable specialist training
for the function and for the products.
● Has attended the training courses for
commissioning personnel.
Maintenance personnel
● Carries out all maintenance
work.
● Checks that the products are in
perfect working order.
● Searches for and corrects
malfunctions.
● Has obtained suitable specialist training
for the function and for the products.
Source language and reference document
● The source/original language of this document is German (de).
● The reference version of this document is the international version in English.
The international version is not localized.
Document identification
The document ID is structured as follows:
ID code Examples
ID_ModificationIndex_Language_COUN
TRY
-- = multilingual or international
A6V10215123_a_de_DE
A6V10215123_a_en_-A6V10315123_a_--_--
Date format
The date format in the document corresponds to the recommendation of
international standard ISO 8601 (format YYYY-MM-DD).
Page 6
About this document
Displays used in document
1
6 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Conventions for text marking
Markups
Special markups are shown in this document as follows:
⊳ Requirement for a behavior instruction
1.
2.
Behavior instruction with at least two operation sequences
– Version, option, or detailed information for a behavior instruction
⇨ Intermediate result of a behavior instruction
⇨ End result of a behavior instruction
●
Numbered lists and behavior instructions with an operation
sequence
[➙ X] Reference to a page number
'Text' Quotation, reproduced identically
<Key> Identification of keys
>
Relation sign and for identification between steps in a sequence,
e.g., 'Menu bar' > 'Help' > 'Help topics'
↑ Text Identification of a glossary entry
Supplementary information and tips
The 'i'
symbol identifies supplementary information and tips for an easier way of
working.
Page 7
About this document
Displays used in document
1
7 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15

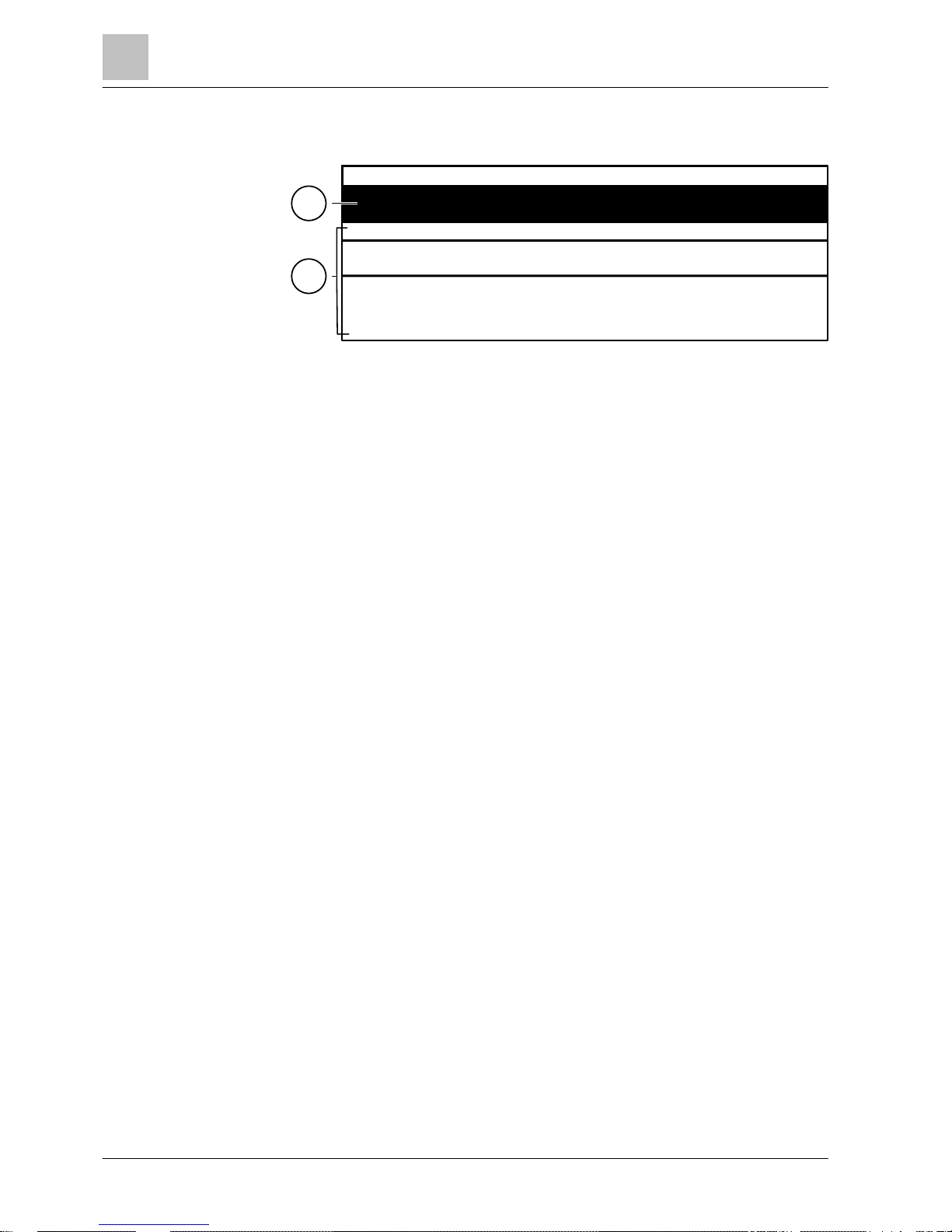

1.1 Displays used in document
The form of display in the document sometimes uses tables.
Deviations between the original and the table representation are shown below as
examples:
Figure 1: Original display figure
ABCDE FGHI
ABCD: 3
07:55:31
! ABCD: 421 ABC: 32
ABCDEFGHI AAA/BBB
_____________________________________
__
+ ABCD: 026 ABC: 75
ABCDE CCC
–––––––––––––––––––––––––––––––––––––
––
XXX YYY ZZZ
3
__________________________________
__
XXX YYY ZZZ
2
––––––––––––––––––––––––––––––––––
––
Table 1: Display r epresentation in tables
The table representation has the following key deviations from the
original:
● Font and representation (proportional font, not inverted)
● No frame around selection
1.2 Applicable documents
Sinteso document ID Title
008838 FC20xx / FT2040 operation
Cerberus PRO document ID Title
A6V10211076 FC7xx / FT724 operation
07:55:31
ABCDE FGHI
ABCD: 3
!ABCD: 421 ABC: 32 XXX YYY ZZZ
ABCDEFGHI AAA/BBB 3
ABCD: 026 ABC: 75 XXX YYY ZZZ
ABCDE CCC 2
Page 8
About this document
Download center
1
8 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
1.3 Download center
You can download various types of documents, such as data sheets, installation
instructions, and license texts via the following Internet address:
http://siemens.com/bt/download
l Enter the document ID in the 'Find by keyword' input box.
You will also find information about search variants and links to mobile
applications (apps) for various systems on the home page.
1.4 Technical terms and abbreviations
You will find details of technical terms and abbreviations in the 'Glossary' chapter.
1.5 Revision history
The reference document's version applies to all languages into which the reference
document is translated.
The first edition of a language version or a country variant may, f
or example, be
version 'd' instead of 'a' if the reference document is already this version.
The table below shows this document's revision history:
Version Edition date Brief description
k 2015-12-15 Edition for MP6/IP6:
Referenced documents updated
j 2014-01-28 Chapter 'LEDs' revised
i 2013-11-14 Edition for MP5/IP5
h 2013-05-20 Change to date format according to ISO 8601
CPR replaces CPD: The Construction Products Regulation (CPR 305/2011)
replaces the previous Construction Products Directive (CPD 89/106).
g 2012-09 Keyboard shortcut for opening the service menu corrected.
f 2012-03 Market package MP-EN 4.0 / Introduction Package IP4
e 2010-05 Edition MP3.0/MP3.0 XS
Revision history redefined and standardized, max. number of events that can be
displayed added
d 2009-02 MP2.1/MP1XS edition, glossary deleted
c 2008-06 Safety chapter revised, IC chapter deleted
b 2007-07 Restriction "Visibility not system-wide" deleted
a 2006-11 First edition
Page 9
Safety
Safety instructions
2
9 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
2 Safety
2.1 Safety instructions
The safety notices must be observed in order to protect people and property.
The safety notices in this document contain the following elements:
● Symbol for danger
● Signal word
● Nature and origin of the danger
● Consequences if the danger occurs
● Measures or prohibitions for danger avoidance

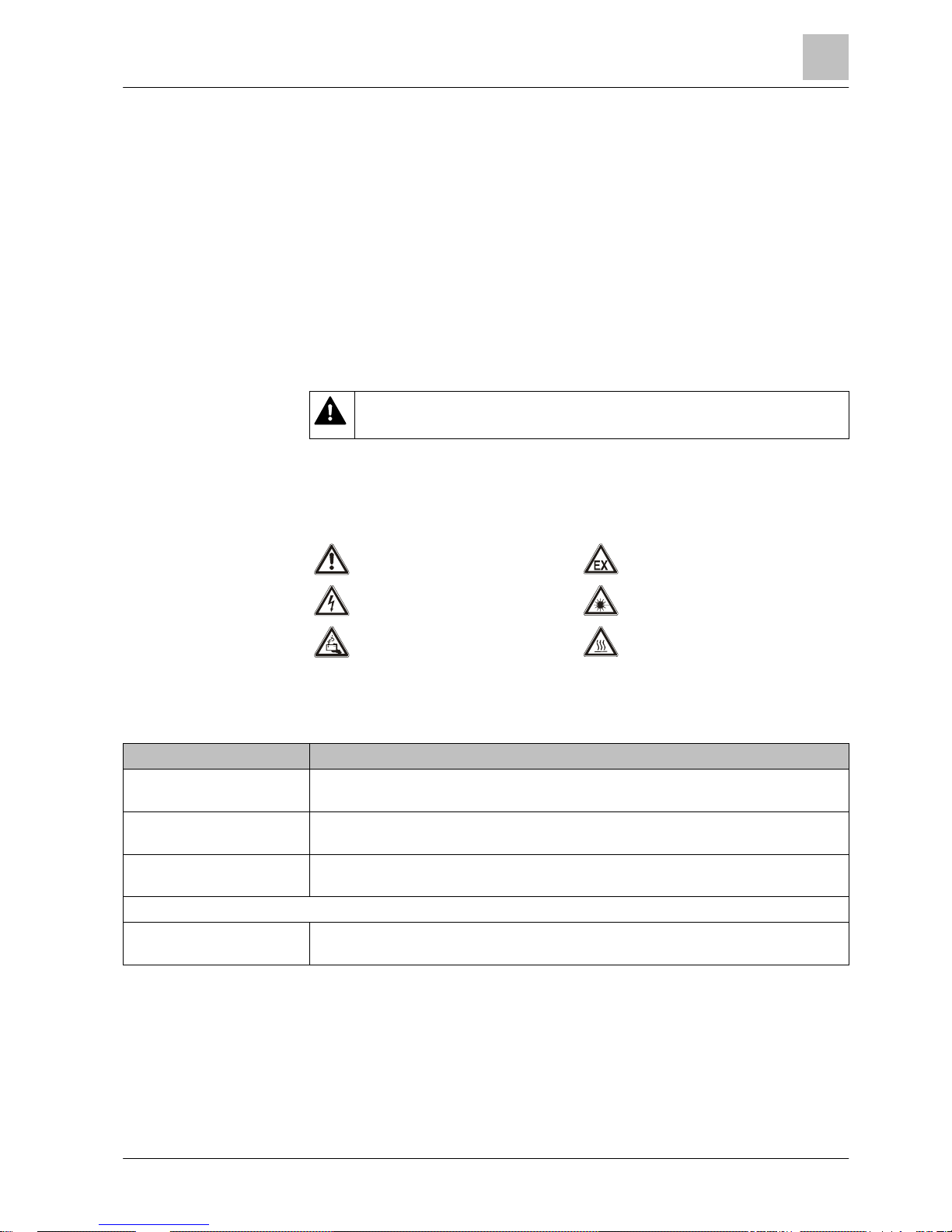

Symbol for danger
This is the symbol for danger. It warns of risks of injury.
Follow all measures identified by this symbol to avoid injury or death.
Additional danger symbols
These symbols indicate general dangers, the type of danger or possible
consequences, measures and prohibitions, examples of which are shown in the
following table:
General danger Explosive atmosphere
Voltage/electric shock Laser light
Battery Heat
Signal word
The signal word classifies the danger as defined in the following table:
Signal word Danger level
DANGER
DANGER identifies a dangerous situation, which will result directly in death or
serious injury if you do not avoid this situation.
WARNING
WARNING identifies a dangerous situation, which may result in death or serious
injury if you do not avoid this situation.
CAUTION
CAUTION identifies a dangerous situation, which could result in slight to
moderately serious injury if you do not avoid this situation.
NOTICE
NOTICE
identifies possible damage to property that may result from non-
observance.
Page 10
Safety
Safety instructions
2
10 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
How risk of injury is presented
Information about the risk of injury is shown as follows:
WARNING
Nature and origin of the danger
Consequences if the danger occurs
●
Measures / prohibitions for danger avoidance
How possible damage to property is presented
Information about possible damage to property is shown as follows:
NOTICE
Nature and origin of the danger
Consequences if the danger occurs
● Measures / prohibitions for danger avoidance
Page 11
Safety
Safety regulations for the method of operation
2
11 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
2.2 Safety regulations for the method of operation
National standards, regulations and legislation
Siemens products are developed and produced in compliance with the relevant
European and international safety standards. Should additional national or local
safety standards or legislation concerning the planning, mounting, installation,
operation or disposal of the product apply at the place of operation, then these
must also be taken into account together with the safety regulations in the product
documentation.
Electrical installations
WARNING
Electrical voltage
Electric shock
● Work on electrical installations may only be carried out by qualified
electricians or by instructed persons working under the guidance and
supervision of a qualified electrician, in accordance with the electrotechnical
regulations.
● Wherever possible disconnect products from the power supply when carrying
out commissioning, maintenance or repair work on them.
● Lock volt-free areas to prevent them being switched back on again by mistake.
● Label the connection terminals with external external voltage using a
'DANGER External voltage' sign.
● Route mains connections to products separately and fuse them with their own,
clearly marked fuse.
● Fit an easily accessible disconnecting device in accordance with IEC 60950-1
outside the installation.
● Produce earthing as stated in local safety regulations.
CAUTION
Noncompliance with the following safety regulations
Risk of injury to persons and damage to property
●
Compliance with the following regulations is required.
● Specialist electrical engineering knowledge is required for installation.
● Only an expert is permitted to carry out installation work.
Incorrect installation can take safety devices out of operation unbeknown to a
layperson.
Page 12
Safety
Safety regulations for the method of operation
2
12 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Mounting, installation, commissioning and maintenance
● If you require tools such as a ladder, these must be safe and must be intended
for the work in hand.
● When starting the fire control panel ensure that unstable conditions cannot
arise.
● Ensure that all points listed in the 'Testing the product operability' section below
are observed.
● You may only set controls to normal function when the product operability has
been completely tested and the system has been handed over to the customer.
Testing the product operability
● Prevent the remote transmission from triggering erroneously.
● If testing building installations or activating devices from third-party companies,
you must collaborate with the people appointed.
● The activation of fire control installations for test purposes must not cause
injury to anyone or damage to the building installations. The following
instructions must be observed:
– Use the correct potential for activation; this is generally the potential of the
building installation.
– Only check controls up to the interface (relay with blocking option).
– Make sure that only the controls to be tested are activated.
● Inform people before testing the alarm devices and allow for possible panic
responses.
● Inform people about any noise or mist which may be produced.
● Before testing the remote transmission, inform the corresponding alarm and
fault signal receiving stations.
Modifications to the system design and the products
Modifications to the system and to individual products may lead to faults,
malfunctioning and safety risks. Written confirmation must be obtained from
Siemens and the corresponding safety bodies for modifications or additions.
Modules and spare parts
● Components and spare parts must comply with the technical specifications
defined by Siemens. Only use products specified or recommended by
Siemens.
● Only use fuses with the specified fuse characteristics.
● Wrong battery types and improper battery changing lead to a risk of explosion.
Only use the same battery type or an equivalent battery type recommended by
Siemens.
● Batteries must be disposed of in an environmentally friendly manner. Observe
national guidelines and regulations.
Disregard of the safety regulations
Before they are delivered, Siemens products are tested to ensure they function
correctly when used properly. Siemens disclaims all liability for damage or injuries
caused by the incorrect application of the instructions or the disregard of danger
warnings contained in the documentation. This applies in particular to the following
damage:
● Personal injuries or damage to property caused by improper use and incorrect
application
● Personal injuries or damage to property caused by disregarding safety
instructions in the documentation or on the product
● Personal injury or damage to property caused by poor maintenance or lack of
maintenance
Page 13
Safety
Standards and directives complied with
2
13 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
2.3 Standards and directives complied with
A list of the standards and directives complied with is available from your Siemens
contact.
2.3.1 CPR conformity and firmware version
In order to satisfy Ordinance No. 305/2011 (the Construction Products Regulation –
CPR), the firmware of a newly installed fire detection installation must be current
market package version MP6 or higher.
NOTICE
Firmware version of a newly installed fire detection installation not updated
No CPR conformity
● Compare the firmware version of a newly installed fire detection installation
with the firmware version MP6.
●
Update the firmware if necessary.
2.4 Release Notes
Limitations to the configuration or use of devices in a fire detection installation with
a particular firmware version are possible.
WARNING
Limited or non
-
existent fire detection
Personal injury and damage to property in the event of a fire.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
detection installation.
NOTICE
Incorrect planning and/or configuration
Important standards and specifications are not satisfied.
Fire detection installation is not accepted for commissioning.
Additional expense resulting from necessary new planning and/or configuration.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
detection installation.
Page 14
Features
Maximum number of events that can be displayed
3
14 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
3 Features
The ↑ floor repeater display is an indication and operating unit in a fire detection
installation with the following functions:
Indication of events
● 'ALARM'
– 'Pre-ALARM'
● 'Fault'
● 'Isolation'
● ↑ 'Technical message'
Operation
● Scrolling through lists
● 'Silence buzzer'
The ↑ floor repeater display is synchronized with 'Stations' of the configured
↑ visibility and shows the same event texts.
The possible number
of displayed events is limited. You will find details in the
corresponding section.
3.1 Maximum number of events that can be displayed
The maximum number of events that can be displayed is limited and depends on
the length of the event texts. Assuming that the event texts are long, the following
maximum numbers of events apply to the corresponding displays:
● Extended view: 18
● Standard view: 37
● Details view: 20
Events are displayed in order of priority. If the maximum number of events that
can be displayed is reached, events with higher priority replace those with lower
priority in the display.
Events which are no longer displayed due to the limitation can be listed
completely on the control panel.
See also
2 Indicating and scrolling in lists [➙ 20]
Page 15
PMI
Buttons on the PMI
4
15 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
4 PMI
The figure below shows the PMI of a ↑ floor repeater display.
Figure 2: PMI, floor repeater display
1 'ALARM' LEDs 5 'More alarms' button
2 Display 6 LED, configurable
3 Navigation buttons 7 LED 'System On'
4 'Silence buzzer' button
4.1 Buttons on the PMI
Navigation buttons
The navigation buttons work in the same way as the arrow keys on a PC keyboard.
With the buttons <▲> and <▼> it is possible to scroll to the next entry in a list.
<Silence buzzer>
Switches the buzzer off.
<More alarms>
By pressing the <More alarms> button, the display changes to the next alarm
event. In case of alarm, this button has the same function as the navigation button
<▼>.
1
2
3
4
5
6
7
Page 16
PMI
Display
4
16 | 32
Building
Technologies
009311_k_en_
--
Fire Safety
2015-12-15
4.2 Display
The display has two areas:
Figure 3: Display representation with two indicated messages
1 Header 2 Representation area
4.3 LEDs
The LEDs on the ↑Person Machine Interface signal 'Events' and conditions. In
addition, the LEDs support the operator's orientation. The LEDs can light up in red,
yellow, or green. The LEDs can be configured according to customer-specific
requirements.
The LED colors can, for example, signal the following information:
Red ● ALARM
● Activations, e.g., remote transmission,↑ alarm devices,
control function
Yellow ● Fault
● Isolation
● Deactivation, e.g. remote transmission, alarm devices,
control function
Green ● System is in operation
Additional information on the conditions of the LEDs (steady on, steady off or
flashing) can be found in the relevant chapter.
07:55:31
ABCDE FGHI
ABCD: 3
ABCD: 421 ABC: 32 XXX YYY ZZZ
ABCDEFGHI AAA/BBB
ABCD: 026 ABC: 75 XXX YYY ZZZ
ABCDE CCC
1
2
Page 17
Service menu
5
17 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
5 Service menu
Various settings can be performed using a service menu. You can open the service
menu using a keyboard shortcut (see corresponding chapter).
After calling up the menu and entering a password, the following menu items are
available:
● 'Device information'
– Shows detailed information on the device.
● 'Buzzer on/off'
– Settings of the buzzer.
● 'LED test'
– Function test of the LED.
● 'Key test'
– Function test for the buttons of the PMI.
● 'LCD test'
– Function test of the display.
● 'LCD contrast'
– Setting of the display contrast in percent.
● 'exit'
– Closes the service menu.
See also
2 Open service menu / Select menu item [➙ 21]
Page 18
Operation
ALARM Procedure
6
18 | 32
Building Technologies
009311_k_en_
--
Fire
Safety
2015-12-15
6 Operation
6.1 ALARM Procedure
If your fire detection system has no delayed alarm transmission function ('AVC'),
the variant –'Fire Brigade in' 'mm:ss' in Step 1 (see Procedure in the event of
alarm) does not apply.

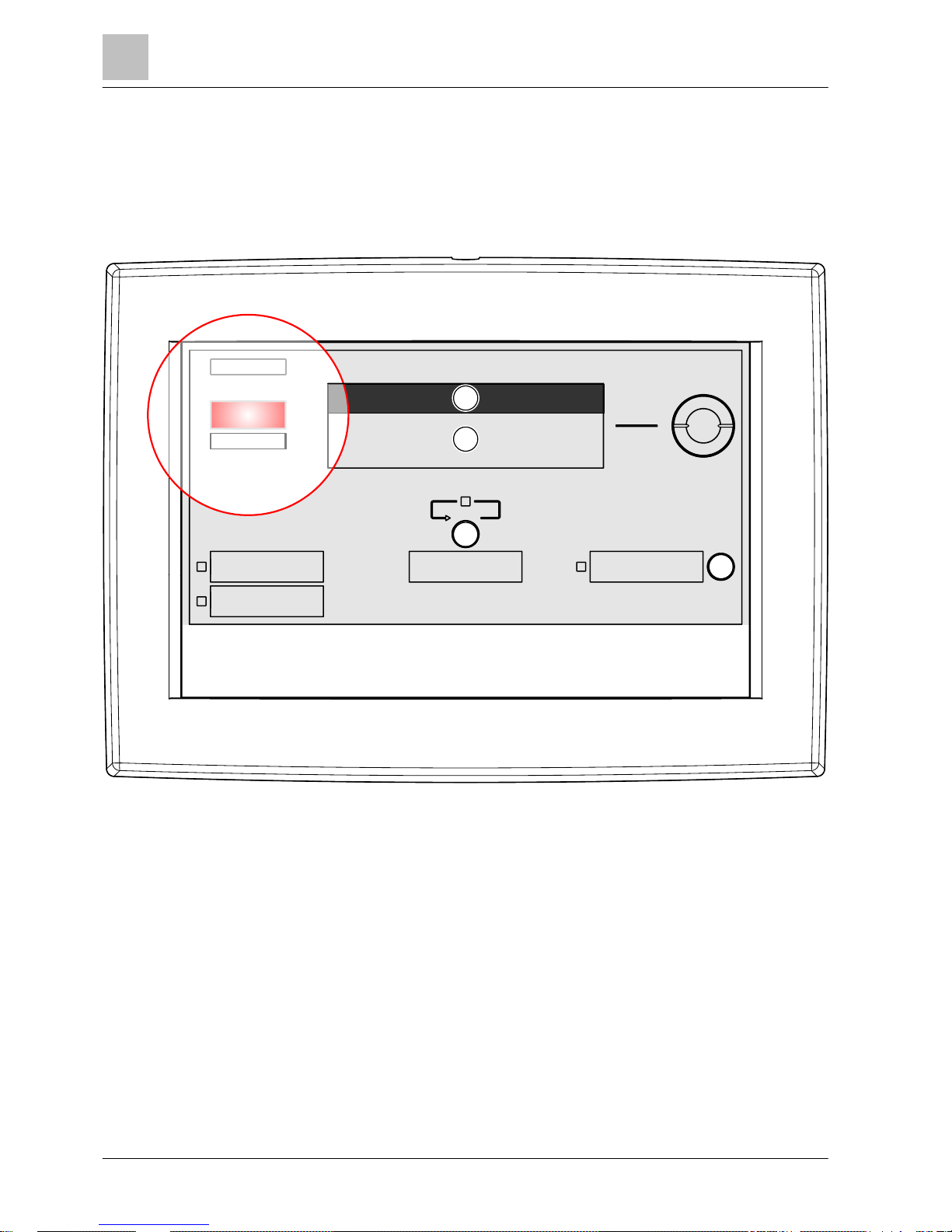

Figure 4: ALARM operat ion sequenc e
1 Read the top line 2 Read off the fire location
2
1
Page 19
Operation
P
rocedure in case of Fault
6
19 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Procedure in the event of alarm
Step
Action / Condition Consequence / Status
1 Read top line on display
– 'Fire Brigade requested' 'ALARM' is transmitted to the fire brigade
– 'Fire Brigade in' 'mm:ss' 'ALARM' is transmitted to fire brigade in 'mm:ss'
Remaining time is shown as Countdown
– 'Call Fire Brigade !'
If:
Remote transmission switched off
Remote transmission blocked or defective
No remote transmission available
Fire brigade must be called by phone!
No automatic transmission to fire brigade
2 Read off fire location on display
3 Go to the fire location
4
Decide: MAJOR INCIDENT or ↑ minor
incident
Condition
MAJOR INCIDENT ↑ Minor incident
Fire brigade has been called Save people
Guide the fire brigade to the fire
location
Fight the fire
Try to prevent fire brigade
deployment
'Fire Brigade in' 'mm:ss'
Countdown is running
Trigger 'Manual call point' immediately
Try to prevent fire brigade
deployment
'Call Fire Brigade !'
No automatic transmission to
the fire brigade
Call the fire brigade on the phone!
6.2 Procedure in case of Fault
Step Action
1 Press <Buzzer on/off> on the ↑ Person Machine Interface
2 Read off fault location on display
3 Go to the fault location
4 Eliminate the cause of the fault
A list of possible '
Faults
' and how they are eliminated can be
found in the chapter
'Faults / Troubleshooting'
If you cannot eliminate a 'Fault', please contact your service provider.
Page 20
Operation
Indicating and scrolling in lists
6
20 | 32
Building Technologies
009311_k_en_
--
Fire
Safety
2015-12-15
'Fault' and 'Intervention Concept' ('IC')
On consideration of 'Intervention Concept', events of the 'Fault' category can be
assigned their own sequence. This sequence may be configured differently and
depends on the 'Manned operation' / 'Unmanned operation' operation mode.
An exemplary sequence after a 'Fault', on consideration of the 'Intervention
Concept', is graphically represented in the following:
'Fault' has occurred
● 'Unmanned operation' operation mode
– Remote transmission for 'Faults' is activated
● 'Manned operation' operation mode
– The remote transmission for 'Faults' is activated unless the 'Fault' is
acknowledged within the delay t1.
1. Read the location of 'Fault' on the display.
2. Go to the location of 'Fault'.
3. Rectify 'Fault'.
See also
2 Faults / Troubleshooting [➙ 27]
6.3 Indicating and scrolling in lists
'Events' and conditions, starting from the ↑ floor repeater display's ↑ visibility, are
indicated in lists.
Generally the list with the '
Events
' of the highest priority is automatically displayed
on the floor repeater display.
For example the alarm list is automatically displayed when 'Isolations', 'Faults'
and an 'ALARM' have occurred.
If a list contains several 'Events', you may scroll to the next list item by means of
the navigation buttons. The next 'Event' is highlighted.
When the '
ALARM
' event list is open, the <
More alarms
> button assumes the
function of the button <▼>, changing to the next alarm event upon activation.
See also
2 Maximum number of events that can be displayed [➙ 14]
Page 21
Operation
Open service menu / Select menu item
6
21 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
6.4 Open service menu / Select menu item
To open the service menu a keyboard shortcut as well as a password are required.
The service menu can only be opened when no '
Event
' is displayed.
Opening the service menu
w No 'Event' are displayed.
1. Press <More Alarms>, with <Reset> button pressed.
a The password dialog is shown.
2. Enter the password and confirm.
a The service menu is open.
Select menu item
● In the service menu the highlighted menu item can be executed by pressing the
<More Alarms> button or by opening the sub-menu.
● The buttons <▲> and <▼> highlight the next menu item.
See also
2 Service menu [➙ 17]
Page 22
Alarm verification concept (AVC)
Open service menu / Select menu item
7
22 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
7 Alarm verification concept (AVC)
The ↑ 'Alarm Verification Concept' serves the purpose of delayed alarm
transmission and takes into account the interaction of the operating personnel in
the alarming sequence.
Operating personnel are able to examine the indicated fire location in the event of
a fire alarm. In the event of a ↑ false alarm or minor incident the intervention of the
fire brigade can be avoided.

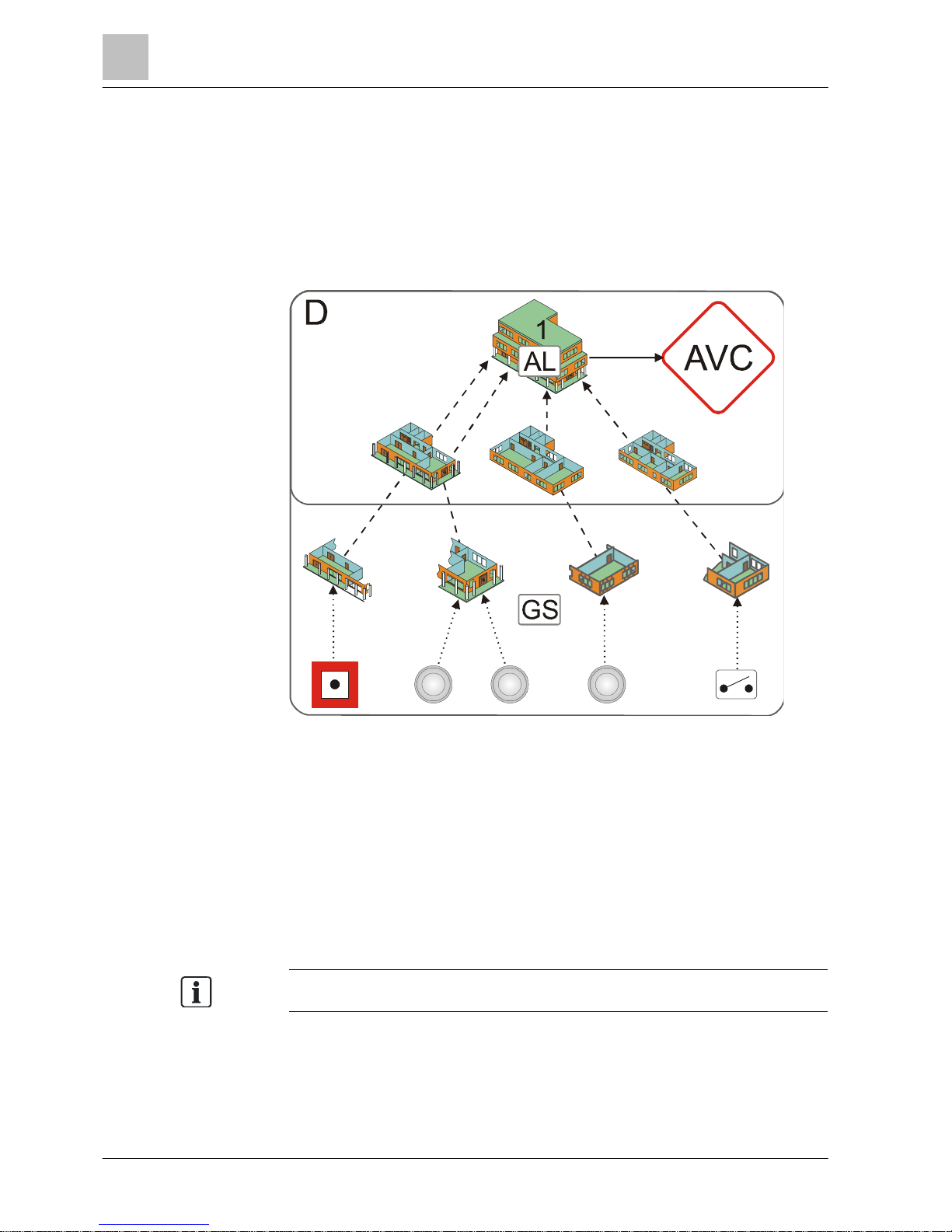

Information flow of 'ALARM' and ↑ 'Pre-ALARM'
D ↑ 'Detection tree' AL 'Pre-ALARM'/'ALARM'
AVC ↑ Alarm verification concept GS Danger levels
1 'Area'
The 'Area' receives 'Pre-ALARMS' or 'ALARMS' from 'Zones'. Alarm verification
takes place at 'Area' level.
Configuration for 'Pre-ALARMS' and 'ALARMS' is not related within 'AVC'. The type
of verification and alarming can be separately configured for the 'Manned
operation' and 'Unmanned operation' operation modes.
'ALARMS' of 'Manual zones' and 'Automatic zones' 'Zones' as well as 'Degraded
FIRE ALARM' can be configured differently.
A
maximum of one '
AVC
' is possible per '
Area
'.
Page 23
Alarm verification concept (AVC)
Attendance check
7
23 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
7.1 Attendance check
Should an event ('Pre-ALARM', 'ALARM') arise, the operating personnel may
acknowledge presence within the time t1. After acknowledgement, the investigation
time t2 starts. If presence is not acknowledged within the given time t1, ↑ global
alarming is activated.
7.2 Investigation time
During the investigation time t2 the operating personnel may examine the indicated
source of alarm and check the cause of the 'ALARM':
● Or is it a real fire (emergency)?
● Is it a smoldering waste-paper basket (minor incident)?
● Has the ↑ site detected a deceptive phenomenon (false alarm)?
In the event of a major incident (emergency), the nearest 'Manual call points' or
<Alarm delay off> must be pressed. ''Immediate global alarming'' is then triggered.
In the case of a ↑ minor incident or ↑ false alarm the operator may reset the
'ALARM' and cancel alarming.
If the '
ALARM
' is not reset within the given time t2, '
Immediate global alarming
' is
activated.
7.3 Example of a verification process
Alarm verification proceeds as follows:
● An alarm event activates ↑ local alarming and starts the time t1 for attendance
check.
● Operating personnel acknowledge 'ALARM' on the operating terminal prior to
the expiry of t1. Acknowledging normally silences local alarming (configurable
feature).
If there is no acknowledgment, ↑ global alarming is activated after the expiry of t1.
● After acknowledgement, the investigation time t2 starts. During time t2
operating personnel investigate the fire location.
– In the case of a minor incident the operator resets the 'ALARM' at the
nearest operating terminal. The alarming process stops, and no ↑ global
alarming is activated.
– In the event of a fire, the nearest 'Manual call points' or <Alarm delay off>
must be pressed. 'Immediate global alarming' is triggered.
If there is no reset, 'Immediate global alarming' is also activated after the expiry of
t2.
Page 24
Ala
rm verification concept (AVC)
Example of a verification process
7
24 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15

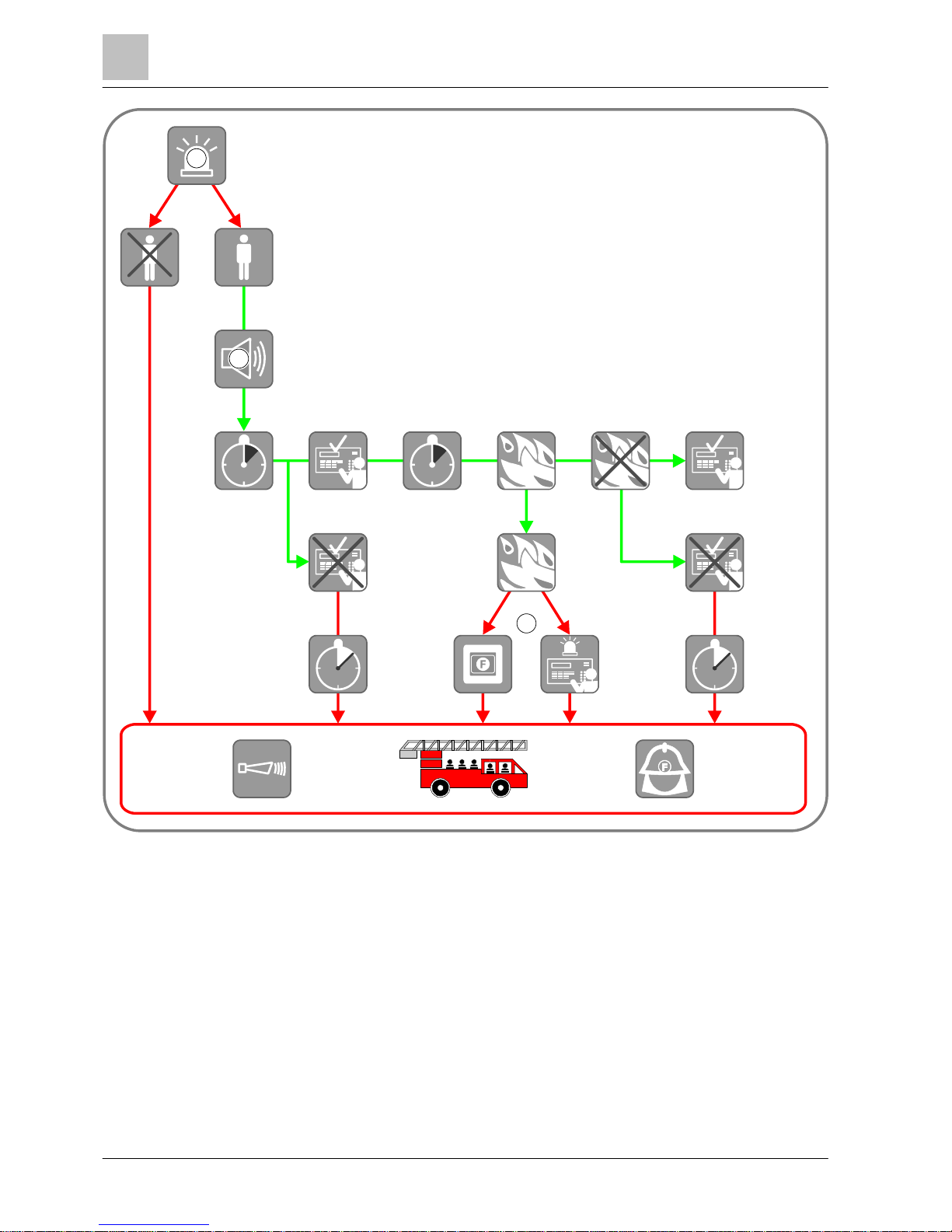

Figure 5: Al arm verification
1 Alarm event q Acknowledge at ↑ 'Station'
2 Local alarming qx Not acknowledged
3
Manual call point or <Alarm delay off> on
'Station'
t2..
Time t2 to investigate the source of alarm / the
fire location
mx 'Unmanned operation' operation mode ..t2 X Time t2 has expired
m 'Manned operation' operation mode r Reset on 'Station'
t1.. Time t1 for attendance check rx Not reset
..t1 X Time t1 has expired GA ↑ Global alarming
t2..
t1..
?
..t2 X
..t1 X
1
mx m
2
q r
qx
rx
GA
3
Page 25
Alarm verification concept (AVC)
Fire alarming
7
25 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
7.4 Fire alarming
Alarming is controlled at 'Area' level. During alarming the ↑ alarming equipment is
activated, e.g., ↑ alarm devices and remote transmission devices.
↑ Alarm devices
For ↑ local and ↑ global alarming, acoustic alarm devices, beacons, digital outputs,
etc., can be used. The tone of the alarm devices can be configured differently for
local and global alarming (the alarm devices must be suitable for this).
Remote transmission
The alarm message is transmitted to an intervention station. In the case of local
alarming, this is usually the company fire brigade and for global alarm usually the
state fire brigade. A remote transmission device must be used to transmit alarm
messages via the public telephone network.

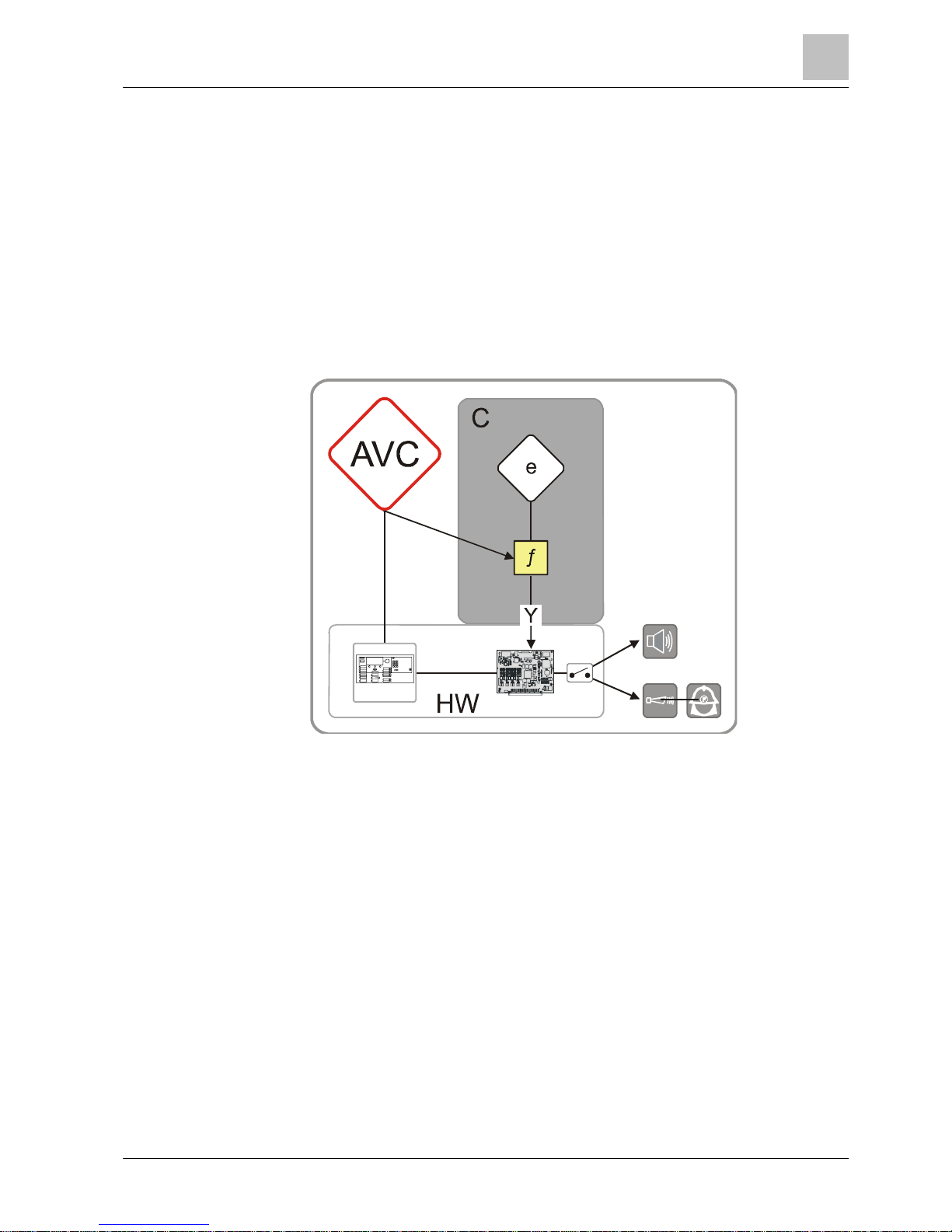

Figure 6: Information flow during alarming
AVC ↑ 'Alarm Verification Concept' f ↑ Alarming control
C ↑ 'Control tree' Y ↑ Local and ↑ global alarming
e 'Alarming control group'
Page 26
Alarm verification concept (AVC)
Fire alarming
7
26 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
The ↑ alarm devices and the remote transmission can be separately configured
for:
● Alarm type (only with automatic zones)
– 'Pre-ALARM'
– 'ALARM'
● Zone type (only with 'ALARMS')
– Manual alarm
– Automatic alarm
– Degraded fire alarm
● Operation mode:
– 'Manned operation'
– 'Unmanned operation'
● Alarming type:
– 'Local alarming only'
– 'Delayed alarming'
– 'Global alarming only'
Page 27
Faults / Troubleshooting
8
27 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
8 Faults / Troubleshooting
If the ↑ 'Site' displays a 'Fault', the table below provides a list of all possible
'Faults', including information on the possible causes.
If a 'Fault' cannot be eliminated with the help of these operation instructions, please
contact the service engineer.
'Fault' Cause Remedy
'Automatic detector' 'Detector' missing Re-insert 'Detector'
'Detector' defective Replace 'Detector' with replacement detector.
CAUTION! Any defective 'Detector' must always be
replaced by a 'Detector' of the same type.
'Manual call point' Glass pane broken Replace glass pane
Other damages Contact service provider
'Mains failure'
'Mains failure' in the
public network
No action required.
Emergency power supply is ensured by batteries during
at minimum 12 hours; depending on the customer
specification up to 72 hours.
Fuse damaged
Check fuses (current distributor of the building) and
replace them if necessary.
With all other '
Faults
', the service provider in account must be contacted.
Page 28
Maintenance
9
28 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
9 Maintenance
Please adhere to the local provisions.
No maintenance work is required.
Cleaning the PMI
To clean the PMI use a wet cloth without any cleaning agents, abrasives or
solvents.
Page 29
Glossary
29 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Glossary
Alarm device
Element in the fire detection system for acoustic
and/or visual alarming, e.g. alarm sounder,
beacon.
Alarm verification concept
Concept for preventing false alarms which takes
into account the interaction of the operating
personnel in the alarming sequence.
Alarming control
Monitoring and controlling the alarming
equipment
Alarming equipment
Alarm devices and remote transmissions
Control tree
Structure tree with control group and control.
Detection tree
Diagram of the geographical and organizational
arrangements of sensors in a building. This is a
hierarchical structure comprising the area,
section, and zone.
False alarm
Alarm not triggered by a danger.
Floor repeater display
A display device without operating elements.
Global alarming
Global alarming equipment (e.g., remote
transmission) is actuated and external
intervention forces (e.g., the fire brigade) are
alerted.
Local alarming
Local alarming equipment (e.g. acoustic or
optical) is actuated in order to call up
intervention personnel and to alert people of a
possible fire hazard.
Minor incident
Alarm situation which the operating personnel
can handle themselves and does not, therefore,
trigger global alarming.
PMI
The arrangement of operating and display
elements on a fire control panel or on a fire
terminal. Includes the LEDs, buttons, the display,
and the operation options such as the key
switch, fire brigade control and display (FBA),
and the EVAC NL Person Machine Interface.
Pre-alarm
Stage before an alarm for information early on,
should an event occur.
Site
Depiction of fire detection installation: The top
level in the figure showing the installed system.
Combines hardware tree, detection tree, and
control tree.
Station
Unit for system control. Fire control panel or fire
terminal.
Technical message
Events (e.g., from third-party systems) evaluated
via sensors or contacts which are forwarded to
the fire control panel.
Visibility
Defines which part of a site is visible and can be
operated on a station.
Page 30
Index
30 | 32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Index
A
Alarm verification concept
AVC ................................................................ 22
Example of verification process ....................... 23
AVC
Alarm verification concept ............................... 22
Example of verification process ....................... 23
D
Download center
URL .................................................................. 8
L
LEDs
Colors ............................................................. 16
O
Original language
Source language............................................... 5
S
Source language ............................................... 5
Page 31
Index
31 |
32
Building Technologies
009311_k_en_
--
Fire Safety
2015-12-15
Page 32
Issued by
Siemens Sw itzerland Ltd
Building Technologies D ivision
International Headquarters
Gubelstrasse 22
CH-6301 Zug
+41 41-724 24 24
www.siemens.com/buildingtechnologies
© Siemens Switzerl and Ltd, 2006
Technical specifications and availability subject to change without notice.
Document ID: 009311_k_en_-- Manual FS 20/FS720
Edition: 2015-12-15
Loading...
