Ú Table of contents
Safety warnings and advice ...................................................... 2
Safety instructions...............................................................................2
Elements that may damage the appliance ....................................3
Protecting the environment....................................................... 4
Environmentally-friendly disposal of waste products ...................4
Energy-saving advice .........................................................................4
Induction cooking ...................................................................... 4
Advantages of induction cooking ....................................................4
Suitable pans.......................................................................................4
Familiarise yourself with the appliance.................................... 5
The control panel................................................................................5
Hotplates ..............................................................................................5
Residual heat indicator......................................................................5
Programming the hob................................................................ 5
Switching the hotplate on and off....................................................5
Adjusting the hotplate........................................................................5
Cooking guidelines.............................................................................6
Childproof lock...........................................................................7
Activating and deactivating the childproof lock............................7
Automatic childproof lock .................................................................7
The Powerboost Function ......................................................... 8
Limitation on use.................................................................................8
To activate............................................................................................8
To deactivate ....................................................................................... 8
Time program function.............................................................. 8
How to program..................................................................................8
Default settings ..........................................................................9
To access the basic settings ..........................................................9
Care and cleaning .................................................................... 10
Hob..................................................................................................... 10
Hob frame ......................................................................................... 10
Fixing malfunctions ................................................................10
Normal noise while the appliance is working ............................ 11
After-sales service ...................................................................11
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.siemens-home.com
and in the online shop www.siemens-eshop.com
ã=Safety warnings and advice
Please read these instructions carefully. We advise you not to
use the appliance until you have read them.
Keep the operation and installation instructions. If the appliance
is passed on to another user, please ensure that the
documentation is also passed on with it.
Check the appliance after removing it from the packaging. If it
has suffered any damage in transport, do not connect the
appliance, contact the Technical Assistance Service and
provide written notification of the damage caused, otherwise
you will lose your right to any type of compensation.
Safety instructions
This device has been designed exclusively for home use. Only
use the hob for food preparation. The appliance must not be
left unsupervised while in use.
Safe operation
To use this appliance safely, adults and children who, as a
result of
■ physical, sensory or mental disability,
2 Ø = cm
■ or lack of experience or knowledge,
are not capable of using this appliance, should not do so
without the supervision of a responsible adult.
Children must be supervised to ensure that they do not play
with the appliance.
Oil and fat too hot
Risk of fire!!
Oil or fat that is too hot quickly catches fire. Do not leave
overheated oil or fat unwatched. If the oil or fat catches fire,
never use water to put it out. Extinguish the flames with a lid or
a plate. Switch off the hotplate.
Cooking food using the bain-marie method
The bain-marie method allows you to cook food in a saucepan
submerged in a larger pan containing water. The water cooks
the food with a gentle and constant heat, rather than directly
from the heat of the hotplate. When cooking food in bain-marie,
you must prevent tins, glass containers or other material from
resting directly on the base of the pan containing the water, to
prevent the glass on the hob and the pan from breaking due to
hotplate reheating.
Hot hob
Risk of burns!!
Do not touch hot hotplates. Keep children away from the hob.
Fan care
Malfunction risk!
The bottom of the hob is equipped with a fan. If there is a
drawer under the hob it should not be used to store small
objects or paper, since they could damage the fan or interfere
with the cooling if they are sucked into it.
Risk of fire!!
■ Never place flammable objects on the hob
■ Do not keep flammable items or aerosols in the drawers
beneath the hob.
Wet hotplates and pan bases
Risk of injury!!
Liquid between the bottom of the pan and the hob can produce
steam pressure. Which may cause the pan to jump. Always
ensure that the hotplate and the base of the pan are kept dry.
Cracks in the hob
Risk of electric shock!!
Disconnect the appliance from the mains if the hob is broken or
cracked.
Contact the Technical Assistance Service.
The hotplate heats up, but the display does not work
Risk of burns!!
Turn off the hotplate if the indicator does not work. Contact the
Technical Assistance Service.
The hob switches off
Risk of fire!!
If the hob switches off automatically and cannot be used, it can
subsequently switch on by itself. To avoid this the hob must be
disconnected from the mains. Please contact the Technical
Assistance Service.
Do not place metal objects on the induction hotplate
Risk of burns!!
Do not leave knives, forks, spoons, lids or other metal objects
that can heat up very quickly on the hob.
Caution!
There should be a minimum distance of 2 cm between the
drawer and the fan entrance.
Incorrect repairs
Risk of electric shock!!
Poor repairs are dangerous. Switch off the appliance if it is
faulty. Contact the Technical Assistance Service. Repairs and
the replacement of faulty connection cables may only be
performed by qualified personnel from the Technical
Assistance Service.
Caution!
This appliance complies with safety and electromagnetic
compatibility standards. However, people with pacemakers
must refrain from approaching the appliance when in use. It is
impossible to ensure that all of these devices available on the
market comply with current electromagnetic compatibility
standards, and that interference which may prevent the device
from working correctly will not occur. It is also possible that
people with other types of devices, such as a hearing aids,
could experience some discomfort.
Switching off the hob
After each use, always turn off the hob at the main switch. Do
not wait until the hob turns off automatically after the pan is
removed.
Elements that may damage the appliance
Caution!
■ Rough pan bases may scratch the hob.
■ Avoid leaving empty pots and pans on the hotplate. Doing so
may cause damage.
■ Do not place hot pans on the control panel, the indicator
area, or the hob frame. Doing so may cause damage.
■ Hard or pointed objects dropped on the hob may damage it.
■ Aluminium foil and plastic containers will melt if placed on the
hotplate while it is hot. The use of laminated sheeting is not
recommended on the hob.
Overview
The following table presents the most common damage
caused:
Damage Cause Measure
Stains Food spillage Immediately remove spilt food using a glass scraper.
Unsuitable cleaning products Only use cleaning products specifically designed for glass-ceramic hobs.
Scratches Salt, sugar and sand Do not use the hob as a tray or working surface.
Pans with rough bottoms may scratch
Check pans.
the glass ceramic
Fading Unsuitable cleaning products Only use cleaning products specifically produced for glass-ceramic hobs.
Contact with pans Lift pots and pans before moving them around.
Chips Sugar, substances with a high sugar
Immediately remove spilt food using a glass scraper.
content
Ø = cm 3
Protecting the environment
Unpack the appliance and dispose of its packaging in such a
way that no damage is caused to the environment.
Environmentally-friendly disposal of waste products
This appliance conforms to the Waste Electrical and
Electronic Equipment Directive WEEE 2002/96/EC.
This directive defines the framework for recycling used
appliances within European territory
Energy-saving advice
■ Always place the correct lid on the pan. Cooking with an
uncovered pan will result in a four-fold increase in energy
use.
Induction cooking
Advantages of induction cooking
Induction cooking represents a radical change from the
traditional method of heating; the heat is generated directly in
the pan. It therefore offers a number of advantages:
■ Time savings for cooking and frying; since the pan is heated
directly.
■ Energy is saved.
■ Care and cleaning are simpler. Foods that have spilt do not
burn as quickly.
■ Heat and safety control; the hob supplies or cuts off power
immediately when the control knob is turned on. The
induction hotplate stops supplying heat if the pan is removed
without having previously switched it off.
Suitable pans
Ferromagnetic pans
Only ferromagnetic pans are suitable for induction cooking,
these may be made from:
■ enamelled steel
■ cast iron
■ special cutlery for stainless steel induction pan
To determine whether a pan is suitable, check to see if a
magnet will stick to it.
■ Use pans equipped with a solid, flat bottom. Curved pan
bases increase energy consumption.
■ The diameter of the pan base must coincide with the
diameter of the hotplate. This generally means the pan base
diameter is greater than that of the hotplate. If the diameter of
the pan is not the same as the diameter of the hotplate, it is
preferable to use a pan with a bottom that is larger in
diameter than the hotplate, otherwise half the energy will be
wasted. Please note: Whether the cookware manufacturer
has indicated the diameter of the top of the pan.
■ Choose pans of a size suited to the amount of food you are
going to cook. A large pan that is only half full will use a great
amount of energy.
■ Use a small amount of water when cooking. This saves
energy, and vegetables retain their vitamins and minerals.
■ Select a lower power level.
Characteristics of the pan base
The characteristics of the pan base may affect the uniformity of
the cooking results. Pans made from materials which help
diffuse heat, such as stainless steel sandwich pans, distribute
heat uniformly, saving time and energy.
Absence of pan or unsuitable size
If no pan is placed on the selected hotplate, or if it is made of
unsuitable material or is not the correct size, the power level
displayed on the hotplate indicator will flash. Place a suitable
pan on the hotplate to stop the flashing. If this takes more than
90 seconds, the hotplate will switch off automatically.
Empty pans or those with a thin base
Do not heat empty pans, nor use pans with a thin base. The
hob is equipped with an internal safety system. However, an
empty pan may heat up so quickly that the "automatic switch
off" function may not have time to react and the pan may reach
very high temperatures. The base of the pan could melt and
damage the glass on the hob. In this case, do not touch the
pan and switch the hotplate off. If it fails to work after it has
cooled down, please contact the Technical Assistance Service.
Pan detection
Each hotplate has a minimum limit for detecting pans, which
varies depending on the material of the pan being used. You
should therefore use the hotplate that is most suitable for the
diameter of your pan.
Special induction pans
There is another type of pan specially made for induction, the
base of which is not entirely ferromagnetic. Check the diameter,
since this could affect detection of the pan, as well as the
cooking results.
Unsuitable pans
Never use pans made from:
■ common thin steel
■ glass
■ earthenware
■ copper
■ aluminium
4
Double or triple hotplate
These hotplates can detect pans of different sizes. Depending
on the material and properties of the pan, the hotplate will
adapt automatically, switching on part or all of the hotplate and
supplying sufficient power to obtain good cooking results.
Familiarise yourself with the appliance
,QGLFDWLRQVIRU
SRZHUOHYHO³É
IXQFWLRQDOLW\¯
UHVLGXDOKHDW
SRZHUERRVWIXQFWLRQ°
&RQWURO
SDQHOIRU
#FKLOGSURRI
ORFN
&RQWURO
SDQHOIRU
PDLQ
VZLWFK
&RQWUROSDQHOV
IRU
VHOHFWLQJ
SRZHUOHYHO
&RQWUROSDQHO
IRU
VHOHFWLQJWKH
KRWSODWH
&RQWUROSDQHOIRU
WLPHSURJUDP
IXQFWLRQ
,QGLFDWLRQVIRU
[WLPHSURJUDP
IXQFWLRQ
These instructions for use are applicable to other hobs. On
page 2 an overview of the models is provided, along with
information on measurements.
The control panel
Control surfaces
Pressing a symbol activates its corresponding function.
Notes
■ The settings will not change if several symbols are pressed at
the same time. This enables the programming zone to be
cleaned when food is spilt.
■ Always keep the control surfaces dry. Moisture can affect
proper functioning.
Hotplates
Hotplate Turning on and off
Single hotplate Always use cookware of a suitable size.
$
Double hotplate This zone is switched on automatically when using cookware with a base the
ð
Triple hotplate The hotplate is switched on automatically by using a pan with a base that
ò
Use only cookware suitable for induction cooking; see the section on suitable cookware.
Residual heat indicator
The hob has a residual heat indicator • on each hotplate,
which lights up when they are hot. Avoid touching them when
this indicator is lit.
same size as the outer zone.
matches the size of the outer area (
• light will remain on while the hotplate is hot, even after
The
the hob has been turned off.
If the pan is removed before the hotplate is switched off, the
will appear and alternate with the selected power level.
ð or ò) selected for use.
Programming the hob
•
This section will show you how to program the hotplates. The
table contains power levels and cooking times for several
dishes.
Switching the hotplate on and off
The range is turned on and off using the main switch.
To switch on: press the
main switch and the
for use.
# symbol. The indicator next to the
‹ indicators light up. The hotplate is ready
To switch off: press the
All hotplates are turned off. The residual heat indicator will
remain lit until the hotplates have cooled down.
Note: The range switches off automatically when all the
hotplates have been turned off for more than 20 seconds.
# symbol until the indicators go out.
Adjusting the hotplate
Select the required power level with the + and - symbols.
Power level 1 = minimum power.
5
Power level 9 = maximum power.
Each power level has an intermediate setting. This is marked
with a dot.
Setting the power level
The range must be switched on.
1. Press the ± symbol several times until the ‹ indicator of the
required hotplate lights up.
2. In the following 5 seconds, press the + or - symbol. The basic
setting appears:
+ symbol = power level 1.
- = power level 9
3. To change the power level, select the hotplate and press the
+ or - symbol until the required power level appears.
To switch off the hotplate
Select the hotplate and then press the + or - symbol until
symbol appears.
The hotplate turns off and the residual heat indicator appears.
Note: If no pan has been placed on the induction hotplate, the
selected power level flashes. After a certain time, the hotplate
switches off.
‹
Cooking guidelines
The table below contains some examples.
The cooking times depend on the power level, type, weight and
quality of the food. As such they are approximate.
Power levels influence the cooking results.
Melt
Chocolate, chocolate coating, butter, honey
Gelatine
Heating and warming
Stew (e.g., lentils)
Milk**
Sausages heated in water**
Defrosting and heating
Frozen spinach
Frozen goulash
Slow cooking, simmering
Potato pancakes
Fish
White sauces (e.g., bechamel)
Whipped sauces (e.g., Bearnaise, Hollandaise)
* Continue cooking without a lid
** Uncovered
Remove purées, creams and thick sauces from time to time, if
they get too hot.
Use power level 9 to begin cooking.
Ongoing cooking
setting
1-1.
1-1.
1-2
1.-2.
3-4
2-3
2-3
4-5*
4 -5*
1-2
3-4
Ongoing cooking time
in minutes
-
-
-
-
-
5-15 min
20-30 min
20-30 min
10-15 min
3-6 min
8-12 min
6
Boiling, steaming, roasting
Rice (with a double amount of water)
Rice pudding
Unpeeled potatoes
Peeled potatoes with salt
Pasta
Soups
Vegetables
Greens, frozen foods
Cooked in a pressure cooker
Roasting
Meat roll
Roast
Goulash
Broil**
Steaks, plain or breaded
Frozen steaks
Chops, plain or breaded
Beefsteak (3 cm thick)
Chicken breast (2 cm thick)
Frozen chicken breast
Fish and fish fillet without breading
Fish and fish fillet with breading
Frozen breaded fish (e.g., fish fingers)
Prawns and shrimps
Frozen meals (e.g., stir-fries)
Crepes
Omelette
Fried eggs
Frying** (150-200g per serving with 1-2 l. of oil)
Frozen foods (e.g., French fries, chicken nuggets)
Frozen croquettes
Meatballs
Meat (e.g., chicken pieces)
Fish, in breadcrumbs or batter
Greens, mushrooms, in breadcrumbs or batter (e.g., baby mushrooms)
Confectionary products (e.g., fritters, fruit in batter)
* Continue cooking without a lid
** Uncovered
Ongoing cooking
setting
2-3
2-3
4-5
4-5
6 -7*
3-4
2-3
3-4
4-5
4-5
4-5
3-4
6-7
6-7
6-7
7-8
5-6
5-6
5-6
6-7
6-7
7-8
6-7
6-7
3-4
5-6
8-9
7-8
7-8
6-7
6-7
6-7
4-5
Ongoing cooking time
in minutes
15-30 min
25-35 min
25-30 min
15-25 min
6-10 min
15-60 min
10-20 min
7-20 min
-
50-60 min
60-100 min
50-60 min
6-10 min
8-12 min
8-12 min
8-12 min
10-20 min
10-30 min
8-20 min
8-20 min
8-12 min
4-10 min
6-10 min
fry one portion at a time
fry one portion at a time
3-6 min
fry one portion at a time
Childproof lock
The hob can be protected against being accidentally turned on,
to ensure that children do not switch on the hotplates.
Activating and deactivating the childproof lock.
The hob must be switched off.
Press the @ symbol for approx. 4 seconds. The indicator next
@ symbol lights up for 10 seconds. The hob is locked.
to the
To deactivate: press the @ symbol for approx. 4 seconds. The
hob is unlocked.
Note: The childproof lock can be accidentally activated by the
presence of water spilled while cleaning, food that has spilled
over or objects resting on the
@ symbol.
Automatic childproof lock
This function automatically activates the childproof lock every
time you switch the hob off.
Switching on and off
You can find out how to switch the automatic childproof lock on
and off in the Basic settings section.
7
The Powerboost Function
*URXS
*URXS
*URXS

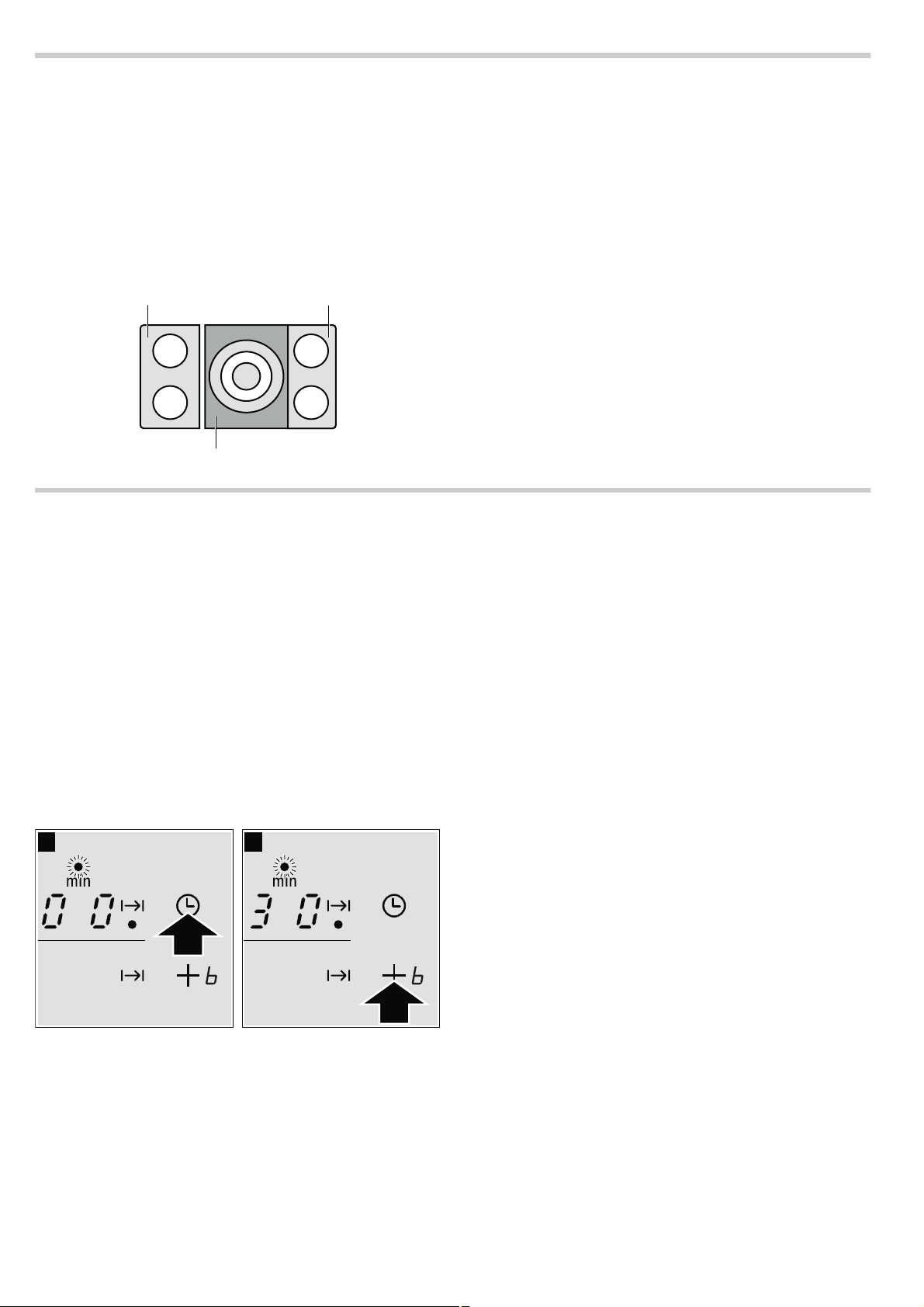

The Powerboost function can be used to heat food more
quickly than using the power level
Š.
Limitation on use
This function is available on all hotplates, provided that no other
hotplate in the same group is operating, (see picture). If this is
not the case, the
hotplate display; then it will automatically set the power level
In group 2, the powerboost function may be activated at the
same time for all hotplates (see picture).
› and Š symbols will flash on the selected
Š.
Time program function
This function allows the selected hotplate to be switched off
automatically after a preset time by inserting the cooking time.
How to program
This function allows the selected hotplate to be switched off
automatically after a preset time. The hotplate will switch off
once this time has elapsed.
The range must be switched on.
1. Select the required hotplate and power level.
Then press the
The indicator lights up on the selected hotplate.
2. Set the time using the + or - symbols.
+ = 30 minutes
- = 10 minutes
0 symbol until the ‹‹ indicator is displayed.
To activate
1. Select a hotplate.
2. Select power level Š and then press the + symbol. The
function has been activated.
To deactivate
1. Select a hotplate.
2. Press the - symbol. The › symbol will disappear and the
hotplate will return to the
The Powerboost function has been deactivated.
Note: In certain circumstances, the Powerboost function may
turn off automatically in order to protect the electronic
components inside the hob.
Once the time has elapsed
The hotplate switches off. A beep sounds and the
lights up. Press the 0 symbol. The indicators go out and the
beep stops.
Cancelar o modificar el tiempo
Seleccionar la zona de cocción con el símbolo
símbolo
+ ó -, o ajustar a ‹‹.
Note: Any cooking time can be programmed up to 99 minutes.
0 y modificar el tiempo de cocción con los símbolos
Š power level.
‹ indicator
±. Pulsar el
After a few seconds, the timer will start to count down.
8
Default settings
The appliance has various default settings. These can be
adapted to the needs of the user.
Indicator Function
™‚
™ƒ
™†
™‡
™ˆ
™‹
*Factory setting
Automatic childproof lock
‹ Deactivated.*
‚ Activated.
Warning beeps
‹ Most beeps deactivated.
‚ Some beeps deactivated.
ƒ All beeps deactivated.*
Automatic time limitation.
‹ Default setting: switch off after 1-10 hours.*
‚ The default setting is halved: switch off after 0.5 - 5 hours.
ƒ The default setting is quartered: switch off after 0.25 - 2.5 hours.
Duration of the time program function warning signal
‚ 10 seconds.*
ƒ 30 seconds.
„ 1 minute.
Power - Management function
‹ = Deactivated.*
‚ = 1,000 W. minimum power.
‚. = 1,500 W.
ƒ = 2,000 W.
etc.
Š or Š. = maximum power of the hob.
Return to default settings
‹ Personal settings.*
‚ Return to factory settings.
To access the basic settings
The range must be turned off.
1.Turn on the range with the main switch.
2.Within the following 10 seconds, press and hold the @
symbol for 4 seconds.
™‚ appears in the lower display.
3.Press the @ several times until the required setting indicator
appears.
4.Then select the required setting with the + and - symbols. The
setting appears on the upper right of the display.
5.Press the @ symbol again and hold it for 4 seconds. The
settings have been correctly saved.
Quit
To leave the basic settings, turn off the hob at the main switch.
9
Care and cleaning
The advice and warnings contained in this section aim to guide
you in cleaning and maintaining the hob, so that it is kept in the
best possible condition
Hob
Cleaning
Clean the hob after each use. This prevents food remains left
on the surface from burning. Wait until the hob is cold enough
before attempting to clean it.
Only use cleaning products specifically designed for glassceramic hobs. Follow the instructions provided on the
packaging.
Do not use:
■ Abrasive products
■ heavy-duty cleaners, like oven sprays and stain removers
■ Pads that may scratch
■ High-pressure or steam cleaners
Glass scraper
Remove dried-on food remains using a glass scraper.
Fixing malfunctions
1. Release the scraper safety catch
2. Use the blade to clean the hob surface
Do not attempt to clean the hob surface with the base of the
scraper. This could result in scratching.
ã=Risk of injury!!
The blade is extremely sharp. Risk of cuts. Protect the blade
when not in use. Replace the blade immediately when any
imperfections are found.
Care of the appliance
Apply an additive to protect and preserve the hob. Follow the
advice and warnings provided with the product.
Hob frame
In order to avoid damage to the hob frame, follow the
indications below:
■ Use only slightly soapy hot water
■ Do not use sharp or abrasive products
■ Do not use a glass scraper
Malfunctions are commonly due to small details. Before calling
the Technical Assistance Service, you should consider the
following advice and warnings.
Indicator Malfunction Solution
none The electric power supply has been
“ flashes
Ҥ + number /
interrupted.
The appliance has not been correctly
connected according to the connection
diagram.
Electronic system malfunction. If the above checks do not resolve the malfunction, contact the
The control panel is damp or an object is
resting on it.
Electronic system malfunction. Turn the hob off from the mains. Wait 30 seconds or so and switch it
š + number /
Use other electrical appliances to check whether there has been a
power cut.
Check that the appliance has been connected correctly according to
the connection diagram.
Technical Assistance Service.
Dry the control panel area or remove the object.
back on.*
¡ + number /
”‹/”Š
”ƒ
”…
” ‰
—‚
—ƒ/—„
* If the indication persists, call the Technical Assistance Service.
Do not rest hot pans on the control panel.
There is an internal error in the operation. Turn the hob off from the mains. Wait 30 seconds or so and switch it
The electronic system has overheated and
the corresponding hotplate has been
switched off.
The electronic system has overheated and
all the hotplates have been switched off.
The hotplate has been working non-stop
too long at a high power level.
Incorrect supply voltage, outside normal
operating limits.
The hotplate has overheated and has
switched off in order to protect its cooking
surface.
back on.*
Wait for the electronic system to cool down. Then push any symbol
on the hob.*
The automatic time stop has been activated. Press any symbol on the
control panel. The indicator goes out. The hob may now be switched
back on.
Please contact the local electricity board.
Wait until the electronic system has cooled down sufficiently before
switching the hotplate back on.
10
Normal noise while the appliance is working
Induction heating technology is based on the creation of
electromagnetic fields that generate heat directly at the base of
the pan. Depending on how the pan has been manufactured,
these may produce certain noises or vibrations such as those
described below:
A deep humming sound as in a transformer
This noise is produced when cooking on a high power level. It
is caused by the amount of energy transferred from the hob to
the pan. The noise disappears or becomes faint when the
power level is lowered.
A low whistling sound
This noise is produced when the pan is empty. It disappears
when water or food is added to the pan.
A crackling sound
This noise occurs in pans which are made from different
materials superimposed on one another. It is caused by the
After-sales service
vibrations that occur ajoining surfaces of the different
superimposed materials. The noise comes from the pan. The
amount of food and cooking method can vary.
A high-pitched whistling sound
This noise is produced mainly in pans made from different
materials superimposed on one another, and it occurs when
such pans are heated at maximum power on two hotplates at
the same time. The whistling disappears or becomes fainter as
soon as the power level is lowered.
Noise from the fan
For proper use of the electronic system, the temperature of the
hob must be controlled. For this purpose, the hob has a fan
that starts working after detecting excess temperatures at
different power levels. The fan may also work due to inertia
after the hob has been switched off, if the temperature detected
is still too high.
The noises described are normal, they are part of induction
heating technology and not a sign of malfunction.
Our after-sales service is there for you if your appliance should
need to be repaired. We are committed fo find the best solution
also in order to avoid an unnecessary call-out.
E number and FD number:
Please quote the E number (product number) and the FD
number (production number) of your appliance when
contacting the after-sales service. The rating plate bearing
these numbers can be found on the appliance certificate.
Please note that a visit from an after-sales service engineer is
not free of charge, even during the warranty period.
Please find the contact data of all countries in the enclosed
customer service list.
To book an engineer visit and product advice
GB 0844 8928999
Calls from a BT landline will be charged at up to
3 pence per minute. A call set-up fee of up to 6 pence
may apply.
IE 01450 2655
Trust the expertise of the manufacturer, and rest assured that
the repair will be carried out by trained service technicians
using original spare parts for your domestic appliance.
11
Siemens-Electrogeräte GmbH
Carl-Wery-Straße 34
81739 München
DEUTSCHLAND
(901028)
Loading...
