CL-110/CL-110-I ADSL2+ Router
User’s Manual

Rev: 1.5

2007/03/30

trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies.
This manual currently suits for CL-110/CL-110-I.
Safety Notes

For Installation

For Using

Use only the type of power source indicated on the marking labels. Use only power adapter supplied with the product. Do not overload wall outlet or extension cords as this may increase the risk of
electric shock or fire. If the power cord is frayed, replace it with a new one.
Proper ventilation is necessary to prevent the product overheating. Do not block or
cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack.
Do not place the product near any source of heat or expose it to direct sunlight. Do not expose the product to moisture. Never spill any liquid on the product. Do not attempt to connect with any computer accessory or electronic product
without instructions from qualified service personnel. This may result in risk of electronic shock or fire.
Do not place this product on unstable stand or table.
Power off and unplug this product from the wall outlet when it is not in use or
before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high.
After powering off the product, power on the product at least 15 seconds later. Do not block the ventilating openings of this product. When the product is expected to be not in use for a period of time, unplug the
power cord of the product to prevent it from the damage of storm or sudden increases in rating.

For Service

Warning

Caution

Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions:
If the power cord or plug is damaged or frayed. If liquid has been spilled into the product. If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are
followed.
If the product has been dropped or the cabinet has been da maged. If the product exhibits a distinct change in performance. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
ADSL Router User Manual
FCC FCC Class B Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television rece pt i on, whi ch can be determined by turning the equipment off and on, the user is encourag ed to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
z Consult the dealer or an experienced radio/television technician for help.
IC Statement
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing
ICES-003 Class B Notice - Avis NMB-003, Classe B
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Preface
Thank you for choosing the Asymmetric Digital Subscriber Line (ADSL2+) Router. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL2+ allows you to have both voice and data services in use simultaneously all over one phone line.
CL-110/CL-110-I ADSL2+ Router is a DSL broadband access device which allows ADSL2+ connectivity capabilities for home or office users. It supports ADSL2/ADSL2+ and is backward compatible to ADSL, even offers auto-negotiation capability for different flavors (G.dmt, G.lite, or T1.413 Issue 2) according to central office DSLAM’s settings (Digital Subscriber Line Access Multiplexer). Also the feature-rich routing functions are seamlessly integrated to ADSL2+ service for existing corporate or home users. Now users can enjoy various bandwidth-consuming applications via CL-110/ C L- 110-I ADSL2+ Router .
Features
ADSL Compliance
³ ANSI T1.413 Issue 2 ³ ITU G.992.1 Annex A (G.dmt) ³ ITU G. 992.2 Annex A (G.lite) ³ ITU G.994.1 (G.hs) ³ Support dying gasp ³ Maximum Rate: 8 Mbps for downstream and 1 Mbps for upstream
ADSL2 Compliance
³ ITU G.992.3 Annex A (G.dmt) ³ ITU G. 992.4 Annex A (G.lite) ³ Maximum Rate: 12 Mbps for downstream and 1 Mbps for upstream
ADSL2+ Compliance
³ ITU G.992.5 Annex A (G.dmt) ³ Maximum Rate: 24 Mbps for downstream and 1.2 Mbps for upstream
ATM Features
³ Compliant to ATM Forum UNI 3.1 / 4.0 Permanent Virtual Circuits (PVCs) ³ Support up to 16 PVCs for UBR, CBR, VBR-nrt, VBR-rt with traffic shaping
ADSL Router User Manual
³ RFC2684 LLC Encapsulation and VC Multiplexing over AAL5 ³ RFC2364 Point-to-Point Protocol (P PP) over AAL5 ³ RFC2225 Classical IP and ARP over ATM ³ RFC2516 PPP over Ethernet: support Relay (Transparent Forwarding and Client functions) ³ Support PPPoA or PPPoE Bridged mode (the IP address got from ISP can be passed to the
user’s PC and behave as the IP address of the user’s PC.)
³ OAM F4/F5 End-to-End/Segment Loopback Cells
Bridging Features
³ Supports self-learning bridge specified in IEEE 802.1D Transparent Bridging ³ Supports up to 4096 learning MAC addresses ³ Transparent Bridging among 10/100 Mb Ethernet ³ Support Virtual LAN function specified in IEEE 802.1q
Routing Features
³ Compliance to IPv4 which include RFC791, RFC792, RFC826, RFC768, and RFC793 ³ NAT (Network Address Translation) / PAT (Port Address Translation) let multiple users (up to
128) on the LAN to access the Internet for the cost of only one IP address.
³ ALGs (Application Level Gateways): such as NetMeeting, MSN Messenger, FTP, Quick Time,
mIRC, Real Player, CuSeeMe, VPN pass-through with multiple sessions, etc.
³ Port Forwarding: the users can setup multiple virtual servers (e.g., Web, FTP, Mail servers) on
user’s local network.
³ Support DMZ ³ UPnP IGD (Internet Gateway Device) with NAT traversal capability ³ Static routes, RFC1058 RIPv1, and RFC1723 RIPv2 ³ DNS Relay, Dynamic DNS ³ DHCP Client/Relay/Server ³ Time protocol can be used to get current time from network time server ³ Support IGMP Proxy/Snoop ³ Support IP/Bridge QoS for prioritize the transmission of different traffic classes ³ Support port mapping function which allows you to assign all data traffic transmitted among
specific Internet connections and LAN ports
Security Features
³ PAP (RFC1334), CHAP (RFC1994), and MS-CHAP for PPP session ³ Firewall support IP packets filtering based on IP address/Port number/Protocol type ³ Bridge packet filtering (optional) ³ URL filtering (optional) ³
Support DoS (Deny of Services) which detect & protect a number of attacks (such as SYN/FIN/RST Flood, Smurf, WinNuke, Echo Scan, Xmas Tree Scan, etc)
Configuration and Management
³ User-friendly embedded web configuration interface with password protection ³ Remote management access control via HTTP, TFTP, FTP, Telnet, SSH, SNMP ³ Telnet session for local or remote management
³ Firmware upgrades through HTTP, TFTP, or FTP ³ The boot loader contains very simple web page to allow the users to update the run-time
firmware image.
³ Configuration file backup and restore ³ SNMPv1/v2 agent with MIB-II, ADSL Line MIB
Unpacking
Check the contents of the package against the pack contents checklist below. If any of the items is missing, then contact the dealer from whom the equipment was purchased.
³ ADSL Router ³ Power Adapter and Cord ³ RJ-11 ADSL Line Cable ³ RJ-45 Ethernet Cable ³ Quick Start Guide ³ Driver & Utility Software CD
ADSL Router User Manual
Subscription for ADSL Service
To use the ADSL Router, you have to subscribe for ADSL service from your broadband service provider. According to the service type you subscribe, you will get various IP addresses:
Dynamic IP: If you apply for dial-up connection, you will be given an Internet account with username and password. You will get a dynamic IP by dialing up to your ISP.
Static IP address: If you apply for full-time connectivity, you may get either one static IP address or a range of IP addresses from your ISP. The number of IP addresses varies according to different ADSL service provider.
Chapter 1: Overview
Chapter 1: Overview
This chapter provides you the description for the LED and connector for front and rear view of the router . Bef ore you use/install this router, pl ease take a look at this information first.
Physical Outlook
Front Panel
The following illustrations show the front panel of the ADSL Router (with USB interface and without USB interface):
LED Indicators
The ADSL Router is equipped with five LEDs on the front panel as described in the table below (from left to right):
LED Color Status Description
USB Green
Ethernet Green
DSL Green
Unlit Power off or wait for USB connection going up. Blinking User data is going through USB port. Solid Unlit Power off or no Ethernet carrier is present. Blinking
Solid Ethernet carrier is present. Unlit No PPPoA or PPPoE connection PPP Green Solid
Unlit
Blinking User data is going through ADSL port. Solid ADSL line connection is OK. Unlit Power Green Solid
USB connection is OK.
Ethernet carrier is present and user data is going through Ethernet port.
At least one PPPoA or PPPoE connecti on is up. The users can access the Internet now.
Power off or ADSL line connection is handshaking or training is in progress.
Power off. Power on.
Rear Panel
The following figures illustrate the rear panel of your ADSL Router.
9 VAC
Connector Description
9VAC
Ethernet USB DSL
9 VAC Power connector Power switch Ethernet RJ-45 connector USB connector (for the model with USB interface only) RJ-11 connector
Chapter 2:System Requirement and Installation
Chapter 2: System Requirement and
Installation
System Requirement
To access the ADSL Router via Ethernet, the host computer must meet the following requirements:
With Ethernet network interface. Must have TCP/IP installed. Set client PC with obtain an IP address au tomatically or set fix IP address. With a web browser installed: Internet Explorer 5.x or later.
The ADSL Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. As the DHCP server is Enable by default, The DHCP clients should be able to access the ADSL Router. Or you could assign an IP address to the host PC first for initial configuration.
You also can manage the ADSL Router through a web browser-based manager: ADSL ROUTER CONTROL PANEL. The ADSL Router manager uses the HTTP protocol via a web browser to allow you to set up and manage the device.
To configure the device via web browser, at least one properly-configured PC must be connected to the network (either connected directly or through an external hub/switch to the LAN port of the device).
Choosing a place for the ADSL Router
n Place the ADSL Router close to ADSL wall outlet and power outlet for the cable to reach it
easily.
o Avoid placing the device in places where people may walk on the cables. Also keep it away
from direct sunlight or heat sources.
p Place the device on a flat and stable stand.
Connecting the ADSL Router
Follow the steps below to connect the related devices.
n Connecting the ADSL line. Connect the
DSL port of the device to your ADSL wall outlet with RJ-11 cable.
o Please attach one end of the Ethernet
cable with RJ-45 connector to the LAN port of your ADSL Router.
p Connect the other end of the cable to the
Ethernet port of the client PC.
q Connect the supplied power adapter to
the PWR port of your ADSL Router, and plug the other end to a power outlet.
r Turn on the power switch.
Chapter 3: Configuration

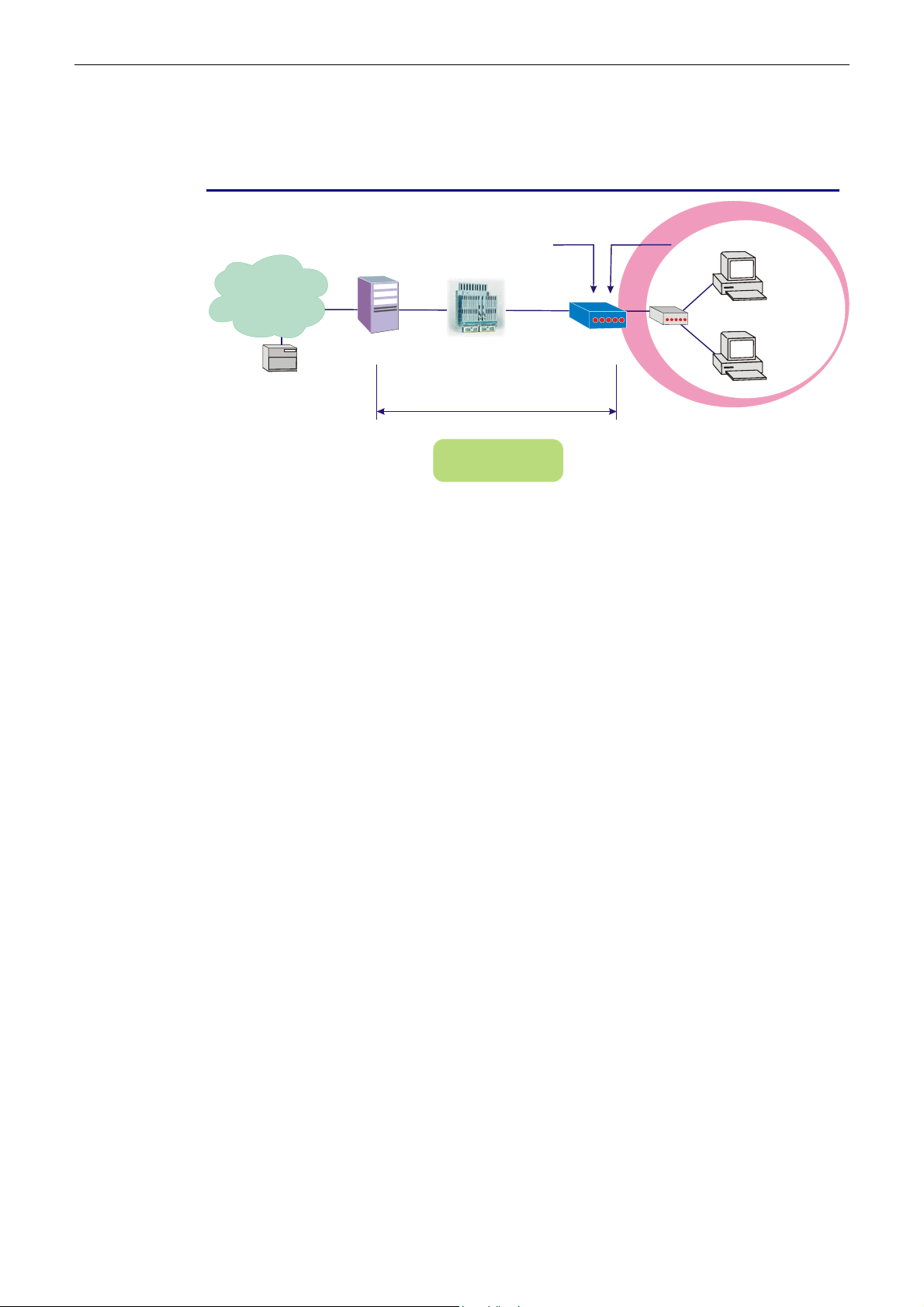

For connecting through a hub, please refer to the following diagram for an example.
Install the USB Driver
For Windows ME
n Run the USB installation program from the CD provided by your device package.
o An InstallShield Wizard will appear. Please wait for a moment.
p When the welcome screen appears, click Next for next step. q When the InstallShield Wizard Complete appears, click Finish.
r Plug the USB cable between your device and PC.
Note: If the USB device is not detected, check the USB cable between the PC and the device. Also verify that the device is power on.
s The system will detect the USB driver automatically. Now, the system will copy the proper
files for this device.
t When the file copying finished, the dialog above will close. Now the USB driver is installed
properly. You can use the device.
For Windows 2000
n Run the USB installation program from the CD provided by your device package.
o An InstallShield Wizard will appear. Please wait for a moment.
p When the welcome screen appears, click Next for next step.
q When the InstallShield Wizard Complete appears, click Finish.
r Plug the USB cable between your device and PC.
Chapter 3: Configuration
Note: If the USB device is not detected, check the USB cable between the PC and the device. Also verify that the device is power on.
s The system will detect the USB driver automatically. Now, the system will copy the proper
files for this device.
t When the file copying finished, the dialog above will close. The InstallShield Wizard
Complete appears, click Finish. Now the USB driver is installed properly. You can use the device.
For Windows XP
n Run the USB installation program from the CD provided by your device package. o An InstallShield Wizard will appear. Please wait for a moment.
p When the welcome screen appears, click Next for next step.
q When the InstallShield Wizard Complete appears, click Finish.
r Plug the USB cable between your device and PC.
Note: If the USB device is not detected, check the USB cable between the PC and the device. Also verify that the device is power on.
s The system will detect the USB driver automatically.
Chapter 3: Configuration
t The system is trying to find proper driver for your device and copying the files
automatically.
u After the file copying is finished, a completing message will appear.
v You can use the device now.
For Windows Vista
For Vista users, please press Continue whenever a prompted wi ndow asking for permission to continue during USB driver installation pro cess (see the fi gu re bel o w fo r example).
To install the USB driver before connect the router to the PC, here provides two methods. Method One – Use the driver CD came with the product package.
n Run the USB installation program on the CD provided in your router package. o An InstallShield Wizard will appear. Please wait for a moment.
p When the welcome screen appears, click Next for the next step.
q When the complete message of InstallShield Wizard appears, click Finish.
r Link your router and the PC with a USB cable. s The system will detect the USB driver automatically.
Chapter 3: Configuration
Note: If the USB device is not detected, check the USB cable between the PC and the device. Also make sure that the device is power on.
t After the file copying finished, a completing message will appear.
u You can use the router now.
Method T wo – Run a silent installation.
n Copy the USB driver folder from the driver CD to somewhere on the PC. (In our example,
the driver files are put under D:\Siemens WHQLed.)
o Open Start menu, key in cmd in the blank and press enter. Then click cmd.
Then click the icon.
Key in cmd and press Enter.
p When the Command Prompt screen appears, point to the driver folder on your PC, and then
enter setup -s. Press enter to start silent installation.
q The system will install the driver automatically. You can connect your router and the PC
with a USB cable now.
r The system will detect the USB driver automatically.
Note: If the USB device is not detected, check the USB cable between the PC and the device. Also make sure that the device is power on.
s After the file copying finished, a completing message will appear.
t You can use the router now.
Chapter 3: Configuration
Method Three – If the USB driver has not been installed yet, you can also connect the router to the PC with a USB cable and wait for Universal Plug and Play device to detect the router, and then install the driver.
n Plug the USB cable into the USB port on the PC. o A Found New Hardware window will appear. Press Locate and install driver software
(recommended).
p Then insert the USB driver CD provided in your router package into the PC, and press
Next.
q The system will search disc for the USB driver needed and then complete the installation.
Or if you do not have a disc, but have the driver files on your PC, you can follow the steps below:
p Press I don’t have the disc. Show me other options.
q Select Browse my computer for driver software (advanced).
r Press Browse to set the path for the driver file, and then press Next.
s Wait while the system installing the driver.
Chapter 3: Configuration
t Now the driver software is installed successfully. Press Close to start using the router.
To make sure the USB driver for your router is properly installed, please do the following steps.
1. Open the Start menu and press Control Panel.
2. On the Control Panel folder, click System and Maintenance.
3. Press System.
4. Click Device Manager.
5. Confirm that the Siemens ADSL Router USB Remote NDIS Device (BCM63xx Based) is
on the Network adapters list.
Chapter 3: Configuration
Uninstall the USB Driver
For Windows ME
For uninstall the USB driver, please do the following.
The first way:
n Choose Programs – Siemens Broadband – Uninstall Siemens ADSL Router USB
Driver from the Start menu.
o The InstallShield Wizard dialog will appear.
p A dialog appears to ask you confirm if you want to remove the USB driver or not. Please
click Ok.
q Unplug the USB cable between your device and your PC.
r When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish.
The second way:
n Choose Settings –Control Panel from the Start menu. Choose Add/Remove Programs. o A dialog appears to ask you choose the program that you want to remove. Please select
Siemens ADSL Router USB Driver and click Change/Remove.
p The InstallShield Wizard dialog will appear. q Unplug the USB cable between your device and you r PC. Then click OK. r When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish
For Windows 2000
For uninstall the USB driver, there are two ways to do it. Please do as the following:
The first way:
n Choose Programs – Siemens Broadband – Uninstall Siemens ADSL Router USB
Driver from the Start menu.
o The InstallShield Wizard dialog will appear.
p A dialog appears to ask you confirm if you want to remove the USB driver or not. Please
click Ok.
q Unplug the USB cable between your device and your PC.
Chapter 3: Configuration
r When the Unsafe Removal of Device screen appears, the USB driver is removed
successfully. Click OK.
s When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish.
The second way:
n Choose Settings –Control Panel from the Start menu. Choose Add/Remove Programs.
o A dialog appears to ask you choose the program that you want to remove. Please select
Siemens ADSL Router USB Driver and click Change/Remove.
p The InstallShield Wizard dialog will appear.
Chapter 3: Configuration
q A dialog appears to ask you confirm if you want to remove the USB driver or not. Please
click Ok.
Unplug the USB cable between your device and your PC. Then click OK.
r When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish.
For Windows XP
For uninstall the USB driver, there are two ways to do it. Please do as the following:
The first way:
n Choose Programs – Siemens Broadband – Uninstall Siemens ADSL Router USB
Driver from the Start menu.
Chapter 3: Configuration
o The InstallShield Wizard dialog will appear.
p A dialog appears to ask you confirm if you want to remove the USB driver or not. Please
click Ok.
q Unplug the USB cable between your device and your PC. r When the Unsafe Removal of Device screen appears, the USB driver is removed
successfully. Click OK.
s When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish.
The second way:
n Choose Settings –Control Panel from the Start menu. Choose Add/Remove Programs.
o A dialog appears to ask you choose the program that you want to remove. Please select
Siemens ADSL Router USB Driver and click Change/Remove.
Chapter 3: Configuration
p The InstallShield Wizard dialog will appear.
q Unplug the USB cable between your device and you r PC. Then click OK.
r When the Maintenance Complete screen appears, the USB driver is removed successfully.
Click Finish.
For Windows Vista
For Vista users, please press Continue whenever a prompted window asking for permission to continue during USB driver uninstallation process (see the figure below for example).
To uninstall the USB driver, there are two ways to do it. Please follow the instructions. Method One: Remove from Device Manager.
n Choose Start menu, and then select Control Panel.
o Click System and Maintenance.
p Press System.
q Click Device Manager.
Chapter 3: Configuration
r Right click Askey ADSL Router USB Rem ote NDIS Dev ice on the Network
adapters list, and press Uninstall.
s Click OK when the Confirm Uninstall window appears.
Remember to unplug the USB cable before continue the uninstallation, or you will see the reminder as follows. Unplug and press OK.
t When the Confirm Device Uninstall screen show up, check Delete the driver
software for the device and click OK to continue.
u Wait while the system is uninstalling.
v When the uninstallation is finished, the icon of this router under network adapter
list will disappear.
Method Two – uninstall from program list
Chapter 3: Configuration
Note: If your USB driver is installed by UPnP device, you can only use method one (via the Device Manager) to uninstall, because the installed driver will not be shown on the program list.
n Unplug your USB cable between your router and your PC. o Choose Start menu, and open Control Panel folder. Click Uninstall a program.
p If the driver name is not on the list, click Refresh button or F5 to update the
information. To remove the driver, select it, and then press Uninstall.
Refresh button
q Then the system will start to uninstall the USB driver software automatically.
r When Maintenance Complete window shows up, click Finish to exit.
s The USB driver is successfully removed now.
Setting TCP/IP
In order to access the Internet through the router, each host on your network must install/setup TCP/IP. Please follow the steps below for select a network adapter.
For Windows 98
1. Click on the Start menu, point
to Settings and click on Control Panel.
2. Double-click the Network icon
Chapter 3: Configuration
3. The Network window appears. On the
Configuration tab, check out the list of
installed network components.
Option 1: If you have no TCP/IP protocol, click Add.
Option 2: If you have TCP/IP protocol, go to Step 6
Your network interface card.
Check out if TCP/IP for your NIC is installed or not.

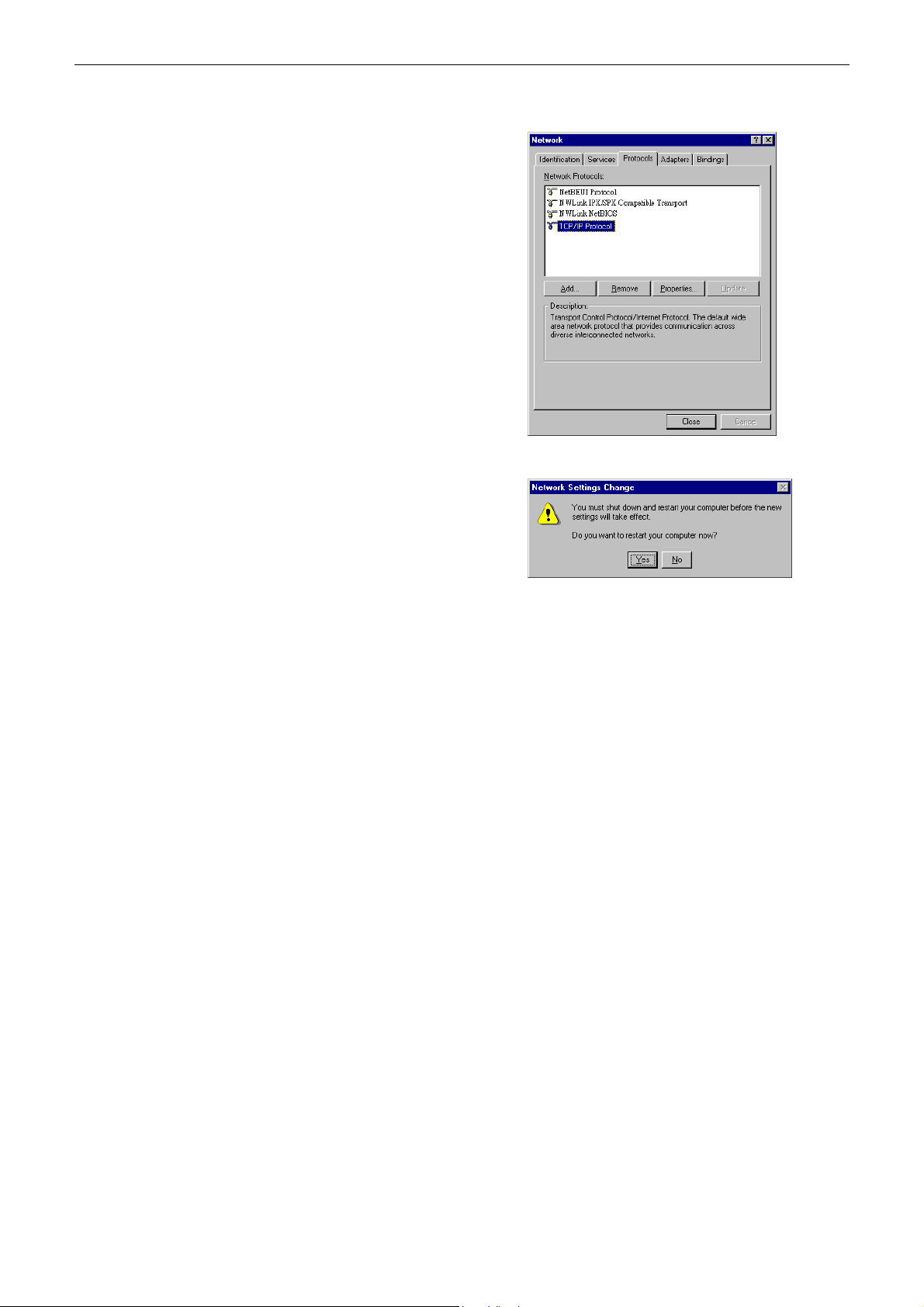

4. Highlight Protocol and click Add.
5. On the left side of the windows,
highlight Microsoft and then select TCP/IP on the right side. Then click OK
6. When returning to Network window,
highlight TCP/IP protocol for your NIC and click Properties.

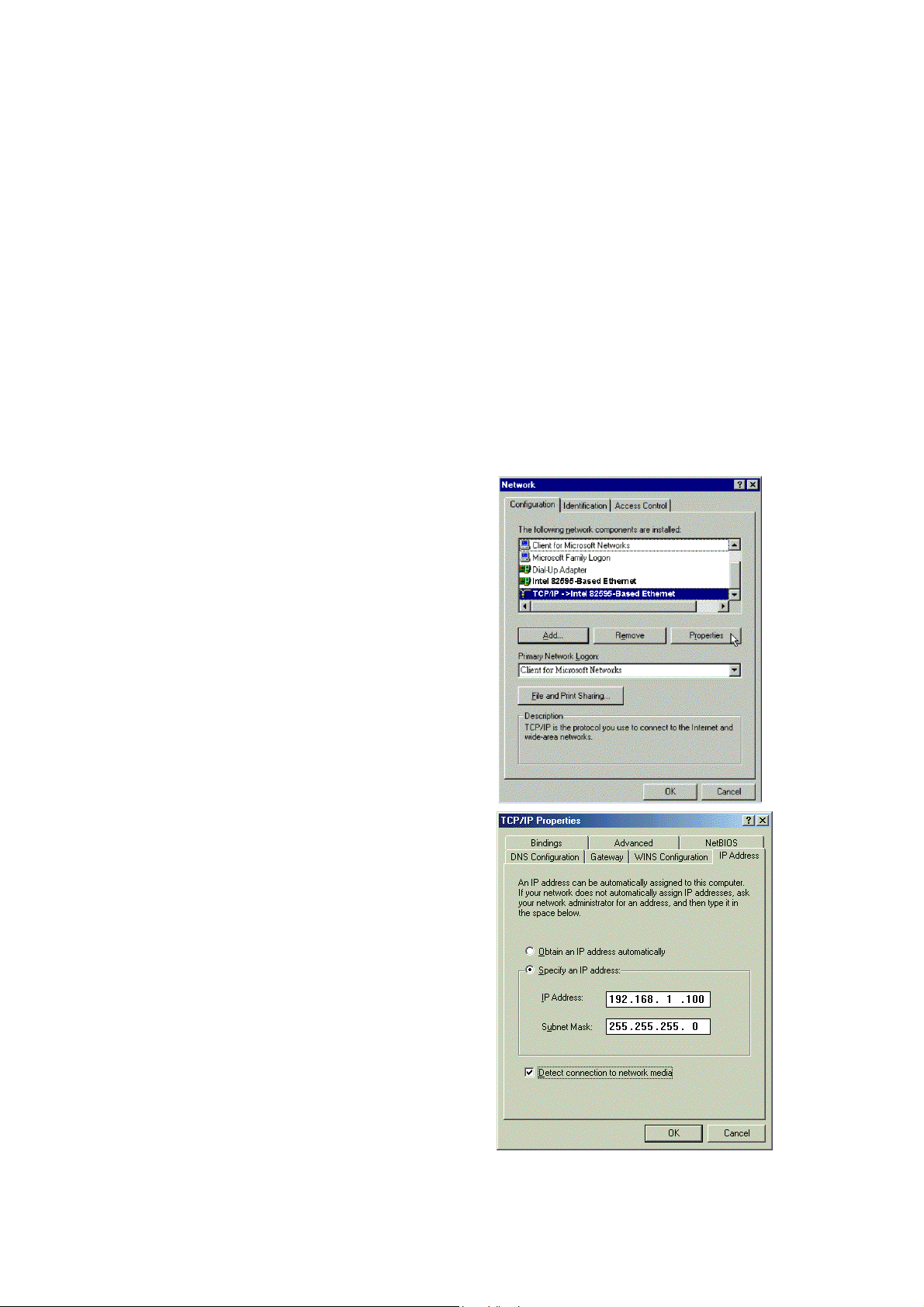

7. On IP Address tab:
Enable Specify an IP address option. Enter the IP Address: 192.168.1.x (x is between 2 and 254) and Subnet Mask:
255.255.255.0 as in figure below. On Gateway tab: Add a gateway IP address:
192.168.1.1 and click OK
8. When returning to Network window,
click OK
9. Wait for Windows copying files.
Chapter 3: Configuration
10. When prompted with System Settings
Change dialog box, click Yes to restart
your computer.
For Windows ME
1. Click on the Start menu, point to
Settings and click on Control Panel.
2. Double-click the Network icon.
3. The Network window appears. On the
Configuration tab, check out the list of installed network components. Option 1: If you have no TCP/IP protocol, click Add. Option 2: If you have TCP/IP protocol, go to Step 6.
4. Highlight Protocol and click Add.
5. On the left side of the windows,
highlight Microsoft and then select
TCP/IP on the right side. Then click OK.
6. While returning to Network window,
highlight TCP/IP protocol for your NIC and click Properties.
7. On the IP Address tab, select Specify
an IP address. Enter the IP address:
192.168.1.x (x is between 2 and 254), Subnet Mask: 255.255.255.0 and Default gateway: 192.168.1.1. Then
click OK.
8. While returning to the Network
window, click OK.
9. Wait for Windows copying files.
Chapter 3: Configuration
10. When prompted with the System
Settings Change dialog box, click Yes
to restart your computer.
For Windows NT
1. Click Start, point to Settings, and then
click Control Panel.
2. Double-click the Network icon.
3. The Network window appears. On the
Protocols tab, check out the list of installed network components. Option 1: If you have no TCP/IP Protocol, click Add. Option 2: If you have TCP/IP Protocol installed, go to Step 7.
4. Highlight TCP/IP Protocol and click
OK.
5. Click Yes to use DHCP.
6. Insert the Windows NT CD into your
CD-ROM drive and type the location of the CD. Then click Continue.
7. Returning to the Network window, you
will find the TCP/IP Protocol among the list. Select TCP/IP Protocol and click Properties.
8. Enable Specify an IP address option.
Enter the IP Address: 192.168.1.x (x is between 2 and 254) and Subnet
Mask: 255.255.255.0 and Default Gateway: 192.168.1.1 as in figure
below.
9. When returning to Network window,
click Close.
10. When prompted with Network
Settings Change dialog box, click Yes to restart your computer.
Chapter 3: Configuration
For Windows 2000
1. From the Start menu, point to Settings
and then click Network and Dial-up Connections.
2. Right-click the Local Area
Connection icon and then click Properties.
3. On the General tab, check out the list
of installed network components. Option 1: If you have no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, go to Step 6.
4. Highlight Protocol and then click
Add.
5. Click Internet Protocol (TCP/IP) and
then click OK.
Chapter 3: Configuration
6. When returning to Local Area
Connection Properties window, highlight Internet Protocol (TC P/ IP) and then click Properties.
7. Under the General tab, enable Use the
following IP Address. Enter the IP address: 192.168.1.x (x is between 2 and 254), Subnet Mask:
255.255.255.0 and Default gateway:
192.168.1.1. Then click OK.
For Windows XP
From the Start menu, point to Control
Panel and then click Network and Internet Connections.
Click Network Connection and then click
Properties.
Click Network Connection and then click
Properties.3.On the General tab, check
out the list of installed network components. Option 1: If you have no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, go to Step 6.
Highlight Protocol and then click Add. Click Internet Protocol(TCP/IP) and then
click OK.
On the Local Area Connection Properties
window, highlight Internet Protocol (TCP/IP) and then click Properties.
Under the General tab, enable Use the
following IP address. Enter the IP address: 192.168.1.x (x is between 2
and 254), Subnet Mask: 255.255.255.0 and Default gateway: 192.168.1.1. Then click Ok.
For Windows Vista
8. Open the Start menu, point
to Control Panel and click it.
Chapter 3: Configuration
9. Click Network and
Internet.
10. Select Network and
Sharing Center.
11. Click Manage Network
Connection on the left side.
12. Right click Local Area
Connection and select Properties.
13. On the Networking tab, you
will find Internet Protocol Version 6 and Version 4. Contact your ISP to confirm which one will be used. (We take TCP/IPv4 for example here.)
Select Internet Protocol Version 4 (TCP/IPv4) and press Properties.
14. Under the General tab,
enable Use the following IP
address. Enter the IP address: 192.168.1.x (x is between 2 and 254), Subnet Mask: 255.255.255.0 and Default gateway:
192.168.1.1. Then click
Ok.exit.
Chapter 3: Configuration
Configure PC to get IP address from DHCP
If your ADSL Router operates as a DHCP server for the client PCs on the LAN, you should configure the client PCs to obtain a dynamic IP address. Please follow the previous section to install TCP/IP component. Only that you do not need to specify an IP address when configuring TCP/IP properties.
The following section describe the procedures for CPEs to get IP address:
For Windows 98
On the IP Address tab, select Obtain an IP address automatically. Then click OK.
For Windows ME
On the IP Address tab, select Obtain an IP address automatically. Then click OK.
For Windows NT
On the IP Address tab, click on the drop-down arrow of Adapter to select required adapter. Enable Obtain an IP
address from a DHCP server and then click OK..
When prompted with the message below, click Yes to continue.
For Windows 2000
Enable Obtain an IP address automatically and then click OK.
Chapter 3: Configuration
For Windows XP
On the IP Address tab, select Obtain an IP address automatically. Then click OK.
Windows Vista
On the IP Address tab, select Obtain an IP address automatically. Then click OK.
Chapter 3: Configuration
Renew IP Address on Client PC
There is a chance that your PC does not renew its IP address after the ADSL Router is on line and the PC cannot access the Internet. Please follow the procedures below to renew PC’s IP address.
For Windows 98ME
1. Select Run from the Start menu.
2. Type winipcfg in the dialog box and
the click OK.
3. When the figure below appears, click
Release and then Renew to get an IP address.
For Windows NT
1. Select Run from the Start menu.
2. Select Run from the Start menu.
3. Type cmd in the dialog box and the click
OK.
4. Type ipconfig at prompt. Then you
will see the IP information from DHCP server.
5. If you want to get a new IP address, type
ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.
For Windows 2000
1. From the Start menu, point to
Programs, Accessories and then click Command Prompt.
2. Type ipconfig at prompt. Then you
will see the IP information from DHCP server.
3. If you want to get a new IP address, type
ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.
For Windows XP
Chapter 3: Configuration
1. Type ipconfig at prompt. Then you
will see the IP information from DHCP server.
2. From the Start menu, point to
Programs, Accessories and then click Command Prompt.
3. Type ipconfig at prompt. Then you
will see the IP information from DHCP server.
4. If you want to get a new IP address, type
ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.
For Windows Vista
1. Open the Start menu, and
type cmd in the text box then click OK.
2. The command prompt
window will appear.
3. Type ipconfig at the
command window and press Enter to view the computer’s IP information from DHCP server.
4. If the computer is holding a
current IP address, type ipconfig /release to let go of the address, then type ipconfig /renew to obtain a new one.
Note: If you cannot release the IP address successfully and see the message “The requested operation requires elevation,” please go to the Start menu and right click Command Prompt, then set Run as administrator.
Press Continue when a dialog asking for permission to continue prompts.
After then, repeat the above instruction to release and renew the IP address.
Chapter 3: Configuration
Chapter 3:Connecting and Accessing Internet
Ch ap ter 3: Connecting and Accessing
Internet
This chapter is to help you accessing into Internet with a quick and convenient way. If you need more detailed information for web configuration, please get into the next chapter for the advanced configuration.
Prior to configuring the ADSL Router, you must decide whether to configure the ADSL Router as a bridge or as a router. This chapter presents some deployment examples for your reference. Each mode includes its general configure procedures. For more detailed information about web configuration, refer to "Web Configuration".
PPP over ATM (PPPoA) PPPoA IP Extenstion PPP over Ethernet (PPPoE) PPPoE IP Exte nsi o n Numbered IP over ATM (IPoA) Numbered IP over ATM (IPoA)+NAT Unnumbered IP over ATM (IPoA) Unnumbered IP over ATM (IPoA)+NAT Bridging
For making sure that you can connect the ADSL to your computer well and get into Internet successfully, please make sure the following first.
Make sure you have installed a network interface card into your computer. Make sure the connection between the ADSL and your computer is OK. Check to see the TCP/IP protocol and set the IP address as “Auto Get IP Address”.
When you are sure all above is Ok, you can open the Browser and type in “192.168.1.1” and start to do the web configuration with different connection modes.
This chapter is going to introduce the function of each connection mode and tell you the basic configuring steps that you have to do. If you did not follow the configuring steps for using these connection modes, you might get some connection problems and cannot connect to Internet well.
PPP over ATM (PPPoA) Mode
Chapter 3:Accessing Internet
Default Private IP
192.168.1.1
192.168.1.3
Ethernet
Hub
192.168.1.2
PC(S)
ISP
(Internet Service Provider)
AAA
RDAIUS Server
*BRAS: Broadband Remote Access Server
BRAS
Dynamic Public IP assigned by BRAS
STM-1
DSLAM
PPP over ATM
PPPoA+NAT+DHCP on Private LAN
Loop
ADSL Router
Description:
In this deployment environment, the PPPoA session is between the ADSL WAN interface and BRAS. The ADSL Router gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN. The enabled NAT mechanism will translate the IP information for clients to access the Internet.
Configuration:

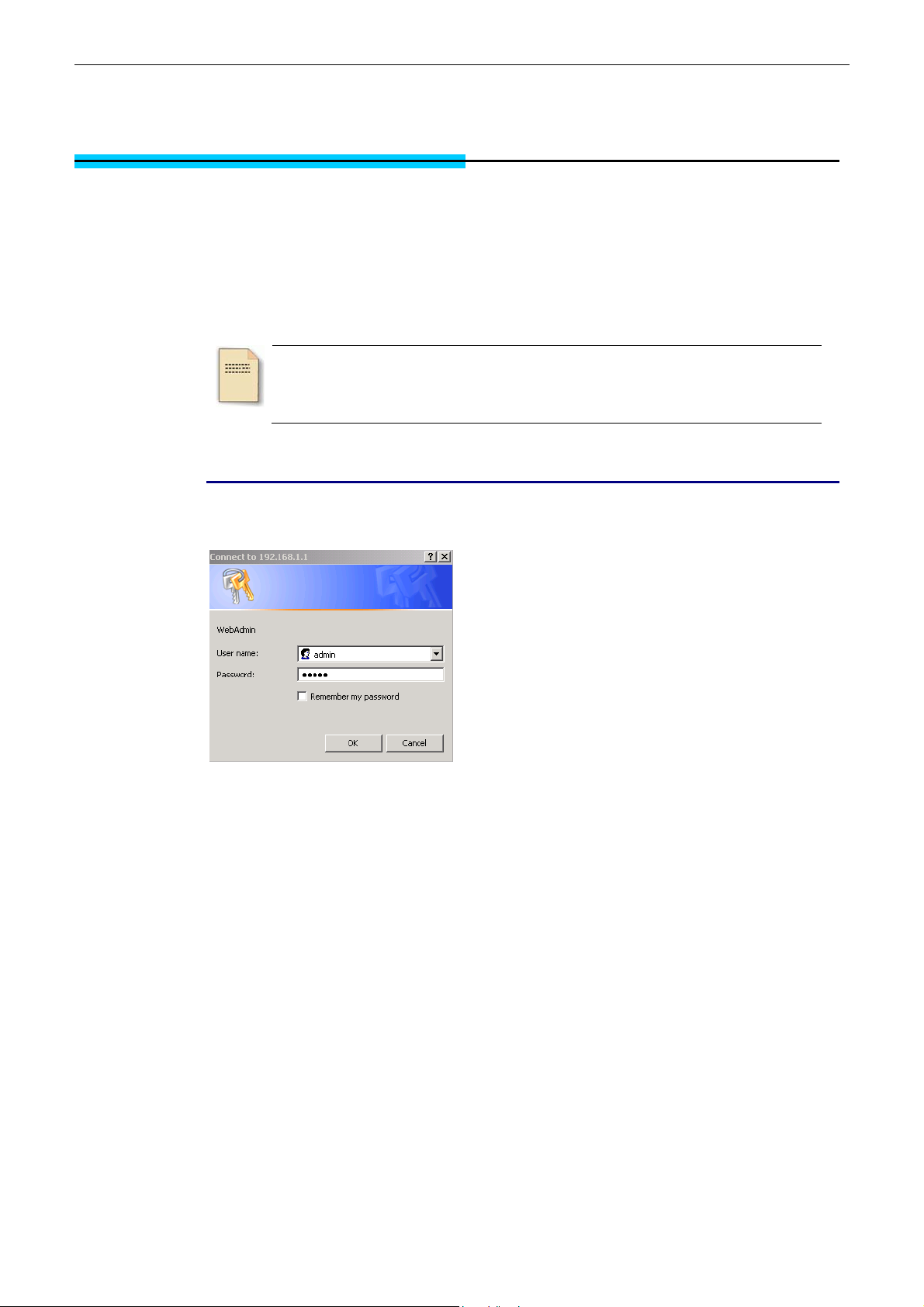

1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Star t -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button. eg:
VPI – 0 VCI – 38

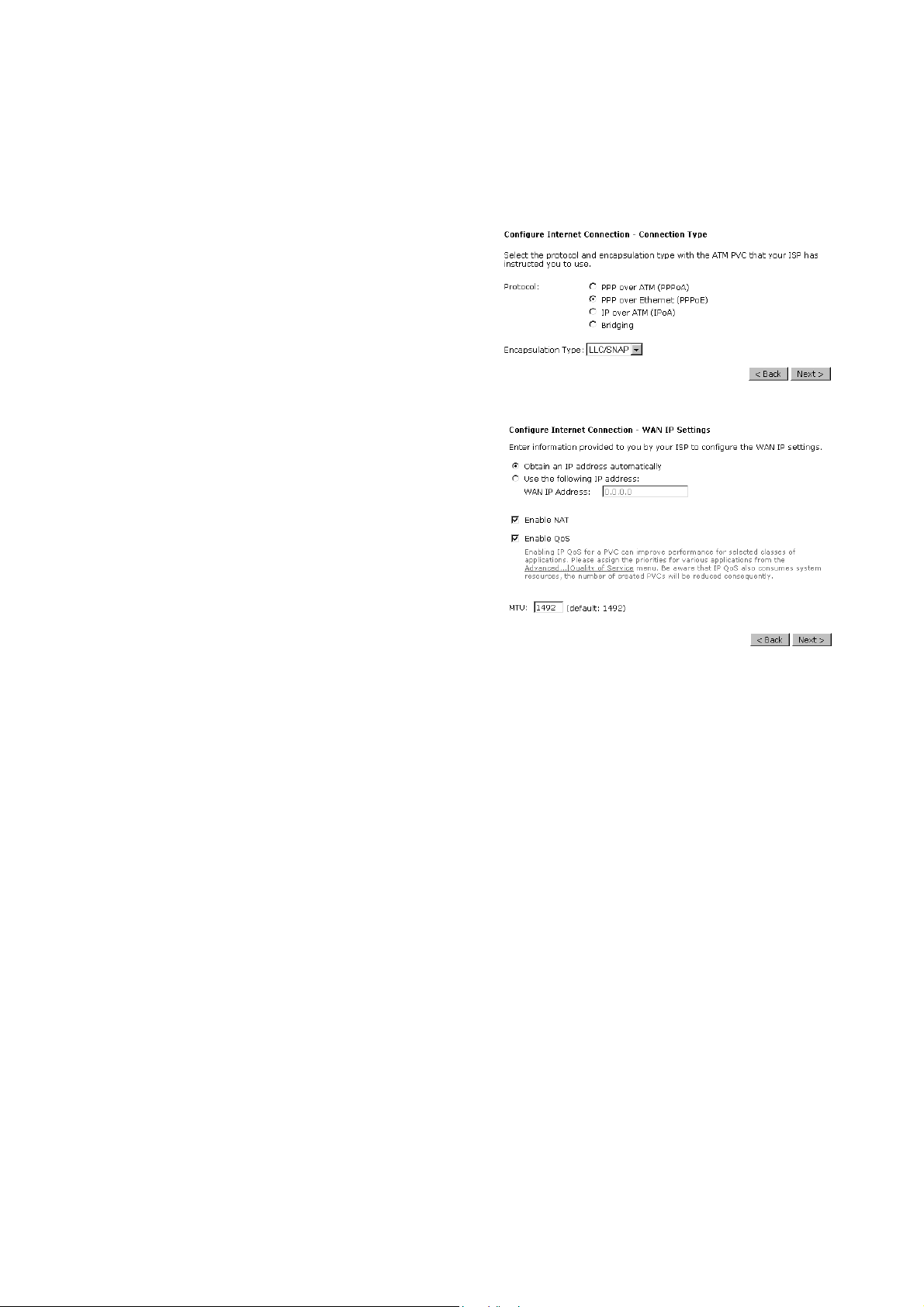

3. On the Configure Internet Connection -Connection Type page, select the PPP over ATM
(PPPoA) then click the Next button.
4. In the WAN IP Settings page, select Obtain an IP address automatically and check Enable
NAT bo x. Click Next.
5. In the PPP Username and Password page, enter the PPP username and password that you got
from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.
6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN. Check DHCP Server on box. And type in the start and end points. Then type in the leased time that you want. And click Next. eg:
Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0 Start IP Address:192.168.1.2 End IP Address: 192.168.1.254
7. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
PPP over ATM (PPPoA) IP Extension Mode
ISP
(Internet Service Provider)
AAA
RDAIUS Server
BRAS
STM-1
DSLAM
Loop
ADSL Router
Default Private IP
192.168.1.1
Dynamic Public IP assigned by BRAS
Ethernet
Hub
PC
*BRAS: Broadband Remote Access Server
PPP over ATM
PPPoA+NAT+DHCP on Private LAN
Description:
In this deployment environment, the PPPoA session is between the ADSL WAN interface and BRAS. The ADSL Router acts as a bridge and gets a public IP address from BRAS for your computer. And only the one that got the public IP address is allowed to access into Internet. Moreover, no NAT translation will be done at this case.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Advanced - Internet - Connections. And click Add.
3. Type in the VCI and VPI value. Then click the Next button. eg:
VPI – 0 VCI – 38
4. On the Configure Internet Connection -Connection Type page, select the PPP over ATM
(PPPoA) then click the Next button.
5. In the WAN IP Settings page, select Obtain an IP address automatically, uncheck Enable
NAT bo x a n d check PPP IP extension then click Next.
6. In the PPP Username and Password page, enter the PPP username and password that you got
from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.
7. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN. And click Next. eg:
Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0
8. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
PPP over Ethernet (PPPoE) Mode
Chapter 3:Accessing Internet
Default Private IP
192.168.1.1
192.168.1.3
Ethernet
Hub
192.168.1.2
PC(S)
ISP
(Internet Service Provider)
AAA
RDAIUS Server
*BRAS: Broadband Remote Access Server
BRAS
Dynamic Public IP assigned by BRAS
STM-1
DSLAM
Loop
PPP over Ethernet
PPPoE+NAT+DHCP on Privat e LAN
ADSL Router
Description:
In this deployment environment, the PPPoE session is between the ADSL WAN interface and BRAS. The ADSL Router gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN. The enabled NAT mechanism will translate the IP information for clients to access the Internet.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Star t -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button. eg:
VPI – 0 VCI – 39
3. On the Configure Internet Connection -Connection Type page, select the PPP over
Ethernet (PPPoE) then click the Next button.
4. In the WAN IP Settings page, select Obtain an IP address automatically and check Enable
NAT bo x. Click Next.
5. In the PPP Username and Password page, enter the PPP username and password that you got
from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.
6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN. Check DHCP Server on box. And type in the start and end points. Then type in the leased time that you want. And click Next. eg:
Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0 Start IP Address:192.168.1.2 End IP Address: 192.168.1.254
7. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
PPP over Ethernet (PPPoE) IP Extension Mode
Default Private IP
192.168.1.1
ISP
(Internet Service Provider)
STM-1
Loop
Ethernet
Dynamic Public IP assigned by BRAS
Hub
PC(S)
AAA
RDAIUS Server
*BRAS: Broa dband Remote Access Server
BRAS
DSLAM
ADSL Router
PPP over Ethernet
PPPoE IP Extension Mode
Description:
In this deployment environment, the PPPoE session is between the ADSL WAN interface and BRAS. The ADSL Router acts as a bridge and gets a public IP address from BRAS for your computer. And only the one that got the public IP address is allowed to access into Internet. The real IP that you got is acquired from ISP. Moreover, no NAT translation will be done at this case.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Advanced - Internet - Connections. And click Add.
3. Type in the VCI and VPI value. Then click the Next button. eg:
VPI – 0 VCI – 39
4. On the Configure Internet Connection -Connection Type page, select the PPP over
Ethernet (PPPoE) then click the Next button.
5. In the WAN IP Settings page, select Obtain an IP address automatically, uncheck Enable
NAT bo x a n d check PPP IP extension then click Next.
6. In the PPP Username and Password page, enter the PPP username and password that you got
from your ISP. Select Dial on Demand and type in the number for inactivity timeout. The default is 20. Or select Always on. Then click Next.
7. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN. And click Next. eg:
Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0
8. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
Numbered IP over ATM (IPoA)
Default Private IP
192.168.1.1
Chapter 3:Accessing Internet
ISP
(Internet Service Provider)
AAA
RDAIUS Server
*BRAS: Broadband Remote Access Server
BRAS
STM-1
DSLAM
IP over ATM
Public IP Pre-assigned by ISP
Loop
10.3.70.1
ADSL Router
10.3.75.49
S/W
Hub
10.3.75.51
10.3.75.50
PC(S)
Description:
If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting. Other remaining IP addresses can be assigned to PCs on the LAN.
The following example uses the LAN IP address ranging from 10.3.75.49 to 10.3.75.54 and the subnet mask for LAN is 255.255.255.248. The WAN address is 10.3.70.1, and the subnet mask for WAN is 255.255.255.252.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Star t -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button.
VPI – 0 VCI – 32
3. On the Configure Internet Connection -Connection Type page, select the IP over ATM
(IPoA) then click the Next button.
4. In the WAN IP Settings page, select Use the following IP address and type in the IP address,
subnet mask and gateway that you got from ISP. Then, select Use the following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Uncheck Enable NA T. Click Next for next page.
WAN IP Address: 10.3.70.1 WAN Subnet Mask: 255.255.255.252 Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1
5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN.
Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254
6. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in
the second IP address and subnet mask. Then click Next.
Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248
7. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
8. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set default gateway. eg:
IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49
9. Now the router is well configured. You can access into Internet.
Numbered IP over ATM (IPoA)+NAT
Chapter 3:Accessing Internet
Description:
In this deployment environment, we make up a private IP network of 192.168.1.1. NAT function is enabled (on ADSL Router or use another NAT box connected to hub) to support multiple clients to access the Router and some public servers (WWW, FTP).
If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting. Other remaining IP addresses can be assigned to PCs on the LAN.
The following example uses the LAN IP address ranging from 10.3.75.49 to 10.3.75.54 and the subnet mask for LAN is 255.255.255.248. The WAN address is 10.3.70.1, and the subnet mask for WAN is 255.255.255.252.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button.
VPI – 0 VCI – 32
3. On the Configure Internet Connection -Connection Type page, select the IP over ATM
(IPoA) then click the Next button.
4. In the WAN IP Settings page, select Use the following IP address and type in the IP address,
subnet mask and gateway that you got from ISP. Then, select Use the following DNS Server
Address. Type in the Primary DNS server and Secondary DNS server. WAN IP Address: 10.3.70.1 WAN Subnet Mask: 255.255.255.252 Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1
5. Check the Enable NAT box. And click Next.
6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN.
Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254
7. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in
the second IP address and subnet mask. Then click Next.
Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248
8. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
9. Now the router is well configured. You can access into Internet.
Unnumbered IP over ATM (IPoA)
Default Private IP
192.168.1.1
Chapter 3:Accessing Internet
ISP
(Internet Service Provider)
AAA
RDAIUS Server
*BRAS: Broadband Remote Access Server
BRAS
STM-1
DSLAM
IP over ATM
Public IP Pre-assigned by ISP
Loop
ADSL Router
10.3.75.49
S/W
Hub
10.3.75.51
10.3.75.50
PC(S)
Description:
If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting. Other remaining IP addresses can be assigned to PCs on the LAN.
The following example uses the LAN IP address ranging from 10.3.75.49 to 10.3.75.54 and the subnet mask for LAN is 255.255.255.248. The WAN address is 10.3.70.1, and the subnet mask for WAN is 255.255.255.252.
In such circumstance, we do not assign any WAN IP.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Star t -Quick Setup. Uncheck Auto Scan Internet Connection (PVC).Type in
the VCI and VPI value. Then click the Next button.
VPI – 0 VCI – 32
3. On the Configure Internet Connection -Connection Type page, select the IP over ATM
(IPoA) then click the Next button.
4. In the WAN IP Settings page, select None for WAN IP address settings. Then, select Use the
following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Uncheck Enable NAT. Then Click Next for next page. Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1
5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN.
Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254
6. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in
the second IP address and subnet mask. Then click Next.
Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248
7. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
8. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set default gateway. eg:
IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49
9. Now the router is well configured. You can access into Internet.
Chapter 3:Accessing Internet
Unnumbered IP over ATM (IPoA)+NAT
Description:
If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting. Other remaining IP addresses can be assigned to PCs on the LAN.
The following example uses the LAN IP address ranging from 10.3.75.49 to 10.3.75.54 and the subnet mask for LAN is 255.255.255.248. The WAN address is 10.3.70.1, and the subnet mask for WAN is 255.255.255.252.
In such circumstance, we enable NAT function but not assign any WAN IP.
Configuration:
1. Start up your browser and type 192.168.1.1 as the address to enter this ADSL web-based
manager.
2. Go to Quick Start -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button.
VPI – 0 VCI – 32
3. On the Configure Internet Connection -Connection Type page, select the IP over ATM
(IPoA) then click the Next button.
4. In the WAN IP Settings page, select None for WAN IP address settings. Then, select Use the
following DNS Server Address. Type in the Primary DNS server and Secondary DNS server. Click Next for next page. Primary DNS server: 168.95.1.1 Secondary DNS server: 168.95.192.1
5. Check the Enable NAT box. And click Next.
6. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN.
Primary IP Addr ess: 192.168.1.1 Subnet mask: 255.255.255.0
Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254
7. Check Configure the second IP Address and Subnet Mask for LAN Interface and type in
the second IP address and subnet mask. Then click Next.
Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248
8. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
9. Now the router is well configured. You can access into Internet.
Bridge Mode
Chapter 3:Accessing Internet
Default Private IP
192.168.1.1
ISP
(Internet Service Provider)
AAA
RDAIUS Server
*BRAS: Broadband Remote Access Server
BRAS
STM-1
DSLAM
PPP over Ethernet
Bridge Mode
Loop
ADSL Router
Hub
PPPoE Client S/W
PC(S)
Description:
In this example, the ADSL Router acts as a bridge which bridging PC IP address from LAN to WAN. PC IP address can be a static public address that is pre-assigned by ISP or a dynamic public address that is assigned by ISP DHCP server, or can be got from PPPoE software.
Therefore, it does not require a public IP address. It only has a default private IP address (192.168.1.1) for management purpose.
Configuration:
1. Choose a client PC and set the IP as 192.168.1.x (x is between 2 and 254) and the gateway as
192.168.1.1.
2. Start up your browser and type 192.168.1.1 as the address to enter the web-based manager.
3. Go to Quick Star t -Quick Setup. Uncheck Auto Scan Internet Connection (PVC). Type in
the VCI and VPI value. Then click the Next button. eg:
VPI – 0 VCI – 32
4. On the Configure Internet Connection -Connection Type page, select the Bridging then
click the Next button.
5. In the Configure LAN side Settings page, type in the IP address and subnet mask for your
LAN. Finally click Next. eg:
Primary IP address:192.168.1.1 Subnet Mask:255.255.255.0
6. Check the network information. Make sure the settings match the settings provided by ISP.
Click Finish.
7. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set default gateway. eg:
IP Address: 10.3.86.81 Subnet Mask: 255.255.255.248 Gateway: 10.3.86.1
8. Click OK. Now the router is well configured. You can access into Internet.
Chapter 5:Connection Mode
Chapter 4: Web Configuration
Some users might want to set specific configuration for the router such as firewall, data transmission rate… and so on. This chapter will provide you advanced information of the web pages for the router for your reference.
Using Web-Based Manager
Once your host PC is properly configured, please proceed as follows:
1. Start your web browser and type the private IP address
of the ADSL Router in the URL field: 192.168.1.1.
2. After connecting to the device, you will be prompted
to enter username and password. By default, the username is admin and the password is admin. See the example for running under Windows XP.
If you login successfully, the main page will appear. From now on the ADSL Router acts as a web server sending HTML pages/forms on your request. You can fill in these pages/forms and apply them to the ADSL Router.
Chapter 5:Connection Mode
Outline of Web Manager
For configure the web page, please use admin as the username and the password. The main screen will be shown as below.
Title: It indicates the title of this management interface. Main Menu: Includes Quick Start, Status, Advanced and Management. Main
Window:
It is the current workspace of the web management, containing configuration or status information.
To Have the New Settings Take Effect
After select or adjust the settings to your desire, your customizations will be saved to the flash memory before you restart the router. And only after restarting the router, your customizations take effect.
Language
On the top to the right of this web page, it provides a language drop down menu fo r you to choose proper language to help you to set.
Quick Start
The pages for the Quick Start provide user a quick way to set for the router. If you do not know more about the router, you can use the Quick Start pages to adjust basic settings to make your router activating.
Connect to Internet
This is a quick way to connect to Internet by using PPPoE interface, click Connect to Internet to open the web page.
Enter the user name and password for your ADSL router and click Connect.
The system will connect automatically, then you can access Internet.
Quick Setup
The quick setup wizard will guide you to configure the DSL router through some steps.
Auto Scan Internet Connection (PVC):
The default setting is checked. If there is no any PVC configured in your ADSL router, you can check this item. Otherwise, please uncheck this box.
VPI (Virtual Path Identifier): Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. To enter the setting, please refer to the setting that the ISP gave you.
VCI (Virtual Channel Identifier): Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). To enter the setting, please refer to the setting that the ISP gave you.
After finished entering the VPI/VCI value, please click Next for next step.
Connection Type
The system provides several protocols for you to choose. Your ISP will offer you the most suitable settings of the protocol. Before you set this page, please refer to the protocol that your ISP gave you.
After clicking on the Next button from the VPI/VCI web page, the following screen will appear. Please choose the connection type and encapsulation mode that you want to use and click Next for next page.
For example, PPP over Ethernet (PPPoE) in this screen is selected. Next, we are going to tell you different webpage for different protocol that you choose in this page.
Chapter 5:Connection Mode
PPP over ATM/ PPP over Ethernet
If the type you choose is PPP over ATM or PPP over Ethernet, please refer to the following information.
According to the ISP’s configuration on the server, you can choose PPPoE and PPPoA modes. If the ISP provides PPPoE service, the connection type selection will be decided as whether the LAN side device is running a PPPoE client or the router is to run the PPPoE client. This router suppo rt s both situations simultaneously.
Choose PPPoA or PPPoE and click Next.
In this screen, you have to choose the settings for WAN IP. To get the IP address automatically, click the Obtain an IP address automatically radio button. Or click Use the following IP address button and enter the IP address for WAN interface.
Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.
Click Enable QoS for your necessity. It can improve the performance for selected classes of applications. Before you check this item, please assign the priorities for various applications from the Quality of Service menu of A d vanced web page. Be aware that IP QoS also consumes system resources, the number of created PVCs will be reduced consequently.
The MTU means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1492.
Click Next for next screen.
Chapter 5:Connection Mode
PPP Username:
Type in the username that you got from your ISP.
PPP Password:
Type in the password that you got from your ISP.
Always On:
Check this button to make the connection is always active.
Dial on Demand:
Click this button to make a connection while in demand. Enter the timeout to cut off the network connection if there is no activity for this router.
Manually Connect:
Click this button to make a connection by pressing the Connect button on the Advanced Setup- Internet-Connections web page.
In the Configure LAN side Settings web page, you have to fill in the data requested here.
Please type the username and password that you got from your ISP. Then click Next.
Primary IP Address:
Type in the first IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
Configure the second IP Address and Subnet Mask for LAN interface:
Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.
Secondary IP Address:
Type in the second IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
MTU: It means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1500.
On the Configure LAN side Settings web page, the IP address and subnet mask will be shown on it. You can modify them if needed.
Type in all the necessary settings and click Next for next page.
DHCP Server On:
Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your
PCs.
Start IP Address: Type in the start point IP address.
End IP Address: Type in the end point IP address.
Leased Time:
Type in the duration for the time. The default is 1day.
DHCP Server Off:
Check this item if DHCP service isn’t needed on the LAN.
You can check it at this time. If you find something is incorrect, click Back to change the settings.
If everything is OK, click Finish to accept these settings.
Now, the system will reboot to activate the new settings that you have done in this section.
Please wait for 2 minutes for restarting the router.
Chapter 5:Connection Mode
IP over ATM
If the type you have to choose is IP over ATM, please refer to the following information. IPoA is an alternative of LAN emulation. It
allows TCP/IP network to access ATM network and uses ATM quality of service’s features.
Choose IPoA and click Next.
None:
If it is not necessary to set the WAN IP address, please click this button.
Obtain an IP address automatically:
Click this button to make the system get an IP address automatically.
WAN IP Address:
Type in the IP address that you got from ISP for the WAN interface.
WAN Subnet Mask:
Type in the subnet mask address that you got from ISP for the WAN interface.
Obtain DNS server address automatically:
Click this button to make the system get DNS server automatically.
Use the following DNS server address:
If you want to set DNS server by yourself, you have to click on this button to invoke the following entries.
Primary DNS server:
Type in your preferred DNS server that you got from ISP.
Secondary DNS server:
Type in the alternate DNS server that you got from ISP.
Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.
Click Enable QoS for your necessity. It can improve the performance for selected classes of applications. Before you check this item, please assign the priorities for various applications from the Quality of Service menu of A d vanced web page. Be aware that IP QoS also consumes system resources, the number of created PVCs will be reduced consequently.
Please type in the WAN IP address, Subnet Mask and DNS server addresses. Then Click Next to get the following page.
In the Configure LAN side Settings web page, you have to fill in the data requested here.
Primary IP Address:
Type in the first IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
Configure the second IP Address and Subnet Mask for LAN interface:
Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.
Secondary IP Address:
Type in the second IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
DHCP Server On:
Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.
On the Configure LAN side Settings web page, the IP address and subnet mask will be shown on it. You can modify them if needed. Click Next for next page.
Start IP Address: Type in the start point IP address.
End IP Address: Type in the end point IP address.
Leased Time:
Type in the duration for the time. The default is 1day.
DHCP Server Off:
Check this item if DHCP service isn’t needed on the LAN.
You can check it at this time. If you find something is incorrect, click Back to change the settings. If everything is OK, click Finish to accept these settings. And the following page will appear.
Now, the system will reboot to activate the new settings that you have done in this section.
Please wait for 2 minutes for restarting the router.
Chapter 5:Connection Mode
Bridging
If the type you choose is Bridging, please refer to the following information. The bridging mode can configure your router
to send packets received on any port such as ATM PVC or Ethernet with a broadcast MAC address to all other ports.
Choose Bridging and click Next.
None:
If it is not necessary to set the WAN IP address, please click this button.
Obtain an IP address automatically: Click this button to make the system get an IP address automatically.
WAN IP Address:
Type in the IP address that you got from ISP for the WAN interface.
WAN Subnet Mask:
Type in the subnet mask address that you got from ISP for the WAN interface.
Obtain DNS server address automatically:
Click this button to make the system get DNS server automatically.
Use the following DNS server address:
If you want to set DNS server by yourself, you have to click on this button to invoke the following entries.
Primary DNS server:
Type in your preferred DNS server that you got from ISP.
Secondary DNS server:
Type in the alternate DNS server that you got from ISP.
Click Enable NAT if you want. As for the detailed NAT settings, it will be described in later sections.
Click Enable QoS for your necessity. It can improve the performance for selected classes of applications. Before you check this item, please assign the priorities for various applications from the Quality of Service menu of A d vanced web page. Be aware that IP QoS also consumes system resources, the number of created PVCs will be reduced consequently.
In the Configure LAN side Settings web page, you have to fill in the data requested here.
Primary IP Address:
Type in the IP address that you got from your ISP for LAN interface.
Subnet Mask:
Type in the subnet mask that you got from your ISP for LAN interface.
MTU: It means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1500.
DHCP Server On:
Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.
Chapter 5:Connection Mode
Start IP Address: Type in the start point IP address.
End IP Address: Type in the end point IP address.
Leased Time:
Type in the duration for the time. The default is 1day.
DHCP Server Off:
Check this item if DHCP service isn’t needed on the LAN.
Click Next to get into next web page. You can check it at this time. If you find
something is incorrect, click Back to change the settings. If everything is OK, click Finish to accept these settings. And the following page will appear.
Now, the system will reboot to activate the new settings that you have done in this section.
Please wait for 2 minutes for restarting the router.
Status
Overview
This page is displaying the current status for the DSL connection. It includes if the lists the LAN IP address, default gateway, DNS servers IP address, firmware version, the period of activating the router, and so on. The system status will be changed according to the settings that you configured in the web pages.
ADSL Line
This page shows all information for ADSL. For knowing the quality of the ADSL connection, please click ADSL BER Test button to have advanced inform at i on.
Click More Information to show more detailed information about ADSL Line Status.
ADSL BER Test
Chapter 5:Connection Mode
This test determines the quality of the ADSL connection. It is done by transferring idle cells containing a known pattern and comparing the received data with this known pattern to check for errors.
After select the test duration time and click Start, the following dialog appears to tell you the test is running. You can stop the test by click Stop or close this dialog by click Close.
When the test is over, the result will be shown on the following dialog for your reference. Click Close to close this dialog.
Internet Connection
This page displays the connection information for your router, such as PVC name, category, protocol, invoking NAT or not, IP address, link status and so on.
Traffic Statistics
This table shows the records of data going through the LAN and WAN interface. For each interface, cumulative totals are displayed for Received and Transmitted.
DHCP Table
This table shows all DHCP clients who get their IP addresses from your ADSL Router. For each DHCP client, it shows the Host
Name, MAC Address, IP Addr ess and the Lease Time.
Routing Table
This table shows the routing method that your router uses.
ARP Table
This table shows the IP address record for IP-to-Physical translation in your router.
Chapter 5:Connection Mode
Advanced Setup
Local Network- IP Address
This page is the same as you can see in the Configure LAN side Settings page while running the Quick Setup. It allows you to set IP Address and Subnet Mask values for LAN interface.
Primary IP Address:
Type in the first IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
Host Name:
List the host name of this device.
Domain Name:
List the name of domain.
Configure the second IP Address and Subnet Mask for LAN interface:
Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.
Secondary IP Address:
Type in the second IP address that you got from your ISP for your LAN connection.
Subnet Mask:
Type in the subnet mask that you got from your ISP for your LAN connection.
MTU: It means the maximum size of the packet that transmitted in the network. The packet of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1500.
Apply: Click this button to activate the settings listed above.
Local Network - DHCP Server
This allows you to set DHCP server on LAN interface.
DHCP Server On:
Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs.
Start IP Address: Type in the start point IP address.
End IP Address: Type in the end point IP address.
Leased Time:
Type in the duration for the time. The default is 1day.
Relay On: Click this button to have a relay setting. And type in the Server IP in this field.
Server and Relay Off:
Check this item if DHCP service isn’t needed on the LAN.
Chapter 5:Connection Mode
Apply: Click this button to activate the settings listed above.
You can reserve one specific IP address for a certain PC for certain purpose. Simply add a mapping entry of MAC address & IP address for that PC by pressing the View Reserved IP Addr ess List button. The following picture will appear.
Click the Add button to open another dialog as follows. On PCs MAC Address and Assigned IP Address boxes, please type in the correct information for the one that you want to add and click Apply.
The new one will be shown on the dialog right away. That is, the specified address will be reserved and not be assigned by DHCP for other computer.
Chapter 5:Connection Mode
Local Network – UPnP
The UPnP is available only for Windows XP. If you are not user of Windows XP, this page does not have any meaning to you.
This page allows you to enable the UPnP function through the web page for your router.
Internet-Connections Setting
To set WAN settings for each service, please open Advanced– Internet Setting. This page allows you to add new WAN settings, to edit or remove created WAN settings.
If you click the Connect line under the PVC Name item, the system will connect to WAN automatically. If the WAN connection is OK, you can check the detailed information directly.
Adding a New One
You have to type in the VPI and VCI values in the entry boxes. Then click Next. The screen will get into the Connection Type page of Quick Setup and ask you to fill in the data according to the request of the screen. Refer to Quick Setup for more information if you don’t know how to set the configuration.
To add a new WAN connection, please click the Add button. The following screen appears. VPI (Virtual Path Identifier):
Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. You cannot type in the number randomly if you desire. Please refer to the value that your ISP gave.
VCI (Virtual Channel Identifier): Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). You cannot type in the number randomly if you desire. Please refer to the value that your ISP gave.
Service Category: It decides the size and rate for the packets of the data in different service type. There are five categories provided here for your selection. Please choose any one of it as you desired.
If you choose Non Realtime VBR, you have to type in the following data.
The range for Peak Cell Rate is from 1 to
1690. The range for Sustainable Cell Rate is from 1 to 1689 and must be smaller than Peak Cell Rate. The range for Maximum Burst Size is from 1 to 100.
After click Next, you will see the web page listed as the right. Choose the protocol that you want. And click Next again.
The WAN IP settings will differ slightly according to the protocol that you choose. This graphic is the one that you will get if you choose to add a new interface of PPPoA/PPPoE mode. You can check Enable NAT or Enable Qos for your necessity. And you can set the MTU value in this page.
If you want to add a new interface of PPPoE mode and choose PPPoE from the previous web page, you will get a web page as the graphic listed in right side.
Please refer to Quick Setup for more information if you don’t know how to set the configuration.
If you want to add a new interface of Bridging mode and choose Bridging from the previous web page, you will get a web page as the graphic listed in right side.
Please refer to Quick Setup for more information if you don’t know how to set the configuration.
Chapter 5:Connection Mode
Internet-DNS Server
If Enable Automatic Assigned DNS checkbox is selected, this router will accept the first received DNS assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection establishment. If the checkbox is not selected, it is necessary for you to enter the primary and optional secondary DNS server IP addresses. After type in the address, click Apply button to save it and invoke it.
Enable Automatic Assigned DNS:
Check this box to enable this function, or uncheck this box to disable it.
Primary DNS server: Type in your primary DNS server.
Secondary DNS server:
Type in the secondary DNS server. If you are satisfied the settings, click Apply.
Internet-IGMP Proxy
The Internet Group Management Protocol (IGMP) is an Internet protocol that provides a way for an Internet computer to report its multicast group membership to adjacent routers.
The hosts interact with the system through the exchange of IGMP messages. When you want to configure IGMP proxy, the system will interact with other router through the exchange of IGMP messages. However, when acting as the proxy, the system performs the host portion of the IGMP task as follows:
¾ When it is queried, the system will send group membership reports to the group. ¾ When one of the hosts joins a multicast address group to which none of other hosts belong, the
system will send unsolicited group membership reports to that group.
¾ When the last of hosts in a particular multicast group leaves the group, the system will send a
leave group membership report to the routers group.
Internet Connection: This field displays the internet connection that you currently use.
IGMP Proxy Enabled: Check this box to enable this function or uncheck this box to disable this function.
After finish the settings, click Apply.
Internet - ADSL Settings
Enable ADSL Port: Check this box to enable this function. It simply invokes the line mode that you choose here for the router.
Select the support of line modes: There are several selections for your choosing. Select the one that you need. For Example, if you want to change one or more physical layer parameters while the ATU-x is in data transfer state, and the transmission errors will not be present, please choose ADSL2.
Capability Enabled:
Two items are provided here for you to choose.
Bitswap:
It is a mandatory receiver initiated feature to maintain the operating conditions of the modem during changing environment conditions. It reallocates the data bits and power among the allowed carriers without modification of the higher layer control parameters in the ATU. After a bit swapping reconfiguration, the total data rate and the data rate on each latency path is unchanged. Check this box to enable the function. If not, uncheck this box to close the function.
Seamless Rate Adaptation: It enables the ADSL2 system to change the data rate of the connection while in operation without any service interruption or bit errors. Check this box to enable the function. If not, uncheck this box to close the function.
IP Routing - Static Route
Routing Table shows all static route status and allows you to add new static IP route or delete IP route. A Static IP Routing is a manually defined path, which determines the data transmitting route. If your local network is composed of multiple subnets, you may want to specify a routing path to the routing table.
Destination Network Address:
Display the IP address that the data packets are to be sent.
Netmask:
Display the subnet mask that the data transmitting is passing through.
Gateway:
Display the gateway that the data transmitting is passing through.
WAN Interface:
Display the interface that the data transmitting is passing through.
Delete:
Chapter 5:Connection Mode
Allow you to remove the selected static route settings.
Adding a New One
To add a static route, please choose Static Route - Add. Type the destination network address, subnet mask and gateway that you get from ISP and click Apply.
Destination Network Address:
The destination IP addres s of the netw or k where data packets are to be sent.

Subnet Mask:

Type in the subnet mask that you got from ISP.
Gateway IP Address:
Click this button to invoke this function. Type in the gateway that you got from ISP.
WAN Interface:
Click this button to invoke this function and choose the one from the drop down menu.
Click Apply to view the routing result. This page shows all the routing table of data packets going through your ADSL Router.
Remove Static Route
If you don’t want the static route that you created, please click the icon under Delete from Routing Table.
A dialog appears to ask you to confirm the action. Click Yes to remove the static route, or click No to keep the setting.
Configuring Other Routers on Your LAN
It is essential that all IP packets for devices that are not on the local LAN can be passed to the Router, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the Router as the default route or default gateway.
Local Router
The local router is the Router installed on the same LAN segment as the Router. This router requires that the default route is the Router itself. Typically, routers have a special entry for the default route. It should be configured as follows.
Destination: Subnet Mask: Gateway:
Normally 0.0.0.0 but check your router documentation. Normally 0.0.0.0 but check your router documentation. The IP Address of the Router.
Other Routers on the Local LAN
Other routers on the local LAN must use the Router’s Local Router as the Default Route. The entries will be the same as the Router’s local router, with the exception of the Gateway IP Address.
For a router with a direct connection to the Router’s local Router, the Gateway IP Address is
the address of the Router’s local router.
For routers which must forward packets to another router before reaching the Router’s local
router, the Gateway IP Address is the address of the intermediate router.
Example – Static Route
Here provides you an example of Static Route.
For the Router’s Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the Router requires to add 2 static routes as follows:

ADSL Ro uter

Destination 192.168.10.0 Subnet Mask 255.255.255.0 (Standard Class C) Gateway 192.168.1.254 (Router B)
IP Routing – Dynamic Routing
Routing Information Protocol (RIP) is utilized as a means of exchanging routing information between routers. It helps the routers to determine optimal routes. This page allows you to enable/disable this function.
RIP Version: It incorporates the RIP information when receiving and broadcasting the RIP packets. From the drop down list, select a RIP version to be accepted, 1, 2 or both.
Operation Mode:
There are two modes for you to choose, Active and Passive. Select Active for transmitting and receiving data, or select Passive for receiving data only.
Enabled: Click Enabled to enable the RIP function on
different interface. Otherwise, disable this function.
Click Apply to invoke the settings set here.
Chapter 5:Connection Mode
Virtual Server-Port Forwarding
The Router implements NAT to let your entire local network appear as a single machine to the Internet. The typical situation is that you have local servers for different services and you want to make them publicly accessible. With NAT applied, it will translate the internal IP addresses of these servers to a single IP address that is unique on the Internet. NAT function not only eliminates the need for multiple public IP addresses but also provides a measure of security for your LAN.
When the router receives an incoming IP packet requesting for access to your local server, the router will recognize the service type according to the port number in this packet (e.g., port 80 indicates HTTP service and port 21 indicates FTP service). By specifying the port number, you tell the router which service should be forwarded to the local IP address you specify.
After you setting the virtual server you should modify the filter rule whichever port and service you set on virtual server. Because the firewall has protect the route by filter rule so that you should update the filter rule after you set up virtual server.
Virtual Server allows you to make servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because:
Your server does not have a valid external IP Address. Attempts to connect to devices on your LAN are blocked by the firewall in this device.
The Virtual Server feature solves these problems and allows Internet users to connect to your servers, as illustrated below:
Loading...
