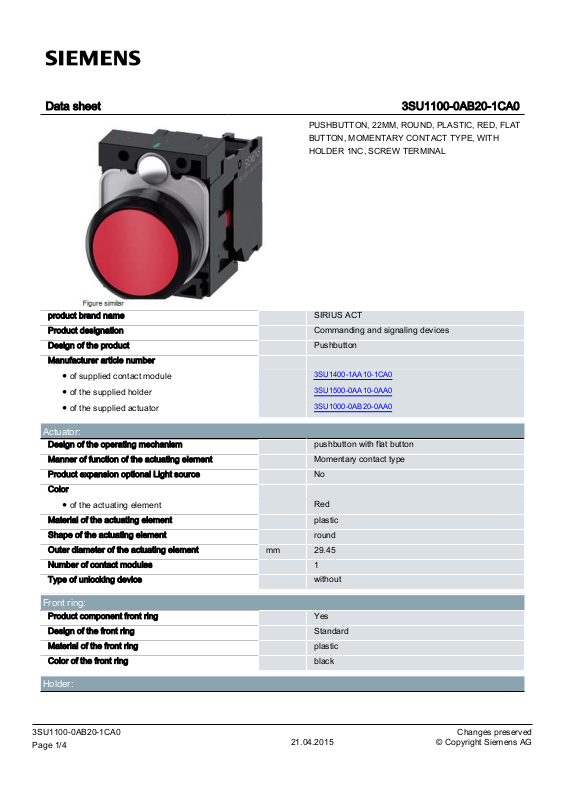

Data sheet 3SU1100-0AB20-1CA0
4
PUSHBUTTON, 22MM, ROUND, PLASTIC, RED, FLAT
BUTTON, MOMENTARY CONTACT TYPE, WITH
HOLDER 1NC, SCREW TERMINAL
product brand name SIRIUS ACT
Product designation Commanding and signaling devices
Design of the product Pushbutton
Manufacturer article number
● of supplied contact module
● of the supplied holder
● of the supplied actuator
3SU1400-1AA10-1CA0
3SU1500-0AA10-0AA0
3SU1000-0AB20-0AA0
Actuator:
Design of the operating mechanism pushbutton with flat button
Manner of function of the actuating element Momentary contact type
Product expansion optional Light source No
Color
● of the actuating element
Material of the actuating element plastic
Shape of the actuating element round
Outer diameter of the actuating element mm 29.45
Number of contact modules 1
Type of unlocking device without
Red
Front ring:
Product component front ring Yes
Design of the front ring Standard
Material of the front ring plastic
Color of the front ring black
Holder:
3SU1100-0AB20-1CA0 Changes preserved
Page 1/
21.04.2015 © Copyright Siemens AG
Page 2
Material of the holder Plastic
4
Display:
Number of LED modules 0
General technical data:
Product function
● positive opening
Product component
● Light source
Insulation voltage
● Rated value
Degree of pollution 3
Shock resistance
● acc. to IEC 60068-2-27
Vibration resistance
● acc. to IEC 60068-2-6
Surge voltage resistance Rated value kV 6
Operating frequency maximum 1/h 3600
Mechanical service life (switching cycles)
● typical
Electrical endurance (switching cycles)
● typical
Thermal current A 10
Protection class IP IP66, IP67, IP69(IP69K)
● of the terminal
Equipment marking
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
Design of the fuse link for short-circuit protection of
the auxiliary switch with type of assignment 1
required
Continuous current of the C characteristic MCB A 10
Operating voltage
● with AC
— at 50 Hz Rated value
— at 60 Hz Rated value
● for DC Rated value
— maximum
— minimum
V 500
V 5...500
V 5...500
V 500
V 5
Yes
No
Sinusoidal half-wave 50 g / 11 ms
10 ... 500 Hz: 5g
10000000
10000000
IP20
P
P
gG / Dz 10 A, quick-acting / Dz 10 A
Power Electronics:
Contact reliability One maloperation per 100 million (17 V, 5 mA), one
maloperation per 10 million (5 V, 1 mA)
3SU1100-0AB20-1CA0 Changes preserved
Page 2/
21.04.2015 © Copyright Siemens AG
Page 3
Auxiliary circuit:
4
Number of NC contacts
● for auxiliary contacts
Number of NO contacts
● for auxiliary contacts
Number of CO contacts
● for auxiliary contacts
Design of the contact of the auxiliary contacts Silver alloy
1
0
0
Connections/ Terminals:
Type of electrical connection
● of modules and accessories
Type of connectable conductor cross-section
● solid with core end processing
● solid without core end processing
● finely stranded with core end processing
● finely stranded without core end processing
● for AWG conductors
Tightening torque
● with screw-type terminals
N·m 0.8...0.9
Screw-type terminal
2x (0.5 ... 0.75 mm²)
2x (1.0 ... 1.5 mm²)
2x (0.5 ... 1.5 mm²)
2x (1,0 ... 1,5 mm²)
2x (18 ... 14)
Ambient conditions:
Ambient temperature
● during operation
● during storage
°C -25...+70
°C -40...+80
Installation/ mounting/ dimensions:
Mounting type front mounting
● of modules and accessories
Height mm 40
Width mm 30
Shape of the installation opening round
Mounting diameter mm 22
Front plate mounting
Certificates/ approvals:
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/industrial-controls/catalogs
Industry Mall (Online ordering system)
http://www.siemens.com/industrymall
Cax online generator
http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SU11000AB201CA0
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
http://support.automation.siemens.com/WW/view/en/3SU11000AB201CA0/all
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SU11000AB201CA0&lang=en
3SU1100-0AB20-1CA0 Changes preserved
Page 3/
21.04.2015 © Copyright Siemens AG
Page 4
30
4
40
-S .1
NC
60.7
11
NC
.2
last modified: 20.04.2015
