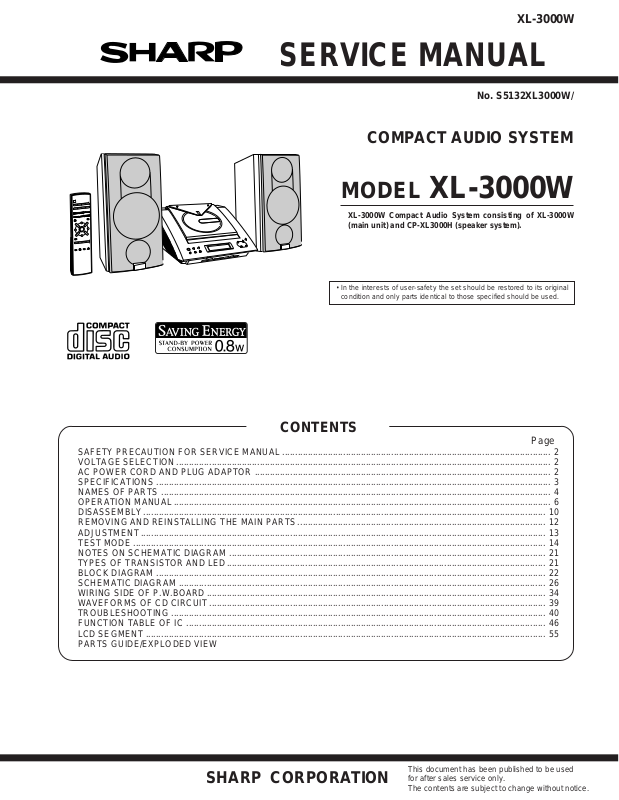

Sharp XL-3000-W Service manual

XL-3000W

SERVICE MANUAL

No. S5132XL3000W/

COMP ACT AUDIO SYSTEM

MODEL XL-3000W

XL-3000W Compact Audio System consisting of XL-3000W (main unit) and CP-XL3000H (speaker system).

• In the interests of user-safety the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2

VOLTAGE SELECTION.................................................................................................................................................... 2

AC POWER CORD AND PLUG ADAPTOR ..................................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................ 3

NAMES OF PARTS .......................................................................................................................................................... 4

OPERATION MANUAL..................................................................................................................................................... 6

DISASSEMBLY............................................................................................................................................................... 10

REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................. 12

ADJUSTMENT................................................................................................................................................................ 13

TEST MODE ................................................................................................................................................................... 14

NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 21

TYPES OF TRANSISTOR AND LED.............................................................................................................................. 21

BLOCK DIAGRAM .......................................................................................................................................................... 22

SCHEMATIC DIAGRAM ................................................................................................................................................. 26

WIRING SIDE OF P.W.BOARD...................................................................................................................................... 34

WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 39

TROUBLESHOOTING .................................................................................................................................................... 40

FUNCTION TABLE OF IC .............................................................................................................................................. 46

LCD SEGMENT .............................................................................................................................................................. 55

PARTS GUIDE/EXPLODED VIEW

SHARP CORPORATION

– 1 –

This document has been published to be used for after sales service only. The contents are subject to change without notice.

XL-3000W

CAUTION Laser

Material:

Diode Properties

Material: GaAIAs

Wavelength: 780 nm Emission Duration: continuous Laser Output: max. 0.6 mW

●

This Compact Audio System is classified as a CLASS 1 LASER product.

●

The CLASS 1 LASER PRODUCT label is located on the rear cover.

●

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

As the laser beam used in this compact disc player is harmful to

the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT.

SAFETY PRECAUTION FOR SERVICE MANUAL

This product is classified as a CLASS 1 LASER PRODUCT.

Precaution to be taken when replacing and servicing the Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output is less than Class 1 but the laser component is capable of emitting radiation exceeding the limit for Class1. Therefore it is important that the following precautions must be observed during servicing to protect your eyes against exposure to the Laser beam.

(1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than

the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens. (2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping. (3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup. (4) Under no circumstances look directly into the Pickup Lens at any time. (5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in

hazardous radiation exposure.

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage as follows, Turn the selector with a screwdriver unit the appropriate voltage number appears in the window (110 V,127 V, 220 V or 230 V - 240 V AC).

AC POWER CORD AND PLUG ADAPTOR

QACCA0001SJ00

QACCB0001SJ00

QPLGA0250AFZZ QPLGA0253AFZZ

– 2 –

QACCE0001SJZZ

QACCL0002AW00

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

■

General

■

Amplifier

■

CD player

■

Tuner

■

Speaker

Power source AC 110, 127, 220, 230 - 240 V, 50/60 Hz Power

consumption

48 W

Dimensio ns Width: 230 mm (9-1/16")

Height: 128 mm (5-1/16") Depth: 293 mm (11-9/16")

Weight 3.2 kg (7.1 lbs.)

Output power MPO: 60 W (30 W + 30 W) (10 % T.H.D.)

RMS: 40 W (20 W + 20 W ) (10 % T.H.D.)

Output terminals Speakers: 6 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

CD digital output (optical)

Input terminals Video/Auxiliary (audio signal): 500 mV/47

kohms

Type Compact disc player Signal readout Non-contact, 3-beam semiconductor laser

pickup

D/A converter 1-bit D/A converter Frequency

response

20 - 20,000 Hz

Dynamic range 90 dB (1 kHz)

Frequency range FM: 88 - 108 MHz

AM: 531 - 1,602 kHz

Type 2-way type speaker system

5 cm (2") Tweeter 10 cm (4") Woofer

Maximum input power

40 W

Rated input power 20 W Impedance 6 ohms Dimensions Width: 140 mm (5-9/16")

Height: 288 mm (11-3/8") Depth: 187 mm (7-3/8")

Weight 2.0 kg (4.4 lbs.)/each

TO THE OPERATION MANUAL.

SPECIFICATIONS

XL-3000W

Specifications for this model are subject to change without prior notice.

– 3 –

XL-3000W

■

Front panel

1.CD Compartment

2.Volume Up and Down Buttons

3.On/Stand-by Button

4.Function Selector Button

5.Memory/Set Button

6.Bass/Treble Selector Button

7.CD Play or Pause, Tuning Up Button

8.CD Stop, Tuning Down Button

9.CD Track Down or Fast Reverse, Tuner Preset Down Button

10.CD Open/Close Button

11.CD Track Up or Fast Forward, Tuner Preset Up Button

■

Display

1.Timer Play Indicator

2.Sleep Indicator

3.CD Random Play Indicator

4.Memory Indicator

5.FM Stereo Mode Indicator

6.CD Play Indicator

7.CD Repeat Play Indicator

8.FM Stereo Receiving Indicator

9.Surround Indicato r

1

2

3

4

5

7

6

8

1

9

2 3 4

5

6

7 8 9

10 11

■

Rear panel

1.CD Digital Output Socket

2.Cooling Fan

3.Headphone Socket

4.AM Aerial Terminal

5.Aerial Earth Terminal

6.FM 75 Ohms Aerial Socket

7.Video/Auxiliary (Audio Signal) Input Sockets

8.AC Voltage Selector

9.AC Power Input Socket

10.Speaker Terminals

■

Speaker system

1.Tweeter

2.Woofer

3.Bass Reflex Duct

4.Speaker Terminals

Placing the speaker system:

There is no distinction between the right and the left speakers.

4

3

5 6

7

9 10

8

1

2

4

3

1

2

The rating label is located on the bottom of the unit.

Speaker grilles are removable:

Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.

Left speaker Right speaker

NAMES OF PARTS

– 4 –

XL-3000W

■

Remote control

1.Remote Control Transmitter

2.On/Stand-by Button

3.CD Button

4.Tuner Button

5.Timer Button

6.Clock Button

7.Memory Button

8.Dimmer Button

9.Surround Button

10.Volume Up and Down Buttons

11.Video/Auxiliary Button

12.Band Selector Button

13.Clear Button

14.Sleep Button

15.Random/Repeat Button

16.CD Open/Close Button

17.Tuner Preset Up Button

18.CD Track Down Button

19.CD Fast Reverse, Tuning Down Button

20.CD Play Button

21.CD Track Up Button

22.CD Fast Forward, Tuning Up Button

23.CD Pause Button

24.CD Stop Button

25.Tuner Preset Down Button

26.Bass Up and Down Buttons

27.Treble Up and Down Buttons

Buttons with " " mark in the illustration can be operated on the remote control only. Other buttons can be operated both on the main unit and the remote control.

1 2

3 4

5 6

7 8

9

10

11 12

13 14

15 16

17

21 22

23

18 19

20

24 25

26 27

– 5 –

XL-3000W

Setting the Clock

This may be operated only with the remote control. In this example, the clock is set for the 24-hour (0:00) display.

To confirm the time display when the power is on:

Press the CLOCK button. The time display will appear for about 5 seconds.

Note:

The time will flash at the push of the CLOCK button when the AC power supply is restored after a power failure or unplugging the unit. Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning.

To change the 24-hour or 12-hour display:

1

Press the CLOCK button and within 3 seconds, pres s the MEMORY button.

2

Within 1 minute, press the PRESET ( or ) button to select 24-hour or 12-hour d isplay and then press the

MEMORY button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59) "AM 12:00" The 12-hour display will appear. (AM 12:00 - PM 11:59) Note that this can only be set when the unit is first installed or it

has been reset.

3

Within 1 minute, press the PRESET ( or ) button to adjust the hour and then press the MEMOR Y but to n.

●

When the 12-hour display is selected, "AM" will change automatically to "PM".

4

Within 1 minute, press the PRESET ( or ) button to adjust the minutes and then press the MEMORY button.

●

The hour will not advance even if minutes advance from "59" to "00".

●

The clock starts from "0" second. (Seconds are not displayed.)

1 Clear all the programmed contents. 2 Perform "Setting the Clock" from the beginning.

Remote Control

■

Battery installation

Precautions for battery use:

●

Replace all old batteries with new ones at the same time.

●

Do not mix old and new batteries.

●

Remove the batteries if the unit will not be used for long per iods of time. This will prevent potential damage due to battery leakage.

Caution:

●

Do not use rechargeable batteries (nickel-cadmium battery, etc.)

●

Installing the batteries incorrectly may cause the unit to malfunction.

Notes concerning use:

●

Replace the batteries if the operating distance is reduced or if the operation becomes erratic. Purchase 2 "AAA" size batteries (UM4, R03, HP-16 or similar).

●

Periodically clean the transmitter on the remote control and the sensor on the unit with a soft cloth.

●

Exposing the sensor on the unit to strong light may interfere with operation. Change the lighting or the direction of the unit.

●

Keep the remote control away from moisture, heat, shock, and vibrations.

1 Remove the battery cover. 2 Insert the batteries according to the direction indicated in

the battery compartment.

When inserting or removing the batteries, push them towards the

battery terminals.

3 Replace the cover.

Troubleshooting

■

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

Caution:

●

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.

●

After the above operation, interval span setting for AM will be returned to 9 kHz (50 kHz for FM) automatically.

1 Set the unit to the stand-by mode and turn the power on

again.

2 If the unit is not restored in step 1, unplug and plug in the

unit, and then turn the power on.

3 If neither step 1 nor 2 restores the unit, do the following:

Press the ON/STAND-BY button to enter the power stand-by mode. Unplug the AC power lead from the AC INPUT socket on the unit. Whilst pressing down the MEMORY/SET button and the button, plug the AC power lead into the AC INPUT socket on the unit.

AC INPUT

OPERATION MANUAL

– 6 –

XL-3000W

System Connections (continued)

■

Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plugging the unit into a wall soc ket. If necessary, adjust the selector to correspond to the AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V

- 240 V AC).

■

Connecting the AC power lead

After checking all the connections have been made correctly, connect the AC power lead to the AC power input socket, then into the wall socket.

Notes:

●

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

●

Never use a power lead other than the one supplied. Use of a power lead other than the one supplied may cause an electric shock or fire.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used, connect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug adaptor is not included in areas where the wall socket and AC power plug can be directly connected (see illustration ).

1

2

Wall socket

System Connecti on s

Right speaker

Left speaker

FM aerial

AM loop aerial

VCR, DVD, etc.

MD recorder

not supplied

Right speaker

Left speaker

Black

White line

To a wall socket

– 7 –

XL-3000W

■

Setting the AM/FM interval

The International Telecommunication Union ( ITU) has established that member countries should maintain either a 10 kHz or 9 kHz interval between broadcasting frequencies of AM stations and 100 kHz or 50 kHz for FM stations. The illustration shows the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

This product is not equipped with a span selector. However, it will be adjusted to a 9 kHz AM (50 kHz FM) interval when shipped from the factory. Before using the unit, be sure to set it to the AM/FM tuning interval (span) used in your area.

To check the tuning span currently selected:

T o change from a 9 kHz AM (50 kHz FM) interval to a 10 kHz AM (100 kHz FM) interval:

To return to a 9 kHz AM (50 kHz FM) interval:

Caution:

●

When the unit is left for a few hours after the span has been switched and the AC power lead disconnected, the AM span will be automatically returned to 9 kHz (FM span to 50 kHz). If this happens, set the span again.

●

When the span is switched, all the memorised stations will be cancelled.

1 Press the ON/STAND-BY button to turn the power on. 2 Press the FUNCTION button until "AM" appears on the display.

●

If "AM 531 kHz" is displayed, it means that AM stations have been adjusted for a 9 kHz span and FM stations for 50 kHz span. If "AM 530 kHz" is displayed, AM stations have been adjusted for a 10 kHz span and FM stations for 100 kHz span.

1 Press the ON/STAND-BY button to enter the stand-by mode. 2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 10 kHz" and "FM SP 100 kHz" are displayed alternately.

●

The clock display will reappear.

1 Press the ON/STAND-BY button to enter the stand-by mode. 2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 9 kHz" and "FM SP 50 kHz" are displayed alternately.

●

The clock display will reappear.

System Connections (continued)

– 8 –

XL-3000W

Listening to a CD

1

Press the ON/STA N D-BY button to turn the power on.

2

Press the FUNCTION button until "CD STOP" or "NO DISC" appears on the display.

When operating with the remote control, press the CD button.

3

Press the (OPEN/CLOSE) button to open the CD compartment.

4

Place a CD on the spindle, label si de up .

Be sure to place 8 cm (3") disc in the middle of a disc holder.

5

Press the (OPEN/ CLOSE) button to

close the CD compartment.

Total number of tracks

Total playing time

6

Press the ( ) button to start playbac k fr om tr ac k 1.

When the last track on the disc has finished playing, the CD player will stop automatically.

12 cm (5")

8 cm (3")

Listening to the Radio

To receive an FM stereo transmission:

Press the FUNCTION (BAND) button to display the "ST" indicator.

●

" " will appear when an FM broadcast is in stereo.

●

If the FM reception is weak, press the FUNCTION (BAND) button to extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

FM stereo mode indicator

FM stereo receiving indicator

1

Press the ON/STA N D-BY button to turn the power on.

2

Press the FUNCTION button until "FM" or "AM" appears on the display.

When operating with the remote control, press the TUNER button, and then the BAND button to select "FM" or "AM".

3

Press the TUN ING ( or ) bu tt on to tune in to the desired station.

Manual tuning:

Press the TUNING button as many times as required to tune in to the desired station.

Auto tuning:

When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

●

This can be operated by pressing the TUN. ( or ) button on the remote control.

●

When radio interference occurs, auto scan tuning may stop automatically at that point.

●

Auto scan tuning will skip weak signal stations.

●

To stop the auto tuning, press the TUNING button again.

– 9 –

XL-3000W

(B1) x2 ø2.5 x8mm

(B4) x2

(B4) x5

(B3) x1

Main PWB

(A3) x1 ø3 x8mm

Lug

Hook (B2) x3

Hook (B2) x2

(B4) x1

CD Mechanism

Hook

Up

Slide

Top Cabinet

Bottom Cabinet

(B4) x1

Power PWB

Fan PWB

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:

1. Take compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange the leads where they were before disassembling.

4. Take sufficient care on static electricity of integrated circuits and other circuits when servicing.

(A1) x2 ø3 x10mm

Rear Panel

(A1) x3 ø3 x10mm

Top Cabinet

(A1) x2 ø3 x10mm

Figure 10-1

Fan Motor

(A3) x2 ø3 x10mm

(A4) x2 ø3 x8mm

Rear Panel

(A2) x4

Terminal PWB

STEP REMOVAL

1

Rear Panel/Terminal PWB/

Fan Motor 2. Socket ................. (A2) x4

2 Top Cabinet 1. Screw .................. (B1) x2 10-2

3 Tuner PWB 1. Screw .................. (C1) x2 11-1

4 Power PWB 1. Socket ................. (D1) x1 11-1

5 Fan PWB 1. Socket ................. (E1) x1 11-1

6 Main PWB 1. Socket ................. (F1) x1 11-1

7 Display PWB 1. Screw .................. (G1) x4 11-2

8 CD Mechanism 1. Screw .................. (H1) x4 11-2

9 Gear Box 1. Screw .................. (J1) x1 11-2

10 LED PWB 1. Screw .................. (K1) x1 11-2

PROCEDURE

1. Screw .................. (A1) x7 10-1

3. Screw .................. (A3) x3

4. Screw .................. (A4) x2 10-1

2. Hook .................... (B2) x5

3. Flat Cable............ (B3) x1

4. Socket ................. (B4) x9

2. Socket ................. (C2) x1

2. Hook .................... (D2) x1

2. Screw .................. (E2) x2

2. Screw .................. (F2) x8

2. Hook .................... (G2) x4

2. Holder.................. (J2) x1

3. Lever ................... (J3) x1

4. Screw .................. (J4) x3

5. Lever ................... (J5) x1

FIGURE

10-1,2

Note:

After removing the connector for the optical pickup from the connector, wrap the conductive aluminium foil around the front end of connector remove to protect the optical pickup from electrostatic damage.

Figure 10-2

– 10 –

XL-3000W

(H1) x4 ø2.5 x10mm

(J1) x1 ø3 x8mm

(J2) x1

(J5) x1

(J4) x2 ø2.5 x10mm

(G1) x4 ø2.5 x10mm

Hook (G2) x4

Display PWB

LED PWB

Gear Box

CD Mechanism

Top Cabinet

Holder PWB

(J3) x1

(K1) x1 ø2.5 x10mm

Bracket

(J4) x1 ø3 x8mm

Switch PWB

Power PWB

(E1) x1

(E2) x2 ø3 x6mm

Fan

PWB

Bracket

(F2) x7 ø3 x8mm

Hook

(D2) x1

Bracket

Main PWB

(F1) x1

Holder PWB

Figure 11-1

(D1) x1

(C1) x1 ø3 x8mm

(F2) x1 ø3 x14mm

Tuner PWB

Bottom Cabinet

(C1) x1 ø3 x6mm

(C2) x1

Tuner PWB

Main PWB

Net Frame ( A1 ) x1

Front Panel ( A2 ) x1

( A3 ) x2 ø4 x12mm

( A3 ) x4 ø4 x12mm

Figure 11-3

Tweeter

Woofer

Screwdriver

STEP REMOVAL

1 Speaker 1. Net Frame ........... (A1) x1 11-3

– 11 –

Figure 11-2

PROCEDURE

2. Front Panel ......... (A2) x1

3. Screw .................. (A3) x6

FIGURE

XL-3000W

(A1) x1 ø2.5 x10mm

(A1) x3 ø2.5 x12mm

(A2) x1

(A3) x1

(A4) x2 ø2 x5mm

Switch PWB

CD Lid Motor

REMOVING AND REINSTALLING THE MAIN PARTS

How to remove the CD lid (See Fig. 12-1.)

Perform steps 1,2 and 8 of the disassembly method to remove the gear box. (See page 10,11)

1. Remove the switch PWB.

2. Remove the screws (A1) x 4 pcs., to remove the gear box lid.

3. Remove the gears (A2) x 1 pc. and (A3) x 1 pc.

4. Remove the screws (A4) x 2 pcs., to remove the motor.

Caution:

Be careful so that the gear is not damaged. (The damage gear emits noise during searching.)

CD MECHANISM SECTION (See Fig. 12-2.)

Perform steps 1,2 and 7 of the disassembly method to remove the CD mechanism. (See page 10,11)

1. Remove the mechanism cover, paying attention to the pawls (A1)x 4 pcs.

2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3) x 1 pc.

3. Remove the stop washer (A4) x 1 pc., to remove the gear

(A5) x 1 pc.

4. Remove the pickup.

Note:

After removing the connector for the optical pickup from the connector, wrap the conductive aluminium foil around the front end of connector remove to protect the optical pickup from electrostatic damage.

(A1) x4

Figure 12-1

Mechanism Cover

(A2) x2 ø2.6 x6mm

CD Mechanism

Shaft (A3) x1

Gear (A5) x1

Stop Washer (A4) x1

Pickup unit

Figure 12-2

– 12 –

ADJUSTMENT

AM

GND

FM

75

OHMS

ANTENNA TERMINAL

SO301

T302

IC301

T306

T304

IC303

T351

L303

L302

VR351

TP301

FM Mute Level

AM Band Coverage fL

FM Band Coverage fL

AM Tracking fL

AM IF

FM IF

FM OSC.

FM ANT. FM RF

IC302

20

TUNER PWB-A2

1

TUNER SECTION

fL: Low-range frequency fH: High-range frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

Frequency

AM IF 450 kHz 1,602 kHz T351 *1

AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V AM 990 kHz 990 kHz (fL): T302 *1

Tracking

*1. Input: Antenna, Output: Speaker Terminal *2. Input: Input is not connected, Output: TP301

• FM Detection

Signal generator: 10.7 MHz, FM sweep generator

Test

Stage

FM IF 10.7 MHz 98.0 MHz T304(Turn Input: Pin 1 of

• FM RF

Signal generator: 1 kHz, 75 kHz dev., FM modulated

FM Band — 87.50 MHz (fL): L303 *1

Coverage 3.4 ± 0.1 V FM RF 98.00 MHz 98.00 MHz L302 *2

Frequency Display

Frequency Frequency

Frequency

(10~30 db)

Display

Frequency

Display

Setting/

Adjusting

Parts

Setting/

Adjusting

Parts

the core of IC301 T304 fully counterclockwise.)

Setting/

Adjusting

Parts

Instrument

Connection

Instrument

Connection

Instrument

Connection

XL-3000W

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Frequency

98.00 MHz 98.00 MHz VR351*1 Input: SO301 (25±1 dBµV) Output: Speaker

Display

*1. Adjust so that an output signal appears.

• Check FM VT

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Frequency

87.5 MHz 87.5 MHz 3.4 V ± 0.1 V TP301 108 MHz 108 MHz 7.8 V ± 1.0 V TP301

Display

• Setting the Test Mode

Keeping the FF/FWD button and MEMORY/SET button pressed, turn on ON/STAND-BY. Then, the frequency is initially set in the memory as shown in Table. Call it with the VOLUME UP/DOWN button to use it for adjustment and check of tuner circuit.

Preset No.

1 87.50 MHz 6 531 kHz 2 108.00 MHz 7 1,602 kHz 3 98.00 MHz 8 990 kHz 4 90.20 MHz 9 612 kHz 5 106.00 MHz 10 1,404 kHz

FM

Adjusting

Parts

Check Point Instrument

Preset No.

Instrument

Connection

Terminal

Connection

AM

*1. Input: Antenna, Output: TP301 *2. Input: Antenna, Output: Speaker Terminal

Figure 13-1 ADJUSTMENT POINTS

– 13 –

XL-3000W

TEST MODE

The test mode applied to this microcomputer has three modes, namely the ordinary test mode for adjustment or measurement, the aging test mode, and the self-diagnosis test mode for selfjudgment in case of final product inspection.

1. Turning on the test mode

For obtaining each test mode, press the ON/STAND-BY button, while keeping pressing the following two buttons in the ordinary stand-by mode (power off ). In this case, the main unit buttons are valid. When turning the ON/STANDBY on with remote control buttons, test modes are not obtained.

[Ordinary test mode]

1.CD Test Mode (TEST 1)

.......................REW/PRESET DOWN + VOLUME UP

2.Tuner Test Mode (TEST 2)

.......................REW/PRESET DOWN + CD PLAY

3.Electronic Volume Test Mode (TEST 3)

.......................REW/PRESET DOWN + FF/PRESET UP

4.Timer Test Mode (TEST 4)

.......................FUNCTION + VOLUME UP

5.LCD Test Mode (TEST 5)

.......................FUNCTION + FF/PRESET UP

6.Electric CD Lid Aging Test Mode (TEST 8)

.......................FUNCTION + CD PLAY

[Self-diagnosis Test Mode]

1. Button input diagnosis test mode (TEST6)

.......................FUNCTION + VOLUME

Processes are different depending on destinations at initial settings.

2. CD Test Mode (TEST 1)

In the CD test mode the operation of each step is possible even if the LID-SW is off. If focus cannot be taken in step 3 or any error is processed, it is impossible to proceed to the next step. During error processing, end the test mode by pressing the ON/STAND-BY button or return to the step 1 by pressing the CD STOP button. Any other operations are inhibited.

1. Step 1 Mode

When the CD test mode is obtained, the following display lights up. Then CD initialization operation flow proceeds up to CD STB off to wait for the following buttons to be pressed.

One second after display lights up

Press the following buttons in this state to obtain the operations specified below.

"POWER" .................Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD".................After the pickup returns to the

innermost periphery, it slides toward the outer periphery while this button is pressed.

"REW/REV"..............After the pickup returns to the

innermost periphery, it slides toward the inner periphery while this button is pressed. If PICKUP IN is on, input

is invalid.

"PLAY" .....................Shift to step 2

"STOP".....................Invalid

"FUNCTION"............Shift to step 5

– 14 –

* In case of initialization, the pickup is moved toward the

inner periphery. Any buttons other than "ON/STAND-BY" button are not accepted until the shift of pickup to the inner periphery is completed at this time. If PICKUP IN SW ON cannot be detected within 10 seconds, the slide motor stops, and the following error display appears. Press the ON/STAND-BY button to end the test mode, or press the CD STOP button to return to step 1. Any other operations are inhibited.

XL-3000W

2. Step 2 Mode

Press the "CD PLAY" button in this mode to transmit the laser lighting command LDON (8400) and turn on the laser. Any other operations are not performed in this case.

Press the following buttons in this state to obtain the operations specified below.

"POWER" ................ Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD" ................ The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" ............. The pickup slides toward the inner

periphery while this button is pressed.

If PICKUP IN is on, input is invalid.

"PLAY".....................Shift to step 3

"STOP" ....................Return to step 1

"FUNCTION" ...........Shift to step 5

4. Step 4 Mode

The CLV servo ON command (8600) is transmitted to wait for the following buttons to be pressed. (The disc is rotated for CLV lock.)

The time display always indicates "0:00".

Press the following buttons in this state to obtain the operations specified below.

"POWER" ................ Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD" ................ The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" ............. The pickup slides toward the inner

periphery while this button is pressed.

If PICKUP IN is on, input is invalid.

"PLAY".....................Shift to step 5

"STOP" ....................Return to step 1

"FUNCTION" ...........Shift to step 5

*If the focus is not received, the process returns to step 1.

3. Step 3 Mode

While the laser keeps lighting, CD initialization operation flow proceeds up to 'CLV servo ON' to wait for the following buttons to be pressed. (Focus servo turned on for focus search) The focus search is repeated to take focus.

Press the following buttons in this state to obtain the operations specified below.

"POWER" ................ Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD" ................ The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" ............. The pickup slides toward the inner

periphery while this button is pressed. If PICKUP IN is on, input is invalid.

"PLAY".....................If focus has been taken, shift to step

4 is executed. If not, acceptance is

inhibited.

"STOP" ....................Return to step 1

"FUNCTION" ...........Shift to step 5

*If the focus is not received after it has been taken, the process returns to step 1.

– 15 –

XL-3000W

5. Step 5 Mode

When the CD initialization operation flow is completed, the mute is turned off, and playback is started. Even if playback reaches the outermost periphery of disc, the operation does not stop. The LCD display indicates the playback passage time as in case of ordinary CD playback.

Press the following buttons in this state to obtain the operations specified below.

"POWER" ................. Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD" ................. The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" .............. The pickup slides toward the inner

periphery while this button is pressed.

If PICKUP IN is on, input is invalid.

"PLAY" .....................Invalid

"STOP".....................Return to step 1

"FUNCTION"............Shift to step 6

"MEMORY" ..............Shift to step 7

*If the is not received, the process returns to step 1.

Other cautions

• TOC IL is not available for this test mode.

6. Step 6 Mode

Press the FUNCTION button during step 5 operation to set EC/FC bit to "H" by PRESET command (9188 transmission) and to monitor BUS2 (QDRE) during idle mode. The number of errors for 1 frame (1 sub-code block in IC data) is read by read command SRC6 during "H". The number of errors accumulated in 750 frames for 10 seconds is displayed on LCD. During the display, music signal is played back.

Press the following buttons in this state to obtain the operations specified below.

"POWER" .................Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD" ................. The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" .............. The pickup slides toward the inner

periphery while this button is pressed.

If PICKUP IN is on, input is invalid.

"PLAY" ..................... Invalid

"STOP".....................Return to step 1

"FUNCTION"............Shift to step 5

"MEMORY" ..............Shift to step 7

Press FF/PRESET UP or REW/PRESET DOWN button to slide the pickup. The number of errors accumulated up to that time is cleared and addition is restarted after shift.

*If the focus is not received, the process returns to step 1.

– 16 –

XL-3000W

7. Step 7 Mode

Press "MEMORY" key during step 6 operation to display automatically adjusted values on LCD in the order as below. Item names are displayed by left alignment, and adjusted values by right alignment in hexadecimal numbers. Operations other than display are as same as those for step 5.

a) "Fb" is displayed on the left of LCD. FTBAST

command (D480) is transmitted to designate focus balance adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. After waiting 2 seconds, operation is shifted to (b).

b) "FG" is displayed on the left of LCD. FTBAST

command (D481) is transmitted to designate focus gain adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. The upper two bits, which are invalid, are displayed as "00". After waiting two seconds, operation is shifted to (c).

c) "Tb" is displayed on the left of LCD. FTBAST

command (D482) is transmitted to designate tracking balance adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. After waiting 2 seconds, operation is shifted to (d).

d) "TG" is displayed on the left of LCD. FTBAST

command (D483) is transmitted to designate tracking gain adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. The upper two bits, which are invalid, are displayed as "00". After waiting 2 seconds, operation is shifted to (e).

e) "FO" is displayed on the left of LCD. FTBAST

command (D484) is transmitted to designate focus offset adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. After waiting 2 seconds, operation is shifted to (f).

f) "TO" is displayed on the left of LCD. FTBAST

command (D485) is transmitted to designate tracking offset adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. After waiting 2 seconds, operation is shifted to (g).

g) "FF" is displayed on the left of LCD. FTBAST

command (D486) is transmitted to designate RF amplitude adjusting register. Then data read by read command SRC2 (2) are displayed in hexadecimal numbers. After waiting 2 seconds, operation is shifted to (a).

Press the following buttons in this state to obtain the operations specified below.

"POWER".................Test mode and power turned off to

shift to the ordinary standby mode.

"FF/FWD".................The pickup slides toward the outer

periphery while this button is pressed.

"REW/REV" ..............The pickup slides toward the inner

periphery while this button is pressed.

If PICKUP IN is on, input is invalid.

"PLAY" ..................... Invalid

"STOP".....................Return to step 1

"FUNCTION"............Shift to step 6

"MEMORY" ..............Shift to step 5

*If the focus is not received, the process returns to step 1.

– 17 –

XL-3000W

3. Tuner Test Mode (TEST 2)

1. Outline of tuner (radio) test mode

The tuner test mode is intended to store the adjustment and measurement frequencies in the preset memory CH. When adjusting the tuner section in the production line, adjusting personnel are not required to set frequency.

2. Details of tuner test mode

Press the "REW/PRESET DOWN" and "CD PLAY" buttons in POWER OFF state and turn on the power by the use of "ON/STAND-BY" button to preset and store frequency for adjustment and measurement of destination specified by the AREA terminal in the preset memory CH. However, Ordinary 1 and Ordinary 2 are stored in the destinations (selected by SPAN switching operation) when the test mode is obtained.

" + "MEMORY/SET" KEY SPAN CHANGE)

("FF (As for frequencies to be preset and stored for each destination, refer to item 3.) The tuner test mode is started from preset No.1. The operations of test mode are identical with the ordinary operations of TUNER function. FUNCTION switching is invalid.

It is necessary to discard the content of preset memory when the tuner test mode is ended; be sure to write "0000" or "1111" bits in the memory to be checked for judging memory error at initial setting and to initialize memory.

When the tuner test mode is obtained, the following display lights for one second.

3. Preset frequencies for various destinations (random preset memory)

CH

1 FM 87.50 MHz 2 FM108.00 MHz 3 FM FM 98.00 MHz 4 STEREO FM 90.20 MHz 5 FM106.00 MHz

6 AM 531 kHz 7 AM1602 kHz 8 AM AM 990 kHz 9 AM 612 kHz 10 AM1404 kHz

CH

16-25 26 FM106.00 MHz

27 FM 90.20 MHz 28 FM FM 98.00 MHz 29 MONO FM108.00 MHz 30 FM 87.50 MHz

BAND

FM

AMCH

FM

• The TUNER TEST2 mode is obtained with

+ MEMORY + ON/STAND-BY.

Turn off AC in the TEST2 mode to restore the initial state.

Turn off POWER to protect the memory of TEST2 mode. Turn off POWER again to obtain the ordinary operation while the data is stored in the memory (besides TUNER).

If AC OFF state is maintained in this state for about 1/2 day, start is executed in the initial state.

• To clear the whole memory, insert the AC cord, pressing MEMORY + CD PLAY.

>>

->

• The slant line sections of the table store no memory.

– 18 –

XL-3000W

4. Electronic volume Test Mode (TEST 3)

When this test mode is obtained, the following display lights for one second.

In this mode, volume is -14 dB (STEP28), BASS/TREBLE is set to 0 (0 dB) and SURROUND mode to OFF, and startup function to CD, respectively. The button operations in the test mode are the same as those of ordinary operation except volume UP/DOWN.

(1) The display is the same as that of ordinary operation

except test mode setting.

(2) Unlike the ordinary state, the volume is controlled with

the volume UP/DOWN button in accordance with the following three steps.

Volume-

Volume-14 dB (STEP 23) Volume-0 (STEP 30)

∞ (STEP 0)

<->

6. LCD Test Mode (TEST 5)

When the LCD test mode is obtained, all the LCD segments are lighted. Then pressing the "PLAY" button switches display as below.

Lighting of all segments

Lighting of odd segments

Lighting of even segments

(3) BASS/TREBLE and SURROUND are switched when

button is pressed.

5. Timer test Mode (TEST 4)

When this test mode is obtained, the following display lights for one second.

Set the current time and timer time according to the following procedure to reproduce the timer.

1.Set the current time to 1:00, the timer to ON time 1:05, the function to CD, and volume to STEP 12, respectively. One minute is counted as one second, and the timer is reproduced. The fade-in (when playback is started) is executed at a rate of one step for 1 sec. After completion of fade-in, the fadeout is executed at a rate of one step for 1 sec (WAIT 1 sec inserted).

After completion of fade-out, the power is turned off (after

WAIT 1 sec), and the mode is shifted to the standby.

The display during operation is the same as that of ordinary

timer operation.

– 19 –

XL-3000W

7. Key input diagnosis Test Mode (TEST 6)

When the test mode is obtained, the following is displayed.

This test mode is intended to check whether all the main unit buttons can be detected. Accordingly, in this test mode, it is checked whether the "ON/STAND-BY" button was pressed after all the buttons shown below were pressed. If the result is OK, OK is displayed. If any one of keys was not pressed, an error is displayed. In both cases of OK termination or error termination, the mode is shifted to the standby mode if the "ON/STAND-BY" button is pressed subsequently.

All models using this type of microcomputer are not always provided with the same buttons. Since the buttons used are different depending on models, types of buttons to be used are determined by whether RDS, SURROUND, and an electric lid are available at the initial setting by MODEL port.

The order of buttons to be pressed is not determined. Accordingly, it is checked whether all buttons have been pressed.

1. PU-IN buttons: REW/PRESET DOWN + CD STOP Since this model is provided with SURROUND (HAVE OR NOT), RDS (HAVE OR NOT), and electric CD lid, the following 10 buttons are detected as all buttons. PLAY, BASS/TREBLE, FUNCTION, VOLUME UP/ DOWN, MEMORY/SET, REW, FF, STOP, CD-OPEN/ CLOSE

The OK/NG display of test result is as follows.

8. Electric CD lid Aging Test Mode (TEST 8) (Only for model with electric CD lid)

Outline OPEN/CLOSE operations of electric CD lid are repeated. The number of repeated times and time period are monitored. If the lid does not move to the regular position after the specified time, operation is stopped. When an error is detected by [CLID_PRO] during CLOSE, operation is also stopped.

a. POWER ON for function AUX

CD lid position is checked.

CLOSE position: Operation proceeds to the next

process.

Position other than CLOSE:After the lid moves to

CLOSE,operation proceeds to the next process.

b. CD lid operation started

OPEN operation

WAIT 1 second CLOSE operation WAIT 1 second

c. Operations above are repeated.

Specified monitoring time

OPEN operation: 5 seconds CLOSE operation: 5 seconds

d. Display

OPEN>CLOSE is counted as 1. I to 59999 are counted; if the count is over 59999, display is returned to 0 to repeat counting.

Display when the lid does not move to the regular position after the specified time (Ex: Defective operation occurring in the middle of

1538.)

– 20 –

Highlight display of stop when an error is detected by [CLID-PRO] (Ex: Defective operation occurring in the middle of

1538.)

NOTES ON SCHEMA TIC DIAGRAM

XL-3000W

• Resistor: To differentiate the units of resistors, such symbol as K and M are used: the symbol K means 1000 ohm and the symbol M means 1000 kohm and the resistor without any symbol is ohm-type resistor. Besides, the one with “Fusible” is a fuse type.

• Capacitor: To indicate the unit of capacitor, a symbol P is used: this symbol P means micro-micro-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression “capacitance/withstand voltage” is used. (CH), (TH), (RH), (UJ): Temperature compensation (ML): Mylar type (P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this model are subject to change for improvement without prior notice.

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

NSW801 PICKUP IN ON—OFF SW651 VOLTAGE SELECTOR 110V SW709 ON/STAND-BY ON—OFF SW710 CD LID OPEN/CLOSE ON—OFF SW711 FF/PRESET UP ON—OFF SW712 CD PLAY/PAUSE/TUNING UP ON—OFF SW713 VOLUME UP ON—OFF

• The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.

1. In the tuner section,

( ) : AM mode

: FM stereo mode

2. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

SW718 VOLUME DOWN ON—OFF SW721 BASS/TREBLE ON—OFF SW722 MEMORY/SET ON—OFF SW725 CD STOP/TUNING DOWN ON—OFF SW726 REW/PRESET DOWN ON—OFF SW727 FUNCTION ON—OFF SW802 CD LID ON—OFF

FRONT

VIEW

ECB

(S)(G)(D)

(1) (2) (3)

2SB562 C 2SC535 C 2SK246 GR KRA102 M KRC102 M KRC104 M KRC107 M KTA1266 GR KTA1268 GR KTC3199 GR KTC3200 GR

FRONT

VIEW

BCE

2SD2012 Y

Figure 21 TYPES OF TRANSISTOR AND LED

DB5306X

FRONT VIEW

1 2 3

SVC348S KDV147C

– 21 –

XL-3000W

A

DI

T

E

T

IC805

TA7291S

CD LID

MOTOR DRIVER

CNP702

CLID_UP

CLID_PRO

CLID_DW

9

1

5

23

+B4

FROM

DISPLAY PWB

8

7654321

9

CLID_SW

BUCK

BUS2

BUS3

CCE

CD_RES

Q802

8

6

7

10

12 13 14 15

11

BUS0

BUS1

PU_IN

LIGHT

CD_STB

DIMMER

5V

7

MUTE

VCC

6

REG O

BIAS

Q861

5

TRB

VG1

VIN1

VG4

VIN4

VO4+

+B7

8

9910111213

VG2

GND

OPO

PO1-

PO1+

16 17 18 19 21 22 23 24 25 26 27 28

VO2-

VO3-

VO2+

VO3+

VIN2

VIN3

VG3

GND

VCC

Q901 Q902

Q908 Q907

CD_7V

+B2

1234

IC804

VO1-

VO1+

MM1469XH

FOCUS/TRACKING/

SPIN/SLED DRIVER

VO4-

GND

+B4

M_GND

LED PWB

SWITCH PWB

SW802 CD LID

OPEN/CLOSE

M801

CD LID

OPEN/CLOSE

MOTOR

M

+

NM802 SPINDLE

M

MOTOR

–

SP+ SP– SP+

+

M

–

NSW801 PICKUP IN

NM801 SLED MOTOR

SL– PU-IN GND

CD MOTOR PWB

VIDEO/AUX

M802 FAN

MOTOR

M

SO401 INPUT

CNP807

FROM

FAN PWB

J801

DIGITAL

OUT

11 10

CNP307

SD

R-CH

L-CH

CNP810

1 2

1 2 3

TERMIN

PWB

FM ST

TUN

9 8 7

CL

DO

CE

X801

16.93MHz

+B7

5355

FMO

DMO

90

BUS0 BUS1

91

BUS2

92

BUS3

93

BUCK

96

/CCE

97 100

/RST

SERVO/SIGNAL CONTROL

XI

78

XO

79

14

VDD

23

VDD

39

AVDD

62

VDD

76

VDD

80

XVDD

94

VDD

AVSS

IC802

TC9462F

VSS

TESIOO

TESIN

TESI01

6152436 63 71 72 73 74 77 95 81 86

VSS

2VRO

IC801

TA2109F

TEO TEN

TEB

SEL

LDO

MDI TN1

FNI

VCC

TPI FPI

FO TR

12 11 10

9 8 7 6 5 4 3 2 1

+B7

E F B A

C

+B7

SWITCHING

Q801

+B2

DOUT

82

RO

85

LO

57

SEL

56

2VREF

TEBC

52

RFGC

51 50

VREF

TRO

49 48

FOO

47

TEZI

46

TEI

TSIN

45 44

SBAD

43

FEI

RFRP

42

RFCT

40

RFI

38 34

VCOREV

33

PVREV

LPFO

32

LPFN

31 30

TMAX

28

PDO

P2VREF

25

XVSS

VSS

PXI

DVSR

DVSL

13

SBAD

14

FEO

15

FEN

16

VRO

17

RFRP

18

RFIS

19

RFGO

20

RFGC

21

AGCI

22

RFO

23

GND

24

RFN

D_GND

SERVO PRE AMP.

PICKUP UNI

FOCUS COIL

TRACKING COIL

LD

MON

1/2V

M_GND

A_GND D_GND

Figure 22 BLOCK DIAGRAM (1/4)

– 22 –

+B7

5V

XL-3000W

FM

ST

TO

TUNER PWB

10 9 8 7 6 5 4 3 2 1

DI

CL

CE

DO

A_12V

+B6

TUN L

D_GND

TUN R

A_GND

+B7

1 2 3 4 5 6

SD

STEREO

INAL

B

+B1

UNIT

CNP652

1 2

FROM

DISPLAY PWB

+B2

+B3

+B4

+B5

DISPLAY PWB

CL

CE

DO

VOLTAGE

REGURATOR

A_24V

CD +B

5V

Q903

FROM

7 8 9 10

DI

CD +B

+B3

Q904

CD_6R2V

VOLTAGE

REGURATOR

M_12V

P_STB

P_MUTE

A_24V

D_GND

+B1

MUTE

Q601 Q602

D651~D654

A_GND

D657~D660

Q606 Q607

Q605

13 12 11

5V

CNP703

+B5

–B

D_GND

Q608 Q609

F651

T3.15A L 250V

F652

T3.15A L 250V

F653

T1.25A L 250V

SURROUND ON/OFF

SURROUND

AUX R TUN R

CD R

CD L TUN L

AUX L

15

16

IC401

Q203

14

13 12

18

17

LC75342M

FUNCTION/VOLUME

EQUALIZER

IN2

+VCC

IN1

L-CH

T2.0A L 250V(AC)

CNP801

1 2 3 4 5

PRE

15 13 12 11 10 9 8 7 6 4 1

R-CH

+B

F654

T3.5A L 50V(DC)

TF

Q101 Q104

1 2 3 4 5

REGULATOR

4

USWD_5R6V

3 2

D_GND

1

FROM

DISPLAY PWB

CNP707

P_CONT

10

11

19

20

21

IC601

STK40202

POWER AMP.

–VCC

+VCC

–B

Q102

IC681

KIA7805API VOLTAGE

3

2

D688

1N4004

9

22

1

R-CH IN

R-CH OUT

76

5

Q201

4

3

L-CH IN

R-CH OUT

4 3 2 1

6

5

VSS

NC

26

25

27 28

–VCC

PRE

L-CH

+VE1

–VE1

R-CH

+VE2

–VE2

23

8

7

24

L-CH OUT

Q103

T651

POWER

TF

TRANSFORMER

(MAIN)

Q681

VOLTAGE

REGURATOR

D681~D684

+B6

A_12V

8

IC201

12

L-CH OUT

CE

DI

LOGIC

VDD

29

30

CL

A_12V

+B6

GND

CNP651

KIA4558P

SURROUND CONTROL

M_12V

+B4

R-CH L-CH

5V

+B5

1

3 5 5 7 7 9 9

1

3

+

1 2 3 4 5

Q683

RLY601

110V

127V

220V

SO601

SPEAKER TERMINAL

L-CH

R-CH

J601 HEADPHONES

3 2 1 4 5 9 10

CNP808

CNW808A,B/

CNS808

TO FAN PWB

230~240V

+B6

MAIN PWB

A_12V

Q603 Q604

Figure 23 BLOCK DIAGRAM (2/4)

– 23 –

POWER PWB-B

AC 110/127/220/

230~240V, 50/60Hz

T681

POWER

TRANSFORMER

(SUB)

AC 110/127/220/

230~240V, 50/60Hz

AC POWER SUPPLY CORD

SO655

AC INPUT

SOCKET

SW651

VOLTAGE SELECTOR

XL-3000W

STEREO

FM

H

S

C

T

D

U R

E

I

E

H

E

E A

+

75ohms

ANTENNA TERMINAL

GND

FM

AM

SO301

BAD PASS FILTER

BF301

2

1

3

AM Tracking fL

+5V

1

L302

FM ANT.

FM RF

AM Band Coverage fL

2

3

FM +B

T302

T306

IC301

TA7358AP

FM FRONT END

4

56 7 9

FM IF

T304

FM +B

VD303

L303

FM OSC.

FM Band Coverage fL

VD301

8

FM +B

VT

VD302

FM IF

CF303

Q302

Q306

+5V

TP301

FM MUTE

LEVEL

VR351

FM IF

CF302

X352

4.5MHz

23 22 21 20 19 1824

OUT

AM OSC

AM MIX

IN

FM IF

IC302

LC72131

AM OSC

OUT

IN

AM RF

FM AFC

REG

AM IF

CF352

T351

+5V

22 21 20 19 18

VSS

AOUT

X OUT

X IN

CEDICL

PLL(TUNER)

VSM

AM IF

IN

CUT

FM/AM

AM LOW

SD

GND

654321

AIN

DO

OUT

PD

765431

CNS707CNS652

1 2

TO

3 4

POWER PWB

1

TO

2

MAIN PWB

DISPLAY PWB

CNW707

D_GND

1

P_CONT

2

USWD_5R6V

3

LAMP PWB

LMP701

GND

SW711~713 SW718 SW721,722 SW725~727

SW709 SW710

RESET

Q701

Q702 Q703

X701

8MHz

X702

32.768kHz

RX701

REMOTE SENSOR

VLC3

5

6

VLC2 VLC1

7 8

VDD OSC2

9

OSC1

10 11

VSS XI

12

XO

13 14

MMOD

15

VREF– VREF+

24 16

CLID_SW

17

KEY1

18

KEY2

P–CONT

47

Q707

SWITCHING

LCD701

LCD DISPLAY

38541

1

4

COM3

COM0

SYSTEM MICROCOMPUTER/

RESET

Q708

SWITCHING

Q706

SYS_STOP

POWER

3837

REMOCON

39 46 49 5032

Q709

100

67

SEG0

SEG33

IC701

IX0039SJ

FL DRIVER

DI

A_24V

CLDOCE

28272625

CLID_

CLID_P

CD_R

C BU BU BU BU BU

CD_S

PU-

LIG

DIMM

B-LIG

AMP_D

F

MOT_D

CD+B

SURR

P–STB

P–MUTE

STEREO

SD

454443

5V

Figure 24 BLOCK DIAGRAM (3/4)

– 24 –

FM

AFC

X

OUT

X

IN

S

C

SEG33

X351

456kHz

21 20 19 18 17 16 15 14 13

IN

AM RF

IF

AM IF

CF352

1

VSM

AM IF

IN

CUT

FM/AM

AM LOW

SD

GND

OUT

FM DET

STEREO

MPX VCO

VCC

CF351

+5V

MPX IN

IF OUT

R-CH

PHASE

+5V

22120 19 18 171615 141312

PD

VSS

AOUT

AIN

CEDICL

VDD

FM IN

FM

DO

MUTE

AM IN

FM

MO/ST

IF IN

IF REQ

111098765431

OUT

L-CH

OUT

SWITCHING

Q351

MO/ST

(AM/FM)

PHASE

121110987654

IC303

LA1832S

FM IF DET/

FM MPX/AM IF

+5V

FM +B

ZD351

Q360

VOLTAGE

REGURATOR

+B

TUNER PWB

SD

FM ST

DO

CL

CE

DI

A_12V

D_GND

TUN_L TUN_R

A_GND

CNS307

XL-3000W

11 10 9 8

7 6

TO

5

MAIN PWB

4 3 2 1

701

PLAY

8

7

J

OMPUTER/

R

L

CE

SURR

28

7

4V

5V

P–STB

454443

CD+B

P–MUTE

46 49 50

CLID_DW

CLID_UP

CLID_PRO

CD_RES

CD_STB

PU-IN

LIGHT

DIMMER

B-LIGHT

AMP_DEC

MOT_DEC

STEREO

SD

CCE BUCK BUS3 BUS2 BUS1 BUS0

FAN

CNW702

57 56 20

59 66 65 64 63 62 61 60 58 53 54

51 52

55 21

CLID_DW

CLID_UP

CLID_PRO

CLID_SW

CD_RES

CCE

BUCK

BUS3 BUS2 BUS1 BUS0

CD_STB

PU-IN

LIGHT

DIMMER

STEREO

SURROUND

CNW809

CD+B

P_MUTE

P_STB

A_24V

D_GND

CNW703

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

1

2

3

SD

1

2

DO

3

CL

4

CE

5

DI

6

7

8

9 10

11 12

5V

13

CNS702

10 11 12 13 14 15

AMP_DEC

FAN

MOT_DEC

CNS703

10 11 12 13

1 2 3 4 5 6 7 8 9

TO

MAIN PWB

CNS809

TO

MAIN PWB

FAN PWB

Q803

1 2 3

+B4

Q804 Q805 Q806 Q807

+B4

CNP808

+12V R-CH

L-CH

5V GND

1 2 3 4 5

FROM

MAIN PWB

TO

FAN MOTOR

Figure 25 BLOCK DIAGRAM (4/4)

– 25 –

XL-3000W

P STB

P

P31 12-E

11 10 9 8 7 6 5 4 3 2 1

1 2 3

CNW607

CNP307

R402

1K

R401

1K

SD

FM ST

A

J801

DIGITAL OUT

B

SO401 VIDEO/ AUX IN

C

TERMINAL PWB-A4

1 2 3

C853

0.0047

R-CH

L-CH

R405

27K

R406

27K

C411 330P

C412 330P

C851

100/10

R407

R408

2.7K

L802

0.82µH

C852

0.0022

L401

2.2µH

CNP805

CNP810

CNP807

CNP607

C413

0.0047

FROM MAIN PWB-A1(2/2)

3 2

CNS805

1

P28 1-G

CFW852

TO CHASSIS GND LUG(205)

1

2

FROM FAN PWB-D

1

CNS807

2

P38 6-C

1

2

3

CNS607

CFW451

TO CHASSIS GND LUG(205)

M

M802

FAN

MOTOR

CHASSIS GND

CNS307

CL

CE

DO

+B

TO TUNER PWB-A2

DI

A_12V

TUN L

TUN R

D_GND

A_GND

P33 12-F,G

CNS703

123456

CL

SD

DO

STEREO

CE

FRO DIS

78

DI

CD +B

P_MUTE

D

F651

CNP801

Q683

R686

47K

T3.15A L 250V

F653

T1.25A L 250V

D685

1N4004

RLY601

0.11V

0V

F652

C660

C657

0.1

E

F

1N4004

FROM

DISPLAY PWB-A3

4 3 2 1

CNS707

P32 1-E,F

CNP707

230~240V

220V

127V

110V

0V

1

3 5 5 7 7 9 9

1

3

D686

REGULATOR

5.7V

USWD_5R6V

D_GND

P_CONT

TF

IC681

KIA7805API VOLTAGE

3

2

0.6V

C665

0.047

D688

C688

1N4004

0.047

T651

POWER

TRANSFORMER(MAIN)

CNP651

ZD684 MTZJ16C

1

9.2V

ZD683

MTZJ16C

R688

1K

R689

C689

0.47/50

1K

1

2

3

4

5

D689

1N4004

R687

2.7K

9.2V

0.7V

Q681

0V

KTC3199 GR

0.72V

R685 10K

G

D681

D682

1N4004

C661

0.001

NOT

CONNECT

POWER PWB-B

H

C683

2200/16

D683

1N4004

D684

1N4004

T681

POWER

TRANSFORMER

(SUB)

SO655

AC INPUT SOCKET

AC 110/127/220/

230~240V, 50/60Hz

• NOTES ON SCHEMATIC DIAGRAM can be found on page 21.

0.1

C651

0.1

C654

0.1 D657

1N4004

D660

1N4004

110V

127V

220V

SW651 VOLTAGE SELECTOR

230~240V

D654

1N5402M

D658

1N4004

D659

1N4004

D653 1N5402M

D652 1N5402M

D651

1N5402M

–B1

0.1

C658

0.1

C659

+B

+B2

C630 4700/25

+BGND

+B

20V

820

R628

R629

100

C620

AC POWER SUPPLY CORD

20V

12.2V

20V

13V

470/25

1N4004

KRC107 M

4.8V 3

0V

11.7V

Q605 2SD2012 Y

R619 47

2SD2012 Y

12.3V

Q603

KTC3200 GR

ZD601 DZ130BSA

C126

2200/35

D901

Q609

1

Q604

R617

33K

+B

+B1

C125

2200/35

R612

820

32

0V

Q608 KRA102 M

1N4148

47

R620

100/25

C901 220/50

9.4V

1

470/25

R623

11.7V

D602

R624

D603

1N4148

C621

2

C629

22K

D902

1N4004

R910

2.7K

C902

220/50

Q607

2SD2012 Y

20V 7.1V

7.9V

Q606

KTC3200 GR

7.7V

9.4V

9.3V

R611

100

ZD602

DZ8.2BSC

C624

0.022

C625 10/16

C622

0.022

CNP652

AC 110/127/220/

230~240V, 50/60Hz

Q904

KTC3200 GR

38.9V R911

100 C903

10/50

ZD901

DZ24BSD

47

R614

R613

33K

100/25

+B

R913

1

D604

C626

10

2

24.4V

24.9V

1N4148

KTC3199 GR

11.2V

R912

470

+B

C904 10/50

R621

22K

C627

Q903

5.6V

ZD902

DZ5.6BSB

P32 1-F

CNS652

+B

0.022

4.9V

+B

C628

10/16

C906

+B

100/10

+B

–B

+B

C905

+B

FROM DISPLAY PWB-A3

1

23456

Figure 26 SCHEMATIC DIAGRAM (1/9)

– 26 –

XL-3000W

C628

P33 12-F,G

CNS703

123456

CL

SD

DO

STEREO

+B

10/16

B

+B

V

C905

100/10

C906

100/10

FROM DISPLAY PWB-A3

78910

DI

CE

CD +B

P_MUTE

+B

–B

+B

P_STB

A_24V

D_GND

+B

131211

5V

AUX R

AUX L

CNP703

SURROUND

R634

3.3K

C603 33/16

R607

6.8K

A GND

Q203

KRC107 M

3

0V

1

0V

Q601

KTC3199 GR

0.6V

R603

10K

0V

0.6V

R604

10K

Q602

KTC3199 GR

CD SIGNAL

FM SIGNAL

2

4.44V

C408 10/16

C404 10/16

C402

TUN R

10/16

CD R

IC401 LC75342M FUNCTION/

VOLUME

EQUALIZER

C401 10/16

CD L

TUN L

AUX L

L

R

R608

1K

IN1

1K

R609

0.1V

0V

R103 1K

0V

R101 39K

0V

R122

1K

Q104

KTC3200 GR

R118

47K

1.2V

R119

C120

33K

220/16

C212

0.0033

10K

R206

5

R207

47K

D201

1N4148

R416

1K

0V

15 14 13 12 11 10

16 17 18 19 20 21 22 23 24 25 26 27 28

5V

C403 10/16

C407 10/16

0V

PRE

N.C.

NF1

R111

1K

0.1V

20.6V C107

C105

100/50

470

R105

0.0015

C103

10/50

R115

56K

C101

10/50

Q102

KTA1268 GR

R123

10K

R121 10K

0.6V

R120

1K

4.8V

1K

R415

+VCC

–18.9V

C109

3P

KTC3200 GR

0.6V

0V

G

Q201

2SK246 GR

L2L3L4

4.8V

R2

R1 L1

4.8V

R417

1K

R423 1K R424 1K R425 1K

+VE1

BIAS

R109 22K

R113

100

R124

47K

Q103

Q101 KTC3200 GR

D

5V

IC201

KIA4558P

SURROUND

S

CONTROL

5V

1K

R418

R422

0V

4.8V

R4

R3

0V

4.8V

1K

R421

C415

IC601

STK40202

POWER AMP.

21.8V

+VCC

–VE1

C116

0.022

C112

C111

10/50

+B

5.1V

4 3 2 1

0V

C211

0.0033

R438

6.8K C420

0.0027 R440

C418

2.2/50

C416

10/16

4.8V

10/16

–B

C422

0.1(ML)

9 8 7 6 5 4 3 1

LIN

LSL0

LTRE

4.8V

RTRE

RIN

RSL0

C421

0.1(ML)

C417

2.2/50

6.8K

C419

R437

0.0027

–VE2

+VE2

–VCC

–21.7V

9 8 7 6 5 4 2 1 3

C114

100/50

100

R114

C102 10/50

F654

T3.5A L 50V(DC) T2.0A L 250V(AC)

TF

C113

0.022

R212

2.7K

6

5.1V

10K

R205

3.9K

C424

LBS1

LBS2

4.8V

RBS2

RBS1

4.8V

C423

R439

3.9K

GND

–VCC

PRE

0V

20.2V

470

R106

C104

R102

39K

C214

4.7/50

R214

12K

R211

C426

0.1(ML)

4.8V

LOUT ROUT

4.8V

0.1(ML)

NF2

C108

0.0015 1K

R108

C106 10/50

3P

R104

56K

C204

1/50

R216

12K

5.1V

2.7K

C213

C203

1/50

10/16

0V

TEST

0V

C425

10/16

C429

IN2

15 14 13 12 11 10

0.1V

R110 1K

R865 100K

MAIN PWB-A1(1/2)

C202

0.0056

R204

100K

R218

C216

12K

1/50

7

8

10.2V

10K

R209

R210

C215

R217

1/50

12K

5.1V

R215 12K

R213

4.7/50

33/16 CL

DI CE

0.1V

0V

4.8V

R864

100K

VSS

VREF

12K

R203

0.14V

2

CE

29 30

9.6V

C430

100/16

1N4004

100K

VDD

1N4004 D401

C110

0.001

L603 10µH

D402

+B

R201

8.2K

0.14V

DI

CL

4.8V

CD_L A_GND CD_R M_GND M_12V CD_GND CD_6R2V

C201

0.0056

D403

C614

0.1 C616

0.1

CNW808A

R-CH

L-CH

5V

GND

M_12V

C209

47/16

1N4004

R637

4.7

C615

0.1

2 1

8

1 2 3 4 5 6

R202

8.2K

R208

C208 100/16

10K

7

330

C433 220P

C432 220P

C431 220P

R638

C613

0.1

4.7

R662

+B

L601

3µH

C640

0.0047

L602

3µH

330

R661

P28 1-F

P29 11-C,D

C639

0.0047

CNS808

SO601

SPEAKER TERMINAL

+

L-CH

R-CH

+

CHASSIS GND

J601 HEADPHONES

3 2 1 4 5 9 10

1 2 3 4 5

CNP808

P38 5-B

TO MAIN PWB-A1(2/2)

TO

FAN PWB-D

-F

FROM

52

DISPLAY PWB-A3

7

8 9 10 11 12

Figure 27 SCHEMATIC DIAGRAM (2/9)

– 27 –

XL-3000W

B

0

Q

R

0 7

A

15

B

C

14 13 12

FROM

DISPLAY PWB-A3

11 10

9 8 7

CNS702

6

P33 12-C,D

5 4 3 2 1

CNP702

R836

R834

R832

R830

KR 3

4.1V

IC805

0V

11.6V

1234

DIMMER

LIGHT PU_IN

CD_STB

R837 1K

1K

R835 1K

1K

R833 1K

1K

R831 1K

1K

BUCK

BUS2

BUS0

BUS1

BUS3

CCE

CD_RES

CLID_SW CLID_PRO CLID_UP CLID_DW

R813 10

+B

0.57V0V0V

R873

3.3K

C872

0.1

+B

11.6V

6

5

7

C871

6.1V

4.6V

4.8V

8

9

MOTOR DRIVER

47/16

R874

Q802

2.2K KRC102 M

0V

TA7291S

CD LID

R879

3.3K

23

4.5V

1

R9

0V

4

1

0V

4.4V

Q908

KRC102 M

+B

3

2

+

L803 10µH

D

E

F

G

8

P27 11-G

TO MAIN PWB-A1(1/2)

TO

TERMINAL PWB-A4

3 2 1

CNP805

CNS805

P26 3-A,B

CCE

CD_RES

BUCK

3 2 1

BUS2

BUS3

R855

100K

R854 100K

CNW805

BUS1

R853

100K

BUS0

R852

100K

R819 220

+B

C864 220P

+B

R815

C831

10/16

C830

0.056

C840 100/10

C866 220P

10K

C868 220P

C836

R817 1K

C833 470P

C862

0.001

100/10

C835

0.056

C837A 100/10

R818 1K

C834 470P

R816 10K

C832 10/16

C828 100/10

C869 220P

C867 220P

C865 220P

C837 470P

2.4V

2.3V

2.4V

4.3V

3.3V

4.9V

0V

0V 5V 5V 5V

5V 0V 4V

5V 5V

C887

0.0027

C825

0.056

X801

16.93MHz

R820

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1K

DVDD DVR LO DVSL TEST1 TEST2 TEST3 BUS0 BUS1 BUS2 BUS3 VDD VSS BUCK /CCE TEST4

TESTO

5V5V5V

C826

2.6V

XVDD

15P(CH)

XO

/HSO

C824

0.056

C827

15P(CH)

0V0V5V

2.2V

5V

XI

PXI

PXO

VDD

XVSS

81

DVSR

82

RO

17

16

/TSMOD

99 100

/RST

UHSO

EMPH

LRCK

VSS

BCK

0V0V0V0V0V

1.4V

2.5V R851

330

L806 10µH

C823

0.01

0V

0V0V0V

0V

0V0V0V0V0V

5V

VSS

TESIN

/DACT

/CKSE

TESI01

/DMOUT

TC9462F

SERVO/SIGNAL CONTROL

AOUT

DOUT

MBOV

IFP

SBOK

CLCK

5V

1.2V

5V

2.5V

5V

I00

I01

I02

I03

VSS

VDD

IC802

VDD

VSS

DATA

SFSY

SBSY

SPCY

0V0V0V0V0V

2.4V

0.6V

FLGD

SPDA

13

C820

0.01 C829

100/10

0V

1.7V

C822 220/10

5V

FLGC

14

COFS

0V

FLGA

FLGB

4

MONIT

VDD

5V

+B

2.5V

SEL

50 49

7

TESIOO

0V

4.3V

2.2V

4.3V

2VREF

VREF TRO

P2VREF

15

DMO

6

5

HSSW

2.1V

C838

0V

11

ZDET

0V

47/10

R812

3.3K

2.1V

53 52 515556 54585960616272 71 70 69 68 67 5766 65 64 6380 79 78 77 76 75 74 73

FVO

FMO

1

VCOREV

PVREV

PDO

28 29 302625 2723222120199 1011121314 2415 16 17 1812345678

2.1V

TEBC FOO

TEZI

TEI

TSIN

SBAD

FEI

RFRP

RFZI

RFCT

AVDD

RFI

SLCO

AVSS

VCOF

TMAXS

2.1V

R801 10K

R811

2.2K

1.8V

2.1V

R814

3.3K C819

C818

0.1

RFGC

TMAX

0.1

R810

3.3K

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

L801

10µH

C821

0.1

C817

0.1

C810

R809 10K

R808

3.3K

2.1V

R806 15K

C807

0.033

C806

0.0047

C804

0.01

C801 100P

C809

0.0047

C802

0.015

R807 10K

C805

0.0027

C803 47/10

0.001 C811

47/10

C812

0.01

C863 470P

C813

100/10

+B

C850

2.1V

2.2V

2.1V

2.2V

2.1V

2.1V 5V

2.1V

2.1V 0V

1.4V

2.1V

2.1V LPFO LPFN

2.1V

12

R804 100K

R802 47K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 21.

• The numbers 1 to 17 are waveform numbers shown in page 39.

1

23456

Figure 28 SCHEMATIC DIAGRAM (3/9)

– 28 –

XL-3000W

4.4V

Q908

KRC102 M

+B

11.4V 10.7V

Q902

Q901

R902

KRC102 M

47K

23

0V

4.1V

R901

1

2.2K

0V

11.4V

10.6V

R905

0V

1

0V

3

2

L803 10µH

L801

Q907

47K

KTA1266 GR

10.7V

R904

2.2K

+B

10µH

11.4V

KTA1266 GR

+B

C858

0.01 C857

47/16

CD SIGNAL

0V0V6.5V

3.1V

3.2V

GND

OPO

VO2-

VO2+

IC804

PO1-

PO1+

VO3-

VO3+

15 16 17 18 19 20 21 22 23 24 25 26 27 28

MM1469XH

0.8V1V3.2V

FOCUS/TRACKING/

3.2V

SPIN/SLED DRIVER

R862

2.1V

VIN2

VIN3

2.2K

2.1V 91011121314

VG2

VG3

2.1V

0V 8

7.0V

+B

GND

VCC

R863

2.2K

2SB562 C

5V

4.8V 6

7

MUTE

VCC

2.1V

7.0V

Q861

5V

REG O

BIAS

6.4V

6.4V 5

2.1V

VG4

TRB

2.1V

7.1V

R861

2.3V

VG1

VIN4

3.2V

MAIN PWB-A1(2/2)

+B+B

2.2K

1.9V

4.4V 1234

VIN1

VO1-

VO1+

C859

470/10

C860

0.1

VO4+

VO4-

GND

3

3.2V

2

R877 68K

C870

0.001

CNS701

121

CNP701

CNS806

CNP806

1 2 3

R876 150K

CNP804

CNS804

212

+B+B

CD_L

1

A_GND

2

CD_R

M_12V

D_GND

3 4 5 6

7

CNW803 6

5 4 3 2 1

M_GND

CD_6R2V

R843

1K

SP+ SP+ SP–

SL+ SL–

PU-IN

GND

1

22

1

2

3

CNW804

1

TO

P27 11-G,H

MAIN PWB-A1(1/2)

CNS803

6 5 4 3 2 1

LED PWB-A6

R914

CNW701

470

D801 DB5306X

SWITCH PWB-A5

SW802

CD LID

OPEN/CLOSE

CNW806

M

M801

CD LID

OPEN/CLOSE

MOTOR

CD MOTOR PWB-C

+

NM802 SPINDLE

M

6 5 4 3 2 1

CNP803

SP– SP+ SL– PU-IN GND

MOTOR

–

+

NM801 SLED

M

MOTOR

–

NSW801 PICKUP IN

811 7/10

C812

0.01

C863 470P

C813

+B

100/10

C850

7

220/10

C848 39P

C844

0.0068

R823 1K

R824 27K

2.2V

C845 100/10

R826

2.7K

R828

1.2K R827

R829

39K

68K

C849

C855

0.056

100/10

+B

2.1V

15

2.1V

16

C846

2.1V

17

0.1

2.1V

18

2.1V

19

C847

2.1V

20

0.1

2.1V

21

1.7V

22

0V

23

2.1V

24 C839 2P

SERVO PRE AMP.

TA2109F

2.1V

13

R825

2.2V

14

82K

10

9

8

IC801

2.1V

4.3V

2.1V

2.5V

3.4V

2.1V

12 11 10

9 8 7

0V

6 5 4 3 2

5V

1

3.4V

C841

100/10

+B

R822 33

4.1V Q801

KTA1266 GR

2V

C842 47/10

+B

C843

0.1 R80C

82K

R80G 68K

R821 150

R80E 82K

R80A 82K

R80F 82K

R80B 68K

CNP802

FOTR+ TR-

FO+

PD VR

LD

GND

+5V

VREF

PICKUP UNIT(308)

CNW3 16 15 14 13 12 11 10

9

F

8

C

7

B

6

A

5

C

4

E

3 2 1

FO–

16

TR+

15

TR–

14

FO+

13

PD

12

VR

11

LD

10

GND

9

F

8

C

7

B

6

A

5

C

4

E

3

+5V

2

1/2V

1

VCC

TR-

1/2VCC

F

B A

E

C

GND

MON

LD

FOTR+

PO+

ACTUATOR

+

-

+

-

8 9 10 11 12

Figure 29 SCHEMATIC DIAGRAM (4/9)

– 29 –

XL-3000W

21V

26V

(

REG

C360

C

7

A

B

C

D

E

AM

GND

FM

75ohms

SO301 ANTENNA TERMINAL

F

CHASSIS GND

G

C301

0.012

C349

0.001

C302

0.001

D301

1N4148

D302

1N4148

D306

1N4148

BF301

BAND PASS

FILTER

2

1

C304

0.01

T302

AM Tracking

C330

12P(CH)

C329

0.022

C335 560P

R323 68K

T306

AM Band Coverage

C337

0.022

IC301

TA7358AP

FM FRONT END

KDV147C

R303 33K

5.2V

FM OSC.

C311 10P(CH)

R304 47K

0.8V

T304

L303

Band

Coverage

FM

R315 33

FM IF

R307 47

C313

Q302 2SC535 C

2.4V

0.13V

R310

4.7K

4.4V

6P(UJ)

C312 33P

VD302

R308 10K

C315 100P

3.8V

KDV147C

5.2V0V1.5V

1.5V

0.8V

123 4 56 7 8 9

C318

L302

FM ANT.

C306

C307

0.0047

C308

7P(UJ)

0.022

5P

C303

0.001

R301 22

R302

C309

VD303

100K

0.001

3

FM RF

D305

1N4148

C319

C305

18P(CH)

0.0047

R306 10

C331

C334

R305 680

C316 10/16

0.047

27P(UJ)

CF303

123

C332

C314 22P (CH)

0.022

5.2V

C317

0.022

R312

2.2K

0.8V

R313

VD301

SVC348S

3.6V

680

R309

R316 330

0.13V

470

+B

R336

5.6K

Q306

2SC535 C

R314

33

C310

0.022

FM Mute Level

VR351 10K(B)

C351

0.022

TP301

R351

R358

8.2K

L353 1mH

IC303

LA1832S

FM IF DET/

5.6K

123

+B

CF302

C343

33P

C362

3.3/50

5V

2.5V 2324

IN

OUT

AM OSC

AM MIX

OUT

IN

FM IF

FM MPX/AM IF

21

5V

2.1V

C352

10/16

+B

R382 330

R386 330

2.6

C381 12P(CH)

X352

4.5MHz

C382 15P(CH)

I

C384

LC

0.001

PLL

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 21.

1

23456

Figure 30 SCHEMATIC DIAGRAM (5/9)

– 30 –

AM SIGNAL FM SIGNAL

XL-3000W

TUNER PWB-A2

C366

C361

0.022

C360

0.022

C362

3.3/50

5V

23 22 21 20 19 18 17 16 15 14

4 13

IN

OUT

AM OSC

REG

AM MIX

OUT

IN

5V

2.1V

C352

10/16

+B

382

0

386

0

2.6V

1

22 21 20 19 18 17 16 15 14 13 12

(CH)

2 Hz

2

2.6V

(CH)

IC302

4

LC72131

01

PLL(TUNER)

2.1V (2.7V)

FM AFC

C350

0.022

T351

AM IF

C397

0.022

0V

VSS

X OUT

X IN

0V

C363

0.022

2.1V (2.7V)

IN

AM RF

CF352

C394

47/16

R381

10K

R380

C393

1.5K

1/50

0V

AOUT

CEDICL

0.1V

R374

1K

0.6V

VSM

123

C392

0.1V

R3731KR372

C364

R352

0.001

10/16

AM IF

2.1V

1K

0.9V

4.8V

C365

0.022

0V (0.9V)

CUT

AM LOW

GND

IN

0V

C380

10/16

0.9V

AIN

DO

5.1V

R371

1K

PD

1K

0.001

R350

2.7K

C367 1/50

2.3V

OUT

FM/AM

SD

5V

C353

0.022

C387

R379

2.2K

FM

1.7V

STEREO

5V

C354

0.022

5.2V

VDD

(11.4V)

(0V)

2.6V

MUTE

3.7V

FM DET

2.9V

CF351

0V

FM IN

(0V)

X351

(4.3V)

R353

L351 100µH

(2.6V)

AM IN

FM

3.9V

456kHz

2.3V (0V)

MPX VCO

VCC

5V

+B

270

C399

0.022

R393

1K

R377

5.6K

C385

0.01

MO/ST

(0V)

3.5V R359

1.8K

R360

4.7K

R357

R356

C368

C398

1110987654321

470K

1K

1/50

2.1V

100/10

R395

0V

IF IN

IF REQ

0V

C369

MPX IN

IF OUT

0V

C357

2.2/50 C356

0.001

C355

22P

47K

C386

330P

R365

C374

56P

1.3V

R-CH

PHASE

3.8V

10K

0.018

1.3V

OUT

(1.9V)

C371 1/50

C372 1/50

L-CH

C358 1/50

C370

C383

OUT

1/50

0.022

R387

C373

5.6K

R364

0.018 R361

5.6K

R362

5.6K

4V

(2.2V)

MO/ST

(AM/FM)

PHASE

12111098765432

3.8V

3.3K

(1.2V)

R355

R376

3.3K

10K

L352 100µH

C396 100/10

R391 390

+B

4.7V

(0V)

R363

+B

Q351

KRC104 M

1

3.3K

2

R366

2.2K

ZD351 DZ5.1BSB

C395

0.022

R392 390

Q360

KTA1266 GR

11.7V R383

5.6K

R385

5.6K

R384

6.8K

D308 1N4148

0V

3.7V (0V)

3

SD

DO

CL

CE

DI

CNS307

11 10

9 8

TO

7

MAIN PWB-A1(1/2)

6

CNP307

5

P26 5-A

4 3 2 1

10.9V

10.8V

C391

47/16

FM ST

A_12V

+B

D_GND

TUN_L TUN_R A_GND

+B

7

8 9 10 11 12

Figure 31 SCHEMATIC DIAGRAM (6/9)

– 31 –

XL-3000W

0V

2.5V

SEG9

9

3

1

E

5

A

B

C

D

E

LAMP PWB-A7

24V

5V

GND

LMP701

CFW701B

123

CFW701A

1K

R799

DISPLAY PWB-A3

SW727

FUNCTION

SW726

REW

PRESET DOWN

SW725

CD STOP

TUNING DOWN

SW722

MEMORY/SET

SW721

BASS/TREBLE

SW709

ON/

STAND-BY

SW710 CD LID

OPEN/CLOSE

R706

3.9K

R707

2.7K

R708

2.2K

R710

2.7K

R711

1.2K

L702

2.2µH

SW718

VOLUME DOWN

SW713

VOLUME UP

SW712

CD PLAY/ PAUSE

TUNING UP

R720A

SW711

FF

PRESET UP

R702

10K

R795

47K

R721

10K

1.2K

R722

10K

R720B

R723 47K

R718

1.5K

R719

1.2K

1.2K R727

47K

+B

C703

0.1

8MHz

32.768kHz

C701

22P(CH)

+B

X701

R725

+B

R728 1K

10K

X702

R729

47K

22P

C702

R731 1K R732 1K R733 1K R734 1K

R735

1K

(CH)

R747

2.47V

1K

2.47V

1.7V

3.25V

2.49V

2.47V

2.24V

2.47V

4.9V

0V

5V

0V

0V 0V 5V 5V 5V 5V 0V 0V

0V

R738

2.47V

1K

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

5V

2.5V

SEG0

100

99

COM3 COM2 COM1 COM0 VLC3 VLC2 VLC1 VDD OSC2 OSC1 VSS XI XO MMOD VREF– CLID_SW KEY1 KEY2 MODEL CLID_PRO MOT_DEC

VSM VREF+

DI

0V

1K

R739

R740 1K

CLDOCE

98

SEG1

2.5V

SEG2

0V

2.5V

97

R741

2.5V

969594 93

SEG3

SEG4

SEG5

0V

4.9V

1K

R744

2.5V

SEG6

SEG7

SYST

RESET

5V

4.9V

1K

C70

13121110987654321

92

343332313029282726

0.01

2.5V

SEG8

4.9V

TO

F

G

POWER PWB-B

CNP707

P26 1-F,G

CNP652

P26 5-H

TO MAIN

PWB-A1(1/2)

CNS707CNS652

1 2 3 4

1 2

CNW707

1 2 3

+B

D_GND

P_CONT

USWD_5R6V

+B

R7A7

1K

C710

D720

0.01

1N4148

R7A6

1K

24.5V

+B

D722

1N4148

R7A9

3.3K Q701

KRC102 M

2

0V

1

0V

5V

R796

1K

Q707

KTA1266 GR

23.7V

D723

1N4148

4.8V

3

D721

1N4148

24.5V

R792 47K

C711

3.3/50

R793

0.01

C712

100K

R7A2

Q708

KTA1266 GR

5V

4.2V

+B

10K

5V

R7A0

1K

0.4V

Q702

KTC3199 GR

0.4V

R7A8

82

Q706

KRC102 M 2

0.1V 1

5V

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 21.

1

23456

Figure 32 SCHEMATIC DIAGRAM (7/9)

R7A5

10K

0.4V

R798

4.7K

R797

2.2K

3

4.1V

0V

– 32 –

R7B0

10K

0.4V

1.1V R7A4

120

Q703

KTC3199 GR

Q709

KRC102 M

2

0.1V 1

0V

3

4.5V

+B

RX701

R7A3

REMOTE

100

SENSOR

ZD701

DZ3.3BSB

C714 560P

3 2 1

R7A1

1K

C715

C713

0.022

100/10

10/16

5V

C704

+B

R779

47K

R781 47K

R783 33K

+B

R778 47K

R780 47K

+B

XL-3000W

2

5V

1K

LCD701

FL DISPLAY

38373635343332313029282726252423222120191817161514131211

TO

CNW809

AMP_DEC

MOT_DEC

2.5V

.

94 93

SEG6

SYSTEM MICROCOMPUTER/

2.5V

SEG7

RESET

4.9V

2.5V

92

C705

0.01

SEG8

4.9V

91

2.5V

SEG9

0V

2.5V

90

SEG10

FL DRIVER

0V

2.5V

898887

86

SEG11

SEG12

SEG13

IC701

IX0039SJ

REMOCON

SYS_STOP

POWER

5V5V5V

4.9V

1K

R749

R750 1K

R751 1K

P_CONT

2.5V

85

SEG14

CLE

R752

84 83

SEG15

4.9V

1K

2.5V

SEG16

4.9V

R755

2.5V

SEG17

4.8V

1K

2.5V

82

SURR

4.8V

R742 1K

2.5V

81

SEG18

SEG19

P–STB

4.8V

R757 1K

2.5V

80

SEG20

P–MUTE

CD+B

4.8V

R758 1K

2.5V

79 78

SEG21

P–CONT

4.8V

R759 1K

2.5V

SEG23

77

SEG25 SEG26

SEG22

SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33

BUCK

CD_STB CD_RES

PU–IN

CLID_DW

CLID_UP

DIMMER

LIGHT

DATA

0V

4.9V

R777 1K

SEG24

76

CCE

BUS3 BUS2 BUS1 BUS0

FAN

STEREO

SD

50494847464544434241403938373635343332

0V

2.5V

75 74

2.5V

73

2.5V

72

2.5V

71

2.5V

70

2.5V

69

2.5V

68

2.5V

67

4.9V

66

5V

65

5V

64

5V

63

5V

62

5V

61

4.9V

60

4.9V

59

4.9V

58

0V

57

4.9V

56

0V

55

4.72V

54

4.76V

53

4.8V

52

4.8V

51

B-LIGHT

1K

R776

CLE

MOT_DEC

SD

STEREO

CD+B

CLID_PRO

P_STB

P_MUTE

SURROUND

CE CL DO

DI

CLID_SW

B-LIGHT

2.5V

AMP_DEC

R785

R761 1K R774 1K R762 1K R763 1K R764 1K R765 1K R766 1K R767 1K R768 1K R769 1K R770 1K

R772 1K

R773 1K

1K

CD_STB CD_RES PU-IN CLID_DW CLID_UP

R746

1K

R745

1K

R784

47K

CLID_DW

CLID_UP

CLID_PRO

CLID_SW

CD_RES

CCE

BUCK

BUS3 BUS2 BUS1 BUS0

CD_STB

PU-IN

LIGHT

DIMMER

+B

R789 47K

+B+B

+B

SURROUND

FAN

CNW702

STEREO

CD+B

P_MUTE

P_STB

A_24V

D_GND

CNW703

1 2 3

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

SD

1 2

DO

3

CL

4

CE

5

DI

6 7 8 9

10 11 12

5V

13

CNS809

CNS702

CNS703

1 2 3

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

1 2 3

TO

4 5 6 7 8 9

10

11

12

13

FAN PWB-D

CNP809

P38 1-B,C

TO

MAIN PWB-A1(2/2)

CNP702

P28 1-B,C

MAIN PWB-A1(1/2)

CNP703

P26,27 6,7-A

7

8 9 10 11 12

Figure 33 SCHEMATIC DIAGRAM (8/9)

– 33 –

XL-3000W

9

8

5

4

3

2

1

0 ,

A

B

C

D

E

F

G

SO601 SPEAKER TERMINAL

LEFT

RIGHT

J601

HEAD

PHONES

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL

VL

GY WH(W)

BK

PK

TO FAN

PWB-D

CNP808

P38 4,5-F

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY WHITE BLACK

PINK

TERMINAL PWB-A4

LEFT

C639

R104

C104

Q104

L603

Q102

ECB

R122

E

Q101

C B

ECB

R119

R120

VIDEO/ AUX IN

SO401

RIGHT

CHASSIS

GND

R121

R118

J801

DIGTAL

OUT

C120

C110

CNS808

R865

R638

1 2 3 4

5

CNW808A

1 2

L601

R864

L602

R637

C615

C640

CHASSIS

GND

R661

R662

C614

C616

LUG (205)

C613

C109

R108

R115

R103

IC601

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

C102

R124

3 2 1

L802

C853

C101

C105

R109

C116

R106

R110

R102

BCE

R123

R406

R405

C411

CNP607

CNP810

CNP807

C852

R111

R113

C112

C108

Q607

Q103

C412

R407

C851

CNP805

R101

C107 C111

R114

C106

Q601

ECB

Q602 BCE

R408

3 2 1

2 1

3 2 1

CFW852

R105

C103

C113

F654

C114

R609

L401

C413

CFW451

CNS607

WH

3 2 1

2 1

CNS807

P38 2-F

CNS805

WH

3 2 1

RD

TO CHASSIS GND LUG(205)

D653

C903

TF

R620

T3.5A L 50V(DC)

T2.0A L 250V(AC)

B

C

E

R619

R608

B

C

Q605

E

R603

R607

R604

D604

C603

RD

BK

RD

Q604

R614

Q606

FROM FAN

PWB-D

12

D652

D651

D654

R910

R911

ZD901

C622

R624

ZD601

ECB

Q603

C624

R623

C625

R913

E

D603

C B

R611 R613 C626

R612

C904

R617

E C B

C906

C629

ZD602

123

Q608

C125

C621

Q903

ECB

ZD902

C627

Q904

D602

R912

R621

123

Q609

M802 FAN MOTOR

C630

T1.25A L 250V

C126

C620

R629 R628

C905

C628

FROM

POWER

TRANSFORMER

P36 4-C,D

C659

D660

F653

D657

C658

D658

CHASSIS

D902

C902

10121416

111315 CNP802

R821

CNP652

2 1

R80F

R634

D659

C660

C657

D901

GND

2468

R873

13579

Q908

Q901

R80E

R80C

1234567

CN

C901

C65

C

1 2 3 R

R80A

H

• The numbers 1 to 17 are waveform numbers shown in page 39.

1

23456

Figure 34 WIRING SIDE OF P.W.BOARD (1/5)

– 34 –

FROM DISPLAY

PWB-A3

CNS652

P37 10-A

75

CNS3

P36,37 6

XL-3000W

R80C

CNP801

1 2 3

9

4 5

660

01

C901

C651

C654

873

1

Q908

2 3

1

Q901

2 3 R901

R829

R80E

R80A

56789

CNS307

36,37 6,7-A

T3.15A L 250V

Q802

123

R874

R905

R904

BCE

R902

122

CNP701

C850

C855

R827

C839

24

1

C843

C849

R80G

10 11

CNP307

TO TUNER

PWB-A2

C208

R208

WH

F652

F651

T3.15A L 250V

IC805

C871

R879

C863

E C

C829

Q907

B

C838

R802

Q902

C801

C803

C806

R828

R826

C846

C847

1520

510

IC801

L801

R80B

C209

R437

C202

R202

C204

R204

RD

1

R402

3

CNW607

C415

C425

R439

D401

CNP804

CNP806

RD

WH

1

CNW805

C820

R801

30

R806

31

C802

R804

C804

C805

R807

C813

C807

C812

C848

C844

R825

13

12

C845

8 9 6

MAIN PWB-A1

R217

R203

R401

R824

C201

C416

R201

C421

3

25

35

C809

R823

C842

C841

R851

C811

C203 C214

R440

C408

C407

C404

C403

C423

C430

C872

1

123

R877

C837A

C837

15

20

40

45

50

R808

R809

R810 C817

C810

BCE

Q801

C215

R205

R206

C216

C424

C422

C401

C417

C429

223456789

1

R876

C864

1

100

5

10

IC802

60

55

51

C818

1

C418

C426

C402

R831

C836

95

65

R822

151110

C213

R417

70

R811

C821

R218

R438

D402

90

R812

Q861

C859

R416

R415

R421

D403

CNP702

R832

R830

C865

C835

R855

C866

85 75

R814

C819

B C E

R833

C867

C823

C860

Q201

R422 R418

CNP703

R834

C828

81

80 C827

C824

C822

C857

R862

C211

15

16

R836

R854

R853

R813

R213 R211

DGS

R835

C826

R215

D201

IC401

20 25

3245678910111213

R852

C868

C830 C832

C887

R820

X801

L803

CNW803

14

15

1234

IC201

8765

R216 R214

C433

1

510

30

C431

1

C833

15131314121110987654321

R837

R817

C869

C862

R815

C831

C840

R819

C825

R843

1

6

C858

10

IC804

20 25

Q203

C432

C420

5

C419

C834

R818

R861

123

1

R209

R816

C870

L806

28

R212

R424

R423

R863

C212

R425

R207

R210

CNS804

CNW804

BK

1

RD

2

RED

SWITCH PWB-A5

GY

3

GY

2

BK

1

CNS806

FROM DISPLAY

PWB-A3

CNS703

P37 10-C

FROM DISPLAY

PWB-A3

CNS702

P37 10-F

13

16

NM801 SLED MOTOR

17

CD MOTOR PWB-C

4

WH

1

GY

2

GY

3

GY

4

GY

5

GY

6

CNS803

14

PICKUP UNIT(308)

3 2

CNS701

CNW701

WH

1

BK

1 2

R914

LED PWB-A6

D801

CNW806

NM802

SPINDLE MOTOR

F3895AF

16

M801 CD LID OPEN/CLOSE MOTOR

SW802

CD LID OPEN/CLOSE

NSW801

PICKUP IN

CNP803

165432

16

1

CNW3

1

7

8 9 10 11 12

Figure 35 WIRING SIDE OF P.W.BOARD (2/5)

– 35 –

XL-3000W

8

O W

A

B

C

SO301 ANTENNA TERMINAL

FM 75 OHMS

GND

AM

CHASSIS

GND

C301

C302

BF301

C316

Q302

R315

123

D306

TUNER PWB-A2

C349

C380

C394

C315

C397

C393

R305

B C E

TP301

R379

R380

R381

C317

R304

C304

C319

22 21 20

C392

19 18

R365

17 16

C387

15 14 13 12

IC302

R316

9 8 7 6

C311

5 4

C318

3 2 1

IC301

D301

C381

C383

R301

C305

D302

C382

D305

L302

R306

C310

1 2 3 4 5 6 7 8

9 10 11

C312

L303

C306

R374

C307

C329 T302

R359

R309

C313

C314

C303

R373

R372 R371

R360

VD302

T304

R307

R308

C309

123

VD301

C308

R302

C330

R387

L351

R303

VD303

C331

C334

X352

R310

C332

R323

C384

VR351

CF303

C335

T306

L353

C385

R336

R314

C343

C386

T351

R312

Q306

C337

1

B C E

D308

R386

R382

CF352 1

C351

2 3

R352

CF302

23

123456789

R313

R351

C350

R358

C362

YL

5

BK

4

YL

3

BR

2

BR

1

C361

C352

C360

Q360

C398

CF351

R353

C365

E C B

R383

C370

C399 10 1112

IC303

R384

C355

C356

131415161718192021222324

C364

TO MAIN

PWB-A1

CNP801

P35 7-B,C

R385

C354

R391 R392

L352

R376

R395

C353

X351

C367

C358

R393

C363

C366

R350

R377

C357

R355

C369

C396

ZD351

Q351

R363

C391

C395

R361

R356

C368

R366

C374

321

C372

R357

CNS307

C371

CNP307

P34,35 6,7-G

2345678 10119

1

R364

C373

R362

T P

D

T651

POWER TRANSFORMER

(MAIN)

E

AC110/127/220/

230~240V, 50/60Hz

AC POWER SUPPLY CORD

SW651

F

VOLTAGE SELECTOR

220V230~240V

127V

110V

BL

RD

WH

BR

13579

POWER PWB-B

RLY601

13579

CNP651

D689 D685

Q683

R685

BCE

ECB

Q681

D6

R686

G

SO655 AC POWER INPUT SOCKET

AC110/127/220/

230~240V, 50/60Hz

T681

POWER TRANSFORMER

(SUB)

H

1

23456

Figure 36 WIRING SIDE OF P.W.BOARD (3/5)

– 36 –

CNP307

P34,35 6,7-G

345678 10119

C373

2

89 85

BCE

683

ECB

Q681

R686

R685

TO MAIN PWB-A1

4

D686

R687

D683

3

CNP707

R689

R688

C683

XL-3000W

LMP701

TO MAIN

PWB-A1

TO MAIN

PWB-A1

CNP703

P35 8,9-C

TO FAN PWB-D

CNP809

P38 5-F

CNS652

CNS707

CNP652

P34 5,6-G

WH

1

BK

2

BK

3

BK

4

12

CNS703

13 12 11 10

CNS809

GY GY GY GY GY

9

GY

8

GY

7

GY

9

GY

5

GY

4

GY

3

GY

2

BK

1

BK

3

GY

2

GY

1

COLOR TABLE

BR

BROWN

RD(R)

RED

OR

ORANGE

YL

YELLOW

GR

GREEN

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W)

WHITE

BK

BLACK

PK

PINK

TO MAIN

PWB-A1 CNP702

P35 8,9-D

2

1

ZD683

ZD684

3

D688

2

D684

C689

IC681

D681

D682

1

C688

C661

C665

NOT CONNECT

CNS702

GY

15

GY

14

GY

13

GY

12

GY

11

GY

10

GY

9

GY

8

GY

7

GY

6

GY

5

GY

4

GY

3

GY

2

BK

1

3

CFW701B

LAMP PWB-A7

Q706

1 2

Q709

21

3

B

R796

C E

CFW701A

CNW703

R751

R777 R776

CNW809

R745

R789

R759

R785

R772

CNW702

1

E

R7A5

ECB

R7A8 C712

C710

R7A7

R7A6

D723

3

R793

R792

Q707

1

3

R779

R780

R739

C713

R752

50 51

55

R746

R773

ZD701

R7A1

R7A4

CB

R7A0

Q702

321

D721

R7A2

R7A9

CD PLAY/PAUSE

D720

SW710

R799

ECB

R755 R742 R757 R758

R741

R740

REMOTE SENSOR

40

45

60

R770

R7B0

Q701

SW712

R797

R798

R781

R778

RX701

26

35

65

75

R769

SW725

C704

TUNING

CNW707

1

3

13

1

3

1

R744

R750

15

C711

Q703

C715

D722

CD LID OPEN/CLOSE

Q708

R718

C714

1 2 3

R738

25

30

20

IC701

C705

70

80

76

R768

R784

R783

DOWN

TUNING

CD STOP

UP

SW718

R725

R747

15

85

R767 R766 R765 R764 R763 R762 R774 R761 R735 R731

R720B

R795

SW709

ON/STAND-BY

VOLUME

DOWN

R719

UP

VOLUME

SW713

R722

X702

R732

R733

R734

10

5

95

90

R707

R720A

FUNCTION

SW727

R721

R749

R7A3

R723 R727 R729

C702

1

100

REW

SW726

SW711

R708

SW721

C703

C701

L702

DOWN

PRESET

UP

FF

PRESET

R706

SW722

R711

R702

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

R710

BASS/

X701

R728

LCD701

SET

MEMORY/

TREBLE

FL DISPLAY

DISPLAY PWB-A3

7

8 9 10 11 12

Figure 37 WIRING SIDE OF P.W.BOARD (4/5)

– 37 –

XL-3000W

A

D802

B

FROM

DISPLAY PWB-A3

CNP809

AMP_DEC

1

FAN

2

MOT_DEC

3

CNS809

P33 12-B

1N4004

0V

5.1V

KTC3199 GR

R870

33K

C

Q804 KTC3199 GR

0.7V

0V

Q803

0V

R887

10K

Q805

KTA1266 GR

10.7V

R867

3.3K

R866

4.7K

R868

27K

D804

1N4004

11.4V

11.7V

D803

1N4004

C892

47/16

R883

8.2

0.3V

R881 470K

R884

8.2

0V

R882 22K

D805

1N4004

1.1V

Q806

2SC535 C

C893 47/16

+B

FAN PWB-D

Q807

KTC3200 GR

0.6V

R880

3.3K

R888

10K

+B

R885

22K

0V

CNP808

+12V R-CH L-CH 5V

D_GND

CNW807

1 2 3 4 5

CNS807

2 1 2

FROM

MAIN PWB-A1(1/2)

CNS808

P27 12-G

1

CNP807

P26 3-C

TO TERMINAL PWB-A4

D

E

FROM

DISPLAY PWB-A3

P37 10-C

CNS809

CNP807 P34 4-C

CNS807

2 1

GY BK

FROM

MAIN PWB-A1

P34 2-A,B

CNS808

TO TERMINAL PWB-A4

F

G

C893

R880

C

EB

Q807

R888

R885

D805

C892

ECB

Q806

R883

R884

1

CNW807

2

ECB

R882

R881

D803

D804

CNP808

Q803

R866

12345

R887 D802

Q805

E

C

B

CNP809

123

BCE

Q804

R867

R868

R870

FAN PWB-D

H

1

Figure 38 SCHEMATIC DIAGRAM (9/9) AND WIRING SIDE OF P.W.BOARD (5/5)

23456

– 38 –

WAVEFORMS OF CD CIRCUIT

NO DISC FOCUS SEARCH STOP PLAY

XL-3000W

1

FOO

IC802 48pin

FO+ 2

2

IC804 26pin

3

FO- 3 DMO 3

IC804 25pin

FOCUS SEARCH TOC IL STOP PLAY

4

SEL 1 TEI 1

IC802 57pin

5

FEI 2 TRO 2

IC802 43pin

TEI 3 FMO 3

6

IC802 46pin IC802 53pin

STOP PLAY CUE

5

IC802 43pin

IC802 44pin

FEI

SBAD 2 TRO 2

7

1 TMAX 1

1 TEI 1

12

IC802 30pin

13

IC802 12pin

14

IC802 55pin

6

IC802 46pin

11

IC802 49pin

15

6

IC802 46pin

11

IC802 49pin

SBOK

2

RFO 3 FMO 3

8

IC801 22pin

STOP PLAY REVIEW

5

FEI

IC802 43pin

RFGO 2 TRO 2

9

IC801 19pin IC802 49pin

RFRP 3

10

IC801 17pin

STOP PLAY TCD-782 TNO-02 PLAYBACK

TEI 1LO 1

6

IC802 46pin

TRO 2

11

IC802 49pin

SBAD 3

7

IC802 44pin

1 TEI 1

15

IC802 53pin

6

IC802 46pin

11 15

IC802 53pin

16

IC802 85pin

17

IC802 82pin

FMO

RO 2

3

– 39 –

XL-3000W

TROUBLESHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check the following items. Remove the cabinet and follow the troubleshooting instructions. "Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so as not to damage it. Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a cleaning disc designed for CD optical pickup lenses.

HOW TO USE

1. Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the brush on the CD cleaner disc which has the mark next to it.

2. Place the CD cleaner disc onto the CD disc tray with the brush side down, then press the play button.

3. You will hear music for about 20 seconds and the CD player will automatically stop. If it continues to turn, press the stop button.

CAUTION

The CD lens cleaner should be effective for 30 - 50 operations, however if the brushes become worn out earlier then please replace the cleaner disc. If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft cloth. Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the event of this happening then drink and / or rinse with clean water and seek medical advice. The CD cleaner disc must not be used on car CD player or on computer CD ROM drives. All rights reserved. Unauthorized duplicating, broadcasting and renting product is prohibited by law.

Cleaner Liquid

Cleaning Disc PARTS CODE: UDSKA0004AFZZ

– 40 –

Make sure that the disc is normal, and set the CD TEST MODE (STEP 1).

XL-3000W

Is the measured voltage as specified in circuit diagram?

Yes

Is "Er-CD01" displayed"?

Yes

Move the pickup to most internal circumference side of disc. Turn the power off and reset the CD TEST MODE (STEP 1). Is "PU ERROR " not displayed?

Yes

Is +5V applied to pin 100 (/RST) of IC802?

Yes

Does the CD TEST MODE advance from "STEP 2"?

Yes

Does the laser come on in CD TEST MODE "STEP 2"?

Yes

Does the CD TEST MODE advance from "STEP 3" to "STEP 4"?

Yes

Does the spindle motor rotate normally when the CD TEST MODE changes from "STEP 4" to "STEP 3"?

Yes

No

Check the main unit power supply circuit.

Check the pattern between pin 58 (PU_IN) of IC701 and

No

CNW803/CNS803. Check the between CNW803/CNS803 and PU-IN switch.

Check the PWB pattern between pin 59 (CD_RES) of IC701 and pin 100 (/RST) of IC802.

Is CD Lid switch SW802 ON condition ?

Yes

Check the between pattern IC701 and SW802 If OK. Check the main unit power supply circuit.

Check the procedure in "LASER FAILURE".

Check the procedure in "FOCUS FAILURE".

Check the procedure in "SPINDLE MOTOR CLV SERVO FAILURE".

Set ON condition the CD

No

Lid switch.

Is the HF output on pin 38 of IC802 in CD TEST MODE "STEP 5"?

Yes

Does the sound heard when the optical pickup move to the selected play by the FF /REW key.

Yes

Does the LCD track number and time indicator work properly ?

Yes

Turn the power off and then back on. Does the unit initialize properly and start playback when PLAY key is pressed?

Yes

Does the unit play in order in the FF mode?

Yes

Does playback continue for 30 seconds after the start of playback ?

Yes

Normal

No

– 41 –

Check the procedure "HF ERROR".

Does the sled motor move ?

Yes

Check the procedure "NO SOUND"

Check the pattern between IC701 and LCD701.

Is "Er-CD01 " displayed ?

Yes

Check the pattern between pin 58 (PU_IN) of IC701 and CNW803/CNS803. Check the between CNW803/ CNS803 and PU-IN switch.

Check the procedure in "TRACK SEARCH FAILURE".

Check the procedure in "SLED SERVO FAILURE".

No

Check the procedure in

No

"SLED MOTOR OPERATING FAILURE ".

Check the procedure in "HF ERROR".

XL-3000W

• Laser failure.

Is +6.2V applied to the emitter of Q861 ?

Yes

Is +5V applied to the collector of Q861 ?

Yes

Is +5V applied to the pin 62 (VDD) of IC802 ?

Yes

Is +5V applied to the pin 1 (VCC) of IC801 ?

Yes

Is 0V applied to the pin 57 (SEL) of IC802 ?

Yes

Is approx. 2V applied to the collector of Q801.

Yes

No

Check the PWB pattern between emitter of Q607 and emitter of Q861.

Check the peripheral parts of IC804 and Q861.

Check the PWB pattern between collector of Q861 and pin 62 of IC802.

Check the PWB pattern between collector of Q861 and pin 1 of IC801.

Does the laser come on when pattern cut between pin 8 (SEL) of IC801 and pin 57 (SEL) of IC802 ?

Yes

Check the PWB pattern between IC701 and IC802 (BUCK/CCE/ BUS0~3)

Check the peripheral parts of IC801 and Q801. If it is normal, the optical pickup is faulty.

Check CNP802/CNW3. If it is normal, the optical pickup is faulty.

• Focus failure.

Does the optical pickup move up and down when the disc is removed?

Yes

Is the following waveform output at the pin 43 (FEI) of IC802 when the disc is set?

Yes

pin 43 (FEI)

pin 48 (FOO)

pin 44 (SBAD)

Is the waveform shown above input at the pin 44 (SBAD) of IC802?

Yes

No

Check as stated in item "FOCUS SERVO SAWTOOTH WAVE FAILURE".

Check the periphery of IC801 and CNP802/CNW3. Is it normal?

Yes

The optical pickup is faulty.

Check the pattern between pin 13 of IC801 and pin 44 of IC802. Check the periphery of IC801 and CNP802/CNW3.

IC801 is faulty.

– 42 –

• Focus servo sawtooth wave failure.

XL-3000W

Is sawtooth wave output to the pin 48 (FOO) of IC802 ?

Yes

1.5~2.5sec

Is +6.2V applied to the pins 21 and 22 (VCC) of IC804 ?

Yes

Is sawtooth wave obtained between pins 26 and 27 of IC804 ?

Yes

1.5~2.5sec

Is sawtooth wave obtained between pins 13 and 16 of CNP802/CNW3 ? (as shown above)

Yes

CNP802/CNW3 connection failure or optical pickup failure.

No

IC802 is faulty.

Check the PWB pattern between emitter of Q607 and IC804.

Is +5V applied to the pin 7 (MUTE) of IC804 ?

Yes

Check the PWB pattern between pin 7 of IC804

No

and pin 60 (CD STB) of IC701.

Check the PWB pattern between pin 48 (FOO) of IC802 and pins 24 and 25 of IC804. If OK. IC804 is faulty.

Check the PWB pattern between CNP802/CNW3 and IC804.

• Spindle motor clv servo failure.

Is following wave output to the pin 55 (DMO) of IC802 when the CD TEST MODE "STEP 3" is changed to " STEP 4" ?

Yes

DMO

Is above wave obtained between pins 11 and 12 of IC804 ?

Yes

Is above wave obtained between pins 9 and 12 of CNP802/ CNW3 ?

Yes

CNP802/CNW3 connection failure or optical pickup failure.

No

Check the procedure in "HF ERROR". If OK. IC802 is faulty.

Check the PWB pattern between pin 55 (DMO) of IC802 and pins 9 and 10 of IC804. If OK. IC804 is faulty.

Check the PWB pattern between CNP802/CNW3 and IC804.

– 43 –

XL-3000W

• HF error.

Is output (tracking error signal) obtained at the pins 46 (TEI) and 47 (TEZI) of IC802 the CD TEST MODE "STEP 4" is changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

TEI

TEZI

Is output (HF signal) obtained at the pin 38 (RFI) of IC802 when the CD TEST MODE "STEP 4" is changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

RFI

No

Is output obtained at the pins 3 and 8 of CNP802/CNW3.

Optical pickup failure.

No

Yes

Check the periphery of IC801. Check the PWB pattern between

IC801 is faulty.

No

pin 12 (TEO) of IC801 and pins 46 and 47 of IC802. Is it normal ?

Yes

Check the PWB pattern between pin 49 (TRO) of IC802 and pin 19 of IC804. Check the periphery of IC804 and CNP802/CNW3. If OK. Optical pickup failure.

Is output obtained at the pins 4 and 5,6 of CNP802/CNW3.

Optical pickup failure.

No

Yes

Check the periphery of IC801. Check the PWB pattern between pin 19 (RFGO) of IC801 and pins 38 (RFI) of IC802. If OK. IC801 is faulty

Is output (HF signal) obtained at the pins 41 (RFZI) and 42 (RFRP) of IC802 when the CD TEST MODE "STEP 4" is changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

RFZI

RFRP

Is the following wave output to the pin 55 (DMO) of IC802 when the CD TEST MODE "STEP 4" or "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

DMO

Normal.

• No sound.

No sound from both L and R-ch?

Yes

No

Check the periphery of IC801. Check the PWB pattern between pin17 (RFRP) of IC801 and pins 41 (RFZI) and 42 (RFRP) of IC802. If OK. IC801 is faulty.

Check the periphery pins 28~32 of IC802. If OK. IC802 failure.

Check the interval between the pins 82 or 85 of IC802 and the pins 1 or 15 of IC601.

Is +4.5V applied to pin 83 (DVDD) of IC802?

Yes

Is signal of pins 82 and 85 of IC802 output?

Yes

The main PWB is faulty.

No

Check the PWB pattern between R819 and Q861.

Check the peripheral parts of IC802. If OK, IC802 is faulty.

No

– 44 –

• Track search failure

XL-3000W

Does the sled motor run in FF/REW state when the SERVO TEST MODE "STEP1" is set?

Yes

Is the following wave output to the pin 49 (TRO) of IC802 during track search in normal playback?

Yes

TRO

Is the following wave output to the pins 12 (TEO) of IC801 during track search in normal playback?

Yes

TEO

TEI

TEZI

Is the above wave output to the pins 46 (TEI) and 47 (TEZI) of IC802 during track search in normal playback?

Yes

Is the following wave output to the pin 41 (RFZI) and 42 (RFRP) of IC802 during track search in normal playback?

Yes

RFRP

RFZI

No

Check as stated in item "SLED MOTOR OPERATION FAILURE".

IC802 failure.

Check the PWB pattern between pin 49 (TRO) of IC802 and pin 19 of IC804. Check the PWB pattern between pins 17 and 18 of IC804 and Optical pickup. If OK. Optical pickup failure.

Check the PWB pattern between pin 12 (TEO) of IC801 and pins 46 and 47 of IC802. If OK. IC801 failure.

Check the PWB pattern between pin 17 (RFO) and 18 (RFIS), 19 (RFRP) of IC801 and pins 41 and 42 of IC802. If OK. IC801 failure.

Normal.

• Sled motor operation failure.

Is following sled feed signal output the pin 53 (FMO) of IC802 when FF /REW key is pressed after the CD TEST MODE "STEP 1" is set?

Yes

Is following sled feed signal output the pins 3 and 4 of IC804 when FF /REW key is pressed after the CD TEST MODE "STEP 1" is set?

Yes

Is sled feed signal output the pins 1 and 2 of IC804?

Yes

Is sled feed voltage applied between both terminals of sled motor?

Yes

Check the CD mechanism (periphery of sled motor). If the sled motor does not run when DC2.0V is applied to both terminals of sled motor, the sled motor is faulty.

FF REW

FMO

FF REW

SL ±

No

C801 is faulty.

Check the PWB pattern between pin 53 of IC802 and pins 3 and 4 of IC804.

Check the peripheral parts of IC804. If OK, IC804 is faulty.

Check the CNW803/CNS803.

• Sled servo failure.

Is following sled signal output the pin 53 (FMO) of IC802 during playback?

Yes

FMO

Normal.

No

IC802 is faulty.

– 45 –

XL-3000W

FUNCTION TABLE OF IC

IC401 VHiLC75342M-1: Function/Volume Equalizer (LC75342M)

Pin No.

1 DI Serial data and clock input pin for control. 2 CE Chip enable pin. Data written into an internal latch in a timing of [H] -> [L]. Each analog switch is activated.

3 VSS Ground pin. 4 TEST Electronic volume control pin. To be set to the VSS potential. 5 LOUT Volume + equalizer output pin. 6 LBASS2 Bass-band filter comprising capacitor and resistor connection pin. 7 LBASS1 Bass-band filter comprising capacitor and resistor connection pin. 8 LTRE Capacitor connection pin comprising treble band filter. 9 LIN Volume + equalizer input pin. 10 LSEL0 Input selector output pin. 11 L4 Input signal pin. 12 L3 Input signal pin. 13 L2 Input signal pin. 14 L1 Input signal pin. 15* NC No CONNECT pin. To be open or connected to VSS. 16* NC No CONNECT pin. To be open or connected to VSS. 17 R1 Input signal pin. 18 R2 Input signal pin. 19 R3 Input signal pin. 20 R4 Input signal pin. 21 RSEL0 Input selector output pin. 22 RIN Volume + equalizer input pin. 23 RTRE Capacitor connection pin comprising treble band filter. 24 RBASS1 Bass-band filter comprising capacitor and resistor connection pin. 25 RBASS2 Bass-band filter comprising capacitor and resistor connection pin. 26 ROUT Volume + equalizer output pin. 27* NC No CONNECT pin. To be open or connected to VSS. 28 Vref 0.5 x VDD voltage generation block for analog ground. Capacitor of several 10µF to be connected between

29 VDD Supply pin. 30 CL Serial data and clock input pin for control.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Port Name

Function

Data transfer enabled at [H] level.

Vref and AWSS (VSS) as a counter measure against power ripple.

– 46 –

IC401 VHiLC75342M-1: Function/Volume Equalizer (LC75342M)

XL-3000W

LOUT

LBASS2

LBASS1

TEST

5

6

7

VSS CE DI CL VDD NCVref

30

29

RVref

1234

LVref

CCB

2728

ROUT

26

RBASS2

25

24

RBASS1

INTERFACE

LTRE

LIN

LSEL0

8

9

10

CIRCUIT

CONTROL

11 12 13 14

L1L2L3L4 R1 R2 R3 R4

Figure 47 BLOCK DIAGRAM OF IC

LOGIC

CIRCUIT

CONTROL

15 16 17 18 19 20

NCNC

23

22

21

RTRE

RIN

RSEL0

– 47 –

XL-3000W

IC701 RH-iX0039SJZZ: System Microcomputer/FL driver (IX0039SJ) (1/2)

Pin No.

1-4 COM3-COM0 Output LCD common output terminal. 5-7 VLC3-VLC1 — LCD power supply terminal. 8 VDD Input Microcomputer power supply +5V. 9 OSC2 Output Oscillator ground terminal for main clock. f=8MHz 10 OSC1 Input Oscillator ground terminal for main clock. f=8MHz 11 VSS — Microcomputer power supply GND. 12 XI Input Oscillator ground terminal for sub clock. f=32.768kHz 13 XO Output Oscillator ground terminal for sub clock. f=32.768kHz 14 MMOD Input Memory mode selection terminal. 15 VREF- — Power supply GND for AD converter. 16 KEY0 AN0/PA0 Input CD lid status detection input. 17 KEY1 AN0/PA1 Input Operation button input, Max-8 buttons. 18 KEY2 AN0/PA2 Input Operation button input, Max-8 buttons. 19 KEY3 AN0/PA3 Input MODEL/TUNER destination input. 20 KEY4 AN0/PA4 Input Current detection of CD lid control motor.

21 KEY5 AN0/PA5 Input CD servo auto adjustment mode selection input. 22* KEY6 AN0/PA6 Input Tape mechanism operating status detection input.

23* KEY7 AN7/PA7 Input Tuner signal meter (S meter) voltage input terminal. 24 VREF+ Input Power supply for A/D converter +5V. 25 TXD SBO0/P00 Output Data output terminal to TUNER PLL IC. 26 RXD SBI0/P01 Input Data input from TUNER PLL IC 27 SBT0/P02 Output Synchronous clock output with TUNER PLL IC 28 SBO1/P03 Output Enable output of TUNER PLL IC. "L" = OFF "H" = ON 29* SBI1/P04 Output Tape mechanism solenoid drive control output. 30* SBT1/P05 Output Tape mechanism motor drive control output. 31* DK/BZER P06 Output Recording/playback selection output of tape circuit.

32 RST/P27 Input Reset signal input 33* RMOUT P10 Input CLOCK/TIMER/SLEEP button input. 34* P11 Input Tape run/END detection input. Decided as tape run if pulse is input. 35* TM2IO P12 Output Recording bias oscillation circuit control output.

36* TM3IO P13 Output Recording bias oscillation frequency selection control output. 37 TM4IO P14 Input Power (POWER) button input detection. 38 IRQ0 P20 Input Switches to the HALT mode when changing to . "L" at power failure detection input. 39 SENS IRQ1/P21 Input Remote control signal input. 40 IRQ2 P22 Input Synchronous clock input with RDS IC. 41* IRQ3 P23 Input Jog dial UP pulse input. 42* IRQ4 P24 Input Jog dial DOWN pulse input. 43 P30 Output SURROUND control output. 44 P31 Output POWER IC STAND-BY terminal CONTROL. 45 P32 Output Power mute output. "H" = MUTE ON "L" = MUTE OFF 46 LED0 WE/P50 Output CD servo power supply circuit control output. "H" = CD power ON "L" = CD power OFF 47 LED1 RE/P51 Output Main TRANS RELAY CONTROL. "H" = ON "L" = OFF 48* LED2 CS/P52 Input Data input from RDS IC. 49 50 51 SEG49 P60/A0 Output LCD backlight control signal output. "H" = Backlight ON, "L" = Backlight OFF 52 SEG48 P61/A1 Output 53 SEG47 P62/A2 Output LED illumination control of electric JOG dial. "H" = ON "L" = OFF

LDE3/S51 A16/P53 LED4/S50 A17/P54

Input/Output

Used to decide the CD lid drive error to control it.

Decides the F.P/CAM-SW status with A/D value.

"H" = Recording mode, "L" = Playback mode

"H" = Bias oscillation, "L" = oscillation stop.

Input Radio stereo broadcast reception detection input. "L" = During stereo broadcast reception Input Broadcast reception status detection input. "L" = During broadcasting signal reception

FunctionTerminal Name

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 48 –

XL-3000W

IC701 RH-iX0039SJZZ: System Microcomputer/FL driver (IX0039SJ) (2/2)

Pin No.

Input/Output

54 SEG46 P63/A3 Output Electric JOG dial UP. 55 SEG45 P64/A4 Output Electric JOG dial DOWN. 56 SEG44 P65/A5 Output Electric CD lid OPEN. 57 SEG43 P66/A6 Output Electric CD lid CLOSE. 58 SEG42 P67/A7 Input CD pickup position detection SW input. "L" = Innerst periphery 59 SEG41 P70/A8 Output Reset signal output for TC9462F 60 SEG40 P71/A9 Output ON/OFF output terminal of CD servo control IC. "H" = Servo ON "L" = Servo stand-by 61-64 SEG39 P72/A10- Input/Output Data input/output terminal for TC9462F control.

SEG36 P75/A13 65 SEG35 P76/A14 Output Data synchronous clock output for TC9462F. 66 SEG34 P77/A15 Output Chip enable terminal for TC9462F. "L" = BUS terminal active 67 SEG33 P87/D7 Output LCD segment output. 68 SEG32 P86/D6 Output LCD segment output. 69-74 SEG31 P85/D5- Output LCD segment output

SEG26 P80/D0 75-100 SEG25-SEG0 Output LCD segment output

IC701 RH-iX0039SJZZ: System Microcomputer/FL driver (IX0039SJ)

FunctionTerminal Name

COM3 COM2 COM1 COM0

VLC3 VLC2 VLC1

VDD OSC2 OSC1

VSS

XI

XO

MMOD

VREF–

CLID_SW

KEY1 KEY2

MODEL

CLID_PRO

MOT_DEC

NC NC

VREF+

DI

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SSSSSSSSSSSSSSSSSSSSSSSSS

9998979695949392919089888786858483828180797877

100

1

O

2

O

3

O

4

O

5 6 7 8 9

O

10

I

11 12

I

13

O

14

I

15 16

I

17

I

18

I

19

I

20

I

21

I

22

I

23

I

24 25

O

76

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

S S S S S S S S S O

O I/O I/O I/O I/O

O

I O O O O O

O

SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33

CCE

BUCK

BUS3 BUS2 BUS1

BUS0 CD_STB CD_RES

PU-IN

CLID_DW

CLID_UP

FAN

DIMMER

LIGHT

AMP_DEC

B-LIGHT

26272829303132333435363738394041424344454647484950 I

OOOOO

CL

CE

DO

NCNCNC

III

NCNCNC

RESET

O

NC

IIIII

CLE

POWER

REMOCON

SYS_STOP

I

OOOOOOO

NC

SURR

P-STB

CD+B

P-MUTE

P-CONT

NC

STEREO

I

SD

Figure 49 BLOCK DIAGRAM OF IC

– 49 –

XL-3000W

IC801 VHiTA2109F/-1:Servo Pre Amp. (TA2109F)

Pin No.

Terminal Name

Input/Output

Function

1 VCC — Power voltage terminal 2 FNI Input Main beam amp input terminal 3 FPI Input Main beam amp input terminal 4 TPI Input Sub-beam amp input terminal 5 TNI Input Sub-beam amp input terminal 6 MDI Input Monitor photodiode amp input terminal 7 LDO Output Laser diode amp output terminal 8 SEL Input Laser diode control signal input and APC circuit ON/OFF signal input terminal 9 TEB Input Tracking error balance adjustment signal input terminal

To be controlled by 3-value PWM signal. (PWM carrier = 88.2 kHz) 10 2VRO Output Standard voltage (2VR) output terminal. When Vcc = 5V, 2VR = 4.2V. 11 TEN Input Tracking error signal generation amp reversed phase input terminal 12 TEO Output Tracking error signal generation amp output terminal 13 SBAD Output Sub-beam addition signal output terminal 14 FEO Output Focus error signal generation amp output terminal 15 FEN Input Focus error signal generation amp reversed phase input terminal 16 VRO Output Standard voltage (VR) output terminal. When Vcc = 5V, VR = 2.1V. 17 RFRP Output Track count signal generation amp output terminal 18 RFIS Input RFRP detection circuit input terminal 19 RFGO Output RF signal output terminal 20 RFGC Input RF amplitude adjustment control signal input terminal

The amplitude of RF signal can be controlled by using the 3-value PWM signal (PWM

carrier = 88.2 kHz) which is output from the RFGC terminal of TC9432F. 21 AGCI Input RF signal amplitude adjustment amp input terminal 22 RFO Output RF signal generation amp output terminal 23 GND — GND terminal 24 RFN Input RF reversed phase input terminal

IC801 VHiTA2109F/-1:Servo Pre Amp. (TA2109F)

SBAD

FEO

FEN

VRO

RFRP

RFIS

RFGO

RFGC

AGCI

RFO

GND

RFN

14

15

16

17

18

19

20

21

22

23

24

10pF

10kΩ

20kΩ

23.5kΩ

re = 130Ω

7.96kΩ

21kΩ 21kΩ

20kΩ

3.3kΩ

50µA

20kΩ

1.53kΩ

3.3kΩ

50kΩ

36pF

12kΩ 12kΩ

PEAK

BOTTOM

15kΩ 15kΩ

20µA

10kΩ

12kΩ

10kΩ 10kΩ

180kΩ

40pF

30kΩ

21kΩ 29kΩ

24kΩ

1.74kΩ

65µA

180kΩ

20pF

180kΩ

20pF

60kΩ 60kΩ

40pF

180kΩ

47kΩ

SW3

13kΩ

10kΩ

SW1

SW2

7.67kΩ

3 STATE

DET.

680kΩ

I . I

20kΩ

LDC

1kΩ

2.12kΩ

20pF

20kΩ

1213

11

10

9

8

7

6

5

4

3

2

1

TEO

TEN

2VRO

TEB

SEL

LDO

MDI

TNI

TPI

FPI

FNI

VCC

SEL

L

HiZ

H

SW1

ON OFF OFF

LDC

SW2

SW3

OFF OFF

ONONON

ON

Figure 50 BLOCK DIAGRAM OF IC

– 50 –

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (1/3)

XL-3000W

Pin No.

1* TEST0 Input Test mode terminal. To be opened usually. 2* /HSO Output Playback speed mode flag output terminal.

3* /UHSO Output

4* EMPH Output Sub-code Q data emphasis flag output terminal. "H": Emphasis ON "L": Emphasis OFF

5* LRCK Output Channel clock (44.1 kHz) output terminal. "L": L channel "H": R channel

6 VSS — Digital ground terminal. 7* BCK Output Bit clock (1.4122 MHz) output terminal. 8* AOUT Output Audio data output terminal. 9 DOUT Output Digital out output terminal. 10* MBOV Output Buffer memory over signal output terminal. "H": Over 11* IPF Output Correction flag output terminal.

12* SBOK Output Sub-code Q data CRCC judgment result output terminal. "H": When judgment result is OK. 13* CLCK Input/Output Sub-code P-W data read clock output/input terminal. Selectable with command bit. 14 VDD Input Digital + power terminal. 15 VSS — Digital ground terminal. 16* DATA Output Sub-code P-W data output terminal. 17* SFSY Output Playback system frame sync signal output terminal. 18* SBSY Output Sub-code block sync output terminal. "H": On S1 position when the sub-code sync is detected. 19* SPCK Output Processor status signal read clock (176.4 kHz) output terminal. 20* SPDA Output Processor status signal output terminal. 21* COFS Output Correction system frame clock (7.35 kHz) output terminal. 22* MONIT Output LSI internal signal monitor terminal.

23 VDD Input Digital + power terminal. 24 TESIO0 Input Test input/output terminal. To be fixed to "L" usually.

25 P2VREF — 2VREF terminal for PLL system. 26* HSSW Output VREF voltage in case of x2 speed/x4 speed. 27* ZDET Output 1-bit DAC zero detection flag output terminal. 28 PDO Output Terminal to output the phase difference between EFM signal and PLCK signal. 29* TMAXS Output TMAX detection result output terminal. To be selected with command bit TMPS. 30 TMAX Output TMAX detection result output terminal. To be selected with command bit TMPS.

Port Name

Input/Output

/UHSO

H H x1 speed playback H L x2 speed playback L H x4 speed playback LL—

The output polarity can be inverted by command.

"H": When AOUT output is correction-disabled symbol in case of C2 correction output.

It is possible to monitor the DSP internal flag and PLL system clock with the microcomputer command. Terminal for serial output of text data according to command.

Terminal to input the text data read clock according to command.

/HSO

TMAX detection result

Longer than specific period "P2VREF" Shorter than specific period "VSS" Within specific period "HIZ"

31 LPFN Input Low-pass filter amp inverted input terminal. 32 LPFO Output Low-pass filter amp output terminal. 33 PVREF Input VREF terminal for PLL system. 34 VCOREF Input VCO center frequency standard level terminal. To be fixed to PVref usually. 35 VCOF Output VCO filter terminal. 36 AVSS — Analog system ground terminal. 37 SLCO Output Data slice level generation DAC output terminal. 38 RFI Input RF signal input terminal.

Function

Playback speed

TMAX output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 51 –

XL-3000W

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (2/3)

Pin No.

39 AVDD Input Analog system power terminal. 40 RFCT Input RFRP signal center level input terminal. 41 RFZI Input RFRP zero cross input terminal. 42 RFIP Input RF ripple signal input terminal. 43 FEI Input Focus error signal input terminal. 44 SBAD Input Sub-beam addition signal input terminal. 45 TSIN Input Test input terminal. To be fixed to Vref usually. 46 TEI Input Tacking error input terminal. (Tracking servo ON: Taking-in). 47 TEZI Input Tracking error, zero cross input terminal. 48 FOO Output Focus equalizer output terminal. 49 TRO Output Tracking equalizer output terminal. 50 VREF Input Analog standard power terminal. 51 RFGC Output RF amplitude adjustment control signal output terminal.

52 TEBC Output Tracking balance control signal output terminal.

53 FMO Output Feed equalizer output terminal. 3-value PWM signal is output. (PWM carrier = 88.2 kHz) 54* FVO Output Speed error signal or feed search EQ output terminal.

55 DMO Output Disc equalizer output terminal.

56 2VREF Input Analog standard power terminal (2xVREF) 57 SEL Output APC circuit ON/OFF signal output terminal.

58* FLGA Output Internal signal monitor external flag output terminal.

59* FLGB Output Internal signal monitor external flag output terminal.

60* FLGC Output Internal signal monitor external flag output terminal.

61* FLGD Output Internal signal monitor external flag output terminal.

62 VDD Input Digital + power terminal. 63 VSS — Digital ground terminal. 64* IO0 Input/Output General-use I/O port.

65* IO1 The input port and output port can be selected with command. In case of input port the terminal 66* IO2 state (H/L) can be read with the read command. 67* IO3 In case of output port the terminal state (H/L/HiZ) can be controlled with command.

68* /DMOUT Input Terminal to set the mode to output 2-value PWM of feed equalizer from IO0,1 terminal and 2-

69* /CKSE Input To be opened usually. 70* /DACT Input DAC test mode terminal. To be opened usually. 71 TESIN Input Test input terminal (externally provided VCO clock input terminal). To be fixed to "L" usually. 72 TESIO1 Input Test input/output terminal. To be fixed to "L" usually. 73 VSS — Digital ground terminal. 74 PXI Input DSP system clock oscillation circuit input terminal. To be fixed to "L" usually. 75* PXO Output DSP system clock oscillation circuit output terminal. 76 VDD Input Digital + power terminal. 77 XVSS — System clock oscillation circuit ground terminal. 78 XI Input System clock oscillation input terminal. 79 XO Output System clock oscillation circuit output terminal. 80 XVDD Input System clock oscillation circuit + power terminal. 81 DVSR Input R channel D/A converting section power terminal. 82 RO Output R channel data forward rotation output terminal.

Port Name

Input/Output

3-value PWM signal is output. (PWM carrier = 88.2 kHz)

3-value PWM signal is output. (PWM carrier = DSP system 88.2 kHz, sync with PXO)

When laser is ON and UHS = L, "Hi-Z". When UHS = H, "H" output is obtained.

TEZC, FOON, FOK and RFZC signals can be selected with command.

DFCT, FOON, FMON and RFZC signals can be selected with command.

TRON, TRSR, FOK, and SRCH signals can be selected with command.

TRON, DMON, HYS and SHC signals can be selected with command.

value PWM of disc equalizer from IO2,3 terminal. "L" active

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 52 –

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (3/3)

XL-3000W

Pin No.

Port Name

Input/Output

Function

83 DVDD Input D/A converting section power terminal. 84 DVR Input Reference voltage terminal. 85 LO Output L channel data forward rotation output terminal. 86 DVSL Input L channel D/A converting section power terminal. 87* TEST1 Input Test mode terminal. To be opened usually. 88* TEST2 Input Test mode terminal. To be opened usually. 89* TEST3 Input Test mode terminal. To be opened usually. 90-93 BUS0-BUS3 Input/Output Microcomputer interface data input/output terminal. 94 VDD Input Digital + power terminal. 95 VSS — Digital ground terminal. 96 BUCK Input Microcomputer interface clock input terminal. 97 /CCE Input Microcomputer interface chip enable signal input terminal. "L": BUS0 to 3 is active. 98* TEST4 Input Test mode termina. To be opened usually. 99* /TSMOD Input Local test mode selection terminal. 100 /RST Input Reset signal input terminal. "L": Reset.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F)

LPFN

LPFO

PVREF

VCOREF

VCOF AVSS SLCO

RFI AVDD RFCT

RFZI

RFRP

FEI SBAD

TSIN

TEI

TEZI FOO TRO

VREF

TMAX

TMAXS

PDO

ZDET

HSSW

P2VREF

TESIO0

VDD

MONIT

COFS

SPDA

SPCK

SBSY

SFSY

DATA

VSS

VDD

CLCK

SBOK

IPF

MBOV

DOUT

AOUT

BCK

VSS

LRCK

EMPH

/UHSO

/HSO

TEST0

2

3

4

11

9

10

Clock

generator

21

CLV

servo

19

20

22

23

24

Data

slicer

26

PLL

TMAX

VCO

25

Status

27

28

29

30

33 3435 31

373839

40 36

42 43

A/D

Digital equalizer

adjustment circuit

4445 41

Sub-code

demodulation

circuit

Synchronizing

signal guarantee

EFM demodulation

RAM

ROM

16

Digital

out

16KRAM

Address

circuit

12

13

14

15

17

18

474849

D/A

PWM

Servo control

Audio output

circuit

Correction

circuit

6

DAC

1Bit

interface

Microcomputer

5

7

8

50 46 32

51

RFGC

52

TEBC

53

FMO

54

FVO

55

DMO

56

2VREF

57

SEL

58

FLGA

59

FLGB

60

FLGC

61

FLGD

62

VDD

63

VSS

64

IO0

65

IO1

66

IO2

67

IO3

68

/DMOUT

69

/CKSE

/DACT

71

TESIN

72

TESIO1

73

VSS

74

PXI

75

PXO

76

VDD

77

XVSS

1

/RST

100

/TSMOD

98

TEST4

97

/CCE

96

BUCK

95

VSS

949392

VDD BUS3 BUS2

91

BUS1 BUS0

89

TEST3

88

TEST2

87

TEST1

86 90

DVSL LO DVR

848382

XVDD

DVDD RO DVSR

81 85 99

LPF

78

797080

XI

XO

Figure 53 BLOCK DIAGRAM OF IC

– 53 –

XL-3000W

IC804 VHiMM1469XH-1: Focus/Tracking/Spin/Sled Driver (MM1469XH)

Pin No.

1 CH1-OUT-A Driver CH1 negative output 2 CH1-OUT-B Driver CH1 positive output 3 CH1-IN-A Driver CH1 input 4 CH1-IN-B Driver CH1 input, gain adjustment pin 5 Tr-B Connect to external transistor base 6 VREG-OUT Constant voltage output, connects to external transistor collector 7 MUTE Driver mute control input 8 GND GND 9 CH2-IN-B Driver CH2 input, gain adjustment pin 10 CH2-IN-A Driver CH2 input 11 CH2-OUT-B Driver CH2 positive output 12 CH2-OUT-A Driver CH2 negative output 13 14* OP-OUT Operational amplifier output 15* OP-IN(–) Operational amplifier input, negative 16* OP-IN(+) Operational amplifier input, positive 17 CH3-OUT-A Driver CH3 negative output 18 CH3-OUT-B Driver CH3 positive output 19 CH3-IN-A Driver CH3 input 20* CH3-IN-B Driver CH3 input, gain adjustment pin 21 Vcc Vcc 22 Vcc Vcc 23 BIAS-IN Bias amplifier input 24 CH4-IN-B Driver CH4 input, gain adjustment pin 25 CH4-IN-A Driver CH4 input 26 CH4-OUT-B Driver CH4 positive output 27 CH4-OUT-A Driver CH4 negative output 28

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside. GND (lowest potential) is connected to the frame of pin center.

Port Name Function

Substrate GND

CH3-IN-A

CH3-IN-B

VCC

50kΩ

8

Vcc

GND

19

20

10kΩ

DRIVER MUTE

10kΩ

10 11 12

9

CH2-IN-B

18 17

D.BUF

Level shift

CH2-IN-A

SUBGND

28

T.S.D

D.BUF D.BUF D.BUF D.BUF

1 2 3 4 5 6 7

CH1-OUT-A

27

D.BUF

Level shift

CH1-OUT-B

26

D.BUF

Level shift

10kΩ

CH1-IN-A

25

10kΩ

CH1-IN-B

23 22 21

24

VCC

10kΩ

Tr-B

MUTE

VREG-OUT

Vcc

BIAS-IN

CH4-IN-B

CH4-IN-A

CH4-OUT-B

CH4-OUT-A

Figure 54 BLOCK DIAGRAM OF IC

T.S.D : Thermal Shut Down D.BUF : Driver Buffer

OP-IN(+)

CH3-OUT-A

CH3-OUT-B

D.BUF

CH2-OUT-B

16

13 14

SUBGND

CH2-OUT-A

OP-IN(–)

15

OP-OUT

– 54 –

LCD701: RV-LX0012SJZZ LCD Display

z1

XL-3000W

z4

z2

z3

123456789

PinNo

1 2

com1 com1

com2

com2 3 4 5 6 7 8

z1 h1 g1 a1

r

q

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

b1

j1 n1 p1

com3

c1

l1

m1

f1

com4

z2 k1 d1 e1

PinNo

22 23 24 25 26 27 28 29

com1

h5 g5 a5

RDS

h6 g6 a6

r

com2

j5 n5 p5 b6

j6 n6 p6 b7

com3

l5

m5

f5

c6

l6

m6

f6

c7

com4

k5 d5 e5

ST

k6 d6 e6

q

9 10 11 12 13 14 15 16 17 18 19 20 21

REC

h2 g2 a2

SLEEP

h3 g3 a3

RANDOM

h4 g4 a4

MEMORY

b2

j2 n2 p2 b3

j3 n3 p3 b4

j4 n4 p4 b5

c2

l2

m2

f2

c3

l3

m3

f3

c4

l4

m4

f4

c5

z3 k2 d2 e2

MHz

k3 d3 e3

kHz

k4 d4 e4 z4

Figure 55 LCD SEGMENT

30 31 32 33 34 35 36 37 38 39 40 41 42

h7 g7 a7

TP

h8 g8 a8

EON

com1

j7 n7 p7 b8

j8 n8 p8

PTY

com2

l7

m7

f7

c8

l8

m8

f8 TI

com3

k7 d7 e7

k8 d8 e8

TA

SRS(0)

com4

– 55 –

XL-3000W

–MEMO–

– 56 –

PARTS GUIDE

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

XL-3000W

COMP ACT AUDIO SYSTEM

MODEL XL-3000W

XL-3000W Compact Audio System consisting of XL-3000W (main unit) and CP-XL3000H (speaker system).

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor, Please call Toll-Free; 1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%, "C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5% carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set. Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

XL-3000W

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

INTEGRATED CIRCUITS

IC201 VHIKIA4558P-1 J AC Surround Control,KIA4558P IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131 IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC401 VHILC75342M-1 J AN Function/Volume Equalizer, IC601 VHISTK40202-1 J AW Power AMP.,STK40202

IC681 VHIKIA7805API J AF Voltage Regulator,KIA7805API IC701 RH-IX0039SJZZ J

IC801 VHITA2109F/-1 J AL Servo Pre Amp.,TA2109F IC802 VHITC9462F/-1 J AZ Servo/Signal Control,TC9462F IC804 VHIMM1469XH-1 J AN Focus/Tracking/Spin/Sled Driver,

IC805 VHITA7291S/-1 J AH CD Lid Motor Driver,TA7291S

LA1832S LC75342M

System Microcomputer/FL Driver,

IX0039SJ

MM1469XH

TRANSISTORS

Q101 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q102 VSKTA1268GR-1 J AC Silicon,PNP,KTA1268 GR Q103,104 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q201 VS2SK246GR/-1 J AB FET,2SK246 GR Q203 VSKRC107M//-1 J AC Digital,NPN,KRC107 M Q302 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C Q306 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C Q351 VSKRC104M//-1 J AC Digital,NPN,KRC104 M Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q601,602 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q603 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q604,605 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y Q606 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q607 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y Q608 VSKRA102M//-1 J AC Digital,PNP,KRA102 M Q609 VSKRC107M//-1 J AC Digital,NPN,KRC107 M Q681 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q683 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q701 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q702,703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q706 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q707,708 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q801 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q802 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q803 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q804 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q805 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q806 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C Q807 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q861 VS2SB562-C/-1 J AD Silicon,PNP,2SB562 C Q901 VSKRC102M//-1 J AC Digital,NPN,KRC102 M Q902 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q903 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR Q904 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR Q907 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR Q908 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

DIODES

D201 VHD1N4148//-1 J AA Silicon,1N4148 D301,302 VHD1N4148//-1 J AA Silicon,1N4148 D305 VHD1N4148//-1 J AA Silicon,1N4148 D306 VHD1N4148//-1 J AA Silicon,1N4148 D308 VHD1N4148//-1 J AA Silicon,1N4148 D401~403 VHD1N4004//-1 J AB Silicon,1N4004 D602~604 VHD1N4148//-1 J AA Silicon,1N4148

1 D651~654 VHD1N5402M/-1 J AE Silicon,1N5402M 1 D657~660 VHD1N4004//-1 J AB Silicon,1N4004

D681~686 VHD1N4004//-1 J AB Silicon,1N4004 D688,689 VHD1N4004//-1 J AB Silicon,1N4004 D720~723 VHD1N4148//-1 J AA Silicon,1N4148 D801 VHPDB5306X+-1 J AR LED,DB5306X D802 VHD1N4004//-1 J AB Silicon,1N4004 D803 VHD1N4004//-1 J AB Silicon,1N4004 D804 VHD1N4004//-1 J AB Silicon,1N4004 D805 VHD1N4004//-1 J AB Silicon,1N4004 D901,902 VHD1N4004//-1 J AB Silicon,1N4004 ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB ZD601 VHEDZ130BSA-1 J AC Zener,13V,DZ13BSA ZD602 VHEDZ8R2BSC-1 J AB Zener,8.2V,DZ8.2BSC

NO. PARTS CODE

ZD683,684 VHEMTZJ160C-1 J AB Zener,16V,MTZJ16C ZD701 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB ZD901 VHEDZ240BSD-1 J AB Zener,24V,DZ24BSD ZD902 VHEDZ5R6BSB-1 J AC Zener,5.6V,DZ5.6BSB

PRICE

RANK

DESCRIPTION

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter CF302 RFILF0004SJZZ J AG FM RF,10.7 MHz CF303 RFILF0004SJZZ J AG FM RF,10.7 MHz CF351 RFILF0003AWZZ J AK FM IF CF352 RFILA0003SJZZ J AF AM IF

TRANSFORMERS

T302 RCILA0007SJZZ J AG AM Tracking T304 RCILI0005SJZZ J AF FM IF T306 RCILB0009SJZZ J AG AM Band Coverage T351 RCILI0004SJZZ J AF AM IF

1 T651 RTRNP0060SJZZ J AY Power Transformer (Main) 1 T681 RTRNP0061SJZZ J AM Power Transformer (Sub)

COILS

L302 RCILR0003SJZZ J AD FM RF L303 RCILB0010SJZZ J AG FM OSC. L351,352 VP-DH101K0000 J AB 100 µH,Choke L353 VP-DH102K0000 J AB 1 mH,Choke L401 VP-DH2R2K0000 J AB 2.2 µH,Peaking L601,602 RCILZ0024AWZZ J AC 3 µH,Choke L603 VP-DH100K0000 J AB 10 µH,Choke L702 VP-DH2R2K0000 J AB 2.2 µH,Peaking L801 VP-DH100K0000 J AB 10 µH,Choke L802 VP-XHR82K0000 J AC 0.82 µH L803 VP-DH100K0000 J AB 10 µH,Choke L806 VP-DH100K0000 J AB 10 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0999AFZZ J AB 10 kohm (B),Semi-VR

[FM Mute Level]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S VD302 VHCKDV147C/-1 J AH Variable Capacitance,KDV147C VD303 VHCKDV147C/-1 J AH Variable Capacitance,KDV147C

VIBRATORS

X351 RCRM-0007SJZZ J AG VCO,456 kHz X352 RCRSP0006SJZZ J AF Crystal,4.5 MHz X701 RCRM-0008SJZZ J AG Ceramic,8 MHz X702 RCRSP0007SJZZ J AE Crystal,32.768 kHz X801 RCRSP0002SJZZ J AL Crystal,16.93 MHz

CAPACITORS

C101,102 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic C103 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic C104 VCCSCY1HL3R0C J AD 3 pF,50V C105 VCKYPA1HB152K J AA 0.0015 µF,50V C106 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic C107 RC-EZ0003SJZZ J AD 100 µF,50V,Electrolytic C108 VCKYPA1HB152K J AA 0.0015 µF,50V C109 VCCSCY1HL3R0C J AD 3 pF,50V C110 VCKYPA1HB102K J AA 0.001 µF,50V C111,112 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic C113 VCKYPA1HF223Z J AB 0.022 µF,50V C114 RC-EZ0003SJZZ J AD 100 µF,50V,Electrolytic C116 VCKYPA1HF223Z J AB 0.022 µF,50V C120 RC-GZA227AF1C J AB 220 µF,16V,Electrolytic C125,126 RC-GZW228AF1V J AF 2200 µF,35V,Electrolytic C201,202 VCKYCY1HB562K J AA 0.0056 µF,50V C203,204 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic C208 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic C209 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic C211,212 VCKYCY1HB332K J AA 0.0033 µF,50V C213,214 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic C215,216 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic C301 VCKYPA1HF123Z J AD 0.012 µF,50V C302 VCKYCY1HB102K J AA 0.001 µF,50V

– 1 –

XL-3000W

NO. PARTS CODE

C303 VCKYCY1HB102K J AA 0.001 µF,50V C304 VCKYCY1EF103Z J AA 0.01 µF,25V C305 VCKYCY1HB472K J AA 0.0047 µF,50V C306 VCCUCY1HJ7R0D J 7pF (UJ),50V C307 VCKYCY1HB472K J AA 0.0047 µF,50V C308 VCKYCY1EF223Z J AB 0.022 µF,25V C309 VCKYCY1HB102K J AA 0.001 µF,50V C310 VCKYCY1EF223Z J AB 0.022 µF,25V C311 VCCCCY1HH100J J AA 10 pF (CH),50V C312 VCCSCY1HL330J J AD 33 pF,50V C313 VCCUCY1HJ6R0D J AB 6 pF (UJ),50V C314 VCCCCY1HH220J J AA 22 pF (CH),50V C315 VCKYCY1HB101K J AB 100 pF,50V C316 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C317 VCKYCY1EF223Z J AB 0.022 µF,25V C318 VCCSCY1HL5R0C J 5 pF,50V C319 VCCCCY1HH180J J AA 18 pF (CH),50V C329 VCKYCY1EF223Z J AB 0.022 µF,25V C330 VCCCPA1HH120J J AA 12 pF (CH),50V C331 VCKYCY1EF473Z J AB 0.047 µF,25V C332 VCKYPA1HF223Z J AB 0.022 µF,50V C334 VCCUPA1HJ270J J AA 27 pF (UJ),50V C335 VCKYCY1HB561K J AA 560 pF,50V C337 VCKYPA1HF223Z J AB 0.022 µF,50V C343 VCCSCY1HL330J J AD 33 pF,50V C349 VCKYCY1HB102K J AA 0.001 µF,50V C350,351 VCKYCY1EF223Z J AB 0.022 µF,25V C352 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C353,354 VCKYCY1EF223Z J AB 0.022 µF,25V C355 VCCSCY1HL220J J AD 22 pF,50V C356 VCKYCY1HB102K J AA 0.001 µF,50V C357 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic C358 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic C360,361 VCKYCY1EF223Z J AB 0.022 µF,25V C362 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic C363 VCKYCY1EF223Z J AB 0.022 µF,25V C364 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C365 VCKYCY1EF223Z J AB 0.022 µF,25V C366 VCKYCY1HB102K J AA 0.001 µF,50V C367,368 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic C369 VCCSCY1HL560J J AD 56 pF,50V C370 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic C371,372 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic C373,374 VCTYPA1CX183K J AA 0.018 µF,16V C380 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C381 VCCCCY1HH120J J AA 12 pF (CH),50V C382 VCCCCY1HH150J J AA 15 pF (CH),50V C383 VCKYCY1EF223Z J AB 0.022 µF,25V C384 VCKYCY1HB102K J AA 0.001 µF,50V C385 VCKYPA1HF103Z J AB 0.01 µF,16V C386 VCKYPA1HB331K J AA 330 pF,50V C387 VCKYCY1EF223Z J AB 0.022 µF,25V C391 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic C392 VCKYCY1HB102K J AA 0.001 µF,50V C393 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic C394 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic C395 VCKYCY1EF223Z J AB 0.022 µF,25V C396 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C397 VCKYCY1EF223Z J AB 0.022 µF,25V C398 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C399 VCKYPA1HF223Z J AB 0.022 µF,50V C401~404 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C407,408 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C411 VCKYPA1HB331K J AA 330 pF,50V C412 VCKYPA1HB331K J AA 330 pF,50V C413 VCKYPA1HB472K J AB 0.0047 µF,50V C415,416 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C417,418 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic C419,420 VCKYCY1HB272K J AA 0.0027 µF,50V C421~424 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar C425,426 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C429 RC-GZA336AF1C J AB 33 µF,16V,Electrolytic C430 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic C431~433 VCKYCY1HB221K J AA 220 pF,50V C603 RC-GZA336AF1C J AB 33 µF,16V,Electrolytic C613 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C614 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C615 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C616 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C620 RC-GZV477AF1E J AC 470 µF,25V,Electrolytic C621 RC-GZA107AF1E J AB 100 µF,25V,Electrolytic C622 VCKYPA1HF223Z J AB 0.022 µF,50V

PRICE

RANK

DESCRIPTION

NO.

C624 VCKYPA1HF223Z J AB 0.022 µF,50V C625 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C626 RC-GZA107AF1E J AB 100 µF,25V,Electrolytic C627 VCKYPA1HF223Z J AB 0.022 µF,50V C628 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C629 RC-GZV477AF1E J AC 470 µF,25V,Electrolytic C630 RC-GZW478AF1E J AG 4700 µF,25V,Electrolytic C639,640 VCKYPA1HB472K J AB 0.0047 µF,50V C651 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C654 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C657~660 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film C661 VCKYPA1HB102K J AA 0.001 µF,50V C665 VCFYFA1HA473J J AB 0.047 µF,50V,Thin Film C683 RC-GZV228AF1C J AG 2200 µF,16V,Electrolytic C688 VCFYFA1HA473J J AB 0.047 µF,50V,Thin Film C689 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic C701,702 VCCCCY1HH220J J AA 22 pF (CH),50V C703 VCKYCY1EF104Z J AA 0.1 µF,25V C704 VCKYCY1EF223Z J AB 0.022 µF,25V C705 VCKYPA1HF103Z J AB 0.01 µF,50V C710 VCKYCY1EB103K J AA 0.01 µF,25V C711 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic C712 VCKYCY1EB103K J AA 0.01 µF,25V C713 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C714 VCKYCY1HB561K J AA 560 pF,50V C715 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C801 VCCSCY1HL101J J AA 100 pF,50V C802 VCKYCY1EB153K J AA 0.015 µF,25V C803 RC-EZD476AF1A J AC 47 µF,10V,Electrolytic C804 VCKYCY1EB103K J AA 0.01 µF,25V C805 VCKYCY1HB272K J AA 0.0027 µF,50V C806 VCKYCY1HB472K J AA 0.0047 µF,50V C807 VCKYCY1EB333K J AC 0.033 µF,25V C809 VCKYCY1HB472K J AA 0.0047 µF,50V C810 VCKYCY1HB102K J AA 0.001 µF,50V C811 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic C812 VCKYCY1EF103Z J AA 0.01 µF,25V C813 RC-EZD107AF1A J AB 100 µF,10V,Electrolytic C817~819 VCKYCY1EB104K J AD 0.1 µF,25V C820 VCKYCY1EF103Z J AA 0.01 µF,25V C821 VCKYCY1EB104K J AD 0.1 µF,25V C822 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic C823 VCKYCY1EF103Z J AA 0.01 µF,25V C824,825 VCKYCY1EB563K J AD 0.056 µF,25V C826,827 VCCCCY1HH150J J AA 15 pF (CH),50V C828 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C829 RC-EZD107AF1A J AB 100 µF,10V,Electrolytic C830 VCKYCY1EB563K J AD 0.056 µF,25V C831,832 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic C833,834 VCKYCY1HB471K J AA 470 pF,50V C835 VCKYCY1EB563K J AD 0.056 µF,25V C836 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C837 VCKYCY1HB471K J AA 470 pF,50V C837A RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C838 RC-EZD476AF1A J AC 47 µF,10V,Electrolytic C839 VCCSCY1HL2R0C J AD 2 pF,50V C840,841 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C842 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic C843 VCKYCY1EF104Z J AA 0.1 µF,25V C844 VCKYCY1HB682K J AA 0.0068 µF,50V C845 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C846,847 VCKYCY1EF104Z J AA 0.1 µF,25V C848 VCCSCY1HL390J J AD 39 pF,50V C849 VCKYCY1EB563K J AD 0.056 µF,25V C850 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic C851 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C852 VCQYKA1HM222J J AB 0.0022 µF,50V,Mylar C853 VCKYPA1HB472K J AB 0.0047 µF,50V C855 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic C857 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic C858 VCKYCY1EF103Z J AA 0.01 µF,25V C859 RC-GZA477AF1A J AC 470 µF,10V,Electrolytic C860 VCKYCY1EF104Z J AA 0.1 µF,25V C862 VCKYPA1HB102K J AA 0.001 µF,50V C863 VCKYCY1HB471K J AA 470 pF,50V C864~869 VCKYCY1HB221K J AA 220 pF,50V C870 VCKYPA1HB102K J AA 0.001 µF,50V C871 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic C872 VCKYCY1EB104K J AD 0.1 µF,25V C887 VCKYCY1HB272K J AA 0.0027 µF,50V C892,893 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic C901,902 RC-GZV227AF1H J AC 220 µF,50V,Electrolytic

PRICE

RANK

DESCRIPTIONPARTS CODE

– 2 –

XL-3000W

NO.

C903,904 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic C905,906 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

PARTS CODE

PRICE

RANK

DESCRIPTION

RESISTORS

R7A0 VRS-CY1JB102J J AA 1 kohm,1/16W

VRS-CY1JB000J J AA

R7A1 VRS-CY1JB102J J AA 1 kohm,1/16W R7A2 VRS-CY1JB104J J AA 100 kohm,1/16W R7A3 VRD-ST2EE101J J AA 100 ohm,1/4W R7A4 VRS-CY1JB121J J AA 120 ohms,1/16W R7A5 VRS-CY1JB103J J AA 10 kohm,1/16W R7A6 VRS-CY1JB102J J AA 1 kohm,1/16W R7A7 VRS-CY1JB102J J AA 1 kohm,1/16W R7A8 VRS-CY1JB820J J AA 82 ohms,1/16W R7A9 VRD-ST2CD332J J AA 3.3 kohms,1/6W R7B0 VRS-CY1JB103J J AA 10 kohm,1/16W R80A VRS-CY1JB823J J AA 82 kohms,1/16W R80B VRS-CY1JB683J J AA 68 kohms,1/16W R80C VRS-CY1JB823J J AA 82 kohms,1/16W R80E VRS-CY1JB823J J AA 82 kohms,1/16W R80F VRS-CY1JB823J J AA 82 kohms,1/16W R80G VRD-ST2CD683J J AA 68 kohms,1/6W R101,102 VRS-CY1JB393J J AA 39 kohms,1/16W R103 VRS-CY1JB102J J AA 1 kohm,1/16W R104 VRD-ST2CD563J J AA 56 kohms,1/6W R105,106 VRD-ST2EE471J J AA 470 ohms,1/4W R108 VRD-ST2CD102J J AA 1 kohm,1/6W R109 VRD-ST2CD223J J AA 22 kohms,1/6W R110 VRS-CY1JB102J J AA 1 kohm,1/16W R111 VRD-ST2CD102J J AA 1 kohm,1/6W

1 R113,114 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R115 VRD-ST2CD563J J AA 56 kohms,1/6W R118 VRD-ST2EE473J J AA 47 kohms,1/4W R119 VRS-CY1JB333J J AA 33 kohms,1/16W R120 VRS-CY1JB102J J AA 1 kohm,1/16W R121 VRS-CY1JB103J J AA 10 kohm,1/16W R122 VRS-CY1JB102J J AA 1 kohm,1/16W R123 VRD-ST2EE103J J AA 10 kohm,1/4W R124 VRS-CY1JB473J J AA 47 kohms,1/16W R201 VRD-ST2CD822J J AA 8.2 kohms,1/6W R202 VRS-CY1JB822J J AA 8.2 kohms,1/16W R203,204 VRS-CY1JB104J J AA 100 kohm,1/16W R205,206 VRS-CY1JB103J J AA 10 kohm,1/16W R207 VRD-ST2CD473J J AA 47 kohms,1/6W R208 VRD-ST2EE331J J AA 330 ohms,1/4W R209 VRS-CY1JB103J J AA 10 kohm,1/16W R210 VRD-ST2CD103J J AA 10 kohm,1/6W R211 VRS-CY1JB272J J AA 2.7 kohms,1/16W R212 VRD-ST2CD272J J AA 2.7 kohms,1/6W R213~216 VRS-CY1JB123J J AA 12 kohms,1/16W R217 VRD-ST2CD123J J AA 12 kohms,1/6W R218 VRS-CY1JB123J J AA 12 kohms,1/16W R301 VRD-ST2EE220J J AA 22 ohms,1/4W R302 VRS-CY1JB104J J AA 100 kohm,1/16W R303 VRD-ST2CD333J J AA 33 kohms,1/6W R304 VRS-CY1JB473J J AA 47 kohms,1/16W R305 VRS-CY1JB681J J AA 680 ohms,1/16W R306 VRS-CY1JB100J J AA 10 ohm,1/16W R307 VRD-ST2EE470J J AA 47 ohms,1/4W R308 VRS-CY1JB103J J AA 10 kohm,1/16W R309 VRD-ST2EE471J J AA 470 ohms,1/4W R310 VRS-CY1JB472J J AA 4.7 kohms,1/16W R312 VRS-CY1JB222J J AA 2.2 kohms,1/16W R313 VRS-CY1JB681J J AA 680 ohms,1/16W R314 VRS-CY1JB330J J AA 33 ohms,1/16W R315 VRS-CY1JB330J J AA 33 ohms,1/16W R316 VRS-CY1JB331J J AA 330 ohms,1/16W R323 VRS-CY1JB683J J AA 68 kohms,1/16W R336 VRD-ST2CD562J J AA 5.6 kohms,1/6W R350 VRS-CY1JB272J J AA 2.7 kohms,1/16W R351 VRS-CY1JB562J J AA 5.6 kohms,1/16W R352 VRS-CY1JB102J J AA 1 kohm,1/16W R353 VRS-CY1JB271J J AA 270 ohms,1/16W R355 VRS-CY1JB332J J AA 3.3 kohms,1/16W R356 VRS-CY1JB102J J AA 1 kohm,1/16W R357 VRS-CY1JB474J J AA 470 kohms,1/16W R358 VRS-CY1JB822J J AA 8.2 kohms,1/16W R359 VRS-CY1JB182J J AA 1.8 kohms,1/16W R360 VRS-CY1JB472J J AA 4.7 kohms,1/16W R361,362 VRS-CY1JB562J J AA 5.6 kohms,1/16W R363 VRD-ST2CD332J J AA 3.3 kohms,1/6W

0 ohm,Jumper,0.8×1.55mm,Green

NO. PARTS CODE

R364 VRS-CY1JB332J J AA 3.3 kohms,1/16W R365 VRS-CY1JB103J J AA 10 kohm,1/16W R366 VRS-CY1JB222J J AA 2.2 kohms,1/16W R371~374 VRS-CY1JB102J J AA 1 kohm,1/16W R376 VRD-ST2CD103J J AA 10 kohm,1/6W R377 VRD-ST2CD562J J AA 5.6 kohms,1/6W R379 VRS-CY1JB222J J AA 2.2 kohms,1/16W R380 VRD-ST2CD152J J AA 1.5 kohms,1/6W R381 VRS-CY1JB103J J AA 10 kohm,1/16W R382 VRD-ST2EE331J J AA 330 ohms,1/4W R383 VRS-CY1JB562J J AA 5.6 kohms,1/16W R384 VRD-ST2CD682J J AA 6.8 kohms,1/6W R385 VRD-ST2CD562J J AA 5.6 kohms,1/6W R386 VRD-ST2EE331J J AA 330 ohms,1/4W R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W R393 VRS-CY1JB102J J AA 1 kohm,1/16W R395 VRD-ST2CD473J J AA 47 kohms,1/6W R401,402 VRS-CY1JB102J J AA 1 kohm,1/16W R405,406 VRD-ST2CD273J J AA 27 kohms,1/6W R407,408 VRD-ST2CD272J J AA 2.7 kohms,1/6W R415~418 VRS-CY1JB102J J AA 1 kohm,1/16W R421,422 VRS-CY1JB102J J AA 1 kohm,1/16W R423~425 VRD-ST2CD102J J AA 1 kohm,1/6W R437,438 VRS-CY1JB682J J AA 6.8 kohms,1/16W R439,440 VRS-CY1JB392J J AA 3.9 kohms,1/16W R603,604 VRS-CY1JB103J J AA 10 kohm,1/16W R607 VRS-CY1JB682J J AA 6.8 kohms,1/16W R608,609 VRS-CY1JB102J J AA 1 kohm,1/16W R611 VRD-ST2EE101J J AA 100 ohm,1/4W R612 VRD-ST2EE821J J AA 820 ohms,1/4W R613 VRS-CY1JB333J J AA 33 kohms,1/16W R614 VRD-ST2EE470J J AA 47 ohms,1/4W R617 VRD-ST2CD333J J AA 33 kohms,1/6W R619,620 VRD-ST2EE470J J AA 47 ohms,1/4W R621 VRS-CY1JB223J J AA 22 kohms,1/16W R623,624 VRS-CY1JB223J J AA 22 kohms,1/16W R628 VRD-ST2EE101J J AA 100 ohm,1/4W R629 VRD-ST2EE821J J AA 820 ohms,1/4W R634 VRD-ST2EE332J J AA 3.3 kohms,1/4W R637 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W R638 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W R661,662 VRD-ST2EE331J J AA 330 ohms,1/4W R685 VRD-ST2CD103J J AA 10 kohm,1/6W R686 VRD-ST2CD473J J AA 47 kohms,1/6W R687 VRD-RT2HD272J J AA 2.7 kohms,1/2W R688 VRD-ST2CD102J J AA 1 kohm,1/6W R689 VRD-ST2EE102J J AA 1 kohm,1/4W R702 VRS-CY1JB103J J AA 10 kohm,1/16W R706 VRS-CY1JB392J J AA 3.9 kohms,1/16W R707 VRS-CY1JB272J J AA 2.7 kohms,1/16W R708 VRS-CY1JB222J J AA 2.2 kohms,1/16W R710 VRS-CY1JB272J J AA 2.7 kohms,1/16W R711 VRS-CY1JB122J J AA 1.2 kohms,1/16W R718 VRS-CY1JB152J J AA 1.5 kohms,1/16W R719 VRS-CY1JB122J J AA 1.2 kohms,1/16W R720A,B VRS-CY1JB122J J AA 1.2 kohms,1/16W R721,722 VRS-CY1JB103J J AA 10 kohm,1/16W R723 VRS-CY1JB473J J AA 47 kohms,1/16W R725 VRS-CY1JB103J J AA 10 kohm,1/16W R727 VRS-CY1JB473J J AA 47 kohms,1/16W R728 VRS-CY1JB102J J AA 1 kohm,1/16W R729 VRS-CY1JB473J J AA 47 kohms,1/16W R731~735 VRS-CY1JB102J J AA 1 kohm,1/16W R738~742 VRS-CY1JB102J J AA 1 kohm,1/16W R744 VRD-ST2CD102J J AA 1 kohm,1/6W R745 VRS-CY1JB102J J AA 1 kohm,1/16W R746 VRS-CY1JB102J J AA 1 kohm,1/16W R747 VRS-CY1JB102J J AA 1 kohm,1/16W R749,750 VRS-CY1JB102J J AA 1 kohm,1/16W R751 VRD-ST2CD102J J AA 1 kohm,1/6W R752 VRS-CY1JB102J J AA 1 kohm,1/16W R755 VRS-CY1JB102J J AA 1 kohm,1/16W R757,758 VRS-CY1JB102J J AA 1 kohm,1/16W R759 VRD-ST2CD102J J AA 1 kohm,1/6W R761~770 VRS-CY1JB102J J AA 1 kohm,1/16W R772~774 VRS-CY1JB102J J AA 1 kohm,1/16W R776,777 VRS-CY1JB102J J AA 1 kohm,1/16W R778~781 VRS-CY1JB473J J AA 47 kohms,1/16W R783 VRS-CY1JB333J J AA 33 kohms,1/16W R784 VRD-ST2CD473J J AA 47 kohms,1/6W R785 VRS-CY1JB102J J AA 1 kohm,1/16W

PRICE

RANK

DESCRIPTION

– 3 –

XL-3000W

NO. PARTS CODE

R789 VRS-CY1JB473J J AA 47 kohms,1/16W R792 VRS-CY1JB473J J AA 47 kohms,1/16W R793 VRS-CY1JB103J J AA 10 kohm,1/16W R795 VRS-CY1JB473J J AA 47 kohms,1/16W R796 VRD-ST2EE102J J AA 1 kohm,1/4W R797 VRS-CY1JB222J J AA 2.2 kohms,1/16W R798 VRS-CY1JB472J J AA 4.7 kohms,1/16W R799 VRD-ST2EE102J J AA 1 kohm,1/4W R801 VRD-ST2CD103J J AA 10 kohm,1/6W R802 VRS-CY1JB473J J AA 47 kohms,1/16W R804 VRS-CY1JB104J J AA 100 kohm,1/16W R806 VRS-CY1JB153J J AA 15 kohms,1/16W R807 VRS-CY1JB103J J AA 10 kohm,1/16W R808 VRS-CY1JB332J J AA 3.3 kohms,1/16W R809 VRS-CY1JB103J J AA 10 kohm,1/16W R810 VRS-CY1JB332J J AA 3.3 kohms,1/16W R811 VRS-CY1JB222J J AA 2.2 kohms,1/16W R812 VRS-CY1JB332J J AA 3.3 kohms,1/16W R813 VRD-ST2EE100J J AA 10 ohm,1/4W R814 VRS-CY1JB332J J AA 3.3 kohms,1/16W R815,816 VRD-ST2CD103J J AA 10 kohm,1/6W R817,818 VRS-CY1JB102J J AA 1 kohm,1/16W R819 VRD-ST2CD221J J AA 220 ohms,1/6W R820 VRS-CY1JB102J J AA 1 kohm,1/16W R821 VRD-ST2CD151J J AA 150 ohms,1/6W R822 VRD-ST2EE330J J AA 33 ohms,1/4W R823 VRD-ST2CD102J J AA 1 kohm,1/6W R824 VRS-CY1JB273J J AA 27 kohm,1/16W R825 VRS-CY1JB823J J AA 82 kohms,1/16W R826 VRS-CY1JB272J J AA 2.7 kohms,1/16W R827 VRS-CY1JB393J J AA 39 kohms,1/16W R828 VRS-CY1JB122J J AA 1.2 kohms,1/16W R829 VRD-ST2CD683J J AA 68 kohms,1/6W R830~837 VRS-CY1JB102J J AA 1 kohm,1/16W R843 VRD-ST2CD102J J AA 1 kohm,1/6W R851 VRS-CY1JB331J J AA 330 ohms,1/16W R852~855 VRS-CY1JB104J J AA 100 kohm,1/16W R861~863 VRS-CY1JB222J J AA 2.2 kohms,1/16W R864 VRD-ST2CD104J J AA 100 kohm,1/6W R865 VRD-ST2CD104J J AA 100 kohm,1/6W R866 VRD-ST2CD472J J AA 4.7 kohms,1/6W R867 VRD-ST2CD332J J AA 3.3 kohms,1/6W R868 VRD-ST2CD273J J AA 27 kohms,1/6W R870 VRD-ST2CD333J J AA 33 kohms,1/6W R873 VRD-ST2CD332J J AA 3.3 kohms,1/6W R874 VRS-CY1JB222J J AA 2.2 kohms,1/16W R876 VRS-CY1JB154J J AA 150 kohms,1/16W R877 VRS-CY1JB683J J AA 68 kohms,1/16W R879 VRS-CY1JB332J J AA 3.3 kohms,1/16W R880 VRD-ST2CD332J J AA 3.3 kohms,1/6W R881 VRD-ST2CD474J J AA 470 kohms,1/6W R882 VRD-ST2CD223J J AA 22 kohms,1/6W R883,884 VRD-ST2EE8R2J J AA 8.2 ohms,1/4W R885 VRD-ST2CD223J J AA 22 kohms,1/6W R887 VRD-ST2CD103J J AA 10 kohm,1/6W R888 VRD-ST2CD103J J AA 10 kohm,1/6W R901 VRS-CY1JB222J J AA 2.2 kohms,1/16W R902 VRS-CY1JB473J J AA 47 kohms,1/16W R904 VRS-CY1JB222J J AA 2.2 kohms,1/16W R905 VRS-CY1JB473J J AA 47 kohms,1/16W R910 VRD-ST2EE272J J AA 2.7 kohms,1/4W R911 VRD-ST2EE101J J AA 100 ohm,1/4W R912 VRD-ST2EE471J J AA 470 ohms,1/4W R913 VRD-ST2EE100J J AA 10 ohm,1/4W R914 VRD-ST2CD471J J AA 470 ohms,1/6W

PRICE

RANK

DESCRIPTION

OTHER CIRCUITRY PARTS

CFW451 QCNWN0308SJZZ J AB Lead Wire CFW701A,B QCNWN0292SJZZ J AD Flat Wire,3Pin CFW852 QCNWN0303SJZZ J AB Lead Wire CNP307 QCNCM010LAWZZ J AC Plug,11Pin CNP607 QCNCM999CAFZZ J AG Plug,3Pin

1 CNP651 QCNCM041ESJZZ J Plug,5Pin

CNP652 QCNCM998BAFZZ J AC Plug,2Pin CNP701 QCNCM999BAFZZ J AD Plug,2Pin CNP702 QCNCM999QAFZZ J AC Plug,15Pin CNP703 QCNCM999NAFZZ J AC Plug,13Pin CNP707 QCNCM998DAFZZ J Plug,4Pin CNP801 QCNCM037ESJZZ J AD Plug,5Pin CNP802 QCNCW007RSJZZ J AF Socket,16Pin CNP803 QCNCM035FSJZZ J AD Plug,6Pin

NO.

CNP804 QCNCM038BSJZZ J AB Plug,2Pin CNP805 QCNCM004CAFZZ J AB Plug,3Pin CNP806 QCNCM004CAFZZ J AB Plug,3Pin CNP807 QCNCM004BAFZZ J AB Plug,2Pin CNP808 QCNCM999EAFZZ J AG Plug,5Pin CNP809 QCNCM999CAFZZ J AG Plug,3Pin CNP810 QCNCM004BAFZZ J AB Plug,2Pin CNS307 QCNCW010LAWZZ J AD Socket,11Pin CNW3 QCNWN0288SJZZ J AE Flat Cable,16Pin CNW607/CNS607 CNW701/CNS701 CNW702/CNS702 CNW703/CNS703 CNW707/CNS707/CNS652 CNW803/CNS803 CNW804/CNS804 CNW805/CNS805 CNW806/CNS806 CNW807/CNS807 CNW808A/CNS808 CNW809/CNS809

1 F651,652 QFS-D322ABGNI J AE Fuse,T3.15A L 250V 1 F653 QFS-D132ABGNI J AE Fuse,T1.25A L 250V 1 F654 QFS-T202BSJNO J Fuse,T3.5A L 50V (DC)/T2.0A L

J601 QJAKM0001SJZZ J AG Jack,Headphones J801 VHPPLT130T2-1 J AM Jack,CD Degital Output LCD701 RV-LX0012SJZZ J AR LCD Display LMP701 RLMPP0001SJZZ J AT Lamp M801 RMOTV0004SJM1 J AM Motor with Gear [CD Lid] M802 RMOTV0006SJZZ J Fan Motor NM801 RMOTV0409AFM1 J AN Motor with Gear [Sled] NM802 RMOTV0408SJM1 J AR Motor with Chassis [Spindle] NSW801 QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

1 RLY601 RRLYD0004SJZZ J AG Relay

RX701 VHLN61V380A-1 J AN Remote Sensor SO301 QTANC9003SJZZ J AF Terminal,Antenna SO401 QSOCJ0003SJZZ J AG Socket,Video/AUX Input SO601 QTANA0007SJZZ J AF Terminal,Speaker

1 SO655 QSOCA0212AWZZ J AD Socket AC Input 1 SW651 QSOCE0008AWZZ J AH Switch,Slide Type

SW709 QSW-K0004SJZZ J AD Switch,Key Type [On/Stand-by] SW710 QSW-K0004SJZZ J AD Switch,Key Type

SW711 QSW-K0004SJZZ J AD Switch,Key Type [FF/Preset Up] SW712 QSW-K0004SJZZ J AD Switch,Key Type

SW713 QSW-K0004SJZZ J AD Switch,Key Type [Volume Up] SW718 QSW-K0004SJZZ J AD Switch,Key Type [Volume Down] SW721 QSW-K0004SJZZ J AD Switch,Key Type [Bass/Treble] SW722 QSW-K0004SJZZ J AD Switch,Key Type [Memory/Set] SW725 QSW-K0004SJZZ J AD Switch,Key Type

SW726 QSW-K0004SJZZ J AD Switch,Key Type SW727 QSW-K0004SJZZ J AD Switch,Key Type [Function]

SW802 QSW-B0001SJZZ J AG Switch,Lever Type [CD Lid]

QCNWN0291SJZZ J AE Connector Ass’y,3/3Pin QCNWN0271SJZZ J AD Connector Ass’y,2/2Pin QCNWN0269SJZZ J AG Connector Ass’y,15/15Pin QCNWN0293SJZZ J AG Connector Ass’y,13/13Pin QCNWN0301SJZZ J Connector Ass’y,3/4/2Pin QCNWN0276SJZZ J AE Connector Ass’y,6/6Pin QCNWN0290SJZZ J AD Connector Ass’y,2Pin QCNWN0296SJZZ J AE Connector Ass’y,3/3Pin QCNWN0270SJZZ J AE Connector Ass’y,3/3Pin QCNWN0271SJZZ J AD Connector Ass’y,2/2Pin QCNWN0316SJZZ J Connector Ass’y,2/3/5Pin QCNWN0315SJZZ J Connector Ass’y,3/3Pin

PRICE

RANK

DESCRIPTIONPARTS CODE

250V (AC),TF,136°C

[Voltage Selector]

[CD Lid Open/Close]

[CD Play/Pause/Tuning Up]

[CD Stop/Tuning Down] [REW/Preset Down]

CD MECHANISM PARTS

301 NGERH0586AFZZ J AC Gear,Middle 302 NGERH0587AFZZ J AC Gear,Drive 303 MLEVP0010AWZZ J AC Rail,Guide 304 NSFTM0291AFFW J AD Shaft,Guide 305 PCOVP1333AFSA J AF Cover,Mechanism 306 PCUSG0001AWSA J AD Cushion (Green) 307 PCUSG0004AWSA J AD Cushion (Red-Brown)

1 308 DCTRH8005SJ01 J BA Pickup Unit Ass’y

308- 1 ———— — Pickup Unit 308- 2 NGERR0043AFZZ J AC Gear,Rack

308- 3 NSPRC0961AFZZ J Spring,Rack 701 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm 702 XBBSD20P03000 J AA Screw,ø2×3mm 703 XBSSD26P06000 J AA Screw,ø2.6×6mm 704 XHBSD20P05000 J AA Screw,ø2×5mm NM801 RMOTV0409AFM1 J AN Motor with Gear [Sled] NM802 RMOTV0408SJM1 J AR Motor with Chassis [Spindle] NSW801 QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

(Not Replacement Item)

– 4 –

XL-3000W

NO.

PARTS CODE

PRICE

RANK

DESCRIPTION

CABINET PARTS

200 GCABA1058SJSA J AM Front Cabinet 201 GCABB1058SJSA J AL Bottom Cabinet 202 GCOVA1004SJSA J AH Rear Panel 203 GCOVA1005SJSA J AE Cover,Remote Sensor 204 GFTAT1008SJSA J AN CD Lid 205 LANGQ0002SJFW J AB Lug 206 HDECQ0050SJSA J AM Clear Panel,CD Lid 207 HDECQ0051SJSA J AE Clear Panel,Display 208 JKNBZ0053SJSA J AF Knob,Operation A 209 JKNBZ0054SJSA J AF Knob,Operation B 210 LANGF0033SJFW J AB Bracket,Main PWB 211 LANGF0034SJFW J AB Bracket,Tuner PWB 212 LANGF0035SJFW J AC Bracket,Gear Box 213 LANGK0025SJFW J AE Bracket,Tuner PWB 214 LANGK0026SJFW J AB Cover,Lamp 215 LCHSM0014SJFW J AH Chassis 216 LHLDW1001SJZZ J AD Nylon Band 217 LHLDZ1033SJSA J AD LCD Holder,A 218 LHLDZ1034SJSA J AD LED Holder 219 LHLDZ1035SJSA J AE Gear Box 220 LHLDZ1036SJSA J AE Lid,Gear Box 221 LPLTP0001SJSA J AE Cam Plate 222 MLEVP0006SJSA J AE Rotate Lever,CD Lid,Left 223 MLEVP0007SJSA J AE Rotate Lever,CD Lid,Right 224 NGERW0004SJSA J AE Drive Gear,A 225 NGERW0005SJSA J AE Drive Gear,B 226 NGERW0006SJSA J AG Drive Gear,C 228 PCOVU9002SJZZ J AB Felt,CD Lid Cover 229 PCOVZ1005SJSA J AE Indicator Panel 230 PCUSG0003SJZZ J AC Cushion,Leg 231 PGUMS0002SJZZ J Cushion,CD Lid 232 PRDAR0046SJFW J Radiator,Main 233 PRDAR0038SJFW J AE Radiator,Transistor 234 PREFL0001SJSA J AD LCD Diffusion Plate 235 PSHEP0003SJZZ J AE Sheet,LCD 236 PSHEP0004SJZZ J AD LCD Reflect Paper 237 QFSHD0001AWZZ J AB Holder,Fuse 238 TLABS0004SJZZ J AC Label,Laser 239 TLABS0036SJZZ J AB Label,Class 3A 240 TSPC-0228SJZZ J Label,Specification

240 TSPC-0262SJZZ J Label,Specification [For Taiwan] 240 TSPC-0263SJZZ J Label,Specification

241 PCOVS3005SJFW J AE Plate,Shield 242 PSHEP0005SJZZ J AC Sheet,Shield 243 LANGF0037SJFW J Bracket,Fan Motor 244 LANGK0029SJFW J Bracket,Fan PWB 246 PCOVP1003SJZZ J Shield Cover,Power PWB (A) 247 PCOVP1004SJZZ J Shield Cover,Power PWB (B) 248 PSPAH0001SJZZ J AC Felt 601 LX-EZ0001SJFN J AB Screw,ø2.5×10mm 602 LX-WZ7094AFZZ J AA Washer,Special Tipe 603 XEBSD25P08000 J AA Screw,ø2.5×8mm 604 XEBSD25P10000 J AA Screw,ø2.5×10mm 605 XEBSD25P12000 J AA Screw,ø2.5×12mm 606 XEBSF25P08000 J AA Screw,ø2.5×8mm 607 XHBSD20P05000 J AA Screw,ø2×5mm 608 XHBSD30P06000 J AA Screw,ø3×6mm 609 XHBSD40P08000 J AA Screw,ø4×8mm 610 XJBSD30P06000 J AA Screw,ø3×6mm 611 XJBSD30P08000 J AA Screw,ø3×8mm 612 XJBSD30P10000 J AA Screw,ø3×10mm 613 XJBSD30P14000 J AA Screw,ø3×14mm 614 XJBSF30P08000 J AA Screw,ø3×8mm 615 XJBSF30P10000 J AA Screw,ø3×10mm

[Except for Taiwan/Thailand]

[For Thailand]

SPEAKER BOX PARTS

901 CPNLS1006SJ01 J AS Front Panel Ass’y 902 GBOXS0009SJSA J AZ Box Ass’y 903 GWAKP1016SJ01 J AM Net Frame Ass’y 904 PDUC-0001SJZZ J AE Duct Pipe 905 PGUMM0003SJSA J AD Net Catcher 906 PSPAG0002SJZZ J AD Gasket 907 QTANA9011SJZZ J AE Terminal 908 TSPC-0221SJZZ J AD Specification Label 909 HSY042SPK07 J AE Capacitor,3.3 µF,50V (N.P.) 910 XTBSF40P12000 J AA Screw,ø4×12mm SP1,2 RSPA00005SJ6W J AQ Woofer SP3,4 RSPA00004SJ6T J AK Tweeter

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

ACCESSORIES/PACKING PARTS

1 QACCA0001SJ00 J AS AC Power Supply Cord 1 QACCB0001SJ00 J AW AC Power Supply Cord 1 QACCE0001SJZZ J AH AC Power Supply Cord

1 QACCL0002AW00 J AN AC Power Supply Cord

1 QPLGA0250AFZZ J AF AC Plug Adapter 1 QPLGA0253AFZZ J AE AC Plug Adapter

———— — Battery (Not Replacement Item)

[For Saudi Arabia/Thailand/Taiwan] [For Hong Kong] [Except for Australia/New

Zealand/Saudi Arabia/Thailand/ Taiwan]

QANTL0001SJZZ J AK AM Loop Antenna QANTW0002SJZZ J AH FM Antenna QCNWH0005SJ00 J Speaker Cord

SPAKA0058SJZZ J AE Packing Add.,Left SPAKA0059SJZZ J AE Packing Add.,Right SPAKA0068SJZZ J Packing Add.,Speaker

SPAKC0165SJZZ J Packing Case SPAKS0003SJZZ J Sleeve Carton,Speaker SPAKZ0008SJZZ J Polyethylene Bag,Speaker SPAKZ0030SJZZ J AC Pad,Accessories SPAKZ0040SJZZ J Pad SPAKZ0064SJZZ J AC Polyethylene Bag,Unit SSAKA0002SJZZ J AE Polyethylene Bag,Accessories TCAUZ0019SJZZ J Caution Sheet [For Taiwan] TGANE0001SJZZ J AM Warranty Card

TGANE0002SJ09 J Warranty Card [For Philippines] TGANZ0007SJ08 J Warranty Card [For Taiwan] TINSE0074SJZZ J Operation Manual

TINSZ0094SJZZ J AK Operation Manual

TINSZ0109SJZZ J Operation Manual [For Thailand] TLABE0104SJZZ J Label,Bar Code

TLABG0001SJZZ J AB Label,Hong Kong TLABG0037SJZZ J Label,Rated Input, [For Hong

TLABG0038SJZZ J Label,Chinese [For Taiwan] TLABH0002SJZZ J AD Sheet,English/Chinese

TLABH0003SJZZ J AD Sheet,English/Chinese TLABH0004SJZZ J AD Sheet,English/Chinese TLABN0134SJZZ J Label,Serial No.

TLABS0038SJZZ J Label,Bar Code

TLABZ0009SJZZ J AD Label,Made in China

TLABZ0010SJZZ J AD Label,Made in China

TLABZ0011SJZZ J AD Label,SHARP Japan

TLABZ0012SJZZ J AC

TLABZ0015SJZZ J AC Label,VJ No. TLABZ0019SJZZ J AC Label,M-I-C TLSTS0003SJZZ J AB Service Station List [For Taiwan] TLSTS0004SJZZ J AB Service Station List

Z-SER-NO-LIST J List,Serial No. RRMCG0034SJSA J Remote Control GCABB1064SJSA J Battery Lid,Remote Control

[For Australia/New Zealand]

[Top/Bottom]

[For Australia/New Zealand]

[For Australia/New Zealand] [Except for Australia/Thailand/

New Zealand]

[For Australia/Union of Arab Emirates/Hong Kong/Thailand/ Taiwan/Philippines/New Zealand]

Kong]

Comparison [For Taiwan] Comparison [For Taiwan] Comparison [For Taiwan]

[For Central & South America/ Chile/Peru/Bolivia]

[For Australia/Syria/Central & South America/Philippines]

[For Australia/Central & South America/Philippines]

[For Syria/Union of Arab Emirates/Chile/Peru/Bolivia]

Label,SHARP Corporation JAPAN

[For Syria/Union of Arab Emirates/Chile/Peru/Bolivia]

[For Saudi Arabia]

– 5 –

XL-3000W

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~8 DCEKLV028SJ03 J — Main/Tuner/Display/Terminal/

1 PWB-B DCEKJV028SJ03 J — Power

PWB-C QPWBF3895AFZZ J AC CD Motor (PWB Only) PWB-D DCEKKV028SJ03 J — Fan

Switch/Led/Lamp/Holder

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner Disc

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

– 6 –

XL-3000W

A

305

B

308

703

308-2

703

304

308-1

C

308-3

701

302

D

704x2

301

303

E

702x2

F

NM802

307x2

G

306x2

NM801

NSW801

H

PWB-C

1

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

,

y

Silicon Grease

PWB-A2

PWB-A8

PWB-B

PWB-A7

PWB-D

PWB-A3

PWB-A1

PWB-A6

601x2

206

229

207

204

234

236

235

217

214

209

203

238

604x4

602x4

603

247

246

213

604x4

603

612

210

612

211

248

243

M802

611x2

613x2

610

613

608x8

614x2

611x8

610x2

612x2

613x2

612

244x2

233

232

205

221

611

223

604

239

208

228

200

222

219

225

M801

224

226

604

212

218

607 x2

202

201

215

237x6

606x2

230x2

240

216

615x2

615x3

231x2

PWB-A4

220

PWB-A5

604x1

605x3

T651

242

241

609x4

XL-3000W

A

B

C

D

E

F

G

H

1

23456

Figure 8 CABINET EXPLODED VIEW

– 8 –

XL-3000W

A

908

902

B

SP3,4

910x2

909

C

SP1,2

907

910x4

D

Tweeter

901

906

Black

SP3 (L-CH) SP4 (R-CH)

Capacitor

E

909

White Line

905x2

F

904

Black

Woofer SP1 (L-CH) SP2 (R-CH)

903

G

SP3 (L-CH) SP4 (R-CH)

Tweeter

Capacitor

3.3µF,50V (N.P)

909

Woofer

SP1 (L-CH)

905x2

SP2 (R-CH)

H

1

23456

Figure 9 SPEAKER EXPLODED VIEW

– 9 –

–MEMO–

XL-3000W

©

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any from or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

SHARP CORPORATION AV Systems Group Audio Systems Division Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0105-1571SS•HA•C

SA•SZ•EX

Sharp XL-3000-W Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
