Sharp XL-1000W User Manual

COMP ACT AUDIO SYSTEM

Please refer to pages E-1 to E-26.
Se reporter aux pages F-1 à F-26.
Consulte las páginas S-1 a S-26.

ENGLISH

FRANÇAIS

ESPAÑOL

CHAÎNE AUDIO COMPACTE
CADENAS MICRO COMPACTAS

MODEL
MODÈLE
MODELO

XL-1000W

OPERATION MANUAL
MODE D’EMPLOI
MANUAL DE MANEJO

XL-1000W Compact Audio System consisting of XL-1000W (main unit)
and CP-XL1000H (speaker system).

Chaîne audio compacte XL-1000W composée de XL-1000W (appareil prin­cipal) et de CP-XL1000H (enceintes acoustiques).

Cadenas micro compactas XL-1000W que consta de XL-1000W (aparato
principal) y CP-XL1000H (sistema de altavoces).

SHARP CORPORATION

ENGLISH

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA
TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ
IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT.

Special Notes

CAUTION Laser Diode Properties

Material: GaAIAs

z

This Compact Audio System is classified as a CLASS 1 LASER
product.

z

The CLASS 1 LASER PRODUCT label is located on the rear
cover.

z

Use of controls, adjustments or performance of procedures oth­er than those specified herein may result in hazardous radiation

- Special Notes -

exposure.

As the laser beam used in this compact disc player is harmful to

Important Instruction

the eyes, do not attempt to disassemble the cabinet. Refer ser­vicing to qualified personnel only.

When the ON/STAND-BY button is set at ST AND-BY position, mains
voltage is still present inside the unit. When the ON/STAND-BY but­ton is set at STAND-BY position, the unit may be brought into opera­tion by the timer mode or remote control.

Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

Warning:

To prevent fire or shock hazard, do not ex pose this appliance to drip­ping or splashing. No objects filled with liquids, such as vases, shall
be placed on the apparatus.

E-1

Warning:

This unit contains no user serviceable par ts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the socket before any service oper­ation and when not in use for a long period.

ENGLISH

Accessories

Contents

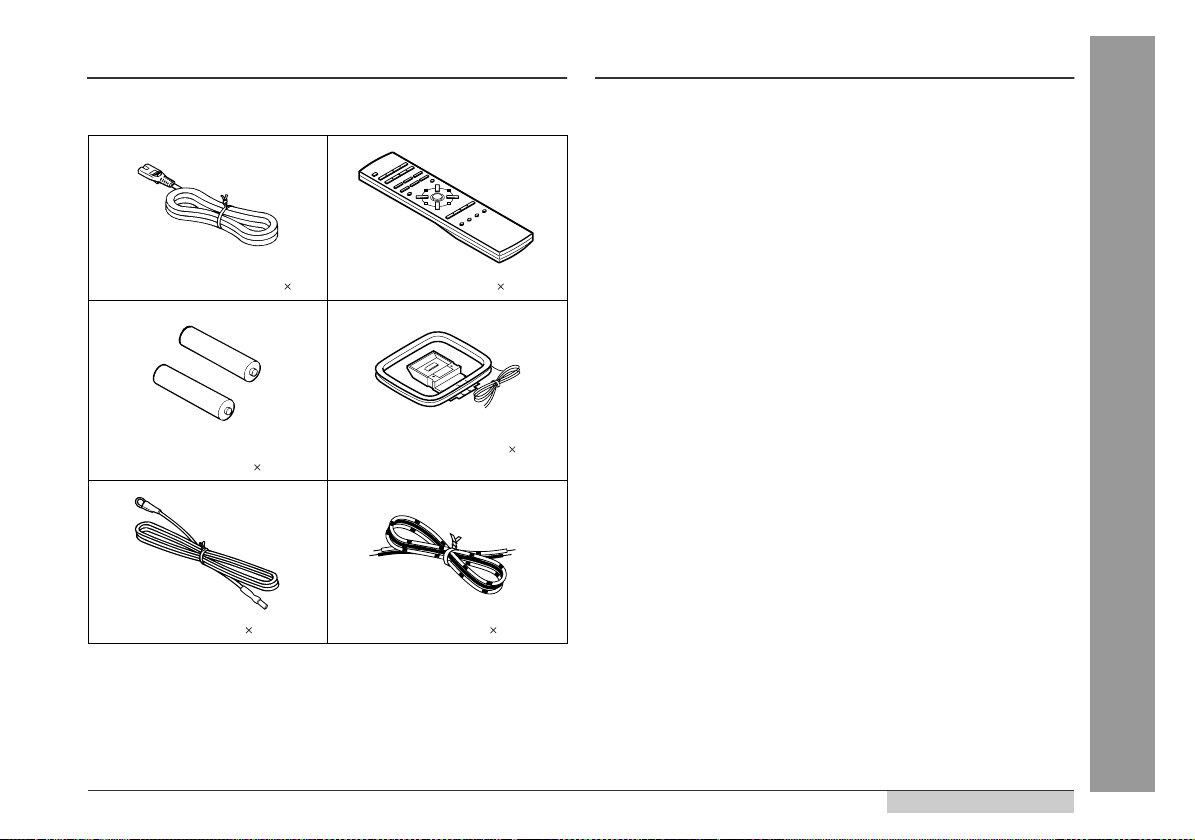

Please confirm that the following accessories are included.

AC power lead 1 Remote control 1

"AAA" size battery (UM-4,

R03, HP-16 or similar) 2

FM aerial 1 Speaker wire 2

Note:

Only the above accessories are included.

AM loop aerial 1

Page

General Information

„

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 6

Preparation for Use

„

System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 10

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Basic Operation

„

General Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CD Playback

„

Listening to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 - 17

Repeat or Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Programmed Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Radio

„

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Listening to the Memoris ed Station . . . . . . . . . . . . . . . . . . . . . 20

Advanced Features

„

Timer and Sleep Operation . . . . . . . . . . . . . . . . . . . . . . . . .21 - 23

Enhancing Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

References

„

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

- Accessories / Contents -

General Informat ion

ENGLISH

E-2

Precautions

General

„

z

Please ensure that the equipment is positioned in a well-venti­lated area and that there is at least 10 cm (4") of free space along
the sides and back. There must also be a minimum of 30 cm
(12") of free space on the top of the unit.

10 cm (4") 10 cm (4")

z

Use the unit on a firm, level surface free from vibration.

z

Keep the unit away from d irect sunlight, strong magnetic fields,
excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which generates electrical
noise.

z

Do not place anything on top of the unit.

z

Do not expose the unit to moisture, to temperatures higher than

- Precautions -

60°C (140°F) or to extremely low temperatures.

z

If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and

General Informat ion

then turn on your system.

z

In case of an electrical storm, unplug the unit for safety.

z

Hold the AC power plug by the hea d when removing it from the
wall socket, as pulling the lead can damage internal wires.

z

Do not remove the outer cover, as this may result in electric
shock. Refer internal service to your local SHARP service
facility.

z

The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, cur tains,
etc.

z

No naked flame sources, such as lighted candles, should be
placed on the apparatus.

30 cm (12")

10 cm (4")

z

Attention should be drawn to the environmental aspects of bat­tery disposal.

z

This unit should only be used within the range of 5°C - 35°C
(41°F - 95°F).

Warnings:

z

The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other
than that which is specified.

z

CD players use a laser pickup which can damage the eyes if
viewed directly. Do not look at the pickup, and do not touch
the pickup directly.

Volume control

„

The sound level at a given volume setting depends on speaker effi­ciency, location, and various other factors. It is advisable to avoid
exposure to high volume levels, which occurs whilst turning the unit
on with the volume control setting up high, or whilst continually lis­tening at high volumes.

Condensation

„

Sudden temperature changes, storage or
operation in an extremely humid environ­ment may cause condensation inside the
cabinet (CD pickup, etc.) or on the transmit­ter on the remote control.
Condensation can cause the unit to malfunc­tion. If this happens, leave the power on with
no disc in the unit until normal playback is
possible (about 1 hour). Wipe off any con­densation on the transmitter with a soft cloth
before operating the unit.

E-3

ENGLISH

Controls and Indicators

7

1

2
3
4

1

2

8
9

5

6

4

3

Front panel

„

1.CD Compar tment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 15

10
11

5

2.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 13

3.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.Function Selector Button . . . . . . . . . . . . . . . . . . . . 15, 19, 21

5.Memory /Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 20

6.Bass /Treble Selector Button . . . . . . . . . . . . . . . . . . . . . . . . 13

7.CD Play or Pause, Tuning Up Button . . . . . . . . . . . 15, 16, 19

8.CD Stop, Tuning Down Button . . . . . . . . . . . . . . . . . . . 16, 19

9.CD Track Down or Fast Reverse,

Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . 17, 20

10. CD Open/ C lose Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

11.CD Track Up or Fast Forward,

Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . 17, 20

Display

„

1.Timer Play Indicator

2.S leep Indicator

3.CD Random Play Indicator

4.Memory Indicator

5.FM St ereo Mode Indicator

6.CD Play Indicator

7.CD Repeat Play Indicator

8.FM St ereo Receiving Indicator

Reference page

- Controls and Indicators -

General Informat ion

6
7

8

Description of remote control (See page 6.)

ENGLISH

E-4

Controls and Indicators (continued)

1
2

3
4

The rating label is located
on the bottom of the unit.

- Controls and Indicators -

General Informat ion

1

Rear panel

„

5
6

7
8
9

1.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4

2.AM Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8

3.Aerial Ear th Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8

4.FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . 7, 8

5.CD Digital Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4

6.Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 24

7.AC Voltag e Se lector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 9

8.AC Power Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 , 9

9.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8

Speaker system

„

1.Tweeter

2.Woofer

3.Bass Reflex Duct

4.Speaker Terminals

Speaker grilles are removable:

Make sure nothing comes into contact with the
speaker diaphragms when you remove the
speaker grilles.

Placing the speaker system:

There is no distinction between the right and the left speakers.

Left speaker Right speaker

Reference page

E-5

3

2

4

ENGLISH

Remote control

„

1
2
3

4
5

6
7

8

9

10
11

12
13

14
15

16
17

18

19

23 24

25 26

20
21

22

1.Rem ote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.Tuner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 21

7.Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 18, 20

8.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 13

10.Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

11.Band Selector Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

12.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

13.Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

14.Random/Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

15.CD Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

16.Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

17.CD Track Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

18.CD Fast Reverse, Tuning Down Button . . . . . . . . . . . . . . 17, 19

19.CD Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

20.CD Track Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

21.CD Fast Forward, Tuning Up Button . . . . . . . . . . . . . . . . . 17, 19

22.CD Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

23.CD Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

24.Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

25.B ass Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 13

26.Treble Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 13

Reference page

- Controls and Indicators -

General Informat ion

Buttons with " " mark in the illustration can be operated on the re­mote control only.
Other buttons can be operated both on the main unit and the re­mote control.

Battery installation for remote control (See page 11.)

ENGLISH

E-6

System Conn ec ti on s

Right speaker

Left speaker

FM aerial

AM loop aerial

VCR, DVD, etc.

MD recorder

not supplied

Right speaker

Left speaker

Black

White line

not supplied

To a wall socket
(See page 9.)

- System Connections -

Preparation for Use

E-7

ENGLISH

Aerial connection

„

Supplied FM aerial:

Connect the FM aerial wire to the FM
75 OHMS socket and position the FM
aerial wire in the direction where the
strongest signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial wire to the
AM and GND terminals. Position the
AM loop aerial for optimum reception.
Place the AM loop aerial on a shelf,
etc., or attach it to a stand or a wall with
screws (not supplied).

Notes:

z

Placing the aerial on the unit or near the AC power lead may
cause noise pickup. Place the aerial away from the unit for better
reception.

z

When static is still heard even after adjusting the position of the
AM loop aerial, try reversing the wire connections.

Installing the AM loop aerial:

< Assembling > < Attaching to the wall >

Wall Screws (not supplied)

External FM or AM aerial:

Use an external FM or AM aerial if you require better reception.
Consult your dealer.

External
FM aerial

15 m (49 feet)

External AM aerial

AM loop aerial

Notes:

z

When an external FM aerial is used, disconnect the supplied FM
aerial wire from the FM 75 OHMS socket.

z

When using an external AM aerial, be sure to keep the wire of the
AM loop aerial connected.

Speaker connection

„

Connect the wire with the white line to the min us (-) terminal and the
black wire to the plus (+) terminal.

Caution:

z

Connect the speaker wires to the speakers first, then to the
unit.

z

Use speakers with an impedance of 8 ohms or more, as lower
impedance speakers can damage the unit.

z

Do not mistake the right and the left channels. The right speaker
is the one on the right side when you face the unit.

z

Do not let the bare speaker wires touch each other.

Incorrect Incorrect

- System Connections -

Preparation for Use

Earth rod

7.5 m (25 feet)

ENGLISH

E-8

System Connections (c ontinued)

1

2

Wall socket

Setting the AC voltage selector

„

Check the setting of the AC voltage selector located on the rear
panel before plugging the unit into a wall socket. If necessary, adjust
the selector to correspond to the AC power voltage used in your
area.

Turn the selector with a screwdriver until the appropriate vol t ­age number appears in the window (110 V, 127 V, 220 V or 230 V

- 240 V AC).

- System Connections -

Preparation for Use

Connecting the AC power lead

„

After checking all the connections have been made correctly,
connect the AC power lead to the AC power input socket, then
into the wall socket.

Notes:

z

Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.

z

Never use a power lead other than the one supplied. Use of a
power lead other than the one supplied may cause an elec­tric shock or fire.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration
is used, connect the unit using the AC plug adaptor supplied with
the unit, as illustrated. The AC plug adaptor is not included in areas
where the wall socket and AC power plug can be directly c onnected
(see illustration ).

E-9

ENGLISH

Setting the AM/FM interval

„

The International Telecommunication Union (ITU) has established
that member countries should maintain either a 10 kHz or 9 kHz
interval between broadcasting frequencies of AM stations and 100
kHz or 50 kHz for FM stations. The illustration shows the 50/9 kHz
zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

This product is not equipped with a span selector . However, it will be
adjusted to a 9 kHz AM (50 kHz FM) interval when shipped from the
factory.
Before using the unit, be sure to set it to the AM /FM tuning interval
(span) used in your area.

To check the tuning span currently selected:

1 Press the ON/STAND-BY button to turn the power on.
2 Press the FUNCTION button until "AM" appears on the display.

z

If "AM 531 kHz" is displayed, it means that AM stations have
been adjusted for a 9 kHz span and FM stations for 50 kHz
span. If "AM 530 kHz" is displayed, AM stations have been ad­justed for a 10 kHz span and FM stations for 100 kHz span.

T o change from a 9 kHz AM (50 kHz FM) interval to a 10 kHz AM
(100 kHz FM) interval:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 10 kHz" and
"FM SP 100 kHz" are displayed alternately.

z

The clock display will reappear.

To return to a 9 kHz AM (50 kHz FM) interval:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 9 kHz" and
"FM SP 50 kHz" are displayed alternately.

z

The clock display will reappear.

Caution:

z

When the unit is left for a few hours after the span has been
switched and the AC power lead disconnected, the AM span will
be automatically returned to 9 kHz (FM span to 50 kHz). If this
happens, set the span again.

z

When the span is switched, all the memorised stations will be
cancelled.

- System Connections -

Preparation for Use

ENGLISH

E-10

Remote Control

0.2 m - 6 m
(8" - 20')

Remote sensor

„

1 Remove the battery cover.
2 Insert the batteries according to the direction indicated in

the battery compartment.

When inserting or removing the batteries, push them towards the
3 Replace the cover.

Precautions for battery use:

z

Preparation for Use

Replace all old batteries with new ones at the same time.

z

Do not mix old and new batteries.

z

Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leak­age.

Caution:

- Remote Control -

z

Do not use rechargeable batteries (nickel-cadmium battery, etc.).

z

Installing the batteries incorrectly may cause the unit to malfunc­tion.

Notes concerning use:

z

Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 "AAA" size batteries (UM­4, R03, HP-16 or similar).

z

Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.

z

Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.

z

Keep the remote control away from moisture, heat, shock, and
vibrations.

Battery installation

battery terminals.

Test of the remote control

„

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now , you
can enjoy the music.

E-11

ENGLISH

General Control

To turn the power on

„

Press the ON/STAND-BY button to turn the power on.

To set the unit to stand-by mode:

Press the ON/STAND-BY button again.

To change the display brightness (2 levels)

„

You can switch the display brightness by pressing the DIMMER but­ton on the remote control.

Dimmed Brightened

Opening and closing the CD compartment

„

The CD compartment cover is motorised.
When the power is turned on, you can open or close the CD com -

partment cover by pressing the (OPEN/CLOSE) button.

Caution:

z

Do not open or close the CD compartment cover manually. It may
cause malfunctions to the unit.

z

Be careful not to jam your fingers in the CD compartment cover.

- General Control -

Basic Operation

ENGLISH

E-12

Sound Control

21 28 29 MAXMIN

.....

05-5

...

...

05-5

...

...

- Sound Control -

Basic Operation

Adjusting the volume

„

Press the VOLUME button to increase the volume and the VOL­UME button for decreasing.

Adjusting the bass

„

Main unit operation:

1 Press the BASS/TREBLE button until "BASS" appears on the

display.

2 Within 5 seconds, press the VOLUME ( or ) button to adjust

the bass.

Remote control operation:

Press the BASS ( or ) button to adjust the bass.

Adjusting the treble

„

Main unit operation:

1 Press the BASS/TREBLE button until "TRE" appears on the d is-

play.

2 Within 5 seconds, press the VOLUME ( or ) button to adjust

the treble.

Remote control operation:

Press the TREBLE ( or ) button to adjust the treble.

E-13

ENGLISH

Setting the Clock

This may be operated only with the remote control.
In this example, the clock is set for the 24-hour (0:00) display.

1

Press the CLOCK button and within 3 se conds, press
the MEMORY button.

2

Within 1 minute, press the PR ESET ( or ) button to
select 24-hour or 12-hour display and then press the

MEMORY button.

"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it

has been reset. (Refer to step 3 under "If trouble occurs" on
page 25.)

3

Within 1 minute, press the PRESET ( or ) button to
adjust the hour and then press the MEMO RY button.

z

When the 12-hour display is selected, "AM" will change au­tomatically to "PM".

4

Within 1 minute, press the PRESET ( or ) button to
adjust the minutes and then press the MEMORY button.

z

The hour will not advance even if minutes advance from "59"
to "00".

z

The clock starts from "0" second. (Seconds are not dis­played.)

To confirm the time display when the power is on:

Press the CLOCK button.
The time display will appear for about 5 seconds.

Note:

The time will flash at the push of the CLOCK button when the AC
power supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Perform step 3 under "If

trouble occurs" on page 25.]

2 Perform "Setting the Clock" from the beginning.

Basic Operation

- Setting the Clock -

ENGLISH

E-14

Listening to a CD

1

Press the ON/ S T A N D-BY button to turn the pow e r o n .

2

Press the FUNCTION button until "CD STOP" or "NO
DISC" appears on the display.

When operating with the remote control, press the CD button.

3

Press the (OPEN/CLOSE) button to open the CD com­partment.

4

Place a CD on the spindle, label si de up.

Be sure to place 8 cm (3") disc in the middle of a disc holder.

CD Playback

E-15

12 cm (5")

5

Press the (OPEN/

- Listening to a CD -

ENGLISH

Sound Control (See page 13.)

CLOSE) button to
close the CD com­partment.

Total number of
tracks

6

Press the ( ) button to start playback from track 1.

When the last track on the disc has finished playing, the CD
player will stop automatically.

8 cm (3")

Total playing time

To interrupt playback:
Main unit operation:

Press the button.
To resume playback from the same point, press the button again.

Remote control operation:

Press the button.
To resume playback from the same point, press the button.

To stop playback:

Press the button.

To remove the CD:

Whilst in the stop mode, press the (OPEN/CLOSE) button.
Press the CD eject button and remove the CD.

CD Eject Button

Notes:

z

After removing the CD , make sure t o press the (OPEN/CLOSE)
button and close the CD compartment.

z

When the unit enters the stand-by mode, the opened CD com­partment cover will be closed automatically.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

Caution:

z

Do not open or close the CD compartment cover manually. It
may cause malfunctions to the unit.

z

Be careful not to jam your fingers in the CD compartment
cover.

z

If the power fails whilst the compartment is open, wait until the
power is restored.

z

If a disc is damaged, dirty, or loaded upside down, "NO DISC" or
"READ ERR" will appear on the display.

z

Keep foreign objects out of the CD compartment.

z

Subjecting the unit to shock or vibration may cause mistracking.

z

When the unit is not being used, be sure to close the CD com­partment. If it is left open, the lens may be c overed with dust and
the unit may not operate properly.

z

If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.

Care of compact discs

„

Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collec­tion and player.

z

Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.

z

Keep your discs away from direct sunlight, heat, and excessive
moisture.

z

Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the centre, along the radius.

NO

YES
correct

CD Playback

- Listening to a CD -

ENGLISH

E-16

Listening to a CD (continued)

Repeat or Random Play

To locate the beginning of a track

„

To move to the beginning of the next track:

Press the button for less than 0.5 seconds during playback.

z

You can skip to any track by pressing the
button repeatedly until the desired track
number appears.

To restart the track being played:

Press the button for less than 0.5 seconds during playback.

z

You can skip to any track by pressing the
button repeatedly until the desired track
number appears.

To locate the desired portion

„

For audible fast forward:

Press and hold down the button during playback.

CD Playback

For audible fast reverse:

Press and hold down the button during playback.

Notes:

z

Normal playback will resume when the or button is
released.

z

When the end of the last track is reached during fast forward,
"END" will appear on the display and CD operation will be

- Listening to a CD / Repeat or Random Play -

paused. When the beginning of the first track is reached during
fast reverse, playback will start when you release the button.

z

The or button on the remote control allows you to locate
the desired portion.

You can select one of the CD playback mode; "Repeat play", "Ran­dom play" and "Normal play".

1

When in the CD mode, press the RANDOM/REPEAT
button on the remot e control repeatedly to sele ct the

playback mode.

Repeat playback mode Random playback mode

Normal playback mode

2

Press the button to start playback.

To repeat a programmed sequence:

Perform steps 1 - 5 in the "Programmed Play" section and then
select the repeat playback.

Notes:

z

In random play, the CD player will select and play tr acks automat­ically. (You cannot select the order of the tracks.)

z

If you press the button during random play, you can move to
the track selected next by the random o peration. On the other
hand, the button does not allow you to move to the previous
track. The beginning of the track being played will be located.

Caution:

After performing repeat or random play, be sure to press the but­ton. Otherwise, the disc will play continuously.

To cancel repeat or random play:

Press the RANDOM/REPEAT button on the remote control repeat­edly to select the normal playback mode.

E-17

ENGLISH

Programmed Play

You can choose up to 20 selections for playback in the order you
like.

1

Whilst in the stop mode, press the MEMORY/SET
(MEMORY) button to enter the programming save

mode.

2

Within 30 seconds, press the or button to select
the desired track.

Selected track number Playback time

3

Press the MEMORY/SET(MEMORY) button to save the
track number.

Playback order Total playback time

4

Repeat steps 2 - 3 for ot her tracks. Up to 20 tracks can
be programmed.

5

Press the ( ) button to start playback.

To clear the programmed selec­tions:

Press the CLEAR button on the remote
control whilst the "MEMORY" indicator
is flashing.
Each time the button is pressed, one
track will be cleared, beginning with the
last track programmed.

To cancel the programmed play mode:

Whilst in the stop mode and the "MEMORY" indicator is lit, press the
CLEAR button on the remote control. The "MEMORY" indicator will
disappear and all the programmed contents will be cleared.

Adding tracks to the programme:

If a programme has been previously stored, the "MEMORY" indica­tor will be displayed. Then follow steps 1 - 3 to add tracks. The new
tracks will be stored after the last track of the original programme.

Notes:

z

Opening the CD compartment automatically cancels the pro­grammed sequence.

z

Even if you press the ON/STAND-BY button to enter the stand-by
mode or the function is changed from CD to some other function,
the programmed selections will not be cleared.

z

During programme operation, random play is not possible.

CD Playback

- Programmed Play -

ENGLISH

E-18

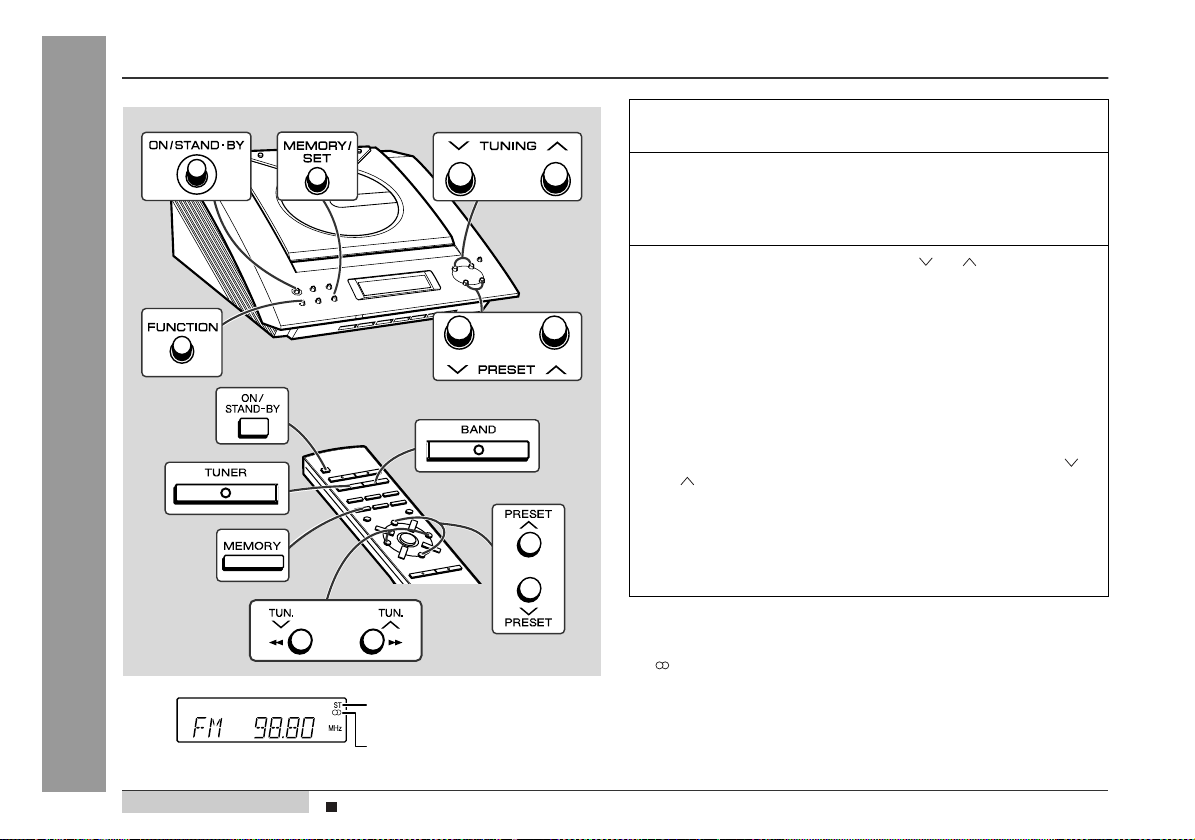

Listening to the Radio

Radio

- Listening to the Radio -

FM stereo mode indicator

FM stereo receiving indicator

1

Press the ON/ S T A N D-BY button to turn the pow e r o n .

2

Press the FUNCTION button until "FM" or "AM" ap­pears on the display.

When operating with the remote control, press the TUNER but­ton, and then the BAND button to select "FM " or "AM".

3

Press the T UN IN G ( or ) button to t une i n to th e de­sired station.

Manual tuning:

Press the TUNING button as many times as required to tune in
to the desired station.

Auto tuning:

When the TUNING button is pressed for more than 0.5 sec­onds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.

Notes:

z

This can be operated by pressing the TUN. ( or ) button
on the remote control.

z

When radio interference occurs, auto scan tuning may stop
automatically at that point.

z

Auto scan tuning will skip weak signal stations.

z

To stop the auto tuning, press the TUNING button again.

To receive an FM stereo transmission:

Press the FUNCTION (BAND) button to display the "ST" indicator.

z

" " will appear when an FM broadcast is in stereo.

z

If the FM reception is weak, press the FUNCTION (BAND) button
to extinguish the "ST" indic ator. The rec eption changes to mon­aural, and the sound becomes clearer.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

E-19

ENGLISH

Sound Control (See page 13.)

Listening to the Memorised Station

Memorising a station

„

You can store 30 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)

1

Perform the step s 1 - 3 in "Listening to t he Radio" on
page 19.

2

Press the MEMORY/SET (MEMO­RY) button to enter the pre set tun-

ing saving mode.

3

Within 5 seconds, press the PRE­SET ( or ) b utton to select the

preset channel number.

Store the stations in memory, in order, starting with preset
channel 1.

4

Within 5 seconds, press the MEMO­RY/SET (MEMORY) button to store

that station in memory.

If the "MEMORY" and preset number indicators go out before
the station is memorised, repeat the operation from step 2.

5

Repeat steps 1 - 4 to set oth er st ations, or t o cha nge a
preset station.

When a new station is stored in memory, the station previously
memorised will be erased.

Note:

The backup function protects the memorised stations for a few
hours should there be a power failure or the AC power lead discon­nection.

To recall a memorised station

„

Press the PRESET ( or ) button for less than 0.5 seconds to
select the desired station.

Preset channel Frequency and frequency band

To scan the preset stations

„

The stations saved in memory can be scanned automatically. (Pre­set memory scan)

1

Press the PRESET ( o r ) button for more than 0.5
seconds.

The preset number will flash and the programmed stations will
be tuned in sequentially, for 5 seconds each.

2

Press the PRESET ( or ) button again when the de­sired station is located.

To clear a memorised station

„

1 Recall the memorised station.
2 Whilst it is displayed, press the

MEMORY/SET (MEMORY) but­ton.

3 Within 5 seconds, press the

CLEAR button on the remote con­trol.

Radio

- Listening to the Memorised Station -

Listening to the Radio (See page 19.)

ENGLISH

E-20

Timer and Sleep Ope ra tion

This may be operated only with the remote control.

Timer playback:

The unit turns on and plays the desired source (CD, tuner) at the
preset time.

Sleep operation:

The radio and compact disc can all be turned off automatically.

Advanced Features

- Timer and Sleep Operation -

Timer playback

„

Before setting timer:

1 Press the CLOCK button to check that the clock is on time.

1

Press the ON/ S T A N D-BY button to turn the pow e r o n .

2

Press the CD or TUNER button to select the desired
function.

When you selected the TUNER, tune in to the desired sta­tion.

3

Adjust the volume using the VOLUME buttons.

Do not turn the volume up too high.

4

Press the TIMER bu tton and within 6 seconds, press
the MEMORY button.

5

Within 1 minu te, press t he PRESET ( or ) button to
specify the hour to start, then press the MEMORY bu t-

ton.

E-21

2 Load a disc to be played.

ENGLISH

Setting the Clock (See page 14.)

6

Within 1 minu te, press t he PRESET ( or ) button to
specify the minute s to start, then press th e MEMORY

button.

z

The timer playback starting time, function, and volume will be
displayed, and then the unit will enter the stand-by mode au­tomatically.

z

" " will appear and the current time will be displayed.

To cancel the timer playback:

Press the ON/STAND-BY button to turn the power on.

7

When the preset time is reached, playback will start.

The volume will increase gradually until it reaches the volume
you were listening at before your system enters the timer stand­by mode.

8

If you select CD, the unit will enter the stand-by mode
after the playback. If you select TUNER, it will enter the

stand-by mode one hour after the timer playback starts.

To reset or change the timer setting:

Perform "Timer playback" from the beginning.

Notes:

z

Once the time is set, the setting will be retained until a new time
is entered.

z

When performing timer playback using another unit connected to
the VIDEO/AUX IN sock ets , select "VIDEO/AUX" in step 2. At this
time, only this unit will be turned on or enter the power stand-by
mode automatically. It will enter the power stand-by mode 1 hour
after the timer playback starts. (Another unit will not be turned on
or off.)

Advanced Features

- Timer and Sleep Operation -

Listening to the Radio (See page 19.)

ENGLISH

E-22

Timer and Sleep Operation (continued)

1.

Sleep timer setting

2.

Timer playback setting

Timer playback
start time

15 minutes - 3 hours

Desired time

Sleep operation will
automatically stop.

End time

Sleep operation

„

1

Play back the desired sound source.

2

Press the SLEEP button.

To change the sleep time:

Press the SLEEP button repeatedly to select the desired sleep
time. The time will decrease as follows.

The amount of sleep time can also be changed whilst in the
sleep mode.

3

Your system will enter the power stand-by mode auto­matically after t he preset time has elapsed.

Advanced Features

The volume will be turned down 1 minute before the sleep op-

- Timer and Sleep Operation -

eration finishes.

T o cancel the sleep operation:

Press the ON/STAND-BY button whilst the sleep timer is set.

To confirm the remaining sleep time:

Press the SLEEP button once whilst the sleep timer is set.
The remaining sleep time is displayed for about 3 seconds.

3:00 2:00

OFF 15 30

1:30 1:00

To use timer and sleep operation together

„

Example: To fall asleep and wake to the same radio station
You can play back the same source only (the function cannot be
switched).

1

Set the sleep time ( see left, steps 1 - 2).

2

Whilst the sleep timer is set, set th e desired playback
time (steps 4 - 6, pages 21 - 22 ).

E-23

ENGLISH
