Sharp XG-PH80WN, XG-PH80X-N User Manual

Download

DATA PROJECTOR

Introduction

MODEL

XG-PH80W-N XG-PH80X-N

OPERATION MANUAL

Easy Start

Setup

Connections

Operation

Basic

Features

Useful

Appendix

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information.

• Before recycling the packag ing, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page

11.

Model No.:

Serial No.:

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is ﬁ tted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked of the plug, must be used. Always reﬁ t the fuse cover after replacing the fuse. Never use the plug without the fuse cover ﬁ tted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and ﬁ t an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To ﬁ t an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the

The wire which is coloured blue must be connected to the terminal which is marked

The wire which is coloured brown must be connected to the terminal which is marked

or and of the same rating as above, which is also indicated on the pin face

Green-and-yellow : Earth Blue : Neutral Brown : Live

plug which is marked by the letter E or by the safety earth symbol or green-and-yellow.

with the letter N or coloured black.

with the letter L or coloured red.

or coloured green

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

Authorized representative responsible for the European Union Community Market

SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg

E.U. ONLY

iii

The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish, Portuguese, Chinese, Korean and Arabic. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch, Niederländisch, Schwedisch, Portugiesisch, Chinesisch, Koreanisch und Arabisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, espagnol, italien, néerlandais, suédois, portugais, chinois, coréen et arabe. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, español, italiano, holandés, sueco, portugués, chino, coreano y árabe. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, spagnolo, italiano, olandese, svedese, portoghese, cinese, coreano e arabo. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.

De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans, Italiaans, Nederlands, Zweeds, Portugees, Chinees, Koreaans en Arabisch. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.

Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, spanska, italienska, holländska, svenska, portugisiska, kinesiska, koreanska och arabiska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Espanhol, Italiano, Holandês, Sueco, Português, Chinês, Coreano e Árabe. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

Before using the projector, please read this operation manual carefully.

Introduction

ENGLISH

There are two important reasons for prompt warranty registration of your new SHARP Projec tor, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full beneﬁ t of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notiﬁ cation of inspection, modiﬁ cation, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

To reduce the risk of ﬁ re or electric shock, do not

U.S.A. ONLY

expose this product to rain or mois ture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning ﬂ ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufﬁ cient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING:

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A veriﬁ cation.

FCC Regulations state that any unauthorized changes or modiﬁ cations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equip ment.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

U.S.A. ONLY

PRODUCT DISPOSAL

This product utilizes lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org, or Sharp at 1800-BE-SHARP.

U.S.A. ONLY

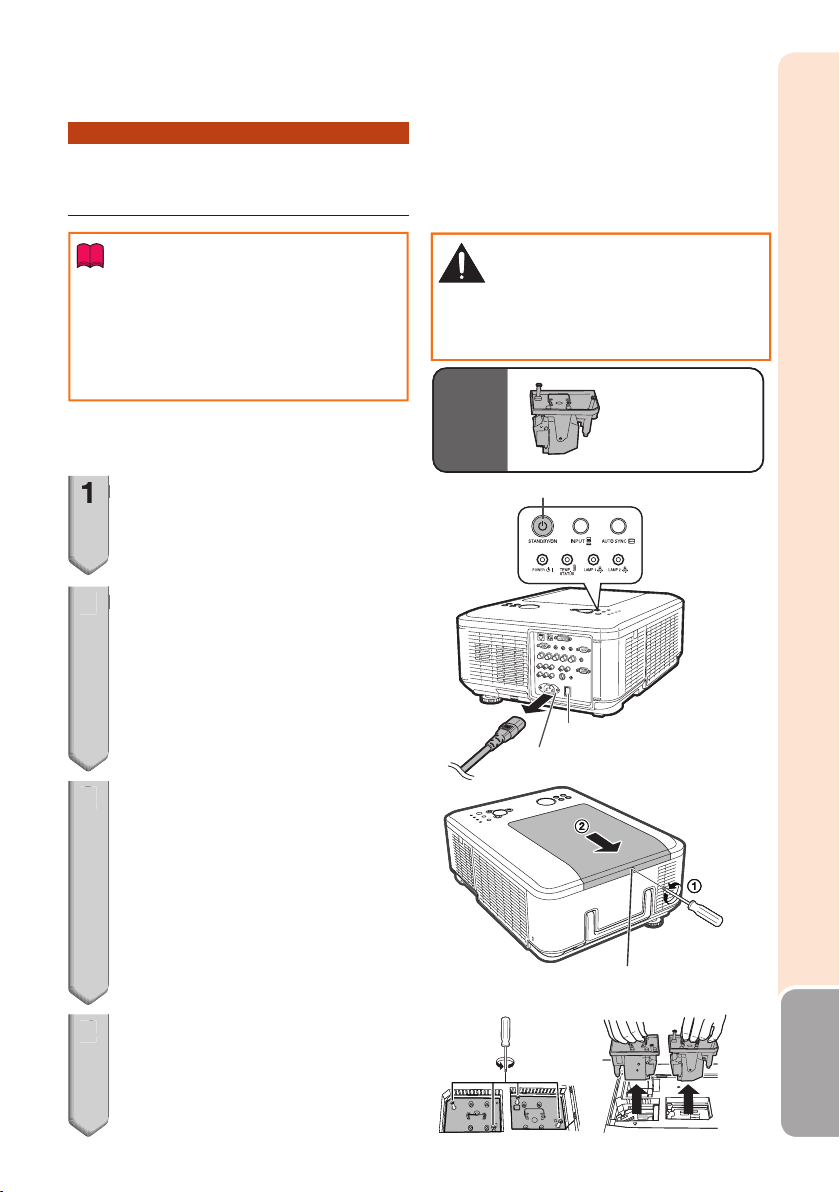

Caution Concerning Lamp Replacement

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp

■

failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking. When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended

■

that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally. Should the lamp break, there is also a possibility that glass particles may spread inside of the

■

projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation. Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the

■

lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Caution

Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may

• cause burns or injury. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to

• fully cool before removing the lamp unit. Do not touch the glass surface of the lamp unit or the inside of the projector.

• Do not loosen other screws except for the lamp unit cover and lamp unit.

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and

• continue to use the same lamp, this may cause the lamp to become damaged or explode.

Carefully change the lamp by following the instructions described on pages

■

* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector

Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized

Projector Dealer or Service Center for repair.

66 to 68.

How to Read this Operation Manual

The speciﬁ cations are slightly different, depending on the model. However, you can connect

■

and operate all models in the same manner.

In this operation manual, the illustration and the screen display are simpliﬁ ed for explanation, and

• may differ slightly from the actual display.

Using the Menu Screen

Adjustment buttons ( ///)

MENU button

Introduction

Adjustment button s (

///)

MENU button

RETURN button

Press RETURN to return

• to the previous sc reen when the menu is displayed.

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

This operatio n can also be performe d by using the buttons on the proj ector.•

Press MENU.

The menu screen is displayed.

•

Press or and selec t

“Picture” to adjust.

.........Indicates safeguards for using the projector.

Info

Indicates additional information for setting up and operating the

.......

Note

projector.

Example: “Picture” screen menu for COMPUTER (RGB) input

Picture Mode

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Ex. Setting

Reset

Menu item

SIG-ADJ Video SCR-ADJ PRJ-ADJPicture

MENU = END SEL./ADJ. SEL.

Presentation

Features

Useful

Buttons used in this operation

Button used in this step

On-screen display

For Future Reference

Maintenance

P. 61

Troubleshooting

PP. 73 to 75

Index

P. 79

Preparing

Introduction

How to Read this Operation Manual ......3

Contents .................................................4

IMPORTANT SAFEGUARDS ..................6

How to Access the PDF Operation

Manuals..............................................10

Accessories ..........................................11

Part Names and Functions ...................13

Top View ................................................ 13

Front View .............................................. 13

Side View (Terminals) .............................. 14

Inserting the Batteries ............................. 16

Usable Range ......................................... 16

Easy Start

Easy Start .............................................17

Setup and Projection .............................. 17

Setup

Setting Up the Projector .......................19

Video Setup............................................ 19

Setting Up the Projector ......................... 19

Standard Setup (Front Projection) ........... 19

Projection (PRJ) Mode ............................ 20

Ceiling-Mount Setup ............................... 20

Connections

Connecting the Projector to

Other Equipment ................................21

Controlling the Projector by

a Computer ........................................24

Attaching the Optional Lens .................26

Connecting the Power Cord .................27

Using

Basic Operation

Turning the Projector On/Off ................28

Turning the Projector On ......................... 28

Turning the Power Off (Putting the

Projector into Standby Mode) .............. 28

Image Projection ..................................29

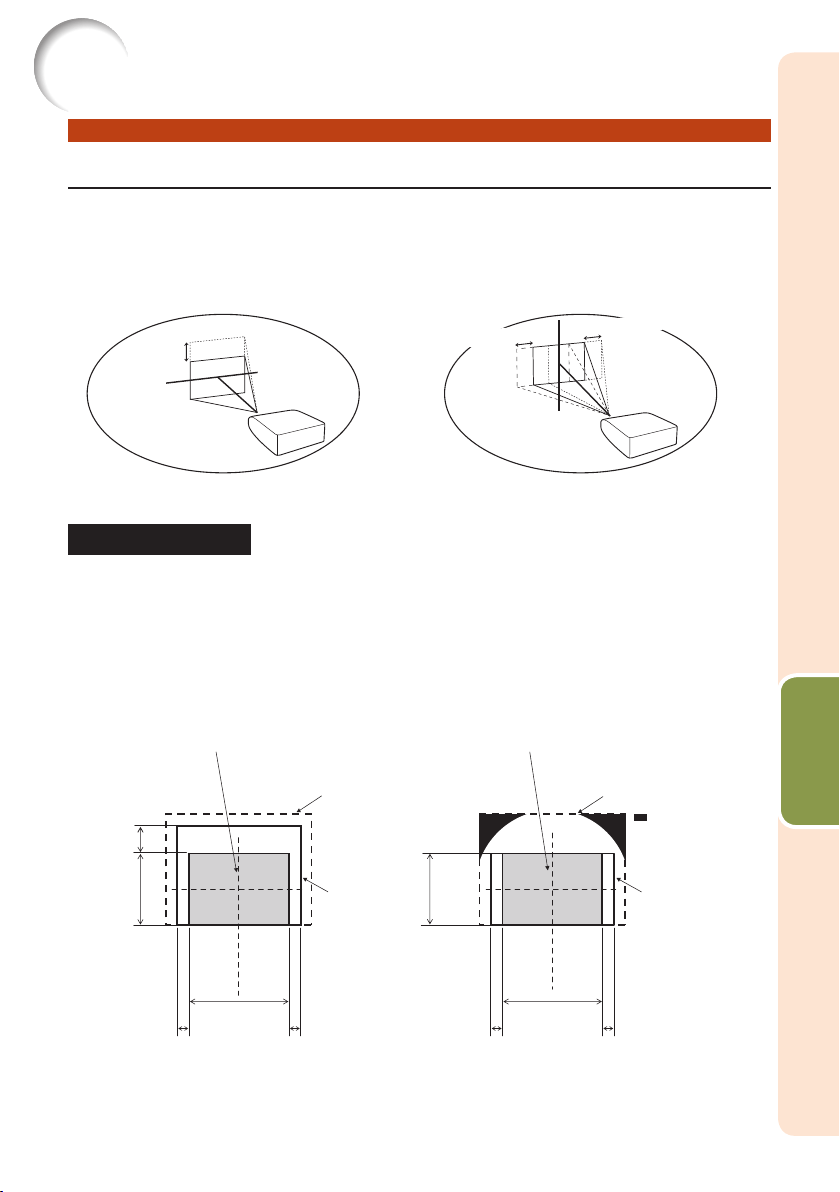

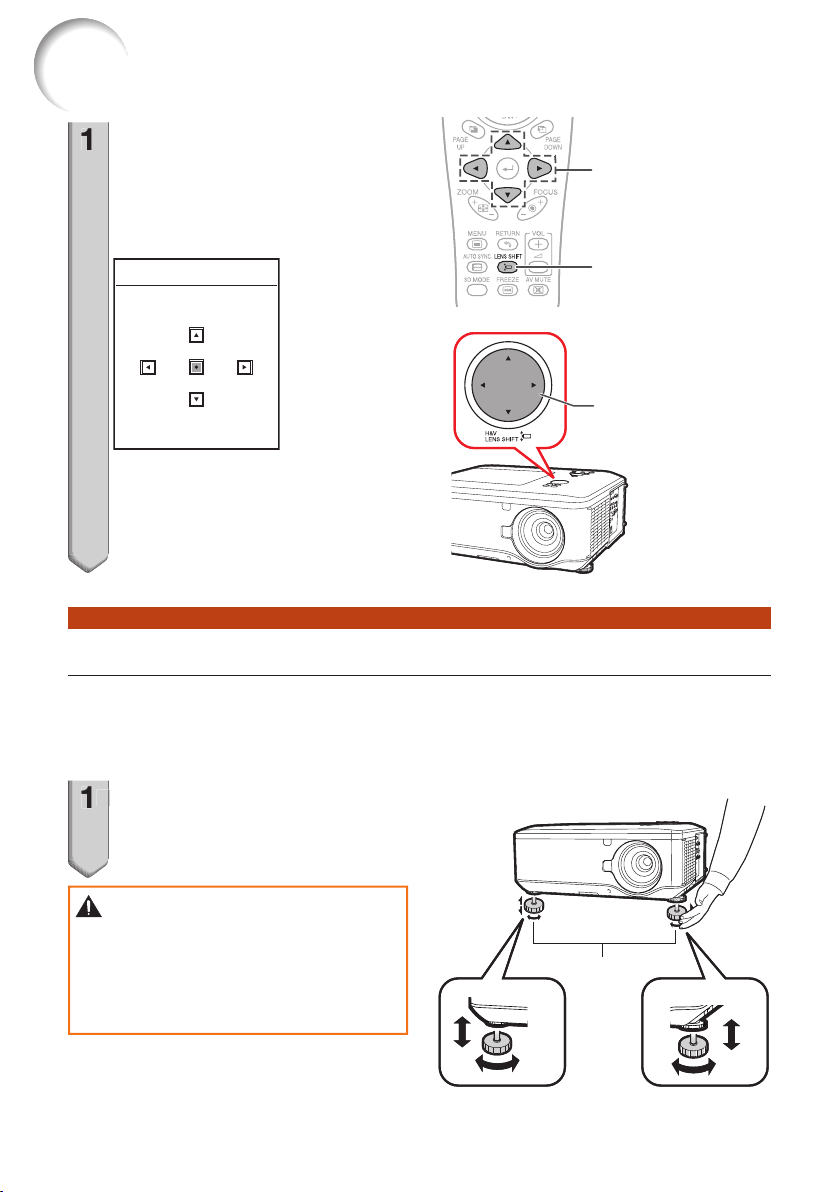

Shifting the Lens ..................................... 29

Using the Adjustment Feet...................... 30

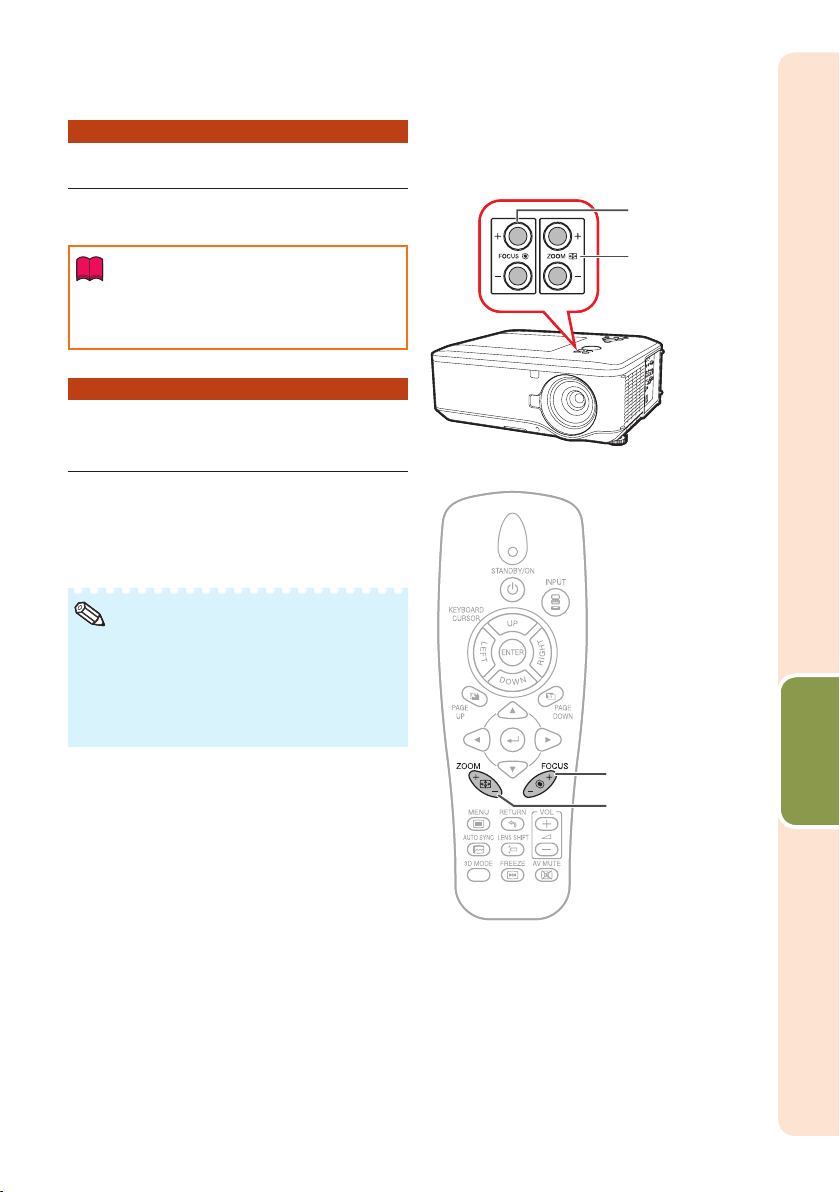

Adjusting the Focus ................................ 31

Adjusting the Projected Image Size ......... 31

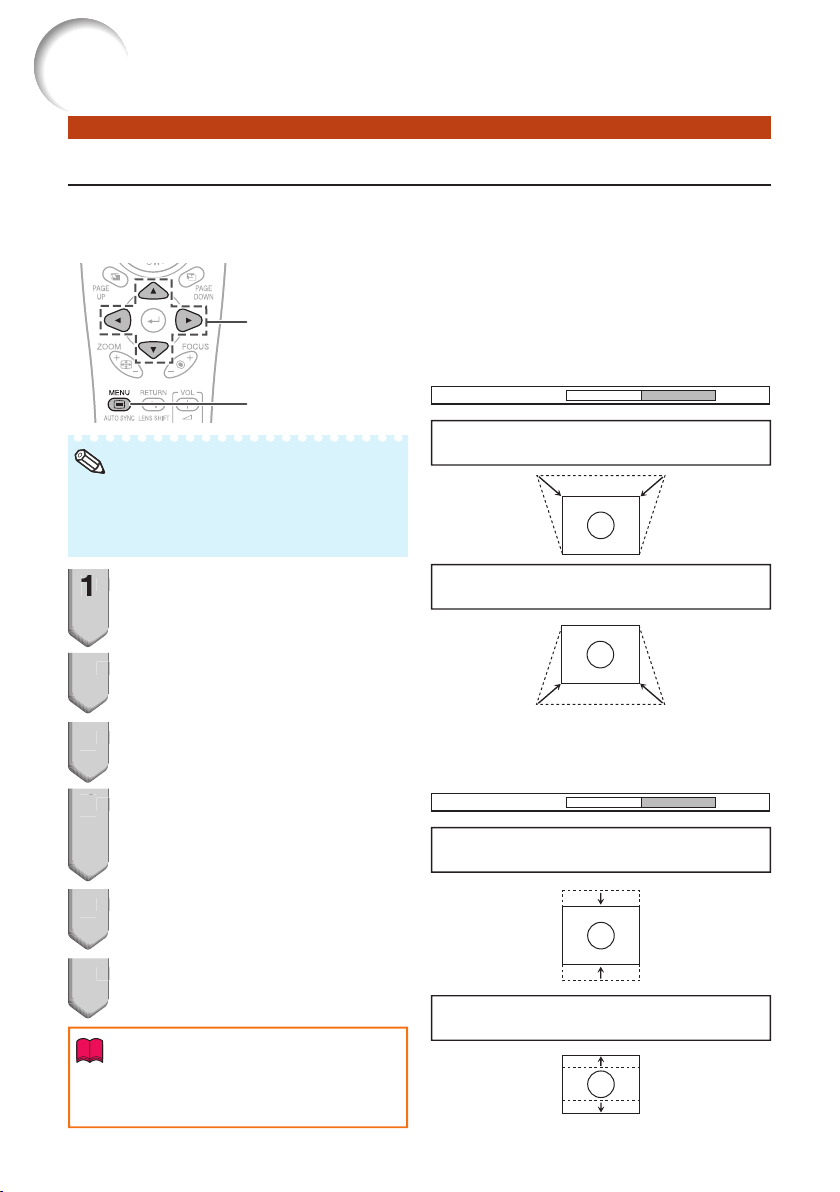

Correcting Trapezoidal Distortion ............ 32

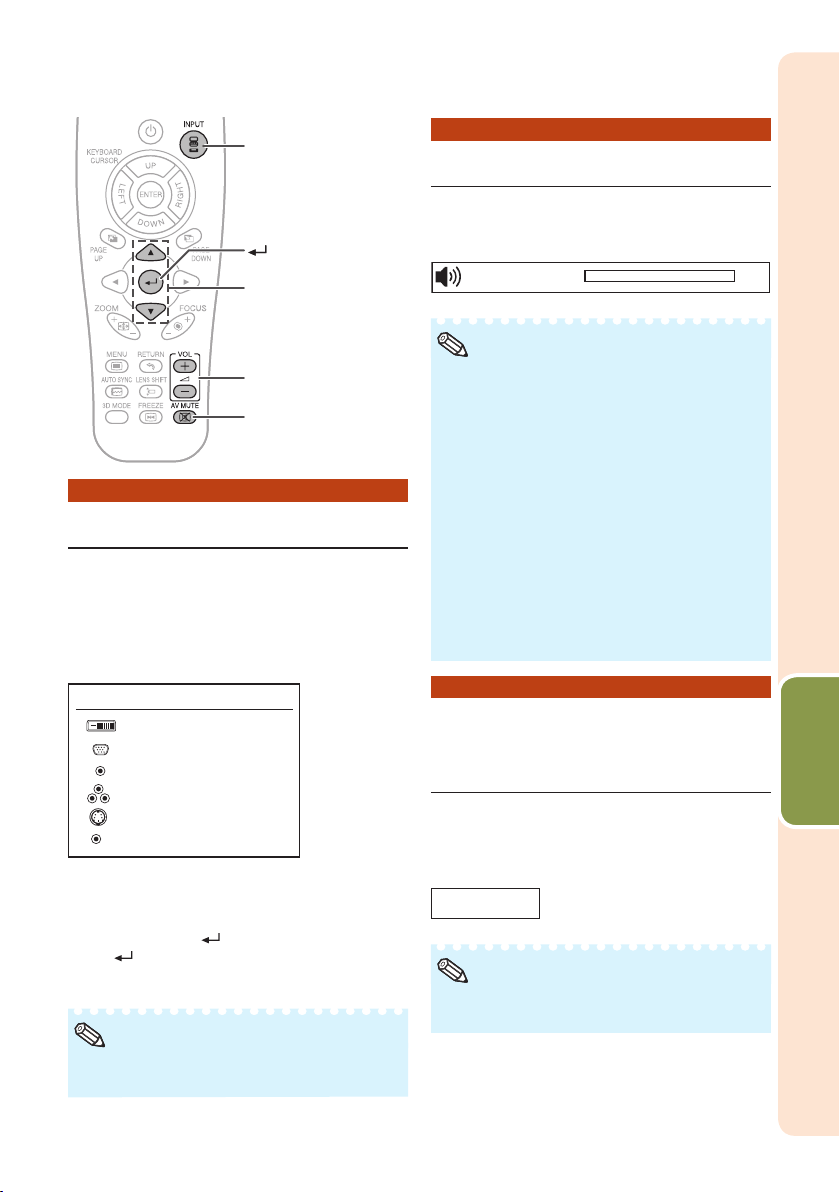

Switching the Input Mode ....................... 33

Adjusting the Volume .............................. 33

Displaying the Black Screen and

Turning Off the Sound Temporarily ....... 33

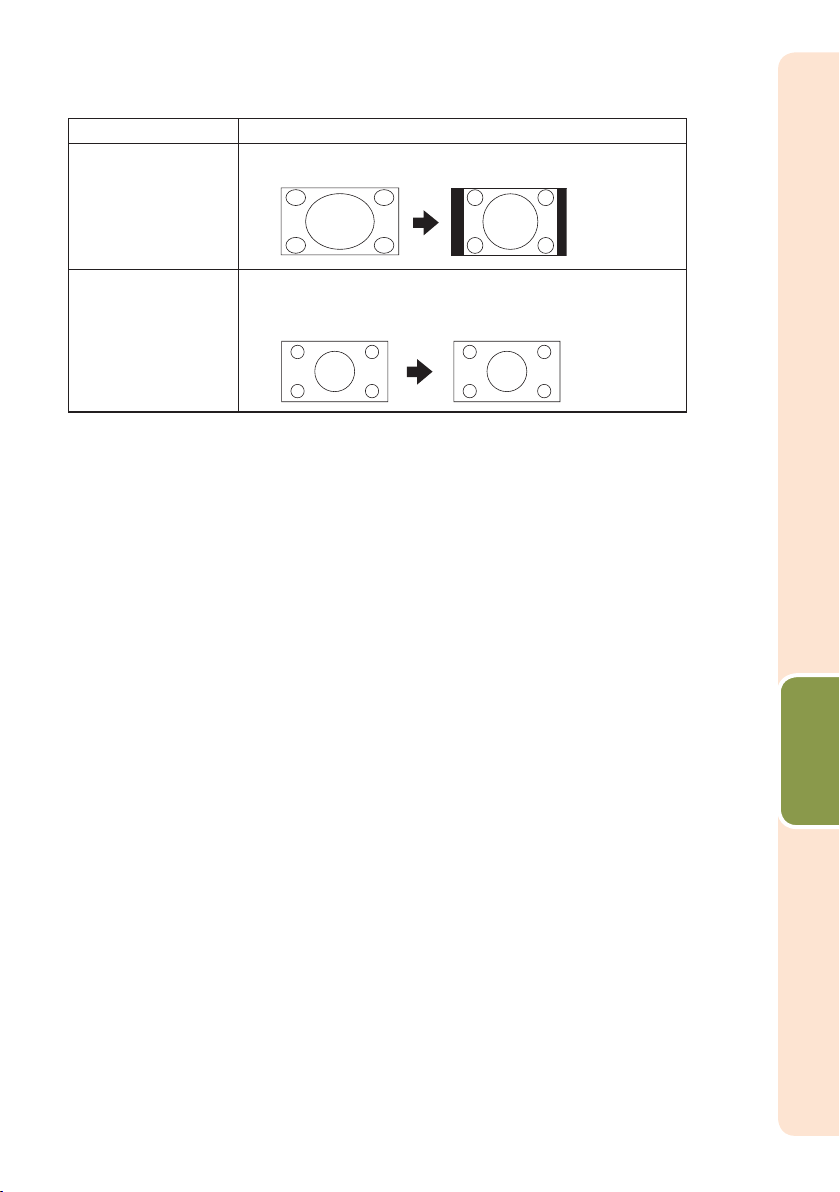

Resize Mode .......................................... 34

Useful Features

Operating with the Remote Control......36

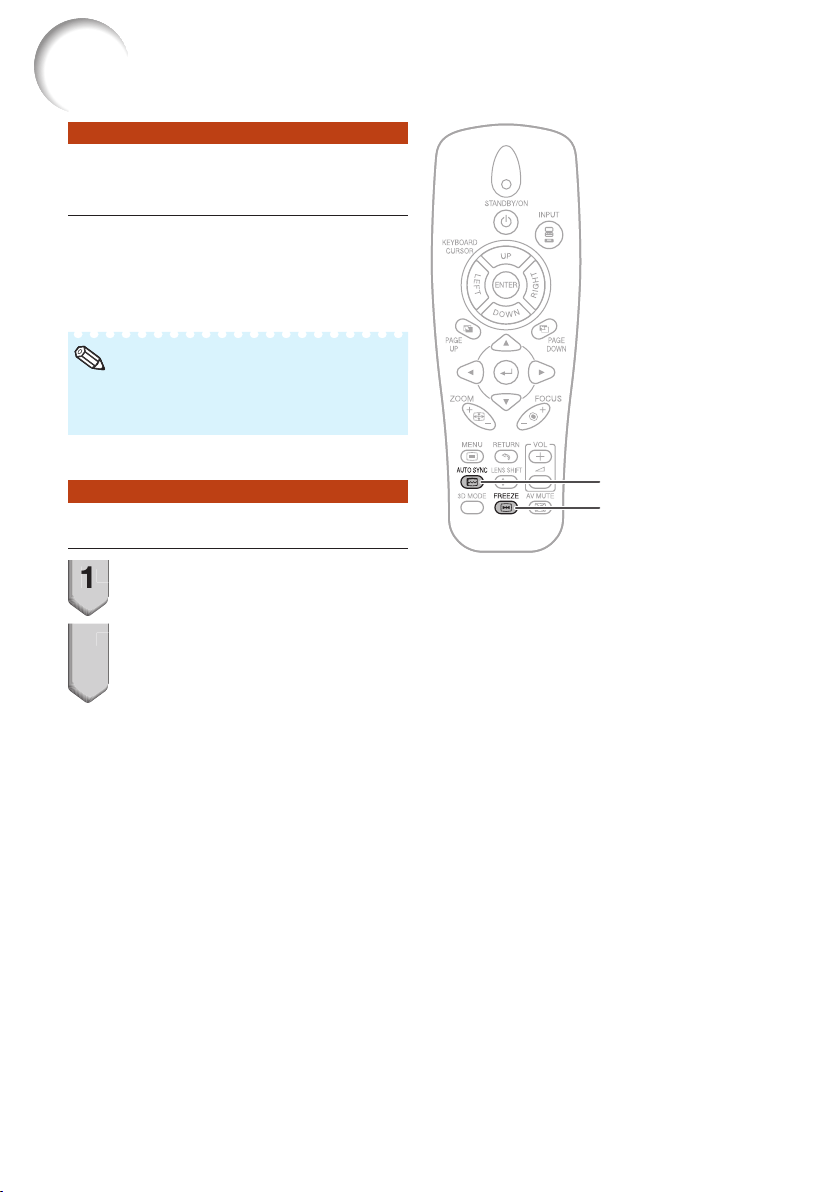

Auto Sync (Auto Sync Adjustment) ......... 36

Freezing a Moving Image ........................ 36

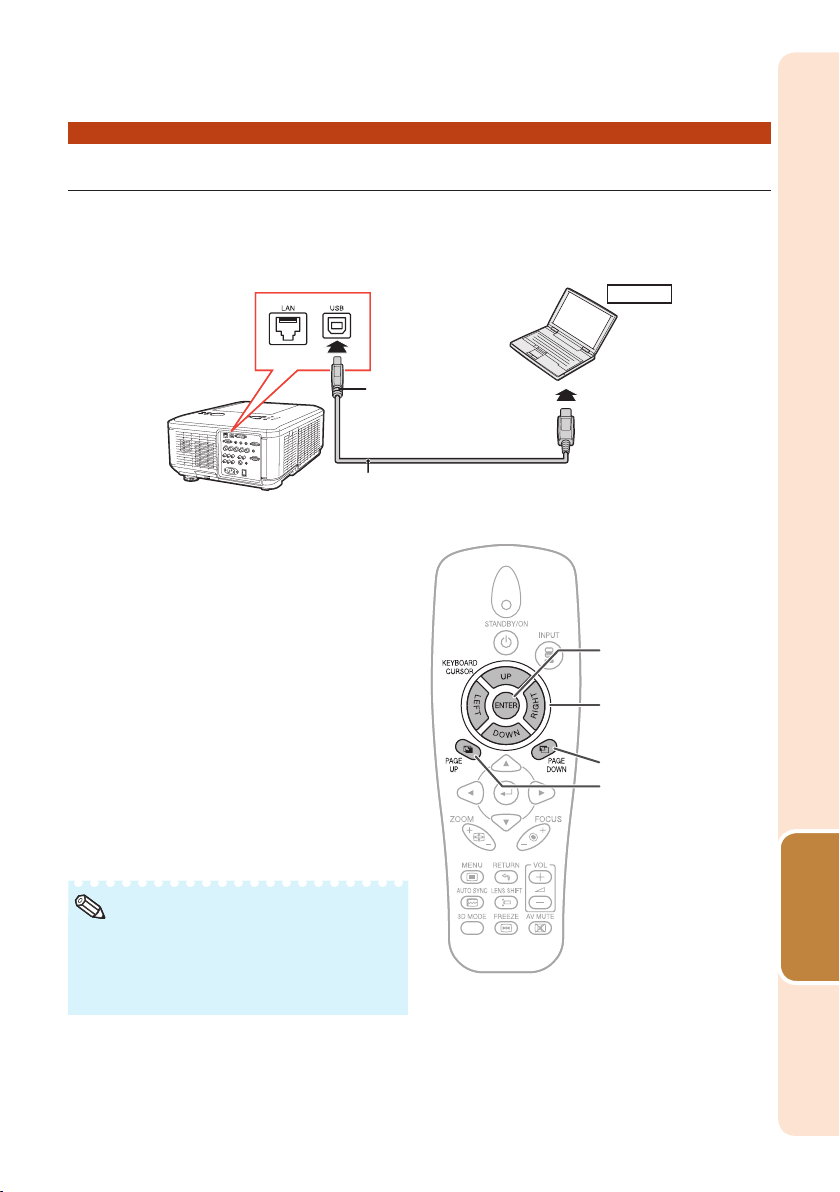

Using the Remote Control to Operate

the Computer ...................................... 37

Menu Items ...........................................38

Using the Menu Screen ........................41

Menu Selections (Adjustments) ................41

Picture Adjustment (“Picture” Menu) ....43

Selecting the Picture Mode ..................... 43

Adjusting the Image ................................ 44

Using the Ex. Setting .............................. 44

Signal Type Setting ................................. 44

Adjusting the Color Temperature ............. 44

Adjusting the Red/Blue ........................... 44

Adjusting the Colors ............................... 45

Selecting the Film Mode ......................... 45

Reducing Image Noise (DNR) ................. 45

Setting the Dynamic Black ...................... 45

Signal Adjustment (“SIG-ADJ” Menu) ..46

Adjusting the Computer Image ............... 46

Setting the Resolution ............................ 46

Auto Sync (Auto Sync Adjustment) ......... 46

Video Adjustment (“Video” Menu) ........47

Setting the Overscan .............................. 47

Setting the Video System ....................... 47

Setting the Video Setup .......................... 48

Closed Caption ...................................... 48

Adjusting the Projected Image

(“SCR - ADJ” Menu) ...........................49

Selecting the On-screen Display Language

Selecting the Background Image ............ 49

Reversing/Inverting Projected Images ..... 49

Setting the Resize Mode ......................... 49

Keystone Correction ............................... 50

Image Resizing ....................................... 50

Selecting the Wall Color .......................... 50

Using the Ex. Setting .............................. 50

Security Lock Function ........................... 51

Keypad Lock Function ............................ 51

Image Capture........................................ 51

... 49

Adjusting the Projector Function

(“PRJ - ADJ” Menu) ...........................52

Detecting the Input Signals Automatically

Auto Power Off Function ........................ 52

Auto Restart Function ............................. 52

Eco+Quiet .............................................. 52

Setting the Lamp Mode .......................... 53

Setting the Audio .................................... 53

Using the Ex. Setting .............................. 53

Fan Mode Setting ................................... 53

STANDBY Mode ..................................... 53

STANDBY Audio Out .............................. 53

Filter Message ........................................ 54

3D MODE ............................................... 54

Setting the LAN/RS232C ........................ 54

Setting the Network ................................ 54

Returning to the Default Settings ............ 55

Information ............................................. 55

Viewing Stereoscopic 3D Images .........56

Precautions on Viewing Stereoscopic

3D Images ............................................... 56

Information on the 3D Projection Function .. 58

Using 3D Viewing Mode ............................. 59

Appendix.................................................... 60

Reference

Appendix

Maintenance .........................................61

Cleaning and Replacing the

Dust Filters .........................................62

Cleaning the Dust Filters ......................... 62

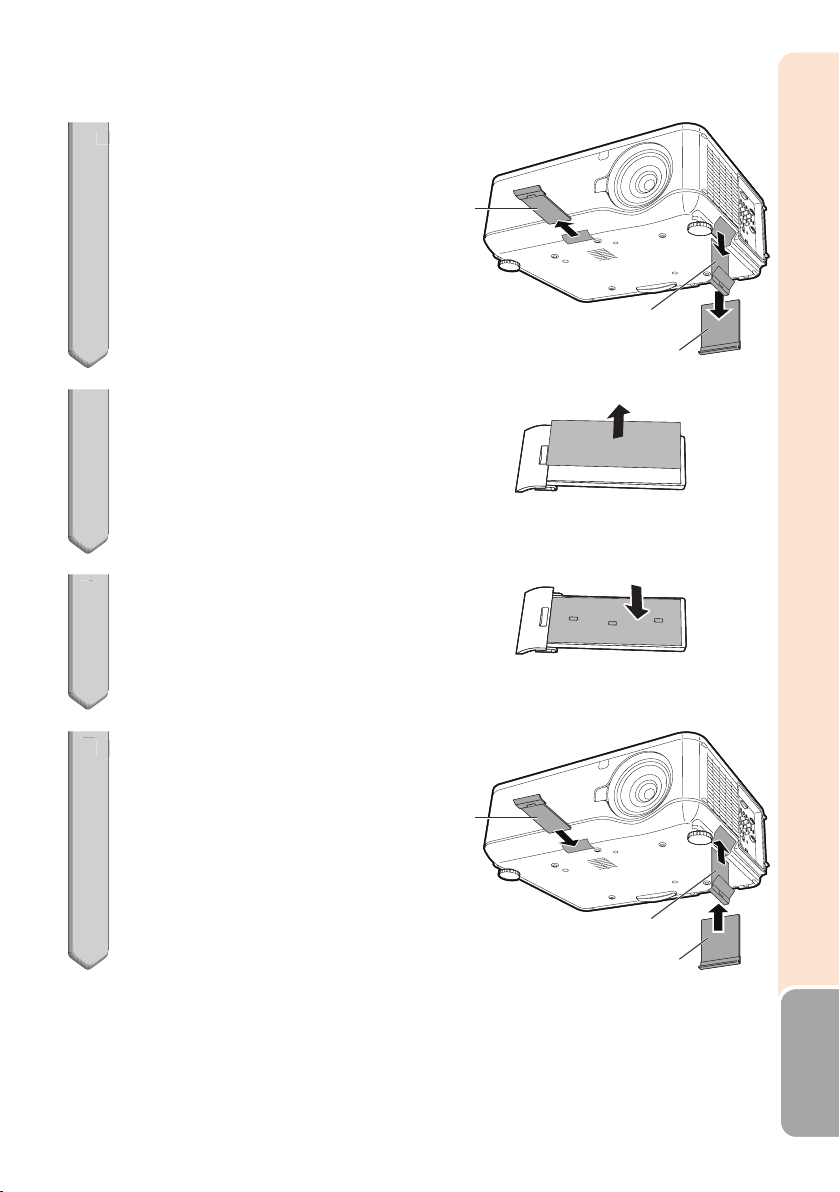

Replacing the Dust Filters ....................... 62

Maintenance Indicators ........................64

Regarding the Lamp .............................66

Lamp...................................................... 66

Caution Concerning the Lamp ................ 66

Replacing the Lamp ............................... 66

Removing and Installing the

Lamp Unit ............................................ 67

Resetting the Lamp Timer ...................... 68

Replacing the Color Wheel ...................69

Compatibility Chart ..............................71

Troubleshooting ....................................73

For SHARP Assistance .........................76

Speciﬁ cations .......................................77

Dimensions ...........................................78

Index .....................................................79

Introduction

.. 52

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this

product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recom mended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The open ings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This prod uct should not be placed in a built-in installation such as a book case or rack unless proper ventilation is provided or the manufacturer's instruc tions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to ﬁ t into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug. a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug

with a grounding terminal.

This plug will only ﬁ t into a grounding

type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will pre vent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁ re or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁ re or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dan ger ous voltage or other hazards. Refer all servicing to qualiﬁ ed service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions: a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects

have fallen into the product.

c. If the product has been exposed to rain

or water.

d. If the product does not operate normally

by following the operating instructions. Adjust only those con trols that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁ ed technician to restore the product to normal operation.

e. If the product has been dropped or

damaged in any way.

f. When the product exhibits a distinct

change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replace ment parts speciﬁ ed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁ re, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to per form safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁ ers) that produce heat.

Introduction

DLP® and the DLP logo are registered trademarks of Texas Instruments and DLP® Link

• is a trademark of Texas Instruments. Microsoft

•

and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries. PC/AT is a registered trademark of International Business Machines Corporation in the

• United States.

Adobe

•

Reader® is a trademark of Adobe Systems Incorporated.

Macintosh

is a registered trademark of Apple Computer, Inc. in the United States and/or other countries. PJLink is a registered trademark or an application trademark in Japan, the United States,

• Canada, E.U., China and/or other countries/regions. All other company or product names are trademarks or registered trademarks of their

• respective companies.

•

Some IC chips in this product include conﬁ dential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

Potential hazard of glass particles if lamp

■

ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for replacement. See “Regarding the Lamp” on page

66.

Caution concerning the setup of the projector

For minimal servicing and to maintain high

■

image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Ser vice Center.

Rest your eyes occasionally.

Continuously watching the screen for long

■

hours will cause eye strain. Take regular breaks to rest your eyes.

Do not set up the projector in places exposed to direct sunlight or bright light.

■

Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difﬁ cult. Close the cur tains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■

Place the projector on a level site within the adjustment range (10 degrees) of the adjustment foot.

After the projector is purchased, a faint

■

smell from the vent may appear when the power is ﬁ rst turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in highaltitude areas such as mountains (at altitudes of approximately 1,200 meters (4,000 feet) or more)

■

When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.

■

Use the projector at altitudes of 3,000 meters (10,000 feet) or less.

Warning about placing the projector in a high position

■

When placing the projector in a high position, make cer tain it is carefully secure to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■

Protect the lens so as not to hit or damage the surface of the lens.

Avoid locations with extremes of temperature.

■

The operating temperature of the projector is from 41°F to 104°F (+5°C to +40°C).

■

The storage temperature of the projector is from 14°F to 140°F (–10°C to +60°C).

Do not block the exhaust and intake vents.

■

Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■

Ensure that the intake vent and the exhaust vent are not obstructed.

■

If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into Standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 64 and 65.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

■

If you are not to use the projector for a long time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■

Do not carry the projector by holding the lens.

■

When storing the projector, ensure you attach the lens cap or dustproof cap to the projector.

■

Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

■

When connecting a computer or other audiovisual equipment to the projector, make the connections AF TER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■

Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

■

The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

If the temperature inside the projector

■

increases, due to blockage of the air vents, or the setting location, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode, and then the TEMP. (temperature warning)/ STATUS indicator will blink. Refer to “Maintenance Indicators” on pages

64 and

65 for details.

Info

The cooling fan regulates the internal

• temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

Optional lens installation

For installing an optional lens, refer to

■

“Attaching the Optional Lens” on page 26 or the lens installation manual (supplied with the optional lens). Remove the optional lens when carrying

■

the projector. Carrying the projector with an optional lens attached can cause the projector to be damaged by vibration or other factors. When carrying the projector with no lens

■

attached, attach the dustproof cap to the projector.

Introduction

Closed Caption uses Bitstream Vera fonts

Permission is hereby gra nted, fre e of charge, to any per son obtaining a copy of the fonts accompanying this license (“Fonts”) and associated documentation ﬁ le s (the “Font Software”), to reproduce and distribute the Font Software, including without limitation the rights to use, copy, merge, publish, distribute, and/or sell copies of the Font Sof tware, and to permit persons to whom the Font Sof tware is furnished to do so, subject to the following conditions:

The above copyright and trademark notices and this pe rmission notice shall be included in all copies of one or more of the Font Software typefaces.

The Font Software may be modiﬁ ed, altered, or added to, and in particular the designs of glyphs or characters in the Fonts may be modiﬁ ed and additional glyphs or characters may be added to the Fonts, only if the fonts are renamed to names not containing either the words “Bitstream” or the word “Vera”.

This License becomes null and void to the extent applicable to Fonts or Font Software that has been modiﬁ ed and is distribute d under the “Bitstream Vera” names.

The Font Software may be sold as part of a larger softwa re package but no copy of one or more of the Font Software typefaces may be sold by itself.

THE FONT SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICUL AR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER RIGHT. IN NO EVENT SHALL BITSTREAM OR THE GNOME FOUNDATION BE LIABLE FOR ANY CL AIM, DAMAGES OR OTHER LIABILIT Y, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTR ACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILIT Y TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFT WARE.

Except as contained in this notice, the names of Gnome, the Gnome Foundation, and Bitstream Inc., shall not be use d in adver tising or other wise to promote the sale, use or other dealings in this Font Software without prior written authoriz ation from the Gnome Foundation or Bitstream Inc., respectively. For further information, contact: fonts at gnome dot org.

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe (Windows

Please download Adobe

or Macintosh®).

Reader® from the Internet (http://www.adobe.com).

Reader® on your computer

Accessing the PDF Manuals

For Windows®:

 Insert the CD-ROM in the CD-ROM drive.  Double click the “My Computer” icon.  Double click the “CD-ROM” drive.  When you want to view the operation

manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the projector manuals.

When you want to view the SETUP MANUAL

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the SETUP MANUAL.

Note

If the desired pdf ﬁ le cannot be opened by double clicking the mouse, start Adobe® Reader® ﬁ r s t ,

• then specify the desired ﬁ le using the “File”, “Open” menu.

For Macintosh®:

 Insert the CD-ROM in the CD-ROM drive.  Double click the “CD-ROM” icon.  When you want to view the operation

manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the projector manuals.

When you want to view the SETUP MANUAL

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the pdf ﬁ le to access the SETUP MANUAL.

SETUP MANUAL

Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

Setting up the Screen···································································2 Screen Size and Projection Distance ··········································· 3 Connecting Pin Assignments ·····················································14 RS-232C Speciﬁ cations and Commands ··································· 16 Setting up the Projector Network Environment ··························18 Controlling the Projector via LAN ··············································· 24 Operating the Projector Using the PJLinkTM Protocol ·················· 27 Troubleshooting ·········································································· 28 Dimensions ················································································ 31

Accessories

Supplied accessories

Introduction

Dustproof cap

<9NK3392038200>

Remote control

<9NK5041821400>

Power cord*

(1) (2) (3) (4)

For U.S., Canada, etc.

(6n (1.8 m))

<9NK3090204900>

* Which power cords are supplied along with your projector depends on the region. Use the power

cord that corresponds to the wall outlet in your country.

•

Operation manuals (manual pack (including this manual and CD-ROM)) For U.S., Canada and Taiwan: <9NK3534150200> For Europe, Asia, Australia and New Zealand: <9NK3534160900> For Korea: <9NK3534161000>

Note

•

Codes in “< >” are Replacement parts codes.

•

When the lens is attached, use the lens cap supplied with the lens.

•

You can attach the dustproof cap to the projector only when no lens is attached. (Do not attach the dustproof cap when the lens is attached.)

Two R-6 batteries

(“AAA” size, UM/SUM-4,

HP-7 or similar)

For Europe, except U.K.

(6n (1.8 m))

<9NK3090152701>

RGB cable

(6' (1.8 m))

<9NK3081405002>

For U.K., Hong Kong

and Singapore

(6n (1.8 m))

<9NK3090152901>

Anti-theft screw

<9NK3100132500>

For Australia, New

Zealand and Oceania

(6n (1.8 m))

<9NK3090152601>

Optional accessories

■ Lamp unit

■ Ceiling-mount unit

■ 3 RCA to mini D-sub 15 pin cable (10n (3.0 m))

■ Six-segment color wheel

AN-PH80LP AN-XGCM80 (for U.S.A only) AN-C3CP2 AN-PH80CW

Note

Some of the optional accessories may not be available depending on the region. Please check with

• your nearest Sharp Authorized Projector Dealer or Service Center.

Accessories (Continued)

Optional accessories

Lens Type

Fixed wide lens (× 0.8) AN-PH808EX 5'6" (1.7 m) 5'2" (1.6 m) Wide-zoom lens (× 1.3 – 1.8) AN-PH814EZ 9'5" (2.9 m) – 12'8" (3.9 m) 8'10" (2.7 m) – 11'11" (3.6 m) Standard zoom lens (× 1.8 – 2.4) AN-PH818EZ 12'7" (3.8 m) – 16'7" (5.1 m) 11'10" (3.6 m) – 15'8" (4.8 m) Tele-zoom lens (× 2.2 – 4.4) AN-PH823EZ 15'8" (4.8 m) – 31'4" (9.5 m) 14'10" (4.5 m) – 29'6" (9.0 m) Tele-zoom lens (× 4.4 – 8.3) AN-PH845EZ 31'4" (9.5 m) – 58'8" (17.9 m) 29'6" (9.0 m) – 55'4" (16.9 m)

No lens is attached to XG-PH80W-N/XG-PH80X-N. The optional lenses from Sharp are also available for specialized application. Please see your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the lens operation manual when using a lens.)

Throw Distance

XG-PH80W-N

The graph below is for 100-inch (254 cm) screen with 16:10 normal mode.

Screen

Fixed wide lens (AN-PH808EX): 5'6" (1.7 m)

Throw distance ratio 1:0.8

Wide-zoom lens (AN-PH814EZ): 9'5" – 12'8" (2.9 m – 3.9 m)

Throw distance ratio 1:1.3–1.8

Standard zoom lens (AN-PH818EZ): 12'7" – 16'7" (3.8 m – 5.1 m)

Throw distance ratio 1:1.8–2.4

Tele-zoom lens (AN-PH823EZ): 15'8" – 31'4" (4.8 m – 9.5 m)

Throw distance ratio 1:2.2–4.4

Tele-zoom lens (AN-PH845EZ): 31'4" – 58'8" (9.5 m – 17.9 m)

Throw distance ratio 1:4.4–8.3

Proje ctio n Dist anc e for 100 " Scre en Siz e

XG-PH80W-N XG-PH80X-N

5 10 15 20 25 30 35 40 45 50 55 60 (ft)

XG-PH80X-N

The graph below is for 100-inch (254 cm) screen with 4:3 normal mode.

Screen

Fixed wide lens (AN-PH808EX): 5'2" (1.6 m)

Throw distance ratio 1:0.8

Wide-zoom lens (AN-PH814EZ): 8'10" – 11'11" (2.7 m – 3.6 m)

Throw distance ratio 1:1.3–1.8

Standard zoom lens (AN-PH818EZ): 11'10" – 15'8" (3.6 m – 4.8 m)

Throw distance ratio 1:1.8–2.4

Tele-zoom lens (AN-PH823EZ): 14'10" – 29'6" (4.5 m – 9.0 m)

Throw distance ratio 1:2.2–4.4

Tele-zoom lens (AN-PH845EZ): 29'6" – 55'4" (9.0 m – 16.9 m)

Throw distance ratio 1:4.4–8.3

5 10 15 20 25 30 35 40 45 50 55 60 (ft)

Part Names and Functions

Numbers in Z refer to the main pages in this operation manual where the topic is explained.

Top V i e w

1 9

17 18 1616

19 20

17 18 1616

19 20

Attaching the lens cap/dustproof cap

Snap on the lens cap/dustproof cap straight.

Removing the lens cap/dustproof cap

Pull the lens cap/dustproof cap directly outward.

11 12

12 13

1 FOCUS buttons

For adjusting the focus.

H&V LENS SHIFT (P/R/O/Q) buttons

For shifting the lens horizontally and

vertically.

3 MENU button

For displaying adjustment and setting

screens.

4 Adjustment buttons (P/R/O/Q)

For selecting menu items.

5 ENTER button

For setting items selected or adjusted on

the menu.

6 STANDBY/ON button

For turning the power on and putting the

projector into Standby mode.

7 TEMP. (temperature warning)/STATUS

indicator

8 POWER indicator 9 ZOOM buttons

For adjusting the projected image size.

10 RETURN button

For returning to the previous menu screen

during menu operations.

11 INPUT button

For switching Input mode.

12 AUTO SYNC button

For automatically adjusting images when

connected to a computer.

13 LAMP 1 indicator 14 LAMP 2 indicator

Front View

15 Carrying handle

For carrying the projector.

16 Adjustment foot 17 Remote control sensor 18 LENS RELEASE button 19 Dust ﬁ lter 20 Anti-theft screw

64 64

Introduction

Part Names and Functions (Continued)

Numbers in Z refer to the main pages in this operation manual where the topic is explained.

3 4 51

1711 18 1912 13 1611 1514109

Side View (Terminals)

1 COMPUTER/COMPONENT1 input

terminals

Terminal for computer RGB and component

signals and audio input terminal.

2 LAN terminal

Terminal for controlling the projector using

a computer via network.

3 USB terminal

Terminal connecting with the USB terminal

on the computer for using the supplied remote control as the computer key board.

4 DVI-D input terminals

Terminals for DVI digital RGB and digital

component signals and audio input terminal.

5 MONITOR OUT terminals

COMPUTER/COMPONENT output terminal

• for computer RGB and component signals. (Shared for COMPUTER/COMPONENT1 and 2, COMPONENT input) AUDIO output terminal. (Shared for all inputs)

•

21, 23

21, 22

6 COMPUTER/COMPONENT2 input

terminals

BNC terminals for computer RGB and

component signals and audio input terminal.

7 RS-232C terminal

Terminal for controlling the projector using

a computer.

21, 22

8 TRIGGER terminal

When the projector is turned on, a control signal

(DC 12V) outputs from this terminal. If an electric screen or other compatible device is connected, it can be turned on when the projector is turned on.

9 Speaker 10 Intake vent 11 Dust ﬁ lter 12 AC socket

Connect the supplied power cord.

13 MAIN POWER switch

Turn the projector On or Off.

14 Remote control sensor 15 Exhaust vent 16 Kensington Security Standard connector 17 COMPONENT input terminals

Terminals for component signals and audio

input terminal.

18 VIDEO input terminals

Terminal for connecting video equipment

and audio input terminal.

19 S-VIDEO input terminals

Terminal for connecting video equipment

with an S-video terminal and audio input terminal.

Using the Kensington Lock

This projector has a Kensington Security

• Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Numbers in Z refer to the main pages in this operation manual where the topic is explained.

Introduction

11 12

5 6

15 8 9

1 STANDBY/ON button

For turning the power on and putting the

projector into Standby mode.

2 KEYBOARD CURSOR (UP/DOWN/LEFT/

RIGHT/ENTER) buttons

•

For moving the computer cursor when with the USB connection

•

Same as the [Enter] key on a computer keyboard, when with the USB connection (using a USB cable).

3 PAGE UP button

Same as the [Page Up] key on a computer

keyboard, when with the USB connection (using a USB cable).

4 Adjustment buttons (P/R/O/Q)

For selecting and adjusting menu items.

5 ZOOM buttons

For adjusting the projected image size.

6 MENU button

For displaying adjustment and setting

screens.

(using a USB cable)

30, 41

7 AUTO SYNC button

For automatically adjusting images when

connected to a computer.

8 LENS SHIFT button

For displaying the lens shift adjustment

screen.

9 3D MODE button

For displaying the 3D MODE menu screen.

10 INPUT button

For switching Input mode.

11 PAGE DOWN button

Same as the [Page Down] key on a

computer keyboard, when with the USB connection (using a USB cable).

12 (ENTER) button

For setting items selected or adjusted on

the menu.

13 FOCUS buttons

For adjusting the focus.

14 RETURN button

For returning to the previous menu screen

during menu operations.

15 VOL +/– (Volume) buttons

For adjusting the speaker sound level.

16 AV MUTE button

For temporarily displaying a black screen

and turning off the sound.

17 FREEZE button

For freezing images.

Part Names and Functions (Continued)

Inserting the Batteries

Remove the cover by sliding towards the direction

of the arrow.

Insert the batteries.

Insert the batteries making sure the polarities correctly match the

• m and n marks inside the battery compartment.

Replace the cover.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below

Caution

Danger of explosion if battery is incorrectly replaced.

• Replace only with alkaline or manganese batteries.

Insert the batteries making sure the polarities correctly match the m and n marks inside the battery

• compartment. Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

•

This may shorten the life of new batteries or may cause old batteries to leak.

Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.

•

Battery ﬂ uid from leaked batteries is harmful to skin, therefore ensure you wipe them ﬁ rst and then remove them using a cloth.

The batteries included with this projector may run down in a short period, depending on how they are kept.

• Be sure to replace them as soon as possible with new batteries. Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

•

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

Another remote control sensor is located

• on the rear of the projector. (See page

•

The signal from the remote control can be reﬂ ected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

Ensure that you do not drop it or expose it to

• moisture or high temperature. The remote control may malfunction under a

• ﬂ uorescent lamp. In this case, move the projector away from the ﬂ uorescent lamp.

14.)

30°

Remote control

Remote control sensor

23n (7 m)

Remote control signal

Remote control signal transmitters

transmitters

Easy Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

Easy Start

5 7 8

4 10

5 7 8

7 5

1. Remove the dustproof cap and then attach the optional

P. 26

lens

2. Place the projector facing a wall or a screen

P. 19

3. Connect the projector to the computer and plug the power cord into the AC socket of the projector

When connecting equipment other than a computer, see pages

22 and 23.

BPP. 21, 25

4. Turn the projector on

Switch the MAIN POWER switch on the projector to “ON” and, after the POWER indicator has turned red, press STANDBY/ON on the projector or on the remote control.

On the projector On the remote control

BP. 2 8

Easy Start (Continued)

5. Adjust the angle

Adjust the projector angle:

Shift the lens horizontally and vertically.

•

- Press H&V LENS SHIFT (P/R/O/Q) on the projector.

- Press LENS SHIFT and then press P, R, O or Q on the remote control.

Adjust the projector angle by rotating the adjustment feet.

•

6. Adjust the focus and the zoom

1 Press FOCUS +/– on the projector or on the remote control to adjust the focus. 2 Press ZOOM +/– on the projector or on the remote control to adjust the zoom.

7. Correcting the image distortion due to the projection angle

1 Press MENU to display the menu screen. 2 Press O or Q to select “SCR-ADJ”. 3 Press P or R to select “Keystone”. 4 Press O or Q to adjust the Keystone Correction.

8. Select the Input mode

Press INPUT to display the INPUT list. Use P/R to select the Input mode.

INPUT list

INPUT

DVI-D

COMPUTER1

COMPUTER2

COMPONENT

On the projector

On the remote control

BP. 3 0

BP. 31

BP. 3 2

BP. 3 3

9. Turn the computer on

10. Turn the power off

Press STANDBY/ON on the projector or on the remote control, and then press the button again while the conﬁ rmation message is displayed to put the projector into Standby mode.

On the projector On the remote control

You can unplug the power cord or switch the MAIN POWER switch to “OFF” even if the

• projector is operating. Even if you unplug the power cord or switch the MAIN POWER switch to “OFF”, the cooling

• fan continues to run for a while.

On-screen display

Enter STANDBY Mode? Yes : Press Again No : Please Wait

BP. 2 8

Setting Up the Projector

Video Setup

If using this projector outside the U.S.A., please change setting to “0 IRE” in Video Setup. (See page 48.)

Setting Up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector's feet ﬂ at and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See page 32.)

Standard Setup (Front Projection)

Place the projector at the required distance from the screen according to the desired picture

■

size. (For details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.)

Indication of the Projection Image Size and Projection Distance

XG-PH80W-N

(Example: 16:10 Signal Input (Normal Mode) for the standard zoom lens (AN-PH818EZ))

Picture Size

500" (1270 cm)

200" (508 cm)

100" (254 cm)

80" (203 cm)

60" (152cm)

68" (172 cm

51"

32"

(129 cm

81 cm)

85" (215 cm

42"

XG-PH80X-N

(Example: 4:3 Signal Input (Normal Mode) for the standard zoom lens (AN-PH818EZ))

Picture Size

500" (1270 cm)

200" (508 cm)

100" (254 cm)

80" (203 cm)

60" (152cm)

64" (163 cm

48"

36"

(122 cm

91 cm)

80" (203 cm

48"

170"

(431 cm

53"

135 cm)

108 cm)

7'7"–10'0"

(2.3 m – 3.0 m)

160"

(406 cm

60"

152 cm)

122 cm)

7'1"–9'5"

(2.2 m – 2.9 m)

424"×265" (1077 cm × 673 cm)

106"

269 cm)

10'1"–13'3"

(3.1 m – 4.0 m)

12'7"–16'7"

(3.8 m – 5.1 m)

400"×300" (1016 cm × 762 cm)

120"

305cm)

9'6"–12'6"

(2.9 m – 3.8 m)

11'10"–15'8"

(3.6 m – 4.8 m)

25'2"–33'3"

(7.7 m – 10.1 m)

23'9"–31'4"

(7.2 m – 9.6 m)

59'4"–78'4"

Projection Distance

62'11"–83'0"

(19.2 m – 25.3 m)

Projection Distance

(18.1 m – 23.9 m)

Setup

Setting Up the Projector (Continued)

Projection (PRJ) Mode

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCRADJ” menu. See page 49.)

Table mounted, front projection

■

[Menu item ➞ “Front”]

Table mounted, rear projection

■

(with a translucent screen)

[Menu item ➞ “Rear”]

Ceiling mounted, front projection

■

[Menu item ➞ “Ceiling + Front”]

■

Ceiling mounted, rear projection (with a translucent screen)

[Menu item ➞ “Ceiling + Rear”]

a

Ceiling-Mount Setup

Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

Connecting the Projector to Other Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the equipment to be connected. After making all connections, turn on the projector and then the other pieces of equipment. When connecting a computer, ensure that it is the last equipment to be turned on after all the connections are made.

IMPORTANT: Ensure that the appropriate input mode has been selected on the projector before you turn on the connected equipment.

For more details of connection and cables, refer

• to the operation manual of the connected equipment. You may need other cables or connectors not

• listed below.

Equipment

Computer

Terminal on

connected equipment

RGB output terminal

Computer audio output terminal

RGB output terminal

Computer audio output terminal

DVI digital output terminal

RGB cable (supplied)

Compu ter audio cable (ø3.5 mm stereo minijack, commercially available)

Mini D-sub 15 pin/5 BNC cable (commercially available)

Compu ter audio cable (ø3.5 mm stereo minijack, commercially available)

DVI Digital ca ble (commerci ally ava ilabl e) DVI-D

Terminals on the Projector

Cable

Terminal o n the

projector

COMPUTER/ COMPONENT1

COMPUTER/ COMPONENT2

Connections

Computer audio output terminal

Compu ter audio cable (ø3.5 mm stereo minijack, commercially available)

Note

When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm

• stereo audio cable. When connecting the projector to a compatible computer other than a PC (VGA/SVGA/XGA/SXGA/UXGA) or

• Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more information. See page 71 “Compatibility Chart” for a list of computer signals compatible with the projector. Use with

• computer signals other than those listed may cause some of the functions to not work. A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

•

Depending on the computer you are using, an image may not be projected unless the

• computer’s external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the speciﬁ c instructions in

your computer’s operation manual to enable your computer’s external output port.

Connecting the Projector to Other Equipment (Continued)

Equipment

Video equipment, Camer a, Video game

Terminal on

connected equipment

DVI digital output terminal

Audio output te rminal

RGB video output terminal

Audio output terminal

Component video output terminal

Audio output terminal

Component video output terminal

Audio output te rminal

Cable

DVI Digital ca ble (commerci ally ava ilable)

ø3.5 mm stereo minijack to RCA au dio cab le (commercially available)

5 BNC cable (comm ercia lly avai lable) COMPUTER/

ø3.5 mm stereo minijack to RCA au dio cab le (commercially available)

Compo nent ca ble (commerci ally ava ilabl e) + BNC- RCA adaptor plug (commercially available)

ø3.5 mm stereo minijack to RCA au dio cab le (commercially available)

Component cable (commercially available)

RCA audio cable (commercially available)

Terminal o n the

projector

DVI-D

COMPONENT2

COMPUTER/ COMPONENT2

COMPONENT

Note

When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm

• stereo audio cable. Select the input signal type of the video equipment when connecting to the COMPUTER/

• COMPONENT1, 2 or DVI-D terminal. See page The HD/C sync and VD terminals may be used depending on the speciﬁ cations of the DTV decoder

• connected to this projector. Please refer to the operation manual of the DTV decoder for details. The HD/C sync terminal of the 5 BNC terminal is only for TTL signal.

• Depending on speciﬁ cations of video equipment or the DVIÙHDMI digital cable, the signal

• transmission may not work property. (The HDMI speciﬁ cation does not support all connections to

44.

video equipment that has HDMI digital output terminal using a DVIÙHDMI digital cable.) For details on compatibility for connection, see support information on DVI connection provided by

• the video equipment manufacturer. When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a

• commercially available cable that ﬁ ts in the projector terminal you want to connect.

•

The projector does not support RGBC signals via the Euro-scart.

Equipment

Video equipment, Camer a, Video game

Terminal on

connected equipment

D-video output terminal

Cable

Cable s for a cam era or a video ga me/3 RCA to mini D-sub 15 pin cable (optional, AN-C3CP2)

RCA adaptor plug (commercially available)

Terminal o n the

projector

COMPUTER/ COMPONENT1

Audio output te rminal

S-video output terminal

Audio output terminal

Video output terminal

Audio output terminal

Monitor RGB input

Ampliﬁ er Audio input

terminal

ø3.5 mm stereo minijack to RCA au dio cab le (comme rcial ly available)

S-vid eo cabl e (comme rcially avail able) S-VIDEO

RCA audi o cable (commer ciall y availa ble)

Video c able (co mmercially availab le) VIDEO

RCA audi o cable (commer ciall y availa ble)

RGB cab le (supplied or commercially available)

ø3.5 mm stereo minijack to RCA au dio cab le (comme rcial ly available)

MONITO R OUT

Connections

Note

•

When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

•

The audio signal is not output from the speaker of the projector when the audio cable is connected to the audio output terminal. Video signal for monitor output is analog RGB signal as well as component signal (COMPUTER/

• COMPONENT1, 2). DVI input video signals would not be output.

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to the RS-232C serial terminal on the computer, or when the LAN terminal on the projector is connected to the L AN terminal on the computer, the computer can be used to control the projector. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

When connecting to a computer using an RS-232C serial control cable

Computer

To RS-232C terminal

Note

•

When you establish the connection shown above, set “LAN/RS232C” in “Ex. Setting” of the “PRJADJ” menu to “RS232C”.

•

The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.

Refer to “SETUP MANUAL” contained on the supplied CD-ROM for the RS-23 2C

• speciﬁ cations and commands.

Side view

To RS-232C terminal

RS-232C serial control cable

(cross type, commercially available)

Info

•

Do not connect the RS-232C cable to a terminal other than the RS-232C terminal on the computer. This may damage your computer or projector. Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.

• This may damage your computer.

When connecting to the LAN terminal using a LAN cable

TX/RX LED (yellow) Illuminates when transmitting/receiving data.

LINK LED (green) Illuminates when linked.

* To ensure safety, do not connect the LAN

terminal with any cables that may cause excessive voltage such as a telephone line.

Hub

Computer

To L AN te r minal

LAN cable (Category 5 type, commercially available)

Note

•

When you establish the connection shown above, set “LAN/RS232C” in “Ex. Setting” of the “PRJADJ” menu to “LAN”.

•

When connecting to a hub, use a straight-through Category 5 (CAT.5) type cable (commercially available). When connecting to a computer, use a cross-over Category 5 (CAT.5) type cable (commercially

• available).

Connections

Attaching the Optional Lens

When you attach a lens for the ﬁ rst time, skip steps 1 to 3. (When you replace the lens, star t from step 1.)

Do not attempt to exchange the lens when the projector is installed hanging from the ceiling. Injury may occur if the lens falls.

Press STANDBY/ON on the

projector or on the remote control to put the projector into standby mode.

•

Switch the MAIN POWER switch on the projector to “OFF”. Disconnect the power cord and unplug the

• power cord from the AC socket after the cooling fan stops.

Push the LENS RELEASE button

all the way in and turn the lens anti-clockwise.

The lens will be disengaged.

•

Note

•

If the anti-theft screw is used to secure the lens, the lens cannot be removed when the LENS RELEASE button is pressed. In this case, remove the anti-theft screw ﬁ rst.

STANDBY/ON button

MAIN POWER switch

Power cord

LENS RELEASE buttonLENS RELEASE button

Pull the lens out slowly.

Remove the lens cap from a

replacement lens.

Start with this step when you set a lens for

• the ﬁ rst time.

Info

If you try to attach the lens to the projector

• without removing this cap, the optional lens attachment part can be damaged.

Insert the replacement lens with

the top position mark on it facing up, and then turn the lens clockwise until you hear a click sound.

•

Make sure that the lens cannot be released even when you try to turn the lens anti-clockwise and pull it out.

Using the Anti-Theft Screw

•

The lens is secured by the above method, but for added security, an anti-theft screw is supplied to secure the lens more tightly. The screw is designed to be rather long, and

• to secure the screw, give it about 40-50 turns.

Top position markTop position mark

Connections

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the side of the projector. Then plug into AC outlet.

To AC ou t let

Power cord (supplied)

AC socket

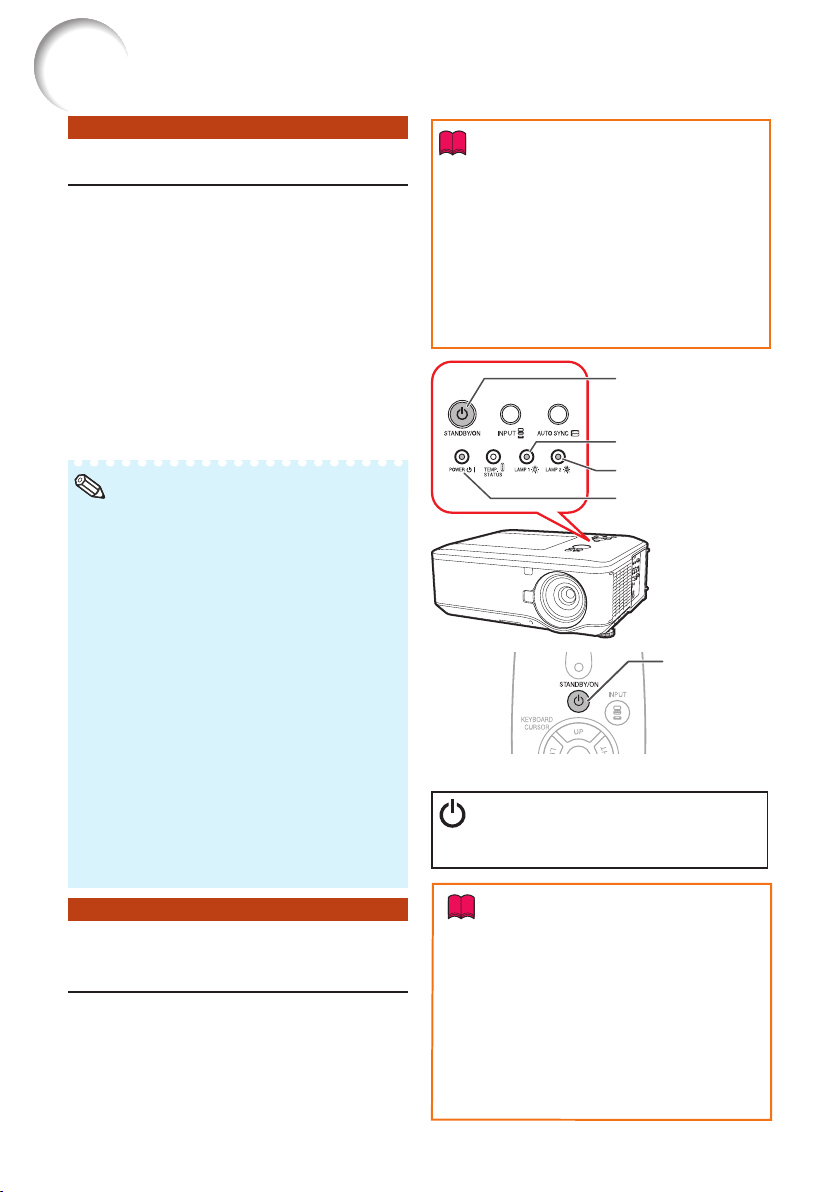

Turning the Projector On/Off

Info

Turning the Projector On

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages

Remove the lens cap. Then switch the MAIN POWER switch on the projector to “ON” and, after the POWER indicator has turned red, press STANDBY/ON on the projector or on the remote control.

The POWER indicator illuminates green.

• After the LAMP indicator illuminates, the projector

• is ready to start operation.

Note

About the LAMP Indicator

•

The LAMP indicator illuminates to indicate the status of the lamp. (See page

Green or orange: The lamp is on. Blinking in green or orange: The lamp is

warming up.

Red:

The lamp is shut down abnormally or the lamp should be replaced.

When you switch on the projector, a slight

• ﬂ ickering of the image may be experienced within the ﬁ rst minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilizing the lamp output characteristics. It should not be regarded as faulty operation. If the projector is put into Standby mode and

• immediately turned on again, the lamp may take some time to start projection. When Security Lock is set, the password

• input box appears. To cancel the password setting, input the password that you have already set. See page

21 to 25.)

64 for details.)

51 for details.

•

When “Auto Restart ” is set to “On”:

If the power cord is unplugged from the outlet or the breaker switch is turned off when the projector is on, then the projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on. (See page

•

English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page

On-screen display (conﬁ rmation message)

52.)

49.

STANDBY/ON button

LAMP 1 indicator

LAMP 2 indicator POWER indicator

STANDBY/ON button

Enter STANDBY Mode? Yes : Press Again No : Please Wait

Turning the Power Off (Putting the Projector into Standby Mode)

Press STANDBY/ON on the projector or on the remote control, then press that button again while the conﬁ rmation message is displayed, to put the projector into Standby mode.

The projector cannot be turned on while cooling.

•

Info

Direct Power O ff function:

•

You can unplug the power cord or switch the MAIN POWER switch to “OFF” even if the cooling fan is still running.

•

If you turn the power back on in the cases shown below, the lamp will take a longer time to light up than usual:

– When the power cord is unplugged during

operation

– When the MAIN POWER switch is turned

“OFF” during operation

Image Projection

Shifting the Lens

In addition to the zoom function and adjustment of projection angle using the adjustment feet, you can adjust the position of the projection using the lens shift function. This is a useful function in cases such as when the screen cannot be moved.

When moving upward or downward

When moving in the left and right direction

Adjustable range

The adjustable range is shown below.

• Horizontal range: ±10% Vertical range: +50% The adjustable range has limitations even within the range shown above. The image can be adjusted as shown on the diagram.

•

AN-PH814EZ, AN-PH818EZ, AN-PH823EZ, AN-PH845EZ

Position of the image when the image is centered, both vertically and horizontally, in lens shift

H X 50%

(AN-PH814EZ, AN-PH818EZ, AN-PH823EZ, AN-PH845EZ)/0% (AN-PH808EX)

AN-PH808EX

Position of the image when the image is placed at the bottom vertically and is centered horizontally in lens shift

Shift Range

Adjustable Range

Adjustable range

Shift Range

: Areas on which the

image is masked with shadow while the lens shift function is used

Adjustable Range

Operation

Basic

W X 10% W X 10%

H : Height of the image W : Width of the image

W X 10% W X 10%

H : Height of the image W : Width of the image

Image Projection (Continued)

Press H&V LENS SHIFT (P/R/O/

Q) on the projector, or press LENS SHIFT and P/R/O/Q on the remote control, to adjust the image position.

ROn-screen display

LENS SHIFT

Adjustment buttons

Adjustment buttons (P/R/O/Q)

(P/R/O/Q)

LENS SHIFT button

H&V LENS SHIFT

H&V LENS SHIFT (P/R/O/Q) buttons

(P/R/O/Q) buttons

Using the Adjustment Feet

When the position of the projected image cannot be adjusted with the lens shift function, use the

• adjustment feet to adjust the projected angle. The height of the projector can be adjusted using the adjustment feet when the screen is located higher

• than the projector, the screen is inclined or when the installation site is slightly inclined. Install the projector so that it is as perpendicular to the screen as possible.

•

Rotate the adjustment feet to

adjust the projected angle.

The projector is adjustable up to

• approximately 10 degrees.

Warning!

•

Do not hold the lens when projector angle is adjusted.

•

Use caution not to pinch your ﬁ nger in the space between the adjustment foot and the projector when the projector angle is lowered.

Adjustment feet

Down

Adjusting the Focus

Press FOCUS +/– on the projector or on the remote control to adjust the focus.

Info

•

It is recommended that the focus be adjusted after the projector has warmed up for at least 30 minutes.

Adjusting the Projected Image Size

Press ZOOM +/– on the projector or on the remote control to adjust the projected image size.

Note

•

For ﬁ ne adjustments, when H&V LENS SHIFT, FOCUS or ZOOM is pressed, the projected image moves a small amount in the desired direction for approximately one second. Hold down the buttons to move the projected image quickly.

FOCUS buttons

ZOOM buttons

FOCUS buttons

Operation

Basic

ZOOM buttons

Image Projection (Continued)

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Adjustment buttons (P/R/O/Q)

MENU button

Note

•

The Keystone Correction can be adjusted up to an angle of approximately ±30 degrees and the screen can also be set up to an angle of approximately ±30 degrees.

On-screen display (Keystone Correction mode)

Keystone

Shrinks upper side. (Move the slide bar in the + direction.)

Press MENU to display the menu

screen, and then press O or Q to select “SCR-ADJ”.

Press P or R to select

“Keystone”.

Press O or Q to adjust the

Keystone Correction.

Press R to select “Image

Resizing”.

Only when “Keystone” is set to the values

• other than “0”, “Image Resizing” works.

Press O or Q to correct the

image distor tion.

Press MENU.

The menu screen will disappear.

•

Info

•

While adjusting the image using Keystone Correction, straight lines and the edges of the image may appear jagged.

Shrinks lower side. (Move the slide bar in the - direction.)

On-screen display (Image Resizing mode)

Image Resizing

Shrinks the image vertically. (Move the slide bar in the + direction.)

Enlarges the image vertically. (Move the slide bar in the - direction.)

INPUT button

(ENTER) button

P/R buttons

VOL +/– (Volume)

VOL +/– (Volume) buttons

buttons

AV MUTE button

Switching the Input Mode

Select the appropriate Input mode for the connected equipment.

Press INPUT on the projector or on the remote control to display the INPUT list.

INPUT list

INPUT

DVI-D

COMPUTER1

COMPUTER2

COMPONENT

S-VIDEO

VIDEO

While the INPUT list is displayed, follow the

• procedure below to switch the input mode. – Press P/R to select the desired input mode

and then press

If (ENTER) is not pressed, the projector

• switches to the selected input mode in a few seconds.

Note

When no signal or non-supported signal is

• received, “NO SIGNAL” will be displayed.

(ENTER).

Adjusting the Volume

Press VOL +/– on the remote control to adjust the volume.

On-screen display

Volume 1

Note

•

Pressing VOL– will lower the volume.

•

Pressing VOL+ will raise the volume.

•

When the projector is connected to external equipment, the volume level of the external equipment changes in accordance with the volume level of the projector. Set the projector's volume to the lowest level when turning the projector on/off or when changing the input signal. When you do not want to output the sound

• from the projector's speaker while the projector is connected to external equipment, set “Speaker” in “Audio” of the “PRJ-ADJ” menu to “Off”. (See page

•

The audio signal is not output from the internal speaker when connecting the audio cable to the MONITOR OUT (AUDIO) terminal.

53.)

Displaying the Black Screen and Turning Off the Sound

Temporarily

Press AV MUTE on the remote control to temporarily display a black screen and turn off the sound.

On-screen display

AV MUTE

Note

Pressing AV MUTE again will turn the

• projected image back on.

Operation

Basic

Image Projection (Continued)

Resize Mode

This function allows you to modify or customize the Resize mode to enhance the input image. You can set the Resize mode in “SCR-ADJ” menu. See page

49.VID

Press MENU to display the menu

screen, and then press O or Q to select “SCR-ADJ”.

Press P or R to select “Resize”.

Note

Press O or Q to adjust the

desired Resize mode and then press

(ENTER).

•

The RESIZE function that can be selected varies depending on the input signal (resolution and vertical frequency).

Resize Mode

RESIZE Output screen image

Normal The image is displayed with the original aspect ratio.

Adjustment buttons

Adjustment buttons (P/R/O/Q)

(P/R/O/Q)

(ENTER) button

MENU button

Full The image is displayed at full-screen.

16:9 An image compressed from a 16:9 aspect ratio to a 4:3 aspect ratio

is restored to a 16:9 aspect ratio and displayed at full-screen.

RESIZE Output screen image

4:3 An image stretched from a 4:3 aspect ratio to a 16:9 aspect ratio is

restored to a 4:3 aspect ratio.

Native The image is displayed according to the original input signal.

“Native” cannot be selected when the input mode is VIDEO or S-VIDEO.

About Copyrights

When using the Resize function to select an image size with a different aspect ratio to a TV

• program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size. The use of the Resize or Keystone Correction function to compress or stretch the image for

• commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.

Operation

Basic

Operating with the Remote Control

Auto Sync (Auto Sync Adjustment)

Auto Sync function works when detecting input signal after the projector turns on.

Press AUTO SYNC to manually adjust with Auto Sync function.

Note

•

When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page

Freezing a Moving Image

Press FREEZE.

The projected image is frozen.

•

Press FREEZE again to return to

the moving image from the currently connected device.

46.)

AUTO SYNC button

AUTO SYNC button FREEZE button

FREEZE button

Using the Remote Control to Operate the Computer

When connecting the projector and the computer with a USB cable, you can use the remote control to operate the computer.

Connecting with a USB cable

Computer

To USB terminal

USB cable (commercially available or available as Sharp service part QCNWGA014WJPZ)

The computer can be operated in the following way after it is connected.

When moving the cursor

■

Same as the [s / s/r / s ] keys on a computer keyboard. Press KEYBOARD CURSOR (UP/DOWN/

LEFT/RIGHT).

When using [Enter]

■

Same as the [Enter] key on a computer keyboard. Press KEYBOARD CURSOR (ENTER).

■

When using [Page Up] or [Page Down]

Same as the [Page Up] and [Page Down] keys on a computer keyboard. Press PAGE UP or PAGE D OWN.

Note

This function only works with the Microsoft

• Windows USB. Conﬁ rm that the computer recognizes the

• USB connection.

OS and Mac OS® that support

To USB terminal

KEYBOARD CURSOR

KEYBOARD CURSOR (ENTER) button

(ENTER) button

KEYBOARD CURSOR

KEYBOARD CURSOR (UP/DOWN/LEFT/RIGHT)

(UP/DOWN/LEFT/RIGHT) buttons

buttons PAGE DOWN button

PAGE DOWN button PAGE UP button

PAGE UP button

Features

Useful

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

Main menu Sub menu


Picture Mode

Page 43 Page 43

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Page 44

Presentation Standard Game Movie sRGB

+30-30

Ex. Setting

Page 44

Reset

Signal Type

Page 44

CLR Temp

1-1

Page 44

Red

Blue

+30-30

Page 44

C.M.S.

Page 45

Film Mode

Page 45

DNR Off

Page 45

Dynamic Black

[On/Off]

Page 45

Hue

Saturation

Value

Auto RGB YCbCr YPbPr

Auto Off

Level 1 Level 2 Level 3

+30-30

“Signal adjustment (SIG-ADJ)” menu

Main menu Sub menu

SIG-ADJ

Page 46

H-Pos

V-Pos

Phase

Clock

Reset

+150-150

+60-60

+30-30

+150-150

Page 46

Resolution

Page 46

Auto Sync

[On/Off]

Auto Wide 4:3

Page 46

“Video” menu

Main menu Sub menu

Video

Page 47

Overscan [On/Off]

Page 47

Video System Auto

Page 47

Video Setup

Page 48

Closed Caption

Page 48

PAL SECAM NTSC4.43 NTSC3.58 PAL -M PAL -N PAL-60

0 IRE

7.5 IRE

CC1 Off

“Screen adjustment (SCR-ADJ)” menu

Main menu Sub menu

SCR - ADJ

Page 49

Language

Page 49

Background

Page 49

PRJ Mode

Page 49

Resize

Page 49

Keystone

English Deutsch

polski magyar nyelv

Español Nederlands

Türkçe Français Italiano Svenska Português

Logo Custom Blue None

Front Rear Ceiling + Front Ceiling + Rear

Normal Full 4:3 16:9 Native

+80-80

Page 50

Image Resizing

+30-30

Page 50

Wall Color Whiteboard

Page 50

Ex. Setting

Page 50

Blackboard Off

Security Lock [Enable/Disable]

Page 51

Keypad Lock

Page 51

Image Capture

Save Image

Delete

Page 51

Features

Useful

Menu Items

(Continued)

“Projector adjustment (PRJ-ADJ)” menu

Main menu Sub menu

PRJ - ADJ

Page 52

Auto Search [On/Off]

Page 52

Auto Power Off [On/Off]

Page 52

Auto Restart [On/Off]

Page 52

Eco + Quiet [On/Off]

Page 52

Lamp Mode Both Lamps

Page 53

Audio Volume

Page 53

Ex. Setting

Page 53

Lamp1 Only Lamp2 Only Equal Use

Speaker [On/Off]

Fan Mode

Page 53

STANDBY Mode

600

Page 53

STANDBY Audio Out [On/Off]

Page 53

Filter Message

Page 54

3D MODE

Page 54

LAN/RS232C

Page 54

Network

Page 54

Normal High

Standard Eco

Off 100H 200H 500H 1000H

DLP®LinkTM [On/Off]

Page 59

DLP®LinkTM Invert

Page 59

LAN RS232C

Link DHCP Client [On/Off] IP Address Subnet Mask Gateway DNS

Reset

Page 55

All Reset

Page 55

Filter Timer Reset

Page 55

Information INPUT

Page 55

Signal Info Lamp Timer (Life) Lamp1 Lamp2 Filter Timer Model Name Software Version

Using the Menu Screen

Adjustment buttons (P/R/O/Q)

MENU button

Menu Selections (Adjustments)

Adjustment buttons (P/R/O/Q)

MENU button

RETURN button

Press RETURN to return

• to the previous screen when the menu is displayed.

Example: Adjusting “Bright”.

This operation can also be performed by using the buttons on the projector.•

Press MENU.

The menu screen is displayed.

•

Press Q or O and select

“Picture” to adjust.

Example: “Picture” screen menu for COMPUTER (RGB) input

Menu item

SIG-ADJ Video SCR-ADJ PRJ-ADJPicture

Picture Mode

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Ex. Setting

Reset

MENU = END SEL./ADJ. SEL.

Presentation

Features

Useful

Using the Menu Screen

Press P or R and select “Bright”

to adjust.

The selected item is highlighted.

•

(Continued)


Picture Mode

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Ex. Setting

Reset

Items to be adjusted

Picture Video SCR-ADJ PRJ-ADJSIG-ADJ

H-Pos

V-Pos

SIG-ADJ Video SCR-ADJ PRJ-ADJ

MENU = END

SEL./ADJ. SEL.

Presentation

Press O or Q to adjust the item

selected.

The adjustment is stored.

•

Press MENU.

The menu screen will disappear.

•


Picture Mode

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Ex. Setting

Reset

SIG-ADJ Video SCR-ADJ PRJ-ADJ

MENU = END SEL./ADJ. SEL.

Presentation

Picture Adjustment (“Picture” Menu)

Menu operation n Page 41

SIG-ADJ Video SCR-ADJ PRJ-ADJ


Picture Mode

Bright Boost

Bright

Contrast

Color

Tint

Sharp

Ex. Setting

Reset

MENU = END

Selecting the Picture Mode

SEL./ADJ. SEL. MENU = END SEL./ADJ. SEL.

Presentation

Signal Type

CLR Temp

Red

Blue

C.M.S.

Film Mode

DNR

Dynamic Black

SIG-ADJ Video SCR-ADJ PRJ-ADJ


Ex. Setting

Auto

Level 1

Off

Selectable

items

Description

Presentation Brightens portions of image for

The default settings of each item when selecting Picture Mode

CLR Temp Bright Boost

more enhanced presentations. Standard For standard image 0 1 Game Gives sharpness to the

projected image. Movie Gives natural tint to the

–1 0

projected image. sRGB* For high ﬁ delity reproduction of

––

images from a computer.

“sRGB” is displayed only when RGB signal is input.

• You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are

• retained in memory.

Note

•

*sRGB is an international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the ﬁ xed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when “sRGB” is selected. You cannot set the items, “Red”, “Blue”, “CLR Temp”, “Bright Boost”, “C.M.S.”, when “sRGB” is selected.

Info

When “sRGB” is selected, the projected image may become dark, but this does not indicate a

• malfunction.

Features

Useful

Picture Adjustment (“Picture” Menu) (Continued)

Menu operation n Page 41

Adjusting the Color

Adjusting the Image

Adjustment

items

Bright Boost

Bright For less

Contrast For less

Color*

Tint*

Sharp*

*1 Not selected in the RGB input mode.

Note

“Bright Boost” cannot be set when “sRGB” is

• selected. To reset all adjustment items, select “Reset”

• and press

Using the Ex. Setting



O button Q button

To improve color reproduction, lower bright boost setting.

brightness.

contrast. For less color

intensity. For making skin

tones purplish. For less

sharpness.

(ENTER).

To i ncr ease brightness, increase bright boost setting.

For more brightness.

For more contrast.

For more color intensity.

For making skin tones greenish.

For more sharpness.

Select “Ex. Setting” and then press (ENTER) to set “Signal Type”, “CLR Temp”, “Red”, “Blue”, “C.M.S.”, “Film Mode”, “DNR” or “Dynamic Black”.



Temperature

Selectable

items

For lower color temperature for warmer, reddish incandescent-like

–1

images.

For higher color temperature for cooler, bluish, ﬂ uorescent-like images.

Note

•

“CLR Temp” cannot be set when “sRGB” is selected. Values on “CLR Temp” are only for general

• standard purposes.

Adjusting the Red/Blue

Adjustment

items

Red For weaker red. For stronger

Blue For weaker

Note

“Red” and “Blue” are not adjustable/selectable

• when selecting “sRGB”.

O button Q button

blue.

Description

red. For stronger

blue.

Signal Type Setting

This function allows you to select the input signal for COMPUTER /COMPONENT1, 2 or COMPONENT.

Selectable

items

Auto Input signals are automatically

recognized as RGB or component. RGB Set when RGB signals are received. YCbCr Set when Component signals

(480I/48 0P/576I/576P) are received. YPbPr Set when Component signals

(720P/1080I/1080P) are received.

Description

Menu operation n Page 41

Adjusting the Colors

This function adjusts each of the six main colors that comprise the color wheel, altering their “Hue”, “Saturation”, or “Value”.

Selectable items Description

Hue Sets the hue of the main colors. Saturation Sets the saturation of the main

Value Sets the brightness of the main

colors.

Adjusting “Hue”, “Saturation”, or “Value”.

1 Select “C.M.S.” in “Ex. Setting” of the “Picture”

menu and then press

(ENTER).

2 Select “R”, “G”, “B”, “C”, “M” or “Y” and then press

(ENTER).

3 Press P or R to select either “Hue”, “Saturation”, or

“Value”.

4 Select the color to be adjusted with O or Q.

Example of adjusting the “Hue”

Main colors O button Q button

R (Red) G (Green) Closer to yellow Closer to cyan B (Blue) Closer to cyan C (Cyan) Closer to green Closer to blue M (Magenta) Closer to blue Closer to red Y (Yellow) Closer to red Closer to green

When “Saturation” is selected, the selected

•

Closer to magenta

color becomes O: lighter. Q: thicker. When “Value” is selected, the selected color

• becomes O: darker. Q: brighter.

Note

“C.M.S.” is not selectable when “sRGB” is

• selected.

Closer to yellow

Closer to magenta

Selecting the Film Mode



This function provides high-quality playback of images originally projected at 24 fps, such as movies on DVDs.

Selectable

items

Auto Films are detected automatically. Off Films are not detected.

Note

•

This function is available for the following signals. With COMPUTER/COMPONENT1, 2 or COMPONENT input:

- 480I

- 576I

- 1080I With S-VIDEO or VIDEO input:

- All signals

Reducing Image Noise (DNR)

Description

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable

items

Off DNR does not function. Level 1 Level 2 Level 3

This function is not available for some signals.•

Sets the DNR level for viewing a clearer picture.

Note

Setting the Dynamic Black

Description

Use this function to improve the black level of the projector.

Selectable

items

On The black level of the projector will be

improved.

Off Dynamic Black does not function.

Description

Features

Useful

Signal Adjustment (“SIG-ADJ” Menu)

Menu operation n Page 41

Picture Video SCR-ADJ PRJ-ADJSIG-ADJ

H-Pos

V-Pos

Phase

Clock

Reset

Resolution

Auto Sync

Auto

Off

MENU = END

Adjusting the

Computer Image

If the optimum image cannot be obtained with Auto Sync adjustment, use the SIG-ADJ function.

Selectable

items

H-Pos Centers the on-screen image by

V-Pos Centers the on-screen image by

Phase Adjusts horizontal noise (similar to

Clock Adjusts vertical noise.

moving it to the left or right.

moving it up or down.

tracking on your VCR).

Note

•

To reset all adjustment items, select “Reset” and press The adjustable range of “H-Pos” (H-Position)

• and “V-Pos” (V-Position) may vary depending on the screen resolution of the computer.

Setting the Resolution

(ENTER).

Description

SEL./ADJ. SEL.

Auto Sync (Auto Sync

Adjustment)

Selectable

items

On Auto Sync adjustment will occur when

Off Auto Sync adjustment is not

the projector is turned on or when the input signals are switched, when connected to a computer.

automatically performed.

Note

Auto Sync adjustment is also performed by

• pressing AUTO SYNC. The Auto Sync adjustment may take some

• time to complete, depending on the image of the computer connected to the projector. When the optimum image cannot be achieved

• with Auto Sync adjustment, use manual adjustments.

Description

Selectable

items

Auto Input signal resolution is automatically

recognized. Wide Set when the Wide signal is received. 4:3 Set when the 4:3 signal is received.

Description

Video Adjustment (“Video” Menu)

Menu operation n Page 41

Picture SIG-ADJ SCR-ADJ PRJ-ADJ

Overscan

Video System

Video Setup

Closed Caption

MENU = END

Setting the Overscan

This function allows you to set the overscan area (display area).

Selectable

items

On The input area is displayed without the

Off The whole input area is displayed.

This function is available for the following

•

signals. With COMPUTER/COMPONENT1, 2, COMPONENT or DVI-D input:

- 480P

- 576P

- 720P

- 1080I/1080P If noise appears at the screen edges when

•

“Off” is selected, set the function to “On”. Also see “About Copyrights” on page

•

screen edges.

Note

Description

35.

Video

Auto

7.5 IRE

Off

SEL./ADJ. SEL.

Setting the Video System

The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the Video signal difference. In that case, switch the Video signal.

Selectable items

Auto PAL SECAM NTSC4.43* NTSC3.58 PAL-M PAL-N PAL-60

* When reproducing NTSC signals in PAL

video equipment.

Note

•

The Video signal can only be set in S-VIDEO or VIDEO mode.

•

When “Video System” is set to “Auto”, you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.

Features

Useful

Video Adjustment (“Video” Menu) (Continued)

Setting the Video Setup

Selectable

items

0 IRE Sets the black level to 0 IRE.

7.5 IRE Sets the black level to 7.5 IRE.

Note

•

This function is available for the following signals. With COMPUTER/COMPONENT1, 2 or COMPONENT input:

- 480I With S-VIDEO or VIDEO input:

- NTSC3.58

Closed Caption

Info

This function is available for NTSC3.58 signal.

• This function is available in the following cases

• only:

Resize mode Keystone Correction

Normal Full 4:3

16:9 -12 − +12

Description

-40 − +40

Note

Closed Caption may malfunction (white blocks,

• strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source. This does not necessarily indicate a problem with the projector. If any button is pressed to call up the on-

• screen display while viewing a Closed Caption broadcast, the closed captions will disappear.

Menu operation n Page 41

“Closed Caption” is a system which allows

• conversations, narration, and sound effects in TV programs (Limited regions) and home videos to be viewed as captions on the screen. Not all programs and videos will offer closed

• captioning. Please look for the symbol to ensure that captions will be shown.

Selectable

items

CC1 Off —

Closed Caption mode for CH1 data

Description

Adjusting the Projected Image (“SCR-ADJ” Menu)

Menu operation n Page 41

Picture SIG-ADJ Video PRJ-ADJSCR-ADJ

Language

Background

PRJ Mode

Resize

Keystone

Image Resizing

Wall Color

Ex. Setting

MENU = END

Selecting the On-screen

SEL./ADJ. SEL. MENU = END SEL./ADJ. SEL.

Display Language

The projector can switch the on-screen display language among 15 languages.

English Deutsch Español Nederlands Français Italiano Svenska Português

Selecting the Background

polski magyar nyelv Türkçe


Selectable items Description

Logo Sharp logo screen Custom User customized image

Blue Blue screen None Black screen

Note

•

When “Custom” is selected, an image saved using “Image Capture” can be displayed as a background image.

(e.g. company logo)

Picture SIG-ADJ Video PRJ-ADJ

English

Logo

Front

Normal

Security Lock

Keypad Lock

Off

Image Capture

Reversing/Inverting

Ex. Setting

Projected Images

Selectable items Description

Front Normal image (Projected from

Rear Reversed image (Projected from

Ceiling + Front Inverted image (Projected from

Ceiling + Rear Reversed and inverted image

See page

20 for details of Projection (PRJ) Mode.

Setting the Resize Mode

Use this function to stretch the image vertically or horizontally or when the edges of the image cannot be seen.

Note

For details of the Resize mode, see pages

•

34 and 35.

the front of the screen)

the rear of the screen or with a mirror)

the front of the screen with an inverted projector)

(Projected with a mirror)

SCR-ADJ

Disable

Features

Useful

Adjusting the Projected Image (“SCR-ADJ” Menu) (Continued)

Menu operation n Page 41

Keystone Correction

Select “Keystone” on the “SCR-ADJ” menu and adjust with the slide bar.

See page 32 for details of “Correcting Trapezoidal Distortion”.

O buttonQ button

Note

The Keystone Correction can be adjusted up

• to an angle of approximately ±30 degrees.

Image Resizing

For correcting the image distortion which cannot be corrected with “Keystone”. Only when “Keystone” is set to the values other than “0”, “Image Resizing” can be adjusted.

Selecting the Wall Color

This function allows you to project the image to a colored (white or dark green) surface or wall without using a screen.

Selectable items Description

Whiteboard Projects images onto a

Blackboard Projects images onto a

Off The Wall Color function is not

Using the Ex. Setting



Select “Ex. Setting” and then press (ENTER) to set “Security Lock”, “Keypad Lock” or “Image Capture”.

whiteboard.

blackboard (dark green).

activated.

Select “Image Resizing” on the “SCRADJ” menu and adjust with the slide bar.

See page 32 for details of “Correcting Trapezoidal Distortion”.

O buttonQ button

Menu operation n Page 41

Security Lock Function

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct password each time the projector is turned on. We suggest

you record the password in a safe place where only authorized users have access.

Info

If you lose or forget your password, contact

• your nearest Sharp Authorized Projector Dealer or Service Center (see page if the product warranty is valid, the password reset will incur a charge.

Setting a Password

■

Select “Security Lock”, then

press Q when “Disable” is

76). Even

displayed.

The screen for entering the password

• appears.

Press a/b/c /Q (Adjustment

buttons) on the remote control or on the projector to enter the password in “Setting the Password”.

Setting the Password

Conﬁrm Password

Enter the same password in

“Conﬁ rm Password”.

Press RETURN to exit .

Note

When the Security Lock is set

When Security Lock is set, the password

• input screen appears after the power is turned on. When it appears, enter the right password to start projection.

Input screen for password

■

Select “Security Lock”, then press Q when “Enable” is displayed.

Password

Canceling a Password

Password

Keypad Lock Function

Use this function to lock the operation buttons on the projector.

Selectable

items

No Turns off the Keypad Lock function. Yes All buttons on the projector, except

Taking the Keypad Lock Off

■

Hold down b (Adjustment button) on the projector for about 5 seconds.

STANDBY/ON, are locked.

Description

Info

•

Keypad Lock cannot be released while the projector is: displaying the “Menu” screens, in Standby mode, warming up, changing input signals or operating the Auto Sync function, in Freeze mode or on the “Security Lock” screen during warming up.

Image Capture

This projector allows you to capture projected images (RGB signals) and set them as a startup image, or background image when no signals are being received.

Note

Images can be captured only when they are

• from WXGA (1280 × 800) (XG-PH80W-N), XGA (1024 × 768) (XG-PH80X-N) non-interlace signals in COMPUTER/COMPONENT1, 2 or DVI-D mode with “Resize” set to “Normal”. Images from equipment connected to VIDEO

• or S-VIDEO terminal cannot be captured. To delete the captured image, select “Yes” in

• “Delete”, and then press OSD tree image on page An image can be saved for either of the four-

• segment color wheel or the six-segment one, separately. Each color wheel can save one image.

- When the four-segment color wheel is used,

only the image saved for the four-segment color wheel is available.

- When the six-segment color wheel is used,

only the image saved for the six-segment color wheel is available.

Depending on the image type, it may take the

• projector some 2 minutes to complete the capture. Switching input signals during performing Image

• Capture may result in the failure of the performance of the capture.

(ENTER). (See

39.)

Features

Useful

Adjusting the Projector Function (“PRJ-ADJ” Men

Menu operation n Page 41

Picture SIG-ADJ Video SCR-ADJ

Auto Search

Auto Power Off

Auto Restart

ECO + Quiet

Lamp Mode

Audio

Ex. Setting

Reset

Information

MENU = END

Detecting the Input

SEL./ADJ. SEL. MENU = END SEL./ADJ. SEL.

PRJ-ADJ

Both Lamps

Signals Automatically

This function enables the projector to detect the received signal and to switch the Input mode automatically when the power is turned on.

Selectable items Description

On Automatically searches for and

Off Auto Search does not function.

Note

•

While the “Auto Search” function is detecting the input signal, pressing a button on the projector or the remote control stops the “Auto Search” function. After the “Auto Search” function ﬁ nishes completely, press the desired button.

Auto Power Off Function

switches to the input mode in which signals are being received.

Picture SIG-ADJ Video SCR-ADJ

Off

Fan Mode

STANDBY Mode

Standby Audio Out

Filter Message

3D MODE

LAN/RS232C

Network

Auto Restart Function

Selectable

items

Off The projector does not turn on

To activate the Auto Restart function, you need to switch the MAIN POWER switch on the projector to “ON”.

Selectable

items

On Approx. 83% Off 100%

automatically when the power cord is plugged into the AC outlet or the breaker switch is turned on.

Eco+Quiet

Ex. Setting

Description

Brightness and Power consumption

PRJ-ADJ

Normal

Standard

500H

LAN

Selectable

items

On When no input signal is detected for

Off The Auto Power Off function will be

more than 15 minutes, the projector will automatically enter Standby mode.

disabled.

Description

Note

•

When “Eco+Quiet” is set to “On”, the fan sound and power consumption are lower than they are when “Off” is selected. (Projection brightness decreases as shown in the chart.)

Menu operation n Page

Setting the Lamp Mode

This function allows you to select the usage of the two lamps installed in the projector.

Selectable items Description

Both Lamps Both lamps are used for greater

Lamp 1 Only The lamp 1 is used.

Lamp 2 Only The lamp 2 is used.

Equal Use The lamp whose remaining life

Note

•

For lamp protection, this function is not available for several minutes when changing the lamp mode.

Setting the Audio

brightness.

When the lamp 1 burns out, the lamp 2 automatically switches in use.

When the lamp 2 burns out, the lamp 1 automatically switches in use.

time is the longer is used.

You can set the following Audio items.

Selectable

items

Volume You can change the volume level.

Speaker On The audio signal is output

Note

The audio signal is not output from the speaker

• of the projector when the audio cable is connected to the audio output terminal and you cannot change the setting.

Using the Ex. Setting



The adjustable range is 0 to 60.

Off

Description

from the internal speaker. The audio signal is not output

from the internal speaker.

Select “Ex. Setting” and then press (ENTER) to set “Fan Mode”, “STANDBY Mode”, “STANDBY Audio Out”, “Filter Message”, “3D MODE”, “LAN/ RS232C” or “Network”.

Fan Mode Setting

This function changes the fan rotation speed.

Selectable

items

Normal Suitable for normal environments. High Set when using the projector at

When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

altitudes of approximately 1,200 meters (4,000 feet) or more.

STANDBY Mode

Description

When set to “Eco”, power consumption is reduced in Standby mode.

Selectable

items

Standard The monitor output, LAN/RS232C and

Eco The monitor output, LAN/RS232C and

Network functions are activated even if the projector is in Standby mode.

Network functions are switched off in Standby mode.

STANDBY Audio Out

Description

You can set audio output from the AUDIO OUTPUT terminal of the projector that is in Standby mode.

Selectable

items

On The audio signal is output from the

Off The audio signal is not output from the

•

When “Eco” is selected for “STANDBY Mode”, “STANDBY Audio Out” is set to “Off” automatically and you cannot change the setting.

AUDIO OUTPUT terminal in Standby mode.

Note

Description

Features

Useful

Adjusting the Projector Function (“PRJ-ADJ” Menu) (Continued)

Menu operation n Page 41

IP Address/Subnet Mask/Gateway/

Filter Message

You can select the interval time to display a message for cleaning the ﬁ lter.

Clean The Filter.

Selectable items Description

Off Not displaying the message. 100H/200H/

500H/1000H

Select the interval time to display a message.

3D MODE

You can set “DLP® LinkTM” and “DLP® Link Invert”. See “Using 3D Viewing Mode” on page 59 for details.

Setting the LAN/RS232C

You can select “LAN” or “RS232C” and selected terminal is only used.

Selectable

items

LAN The LAN function is activated. RS232C The RS-232C function is activated.

Description

Setting the Network

Link

■

Selectable

items

Connected Connected to the network. Disconnected

Disconnected from the network.

Description

■

DNS/Apply

Selectable

items

IP Address Factory default setting:

Subnet Mask

Gateway Factory default setting:

DNS Factory default setting:

Apply Apply and save the new settings.

•

Conﬁ rm the existing network's segment (IP address group) to avoid setting an IP address that duplicates the IP addresses of other network equipment or computers. If “192.168.150.002” is not used in a network with an IP address of “192.168.150.XXX”, you don't have to change the projector IP address.

•

For details about each setting, consult your network administrator.

192.168.150.00 2 Enter an IP address appropriate for the network.

Factory default setting:

255.255.255.000 Set the subnet mask to the same as that of the computer and equipment on the network.

000. 000. 000. 000 * When not in use, set to “000. 000.

000. 000”.

000. 000. 000. 000 * When not in use, set to “000. 000.

000. 000”.

Note

Description

■

DHCP Client

Connect the LAN cable before turning the projector on. If not, the DHCP Client function does not work. If the DHCP server is not available, set the IP Address, Subnet Mask, Gateway and DNS manually.

Selectable

items

On Obtains conﬁ guration parameters for IP

Address, Subnet Mask, Gateway, and DNS automatically.

Off Set the IP Address, Subnet Mask,

Gateway, and DNS manually.

Description

Menu operation n Page 41

Returning to the Default

Settings

All Reset

■

This function allows you to initialize the settings you have made in the projector.

Note

•

The following items or menu cannot be initialized.

- Lamp Timer (Life)

- Filter Timer

- Image stored using “Image Capture”

Filter Timer Reset

■

This function allows you to reset the ﬁ lter timer.

Note

•

Make sure to reset the ﬁ lter timer after cleaning or changing the dust ﬁ lter. (See page

62.)

Information

You c an c o nﬁ rm the following items.

Displayed

items

INPUT Used input terminal is displayed. Signal Info Current input signal information is

Lamp Timer (Life)

Filter Timer Filter usage time is displayed. Model Name Model Name is displayed. Software

Version

displayed. Lamp usage time and the remaining

lamp life (%) are displayed (Both Lamp1 and Lamp2). See “Lamp Life” below.

Current software version is displayed.

Lamp Life

Lamp usage condition Remaining lamp life

“Life” 100% 5%

Operated exclusively with “Eco+Quiet” set to “On”

Operated exclusively with “Eco+Quiet” set to “Off”

Note

•

It is recommended that the lamp be changed when the remaining lamp life becomes 5%. The lamp life may vary depending on the

• usage condition.

Description

Approx. 3,000 hours

Approx. 2,000 hours

Approx. 150 hours

Approx. 100 hours

Features

Useful

Viewing Stereoscopic 3D Images

Precautions on Viewing Stereoscopic 3D Images

Before viewing stereoscopic 3D images, please read this section carefully.

WARNING

■

Under normal conditions, viewing stereoscopic 3D images is safe for any duration that you would normally view your screen. However, some people may experience discomfort. The following precautions are recommended to minimize the potential for experiencing visual problems or any adverse symptoms.

■

Take regular breaks, at least 5 to 15 minutes after every 30 to 60 minutes of stereoscopic 3D viewing.

* Based on the guidelines issued by the 3D Consortium revised December 10, 2008.

■

Maintain an appropriate distance from the screen. Viewing from too close a distance can strain your eyes. If you experience eye strain, immediately discontinue viewing.

If you experience any of the following symptoms during viewing: – nausea – queasiness/dizziness – headache – blurry vision or double vision that lasts longer than few seconds Do not engage in any potentially hazardous activity (for example, driving a vehicle) until your symptoms have completely gone away. If symptoms persist, discontinue use and do not resume stereoscopic 3D viewing without discussing your symptoms with a physician.

As you get more comfortable viewing stereoscopic 3D:

•

• Adjust the parallax on the 3D-video playback equipment. (You may not be able to adjust the parallax on some models of equipment.)

• Adjust the projected image to the most comfortable viewing size by zooming.

(Projecting images on the smallest or largest screen size possible may eliminate the

stereoscopic effect and strain your eyes.)

• Use the DLP (For details on using “DLP® Link™ Invert”, see the section on its operation in this operation manual.)

Link™ Invert function to properly set the video for your left and right eyes.

WARNING

The following people should limit stereoscopic 3D viewing:

■

– Children under 6 years of age (to protect the eye growth process) – People with a history of photosensitivity – People with heart disease – People in poor health – People who are sleep deprived – People who are physically tired – People under the inﬂuence of drugs or alcohol

Epilepsy

■

A small percentage of the population may experience epileptic seizures when viewing certain types of images that contain ﬂ ashing patterns of light.

IF YOU OR ANY MEMBER OF YOUR FAMILY HAS A HISTORY OF EPILEPSY

The following people should consult a physician before viewing stereoscopic 3D images. – Anyone with a history of epilepsy, or who has a family member with a histor y of

epilepsy – Children under 6 years of age – Anyone who has ever experienced epileptic seizures or sensory disturbances triggered

by ﬂ ashing light effects

SOME LIGHT PATTERNS MAY INDUCE SEIZURES IN PERSONS WITH NO PRIOR HISTORY OF EPILEPSY

Discontinue use if you experience any of the following symptoms while viewing stereoscopic 3D images. – Involuntary movements, eye or muscle twitching – Muscle cramps – Nausea, dizziness, or queasiness – Convulsions – Disorientation, confusion, or loss of awareness of your surroundings

Features

Useful

Viewing Stereoscopic 3D Images

(Continued)

Information on the 3D Projection Function

To display 3D images, this projector requires:

•

WHAT YOU WILL NEED

1) Source devices that support the ﬁeld sequential format – For details on the supported signals, see the Compatibility Chart in this operation

manual.

2) 3D LCD shutter glasses that support the DLP – Contact your nearest Sharp Authorized Projector Dealer for purchasing details. * DLP® Link™ is a trademark of Texas Instruments.

The projected image may become dark when using the 3D projection function (with “DLP

•

Link™ ” set to “On”).

When “DLP

•

available at all.

– Keystone – Resize – Image Resizing

3D formats except for the ﬁeld sequential method, such as ones used for Blu-ray 3D or DVD

•

prepackaged media, are not compatible with this projector. (As of February 2011)

If the power of your left and right eyes greatly differs and you primarily use one eye for

•

viewing the images, the images will not appear in 3D.

In addition, images may be difﬁcult to view in 3D or images may not be able to be viewed in 3D depending on the individual or the content being displayed. The stereoscopic effect varies with the individual.

3D viewing is possible within the range that the 3D LCD shutter glasses are able to receive

•

light signals reﬂected by the screen. However, most 3D images are manufactured to be viewed from directly in front of the screen, so 3D viewing is recommended directly in front of the screen as much as possible.

– The range for receiving signals varies depending on the 3D LCD shutter glasses. For

details, see the operation manual of your 3D LCD shutter glasses.

3D images may not be able to be played back correctly on your computer.

•

Link™” is set to “On”, the following functions may not work fully or may not be

Link™* system

Using 3D Viewing Mode

Use the following procedure to project 3D images.

For operation of the 3D LCD shutter glasses and the 3D-video playback equipment, see the corresponding operation manual.

P/Rbuttons

(ENTER) button

3D MODE button

Projecting 3D images

Turn the projector on.

Turn the 3D-video playback

equipment on.

Set the 3D-video playback equipment so

• that it outputs one of the signals listed in the Compatibility Chart in this operation manual.

Switch the Input mode of the

projector to enable input of 3D video signals.

Operate the 3D-video playback

equipment and play back the 3D content.

Turn the 3D LCD shutter glasses

on and place them over your eyes.

Press 3D MODE on the remote

control to display the 3D MODE menu.

Press P or R to select “DLP

Link™”, and then select “On”.

Select “DLP® Link™ Invert”, and

then press the mode and enable more natural 3D image viewing.

(ENTER) to switch

Warning!

If the projector, 3D-video playback

• equipment, and 3D LCD shutter glasses are not properly set, you may experience eye strain in addition to not being able to view the images in 3D.

Press 3D MODE.

The 3D MODE menu will disappear.

•

Note

If the images are not displayed in 3D, repeat

• steps 6 to 8. You can also use “DLP

• Link™ Invert” on the menu screen to change the 3D setting.

Link™” and “DLP

Ending 3D projection

Press 3D MODE on the remote

control to display the 3D MODE menu.

Press P or R to select “DLP

Link™”, and then select “Off”.

Press 3D MODE.

•

The 3D MODE menu will disappear.

Note

You may not be able to enjoy the full 3D

• effects depending on the installation or usage environment of the projector.

•

When you use the 3D projection function, it is recommended that “Lamp Mode” be set to “Both Lamps” and “Eco + Quiet” be switched to “Off”.

Features

Useful

Viewing Stereoscopic 3D Images

(Continued)

Appendix

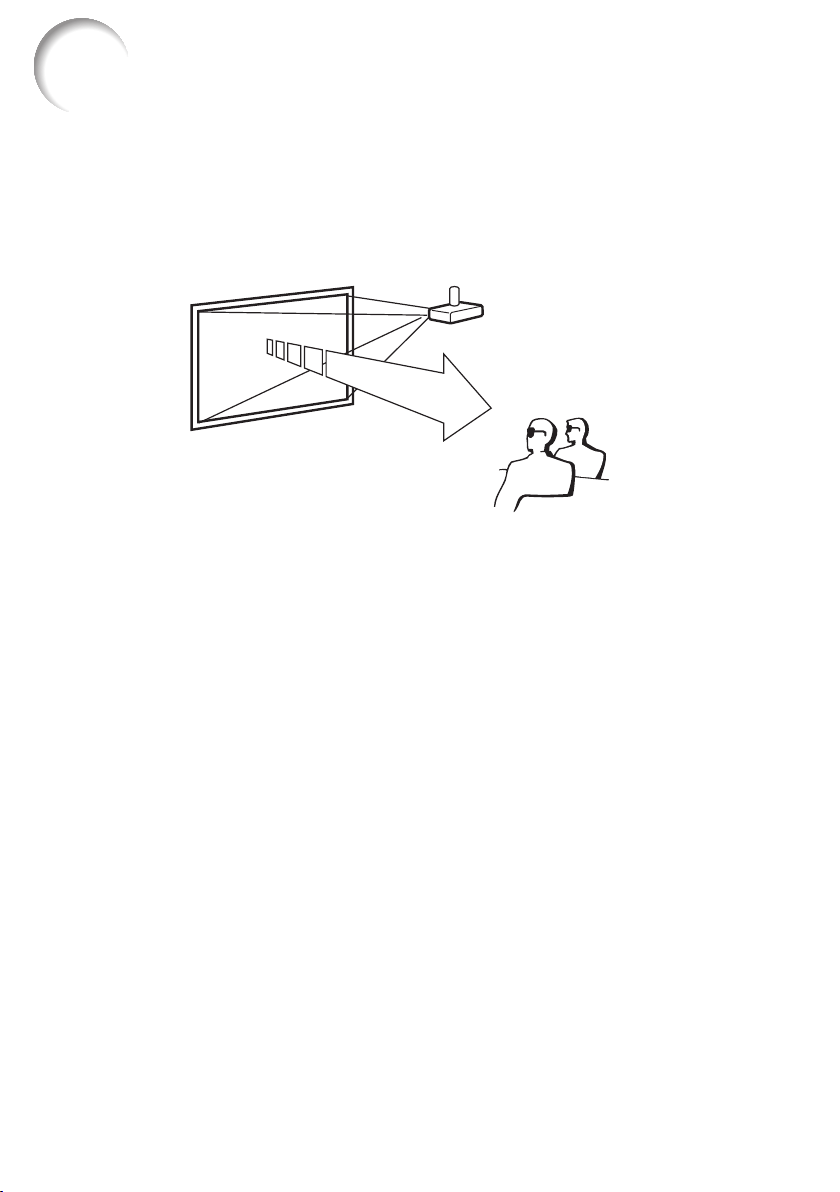

How the 3D Projection Function (DLP Link™ ) Works

■

The 3D projection function of this projector is compatible with the DLP® Link™ system. To watch 3D images, you use a pair of 3D LCD shutter glasses that alternately display the projected images for the left and right eyes and are synchronized with a control (light) signal.

Shutter glasses

control light signal*

* The control light signal is transmitted from the lens of the projector, reﬂ ected by the screen,

and received by the light reception sensor on the 3D LCD shutter glasses. Therefore, the range of 3D viewing varies depending on the speciﬁ cations of the 3D LCD shutter glasses (light signal receiving sensitivity).

For details, see the operation manual of your 3D LCD shutter glasses.

For more information on the 3D projection function

■

Future information on the 3D projection function will be posted on the following web site. http://www.sharp-world.com/projector/

Maintenance

Cleaning the projector

Ensure that you have unplugged the power

■

cord before cleaning the projector. The cabinet as well as the operation panel is

■

made of plastic. Avoid using benzene or thinner, as these can damage the ﬁ nish on the cabinet. Do not use volatile agents such as

■

insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or ﬁ nish of the projector. Wipe off dirt gently with a soft ﬂ annel cloth.

■

Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the cabinet or cause cracking. Wiping with a hard cloth or using strong

■

force may scratch the cabinet surface. When the dirt is hard to remove, soak a cloth

■

in a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent

Cleaning the lens

Use a commercially available blower or lens

■

cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating ﬁ lm on the surface of the lens. As the surface of the lens can easily get

■

damaged, be careful not to scrape or hit the lens.

Wax

Thinner

Mild detergent diluted

with water

Appendix

Cleaning and Replacing the Dust Filters

When the message shown below is displayed, clean or replace the three dust ﬁ lters and then reset the ﬁ lter timer (see page ﬁ lters at the same time to synchronize the ﬁ lter timer.

Clean The Filter.

Cleaning the Dust Filters

Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent (bottom, side and rear).

Info

•

The dust ﬁ lters should be cleaned every 100 hours of use. Clean the ﬁ lters more often when the projector is used in a dusty or smoky location.

•

If you want to clean the air vents during projector operation, ensure you press STANDBY/ON on the projector or on the remote control and put the projector into Standby mode. After the cooling fan has stopped, clean the vents.

55). You must clean or replace all three dust

Replacing the Dust Filters

Info

•

If the ﬁ lters become too dirty to clean effectively, purchase new ones (Front: 9NK3243073701, Side: 9NK3243073801, Rear: 9NK3243073601) from your nearest Sharp Authorized Projector Dealer or Service Center.

Press STANDBY/ON on the

projector or on the remote control to put the projector into standby mode.

•

Switch the MAIN POWER switch on the projector to “OFF” after the cooling fan stops, and then disconnect the power cord and unplug the power cord from the AC socket.

STANDBY/ON

STANDBY/ON button

button

MAIN POWER switch

AC socket

Remove the ﬁ lter covers.

•

Remove the ﬁ lter covers towards the direction of the arrow.

Pick the dust ﬁ lters up and lift

them out of all the three ﬁ lter covers as shown in the ﬁ gures.

Place replacement dust ﬁ lters

and press them down ﬁ rmly.

Front

Side

Rear

Replace the ﬁ lter covers.

Insert the ﬁ lter covers and push them

• gently as shown in the ﬁ gure.

Front

Side

Rear

Appendix

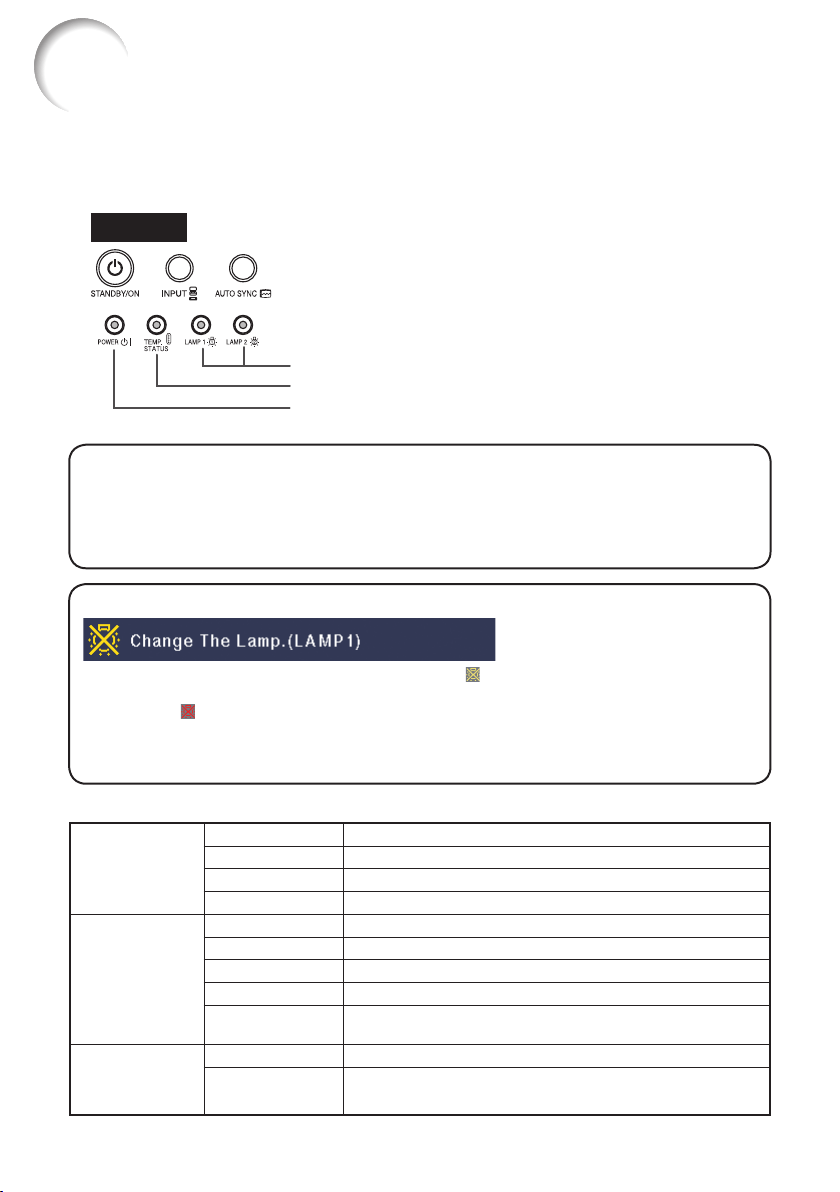

Maintenance Indicators

The warning lights (POWER indicator, TEMP. (temperature warning)/STATUS indicator and

■

LAMP indicator) on the projector indicate problems inside the projector. If a problem occurs, either the TEMP. (temperature warning)/STATUS indicator or the LAMP

■

indicator will illuminate red, and the projector will enter Standby mode. After the projector has entered Standby mode, follow the procedures given below.

Top V i e w

LAMP (1, 2) indicators TEMP. (temperature warning)/STATUS indicator POWER indicator

About the TEMP. (temperature warning)/STATUS indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the lamp will turn off, the cooling fan will run and then the projector will enter Standby mode, and then the TEMP. (temperature warning)/STATUS indicator will blink. When you ﬁ nd the TEMP. (temperature warning)/STATUS indicator blinking, be sure to perform the measures

described on page

About the LAMP indicator

65.

When the remaining lamp life becomes 5% or less, (yellow) and “Change The

■

Lamp.(LAMP1/2)” will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter Standby mode. At this time, the lamp indicator will illuminate in red.

If you tr y to turn on the projector a fourth time without replacing the lamp, the

■

projector will not turn on.

Indicators on the Projector

POWER indicator Red on Normal (Standby)

Green on Normal (Power on) Orange blinks Normal (Cooling) Green blinks Normal (Warming up)

LAMP indicator Green on Normal (“Eco + Quiet” is “Off”.)

Orange on Normal (“Eco + Quiet” is “On”.) Green blinks The lamp is warming up. (“Eco + Quiet” is “Off”.) Orange blinks The lamp is warming up. (“Eco + Quiet” is “On”.)

TEMP. (temperature wa rnin g)/STAT US indicator

Red on/Red blinks The lamp is shut down abnormally or requires to be

Off Normal Red/Orange

blinks

changed. (See page

Abnormal. (See page

65.)

Maintenance indicator

TEMP.

(temperature

warning)/

STAT US

indicator

LAMP

indicator

Green on

when the

warming

Orange on

(When the

cooling.)

Normal Abnormal

Off Red blinks The TEMP.

Red blinks

2 times

(Repeatedly)

Orange

blinks

(Green

blinks

lamp is

up.)/

(Eco)

Orange

blinks

lamp is

Red blinks The lamp does

Red blinks

2 times

(Repeatedly)

Red on Time to change

Problem Cause Possible Solution

(temperature warning)/STATUS indicator blinks in red when the projector is on.

The internal temperature is abnormally high.

not illuminate. Time to change

the lamp. The lamp does

not illuminate.

the lamp.

The lamp unit cover

• If the TEMP. (temperature is open.

Temperatures

• around the projector are high. Blocked air intake

• Internal circuit

• failure.

Cooling fan

• breakdown Internal circuit failure

• Clogged air intake

•

No lamp• Install the lamp unit.•

Remaining lamp life

• Disconnect the power cord becomes 5% or less.

The lamp is shut

• down abnormally. Burnt-out lamp

• Lamp circuit failure

•

The lamp life is over.•

• warning)/STATUS indicator blinks in red even when the lamp unit cover are securely installed, contact your nearest Sharp Authorized Projector Dealer or Service Center (see

76) for advice.

page

•

Use the projector in an area with a temperature of lower than 104°F (+40ºC).

•

Relocate the projector to an area with proper ventilation. (See page

•

Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page repair.

• from the AC outlet, and then connect it again.

•

Carefully replace the lamp. (See page Take the projector to your

• nearest Sharp Authorized Projector Dealer or Service Center (see page repair. Please exercise care when

• replacing the lamp. Securely install the cover.

•

66.)

8.)

76) for

* For information about other types of blinking, contact your nearest Sharp Authorized Projector

Dealer or Service Center (see page

76).

Info

•

If the TEMP. (temperature warning)/STATUS indicator illuminates, and the projector enters Standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

•

If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the LAMP indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

•

The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

Appendix

Regarding the Lamp

Lamp

It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes

■

5% or less, or when you notice a signiﬁ cant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (See page

■

Purchase a replacement lamp of type AN-PH80LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-BE-SHARP

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure

■

can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking. When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended

■

In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation. Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the

■

55.)

U.S.A ONLY

Replacing the Lamp

Caution

Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause

• burns or injury. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully

• cool before removing the lamp unit.

Carefully change the lamp by following the instr uctions described in t his section.

■

* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector

Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector

Dealer or Service Center for repair.

Removing and Installing the

Lamp Unit

Info

•

Do not touch the glass surface of the lamp unit or the inside of the projector.

•

To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below. Do not loosen other screws except for the

• lamp unit cover and lamp unit.

Press STANDBY/ON on the

projector or on the remote control to put the projector into Standby mode.

Switch the MAIN POWER switch

on the projector to “OFF” and then disconnect the power cord.

•

Unplug the power cord from the AC socket. Leave the lamp until it has fully cooled

• down (about 1 hour).

Remove the lamp unit cover.

Loosen the user service screw (1) that

• secures the lamp unit cover. Remove the lamp unit cover (2).

Warning!

•

Do not remove the lamp unit from the

Do not remove the lamp unit from the projector right after use. The lamp and parts

projector right after use. The lamp and parts around the lamp will be very hot and may

around the lamp will be very hot and may cause burns or injury.

cause burns or injury.

Lamp unit

Optional

accessory

STANDBY/ON button

AC socket

Lamp unit AN-PH80LP

AN-PH80LP

MAIN POWER switch

Remove the lamp unit.

Loosen the securing screws (two for each

• lamp) from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

User service screw

User service screw (for lamp unit cover)

(for lamp unit cover)

Appendix

Regarding the Lamp (Continued)

Insert the new lamp unit.

•

Press the lamp unit ﬁ rmly into the lamp unit compartment. Fasten the securing screw.

Replace the lamp unit cover.

•

Align the lamp unit cover and slide it to close (1). Then tighten the user service screw (2) to secure the lamp unit cover.

Info

•

If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

Make sure to reset the lamp timer only when

• replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

•

You can reset the lamp timer only when “STANDBY mode” is set to “Standard”.

AC socketAC socket

Connect the power cord and

switch the MAIN POWER switch on the projector to “ON”.

•

Plug the power cord into the AC socket of the projector.

Reset the lamp timer.

•

The projector enters Standby mode when you reset the lamp timer.

For Lamp 1

•

When you reset the timer, press MENU →

ENTER → ENTER → MENU → O → STANDBY/ON on the projector.

“LAMP1 0000H” is displayed, indicating

• that the lamp timer is reset.

For Lamp 2

•

When you reset the timer, press MENU →

ENTER → ENTER → MENU → Q → STANDBY/ON on the projector.

“LAMP2 0000H” is displayed, indicating

• that the lamp timer is reset.

MENU button

O/Q buttons

ENTER button

STANDBY/ON

STANDBY/ON button

button

Replacing the Color Wheel

The projector is equipped with a four-segment color wheel. You can replace it with a six-segment color wheel (sold separately). The replacement procedure described below also applies when you put the four-segment color wheel back in the place of the six-segment one.

Warning!

•

Do not remove the color wheel from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

STANDBY/ON button

Press STANDBY/ON on the

projector or on the remote control to put the projector into Standby mode.

Switch the MAIN POWER switch

on the projector to “OFF” and then disconnect the power cord.

•

Unplug the power cord from the AC socket. Leave the lamp until it has fully cooled

• down (about 1 hour).

MAIN POWER switch

AC socket

Remove the lamp unit cover.

Loosen the user service screw (1) that

• secures the lamp unit cover. Remove the lamp unit cover (2).

User service screw

User service screw (for lamp unit cover)

(for lamp unit cover)

Appendix

Replacing the Color Wheel (Continued)

Loosen the 4 retaining screws

from the four-segment color wheel.

Hold the color wheel and pull it in

the direction of the arrow.

Caution

The module contains components that can be damaged or destroyed by electrostatic discharge. Please pick the module with the handle.

Insert the six-segment color

wheel, and tighten the 4 retaining screws.

Replace the lamp unit cover.

Align the lamp unit cover and slide it to

• close (1). Then tighten the user service screw (2) to secure the lamp unit cover.

Handle

Info

Storing the Unused Color Wheel:

Use the zipper bag in which the six-segment color wheel was packaged to store the unused color wheel. This bag prevents dust and dirt from collecting on the color wheel.

Compatibility Chart

Computer

• Multiple signal support Horizontal Frequency: 15, 31-90 kHz, Vertical Frequency: 50-85 Hz,

PC/MAC Mode Resolution

VGA 640 × 480

SVGA 800 × 600

XGA 1024 × 768

WXGA

WXGA+ 1440 × 900 55.9 60

SXGA

SXGA+ 1400 × 1050 65.3 60

WSXGA+ 1680 × 1050 6 5.3 60

MAC 13” VGA 640 × 48 0 34.9 67 MAC 16” SVGA 832 × 624 49.7 75 MAC 19” XGA 1024 × 768 6 0.2 75

MAC 21” SXGA 1152 × 870 68.7 75

UXGA 160 0 × 1200 75.0 60

1280 × 720 45.0 60 1280 × 768 47.8 60

1280 × 800

1360 × 768 47.7 60 1366 × 768 47.7 60

1152 × 864 67.5 75 1280 × 960 60.0 60

1280 × 1024

Horizontal

Frequen cy (kHz)

31.5 60

37.9 72

37.5 75

43.3 85

35.2 56

37.9 60

48.1 72

46.9 75

53.7 85

48.4 60

56.5 70

60.0 75

68.7 85

49.7 60

62.8 75

64.0 60

80.0 75

Note

Optimum image quality will be achieved by matching your computer's output resolution to the

• resolution that corresponds to “TRUE” in the “Display” column shown above.

•

When “Screen resolution” of the computer is different from the resolution displayed on the projected image, follow the procedures shown below. – Make the appropriate adjustments for “Resolution” in “SIG-ADJ”.

Depending on the computer you are using, the output signal may not be faithful to the “Screen resolution”

–

adjustment. Check the settings of the computer's signal output. If the settings cannot be changed, it is recommended that the resolution be set to the one that corresponds to “TRUE” in the “Display” column.

Pixel Clock: 12-165 MHz Sync signal: Compatible with TTL level

• Compatible with sync on green signal

Verti cal

Frequen cy (Hz)

Analog

Support

Digital

Support

✔✔ ✔✔ ✔✔ ✔ ✔✔ ✔✔ ✔✔ ✔✔ ✔ ✔✔ ✔✔ ✔✔ ✔ ✔✔ ✔✔ ✔✔ ✔

✔ ✔ ✔✔ ✔✔ ✔✔ ✔✔ ✔ ✔ ✔ ✔ ✔

✔

✔ ✔

Display

XG-PH8 0W-N XG-PH80X-N

Upscale

TRUE

Intelligent

Compression

Upscale

Intelligent

Compression

Upscale

TRUE

Intelligent

Upscale

TRUE

Intelligent

Appendix

Compatibility Chart (Continued)

3D Supported Signals

Signa l Horizonta l Frequen cy (kHz) Ve rtica l Freque ncy (Hz)

SVGA 800 × 600

XGA 1024 × 768

WXGA

1280 × 800

1280 × 720

37.9 60

77.1 120

48.4 60

98.6 120

49.7 60

101.6 120 *

45.0 60

92.6 120

*1 Reduced Blanking

Note

Your computer graphics card must be able to display 3D stereoscopic signals.

• Please check with your computer/graphic card speciﬁ cations or call your computer manufacturer to ensure this capability.

DTV

Horizontal

Signal

Freque ncy (kHz)

15.7 60

15.6 50

480 480P 31.5 60 576 576P 31.3 50 720P 37.5 50 720P 45.0 60

Vert ical

Freque ncy (Hz)

Analog

Support

Digital

Support

✔

✔✔

✔

✔✔

Horizontal

Signal

Freque ncy (kHz)

1080I

1080 1080P 56.3 50 1080P 67.5 60

28.1 50

33.8 60

Analog

Support

✔✔

Vert ical

Freque ncy (Hz)

Analog

Support

✔✔

Digital

Support

Digital

Support

Troubleshooting

Problem Check Page

Projector power cord is not plugged into the wall outlet.• Power to the external connected devices is off.• – The selected Input mode is wrong.• The AV Mute function is working.• 33 Cables are incorrectly connected to the projector.• 21–25

No picture and no sound

or projector does not

start.

Sound is heard but no

picture appears

(or picture is dark).

Dark or bluish image

Remote control battery has run out.• 16

•

External output has not been set when connecting notebook computer.

•

When the connected DVI digital equipment is turned on before the “DVI-D” input mode is selected on the projector, the image may not be projected properly or may not be displayed at all. Ensure that the appropriate input mode has been selected and set the input signal type on the projector before you turn on the connected equipment.

The lamp unit cover is not installed correctly.• 67, 68 Cables are incorrectly connected to the projector.• “Bright” is set to minimum position.• 44

•

Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer's operation manual for how to switch its signal output settings. Is “On” selected in “DLP

•

Check that “Wall Color” is conﬁ gured correctly.• Image adjustments are incorrectly set.•

(S-VIDEO, VIDEO Input only)

•

Video input system is incorrectly set.

(COMPUTER/COMPONENT1, 2, COMPONENT, DVI Input only)

Input signal type (RGB/Component) is incorrectly set.

•

LinkTM”?

21–25

–

Color is faded or poor.

Picture is blurred;

noise appears.

Picture appears but no

sound is heard.

Adjust the focus.•

•

The projection distance exceeds the focus range.

•

When an optional lens is attached, refer to the operation manual of the lens.

There is fog on the lens. If the projector is carried from a cold room into a

• – warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.

(Computer Input only)

•

Perform “SIG-ADJ” Adjustments (“Clock” and “Phase” Adjustment)

•

Turn off the LCD display of the notebook computer.

•

Noise may appear depending on the computer. Cables are incorrectly connected to the projector.•

•

Volume is set to minimum.

•

When the projector is connected to an external device and the volume is set to minimum, the sound is not output even if you turn up the volume of the external device.

“Speaker” is set to “Off”.

• The AV Mute function is working.

•

–

21–25

Appendix

53 33

Troubleshooting (Continued)

Problem Check Page

Data image is not

centered.

An unusual sound is

occasionally heard from

the cabinet.

Maintenance indicator on

the projector illuminates

or blinks in red.

Picture is green on

COMPUTER/

COMPONENT1, 2

(Component).

Picture is pink

(no green) on

COMPUTER/

COMPONENT1, 2 or

DVI (RGB).

Picture is too bright and

whitish.

The cooling fan becomes

noisy.

The lamp does not light

up even after the

projector turns on.

The lamp suddenly turns

off during projection.

The image sometimes

ﬂ i c k e r s .

The lamp needs much

time to turn on. Picture is dark.

The remote control

cannot be used.

Make the necessary adjustments of each item in the “SIG-ADJ” menu.•

• –

Depending on the computer you are using, the output resolution signal may be different from the one you have set. For details, refer to the operation manual of the computer.

• –

If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.

See “Maintenance Indicators”.•

Change the input signal type setting.•

Image adjustments are incorrectly set.•

When temperature inside the projector increases, the cooling fan runs

• faster.

The LAMP indicator is illuminating in red.

• Replace the lamp.

•

Cables are incorrectly connected to the projector or the connected equipment works improperly. If this happens frequently, replace the lamp.

• The lamp will eventually need to be changed.

• While the remaining lamp life draws to a close, replace the lamp.

•

Operate the remote control while pointing it at the projector's remote control sensor.

•

The remote control may be too far away from the projector.

•

If direct sunlight or a strong ﬂ uorescent lamp is shining on the projector's remote control sensor, place the projector where it will not be affected by strong light.

The batteries may be depleted or inserted incorrectly. Make sure the

• 16 batteries are inserted correctly or insert new ones.

8, 9, 64, 65

64, 67, 68

21–25

67 67

Problem Check Page

3D images ﬂ icker when

watching in a room.

Ghosting (a double image)

occurs without the image

appearing in 3D.

Images may appear to ﬂ icker when ﬂ uorescent light or ambient light

• enters your vision.

Turn off the lights.

–

Block any ambient light.

–

•

Check that you are using 3D LCD shutter glasses that support the

Link™ system.

DLP

Be sure to use 3D LCD shutter glasses that support the DLP® Link™

–

system.

Check that the shutters on the 3D LCD shutter glasses are working

• properly.

Turn the 3D LCD shutter glasses off and then on again.

–

Check the batteries of the 3D LCD shutter glasses.

–

Check that the 3D LCD shutter glasses are set to 3D viewing mode.

–

Some 3D LCD shutter glasses are equipped with a special viewing mode (such as “dual view mode”) in addition to the normal 3D viewing mode. See the operation manual of your 3D LCD shutter glasses.

•

Check the settings of the projector. –

Turn the DLP

–

Use “DLP

Check whether a signal that is not supported is being input.

•

Conﬁ gure your 3D application at the correct resolution and refresh

–

rate. Make sure you are running your 3D application in resolutions that suppor t 3D. To support 3D, your 3D application must be conﬁ gured to run at the correct settings for this projector. For details on the supported signals, see “3D Supported Signals” of the Compatibility Chart.

If the projector is connected to a computer for 3D image playback,

• check that a stereoscopically-enabled application is being used.

Use the applicable software.

–

Set the applicable software to the ﬁ eld sequential format.

– Check that there are no obstructions between the screen and the 3D

• LCD shutter glasses.

Remove any obstructions.

–

Any obstructions may cause the glasses not to function properly causing the lenses to ﬂ icker or turn off. Do not place your hand or other objects in front of the 3D control signal sensor on the glasses.

Check whether there is a source of high intensity lighting nearby.

•

Block the light or turn it off.

–

High intensity lighting can interfere with communication between the 3D LCD shutter glasses and the screen resulting in some ﬂ icker.

Check whether two or more projectors are projecting 3D images at the

• same time.

Use only one projector at a time.

–

Link™ function “On”.

Link™ Invert” to change the setting.

–

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

Appendix

For SHARP Assistance

If you encounter any problems during setup or operation of this projector, ﬁ rst refer to the “Troubleshooting” section on pages manual does not answer your question, please contact the SHARP Service departments listed below.

73 to 75. If this operation

U.S.A. Sharp Electronics Corporation

1-888-GO-SHARP (1-888-467-4277)

http://www.sharpusa.com

Canada Sharp Electronics of Canada Ltd.

http://www.sharp.ca

Mexico Sharp Electronics Corporation

(525) 716-9000 http://www.sharp.com.mx

Latin America Sharp Electronics Corp. Latin

(305) 264-2277 www.servicio@sharpsec.com http://www.sharpla.com

Germany Sharp Electronics (Europe) GMBH

01805-234675 http://www.sharp.de

U.K. Sharp Electronics (U.K.) Ltd.

08705 274277

Italy Sharp Electronics (Italy) S.P.A.

(39) 02-89595-1 http://www.sharp.it

France Sharp Electronics France

01 49 90 35 40 hotlineced@sef.sharp-eu.com http://www.sharp.fr

Spain Sharp Electronica Espana, S.A.

93 5819700 sharplcd@sees.sharp-eu.com http://www.sharp.es

Switzerland Sharp Electronics (Schweiz) AG

0041 1 846 63 11 cattaneo@sez.sharp-eu.com http://www.sharp.ch

Sweden Sharp Electronics ( Nordic ) AB

(46) 8 6343600 vision.support@sen.sharp-eu.com http://www.sharp.se

Austria Sharp Electronics (Europe) GMBH

0043 1 727 19 123 pogats@sea.sharp-eu.com http://www.sharp.at

lcdsupport@sharpsec.com

(905) 568-7140

Mexico Branch

American Group

http://www.sharp.co.uk/customersupport

Branch Ofﬁ ce Austria

Benelux SHARP Electronics Benelux BV

0900-SHARPCE (0900-7427723)

9900-0159 Belgium http://www.sharp.nl http://www.sharp.be http://www.sharp.lu

Australia Sharp Corporation of Australia Pty.

1300-135-022 http://www.sharp.net.au

New Zealand Sharp Corporation of New Zealand

Phone: (09) 573-0111 Fax: (09) 573-0112 http://www.sharp.net.nz

Singapore Sharp-Roxy Sales (S) Pte. Ltd.

65-226-6556 ckng@srs.global.sharp.co.jp http://www.sharp.com.sg

Hong Kong Sharp-Roxy (HK) Ltd.

(852) 2410-2623 dcmktg@srh.global.sharp.co.jp http://www.sharp.com.hk

Taiwan Sharp Corporation (Taiwan)

0800-025111 http://www.sharp-scot.com.tw

Malaysia Sharp-Roxy Sales & Service Co.

(60) 3-5125678

U.A.E. Sharp Middle East Fze

971-4-81-5311 helpdesk@smef.global.sharp.co.jp

Thailand Sharp Thebnakorn Co. Ltd.

02-236-0170 svc@stcl.global.sharp.co.jp http://www.sharp-th.com

Korea Sharp Electronics Incorporated of

lcd@sharp-korea.co.kr http://www.sharpkorea.co.kr

India Sharp Business Systems (India)

(91) 11- 6431313 service@sharp-oa.com

Nederland

Ltd.

Korea

(82) 2-3660-2002

Limited

Speciﬁ cations

Model XG-PH80W-N XG-PH80X-N Display devices 0.65" DLP® Chip 0.7" DLP® Chip Resolution WXGA (1280 × 800) XGA (1024 × 768) Optional Lens

(Standard) (AN-PH818EZ)

Lens shift Power (V : +50% / H : ±10%) Input terminals DVI-D (Compatible with HDCP) ×1

Output terminals

Control and communication terminals

Speaker 3 W × 2 (Stereo) Projection lamp 280 W × 2 lamps Rated voltage AC 100 – 240 V Rated frequency 50/60 Hz Input current 7.3 A Power consumption (STANDBY Mode: Standard/Eco) 715 W (20.3 W/0.28 W) with AC 100 V

Operation temperature 41°F to 104°F (+5°C to +40°C) Cabinet Plastic Dimensions (main body only) [W × H × D] 19

Weight (approx.) 36.4 lbs. (16.5 kg)

F number F 1.7 – 1.9 Zoom Power, ×1.3 (f = 26.0 – 34.0 mm) Focus Power

Computer/Component (5BNC) ×1 Computer/Component

(D-sub 15 pin) Component (RCA) ×1 (Y/Pb (Cb)/Pr (Cr)) S-Video (mini DIN 4 pin) ×1 Video (RCA) ×1 Audio (ø3.5 mm stereo minijack) ×3 Audio (RCA) ×2 (L/R) Computer/Component

(D-sub 15 pin) Audio (ø3.5 mm stereo minijack) ×1 (variable audio output) TRIGGER ×1 (DC 12 V output) LAN (RJ-45) ×1 USB (Type B) ×1 RS-232C (D-sub 9 pin) ×1

×1

675 W (21.3 W/0.41 W) with AC 240 V

/64" × 7 41/64" × 15 11/64"

(505 × 194 × 385 mm)

As a part of policy of continuous improvement, SHARP reserves the right to make design and speciﬁ cation changes for product improvement without prior notice. The performance speciﬁ cation ﬁ gures indicated are nominal values of production units. There may be some deviations from these values in individual units.

This SHARP projector uses a DLP® chip. This very sophisticated panel contains 1,024,000 (XG-PH80W-N) or 786,432 (XG-PH80X-N) pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

Appendix

Dimensions

Units: inches (mm)

/64 (385)

/64 (194)12

/16 (306)

/64 (252.5) 9 61/64 (252.5)

/64 (505)

/32

(135.7)

/64 (222.5) 8 49/64 (222.5)

(125)

/64

(125)

/64

(106.5)

(101.5)

/64

(138.5)

/64

/16

/64

/8 (3)

(106.5)

/32

(87)

/16

/32

/64

(56.5)

(108)

(99)

(30)

(215)

(86)

/16

(306)

Index

4:3·····················································································35 16:9···················································································34 3D MODE ·········································································54 3D MODE button ······························································ 15

Accessories ······································································11 AC socket ·········································································27 Adjustment buttons ···················································· 41, 42 Adjustment foot ································································30 All Reset ···········································································55 Apply ················································································54 Aspect ratio ······································································34 AUDIO terminals ························································· 21-23 AUDIO output terminal ·····················································23 Auto Power Off ·································································52 Auto Restart ·····································································52 Auto Search ······································································52 Auto Sync (Auto Sync adjustment) ····························36, 46 AUTO SYNC button··························································36 AV MUTE button ······························································· 33

Background ······································································49 Batteries ···········································································16 Blue ··················································································44 Bright ················································································44 Bright Boost ·····································································44

Clock ················································································46 Closed Caption ································································· 48 CLR Temp (Color Temperature) ········································44 C.M.S. ··············································································45 Color ·················································································44 COMPONENT terminal ·····················································22 COMPUTER/ Contrast ············································································44

DHCP Client ·····································································54 DLP DLP DNR ··················································································45 DNS ··················································································54 DVI-D terminal ····························································21, 22 Dynamic Black··································································45

Eco+Quiet·········································································52 ENTER button ··································································· 33 Exhaust vent ·································································8, 62

Fan Mode ·········································································53 Film Mode ········································································· 45 Filter Message ··································································54 Filter Timer Reset ·····························································55 FOCUS buttons ································································ 31 FREEZE button ·································································36 Full ····················································································34

H-Pos ···············································································46

Image Capture ··································································51 Image Resizing ···························································32, 50 Information ·······································································55 INPUT modes ···································································33 Intake vent ····································································8, 62 IP Address ········································································ 54

Kensington Security Standard connector ························14 KEYBOARD CURSOR buttons ·········································37 Keypad lock ······································································ 51 Keystone Correction ··················································· 32, 50

COMPONENT1, 2 input terminals

LinkTM ······································································59

LinkTM Invert ····························································59

········· 21-23

Lamp ················································································66 LAMP indicator ·································································64 Lamp Mode ······································································53 Lamp Timer (Life) ······························································55 Lamp unit ·········································································67 Language (on-screen display language) ··························49 LAN/RS232C ····································································54 LAN terminal ·····································································25 LENS SHIFT button ·························································· 30 Link ···················································································54

MENU button ···································································· 41 MONITOR OUT terminal ···················································23

Native ···············································································35 Network ············································································54 Normal ··············································································34

Optional accessories ························································11 Overscan ··········································································47

PAGE DOWN button ·························································37 PAGE UP button ······························································· 37 Password ·········································································· 51 PDF···················································································10 Phase················································································46 Picture Adjustment ··························································43 Picture Mode ···································································· 43 Power cord ······································································· 27 POWER indicator······························································64 PRJ-ADJ ···········································································52 PRJ Mode ···································································20, 49

Red ···················································································44 Remote control ·································································15 Remote control sensor ····················································· 16 Replacing the lamp·····················································66, 67 Resize ·········································································34, 49 Resolution·········································································46 RETURN button ································································41 RGB cable ········································································21 RS-232C terminal ·····························································24

SCR-ADJ ··········································································49 Security Lock ···································································· 51 Sharp ················································································44 SIG-ADJ ···········································································46 Signal Info ········································································· 55 Signal Type ·······································································44 Speaker ············································································53 STANDBY Audio Out ························································53 STANDBY Mode ·······························································53 STANDBY/ON button ·······················································28 Supplied accessories ·······················································11 S-VIDEO terminal ·····························································23

TEMP. (temperature warning)/STATUS indicator ··············64 Tint····················································································44 TRIGGER terminal ····························································14

USB terminal ····································································37
