Sharp XG-PH80W-N, XG-PH80X-N Setup Guide

Download

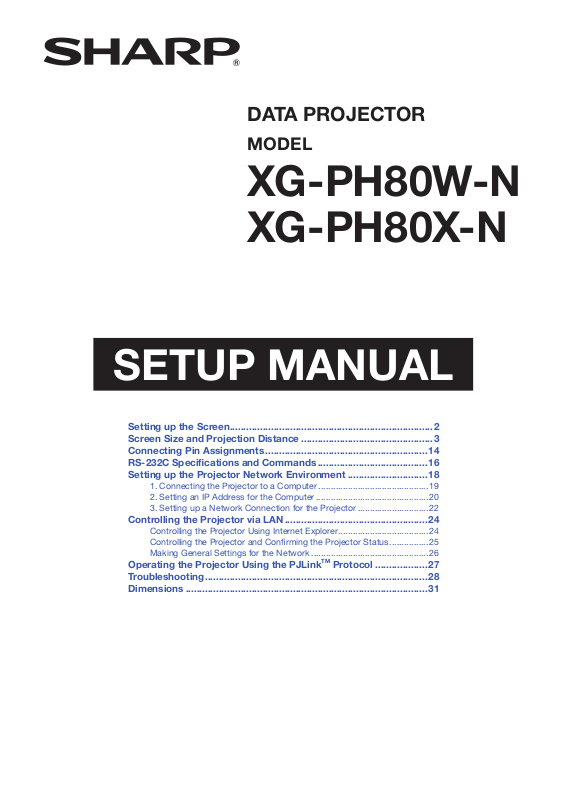

DATA PROJECTOR

MODEL

XG-PH80W-N XG-PH80X-N

SETUP MANUAL

Setting up the Screen ..........................................................................2

Screen Size and Projection Distance ................................................ 3

Connecting Pin Assignments ........................................................... 14

RS-232C Speciﬁ cations and Commands ........................................ 16

Setting up the Projector Network Environment .............................18

1. Connecting the Projector to a Computer .............................................19

2. Setting an IP Address for the Computer .............................................. 20

3. Setting up a Network Connection for the Projector ............................. 22

Controlling the Projector via LAN ....................................................24

Controlling the Projector Using Internet Explorer ..................................... 24

Controlling the Projector and Conﬁ rming the Projector Status ................ 25

Making General Settings for the Network ................................................ 26

Operating the Projector Using the PJLinkTM Protocol ...................27

Troubleshooting .................................................................................28

Dimensions ........................................................................................31

Setting up the Screen

For optimal image quality, position the projector perpendicular to the screen with the projector's feet ﬂ at and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

Note

•

The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difﬁ cult.

•

For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difﬁ cult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Standard Setup (Front Projection)

Place the projector at the required distance from the screen

■

according to the desired picture size.

Example of standard setup

Side View Top View

[AN-PH808EX]

Screen

[AN-PH814EZ/AN-PH818EZ/AN-PH823EZ/AN-PH845EZ]

•

Screen

The distance from the screen to the projector may vary depending on the size of the screen.

The default setting can be used, when placing the projector in front of the screen. If the

Lens center

Lower lens shift position (High mount setup)

Lens center

Upper lens shift position (Desktop setup)

projected image is reversed, readjust the setting to “Front” in the “PRJ Mode” menu. (See

page 49 of the projector's operation manual.)

Place the projector so that an imaginary horizontal line that passes through the center of the

•

lens is perpendicular to the screen.

Screen

Center of screen

Lens center

Leftmost lens shift position

Rightmost lens shift position

-2

Screen Size and Projection Distance

The projection screen size varies according to the distance from the lens of the projector to the screen. The optional lenses from Sharp are also available for specialized application. Please see your nearest Sharp Authorized Projector Dealer to details on all the lenses. (Refer to the lens operation manual when using a lens.) Install the projector so that projected images are projected onto the screen at the optimum size by referring to the table. Use the values in the table as a reference when installing the projector.

Throw Distance

XG-PH80W-N

The graph below is for 100-inch (254 cm) screen with 16:10 normal mode.

Screen

Fixed wide lens (AN-PH808EX): 5'6" (1.7 m)

Throw distance ratio 1:0.8

Wide-zoom lens (AN-PH814EZ): 9'5" – 12'8" (2.9 m – 3.9 m)

Throw distance ratio 1:1.3–1.8

Standard zoom lens (AN-PH818EZ): 12'7" – 16'7" (3.8 m – 5.1 m)

Throw distance ratio 1:1.8–2.4

Tele-zoom lens (AN-PH823EZ): 15'8" – 31'4" (4.8 m – 9.5 m)

Throw distance ratio 1:2.2–4.4

Tele-zoom lens (AN-PH845EZ): 31'4" – 58'8" (9.5 m – 17.9 m)

Throw distance ratio 1:4.4–8.3

5 10 15 20 25 30 35 40 45 50 55 60 (ft)

XG-PH80X-N

The graph below is for 100-inch (254 cm) screen with 4:3 normal mode.

Screen

Fixed wide lens (AN-PH808EX): 5'2" (1.6 m)

Throw distance ratio 1:0.8

Wide-zoom lens (AN-PH814EZ): 8'10" – 11'11" (2.7 m – 3.6 m)

Throw distance ratio 1:1.3–1.8

Standard zoom lens (AN-PH818EZ): 11'10" – 15'8" (3.6 m – 4.8 m)

Throw distance ratio 1:1.8–2.4

Tele-zoom lens (AN-PH823EZ): 14'10" – 29'6" (4.5 m – 9.0 m)

Throw distance ratio 1:2.2–4.4

Tele-zoom lens (AN-PH845EZ): 29'6" – 55'4" (9.0 m – 16.9 m)

Throw distance ratio 1:4.4–8.3

5 10 15 20 25 30 35 40 45 50 55 60 (ft)

-3

Screen Size and Projection Distance

Standard Zoom Lens (AN-PH818EZ: For XG-PH80W-N)

F1.7-1.9, f = 26-34 mm

16:10 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500" (

1270 300" (762 cm) 646 cm (254") 404 cm (159") 11.5 m (37' 9") 15.2 m 200" (508 cm) 431 cm (170") 269 cm (106") 7.7 m (25' 2") 10.1 m (33' 3") -134.6 cm (-53") 0.0 cm (0") ± 43.1 cm (16 150" (381 cm) 323 cm (127") 202 cm (79") 5.8 m (18' 10") 7.6 m (24' 11") -101.0 cm (-39 3/4") 0.0 cm (0") ± 32.3 cm (12 23/32") 100" (254 cm) 215 cm (85") 135 cm (53") 3.8 m (12' 7") 5.1 m (16' 7") -67.3 cm (-26 1/2") 0.0 cm (0") ± 21.5 cm (8 31/64")

80" (203 cm) 172 cm (68") 108 cm (42") 3.1 m (10' 1") 4.0 m (13' 3") -53.8 cm (-21 70" (178 cm) 151 cm (59") 94 cm (37") 2.7 m (8' 10") 3.5 m (11' 8") -47.1 cm (-18 35/64") 0.0 cm (0") ± 15.1 cm (5 15/16") 60" (152 cm) 129 cm (51") 81 cm (32") 2.3 m (7' 7") 3.0 m (10' 0") - 40.4 cm (-15 29/32") 0.0 cm (0") ± 12.9 cm (5 3/32") 40" (102 cm) 86 cm (34") 54 cm (21") 1.5 m (5' 0") 2.0 m (6' 8") -26.9 cm (-10

Width Height Minimum [L1]

cm)

1077

cm (424") 673 cm (265") 19.2 m (62' 11") 25.3 m (83' 0") -336.6 cm (-132 1/2") 0.0 cm (0") ± 107.7 cm (42 13/32")

Maximum [L2

(49' 10")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

-201.9 cm (-79 1/2") 0.0 cm (0") ± 64.6 cm (25 7/16")

/64") 0.0 cm (0") ± 17.2 cm (6 25/32")

/32") 0.0 cm (0") ± 8.6 cm (3 25/64")

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 610 cm (240") 457 cm (180") 13.0 m (42' 9") 17.2 m (56' 5") -228.6 cm (-90") 0.0 cm (0") ± 69.0 cm (27 11/64") 200" (508 cm) 406 cm (160") 305 cm (120") 8.7 m (28' 6") 11.5 m (37' 7") -152.4 cm (- 60") 0.0 cm (0") ± 46.0 cm (18 150" (381 cm) 305 cm (120") 229 cm (9 0") 6.5 m (21' 4") 8.6 m (28' 2") -114.3 cm (-45") 0.0 cm (0") ± 34.5 cm (13 37/64") 120" (305 cm) 244 cm (96") 183 cm (72") 5. 2 m (17' 1") 6.9 m (22' 7") -91.4 cm (-36") 0.0 cm (0") ± 27.6 cm (10 7/8") 100" (254 cm) 203 cm (80") 152 cm (60") 4.3 m (14' 3") 5.7 m (18' 10") -76.2 cm (-30") 0.0 cm (0") ± 23.0 cm (9

80" (203 cm) 163 cm (64") 122 cm (48") 3.5 m (11' 5") 4.6 m (15' 1") -61.0 cm (-24") 0.0 cm (0") ± 18.4 cm (7 1/4") 60" (152 cm) 122 cm (48") 91 cm (36") 2.6 m (8' 7") 3.4 m (11' 3") -45.7 cm (-18") 0.0 cm (0") ± 13.8 cm (5 7/16")

Distance from the lens center to

the bottom of the image [H]

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/16")

/64")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

16:10 Signal 4:3 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (16:10)

0.03834

0.05062F0.05062F / 0.3048 0.05731F0.05731F / 0.3048

-0.6731

±0.21539F±0.21539F / 2.54 ±0.23004F±0.23004F / 2.54

0.03834

/ 0.3048 0.0434F0.0434F / 0.3048

-0.673

/ 2.54 -0.762

0F / 2.54 0

-0.762F / 2.54

0F / 2.54

60" – 300" (4:3)

Note

Allow a margin of error in the values in the diagrams above.

•

When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

•

that the bottom of the image is below the lens center.

-4

Screen Size and Projection Distance

Standard Zoom Lens (AN-PH818EZ: For XG-PH80X-N)

F1.7-1.9, f = 26-34 mm

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500" (1270 cm) 1016 cm (400'') 762 cm (300'') 18.1 m (59' 4") 23.9 m (78' 4") -381.0 cm 300" (762 cm) 610 cm (240'') 457 cm (180'') 10.9 m (35' 7") 14.3 m (47' 0") -228.6 cm 200" (508 cm) 406 cm (160'') 305 cm (120'') 7.2 m (23' 9") 9.6 m (31' 4") -152.4 cm 150" (381 cm) 305 cm (120'') 229 cm (90'') 5.4 m (17' 10") 7.2 m (23' 6") -114.3 cm 100" (254 cm) 203 cm (80'') 152 cm (60'') 3.6 m (11' 10") 4.8 m (15' 8") -76.2 cm

80" (203 cm) 163 cm (64'') 122 cm (48'') 2.9 m (9' 6") 3.8 m (12' 6") -61.0 cm 70" (178 cm) 142 cm (56'') 107 cm (42'') 2.5 m (8' 4") 3.3 m (11' 0") - 53.3 cm 60" (152 cm) 122 cm (48'') 91 cm (36'') 2.2 m (7' 1") 2.9 m (9' 5") -45.7 cm 40" (102 cm) 81 cm (32'') 61 cm (24'') 1.4 m (4' 9") 1.9 m (6' 3") -30.5 cm

Width Height Minimum [L1]

Maximum [L2

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

16:9 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [

300" (762 cm) 664 cm (261'') 374 cm (147'') 11.8 m (38' 9") 15.6 m (51' 2") -186.8 cm 200" (508 cm) 443 cm (174'') 249 cm (98'') 7.9 m (25' 10") 10.4 m (34' 2") -124.5 cm

150" (381 cm) 332 cm (131'') 187 cm (74'') 5.9 m (19' 5") 7.8 m (25' 7") -93.4 cm 120" (30 5 cm) 266 cm (105'') 149 cm (59'') 4.7 m (15' 6") 6.2 m (20' 6") -74.7 cm 100" (254 cm) 221 cm (87'') 125 cm (49'') 3.9 m (12' 11") 5.2 m (17' 1") -62.3 cm

80" (203 cm) 177 cm (70'') 100 cm (39'') 3.2 m (10' 4") 4.2 m (13' 8") -49.8 cm 60" (152 cm) 133 cm (52'') 75 cm (29'') 2.4 m (7' 9") 3.1 m (10' 3") -37.4 cm

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Distance from the lens center to

the bottom of the image [H]

(-150") (-90") (-60") (-45") (-30") (-24") (-21") (-18") (-12")

(-73

/32")

(-49 1/32")

(-36

/64") (-29 27/64") (-24 33/64")

(-19

/64")

(-14 45/64")

0.0 cm

62.3 cm

41.5 cm

31.1 cm

24.9 c m

20.8 cm

16.6 cm

12.5 cm

(0") (0") (0") (0") (0") (0") (0") (0") (0")

(24 33/64") (16 11/32") (12 1/4") (9 13/16") (8 11/64") (6 17/32") (4 29/32")

Distance from the lens center to the

center of the image

± 101.6 cm

± 61.0 cm ± 40.6 cm ± 30.5 cm ± 20.3 cm ± 16.3 cm ± 14.2 cm ± 12.2 cm

Distance from the lens center to the

center of the image

± 66.4 cm

± 44.3 cm ± 33.2 cm ± 26.6 cm

± 22.1 cm

± 17.7 cm

± 13.3 cm

[W]

± 8.1 cm

[W]

(40") (24") (16") (12") (8")

/32") (5 19/32") (4 51/64")

/64")

(26 9/64") (17 7/16") (13 5/64") (10 29/64") (8 23/32") (6 31/32") (5 15/64")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

4:3 Signal 16:9 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (4:3)

0.03617

0.04775F0.04775F / 0.3048 0.05202F0.05202F / 0.3048

-0.762

±0.2032F±0.2032F / 2.54 ±0. 22138F±0.22138F / 2.54

0.03617

/ 0.3048 0.03941F0.03941F / 0.3048

-0.762F / 2.54 -0.62263F-0.62263F / 2.54

0F / 2.54 0.20754F0.20754F / 2.54

60" – 300" (16:9)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-5

Screen Size and Projection Distance

Fixed Wide Lens (AN-PH808EX: For XG-PH80W-N)

F2.0, f = 11.4 mm

16:10 Signal Input (Normal Mode)

Picture (Screen) size Projection distance

Diag. [F]

200'' (508 cm) 431 cm (170'') 269 cm (106'') 3.3 m (10' 11") -134.6 cm (-53") ± 43.1 cm (16 61/64") 150'' (381 cm) 323 cm (127'') 202 cm ( 79'') 2.5 m (8' 2") -101.0 cm (-39 3/4") ± 32.3 cm (12 23/32") 100'' (254 cm) 215 cm (85'') 135 cm (53'') 1.7 m (5' 6") -67.3 cm (-26

50'' (127 cm) 108 cm (42'') 67 cm (26'') 0.8 m (2' 9") -33.7 cm

Width Height [L]

Distance from the lens center

to the bottom of the image [H]

/2") ± 21.5 cm (8 31/64")

(-13

/4")

Distance from the lens center to the cente r of the image [W]

± 10.8 cm

(4 15/64")

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance

Diag. [F]

150'' (381 cm) 305 cm (120'') 229 cm (90'') 2.8 m (9' 3") -114.3 cm (-45") ± 34.5 cm (13 37/64") 100'' (254 cm) 203 cm (80'') 152 cm (60'') 1.9 m (6' 2") -76.2 cm (-30") ± 23.0 cm (9 1/16")

80'' (203 cm) 163 cm (64'') 122 cm (48'') 1.5 m (4' 11") - 61.0 cm (-24") ± 18.4 cm ( 7 1/4")

Width Height [L]

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

L: Projection distance (m/ft)

H: Dista nce from the lens cente r to the bot tom of the image (cm /in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 50" – 200" (16:10)

80" – 150" (4:3)

Distance from the lens center

to the bottom of the image [H]

16:10 Signal 4:3 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

0.01667

-0.6731F-0.6731F / 2.54 -0.762

±0.21539F±0.21539F / 2.54 ±0.23004F±0.23004F / 2.54

/ 0.3048 0.01887F0.01887F / 0.3048

0.01667

Distance from the lens center to the cente r of the image [W]

-0.762F / 2.54

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-6

Screen Size and Projection Distance

Fixed Wide Lens (AN-PH808EX: For XG-PH80X-N)

F2.0, f = 11.4 mm

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance

Diag. [F]

200'' (508 cm) 406 cm (160'') 305 cm (120'') 3.1 m (10' 4") -152.4 cm (- 60") ± 40.6 cm (16") 150'' (381 cm) 305 cm (120'') 229 cm (90'') 2.4 m (7' 9") -114.3 cm (-45") ± 30.5 cm (12") 100'' (254 cm) 203 cm (80'') 152 cm (60'') 1.6 m (5' 2") -76.2 cm (-30") ± 20.3 cm (8")

50'' (127 cm) 102 cm (40'') 76 cm (30'') 0.8 m (2' 7") -38.1 cm (-15") ± 10.2 cm (4")

Width Height [L]

Distance from the lens center

to the bottom of the image [H]

Distance from the lens center to the cente r of the image [W]

16:9 Signal Input (Normal Mode)

Picture (Screen) size Projection distance

Diag. [F]

150'' (381 cm) 332 cm (131'') 187 cm (74'') 2.5 m (8' 4") -93.4 cm (-36 49/64") ± 33.2 cm (13 5/64") 100'' (254 cm) 221 cm (87'') 125 cm (49'') 1.7 m (5' 6") -62.3 cm (-24 33/64") ± 22.1 cm (8 23/32")

80'' (203 cm) 177 cm (70'') 100 cm (39'') 1.3 m (4' 4") -49.8 cm (-19 39/64") ± 17.7 cm (6 31/32")

Width Height [L]

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

L: Projection distance (m/ft)

H: Dista nce from the lens cente r to the bot tom of the image (cm /in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 50" – 200" (4:3)

80" – 150" (16:9)

Distance from the lens center

to the bottom of the image [H]

4:3 Signal 16:9 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

0.01573

-0.762

±0.2032F±0.2032F / 2.54 ±0. 22138F±0.22138F / 2.54

/ 0.3048

0.01573

-0.762F / 2.54 -0.62263F-0.62263F / 2.54

Distance from the lens center to the cente r of the image [W]

0.01714F -

0.042

(0.01714F - 0.042) /

0.3048

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-7

Screen Size and Projection Distance

Wide-zoom Lens (AN-PH814EZ: For XG-PH80W-N)

F1.81-2.29, f = 19.3-25.8 mm

16:10 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 646 cm (254") 404 cm (159") 8.6 m (28' 2") 11.6 m (37' 11") -201.9 cm (-79 1/2") 0.0 cm (0") ± 64.6 cm (25 7/16")

200" (508 cm) 431 cm (170") 269 cm (106") 5.7 m (18' 10") 7.7 m (25' 4") -134.6 cm (-53") 0.0 cm (0") ± 43.1 cm (16 61/64") 100" (254 cm) 215 cm (85") 135 cm (53") 2.9 m (9' 5") 3.9 m (12' 8") - 67.3 cm (-26

80" (203 cm) 172 cm (68") 108 cm (42") 2.3 m (7' 6") 3.1 m (10' 1") -53.8 cm (-21 13/64") 0.0 cm (0") ± 17.2 cm (6 25/32") 70" (178 cm) 151 cm (59") 94 cm (37") 2.0 m (6' 7") 2.7 m (8' 10") -47.1 cm (-18 35/64") 0.0 cm (0") ± 15.1 cm (5 15/16")

60" (152 cm) 129 cm (51") 81 cm (32") 1.7 m (5' 8") 2.3 m (7' 7") -40.4 cm (-15

40" (102 cm) 86 cm (34") 54 cm (21") 1.1 m (3' 9") 1.5 m (5' 1") -26.9 cm (-10 19/32") 0.0 cm (0") ± 8.6 cm (3 25/64")

Width Height Minimum [L1]

1077 cm

(424") 673 cm (265") 14.3 m (47' 0") 19.3 m (63' 3") -336.6 cm (-132 1/2") 0.0 cm (0") ± 107.7 cm (42 13/32")

Maximum [L2

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

/2") 0.0 cm (0") ± 21.5 cm (8 31/64")

/32") 0.0 cm (0") ± 12.9 cm (5 3/32")

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 610 cm (240") 457 cm (180") 9.7 m (31' 11") 13.1 m (43' 0") -228.6 cm (-90") 0.0 cm (0") ± 69.0 cm (27 11/64")

200" (508 cm) 406 cm (160") 305 cm (120") 6.5 m (21' 3") 8.7 m (28' 8") -152.4 cm (-60") 0.0 cm (0") ± 46.0 cm (18 7/64") 150" (381 cm) 305 cm (120") 229 cm (90") 4.9 m (16' 0") 6.5 m (21' 6") -114.3 cm (-45") 0.0 cm (0") ± 34.5 cm (13 37/64") 100" (254 cm) 203 cm (80") 152 cm (60") 3.2 m (10' 8") 4.4 m (14' 4") -76.2 cm (-30") 0.0 cm (0") ± 23.0 cm (9

80" (203 cm) 163 cm (64") 122 cm (48") 2.6 m (8' 6") 3.5 m (11' 5") -61.0 cm (-24") 0.0 cm (0") ± 18.4 cm (7 1/4")

60" (152 cm) 122 cm (48") 91 cm (36") 1.9 m (6' 5") 2.6 m (8' 7") -45.7 cm (-18") 0.0 cm (0") ± 13.8 cm (5 7/16")

Distance from the lens center to

the bottom of the image [H]

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/16")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

16:10 Signal 4:3 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (16:10)

0.02865

0.03856F0.03856F / 0.3048 0.04365F0.04365F / 0.3048

-0.6731

±0.21539F±0.21539F / 2.54 ±0.23004F±0.23004F / 2.54

0.02865

/ 0.3048 0.03243F0.03243F / 0.3048

-0.673

/ 2.54 -0.762

0F / 2.54 0

-0.762F / 2.54

0F / 2.54

60" – 300" (4:3)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-8

Screen Size and Projection Distance

Wide-zoom Lens (AN-PH814EZ: For XG-PH80X-N)

F1.81-2.29, f = 19.3-25.8 mm

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 610 cm (240'') 457 cm (180'') 8.1 m (26' 7") 10.9 m

200" (508 cm) 406 cm (160'') 305 cm (120'') 5.4 m (17' 9") 7.3 m 100" (254 cm) 203 cm (80'') 152 cm (60'') 2.7 m (8' 10") 3.6 m (11' 11") -76.2 cm (-30") 0.0 cm (0") ± 20.3 cm (8")

80" (203 cm) 163 cm (64'') 122 cm (48'') 2.2 m (7' 1") 2.9 m (9' 7") -61.0 cm (-24") 0.0 cm (0") ± 16.3 cm (6 70" (178 cm) 142 cm (56'') 107 cm (42'') 1.9 m (6' 2") 2.5 m (8' 4") -53.3 cm (-21") 0.0 cm (0") ± 14.2 cm (5 19/32")

60" (152 cm) 122 cm (48'') 91 cm (36'') 1.6 m (5' 4") 2.2 m (7' 2") - 45.7 cm (-18") 0.0 cm (0") ± 12.2 cm (4

40" (102 cm) 81 cm (32'') 61 cm (24'') 1.1 m (3' 7") 1.5 m (4' 9") -30.5 cm (-12") 0.0 cm (0") ± 8.1 cm (3 13/64")

Width Height Minimum [L1]

1016 cm

(400'') 762 cm (300'') 13.5 m (44' 4") 18.2 m (59' 8") -381.0 cm (-150") 0.0 cm (0") ± 101.6 cm (40")

Maximum [L2

(35' 10") (23' 10")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

-228.6 cm (-90") 0.0 cm (0") ± 61.0 cm (24")

-152.4 cm (-60") 0.0 cm (0") ± 40.6 cm (16")

16:9 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 664 cm (261'') 374 cm (147'') 8.8 m (29' 0") 11.9 m (39' 0") -186.8 cm (-73 17/32") 62.3 cm (24 33/64") ± 66.4 cm (26 9/64")

200" (508 cm) 443 cm (174'') 249 cm (98'') 5.9 m (19' 4") 7.9 m (26' 0") -124.5 cm (-49 1/32") 41.5 cm (16 11/32") ± 44.3 cm (17 7/16") 150" (381 cm) 332 cm (131'') 187 cm (74'') 4.4 m (14' 6") 5.9 m (19' 6") -93.4 cm (-36 49/64") 31.1 cm (12 1/4") ± 33.2 cm (13 5/64") 100" (254 cm) 221 cm (87'') 125 cm (49'') 2.9 m (9' 8") 4.0 m (13' 0") -62.3 cm (-24

80" (203 cm) 177 cm (70'') 100 cm (39'') 2.4 m (7' 9") 3.2 m (10' 5") -49.8 cm (-19 39/64") 16.6 cm (6 17/32") ± 17.7 cm (6 31/32")

60" (152 cm) 133 cm (52'') 75 cm (29'') 1.8 m (5' 10") 2.4 m (7' 10") -37.4 cm (-14 45/64") 12.5 cm (4 29/32") ± 13.3 cm (5 15/64")

Distance from the lens center to

the bottom of the image [H]

/64") 20.8 cm (8 11/64") ± 22.1 cm (8 23/32")

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/32")

/64")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

4:3 Signal 16:9 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (4:3)

0.02703

0.03637F0.03637F / 0.3048 0.03962F0.03962F / 0.3048

-0.762

±0.2032F±0.2032F / 2.54 ±0. 22138F±0.22138F / 2.54

0.02703

/ 0.3048 0.02945F0.02945F / 0.3048

-0.762F / 2.54 -0.62263F-0.62263F / 2.54

0F / 2.54 0.20754F0.20754F / 2.54

60" – 300" (16:9)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-9

Screen Size and Projection Distance

Tele-zoom Lens (AN-PH823EZ: For XG-PH80W-N)

F2.1-2.9, f = 32-63 mm

16:10 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 646 cm (254") 404 cm (159") 14.3 m (47' 1") 28.6 m (93' 11") -201.9 cm (-79 1/2") 0.0 cm (0") ± 64.6 cm (25 7/16")

200" (508 cm) 431 cm (170") 269 cm (106") 9.6 m (31' 5") 19.1 m (62' 7") -134.6 cm (-53") 0.0 cm (0") ± 43.1 cm (16 61/64") 150" (381 cm) 323 cm (127") 202 cm (79") 7.2 m (23' 6") 14.3 m (47' 0") -101.0 cm (-39 100" (254 cm) 215 cm (85") 135 cm (53") 4.8 m (15' 8") 9.5 m (31' 4") -67.3 cm (-26 1/2") 0.0 cm (0") ± 21.5 cm (8 31/64")

80" (203 cm) 172 cm (68") 108 cm (42") 3.8 m (12' 7") 7.6 m (25' 1") -53.8 cm (-21 13/64") 0.0 cm (0") ± 17.2 cm (6 25/32")

60" (152 cm) 129 cm (51") 81 cm (32") 2.9 m (9' 5") 5.7 m (18' 9") -40.4 cm (-15

40" (102 cm) 86 cm (34") 54 cm (21") 1.9 m (6' 3") 3.8 m (12' 6") -26.9 cm (-10 19/32") 0.0 cm (0") ± 8.6 cm (3 25/64")

Width Height Minimum [L1]

1077 cm

(424") 673 cm (265") 23.9 m (78' 5") 47.7 m

Maximum [L2

(156' 6")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

-336.6 cm (-132 1/2") 0.0 cm (0") ± 107.7 cm (42 13/32")

/4") 0.0 cm (0") ± 32.3 cm (12 23/32")

/32") 0.0 cm (0") ± 12.9 cm (5 3/32")

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 610 cm (240") 457 cm (180") 16.2 m (53' 3") 32.4 m

200" (508 cm) 406 cm (160") 305 cm (120") 10.8 m (35' 6") 21.6 m (70' 11") -152.4 cm (-60") 0.0 cm (0") ± 46.0 cm (18 7/64") 150" (381 cm) 305 cm (120") 229 cm (90") 8.1 m (26' 8") 16.2 m (53' 2") -114.3 cm (-45") 0.0 cm (0") ± 34.5 cm (13 37/64") 100" (254 cm) 203 cm (80") 152 cm (60") 5.4 m (17' 9") 10.8 m (35' 5") -76.2 cm (-30") 0.0 cm (0") ± 23.0 cm (9

80" (203 cm) 163 cm (64") 122 cm (48") 4.3 m (14' 3") 8.6 m (28' 4") -61.0 cm (-24") 0.0 cm (0") ± 18.4 cm (7 1/4")

60" (152 cm) 122 cm (48") 91 cm (36") 3.2 m (10' 8") 6.5 m (21' 3") -45.7 cm (-18") 0.0 cm (0") ± 13.8 cm (5 7/16")

(106' 4")

Distance from the lens center to

the bottom of the image [H]

-228.6 cm (-90") 0.0 cm (0") ± 69.0 cm (27 11/64")

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/16")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

16:10 Signal 4:3 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (16:10)

0.04782

0.09542F0.09542F / 0.3048 0.10802F0.10802F / 0.3048

-0.6731

±0.21539F±0.21539F / 2.54 ±0.23004F±0.23004F / 2.54

/ 0.3048 0.05414F0.05414F / 0.3048

0.04782

-0.673

/ 2.54 -0.762

0F / 2.54 0

-0.762F / 2.54

0F / 2.54

60" – 300" (4:3)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-10

Screen Size and Projection Distance

Tele-zoom Lens (AN-PH823EZ: For XG-PH80X-N)

F2.1-2.9, f = 32-63 mm

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 610 cm (240'') 457 cm (180'') 13.5 m (44' 5") 27.0 m (88' 7") -228.6 cm (-90") 0.0 cm (0") ± 61.0 cm (24")

200" (508 cm) 406 cm (160'') 305 cm (120'') 9.0 m (29' 7") 18.0 m (59' 1") -152.4 cm (- 60") 0.0 cm (0") ± 40.6 cm (16") 150" (381 cm) 305 cm (120'') 229 cm (90'') 6.8 m (22' 2") 13.5 m (44' 4") -114.3 cm (-45") 0.0 cm (0") ± 30.5 cm (12") 100" (254 cm) 203 cm (80'') 152 cm (60'') 4.5 m (14' 10") 9.0 m (29' 6") -76.2 cm (-30") 0.0 cm (0") ± 20.3 cm (8")

80" (203 cm) 163 cm (64'') 122 cm (48'') 3.6 m (11' 10") 7.2 m (23' 8") -61.0 cm (-24") 0.0 cm (0") ± 16.3 cm (6

60" (152 cm) 122 cm (48'') 91 cm (36'') 2.7 m (8' 11") 5.4 m (17' 9") -45.7 cm (-18") 0.0 cm (0") ± 12.2 cm (4

40" (102 cm) 81 cm (32'') 61 cm (24'') 1.8 m (5' 11") 3.6 m (11' 10") -30.5 cm (-12") 0.0 cm (0") ± 8.1 cm (3 13/64")

Width Height Minimum [L1]

1016 cm

(400'') 762 cm (300'') 22.6 m ( 74' 0")

Maximum [L2

45.0 m

(147' 8") -381.0 cm (-150") 0.0 cm (0") ± 101.6 cm (40")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

16:9 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 664 cm (261'') 374 cm (147'') 14.7 m (48' 5") 29.4 m (96' 6") -186.8 cm (-73 17/32") 62.3 cm (24 33/64") ± 66.4 cm (26 9/64")

200" (508 cm) 443 cm (174'') 249 cm (98'') 9.8 m (32' 3") 19.6 m (64' 4") -124.5 cm (-49 1/32") 41.5 cm (16 11/32") ± 44.3 cm (17 7/16") 150" (381 cm) 332 cm (131'') 187 cm (74'') 7.4 m (24' 2") 14.7 m (48' 3") -93.4 cm (-36 49/64") 31.1 cm (12 1/4") ± 33.2 cm (13 5/64") 100" (254 cm) 221 cm (87'') 125 cm (49'') 4.9 m (16' 2") 9.8 m (32' 2") -62.3 cm (-24

80" (203 cm) 177 cm (70'') 100 cm (39'') 3.9 m (12' 11") 7.8 m (25' 9") -49.8 cm (-19 39/64") 16.6 cm (6 17/32") ± 17.7 cm (6 31/32")

60" (152 cm) 133 cm (52'') 75 cm (29'') 2.9 m (9' 8") 5.9 m (19' 4") - 37.4 cm (-14 45/64") 12.5 cm (4 29/32") ± 13.3 cm (5 15/64")

Distance from the lens center to

the bottom of the image [H]

/64") 20.8 cm (8 11/64") ± 22.1 cm (8 23/32")

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/32")

/64")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

4:3 Signal 16:9 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (4:3)

0.04511

0.09002F0.09002F / 0.3048 0.09807F0.09807F / 0.3048

-0.762

±0.2032F±0.2032F / 2.54 ±0. 22138F±0.22138F / 2.54

/ 0.3048 0.04915F0.04915F / 0.3048

0.04511

-0.762F / 2.54 -0.62263F-0.62263F / 2.54

0F / 2.54 0.20754F0.20754F / 2.54

60" – 300" (16:9)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-11

Screen Size and Projection Distance

Tele-zoom Lens (AN-PH845EZ: For XG-PH80W-N)

F2.2-3.1, f = 63.5-117.4 mm

16:10 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 646 cm (254") 404 cm (159") 28.6 m (93' 11")

200" (508 cm) 431 cm (170") 269 cm (106") 19.1 m (62' 7") 150" (381 cm) 323 cm (127") 202 cm (79") 14.3 m (47' 0") 26.8 m (88' 0") -101.0 cm (-39 100" (254 cm) 215 cm (85") 135 cm (53") 9.5 m (31' 4") 17.9 m (58' 8") -67.3 cm (-26 1/2") 0.0 cm (0") ± 21.5 cm (8 31/64")

80" (203 cm) 172 cm (68") 108 cm (42") 7.6 m (25' 1") 14.3 m (46' 11") -53.8 cm (-21 13/64") 0.0 cm (0") ± 17.2 cm (6 25/32")

60" (152 cm) 129 cm (51") 81 cm (32") 5.7 m (18' 9") 10.7 m (35' 2") -40.4 cm (-15

40" (102 cm) 86 cm (34") 54 cm (21") 3.8 m (12' 6") 7.2 m (23' 6") -26.9 cm (-10 19/32") 0.0 cm (0") ± 8.6 cm (3 25/64")

Width Height Minimum [L1]

1077 cm

(424") 673 cm (265") 47.7 m

(156' 6")

Maximum [L2

89.4 m

(293' 3")

53.6 m

(176' 0") -201.9 cm (-79 1/2") 0.0 cm (0") ± 64.6 cm (25 7/16")

35.8 m

(117' 4") -134.6 cm (-53") 0.0 cm (0") ± 43.1 cm (16 61/64")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

-336.6 cm (-132 1/2") 0.0 cm (0") ± 107.7 cm (42 13/32")

/4") 0.0 cm (0") ± 32.3 cm (12 23/32")

/32") 0.0 cm (0") ± 12.9 cm (5 3/32")

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 610 cm (240") 457 cm (180") 32.4 m

200" (508 cm) 406 cm (160") 305 cm (120") 21.6 m (70' 11") 150" (381 cm) 305 cm (120") 229 cm (90") 16.2 m (53' 2") 100" (254 cm) 203 cm (80") 152 cm (60") 10.8 m (35' 5")

80" (203 cm) 163 cm (64") 122 cm (48") 8.6 m (28' 4") 16.2 m (53' 1") -61.0 cm (-24") 0.0 cm (0") ± 18.4 cm (7 1/4")

60" (152 cm) 122 cm (48") 91 cm (36") 6.5 m (21' 3") 12.1 m

(106' 4")

60.7 m

(199' 2")

40.5 m

(132' 10")

30.4 m

(99' 7") -114.3 cm (-45") 0.0 cm (0") ± 34.5 cm (13 37/64")

20.2 m

(66' 5") -76.2 cm (-30") 0.0 cm (0") ± 23.0 cm (9 1/16")

(39' 10")

Distance from the lens center to

the bottom of the image [H]

-228.6 cm (-90") 0.0 cm (0") ± 69.0 cm (27 11/64")

-152.4 cm (-60") 0.0 cm (0") ± 46.0 cm (18 7/64")

-45.7 cm (-18") 0.0 cm (0") ± 13.8 cm (5 7/16")

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

16:10 Signal 4:3 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (16:10)

0.09542

0.17878F0.17878F / 0.3048 0.20239F0.20239F / 0.3048

-0.6731

±0.21539F±0.21539F / 2.54 ±0.23004F±0.23004F / 2.54

/ 0.3048 0.10802F0.10802F / 0.3048

0.09542

-0.673

/ 2.54 -0.762

0F / 2.54 0

-0.762F / 2.54

0F / 2.54

60" – 300" (4:3)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-12

Screen Size and Projection Distance

Tele-zoom Lens (AN-PH845EZ: For XG-PH80X-N)

F2.2-3.1, f = 63.5-117.4 mm

4:3 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Diag. [F]

500"

(1270 cm)

300" (762 cm) 610 cm (240'') 457 cm (180'') 27.0 m (88' 7") 50.6 m

200" (508 cm) 406 cm (160'') 305 cm (120'') 18.0 m (59' 1") 33.7 m (110' 8") -152.4 cm (- 60") 0.0 cm (0") ± 40.6 cm (16") 150" (381 cm) 305 cm (120'') 229 cm (90'') 13.5 m (44' 4") 25.3 m (83' 0") -114.3 cm (-45") 0.0 cm (0") ± 30.5 cm (12") 100" (254 cm) 203 cm (80'') 152 cm (60'') 9.0 m (29' 6") 16.9 m (55' 4") -76.2 cm (-30") 0.0 cm (0") ± 20.3 cm (8")

80" (203 cm) 163 cm (64'') 122 cm (48'') 7.2 m (23' 8") 13.5 m (44' 3") - 61.0 cm (-24") 0.0 cm (0") ± 16.3 cm (6

60" (152 cm) 122 cm (48'') 91 cm (36'') 5.4 m (17' 9") 10.1 m (33' 2") -45.7 cm (-18") 0.0 cm (0") ± 12.2 cm (4

40" (102 cm) 81 cm (32'') 61 cm (24'') 3.6 m (11' 10") 6.7 m (22' 2") -30.5 cm (-12") 0.0 cm (0") ± 8.1 cm (3 13/64")

Width Height Minimum [L1]

1016 cm

(400'') 762 cm (300'')

45.0 m

(147' 8")

Maximum [L2

84.3 m

(276' 8") (166' 0")

Distance from the lens center to

the bottom of the image [H]

] Lower [H1] Upper [H2]

-381.0 cm (-150") 0.0 cm (0") ± 101.6 cm (40")

-228.6 cm (-90") 0.0 cm (0") ± 61.0 cm (24")

16:9 Signal Input (Normal Mode)

Picture (Screen) size Projection distance [L]

Width Height Minimum [L1] Maximum [L2] Lower [H1] Upper [H2]

]

Diag. [

300" (762 cm) 664 cm (261'') 374 cm (147'') 29.4 m (96' 6") 55.1 m

200" (508 cm) 443 cm (174'') 249 cm (98'') 19.6 m (64' 4") 150" (381 cm) 332 cm (131'') 187 cm (74'') 14.7 m (48' 3") 27.6 m (90' 5") -93.4 cm (-36 49/64") 31.1 cm (12 1/4") ± 33.2 cm (13 5/64") 100" (254 cm) 221 cm (87'') 125 cm (49'') 9.8 m (32' 2") 18.4 m (60' 3") -62.3 cm (-24

80" (203 cm) 177 cm (70'') 100 cm (39'') 7.8 m (25' 9") 14.7 m (48' 3") -49.8 cm (-19 39/64") 16.6 cm (6 17/32") ± 17.7 cm (6 31/32")

60" (152 cm) 133 cm (52'') 75 cm (29'') 5.9 m (19' 4") 11.0 m (36' 2") -37.4 cm (-14 45/64") 12.5 cm (4 29/32") ± 13.3 cm (5 15/64")

36.8 m

(180' 10") (120' 7")

Distance from the lens center to

the bottom of the image [H]

-186. 8 cm (-73 17/32") 62.3 cm (24 33/64") ± 66.4 cm (26 9/64")

-124.5 c m (-49 1/32") 41.5 cm (16 11/32") ± 44.3 cm (17 7/16")

/64") 20.8 cm (8 11/64") ± 22.1 cm (8 23/32")

Distance from the

lens center to the

center of the image

[W]

Distance from the

lens center to the

center of the image

[W]

/32")

/64")

When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.

4:3 Signal 16:9 Signal

[m/cm] [Feet/inches] [m/cm] [Feet/inches]

L1: Minimum projection distance (m/ft)

L2: Maximum projection distance (m/ft)

H1: Lower distance from the lens center to the bottom of the image (cm/in)

H2: Upper distance from the lens center to the bottom of the image (cm/in)

W: Distance from the lens center to the center of the image (cm/in)

: Picture diagonal size: 40" – 500" (4:3)

0.09002

0.16866F0.16866F / 0.3048 0.18375F0.18375F / 0.3048

-0.762

±0.2032F±0.2032F / 2.54 ±0. 22138F±0.22138F / 2.54

/ 0.3048 0.09807F0.09807F / 0.3048

0.09002

-0.762F / 2.54 -0.62263F-0.62263F / 2.54

0F / 2.54 0.20754F0.20754F / 2.54

60" – 300" (16:9)

Note

Allow a margin of error in the values in the diagrams above.

• When the distance from the lens center to the bottom of the image [H] is a negative number, this indicates

• that the bottom of the image is below the lens center.

-13

Connecting Pin Assignments

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals: mini

D-sub 15 pin female connector

DVI-D Terminal: 24 pin connector

1724

COMPUTER Input/Output COMPONENT Input/Output Pin No. Signal Pin No. Signal

Video input (red)

Video input (green/sync on green)

Video input (blue)

Not connected

Earth (red)

Earth (green/sync on green)

Earth (blue)

Not connected

10.

GND

11.

Not connected

12.

Bi-directional data

13.

Horizontal sync signal: TTL level

14.

Vertical sync signal: T TL level

15.

Data clock

Pin No. Name Pin No. Name

T.M . D.S. D a t a 2 –

T.M . D.S. D a t a 2+

T.M.D.S. Data 2 Shield

Not connected

DDC Clock

DDC Data

Not connected

T.M . D.S. D a t a 1–

10.

T.M . D.S. D a t a 1+

11.

T.M.D.S. Data 1 Shield

12.

Not connected

PR (CR)

PB (CB)

Not connected

Earth (PR)

Earth (Y)

Earth (PB)

Not connected

10.

Not connected

11.

Not connected

12.

Not connected

13.

Not connected

14.

Not connected

15.

Not connected

13.

Not connected

14.

+5 V Power

15.

Ground

16.

Hot Plug Detect

17.

T.M . D.S. D a t a 0 –

18.

T.M . D.S. D a t a 0 +

19.

T.M.D.S. Data 0 Shield

20.

Not connected

21.

Not connected

22.

T.M.D.S. Clock Shield

23.

T.M . D.S. C l o c k +

24.

T.M . D.S. C l o c k –

RS-232C Terminal: D-sub 9 pin male connector

Pin No. Sign al Name I/O Reference

RD SD

RS CS

Receive Data Send Data

Signal Ground

Request to Send Clear to Send

-14

Input Output

Not connected Connected to internal circuit Connected to internal circuit Not connected Connected to internal circuit Not connected Connected to CS in internal circuit Connected to RS in internal circuit Not connected

Connecting Pin Assignments

RS-232C Cable recommended connection: D-sub 9 pin female connector

Note

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

•

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

• controlling device (e.g. computer).

controlling device (e.g. computer).

Pin No. Signal Pin No. Signal

CD RD SD ER SG DR RS CS CI

Projector

Pin No.

4 5 6

Computer

Pin No.

4 5 6

USB Terminal: Type B USB connector LAN Terminal: LAN (RJ-45)

...

431243

Pin No. Signal Name Pin No. Signal Pin No. Signal

VCC USB– USB+ SG

USB power USB data– USB data+ Signal Ground

1 8

...

TX+

TX–

RX+

RX–

-15

RS-232C Speciﬁ cations and Commands

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type, commercially available) to the projector. (See page 24 of the projector's operation manual for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table. Signal format: Conforms to RS-232C standard. Parit y bit: None Baud rate: 115,20 0 bps Stop bit: 1 bit Data length: 8 bits Flow control: None

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4 Return code (0DH)

Command 4-digit Parameter 4-digit

Response code format

Normal response

OK Return code (0DH) E R R Return code (0DH)

Problem response (communication error or incorrect command)

Info

•

When controlling the projector using RS-232C commands from a computer, wait for at least 40 seconds after the power has been turned on, and then transmit the commands.

•

After sending an input selection or picture adjustment command and then receiving an “OK” response code, the projector may take some time to process the command. If a second command is sent while the projector is still processing the ﬁ rst command, you may receive an “ERR” response code. If this happens, try resending the second command.

•

When more than one code is being sent, send each command only after the response code for the previous command from the projector is veriﬁ ed.

•

“POWR????”, “TABN _ _ _ 1”, “TLPS _ _ _ 1”, “TPOW _ _ _ 1”, “TLPN _ _ _ 1”, “TLTT _ _ _ 1”, “TLTM _ _ _ 1”, “TLTL _ _ _ 1”, “TNAM _ _ _ 1”, “MNRD _ _ _ 1”, “PJN0 _ _ _ 1”

− When the projector receives the special commands shown above: * The on-screen display will not disappear. * The “Auto Power Off” timer will not be reset.

− The special commands are available for applications that require continuous polling.

Note

•

Set “LAN/RS232C” in “Ex. Setting” of “PRJ-ADJ” menu to “RS232C”.

•

If an underbar (_) appears in the parameter column, enter a space.

•

If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets under CONTROL CONTENTS.

-16

RS-232C Speciﬁ cations and Commands

Commands

Example: When turning on the projector, make the following setting.

Computer Projector

POWR___1

CONTROL CONTENTS COMMAND PARA METER

Power On P O W R

Projec tor Con dition T A B N

Lamp Lamp1 Status T L P S

Name Model Name Check T N A M

Input Change COMPUTER1 I R G B

*1 The Lamp Timer Reset command is available only in standby mode. *2 Serial No. Check command is used to read out the 12 digits of serial No. *3 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3.

Off P O W R

Status POWR????1 0

Lamp2 Status T L P S

Power Status T P O W

Quantity T L P N

Lamp1 Usa ge Time (Hour ) T L T T

Lamp2 U sage Ti me(Ho ur) T L T T

Lamp1 Usa ge Time (Minu te) T L T M

Lamp2 U sage Ti me(Mi nute) T L T M

Lamp1 Life(Percentage) TLTL

Lamp2 Life(Percentage) TLTL

Lamp1 Tim er Rese t *1 L P R E 0 0 0 1 ERR OK or ERR

Lamp2 T imer Re set *1 L P R E 0 0 0 2 ERR OK or ERR

Model Name Check M N R D

Seria l No. Chec k *2 S N R D

Projec tor Nam e Setti ng 1 (Firs t 4 chara cters ) *3

Projec tor Nam e Setti ng 2 (Middl e 4 chara cter s) *3

Projec tor Nam e Setti ng 3 (Last 4 c hara cters) * 3

Projector Name Check P J N 0

COMPUTER2 (5BNC) I R G B

COMPUTER3 (DVI) I R G B

COMPONENT I R G B

S-VIDEO I V E D

VIDEO I V E D

Input RG B Check I R G B ? ? ? ? 1: COMPUTER1,

Input V ideo Ch eck I V E D ? ? ? ? 1: S-V IDEO, 2: VID EO or ERR ERR

Input Mo de Che ck I M O D ? ? ? ? 1: RGB, 2: VI DEO ERR

PJN1****OK or ERR

PJN2****OK or ERR

PJN3****OK or ERR

o m

___

1 OK OK or ER R

___

0 OK or E RR OK

___

10: Normal

8: Lamp L ife 5% or less 16: L amp Bur n-out 32: Lamp I gnitio n Failur e

___

1 0: Of f, 1: On, 2: Retr y

___

3: Waiting , 4: Lamp Er ror

2 0: Of f, 1: On, 2: Retr y

3: Waiting , 4: Lamp Er ror

1 1: On, 2: Coo ling 0: Stand by

1 0 – 9999(Integer)

2 0 – 9999(Integer)

1 0, 15, 30, 4 5

2 0, 15, 30, 4 5

1 0% – 100%(I nteger )

2 0% – 100%(I nteger )

1XGPH80WN/XGPH80XN

1 XG-PH8 0W-N/XG -PH80X-N

1Serial No.

1Projector Name

1 OK or E RR ERR

2 OK or E RR ERR

3 OK or E RR ERR

4 OK or E RR ERR

1 OK or E RR ERR

2 OK or E RR ERR

2: COMPUT ER2, 3: DVI, 4: COMPON ENT or ER R

Power ON

RETURN

Standby mode

(or 40- second star tup time)

0: Normal 2: Fan Erro r 4: Lamp Un it Cover O pen 8: Lamp L ife 5% or less 16: L amp Bur n-out 32: Lamp I gnitio n Failur e

Temp Abnormally High

64:

0: Off, 4: L amp Err or

ERR

-17

Setting up the Projector Network Environment

This section describes the basic procedure for using the projector via the network. If the network is already constructed, the projector's network settings may need to be changed. Please consult your network administrator for assistance with these settings. You can make network settings both on the projector and on the computer. The following procedure is for making settings on the computer.

Network settings on the computer

1. Connecting the projector to a computer

Connect a LAN cable (Category 5, cross-over type) between the computer and projector.

LAN cable

(commercially available)

Page 19

2. Setting an IP address for the computer

Adjust the IP settings of the computer to enable one-to-one communications with the projector.

Temporarily change the computer's IP address.

Pages 20, 21

3. Setting up a network connection for the projector

Adjust the projector network settings to conform to your network.

Use Internet Explorer (version 6.0 or later) to make various projector settings.

Pages 22, 23

•

Microsoft®, Windows® and Windows Vista®are registered trademarks of Microsoft Corporation in the United States and/or other countries.

•

PJLink is a registered trademark or an application trademark in Japan, the United States, Canada, E.U., China and/or other countries/regions. All other company or product names are trademarks or registered trademarks of their respective

• companies.

-18

Setting up the Projector Network Environment

1. Connecting the Projector to a Computer

Establishing a one-to-one connection from the projector to a computer. Using a commercially available LAN cable (UTP cable, Category 5, cross-over type) you can conﬁ gure the projector via the computer.

Disconnect the computer's LAN

cable from the existing network.

Connect a commercially available

LAN cable (UTP cable, Category 5, cross-over type) to the projector's LAN terminal and connect the other end of the cable to the computer's LAN terminal.

A LAN cable being

connected to the network

Plug the power cord into the AC

socket of the projector.

Turn on the computer.

Info

Conﬁ rm that the LINK LED on the rear of the projector illuminates. If the LINK LED does not illuminate, check the following:

The LAN cable is properly connected.

• The power switches of both the projector and

• the computer are on.

LAN cable

(cross-over type, commercially available)

ONON

This completes the connection. Now proceed to “2. Setting an IP Address for the Computer”.

-19

Setting up the Projector Network Environment

2. Setting an IP Address for the Computer

The following describes how to make settings in Windows Vista®.

Log on the network using the

administrator's account for the computer.

Click “start”, and click “Control

Panel”.

121

Click “View network status and

tasks” of “Network and Internet”, and click “View status” in the new window.

This manual uses examples to explain the

• operations in Category View. If you are using

Classic View, double-click “Network and Sharing Center”.

Click “Properties”.

When the user account control display is

• displayed, click “Continue”.

-20

XXXXXXXXX

Setting up the Projector Network Environment

Click “Internet Protocol Version 4

(TCP/IPv4)”, and click the “Properties” button.

121

Conﬁ rm or change an IP address

for the setup computer.

1 Conﬁ rm and note the current IP

address, Subnet mask and Default gateway.

Make sure to note the current IP address,

Subnet mask and Default gateway as you will be required to reset them later.

2 Set temporarily as follows:

IP address: 192.168.150.3 Subnet mask: 255.255.255.0 Default gateway: (Do not input any

values.)

Note

•

The factory default settings for the projector are as follows: DHCP Client: OFF IP address: 192.168.150.2 Subnet mask: 255.255.255.0 Default gateway: 0.0.0.0

After setting, click the “OK”

button, and then restart the computer.

After conﬁ rming or setting, proceed to “3. Setting up a Network Connection for the Projector”.

-21

Setting up the Projector Network Environment

Setting up a Network Connection for the Projector

Settings for such items as the projector's IP address and subnet mask are compatible with the existing network. Set each item on the projector as follows. (See page 54 of the projector's operation manual for setting.) DHCP Client: Off IP Address: 192 .168.150.0 02 Subnet Mask: 255.255.255.000

Start Internet Explorer (version 6.0

or later) on the computer, and enter “http://192.168.150.2/system. html” in “Address”, and then press the “Enter” key.

The “System Conﬁ guration”

screen appears, ready for network settings for the projector.

Items Set ting example / Remarks

IP Address

Subnet Mask

Default Gateway

DNS Server

DHCP Client

You can set this item when “DHCP Client” is set to “OFF”. Factory default setting: 192.168.150.2 Enter an IP address appropriate for the network.

You can set this item when “DHCP Client” is set to “OFF”. Factory default setting:

255.255.255.0 Set the subnet mask to the same as that of the computer and equipment on the network.

You can set this item when “DHCP Client” is set to “OFF”. Factory default setting: 0.0.0.0 * When not in use, set to “0.0.0.0”.

Factory default setting: 0.0.0.0 * When not in use, set to “0.0.0.0”.

Select “ON” or “OFF” to determine whether to use DHCP Client.

Note

•

Conﬁ rm the existing network's segment (IP address group) to avoid setting an IP address that duplicates the IP addresses of other network equipment or computers. If “192.168.150.2” is not used in the network having an IP address of “192.168.150.XXX”, you don't have to change the projector IP address. For details about each setting, consult your

• network administrator.

-22

Setting up the Projector Network Environment

Conﬁ rm that the values are set

properly, and then click the “Apply” button.

•

Close the browser.

•

This completes the network settings.

•

After setting items, wait for about 15 seconds and then re-access.

•

Change the IP address of the setting computer back to its original address, which you have noted down in Step 6- 1 on page the computer and the projector to the network.

21, and then connect

-23

Controlling the Projector via LAN

After connecting the projector to your network, enter the projector IP address in “Address” on Internet Explorer (version 6.0 or later) using a computer on the network to start a setup screen that will enable control of the projector via the network.

Controlling the Projector Using Internet Explorer

Complete connections to external equipment before starting the operation. (See pages 21-25 of the projector's operation manual.) Complete the AC cord connection. (See page 27 of the projector's operation manual.)

Note

•

Set “LAN/RS232C” in “Ex. Setting” of the “PRJ-ADJ” menu to “LAN”.

•

When connecting the projector to the LAN, use a commercially available LAN cable (UTP cable, Category 5, cross-over type). When connecting the projector to a hub, use a straight-through cable.

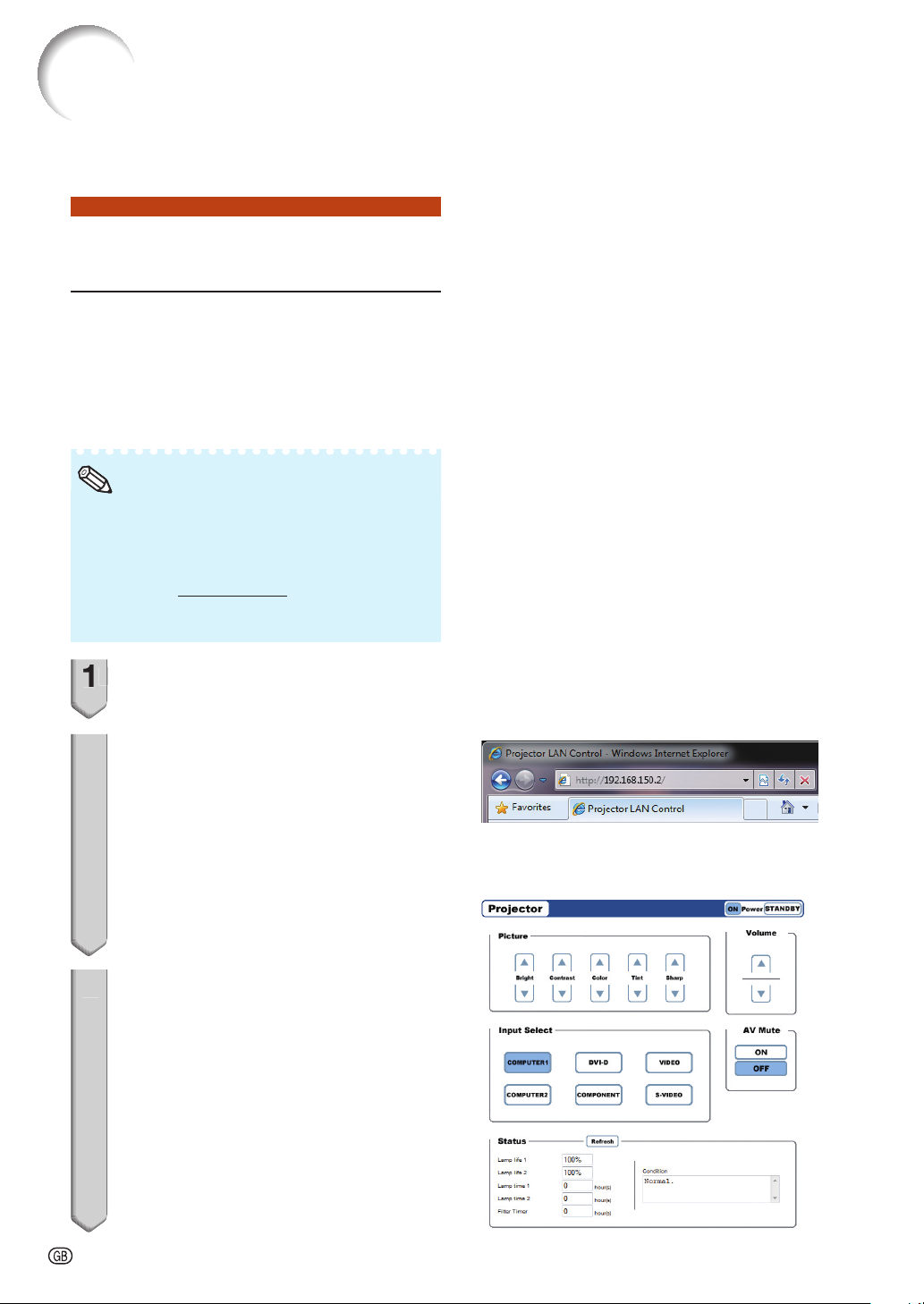

Start Internet Explorer on the

computer.

Enter “http://” followed by the

projector IP address set by the procedure on page

22 followed by

“/” in “Address”, and then press the “Enter” key.

When “DHCP Client” is set to “Off” on the

•

projector, IP address is 192.168.150.2. If you did not change the IP address in “3. Setting

up a Network Connection for the Projector” (pages

“http://192.168.150.2/system.html”.

A screen for controlling the

22-23), enter

projector appears, ready for performing various status conditions and control.

-24

Controlling the Projector and Conﬁ rming the Projector Status

On this screen, you can perform projector control or conﬁ rm the projector status.

You can control the following items:

Power

• Picture

•

Bright

–

Contrast

–

Color

–

Tint

–

Sharp

–

Input Select

• Volume

• AV Mute

•

You can conﬁ rm the following items:

Status

•

Lamp life 1

–

Lamp life 2

–

Lamp time 1

–

Lamp time 2

–

Filter Timer

–

Condition

–

Controlling the Projector via LAN

Note

For details about each item, refer to the

• projector's operation manual.

-25

Controlling the Projector via LAN

Making General Settings for the Network

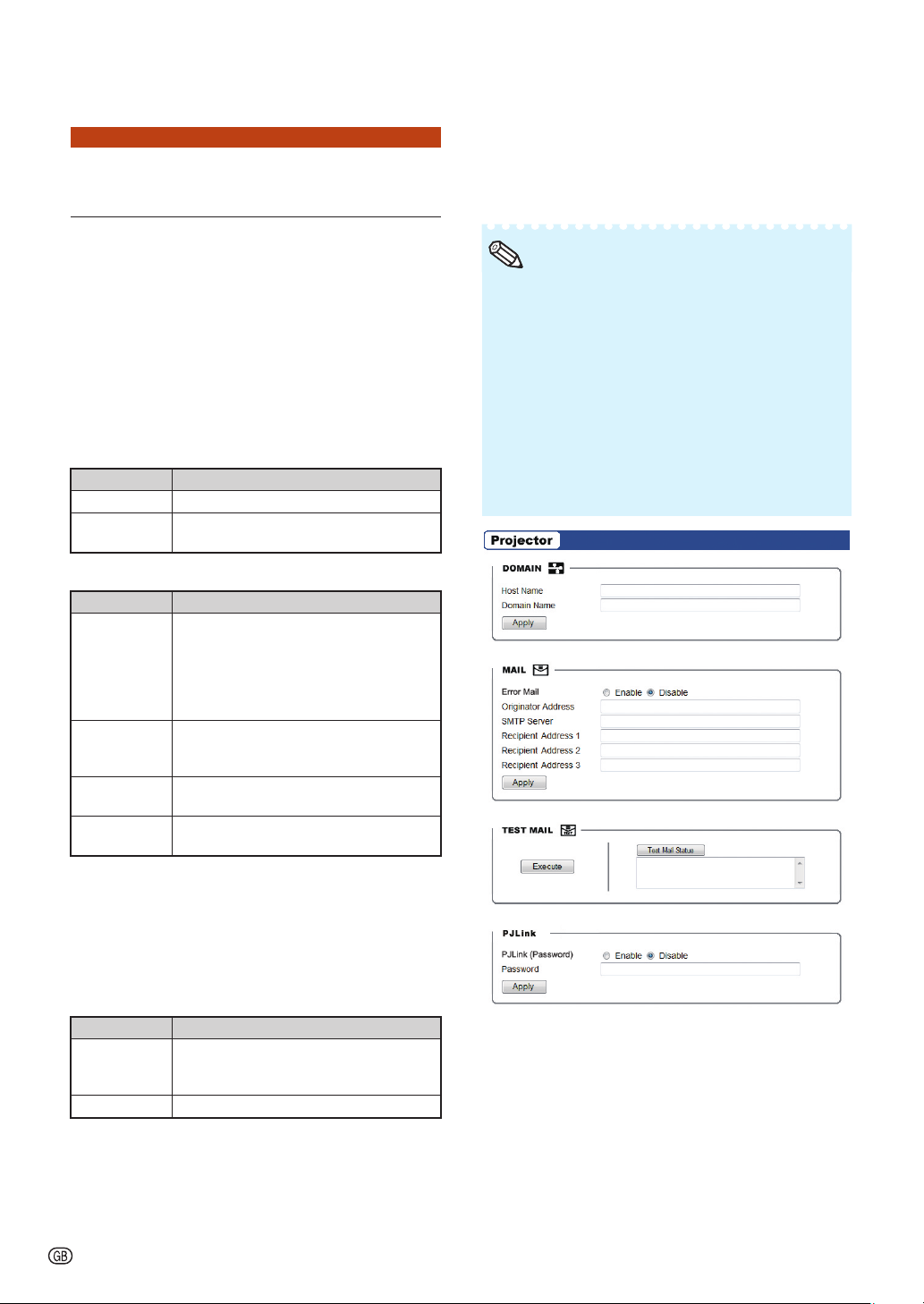

Enter “http://XXX.XXX.XXX.X/lanconf. html” (for “XXX.XXX.XXX.X”, enter the IP address set by the procedure on page 22) in “Address” on Internet Explorer (version

6.0 or later) using a computer on the network to display the “Projector LAN Conﬁ guration” screen.

On this screen, you can make general settings relating to the network.

■

DOMAIN

Items Description

Host Name Setting a hostname.

Domain Name

MAIL

■

Items Description

Error Mail Selecting “Enable” activates the Alert

Originator Address

SMTP Ser ver Setting an SMTP server address for e-

Recipient Address (1–3)

Setting a domain name of the network connected to the projector.

Mail feature. When using a wired LAN, your computer will receive an error message via e-mail if the projector lamp reaches the end of its lifetime or if an error occurs in the projector.

Setting the projector's e-mail address. The e-mail address set here becomes Originator E-mail Address.

mail transmission.

Setting your recipient's address.

Note

•

When “DHCP Client” is set to “Off” on the projector, IP address is 192.168.150.2. If you did not change the IP address in “3. Setting up a

Network Connection for the Projector”

(pages

22-23), enter “http://192.168.150.2/

system.html”.

•

You can input up to 60 characters.

•

You can input the characters below: – Host Name and Domain Name: A-Z, 0-9, – Originator Address, SMTP Server and

Recipient Address: a-z, A-Z, 0-9, !, #, $, %, &, *, +, -, /, =, ?, ^, {, |, }, ~, _, ', ., @, `

■

TEST MAIL

Click “Execute” to enable the TEST MAIL feature, which allows you to send a test mail to conﬁ rm that the settings for e-mail transmission are properly made. Click “Test Mail Status” to make sure that the test mail is sent correctly.

■

PJL ink

Items Description

PJLink (Password)

Password Setting a password.

Selecting “Enable” allows you to set a password when using the PJLink feature.

-26

Conﬁ rm that the values are set properly, and then click the “Apply” button.

Operating the Projector Using the PJLinkTM Protocol

The projector conforms with the PJLinkTM standard Class 1. The commands to be used in controlling the projector by the PJLinkTM protocol are as shown below.

Power Control

Power Status Query

Input List Query

Input Change

Input Status Query

AV Mute

AV Mute Status Query

Lamp Query

Error Condition Query

Projector Name Query N A M E _ ? Projector Name

Manufacture Name Query I N F 1 _ ? SHARP

Product Name Query I N F 2 _ ? XG-PH80W-N/XG-PH80X-N

Other Information Query I N F O _ ? Not used

Class Information Query C L S S _ ? 1

CONTROL CONTENTS

Off P O W R _ 0 OK or ERR3

On P O W R _ 1 OK or ERR3

COMPUTER1 I N P T _ 1 1 OK or ERR3

COMPUTER2 I N P T _ 1 2 OK or ERR3

COMPONENT I N P T _ 2 1 OK or ERR3

S-VIDEO I N P T _ 2 2 OK or ERR3

VIDEO I N P T _ 2 3 OK or ERR3

DVI I N P T _ 3 1 OK or ERR3

Off A V M T _ 3 0 OK or ERR3

On A V M T _ 3 1 OK or ERR3

COMMAND RETURN

P O W R _ ? 0: Standby Mode

1: Power On

2: Standby (Cooling)

3: Power On (Warming up)

I N S T _ ? 11 12 21 22 23 31

I N P T _ ? 11: COMPUTER1

12: COMPUTER2

21: COMPONENT

22: S-VIDEO

23: VIDEO

31: DVI

or ERR3

A V M T _ ? 30: Off

31: On

or ERR3

L A M P _ ? 1st Number: Lamp1 Usage Time (Hour)

2nd Number: 0: Lamp1 Off 1: Lamp1 on

3rd Number: Lamp2 Usage Time (Hour)

4th Number: 0: Lamp2 Off 1: Lamp2 on

E R S T _ ? 1st Byte: Fan Error Status

2nd Byte: Lamp Error Status

3rd Byte: Temp. Error Status

4th Byte: Cover Open Status

5th Byte: Not Used, Return 0

6th Byte: Not Used, Return 0

0: No Error Detected

1: Warning

2: Error Detected

PJLinkTM Authentication: To activate the password used for PJLink

(page

26). When operating without authentication, set “PJLink (Password)” to “Disable”.

PJLink

Compliant:

, set “PJLink (Password)” to “Enable” and then enter the password

This product conforms with the PJLink standard Class 1 and all Class 1 commands are implemented. This product conﬁ rms with the PJLink standard speciﬁ cation version 1.00. For additional information, visit “http://pjlink.jbmia.or.jp/english/”.

-27

Trou bleshoot ing

Communication cannot be established with the projector

When connecting the projector using serial-connection

? Check that the RS-232C terminal of the projector and a computer or the commercially

available controller are connected correctly.

? Check that the RS-232C cable is a cross-over cable. ? Check that the RS-232C port setting for the projector corresponds to the setting for the

computer or the commercially available controller.

When connecting the projector to a computer using network (LAN)connection

? Check that the cable's connector is ﬁ rmly inserted in the LAN terminal of the projector. ? Check that the cable is ﬁ rmly inserted into a LAN port for a computer or a network device

such as a hub.

? Check that the LAN cable is a Category 5 cable. ? Check that the LAN cable is a cross-over cable when connecting the projector to a computer

directly.

? Check that the L AN cable is a straight-through cable when connecting the projector with a

network device such as a hub.

? Check that the power supply is turned on for the network device such as a hub between the

projector and a computer.

Check the network settings for the computer and the projector

? Check the following network settings for the projector.

•

IP Address Check that the IP address for the projector is not duplicated on the network.

•

Subnet Mask When the gateway setting for the projector is “0.0.0.0” (Not Used), or the gateway setting for the projector and the default gateway setting for the computer are the same:

•

The subnet masks for the projector and the computer should be the same.

•

The IP address parts shown by the subnet mask for the projector and the computer should be the same. (Example) When the IP address is “192.168.150.2” and the subnet mask is “255.255.255.0” for the projector, the IP address for the computer should be “192.168.150.X” (X=3-254) and the subnet mask should be “255.255.255.0”.

•

Gateway When the gateway setting for the projector is “0.0.0.0” (Not Used), or the gateway setting for the projector and the default gateway setting for the computer are the same:

•

The subnets for the projector and the computer should be the same.

•

-28

Note

•

When “DHCP Client” is set to “Off” on the projector: IP address: 192.168.150.2 Subnet mask: 255.255.255.0 Gateway address: 0.0.0.0 (Not Used)

For network settings for the projector, refer to pages

•

22-23.

Troubleshooting

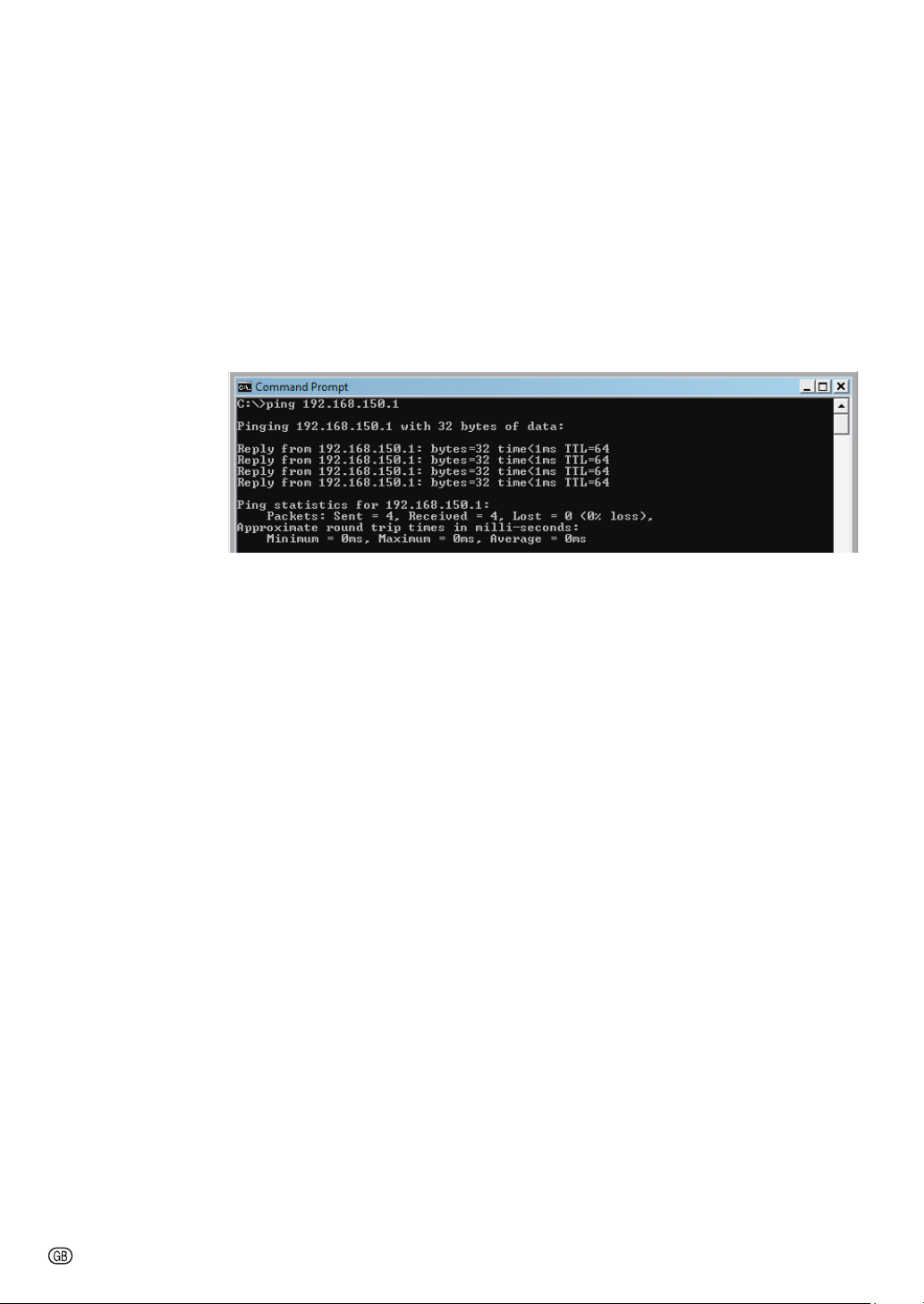

? Take the following steps for checking the network settings for the computer.

1. Open a command prompt. In the case of Windows

• ➔ “Command Prompt” in order. In the case of Windows

• ➔ “Accessories” ➔ “Command Prompt” in order.

2. After launching the command prompt, enter the command “ipconﬁ g”, and press the “Enter” key.

Note

Communication may not be established even after carrying out the network settings

• for the computer. In such cases, restart your computer.

C:\>ipconﬁ g

2000: click “start” ➔ “Programs” ➔ “Accessories”

XP, Windows Vista®: click “start” ➔ “All Programs”

Note

•

Usage examples of ipconﬁ g C:\>ipconﬁ g /? displays how to use “ipconﬁ g.exe”. C:\>ipconﬁ g displays the set IP address, subnet mask and default gateway. C:\>ipconﬁ g /all displays all the setting information related to TCP/IP.

3. To return to the Windows® screen, enter “exit” and press the “Enter” key.

-29

Troubleshooting

? Check if the “TCP/IP” protocol is operating correctly using the “PING” command. Also, check

if an IP address is set.

1. Open a command prompt.

•

In the case of Windows “Command Prompt” in order.

•

In the case of Windows

2000: click “start” ➔ “Programs” ➔ “Accessories” ➔

XP, Windows Vista®: click “start” ➔ “All Programs” ➔

“Accessories” ➔ “Command Prompt” in order.

2. After launching the command prompt enter a command “PING”. Entry example C:\>ping XXX.XXX.XXX.XXX “XX X.X XX.XXX.XXX” should be entered with an IP address to be connected to, such as the

projector.

3. When connecting normally, the display will be as follows. (The screen may be slightly different depending on the OS type.) <Example> when the IP address connected to is “192.168.150.1”

4. When a command cannot be sent, “Request time out” will be displayed. Check the network setting again. If communication can still not be established properly, contact your network administrator.

5. To return to the Windows

screen, enter “exit” and then press the “Enter” key.

? When the projector cannot be connected, even though the “PING” command is checked:

•

When a security software is installed on the PC, or when a ﬁ re wall has been set up for the network system, connection may not be possible. Consult the system administrator.

-30

Dimensions

Units: inches (mm)

/64 (385)

/64 (194)12

/16 (306)

/64 (252.5) 9 61/64 (252.5)

/64 (505)

/32

(135.7)

/64 (222.5) 8 49/64 (222.5)

(125)

/64

(125)

/64

(106.5)

/64

/16

/8 (3)

(106.5)

(87)

(108)

/32

(99)

/16

(30)

/32

(215)

/16

(306)

(101.5)

/64

(138.5)

/64

(86)

/64

(56.5)

-31

Dimensions

Projector and Lens Dimensions

[When AN-PH808EX is installed]

Unit : inches (mm)

/64

(385)

(24.2)

/16

/64

(0)

(87)

[When AN-PH818EZ is installed]

Unit : inches (mm)

/64

/32

(385)

(27.7)

/64

(2.8)

/16

(87)

[When AN-PH823EZ is installed]

Unit : inches (mm)

/64

/32

(7)

/64

(5)

(385)

[When AN-PH814EZ is installed]

Unit : inches (mm)

/64

(385)

(2.65)

/16

/64

/16

(1.63)

(87)

/16

(87)

[When AN-PH845EZ is installed]

Unit : inches (mm)

/64

(5)

/32

(2.4)

/16

(87)

(385)

-32

Sharp XG-PH80W-N, XG-PH80X-N Setup Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Setting up the Screen

Screen Size and Projection Distance

Connecting Pin Assignments

Setting up the Projector Network Environment

1. Connecting the Projector to a Computer

2. Setting an IP Address for the Computer

Controlling the Projector via LAN

Controlling the Projector Using Internet Explorer

Making General Settings for the Network

Operating the Projector Using the PJLinkTM Protocol

Trou bleshoot ing

Dimensions
