OPERATION MANUAL

MODEL

XG-PH70X

(Standard zoom lens attached)

XG-PH70X-N

(No lens attached)

MULTIMEDIA PROJECTOR

Basic Operation

Useful Features

Appendix

IMPORTANT

••

• For your assistance in reporting the loss or theft of your Projector, please record

••

the Model and Serial Numbers located on the bottom of the projector and retain this information.

••

• Before recycling the packaging, please ensure that you have checked the contents

••

of the carton thoroughly against the list of “Supplied accessories” on page 11.

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the

letter E or by the safety earth symbol or coloured green or green-and-yellow.

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

Model No.:

Serial No.:

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese, Korean and Japanese. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch, Italienisch, Niederländisch, Portugiesisch, Chinesisch, Koreanisch und Japanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol, italien, néerlandais, portugais, chinois, coréen et japonais. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska, holländska, portugisiska, kinesiska, koreanska och japanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés, portugués, chino, coreano y japonés. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese, portoghese, cinese, coreano e giapponese. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.

De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands, Portugees, Chinees, Koreaans en Japans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês, Português, Chinês, Coreano e Japonês. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

Before using the projector, please read this operation manual carefully.

Introduction

ENGLISH

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially

careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to

rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

WARNING:

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification.

U.S.A. ONLY

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

-1

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org.

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 96.

This SHARP projector uses a DLP® chip. This very sophisticated panel contains 786,432 pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

• DLP® and the DLP logo are registered trademarks of Texas Instruments.

• Microsoft

and Windows® are registered trademarks of Microsoft Corporation in the United States and/or

other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Adobe

• Macintosh

Reader® is a trademark of Adobe Systems Incorporated.

is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.

• All other company or product names are trademarks or registered trademarks of their respective compa-

nies.

• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instru-

ments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Authorized representative responsible for the European Union Community Market

SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg

E.U. ONLY

-2

How to Read This Operation Manual

••

• In this operation manual, the illustrations and on-screen displays are simplified for explana-

••

tion. This may differ from the actual on-screen display.

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 58 and 59. )

Mouse/ adjustment button ('/"/\/|)

ENTER button

Menu item

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

MENU button

UNDO button

Buttons used in this operation

On-screen display

Buttons used in this operation

Button used in this step

ENTER button

MENU button

UNDO button

Adjustment buttons ('/"/\/|)

Menu Selections (Adjustments)

Example: Adjusting “Bright”

•This operation can also be performed by using the buttons on the projector.

Press .

•The “Picture” menu screen for the selected input mode is displayed.

Press

\ or

| to display the other

menu items.

Menu items

•There are eight menu items as shown below.

Introduction

Note

•The “Fine Sync” menu is not available

for selecting INPUT 4 or INPUT 5.

Info

...........Indicates safeguards when using the projector.

........Indicates additional information for setting up and operating the projector.

Note

For Future Reference

Maintenance Troubleshooting Index

Page 93

Pages 102 and 103

Page 107

-3

Preparing

Introduction

How to Read This Operation Manual ............ 3

Contents.......................................................... 4

How to Access the PDF Operation Manuals

IMPORTANT SAFEGUARDS .......................... 8

Accessories .................................................. 11

Part Names and Functions .......................... 13

..... 7

Quick Start

Quick Start .................................................... 20

Setup

Setting Up the Projector .............................. 22

Setting Up the Projector .................................... 22

Projecting a Reversed Image ............................ 23

Connections

Connections ................................................. 24

INPUT/OUTPUT Terminals and Connectable

Main Equipment .......................................... 24

Samples of Cables for Connection............. 25

Connecting to a Computer .......................... 27

Connecting with the RGB Cable ....................... 27

Connecting with a 5 BNC to 15-pin D-sub

Cable ........................................................... 28

Connecting with a DVI Digital Cable ................. 29

Connecting to Video Equipment ................. 30

Connecting to Video Equipment That Has

an HDMI Output Terminal with a DVI to

HDMI Cable ................................................ 30

Using the Remote Control ........................... 17

Usable Range .................................................... 17

Inserting the Batteries ....................................... 17

Using the Remote Control with a Signal Cable ..

Switching the Remote Control Mode ................. 18

Using the Remote Control as a Wireless Compu-

ter Mouse .................................................... 19

Connecting to Video Equipment That Has a DVI

Output Terminal with a DVI Digital Cable… 31

Connecting to RGB Video Equipment with a

5 RCA RGB Cable ....................................... 32

Connecting to Video Equipment That Has

Component Output Terminals ..................... 33

Connecting with an S-video Cable or a Compos-

ite Video Cable ............................................ 34

Controlling the Projector by a Computer... 35 Connecting to a Monitor That Has an RGB

Input Terminal ......................................... 36

Connecting to an Amplifier or Other

Audio Equipment .................................... 36

-4

Using

Basic Operation

Introduction

Turning the Projector On/Off ....................... 37

Image Projection .......................................... 38

Shifting the Lens… ............................................ 38

Using the Adjustment Feet ................................ 39

Adjusting the Focus ........................................... 40

Adjusting the Projected Image Size .................. 40

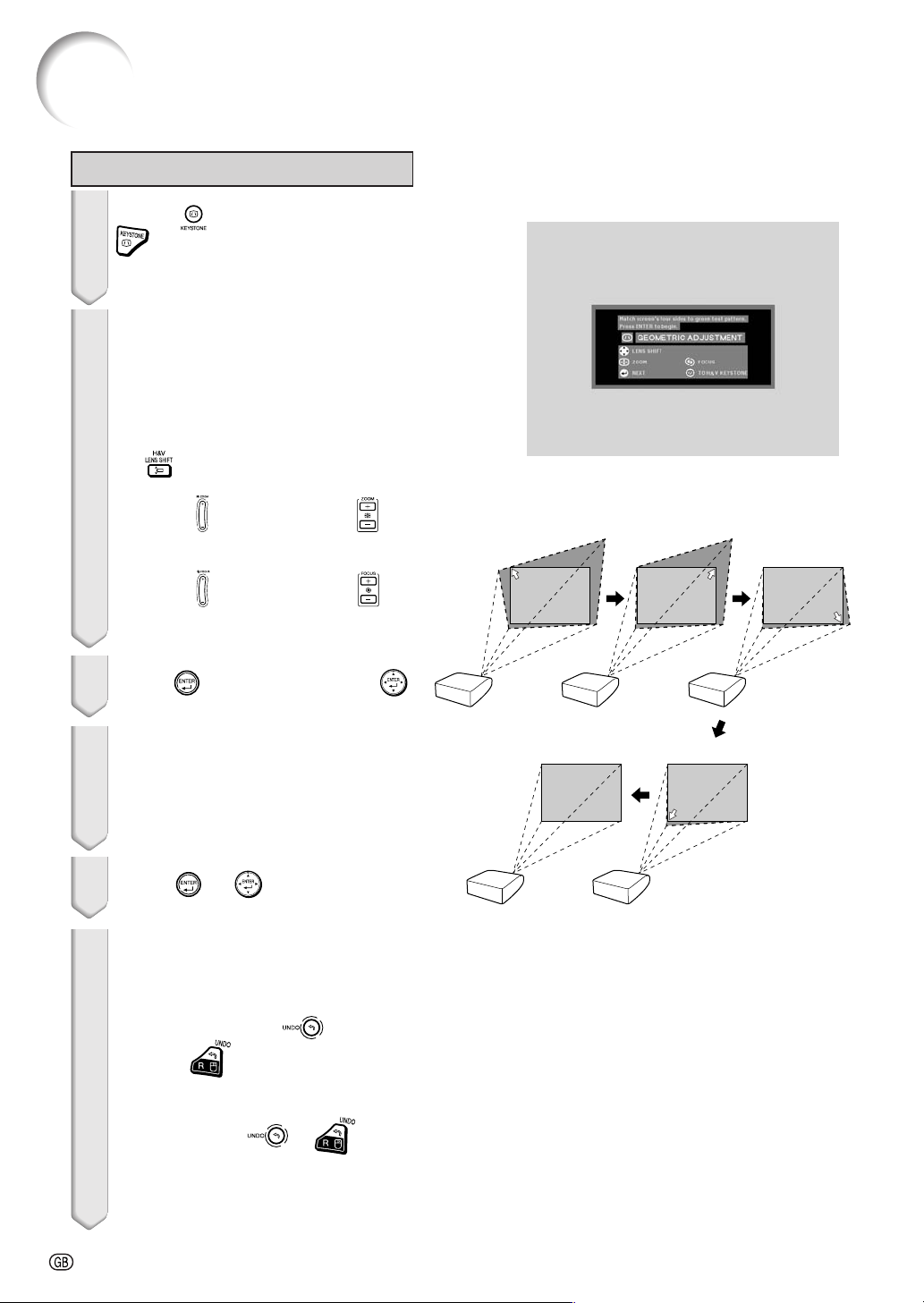

Correcting Trapezoidal Distortion ...................... 41

Switching the Input Mode .................................. 45

Useful Features

Menu Items ................................................... 51

Using the Menu Screen ............................... 56

Menu Selections (Adjustments) ......................... 56

Menu Selections (Settings) ................................ 58

Picture Adjustment (“Picture” menu) ......... 60

Selecting the Picture Mode ............................... 60

Adjusting the Image .......................................... 60

Adjusting the Color Temperature ....................... 61

Emphasizing the Contrast ................................. 61

Selecting the Progressive Mode........................ 62

Reducing Image Noise (DNR) ........................... 62

Signal Type Setting ............................................ 63

Color Management System

(“C. M. S.” menu) ..................................... 64

Selecting the Color Reproduction Mode ........... 64

Selecting the Target Color ................................. 64

Setting the Brightness of the Target Color ......... 65

Setting the Chromatic Value of the Target Color ...

Setting the Hue of the Target Color ................... 66

Resetting User-defined Color Settings .............. 66

Overview of All Color Settings ........................... 67

Computer Image Adjustment

(“Fine Sync” menu) ................................ 68

Adjusting the Computer Image ......................... 68

Saving Adjustment Settings… ........................... 68

Selecting Adjustment Settings… ....................... 69

Special Mode Setting ........................................ 69

Checking the Input Signal ................................. 70

Auto Sync Adjustment ....................................... 70

Auto Sync Display Function .............................. 71

Audio Adjustment (“Audio” menu) ............. 72

Adjusting the Audio ........................................... 72

Setting the Audio Output Type .......................... 72

Speaker Setting ................................................. 73

Adjusting the Volume......................................... 46

Tu rning Off the Sound Temporarily .................... 46

Displaying an Enlarged Portion of an Image

Freezing a Moving Image .................................. 47

Selecting the Picture Mode ............................... 47

Resize Mode ...................................................... 48

Displaying the Black Screen… .......................... 50

Displaying and Setting the Break Timer ............ 50

....... 46

Using the “Options (1)” Menu ..................... 74

Displaying Dual Pictures (Pict in Pict) ............... 74

Setting the Resize Mode ................................... 74

Shifting the Projected Image Vertically

(Digital Shift) ................................................ 75

Setting On-screen Display................................. 75

Setting the Video System................................... 76

Capturing Projected Images ............................. 76

Selecting the Background Image ...................... 77

Selecting the Startup Image .............................. 77

Eco Mode .......................................................... 78

Detecting the Input Signals Automatically ........ 78

Auto Power Off Function .................................... 79

System Lock Function ....................................... 79

Helpful Functions Set during Installation

(“Options (2)” menu) .............................. 82

Setting a Password ............................................ 82

Checking the Lamp Life Status ......................... 83

Setting the Lamp Mode ..................................... 83

Reversing/Inverting Projected Images .............. 84

Controlling Multiple Projectors with the One

Remote Control ........................................... 84

Shortcut to Make Projector Stack Settings ........ 85

Locking the Operation Buttons on the Projector ...

Bypassing Unused Input Selections ................. 86

Selecting the Fan Mode ....................................... 86

Direct Power On Function .................................... 87

Selecting the Transmission Speed (RS-232C)

Monitor Output Settings ..................................... 88

LAN/RS232C Setting ......................................... 88

DHCP Client Setting .......................................... 89

TCP/IP Setting ................................................... 89

Service Mode .................................................... 90

Returning to the Default Settings ....................... 91

....... 87

Using the Other Menus (“Language” and

“Status” menus) ..................................... 92

Selecting the On-screen Display Language ....... 92

Overview of All Menu Settings ........................... 92

-5

Contents

Reference

Appendix

Maintenance ................................................. 93

Maintenance Indicators ............................... 94

Regarding the Lamp .................................... 96

Lamp ................................................................. 96

Caution Concerning the Lamp .......................... 96

Replacing the Lamp .......................................... 96

Removing and Installing the Lamp Unit ............ 97

Resetting the Lamp Timer ................................. 99

Computer Compatibility Chart .................. 100

Troubleshooting ......................................... 102

For SHARP Assistance .............................. 104

Specifications ............................................. 105

Glossary ...................................................... 106

Index ............................................................ 107

The optional lenses are introduced on page 12. Please purchase the lens for your desired usage.

-6

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector. To utilize these manuals, you need to install Adobe® Reader® on your computer (Windows® or Macintosh®).

Please download Adobe® Reader® from the Internet (http://www.adobe.com).

Accessing the PDF manuals

For Windows®:

1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “My Computer” icon. 3 Double click the “CD-ROM” drive. 4

When you want to view the operation manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the “PH70_” pdf file to access the projector manuals.

When you want to view the setup manual

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the “S_PH7_” pdf file to access the setup manual.

For Macintosh

1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “CD-ROM” icon. 3

When you want to view the operation manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the

3) Double click the “PH70_” pdf file to access

When you want to view the setup manual

1) Double click the “SETUP” folder.

2) Double click the language (name of the

3) Double click the “S_PH7_” pdf file to access

folder) that you want to view.

the projector manuals.

folder) that you want to view.

the setup manual.

Introduction

Info

• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then specify the desired file using the “File”, “Open” menu.

SETUP MANUAL

Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

Setting up the Screen .................................... 2

Screen Size and Projection Distance ........... 3

Connecting Pin Assignments ..................... 10

RS-232C Specifications and Commands ... 12 Setting up the Projector Network

Environment............................................ 17

Controlling the Projector via LAN .............. 23

Setting the Projector Using

RS-232C or Telnet ................................... 28

Controlling the Projector Using

RS-232C or Telnet ................................... 31

Stack Projection ........................................... 38

Video Wall Projection ................................... 41

Resetting the Lamp Timer

of the Projector via LAN......................... 50

Troubleshooting ........................................... 52

Dimensions ................................................... 55

-7

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save these

instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with a

grounding terminal. This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not

likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs,

convenience receptacles, and the point where they exit from

the product.

14. Lightning

For added protection for this product during a lightning storm,

or when it is left unattended and unused for long periods of

time, unplug it from the wall outlet and disconnect the cable

system. This will prevent damage to the product due to

lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire or

electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or

removing covers may expose you to dangerous voltage or

other hazards. Refer all servicing to qualified service

personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing

to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions, as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to normal

operation. e. If the product has been dropped or damaged in any

way. f. When the product exhibits a distinct change in

performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21.Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

-8

Ensure that you read the following safeguards when setting up your projector.

Introduction

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for replacement. See “Replacing the Lamp” on page 96.

Caution concerning the setup of the projector

■ For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may be safely tilted to a maximum angle of 9 degrees.

■ Placement should be within 9 degrees of horizontal. If you have application requiring tilt angle exceeding 9 degrees, please check with your local Sharp sales office.

9°

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 1,500 meters (4,900 feet) or more)

■ When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■ When placing the projector in a high position, make certain it is carefully secured to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Ta ke care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 104°F (+5°C to +40°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

-9

IMPORTANT SAFEGUARDS

Do not block the intake and exhaust vents.

■ Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Ensure that the intake vents and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction (See pages 94 and 95.). Remove the pro- jector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

■ When using the projector, take care not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. If you are not to use the projector for a long time, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ Do not carry the projector by holding the lens.

■ When storing the projector, ensure you at-

tach the lens cap to the projector. (See page

13.)

■ Do not expose the projector to direct sunlight or near heat sources. The projector may change color or become deformed.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ ” and “ ” will illuminate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second coolingoff period the projector will enter the standby mode. Refer to “Maintenance Indicators” on page 94 for details.

Info

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

• Even if you unplug the power cord after projector operation, the cooling fan continues to run for a while. When you place the projector into the storage case, make sure that the cooling fan has stopped.

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

-10

Optional lens installation

■ Be sure to have service personnel install the optional lenses.

Accessories

Supplied accessories

Introduction

Tw o R-6 batteries (“AA” size, UM/SUM-3, HP-7 or similar)

For U.K., Hong Kong and Singapore (6' (1.8 m)) 9NK3090152900

Power cord*

(1)

For U.S., Canada, etc. (6' (1.8 m)) 9NK3090204900

Remote control 9NK5041808700

(2) (3)

For Europe, except U.K. (6' (1.8 m)) 9NK3090152700

*Use the power cord that corresponds to the wall outlet in your country.

RGB cable (10' (3.0 m)) 9NK3080431000

Projector manual and technical reference CD-ROM 9NK3534022800

Remote mouse receiver (5'3" (1.6 m)) 9NK3790197000

Operation manual (this manual) 9NK5010057700

(4)

For Australia, New Zealand and Oceania (6' (1.8 m)) 9NK3090152600

Cap for the standard zoom lens (Only supplied with XG-PH70X) 9NK3797200400

Optional accessories

■ Cable

3 RCA to 15-pin D-sub cable (10' (3.0 m)) AN-C3CP2

■ Lamp

Lamp unit 1 AN-PH7LP1 Lamp unit 2 AN-PH7LP2

Note

• Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

-11

Accessories

Optional lenses

■ Lens Projection distance for 100" screen size

Fixed wide lens (× 0.8) AN-PH10EX 5'4" (1.6 m) Wide-zoom lens (× 1.5 – 1.8) AN-PH20EZ 10' – 12' (3.0 m – 3.7 m) Standard zoom lens (× 1.8 – 2.2) AN-PH31EZ 12' – 14'8" (3.7 m – 4.5 m) (attached to XG-PH70X) Tele-zoom lens (× 2.25 – 3.00) AN-PH40EZ 15' – 20' (4.6 m – 6.1 m) Tele-zoom lens (× 3.0 – 4.5) AN-PH50EZ 20' – 30' (6.1 m – 9.1 m) Tele-zoom lens (× 4.5 –7.0) AN-PH60EZ 30' – 46'8" (9.1 m – 14.2 m)

No lens is attached to XG-PH70X-N. The standard zoom lens is attached to XG-PH70X. The optional lenses from Sharp are also available for specialized application. Please see your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the lens operation manual when using a lens.) Also, be sure to have service personnel install the optional lenses.

Throw Distance

The graph below is for 100 inches (254 cm) screen with 4:3 normal mode.

Screen

Fixed wide lens (AN-PH10EX)

5'4" (1.6 m)

Throw distance ratio 1:0.8

Wide-zoom lens (AN-PH20EZ)

10'–12' (3.0 m–3.7 m)

Throw distance ratio 1:1.5–1.8

Standard zoom lens (AN-PH31EZ : Standard equipment with XG-PH70X) 12'–14'8" (3.7 m–4.5 m) Throw distance ratio 1:1.8–2.2

Tele-zoom lens (AN-PH40EZ)

15'–20' (4.6 m–6.1 m)

Throw distance ratio 1:2.25–3.00

Tele-zoom lens (AN-PH50EZ)

20'–30' (6.1 m–9.1 m)

Throw distance ratio 1:3.0–4.5

Tele-zoom lens (AN-PH60EZ)

30'–46'8" (9.1 m–14.2 m)

Throw distance ratio 1:4.5–7.0

5101520253035 455040 (ft)

-12

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector

Top View

Introduction

Power indicator

ON button

For turning the power on.

STANDBY button

For putting the projector

into standby mode.

ZOOM button

For adjusting the projected

image size.

FOCUS button

For adjusting the focus.

H & V LENS SHIFT button

For shifting the lens horizontally

and vertically.

Adjustment buttons

('/"/\/|)

For selecting menu items

and other settings.

ENTER button

For setting items selected

or adjusted on the menu.

KEYSTONE button

For entering the Keystone

Correction mode.

Lamp indicator 1

14·94

Lamp indicator 2

14·94

Temperature warning

14·94

indicator

Volume buttons

For adjusting the speaker sound level.

INPUT 1, 2, 3 button

For switching input mode 1, 2 or 3.

INPUT 4, 5 button

For switching input mode 4 or 5.

AUTO SYNC button

For automatically adjusting images when connected to a computer.

MENU button

For displaying adjustment and setting screens.

UNDO button

For undoing an operation or returning to the previous display.

Front View

Carrying handle

For carrying the

projector.

Speaker

Remote control

sensor

Adjustment foot

(on the bottom of

the projector)

Intake vent

• Attaching the lens cap

Push the lens cap on until it clicks into position.

• Removing the lens cap

Pull the lens cap directly outward.

Lamp unit cover

Intake vent

Speaker

Adjustment foot (on the bottom of the projector)

-13

Part Names and Functions

About the Indicators on the Projector

Power indicator

Red on Green on Red blinks

Lamp indicators 1, 2

Green on Green blinks Red on

Temperature warning indicator

Off Red blinks/on

...

Normal (Standby)

...

Normal (Power on)

...

The intake vent cover is open.

(See page 93.)

...

Normal

...

The lamp is warming up.

The lamp has been shut down abnormally or

needs to be changed. (See pages 94 and 95.)

...

The internal temperature is abnormally high. (See pages 94 and 95.)

...

Normal

...

-14

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector (Side View)

Terminals Refer to “INPUT/OUTPUT Terminals and Connectable Main Equipment” on

page 24.

Introduction

INPUT 1 terminal

Terminal for computer RGB

and component signals.

AUDIO input (1) terminal

Audio input terminal for

INPUT 1.

INPUT 2 terminals

BNC terminals for computer

RGB and component

signals.

RS-232C terminal

Terminal for controlling the

projector using a computer.

INPUT 4 terminal

Terminal for connecting

video equipment.

AUDIO input (4, 5) terminals

Shared audio input terminals for

INPUT 4 and 5.

INPUT 5 terminal

Terminal for connecting

video equipment with an

S-video terminal.

WIRED REMOTE terminal

For connecting the remote

control to the projector when

the signals from the remote

control cannot reach the

remote control sensor.

INPUT 3 terminal

Terminal for DVI digital RGB and digital component signals.

OUTPUT (FOR INPUT 1, 2)

terminal

Output terminal for computer RGB and component signals. Shared for INPUT 1 and 2.

AUDIO input (2, 3) terminal

Shared audio input terminal for INPUT 2 and 3.

AUDIO OUTPUT terminal

Audio output terminal shared for INPUT 1–5.

LAN terminal

Terminal for controlling the projector using a computer via network.

AC socket

Connect the supplied Power cord.

Remote control sensor

Kensington Security Standard connector

Exhaust vent

The speed and pitch of the cooling fan may change during operation in response to internal temperature changes. This is normal operation and does not indicate a malfunction.

Using the Kensington Lock

• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

-15

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Remote Control

For bringing the projected image

FOCUS buttons

into focus.

STANDBY button

For putting the projector into

standby mode.

ZOOM buttons

For adjusting the projected

image size.

KEYSTONE button

For entering the Keystone

Correction mode.

Mouse/adjustment button ('/"/\/|)

• For moving the computer cursor while the ADJ./MOUSE switch is the MOUSE position.

• For selecting menu items while the ADJ./MOUSE switch is the ADJ. position.

ENTER button

For setting items selected or adjusted on the menu.

L-click button

For the left click while the

ADJ./MOUSE switch is the

MOUSE position.

ENLARGE (enlarge/reduce)

buttons

For enlarging/reducing part of the

image.

BREAK TIMER button

For setting the break time.

19·56

ON button

For turning the power on.

ADJ./MOUSE switch

For switching the remote control modes.

H & V LENS SHIFT button

For shifting the lens horizontally and vertically.

MENU button

For displaying adjustment and setting screens.

19·56

R-click/UNDO button

• For the right click while the ADJ./MOUSE switch is the MOUSE position.

• For undoing an operation or returning to the previous display while the ADJ./MOUSE switch is the ADJ. position.

FREEZE button

For freezing images.

Volume buttons

For adjusting the speaker sound level.

MUTE button

For temporarily turning off the sound.

BLACK SCREEN button

For temporarily display the black screen.

RESIZE button

For switching the screen size.

For automatically adjusting images

AUTO SYNC button

when connected to a computer.

INPUT 1, 2, 3, 4 and 5 buttons

For switching to the respective

input modes.

PICTURE MODE button

For switching the picture mode.

WIRED R/C JACK

For connecting the remote control to the projector when the signals from the remote control cannot reach the remote control sensor.

Note

• All the buttons on the remote control, except the mouse/adjustment button and the ADJ./MOUSE switch, are made of luminous material that is visible in the dark. Visibility will diminish over time. Exposure to light will recharge the luminous buttons.

-16

Using the Remote Control

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control:

• Ensure that you do not drop it or expose it to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Inserting the Batteries

Front View

Remote control signal transmitters

Rear View

23' (7 m)

Remote control sensor

30°

Remote control

Remote control sensor

30°

Remote control signal transmitters

Remote control

Introduction

23' (7 m)

30°

Press the tab and lift open the battery cover in the direction of the arrow

2 Insert the batteries.

• Insert the batteries making sure the polarities correctly match the

marks inside the battery compartment.

and

3 Insert the tabs on the end of the

battery cover into their slots and press the cover into position.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Insert the batteries making sure the polarities correctly match the

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries.

• Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

and marks inside the battery compartment.

-17

Using the Remote Control

Using the Remote Control with a Signal Cable

When the signals from the remote control cannot be reached due to the positioning of the projector, use a ø3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector with the remote control.

Side view

To WIRED REMOTE terminal

ø3.5 mm minijack cable (commercially available or available as Sharp service part QCNWGA038WJPZ)

Remote control

To WIRED R/C JACK

Note

• The wireless remote function is not possible when the ø3.5 mm minijack cable is connected to the projector. Should the wireless remote operation be required, the ø3.5 mm minijack cable should be disconnected from the projector.

Switching the Remote Control Mode

The remote control has two functions. One is projector control and the other is wireless computer mouse. Slide the ADJ./MOUSE switch on the remote control to other side compatible to the desired usage.

Projector control Wireless computer mouse

ADJ.

MOUSE

ADJ.

MOUSE

Info

• When using the remote control as the wireless computer mouse, connect the supplied remote mouse receiver to the computer. (See page 19.)

-18

Using the Remote Control as a Wireless Computer Mouse

When connecting the supplied remote mouse receiver to the computer, you can use the remote control as the wireless computer mouse.

Supplied

accessory

Remote mouse receiver

Introduction

1 Connect the supplied remote

mouse receiver to the USB terminal on the computer.

2 Slide the ADJ./MOUSE

ADJ.

switch on the remote control to the MOUSE position.

MOUSE

3 Use the mouse function.

• Point the remote control at the remote mouse receiver.

■ When moving the cursor

Press '/"/\/|.

■ When left-clicking

Press

■ When right-clicking

Press

■ When your computer supports only a one-click mouse (such as Macintosh®)

Press

mon function.)

or . ( and have com-

Computer

To USB terminal

Remote mouse receiver

ADJ./MOUSE switch

Mouse/adjustment button ('/"/\/|)

Note

• This function only works with the Microsoft Windows® OS and Mac OS®. However, this function does not work with the following operation systems that do not support USB.

• Versions earlier than Windows

• Versions earlier than Mac OS

• Confirm that the computer recognizes the USB

connection.

• While the remote control is connected to the projector with a signal cable, you cannot use the wireless computer mouse function.

95.

NT4.0.

8.5.

R-click button

L-click button

-19

Quick Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

5 4 8 3

1. Place the projector facing a screen

8 5 3

4 6

Page 22

2. Connect the projector to the computer and plug the power

cord into the AC socket of the projector

When connecting equipment other than the computer, see pages 30–36.

Pages 27–29, 37

3. Remove the lens cap and turn the projector on

Press

-20

on the projector or on the remote control.

Page 37

4. Adjust the angle

••

•

Adjust the projector angle by rotating the adjust-

Adjust the projector angle

••

•

Shift the lens horizontally and vertically.

••

Press

remote control.

Press

remote control.

on the projector or on the

', ", \ or |

on the projector or the

••

ment feet.

5. Adjust the focus and the zoom

1 Press on the projector or on the remote control to adjust the focus.

2 Press

Correcting the image distortion due to the projection angle

1 Press

remote control.

2 Press

remote control.

3 Press ', ", \ or | to move the position for

the upper left of the image.

on the projector or on the remote control to adjust the zoom.

on the projector or on the

4 Press or to set the position.

44 55

5 Repeat the same procedure with the positions

for the upper right, lower right and lower left of the image.

••

When the position of the lower left is set, the

•

••

correction is made and the display disappears.

Quick Start

Pages 38, 39

Page 40

Page 41

7. Select the input mode

Press on the projector or on the

remote control to select the “INPUT 1” mode.

••

• When pressing on the projector, input mode switches in order of :

••

Pressing

••

• When using the remote control, press

••

on the projector switches between “INPUT 4” and “INPUT 5”.

" On-screen Display (RGB)

INPUT 1 INPUT 2 INPUT 3

to switch the input mode.

Page 45

8. Turn the power off

Press

press

••

• You can unplug the power cord even if the projector is operating.

••

• Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.

••

on the projector or on the remote control. While the confirmation message is displayed,

or again.

" On-screen Display

Page 37

-21

Setting Up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

Note

• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.

• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the projector in a sunny or bright room.

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according to the desired picture size. (For details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.)

Indication of the Projection Image Size and Projection Distance

For details, refer to “SETUP MANUAL” contained on the supplied CD-ROM. Example : NORMAL Mode (4:3) for the standard zoom lens (AN-PH31EZ)

Picture Size

-22

300"

200"

100"

84" 60"

48"

67"

80"

50"

36"

"–

7'2

(2.2 m – 2.7 m)

60"

8'10

160"

10'1

240"×180"

120"

12'4

"–

(3.1 m

3.8 m)

–

12'

(3.7 m

–

14'8

4.5 m)

–

24'

29'4

–

– (7.3 m

8.9 m)

36'

Projection Distance

44'

–

(11.0 m – 13.4 m)

Projecting a Reversed Image

Projection from behind the Screen

■ Place a translucent screen between the projector and the audience.

■ Reverse the image by setting “Rear” in the “PRJ Mode” menu. (See page 84.)

Tr anslucent screen

Audience

Projection Using a Mirror

■ Place a mirror (normal flat type) in front of the lens.

■ When the translucent screen is placed between the mirror and audience, set to “Front” in the “PRJ Mode”

menu. (See page 84.)

■ When the mirror is placed on the audience side, set to “Rear” in the “PRJ Mode” menu. (See page 84.)

Set to “Front”

Mirror

Set to “Rear”

Setup

Tr anslucent screen

Audience

Info

• When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected light does not shine into the eyes of the audience.

Audience

Mirror

Ceiling-mount Setup

■ It is recommended that you use the optional Sharp ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount bracket (sold separately).

• AN-PHCM20 ceiling-mount bracket, its AN-EP101AP extension

tube (for the U.S.A.).

• AN-NV6T ceiling-mount bracket, its AN-TK201 and AN-TK202

extension tubes (for countries other than the U.S.A.).

■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See page 84 for use of this function.

-23

Connections

INPUT/OUTPUT Terminals and Connectable Main Equipment

AUDIO input (1) terminal

Connecting an audio cable. (Audio input terminal dedicated to INPUT 1.) (See

INPUT 1, 2 terminal

Connecting the computer. (See pages 27 and 28.) Connecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.). (See page 33.)

page 27.)

INPUT 3 terminal

Connecting the computer. (See page 29.) Connecting video equipment with HDMI or DVI output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.). (See pages 30

and 31.)

OUTPUT (FOR INPUT 1, 2) terminal

Connecting the monitor when you want to simultaneously watch the projection image on the monitor. (See page 36.)

AUDIO input (2, 3) terminal

Connecting an audio cable. (Shared audio input terminal for INPUT 2 and 3.) (See pages 28 and 29.)

RS-232C terminal

Connecting the computer to control the projector. (See page 35.)

INPUT 4 terminal

Connecting video equipment without S-video output terminal. (See page 34.)

AUDIO input (4, 5) terminals

Connecting an audio cable. (Shared audio input terminals for INPUT 4 and 5.) (See page 34.)

AUDIO OUTPUT terminal

Connecting an audio cable. (Shared audio output terminal for INPUT 1 – 5.) (See page 36.)

LAN terminal

(10 BASE-T/100 BASE-TX)

Connecting the computer or the hub using a LAN cable. (See page

35.)

WIRED REMOTE terminal

For connecting the remote control when the signals from the remote control cannot reach the remote control sensor. (See page 18.)

INPUT 5 terminal

Connecting video equipment with S-video output terminal (VCR, DVD player, etc.). (See page 34.)

-24

Samples of Cables for Connection

•For more details of connection and cables, refer to the operation manual of the connecting equipment.

•You may need other cables or connectors not listed below.

Equipment

Computer

Audio-visual equipment

Terminal on

connected equipment

RGB cable (supplied)

RGB

output

terminal

DVI digital

video

output

terminal

Audio

output

terminal

HDMI

output

terminal

5 BNC to 15-pin D-sub cable (commercially available)

DVI Digital cable (commercially available)

ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)

DVI to HDMI cable (commercially available)

Cable

Terminal on the

projector

INPUT 1

INPUT 2

INPUT 3

AUDIO (for INPUT 1)

Connections

AUDIO (for INPUT 2, 3)

INPUT 3

DVI digital

video

output

terminal

RGB

output

terminal

Component

video

output

terminal

DVI Digital cable (commercially available)

5 RCA RGB cable (commercially available) BNC to RCA adaptors (commercially available)

3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)

BNC to RCA adaptors (commercially available) Component video cable (commercially available)

INPUT 2

INPUT 1

INPUT 2

-25

Samples of Cables for Connection

Equipment

Audio-visual equipment

Monitor

Terminal on

connected equipment

Video cable (commercially available) Video output

terminal

S-video cable (commercially available)

S-video

output

terminal

ø3.5 mm stereo minijack to RCA audio cable

(commercially available)

Audio output

terminal

RGB input

terminal

RCA audio cable (commercially available)

RGB cable (supplied or commercially available)

Cable

Terminal on the

projector

INPUT 4

INPUT 5

AUDIO (for INPUT 1)

AUDIO (for INPUT 2, 3)

AUDIO (for INPUT 4, 5)

OUTPUT

Amplifier

-26

Audio

input

terminal

ø3.5 mm stereo minijack to RCA audio cable

(commercially available)

AUDIO OUTPUT

Connecting to a Computer

Before connecting, ensure the power cord of the projector from the AC outlet is unplugged, and that the devices to be connected are turned off. After making all connections, turn on the projector and then the other devices. When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure the operation manuals of the devices to be connected have been read before making connections.

Note

• See page 100 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

• Connecting computers other than the recommended types may result in damage to the projector, the computer, or both.

• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

• Depending on the computer you are using, an image may not be projected unless the computer’s external output port is switched on. (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the specific instructions in your computer’s operation manual to

enable your computer’s external output port.

Connecting with the RGB Cable

Supplied

accessory

Computer

To audio output terminal

To RGB output terminal

To INPUT 1 terminal

RGB cable

Side view

To AUDIO input (1) terminal

ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)

Note

• With this connection, the projector is not compatible to the sync on green signals.

•

When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

RGB cable

Connections

-27

Connecting to a Computer

Connecting with a 5 BNC to 15-pin D-sub Cable

The projector employs a 5 BNC computer input to prevent deterioration of image quality. When connecting the input terminals on the projector to the computer directly, Connect the R (PR), G/G sync (Y), B (PB), HD/C sync and VD cables of the 5 BNC to 15-pin D-sub cable (commercially available) to the INPUT 2 terminals on the projector.

Computer

To audio output terminal

To RGB output terminal

To INPUT 2 terminals

5 BNC to 15-pin D-sub cable (commercially available)

ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)

Side view

To AUDIO input (2, 3) terminal

Note

• When connecting the projector to a compatible computer other than a PC (VGA/SVGA/XGA/SXGA/UXGA) or Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more information.

• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

• The HD/C sync terminal is only for TTL signal.

-28

Connecting with a DVI Digital Cable

The projector employs the DVI digital input terminal for direct input of digital video signals from a computer.

Computer

To audio output terminal

To INPUT 3 terminal

To DVI digital output terminal

ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)

Side view

DVI Digital cable (commercially available)

To AUDIO input (2, 3) terminal

Note

• When connecting the projector to a computer in this way, select “D. PC RGB” for “Signal Type” in the “Picture” menu.

• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

Connections

-29

Connecting to Video Equipment

Before connecting, ensure the power cord of the projector from the AC outlet is unplugged, and that the devices to be connected are turned off. After making all connections, turn on the projector and then the other devices. The projector has a DVD digital terminal, computer-RGB/component terminal, S-video terminal and video terminal for video input. Refer to the listed illustrations on how to connect audiovisual equipment. If your audio-visual equipment has an RGB output terminal or component output terminal, use the computer-RGB/component terminals (INPUT 1 or 2) on the projector for video connection.

Connecting to Video Equipment That Has an HDMI Output Terminal with a DVI to HDMI Cable

Use a DVI to HDMI cable when connecting HDMI video equipment such as DVD players to the INPUT 3 terminal.

Video Equipment

To HDMI output terminal

To audio output terminals

DVI to HDMI cable (commercially available)

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

Side view

To INPUT 3 terminal

To AUDIO input (2, 3) terminal

Note

• Select the input signal type of the video equipment. See page 63.

• While the projector is connected to video equipment that has an HDMI output terminal, only the video

signal can be input to the projector. (Connect the AUDIO input (2, 3) terminal for audio input.)

• Depending on specifications of video equipment or DVI to HDMI digital cable, the signal transmission may not work property. (The HDMI specification does not support all connections to video equipment that has HDMI digital output terminal using a DVI to HDMI digital cable.)

• For details on compatibility for connection, see support information on DVI connection provided by the video equipment manufacturer.

-30

Connecting to Video Equipment That Has a DVI Output Terminal with a DVI Digital Cable

Use a DVI Digital cable when connecting video equipment with the DVI output terminal such as DVD players to the INPUT 3 terminal.

Video Equipment

To DVI output terminal

To audio output terminals

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

Side view

To INPUT 3 terminal

DVI Digital cable (commercially available)

Note

• Select the input signal type of the video equipment. See page 63.

To AUDIO input (2, 3) terminal

Connections

-31

Connecting to Video Equipment

Connecting to RGB Video Equipment with a 5 RCA RGB Cable

Use a 5 RCA RGB cable when connecting the RGB video equipment such as DVD players and DTV* decoders to the INPUT 2 terminals. * DTV is the umbrella term used to describe the new digital television system in the United

States.

Video Equipment

Side view

To analog RGB output terminals

To audio output terminals

To AUDIO input (2, 3) terminal

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

BNC to RCA adaptors (

commercially available

)

To INPUT 2 terminals

To BNC to RCA adaptors

5 RCA RGB cable (commercially available)

Note

• When connecting the projector to the video equipment in this way, select “RGB” for “Signal Type” in the “Picture” menu. See page 63.

• The HD/C sync and VD terminals may be used depending on the specifications of the DTV decoder connected to this projector. Please refer to the operation manual of the DTV decoder for details.

• The HD/C sync terminal is only for TTL signal.

-32

Connecting to Video Equipment That Has Component Output Terminals

When connecting the video equipment that has component output terminals to the INPUT 1 terminal, use the 3 RCA to 15-pin D-sub cable (optional: AN-C3CP2).

Video Equipment

To audio output terminals

To component video output terminals

Y(green)

B(CB)(blue)

R(CR)(red)

3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)

Side view

To INPUT 1 terminal

To AUDIO input (1) terminal

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

When connecting the video equipment that has component output terminals to the INPUT 2 terminals, use the BNC to RCA adaptors (commercially available).

Video Equipment

To audio output terminals

To component video output terminals

Y(green)

B(CB)(blue)

R(CR)(red)

To INPUT 2 terminals

R)/G/G sync (Y)/B (PB))

(R(P

BNC to RCA adaptors (commercially available)

Component video cable (commercially available)

Side view

To AUDIO input (2, 3) terminal

Connections

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

Note

• ø3.5 mm stereo minijack to RCA audio cable (commercially available) is required for audio input.

• Select “480P/525P” or “576P/625P” for “Special Modes” on the “Fine Sync” menu, if necessary. (See page

69.)

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

• The projector does not support RGBC signals via the Euro-scart.

-33

Connecting to Video Equipment

Connecting with an S-video Cable or a Composite Video Cable

Connect the video equipment to the INPUT 4 or 5 terminal using the S-video cable or composite video cable (commercially available).

Video Equipment

To audio output terminals

To video output terminal

To S-video output terminal

To INPUT 4 terminal

To AUDIO input (4, 5) terminals

Composite video cable (commercially available)

RCA audio cable (commercially available)

S-video cable (commercially available)

Side view

To INPUT 5 terminal

Note

• The S-video signal input to the S-VIDEO terminal is separated into color and luminance signals for realizing a higher-quality image.

• An RCA audio cable (commercially available) is required for audio input.

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-

mercially available cable that fits in the projector terminal you want to connect.

-34

Controlling the Projector by a Computer

When the RS-232C terminal on the projector to the RS-232C serial terminal on the computer, or when the LAN terminal on the projector to the LAN terminal on the computer, the computer can be used to control the projector. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

When connecting to a computer using an RS-232C serial control cable

Computer

To RS-232C terminal

RS-232C serial control cable (cross type, commercially available)

Side view

To RS-232C terminal

Note

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.

• Refer to “SETUP MANUAL” contained on the supplied CD-ROM for the RS-232C specifications and commands.

Info

• Do not connect the RS-232C cable to a terminal other than the RS-232C terminal on the computer. This may damage your computer or projector.

• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Connections

When connecting to the LAN terminal using a LAN cable

LINK LED (green)

Hub or computer

Illuminates when linked.

TX/RX LED (yellow) Illuminates when transmitting/receiving data.

Side view

* To ensure safety, do not

connect the LAN terminal with any cables such as a

To LAN terminal

telephone line that may cause excessive voltage.

To LAN terminal

LAN cable (Category 5 type, commercially available)

Note

•

When connecting to a hub, use straight-through Category 5 (CAT.5) type cable (commercially available).

• When connecting to a computer, use cross-over Category 5 (CAT.5) type cable (commercially available).

-35

Connecting to a Monitor That Has an RGB Input Terminal

You can display computer images on a monitor using the RGB cables.

Computer

To RGB output terminal

RGB cable (supplied or commercially available)

Side view

To INPUT 1 terminal

To OUTPUT (FOR INPUT 1, 2) terminal

RGB cable (supplied or commercially available)

Monitor

To RGB input terminal

Note

• RGB signals and component signals input from the INPUT 1 or INPUT 2 terminals can be output to the monitor.

• For inputting video signals from the INPUT 1 terminal, another RGB cable (commercially available) is required.

Connecting to an Amplifier or Other Audio Equipment

Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.

Amplifier

To audio input terminals

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

Side view

To AUDIO OUTPUT (1 – 5) terminal

Note

• ø3.5 mm stereo minijack to RCA audio cable (commercially available) is required for audio input.

• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off

the power of the amplifier and then turn off the power of the projector.

• By using external audio components, the volume can be amplified for better sound.

• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 72.

-36

Turning the Projector On/Off

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into the AC outlet.

Turning the Projector On

Before performing the steps in this section, connect any equipment that you use with the projector. (See pages 27–36.)

Remove the lens cap and press on the projector or on the remote control.

• The power indicator illuminates green.

• After the lamp indicator illuminates, the projec-

tor is ready to start operation.

• When System Lock is set, the keycode input screen appears. Enter the right keycode to start projection. See page 79 for details.

Note

• The lamp indicator illuminates or blinks, in-

dicating the status of the lamp.

Green: The lamp is on. Blinking green: The lamp is warming up. Red:

The lamp is shut down abnormally or the lamp should be

•

• If the projector is put into standby mode and

replaced.

When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp’s control circuitry is stabilizing the lamp output characteristics. This does not indicate malfunction.

immediately turned on again, the lamp may take some time to illuminate.

Supplied accessory

Side view

To AC socket

Power cord

Info

• If “Direct Power On” is set to “ON”, the projector will be turned on automatically when you plug the power cord into the AC outlet. (See page 87.)

• English is the factory preset language. If you want to change the on-screen display to another language, change the language according to the procedure on page 92.

ON button

button

ON button

STANDBY button

Power cord

To AC outlet

Power indicatorSTANDBY

Lamp indicators 1, 2

Basic Operation

Turning the Power Off

(Put-

ting the Projector into Standby Mode)

1 Press

on the projector or

on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

▼On-screen Display

Info

•

You can unplug the power cord even if the projector is operating.

•

Even if you unplug the power cord from the projector, the cooling fan continues to run for a while.

Lens cap

-37

Image Projection

Shifting the Lens

In addition to the zoom function and adjustment of projection angle using the adjustment feet, you can adjust the position of the projection using the lens shift function. This is a useful function in cases such as when the screen cannot be moved.

When moving upward or downward When moving in the left and right direction

Adjustable range

The adjustable range is shown below. Horizontal range: ±15% Vertical range: +50% (to the upper side) The adjustable range has limitations even within the range shown above. The image can be adjusted as shown on the diagram.

Adjustable range

AN-PH20EZ, AN-PH31EZ, AN-PH40EZ, AN-PH50EZ, AN-PH60EZ

Height of the image × 10%

Width of the image × 15%

AN-PH10EX

Height of the image × 18%

Width of the image × 11%

Width of the image × 15%

Image center

-38

Height of the image × 50%

The position of the image when the vertical position of the image is center and the horizontal position is the lowest

Image center

: Areas on which the image is

masked with a shadow while using the lens shift function.

Height of the image × 50%

The position of the image when the vertical position of the image is center and the horizontal position is the lowest

: Areas on which the image is

masked with a shadow while using the lens shift function.

1 Press on the projector or

on the remote control.

• Pressing on the projector or on the remote control displays the test pattern. Checking the test pattern is useful for more accurate adjustment.

▼On-screen Display

H & V LENS SHIFT button

Mouse/adjustment button ('/"/\/|) ENTER button

H & V LENS SHIFT button

ENTER button

Adjustment button

('/"/\/|)

2 Press ', ", \ or | on the pro-

jector or the remote control to adjust the image position.

Using the Adjustment Feet

• When the position of the projected image cannot be adjusted with the lens shift function, use the adjustment feet to adjust the projected angle.

• The height of the projector can be adjusted using the adjustment feet when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined.

• Install the projector so that it is as perpendicular to the screen as possible.

While lifting the projector, rotate the adjustment feet.

• The projector is adjustable up to approximately 9 degrees.

Basic Operation

2 Lower the projector, and then ro-

tate the adjustment feet for the fine adjustment.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment feet and the projector.

Adjustment feet

Up UpDown Down

-39

Image Projection

Adjusting the Focus

Press

on the projector or on

the remote control to adjust the focus.

▼On-screen Display

ZOOM button FOCUS button

FOCUS buttons

ZOOM buttons

Adjusting the Projected Image Size

Press

the remote control to adjust the projected image size.

▼On-screen Display

-40

on the projector or on

• After you have pressed the FOCUS buttons or the ZOOM buttons on the remote control or the projector, you can display the test pattern by pressing the ENTER button. The test pattern is useful for making more accurate adjustments.

• For fine adjustments, when pressing the H & V LENS SHIFT buttons, the FOCUS buttons or the ZOOM buttons, the projected image moves a small amount toward the desired direction for approximately one second. Hold down the buttons to move the projected image quickly.

Note

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

There are the two types of the Keystone Correction.

1) “GEOMETRIC ADJUSTMENT” for correcting an image designating the corner of the projected image

2) “H & V KEYSTONE” for designating the correction of the horizontal and vertical axes

Selecting the Type of the Correction

Select the type of the keystone correction.

KEYSTONE button

Press

on the projector or on the

remote control.

• “GEOMETRIC ADJUSTMENT” will be dis-

played.

• Each time

toggles as follows:

GEOMETRIC → H & V KEYSTONE ADJUSTMENT

↑

The display ← IMAGE RESIZING * disappears.

GEOMETRIC ADJUSTMENT

H & V KEYSTONE

IMAGE RESIZING

or is pressed, the display

↑

For correcting an image designating the corner of the projected image

For correcting an image designating the horizontal or vertical axes

For correcting the image distortion which cannot be corrected with “H & V KEYSTONE”. *Only when “H & V KEYSTONE” is set to the values other than “0”, “IMAGE RESIZING” can be adjusted. (This function cannot be used when correcting with “GEOMETRIC ADJUSTMENT”.)

ENTER button

KEYSTONE button

Mouse/adjustment button ('/"/\/|) ENTER button

UNDO button

Adjustment button ('/"/\/|)

UNDO button

Basic Operation

-41

Image Projection

GEOMETRIC ADJUSTMENT

1 Press

on the projector or

on the remote control re-

peatedly until “GEOMETRIC ADJUSTMENT” is displayed.

2 Press the buttons below to ad-

just the position, size or focus of the projected image.

• Match screen’s four sides to green test pattern.

• Pressing or to shift the lens.

• Pressing

the remote control allows you to adjust the projected image size.

• Pressing

the remote control allows you to adjust the focus.

on the remote control allows you

on the projector or on

\ or

| on the projector

3 Press on the projector or

on the remote control.

▼On-screen Display

Geometric Adjustment

Upper Left Upper Right Lower Right

4 Press ', ", \ or | to move the

position for the upper left of the image.

• Move the upper left of the yellow frame onto the upper left of the screen.

5 Press or to set the posi-

tion.

Repeat the same procedure with the positions for the upper right, lower right and lower left of the image.

• At this time, pressing on the pro-

jector or

turns to the previous screen.

• Before correcting the upper left of the

image, pressing

to the reset confirmation screen.

• When the position of the lower left is set, the correction is made and the display disappears.

-42

on the remote control re-

or returns

Lower Left

H & V KEYSTONE

1 Press

on the projector or

on the remote control re-

peatedly until “H & V KEYSTONE” is displayed.

• When the correction has already been made with “GEOMETRIC ADJUST-

MENT”, the confirmation message for resetting the correction before “H & V KEYSTONE” is displayed, and then reset.

2 Press ' or " to parallelize the

left and right sides of the projected image.

▼On-screen Display

Vertical Keystone Correction (Adjustment with

' / "

)

3 Press \ or |

to parallelize the

upper and lower sides of the projected image.

4 Press

to display “IM-

AGE RESIZING”.

• Only when “H & V KEYSTONE” is set to the values other than “0”, “IMAGE

RESIZING” works.

Horizontal Keystone Correction

\ / |

(Adjustment with

▼On-screen Display

)

Basic Operation

-43

Image Projection

5 Press ', ", \ or | to correct

the image distortion.

6 Press

sition.

or to set the po-

IMAGE RESIZING (Adjustment with

' / " / \ / |

)

-44

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

Press , , , or on the remote control to select the input mode.

••

• When pressing on the projector, the

••

input mode switches in order of :

INPUT 1 INPUT 2 INPUT 3

••

• When pressing on the projector, the

••

input mode switches between “INPUT 4” and “INPUT 5”.

Note

• When no signal is received, “NO SIGNAL” will be displayed. When non-supported signal is received, “NOT REG.” is displayed.

• When “Auto Search” of the “Options (1)” menu is set to “ON”, the input mode with signal can automatically be detected and displayed. (See page 78.)

• The input mode is not displayed when “OSD Display” of the “Options (1)” menu is set to “Level A” or “Level B”. (See page 75.)

About the Input mode

INPUT 1/ INPUT 2 (RGB/ component)

INPUT 3 (digital PC RGB/digital PC component/digital video RGB/ digital video component)

INPUT 4 (video)

INPUT 5 (S-video)

Used for projecting images from equipment that sends RGB signals or component signals connected to the INPUT 1 or 2 terminals.

Used for projecting images from equipment connected to the INPUT 3 terminal.

Used for projecting images from equipment connected to the INPUT 4 terminal.

Used for projecting images from equipment connected to the INPUT 5 terminal.

/ ///

INPUT buttons

"On-screen Display of Input Mode (Example)

When pressing .

INPUT 1/2/3 mode

Using RGB

* The “INPUT 3”

display is an example. (When “Signal Type” is set to “D. PC RGB”)

Using component

* The “INPUT 3”

display is an example. (When “Signal Type” is set to “D. PC Comp.”)

When pressing .

INPUT 4 mode

Using video

INPUT 5 mode

Using S-video

When “Auto Search” is set to “ON”

• Pressing current input mode.

• Pressing automatic input search.

or once displays the

or again starts the

Basic Operation

-45

Image Projection

Adjusting the Volume

Press remote control to adjust the volume.

| on the projector or on the

Note

• Pressing

Pressing

or \ will lower the volume.

or | will raise the volume.

Turning Off the Sound Temporarily

Press on the remote control to temporarily turn off the sound.

Note

• Pressing again will turn the sound back on.

Displaying an Enlarged Portion of an Image

Volume buttons

"On-screen Display

MUTE button

"On-screen Display

Mouse/adjustment button ('/"/\/|)

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

1 Press

• Enlarges the image.

• Pressing

the projected image.

×1 ×4 ×9 ×16 ×36 ×64×2 ×3

• You can change the location of the en-

larged image using ', ", \ and |.

-46

on the remote control.

enlarges or reduces

Note

ENLARGE (enlarge/reduce) buttons

UNDO button

RESIZE button

2 Press on the remote control

to cancel the operation.

• The magnification then returns to ×1.

Note

In the following cases, the image will return to the normal size (×1).

• When switching the input mode.

• When

• When the input signal is changed.

•

When the input signal resolution and refresh rate (vertical frequency) change.

• When has been pressed.

has been pressed.

Freezing a Moving Image

1 Press on the remote control.

• The projected image is frozen.

FREEZE button

2 Press again to return to the

moving image from the currently connected equipment.

Selecting the Picture Mode

You can select the suitable picture mode for the projected image, such as movie or video game.

Press on the remote control.

• When pressing , the picture mode changes in order of

STANDARD

Note

• Press to return to the “STANDARD” mode.

• This function can also be accessed from the OSD menu (see page 60).

PRESENTATION

CINEMA

CUSTOM

Basic Operation

UNDO button

PICTURE MODE button

-47

Image Projection

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose a desired image.

Mouse/adjustment button

Resize Mode

Press on the remote control.

• Pressing changes the display as shown.

• To return to the standard image, press

“RESIZE” is displayed on the screen.

• This function can also be accessed from the OSD menu (see page 74).

COMPUTER

SVGA (800 × 600)

4:3 aspect ratio

Other aspect ratios

Input signal

Computer

Resolution

lower than

XGA

SXGA (1280 × 960)

Resolution

higher than

SXGA

XGA (1024 × 768)

SXGA (1280 × 960)

SXGA+ (1400 × 1050)

SXGA (1280 × 1024)

1280 × 720

1360 × 768

1366 × 768

1280 × 768

1280 × 800

Image type

4:3 aspect ratio

while

NORMAL FULL BORDER STRETCHDOT BY DOT

1024 × 768

968 × 768

1024 × 576

1024 × 578

1024 × 576

1024 × 614

1024 × 640

NORMAL FULL BORDER

('/"/\/|)

UNDO button

RESIZE button

800 × 600

1024 × 768

1280 × 960

1400 × 1050

1024 × 768

For 4:3 screen For 16:9 screen

1280 × 1024

1280 × 720

1360 × 768

1366 × 768

1280 × 768

1280 × 800

DOT BY DOT

768 × 576

—

720× 576

—

960 × 576

922 × 576

1024 × 576

STRETCH

—

SXGA (1280 × 1024)

5:4 aspect ratio

1280 × 720

1360 × 768 1366 × 768

1280 × 768

1280 × 800

: Cutout area on which images cannot be projected : Area where the signals are off screen

*The Digital Shift function can be used for these images.

16:9 aspect ratio

16:10 aspect ratio

-48

Select “Normal”

VIDEO

Input signal

480I, 480P,

576I, 576P,

NTSC, PAL, SECAM

540P

720P, 1035I, 1080I

Image type NORMAL FULLDTV/video

4:3 aspect ratio

Letter box

Squeeze

16:9 aspect ratio

4:3 aspect ratio

in 16:9

16:9 aspect ratio

For 4:3 screen For 16:9 screen

Select “Stretch”

Select “Full”

Select “Stretch”

Select “Full”

BORDER STRETCH SMART STRETCH

Basic Operation

4:3 aspect ratio

: Cutout area on which images cannot be projected : Area on which the image is not included in the original signals

*The Digital Shift function can be used for these images.

-49

Image Projection

Displaying the Black Screen

This function allows you to temporarily display the black screen.

1 Press .

BLACK SCREEN button

2 Pressing again will turn

the projected image back on.

Displaying and Setting the Break Timer

This function allows you to show the remaining time for break during meeting.

1 Press .

2 While “ ” is displayed, press

', ", \ or | to set the break timer.

• You can set anywhere between 1 and 60 minutes (in 1 units).

• The break timer starts to count down as

soon as

\ or

| is pressed.

▼Projected Image

BREAK TIMER button

▼On-screen Display

Mouse/ adjustment button

'/"/\/|

(

UNDO button

)

Note

• Pressing

• Auto Power Off function will be temporarily

disabled during the break timer. When no input signal is detected for more than 15 minutes, the projector will automatically enter the standby mode if the break timer has elapsed.

• The break timer will be displayed on the startup image. To change the screen displayed during the break timer, change the setting of “Startup Image” (see page 77).

• When “Slave” is set for “Stack Setting”, the break timer is not displayed. (See page 84.)

-50

will cancel the break timer.

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

INPUT 1 / INPUT 2 / INPUT 3


Pressing displays the items on the lower part of the “Picture” menu.

Main Menu Sub Menu

Page 60

Picture Mode

Page 60

Contrast

Bright

Color

Tint

Red

Green

Blue

Sharp

Page 60

CLR Temp

Page 61

Bright Boost

Page 61

Progressive

Page 62

C.M.S. Adjustment

Page 64

DNR

Page 62

Reset

Page 60

Signal Type

Page 63

+30-30

+100

Standard Presentation Cinema Custom

4500K

10500K

2D Progressive 3D Progressive Film Mode

Standard Custom 1 Custom 2 Custom 3 sRGB

OFF Level 1 Level 2 Level 3

INPUT 1/INPUT 2

Auto RGB Component

*1 *4

INPUT 3

D.PC RGB D.PC Comp. D.Video RGB D.Video Comp.

*1 “Color”, “Tint”, “Red”, “Green”, “Blue”, “CLR Temp” and “Bright Boost” cannot be adjusted when “C. M. S. Adjust-

ment” is set to “sRGB”. *2 “Sharp” can be adjusted only when 480I, 480P, 540P, 576I, 576P, 720P, 1035I, or 1080I signal is input. *3 “Progressive” can be adjusted only when 480I or 576I signal is input. *4 “sRGB” can be selected under the conditions below.

• When “Signal Type” is set to “RGB”, “D. PC. RGB” or “D. Video RGB”.

• When “Signal Type” is set to “Auto” and the input signal is distinguished as “RGB”.

*5 “DNR” can be adjusted only when 480I, 480P, 576I or 576P signal is input.

Useful Features

-51

Menu Items

“Picture” menu

INPUT 4 / INPUT 5

Pressing displays the items on the lower part of the “Picture” menu.

Main Menu Sub Menu


Page 60

Picture Mode

Page 60

Contrast

Bright

Color

Tint

Red

Green

Blue

Sharp

Page 60

CLR Temp

Page 61

Bright Boost

Page 61

Progressive

Page 62

C.M.S. Adjustment

Page 64

DNR

Page 62

Reset

Page 60

+30-30

+100

Standard Presentation Cinema Custom

4500K

10500K

2D Progressive 3D Progressive Film Mode

Standard Custom 1 Custom 2 Custom 3

OFF Level 1 Level 2 Level 3

-52

“C.M.S.” menu

“Fine Sync” menu

Main Menu

C.M.S.

Page 64

Main Menu

Fine Sync

Page 68

C.M.S. Adjustment

Page 64

Target

Page 64

Lightness

Page 65

Chroma

Page 65

Hue

Page 66

Reset (This Color)

Page 66

Reset (All Colors)

Page 66

View Settings

Page 67

*6 *7

Clock

Phase

H-Pos

V-Pos

Reset

Page 68

Save Setting

Page 68

Select Setting

Page 69

Special Modes

Page 69

Signal Info

Page 70

Auto Sync

Page 70

Auto Sync Disp

Page 71

Sub Menu

Standard Custom 1 Custom 2 Custom 3 sRGB

[R] Red [Y] Yellow [G] Green [C] Cyan [B] Blue [M] Magenta

+30-30

+150-150

+30-30

+150-150

+60-60

Useful Features

OFF Normal High Speed

*6 The “Fine Sync” menu is displayed only while the input mode is INPUT 1, INPUT 2 or INPUT 3.

*7 “Clock”, “Phase”, “H-Pos”, “V-Pos”, “Reset”, “Save Setting”, “Select Setting” and “Special Modes” can be ad-

justed only while the input mode is INPUT 1 or INPUT 2.

-53

Menu Items

“Audio” menu

“Options (1)” menu

INPUT 1 / INPUT 2 / INPUT 3

INPUT 4 / INPUT 5

Main Menu

Audio

Page 72

Sub Menu

Balance

Treble

Bass

Reset

Page 72

Audio Out

Page 72

Speaker [ON/OFF]

Page 73

Main Menu Sub Menu

Options (1)

Page 74

Pict in Pict

Page 74

Resize

Page 74

Digi. Shift

Page 75

OSD Display

Page 75

Video System

Page 76

Image Capture Save Image

Page 76

Background

Page 77

Startup Image

Page 77

Eco Mode [ON/OFF]

Page 78

Auto Search [ON/OFF]

Page 78

Auto Power Off [ON/OFF]

Page 79

System Lock

Page 79

+30-30

FAO VAO

Normal Full Dot By Dot Border Stretch Smart Stretch

+96-96

Normal Level A Level B

*10

Auto PAL (50/60Hz) SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N

Delete

Logo Custom Blue None

Logo Custom None

*8 Item when inputting RGB signal through INPUT 1, INPUT 2 or INPUT 3 *9 Selectable items in “Resize” mode may differ depending on the signal. *10 Item when selecting INPUT 4 or INPUT 5

-54

“Options (2)” menu

“Language” menu

Main Menu Sub Menu

Options (2)

Page 82

Password

Page 82

Lamp Timer (Life)

Page 83

Lamp Mode

Page 83

PRJ Mode

Page 84

Stack Setting

Page 84

Pair Stack

Page 85

Keylock Level

Page 85

Set Inputs

Page 86

Fan Mode

Page 86

Direct Power On [ON/OFF]

Page 87

RS-232C

Page 87

Monitor Out

Page 88

LAN/RS232C

Page 88

Network

Page 89

Service Mode

Page 90

All Reset

Page 91

Old Password New Password Reconfirm

Lamp 1 Lamp 2

Both Lamps Lamp 1 Only Lamp 2 Only Equal Use

Front Ceiling + Front Rear Ceiling + Rear

Normal Master Slave

Normal Level A Level B

INPUT 1 [ON/OFF] INPUT 2 [ON/OFF] INPUT 3 [ON/OFF] INPUT 4 [ON/OFF] INPUT 5 [ON/OFF]

Normal High

9600 bps 38400 bps 115200 bps

Enable Disable

DHCP Client [ON/OFF]

TCP/IP

*11

IP Address Subnet Mask Gateway

*11 Adjustable only when DHCP

Client is set to “OFF”

Useful Features

“Status” menu

Main Menu Sub Menu

Language

Page 92

English Deutsch Español Nederlands Français Italiano Svenska Português

Main menu

Status

Page 92

-55

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 58 and 59. )

Mouse/

ENTER button

MENU button

UNDO button

Adjustment buttons ('/"/\/|)

adjustment button ('/"/\/|)

ENTER button

MENU button

UNDO button

Menu Selections (Adjustments)

Example: Adjusting “Bright”

• This operation can also be performed by using the buttons on the projector.

1 Press .

• The “Picture” menu screen for the selected input mode is displayed.

2 Press

menu items.

• There are eight menu items as shown below.

\ or

| to display the other

Menu items

Menu item

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

-56

Note

• The “Fine Sync” menu is not available for selecting INPUT 4 or INPUT 5.

3 Press

' or

" to select the item

you want to adjust.

• Pressing displays the items on the lower part of the “Picture” menu.

To adjust the projected image while viewing it

Press .

• The selected single adjustment item (e.g. “Bright”) appears instead of the menu.

• When pressing item (“Color” after “Bright”) will be displayed.

Note

• Press to return to the previous screen.

4 Press

\ or

| to adjust the item

selected.

• The adjustment is stored.

' or

", the following

Single adjustment item

5 Press .

• The menu screen will disappear.

Useful Features

-57

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For adjusting the menu items, see pages 56 and 57.)

Mouse/ adjustment button ('/"/\/|)

ENTER button

MENU button

UNDO button

Menu Selections (Settings)

Example: Setting “OSD Display”

• This operation can also be performed by using the buttons on the projector.

1 Press

• The “Picture” menu screen for the selected input mode is displayed.

2 Press

\ or

| to display the other

menu items.

Menu items

• There are eight menu items as shown below.

Menu item

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

Example: “Options (1)” screen menu

-58

Note

• The “Fine Sync” menu is not available for selecting INPUT 4 or INPUT 5.

3 Press

item you want to set.

Note

• Press to return to the previous screen.

• In some menu, select the icon using

' or

" to select the

Sub menu

4 Press

sub menu.

5 Press

ting of the item displayed in the sub menu.

| to shift the cursor to the

' or

" to select the set-

6 Press .

• The selected item is set.

Note

• Some adjustment items will display a confirmation message. When setting an item, press \ or | to select “Yes” or “OK”, press

Useful Features

7 Press .

• The menu screen will disappear.

-59

Picture Adjustment (“Picture” menu)

You can adjust the projector’s picture to your preferences using the “Picture” menu.

Selecting the Picture Mode

This function allows you to select the picture mode in accordance with brightness of the room or content of the image to be projected. In all picture modes, items on the “Picture” menu can be adjusted and saved.

Menu operation

Example: “Picture” screen menu for IN-

Description of Picture Modes

Selectable items Standard Presentation

Cinema

Custom

Page 58

PUT 1 (RGB) mode

Description For standard image Brightens darker portions of image for more enhanced presentations. Gives greater depth to darker portions of image for a more exciting theater experience. The factory preset value is the same as the one of “Standard”. Using the dedicated software allows you to adjust the gamma curve. Visit “http://sharp-world.com/projector/” for details.

Adjusting the Image

Select a picture mode before adjusting the image.

Menu operation

Example: “Picture” screen menu for IN-

Description of Adjustment Items

Selectable items Contrast Bright Color Tint

Red Green Blue Sharp

*1 “Color”, “Tint”, “Red”, “Green” and “Blue” cannot

be adjusted when “C.M.S. Adjustment” on the “C.M.S.” menu is set to “sRGB”. (See page 64.)

*2 “Sharp” can be adjusted only when 480I, 480P,

540P, 576I, 576P, 720P, 1035I or 1080I DTV signal is input during the INPUT 1, 2 or 3 mode; or the input mode is set to INPUT 4 or 5.

For less contrast For less brightness

For less color intensity

For making skin tones purplish

For weaker red

For weaker green

For weaker blue

For less sharpness

Page 56

PUT 1 (RGB) mode

Press

For more contrast For more brightness For more color intensity For making skin tones greenish For stronger red For stronger green For stronger blue For more sharpness

Press

Note

• You can also press on the remote control to select the picture mode. (See page 47.)

-60

Note

• To reset all adjustment items, select “Reset” and press .

Adjusting the Color Temperature

Emphasizing the Contrast

Menu operation

Page 56

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Color Temperature Settings

Selectable items

4500K

10500K

For lower color temperature for warmer, reddish incandescent-like images.

For higher color temperature for cooler, bluish, fluorescent-like images.

Description

This function emphasizes the bright portions of images to obtain a higher contrast image.

Menu operation

Page 56

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Bright Boost Setting

To improve color reproduc-

Press \ Press |

tion, lower bright boost setting.

To increase brightness, increase bright boost setting.

Note

• “CLR Temp” cannot be set when “C.M.S. Adjustment” on the “C.M.S.” menu is set to “sRGB”. (See page 64.)

Note

• “Bright Boost” cannot be set when “C.M.S. Adjustment” on the “C.M.S.” menu is set to “sRGB”. (See page 64.)

Useful Features

-61

Picture Adjustment (“Picture” menu)

Selecting the Progressive Mode

Menu operation

Page 58

Reducing Image Noise (DNR)

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

color noise.

Menu operation

Description of Progressive

Selectable items

2D Progressive 3D Progressive

Film Mode

The film source is a digital video recording with the original

Useful to display fast-moving images such as sports and action films. Useful to display relatively slowmoving images such as drama and documentary more clearly. Reproduces the image of film source* clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

Description

Selectable items OFF Level 1–3

Note

•

In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically when the film source has been entered.

•

When the image is blurred or noisy, switch to the optimal mode.

•

When using progressive inputs, inputs are directly displayed so that “2D Progressive”, “3D Progressive” and “Film Mode” cannot be selected.

Page 58

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of DNR

Description DNR does not function. Sets the DNR level.

Note

• Set a level so as to view a clearer picture.

Make sure to set “DNR” to “OFF” in the following cases:

• When the image is blurry.

• When the contours and colors of moving im-

ages drag.

• When TV broadcasts with weak signals are projected.

Info

• This function is available for all signals with INPUT 4 and 5.

• This function is available for 480I, 480P, 576I and 576P signals with INPUT 1, 2 and 3.

-62

Signal Type Setting

This function allows you to select the input signal type RGB or component for INPUT 1, INPUT 2 or INPUT 3.

Menu operation

Example: “Picture” screen menu for IN-

Page 58

PUT 1 (RGB) mode

Description of Signal Type Settings

INPUT 1/INPUT 2

Selectable items

Auto

RGB Component

INPUT 3

Selectable items

D. PC RGB

D. PC Comp.

D. Video RGB

D. Video Comp.

Input signals are automatically recognized as RGB or component. Set when RGB signals are received. Set when component signals are received.

Set when digital PC RGB signals are received from a computer. Set when digital PC component signals are received from a computer. Set when digital video RGB signals are received from video equipment. Set when digital video component signals are received from video equipment.

Description

Useful Features

-63

Color Management System (“C. M. S.” menu)

This function allows you to individually adjust the display characteristics of six colors (R: Red, Y: Yellow, G: Green, C: Cyan, B: Blue, M: Magenta).

Selecting the Color Reproduction Mode

This function allows you to select the color reproduction mode for the projected images.

Menu operation

Example: “C.M.S.” screen menu

Description of C.M.S. Adjustment

Selectable items Standard Custom 1 – 3

sRGB

Page 58

Description Standard settings “Lightness”, “Chroma” and “Hue” can be adjusted for each of the six colors. A natural tint based on an original image from the computer.

Selecting the Target Color

This function allows you to select the target color for adjusting the display characteristics.

Menu operation

Example: “C.M.S.” screen menu

Description of Target Colors

Yellow Blue

Green Magenta

Page 56

Red Cyan

Note

•

sRGB is an international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when “C.M.S. Adjustment” is set to “sRGB”.

• You cannot set “Color”, “Tint”, “Red”, “Green”, “Blue”, “CLR Temp”, “Bright Boost” on the “Picture” menu, when “ “sRGB”.

• For additional information about the sRGB function, visit “http://www.srgb.com/”.

C.M.S. Adjustment

” is set to

Info

• When “C.M.S. Adjustment” is set to “sRGB”, the projected image may become dark, but this does not indicate a malfunction.

-64

Setting the Brightness of the Target Color

Setting the Chromatic Value of the Target Color

This function allows you to set the brightness of the selected target color.

Menu operation

Page 56

Example: “C.M.S.” screen menu

Description of Brightness

Press \ Press |

For less brightness of the target color

For more brightness of the target color

This function allows you to set the chromatic value of the selected target color.

Menu operation

Page 56

Example: “C.M.S.” screen menu

Description of Chromatic Value

Press \ Press |

For less chromatic value of the target color

For more chromatic value of the target color

Useful Features

-65

Color Management System (“C. M. S.” menu)

Setting the Hue of the Target Color

This function allows you to set the hue of the selected target color.

Menu operation

Example: “C.M.S.” screen menu

Press \ Press |

For stronger red of the target color

Page 56

Description of Hue

For stronger yellow of the target color

Resetting User-defined Color Settings

This function allows you to reset the specific target color or all of the six colors.

Menu operation

Example: “C.M.S.” screen menu

Selectable items

Reset (This Color)

Reset (All Colors)

Page 56

Description of Reset

Description “Lightness”, “Chroma” and “Hue” of the color selected for “Target” are reset. “Lightness”, “Chroma” and “Hue” of all colors are reset.

-66

Overview of All Color Settings

This function allows you to confirm the settings of all the colors.

Menu operation

Example: “C.M.S.” screen menu

Page 56

Useful Features

-67

Computer Image Adjustment (“Fine Sync” menu)

You can adjust the computer image, match the computer display mode, and confirm the input signal using the “Fine Sync” menu.

Adjusting the Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Menu operation

Example: “Fine Sync” screen menu for

Description of Adjustment Items

Selectable items

Clock Phase

H-Pos

V-Pos

Page 56

INPUT 1 (RGB) mode

Description Adjusts vertical noise. Adjusts horizontal noise (similar to tracking on your VCR). Centers the on-screen image by moving it to the left or right. Centers the on-screen image by moving it up or down.

Saving Adjustment Settings

This projector allows you to store up to seven adjustment settings for use with various computers.

Menu operation

Example: “Fine Sync” screen menu for

Page 58

INPUT 1 (RGB) mode

Note

• You can automatically adjust the computer image by setting “Auto Sync” on the “Fine Sync” menu to “Normal” or “High Speed”, or pressing

on the projector or on the remote

control. See page 70 for details.

• To reset all adjustment items, select “Reset” and press

-68

Selecting Adjustment Settings

Adjustment settings stored in the projector can be easily accessed.

Menu operation

Example: “Fine Sync” screen menu for

Page 58

INPUT 1 (RGB) mode

Special Mode Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Special Modes” on the “Fine Sync” menu may need to be selected to match the computer display mode.

Menu operation

Example: “Fine Sync” screen menu for

Page 58

INPUT 1 (RGB) mode

Note

• If a memory has not been set, a resolution and frequency setting will not be displayed.

• When selecting a stored adjustment setting with “Select Setting”, you can set the projector in the stored adjustments.

Note

• If your computer displays patterns which repeat every other line (horizontal stripes), flickering may occur which makes the image hard to see.

• See “Checking the Input Signal” on page 70 for information on the currently selected input signal.

Useful Features

-69

Computer Image Adjustment (“Fine Sync” menu)

Checking the Input Signal

Menu operation

Example: “Fine Sync” screen menu for

Note

• The projector will display the number of scanned lines available from audio-visual equipment such as a DVD player or Digital Video.

• The projector will display the resolution when connecting the computer.

Page 56

INPUT 1 (RGB) mode

Auto Sync Adjustment

Used to automatically adjust a computer image.

Menu operation

Example: “Fine Sync” screen menu for

Description of Auto Sync Adjustment

Selectable items

OFF

Normal

High Speed

Page 58

INPUT 1 (RGB) mode

Description Auto Sync adjustment is not automatically performed. Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer. “Normal” takes more time than “High Speed” for more accurate Auto Sync adjustment.

-70

Note

• Auto Sync adjustment is also performed by pressing on the projector or on the remote control.

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 68.)

• When

or “High Speed”, Auto Sync will be executed in “High Speed” mode. If the button is pressed again within one minute, Auto Sync will be executed in “Normal” mode.

is pressed while “Auto Sync” is “OFF”

Auto Sync Display Function

Used to set the display during Auto Sync.

Menu operation

Example: “Fine Sync” screen menu for

Description of Auto Sync Display

Selectable items

—

Page 56

INPUT 1 (RGB) mode

Description The image set as a background image is projected. See page 77. The computer image being adjusted is displayed.

Useful Features

-71

Audio Adjustment (“Audio” menu)

You can adjust the projector’s audio to your preferences using the “Audio” menu.

Adjusting the Audio

This function allows you to adjust the projector’s audio.

Menu operation

Example: “Audio” screen menu

Description of Adjustment Items

Selectable items Balance

Treble Bass

Increased audio from the left speaker For weaker treble For weaker bass

Note

• To reset all adjustment items, select “Reset” and press

Page 56

Press \ Press |

Increased audio from the right speaker For stronger treble For stronger bass

Setting the Audio Output Type

This function determines whether the audio level output from the AUDIO OUTPUT terminal is fixed or variable by linking with VOLUME.

Menu operation

Example: “Audio” screen menu

Description of Audio Out Settings

Selectable items FAO (Fixed Audio Output) VAO (Variable Audio Output)

Info

•

When “Audio Out” has been set to “VAO”, first make sure to lower the volume of the projector before turning the power on or off and when switching the input.

Page 58

Description Audio output that does not vary in strength with the volume level of the source projector. Audio output that varies in strength with the volume level of the source projector.

-72

Note

When the projector is connected to audio equipment:

•

It is recommended that “FAO” be selected on “Audio Out”. Because the audio signal from the audio equipment does not vary in strength with the volume level of the projector, you can enjoy better sound.

•

When “FAO” be selected on “Audio Out”, video and audio may not synchronize.

- When connecting audio equipment that has a function for adjusting audio delay time, adjust the delay time for synchronizing video and audio.

- When the audio equipment does not have such a function and the unsynchronized video and audio bothers you, select “VAO” on “Audio Out”. Selecting “VAO” synchronizes video and audio automatically.

Speaker Setting

This function allows you to turn the audio output of the internal speaker on or off when the projector is connected to an external amplifier.

Menu operation

Page 56

Example: “Audio” screen menu

Description of Speaker Settings

Selectable items

OFF

The audio signal is output from the internal speaker. The audio signal is not output from the internal speaker.

Description

Useful Features

-73

Using the “Options (1)” Menu

You can use the “Options (1)” menu to enhance the usage for the projector.

Displaying Dual Pictures (Pict in Pict)

The Pict in Pict (picture in picture) function allows you to display two pictures on the same screen. You can display the image input from INPUT 4 or 5 as an inset picture overlapping the main picture input from INPUT 1, 2 or 3.

Menu operation

Example: “Options (1)” screen menu for

Note

• You can press on the projector or

on the remote control to select the inset

picture image.

• You can press ' / " / \ / | on the projector or

on the remote control to change the location of the inset picture image.

(The inset picture frame will be displayed. To display the inset picture to the desired position, move

the frame and press on the remote control.)

•

Inset picture can only be displayed in composite video or S-video signal of NTSC/PAL/SECAM.

• The audio of the inset picture will come out of the projector’s speakers.

• While the “Pict in Pict” function is working, the “FREEZE” function only works for the inset picture.

•

The “Pict in Pict” function does not work when the following signals are input to the main picture.

−UXGA/SXGA+/SXGA/WXGA signal

−

480I/480P/540P/576I/576P/720P/1035P/1080I signal

−Interlaced RGB signal

−

All signals (when “Resize” is set to “Dot by Dot”)

−

No signal (or when the resolution or refresh rate (vertical frequency) of the signal is changed)

Page 56

INPUT 1 (RGB) mode

on the projector or

Setting the Resize Mode

Depending on the input signal, you can select the screen image.

Menu operation

Example: “Options (1)” screen menu for

Selectable Items of Resize Mode

When inputting RGB signal

Normal Full Dot By Dot Border Stretch

Note

• For details of the Resize mode, see pages 48 and 49.

• You can also press

to change the resize mode. (See page 48.)

Page 58

INPUT 1 (RGB) mode

When inputting DTV/video signal Normal Full Border Stretch Smart Stretch

on the remote control

-74

Shifting the Projected Image Vertically (Digital Shift)

For easier viewing, this function shifts the image projected on the screen up or down eliminating either the upper or lower black band found in 16:9 and other wide aspect ratios.

Setting On-screen Display

This function allows you to turn the on-screen messages on or off.

Menu operation

Example: “Options (1)” screen menu for

Page 58

INPUT 1 (RGB) mode

Menu operation

Page 56

Example: “Options (1)” screen menu for

INPUT 1 (RGB) mode

Description of Digital Shift

Press \

Shifts the projected image down.

Shifts the projected image up.

Press |

Note

•

The “Digital Shift” function works with the “NORMAL”, “BORDER”, “STRETCH” or “SMART STRETCH” image. (See page 49.)

Description of OSD Display Settings

Selectable items Normal

Level A

Level B

All on-screen displays are displayed. INPUT/VOLUME/MUTE/BLACK SCREEN/ FREEZE/AUTO SYNC/ENLARGE/ “An invalid button has been pressed.” are not displayed. All on-screen displays are not displayed. (except the menu, H & V LENS SHIFT, KEYSTONE, FOCUS, ZOOM, “All buttons on Projector are locked.” and warning displays)

Description

Note

• While “Keylock Level” is “Level A” or “Level B”, pressing Projector are locked.” despite the “OSD Display” setting.

displays “All buttons on

Useful Features

-75

Using the “Options (1)” Menu

Setting the Video System

The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Menu operation

Example: “Options (1)” screen menu for

Description of Video Systems

Selectable items PAL (50/60 Hz) SECAM NTSC4.43

NTSC3.58

Note

• The video signal can only be set in INPUT 4 or INPUT 5 mode.

• When “Video System” is set to “Auto”, you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.

• While “Video System” is set to “Auto”, when PAL-M or PAL-N signal is input, the image from PAL signal will be displayed.

Page 58

INPUT 4 (video) mode

Description When connected to PAL video equipment. When connected to SECAM video equipment. When reproducing NTSC signals in PAL video equipment. When connected to NTSC video equipment.

Capturing Projected Images

This projector allows you to capture projected images (RGB signals) and set them as a startup image, or background image when no signals are being received.

Menu operation

Example: “Options (1)” screen menu for

Note

• Images can be captured only when they are from XGA (1024 × 768) non-interlace signals in INPUT 1, INPUT 2 or INPUT 3 mode with “RESIZE” set to “Normal”.

• The saved image is reduced to 256 colors.

• Images from equipment connected to INPUT 4

or INPUT 5 terminal cannot be captured.

• Only one image can be captured and saved.

• The color of images may differ before and after

saving if an image is captured on which image adjustment has been performed using the “C.M.S.” function.

• To delete the captured image, select “Delete”, and then press

Page 58

INPUT 1 (RGB) mode

-76

Selecting the Background Image

Menu operation

Example: “Options (1)” screen menu for

Description of Background Images

Selectable items Logo

Custom

Blue

None

Default image

User customized image (e.g. company logo)

Blue screen

Black screen

Note

• You can set a captured image as a background image by selecting “Custom”.

• When “Custom” is selected, an image saved using “Image Capture” can be displayed as a background image.

Page 58

INPUT 1 (RGB) mode

Description

Selecting the Startup Image

Menu operation

Example: “Options (1)” screen menu for

Description of Startup Images

Selectable items

Logo

Custom None

Default image

User customized image (e.g. company logo)

Black screen

Note

• You can set a captured image as a startup image by selecting “Custom”.

• When “Custom” is selected, an image saved using “Image Capture” can be displayed as a startup image.

Page 58

INPUT 1 (RGB) mode

Description

Useful Features

-77

Using the “Options (1)” Menu

Eco Mode

Menu operation

Example: “Options (1)” screen menu for

Description of Eco Mode

Selectable items

OFF

* This is a reference value and is not guaranteed.

Page 56

INPUT 1 (RGB) mode

Brightness

Approx.

86%

100%

Power consumption

(When using AC 100V)

Approx. 570 W

650 W

Lamp life

Approx. 2,500 hours*

Approx. 2,000 hours*

Detecting the Input Signals Automatically

Menu operation

Example: “Options (1)” screen menu for

Description of Auto Search

Selectable items

OFF

Automatically searches for and switches to

the input mode in which signals are being

received.

“Auto Search” does not function.

Page 56

INPUT 1 (RGB) mode

Description

Note

• When “Eco Mode” is set to “ON”, the power consumption will decrease and the lamp life will extend. (Projection brightness decreases approximately 14%.)

-78

Note

• While the “Auto Search” function is detecting the input signal, pressing a button on the projector or the remote control stops the “Auto Search” function. After the “Auto Search” function finishes completely, press the desired button.

Auto Power Off Function

System Lock Function

Menu operation

Page 56

Example: “Options (1)” screen menu for

INPUT 1 (RGB) mode

Description of Auto Power Off

Selectable items ON

OFF

The projector automatically enters the standby mode when no input signal is detected for 15 minutes or longer. The “Auto Power Off” function will be disabled.

Description

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record the keycode in a safe place where only authorized users have access.

Info

•

If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 104). Even if the product warranty is valid, the keycode reset will incur a charge.

Menu operation

Page 58

Example: “Options (1)” screen menu for

INPUT 1 (RGB) mode

Note

• When “Auto Power Off” is set to “ON”, 5 minutes before the projector enters the standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Setting the keycode

1 Select “System Lock” on the “Op-

tions (1)” menu, then press

• A message is displayed.

• Read this message, and press

2 Press the 4 buttons on the remote

control or on the projector to enter the preset keycode in “Old Code”.

• When setting the keycode for the first time,

press " on the projector for four times.

Useful Features

-79

Using the “Options (1)” Menu

Note

• If you input a wrong keycode, the cursor returns to the first point of the “Old Code”.

• The preset keycode is 4 " buttons on the projec- tor. If this keycode is set, the keycode input screen does not appear when turning the power on.

3 Press the 4 buttons on the remote

control or on the projector to enter the new keycode in “New Code”.

Note

• You cannot use the following buttons for keycode:

• ON button

• STANDBY button

• ENTER button

• L-click button

• R-click/UNDO button

• MENU button

• ZOOM buttons

• FOCUS buttons

• H & V LENS SHIFT button

• System Lock function recognizes each but-

ton on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

Changing the keycode

1 Press the 4 buttons on the remote

control or on the projector to enter the preset keycode in “Old Code”.

Press the 4 buttons on the remote control or on the projector to enter the new keycode in “New Code”.

3 Enter the same keycode in “Recon-

firm”.

4 Enter the same keycode in “Recon-

firm”.

Note

Not displaying the keycode input screen when turning the projector on

• Press " on the projector for four times in steps 2 and 3 above.

When the System Lock is set

• When System Lock is set, the keycode input screen appears after the power is turned on. When it appears, enter the right keycode to start projection. Failure to enter the keycode will cause images not to be projected even when signals are entered to the projector.

-80

When the system lock is set

If you have set the system lock, enter the keycode and follow the procedure below to release the system lock.

▼Input screen for keycode

Note

• When System Lock is set, the keycode input screen appears after the power is turned on.

• If no keycode is entered, the image will not be displayed, even if the projector receives the input signal.

1 Press on the remote control or

on the projector to turn on the

projector.

2 When the keycode input screen ap-

pears, enter the right keycode to start projection.

Note

• System Lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

Useful Features

-81

Helpful Functions Set during Installation (“Options (2)” menu)

Changing the password

Setting a Password

••

• There is no factory preset for the password, so

••

the “Options (2)” menu is enabled.

••

• If you do not want others to operate the “Op-

••

tions (2)” menu, set a password.

Menu operation

Example: “Options (2)” screen menu

Page 58

1 Press

word in “Old Password” and press

2 Press

password in “New Password” and press

" and

| to enter the pass-

" and

| to set the new

3 Enter the same 4-digit password in

“Reconfirm” and press

1 Select “Password” from the “Op-

tions (2)” menu, and press

2 Press

“New Password” and then press

' or

" to set the first digit in

3 Enter the remaining 3 digits and

press

4 Enter the same password in “Recon-

firm” and press

Info

• The password must be entered to use the “Options (2)” menu when a password has been set.

Note

• If you do not want to set a password, leave the

fields blank in steps 2 and 3 and press .

• To cancel the password settings, press

If You Forget Your Password

If you forget the password, delete it using the following procedure and set a new password.

Press .

-82

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Menu operation

Example: “Options (2)” screen menu

Page 56

Setting the Lamp Mode

This function allows you to select the usage of the two lamps installed in the projector.

Menu operation

Example: “Options (2)” screen menu

Page 58

Description of Lamp Timer (Life)

Lamp usage condition

Operated exclusively while “Eco Mode” is “ON”. Operated exclusively while “Eco Mode” is “OFF”.

* This is a reference value and is not guaranteed.

Remaining lamp life

100% 5%

Approx. Approx. 2,500 hours* 125 hours*

Approx. Approx. 2,000 hours* 100 hours*

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.

• The table above indicates rough estimates in the case of using only in each mode shown.

• The lamp life may vary depending on the usage condition.

Description of Lamp Mode

Selectable items Both Lamps

Lamp 1 Only

Lamp 2 Only

Equal Use

Description Both lamps are used for greater brightness. The lamp 1 is used. When the lamp 1 burns out, the lamp 2 automatically switches in use. The lamp 2 is used. When the lamp 2 burns out, the lamp 1 automatically switches in use. Both lamps are used alternately for certain periods.

Useful Features

-83

Helpful Functions Set during Installation (“Options (2)” menu)

Reversing/Inverting Projected Images

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.

Menu operation

Example: “Options (2)” screen menu

Page 58

Controlling Multiple Projectors with the One Remote Control

This function allows you to control multiple projectors with the one remote control during the stack projection or the video wall projection. When using this function, connect the projectors with LAN cables and assign a projector as the master and the other projectors as the slaves.

Menu operation

Example: “Options (2)” screen menu

See page 35 for connecting LAN cables.

Page 58

Description of PRJ Modes

Selectable items Front

Ceiling + Front

Rear

Ceiling + Rear

Normal image

Inverted image

Reversed image

Reversed and inverted image

Description

Note

• This function is used for the reversed image and ceiling-mount setups. (See page 23.)

-84

Description of Stack Setting

Selectable items Normal

Master

Slave

The stack setting is not available.

Set the projector as the master.

Set the projector as the slave.

Description

Note

•

When controlling multiple projectors with the one remote control, settings via web browser are required. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.

•

Only when controlling two projectors with the one remote control, using “Pair Stack” allows you to skip settings via web browser. (See page 85.)

•

When “Slave” is selected on “Stack Setting”, the slave projector cannot be controlled with the remote control. To control the slave projector with the remote control, connect the remote control to the projector. (See page 18.)

Shortcut to Make Projector Stack Settings

Locking the Operation Buttons on the Projector

Normally, settings via web browser are required for the stack projection. You can skip the settings via web browser by using “Pair Stack”, only when you use the two projectors for the stack projection.

Menu operation

Note

• Before setting “Pair Stack”, select “Master” or “Slave” on “Stack Setting”.

Page 56

Example: “Options (2)” screen menu

1 Select “Pair Stack” on the “Option

(2)” menu, and then press

• The confirmation screen will be displayed.

This function can be used to lock the use of certain operation buttons on the projector.

Menu operation

Page 58

Example: “Options (2)” screen menu

Description of Keylock Level

Selectable items

Normal

Level A

Level B

All operation buttons are functional.

Only INPUT/VOLUME buttons on the

projector are available.

All operation buttons on the projector

are unavailable.

Description

Useful Features

2 Select “OK”, and then press .

• The network settings of the projector will change as shown below.

Master Slave IP Address 192.168.150.2 192.168.150.3 Subnet Mask 255.255.255.0 255.255.255.0 DHCP Client OFF OFF Gateway 0.0.0.0 0.0.0.0 User Name (Reset) (Reset) Password (Reset) (Reset) Data Port 10002 10002

-85

Helpful Functions Set during Installation (“Options (2)” menu)

Bypassing Unused Input Selections

This function allows you to skip the input mode that you rarely use. You can skip the input modes when pressing INPUT 1, 2, 3 button or INPUT 4, 5 button on the projector.

Menu operation

Example: “Options (2)” screen menu

Description of Set Inputs

Selectable items Description

INPUT 1–5

OFF

Page 58

Sets the INPUT 1–5 mode selectable respectively. Sets the INPUT 1–5 mode unavailable respectively.

Selecting the Fan Mode

This function changes the fan rotation speed.

Menu operation

Example: “Options (2)” screen menu

Description of Fan Mode

Selectable items

Normal

High

Note

• When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

Page 58

Description Suitable for normal environments. Select this when using the projector at attitudes of approximately 1,500 meters (4,900 feet) or more.

-86

Direct Power On Function

Menu operation

Example: “Options (2)” screen menu

Page 56

Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Description of Direct Power On

Selectable items ON

OFF

The projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on. The projector is turned on manually (see page 37), and does not turn on automatically when the power cord is plugged into the AC outlet or the breaker switch is turned on.

Description

Menu operation

Page 58

Example: “Options (2)” screen menu

Description of RS-232C

Selectable items

9600 bps

38400 bps

115200 bps

Tr ansmission speed is slow.

Tr ansmission speed is rapid.

Description

Useful Features

Note

• Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for RS-232C Specifications and Command Settings.

• Refer to the computer’s operation manual for instructions for setting the computer’s baud rate.

-87

Helpful Functions Set during Installation (“Options (2)” menu)

Monitor Output Settings

When the Monitor Out has been set to “Enable”, the monitor output is activated and power is consumed even in the standby mode. It is recommended that the Monitor Out be set to “Disable” when it is not connected. This reduces power consumption when the projector is in the standby mode.

Menu operation

Example: “Options (2)” screen menu

Page 58

LAN/RS232C Setting

When the LAN/RS232C has been set to “Enable”, the LAN/RS232C is activated and power is consumed even in the standby mode. It is recommended that the LAN/RS232C be set to “Disable” when it is not connected. consumption when the projector is in the standby mode.

Menu operation

Page 58

Example: “Options (2)” screen menu

This reduces power

Description of Monitor Out

Selectable items

Enable

Disable

-88

The monitor output function is activated

Description

even if the projector is in standby mode. The monitor output function is switched off when the projector is in standby mode.

Description of LAN/RS232C

Selectable items

Enable

Disable

The LAN/RS232C function is activated even if the projector is in standby mode. The LAN/RS232C function is switched off when the projector is in standby mode.

Description

Note

• When you want to control the projector using the LAN/RS232C function, select “Enable.”

• The item “LAN/RS232C” will be made unavailable for setting when “Master” or “Slave” is selected on “Stack Setting”. (“LAN/RS232C” will be set to “Enable” automatically.) (See page 84.)

DHCP Client Setting

TCP/IP Setting

Connect the LAN cable before turning the projector on. If not, the DHCP Client function does not work.

Menu operation

Example: “Options (2)” screen menu

Page 58

Set the TCP/IP manually.

Menu operation

Example: “Options (2)” screen menu

Page 58

1 Select “TCP/IP”, then press .

Description of DHCP Client

Selectable items

OFF

Note

• Select “ON” for “DHCP Client”. “Obtaining IP Address...” appears, then the message “The network settings have been changed.”, IP Address, Subnet Mask and Gateway will be displayed.

• If the DHCP server is not available, “Could not obtain IP Address.” appears. In this case, set the TCP/IP manually. (See “TCP/IP Setting” at right.)

Obtains configuration parameters for TCP/IP network automatically. Sets the TCP/IP manually.

Description

2 Enter “IP Address” using

and \, then press

3 Enter “Subnet Mask” using

| and \, then press

Useful Features

-89

Helpful Functions Set during Installation (“Options (2)” menu)

4 Enter “Gateway” using

\, then press

| and

Service Mode

Description of TCP/IP

Selectable items IP Address

Subnet Mask

Gateway

Factory default setting:

192.168.150.002 Enter an IP address appropriate for the network. Factory default setting:

255.255.255.000 Set the subnet mask to the same as that of the computer and equipment on the network. Factory default setting:

000. 000. 000. 000 * When not in use, set to: “000. 000. 000. 000”.

Description

Note

• Before setting “TCP/IP”, select “OFF” for “DHCP Client”.

• Confirm the existing network’s segment (IP address group) to avoid setting an IP address that duplicates the IP addresses of other network equipment or computers. If “192.168.150.002” is not used in a network with an IP address of “192.168.150.XXX”, you don’t have to change the projector IP address.

• For details about each setting, consult your network administrator.

Only the service centers use the menu. Do not use the menu.

Example: “Options (2)” screen menu

-90

Returning to the Default Settings

This function allows you to initialize the settings you have made in the projector.

Menu operation

Page 56

Example: “Options (2)” screen menu

Note

About the network settings

• “IP Address”, “Subnet Mask”, “Gateway” and other network setting items are initialized.

The following items or menu cannot be initialized.

• “C. M. S.” menu “Lightness”, “Chroma” and “Hue” respectively saved for Custom 1-3 on the “C.M.S.” menu.

• “Fine Sync” menu Special Modes

• “Options (1)” menu System Lock

• “Options (2)” menu Lamp Timer (Life)

• “Language” menu

• Image stored using “Image Capture”

Useful Features

-91

Using the Other Menus (“Language” and “Status” menus)

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages: English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

Menu operation

Example: “Language” screen menu

Page 58

Overview of All Menu Settings

This function can be used to display all the adjusted settings as a list on the screen.

Menu operation

Example: “Status” screen menu

Page 56

-92

Maintenance

Cleaning the projector

■ Ensure the power cord is unplugged before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

Mild detergent

diluted with water

Thinner

Wax

Cleaning the air vents and the intake vent cover

■ Use a vacuum cleaner to clean dust from the exhaust vent, the intake vents and the intake vent cover (on the bottom of the projector).

Info

• If you want to clean the air vents and the intake vent cover during projector operation, ensure you press

on the projector or

on the remote control and put the projector into standby mode. After the cooling fan has stopped, unplug the power cord from the AC socket and clean the air vents and the intake vent cover.

Cleaning the exhaust and intake vents

Cleaning the intake vent cover

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in a

mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, be careful not to scrape or hit the lens.

Cleaning

Paper

Note

•

The air vents and the intake vent cover should be cleaned every 100 hours of use. Clean the air vents and the intake vent cover more often when the projector is used in a dusty or smoky location.

•

Ensure the intake vent cover is securely installed. The power will not turn on unless it is correctly installed.

Appendix

-93

Maintenance Indicators

■ The warning lights on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate

red, and the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.

Maintenance Indicators

Power indicator Lamp indicators 1, 2 Temperature warning indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,

“ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will

turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and

then the projector will enter the standby mode. After “

described on page 95.

” appears, ensure you perform the measures

About the lamp indicator

“Change The Lamp. (LAMP 2)” is displayed when the remaining life of the lamp 2 becomes 5% or less.

■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp. (LAMP 1/2)”

will be displayed on the screen.

■ When the percentage becomes 0%, it will change to “

this time, the lamp indicator will illuminate in red.

If you try to turn on the projector a fourth time without replacing the lamp, the lamp whose life is 0%

will not light up.

” (red), the lamp will automatically turn off. At

-94

Maintenance indicator

Temperature

warning

indicator

Lamp

indicators

1, 2

Power

indicator

Normal

Off

Green on

Green blinks when the lamp is warming up.

Green on/

Red on

Abnormal

Red on

(Standby)

Red on

(Standby)

Red blinks

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

The power indicator blinks in red when the projector is on.

Cause Possible solution

• Relocate the projector to an area

• Blocked air intake

• Cooling fan break-

down

• Internal circuit failure

• Clogged air intake

• Clogged intake vent

cover

• The lamp is shut down abnormally.

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

••

• The intake vent

••

cover is open.

with proper ventilation. (See page

9.)

• Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center for repair. (See page 104.)

• Clean the air vents and the intake vent cover. (See page 93.)

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 97.)

• Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center for repair. (See page 104.)

• Please exercise care when replacing the lamp.

••

• Securely install the cover.

••

• If the power indicator blinks even

••

when the intake vent cover is securely installed, contact your nearest Sharp Authorized Projector Dealer or Service Center for advice. (See page 104.)

Info

• If the temperature warning indicator blinks and the projector enters the standby mode, the temperature warning indicator starts to illuminate. Check whether any of the ventilation holes are blocked (see page 10) and then try turning the power back on. Wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

Appendix

-95

Regarding the Lamp

Lamp

■ It is recommended that the lamp units (optional: AN-PH7LP1 and AN-PH7LP2) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 83.

■ Purchase a replacement lamp unit of type AN-PH7LP1 and AN-PH7LP2 from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-BE-SHARP

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.

U.S.A. ONLY

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn

or injury.

• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section. *If you wish, you

may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.

* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized

Projector Dealer or Service Center for repair.

-96

Removing and Installing

STANDBY button

the Lamp Unit

Lamp unit 1 AN-PH7LP1

Info

• Ensure the lamp unit is removed using the handle. Ensure the glass surface of the lamp unit or the inside of the projector are not touched.

• To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below.

• Do not loosen other screws except for the lamp unit cover and lamp unit. (Only the silver screws are loosened.)

1 Press on the projector or

on the remote control to put

the projector into standby mode.

• Wait until the cooling fan stops.

Warning!

• Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burn or injury.

Optional

accessories

Lamp unit 2 AN-PH7LP2

2 Disconnect the power cord.

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

3 Remove the lamp unit cover.

• Loosen the user service screw (1) that secures the lamp unit cover. Remove the lamp unit cover (2).

Power cord

Appendix

User service screw

-97

Regarding the Lamp

4 Remove the lamp unit.

• Loosen the securing screws (two for each lamp) from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

5 Insert the new lamp unit.

• Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

• Be sure that AN-PH7LP1 and ANPH7LP2 are respective type.

6 Replace the lamp unit cover.

• Align the lamp unit cover and slide it to close. Then tighten the user service screw to secure the lamp unit cover.

Info

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Handle

Securing screws

AN-PH7LP1

AN-PH7LP2

For Lamp 1

Compartment for AN-PH7LP1

For Lamp 2

Compartment for AN-PH7LP2

-98

User service screw

Sharp XG-PH70X, XG-PH70X-N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

How to Read This Operation Manual

Contents

How to Access the PDF Operation Manuals

IMPORTANT SAFEGUARDS

Accessories
