Sharp R-970, R-97ST User Manual

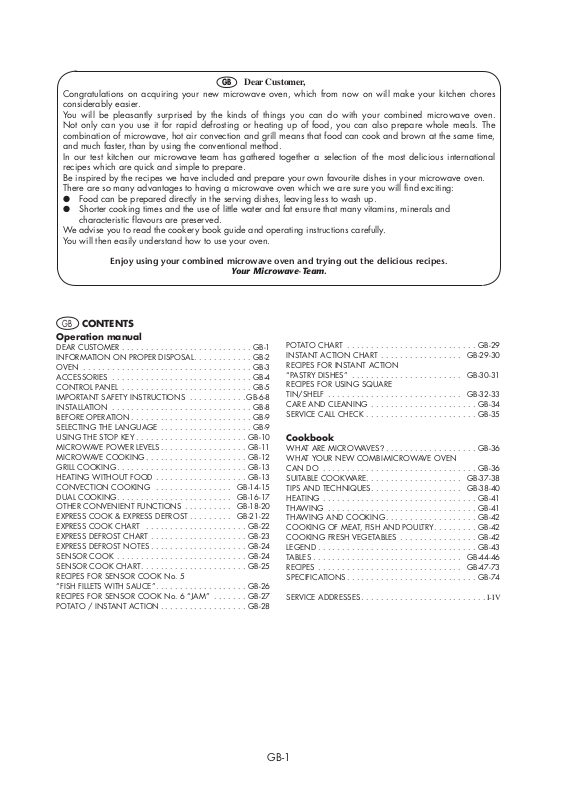

Congratulations on acquiring your new microwave oven, which from now on will make your kitchen chores considerably easier. You will be pleasantly surprised by the kinds of things you can do with your combined microwave oven. Not only can you use it for rapid defrosting or heating up of food, you can also prepare whole meals. The combination of microwave, hot air convection and grill means that food can cook and brown at the same time, and much faster, than by using the conventional method. In our test kitchen our microwave team has gathered together a selection of the most delicious international recipes which are quick and simple to prepare. Be inspired by the recipes we have included and prepare your own favourite dishes in your microwave oven. There are so many advantages to having a microwave oven which we are sure you will find exciting:

● Food can be prepared directly in the serving dishes, leaving less to wash up.

● Shorter cooking times and the use of little water and fat ensure that many vitamins, minerals and

characteristic flavours are preserved. We advise you to read the cookery book guide and operating instructions carefully. You will then easily understand how to use your oven.

Enjoy using your combined microwave oven and trying out the delicious recipes.

CONTENTS

Operation manual

DEAR CUSTOMER . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-1

INFORMATION ON PROPER DISPOSAL. . . . . . . . . . . . GB-2

OVEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-3

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-4

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-5

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . .GB-6-8

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-8

BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . GB-9

SELECTING THE LANGUAGE . . . . . . . . . . . . . . . . . . . GB-9

USING THE STOP KEY . . . . . . . . . . . . . . . . . . . . . . . GB-10

MICROWAVE POWER LEVELS. . . . . . . . . . . . . . . . . . GB-11

MICROWAVE COOKING . . . . . . . . . . . . . . . . . . . . . GB-12

GRILL COOKING. . . . . . . . . . . . . . . . . . . . . . . . . . . GB-13

HEATING WITHOUT FOOD . . . . . . . . . . . . . . . . . . . GB-13

CONVECTION COOKING . . . . . . . . . . . . . . . . GB-14-15

DUAL COOKING. . . . . . . . . . . . . . . . . . . . . . . . GB-16-17

OTHER CONVENIENT FUNCTIONS . . . . . . . . . . GB-18-20

EXPRESS COOK & EXPRESS DEFROST . . . . . . . . . GB-21-22

EXPRESS COOK CHART . . . . . . . . . . . . . . . . . . . . . GB-22

EXPRESS DEFROST CHART . . . . . . . . . . . . . . . . . . . . GB-23

EXPRESS DEFROST NOTES . . . . . . . . . . . . . . . . . . . . GB-24

SENSOR COOK . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-24

SENSOR COOK CHART. . . . . . . . . . . . . . . . . . . . . . GB-25

RECIPES FOR SENSOR COOK No. 5

“FISH FILLETS WITH SAUCE”. . . . . . . . . . . . . . . . . . . GB-26

RECIPES FOR SENSOR COOK No. 6 “JAM” . . . . . . . GB-27

POTATO / INSTANT ACTION . . . . . . . . . . . . . . . . . . GB-28

Dear Customer,

Your Microwave-Team.

POTATO CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-29

INSTANT ACTION CHART . . . . . . . . . . . . . . . . . GB-29-30

RECIPES FOR INSTANT ACTION

“PASTRY DISHES” . . . . . . . . . . . . . . . . . . . . . . . GB-30-31

RECIPES FOR USING SQUARE

TIN/SHELF . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-32-33

CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . GB-34

SERVICE CALL CHECK . . . . . . . . . . . . . . . . . . . . . . . GB-35

Cookbook

WHAT ARE MICROWAVES? . . . . . . . . . . . . . . . . . . . GB-36

WHAT YOUR NEW COMBI-MICROWAVE OVEN

CAN DO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-36

SUITABLE COOKWARE. . . . . . . . . . . . . . . . . . . . GB-37-38

TIPS AND TECHNIQUES. . . . . . . . . . . . . . . . . . . GB-38-40

HEATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-41

THAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-41

THAWING AND COOKING. . . . . . . . . . . . . . . . . . . GB-42

COOKING OF MEAT, FISH AND POULTRY. . . . . . . . . GB-42

COOKING FRESH VEGETABLES . . . . . . . . . . . . . . . . GB-42

LEGEND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-43

TABLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-44-46

RECIPES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-47-73

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . GB-74

SERVICE ADDRESSES. . . . . . . . . . . . . . . . . . . . . . . . . . I-IV

GB-1

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

ESPAÑOLENGLISH

GB-2

OVEN

R-96ST-AA

1 Grill heating element 2 Convection heating element 3 Oven lamp 4 Control panel 5 Shelf rail (rail 1) 6 Shelf rail (rail 2) 7 Waveguide cover 8 Oven cavity 9 Coupling 10 Door seals and sealing surfaces 11 Door opening handle 12 Air-vent openings 13 Outer cabinet 14 Power cord

GB-3

ACCESSORIES

17 <Low Rack>

19 <Square Shelf> 20 <Square Tin>

18 <High Rack>

ACCESSORIES

Check to make sure the following accessories are supplied: 15 Turntable 16 Turntable support 17 Low Rack (height: 4 cm) 18 High Rack (height: 15,5 cm) 19 Square shelf 20 Square Tin 21 Shelf locator.

• Place the turntable support into the coupling in the centre of the oven floor, ensuring you place it TOP side up, (TOP is engraved on one side). It should be able to freely rotate around the coupling.

• Place the turntable on to the turntable support.

• Place the high/low racks onto the turntable if necessary. These racks are used for cooking in Convection, Dual or Grill mode.

• Use the square shelf and square tin for convection only. See page GB-15. When using either the square shelf or the square tin, we recommend you place it at rail 2 as shown in the diagram A. When using both of them, place the square tin at rail 2 and the square shelf at rail 1 as shown in the diagram B. When using the square shelf, ensure the shelf locator is on the right side.

NOTES:

• Always operate the oven with the turntable and support fitted correctly. This promotes thorough even cooking. A badly fitted turntable may rattle, may not rotate properly and damage the oven.

• The turntable rotates clockwise or counter clockwise. The rotary direction may change each time you start the oven. This does not affect cooking performance.

• When you order accessories, please mention two details: part name and model name to your dealer or SHARP authorised service facility.

ESPAÑOLENGLISH

GB-4

CONTROL PANEL

3 2

17 22

CONTROL PANEL

Digital display and indicators: 1 COOKING IN PROGRESS indicator

2 GRILL indicator

3 CONVECTION indicator

4 MICROWAVE indicator

5 INFO indicator 6 LESS/MORE indicator

Operating keys:

7 EXPRESS DEFROST key

8 SENSOR COOK key 9 POTATO keys 10 INSTANT ACTION keys

11 LESS/MORE keys 12 WEIGHT/PORTION keys

13 TIME keys 14 GRILL key

15 CONVECTION key

By pressing this key you can adjust the convection

temperature.

13 14

DUAL CONV. key (Microwave and Convection) 17 DUAL GRILL key (Microwave and Grill) 18 LANGUAGE key 19

(START)/+1min key 20 STOP key 21 TIMER key 22 INFO key 23 MICROWAVE POWER LEVEL key

By pressing this key you can adjust the Microwave

power level.

24 EXPRESS COOK key

GB-5

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. This oven is designed to be used on a countertop only. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet.

2. The oven door may become hot during cooking. Place or mount the oven so that the bottom of the oven is 85 cm or more above the ﬂoor. Keep children away from the door to prevent them burning themselves.

3. Ensure there is a minimum of free space above the oven of 13 cm.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

5. Children should be supervised to ensure that they do not play with the appliance.

6. WARNING: Only allow children to use the oven

without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. WARNING: When the appliance is operated in the GRILL, CONVECTION, DUAL, EXPRESS COOK, POTATO and INSTANT ACTION modes, children should only use the oven under adult supervision due to the temperature generated.

8. WARNING: Accessible parts may become hot during use. Young children should be kept away.

9. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

10. WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

11. If t he power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised SHARP service agent. WARNING: Liquids and other foods must not be

12. heated in sealed containers since they are liable to explode.

13. Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must be taken when handling the container.

14. Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

15. Utensils should be checked to ensure that they are suitable for use in the oven. See Page GB-37. Use only microwave safe containers and utensils on microwave modes.

16. The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

17. The do or, outer cabinet, oven cavity, dishes, accessories and especially the grill heating elements will become very hot during operation. Care should be taken to avoid touching these areas. To prevent burns, always use thick oven gloves. Before cleaning make sure they are not hot.

18. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

19. If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any flames.

20. Clean the oven at regular intervals and remove any food deposits.

21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

23. Steam cleaner is not to be used.

24. See instructions for cleaning door seals, cavities and adjacent parts on page GB-34.

ESPAÑOLENGLISH

GB-6

IMPORTANT SAFETY INSTRUCTIONS

To avoid the danger of fire.

The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

2. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

3. The AC power supply must be 230V, 50Hz, with aminimum 16A distribution line fuse, or a minimum 16A distribution circuit breaker.

4. A separate circuit serving only this appliance should be provided. Do not place the oven in areas where heat is

5. generated. For example, close to a conventional oven.

6. Do not install the oven in an area of high humidity or where moisture may collect.

7. Do not store or use the oven outdoors.

8. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

9. Do not place flammable materials near the oven or ventilation openings.

10. Do not block the ventilation openings.

11. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

12. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

13. To make popcorn, use only special microwave popcorn makers.

14. Do not store food or any other items inside the oven.

15. Check the settings after you start the oven to ensure the oven is operating as desired.

16. To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, Sausage rolls, Pies or Christmas pudding.

17. See the corresponding hints in operation manual and the cookery book section.

To avoid the possibility of injury

WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use: a) The door; make sure the door closes properly

and ensure it is not misaligned or warped.

b) The hinges and safety door latches; check to

make sure they are not broken or loose.

c) The door seals and sealing surfaces; ensure that

they have not been damaged.

d) Inside the oven cavity or on the door; make sure

there are no dents.

e) The power supply cord and plug; ensure that

they are not damaged.

2. Do not operate the oven with the door open or alter the door safety latches in any way.

3. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits. Follow the instructions for ''Care and Cleaning'' on page GB-34.

5. Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

1. Under no circumstances should you remove the outer cabinet.

2. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorised SHARP service agent.

3. Do not immerse the power supply cord or plug in water or any other liquid.

4. Do not let the power supply cord hang over the edge of a table or work surface.

5. Keep the power supply cord away from heated surfaces, including the rear of the oven.

6. Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent.

To avoid the possibility of explosion and sudden boiling:

1. Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off.

2. Take care when microwaving liquids. Use a widemouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and

possible scalding:

1. Do not use excessive amount of time (See page

GB-45).

2. Stir liquid prior to heating/reheating.

3. It is advisable to insert a glass rod or similar

utensil (not metal) into the liquid whilst reheating.

4. Let liquid stand for at least 20 seconds in the

oven at the end of cooking time to prevent delayed eruptive boiling.

3. Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

GB-7

IMPORTANT SAFETY INSTRUCTIONS

To avoid the possibility of burns

1. Use pot holders or oven gloves when removing food from the oven to prevent burns.

2. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Temperature of the container is not a true indication

of the temperature of the food or drink; always check the food temperature.

4. Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.

5. Slice stuffed baked foods after heating to release steam and avoid burns.

To avoid misuse by children

1. Do not lean or swing on the oven door.

2. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

1. Never modify the oven in any way.

2. Do not move the oven while it is in operation.

3. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote troublefree use of your oven and avoid damage.

1. Never operate the oven when it is empty except where recommended in the operation manual. Doing so may damage the oven.

2. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress.The preheating time specified in the dish’s instructions must not be exceeded.

3. Do not use metal utensils, which reflect microwaves and may cause electrical arcing.

Use only the turntable and the turntable support

designed for this oven. Do not operate the oven without the turntable.

4. Do not place anything on the outer cabinet during operation.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

INSTALLATION

ESPAÑOLENGLISH

1. Remove all packing materials from the inside of

the oven cavity. Discard the loose polythene sheet from between the door and cavity. Remove the feature sticker, if attached, from the outside of the door.

2. Check the oven carefully for any signs of damage.

3. Place the oven on a flat, level surface strong enough

to support the oven’s weight plus the heaviest item likely to be cooked. This oven is designed for countertop use only. Do not place the oven in a cabinet.

4. The oven door may become hot during cooking. Place or mount the oven so that the bottom of the oven is 85 cm or more above the floor. Keep children away from the door to prevent them burning themselves.

5. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

6. Ensure there is a minimum of free space above the

oven of 13 cm.

7. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

GB-8

BEFORE OPERATION

Your oven has an energy save mode.

1. Plug in the oven. Nothing will appear on the

display at this time.

2. Open the door. The oven display will show “SELECT LANGUAGE”

in 5 languages.

NOTE: Once you select the language using the

LANGUAGE key, the display will show “. 0“.

3. Close the door.

The oven display will show “. 0“.

4. Select a language (See below). NOTE: If you use the oven in English, you do not

have to select language, and go to step 5.

5. Heat the oven without food (See page GB-13).

In Energy Save Mode, if you do not operate the oven for 3 minutes or more (e.g. closing the door, pressing the STOP key, or at the end of cooking), you will not be able to operate the oven until you open and close the oven door.

COOKING HINTS:

The oven has an ‘Information Display System’ which offers you step by step instructions to easily guide you through each feature, and enable you to gain information in your desired language. The oven has an INFO key for getting instructions for each key. Indicators will appear in the display, after pressing a key, to inform you of the next operation step.

SELECTING THE LANGUAGE

Press LANGUAGE key LANGUAGE

once

twice 3 times 4 times 5 times

Example: Suppose you want to select German:

1. Choose the desired language

by pressing the LANGUAGE key.

ENGLISH

DEUTSCH

NEDERLANDS

FRANÇAIS

ESPAÑOL

2. Press the

to start the setting.

The oven comes set for English. You can change the language. To change, press the LANGUAGE key until the desired language is displayed. Then press the

(START)/+1min key.

(START)/+1min key

Check the display.

NOTE: The selected language will be memorised even if the electical power supply is interrupted.

GB-9

USING THE STOP KEY

Use the STOP key to:

1. Erase a mistake during programming.

2. Stop the oven temporarily during cooking.

3. Cancel a programme during cooking, press the STOP key twice.

ESPAÑOLENGLISH

GB-10

MICROWAVE POWER LEVELS

Power Level

HIGH

MEDIUM

HIGH

MEDIUM

LOW

(Defrost)

LOW

(Defrost)

Generally the following recommendations apply: 100 P/90 P - (HIGH output = 1050/945 W) used for fast

cooking or reheating e.g. for casseroles, hot beverages, vegetables etc.

80 P/70 P - (MEDIUM HIGH output = 840/735 W) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive didhes such as sponge cakes. At this reduced setting, the food will cook evenly without over cooking at the sides.

Press the MICROWAVE POWER LEVEL key

X1 100 P X2 90 P 945 W X3 80 P 840 W X4 70 P 735 W X5 60 P 630 W X6 50 P 525 W X7 40 P 420 W

X8 30 P 315 W

X9 20 P 210 W X10 10 P 105 W X11 0 P 0 W

Display Watt

1050 W

IMPORTANT: The Microwave power level will default to 100 P unless you press the MICROWAVE POWER LEVEL key.

• Your oven has 11 power levels, as shown.

60 P/50 P - (MEDIUM output = 630/525 W) for dense foods which require a long cooking time when cooked conventionally, e.g. beef casserole, it is advisable to use this power setting to ensure the meat will be tender.

40 P/30 P - (MEDIUM LOW output = 420/315 W defrost setting) to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.

20 P/10 P - (LOW output = 210/105 W) For gentle defrosting, e.g. cream gateaux or pastry.

To set the microwave power level:

1. Input the time by pressing the TIME keys.

2. Press the MICROWAVE POWER LEVEL key until the desired power level appears on the display.

(If the MICROWAVE POWER LEVEL key is touched once, level, continue pressing the MICROWAVE POWER LEVEL key until you reach the level again).

3. Press the

NOTE: If the power level is not selected, 100 P is automatically set.

(START)/+1min key.

will be displayed. If you miss your desired

GB-11

MICROWAVE COOKING

Your oven can be programmed for up to 99 minutes and 50 seconds (99.50).

Example:

Suppose you want to heat soup for 2 minutes and 30 seconds on 70 P microwave power.

1. Enter the cooking time by pressing the TIME keys.

2. Press the MICROWAVE POWER LEVEL key four times

for 70 P microwave power.

3. Press the

key once to start cooking.

(START)/+1min

x3x2 x4

NOTES:

1. When the door is opened during the cooking

process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the

+1min key is pressed.

2. If you wish to know the power level during cooking,

press the MICROWAVE POWER LEVEL key. As long as your finger is pressing the MICROWAVE POWER LEVEL key, the power level which you have input will be displayed.

3. When the operation of the oven has finished,

“. 0“ will reappear on the display.

(START)/

Check the display.

WARNING:

1. Never use the square shelf and square tin for

microwave cooking and dual cooking as this may cause arcing.

2. After cooking and opening the door, the display

may show “NOW COOLING”.

ESPAÑOLENGLISH

GB-12

GRILL COOKING

The grill heating element at the top of the oven cavity has one power setting only.

Example: Suppose you want to cook cheese on toast for 5 minutes (Place toast on the high rack.)

1. Enter the cooking time by

pressing the 1 MIN key five times.

2. Select the grill mode by pressing the GRILL key once.

3. Press the

key to start cooking.

(START)/+1min

1. The high or low racks are recommended when

grilling. It is not recommended to use the square shelf and square tin for grilling.

2. You may detect smoke or a burning smell when

using the grill for the first time, this is normal and

WARNING: The oven cavity, door, outer cabinet, accessories and dishes will become very hot, always use thick oven gloves when removing the food or turntable from the oven to prevent burns.

Check the display.

not a sign that the oven is out of order. (Please see heating without food below.)

3. After cooking and opening the door, the display

may show “NOW COOLING”.

HEATING WITHOUT FOOD

You may detect smoke or a burning smell when using the grill and convection for the first time. This is normal and not a sign that the oven is out of order. To avoid this problem, when first using the oven, heat the oven without food for 20 minutes on grill and then at convection 250°C. IMPORTANT: During operation, to allow smoke or smells to disperse open a window or switch the kitchen ventilation on. Make sure there is no food in the oven.

1. Enter the required

heating time. (20 min.) by pressing the 10

MIN key twice.

2. Select GRILL key or CONVECTION key.

3. Start operation by

pressing the (START)/+1min key.

The oven will count down. When the oven has finished cooking, open the door to cool the oven cavity.

WARNING: The oven door, outer cabinet, oven cavity and accessories will become hot. Take care to avoid burns when cooling the oven down after operation.

GB-13

CONVECTION COOKING

Your oven can be used as a conventional oven using the convection facility and 10 pre-set oven temperatures. Preheating is recommended for better results (especially when using the square shelf or the square tin).

Press CONVECTION key12345678910

Oven Temp (°C) 250 230 220 200 190 180 160 130 100 40

Example 1: To cook with preheating

Suppose you want to pre-heat to 200°C and cook for 20 minutes at 200°C.

1. Enter the desired preheat

temperature by pressing the CONVECTION key four times. The display will show 200°C.

2. Press the

key to start pre-heating.

(START)/+1min

When the pre-heated temperature has been reached the audible signal sounds, the display will show 200°C, open the door and place the food inside the oven. Close the door.

ESPAÑOLENGLISH

3. Enter the cooking time by

pressing the10 MIN key twice (20 mins).

NOTES:

1. When the oven is preheated the turntable should be in the oven.

2. After preheating, if you want to cook at a different temperature press the CONVECTION key until the

desired setting appears on the display. In the example above, to change the temperature you would press the

CONVECTION key after entering the cooking time.

3. When the oven reaches the programmed preheating temperature, it will automatically hold at

the pre-heated temperature for 30 minutes. After 30 minutes the display will change to “. 0“. The selected convection programme will be cancelled.

4. After cooking and opening the door, the display may show “NOW COOLING”.

5. To get the best results when following pack instructions for convection, please follow the instructions for

“conventional oven”.

6. When using the square shelf or the square tin, rotate the square tin or the container on the square shelf 180°

halfway to achieve better results.

4. Press the

key.

(START)/+1min

Check the display.

GB-14

CONVECTION COOKING

Example 2: To cook without preheating

Suppose you want to cook at 250°C for 20 minutes.

1. Enter the cooking time by pressing the 10 MIN key twice (20 mins).

2. Select the desired cooking

temperature.(250°C).

3. Press the

key.

(START)/1min

NOTES:

1. After cooking and opening the door, the display may show “NOW COOLING”.

2. To change the convection temperature, press the CONVECTION key until the desired temperature appears on

the display.

3. You may detect smoke or a burning smell when using convection for the first time. This is normal and is not a sign that the oven is out of order. (Please see Heating Without Food on page GB-13).

WARNING: The oven cavity, door, outer cabinet, accessories and dishes will become very hot, always use thick oven gloves when removing the food or turntable from the oven to prevent burns.

SPECIAL NOTES FOR SQUARE SHELF & SQUARE TIN:

1. When using either the square shelf or the square tin, we recommend you

place it at rail 2. When using both of them, place the square tin at rail 2 and the square shelf at rail 1 as shown in the diagram. Please also refer to the diagram B on page GB-4.

2. When using the square shelf and/or the square tin, leave the turntable in the oven.

3. When using the square shelf or the square tin, rotate the square tin or the container on the square shelf 180° halfway to achieve better results.

4. When using the square shelf follow the notes below to prevent them slipping out:

• Do not place container with food weighing more than 5 kg on the

square shelf.

• Ensure that the square shelf is in the correct position and does not rattle.

• When removing the food, pull the square shelf until it is slightly locked,

and then remove the food.

5. Some recipes for using the square shelf or the square tin are included in this operation manual. Please refer to pages GB-32-33.

6. To get the best results when following pack instructions for convection, please follow the instructions for “conventional oven”.

Check the display.

Shelf rails

rail 1

rail 2

GB-15

DUAL COOKING

Your oven has 2 DUAL cooking modes combining the heat of the convection or grill with the power of the microwave. To select the DUAL cooking mode, choose the cooking time, then press the DUAL MODE key to select the desired setting. Generally, dual cooking time shortens the total cooking time.

Press DUAL MODE key Cooking method

DUAL CONV. MICRO 30 P

CONV 250°C

DUAL GRILL

NOTES:

• To adjust the microwave power, press the MICROWAVE POWER LEVEL key.

• To adjust the convection temperature, press the CONVECTION key until the desired temperature appears on

the display.

• For DUAL CONV. the oven temperature can be changed from 40°C to 250°C in ten levels.

Example 1:

Suppose you want to cook for 20 minutes on DUAL CONV. using 10 P microwave power and 200°C convection.

1. Enter the desired cooking time by pressing the 10 MIN key twice (20 minutes).

4. Press CONVECTION key three

times (200°C).

2. Select the cooking mode by

pressing the DUAL CONV. key.

5. Press the

key.

MICRO 30 P

GRILL

(START)/+1min

Microwave Power Range

10 P - 60 P

10 P - 80 P

3. Press the MICROWAVE POWER LEVEL key twice

(10 P)

Check the display.

ESPAÑOLENGLISH

GB-16

DUAL COOKING

Example 2:

Suppose you want to cook for 20 minutes on DUAL GRILL using 10 P microwave power and GRILL.

1. Enter the desired cooking time by pressing the 10 MIN key twice (20 minutes).

4. Press the

key.

NOTE: After cooking and opening the door, the display may show “NOW COOLING”.

WARNINGS:

1. The oven cavity, door, outer cabinet, accessories and dishes will become very hot, use thick oven gloves when removing the food or turntable from the oven to prevent burns.

2. Never use the square shelf and square tin for microwave cooking and dual cooking as this may cause

arcing.

(START)/+1min

2. Select the cooking mode by

pressing the DUAL GRILL key once.

Check the display.

3. Press the MICROWAVE POWER LEVEL key twice

(10 P)

GB-17

OTHER CONVENIENT FUNCTIONS

1. MULTIPLE SEQUENCE COOKING

A maximum of 4 stages can be input, consisting of manual cooking time and mode.

Example:

To cook: 5 minutes on 100 P power (Stage 1) 16 minutes on 30 P power (Stage 2)

STAGE 1

1. Enter the desired cooking time

by pressing the 1 MIN key 5 times.

2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL key once.

ESPAÑOLENGLISH

STAGE 2

3. Enter the desired cooking time

by pressing the 10 MIN key once and the 1 MIN key 6 times.

Check the display

4. Choose the desired power by pressing the MICROWAVE POWER LEVEL key eight

times.

(The oven will begin to cook for 5 minutes on100 P, and then for 16 minutes on 30 P).

level

5. Press the (START)/+1min

key once to begin cooking.

GB-18

OTHER CONVENIENT FUNCTIONS

2. LESS ( ▼ ) / MORE ( ▲ ) key

The LESS ( ▼ ) and MORE ( ▲ ) keys allow you to easily decrease or increase programmed setting times,(for a

less well or more well cooked result), used in automatic operations or cooking time while in operation.

a) Changing the pre-programmed time setting:

▼

Example: Suppose you want to cook 0,2 kg Thin French Fried Potatoes using the POTATO and LESS (

) key.

1. Choose the desired result

(less cooked for thin type) by pressing the LESS (

NOTES:

To cancel LESS or MORE press the same key again. To change MORE to LESS simply press the LESS ( To change LESS to MORE simply press the MORE (

b) Changing the heating time while the oven is operating:

During the manual cooking process, the cooking time can be decreased or increased in 1 minute

steps each time the LESS (

NOTE: You can use this function for manual cooking only.

▼ ) key once.

2. Choose the POTATO menu

and quantity by pressing the FRENCH FRIED POTATO key once.

▼ ) key.

▲ ) key.

▼ ) and MORE ( ▲ ) keys are pressed.

3. +1min function

The +1min key allows you to operate the two following functions:

a) Direct start You can directly start cooking on 100 P microwave power for 1 minute by pressing the +1min key.

NOTE:

To avoid the misuse by children the +1min key can be used only within 3 minutes after preceding operation,

e.g., closing the door, pressing the STOP key or cooking completion.

b) Extend the cooking time

You can extend the cooking time for multiples of 1 minute if the +1min key is pressed while the oven is in

operation.

NOTE: You can use this function for manual cooking only.

4. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING

You can check the power level and the actual oven temperatures while the oven is in operation ie: when preheating. You can use this function for manual cooking only.

TO CHECK THE POWER LEVEL:

To check the microwave power level during cooking press the MICROWAVE POWER LEVEL key. The oven continues to count down, although the display shows the power level which you have input.

TO CHECK THE CONVECTION TEMPERATURE:

To check the convection temperature which you have input during cooking press the CONVECTION key. When the oven is preheating, you can check the actual oven temperature.

As long as your finger is pressing the key, the power level will be displayed.

As long as your finger is pressing the key, the convection temperature in °C will be displayed.

GB-19

OTHER CONVENIENT FUNCTIONS

5. INFO key

Each button carries useful information. If you wish to get the information, press the INFO key before pressing the desired key.

Example:

Suppose you want to get information about INSTANT ACTION, Roast chicken:

NOTE:

1. The information message will be repeated twice, and then the display will show “. 0“.

2. If you want to cancel the information press the

STOP key.

1. Choose the INFO key

function.

2. Press the INSTANT ACTION key for Roast

Chicken.

6. TIMER FUNCTION

You can use the timer for timing where microwave cooking is not involved for example, to time boiled eggs cooked on a conventional hob.

Example:

To set the timer for 5 minutes.

1. Open and Close the door to

activate timer function.

4. Press the +1min key

timer.

(START)/

to start the

2. Press the TIMER key once. 3.

x1 x5

Check the display.

Press the 1 MIN key five times.

ESPAÑOLENGLISH

GB-20

EXPRESS COOK & EXPRESS DEFROST

The EXPRESS COOK and EXPRESS DEFROST functions automatically work out the correct cooking mode and cooking time. You can choose from 3 EXPRESS COOK menus and 7 EXPRESS DEFROST menus. menus.

Warning: For EXPRESS COOK: The oven cavity, door, outer cabinet, accessories and dishes will become very hot. Use thick oven gloves when removing food or the turntable from the oven to prevent burns.

What you need to know when using EXPRESS COOK and EXPRESS DEFROST:

1. The menu you wish to use can be selected by pressing

the EXPRESS COOK or EXPRESS DEFROST key until the desired menu number appears in the display. (See pages GB-22-23)

2. The weight or quantity of the food can be input by pressing the WEIGHT/PORTION keys until the desired weight/quantity is displayed.

• Enter the weight of the food only. Do not include

the weight of the container.

• For food weighing more or less than weights/

quantities given in the cooking charts, cook manually.

3. The programmed cooking times are average times. If you want to alter cooking times pre-programmed

in the automatic operations, use the LESS (

▲ ) keys. See page GB-19 for details. For

MORE (

best results, follow cooking chart instructions. To start cooking press (START)/+1min key.

When action is required (e.g. to turn food over)

the oven stops and the audible signals sound, the display shows the necessary action. To continue cooking, press the

The final temperature will vary according to the

initial temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking time and change the power level.

(START)/+1min key.

▼ ) or

Menu Number

WEIGHT/PORTION keys

LESS/MORE keys

(START)/+1min key

NOTE: Please refer to the menu label for list of EXPRESS COOK and EXPRESS DEFROST menus and weight

ranges.

GB-21

EXPRESS COOK & EXPRESS DEFROST

Example: Suppose you want to cook 0,2 kg of Frozen Gratin using EXPRESS COOK.

1. Press the EXPRESS COOK

key 3 times to select Frozen Gratin.

2. Enter the weight by pressing the WEIGHT/PORTION keys until the desired weight is displayed.

3. Press the

key to start cooking.

(START)/+1min

x5 x1or

EXPRESS COOK CHART

KEY MENU NO. WEIGHT (Increasing

C-1

Frozen Ready Meals (initial temp -18°C)

Stirrable type (e.g. Noodles Bolognese, Chinese Menus.)

C-2

Frozen Vegetables (initial temp -18°C)

e.g. Brussel sprouts, cauliflower, peas, mixed vegetables, broccoli

C-3

Frozen Gratin (initial temp -18°C)

e.g. Frozen lasagne, Potato gratin

Unit) / UTENSILS

0,3 - 1,0 kg* (100 g) Casserole dish & lid * If the manufacturer

instructs to add water or oil, please calculate the total amount for the program with additional liquid.

0,1 - 0,8 kg (100 g) Casserole dish & lid

0,2 - 0,6 kg (100 g) Gratin dish Low rack

PROCEDURE

• Transfer meal to suitable casserole dish.

• Add some liquid or oil if recommended by the manufacturer.

• Cover with a lid.

• When the audible signals sound, stir and re-cover.

• After cooking, stir and let stand for approx. 1-2 minutes.

• Add 1tbsp water per 100 g. (For mushrooms no additional water is necessary).

• Cover with a lid.

• When the oven stops and the audible signals sound, stir and re-cover.

• After cooking, let stand for approx. 1-2 minutes.

NOTE: If frozen vegetables are compacted

together, cook manually.

• Remove the gratin from original container and place in a suitable gratin dish.

• Add 3-4 tbsp water if necessary.

• Do not cover.

• Place on the low rack.

• After cooking, let stand, covered in aluminium foil for approximately 5 minutes.

ESPAÑOLENGLISH

GB-22

EXPRESS DEFROST CHART

KEY MENU NO. WEIGHT (Increasing

D-1

Steaks, Chops (initial temp -18°C)

D-2

Meat Joint (initial temp -18°C)

D-3

Minced Meat , mix of beef and

pork (initial temp -18°C)

D-4

Chicken Legs (initial temp -18°C)

D-5

Poultry (initial temp -18°C)

Only poultry without giblets is recommended for this programme.

D-6

Cake (initial temp -18°C)

D-7

Bread (initial temp -18°C)

Unit) / UTENSILS

0,2 - 1,0 kg (100 g) Plate (see note on page GB-24)

0,6 - 2,0 kg (100 g) Plate (see note on page GB-24)

0,2 - 1,0 kg (100 g) Cling film (see note on page GB-24)

0,2 - 1,0 kg (50 g) Plate (see note on page GB-24)

0,9 - 2,0 kg (100 g) Plate (see note on page GB-24)

0,1 - 1,4 kg (100 g) Plate

0,1 - 1,0 kg (100 g) Plate

GB-23

PROCEDURE

• Place the food on a plate in the centre of the turntable.

• When the oven stops and the audible signals sound, turn the food over, rearrange and separate. Shield the thin parts and warm spots with aluminium foil.

• After defrosting, wrap in aluminium foil for 10-20 minutes, until thoroughly defrosted.

• Place a plate upside down on the turntable and put the meat on it.

• When the oven stops and the audible signals sound, turn the food over. Shield the defrosted parts with aluminium foil.

• If audible signals sound, turn the food over and shield again.

• After defrosting, cover with aluminium foil and stand for 15-30 minutes until thoroughly defrosted.

• Cover the turntable with cling film.

• Place the block of minced meat onto the turntable.

• When the oven stops and the audible signals sound, turn the food over. Remove the defrosted parts if possible.

• After defrosting, cover in aluminium foil for 5-10 minutes, until thoroughly defrosted.

• Place the food on a plate in the centre of the turntable.

• When the oven stops and the audible signals sound, turn the food over, rearrange and separate. Shield the thin parts and warm spots with aluminium foil.

• After defrosting, wrap in aluminium foil for 10-20 minutes, until thoroughly defrosted.

• Place a plate upside down on the turntable and put the poultry breast side down on the plate.

• When the oven stops and the audible signals sound, turn over and shield the thin parts and warm spots with aluminium foil.

• After defrosting, cover with aluminium foil and stand for 15-30 minutes until thoroughly defrosted.

• Finally clean the poultry under running water.

• Remove all packaging from the cake.

• Place on a plate in the centre of the turntable.

• After defrosting, cut the cake into similar sized pieces. Keep space between each piece and let stand for 15-30 minutes until thoroughly defrosted.

• Distribute on a plate in the centre of the turntable.

Only sliced bread is recommended for this

programme.

• When the audible signals sound rearrange, and remove defrosted slices.

• After defrosting separate all slices and distribute on a large plate. Cover the bread with aluminium foil and let stand for 5-15 minutes until thoroughly defrosted.

EXPRESS DEFROST NOTES

NOTES:

1 Steaks, Chops and Chicken legs should be frozen in one layer. 2 Minced meat should be frozen in the thin shape. 3 After turning over, shield the defrosted portions with small, flat pieces of aluminium foil. 4 The poultry and the minced meat should be processed immediately after defrosting. 5 For D-1, D-2, D-4 and D-5 arrange the food in the oven as shown:

Chicken legs, Steaks and Chops. Poultry and Meat Joint

Food

Dish

Turntable

SENSOR COOK

Your oven has a humidity sensor. The humidity sensor detects the vapour from the food and calculates the correct microwave power level and cooking time. The SENSOR COOK key offers the possibility to easily cook 6 menus without entering the food quantity. To select the sensor cook menu, touch the SENSOR COOK key until the desired menu is displayed. The SENSOR COOK can only be input within 3 minutes after cooking completion, closing the door or pressing the STOP key. Always refer to the SENSOR COOK chart on page GB-25 before operating this function.

NOTES:

1. Once a SENSOR COOK programme has started, do not open the door or press the STOP key until the

remaining cooking time appears on the display, unless following instructions to stir or turn over. During this time, Sensor technology senses humidity emitted from food as it heats and determines the cooking time. Opening the door or stopping the oven disturbs the humidity content and affects the cooking result.

2. Ensure food is thoroughly heated before serving. If additional heating is required, cook this manually.

3. Wipe off any moisture from the outside of cooking containers and the interior of the oven with a dry cloth or paper towel prior to cooking on SENSOR COOK.

4. If you want to alter the cooking results, press the LESS (

(See page GB-19 for details). For best results use the cooking chart instructions.

5. If food requires manipulation (i.e. turn over or stir) then open the door, follow the instruction, close the door and press the

6. To cook the food weighing more or less than the weights/quantities given in the cooking charts, cook using manual programmes.

(START)/+1min

key.

▼ ) or MORE ( ▲ ) keys before pressing any menu key

ESPAÑOLENGLISH

EXAMPLE: Suppose you want to cook 300 g of fresh vegetables.

1. Press the SENSOR COOK

key twice to select Fresh Vegetables.

NOTE: Please refer to the menu label for list of SENSOR COOK menus and weight ranges.

After 2 seconds the oven starts automatically. When the sensor detects the vapour from the food, the remaining cooking time will appear.

GB-24

+ 55 hidden pages
