DIGITAL MULTIFUNCTIONAL SYSTEM

OPERATION GUIDE

MODEL: MX-M182

MX-M182D MX-M202D MX-M232D

INTRODUCTION ................................................ 4

USING THE MANUAL ....................................... 4

DIFFERENCES BETWEEN MODELS............... 5

1 SETUP

BEFORE SOFTWARE SETUP .......................... 6

● SOFTWARE......................................................6

● HARDWARE AND SOFTWARE

REQUIREMENTS .............................................6

● POWER ON THE MACHINE ............................7

INSTALLING THE SOFTWARE ........................ 7

CONNECTING TO A COMPUTER .................. 10

● CONNECTING A USB CABLE .......................10

● USING THE MACHINE AS A SHARED

PRINTER ........................................................11

CONFIGURING THE PRINTER DRIVER ........ 12

SETTING UP BUTTON MANAGER ................ 13

TROUBLESHOOTING ..................................... 15

2 BEFORE USING THE MACHINE

PART NAMES AND FUNCTIONS ................... 17

● OPERATION PANEL ......................................19

● OPERATION IN COPY, PRINT, SCAN, AND

FAX MODES...................................................21

POWER ON AND OFF..................................... 22

● POWER ON ....................................................22

● POWER OFF ..................................................22

LOADING PAPER............................................ 23

● PAPER............................................................23

● LOADING PAPER...........................................24

● CHANGING THE PAPER SIZE SETTING OF A

TRAY ..............................................................26

● DISABLING (ENABLING) AUTO TRAY

SWITCHING ...................................................27

AUDITING MODE ............................................ 28

● NUMBER OF ACCOUNTS IN AUDITING

MODE .............................................................28

● USING AUDITING MODE...............................28

3 COPY FUNCTIONS

NORMAL COPYING ........................................ 29

● MAKING A COPY DARKER OR LIGHTER ... 33

● SELECTING THE TRAY................................ 34

● SETTING THE NUMBER OF COPIES .......... 34

● SELECTING THE ORIGINAL SIZE ............... 35

● USING THE BYPASS TRAY TO COPY A

SPECIAL SIZE ORIGINAL............................. 36

REDUCING OR ENLARGING A COPY .......... 37

● AUTOMATIC RATIO SELECTION................. 37

● MANUAL RATIO SELECTION (PRESET COPY

RATIOS/ZOOM)............................................. 38

● SELECTING THE VERTICAL AND HORIZONTAL COPY RATIOS SEPARATELY

(XY ZOOM Copying) ...................................... 39

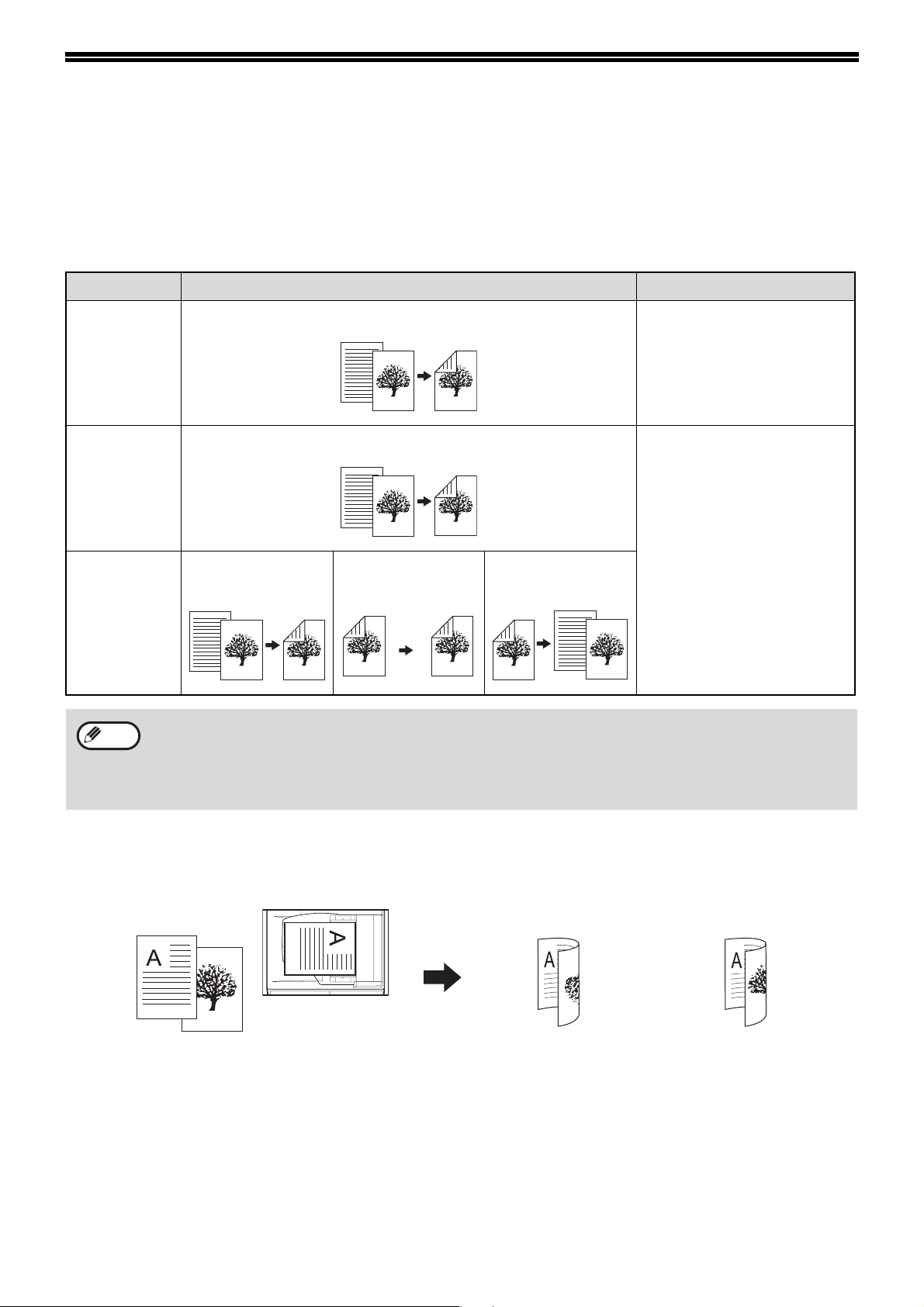

AUTOMATIC TWO-SIDED COPYING (MX-

M182D/MX-M202D/MX-M232D) ...................... 41

●

TWO-SIDED COPYING OF ONE-SIDED ORIGINALS

● TWO-SIDED COPIES OF TWO-SIDED ORIGINALS (ONLY WHEN USING THE RSPF)

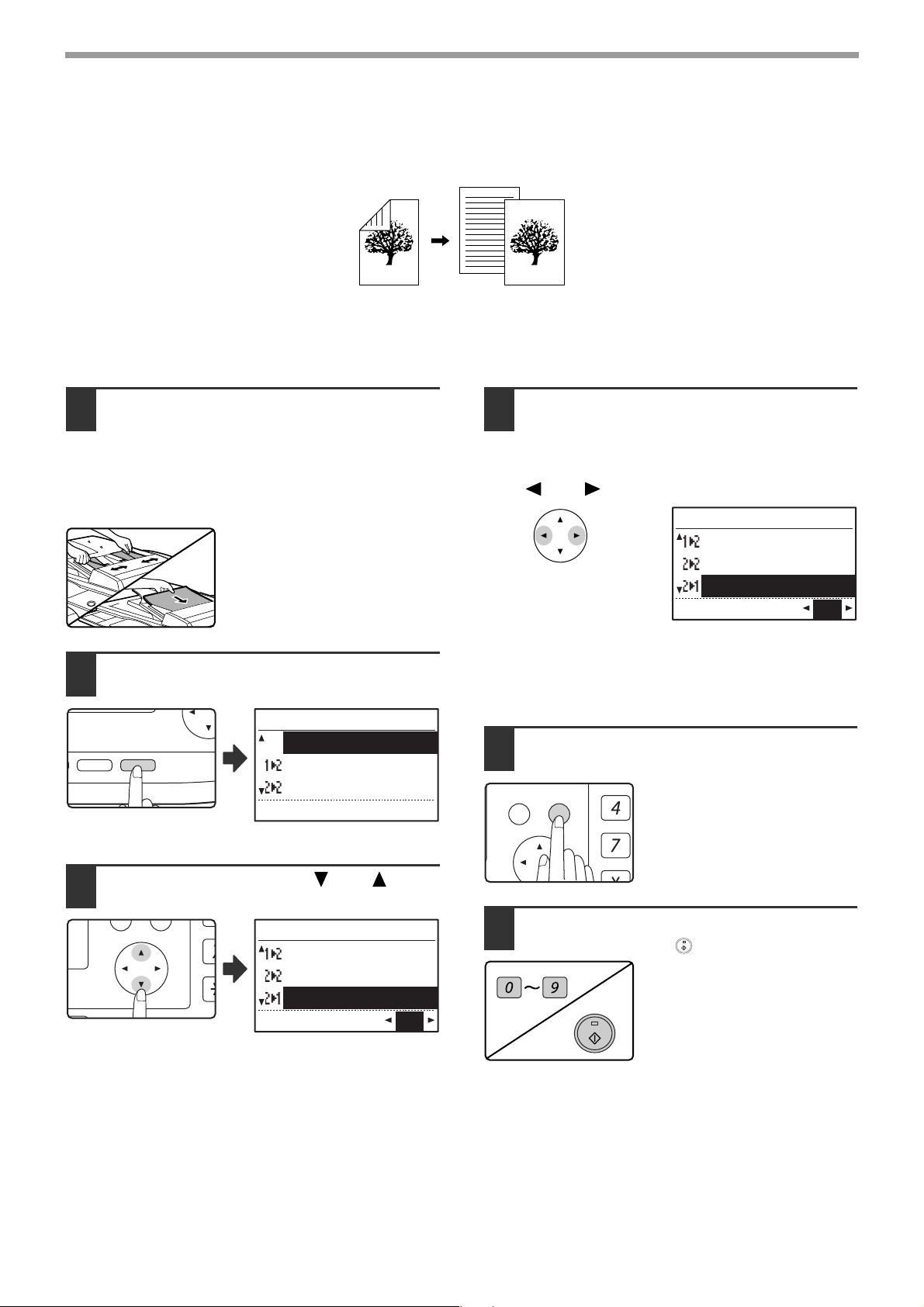

● ONE-SIDED COPIES OF TWO-SIDED ORIGINALS (ONLY WHEN USING THE

RSPF) ............................................................ 45

TWO-SIDED COPYING USING THE BYPASS

TRAY................................................................ 46

DUAL PAGE COPYING................................... 47

INTERRUPTING A COPY RUN (Interrupt

copying) .......................................................... 48

CONVENIENT COPY FUNCTIONS................. 49

● ROTATING THE IMAGE 90 DEGREES

(Rotation Copy) .............................................. 49

● SORT COPY/GROUP COPY......................... 49

● COPYING MULTIPLE ORIGINALS ONTO A

SINGLE SHEET OF PAPER (2 IN 1 / 4 IN 1

Copy) ............................................................. 51

● CREATING MARGINS WHEN COPYING

(Margin shift) .................................................. 53

● ERASING SHADOWS AROUND THE EDGES

OF A COPY (Erase Copy) ............................. 54

CARD SHOT .................................................... 56

ID CARD COPY ............................................... 58

.................................................... 42

.............................................................................44

4 PRINTER FUNCTIONS

6 TROUBLESHOOTING

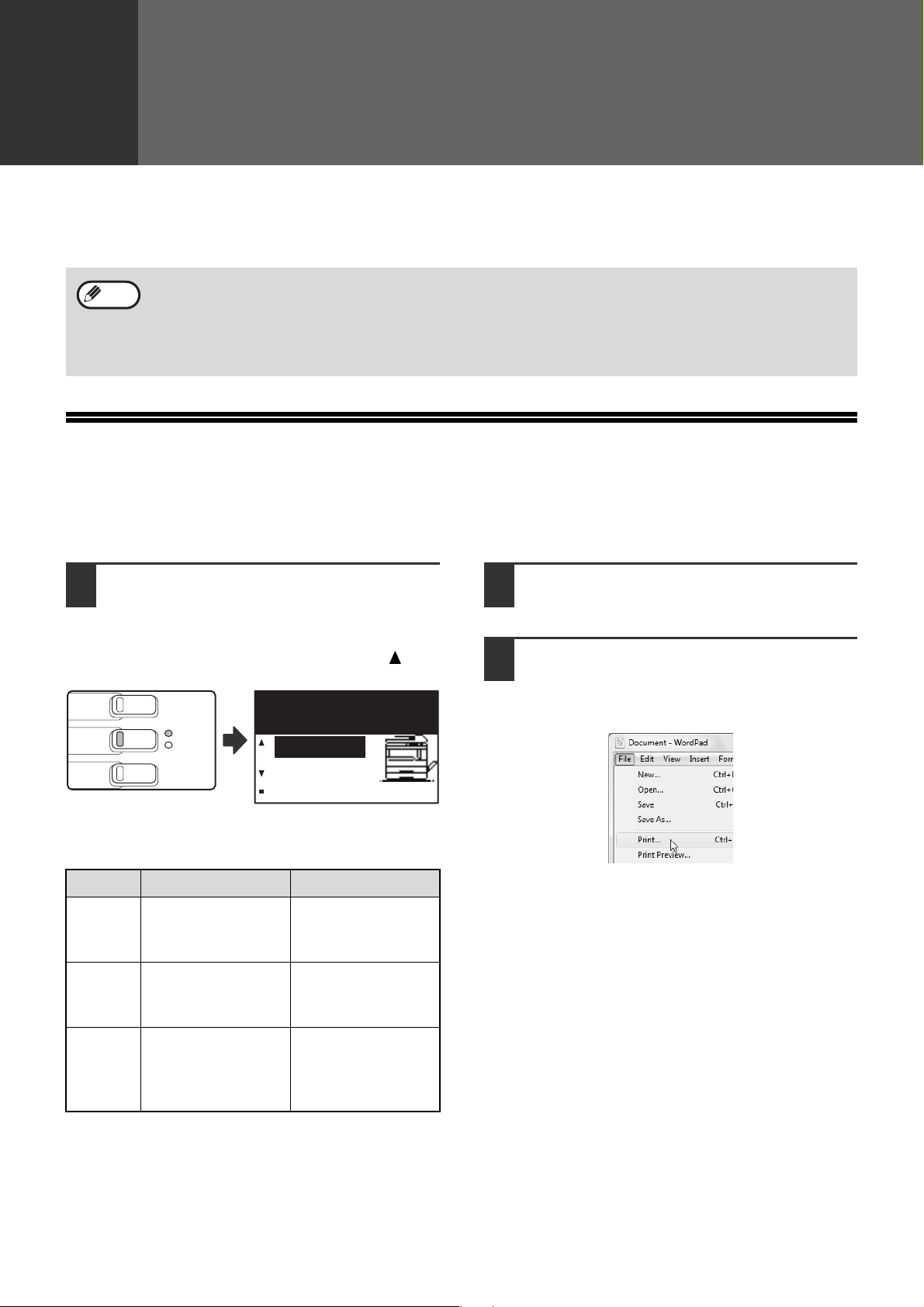

BASIC PRINTING ............................................ 60

● IF THE TRAY RUNS OUT OF PAPER DURING

PRINTING.......................................................61

● PAUSING A PRINT JOB.................................61

● HOW "BYPASS TRAY" AND "BYPASS

MANUAL" DIFFER IN THE "PAPER SOURCE"

SETTINGS ......................................................61

● OPENING THE PRINTER DRIVER FROM THE

"Start" BUTTON ..............................................62

PRINTER DRIVER SETTING SCREEN........... 63

●

PRINTING MULTIPLE PAGES ON ONE PAGE

● FITTING THE PRINTED IMAGE TO THE

PAPER (Fit To Paper Size).............................65

● ROTATING THE PRINT IMAGE 180 DEGREES

(Rotate 180 degrees) ......................................65

● ENLARGING/REDUCING THE PRINT IMAGE

(Zoom) ............................................................66

● PRINTING FAINT TEXT AND LINES IN BLACK

(Text To Black/Vector To Black) .....................66

● ADJUSTING THE BRIGHTNESS AND CONTRAST OF THE IMAGE (Image

Adjustment).....................................................67

●

PRINTING A WATERMARK ............................67

●

TWO-SIDED PRINTING .........................................68

...64

SAVING FREQUENTLY USED PRINT

SETTINGS........................................................ 69

● SAVING SETTINGS AT THE TIME OF

PRINTING (User Settings) ..............................69

OUTLINE OF THE PRINT STATUS WINDOW

..... 70

TROUBLESHOOTING..................................... 82

● MACHINE/COPYING PROBLEMS ................ 83

● PRINTING AND SCANNING PROBLEMS .... 87

INDICATORS AND DISPLAY MESSAGES .... 91

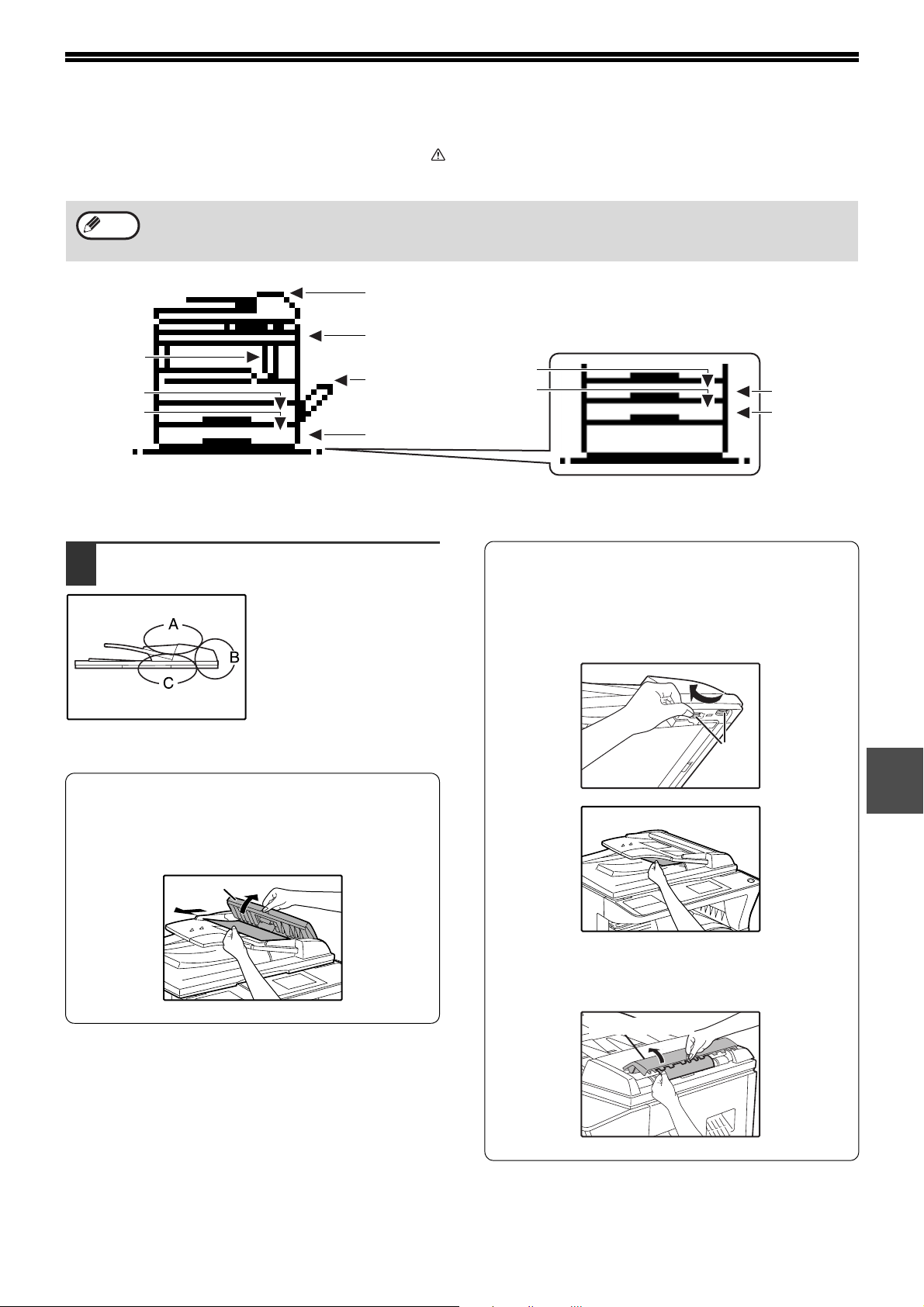

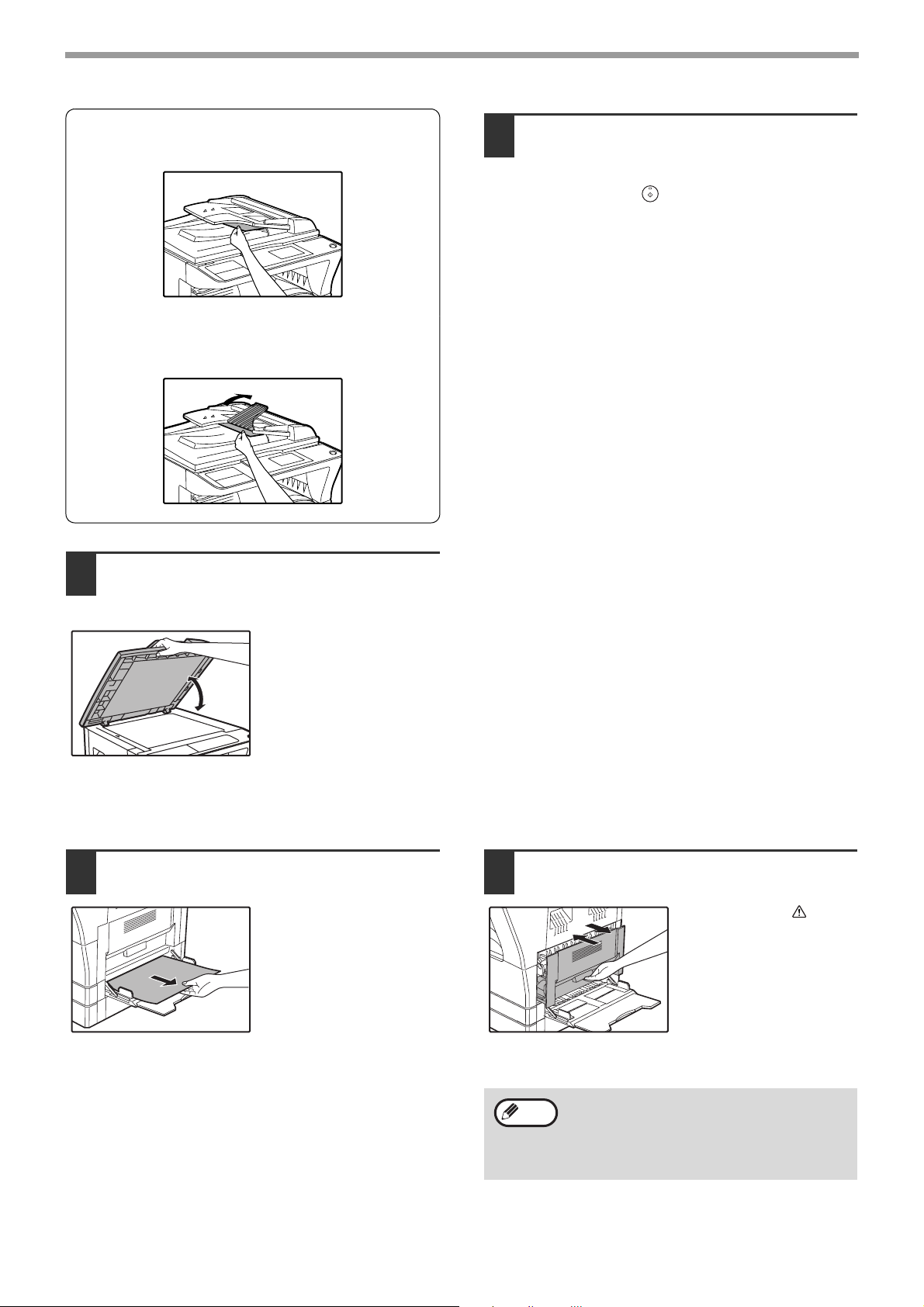

MISFEED REMOVAL

● MISFEED IN THE SPF/RSPF........................ 92

● MISFEED IN THE BYPASS TRAY ................ 93

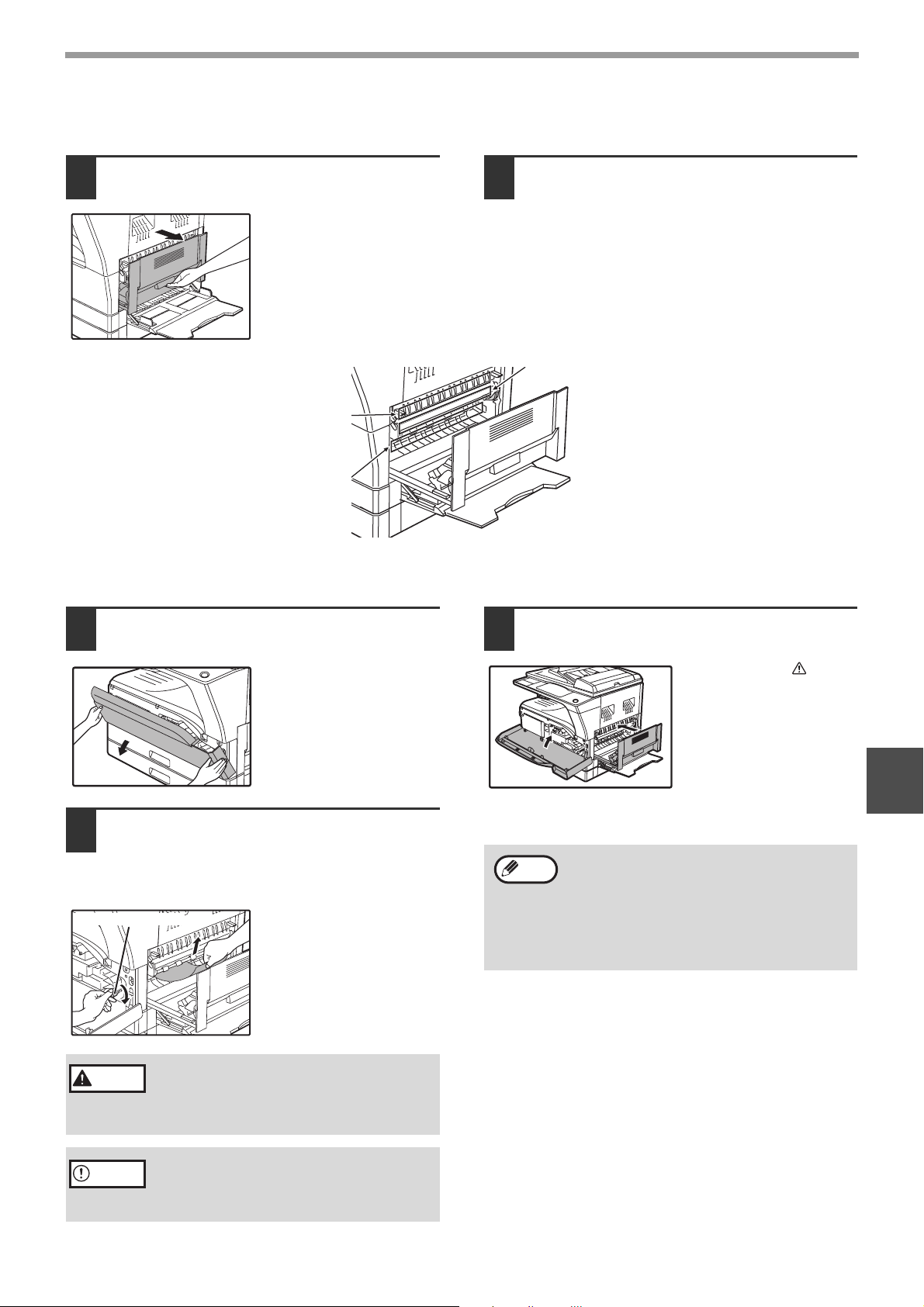

● MISFEED IN THE MACHINE......................... 94

● MISFEED IN THE UPPER PAPER TRAY ..... 97

● MISFEED IN THE LOWER PAPER TRAY .... 98

............................................ 92

REPLACING THE TONER CARTRIDGE ........ 99

7 ROUTINE MAINTENANCE

CHECKING THE TOTAL OUTPUT COUNT

ROUTINE MAINTENANCE............................ 101

● CLEANING THE DOCUMENT GLASS AND

SPF/RSPF/DOCUMENT COVER ................ 101

● CLEANING THE ORIGINAL SCANNING GLASS (ONLY WHEN AN SPF/RSPF IS

INSTALLED) ................................................ 101

● CLEANING THE BYPASS TRAY PAPER FEED

ROLLER....................................................... 102

● CLEANING THE TRANSFER CHARGER ... 102

ADJUSTING THE DISPLAY CONTRAST

... 100

........ 103

8 APPENDIX

5 SCANNER FUNCTIONS

SCANNING OVERVIEW .................................. 71

SCANNING USING THE KEYS ON THE

MACHINE......................................................... 72

BUTTON MANAGER ....................................... 73

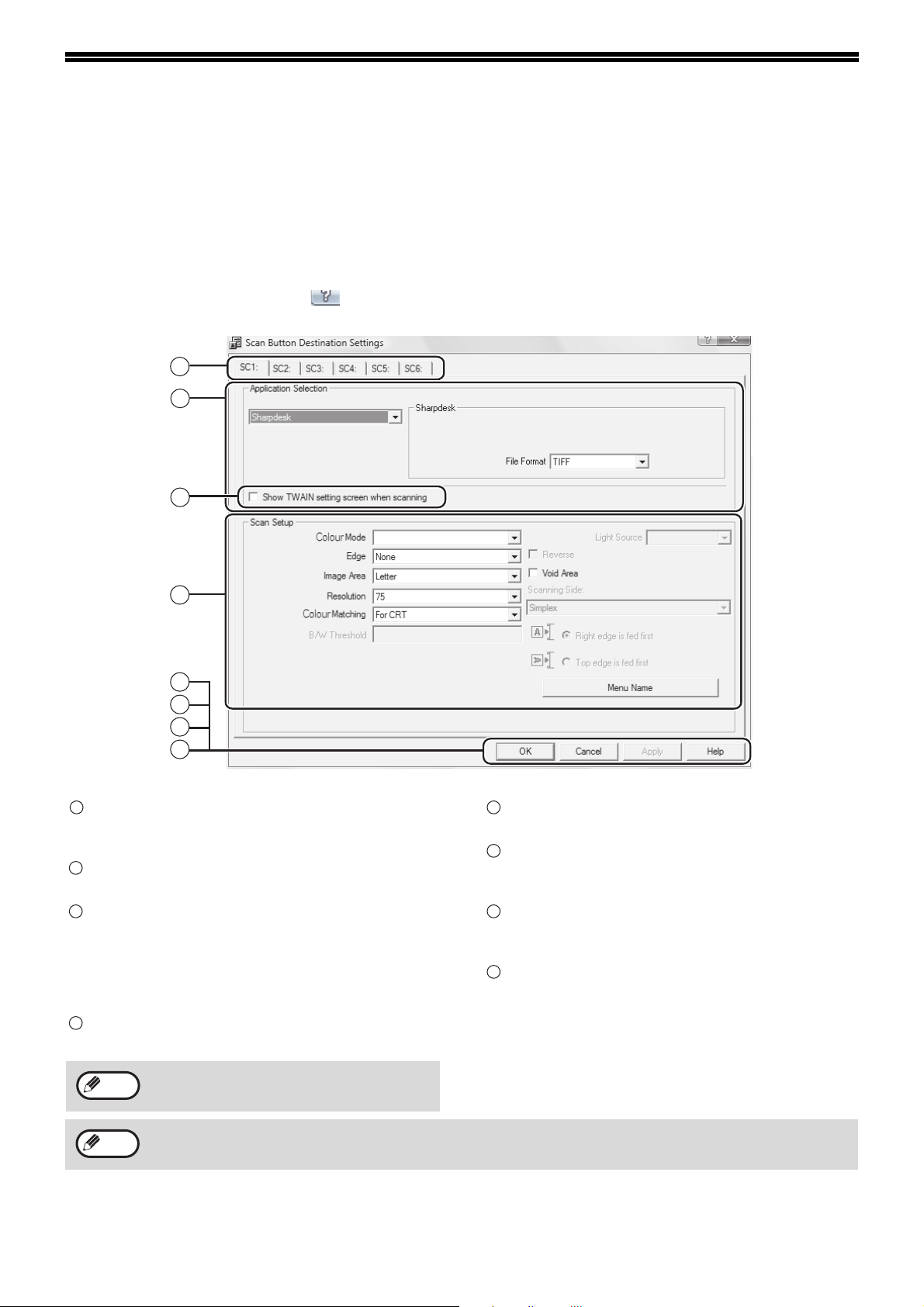

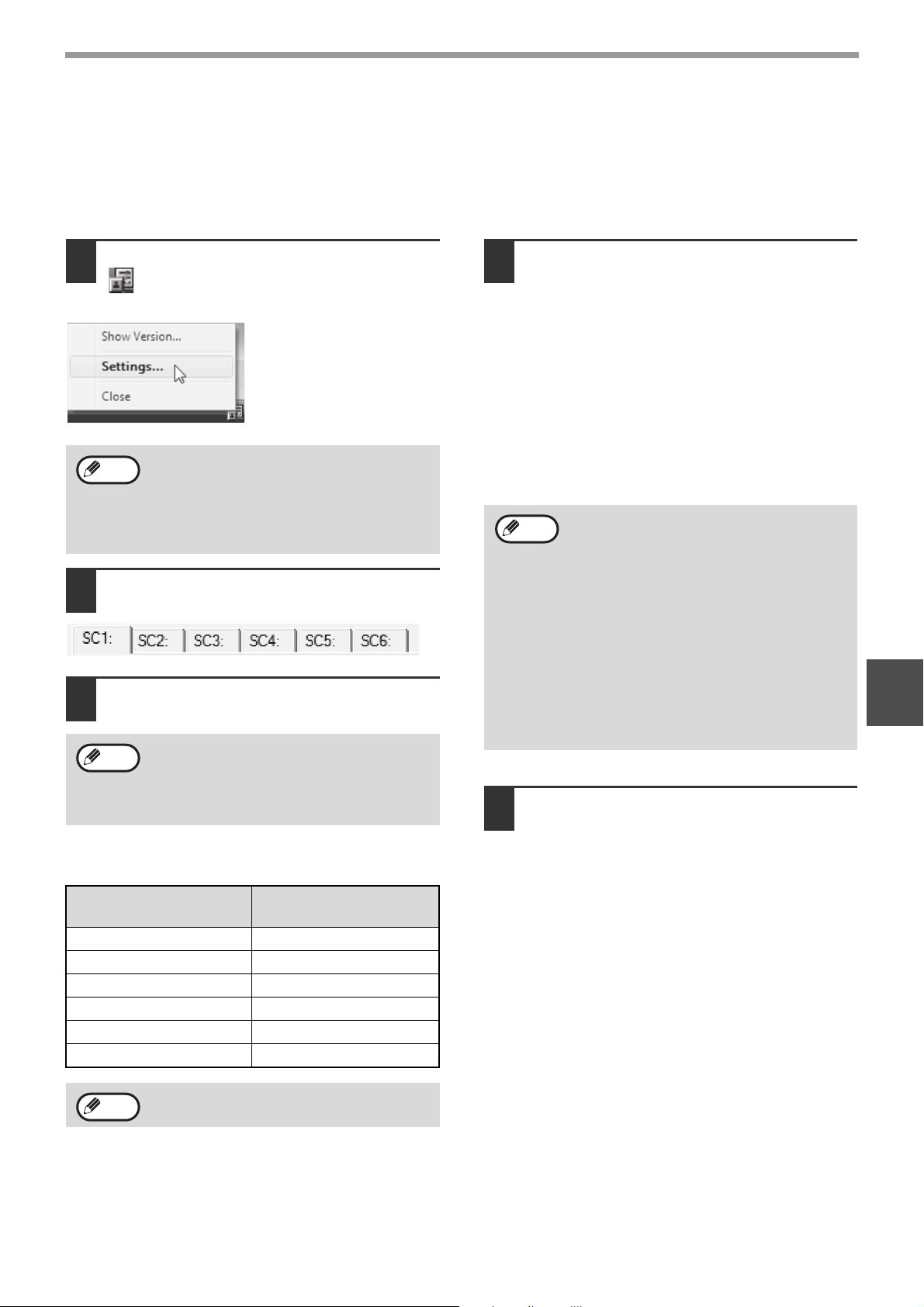

● BUTTON MANAGER SETTINGS ...................74

SCANNING FROM YOUR COMPUTER.......... 75

●

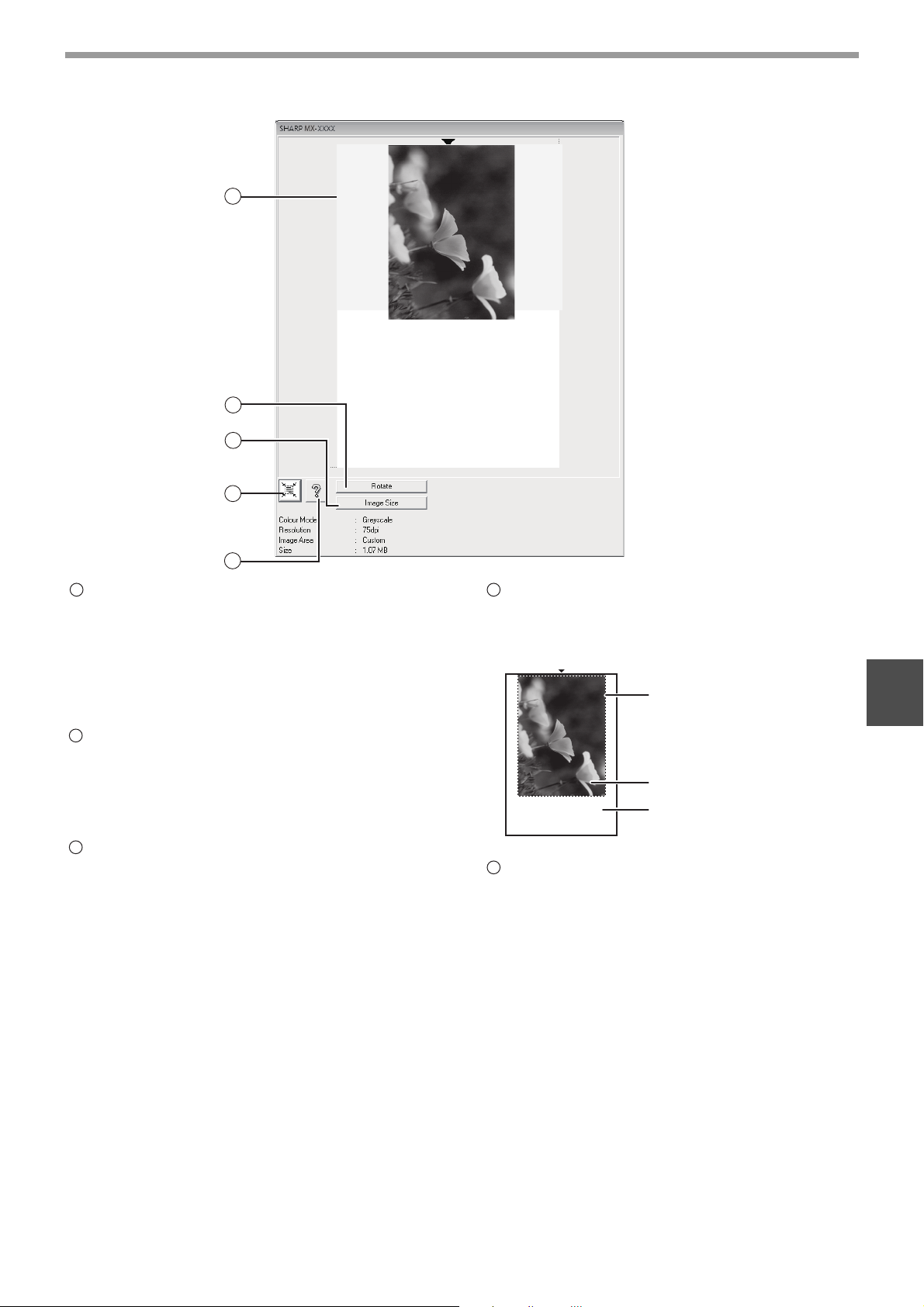

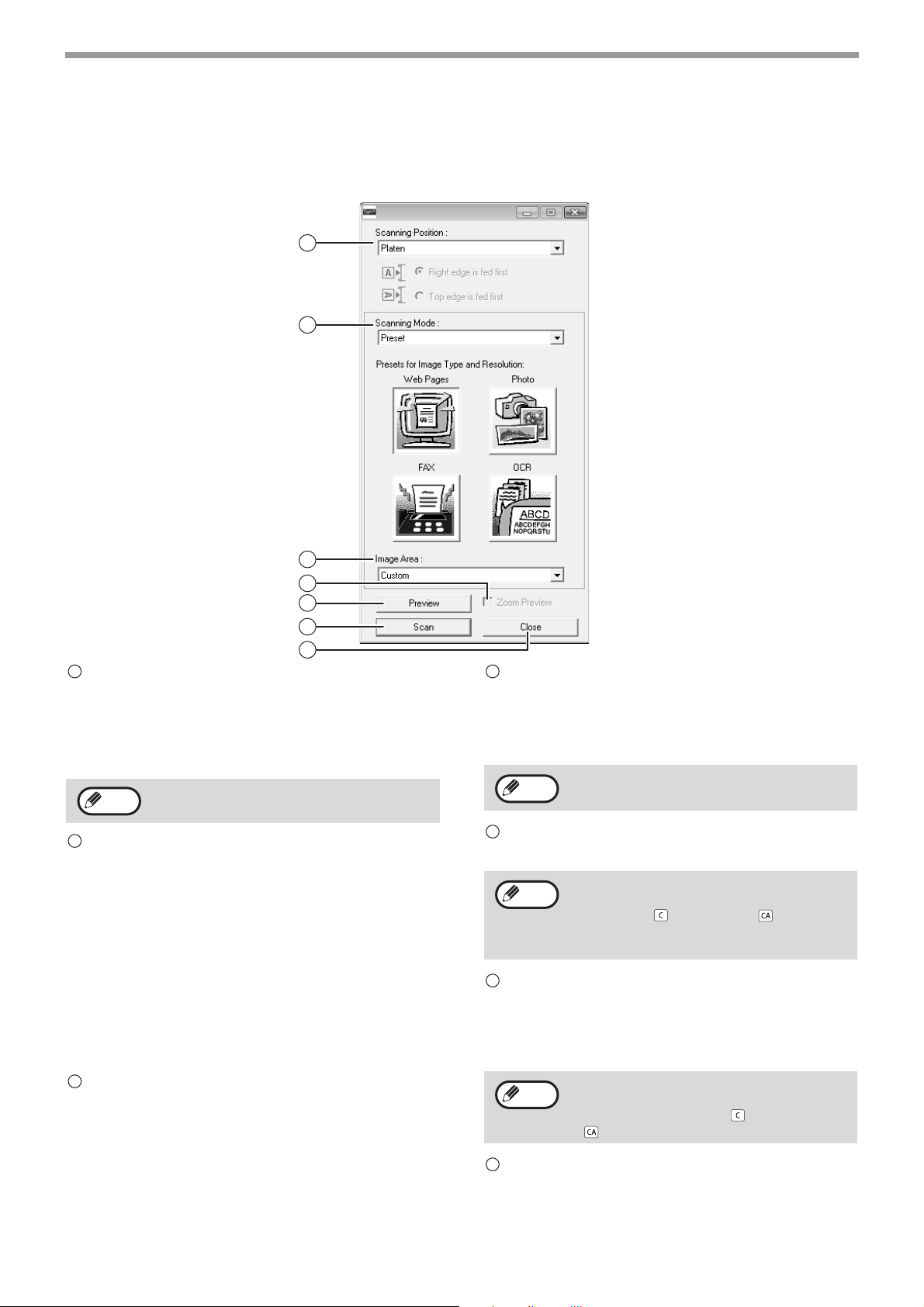

SCANNING FROM A TWAIN-COMPLIANT

APPLICATION ..................................................75

● SCANNING FROM A WIA-COMPLIANT

APPLICATION (Windows XP/Vista/7) ............79

● SCANNING FROM THE "Scanner and Camera

Wizard" (Windows XP)....................................80

SPECIFICATIONS (PRINTER AND SCANNER)

....................................................................... 104

●

PRINTER FUNCTION

● SCANNER FUNCTION ................................ 105

......................................104

OPTIONAL EQUIPMENT .............................. 106

● SINGLE PASS FEEDER/REVERSING SINGLE

PASS FEEDER............................................ 107

● DOCUMENT COVER................................... 107

● 250-SHEET PAPER FEED UNIT/2 X 250-

SHEET PAPER FEED UNIT ........................ 108

STORAGE OF SUPPLIES............................. 109

● PROPER STORAGE ................................... 109

9 SYSTEM SETTINGS GUIDE

PURPOSE OF THE SYSTEM SETTINGS

●

PROGRAMS RELATED TO ALL FUNCTIONS OF THE MACHINE (COPY AND PRINTER FUNCTIONS)

● PROGRAMS FOR COPY MODE .................110

● PROGRAMMING AN ADMINISTRATOR

PASSWORD .................................................110

PROGRAMMING AN ADMINISTRATOR

PASSWORD .................................................. 111

SYSTEM SETTINGS LIST ............................. 112

USING THE SYSTEM SETTINGS ................. 113

● ACCOUNT CONTROL..................................114

● DEVICE CONTROL ......................................117

● OPERATION SETTING ................................118

● ENERGY SAVE ............................................120

● COPY SETTINGS.........................................121

.................................................110

............. 110

INTRODUCTION

This manual describes the copier, printer, and scanner functions of the MX-M182/MX-M182D/MX-M202D/MX-M232D digital multifunctional system.

• Where "MX-XXXX" appears in this manual, please substitute the name of your model for "XXXX". For the name

Note

The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product improvements and modifications.

of your model, see "DIFFERENCES BETWEEN MODELS" (p.5).

• The screen images and procedures that appear in this manual are mainly for Windows Vista. With other versions of Windows, some screen images may be different from those in this manual.

• For information on using your operating system, refer to your operating system's manual or online Help.

USING THE MANUAL

This machine has been designed to provide convenient copying features in a minimum amount of office space and with maximum operational ease. To get full use of all machine features, be sure to familiarise yourself with this manual and the machine. For quick reference during machine use, SHARP recommends printing out this manual and keep it in a handy location.

ABOUT THE MANUALS

The manuals for the machine are as follows:

Start Guide

This manual explains:

• Specifications

• Cautions for using the machine in safety

Operation Guide (on the accessory CD-ROM)

This manual explains:

• How to install the software that allows the machine to be used as a printer and scanner for your computer

• Part names of the machine

• Available paper type for this machine

• Basic copy procedure and advanced copy functions (For example: rotating the image 90 degrees, copying multiple originals onto a single sheet of paper)

• Basic print procedure and other frequently used print functions (For example: fitting the printed image to the paper, enlarging/reducing the print image)

• Scanning on the machine and from a computer

• Toner cartridge replacement and peripheral devices

• Troubleshooting for using the machine

THE MEANING OF "R" IN ORIGINAL AND PAPER SIZE INDICATIONS

An "R" appearing at the end of an original or paper size (A4R (5-1/2" x 8-1/ 2"R, 8-1/2" x 11"R), etc.) indicates that the original or paper is oriented horizontally as shown on the right. Sizes that can be placed only in the horizontal (landscape) orientation (B4, A3 (8-1/2" x 14", 11" x 17")) do not contain the "R" in their size indication.

CONVENTIONS USED IN THIS MANUAL

Warning

Caution

Note

Warns the user that injury may result if the contents of the warning are not properly followed.

Cautions the user that damage to the machine or one of its components may result if the contents of the caution are not properly followed.

Notes provide information relevant to the machine regarding specifications, functions, performance, operation and such, that may be useful to the user.

SPF

This manual refers to the Single Pass Feeder as the "SPF".

RSPF

This manual refers to the Reversing Single Pass Feeder as the "RSPF".

DIFFERENCES BETWEEN MODELS

This manual covers the following models.

Model

(With optional SPF/RSPF installed) (With optional SPF/RSPF installed)

Appearance

Copy speed 20CPM/23CPM 18CPM

Paper trays Two (250 x 2) One (250 x 1)

MX-M202D/MX-M232D MX-M182/MX-M182D

The above illustration is used in instances where a function and/ or the operation of the machine is the same on both models.

AB series (metric) and inch series references

Both specifications are quoted where applicable.

For example:

Page 4..................................B4 and A3 (8-1/2" x 14" and 11" x 17")

Start Guide ........................... 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200% (50%, 64%, 77%, 95%,

100%, 121%, 129%, 141%, 200%)

Although AB series size indications are shown on the operation panel of this manual, inch series indications are displayed on the inch series machines.

BEFORE SOFTWARE SETUP

This chapter explains how to install and configure the software that is required for the printer and scanner functions of the machine.

Chapter 1

SETUP

Note

This manual refers to the CD-ROM that accompanied the machine simply as "CD-ROM".

SOFTWARE

The CD-ROM that accompanies the machine contains the following software:

MFP driver

Printer driver

The printer driver enables you to use the printer function of the machine. The printer driver includes the Print Status Window. This is a utility that monitors the machine and informs you of the printing status, the name of the document currently being printed, and error messages.

Scanner driver

The scanner driver allows you to use the scanning function of the machine with TWAIN-compliant and WIA-compliant applications.

Button Manager

Button Manager allows you to use the scanner menus on the machine to scan a document.

Sharpdesk

Sharpdesk is an integrated software environment that makes it easy to manage document and image files and launch applications.

PC-Fax driver

This enables you to send a fax from your computer to a fax machine via the machine (when the fax option is installed).

HARDWARE AND SOFTWARE REQUIREMENTS

Check the following hardware and software requirements before installing the software.

Computer type

Operating system

Other hardware requirements An environment on which any of the operating systems listed above can fully operate

*1The machine's USB 2.0 port will transfer data at the speed specified by the USB 2.0 (Hi-Speed) only if the Microsoft USB 2.0

driver is preinstalled in the computer, or if the USB 2.0 driver for Windows 2000 Professional/XP/Vista/7 that Microsoft provides through its "Windows Update" is installed.

Compatible with Windows 2000 Professional, Windows XP Professional, Windows XP Home Edition, Windows Vista, or

Windows 7 preinstalled models equipped with a USB interface as standard.

• The machine does not support printing from a Macintosh environment.

• Administrator’s rights are required to install the software using the installer.

IBM PC/AT

Windows 2000 Professional, Windows XP Professional, Windows XP Home Edition, Windows Vista, Windows 7

or compatible computer equipped with a USB 2.0*1/1.1

SETUP

POWER ON THE MACHINE

The power switch is located on the left side of the machine.

Turn the power switch to the "ON" position.

INSTALLING THE SOFTWARE

Note

The USB cable must not be connected

to the machine. Make sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this happens, click the "Cancel" button to close the window and disconnect the cable.

Note

Insert the CD-ROM into your CD-ROM

drive.

Click the "Start" button, click

"Computer", and then double-click the CD-ROM icon ( ).

• In Windows XP, click the "start" button, click

• In Windows 2000, double-click "My Computer",

Double-click the "Setup" icon ( ).

• The screen images in this manual are mainly for Windows Vista. With other versions of Windows, some screen images may be different from those in this manual.

• If an error message appears, follow the instructions on the screen to solve the problem. After the problem is solved, the installation procedure will continue. Depending on the problem, you may have to click the "Cancel" button to exit the installer. In this case, reinstall the software from the beginning after solving the problem.

The cable will be connected in step 12.

"My Computer", and then double-click the CD-ROM icon.

and then double-click the CD-ROM icon.

The "SOFTWARE LICENSE" window

will appear. Make sure that you understand the contents of the software license, and then click the "Yes" button.

Note

Read the message in the "Welcome"

window and then click the "Next" button.

To install the software using the most

general options, click the "Standard" button of the "Connected to this computer" menu and go to step 11. To install particular packages, click the "Custom" button and go to the next step.

You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.

• In Windows 7, if a message screen appears asking you for confirmation, click "Yes".

• In Windows Vista, if a message screen appears asking you for confirmation, click "Allow".

SETUP

Click the "MFP Driver" button.

Click the "Display Readme" button to show information on packages that are selected.

Select "Connected to this computer"

and click the "Next" button.

You will return to the window of step

8. If you wish to install Utility Software, click the "Utility Software" button.

If you do not wish to install the Utility Software, go to step 11.

Follow the on-screen instructions.

Note

After the installation, a message prompting you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

Follow the on-screen instructions.

When "The installation of the SHARP software is complete." appears, click the "OK" button.

Caution

• If you are using Windows Vista/7 and a security warning window appears, be sure to click "Install this driver software anyway".

• If you are running Windows 2000/XP and a warning message appears regarding the Windows logo test or digital signature, be sure to click "Continue Anyway" or "Yes".

When installing is finished, click the

"Close" button.

• If you are using Windows Vista/7 and a

Caution

A message will appear instructing you to connect the machine to your computer. Click the "OK" button.

Note

Make sure that the power of the

security warning window appears, be sure to click "Install this driver software anyway".

• If you are running Windows 2000/XP and a warning message appears regarding the Windows logo test or digital signature, be sure to click "Continue Anyway" or "Yes".

After the installation, a message prompting you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

machine is turned on, and then connect the USB cable (p.10).

Windows will detect the machine and a Plug and Play window will appear.

SETUP

Follow the instructions in the Plug

and Play window to install the driver.

Follow the on-screen instructions.

• If you are using Windows Vista/7 and a

Caution

This completes the installation of the software.

• If you installed Button Manager, set up Button Manager as explained in "SETTING UP BUTTON MANAGER" (p.13)

security warning window appears, be sure to click "Install this driver software anyway".

• If you are running Windows 2000/XP and a warning message appears regarding the Windows logo test or digital signature, be sure to click "Continue Anyway" or "Yes".

CONNECTING TO A COMPUTER

Follow the procedure below to connect the machine to your computer. A USB cable for connecting the machine to your computer is not included with the machine. Please purchase the appropriate cable for your computer.

Interface cable

USB cable

Shielded twisted pair cable, high-speed transmission equivalent (3 m (10 feet) max.) If the machine will be connected using a USB 2.0 interface, please purchase a USB cable that supports USB 2.0.

Caution

• USB is available with a PC/AT compatible computer that was originally equipped with USB and had Windows 2000 Professional, Windows XP Professional, Windows XP Home Edition, Windows Vista, or Windows 7 preinstalled.

• Do not connect the USB cable before installing the MFP driver. The USB cable should be connected during installation of the MFP driver.

CONNECTING A USB CABLE

Insert the cable into the USB connector on

the machine.

Insert the other end of the cable into

your computer's USB connector.

System requirements for USB 2.0 (Hi-Speed mode)

• The machine's USB 2.0 connector will transfer data at the speed specified by the USB 2.0 (Hi-Speed) only if the Microsoft USB 2.0 driver is preinstalled in the computer, or if the USB 2.0 driver for Windows 2000 Professional /XP/Vista/7 that Microsoft provides through its "Windows Update" Web page is installed.

• Even when the Microsoft USB 2.0 driver is used, it may not be possible to obtain full USB 2.0 speed if a PC card supporting USB 2.0 is used. To obtain the latest driver (which may enable a higher speed), contact the manufacturer of your PC card.

• Connection is also possible using a USB 1.1 port on your computer. However, the specifications will be USB 1.1 specifications (Full-Speed).

SETUP

USING THE MACHINE AS A SHARED PRINTER

If the machine will be used as a shared printer on a Windows network, follow these steps to install the printer driver in the client computer.

Note

Perform steps 2 through 6 in

To configure the appropriate settings in the print server, see the operation manual or help file of your operating system.

"INSTALLING THE SOFTWARE" (p.7).

Click the "Custom" button.

Click the "MFP Driver" button.

Select the printer name (configured as

a shared printer on a print server) from the list.

In Windows 2000/XP, you can also click the "Add Network Port" button displayed below the list and select the printer to be shared by browsing the network in the window that appears.

Click the "Next" button.

Follow the on-screen instructions.

Note

Caution

If the shared printer does not appear in the list, check the settings on the print server.

• If you are using Windows Vista/7 and a security warning window appears, be sure to click "Install this driver software anyway".

• If you are running Windows 2000/XP and a warning message appears regarding the Windows logo test or digital signature, be sure to click "Continue Anyway" or "Yes".

Click the "Display Readme" button to show information on packages that are selected.

Select "Connected via the network"

and click the "Next" button.

You will return to the window of step 3.

Click the "Close" button.

After the installation, a message prompting

Note

This completes the installation of the software.

you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

CONFIGURING THE PRINTER DRIVER

After installing the printer driver, you must configure the printer driver settings appropriately for the number of paper trays on the machine and the size of paper loaded in each.

Click the "Start" button, click "Control

Panel", and then click "Printer".

• In Windows 7, click the "Start" button and then click "Devices and Printers".

• In Windows XP, click the "start" button and click "Printers and Faxes".

• In Windows 2000, click the "Start" button, select "Settings", and then click "Printers".

Note

Click the "SHARP MX-XXXX" printer

driver icon and select "Properties" from the "Organize" menu.

• In Windows 7, right-click the "SHARP

• In Windows XP/2000, select "Properties" from

Click the "Configuration" tab and set

the printer configuration based on the options that have been installed.

Set the printer configuration properly. If not, printing may not take place correctly.

In Windows XP, if "Printers and Faxes" does not appear in the "start" menu, select "Control Panel", select "Printers and Other Hardware", and then select "Printers and Faxes".

MX-XXXX" printer driver icon, and then click "Printer properties".

the "File" menu.

Click the "Set Tray Status" button and

select the size of paper that is loaded in each tray.

Select a tray in the "Paper Source" menu, and select the size of paper loaded in that tray from the "Set Paper Size" menu. Repeat for each tray.

Click the "OK" button in the "Set Tray

Status" window.

Click the "OK" button in the printer

properties window.

Note

To automatically configure the settings based on the detected machine status, click the "Auto Configuration" button.

SETTING UP BUTTON MANAGER

Button Manager is a software program that works with the scanner driver to enable scanning from the machine. To scan using the machine, Button Manager must be linked with the scan menu on the machine. Follow the steps below to link Button Manager.

Windows XP/Vista/7

Click the "Start" button, click "Control

Panel", click "Hardware and Sound", and then click "Scanners and Cameras".

• In Windows 7, click the "Start" button and then click "Devices and Printers".

• In Windows XP, click the "start" button, select "Control Panel" and click "Printers and Other Hardware", and then click "Scanners and Cameras".

Click the "SHARP MX-XXXX" icon and

select "Properties".

• In Windows 7, right-click the "SHARP MX-XXXX" icon and select "Scan properties".

• In Windows XP, select "Properties" from the "File" menu.

In the "Properties" screen, click the

"Events" tab.

Select "SC1:" from the "Select an

event" pull-down menu.

Select "Start this program" and then

select "Sharp Button Manager AA" from the pull-down menu.

Repeat Steps 4 and 5 to link Button

Manager to "SC2:" through "SC6:".

Select "SC2:" from the "Select an event" pull-down menu. Select "Start this program", select "Sharp Button Manager AA" from the pull-down menu. Do the same for each scan menu through "SC6:".

Click the "OK" button.

Button Manager is now linked to the scan menu (1 through 6). The scan settings for each of scan menu 1 through 6 can be changed with the setting window of Button Manager. For the factory default settings of the scan menu and the procedures for configuring Button Manager settings, see "BUTTON MANAGER SETTINGS" (p.74).

Windows 2000

SETUP

Click the "Start" button, select

"Settings", and then click "Control Panel".

Double-click the "Scanners and

Cameras" icon.

Select "SHARP MX-XXXX" and click

the "Properties" button.

In the "Properties" screen, click the

"Events" tab.

Select "SC1:" from the "Scanner

events" pull-down menu.

Select "Sharp Button Manager AA" in

"Send to this application".

SC1:

Note

If other applications are shown, deselect the checkboxes for the other applications and leave only the Button Manager checkbox selected.

SC1:

Click the "Apply" button.

Repeat Steps 5 through 7 to link

Button Manager to "SC2:" through "SC6:".

Select "SC2:" from the "Scanner events" pull-down menu. Select "Sharp Button Manager AA" in "Send to this application" and click the "Apply" button. Do the same for each scan menu through "SC6:". When the settings have been completed, click the "OK" button to close the screen.

TROUBLESHOOTING

If the software is not installed correctly, check the following items on your computer.

The driver cannot be installed (Windows 2000/XP)

If the driver cannot be installed in Windows 2000/XP, follow these steps to check your computer's settings.

Click the "start" button and then click

"Control Panel".

In Windows 2000, click the "Start" button, select "Settings", and then click "Control Panel".

Click "Performance and Maintenance",

and then click "System".

In Windows 2000, double-click the "System" icon.

Click the "Hardware" tab and then

click the "Driver Signing" button.

Check "What action do you want

Windows to take?" ("File signature verification" in Windows 2000).

Plug and Play window does not appear

If the Plug and Play window does not appear after you connect the machine to your computer with a USB cable and turn on the machine, follow the steps below to verify that the USB port is available.

Click the "Start" button, select

"Control Panel", and then click "System and Maintenance".

• In Windows XP, click the "start" button, click "Control Panel", and then click "Performance and Maintenance".

• In Windows 2000, click the "Start" button, select "Settings", and then click "Control Panel".

Click "Device Manager", and if a

message screen appears asking you for confirmation, click "Continue".

"Universal Serial Bus controllers" will appear in the list of devices.

• In Windows XP, click "System", click the "Hardware" tab, and click the "Device Manager" button.

• In Windows 2000, double-click the "System" icon, click the "Hardware" tab, and click the "Device Manager" button.

If the option "Block" has been selected, it will not be possible to install the driver. Select the option "Warn" and then install the driver as explained in "INSTALLING THE SOFTWARE" (p.7).

Click the icon beside "Universal

Serial Bus controllers".

Two items should appear: your controller chipset type and Root Hub. If these items appear, you can use the USB port. If the "Universal Serial Bus controllers" shows a yellow exclamation point or does not appear, you must check your computer manual for USB troubleshooting or contact your computer manufacturer.

Once you have verified that the USB

port is enabled, install the software as explained in "INSTALLING THE SOFTWARE" (p.7).

SETUP

The driver cannot be correctly installed by Plug and Play

If the driver cannot be correctly installed by Plug and Play (for example, Plug and Play takes place without copying the required files for the driver installation), follow these steps to remove unneeded devices and then install the driver as explained in "INSTALLING THE SOFTWARE" (p.7).

Click the "Start" button, select

"Control Panel", and then click "System and Maintenance".

• In Windows XP, click the "start" button, click "Control Panel", and then click "Performance and Maintenance".

• In Windows 2000, click the "Start" button, select "Settings", and then click "Control Panel".

Click "Device Manager", and if a

message screen appears asking you for confirmation, click "Continue".

• In Windows XP, click "System", click the "Hardware" tab, and click the "Device Manager" button.

• In Windows 2000, double-click the "System" icon, click the "Hardware" tab, and click the "Device Manager" button.

Removing the software

If you need to remove the software, follow these steps.

Click the "Start" button, and then click

"Control Panel".

• In Windows XP, click the "start" button and then click "Control Panel".

• In Windows 2000, click the "Start" button, select "Settings", and then click "Control Panel".

Click "Uninstall a program".

• In Windows XP, click "Add or Remove Programs".

• In Windows 2000, double-click the "Add/Remove Programs" icon.

Select the driver from the list, and

remove the software.

For more information, refer to your operating manual or to the help files for your operating system.

Restart your computer.

4 5

Click the icon beside "Other

devices".

If "SHARP MX-XXXX" appears, select and delete the item.

Note

Install the software as explained in

"INSTALLING THE SOFTWARE" (p.7).

If "Other devices" does not appear, close the "Device Manager" window.

Chapter 2

BEFORE USING THE MACHINE

This chapter contains basic information that should be read before using the machine.

PART NAMES AND FUNCTIONS

USB 2.0 port

Connect to your computer to this port to use the printer and scanner functions.

Charger cleaner

Use to clean the transfer charger.

Glass cleaner

Use to clean the original scanning glass.

Document glass

Place an original that you wish to scan face down here. (p.29)

Handles

Use to move the machine.

Power switch

Press to turn the machine power on and off.

Centre tray

Copies and printed pages are output to this tray.

Top tray (when the job separator tray kit is installed)

Received faxes (when the fax option is installed) and print jobs are delivered to this tray.

Operation panel

Contains operation keys and indicator lights.

Front cover

Open to remove paper misfeeds or replace the toner cartridge.

Tray 1

Tray 1 can hold approximately 250 sheets of copy paper (80

Tray 2

Tray 2 can hold approximately 250 sheets of copy paper (80

/m2 (20 lbs.)).

17 18

BEFORE USING THE MACHINE

21 22

Document cover (when installed)

Open to make a copy from the document glass.

Side cover

Open to remove misfed paper.

Side cover handle

Pull to open the side cover.

Bypass tray guides

Adjust to the width of the paper when using the bypass tray.

Bypass tray

Special paper (heavy paper or transparency film) can be fed from the bypass tray.

Bypass tray extension

Pull out when feeding large paper such as A3 and B4 (11" x 17" and 8-1/2" x 14").

Toner cartridge lock release lever

To replace the toner cartridge, pull out the toner cartridge while pushing on this lever.

Toner cartridge

Contains toner.

Document feeder tray (when the SPF/RSPF is installed)

Place the original(s) that you wish to scan face up here. Up to 40 sheets can be placed.

Original guides (when the SPF/RSPF is installed)

Adjust to the size of the originals.

Feeding roller cover (when the SPF/RSPF is installed)

Open to remove misfed originals.

2526

Right side cover (when the SPF/RSPF is installed)

Open to remove misfed originals.

Fusing unit release levers

To remove the paper misfed in the fusing unit, push down on these levers and remove the paper.

The fusing unit is hot. Do not touch

Warning

the fusing unit when removing misfed paper. Doing so may cause a burn or injury.

Roller rotating knob

Rotate to remove misfed paper.

Exit area (when the SPF/RSPF is installed)

Originals exit the machine here after copying/scanning when the SPF/RSPF is used.

Photoconductive drum

Images are formed on the photoconductive drum.

Caution

Fusing unit paper guide

Do not touch the photoconductive drum (green portion) when removing the misfed paper. Doing so may damage the drum and cause smudges on copies.

Open to remove misfed paper.

Note

The model name is on the front cover of the machine.

28 29

BEFORE USING THE MACHINE

OPERATION PANEL

1 2 3 4 5

01 02 03 04 05

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

Keys for fax function (when the fax option is installed)

These are used in fax mode. For more information, see the "Operation Guide (FACSIMILE EXPANSION KIT)" that accompanies the machine.

[COPY] key / indicator

Press to select copy mode. If pressed when "Ready to copy." appears or during warm-up, the total number of sheets used (p.100) appears while the key is pressed.

[PRINT] key / indicator

Press to select print mode.

• ONLINE indicator

Print jobs can be received when this indicator is lit.

• DATA indicator

This lights steadily when there is a print job in memory that has not been printed, and blinks during printing.

[SCAN] key / indicator

Press to select scan mode. To use the machine as a network scanner, see the "Operation Guide (NETWORK EXPANSION KIT)" that accompanies the machine.

SPEAKER

SHIFT

REDIAL/PAUSE

SPEED

SYMBOL

COMM. SETTING

SPACE/–

COPY

SCAN

FAX

ON LINE DATA

LINE DATA

FAX STATUS

SPECIAL

FUNCTION

EXPOSURE

COPY

COLOUR MODE

SCAN

PROGRAM

FAX

13 14 15

[FAX STATUS] key (when the fax option is installed)

This key is used in fax mode. For more information, see the "Operation Guide (FACSIMILE EXPANSION KIT)" that accompanies the machine.

Display

Shows various messages. (p.21)

[BACK] key

Press to return the display to the previous screen.

Copy number display

The selected number of copies appears. During copying, this shows the remaining number of copies.

[OK] key

Press to enter the selected setting.

Numeric keys

Use to select the number of copies.

[C] key

Press to clear the set number of copies or stop a copy run.

[INTERRUPT] key ( ) / INTERRUPT indicator

Interrupts a copy run to allow an interrupt copy job to be performed. (p.48)

BEFORE USING THE MACHINE

6 7 8 9

COPY RATIO

PAPER SELECT

ADDRESS

RESOLUTION

ADDRESS

RESOLUTION

AUTO IMAGE

FORMAT

BROADCAST

ORIGINAL SIZE ORIGINAL SIZE

OUTPUT

2-SIDED COPY DUPLEX SCAN DUPLEX SCAN

BACK

ABC DEF

JKLGHI MNO

TUVPQRS WXYZ

ACC. #-C

10 11 12

@.-

READ-END

16 17 18 19 20 21 22 23 24 25 26

[FAX] key / indicator (when the fax option is installed) LINE indicator, DATA indicator

This key is used in fax mode. For more information, see the "Operation Guide (FACSIMILE EXPANSION KIT)" that accompanies the machine.

[SPECIAL FUNCTION] key

Press to select special functions.

[EXPOSURE] key

Use to select the exposure mode. "AUTO", "TEXT", or "PHOTO" can be selected. (p.33)

[PAPER SELECT] key

Use to manually select a paper tray. (p.34)

[COPY RATIO] key

Press to select a reduction or enlargement copy ratio. (p.38)

[AUTO IMAGE] key

Press to have the copy ratio selected automatically. (p.37)

[OUTPUT] key

Use to select the sort function. (p.49)

[2-SIDED COPY] key

Arrow keys

Press to move the highlighting (which indicates that an item is selected) in the display.

[ACC.#-C] key ( )

Press the end the use of an account and return the display to the account number entry screen. (p.28)

[0] key

Press during a continuous copy run to display the number of copies completed.

[READ-END] key ( )

When copying in sort mode from the document glass, press this key when you have finished scanning the original pages and are ready to start copying. (p.49)

[CA] key

Clears all selected settings and returns the machine to the default settings. (p.22)

[START] key ( ) / indicator

Copying is possible when this indicator is on. Press the key to start copying. This indicator blinks when auto power shut-off mode has activated. Press the key to return to normal operation.

(MX-M182D/MX-M202D/MX-M232D)

Select the two-sided copying mode. (p.41)

INTERRUPT

BEFORE USING THE MACHINE

Display (base screen)

Example: Copy mode

1 2 3 4

Ready to copy.

AUTO

100%

5 6 7

Exposure display

Indicates the selected exposure mode.

Special function icon display

Icons of enabled special functions will appear.

Message display

Messages are displayed regarding machine status and operation.

Original size display

The size of the placed original and the icon of the original scanning mode will appear.

: One-sided scanning in the SPF. : Scanning on the document glass : Two-sided scanning in the RSPF.

AUTO

Icons appearing in the special function icon display

1-sided to 2-sided copy (MX-M182D/ MX-M202D/MX-M 232D only)

2-sided to 2-sided copy (MX-M182D/ MX-M202D/MX-M 232D only)

2-sided to 1-sided copy

Sort function Dual page copy

Margin shift copy Card shot

Edge erase copy ID card copy

Centre erase copy

Copy ratio display

Displays the copy ratio for reduction or enlargement.

Paper size display

Displays the selected paper size. When "AUTO" appears, the most suitable size of paper is automatically selected.

Paper tray display

The selected paper tray is highlighted.

Edge + Centre erase

2 in 1 copy

4 in 1 copy

OPERATION IN COPY, PRINT, SCAN, AND FAX MODES

Some operations in the various modes of the machine cannot take place simultaneously.

Interrupting operation

Copy output Printing Scanning

Interrupted operation

Copying Output Ye s *

Printing Output Ye s *

Scanning

Faxing

*1 Can be used after pressing the [INTERRUPT] key ( ). *2 After the page that is currently being printed is output, the job is interrupted.

Note

Scanning an original

Output Ye s *

• Printing is not possible when the front or side cover is opened for machine maintenance, or when a misfeed occurs or the machine runs out of paper or toner, or when the drum cartridge reaches its replacement time.

• If an original misfeed occurs in the SPF/RSPF, printing will not be possible until the misfed original is removed and the SPF/RSPF is ready for use.

No No No No

No Yes*

No No No

Faxing

Scanning

originals

Ye s *

Printing

faxes

POWER ON AND OFF

The power switch is located on the left side of the machine.

POWER ON

Turn the power switch to the "ON" position.

POWER OFF

Make sure that the machine is not in operation and then turn the power switch to the "OFF" position.

It will take about 25 seconds for the machine to warm up. While the machine is warming up, the START indicator will blink. (The START indicator will light up when the machine is ready

to copy.) However, you can make desired settings and press

the [START] key ( ) during warm-up. Copying will start after warm-up.

• The machine reverts to the initial settings when it is first turned on, when the [CA] key is pressed, or when no

Note

keys are pressed for the preset "Auto clear" time following the end of a copy job. When the machine reverts to the initial settings, all settings and functions selected to that point are cancelled. The "Auto clear" time can be changed in the system settings. (p.118)

• The machine is initially set to automatically enter power save mode if not used for copying or printing, for a preset period of time. This setting can be changed in the system settings. (p.120)

If the power switch is turned off while the machine is in operation, a misfeed may occur and the job that was in progress will be cancelled.

Power save modes

The machine has two power save modes to reduce overall power consumption thereby reducing the cost of operation. In addition, these modes conserve natural resources and help reduce environmental pollution. The two power save modes are "Preheat mode" and "Auto power shut-off mode".

Preheat mode

This function automatically switches the machine to a low power consumption state if the duration of time set in the system settings elapses without the machine being used when the power is on. In preheat mode the display turns off. Normal operation automatically resumes when a key on the operation panel is pressed, an original is placed, or a print job or fax is received.

Auto power shut-off mode

This function automatically switches the machine to a state that consumes even less power than preheat mode if the duration of time set in the system settings elapses without the machine being used when the power is on. During auto power shut-off, only the START indicator blinks. To restore the machine to normal operation, press the [START] key. Normal operation also resumes automatically when a print job or fax is received or scanning is begun from a computer. While auto power shut-off is in effect, pressing a key other than the [START] key will have no effect.

Note

The preheat activation time and the "Auto power shut-off timer" can be changed using system settings. It is suggested that you set times that are appropriate for your usage of the machine. (p.120)

Default settings

The machine is set at the factory to return all settings to the default settings one minute after a copy job is finished (auto clear function) or when the [CA] key is pressed. When the settings return to the default settings, any functions that were selected are cancelled. The auto clear time can be changed in the system settings. (p.118) In the default state the display shown below appears. The default state of the display may vary depending on

settings in the system settings.

Ready to copy.

AUTO

100%

AUTO

*The screen is that of the MX-M232D.

LOADING PAPER

The message "TRAY< >:Add paper." will be displayed when there is no copy paper in the selected paper tray. (< > is the tray number.) Load paper in the indicated paper tray.

PAPER

For best results, use only SHARP recommended paper.

Paper tray type Paper type Size Weight Capacity

Paper tray 250-sheet paper feed unit 2 x 250-sheet paper feed unit

Bypass tray Standard paper

Standard paper Recycled paper

Recycled paper

Transparency film Labels

Thick paper A6R to A4

Envelopes International DL

A5 B5 A4 B4 A3 (5-1/2" x 8-1/2" (8-1/2" x 11" (Letter)) (8-1/2" x 13" (Foolscap)) (8-1/2" x 14" (Legal)) (11" x 17" (Ledger))

A6R to A3 (5-1/2" x 8-1/2" (Invoice) to 11" x 17" (Ledger))

(5-1/2" x 8-1/2" (Invoice) to 8-1/2" x 11" (Letter))

A6R to A3 (5-1/2" x 8-1/2" (Invoice) to 11" x 17" (Ledger))

(110 mm x 220 mm) International C5 (162 mm x 229 mm) Monarch (3-7/8" x 7-1/2") Commercial 10 (4-1/8" x 9-1/2")

(Invoice))

56 g/m (15 lbs. to 24 lbs.

56 g/m (15 lbs. to 24 lbs.)

129 g/m (33 lbs. to 110 lbs.

106 g/m (28 lbs. to 33 lbs.)

91 g/m (24 lbs. to 28 lbs.)

to 90 g/m

to 200 g/m

to 128 g/m

to 105 g/m

2 *2

250 sheets

)

(Load paper lower than the line on the tray)

100 sheets

Load one sheet of paper each time on the bypass tray.

Load one sheet of

)

paper each time on the bypass tray.

You can load multiple sheets of paper on the bypass tray.

5 sheets

*1A5 (5-1/2" x 8-1/2") can be used in the upper paper tray but cannot be used in other trays (including trays in optional paper

feeding unit).

When making a large number of copies or prints using 90 g/m2 (24 lbs.) paper, remove the output from the paper output tray

when about 100 pages have been printed. The output may not stack correctly if more than 100 pages are allowed to accumulate.

The number of sheets of the paper which can be set changes with the weight of a paper.

Index

Paper that can be used for automatic 2-sided printing (MX-M182D/MX-M202D/MX-M232D)

Paper used for automatic two-sided printing must meet the following conditions: Paper type: Plain paper (special paper cannot be used.) Paper size: Standard sizes (A3, B4, A4, A4R, B5, B5R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R) Paper weight: 56 g/m2 to 90 g/m2 (15 lbs. to 24 lbs.)

Special papers

Follow these guidelines when using special papers.

●

Use SHARP recommended transparency film and label sheets. Using other than SHARP recommended paper may result in misfeeds or smudges on the output. If other than SHARP recommended media must be used, feed each sheet one at a time using the bypass tray (do not attempt continuous copying or printing).

● There are many varieties of special paper available on the market, and some cannot be used with this machine. Before using special paper, contact your authorised service representative.

● Before using other than SHARP recommended paper, make a test copy to see if the paper is suitable.

BEFORE USING THE MACHINE

LOADING PAPER

Make sure that the machine is not copying or printing, and then follow these steps to load paper.

Loading the paper tray

Gently lift and pull out the paper tray

until it stops.

Adjust the plates in the tray to the

length and width of the paper.

Plate B

Plate A

• The plate A is a slide-type guide. Grasp the locking knob on the guide and slide the guide to the indicator line of the paper to be loaded.

• The plate B is an insert-type guide. Remove it and then insert it at the indicator line of the paper to be loaded.

• When using 11" x 17" sized paper store the plate B in the slot at the left front of the paper tray.

Load paper into the tray.

Note

• Do not load paper higher than the line on the tray (up to 250 sheets).

• Do not add paper to the loaded paper. It may cause multiple feed of paper.

• A5 (5-1/2" x 8-1/2") can be used in the upper paper tray but cannot be used in other trays (including trays in optional paper feeding unit).

• Open the package of the paper and load it without fanning the paper.

• Make sure the stack of paper is straight before loading it.

Push the pressure plate down.

Push the centre of the pressure plate down until it locks into place.

For how to load paper, refer to the steps below.

Gently push the paper tray into the

machine.

Note

• If you loaded a different size of paper than was loaded previously in the tray, go to "CHANGING THE PAPER SIZE SETTING OF A TRAY" (p.26).

• When misfeed occurs, rotate the paper 180 degrees and reload it.

• Straighten curled paper before using it.

BEFORE USING THE MACHINE

Loading the bypass tray

Unfold the bypass tray.

When feeding large paper such as B4 and A3 (8-1/2" x 14" and 11" x 17"), pull out the bypass tray extension.

Set the paper guides to the copy

paper width.

Insert the paper (print face down) all

the way into the bypass tray.

To prevent a misfeed, verify once more that the paper guides are adjusted to the width of the paper.

Note

• If you loaded paper in the bypass tray, press the [PAPER SELECT] key to select the bypass tray.

• If you load thick paper in the bypass tray, press the [PAPER] key until "EXTRA" is highlighted. The paper type is set to thick paper. The setting is cleared when "Auto clear" works or the [CA] key is pressed. For restrictions on paper types and weights, see "PAPER" (p.23).

Important points when inserting paper in the bypass tray

• Up to 100 sheets of standard copy paper can be set in the bypass tray.

• Be sure to place A6, B6 or 5-1/2" x 8-1/2" size paper or envelopes horizontally as shown in the following diagram. (When using the printer: Same as the direction for the A4 size paper, etc)

Available

• When loading envelopes, make sure that they are straight and flat and do not have loosely glued construction flaps (not the closure flap).

• Special papers except SHARP recommended transparency film, labels, and envelopes must be fed one sheet at a time through the bypass tray.

• When adding paper, first remove any paper remaining in the tray, combine it with the paper to be added and then reload as a single stack. The paper to be added must be the same size and type as the paper already in the tray.

• Do not use paper that is smaller than the original. This may cause smudges or unclean images.

• Do not use paper that has already been printed on by a laser printer or plain paper fax machine. This may cause smudges or unclean images.

Not

available

BEFORE USING THE MACHINE

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE DATA

DATA

ON LINE

ACC

ED COPY

GHI

PQRS

BACK

Envelopes

Do not use the following envelopes, as misfeeds will occur.

• Envelopes with metal tabs, clasps, strings, holes, or windows.

• Envelopes with rough fibres, carbon paper, or glossy surfaces.

• Envelopes with two or more flaps.

• Envelopes with tape, film, or paper attached to the flap.

• Envelopes with a fold in the flap.

• Envelopes with glue on the flap to be moistened for sealing.

• Envelopes with labels or stamps.

• Envelopes that are slightly inflated with air.

• Envelopes with glue protruding from the seal area.

• Envelopes with part of the seal area peeled off.

CHANGING THE PAPER SIZE SETTING OF A TRAY

If the size of the loaded paper is different from the size shown in the display, follow the steps below to change the paper size setting of the tray. The paper size setting cannot be changed during copying, printing, fax printing (when the fax option is installed), or interrupt copying, or when a misfeed has occurred. However, if the machine is out of paper or out of toner, the paper size setting can be changed during copying, printing, and fax printing. See "PAPER" (p.23) for information on the specifications for the types and sizes of paper that can be loaded in the paper trays. The paper size cannot be set for the bypass tray.

Press the [SPECIAL FUNCTION] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES ORIG. SIZE ENTER

The special function screen will appear.

The screen shown above is the copy mode screen.

Press the [ ] or [ ] key to select

"PAPER SIZE SET".

PAPER SIZE SET

SPECIAL FUNCTION

ID CARD COPY SPECIAL MODES ORIG. SIZE ENTER

PAPER SIZE SET

Press the [OK] key.

Press the [ ] or [ ] key to select the

paper tray for which the paper size is being changed.

Example: Tray 2

PAPER SIZE SET

Press the [ ] key.

PAPER SIZE SET

A4 A3

The cursor moves to the paper size selection position on the right.

A3 B4 A4 A4R

B4 A4 A4R

The paper size setting screen will appear.

Note

For the paper trays and tray numbers, "PAPER" (p.23).

PAPER SIZE SET

: Shows tray "1". : Shows tray "2".

A3 B4 A4 A4R

see

Press the [ ] or [ ] key to select the

paper size.

Example: Selecting B4 size

PAPER SIZE SET

A4 A3

A4 A4R

To change the size of another paper tray, press the [ ] key and then repeat steps 4 to 6.

BEFORE USING THE MACHINE

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

ACC

ED COPY

GHI

PQRS

BACK

Press the [OK] key.

A message asking you to confirm the new paper size setting will appear.

Press the [OK] key.

Note

Affix the paper size label for the paper size selected in step 6 to the label position on the right end of the tray.

The selected paper size will be stored and the display will return to the base screen.

DISABLING (ENABLING) AUTO TRAY SWITCHING

When auto tray switching is enabled and paper runs out during copying or printing, the job will continue using paper from a different tray if that tray has the same size of paper in the same orientation. (This function does not operate when using the bypass tray or when a fax is being printed.) This function has been enabled at the factory. If you prefer to disable the function, follow the steps below.

Press the [SPECIAL FUNCTION] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES ORIG. SIZE ENTER

The special function screen will appear.

The above screen appears in copy mode.

PAPER SIZE SET

Press the [ ] key repeatedly until

"AUTO TRAY SWITCHING" appears.

PAPER SIZE SET

AUTO TRAY SWITCHING

Move the cursor to the lowest tray and then press the [ ] key again. The above screen will appear.

Select "PAPER SIZE SET" with the [ ]

or [ ] key.

Press the [OK] key.

The paper size setting screen will appear.

SPECIAL FUNCTION

ID CARD COPY SPECIAL MODES ORIG. SIZE ENTER

PAPER SIZE SET

When a checkmark does not appear in the checkbox, the auto tray switching function will not operate.

PAPER SIZE SET

A3 B4 A4 A4R

You will return to the paper size setting screen.

To re-enable auto tray switching, press the [OK] key in the screen of step 5 so that a checkmark appears.

Press the [OK] key.

Press the [ ] key.

PAPER SIZE SET

AUTO TRAY SWITCHING

PAPER SIZE SET

A3 B4 A4 A4R

AUDITING MODE

ABC DEF

JKLGHI MNO

TUVPQRS WXYZ

@.-

READ-END

ACC. #-C

INTERRU

READ

ACC. #-C

When auditing mode is enabled, a count is kept of the pages printed by each account. The page counts can be viewed in the display. This function is enabled in the system settings. (For the counts in copy, print, and scan modes, see p.114. For the counts in fax mode, see the "Operation Guide (FACSIMILE EXPANSION KIT)" that accompanies the machine.)

NUMBER OF ACCOUNTS IN AUDITING MODE

Mode Number of accounts Remarks

Same for copy, print,

(1)

and scan modes

(2) Fax 50 maximum Fax counts are managed under one account number.

Note

The same account number can be assigned to (1) and (2).

50 maximum

Copying, printing, and scanning counts are managed under one account number.

USING AUDITING MODE

When auditing mode is turned on, the account number entry screen is displayed. Enter your account number (five-digit identification number) as explained below before performing a copy, fax, or scan operation.

Enter your account number.

:-----

Note

When the copy job is finished, press

the [ACC.#-C] key ( ).

• If you enter a account number for copy mode that has also been programmed for fax mode, you can change to fax mode after completing the copy operation and continue with the fax operation without re-entering your account number. If you enter an account number for copy mode that has not been programmed for fax mode, enter your account number for fax mode after you press the [FAX] key to change to fax mode.

• If an invalid account number is entered in step 1, the account number entry screen reappears. When "ACC. # SECURITY" (p.116) in the

• system settings is enabled, a warning message will appear and operation will not be permitted for 1 minute if an invalid account number is entered 3 times in a row.

If you are performing an interrupt copy job (p.48) when auditing mode is enabled, be sure to press the [INTERRUPT] key ( ), [CA] key, or [ACC.#-C] key ( ) when finished to exit interrupt mode.

Enter your account number (five

digits) with the numeric keys.

Enter your account number.

ACCOUNT #

• As the account number is entered, the hyphens (-) change to asterisks ( ). If you enter an incorrect digit, press [C] key and re-enter the correct digit.

• When a valid account number is entered, the current count of the account will appear in the message display of the base screen. After 6 seconds (factory default setting), the base screen appears. (p.22)

* In copy mode and print mode, the number of sheets

remaining until the limit is reached is also shown if "ACCOUNT LIMIT" (p.116) is enabled in the system settings.

Example: Copy mode

: ---

COPIES MADE:000,000

REMAINING:050,000

AUTO

100%

AUTO

ACCOUNT #

Chapter 3

COPY FUNCTIONS

This chapter explains how to use the copy functions.

NORMAL COPYING

This section explains how to make a regular copy. If "Auditing mode" has been enabled (p.114), enter your 5-digit account number.

Copying from the document glass

Open the SPF/RSPF and place the

original face down on the document glass.

Align the upper left-hand corner of the original with the tip of the

mark. The original size is automatically detected.

Note

Close the SPF/RSPF.

Note

An original up to A3 (11" x 17") can be placed on the document glass.

After placing the original, be sure to close the SPF/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

If the original is a non-standard size or the size was not detected correctly, see "SELECTING THE ORIGINAL SIZE" (p.35).

Make sure that the desired paper tray

is selected.

Ready to copy.

AUTO

100%

To load paper, see "LOADING PAPER" (p.24).

Note

AUTO

• If the auto paper select function has been disabled in the system settings (p.123), use the [PAPER SELECT] key to select the desired paper size.

• If you wish to use a size of paper different from the size automatically selected by the machine, use the [PAPER SELECT] key to select the desired paper size.

• Paper in a different orientation from the original can be selected if the auto paper select or auto image function has been selected. In this case, the image of the original will be rotated.

• To make a copy of a small original such as a card, follow the procedure in "USING THE BYPASS TRAY TO COPY A SPECIAL SIZE ORIGINAL" (p.36).

• To use the bypass tray, select it manually.

Set the number of copies.

If you are making two or more copies each

Note

of multiple original pages, you can select the sort function to collate the copies into sets.

(p.49)

COPY FUNCTIONS

MNO

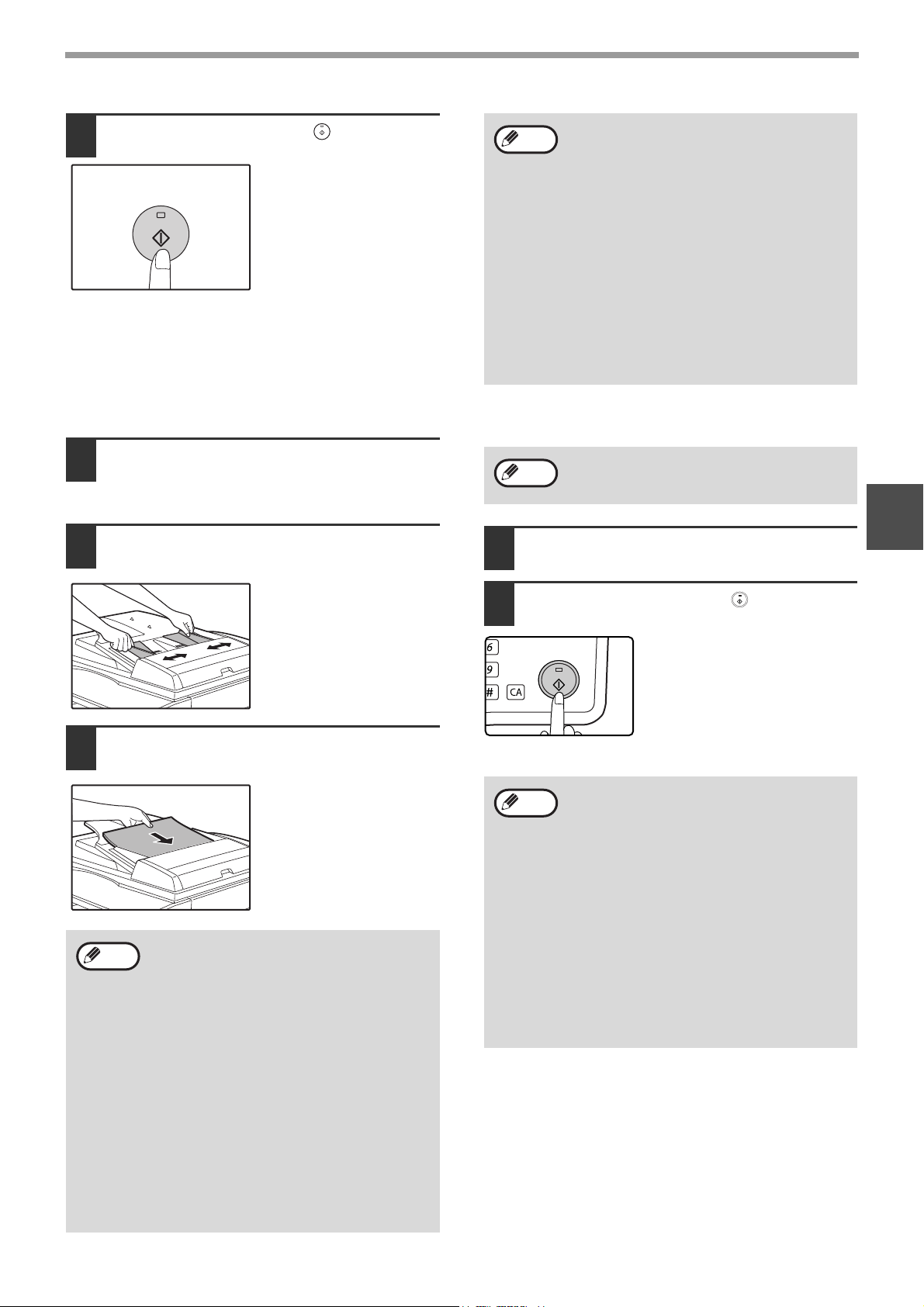

Press the [START] key ( ) to begin

copying.

The copy is delivered to the paper output tray.

Copying from the SPF/RSPF

Make sure that an original has not

been left on the document glass. Close the SPF/RSPF.

Adjust the original guides to the size

of the original(s).

• The centre tray can hold a maximum of

Note

Set the number of copies.

250 sheets (150 sheets when the job separator tray kit is installed).

•

About one minute after copying ends, "Auto clear" (p.22) activates and restores the copy settings to the default settings. The setting for "Auto clear" can be changed in the system settings. (p.118)

• To cancel a copy job in progress, press the [C] key.

• Differences in copy conditions may cause the position of the printed copy image to vary even the copies are of the same original on the same paper. For more information, see "Points concerning the position of the printed copy image" on

(p.32).

Do not place originals of different sizes together in the document feeder tray. This may cause misfeeds.

Set the original(s) face up in the

document feeder tray.

The original size appears in the display and the most suitable paper size is automatically selected. Insert the stack into the document feeder tray until it stops.

• If the original is a non-standard size or the

Note

size was not detected correctly, see "SELECTING THE ORIGINAL SIZE"

(p.35).

• If the auto paper select function has been disabled in the system settings (p.123), use the [PAPER SELECT] key to select the desired paper size.

• To copy onto paper of a different size, press the [PAPER SELECT] key and select the desired paper size.

•

Paper in a different orientation from the original may be selected if the auto paper select or auto image function has been selected. In this case, the image of the original will be rotated.

• To use the bypass tray, select it manually.

• Do not place originals of different sizes together in the document feeder tray. This may cause misfeeds.

Press the [START] key ( ) to begin

copying.

The copies are delivered to the centre tray. The default output mode for copying from the SPF/RSPF is sort mode. (p.49) The output mode can be changed using the automatic

sort selection setting in the system settings. (p.123)

• The centre tray can hold a maximum of

Note

250 sheets (150 sheets when the job separator tray kit is installed).

• About one minute after copying ends, "Auto clear" (p.22) activates and restores the copy settings to the initial settings. The duration of time after which "Auto clear" clears the copy settings can be changed in the system settings. (p.118)

• To stop copying in the middle of a run, press the [C] key. If you find it difficult to remove the original from the document feeder tray, open the feeding roller cover before removing the original. If you pull out the original without opening the feeding roller cover, the original may become dirty.

COPY FUNCTIONS

Auto paper select mode (when there are two or more paper trays)

When auto paper select mode is enabled, "AUTO" appears in the paper size display. This function automatically selects paper that is the same size as the original (A5, B5, B5R, A4, A4R, B4, A3, 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 14", 11" x 17" paper).

• The sizes of paper that can be used vary by country and region.

• If a zoom setting is selected after placing the original, the paper size that is appropriate for the zoom setting will be automatically selected.

• "Auto paper select mode" is cancelled if the automatic ratio selection is enabled (p.37) or if a tray is selected with the [PAPER SELECT] key. Auto paper select resumes operation when the [CA] key is pressed or when "Auto clear time" activates.

• "Auto paper select mode" can be disabled in the system settings. (p.123)

Removing the document cover

To copy large originals like newspapers, remove the document cover. To remove it, open the document cover and lift it at a slightly backward angle. To replace the cover, do the reverse. The SPF/RSPF cannot be removed.

Copying books or originals with folds or creases

Press down on the document cover/SPF/RSPF while copying as shown. If the document cover/SPF/RSPF is not completely closed, shadows may appear on the copy or it may be fuzzy. Straighten originals with folds or creases well before placing.

Originals that can be used in the SPF/RSPF

Originals that are A5 to A3 (5-1/2" x 8-1/2" to 11" x 17") and 56 g/m can be used. A maximum of 40 pages can be placed at once. For originals that are B4 (8-1/2" x 14") or larger (B4, A3 (8-1/2" x 14", 11" x 17")), a maximum of 30 pages can be placed at once.

• Make sure that there are no paper clips or

Note

staples on the original.

• Straighten curled originals before placing them in the document feeder tray. Curled original may cause misfeeds.

• When you set multiple sheets of thick original, if the original is not fed, reduce the number of the set originals.

to 90 g/m2 (15 lbs. to 24 lbs.)

Originals that cannot be used in the SPF/RSPF

The following originals cannot be used. These may cause misfeeds or smudging and unclear images.

• Transparencies, tracing paper, other transparent or translucent paper, and photographs.

• Carbon paper, thermal paper.

• Originals that are creased, folded, or torn.

• Glued originals, cut-out originals.

• Originals with binder holes.

• Originals printed using an ink ribbon (thermal transfer printing), originals on thermal transfer paper.

Stream feeding mode

If "Stream feeding mode" is enabled in the system settings (p.122), the SPF/RSPF indicator will blink for about 5 seconds after all originals are fed. If a new original is placed in the SPF/RSPF during this time, the original will be automatically fed in and copying will begin.

COPY FUNCTIONS

Points concerning the position of the printed copy image

Even if the same original is copied onto the same type of paper, differences in the original size, scanning location (document glass or document feeder tray), selected paper tray, enlargement/reduction ratio, and other conditions may cause the position of the printed copy image on the paper to vary. As shown in the following example, when an original smaller than the paper size (for example, A5 original and A3 paper) is copied from the document glass, the position of the printed copy image on the paper is different when paper from tray 1 is used (1) and paper from the bypass tray is used (2).

(1)

(2)

A3 paper

copy image

COPY FUNCTIONS

AD AD

EXPOSURE COLOUR MODE PROGRAM

PAPER SELECT RESOLUTION RESOLUTION

COPY SCAN

FAX

ACC

ED COPY

GHI

PQRS

BACK

MAKING A COPY DARKER OR LIGHTER

The copy exposure can be adjusted as needed to the original. Three exposure modes are available: "AUTO", "TEXT" and "PHOTO". When "TEXT" or "PHOTO" is selected, the exposure can be manually adjusted to 5 levels.

Auto

This is the default exposure mode. In this mode, the characteristics of an original being copied are "read" by the exposure system and exposure adjustments are made automatically. The exposure level is lowered for coloured areas and background shadows.

AUTO

100%

Text/photo

TEXT: This mode enhances low density areas of an original and suppresses high-density background areas to

make text more legible.

PHOTO: This mode provides clearer reproduction of halftones in photos.

Press the [EXPOSURE] key.

EXPOSURE

AUTO

TEXT PHOTO

The copy exposure screen will appear.

Select the exposure mode that best

suits the original with the [ ] or [ ] key.

EXPOSURE

AUTO

TEXT


The [EXPOSURE] key can also be pressed to select the exposure mode.

Adjust the exposure level as needed

with the [ ] or [ ] key.

EXPOSURE

AUTO

TEXT


• The exposure level cannot be adjusted when "AUTO" is selected.

• For a darker image, press the [ ] key. For a lighter image, press the [ ] key.

• The default exposure levels for "TEXT" and "PHOTO" can be set in the system settings.

Note

Press the [OK] key.

Exposure level guidelines

1 to 2: Dark originals such as newspapers 3: Normal density originals 4 to 5: Text written in pencil or light colour

text

Note

When "PHOTO" is selected, "PHOTO MODE DEFAULT" in the system settings can be used to select the method for expressing halftones. (p.123)

To return to AUTO mode, press the [EXPOSURE] key, select "AUTO" with the [ ] key, and press the [OK] key.

COPY FUNCTIONS

COPY RATIO ADDRESS ADDRESS

EXPOSURE COLOUR MODE PROGRAM

PAPER SELECT RESOLUTION RESOLUTION

AUT

BRO

SELECTING THE TRAY

Auto paper select mode (p.31) normally operates (unless it has been disabled), and thus when the original is placed on the document glass and the original size is selected, or when the original is placed in the SPF/RSPF, the tray with the same size of paper as the original is automatically selected. If you wish to use a tray other than the automatically selected tray (for example you wish to enlarge or reduce the copy or use the bypass tray), press the [PAPER SELECT] key to select the desired tray.

Note

• If the desired paper size does not appear, change the paper in a tray to the desired paper size.

• Automatic ratio selection (p.37) does not operate when the bypass tray or a tray set for a special paper size is selected.

(p.26)

Auto tray switching (when there are two or more paper trays)

If the tray runs out of paper during copying and there is another tray with the same size of paper and the same feeding orientation (horizontal or vertical), the other tray is automatically selected and copying continues. "Auto tray switching" can be disabled in the system settings (p.123).

SETTING THE NUMBER OF COPIES

Press the numeric keys to set the number of copies.

WXYZ

• The set number of copies appears in the display. A maximum of 999 copies (factory default setting) can be set.

• A single copy can be made even if "0" is displayed.

Note

• If you enter the wrong number, press the [C] key and enter the correct number.

• The limit for the number of copies can be changed in the system settings. (p.123)

Important note when making a large number of copies

If the number of sheets output to the centre tray exceed its maximum capacity (250 sheets when a job separator tray kit is not installed, 150 sheets when a job separator tray kit is installed) during a copy job, the copy job will stop temporarily. If this happens, promptly remove the copies and press the [OK] key to resume copying. The copy job will step each time the number of sheets in the centre tray reach its maximum capacity. Before starting a long copy run, remove any sheets that remain in the centre tray. During output of the copy job, exercise care as the job may stop frequently due to the centre tray becoming full.

COPY FUNCTIONS

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

ACC

ED COPY

GHI

PQRS

BACK

SELECTING THE ORIGINAL SIZE

If you loaded a non-standard size* original or the original size was not correctly detected, set the original size manually. Perform the following steps after placing the document in the document feeder tray or on the document glass.

Note

Press the [SPECIAL FUNCTION] key.

* Standard sizes:

The following sizes can be detected correctly: A3, B4, A4, A4R, A5 (11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2"). If a non-standard size original is placed (including special sizes), the closest standard size may be displayed, or the original size may not appear.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES ORIG. SIZE ENTER

The special function screen will appear.

Select "ORIG. SIZE ENTER" from the

menu with the [ ] or [ ] key.

PAPER SIZE SET

SPECIAL FUNCTION

ID CARD COPY SPECIAL MODES

ORIG. SIZE ENTER

PAPER SIZE SET

Press the [OK] key.

Selecting an inch original size

Select the original size with the [ ] or

You will return to the base screen and the selected original size will appear in the original size display.

[ ] key.

ORIG. SIZE ENTER

INCH

11x17

8 x14

8 x11

ORIG. SIZE ENTER

The original size selection screen will appear.

Select the original size with the [ ] or

[ ] key.

ORIG. SIZE ENTER

AB A3

The selected original size is highlighted.

• To select an inch original size, press the [ ] key and go to step 6.

•

If you selected "SIZE INPUT", follow steps 4 through 6 of the procedure in "USING THE BYPASS TRAY TO COPY A SPECIAL SIZE ORIGINAL" (p.36) to set the horizontal and vertical dimensions of the original.

To return to selection of AB original sizes, press the [ ] key to return to step 4.

Press the [OK] key.

You will return to the base screen and the selected original size will appear in the original size display.

Note

To cancel an original size selection, press the [CA] key.

COPY FUNCTIONS

COPY RATIO

ADDRESS ADDRESS

PAPER SELECT RESOLUTION RESOLUTION

AUTO IMAGE

FORMAT

BROADCAST

O O

GHI

PQRS

BACK

ACC

ED COPY

MNO

USING THE BYPASS TRAY TO COPY A SPECIAL SIZE ORIGINAL

When the bypass tray is being used for copying and an original that is placed on the document glass is detected as being a special size, the display will prompt the user to set the original size. To make a copy in this type of situation, follow the steps below.

Load paper in the bypass tray and place

the original on the document glass.

Touch the [PAPER SELECT] key and

then select the bypass tray.

[OK]:ORIG. SIZE ENTER

AUTO

100%

EXTRA

A message will appear asking you whether you wish to set the original size or make the copy without setting it. To make a copy without setting the original size, press the [START] key ( ). To set the original size, go to step 3.

If you load thick paper in the bypass tray,

Note

press the [PAPER] key until "EXTRA" is highlighted. The paper type is set to thick paper. The setting is cleared when "Auto clear" works or the [CA] key is pressed. For restrictions on paper types and weights, see "PAPER" (p.23).

[OK]:ORIG. SIZE ENTER

AUTO

100%

EXTRA

Press the [OK] key.

ORIG. SIZE ENTER

AB A4R A5

SIZE INPUT

The original size selection screen appears with "SIZE INPUT" selected.

Press the [OK] key.

If "SIZE INPUT" was selected in step 4:

SIZE INPUT

SIZE(mm)

X:Y:210

148

The size entry screen appears and is ready for entry of the width of the original.

Note

If other than "SIZE INPUT" was selected in step 4:

You will return to the base screen. Go to step 8.

Select "X" (width) with the [ ] or [ ] key

If you selected inches in step 4, the screen will be ready for you to enter the width in inches.

and enter the width with the [ ] or [ ] key, and then do the same for the length (Y).

SIZE INPUT

(mm)

SIZE

X:Y:100

100

•

Any number from 64 mm to 432 mm (2-1/2"

Note

Press the [OK] key.

to 17") can be entered for the width, and any number from 64 mm to 297 mm (2-1/2" to 11-5/8") can be entered for the length.

• The entered size is retained until the power is turned off, even if "SIZE INPUT" is selected again and the entry screen of step 5 is displayed.

You will return to the base screen.

Select AB or inches with the [ ] or

[ ] key, and then select the original size with the [ ] or [ ] key.

Press the [START] key ( ).

Copying begins.

REDUCING OR ENLARGING A COPY

COPY RATIO ADDRESS ADDRESS

EXPOSURE COLOUR MODE PROGRAM

PAPER SELECT RESOLUTION RESOLUTION

AUT

BRO

COPY RATIO

ADDRESS ADDRESS

DU DU

2-S N N

AUTO IMAGE

FORMAT

BROADCAST

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

There are three ways to enlarge and reduce copies:

• Automatic selection of a ratio according to the paper size: Auto ratio selection

• Specifying a ratio from 25% to 400%: Preset ratios/zoom

• Selecting the vertical and horizontal ratios separately: XY zoom

Note

When the SPF/RSPF is being used, the zoom copy ratio range is 50% to 200%.

AUTOMATIC RATIO SELECTION

Place the original in the document

feeder tray or on the document glass.

The original size will appear in the display. If the correct size does not appear, see "SELECTING THE ORIGINAL SIZE" (p.35).

Automatic ratio selection can be used when

Note

Press the [PAPER SELECT] key to

the original size is , A3, B4, A4, A4R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R and 5-1/2" x 8-1/2". It cannot be used for other sizes.

select the desired tray.

If the bypass tray is selected, automatic ratio selection cannot be used.

Press the [AUTO IMAGE] key.

• The copy ratio will be automatically set.

•

If the original and paper are in different orientations, the image is automatically rotated to match the paper orientation (rotation copy). However, if enlargement is selected for copying onto a paper size larger than A4 (8-1/2" x 11"), the image will not be rotated.

• Rotation of the image can be disabled in the system settings when reducing or enlarging a original.

(p.122)

• If the message "Image edge loss." is displayed, part of the original image may be cut off.

Set the number of copies and press

the [START] key ( ).

WXYZ

• To cancel automatic ratio selection, press the [AUTO IMAGE] key again.

• When copying from the SPF/RSPF, automatic ratio selection mode will automatically disable after the [START] key is pressed and the original is scanned.

COPY FUNCTIONS

COPY RATIO

ADDRESS ADDRESS

PAPER SELECT RESOLUTION RESOLUTION

AUTO IMAGE

FORMAT

BROADCAST

O ORIG ORIG

ACC

ED COPY

GHI

PQRS

BACK

MANUAL RATIO SELECTION (PRESET COPY RATIOS/ZOOM)

Place the original in the document

feeder tray or on the document glass.

Press the [COPY RATIO] key.

COPY RATIO

115%

100%

86%

Copy ratios that can be selected will appear.

Select a preset ratio with the [ ] or

ZOOM

[ ] key, or set the ratio (zoom) with the [ ] or [ ] key.

100%

• To cancel a ratio setting, return the ratio to 100% with the [ ] or [ ] key.

• The [COPY RATIO] key can be pressed to return the ratio to 100%.

Press the [OK] key.

You will return to the base screen.

Make sure that the desired paper tray

is selected.

If the auto paper select function has been enabled, the appropriate copy paper size will have been automatically selected based on the original size and the selected copy ratio. If the auto paper select function has been cancelled or if you are copying onto a different size paper, use the [PAPER SELECT] key to select the paper tray with the desired paper size.

[ ] key: Select a larger preset ratio [ ] key: Select a smaller preset ratio [ ] key: Decrease the ratio in increments of 1% [ ] key: Increase the ratio in increments of 1%

• Preset reduction ratios are: 86%, 81%, 70%, 50% and 25% (95%, 77%, 64%, 50% and 25%). 25% can only be selected when the original is placed on the document glass.

• Preset enlargement ratios are: 115%, 122%, 141%, 200% and 400% (121%, 129%, 141%, 200% and 400%). 400% can only be selected when the original is placed on the document glass.

• Zoom ratios: Any ratio from 25% to 400% (50% to 200% when the original is placed in the document feeder tray) can be set in increments of 1%. You can use the [ ] or [ ] key to set the approximate ratio and then press the [ ] key to decrease the ratio or the [ ] key to increase the ratio.

• To decrease or increase the zoom ratio rapidly, hold down the [ ] or [ ] key. However the value will stop at the preset reduction or enlargement ratios. To move beyond these ratios, release the key and then hold it down again. (Note that if the key auto repeat function has been disabled in the system settings, the ratio will not change when the key is held down. (See "DISABLE AUTO KEY REPEAT" on

p.119.))

Set the number of copies and press

the [START] key ( ).

WXYZ

COPY FUNCTIONS

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

ACC

ED COPY

SELECTING THE VERTICAL AND HORIZONTAL COPY RATIOS SEPARATELY (XY ZOOM Copying)

The XY ZOOM feature allows the horizontal and vertical copy ratios to be changed independently.

Example:

Ratios that can be selected will vary depending on the position of the original.

Reduction only in the horizontal direction.

Original Copy

• This feature cannot be used with the 2 IN 1 or 4 IN 1 feature. (p.51)

Note

• To use the XY ZOOM feature with the DUAL PAGE COPY feature, set the DUAL PAGE COPY feature first and then the XY ZOOM feature.

• The XY ZOOM feature cannot be used in combination with the AUTO IMAGE function.

Original position Selectable ratios

Document glass 25% – 400%

SPF/RSPF 50% – 200%

Place the original in the document feeder tray or on the document glass.

Select "XY ZOOM" with the [ ] or [ ]

key.

Press the [SPECIAL FUNCTION] key

and select "SPECIAL MODES" with the [ ] or [ ] key.

The special function screen will appear.

Press the [OK] key.

The special modes screen will appear.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES

ORIG. SIZE ENTER PAPER SIZE SET

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

[OK]:ADJUST

SPECIAL MODES

DUAL PAGE COPY 2in1/4in1

XY ZOOM

[OK]:ADJUST

Press the [OK] key.

The XY zoom screen will appear, ready for selection of the X (horizontal) ratio.

Set the horizontal ratio with the [ ],

[ ], [ ], or [ ] keys.

XY ZOOM

115%

100%

86%

[ ]:

A preset ratio can be selected with the [ ] or [ ] keys. The ratio can be adjusted in increments of 1% with the [ ] or [ ] keys.

X: Y:

ZOOM

100% 100%

COPY FUNCTIONS

READ

ACC. #-C

MNO

Press the key.

XY ZOOM

115%

100%

86%

[ ]:

The vertical ratio can now be selected.

Set the vertical ratio with the [ ], [ ],

[ ], or [ ] keys.

A preset ratio can be selected with the [ ] or [ ] keys. The ratio can be adjusted in increments of 1% with the [ ] or [ ] keys. To change the copy ratio in the horizontal direction again, press the key.

Press the [OK] key.

X: Y:

ZOOM

115% 100%

Select any other copy settings as

needed and press the [START] key ().

Note

If the [COPY RATIO] key is pressed when XY zoom ratios are set, the following screen appears.

XY ZOOM

ADJUST

OFF

To cancel the XY zoom ratio settings, select "OFF" and press the [OK] key. To adjust the XY zoom copy ratios, select "ADJUST" and press the [OK] key.

Ready to copy.

AUTO

X115% Y 99%

You will return to the base screen.

Make sure that the desired paper tray

is selected.

If the auto paper select function has been enabled, the appropriate copy paper size will be automatically selected based on the original size and the selected copy ratios. Image rotation will take place if necessary.

AUTO

A4R

AUTOMATIC TWO-SIDED COPYING (MX-M182D/MX-M202D/MX-M232D)

Two originals placed on the document glass can be copied onto each side of a single sheet of paper. In addition, an RSPF can be used to copy two originals onto one sheet of paper, or one two-sided original onto two sheets of paper, or one two-sided original onto each side of one sheet of paper. This function is convenient for making copies for identification purposes and helps save paper.

Original → Paper Usable paper

Document

glass

SPF

RSPF

Note

One-sided original

→ Two sides

• The sizes of paper that can be loaded vary by country and region.

• To use paper in the bypass tray, make a two-sided copy as explained in "TWO-SIDED COPYING USING THE BYPASS TRAY" (p.46).

• There are restrictions on the paper that can be used for automatic two-sided copying. See "Paper that can be used for automatic 2-sided printing (MX-M182D/MX-M202D/MX-M232D)" on (p.23).

• Automatic two-sided copying is not possible when the bypass tray is used.

Two-sided original

→ Two sides

Two-sided original

→ One side

A5 to A3 (8-1/2" x 11" to 11" x 17")

• The bypass tray cannot be used.

A5, B5, B5R, A4, A4R, B4, A3 (8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 14", 11" x 17")

• Special paper and 5-1/2" x 8-1/2" paper cannot be used.

• The bypass tray cannot be used.

B4 or A3 (8-1/2" x 14" or 11" x 17") portrait original

Orientation of the

placed original

Normal automatic two-sided copying

The top and bottom of the images on the front and back are reversed.

If the orientation of two-sided copying is changed

The top and bottom of the images on the front and back are the same.

COPY FUNCTIONS

DUPLEX SCAN DUPLEX SCAN

2-SIDED COPY

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

ACC

ED COPY

GHI

PQRS

BACK

TWO-SIDED COPYING OF ONE-SIDED ORIGINALS

• Paper sizes that can be used are A3, B4, A4, A4R, B5, B5R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11" and 8-1/2" x 11"R.

• Automatic two-sided copying is not possible when the bypass tray is used.

Copying from the SPF/RSPF

Make sure that an original does not

remain on the document glass, and then adjust the original guides to the width of your originals and place the originals face up in the document feeder tray.

If you placed an odd number of originals, the last copy will be one-sided.

Press the [2-SIDED COPY] key.

COPY MODE

1 to 1

1 to 2 2 to 2

The duplex mode selection screen appears.

If you wish to have the orientation of

the image on the back of the copy paper be opposite the orientation of the image on the front, set "BINDING CHANGE" to "ON" with the [ ] or [ ] key.

COPY MODE

1 to 1

1 to 2

2 to 2

BINDING CHANGE ON

If the copies are to be bound at the top, reversing the orientations of the images on the front and back sides of each copy will result in a uniform orientation when the bound copies are viewed (note that this may depend on the orientation of the originals).

Press the [OK] key.

You will return to the base screen.

Select "1 to 2" with the [ ] or [ ] key,

or with the [2-SIDED COPY] key.

COPY MODE

1 to 1

1 to 2

2 to 2

BINDING CHANGE OFF

Set the number of copies and press

the [START] key ( ).

WXYZ

To stop copying in the middle of a run, press the [C] key.

COPY FUNCTIONS

DUPLEX SCAN DUPLEX SCAN

2-SIDED COPY

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

ACC

ED COPY

GHI

PQRS

BACK

MNO

Copying from the document glass

Place the original for the front side of

the copy on the document glass, and close the SPF/RSPF.

Press the [2-SIDED COPY] key.

COPY MODE

1 to 1

1 to 2 2 to 2

The duplex mode selection screen appears.

Select "1 to 2" with the [ ] or [ ] key,

or with the [2-SIDED COPY] key.

Make sure that the desired paper tray

is selected.

Set the number of copies and press

the [START] key ( ).

WXYZ

Remove the first original and then

place the original for the back side of the copy on the document glass. Close the SPF/RSPF and press the [START] key ( ).

COPY MODE

1 to 1

1 to 2

2 to 2

BINDING CHANGE OFF

If you wish to have the orientation of

the image on the back of the copy paper be opposite the orientation of the image on the front, set "BINDING CHANGE" to "ON" with the [ ] or [ ] key.

COPY MODE

1 to 1

1 to 2

2 to 2

BINDING CHANGE ON

Press the [OK] key.

• The copy will be delivered to the centre tray.

• To cancel two-sided copying, press the [C] key.

• To cancel two-sided (duplex) copy mode, press the [2-SIDED COPY] key to select "1 to 1" and then press the [OK] key.

• When making two-sided copies of an odd number of originals, touch the [READ-END] key ( ) after scanning the last original.

You will return to the base screen.

COPY FUNCTIONS

DUPLEX SCAN DUPLEX SCAN

2-SIDED COPY

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

ACC

ED COPY

GHI

PQRS

BACK

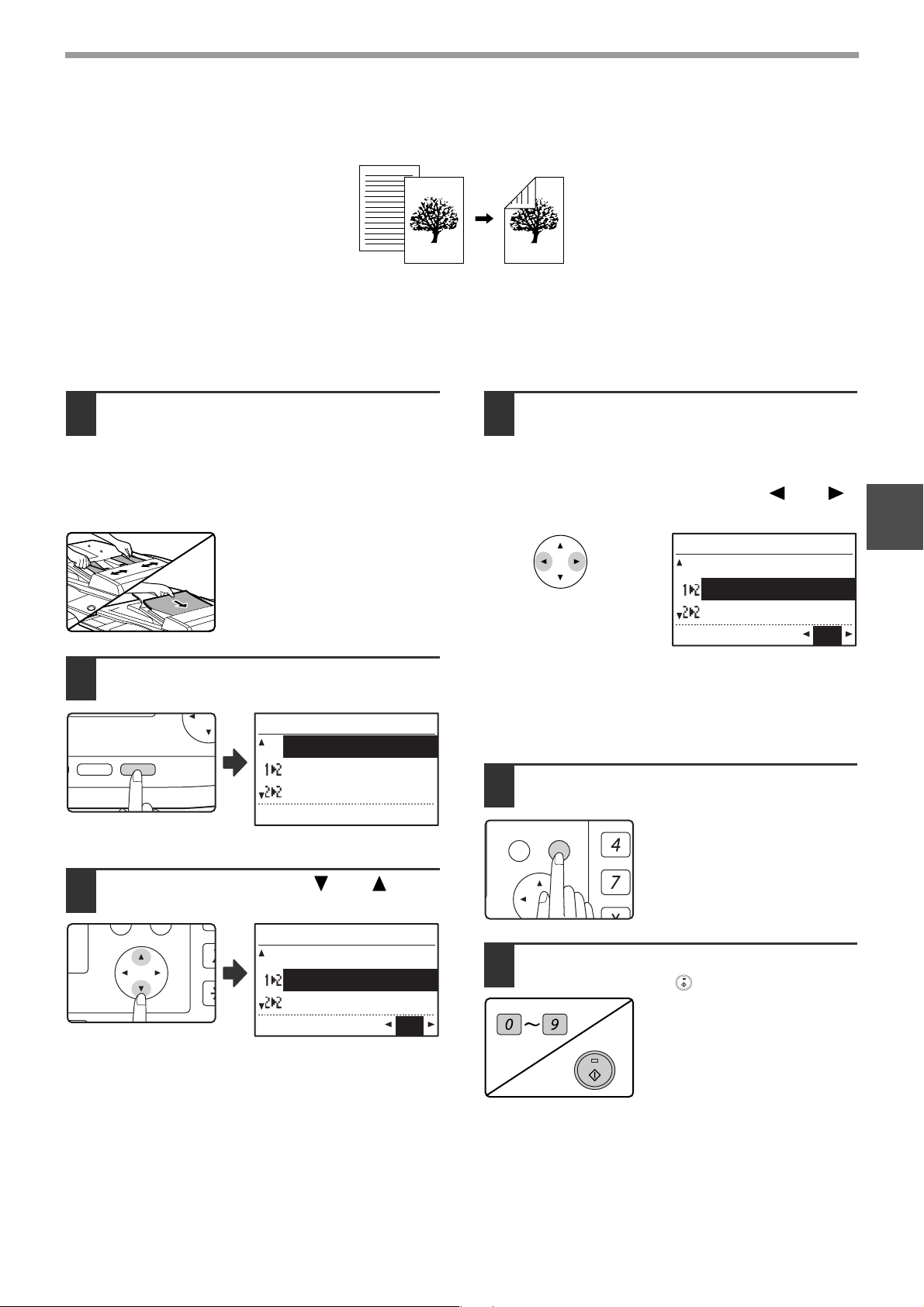

TWO-SIDED COPIES OF TWO-SIDED ORIGINALS (ONLY WHEN USING THE RSPF)

• Paper sizes that can be used are A3, B4, A4, A4R, B5, B5R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11" and 8-1/2" x 11"R.

• Automatic two-sided copying is not possible when the bypass tray is used.

• This copy function cannot be used in combination with dual page copy.

Make sure that an original does not

remain on the document glass, and then adjust the original guides to the width of your originals and place the originals face up in the document feeder tray.

Press the [2-SIDED COPY] key.

COPY MODE

1 to 1

1 to 2 2 to 2

The duplex mode selection screen appears.

Press the [OK] key.

You will return to the base screen.

Set the number of copies and press

the [START] key ( ).

WXYZ

To stop copying in the middle of a run, press the [C] key.

Select "2 to 2" with the [ ] or [ ] key,

or with the [2-SIDED COPY] key.

COPY MODE

1 to 1 1 to 2

2 to 2

COPY FUNCTIONS

DUPLEX SCAN DUPLEX SCAN

2-SIDED COPY

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

ACC

ED COPY

GHI

PQRS

BACK

ONE-SIDED COPIES OF TWO-SIDED ORIGINALS (ONLY WHEN USING THE RSPF)

• Paper sizes that can be used are A3, B4, A4, A4R, B5, B5R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11" and 8-1/2" x 11"R.

• Automatic two-sided copying is not possible when the bypass tray is used.

• This copy function cannot be used in combination with dual page copy.

Make sure that an original does not

remain on the document glass, and then adjust the original guides to the width of your originals and place the originals face up in the document feeder tray.

Press the [2-SIDED COPY] key.

COPY MODE

1 to 1

1 to 2 2 to 2

The duplex mode selection screen appears.

If you wish to have the orientation of

the back image be opposite the orientation of the front image, set "BINDING CHANGE" to "ON" with the [ ] or [ ] key.

COPY MODE

1 to 2 2 to 2

2 to 1

BINDING CHANGE ON

If the copies are to be bound at the top, reversing the orientations of the front and back images will result in a uniform orientation when the bound copies are viewed (note that this may depend on the orientation of the originals).

Press the [OK] key.

You will return to the base screen.

Select "2 to 1" with the [ ] or [ ] key,

or with the [2-SIDED COPY] key.

COPY MODE

1 to 2 2 to 2

2 to 1

BINDING CHANGE OFF

Set the number of copies and press

the [START] key ( ).

WXYZ

To stop copying in the middle of a run, press the [C] key.

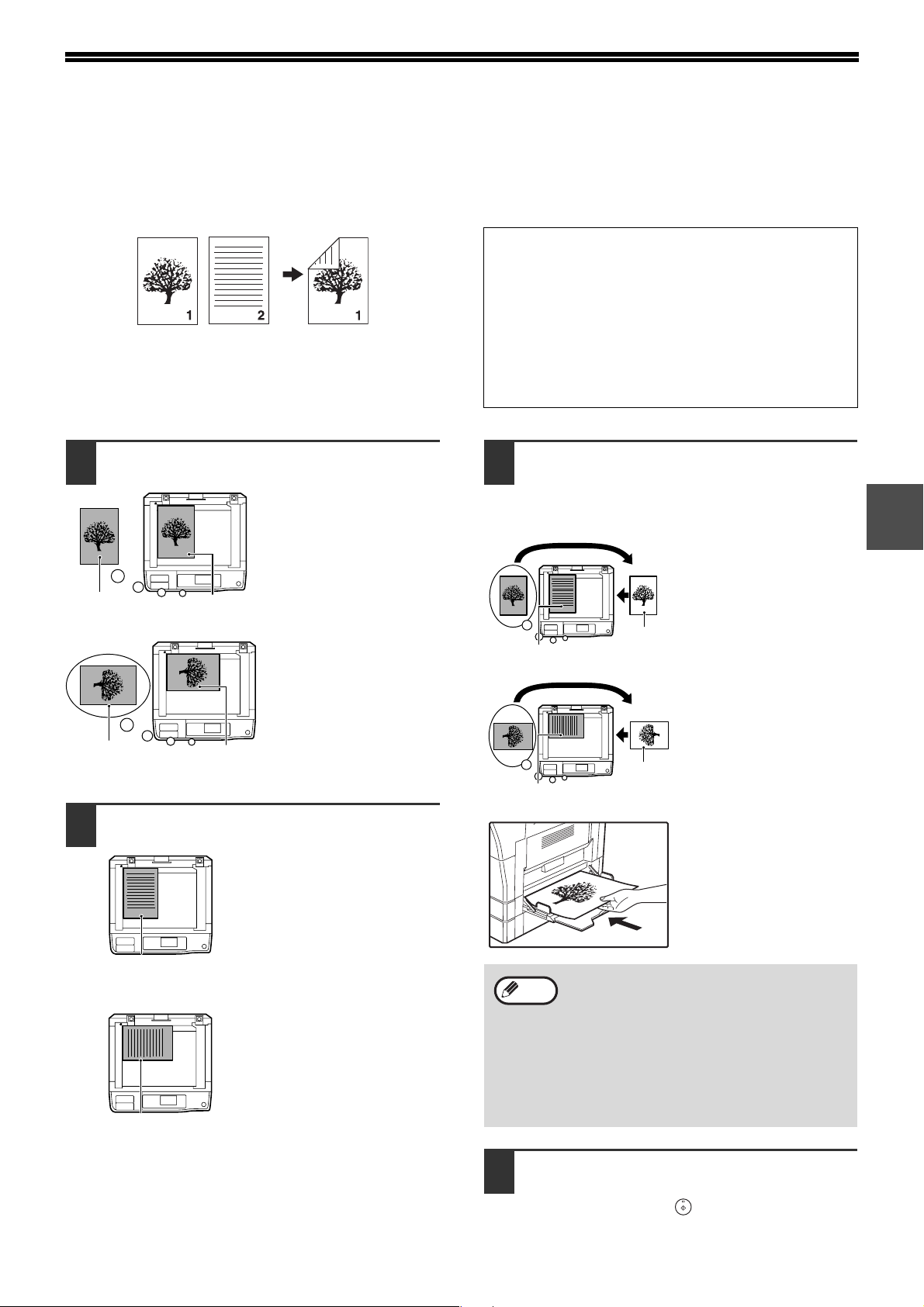

TWO-SIDED COPYING USING THE BYPASS TRAY

To perform manual two-sided copying, follow these steps.

Example: Copying originals A and B onto each side of one sheet of paper

If you are using the MX-M182D/MX-M202D/ MX-M232D

The MX-M182D/MX-M202D/MX-M232D is equipped standard with an automatic two-sided copying function that automatically turns over the paper. If paper in

Original A

Original B

Copy

"Paper that can be used for automatic 2-sided printing (MX-M182D/MX-M202D/MX-M232D)" (p.23) is used, this enables easier two-sided copying than using the bypass tray. See " (MX-M182D/MX-M202D/MX-M232D)

AUTOMATIC TWO-SIDED COPYING

" (p.41).

Copy original A.

Copy of original A

Place original B as shown below.

Original B

Original A

Vertically-oriented original:

If the original is oriented vertically, place it in the same orientation as original A.

Horizontally-oriented original:

If the original is oriented horizontally, place it with the top and bottom and left and right sides reversed with respect to the placement of original A.

Turn the copy of original A over, and

without changing the position of the edge closest to you, insert it in the bypass tray.

Insert the paper all the way in.

Original B

• Copies made on the back side of paper

Note

should always be made one sheet at a time using the bypass tray.

• Straighten curled or wavy paper before using it. Curled paper may cause misfeeds, creases, or a poor-quality image.

•

After placing the original, be sure to close the document cover/SPF/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Select the bypass tray with the

Copy of original A

[PAPER SELECT] key, and then press the [START] key ( ).

The copy is delivered to the paper output tray.

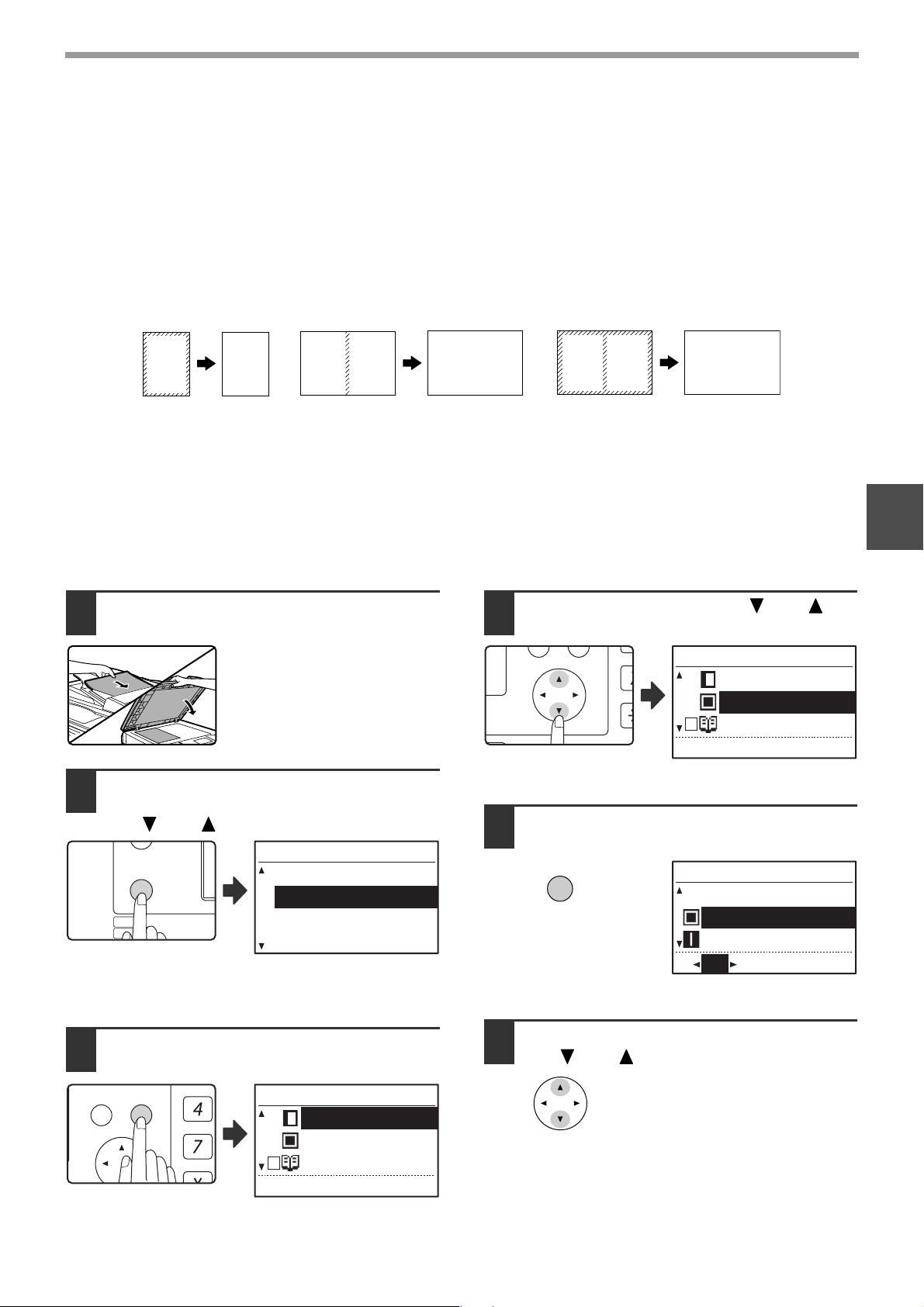

DUAL PAGE COPYING

/2x11 )

B5, A4

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

ACC

ED COPY

MNO

A dual page original can be automatically separated into two pages during copying. This feature is convenient for making copies of books and other dual page originals on individual sheets of paper.

• A4 (8-1/2" x 11") paper is used for dual page copying.

Note

Place the original on the document

• When rotation copy is enabled, A4R (8-1/2" x 11"R) paper can also be used.

• Dual page copying can be enabled when Sort/Group copy (p.49).

• When used in combination with XY ZOOM copying, enlargement is not possible.

• Dual page copying cannot be used in combination with the following functions:

• Enlargement

• 2 IN 1 / 4 IN 1 copying

• Centre erase

• Automatic ratio selection cannot be used when dual page copying is used.

• Dual page copying cannot be selected when an original is placed in the SPF/RSPF.

glass, aligning the division between the pages with the size marker (see below). Close the SPF/RSPF.

Copying will begin from the page to the right of the size marker.

Note

Press the [SPECIAL FUNCTION] key

To keep the copies in the correct page order when performing dual page copying over multiple pages, make sure that the original is always placed on the document glass with the smaller page number to the right.

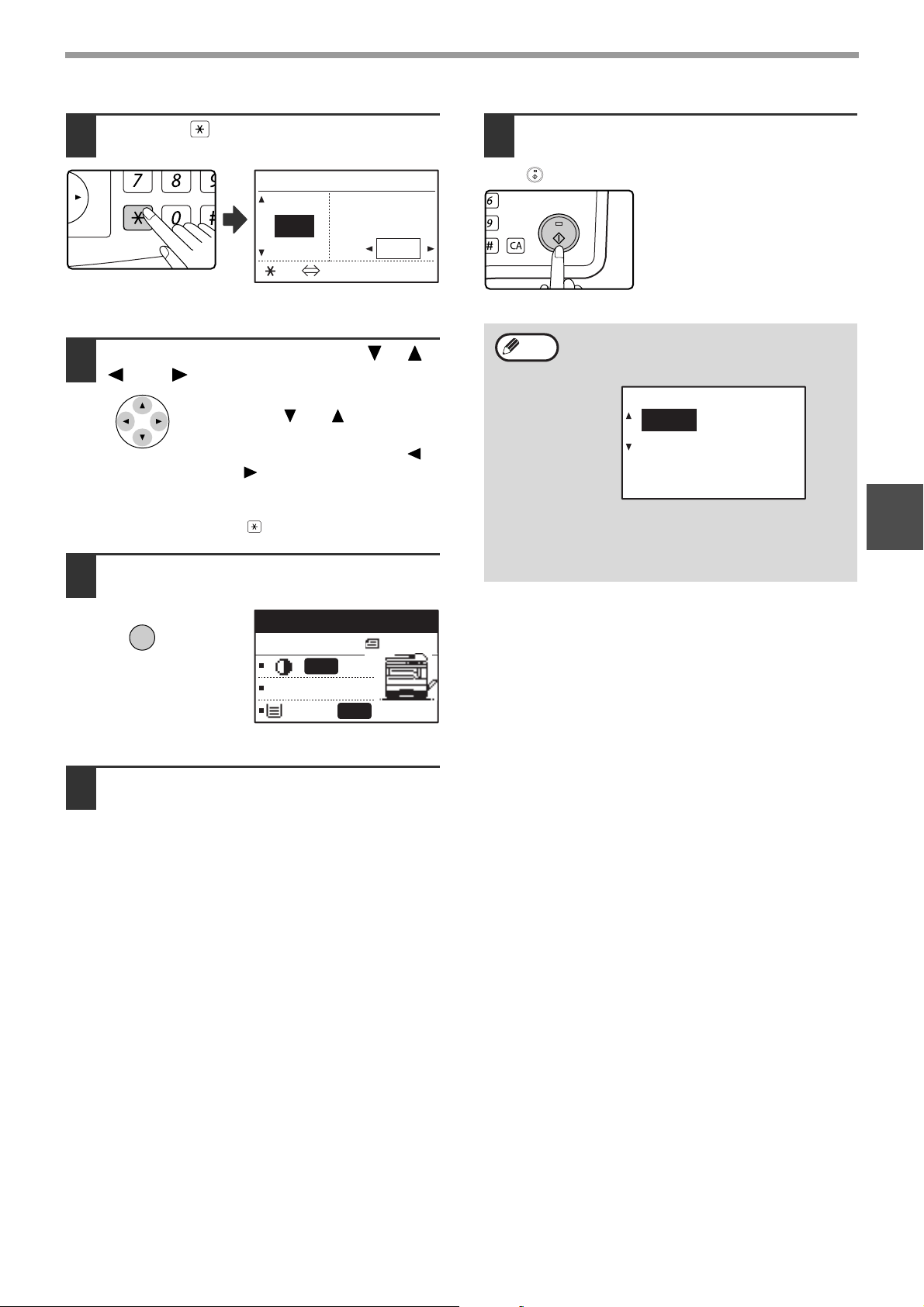

and select "SPECIAL MODES" with the [ ] or [ ] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES

ORIG. SIZE ENTER

The special function screen will appear.

PAPER SIZE SET

Original

Copy

Select "DUAL PAGE COPY" with the

[ ] or [ ] key.

SPECIAL MODES

MARGIN SHIFT ERASE

DUAL PAGE COPY

[OK]:

Press the [OK] key.

Make sure that the paper tray with A4

(8-1/2" x 11") paper is selected.

A4R (8-1/2" x 11"R) paper can also be used if rotation copying is possible in auto paper select mode.

Select any other copy settings as

needed and press the [START] key ().

A checkmark appears in the "DUAL PAGE COPY" checkbox in the special modes screen and you return to the base screen.

ONOFF

Press the [OK] key.

The special modes screen will appear.

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

[OK]:ADJUST

To cancel dual page copy, select "DUAL PAGE COPY" (which has a checkmark) in the special modes screen once again and press the [OK] key.

INTERRUPTING A COPY RUN

INTERRUPT

MNO

(Interrupt copying)

A copy run can be temporarily interrupted to allow another copy job to be performed. (Interrupt copying) When the other job is finished, the copy run will resume using the original copy settings.

• Interrupt copying is not possible when the document glass is being used for a copy job and "NO SORT" is selected.

• When 2 in 1 or 4 in 1 is selected, interrupt copying is not possible.

• Sort copying, 2 in 1, and 4 in 1 and automatic two-sided copying cannot be used for an interrupt copy job. Configuring settings in the system settings, use as a scanner, and fax transmission are also not possible.

Press the [INTERRUPT] key ( ).

If the [INTERRUPT] key ( ) is pressed, copying will stop and the settings will temporarily return to the default settings after the copy in progress has

been completed. The INTERRUPT indicator will blink until the current copy run stops.

Note

When the copy run stops, remove the

If you press the [INTERRUPT] key ( ) when auditing mode is enabled, "Enter your account number." will appear in the display. Enter your account number using the numeric keys. The pages copied during interrupt copying will be added to the count of the entered account number. (p.114)

previous original(s) and place the original(s) of the interrupt copy job.

Select copy settings as needed.

Set the number of copies and then

press the [START] key ( ).

Note

(B)

The interrupt copies will be offset from the previous copies. (Offset function) The offset function can be disabled in the system settings. (p.117)

(A): Copies made before the interrupt

copy job (B): Interrupt copies (C): Copies made after the interrupt

copy job

* This function is not available in some

countries and regions.

(C)

(A)

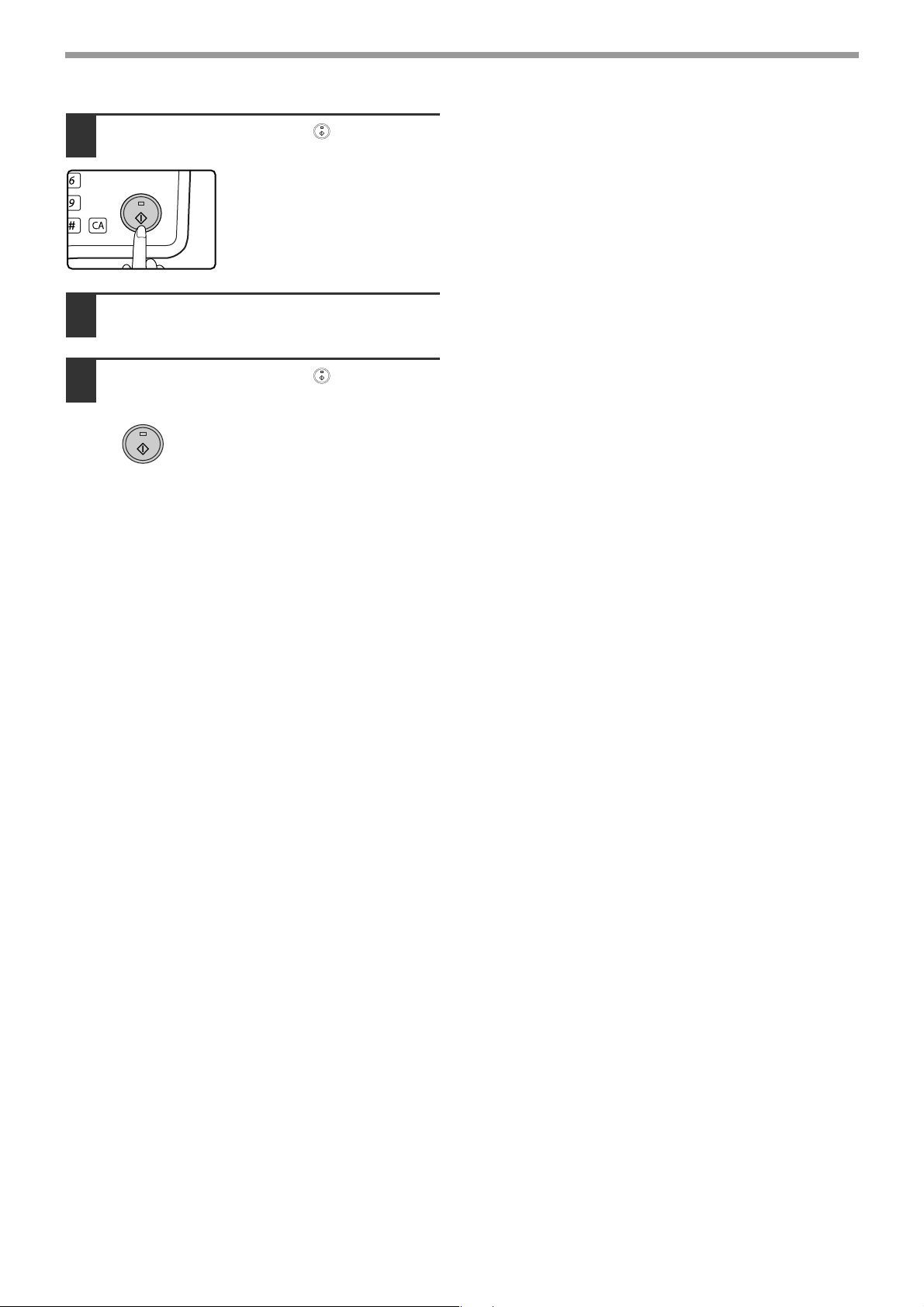

When the copy job is finished, press

the [INTERRUPT] key ( ) to end interrupt mode and remove the original(s).

The INTERRUPT indicator will turn off, indicating that the interrupt function is no longer operating. The copy settings will automatically revert to the settings selected for the copy run before the run was interrupted.

Replace the previous original(s) and

press the [START] key ( ).

The interrupted copy run will resume.

CONVENIENT COPY FUNCTIONS

This section explains major convenient copy functions.

ROTATING THE IMAGE 90 DEGREES (Rotation Copy)

When "Auto paper select mode" or "automatic ratio selection" are in operation and the original is placed in a different orientation (vertical or horizontal) than the paper, the original image will be automatically rotated 90 degrees to enable correct copying onto the paper. This function is convenient for copying B4 or A3 (8-1/2" x 14" or 11" x 17") originals, which can only be placed horizontally, onto paper that is loaded vertically. The rotation copy function is initially enabled. It can be disabled in the system settings. (p.122)

• Rotation copy will not operate when a copy is enlarged to a paper size greater than A4 (8-1/2" x 11"). In this

Note

case, place the original in the same orientation as the paper.

• When 2 IN 1 / 4 IN 1 copy is used (p.51), rotation copy will operate even if disabled in the system settings.

Orientation of

the placed original

Orientation of

the loaded paper

SORT COPY/GROUP COPY

● Copies of multiple original pages can be sorted into sets. (Sort copy)

● Copies of multiple original pages can be grouped by page. (Group copy)

Note

The machine can scan standard originals (A4 (8-1/2" x 11")) with approximately 160 pages, however, the number will vary for photos and other types of originals. Less pages can be scanned for interrupt copying.

Copy

Group copySort copy

COPY FUNCTIONS

DUPLEX SCAN DUPLEX SCAN

2-SIDED COPYAUTO IMAGE

FORMAT

BROADCAST

OUTPUT ORIGINAL SIZE ORIGINAL SIZE

ACC

ED COPY

GHI

PQRS

BACK

MNO

@.-

READ-END

Place the originals in the document

feeder tray or the first original on the document glass.

If the originals are placed in the document feeder tray, sort mode will be automatically selected. This can be changed to no sort in the system settings.

(p.123)

If the first original is placed on the document glass, no sort mode will be automatically selected.

Press the [OUTPUT] key.

SORT

NO SORT

SORT

The output mode selection screen will appear.

Select "NO SORT" or "SORT" with the

[ ] or [ ] key, or with the [OUTPUT] key.

When the START indicator lights,

replace the original with the next original and press the [START] key ().

Repeat step 6 until all originals have been scanned.

When all originals have been

scanned, press the [READ-END] key ().

• Copying will start.

• If the memory becomes full while the originals are being scanned, "Memory is full." will appear in the display. To start copying the originals that have been scanned to that point, press the [START] key ( ). To cancel the copy job, press the [CA] key.

•

The optional memory board (MX-EB14) can be installed to increase the number of originals that can be scanned. The memory can be expanded up to a maximum of 256 MB (the amount expanded is 128 MB).

Press the [OK] key.

You will return to the base screen.

Select other copy settings as needed

and press the [START] key ( ).

If you placed the originals in the document feeder tray in step 1, copying will start. If you selected "SORT" in step 3 and placed the first original on the document glass, follow steps 6 and 7. Note that if you selected "NO SORT" in step 3, copying will begin.

Offset function

This function offsets each set of copies from the previous set in centre tray, making it easy to separate sets of copies. The offset function can be disabled in the system settings. (p.117)

Offset function enabled

* This function is not available in some countries and

regions.

Offset function disabled

COPY FUNCTIONS

COPY RATIO ADDRESS ADDRESS

EXPOSURE COLOUR MODE PROGRAM

PAPER SELECT RESOLUTION RESOLUTION

AUT

BRO

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER (2 IN 1 / 4 IN 1 Copy)

Multiple originals can be copied onto a single sheet of paper in a selected layout pattern. This function is convenient for compiling multi-page reference materials into a compact format, or for providing an overview of all pages of a document on a single page.

2 IN 1 COPY

Pattern 1

• 2 in 1 / 4 in 1 copy cannot be used in combination with the following functions. The function selected first will take precedence. However, 2 in 1 / 4 in 1 copy will take precedence over XY zoom. Dual page copy, XY zoom, edge erase, margin shift, card shot

• A special paper size cannot be used for 2 in 1 / 4 in 1 copy.

• 2 in 1 / 4 in 1 copy cannot be selected for an interrupt copy job. Interrupt copying is not possible during a 2 in 1 / 4 in 1 copy job.

• An appropriate ratio setting will be automatically selected based on the original size, the paper size, and the selected number of images. When using the document glass, reduction is possible to 25%. When using the SPF/RSPF, reduction is possible to 50%. Certain combinations of original size, paper size, and number of images may result in images being cut off.

• Even if "Rotation copy" is disabled in the system settings, the images may be rotated if needed depending on the orientation of the originals and the orientation of the paper.

Place the originals in the document

Pattern 2

feeder tray or the first original on the document glass.

4 IN 1 COPY

Pattern 1 Pattern 2 Pattern 3 Pattern 4

Press the [SPECIAL FUNCTION] key

and select "SPECIAL MODES" with the [ ] or [ ] key.

Press the [PAPER SELECT] key to

select the desired paper tray.

The bypass tray cannot be selected.

The special function screen will appear.

Press the [OK] key.

The special modes screen will appear.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES

ORIG. SIZE ENTER PAPER SIZE SET

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

[OK]:ADJUST

COPY FUNCTIONS

ACC

ED COPY

MNO

Select "2in1/4in1" with the [ ] or [ ]

key.

SPECIAL MODES

DUAL PAGE COPY

2in1/4in1

XY ZOOM

[OK]:CHANGE

Press the [OK] key.

2in1/4in1

OFF

2in1

4in1

The 2 in 1 / 4 in 1 selection screen will appear.

Select "2in1" or "4in1" with the [ ] or

[ ] key.

[OK]:CHANGE

Select the borderline setting with the

[ ] or [ ] key.

2in1

PATTERN 1

BORDER

Select solid line, broken line, or none.

Press the [OK] key.

Select other copy settings as needed

and then press the [START] key ( ).

You will return to the base screen.

Press the [OK] key.

2in1

PATTERN 1

The settings for 2 in 1 or 4 in 1 will appear.

Select the layout with the [ ] or [ ]

key.

BORDER NO

For the layouts that can be selected, see "2 IN 1 COPY" or "4 IN 1 COPY" on (p.51).

• The copy ratio will be set automatically.

• If you placed the originals in the document feeder tray, copying will start after all originals are scanned.

• If you placed the first original on the document glass, go to the next step.

When the START indicator lights,

replace the original with the next original and then press the [START] key ( ).

Repeat step 13 until all originals have been scanned.

• Copies will be output each time two originals for 2 in 1 copy or four originals for 4 in 1 copy have been scanned.

• To start copying before all originals have been scanned (after only one original has been scanned for 2 in 1 or after three originals or less have been scanned for 4 in 1), press the [READ-END] key ( ).

• To cancel the 2 in 1 or 4 in 1 settings, select "OFF" in step 7.

COPY FUNCTIONS

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

ACC

ED COPY

MNO

CREATING MARGINS WHEN COPYING(Margin shift)

The margin shift function shifts the image to create a margin at the edge of the paper. By default the function creates a 10 mm (1/2") margin at the left edge of the paper.

Margin (top)

Margin (left edge)

AAAA

Original Copy

• You can select whether to create a margin at the top edge or at the left edge of the paper.

• Five selections are available for the margin width: 0 mm, 5 mm, 10 mm, 15 mm, 20 mm (0", 1/4", 1/2", 3/4", 1"). (The default setting is 10 mm (1/2").)

• When making two-sided copies, a margin is created at the selected edge on the front side of the paper, and a margin is created on the back side of the paper.

• Margin shift cannot be used in combination with 2 in 1 / 4 in 1 copy (p.51).

• Margin shift cannot be used in combination with card shot (p.56).

• When margin shift is selected, rotating copying will not operate even if the condition for rotate copying is met.

• The default margin shift setting can be changed in the system settings. (p.121)

Place the original in the document

Original Copy

Press the [OK] key.

feeder tray or on the document glass.

• When a left-edge margin is selected and you are copying from the document feeder tray, place the original face up so that the margin edge is to the left.

When a left-edge margin is selected and you are copying from the document glass, set the original face down so that the margin edge is to the right.

• When a top-edge margin is selected, place the original with the margin edge toward the rear of the document feeder tray or the document glass.

The settings for margin shift will appear.

MARGIN SHIFT

OFF DOWN

RIGHT

Select the margin location with the [ ] or [ ] key and select the width

(0~20)10

with the [ ] or [ ] key.

Press the [SPECIAL FUNCTION] key

and select "SPECIAL MODES" with the [ ] or [ ] key.

SPECIAL FUNCTION

• Select "DOWN" or "RIGHT" for the margin location.

• If you select 0 mm (0"), the printed result is the same as when "OFF" is selected.

ID CARD COPY

SPECIAL MODES

ORIG. SIZE ENTER

Press the [OK] key.

PAPER SIZE SET

The function screen appears with "SPECIAL MODES" selected.

You will return to the base screen.

Press the [OK] key.

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

[OK]:ADJUST

The special modes screen will appear with "MARGIN SHIFT" selected.

Select other copy settings as needed

and press the [START] key ( ).

To turn off the margin shift function, select the margin shift feature again and select "OFF".

COPY FUNCTIONS

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

ACC

ED COPY

ERASING SHADOWS AROUND THE EDGES OF A COPY (Erase Copy)

● This feature is used to erase shadows that appear around the edges of copies of books and other thick originals. (EDGE ERASE)

● The feature can also erase the shadow that appears down the centre of books and other originals that open up. (CENTRE ERASE)

● The factory default setting for the width of the erasure is approximately 10 mm (1/2"). The width can be changed in the system settings. (p.121)

Edge erase Centre erase Edge + Centre erase

• Five selections are available for the erasure width: 0 mm, 5 mm, 10 mm, 15 mm, 20 mm (0", 1/4", 1/2", 3/4", 1"). (The default setting is 10 mm (1/2").)

• Centre erase / Edge + Centre erase cannot be used in combination with dual page copy (p.47).

• Edge erase cannot be used in combination with 2 in 1 / 4 in 1 copy (p.51).

• Edge erase cannot be used when paper is fed from the bypass tray.

• Edge erase cannot be used in combination with card shot (p.56).

• Edge erase cannot be used when copying a special size original.

• Note that if the width of the erasure is too large, the edge of the image may be partially erased.

• The default setting for the erasure width can be changed. (p.121)

Place the original in the document

feeder tray or on the document glass.

A B

Select "ERASE" with the [] or [] key.

A B

SPECIAL MODES

MARGIN SHIFT

ERASE

DUAL PAGE COPY

[OK]:ADJUST

Press the [SPECIAL FUNCTION] key

and select "SPECIAL MODES" with the [ ] or [ ] key.

The edge erase settings screen will appear.

Press the [OK] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES

ORIG. SIZE ENTER PAPER SIZE SET

The function screen appears with "SPECIAL MODES" selected.

Press the [OK] key.

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

The special modes screen will appear.

[OK]:ADJUST

ERASE

OFF

EDGE

CENTRE

The edge erase settings screen will appear.

Select the desired erase mode with

the [ ] or [ ] key.

"EDGE", "CENTRE" or "EDGE+CENTRE" can be selected.

(0~20)10

COPY FUNCTIONS

MNO

Select the erasure width with the [ ]

or [ ] key.

If you select 0 mm (0"), the printed result is the same as when "OFF" is selected.

Press the [OK] key.

Select other copy settings as needed

You will return to the base screen.

and press the [START] key ( ).

To cancel an edge erase setting, return to the edge erase settings screen and select "OFF".

CARD SHOT

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

GHI

PQRS

BACK

ACC

ED COPY

When copying a card, this function allows you to print the front and back sides of the card next to each other on a single sheet of paper. This function creates 2 in 1 images of the front and back side of the card and centres them on the paper.

Original

CARD

Front of

card

Back of

card

• Paper cannot be fed from the bypass tray.

• The card shot function cannot be used in combination with margin shift, edge erase, dual page copy, 2 in 1 / 4 in 1 copy, and XY zoom copy.

• When card shot is used, the rotation copy function does not operate.

Place the original on the document

CARD

Example: Portrait A4 size

Copy

CARD

Example: Landscape A4 size

Press the [OK] key.

glass.

CARD SHOT

(mm)

SIZE

X:Y:86

The card shot screen

Press the [SPECIAL FUNCTION] key

and select "SPECIAL MODES" with the [ ] or [ ] key.

SPECIAL FUNCTION

appears.

Note

The default values for the length and width that initially appear when this screen is displayed can be set "CARD SHOT DEFAULT" (p.122) in the system settings.

ID CARD COPY

The special function screen will appear.

SPECIAL MODES

ORIG. SIZE ENTER PAPER SIZE SET

Select "X" (width) with the [ ] or [ ]

key and enter the width with the [ ] or [ ] key, and then do the same for the length (Y).

Press the [OK] key.

The special modes screen will appear.

Select "CARD SHOT" with the [ ] or

[ ] key.

SPECIAL MODES

MARGIN SHIFT

ERASE DUAL PAGE COPY

[OK]:ADJUST

SPECIAL MODES

2in1/4in1 XY ZOOM

CARD SHOT

[OK]:CHANGE

Note

Press the [OK] key.

Any number from 25 mm to 210 mm (1" to 8-1/2") can be entered for the width, and any number from 25 mm to 210 mm (1" to 8-1/2") can be entered for the length.

CARD SHOT

(mm)

SIZE

X:Y:100

100

You will return to the base screen.

COPY FUNCTIONS

MNO

Press the [START] key ( ).

The front side of the card is scanned.

Turn the original over on the

document glass.

Press the [START] key ( ).

Copying will start after both sides of the original have been scanned.

ID CARD COPY

EXPOSURE COLOUR MODE

PAPER SE RESOLUT

COPY SCAN

SPECIAL

FUNCTION

LINE

DATA

ON LINE

ACC

ED COPY

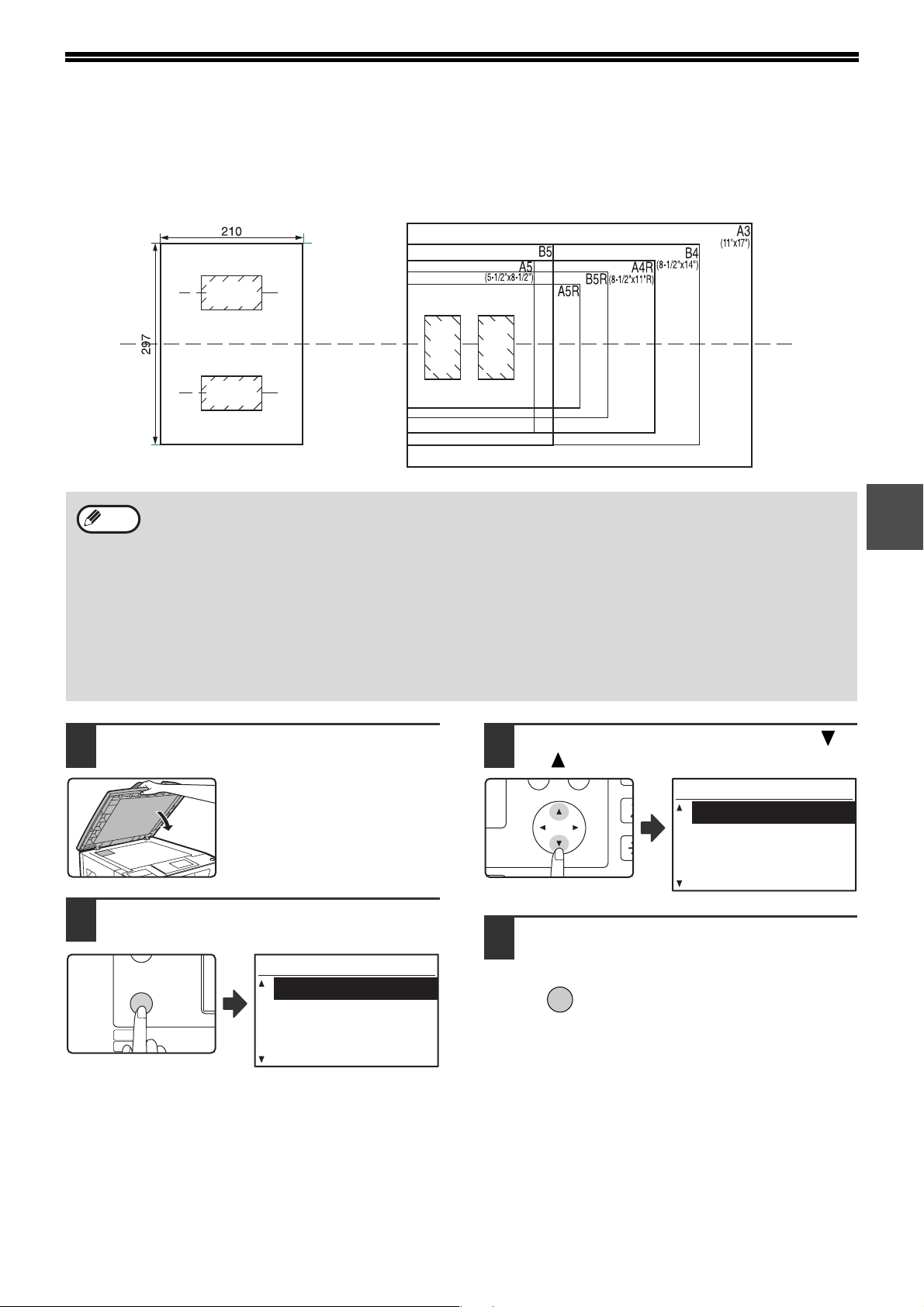

You can copy the front and back sides of ID card onto a page through this function, which can be used as margin shift function, too. The specified patterns of ID card copy are shown as follows.

A5-A3 SIZE (Factory default setting)

Front

Back

Note

A4 SIZE

Front

Centre Line

Back

• Select the layout patterns as explained in "ID CARD SETTING" of SYSTEM SETTINGS (p.121) first, then follow the steps below to perform the copy.

• ID card copy feature cannot be used in combination with interrupt copy, two-sided copy, dual page copy, XY-zoom, margin shift, edge + centre erase, 2 in 1/4 in 1, sort/group and rotation copy functions.

• The following paper sizes can be used: A5, A5R, A4, A4R, B4, B5, B5R, A3 (5-1/2" x 8-1/2", 5-1/2" x 8-1/2"R, 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 14", 11" x 17"). (A5, A5R (5-1/2" x 8-1/2", 5-1/2" x 8-1/2"R) can only be used in bypass tray.)

• When using A4 SIZE, the image may cut off even if using standard paper size.

• In ID card copy mode, scan area and scan number (1 page) cannot be changed. Scan area is: X: 54 + 5 mm (1/4") (margin), Y: 86 + 10 mm (1/2") (top margin 5 mm (1/4") and bottom margin 5 mm (1/4")).

• Auto paper selection and auto tray switch are invalid in ID card copy mode. Please select paper and tray manually.

• Only making a single copy is available (Number of copies cannot be set.).

Place the ID card on the upper left

corner of the document glass.

Press the [SPECIAL FUNCTION] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES ORIG. SIZE ENTER

The special function screen will appear.

PAPER SIZE SET

Select "ID CARD COPY" with the [ ]

or [ ] key.

SPECIAL FUNCTION

ID CARD COPY

SPECIAL MODES ORIG. SIZE ENTER PAPER SIZE SET

Press the [OK] key.

COPY FUNCTIONS

MNO

Press the [START] key ( ).

Scanning of one side begins.

• Press the [READ-END] key to print only one side.

Turn the ID card to the other side, and

press the [START] key ( ). When scan finished, Copy will begin.

Note

To cancel ID card copy, press the [CA] key.

Chapter 4

DATA

ON LINE

SCAN

COPY

PRINTER FUNCTIONS

This chapter explains how to use the printer functions. The procedure for loading paper is the same as for loading copy paper. See "LOADING PAPER" (p.23).

• Print jobs received while the machine is copying or scanning will be stored in memory. When the copy job is

Note

BASIC PRINTING

finished, the print jobs will begin printing.

• If an original misfeed occurs in the SPF/RSPF, printing will not be possible until the misfed original is removed and the SPF/RSPF is restored to a usable state.

The following example explains how to print a document from WordPad. Before printing, make sure that the correct size of paper for your document has been loaded in the machine.

Make sure that the ONLINE indicator

on the operation panel is lit.

If the ONLINE indicator is not on, press the [PRINT] key to switch to printer mode and then use the [ ] key to select "ONLINE".

Ready to print.

Start WordPad and open the

document that you wish to print.

Select "Print" from the application's

"File" menu.

The "Print" dialog box will appear.

ONLINE

OFFLINE

The status of the printer function is indicated by the ONLINE and DATA indicators above the [PRINT] key.

ONLINE indicator DATA indicator

Lit

The machine is online. Printing is possible.

There is print data in memory that has not been printed yet.

Blinking

Off

A print job is being canceled.

The machine is offline. Printing is not possible.

Printing is in progress or data is being received.

There is no print data in memory and print data is not being received.

PRINTER FUNCTIONS

Make sure that "SHARP MX-xxxx" is

selected as the printer.

If you need to change any print settings, click the "Preferences" button to open the printer driver setup screen. The printer driver setup screen will appear.

Windows 2000 does not have the "Preferences" button in this dialog box. Select settings as needed on each of the tabs in the setup screen and click the "OK" button. "PRINTER DRIVER SETTING SCREEN" (p.63), "PRINTING MULTIPLE PAGES ON ONE PAGE"

(p.64),

"FITTING THE PRINTED IMAGE TO THE PAPER (Fit To Paper Size)" (p.65) "ROTATING THE PRINT IMAGE 180 DEGREES (Rotate 180 degrees)" (p.65), "PRINTING A WATERMARK" (p.67), "TWO-SIDED PRINTING" (p.68)

Click the "Print" button.

Printing begins. When printing begins, the Print Status Window automatically opens. "OUTLINE OF THE PRINT STATUS WINDOW"

(p.70)

When the job separator tray is

Note

installed

The output tray can be selected when selecting print settings at the time of printing. To change the tray selection, select the desired tray in "Output" in the "Paper" tab of the printer driver setup screen.

IF THE TRAY RUNS OUT OF PAPER DURING PRINTING

Add paper to the tray that ran out or to the bypass tray. If you add paper to the bypass tray, press the [PRINT] key on the machine to switch to printer mode and select "BYPASS-TRAY". Printing will resume. Note that if the "AUTO TRAY SWITCHING" setting is selected in the "PAPER SIZE SET" (accessed by pressing the [SPECIAL FUNCTION] key) and there is the same size of paper in another tray, the machine will automatically switch to the other tray and continue printing.

PAUSING A PRINT JOB

To pause a print job, press the [PRINT] key on the machine to switch to printer mode and then select "OFFLINE" with the [ ] key. The machine pauses the print job and then goes offline.

• To cancel a print job, press the [C] key ( ).

• To resume printing, select "ONLINE" with the [ ] key.

HOW "BYPASS TRAY" AND "BYPASS MANUAL" DIFFER IN THE "PAPER SOURCE" SETTINGS

There are two bypass tray settings in "Paper Source" in the "Paper" tab of the printer driver setup screen:

• When "Bypass Tray" is selected, the print job is automatically printed on the paper in the bypass tray.

• When "Bypass Manual" is selected, the print job is not printed until paper is inserted into the bypass tray. If paper is already in the bypass tray, remove the paper and then re-insert it to begin printing.

PRINTER FUNCTIONS

OPENING THE PRINTER DRIVER FROM THE "

You can open the printer driver and change the printer driver settings from the Windows "Start" button. Settings adjusted in this way will be the initial settings when you print from an application. (If you change the settings from the printer driver setup screen at the time of printing, the settings will revert to the initial settings when you quit the application.)

Click the "Start" button and select

"Control Panel" and then select "Printer".

• In Windows 7, click the "Start" button, and then click "Devices and Printers".

• In Windows XP, click the "start" button, and then click "Printers and Faxes".

• In Windows 2000, click the "Start" button and point to "Settings", and then select "Printers".

•

In Windows XP, if "Printers and Faxes" does

Note

Click the "SHARP MX-XXXX" printer

driver icon.

not appear in the "start" menu, select "Control Panel", select "Printers and Other Hardware", and then select "Printers and Faxes".

Start

" BUTTON

Select "Properties" from the

"Organize" menu.

• In Windows 7, right-click the "SHARP MX-XXXX" printer driver icon, and then click "Printer properties".

• In Windows XP/2000, select "Properties" from the "File" menu.

Click the "Printing Preferences"

button in the "General" tab.

In Windows 7, click the "Preferences" button in the "General" tab. The printer driver setup screen will appear. "PRINTER DRIVER SETTING SCREEN" (p.63)

PRINTER DRIVER SETTING SCREEN

Some restrictions exist on the combinations of settings that can be selected in the printer driver setup screen. When a restriction is in effect, an information icon ( ) will appear next to the setting. Click the icon to view an explanation of the restriction.

Note

Tab

The settings are grouped on tabs. Click on a tab to bring it to the front.

Checkbox

Click on a checkbox to activate or deactivate a function.

Print setting image

This shows the effect of the selected print settings.

Drop-down list

Allows you to make a selection from a list of choices.

Image of paper trays

The tray selected in "Paper Selection" in the "Paper" tab appears in blue. You can also click on a tray to select it.

Check button

Allows you to select one item from a list of options.

The settings and the image of the machine will vary depending on the model.

"OK" button

Click this button to save your settings and exit the dialog box.

"Cancel" button

Click this button to exit the dialog box without making any changes to the settings.

"Apply" button

Click to save your settings without closing the dialog box.

"Help" button

Click this button to display the help file for the printer driver.

PRINTER FUNCTIONS

PRINTING MULTIPLE PAGES ON ONE PAGE

This function can be used to reduce the print image and print multiple pages on a single sheet of paper. This is convenient when you want to print multiple images such as photos on a single sheet of paper, and when you want to conserve paper. This function can also be used in combination with two-sided printing for maximum conservation of paper. The following print results will be obtained, depending on the order selected.

Note

For example, when "2-Up", "4-Up" or "6-Up" is selected, the result will be as follows depending on the selected order.

The "N-Up Printing" setting is not available when "Fit To Paper Size" is selected. "FITTING THE PRINTED IMAGE TO THE PAPER (Fit To Paper Size)" (p.65)

N-Up Left to Right Right to Left

[2-Up]

N-Up Right, and Down Down, and Right Left, and Down Down, and Left

[4-Up]

N-Up Right, and Down Down, and Right Left, and Down Down, and Left

[6-Up]

If you select the "Border" checkbox, borderlines will be printed around each page.

Note

The order can be viewed in the print image in the printer driver setup screen. "PRINTER DRIVER SETTING SCREEN" (p.63)

PRINTER FUNCTIONS

FITTING THE PRINTED IMAGE TO THE PAPER

(Fit To Paper Size)

The printer driver can adjust the size of the printed image to match the size of the paper loaded in the machine. Follow the steps shown below to use this function. The explanation below assumes that you intend to print an A3 or Ledger size document on A4 or Letter size paper.

Click the "Paper" tab in the printer

driver setup screen.

Select the original size (A3 or Ledger)

of the print image in "Paper Size".

Check the "Fit To Paper Size" button.

Select the actual size of paper to be

used for printing (A4 or Letter).

The size of the printed image will be automatically adjusted to match the paper loaded in the machine.

Paper Size: A3 or Ledger Fit To Paper Size: A4 or Letter

A3 or Ledger size document (Paper Size)

A4 or Letter size paper (Fit To Paper Size)

ROTATING THE PRINT IMAGE 180 DEGREES

(Rotate 180 degrees)

The feature rotates the image 180 degrees so that it can be printed correctly on paper that can only be loaded in one orientation (such as envelopes).

Click the "Main" tab in the printer

driver setup screen.

ABCD

Check the "Rotate 180 degrees" box.

PRINTER FUNCTIONS

ENLARGING/REDUCING THE PRINT IMAGE (Zoom)

This function is used to enlarge or reduce the image to a selected percentage. This allows you to enlarge a small image or add margins to the paper by slightly reducing an image.

Note

Click the "Paper" tab in the printer

driver setup screen.

Select "Zoom" and click the

"Settings" button.

The "Zoom" setting is not available when "N-Up Printing" is selected.

The actual paper size to be used for printing can be selected from the pop-up menu.

Select the zoom ratio.

Directly enter a number or click the button to change the ratio in increments of 1%.

PRINTING FAINT TEXT AND LINES IN BLACK

(Text To Black/Vector To Black)

When printing a colour image, colour text and lines that are faint can be printed in black. (Raster data such as bitmap images cannot be adjusted.) This allows you to bring out colour text and lines that are faint and difficult to see.

ABCD

Click the "Advanced" tab in the printer

driver setup screen.

ABCD

Check the "Text To Black" box and/or

the "Vector To Black" box.

• "Text To Black" can be selected to print all text other than white text in black.

• "Vector To Black" can be selected to print all vector graphics other than white lines and areas in black.

PRINTER FUNCTIONS

ADJUSTING THE BRIGHTNESS AND CONTRAST OF THE IMAGE (Image Adjustment)

The brightness and contrast can be adjusted in the print settings when printing a photo or other image. These settings can be used for simple corrections when you do not have image editing software installed on your computer.

Click the "Advanced" tab in the printer

driver setup screen.

Click the "Image Adjustment" button.

Adjust the image settings.

To adjust a setting, drag the slide bar or click the or

button.

PRINTING A WATERMARK

You can print a watermark such as "CONFIDENTIAL" on your document. To print a watermark, open the printer driver setup screen, click the [Watermarks] tab, and follow the steps below. To open the printer driver, see "BASIC PRINTING" (p.60).

How to Print a Watermark

From the "Watermark" drop-down list, select the watermark that you wish to print (for example "CONFIDENTIAL"), and start printing.

Print sample

You can enter text to create your own custom watermark. For details on watermark settings, view printer driver Help. "PRINTER DRIVER SETTING SCREEN" (p.63)

PRINTER FUNCTIONS

TWO-SIDED PRINTING

The machine can print on both sides of the paper. This function is useful for many purposes, and is particularly convenient when you want to create a simple pamphlet. Two-sided printing also helps conserve paper.

Note

Paper orientation Printing result

When using two-sided printing, select a source other than "Bypass Tray" for the "Paper Source" in the "Paper" tab.

2-Sided (Book) 2-Sided (Tablet)

Ver t ical

2-Sided (Book) 2-Sided (Tablet)

Horizontal

The pages are printed so that they can be bound at the side.

Click the "Main" tab in the printer

driver setup screen.

The pages are printed so that they can be bound at the top.

Select "2-Sided(Book)" or

"2-Sided(Tablet)".

SAVING FREQUENTLY USED PRINT SETTINGS

Settings configured on each of the tabs at the time of printing can be saved as user settings. Saving frequently used settings or complex colour settings under an assigned name makes it easy to select those settings the next time you need to use them.

SAVING SETTINGS AT THE TIME OF PRINTING

(User Settings)

Settings can be saved from any tab of the printer driver properties window. Settings configured on each tab are listed at the time of saving, allowing you to check the settings as you save them. For the steps for opening the printer driver, see "BASIC PRINTING" (p.60).

Configure print settings on each tab

and click the "Save" button on any tab.

Using saved settings

Select the user settings that you wish to use on any tab.

After checking the displayed settings,

enter a name for the settings (maximum of 20 characters).

• Up to 30 sets of user settings can be saved.

Note

Click the "OK" button.

• A watermark that you created cannot be saved in user settings.

Deleting saved settings

Select the user settings that you want to delete in "Using saved settings" (above), and click the "Delete" button.

OUTLINE OF THE PRINT STATUS WINDOW

When printing begins, the Print Status Window automatically opens. The Print Status Window is a utility that monitors the machine and shows the name of the document being printed and any error messages that occur.

Status window

Provides information on the current status of the printer.

Status icon

The status icons appear to alert you to printer errors. Nothing appears when printing is taking place normally.

The icons are explained below. Follow the instructions in the status window to solve the problem.

Icon Print Status

An error has occurred that requires immediate attention.

Tab

Click a tab to bring it to the front. The "Options" tab allows you to select display options for the Print Status Window.

Document Name

Shows the name of the document currently being printed.

"Cancel Job" button

Printing can be cancelled by clicking this button before the machine receives the job.

"Help" button

Click this button to display the help file for the Print Status Window.

"Close" button

Click this button to close the Print Status Window.

An error has occurred that requires attention soon.

Chapter 5

SCANNER FUNCTIONS

This chapter explains how to use the scanner functions.

Note

• Scan jobs received while the machine is copying or printing will be stored in memory. When the copy job is finished, the scan jobs will begin.

• Scanning is not possible when the front or side cover is opened for machine maintenance, or when a misfeed occurs or the machine runs out of paper or toner, or when the drum cartridge reaches its replacement time.

• If an original misfeed occurs in the SPF/RSPF, scanning will not be possible until the misfed original is removed and the SPF/RSPF is restored to a usable state.

SCANNING OVERVIEW

The flow chart shown below provides an overview of scanning.

Scanning from the machine*

For more information, refer to "SCANNING USING THE KEYS ON THE MACHINE" (p.72).

Place the original in the scanning position

Scanning from a TWAIN* WIA*

-compliant or

-compliant application

Scanning from the "Scanner and Camera Wizard" (Windows XP)

Change the machine to scanner mode and select the scan menu. (SC1: to SC6:)

Set the scan preferences (only if the preferences are set to appear)

Scanning

"BUTTON MANAGER" (p.73)

*1 To scan using the machine's operation panel, you must first install Button Manager and establish the appropriate settings

in the Control Panel. For details, see "SETTING UP BUTTON MANAGER" (p.13).

*2 TWAIN is an international interface standard for scanners and other image acquisition devices. By installing a TWAIN

driver on your computer, you can scan and work with images using a variety of TWAIN-compliant applications.

*3 WIA (Windows Imaging Acquisition) is a Windows function that allows a scanner, digital camera or other imaging device to

communicate with an image processing application. The WIA driver for this machine can only be used in Windows XP/Vista/7.

Start up a TWAIN-compliant or WIA-compliant application, and select the machine's scanner driver.

Set the scan preferences

Scanning

"SCANNING FROM A TWAIN-COMPLIANT

APPLICATION" (p.75)

"SCANNING FROM A

WIA-COMPLIANT APPLICATION

(Windows XP/Vista/7)" (p.79)

Start up the "Scanner and Camera Wizard" from "Control Panel" in your computer.

Scanning

"SCANNING FROM THE

"Scanner and Camera

Wizard" (Windows XP)"

(p.80)

SCANNER FUNCTIONS
