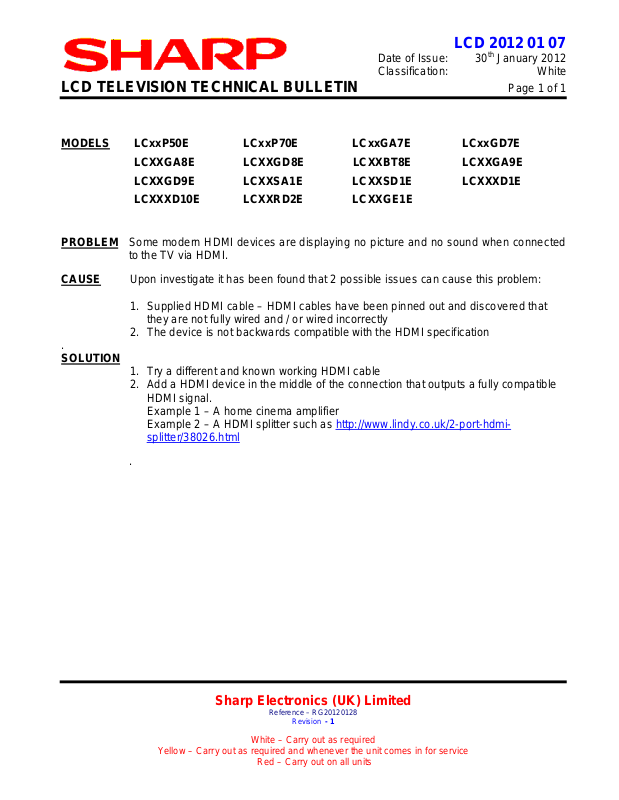

SHARP LC-32SD1E, LC-26SD1E Technical bulletin
LCD 2012 01 07
Date of Issue: 30th January 2012
Classification: White
LCD TELEVISION TECHNICAL BULLETIN Page 1 of 1
MODELS
LCXXGA8E LCXXGD8E LCXXBT8E LCXXGA9E
LCXXGD9E LCXXSA1E LCXXSD1E LCXXXD1E
LCXXXD10E LCXXRD2E LCXXGE1E
PROBLEM
CAUSE Upon investigate it has been found that 2 possible issues can ca use this problem:
.
SOLUTION
LCxxP50E LCxxP70E LCxxGA7E LCxxGD7E
Some modern HDMI devices are displaying no picture and no sound when connected
to the TV via HDMI.
1. Supplied HDMI cable – HDMI cables have been pinned out and discovered that
they are not fully wired and / or wired incorrectly
2. The device is not backwards compatible with the HDMI specific ation
1. Try a different and known working HDMI cable
2. Add a HDMI device in the middle of the connection that outputs a fully compatible
HDMI signal.
Example 1 – A home cinema amplifier
Example 2 – A HDMI splitter such as http://www.lindy.co.uk/2-port-hdmi-
splitter/38026.html
.
Sharp Electronics (UK) Limited
Reference – RG20120128
Revision - 1
White – Carry out as required
Yellow – Carry out as required and whenever the unit comes in for service
Red – Carry out on all units
