LC-32LE240M/340M(1stEdition)

SERVICE MANUAL

No. SY1V132LE340M

LCD COLOUR TELEVISION

LC-32LE240M

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restor ed to its original condition and only parts identical to those specified should be used.

LC-32LE340M

CONTENTS

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY PRE-

CAUTION............................................................i

PRECAUTIONS FOR USING LEAD-FREE

SOLDER ............................................................ii

OUTLINE

MAJOR SERVICE PARTS............... .... .............iii

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS .........................................1-1

CHAPTER 2. OPERATION MANUAL

[1] OPERATION MANUAL..................................2-1

CHAPTER 3. REMOVING OF MAJOR PARTS

[1] REMOVING OF MAJOR PARTS ...................3-1

CHAPTER 5. TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE ......................5-1

CHAPTER 6. OVERALL WIRING/BLOCK DIAGRAM

[1] OVERALL WIRING DIAGRAM......................6-1

[2] SYSTEM BLOCK DIAGRAM............ ... ... .... ...6-2

CHAPTER 7. PRINTED WIRING BOARD ASSEMBLIES

[1] MAIN Unit ......................................................7-1

CHAPTER 8. SCHEMATIC DIAGRAM

[1] DESCRIPTION OF SCHEMATIC DIA-

GRAM............................................................8-1

[2] MAIN Unit ......................................................8-2

Parts Guide

CHAPTER 4. ADJUSTMENT

[1] ADJUSTMENT PROCEDURE.......................4-1

[2] USB Clone (Smart Loader)........... ... .... ..........4-7

[3] PUBLIC MODE SETTING PROCEDURE........4-8

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

LC-32LE240M/340M(1stEdition)



LC32LE240M

SAFETY PRECAUTION

ServiceManual

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

BEFORE RETURNING THE RECEIVER (Fire &

All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.)

Any reading of 0.74 Vrms (this corresponds to 0.5 mA rms AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

3. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

4. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

5. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 110-240 volt AC outlet.

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

TO EXPOSED METAL PARTS

DVM

AC SCALE

1.5k ohm 10W

0.15µF

TEST PROBE

CONNECT TO KNOWN EARTH GROUND

SAFETY NOTICE

Many electrical and mechanical parts in LCD colour television have special safety-related characteristics.

These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features

are identified by " " and shaded areas in the Replacement Parts List and Schematic Diagrams.

For continued protection, replacement parts must be identical to those used in the original circuit.

The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

LC-32LE240M/340M(1stEdition)

PRECAUTIONS FOR USING LEAD-FREE SOLDER

Employing lead-free solder

• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.

Example:

Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.

Using lead-free wire solder

• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

Soldering

• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required.

If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

• Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

PARTS CODE

ZHNDAi123250E BL J φ0.3mm 250g (1roll) ZHNDAi126500E BK J φ0.6mm 500g (1roll) ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)

PRICE RANK

PART

DELIVERY

DESCRIPTION

LC-32LE240M/340M(1stEdition)



LC32LE240M

OUTLINE

ServiceManual

MAJOR SERVICE PARTS

PWB UNIT

Ref No. Part No. Description

N DUNTKF998FMG4 MAIN Unit (LC-32LE340M) N DKEYMF998FMG5 MAIN Unit (LC-32LE240M) N RUNTKA929WJQZ POWER Unit N RUNTKA927WJZZ LED PWB A N RUNTKA928WJZZ LED PWB B

OTHER UNIT

Ref No. Part No. Description

N R1LK315T3HB00W LCD Panel Unit

iii



LC32LE240M

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS

LC-32LE240M/340M(1stEdition)

ServiceManual

Item

Screen size

Resolution

Video Color System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV Function

Viewing angles H : 176º V : 176º

Audio amplifier/Speakers

Terminals Antenna input

OSD language English/Simplified Chinese/Arabic/French/Portuguese/Russian/Persian/Thai/

Power Requirement AC 110

Power Consumption 55 W (0.8 W Standby)

Dimensions

Weight 7.6 kg (without stand) / 8.5 kg (with stand)

Operating Temperature 0°C

TV-Standard NTSC: M

Receiving Channel

TV-Tuning System Auto Preset 99 ch

STEREO/BILINGUAL MTS: M

INPUT 1 HDMI (HDMI input), AUDIO in ( 3.5 mm jack)

INPUT 2 VIDEO in, AUDIO in

INPUT 3 VIDEO in, AUDIO in, COMPONENT in

INPUT 4 (PC input) 15 pin mini D-sub, AUDIO in (common use with INPUT 1) ( 3.5 mm jack)

AUDIO OUT AUDIO out

USB USB

Headphone 3.5 mm stereo

Model

VHF/UHF 48.00

CATV

without stand

with stand

LC-32LE240M LC-32LE340M

80 cm

1,049,088 pixels (1366x768)

—

863.25 MHz

S1—S41ch (including Hyperband)

5Wx2 / 3.14x14.4 cm 2pcs

UHF/VHF 75 DIN type

Vietnamese/Indonesian

—

240 V, 50/60 Hz

750 (W)x478 (H)x55 (D) mm

750 (W)x508 (H)x222 (D) mm

—

40°C

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for

•

product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

1 – 1

LC-32LE240M/340M(1stEdition)



LC32LE240M

CHAPTER 2. OPERATION MANUAL

[1] OPERATION MANUAL

Part names

TV (Front)

Remote control sensor

POWER indicator

Light off Power off. Lighted (Red) The TV is in standby mode. Lighted (Green) The TV is on.

TV (Rear)

ServiceManual

1 POWER (On/Off) button 2 MENU button

3INPUTbutton 4 Channel up ( )/down ( ) buttons 5 Volume up (+) /down (-) buttons

6 INPUT 1 (HDMI) terminal* 7 INPUT 4 terminal* 8 INPUT 3 terminals 9 AUDIO OUT terminals 10 INPUT 2 terminals 11 Antenna input terminal

12 USB terminal 13 Headphone jack ( 3.5 mm)

The speakers do not output volume

•

when headphones are plugged in.

* The INPUT 1 and INPUT 4 terminals can both use the same audio input terminal. However, the proper item must be

selected in the "PC audio select" menu.

The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

•

The illustrations used throughout this manual are based on LC-32LE340M.

•

2 – 1

Remote control unit

LC-32LE240M/340M(1stEdition)

1 2

6 7

15 16

1 POWER (STANDBY/ON)

To switch the power on and off.

2 DISPLAY

Display the channel or input information.

3 SLEEP

Set the Sleep timer.

0 hr. 30 min. 1 hr. 00 min.

Off

40…9

Set the channel.

5 (Flashback)

Press to return to the previous selected channel or external input mode.

6AVMODE

Select an audio and video setting.

2 hr. 30 min.

1 hr. 30 min.

2 hr. 00 min.

7VOL+/VOL

Set the volume. (VOL+) Increasethe volume. (VOL-) Decreasethe volume.

8 (Mute)

Press Mutes sound. Press again Restores sound.

Mute will be canceled after 30 minutes. However, the TV will not suddenly output loud sound as the volume level will be set to 0 automatically. Increase the volume level by pressing VOL+.

9 (Cursor)

///

Select a desired item on the setting screen.

ENTER

Execute a command.

10 COLOUR ADJ. (FREEZE)

Freeze a motion picture on the screen and adjust the color tone of the still image.

11 Color (Red/Green/Yellow/Blue)

The colored buttons are correspondingly used to select the colored items on the screen.

12 ECO

Reduce overall power consumption based on user preferences.

13 PHOTO

Display your pictures directly on the TV screen.

14 INPUT (INPUT SOURCE)

Select an input source.

15 CH /CH

TV input mode: Select the channel. (CH ) Increase the channel number. (CH ) Decrease the channel number.

16 MPX

Select the sound multiplex mode.

17 MENU

Display the menu screen.

18 RETURN

MENU mode: Return to the previous menu screen.

2 – 2

LC-32LE240M/340M(1stEdition)

Attaching the stand

Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.

•

Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from

•

being damaged.

Confrm the screws supplied with the TV.

Screws (x 4) (usedinstep3)

Insert the stand base to the stand post on the

bottom of the TV. ( )

Insert and tighten the 4 screws into the 4 holes

on the bottom of the stand base. ( )

NOTE

To detach the stand, perform the steps in reverse order.

•

Stand

Screw

Soft

cushion

CAUTION

Do not attach or detach the stand without holding it.

•

Doing so can cause the stand to fall, resulting in serious personal injuries as well as damage to the stand.

Screw driver

2 – 3



LC32LE240M

CHAPTER 3. REMOVING OF MAJOR PARTS

ServiceManual

[1] REMOVING OF MAJOR PARTS

1. Removing of the Rear Cabinet Ass’y and Stand Base

1. Remove the 4 screws and detach the Stand Base .

2. Remove the 1 screw , 3 screws and 8 screws .

3. Detach the Rear Cabinet Ass’y .

6Rear Cabinet Ass'y

LC-32LE240M/340M(1stEdition)

Stand Base

3 – 1

LC-32LE240M/340M(1stEdition)

2. Removing of Connectors

1. Disconnect the following connectors from MAIN Unit. (SP, PD, LW)

2. Disconnect the following connectors from POWER Unit. (PD, LA)

3. Disconnect the following connectors from Panel Ass’y. (LW, LA1, LA2)

Panel Ass'y

[PD]

[LW]

[SP]

[PD]

[LA]

[LA1]

POWER Unit MAIN Unit

[LA2]

3 – 2

3. Removing of the Bottom Bracket, MAIN Unit, POWER Unit and Speaker-L/R

1. Remove the 1 screw , 2 screws and detach the Bottom Bracket .

2. Remove the 5 screws and detach the MAIN Unit , Side Cover .

3. Remove the 3 screws and detach the POWER Unit .

4. Detach the Speaker-L/R .

6MAIN Unit

87POWER Unit

LC-32LE240M/340M(1stEdition)

4 Side Cover

[SP]

9Speaker-R 9Speaker-L

3 – 3

Bottom Bracket

LC-32LE240M/340M(1stEdition)

4. Removing of the Chassis Ass’y and LCD Panel Unit

1. Remove the 5 screws and detach the Chassis Ass’y .

2. Detach the LCD Panel Unit .

2Chassis Ass'y

3LCD Panel Unit

CAB-A Ass'y

3 – 4

LC-32LE240M/340M(1stEdition)

5. Removing LCD Panel Unit

1. Detach the LED PWB-A , LED PWB-B and Heat Spreader .

2. Detach the Reflection , LGP , Lens sheet V , Lens sheet H and Diffusion Sheet .

3. Remove the 4 screws , 4 screws and detach the bezel Ass’y (Top) (Bottom) (Left) (Right) , , , .

4. Detach the bottom Sheet , Left Sheet and Right Sheet .

5. Detach the LCD Panel Unit from CAB-A .

CAB-A Ass'y

Left Sheet

LCD Panel Unit

Bezel Ass'y (Left)

Bezel Ass'y (Bottom)

Bottom Sheet

Bezel Ass'y (Top)

Right Sheet

Bezel Ass'y (Right)

Lens Sheet V

8Diffusion Sheet

Reflection

2 LED PWB-B

1 LED PWB-A

Heat Spreader

LGP

Lens Sheet H

3 – 5

LC-32LE240M/340M(1stEdition)



LC32LE240M

CHAPTER 4. ADJUSTMENT

ServiceManual

[1] ADJUSTMENT PROCEDURE

1. Entering and cancel the adjustment process mode

1) While holding down the TV/VIDEO and Volume DOWN keys at the same time, plug in the AC cord to turn on the power. (“K” standing for inspection process mode is displayed on the upper left position of the screen.)

2) Press the Channel DOWN and Volume DOWN keys at the same time. (The adjustment process mode screen appears.)

3) To cancel it, turn off the power using the Power switch or remote control.

2. Remote controller key operation and description of display in adjustment process mode.

1. key operation

Remote controller key Main unit key Function

CH ( / ) VOL (+ / –) VOL (+ / –) Changing volume (UP/DOWN) Cursor ( / )

Cursor ( / ) TV/VIDEO button on remote

controller ENTER —————— ——————

* Input mode is switched automatically when relevant adjustment is started so far as the necessary input signal is available.

CH ( / )

—————— Turning a page (PREVIOUS/NEXT) —————— Changing a selected line setting (+10/-10)

TV/VIDEO button Input source switching (toggle switching)

Changing channel (UP/DOWN)

(TV-DAV-1/SAV-1 → AV-2 → COMPONENT → HDMI → PC)

3. Software upgrading.

1) Plug off the LCD TV.

2) Insert the USB device to the USB terminal at the LCD TV. (Make sure that the latest software is installed in the USB device).

3) Hold the LCD TV power key and plug on the LCD TV.

4) LCD TV is on and detecting the USB device.

USB device found

5) A few seconds later, the software upgrading will start automatically.

Do not power off

Chip Programming

4 – 1

6) Let the process running & entering verification.

Verifying

Verified

7) Software is successfully installed when the following appears at the end of the process.

Please re-boot the system

Update Finished

LC-32LE240M/340M(1stEdition)

8) Plug off the LCD TV and plug ON again as usual.

9) LCD TV is running with the latest software.

4. EDID DATA INPUT

4.1. HDMI EDID

Adjustment item Adjustment conditions Adjustment procedure

1 EDID Input

(HDMI)

Inspection mode Confirrm the file name/version.

4.2. ANALOG PC EDID

Adjustment item Adjustment conditions Adjustment procedure

1 EDID Input

(ANALOG PC)

NOTE: *1 HDMI EDID file name : edid_32LE340_HDMI1_111019.bin NOTE: *2 PC EDID file name : 32LE340 PC EDID111019.bin

Main Software Package

Model Software Package

32LE340M ORCD_MM_Asia_Pack03_vXXX.bin 32LE240M ORCD_MM_Asia_Pack04_vXXX.bin

Inspection mode Confirrm the file name/version.

1) EDID data is input to IC1501 (HDMI INPUT1). *1

2) EDID data is input before HDMI operation checking.(Without EDID data, HDMI will not function correctry)

1) EDID data is input to IC508 (PC INPUT) at checker line. *2

2) EDID data is input before Analog PC operation checking.

Main Software File name : XXX is Software version If any changes of software, will be informed by MARUHEN.

4 – 2

LC-32LE240M/340M(1stEdition)

5. Signal adjustment

5.1. Picture Adjustment

Confirmation of signal from generator (setting to spec level)

• PAL Composite signal : 0.7Vp-p ± 0.02Vp-p (Pedestal to white level)

• 15K Component signal (50Hz) : Y level:

Pb, Pr level:

• 33K Component signal : Y level: Pb, Pr level:

5.1.1 ADJUSTMENT MODE

Adjustment item Adjustment conditions Adjustment procedure

1 Adjustment mode 1) Press the test key at the test remote control.

*On double screen models, the tuner, composite signal and component signal sdjustment are made for their single screen mode and double screen mode as well.

5.1.2 Component 15K 50Hz signal adjustment (COMP-SD)

Adjustment item Adjustment conditions Adjustment procedure

1 Adjustment [Signal]

COMP 15K 50Hz (576i) 100% Full-field Colour Bar

[Terminal] INPUT 3 COMPONENT

0.7Vp-p ± 0.02Vp-p (Pedestal to white level)

0.7Vp-p ± 0.02Vp-p

0.7Vp-p ± 0.02Vp-p (Pedestal to white level)

0.7Vp-p ± 0.02Vp-Com

Feed the COMPONENT 15K 50Hz (576i) 100% Full-field Colour Bar signal (100% colour saturation) to INPUT 3 COMPONENT terminal.

100% white Black

2 Auto adjustment

performance

Process Mode page 4 (COMP SD)

1) At the related page, move cursor to [COMP SD ADJ], press ENTER.

2) [OK] appears when finished.

5.1.3 Component 33K 60Hz signal adjustment (COMP-HD)

Adjustment item Adjustment conditions Adjustment procedure

1 Adjustment [Signal]

COMP 33K 60Hz (1080i) 100% Full-field Colour Bar

[Terminal] INPUT 3 COMPONENT

Feed the COMPONENT 33K 60Hz (1080i) 100% Full-field Colour Bar signal (100% colour saturation) to INPUT 3 COMPONENT terminal.

100% white Black

2 Auto adjustment

performance

Process Mode page 5 (COMP HD)

1) At the related page, move cursor to [COMP HD ADJ], press ENTER.

2) [OK] appears when finished.

4 – 3

5.1.4 PC (ANALOG RGB) signal adjustment (PC-RGB)

Adjustment item Adjustment conditions Adjustment procedure

1 Adjustment [Signal]

XGA 60Hz 100% Checkered Pattern

[Terminal] PC INPUT 4

Feed the XGA 60Hz 100% Checkered pattern signal (100% colour saturation) to PC INPUT 4. *Please make sure SYNC is OFF.

LC-32LE240M/340M(1stEdition)

2 Auto adjustment

performance

Process Mode page 6 (PC-RGB)

1) At the related page, move cursor to [RGB ADJ], press ENTER.

2) [OK] appears when finished.

4 – 4

LC-32LE240M/340M(1stEdition)

5.2. White balance adjustment

Adjustment item Adjustment conditions Adjustment procedure

1 Adjustment Brightness : MAX

AV Mode: DYNAMIC Active Backlight : OFF Set the luminance meter on the center of the screen

For the details of white balance adjustment procedure, please refer to white balance adjustment spec for Kameyama model.

1) Confirm the set condition.

2) Connect the white balance jig.

3) Through RS-232C command, adjustment mode screen is displayed.

2 Auto Adjustment

performance

[command] Adjustment Mode KRSW0001 KKT10037

FACT0001 Setting KYOF0001 OSDS0001 SBSL16_ _

Multi point adj. Mode MSET0000 WBI20255

Point 2 WBI20229 MG2G**** MG2B**** MG2R****

Point 1 WBI10038 MG1G**** MG1B**** MG1R****

Write MSET0003

Set Max.Level MGMG**** MGMB**** MGMR****

[Adjustment Procedure]

1) Using the remote control, set the LCD TV to adjustment mode.

2) Measure Max brightness (Lmax).

3) Calculate min. brightness (Lmin)=Lmax/1000.

4) Measure Point 2 brightness (Lhigh).

5) Set the reference value R,G,B of Point 2 (R2)=3664 x (229/P2) where P2=255 x [(Lhigh-Lmin)/(Lmax-Lmin)]1/2.2

6) Set the specified gradation for point 2, fix the most faint colour to get reference value, adjust others 2 colour to minus adjustment for reference value of point 2.

7) Measure Point 1 brightness (Llow).

8) Set the reference value R,G,B of Point 1 (Ref.1)=608 x (38/P1) where P1=255 x [(Llow-Lmin)/(Lmax-Lmin)]1/2.2

9) Set the specified gradation for point 1. Set G of point 1 to the default value [(Ref.1 x G value of point 2/Ref.2), with fractions rounded] and adjust RB to the reference value of point 1.

10)Set the G of point Max. to the default value (4080 x G value of point 2/Ref.2). Set the R,B Max. value [Gmax-G value of point 2 + (R,B value of pint 2)].

11)Adjusted value is writing at [command] MSET0003.

12)Shut down the AC power.

*Initial value at RGB 2 point : 3664 *Initial value at RGB 1 point : 608

[Adjustment Value] ✩Teaching set send by engineering dept is set as reference.

[Reference value for adjustment reference] Equipment: Luminance meter [Minolta CA-210]

Level

Point 2

ref.

values

Point 1

ref.

values

Ref. : For inspection, set the LCD TV as below.

AV MODE: [DYNAMIC] (Reset)

Aging Time: Minimum 30 minutes

229

Spec

Data

x=0.281 y=0.288

x=0.272 y=0.277

4 – 5

Adjustment

Spec.

r0.0010

r0.0045

Inspection

Spec.

r0.0020

r0.0090

LC-32LE240M/340M(1stEdition)

6. Factory setting

AC power is plug off after shipment setting is done. CAUTION:Do not plug on again after shipment setting is done. If do, please re-do the shipment setting. Do not off with remote control.

Adjustment item Adjustment condition Adjustment procedure

Factory setting AC power off to exit the fac-

tory setting.

1) Setting is done with test remote control.

2) Press the “Factory Setting” key on the remote control continuously.

3) When Green background appears on screen and “K” mark disappears, setting is completed.

The followings are initialized to factory setting

1) User setting

2) Channel data (e. g. broadcast frequencies)

3) Manufacturer’s option settings

4) Password data

5) Setting values are set based on model destination

Model Name Factory Setting Key

LC-32LE240M/340M

(For Asia, Indonesia,, Vietnam, Thailand, Middle

East)

LC-32LE240M/340M (For Philippines) P-Setting 100000001011110 M ENGLISH

**Please do inspection for LC-32LE240M/340M (for Philippines) using NTSC signal.

Name

M-Setting 100000001010110 B/G ENGLISH

Remote Control

Code

S-System

Setting

OSD Language

Setting

4 – 6

LC-32LE240M/340M(1stEdition)

[2] USB Clone (Smart Loader)

1. Description

The Smart Loader is a function implemented in the service software to easily replicate the user settings of one TV into another. These settings include (but not restricted to): picture and audio, turning set-up, language and country selection, PIN, child locked programs etc. Factory adjustments are not copied as they are different for every TV.

The Smart Loader makes possible the user data to be stored in a memory device connected to the USB terminal of the TV that is used as reference and later load those data into other TVs by using their respective USB terminal.

2. How it works

1. Enter USB clone menu (Smart Loader) i) Press panel key [TV/VIDEO] and [VOL+] and AC on, it will go to password entry OSD

---

ii) Enter digit “369” then it will go to Smart Loader Menu

Smart Loader

SMLD Store [ ]

SMLD Restore [ ]

2. Smart Loader function

SMLD Store SMLD Restore

USB1st AQUOS TV

i) SMLD Store

• To copy all related data from TV -> USB and put under a fixed filename “SHP_SMLD.bin” (8kB).

ii) SMLD Restore

• To restore the related data from USB -> TV.

iii) SMLD Store and Restore execution

• To execute SMLD Store or SMLD Restore, highlight at selected item and press Enter.

• When copying is in process, “WAIT” is displayed.

• After cloning process is done, “OK” is displayed. If cloning process is not finished due to error (e.g. no pendrive detected), “NG” is displayed.

2nd AQUOS TV

3. Exit USB Clone menu (Smart Loader) i) To exit Smart Loa der menu, plug off AC Cord.

4 – 7

[3] PUBLIC MODE SETTING PROCEDURE

1. How to start Public Mode

• There are the following two ways to get the public mode setup screen displayed.

1) Press the “INPUT” and “VOL (+)” keys on the set at once and turn on the power.

2) Get the password input screen displayed.

Procedure

• The input starts with the leftmost digit.

• Use the numeric keys [1] thru [9] and [10/0] keys on the remote controller. The other keys are not acceptable.

• With a numeric-key input, “–” will change to “ “. The input position will move one digit to the right.

• With all the 3 digits entered, the password will be verified.

LC-32LE240M/340M(1stEdition)

3) The 3-digit password is now verified. The password [0] [2] [7] provides for the public mode screen. (This screen comes on with whatever adjustment process settings.) With any other passwords, the screen changes to the normal mode.

In the adjustment process mode, turn on “PUBLIC MODE”. Also press the “CH ( )” and “VOL (+)” keys on the set at once and turn on the power.

2. How to exit Public Mode

There are the following ways to quit the public mode setup screen.

• Turn off “PUBLIC MODE” in the adjustment process mode. ( ) ← This way alone is not for quitting the setup screen, but for quitting the mode by itself.

• Turn off the power with the “POWER” key. ( )

• Select “EXECUTE”.( )

••• “PUBLIC MODE” stays on in the adjustment process mode.

••• The settings will be back to the factory ones.

3. Public Mode Setting Values

• With the factory settings made, the public mode settings get initialized. (The adjustment process remains intact.)

4 – 8

LC-32LE240M/340M(1stEdition)

4. Public Mode Menu

The guidance is not displayed onscreen. Setup procedure

• To move the cursor up and down, use the “cursor UP/DOWN” key (remote controller) and “CH ( )/( )” key (remote controller and set).

• To change the settings, use the “cursor RIGHT/LEFT” key (remote controller) and “VOL (+)/(–)” key (remote controller and set).

• To save new settings, keep the cursor at “Execute” and use the “cursor RIGHT/LEFT” key (remote controller) and “VOL (+)/(–)” key (remote controller and set).

PUBLIC MODE

POWER ON FIXED [ VARIABLE ]

MAXIMUM VOLUME [ 60 ] VOLUME FIXED [ VARIABLE ] VOLUME FIXED LEVEL [ 20 ] RC BUTTON [ RESPOND ] PANEL BUTTON [ RESPOND ] MENU BUTTON [ RESPOND ] ON SCREEN DISPLAY [ YES ] BLUE SCREEN [ NO ] INPUT MODE START [ NORMAL ] INPUT MODE FIXED [ VARIABLE ] 232C POWON [ DISABLE ] START UP SCREEN [ OFF ] PICTURE IMPORT [ OFF ] RC PATH THROGH [ OFF ] RESET EXECUTE

5. On Setting Items

1. POWER ON FIXED

Selection Variable/Fixed Default Variable Explanation When set to “Fixed”, the power cannot be turned off with the power key on the remote control or main unit, and the image

reception state is kept (it does not enter the standby state). The power can be turned off by shutting off power supply from AC.

Limit in setting • Power key on the main unit/remote control power supply key

Exception None Remarks • Selection of “FIXED” assumes use of STB, etc.

2. MAXIMUM VOLUME

• OFF timer/ON timer

• When set to “Variable”, if the main power switch is set to off, the power is turned off after a wait of 1 second. (Push-push switch only)

• Display ON/OFF in the hotel menu is controlled by the adjustment process “HOTEL POWERFIX”.

• When the power button is operated, a caution is displayed (it times out in 5 seconds). (For the caution, refer to the power on fixed message sheet.)

* The caution is not displayed when in the adjustment process, hotel menu, default setting, MCL operation and auto preset

(Ch search operation). The OSD display including the menu and this caution have priority over all others. When “OSD display” (described below) is set to “Variable”, this caution is displayed as a special case.

Selection Adjustment from 1 to 60 (no loop) Default 60 Explanation Sound volume can not be adjusted higher than the preset value. Limit in setting • When the sound volume is set lower than 59, only figures are displayed and the sound volume bar is not displayed.

• The maximum sound volume for ON-timer (Wake up timer) is limited also to the preset value.

Exception • In the item “VOLUME” of adjustment process, the sound volume can be set freely irrespective of this setting. Remarks • Setting is valid only for the speakers of the unit. (As for the headphone, the sound volume can be set up to 60 irrespective

of the limit.)

• In line output (sound volume variable), the sound volume can be adjusted from -60 to 0 irrespective of pre-adjusted value.

• When the sound volume is set higher than the MAX setting by the adjusting process or headphone, the sound volume control operation is prohibited for turn-up and the sound volume should be turned down to MAX in this state.

4 – 9

LC-32LE240M/340M(1stEdition)

3. VOLUME FIXED Selection Selection between “Variable” and “Fixed” (loop provided)

Default Variable Explanation Sound volume is fixed and made invariable. Limit in setting • The sound volume for the ON-timer (Wake up timer) is fixed also without display of menu. Besides, the setting is made

Exception • In the item “VOLUME” of adjustment process, the sound volume can be set freely irrespective of this setting. Remarks • In “Variable” setting, the sound volume had been conventionally set at 1 but this operation has been abolished (and follows

4. VOLUME FIXED LEVEL Selection Adjustment from 1 to 60 (no loop)

Default 20 Explanation The sound volume to be fixed by “Volume fixed” is determined. Limit in setting None Exception None Remarks Setting is valid only when “Volume fixed” is selected for “fixed”.

impossible. (Basically, the menu is not displayed.)

• The following keys become invalid:

1) Sound volume Up/Down (VOL +/-) [for both remote control and the unit]

2) Mute (MUTE)

the last memory).

• The sound volume for the ON-time is not set at 1 either and the sound volume set value of the ON-timer before the hotel mode is executed.

• Setting is valid only for the speakers of the unit. (As for the headphone, the sound volume can be set up to 60 irrespective of the limit.)

• In line output (sound volume variable), the sound volume can be adjusted from -60 to 0 irrespective of pre-adjusted value.

• As for sound volume fixing and sound volume MAX level, the sound volume fixing has priority.

• Once the sound volume has been changed by adjustment process or headphone, it should be set back to the sound volume preset by sound volume fixing level when the adjustment process ends or when the headphone is removed.

This must be confirmed actually by changing also the sound volume in accordance with setting.

5. R/C BUTTON Selection Selection between “Respond”, “Limited” and “No respond” (loop provide)

Default Respond Explanation Acceptability of keys by remote control is limited or reception of keys can be prohibited. Limit in setting

Exception • Adjustment process, factory setting, inspection process and hotel only keys are valid irrespective of setting.

Remarks

6. PANEL BUTTON Selection Selection between “Respond” and “No respond” (loop provide)

Default Respond Explanation All the operations by keys (except the power key) of the unit can be invalidated. Limit in setting Exception • Inspection mode and hotel menu mode can be started irrespective of setting.

Remarks

7. MENU BUTTON Selection Selection between “Respond” and “No respond” (loop provide)

Default Respond Explanation In “No respond” setting, the menu operation by the menu key of the remote control and the menu key of the unit is invalidated. Limit in setting • ON-timer (Wakeup Timer) is turned OFF.

Exception • Inspection mode and hotel menu mode can be started irrespective of setting.

Remarks

1) In “limited” setting, only power ON/OFF, sound volume , tuning and BACKLIGHT (brightness sensor) are accepted.

2) In “No respond” setting, all the keys (including the power key) are not accepted.

• All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting.

• The following keys become invalid. Wake-up timer and clock setting keys and all of the direct change keys to menu display

• All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting.

4 – 10

LC-32LE240M/340M(1stEdition)

8. ON SCREEN DISPLAY Selection Selection between “Yes”, “No” (loop provide)

Default Yes Explanation The following OSD displays are made ineffective.

Displays of menu group, channel call, sound volume bar and direct key call

Limit in setting • Set time of the OFF-timer (SLEEP TIMER) is cleared.

• Setting of the no-signal power-OFF (AUTO POWER OFF) is cleared to “OFF”.

• Setting of the no-operation power-OFF is cleared to “OFF”.

• Keys falling under any of the following items become invalid.

1) Appearance of screen changes and the sound changes.

2) Personal functions which are hard to restore. Ex.) Screen display, menu, OFF-timer, ON-timer, AV MODE, screen size switching, clock setting, treble emphasis,

AUDIO ONLY, sound changeover, LANGUAGE, CLOSED CAPTION

Others • Simple input switching is generated. Those which are restored soon after leaving as they are and may be requested for

change by customer are not prohibited. Ex.) Brightness sensor (BACKLIGHT) and PIC. FLIP

Exception • Such a caution which is displayed independently is displayed as it is.

9. BLUE SCREEN Selection Selection between “Yes”, “No”

Default No Explanation When no signal inputs, selecting the background color.

10.INPUT MODE START

Non-responding signal caution, TELE TEXT caution and power-ON fixing caution

Selected to “Yes”---Blue screen Selected to “No”---No Blue screen

Selection Selection between “Normal”, “TV (CH~)” “INPUT1~8” (loop provide) Default Normal Explanation In power-ON, the input source to be started or channel can be set.

(In standard mode, the operation follows the last memory.)

About options • All the input sources in the model are made selectable.

• When the input/output switchable input source is selected and the input source is set to output, the setting of input/output switching is changed to input at the execution of hotel menu. In addition, the input/output switching by menu is prohibited.

• In TV mode, the display of all channels is stopped and it is treated as an input source. At this time, the channel to be set follows the last memory and the content of the last memory is included in the notation by options. Ex.) TV (CH2), TV (CH4) etc.

• The order of appearance of options in the hotel menu should agree with the order of toggles by input switching key.

Limit in setting • The display of channel setting menu and the channel setting operation are prohibited (except for MCL). Exception None Remarks • In setting at “Normal”, the setting of “Input mode fixed” is changed to “Variable” and selection should be prohibited.

11.INPUT MODE FIXED Selection Selection between “Variable” and “Fixed” (loop provide)

Default – (Variable) Explanation The input mode is fixed at the input source or the channel set at the “Input mode start” in 9 and other input sources and chan-

Limit in setting • With the execution of hotel mode, the input source is forced to change to that set by “Input mode start” and the channel

Exception None Remarks • In the following case, setting is cancelled and mode is changed to “Variable”.

nels can be made non-selectable.

switching and input switching are prohibited thereafter.

• The following keys are invalidated. CH , direct tuning button, FLASHBACK, input *However, the keys (input switching and CH , keys) of the unit for menu operation remain valid.

When the setting of “Input mode start” is set to “Standard (Normal)”

12.232C POWON Selection “Enable” and “Disable”

Default Disable Explanation When in the standby state, power ON by the RS-232C command is enabled or disabled. Limit in setting None Exception None Remarks

RS-232C power ON command “POWR1_ _ _ ”

4 – 11

LC-32LE240M/340M(1stEdition)

13.RC PATH THROUGH Selection “Off”, “On: TV RCE”, “On: TV RCD”

Default Off Explanation Remote control signal output from the pin 9 of the RS-232C terminal and signal reception is enabled or disabled.

When set to “ON: TV RCE”, TV also receives signals. With “ON: TV RCD”, the remote control signal is output from the pin 9,

but TV does not respond to the remote control. Limit in setting When set to “ON: TV RCD”, TV does not accept the remote control. Exception None Remarks

4 – 12

LC-32LE240M/340M(1stEdition)



LC32LE240M

CHAPTER 5. TROUBLESHOOTING TABLE

ServiceManual

[1] TROUBLESHOOTING TABLE

No power (front LED failure to light up) or no startup (front LED failure to turn from red to green)

Are the wire harnesses and other cables properly connected in the set?

YES Is there the AC_CTRL and PNL_POWER signal input at pins (126) and (127) of IC3301?

YES Are the DC/DC converter outputs and the output voltages along

the control lines as specified?

1) M+5.6V (IC9603)

2) D+1.26V (IC9605)

3) D+5V (IC9610)

4) T+5V (IC9612)

5) D+3.3V (IC9608)

6) D+1.8V (IC9609)

7) D+2.5V (IC9611)

NO Reconnect the wire harnesses and other cables properly in the

set.

NO Check the AC_CTRL signal line PNL_POWER signal line.

NO Check the DC/DC converters and the control lines. Replace

defective parts as required.

5 – 1

LC-32LE240M/340M(1stEdition)

With [RF] signal input No video onscreen (1)

No video in the UHF/VHF reception

Is there IF output from the tuner pin(10) of TU1101 as specified? NO Check TU1101 and its peripheral circuits.

YES Is there VIF input at pin 74 & 75 of IC3301? NO Check the circuit between TU1101 & IC3301.

YES Are there the signal outputs (pin 100-107, 109,110) of IC3301? NO Check IC3301 and its peripheral circuit.

YES Check LVDS cable, LCD controller (incl. panel) and their periph-

eral circuits.

With <Video> signal input No video onscreen (2)

No external input video onscreen <INPUT 2>

Is INPUT 2 selected on the input select menu screen? NO Select INPUT 2 on the input select menu screen to pick up the

right input signal.

YES Is there the video signal input at pin (43) of IC3301? NO Check the line between pin (9) of J502 and pin (43) of IC3301.

YES Are there the signal outputs (pin 100-107, 109,110) of IC3301? NO Check IC3301 and its peripheral circuits.

YES Check LVDS cable, LCD controller (incl. panel) and their peripheral circuits.

5 – 2

LC-32LE240M/340M(1stEdition)

With <Component> signal input No video onscreen (3)

No external input video onscreen <INPUT 3>

Is INPUT 3 selected on the input select menu screen? NO Select INPUT 3 on the input select menu screen to pick up the

YES Are there the Y, Pb and Pr signal inputs at pins (34), (36) and (38) of IC3301 respectively?

YES Are there the signal outputs (pin 100-107, 109,110) of IC3301? NO Check IC3301 and its peripheral circuits.

YES Check LVDS cable, LCD controller (incl. panel) and their periph-

eral circuits.

With <HDMI> signal input No video onscreen (4)

NO Check the line between pins (19)/(17)/(15) of J502 and pins (34)/

right input signal.

(36)/(38) of IC3301.

No external input video onscreen <INPUT 1>.

Is INPUT 1 selected on the menu screen? NO Select INPUT 1 on the input select menu screen to pick up the

right signal input.

YES Are there signal outputs from SC1501 to IC3301? NO Check peripheral circuits between SC1501 and IC3301.

YES Are there the signal outputs (pin 100-107, 109,110) of IC3301? NO Check IC3301 and its peripheral circuits.

YES Check LVDS cable, LCD controller (incl. panel) and their peripheral circuits.

5 – 3

LC-32LE240M/340M(1stEdition)

No audio heard (1)

No sound in the UHF/VHF reception.

Is the IF output from the tuner pin (10) of TU1101 as specified? NO Check TU1101 and its peripheral circuits.

YES

Is there the SIF signal input at pins (77), (78) of IC3301? NO Check IC3301 and its peripheral circuits.

YES

Is there audio signal intput at pin(6) of IC1701? NO Check connection between IC3301 and IC1701 and its

peripheral circuits.

YES Is the L-ch audio signal output at pin((28), (30) of IC1701 normal? NO Check IC1701 and its peripheral circuits. Is the R-ch audio signal output at pin(12), (14) of IC1701 normal?

YES Are the audio signal L-ch and R-ch output at (3)/(4) and (1)/(2) of P1701 normal?

NO Check circuit between IC1701 & P1701.

YES Check speakers and their peripheral circuits.

5 – 4

LC-32LE240M/340M(1stEdition)

No audio heard (2)

No external audio heard <INPUT 2> Is there the L-ch audio signal input from pin (7) of input terminal

J502 to pin (47) of IC3301? Is there the R-ch audio signal input from pin (5) of input terminal J502 to pin (48) of IC3301?

<INPUT 3> Is there the L-ch audio signal input from pin (13) of input terminal

J502 to pin (49) of IC3301? Is there the R-ch audio signal input from pin (11) of input terminal J502 to pin (50) of IC3301?

YES

Is there the I2S signal output at pin (80), (81) of IC3301? NO Check IC3301 and its peripheral circuits.

YES

Is there audio signal input at pin(6) of IC1701? NO Check connection between IC3301 and IC1701 and its periph-

eral circuits.

YES Is the L-ch audio signal output at pin(28), (30) of IC1701 normal? NO Check IC1701 and its peripheral circuits. Is the R-ch audio signal output at pin(12), (14) of IC1701 normal?

YES Are the audio signal L-ch and R-ch output at (3)/(4) and (1)/(2) of

P1701 normal?

YES Check speakers and their peripheral circuits.

NO Check circuit between IC1701 & P1701.

5 – 5

LC-32LE240M/340M(1stEdition)

No audio heard (3)

No HDMI sound heard. <INPUT 1> (*INPUT 1 is digital audio.)

Does the HDMI image appear onscreen? NO Refer to “<INPUT 1> in No external input video onscreen

(HDMI)”.

YES No audio output from <INPUT 1> NO Check it if EDID is written or not.

YES Are waveforms input in to the pin(3)-(6), (8), (9), (11), (12) of IC3301 normally?

YES Is there audio signal input at pin(6) of IC1701? NO Check connection between IC3301 and IC1701 and its periph-

NO Check peripheral circuits IC3301.

eral circuits.

YES Is the L-ch audio signal output at pin(28), (30) of IC1701 normal? NO Check IC1701 and its peripheral circuits. Is the R-ch audio signal output at pin(12), (14) of IC1701 normal?

YES Are the audio signal L-ch and R-ch output at (3)/(4) and (1)/(2) of P1701 normal?

YES Check speakers and their peripheral circuits.

NO Check circuit between IC1701 & P1701.

5 – 6

LC-32LE240M/340M(1stEdition)

No audio heard (4)

No sound from the HDMI sound input terminal. (INPUT 1 analog audio)

YES Is there the L-ch audio signal input from pin (2) of external input terminal J506 (HDMI AUDIO IN) to pin (55) of IC3301? Is there the R-ch audio signal input from pin (3) of external input terminal J506 (HDMI AUDIO IN) to pin (56) of IC3301?

YES Are I2S signal output from the pins (80), (81) of IC3301 normally? NO Check peripheral circuits of IC3301.

YES Is there audio signal input at pin(6) of IC1701? NO Check connection between IC3301 and IC1701 and its periph-

eral circuits.

YES Is the L-ch audio signal output at pin(28), (30) of IC1701 normal? NO Check IC1701 an d its peripheral circuits. Is the R-ch audio signal output at pin(12), (14) of IC1701 normal?

YES Are the audio signal L-ch and R-ch output at (3)/(4) and (1)/(2) of

P1701 normal?

YES Check speakers and their peripheral circuits.

NO Check circuit between IC1701 & P1701.

5 – 7

LC-32LE240M/340M(1stEdition)

No audio heard (5)

No PC audio output

YES Pin (2) of J506: Is L-ch input into the pin (55) of IC3301? Pin (3) of J506: Is R-ch input into the pin (56) of IC3301?

YES Are I2S signal output from the pins (80), (81) of IC3301 normally? NO Check peripheral circuits of IC3301.

YES Is there audio signal input at pin(6) of IC1701? NO Check connection between IC3301 and IC1701 and its

peripheral circuits.

YES Is the L-ch audio signal output at pin(28), (30) of IC1701 normal? NO Check IC1701 and its peripheral circuits. Is the R-ch audio signal output at pin(12), (14) of IC1701 normal?

YES Are the audio signal L-ch and R-ch output at (3)/(4) and (1)/(2) of

P1701 normal?

NO Check circuit between IC1701 & P1701.

YES Check speakers and their peripheral circuits.

5 – 8

LC-32LE240M/340M(1stEdition)

5 – 9



LC32LE240M

CHAPTER 6. OVERALL WIRING/BLOCK DIAGRAM

[1] OVERALL WIRING DIAGRAM

LC-32LE240M/340M(1stEdition)

ServiceManual

Hiraki-Panel

R1LK315T3HB00W

1 32

MAIN

32LE340M --> DUNTKF998FMG4 32LE240M --> DUNTKF998FMG5

QCNW-M466WJQZ

[LW]

RUNTKA929WJQZ

Power Unit

32 - 1

USB

[PD]

[AC]

1-4

[L1]

QCNW-M468WJQZ

QCNW-M465WJQZ

QCNW-M467WJQZ

SP-R

RSP-ZA571WJZZ

LED PWB A

RUNTKA927WJZZ

LED PWB B

RUNTKA928WJZZ

[SP]

[PD]

SP-L

RSP-ZA570WJZZ

PC audio in

HDMI

D-Sub

Tuner

12345678910111213141516171819

6 – 1

20 21 22

LC-32LE240M/340M(1stEdition)

(+)

[2] SYSTEM BLOCK DIAGRAM

MAIN UNIT

I2C

CEC

EDID

IC1501

TUNER

TUNER TU1101

RTUNQA067WJQZ

IF AMP

VIF SAW

Filter

IF_SW

VIF+ VIF-

VIF IN

MST6100VS RH-IXD454WJQZQ (340M) MST6003VS RH-IXD459WJQZQ (240M)

SIF AMP

Filter

SIF+ SIF-

SIF I N

I2C

MSTAR

TEMP

SENSOR

H3301

SAR(2)

KEY/RC/LED

KEY/SW

KEY1/2 PSW_IN

SAR(0)

SAR(1)

GPIO10

IR Receiver

IR IN

LED

LED_G,R

IO6 GP

GPIO37

LVDS 8bit

ERROR

OFL

INV_POW

Data A 8

ClkA2 TCON_WP

I2C

XIN/XOUT

I2C

PANEL_12V

IC3801 I2C SW

P2601 30 pin

I2C

Xtal (24.0MHz)

X3301

I2C Address A8

EEPROM(HDCP)

IC3103

RH-IXD110WJQZY

I2C Address A4

EEPROM(DRAM)

IC3102

VHIBR24T28F-1Y

Data A 8

Clk A 2

UR+12.2V GND PS_ON ERROR OFL STB

Panel Hiraki

32" WXGA

POWER UNIT

L1 LED1_A LED1_K LED2_A LED2_K

4pin

LED UNIT

L1 LED1_A LED1_K

2pin

LED UNIT

L1 LED1_A LED1_K

2pin

HDMI1

HDMII SC1501

QSOCZA271WJQZ

clk

data

HPD0 IN D5V

Terminal

EEPROM IC508

VHIBR24T02J

Mon L/R OUT J502

HP J504(side)

SDA SCL

PC D-sub

SC502

PC Audio J506

CVBS/COMP IN J502

COMP Audio IN J502

USB IN J501(side)

Mon Amp circuit

15pin

Y/Pb/P

CVBS & Audio L/R

HP Amp circuit

PC RGB

L/R

DP/DN

HP Det

HDMI1 HDMI

PC DDC

CVBS COMP

UDIO

USB IF

Monitor Audio

HPAudio out

RESET IC3302

H/W RESET

DRAM IF

DDR2 (128Mb)

IC3501

RH-IXD361WJQZQ

12345678910111213141516171819

OUT

UDIO

I2S

AUDIO AMP

IC1701

VHIYDA164DZ-1Y

SP_L

SP P1701 QPLGNA961WJZZY 4 LCH(+) 3 LCH(-) 2 RCH(-) 1RCH

SP_L

85W 85W

SP MUTE

SP_R

SPI IF

SPI

SPI FLASH

IC3101

RH-IXD464WJQZQ

(LE340M)

RH-IXD463WJQZQ

(LE240M)

SPI_WP

20 21 22

6 – 2



LC32LE240M

CHAPTER 7. PRINTED WIRING BOARD ASSEMBLIES

[1] MAIN Unit

MAIN Unit (Side-A)

LC-32LE240M/340M(1stEdition)

ServiceManual

12345678910111213141516171819

7 – 1

20 21 22

LC-32LE240M/340M(1stEdition)

MAIN Unit

(Side-A Chip)

12345678910111213141516171819

7 – 2

20 21 22

LC-32LE240M/340M(1stEdition)

MAIN Unit (Side-B)

12345678910111213141516171819

7 – 3

20 21 22

LC-32LE240M/340M(1stEdition)

MAIN Unit

(Side-B Chip)

12345678910111213141516171819

7 – 4

20 21 22



LC32LE240M

CHAPTER 8. SCHEMATIC DIAGRAM

[1] DESCRIPTION OF SCHEMATIC DIAGRAM

1. VOLTAGE MEASUREMENT CONDITION:

1) The voltages at test points are measured on exclusive AC adaptor and the stable supply voltage of AC 110-240V. Signals are fed by a colour bar signal generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.

2. INDICATION OF RESISTOR & CAPACITOR:

RESISTOR

1) The unit of resistance "Ω" is omitted. (K=kΩ=1000Ω, M=MΩ).

2) All resistors are ± 5%, unless otherwise noted. (K= ± 10%, F= ± 1%, D= ± 0.5%)

3) All resistors are 1/16W, unless otherwise noted.

CAPACITOR

1) All capacitors are µF, unless otherwise noted. (P=pF=µµF).

2) All capacitors are 50V, unless otherwise noted.

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

LC-32LE240M/340M(1stEdition)

ServiceManual

SAFETY NOTES:

1) DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.

2) SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH " " ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

8 – 1

LC-32LE240M/340M(1stEdition)

[2] MAIN Unit

•MAIN Unit-1/11

C1103

0.1u 10V

C1105 10u

16V

C1106

10u

16V

TU1101

QA067WJQZ

GND GND

SDA

FB1101

A191WJ

SCL

8NC9

R1143

100

R1144

100

C1122

47P

R1111

12K

R1138

22K

C1107 10u 16V

GND

1NC2NC3NC4

C1108

0.01u

R1105

100

RF AGC

C1110

0.01u

+5V

C1123

47P

MAIN1 (TUNER)

AIF

GND

R1132

4.7K

C1113

0.01u

R1133

R1113

4.7K

C1118

L1103

Q1101

R1116

C1115

270

0.01u

0.82uH SBN

R1115

1.5K

C1114

0.01u

DSC2G03

R1114

820

R1117

R1118

R1119

680 CZ

0.01u

C1121

KZA837WJQZ

10u 16V

FB1102

A191WJ

TO MAIN10(POWER)

D+3.3V

T+5V

FL1101

CA072WJQZ

C1116

0.01u

R1125

R1131

22K

C1120

R1102

6.8K

C1117

0.01u

R1103

R1127

3.3K

6.8K

D1101

KDS114E

VHD

0.01u

FL1102

CA058WJ

Q1105

LTC044EEB

TO MAIN5(CPU)

SIFP

SIFM

VIFP

VIFM

IF_SW

I2C_CLK

I2C_DAT

TAGC

DUNTKF998WE

12345678910111213141516171819

8 – 2

20 21 22

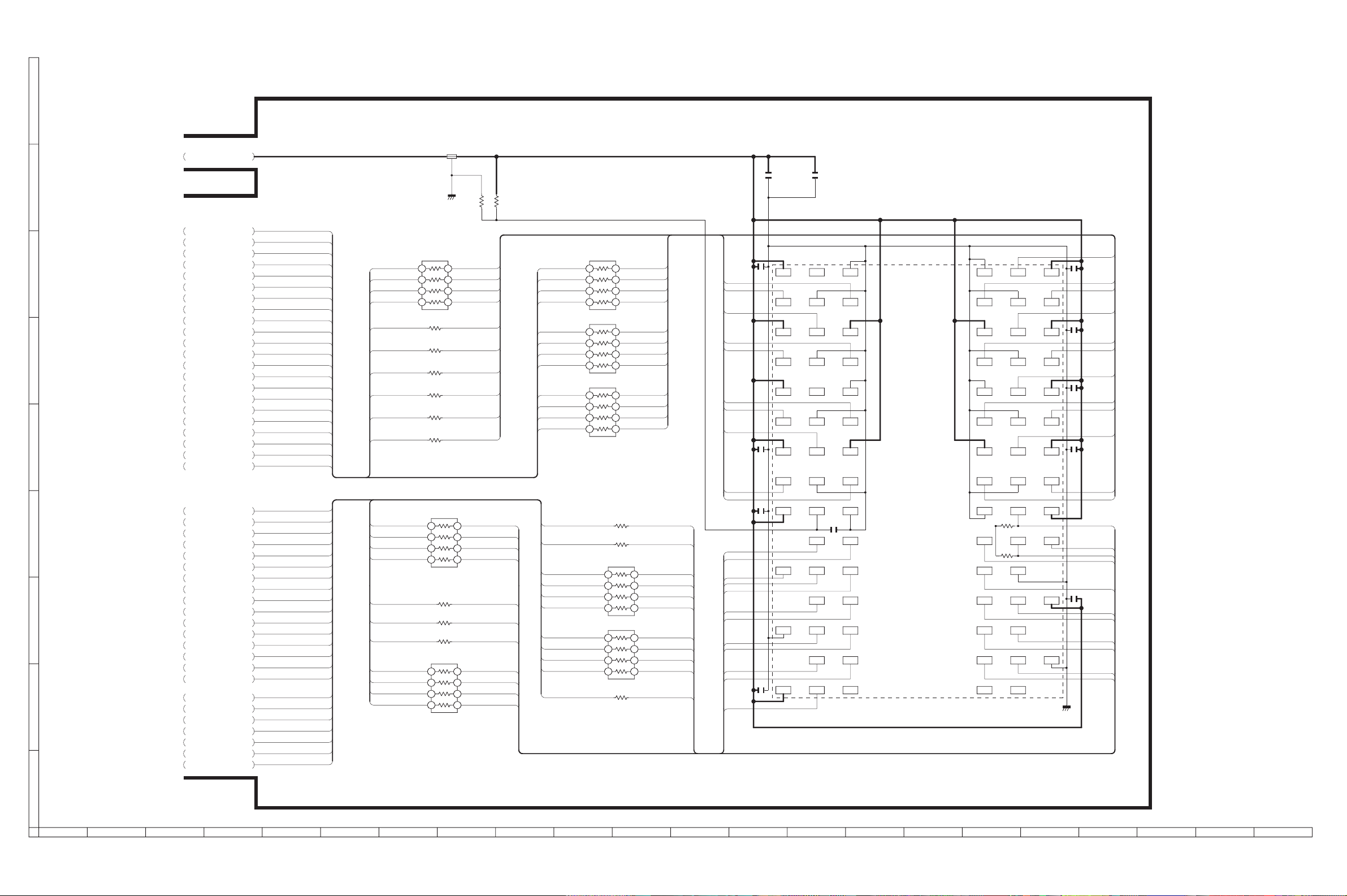

•MAIN Unit-2/11

TOP

INPUT1

1234567

LC-32LE240M/340M(1stEdition)

MAIN2 (HDMI-TERM)

D+5V

BU+3.3V

R1510

Q1503

SC1501

ZA271WJQZ

101112131415161718

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI0_D2N

HDMI0_D2P

R1505

D1510 DB2S310L

D1516 DB2S310L

R1511

47K

R1516

47K

C1501

KZA837WJQZ

C1502

0.01u

Q1501

LTC044EEB

Q1502

LTC044EEB

R1504

R1503 47K CZ

10u 16V

25V

CZB

VCC

VCLK

IC1501

BR24T02J

EEPROM

1A02A13A24

SCL

SDA

GND

LTC044EEB

10K

TO MAIN10(POWER)

D+5V

BU+3.3V

TO MAIN5(CPU)

HPD_+5V_IN

HPD_CTRL

WP_CTRL

HDMI_DAT

HDMI_CLK

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI0_D2N

HDMI0_D2P

R1547

200

DUNTKF998WE

12345678910111213141516171819

8 – 3

HDMI_CEC

HDMI_ARC

20 21 22

LC-32LE240M/340M(1stEdition)

•MAIN Unit-3/11

1PVJKUOQFGNVJG/CKP%KTEWKV$CUKE&KCITCOKUPQVCRRNKGF

USB:500mA max

J501

ZA284WJQZ

USB Atype Right Angle

USB_DP

USB_DN

FB503

A206WJ

GND

+5V

FB507

A206WJ

J506

JA024WJ

PC AUDIO

L501

FA154WJ

R524

R529

KZA837WJQZ

C544 56P CH

C543

56P

VA505

VXA074WJ

39V

1.1pF

Vout

C503

10u

16V

R577

10K

R590 12K

R578

10K J

R581 12K

IC510

S172B50U

1ON2

VA506

VXA074WJ

39V

1.1pF

GND3N.C.

C553 1000P

C548

1000P

USB_D0P

USB_D0N

Vin

C581

10u

16V

KZA837WJQZ

R601

PC_AUD_L

PC_AUD_R

MAIN3(TERMINAL)

LA047WJQZ

J502

AV1_R

AV1_L

AV1_V

COMP_CR

COMP_CB

10 11

R520

R533 75 TQ

CVBS1

SC502

NB037WJQZ

FB517 A369WJ

FB518 A369WJ

FB519 A369WJ

FB520 A369WJ

R613

100

R610

2.2K

R521

R549 75 TQ

COMP1_Pr

R614

100

R611

2.2K

FB523

FB521 0093GE

0093GE

R518

C530 56P

R534

10K

(PWB)

C531

1000P

R532 12K

CVBS_AUD_L

R582 75 TQ

FB522

R583 75 TQ

R584 75 TQ

C560

C561

47P

R519

R548 75 TQ

COMP1_Pb

PC_R

PC_G

PC_B

1819

R514

C532 56P

R536 10K

(PWB)

C533

1000P

R535

12K

CVBS_AUD_R

D510

BAV70

COMP_Y

1617

R517

R547 75 TQ

COMP1_Y

R607

R608 47K

47K

AV_OUT_L

COMP_L

1415

R512

R616

100

R615

100

C565 10u

16V

KZA837WJQZ

R528 100 1/4W

MON_L_OUT

AV_OUT_R

COMP_R

1213

C527 1000P

C509

0.01u

R527 100K

R509

1/4W

100

C566

0.01u 25V

R523

C517 56P

R516 10K

(PWB) C518 1000P

R515

12K

COMP_AUD_L

R625 47K

VCC

SCL7VCLK

IC508

BR24T02J

EEPROM

1A02A13A24

R501

C526

1000P

SDA

GND

R526 100 1/4W

C508

0.01u

R525

100K

R507

100

1/4W

MON_R_OUT

R626 0

R522

C514 56P

R513 10K

(PWB)

C515

1000P

R511 12K

R502

10K

COMP_AUD_R

R631 10

R620

100

R621

100

PC_HSYNC_IN

PC_VSYNC_IN

HP SIDE

J504

J0101SE

1435726

C501

0.01u

R510

HP_PLUG

R506

100K

C502

C504

10P

HP_L_OUT

R508 33

HP_R_OUT

UART_DEBUG_RX

UART_DEBUG_TX

WP_CTRL

R505

R632 10

TO MAIN5(CPU)

COMP1_Y

COMP1_Pb

COMP1_Pr

CVBS1

COMP_AUD_L

COMP_AUD_R

CVBS_AUD_L

CVBS_AUD_R

WP_CTRL

PC_R

PC_G

PC_B

PC_HSYNC_IN

PC_VSYNC_IN

PC_AUD_L

PC_AUD_R

UART_232C_TX

UART_232C_RX

UART_DEBUG_RX

UART_DEBUG_TX

USB_D0P

USB_D0N

HP_PLUG

TO MAIN9(AUDIO_AMP)

HP_R_OUT

HP_L_OUT

MON_R_OUT

MON_L_OUT

TO MAIN10(POWER)

D+5V

M+5.6V

R503

TL504

TL505

TL506

TL507

UART_232C_TX

UART_232C_RX

12345678910111213141516171819

8 – 4

BU+3.3V

20 21 22

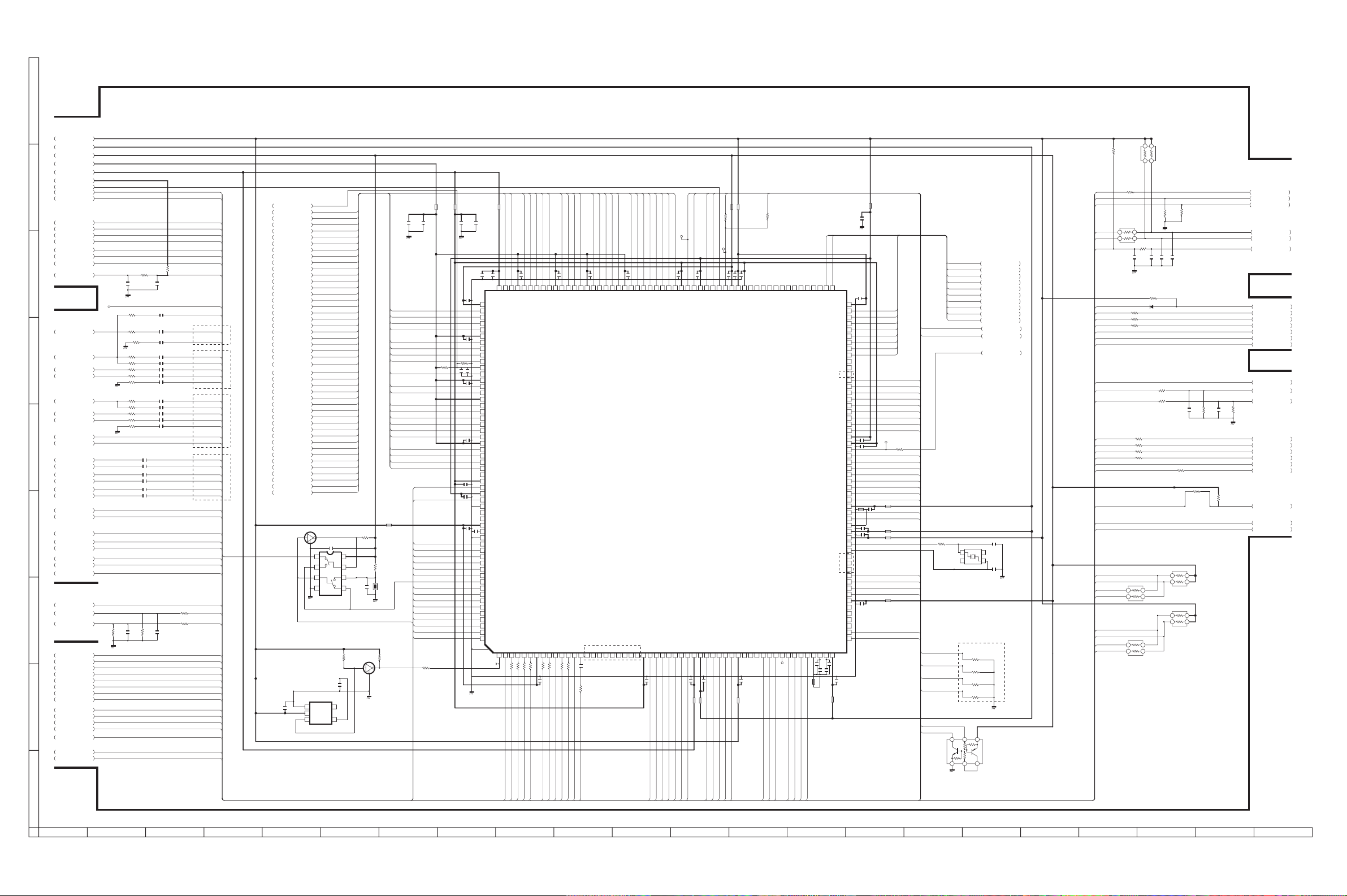

• MAIN Unit-5/11 (LC-32LE240M)

TO MAIN10(POWER)

BU+3.3V

D+2.5V

D+3.3V

D+1.8V

D+1.26V

PANEL_POW

AC_CTRL

POW_CHK

TO MAIN1(TUNER)

I2C_CLK

I2C_DAT

TO MAIN3(TERMINAL)

PC_HSYNC_IN

PC_VSYNC_IN

CVBS_AUD_L

CVBS_AUD_R

COMP_AUD_L

COMP_AUD_R

UART_DEBUG_TX

UART_DEBUG_RX

UART_232C_TX

UART_232C_RX

COMP1_Pb

COMP1_Pr

PC_AUD_L

PC_AUD_R

COMP1_Y

USB_D0P

USB_D0N

WP_CTRL

HP_PLUG

TO MAIN9(AUDIO_AMP)

HP_L_MUTE

TO MAIN2(HDMI-TERM)

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI0_D2N

HDMI0_D2P

HDMI_DAT

HDMI_CLK

HPD_CTRL

HPD_+5V_IN

HDMI_CEC

HDMI_ARC

WP_CTRL

CPU BU3.3V : 5.6mA(Max)

CPU BU1.26V : 23.9mA(Max)

D+5V

VIFP

VIFM

SIFP

SIFM

IF_SW

TAGC

TP3307

CVBS1

PC_G

PC_B

PC_R

CVBS_AUD_L AUD_L0

CVBS_AUD_R AUD_R0

COMP_AUD_L

COMP_AUD_R

PC_AUD_L

PC_AUD_R

HP_L

HP_R

R3301

220K

R3302

5.6K

R3349

C3361

C3362

0.022u

R3316

R3304

R3357

R3354

R3367

R3355

R3356

R3371

R3359

R3372

R3360

R3358

R3373

C3360

10V KZA115WJ

2.2u

10V

C3363

KZA115WJ

2.2u

C3315

10V KZA115WJ

2.2u

10V

C3316

KZA115WJ

2.2u

C3372

10V KZA115WJ

2.2u

10V

C3373

KZA115WJ

2.2u

R3313

C3303

C3301

220P

220K

LC-32LE240M/340M(1stEdition)

MAIN5 (CPU)

R3337

33K

R3321

2.7K

TO MAIN6(DDR)

GND

VDD

OUT

IC3306

BU4229G

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

C3379

0.1u 10V

GND

IC3303

HC2G66DP

DDR_VREF

A_DDR_DQM0

A_DDR_DQM1

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_D10

A_DDR_D11

A_DDR_D12

A_DDR_D13

A_DDR_D14

A_DDR_D15

A_DDR_BA0_HSS

A_DDR_BA1_HSS

A_DDR_BA2_HSS

A_DDR_A10

A_DDR_A11

A_DDR_A12

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_CLKEN

A_DDR_WE#_HSS

VCC

A_DDR_D0

A_DDR_D1

A_DDR_D2

A_DDR_D3

A_DDR_D4

A_DDR_D5

A_DDR_D6

A_DDR_D7

A_DDR_D8

A_DDR_D9

A_DDR_A0

A_DDR_A1

A_DDR_A2

A_DDR_A3

A_DDR_A4

A_DDR_A5

A_DDR_A6

A_DDR_A7

A_DDR_A8

A_DDR_A9

C3330

0.01u CZB

FB3302

A192WJ

C3302

C3304

10u

0.1u

16V

KZA837WJQZ

%35739

A_DDR_DQS1P

A_DDR_DQS1N

A_DDR_D15

A_DDR_D8

A_DDR_D10

A_DDR_D13

A_DDR_D7

A_DDR_D0

A_DDR_D2

A_DDR_D5

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_A0

A_DDR_A2

A_DDR_A4

A_DDR_A6

A_DDR_A8

A_DDR_A11

FB3301 A192WJ

R3369

10K

R3343

2.7K

C3344

0.01u

TH3301 M1103J15

AD_SEL

Q3302 LTC014EEB VS

R3324 22K

R3323

4.7K

DDCR_DAT

DDCR_CLK

SPI_SCLK

SPI_SDI_DAT

SPI_SDO_DAT

SPI_CS0N

KEY1

KEY2

TEMP

PSW_IN

DDCA_CLK

DDCA_DAT

LED_G

USB_PLUG

EEP_WP

HPD_+5V_IN

HDMI_CEC

R3303

C3307

0.1u

HW_RESET

R3325

FB3304

FB3303

A192WJ

C3306

0.1u

C3311

0.1u

C3312

0.1u

DDR_VREF R3305 1K

C3354 1000P

CZB

C3313

0.1u

C3314

0.1u

C3309

0.1u

C3310

0.1u

C3317

0.1u

C3319 1u

CZB

C3318 10u 16V KZA837WJQZ

A_DDR_DQS0N

C3320

C3321

0.1u

2.2u

161

162

DQSLZ

AVDD_

163

MEMPLL

DVDD_DDR

164

DQSU

165

QDSUZ

166

MDATA[15]

167

MDATA[8]

168

AVDD_DDR

169

MDATA[10]

170

MDATA[13]

171

MDATA[7]

172

MDATA[0]

173

MVREF

174

MDATA[2]

175

AVDD_DDR

176

MDATA[5]

177

MCLK

178

AVDD_DDR

179

MCLKZ

180

ODT

181

RASZ

182

CASZ

183

MADR[0]

184

MADR[2]

185

AVDD_DDR

186

MADR[4]

187

MADR[6]

188

MADR[8]

189

MADR[11]

190

MADR[13]

191

VDDC

192

DDCR_DA

193

VDDP

194

DDCR_CK

195

GND

196

USB0_DM

197

USB0_DP

198

AVDD_ALIVE

199

BYPASS

200

GND

201

SCK

202

SDI

203

SDO

204

SCZ

205

SAR0

206

SAR1

207

SAR2

208

GPIO10

209

DDCA_CK

210

DDCA_DA

211

GPIO6

212

GPIO7

213

GPIO8

214

GPIO9

215

IRIN

216

CEC

GND

HOTPLUGA

HWRESET

TL3302

A_DDR_DQS0P

160

DQSL

RXACKN

R3327

159

RXACKP

AVDD_DDR

R3328

A_DDR_DQM0

C3322

0.1u

158

DQML

RXA0N

A_DDR_DQM1

157

DQMU

RXA0P

R3334

R3335

A_DDR_D14

156

MDATA[14]

AVDD_33

A_DDR_D9

155

C3323

0.1u

MDATA[9]

RXA1N

154

R3330

A_DDR_D12

MDATA[12]

RXA1P

153

AVDD_DDR

DDCDA_DA

R3331

A_DDR_D6

A_DDR_D11

C3324

0.1u

151

152

MDATA[11]

RXA2N12RXA2P13DDCDA_CK

R3332

A_DDR_D4

A_DDR_D3

A_DDR_D1

A_DDR_WE#_HSS

C3326

0.1u

146

147

148

149

150

MDATA[4]

AVDD_DDR

MDATA[3]

MDATA[1]

MDATA[6]

Pure NC Pins

ARC

15NC16NC17NC18NC19NC20NC21NC22NC23NC24

C3325

0.047u

R3333

R3306

WEZ

A_DDR_CLKEN

145

MCLKE

A_DDR_BA0_HSS

A_DDR_BA1_HSS

143

144

BADR[1]

A_DDR_A7

A_DDR_A9

A_DDR_A3

A_DDR_A5

A_DDR_A1

A_DDR_A10

A_DDR_BA2_HSS

C3327

0.1u

141

142

BADR[2]

BADR[0]

AVDD_DDR

135

136

137

138

139

140

MADR[9]

MADR[7]

MADR[5]

MADR[3]

MADR[1]

MADR[10]

*IC3301

RH-IXD459WJQZQ

MST6003VS

VDDC

BIN0P

GIN0P29GIN0M

HSYNC0

SOGIN0

C3328

0.1u

134

A_DDR_A12

TP3308

MADR[12]

INV_POW

IR_PASS

PWM0_OFL

C3331

C3333

0.1u

129

130

131

132

133

VDDP

PWM0

PWM1

VDDC

RIN0P

AVDD_126

AVDD_25

VSYNC0

C3332

C3334

0.1u

FB3305

FB3306

A192WJ

DDR_VREF

A_DDR_DQM0

A_DDR_DQM1

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_D0

A_DDR_D1

A_DDR_D2

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

C3329

0.1u 10V

A_DDR_BA0_HSS

A_DDR_BA1_HSS

A_DDR_BA2_HSS

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_CLKEN

A_DDR_WE#_HSS

RT1N141C

A_DDR_D3

A_DDR_D4

A_DDR_D5

A_DDR_D6

A_DDR_D7

A_DDR_D8

A_DDR_D9

A_DDR_D10

A_DDR_D11

A_DDR_D12

A_DDR_D13

A_DDR_D14

A_DDR_D15

A_DDR_A0

A_DDR_A1

A_DDR_A2

A_DDR_A3

A_DDR_A4

A_DDR_A5

A_DDR_A6

A_DDR_A7

A_DDR_A8

A_DDR_A9

A_DDR_A10

A_DDR_A11

A_DDR_A12

Q3304

T_AGC

0.1u

RCA_CVBS2_IN

CVBS input

RCA_CVBS1_IN

Component input

COMP1_YINP

COMP1_SOGIN

COMP1_PbINP

COMP1_PrINP

COMP1_YINM

PC input

PC_HSYNC_IN

PC_VSYNC_IN

USB_PLUG

PC_GINP

PC_SOGIN

PC_BINP

PC_RINP

PC_GINM

VCOM0

C3350

0.047u

C3308

0.047u

C3366

0.047u

C3355

0.047u

C3376

1000P

C3356

0.047u

C3359

0.047u

C3374

0.047u

C3368

0.047u

C3377

1000P

C3369

0.047u

C3367

0.047u

C3375

0.047u

AUDIO input

AUD_L1

AUD_R1

AUD_L2

AUD_R2

POW_CHK

HP_OUT_0L

R3319

HP_OUT_0R

R3320

LAMP_ERR

C3335

0.1u

128

GPIO76

GPIO77

SOGIN136GIN1P37GIN1M38RIN1P

BIN1P

FB3308

A192WJ

AC_CTRL

R3385

TP3305

125

126

127

GPIO74

GPIO75

AVDD_LPLL

124

FB3307

A192WJ

C3336

0.1u

AVDD_MOD

S_RESET

R3377

RXE_D0P

RXE_D0N

0.1u

C3337

121

122

123

VDDC

LVB0P

LVB0M

115

116

117

118

119

120

LVB2P

LVB2M

LVB1P

LVB1M

LVBCKP

LVBCKM

109

110

111

112

113

114

LVB4P

LVB4M

LVB3P

LVB3M

LVA0P

LVA0M

AVDD_MOD

LVA1M

LVA1P

LVA2M

LVA2P

LVACKM

LVACKP

LVA3M

LVA3P

LVA4M

LVA4P

Pure NC Pin

PWM2

USB1_DP

USB1_DM

GPIO38

GPIO37

GPIO36

I2S_OUT_BCK

I2S_OUT_MCK

GPIO28

VDDP

VDDC

SPDIFO

GPIO26

GPIO25

GPIO24

I2S_OUT_SD

I2S_OUT_WS

TAGC

SIFM

SIFP

AVDD_PGA

VIFP

VIFM

PGA_COM

AVDD_REF

AVDD_DMPLL

XOUT

Pure NC Pins

AUOUTR0

AUOUTL0

AUOUTR1

AUOUTL1

AVDD_AU33

AUR4

AUL4

AUR3

AUL3

AUR2

AUL2

CVBS4

VCOM

CVBS144CVBS0

AUR049AUL1

CVBSOUT047AUL0

TP3304

CVBS2

AVDD_33

CVBS3

C3338

0.1u

FB3309

A192WJ

AVDD_AU25

AUVRP53AUVAG

AUR1

GND

C3365 10u

C3364

10u

16V

C3370

C3371

0.1u

FB3310

A192WJ

FB3311

A192WJ

FB3313 A192WJ

C3341 10u 16V

KZA837WJQZ

TO MAIN8(PANEL)

RXE_D0P

RXE_D0N

RXE_D1P

RXE_D1N

C3340

0.1u

108

107

106

105

104

103

102

101

100

XIN

C3339

0.1u

RXE_D1N

RXE_D1P

RXE_D2N

RXE_D2P

RXE_CLKN

RXE_CLKP

RXE_D3N

RXE_D3P

AD_SEL

USB_D0P

USB_D0N

IF_SW

LED_R

SPI_WP

I2S_OUT_SCLK

I2S_OUT_MCLK

C3342

0.1u

C3343

0.1u

FB3312 A192WJ

C3347

0.1u

C3345

0.1u

HP_L_MUTE

TP3001

R3376

TCON_WP

S_STBY_

L_MUTE

HP_PLUG

I2S_OUT_DAT

I2S_OUT_LRCLK

T_AGC

SIFM

C3348

0.1u

C3346

0.1u

SIFP

FB3314

A192WJ

VIFP

VIFM

FB3315 A192WJ

FB3316

A192WJ

HP_OUT_0R

HP_OUT_0L

LINE_OUT_R

LINE_OUT_L

FB3317 A192WJ

R3347

470

AUD_R2

AUD_L2

EEP_WP

WP_CTRL

Q3301

RN4983

RXE_D2P

RXE_D2N

RXE_CLKP

RXE_CLKN

RXE_D3P

RXE_D3N

X3301

24MHz

SCA239WJQZ

IC CONFIGURATION

R3308

4.7K

R3310

4.7K

R3312

4.7K

R3315

4.7K

456

123

I2C_DAT

I2C_CLK

TCON_WP

C3358 10P

C3357 10P

KEY1

KEY2

PSW_IN

SPI_CS0N

SPI_SCLK

SPI_SDI_DAT

SPI_SDO_DAT

L_MUTE

LINE_OUT_L

LINE_OUT_R

I2S_OUT_MCLK

I2S_OUT_SCLK

I2S_OUT_LRCLK

I2S_OUT_DAT

S_STBY_

LAMP_ERR

INV_POW

PWM0_OFL

I2C_CLK

I2C_DAT

DDCR_CLK

DDCR_DAT

UART_DEBUG_RX

UART_DEBUG_TX

DDCA_CLK

DDCA_DAT

R3339

100

R3353

10K

R3336

R3338

C3349

0.1u 10V

10K

R3345

C3351

C3352

C3353

100P

CCZ

R3430 10K

D3301

DA1010

R3363

100

R3365

100

R3366

100

R3340

100

R3341

100

R3342

100

R3344

100

R3326

R3329

SPI_CZ

SPI_CLK

SPI_DI_DAT

SPI_DO_DAT

R3361

R3362

R3364

C3380

C3378

220P

220K

R3431

R3322

R3350

2.2K

R3351

4.7K

TO MAIN11(KEY)

R/C

LED_G

LED_R

KEY_1

KEY_2

PSWIN

TO MAIN7(FLASH)

SPI_CZ

SPI_CLK

SPI_DI_DAT

SPI_DO_DAT

I2C_CLK

I2C_DAT

SPI_WP

TO MAIN9(AMP)

L_MUTE

MONITOR_L

MONITOR_R

R3368

220K

I2S_MCLK

I2S_SCLK

I2S_LRCLK

I2S_DAT

S_RESET

S_STBY

10K

TO MAIN10(POWER)

R3346

LAMP-ERR

INV_POW

PWM0_OFL

HPD_CTRL

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI_DAT

HDMI0_D2N

HDMI0_D2P

HDMI_CLK

HDMI_ARC

PC_HSYNC_IN

PC_VSYNC_IN

PC_RINP

PC_GINP

PC_BINP

PC_SOGIN

PC_GINM

COMP1_PbINP

COMP1_SOGIN

COMP1_YINP

COMP1_YINM

COMP1_PrINP

RCA_CVBS1_IN

RCA_CVBS2_IN

AUD_L1

AUD_R1

AUD_L0

AUD_R0

VCOM0

12345678910111213141516171819

8 – 5

20 21 22

LC-32LE240M/340M(1stEdition)

• MAIN Unit-5/11 (LC-32LE340M)

TO MAIN10(POWER)

BU+3.3V

D+2.5V

D+3.3V

D+1.8V

D+1.26V

PANEL_POW

AC_CTRL

POW_CHK

TO MAIN1(TUNER)

I2C_CLK

I2C_DAT

TO MAIN3(TERMINAL)

PC_HSYNC_IN

PC_VSYNC_IN

CVBS_AUD_L

CVBS_AUD_R

COMP_AUD_L

COMP_AUD_R

UART_DEBUG_TX

UART_DEBUG_RX

UART_232C_TX

UART_232C_RX

COMP1_Y

COMP1_Pb

COMP1_Pr

PC_AUD_L

PC_AUD_R

USB_D0P

USB_D0N

WP_CTRL

HP_PLUG

TO MAIN9(AUDIO_AMP)

HP_L_MUTE

TO MAIN2(HDMI-TERM)

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI0_D2N

HDMI0_D2P

HPD_+5V_IN

HDMI_DAT

HDMI_CLK

HPD_CTRL

WP_CTRL

HDMI_CEC

HDMI_ARC

CPU BU3.3V : 5.6mA(Max)

CPU BU1.26V : 23.9mA(Max)

D+5V

VIFP

VIFM

SIFP

SIFM

IF_SW

TAGC

TP3307

CVBS1

PC_G

PC_B

PC_R

CVBS_AUD_L AUD_L0

CVBS_AUD_R AUD_R0

COMP_AUD_L

COMP_AUD_R

PC_AUD_L

PC_AUD_R

HP_L

HP_R

R3301 220K

R3302

5.6K

R3349

C3361

C3362

0.022u

0.1u

R3316

R3304

R3357

R3354

R3367

R3355

R3356

R3371

R3359

R3372

R3360

R3358

R3373

C3360

10V KZA115WJ

2.2u

10V

C3363

KZA115WJ

2.2u

C3315

10V KZA115WJ

2.2u

10V

C3316

KZA115WJ

2.2u

C3372

10V KZA115WJ

2.2u

10V

C3373

KZA115WJ

2.2u

R3313

C3303

C3301

220P

220K

C3350

RCA_CVBS2_IN

0.047u

CVBS input

C3308

RCA_CVBS1_IN

0.047u

C3366

0.047u

Component input

C3355

0.047u

C3376

1000P

C3356

0.047u

C3359

0.047u

C3374

0.047u

PC input

C3368

0.047u

C3377

1000P

C3369

0.047u

C3367

0.047u

C3375

0.047u

AUDIO input

R3319

R3320

USB_PLUG

COMP1_YINP

COMP1_SOGIN

COMP1_PbINP

COMP1_PrINP

COMP1_YINM

PC_SOGIN

PC_HSYNC_IN

PC_VSYNC_IN

HP_OUT_0L

HP_OUT_0R

PC_GINP

PC_BINP

PC_RINP

PC_GINM

MAIN5 (CPU)

R3337

33K

R3321

2.7K

TO MAIN6(DDR)

GND

VDD

OUT

IC3306

BU4229G

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

C3379

0.1u 10V

GND

IC3303

HC2G66DP

DDR_VREF

A_DDR_DQM0

A_DDR_DQM1

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_D10

A_DDR_D11

A_DDR_D12

A_DDR_D13

A_DDR_D14

A_DDR_D15

A_DDR_BA0_HSS

A_DDR_BA1_HSS

A_DDR_BA2_HSS

A_DDR_A10

A_DDR_A11

A_DDR_A12

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_CLKEN

A_DDR_WE#_HSS

VCC

A_DDR_D0

A_DDR_D1

A_DDR_D2

A_DDR_D3

A_DDR_D4

A_DDR_D5

A_DDR_D6

A_DDR_D7

A_DDR_D8

A_DDR_D9

A_DDR_A0

A_DDR_A1

A_DDR_A2

A_DDR_A3

A_DDR_A4

A_DDR_A5

A_DDR_A6

A_DDR_A7

A_DDR_A8

A_DDR_A9

C3330

0.01u CZB

FB3302

A192WJ

C3302

C3304

10u

0.1u

16V

KZA837WJQZ

%35739

A_DDR_DQS1P

A_DDR_DQS1N

A_DDR_D15

A_DDR_D8

A_DDR_D10

A_DDR_D13

A_DDR_D7

A_DDR_D0

A_DDR_D2

A_DDR_D5

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_A0

A_DDR_A2

A_DDR_A4

A_DDR_A6

A_DDR_A8

A_DDR_A11

FB3301

A192WJ

R3369

10K

R3343

2.7K

C3344

0.01u

TH3301 M1103J15

AD_SEL

Q3302 LTC014EEB VS

R3324 22K

R3323

4.7K

DDCR_DAT

DDCR_CLK

SPI_SCLK

SPI_SDI_DAT

SPI_SDO_DAT

SPI_CS0N

KEY1

KEY2

TEMP

PSW_IN

DDCA_CLK

DDCA_DAT

LED_G

USB_PLUG

EEP_WP

HPD_+5V_IN

HDMI_CEC

R3303

C3307

0.1u

HW_RESET

R3325

FB3304

FB3303

A192WJ

C3306

0.1u

C3311

0.1u

C3312

0.1u

DDR_VREF R3305 1K F

C3354

1000P

CZB

C3313

0.1u

C3314

0.1u

C3309

0.1u

C3310

0.1u

C3317

0.1u

C3319

CZB

C3318 10u 16V KZA837WJQZ

A_DDR_DQS0N

C3320

C3321

0.1u

2.2u

161

162

DQSLZ

AVDD_

163

MEMPLL

DVDD_DDR

164

DQSU

165

QDSUZ

166

MDATA[15]

167

MDATA[8]

168

AVDD_DDR

169

MDATA[10]

170

MDATA[13]

171

MDATA[7]

172

MDATA[0]

173

MVREF

174

MDATA[2]

175

AVDD_DDR

176

MDATA[5]

177

MCLK

178

AVDD_DDR

179

MCLKZ

180

ODT

181

RASZ

182

CASZ

183

MADR[0]

184

MADR[2]

185

AVDD_DDR

186

MADR[4]

187

MADR[6]

188

MADR[8]

189

MADR[11]

190

MADR[13]

191

VDDC

192

DDCR_DA

193

VDDP

194

DDCR_CK

195

GND

196

USB0_DM

197

USB0_DP

198

AVDD_ALIVE

199

BYPASS

200

GND

201

SCK

202

SDI

203

SDO

204

SCZ

205

SAR0

206

SAR1

207

SAR2

208

GPIO10

209

DDCA_CK

210

DDCA_DA

211

GPIO6

212

GPIO7

213

GPIO8

214

GPIO9

215

IRIN

216

CEC

GND

HOTPLUGA

HWRESET

TL3302

A_DDR_DQS0P

160

DQSL

RXACKN

R3327

A_DDR_D9

A_DDR_D14

A_DDR_D12

A_DDR_DQM0

A_DDR_DQM1

C3322

0.1u

153

154

155

156

157

158

159

DQMU

DQML

AVDD_DDR

MDATA[9]

AVDD_DDR

MDATA[12]

MDATA[14]

A_DDR_D11

C3324

0.1u

152

MDATA[11]

A_DDR_D6

151

MDATA[6]

A_DDR_D1

150

MDATA[1]

A_DDR_D3

149

MDATA[3]

148

AVDD_DDR

A_DDR_D4

C3326

0.1u

147

A_DDR_WE#_HSS

146

MDATA[4]

WEZ

A_DDR_CLKEN

145

MCLKE

A_DDR_BA0_HSS

A_DDR_BA1_HSS

143

144

BADR[1]

142

BADR[0]

AVDD_DDR

A_DDR_A1

A_DDR_BA2_HSS

C3327

0.1u

140

141

BADR[2]

A_DDR_A7

A_DDR_A9

A_DDR_A3

A_DDR_A5

A_DDR_A10

135

136

137

138

139

MADR[9]

MADR[7]

MADR[5]

MADR[3]

MADR[1]

MADR[10]

*IC3301

RH-IXD454WJQZQ

MST6100VS

RXA0N

Pure NC Pins

RXACKP

RXA0P

DDCDA_DA

AVDD_33

RXA1P

ARC

RXA2N12RXA2P13DDCDA_CK

RXA1N

15NC16NC17NC18NC19NC20NC21NC22NC23NC24

C3325

R3334

R3328

R3335

R3330

C3323

0.1u

0.047u

R3331

R3332

R3333

R3306

VDDC

BIN0P

GIN0P29GIN0M

HSYNC0

SOGIN0

C3328

0.1u

A_DDR_A12

134

MADR[12]

INV_POW

IR_PASS

PWM0_OFL

TP3308

C3331

C3333

0.1u

129

130

131

132

133

VDDP

PWM0

PWM1

VDDC

RIN0P

AVDD_126

AVDD_25

VSYNC0

C3332

C3334

0.1u

FB3305

FB3306

A192WJ

DDR_VREF

A_DDR_DQM0

A_DDR_DQM1

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_D0

A_DDR_D1

A_DDR_D2

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

C3329

0.1u 10V

A_DDR_D10

A_DDR_D11

A_DDR_D12

A_DDR_D13

A_DDR_D14

A_DDR_D15

A_DDR_BA0_HSS

A_DDR_BA1_HSS

A_DDR_BA2_HSS

A_DDR_A10

A_DDR_A11

A_DDR_A12

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_CLKEN

A_DDR_WE#_HSS

RT1N141C

A_DDR_D3

A_DDR_D4

A_DDR_D5

A_DDR_D6

A_DDR_D7

A_DDR_D8

A_DDR_D9

A_DDR_A0

A_DDR_A1

A_DDR_A2

A_DDR_A3

A_DDR_A4

A_DDR_A5

A_DDR_A6

A_DDR_A7

A_DDR_A8

A_DDR_A9

Q3304

T_AGC

VCOM0

AUD_L1

AUD_R1

AUD_L2

AUD_R2

POW_CHK

LAMP_ERR

128

GPIO76

GPIO77

SOGIN136GIN1P37GIN1M38RIN1P

BIN1P

FB3308

A192WJ

AC_CTRL

R3385

TP3305

C3335

0.1u

125

126

127

GPIO74

GPIO75

AVDD_LPLL

124

FB3307 A192WJ

C3336

0.1u

AVDD_MOD

S_RESET

R3377

RXE_D0P

RXE_D0N

0.1u

C3337

121

122

123

VDDC

LVB0P

LVB0M

115

116

117

118

119

120

LVB2P

LVB2M

LVB1P

LVB1M

LVBCKP

LVBCKM

109

110

111

112

113

114

LVB4P

LVB4M

LVB3P

LVB3M

LVA0P

LVA0M

AVDD_MOD

LVA1M

LVA1P

LVA2M

LVA2P

LVACKM

LVACKP

LVA3M

LVA3P

LVA4M

LVA4P

Pure NC Pin

PWM2

USB1_DP

USB1_DM

GPIO38

GPIO37

GPIO36

I2S_OUT_BCK

I2S_OUT_MCK

GPIO28

VDDP

VDDC

SPDIFO

GPIO26

GPIO25

GPIO24

I2S_OUT_SD

I2S_OUT_WS

TAGC

SIFM

SIFP

AVDD_PGA

VIFP

VIFM

PGA_COM

AVDD_REF

AVDD_DMPLL

XOUT

XIN

Pure NC Pins

AUOUTR0

AUOUTL0

AUOUTR1

AUOUTL1

AVDD_AU33

AUR4

AUL4

AUR3

AUL3

AUR2

AUL2

CVBS4

VCOM

CVBS144CVBS0

AUR049AUL1

CVBSOUT047AUL0

TP3304

CVBS2

AVDD_33

CVBS3

C3338

0.1u

FB3309

A192WJ

AVDD_AU25

AUVRP53AUVAG

AUR1

GND

C3365 10u

C3364 10u

16V

C3370

C3371

0.1u

C3339

0.1u

FB3310

A192WJ

FB3311

A192WJ

FB3313 A192WJ

C3341 10u 16V

KZA837WJQZ

TO MAIN8(PANEL)

RXE_D0P

RXE_D0N

RXE_D1P

RXE_D1N

C3340

0.1u

108

107

106

105

104

103

102

101

100

RXE_D1N

RXE_D1P

RXE_D2N

RXE_D2P

RXE_CLKN

RXE_CLKP

RXE_D3N

RXE_D3P

AD_SEL

USB_D0P

USB_D0N

IF_SW

LED_R

SPI_WP

I2S_OUT_SCLK

I2S_OUT_MCLK

C3342

0.1u

C3343

0.1u

FB3312

A192WJ

C3346

C3347

0.1u

C3345

0.1u

HP_L_MUTE

TP3001

R3376

TCON_WP

S_STBY_

L_MUTE

HP_PLUG

I2S_OUT_DAT

I2S_OUT_LRCLK

T_AGC

SIFM

C3348

0.1u

SIFP

FB3314

A192WJ

VIFP

VIFM

FB3315 A192WJ

FB3316 A192WJ

HP_OUT_0R

HP_OUT_0L

LINE_OUT_R

LINE_OUT_L

FB3317

A192WJ

R3347

470

AUD_R2

AUD_L2

EEP_WP

WP_CTRL

Q3301

RN4983

RXE_D2P

RXE_D2N

RXE_CLKP

RXE_CLKN

RXE_D3P

RXE_D3N

X3301

24MHz

SCA239WJQZ

IC CONFIGURATION

R3308

4.7K

R3310

4.7K

R3312

4.7K

R3315

4.7K

456

123

I2C_DAT

I2C_CLK

TCON_WP

C3358

10P

C3357 10P

KEY1

KEY2

PSW_IN

SPI_CS0N

SPI_SCLK

SPI_SDI_DAT

SPI_SDO_DAT

L_MUTE

LINE_OUT_L

LINE_OUT_R

I2S_OUT_MCLK

I2S_OUT_SCLK

I2S_OUT_LRCLK

I2S_OUT_DAT

S_STBY_

LAMP_ERR

INV_POW

PWM0_OFL

I2C_CLK

I2C_DAT

DDCR_CLK

DDCR_DAT

UART_DEBUG_RX

UART_DEBUG_TX

DDCA_CLK

DDCA_DAT

R3339

100

R3353

10K

R3336

R3338

C3349

0.1u 10V

R3363

R3365

R3366

10K

R3345

C3351

C3352

C3353

100P

CCZ

R3430 10K

D3301

DA1010

100

R3340

100

R3341

100

R3342

100

R3344

100

R3326

R3329

SPI_CZ

SPI_CLK

SPI_DI_DAT

SPI_DO_DAT

R3361

R3362

R3364

C3380

C3378

220P

220K

R3431

R3322

R3350

2.2K

R3351

4.7K

TO MAIN11(KEY)

R/C

LED_G

LED_R

KEY_1

KEY_2

PSWIN

TO MAIN7(FLASH)

SPI_CZ

SPI_CLK

SPI_DI_DAT

SPI_DO_DAT

I2C_CLK

I2C_DAT

SPI_WP

TO MAIN9(AMP)

L_MUTE

MONITOR_L

MONITOR_R

R3368

220K

I2S_MCLK

I2S_SCLK

I2S_LRCLK

I2S_DAT

S_RESET

S_STBY

10K

TO MAIN10(POWER)

R3346

LAMP-ERR

INV_POW

PWM0_OFL

HPD_CTRL

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

HDMI0_D0P

HDMI0_D1N

HDMI0_D1P

HDMI_DAT

HDMI0_D2N

HDMI0_D2P

HDMI_CLK

HDMI_ARC

PC_HSYNC_IN

COMP1_PrINP

COMP1_PbINP

PC_VSYNC_IN

PC_RINP

PC_GINP

PC_BINP

PC_SOGIN

PC_GINM

COMP1_SOGIN

COMP1_YINP

COMP1_YINM

RCA_CVBS1_IN

VCOM0

RCA_CVBS2_IN

AUD_L1

AUD_R1

AUD_L0

AUD_R0

12345678910111213141516171819

8 – 6

20 21 22

•MAIN Unit-6/11

LC-32LE240M/340M(1stEdition)

MAIN6(DDR)

TO MAIN10(POWER)

D+1.8V

010

TO MAIN5(CPU)

A_DDR_DQM0

A_DDR_DQM1

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_D0

A_DDR_D1

A_DDR_D2

A_DDR_D3

A_DDR_D4

A_DDR_D5

A_DDR_D6

A_DDR_D7

A_DDR_D8

A_DDR_D9

A_DDR_D10

A_DDR_D11

A_DDR_D12

A_DDR_D13

A_DDR_D14

A_DDR_D15

A_DDR_BA0_HSS

A_DDR_BA1_HSS

A_DDR_BA2_HSS

A_DDR_A0

A_DDR_A1

A_DDR_A2

A_DDR_A3

A_DDR_A4

A_DDR_A5

A_DDR_A6

A_DDR_A7

A_DDR_A8

A_DDR_A9

A_DDR_A10

A_DDR_A11

A_DDR_A12

A_DDR_ODT_HSS

A_DDR_RAS#_HSS

A_DDR_CAS#_HSS

A_DDR_CLKEN

A_DDR_WE#_HSS

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

A_DDR_D7

A_DDR_D0

A_DDR_D2

A_DDR_D5

A_DDR_DQS0N

A_DDR_DQS0P

A_DDR_DQM0

A_DDR_DQS1N

A_DDR_DQS1P

A_DDR_DQM1

A_DDR_WE#_HSS

A_DDR_CLKEN

A_DDR_BA1_HSS

A_DDR_BA0_HSS

A_DDR_A1

A_DDR_A10

A_DDR_A3

A_DDR_A5 DDRA_A5

A_DDR_A7

A_DDR_A9

A_DDR_A12

FL3501 NA119WJ

C3508 10u 16V KZA837WJQZ

R3526 1K

R3501

R3504 56

R3505 56

R3506 56

R3507 56

R3508 56

R3509 56

DDRA_DQS0N

DDRA_DQS0P

DDRA_DQM0

DDRA_DQS1N

DDRA_DQS1P

DDRA_DQM1

R3502

R3511 56

R3512 56

R3513 56

R3503

DDRA_D7

DDRA_D0

DDRA_D2

DDRA_D5

DDRA_WE#_HSS

DDRA_CLKEN

DDRA_BA1_HSS

DDRA_BA0_HSS

DDRA_A1

DDRA_A10

DDRA_A3

DDRA_A7

DDRA_A9

DDRA_A12

R3525

VREF_DDR_0.9V

R3514

A_DDR_D11

A_DDR_D12

A_DDR_D9

A_DDR_D14

A_DDR_D4

A_DDR_D3

A_DDR_D1

A_DDR_D6

A_DDR_D15

A_DDR_D8

A_DDR_D10

A_DDR_D13

A_DDR_CLKP_400MHz

A_DDR_CLKN_400MHz

A_DDR_A0

A_DDR_CAS#_HSS

A_DDR_RAS#_HSS

A_DDR_ODT_HSS

A_DDR_A8

A_DDR_A6

A_DDR_A4

A_DDR_A11 DDRA_A11

R3515

R3516

DDRA_D11

DDRA_D12

DDRA_D9

DDRA_D14

DDRA_D4

DDRA_D3

DDRA_D1

DDRA_D6

DDRA_D15

DDRA_D8

DDRA_D10

DDRA_D13

R3519 56

DDRA_CLKP_400MHz

R3520 56

DDRA_CLKN_400MHz

R3517

R3518

R3521 56

DDRA_CAS#_HSS

DDRA_RAS#_HSS

DDRA_ODT_HSS

DDRA_A0

DDRA_A8

DDRA_A6

DDRA_A4

DDRA_A2A_DDR_A2

C3502

0.1u

10V

DDRA_DQM1

DDRA_D14

DDRA_D9

DDRA_D11

DDRA_D12

DDRA_DQM0

DDRA_D6

DDRA_D1

C3503

0.1u

10V

DDRA_D4

DDRA_D3

C3506

0.1u

10V

DDRA_CLKEN

DDRA_WE#_HSS

DDRA_BA2_HSS

DDRA_BA0_HSS

DDRA_BA1_HSS

DDRA_A10

DDRA_A1

DDRA_A3

DDRA_A5

DDRA_A7

DDRA_A9

C3504

0.1u

10V

DDRA_A12

VDD

DQ14

VDDQ

DQ12

VDD

DQ6

VDDQ

DQ4

VDDL

NC(BA2)

VSS

VDD

VSSQ

VREF

C3505

0.1u

10V

VSSQ

UDQS

VDDQ

DQ10

VSSQ

LDQS

VDDQ

DQ2

VSSDL

/RAS

/CAS

A11

DQ9

DQ1

CKE

BA0

A10

A12

VSS

UDM

VDDQ

DQ11

VSS

LDM

VDDQ

DQ3

VSS

C3509

0.1u

10V

/WE

BA1

IC3501

IXD361WJQZ

VDDQ

/UDQS

DQ15

VSSQ

VDDQ

DQ8

DQ13

VSSQ

VDDQ

/LDQS

DQ7

VDDQ

DQ0

DQ5

VDD

ODT

/CK

/CS

VDD

VSS

R3527 100

R3528 100

VSSQ

DDRA_DQS1N

C3507

0.1u

10V

DDRA_DQS1P

DDRA_D15

DDRA_D8

C3510

0.1u

10V

DDRA_D10

DDRA_D13

DDRA_DQS0N

C3511

0.1u

10V

DDRA_DQS0P

DDRA_D7

DDRA_D0

C3512

0.1u

10V

DDRA_D5

DDRA_D2

DDRA_CLKP_400MHz

DDRA_ODT_HSS

DDRA_CLKN_400MHz

DDRA_RAS#_HSS

DDRA_CAS#_HSS

C3517

0.1u 10V

DDRA_A0

DDRA_A2

DDRA_A4

DDRA_A6

DDRA_A8

DDRA_A11

12345678910111213141516171819

8 – 7

20 21 22

LC-32LE240M/340M(1stEdition)

• MAIN Unit-7/11 (LC-32LE240M)

MAIN7 (FLASH)

TO MAIN10(POWER)

BU+3.3V

TO MAIN5(CPU)

SPI_WP

SPI_CLK

SPI_CZ

SPI_DI_DAT

SPI_DO_DAT

I2C_CLK

I2C_DAT

SO/SIO1

HOLD

SPI_CZ

SPI_DO_DAT

VCC

C3101

0.1u

10V

CZB

C3102

0.1u

10V

1A02

3.33.303.3

5678

BR24T28F

A13A2

R3102

C3103

0.1u

10V

VCC

0000

For DATA

I2C Address at A4

R3103

4.7K

IC3103IC3102

IXD110WJQZ

A13A24GND

1A02

0000

ForHDCPKey

I2C Address at A8

R3104

SCL

R3105

3.33.303.3

SDA

SPI_WP

R3101

4.7K

GND

*IC3101

RH-IXD463WJQZQ

SI/SIO0

SPI_WP

SCLK

SPI_CLK

SPI_DI_DAT

12345678910111213141516171819

8 – 8

20 21 22

• MAIN Unit-7/11 (LC-32LE340M)

LC-32LE240M/340M(1stEdition)

MAIN7 (FLASH)

TO MAIN10(POWER)

BU+3.3V

TO MAIN5(CPU)

SPI_WP

SPI_CLK

SPI_CZ

SPI_DI_DAT

SPI_DO_DAT

I2C_CLK

I2C_DAT

SPI_DO_DAT

SO/SIO1

HOLD

SPI_CZ

VCC

C3101

0.1u

10V CZB

C3102

0.1u 10V

BR24T28F

A13A2

1A02

3.33.303.3

5678

R3102

C3103

0.1u

10V

VCC

0000

For DATA

I2C Address at A4

R3103

4.7K

IC3103IC3102

IXD110WJQZ

A13A24GND

1A02

0000

ForHDCPKey

I2C Address at A8

R3104

SCL

R3105

3.33.303.3

SDA

SPI_WP

R3101

4.7K

GND

*IC3101

RH-IXD464WJQZQ

SI/SIO0

SPI_WP

3WP4

SCLK

SPI_CLK

SPI_DI_DAT

12345678910111213141516171819

8 – 9

20 21 22

LC-32LE240M/340M(1stEdition)

•MAIN Unit-8/11

TO MAIN10(POWER)

PNL+12V

D+3.3V

TO MAIN5(CPU)

I2C_CLK

TCON_WP

I2C_DAT

RXE_D3P

RXE_D3N

RXE_CLKP

RXE_CLKN

RXE_D2P

RXE_D2N

RXE_D1P

RXE_D1N

RXE_D0P

RXE_D0N

MAIN8 (PANEL)

GND

*IC3801

HC2G66DP

VCC

P3801

NA915WJ

@pinCo

GND

TL3806

C3801

0.1u

R3802

10K

CZB

TL3804

TL3805

@pinCo

VCC

GND

SELLVDS

NC(OS_EN)

NC/TCON_WP

NC/BIST

NC/SDA

NC/SCL

GND

RIN3+

RIN3-

GND

CLKN+

CLKN-

GND

RIN2+

RIN2-

GND

RIN1+

RIN1-

GND

RIN0+

RIN0-

GND

12345678910111213141516171819

8 – 10

20 21 22

•MAIN Unit-9/11

LC-32LE240M/340M(1stEdition)

MAIN9(AUDIO_AMP)

TO MAIN10(POWER)

UR+12.2V

D+3.3V

D+5V

13V_DET

TO MAIN5(CPU)

MONITOR_R

MONITOR_L

HP_L_MUTE

S_RESET

I2S_MCLK

I2S_DAT

I2S_SCLK

I2S_LRCLK

L_MUTE

S_STBY

BU+5V

R1910

100K

C1905

1u 10V

12345

IC1902

NJU72011

678910

C1902

10u16V

R1905

12K

Q1901

LTC044EEB

R1901

15K

HP_L

HP_R

TL1901

CD4OUT

IC1901

PST8429U

GND2VDD

C1901 1000P

50V

CZB

R1904

R1903

8.2K

3.3K

C1903 1u CYB

C1904 1u

R1906

R1907

CYB

C1909

C1910

0.1u

10u

16V

CZF

R1908

TL1904

10K

CD4OUT

IC1904

PST8429U

C1908

C1907

820P

GND2VDD

820P

C1921 1000P 50V CZB

R1916

R1915

2.2K

6.8K

C1702 10u 25V KZA838WJQZ

C1704 10u

C1701

25V

10u

KZA838WJQZ

25V

KZA838WJQZ

13.3

C1706

0.1u 10V

3.3

C1707 1u 10V

1.66

C1705

0.1u

1.66

R1705

1.66

R1706

1.66

R1707

1.66

R1708

0.92

Q1902

LTC044EEB

CD4OUT

IC1905

PST8429U

GND2VDD

R1917

R1918

6.8K

2.2K

C1710

0.1u 25V

CYB

L1701

22uH

PB301WJQZ

C1708

25V

1u KZA621WJQZ

13.3

5.4

PVSSR

PVDDPL

AVSS

VREF

REFA

DVDD

MCK

SDATA

SCLK

LRCLK

DVSS

PVSSR

PVDDPR12OUTPR

13.3

5.4

C1709

25V

KZA621WJQZ

C1711

0.1u

25V CYB

C1922 1000P 50V CZB

OUTPL

IC1701

VHIYDA164DZ-1Y

L1702 22uH PB301WJQZ

05.4

PVSSL

PVSSR

5.4 5.4

TL1909

5.4

OUTML

OUTMR

L1704 22uH PB301WJQZ

L1703

22uH

PB301WJQZ

C1712 1u KZA621WJQZ

5.4

PVDDML

PVDDMR16PVSSR

C1713 1u

KZA621WJQZ

C1916

C1915

0.1u

10u

CZF

16V

TP1702

TP1703

GND

INL-

INL+

INR+

INR-

R1715

47K

R1716

47K

R1717 10K

C1718 1000P

OUTL

OUTR

R1912

10K

SGND

IC1903

TPA6132A

6G07G18

R1719

47K

R1720

22K

(PWB)

*R1718 10K

AVDD

R1914 10K

C1911

10V

C1912

10V

C1913

1u 10V

C1914

10V

C1716

0.22u

25V

CKZ

C1715

0.1u

25V

CYB

25V

13.3

PVSSR

MONO

3.3

GAIN1

R1709

GAIN0

R1710

CKMOD

MUTEN

2.4

PROTN

3.3

SLEEPN

PLIMIT

HOPP

R1711

560K

TP1701

3.3

R1712

10K

HPVSS

C1920

HPVDD

2.2u

10V

CPP

PGND

C1919

CPN

10V

C1917

2.2u

10V

C1731

1000P

CYB

C1732

1000P CYB

13.3

25V

C1714

0.1u

25V

CYB

C1717

0.22u

25V

CKZ

TO MAIN3(TERMINAL)

MON_L_OUT

MON_R_OUT

HP_L_OUT

HP_R_OUT

P1701

NA961WJ

Lch+

Lch-

Rch-

Rch+

12345678910111213141516171819

8 – 11

20 21 22

LC-32LE240M/340M(1stEdition)

• MAIN Unit-10/11

SC9601

NA911WJ

UR12.2V

LAMP_ERR

PWM(OFL)

TO MAIN5(CPU)

INV_POW

PWM0_OFL

LAMP-ERR

PANEL_POW

PS_ON

@pinCo

GND

STB

@pinCo

R9601

10K

TL9601

TL9602

TL9603

TL9604

TL9611

TL9612

TL9613

R9612

MAIN10 (POWER)

R9626

4.7K

Q9604

C9624

KZA837WJQZ

C9636 10u 16V

KZA837WJQZ

M+5.6V

TL9605

TL9606

RT1N141C

R9625

4.7K

C9635

10u

25V

KZA838WJQZ

R9635

1/2W

TWF

C9601

10u 25V

R9602

R9603

Q9601

RT1N141U

R9636 12K CZ

R9637

3.3K CZ

R9606

C9611

0.033u

R9607

47K

12K

R9609

R9610

16V

2200P

C9616

7EN8

Vin

1BS2

C9610

0.1u

C9614

25V

10u

CZB

25V KZA838WJQZ

C9612

0.033u 16V

7EN8

Vin

1BS2

C9613

0.01u

16V

C9615

10u 25V

KZA838WJQZ

C9602

R9605

47K

R9613

COMP

3SW4

C9617

R9614

COMP

3SW4

25V

KZA621WJQZ

Q9602

TPC6110

12K

5FB6

GND

0.022u

5FB6

GND

IC9603

BD9329EF

R9615

10K

IC9605

BD9328EF

R9616

10K

2.45A 48m

PB014WJQZ

2.45A 48m

R9618

4.7K

R9619

680

L9602

10uH

PB014WJQZ

KZA837WJQZ

C9621

R9624

R9620

L9603

10uH

10u 16V

51K

1.6K F

C9623 10u 16V KZA837WJQZ

10u 16V

R9623

3.9K

C9622 10u 16V

KZA837WJQZ

R9608

4.7K

VHD

D9606

DB2J317L

TL9607

C9626

4.7u 10V

KZA761WJQZ

R9627

1/2W

TWF

KZA761WJQZ

C9627

4.7u

C9628

4.7u KZA067WJ

Q9605

RT1N141C

KZA520WJQZ

C9629

R9628

KZA761WJQZ

R9630

R9631

10V

TL9608

R9632

4.7K

UR+12.2V

D+3.3V

D+5V

BU+5V

VHIRP130N50-5Y

IC9607

3416C33N

10V

1/2W

TWF

C9630

4.7u

10V

1/2W

TWF

1/2W

TWF

Vin

GND

IC9608

VIN

S172B33U

VOUT

IC9609

Vin

Vout

S170B18U

Vout

VSS

GND

KZA520WJQZ C9631

10V

TL9609

IC9610

RP130N50

Vin

GND

R9634

D+3.3V 600mA

TL9610

D+5V 80mAmax

C9633

GND

KZA520WJQZ

KZA761WJQZ

C9632

4.7u

IC9611

3416C25N

Vin

10V

IC9612

S170B50U

Vin

10V

Vout

KZA520WJQZ

Vout

C9634

GND

10V

D9605

CRS02

VHD

Vout

TO MAIN3(TERNIMAL)

D+5V

M+5.6V

BU+3.3V

TO MAIN1(TUNER)

T+5V

D+3.3V

TO MAIN7(FLASH)

BU+3.3V

TO MAIN2(HDMI-TERM)

D+5V

BU+3.3V

1.8V 280mA

D+1.26V 600mA

TO MAIN6(DDR)

D+1.8V

TO MAIN5(CPU)

D+5V

D+3.3V

D+1.8V

D+2.5V

D+1.26V

BU+3.3V

AC_CTRL

POW_CHK

TO MAIN9(AUDIO_AMP)

R9611

TO MAIN8(PANEL)

PNL+12V

D+3.3V

TO MAIN11(KEY)

BU+5V

BU+3.3V

DUNTKF998WE

12345678910111213141516171819

8 – 12

20 21 22

•MAIN Unit-11/11

LC-32LE240M/340M(1stEdition)

MAIN11(KEY/RC)

CH-UP

S101

KA037WJ

CH-DOWN

S102

KA037WJ

INPUT

S103

KA037WJ

VOL-UP

S104

KA037WJ

VOL-DOWN

S106

KA037WJ

S107

KA037WJ

R101

8.2K

1/16W

TO MAIN5(CPU)

KEY_1

KEY_2

TL101

TL102

TL103

PSWIN

TO MAIN10(POWER)

BU+3.3V

BU+5V

TO MAIN5(CPU)

R/C

LED_G

LED_R

TL104

TL105

TL106

R103

12K 1/16W

Green

RED

D102

PXA227WJQZ

D103

PXA226WJQZ

R108 1K

470

R110

R111

10K

Q102

2SC3928AR

LED CONT

0.2

2.3

0.7

R113

8.2K 1/16W

Q103

2SC3928AR

LED CONT

POW S105 KA037WJ

R116 100

R117

12K 1/16W

RMC101

UA108WJQZ

GND GND

VCC GND VOUT

C102

10u CKZ

123

C103 10u CKZ

R105

10K

DUNTKF998WE

(QPWBFFWJZZ)

12345678910111213141516171819

8 – 13

20 21 22

LC-32LE240M/340M(1stEdition)

8 – 14

PartsGuide

LC-32LE240M/340M(1stEdition)

PARTS GUIDE

No. SY1V132LE340M

LCD COLOR TELEVISION

LC-32LE240M

Note:

The reference numbers on the PWB are arranged in alphabetical order.

[1] PRINTED WIRING BOARD

ASSEMBLIES [2] LCD PANEL [3] DKEYMF998FMG4/5 (MAIN Unit) [4] CABINET AND MECHANICAL

PARTS

MODELS

CONTENTS

LC-32LE340M

[5] LCD PANEL [6] SUPPLIED ACCESSORIES [7] PACKING PARTS

(NOT REPLACEMENT ITEM)

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[1] PRINTED WIRING BOARD ASSEMBLIES

N DUNTKF998FMG4 N V MAIN Unit (LC-32LE340M) N DKEYMF998FMG5 N V MAIN Unit (LC-32LE240M) N RUNTKA929WJQZ N V POWER Unit N RUNTKA927WJZZ N V LED PWB-A N RUNTKA928WJZZ N V LED PWB-B

[2] LCD PANEL

N R1LK315T3HB00W N V LCD Panel Unit

[3] DKEYMF998FMG4/5 (MAIN Unit)

C102 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C103 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C501 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C502 VCCCCZ1HH100DY AB J Capacitor 10p 50V Ceramic C503 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C504 VCCCCZ1HH100DY AB J Capacitor 10p 50V Ceramic C508 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C509 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C514 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C515 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C517 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C518 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C526 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C527 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C530 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C531 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C532 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C533 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C543 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C544 VCCCCZ1HH560JY AB J Capacitor 56p 50V Ceramic C548 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C553 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic C560 VCCCCZ1HH470JY AB J Capacitor 47p 50V Ceramic C561 VCCCCZ1HH470JY AB J Capacitor 47p 50V Ceramic C565 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C566 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic

C581 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1103 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C1105 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1106 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1107 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1108 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1110 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1113 VCKYCZ1EB103KY AA J C1114 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1115 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1116 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1117 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1118 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1120 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1121 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1122 VCCCCZ1HH470JY AB J Capacitor 47p 50V Ceramic C1123 VCCCCZ1HH470JY AB J Capacitor 47p 50V Ceramic C1501 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1502 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C1701 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C1702 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C1704 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C1705 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C1706 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C1707 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1708 RC-KZA621WJQZY AA J Capacitor 1 25V Ceramic C1709 RC-KZA621WJQZY AA J Capacitor 1 25V Ceramic C1710 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic C1711 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic C1712 RC-KZA621WJQZY AA J Capacitor 1 25V Ceramic C1713 RC-KZA621WJQZY AA J Capacitor 1 25V Ceramic C1714 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic C1715 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic C1716 RC-KZA709WJQZY AA J Capacitor 0.22 25V Ceramic C1717 RC-KZA709WJQZY AA J Capacitor 0.22 25V Ceramic C1718 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C1731 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic C1732 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic C1901 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C1902 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1903 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1904 C1905 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1907 VCCCCZ1HH821JY AA J Capacitor 820p 50V Ceramic C1908 VCCCCZ1HH821JY AA J Capacitor 820p 50V Ceramic C1909 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1910 VCKYCZ1EF104ZY AA J Capacitor 0.1 25V Ceramic C1911 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1912 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic

VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic

Capacitor 0.01 25V Ceramic

DESCRIPTION

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

DELIVERY

[3] DKEYMF998FMG4/5 (MAIN Unit)

C1913 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1914 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1915 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C1916 VCKYCZ1EF104ZY AA J Capacitor 0.1 25V Ceramic C1917 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C1919 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic C1920 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C1921 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C1922 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C3101 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3102 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3103 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3301 VCKYCZ1HB221KY AA J Capacitor 220p 50V Ceramic C3302 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3303 VCKYCZ1HB221KY AA J Capacitor 220p 50V Ceramic C3304 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3306 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3307 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3308 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3309 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3310 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3311 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3312 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3313 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3314 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3315 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3316 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3317 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3318 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3319 RC-KZA520WJQZY AA J Capacitor 1 Ceramic C3320 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3321 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3322 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3323 VCKYCZ1AB104KY AB J C3324 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3325 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3326 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3327 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3328 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3329 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3330 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C3331 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3332 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3333 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3334 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3335 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3336 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3337 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3338 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3339 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3340 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3341 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3342 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3343 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3344 VCKYCZ1EB103KY AA J Capacitor 0.01 25V Ceramic C3345 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3346 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3347 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3348 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3349 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3350 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3351 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic C3352 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic C3353 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic C3354 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C3355 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3356 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3357 C3358 VCCCCZ1HH100DY AB J Capacitor 10p 50V Ceramic C3359 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3360 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3361 VCKYCZ1CB223KY AC J Capacitor 0.022 16V Ceramic C3362 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3363 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3364 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3365 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3366 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3367 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3368 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3369 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3370 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3371 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3372 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3373 RC-KZA115WJZZY AB J Capacitor 2.2 10V Ceramic C3374 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic

VCCCCZ1HH100DY AB J Capacitor 10p 50V Ceramic

Capacitor 0.1 10V Ceramic

DESCRIPTION

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[3] DKEYMF998FMG4/5 (MAIN Unit)

C3375 VCKYCZ1AB473KY AB J Capacitor 0.047 10V Ceramic C3376 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C3377 VCKYCZ1HB102KY AB J Capacitor 1000p 50V Ceramic C3378 VCKYCZ1HB221KY AA J Capacitor 220p 50V Ceramic C3379 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3380 VCKYCZ1HB221KY AA J Capacitor 220p 50V Ceramic C3502 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3503 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3504 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3505 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3506 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3507 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3508 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C3509 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3510 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3511 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3512 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3517 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C3801 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic C9601 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C9602 RC-KZA621WJQZY AA J Capacitor 1 25V Ceramic C9610 VCKYCZ1EB104KY AA J Capacitor 0.1 25V Ceramic C9611 VCKYCZ1CB333KY AA J Capacitor 0.033 16V Ceramic C9612 VCKYCZ1CB333KY AA J Capacitor 0.033 16V Ceramic C9613 VCKYCZ1CB103KY AB J Capacitor 0.01 16V Ceramic C9614 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C9615 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C9616 VCKYCZ1HB222KY AB J Capacitor 2200p 50V Ceramic C9617 VCKYCZ1CB223KY AC J Capacitor 0.022 16V Ceramic C9621 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C9622 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C9623 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C9624 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic C9626 RC-KZA761WJQZY AB J C9627 RC-KZA761WJQZY AB J Capacitor 4.7 10V Ceramic C9628 RC-KZA067WJZZY AB J Capacitor 1000p 50V Ceramic C9629 RC-KZA520WJQZY AA J Capacitor 1 Ceramic C9630 RC-KZA761WJQZY AB J Capacitor 4.7 10V Ceramic C9631 RC-KZA520WJQZY AA J Capacitor 1 Ceramic C9632 RC-KZA761WJQZY AB J Capacitor 4.7 10V Ceramic C9633 RC-KZA520WJQZY AA J Capacitor 1 Ceramic C9634 RC-KZA520WJQZY AA J Capacitor 1 Ceramic C9635 RC-KZA838WJQZY AB J Capacitor 10 25V Ceramic C9636 RC-KZA837WJQZY AB J Capacitor 10 10V Ceramic

D102 RH-PXA227WJQZY N V Diode PY1111R-TR D103 RH-PXA226WJQZY N V Diode BR1111R-TR

D510 VHDBAV70+++-1Y AB J Diode BAV70,215 D1101 VHDKDS114E+-1Y AB J Diode KDS114E-RTK/P D1510 VHDDB2S310L-1Y AB J Diode DB2S31000L D1516 VHDDB2S310L-1Y AB J Diode DB2S31000L D3301 VHDDA1010++-1Y AA J Diode DA2J10100L D9605 VHDCRS02+++-1Y AC J Diode CRS02(TE85L,Q,M) D9606 VHDDB2J317L-1Y V Diode DB2J31700L

FB503 RBLN-A206WJZZY AA J Ferrite Bead FB507 RBLN-A206WJZZY AA J Ferrite Bead FB517 RBLN-A369WJZZY AB J Ferrite Bead FB518 RBLN-A369WJZZY AB J Ferrite Bead FB519 RBLN-A369WJZZY AB J Ferrite Bead FB520 RBLN-A369WJZZY AB J Ferrite Bead FB521 RBLN-0093GEZZY AB J Ferrite Bead FB522 RBLN-0093GEZZY AB J Ferrite Bead

FB523 RBLN-0093GEZZY AB J Ferrite Bead FB1101 RBLN-A191WJZZY AB J Ferrite Bead FB1102 RBLN-A191WJZZY AB J Ferrite Bead FB3301 RBLN-A192WJZZY AA J Ferrite Bead FB3302 RBLN-A192WJZZY AA J Ferrite Bead FB3303 RBLN-A192WJZZY AA J Ferrite Bead FB3304 FB3305 RBLN-A192WJZZY AA J Ferrite Bead FB3306 RBLN-A192WJZZY AA J Ferrite Bead FB3307 RBLN-A192WJZZY AA J Ferrite Bead FB3308 RBLN-A192WJZZY AA J Ferrite Bead FB3309 RBLN-A192WJZZY AA J Ferrite Bead FB3310 RBLN-A192WJZZY AA J Ferrite Bead FB3311 RBLN-A192WJZZY AA J Ferrite Bead FB3312 RBLN-A192WJZZY AA J Ferrite Bead FB3313 RBLN-A192WJZZY AA J Ferrite Bead FB3314 RBLN-A192WJZZY AA J Ferrite Bead FB3315 RBLN-A192WJZZY AA J Ferrite Bead FB3316 RBLN-A192WJZZY AA J Ferrite Bead FB3317 RBLN-A192WJZZY AA J Ferrite Bead FL1101 RFiLCA072WJQZ V Filter FL1102 RFiLCA058WJZZ AG J Filter FL3501 RFiLNA119WJZZY AC J Filter

IC508 VHiBR24T02J-1Y V IC BR24T02FJ-WE2

RBLN-A192WJZZY AA J Ferrite Bead

Capacitor 4.7 10V Ceramic

DESCRIPTION

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[3] DKEYMF998FMG4/5 (MAIN Unit)

IC510 VHiS172B50U-1Y V IC S-1172B50-U5T1G IC1501 VHiBR24T02J-1Y V IC BR24T02FJ-WE2 IC1701 VHiYDA164DZ-1Y V IC YDA164B-QZE2 IC1901 VHiPST8429U-1Y AC J IC IC-PST8429UR IC1902 VHiNJU72011-1Y AG J IC NJU72011RB2(TE2) IC1903 VHiTPA6132A-1Y AE J IC TPA6132A2RTER IC1904 VHiPST8429U-1Y AC J IC IC-PST8429UR IC1905 VHiPST8429U-1Y AC J IC IC-PST8429UR IC3101 RH-iXD463WJQZQ N V IC iXD463WJ (LC-32LE240M) IC3101 RH-iXD464WJQZQ N V IC W25Q64CVSSIG (LC-32LE340M) IC3102 VHiBR24T28F-1Y AE J IC BR24T128F-WE2 IC3103 RH-iXD110WJQZY AG J IC CAT24C08 IC3301 RH-iXD459WJQZQ N V IC MST6003VS-LF-Z1 (LC-32LE240M) IC3301 RH-iXD454WJQZQ V IC MST6100VS-LF-Z1-SJ (LC-32LE340M) IC3303 VHiHC2G66DP-1Y AD J IC 74HC2G66DP,125 IC3306 VHiBU4229G+-1Y V IC BU4229G-TR IC3501 RH-iXD361WJQZQ V IC H5PS5162GFR-S5C IC3801 VHiHC2G66DP-1Y AD J IC 74HC2G66DP,125 IC9603 VHiBD9329EF-1Y AF J IC BD9329EFJ-E2 IC9605 VHiBD9328EF-1Y AF J IC BD9328EFJ-E2 IC9607 VHi3416C33N-1Y AC J IC MM3416C33NRE IC9608 VHiS172B33U-1Y AD J IC S-1172B33-U5T1G IC9609 VHiS170B18U-1Y AE J IC S-1170B18UC-OTDTFG IC9610 VHiRP130N50-5Y V IC RP130N501B-TR-FE IC9611 VHi3416C25N-1Y AB J IC MM3416C25NRE IC9612 VHiS170B50U-1Y AD J IC S-1170B50UC-OUJTFG

J501 QSOCZA284WJQZ AC J Socket J502 QJAKLA047WJQZ V Jack J504 QJAKJ0101SEZZ AE J Jack J506 QJAKJA024WJZZ AD J Jack

L501 RCiLFA154WJZZY AC J Coil L1103 VPSBNR82JR34NY AB J Peaking 0.82µH L1701 RCiLPB301WJQZY AC J Coil L1702 RCiLPB301WJQZY AC J Coil L1703 RCiLPB301WJQZY AC J Coil L1704 RCiLPB301WJQZY AC J Coil L9602 RCiLPB014WJQZY AC J Coil L9603 RCiLPB014WJQZY AC J Coil

P501 QPLGNA338WJZZY AD J Plug

P1701 QPLGNA961WJZZY AD J Plug P3801 QPLGNA915WJZZY AG J Plug

Q102 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112V-1R

Q103 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112V-1R Q1101 VSDSC2G03//1EY V Transistor DSC2G0300L Q1105 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q1501 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q1502 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q1503 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q1901 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q1902 VSLTC044EEB-1Y AB J Transistor LTC044EEBFS8TL Q3301 VSRN4983///-1Y AC J Transistor RN4983(TE85L,F) Q3302 VSLTC014EEB-1Y AB J Transistor LTC014EEBFS8TL Q3304 VSRT1N141C/-1Y AB J Transistor RT1N141U-T112-1 Q9601 VSRT1N141U/-1Y AB J Transistor RT1N141U-T111-1 Q9602 VSTPC6110++-1Y AC J Transistor TPC6110(TE85L,F,M) Q9604 VSRT1N141C/-1Y AB J Transistor RT1N141U-T112-1 Q9605 VSRT1N141C/-1Y AB J Transistor RT1N141U-T112-1

R101 VRS-CZ1JF822JY AA J Resistor 8.2k 1/16W Metal Oxide R103 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R105 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R108 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R110 VRS-CZ1JF471JY AA J Resistor 470 1/16W Metal Oxide R111 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R113 VRS-CZ1JF822JY AA J Resistor 8.2k 1/16W Metal Oxide R116 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R117 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide

R501 VRS-CZ1JF000JY AA J R502 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R503 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R505 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R506 VRS-CZ1JF104JY AA J Resistor 100k 1/16W Metal Oxide R507 VRS-TW2ED101JY AA J Resistor 100 1/4W Metal Oxide R508 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R509 VRS-TW2ED101JY AA J Resistor 100 1/4W Metal Oxide R510 VRS-CZ1JF104JY AA J Resistor 100k 1/16W Metal Oxide R511 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R512 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R513 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R514 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R515 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R516 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R517 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R518 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R519 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R520 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide

Resistor 0 1/16W Metal Oxide

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[3] DKEYMF998FMG4/5 (MAIN Unit)

R521 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R522 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R523 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R524 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R525 VRS-CZ1JF104JY AA J Resistor 100k 1/16W Metal Oxide R526 VRS-TW2ED101JY AA J Resistor 100 1/4W Metal Oxide R527 VRS-CZ1JF104JY AA J Resistor 100k 1/16W Metal Oxide R528 VRS-TW2ED101JY AA J Resistor 100 1/4W Metal Oxide R529 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R532 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R533 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R534 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R535 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R536 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R547 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R548 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R549 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R577 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R578 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R581 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R582 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R583 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R584 VRS-TQ2EF750JY AA J Resistor 75 1/4W Metal Oxide R590 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R601 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R607 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R608 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R610 VRS-CZ1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide R611 VRS-CZ1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide R613 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R614 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R615 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R616 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R620 VRS-CZ1JF101JY AA J R621 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R625 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R626 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R631 VRS-CZ1JF100JY AA J Resistor 10 1/16W Metal Oxide

R632 VRS-CZ1JF100JY AA J Resistor 10 1/16W Metal Oxide R1102 VRS-CZ1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide R1103 VRS-CZ1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide R1105 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R1111 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R1113 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R1114 VRS-CZ1JF821JY AA J Resistor 820 1/16W Metal Oxide R1115 VRS-CZ1JF152JY AA J Resistor 1.5k 1/16W Metal Oxide R1116 VRS-CZ1JF271JY AA J Resistor 270 1/16W Metal Oxide R1117 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide R1118 VRS-CZ1JF681JY AA J Resistor 680 1/16W Metal Oxide R1119 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1125 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1127 VRS-CZ1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide R1131 VRS-CZ1JF223JY AA J Resistor 22k 1/16W Metal Oxide R1132 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R1133 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R1138 VRS-CZ1JF223JY AA J Resistor 22k 1/16W Metal Oxide R1143 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R1144 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R1503 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R1504 VRK-SA1JF100JY AB J Resistor 10 1/16W Metal Composition R1505 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R1510 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1511 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R1516 VRK-SA1JF473JY AC J Resistor 47k 1/16W Metal Composition R1547 VRS-CZ1JF201JY AA J Resistor 200 1/16W Metal Oxide R1705 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1706 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1707 R1708 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1709 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1710 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R1711 VRS-CZ1JF564JY AB J Resistor 560k 1/16W Metal Oxide R1712 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1715 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R1716 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R1717 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1718 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1719 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R1720 VRS-CZ1JF223JY AA J Resistor 22k 1/16W Metal Oxide R1901 VRS-CZ1JF153JY AA J Resistor 15k 1/16W Metal Oxide R1903 VRS-CZ1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide R1904 VRS-CZ1JF822JY AA J Resistor 8.2k 1/16W Metal Oxide R1905 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R1906 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R1907 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide

VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide

Resistor 100 1/16W Metal Oxide

DESCRIPTION

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

DELIVERY

[3] DKEYMF998FMG4/5 (MAIN Unit)

R1908 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1910 VRS-CZ1JF104JY AA J Resistor 100k 1/16W Metal Oxide R1912 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1914 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R1915 VRS-CZ1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide R1916 VRS-CZ1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide R1917 VRS-CZ1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide R1918 VRS-CZ1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide R3101 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3102 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3103 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3104 VRK-SA1JF100JY AB J Resistor 10 1/16W Metal Composition R3105 VRK-SA1JF100JY AB J Resistor 10 1/16W Metal Composition R3301 VRS-CZ1JF224JY AA J Resistor 220k 1/16W Metal Oxide R3302 VRS-CZ1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide R3303 VRS-CZ1JF102FY AA J Resistor 1k 1/16W Metal Oxide R3304 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3305 VRS-CZ1JF102FY AA J Resistor 1k 1/16W Metal Oxide R3306 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3308 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3310 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3312 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3313 VRS-CZ1JF224JY AA J Resistor 220k 1/16W Metal Oxide R3315 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3316 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3319 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3320 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3321 VRS-CZ1JF272JY AA J Resistor 2.7k 1/16W Metal Oxide R3322 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3323 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R3324 VRS-CZ1JF223JY AA J Resistor 22k 1/16W Metal Oxide R3325 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3326 VRK-SA1JF100JY AB J Resistor 10 1/16W Metal Composition R3327 VRS-CZ1JF000JY AA J R3328 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3329 VRK-SA1JF100JY AB J Resistor 10 1/16W Metal Composition R3330 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3331 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3332 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3333 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3334 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3335 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3336 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R3337 VRK-SA1JF333JY AB J Resistor 33k 1/16W Metal Composition R3338 VRK-SA1JF102JY AB J Resistor 1k 1/16W Metal Composition R3339 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3340 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3341 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3342 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3343 VRS-CZ1JF272FY AA J Resistor 2.7k 1/16W Metal Oxide R3344 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3345 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3346 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R3347 VRS-CZ1JF471JY AA J Resistor 470 1/16W Metal Oxide R3349 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3350 VRK-SA1JF222JY AB J Resistor 2.2k 1/16W Metal Composition R3351 VRK-SA1JF472JY AA J Resistor 4.7k 1/16W Metal Composition R3353 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R3354 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3355 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3356 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3357 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide R3358 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3359 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3360 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide R3361 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3362 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R3363 R3364 VRS-CZ1JF224JY AA J Resistor 220k 1/16W Metal Oxide R3365 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3366 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3367 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3368 VRS-CZ1JF224JY AA J Resistor 220k 1/16W Metal Oxide R3369 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R3370 VRK-SA1JF000JY AB J Resistor 0 1/16W Metal Composition R3371 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide R3372 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3373 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide R3376 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3377 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3385 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3430 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R3431 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R3501 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3502 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition

VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide

Resistor 0 1/16W Metal Oxide

DESCRIPTION

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[3] DKEYMF998FMG4/5 (MAIN Unit)

R3503 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3504 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3505 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3506 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3507 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3508 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3509 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3511 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3512 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3513 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3514 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3515 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3516 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3517 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3518 VRK-SB1FF560JY V Resistor 56 1/32W Metal Composition R3519 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3520 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3521 VRS-CZ1JF560JY AA J Resistor 56 1/16W Metal Oxide R3525 VRS-CZ1JF102FY AA J Resistor 1k 1/16W Metal Oxide R3526 VRS-CZ1JF102FY AA J Resistor 1k 1/16W Metal Oxide R3527 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3528 VRS-CZ1JF101JY AA J Resistor 100 1/16W Metal Oxide R3802 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R9601 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide R9602 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R9603 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R9605 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R9606 VRS-CZ1JF473JY AA J Resistor 47k 1/16W Metal Oxide R9607 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R9608 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R9609 VRS-CZ1JF270JY AA J Resistor 27 1/16W Metal Oxide R9610 VRS-CZ1JF000JY AA J Resistor 0 1/16W Metal Oxide R9611 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide R9612 VRS-CZ1JF000JY AA J R9613 VRS-CZ1JF123JY AA J Resistor 12k 1/16W Metal Oxide R9614 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R9615 VRS-CZ1JF103FY AB J Resistor 10k 1/16W Metal Oxide R9616 VRS-CZ1JF103FY AB J Resistor 10k 1/16W Metal Oxide R9618 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R9619 VRS-CZ1JF681FY AA J Resistor 680 1/16W Metal Oxide R9620 VRS-CZ1JF162FY AA J Resistor 1.6k 1/16W Metal Oxide R9623 VRS-CZ1JF392FY AA J Resistor 3.9k 1/16W Metal Oxide R9624 VRS-CZ1JF513FY AA J Resistor 51k 1/16W Metal Oxide R9625 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R9626 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R9627 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide R9628 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide R9630 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide R9631 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide R9632 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide R9634 VRS-CZ1JF102JY AA J Resistor 1k 1/16W Metal Oxide R9635 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide R9636 VRS-CZ1JF123FY AA J Resistor 12k 1/16W Metal Oxide R9637 VRS-CZ1JF332FY AA J Resistor 3.3k 1/16W Metal Oxide

RMC101 RRMCUA108WJQZY N V Remote Receiver

S101 QSW-KA037WJZZY AC J Switch

S102 QSW-KA037WJZZY AC J Switch

S103 QSW-KA037WJZZY AC J Switch

S104 QSW-KA037WJZZY AC J Switch

S105 QSW-KA037WJZZY AC J Switch

S106 QSW-KA037WJZZY AC J Switch

S107 QSW-KA037WJZZY AC J Switch SC502 QSOCNB037WJQZ AF J Socket

SC1501 QSOCZA271WJQZY AG J Socket SC9601 QPLGNA911WJZZY V Socket TH3301 VHHM1103J15-1Y AB J Thermistor TU1101 RTUNQA067WJQZ AU J Tuner

VA505 VA506 RH-VXA074WJZZY AB J AVRL101A1R1NTB X3301 RCRSCA239WJQZY AD J Crystal

RH-VXA074WJZZY AB J AVRL101A1R1NTB

Resistor 0 1/16W Metal Oxide

DESCRIPTION

[4] CABINET AND MECHANICAL PARTS

1-4

1-5

1-1

1-6

1-5

1-7

1-5

1-6

1-2

1-6

1-3

LA2

LA1

Panel Ass'Y

LA2

LA1

MAIN Unit

Power Unit

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[4] CABINET AND MECHANICAL PARTS

1 CCABBC052WJ01 N V Rear Cabinet Ass'y 1-1 Not Available - N - Rear Cabinet 1-2 JBTN-A960WJ4A N V Control Button 1-3 LANGKD438WJ4W V VESA Angle, x2 1-4 PSPAHA978WJ4Z AB J Spacer, x4 (80 X 12 X t0.5) 1-5 PSPAHB354WJ4Z V Spacer, x4 (200 X 14 X t0.5) 1-6 PSPAHC407WJ00 V Spacer, x8 (16 X 10 X t0.55) 1-7 XEBS930P08000 AA J For VESA Holder, x2

2 GCOVAE325WJ4A N V Side Cover

3 LANGKD478WJ4W N V Bottom Bracket

4 LHLDWA101WJKZ AD J AC Cord Hook

5 QACCBA051WJN2 V AC Cord (for Middle East)

5 QACCZA048WJN2 AL J AC Cord (except for Philippines/Thailand)

5 QACCZA077WJN2 V AC Cord (for Philippines)

5 QACCZA188WJN22 V AC Cord (for Thailand)

6 QCNW-M465WJQZ N V Connecting Cord (PD)

7 QCNW-M466WJQZ N V Connecting Cord (LW)

8 QCNW-M467WJQZ N V Connecting Cord (SP)

9 QCNW-M468WJQZ N V Connecting Cord (L1)

10 RSP-ZA570WJZZ N V Speaker-L 11 RSP-ZA571WJZZ N V Speaker-R 12 XBPS730P06WS0 AA J Spacer PWB, x8 13 XBPS830P06WS0 AA J Screw for CAB, x3 14 XEBS830P08000 AA J Screw, x9 (M3x8) (LC-32LE240M) 15 XEBS830P12000 AA J Screw for Bottom Bracket, x2 (LC-32LE340M) 16 TLABZD156WJZZ N V POP Label 17 TLABME206WJZZ N V Model Label (except for Thailand) 17 TLABME207WJZZ V Model Label (LC-32LE240M for Middle East) 17 TLABME208WJZZ V Model Label (LC-32LE240M for Thailand) 17 TLABME209WJZZ N V Model Label (LC-32LE340M) 18 TLABSA206WJZZ V Regulation Label (for Indonesia)

DESCRIPTION

[5] LCD PANEL

3-2

3-1

3-3

2-5

2-3

2-2

2-5

2-1

2-5

2-4

4-5

4-4

4-5

4-3

4-2

4-1

LCD Panel Unit

LED PWB-B

LED PWB-A

LC-32LE240M/340M(1stEdition)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[5] LCD PANEL

1 Not Available - N - Panel Ass'y

2 CANGKD508WE01 N V Bezel Ass'y 2-1 Not Available - N - Bezel Ass'y (Top) 2-2 CANGKD509WJ01 N V Bezel Ass'y (Bottom) 2-3 CANGKD510WJ01 N V Bezel Ass'y (Left) 2-4 CANGKD511WJ01 N V Bezel Ass'y (Right) 2-5 LX-BZ2312TPZZ AB J Screw, x8

3 CCABAC850WJ02 N V CAB-A Ass'y (LC-32LE240M)

3 CCABAC850WJ01 N V CAB-A Ass'y (LC-32LE340M) 3-1 Not Available - N - CAB-A 3-2 HDECPA100WJ4A N V DECO Sheet (LC-32LE240M) 3-2 HDECPA099WJ4A N V DECO Sheet (LC-32LE340M) 3-3 HDECQB690WJ4A N V LED DEC

4 CCHSMA655WJ01 N V Chassis Ass'y 4-1 Not Available - N - PWB Chassis 4-2 LHLDWA175WJUZ AC J WH, x2 4-3 LHLDWA176WJUZ AC J WH, x2 4-4 LHLDWA181WJKZ AC J AC Cord WH, x2 4-5 PSPAZC831WJZZ N V Spacer for SPK, x2

5 PGiDMA049WJZZ N V LGP

6 PMiR-A315WJZZ N V Reflection

7 PRDARB028WJ4W N V Heat Spreader

8 PSHEPB178WJZZ N V Diffusion Sheet

9 PSHEPB179WJZZ N V Lens Sheet H

10 PSHEPB180WJZZ N V Lens Sheet V 11 PSHEPB206WJZZ N V Bottom Sheet 12 PSHEPB207WJZZ N V Lens Sheet 13 PSHEPB208WJZZ N V Right Sheet 14 XEBS830P08000 AA J Screw, x5 (M3x8)

DESCRIPTION

[6] SUPPLIED ACCESSORIES

LC-32LE240M/340M(1stEdition)

Remote control unit

Stand base

X4 X5

Operation manual

X2 X3

Screws (x 4)

"AAA" size battery (x 2)

Antenna adaptor

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

DELIVERY

[6] SUPPLIED ACCESSORIES

X1 RRMCGB016WJSA N V Remote Control Unit X2 TiNS-F404WJZZ V Operation Manual (for Indonesia/Vietnam/Thailand) X2 TiNS-F405WJZZ N V Operation Manual (for Asia) X2 TiNS-F406WJZZ N V Operation Manual (for Asia/Middle East) X2 TiNS-F407WJZZ V Operation Manual (for Thailand) X2 TiNS-F408WJZZ V Operation Manual (for Vietnam) X2 TiNS-F409WJZZ V Operation Manual (for Middle East) X2 TiNS-F415WJZZ N V Operation Manual (for Asia/Middle East) X2 TiNS-F416WJZZ V Operation Manual (for Indonesia) X2 TiNS-F417WJZZ V Operation Manual (for Middle East) X2 TiNS-F418WJZZ V Operation Manual (for Philippines) X3 Not Available - - "AAA" Size Battery, x2 X4 CDAi-A814WJ01 N V Stand Base X5 XBBS740P40JS0 AD J Screw for Stand, x4 X6 QCNCWA969WJZZ V Antenna Adaptor (for Philippines) X7 TGAN-B249WJZZ V Warranty Card (LC-32LE240M for Philippines) X7 TGAN-B383WJN1 V Warranty Card (LC-32LE240M for Vietnam) X7 TGAN-B636WJZZ AD J Warranty Card (for Asia) X7 TGAN-B728WJZZ V Warranty Card (for Indonesia)

DESCRIPTION

LC-32LE240M/340M(1stEdition)

[7] PACKING PARTS (NOT REPLACEMENT ITEM)

ڎ ڎ

X2 X3 X5 X6 X7

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

DELIVERY

[7] PACKING PARTS (NOT REPLACEMENT ITEM)

S1 SPAKCG642WJZZ - N - Packing Case (except LC-32LE240M for Indonesia, LC-32LE340M) S1 SPAKCG643WJZZ - - Packing Case (LC-32LE240M for Indonesia) S1 SPAKCG644WJZZ - N - Packing Case (LC-32LE340M for Asia) S1 SPAKCG645WJZZ - - Packing Case (LC-32LE340M for Indonesia) S2 SSAKHA050WJZZ - - Pack for Screw S3 SSAKA0001PEZZ - - Polyethylene Bag S4 SPAKPB846WJZZ - N - Hoso PP S5 SPAKXD570WJZZ - N - Top Pad S6 SPAKXD571WJZZ - N - Bottom Pad S7 TLABV0182AJZZ - - No. Card S8 TLABZD107WJZZ - - Carton Label (for Vietnam)

Not R eplacement Item

DESCRIPTION

LC-32LE240M/340M(1stEdition)

No Part of this publication may be reproduced, stored in a retrieval system, or transmitted in any from or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

Dec. 2011 SH. DS

SHARP CORPORATION AV Systems Group CS Promotion Center Yaita,Tochigi 329-2193, Japan

Sharp LC32LE240, LC32LE340M Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
