Sharp LC-32GD1E, LC-37GD1E, TU-32GD1E, TU-37GD1E Operating Manual

Download

LC-37GD1E (DISPLAY/DISPLAY/ECRAN) TU-37GD1E (AVC SYSTEM/AVC-GERÄT/SYSTÈME AVC)

ENGLISH

LC-32GD1E (DISPLAY/DISPLAY/ECRAN) TU-32GD1E (AVC SYSTEM/AVC-GERÄT/SYSTÈME AVC)

LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN À CRISTAUX LIQUIDES (LCD)

OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI

DEUTSCH

FRANÇAIS

LC-37GD1E

LC-32GD1E

TU-37GD1E

LCD COLOUR TELEVISION

ENGLISH

OPERATION MANUAL

Contents

Contents …………………………………………………… 1 Dear SHARP customer …………………………………… 3 Important Safety Precautions ………………………… 3 Supplied accessories …………………………………… 5 Preparation ………………………………………………… 6

Where to place the System…………………………… 6 Setting the System …………………………………… 7 Removing the stand and speaker …………………… 9 Setting the Display on the wall ……………………… 10 Setting the AVC System with the stand …………… 10 Inserting the batteries ………………………………… 11 Using the remote control unit ………………………… 11

Cautions regarding remote control unit ……… 11

Basic connection ……………………………………… 12

Connecting to an antenna ……………………… 12

Connecting to the power outlet ………………… 12 Initial auto installation ………………………………… 13 Virgin mode …………………………………………… 14

Part names ………………………………………………… 15

Display ………………………………………………… 15 AVC System …………………………………………… 16 Remote control unit …………………………………… 17

Watching TV ……………………………………………… 19

Turning on the power ………………………………… 19 Turning off the power ………………………………… 19 Simple button operations for changing channels … 20 Using Flashback (A) on the remote control unit … 20 Simple button operation for changing

volume/sound …………………………………… 22

Basic adjustment settings (Analogue) ……………… 23

Menu operation buttons ……………………………… 23 On-Screen Display …………………………………… 23 TV/AV input mode menu items ……………………… 24 PC input mode menu items ………………………… 24 Auto installation ……………………………………… 25 Programme setup……………………………………… 25

Auto search ……………………………………… 25

Manual setting for each channel ……………… 26

Fine tuning …………………………………… 26 Colour system ……………………………… 27 Sound system (Broadcasting system) …… 27 Labelling channels ………………………… 27 Skipping channels ………………………… 28 Setting the decoder ………………………… 28 Setting the child lock ……………………… 28

PIN setting for child lock (for TV/DTV/AV input mode) See page 78.

Setting the booster ………………………… 28 Sort ………………………………………………… 29 Erase Programme ………………………………… 29

TU-32GD1E

ENGLISH

Basic adjustment settings (Digital) …………………… 30

DTV input mode menu items ………………………… 30 Selecting DTV mode ………………………………… 30 About colour buttons ………………………………… 30 Time Zone ……………………………………………… 31 Search ………………………………………………… 31 Found TV services …………………………………… 32 Found radio services ………………………………… 32 Store …………………………………………………… 33 Discard ………………………………………………… 33 Banner duration ……………………………………… 33 Info banner …………………………………………… 34 Audio …………………………………………………… 34 Subtitle ………………………………………………… 35 Teletext ………………………………………………… 35 Reinstall all services ………………………………… 36 Access restrictions …………………………………… 36 Maturity rating ………………………………………… 36 TV services …………………………………………… 37 Radio services ………………………………………… 37 Selecting programme ………………………………… 37 Using EPG (Electronic Programme Guide) ………… 38 Setting the theme ……………………………………… 38 Mode …………………………………………………… 39 Audio language ……………………………………… 39 Subtitle language ……………………………………… 40 Service list type ……………………………………… 40 Rearrange TV services ……………………………… 41 Rearrange radio services …………………………… 41 New TV services ……………………………………… 41 New radio services …………………………………… 41 Installed TV services ………………………………… 42 Installed radio services ……………………………… 42 Uninstalled TV services ……………………………… 42 Uninstalled radio services …………………………… 42 Country ………………………………………………… 43 System software ……………………………………… 43 Using Over Air Download function ………………… 44 Enabling Software download ………………………… 44 Performing Over Air Download ……………………… 45 Icons …………………………………………………… 46 Common Interface …………………………………… 46

Contents

Basic adjustment settings (Analogue/Digital) ……… 47

Language setting for on-screen display …………… 47 OPC setting …………………………………………… 47 Picture adjustments …………………………………… 48

C.M.S. (Colour Management System) ………… 49 Colour temperature ……………………………… 49 Black ……………………………………………… 49 3D-Y/C …………………………………………… 50 Monochrome ……………………………………… 50 Film mode ………………………………………… 50 I/P setting ………………………………………… 50

Audio adjustment ……………………………………… 51

Audio adjustment ………………………………… 51 Dolby Virtual ……………………………………… 51

Power control ………………………………………… 52

Power control for AV source …………………… 52 Power control for PC source …………………… 52

Using memory card ……………………………………… 53

Important notes on using memory cards …………… 53 Card Setup mode menu items ……………………… 55 Recording a still image ……………………………… 56 Displaying a still image ……………………………… 57 Setting slide show …………………………………… 57 Displaying slide show ………………………………… 57 My Programme ………………………………………… 58 Audio Select …………………………………………… 58 Protecting/unprotecting still image files …………… 58 Deleting a still image file ……………………………… 59 Deleting all still image files …………………………… 59 Recording a motion picture ………………………… 60 Displaying a motion picture ………………………… 60 Rec. Mode ……………………………………………… 60 Pre-recording ………………………………………… 61 Repeat ………………………………………………… 61 Protecting/unprotecting motion picture files ……… 61 Deleting a motion picture file ………………………… 62 Deleting all motion picture files ……………………… 62 Format ………………………………………………… 62

Using external equipment ……………………………… 63

Displaying an external equipment image ………… 63 Displaying a DVD image (Example) ………………… 63 Connecting a decoder ……………………………… 64 Connecting a VCR …………………………………… 64 Using AV Link function ……………………………… 65 Connecting a DVD player …………………………… 66 Connecting a game console or camcorder ………… 66 Connecting a PC ……………………………………… 67 Using Digital Audio Output …………………………… 67 Speaker Setup ………………………………………… 68

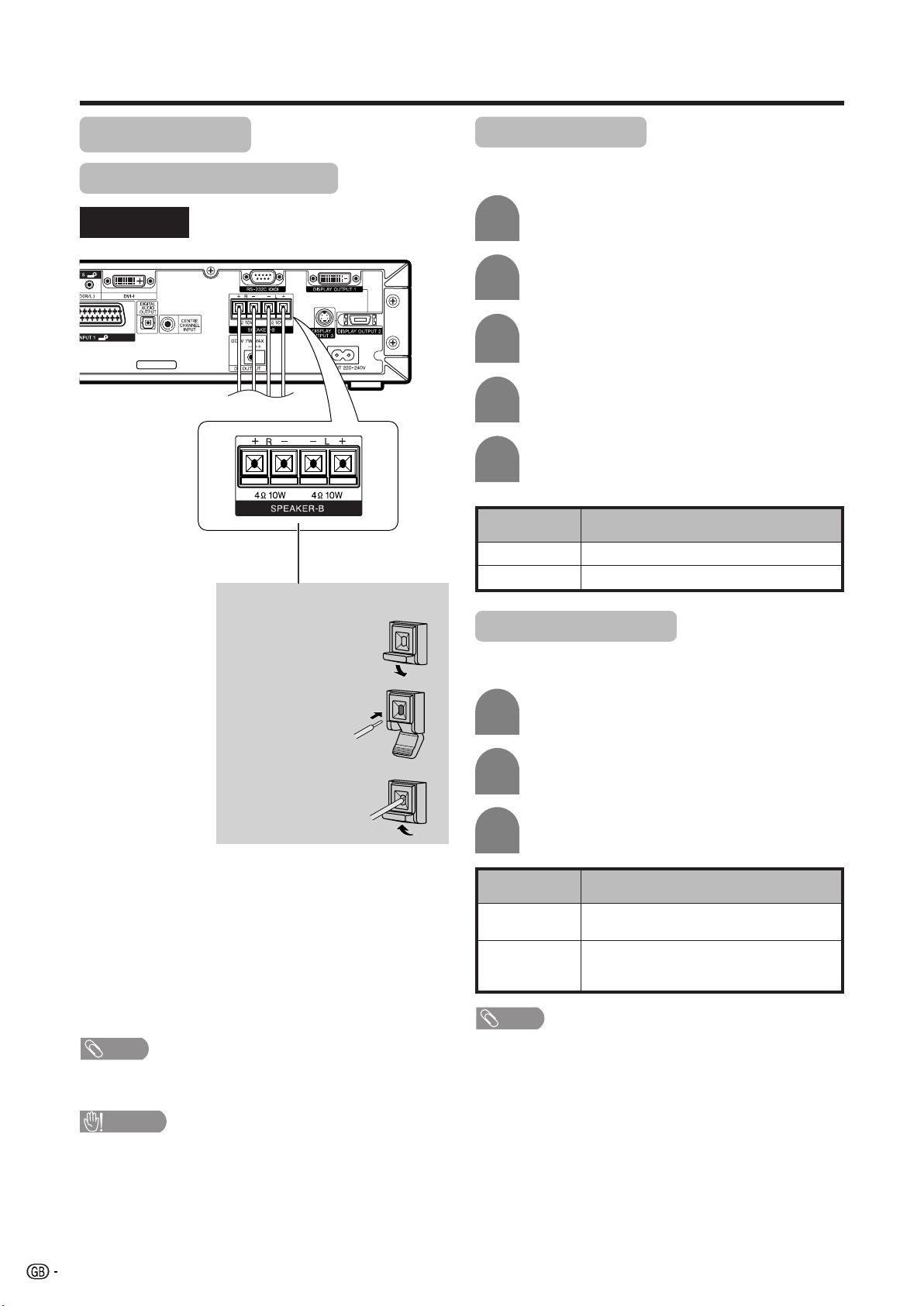

Connecting external speakers ………………… 68 Selecting speakers ……………………………… 68 External Audio Bypass ………………………… 68

Useful adjustment settings ……………………………… 69

Image position (for TV/AV input mode) ……………… 69 Audio Only ……………………………………………… 69 Auto Sync. adjustment (PC input mode only) ……… 69 Fine Sync. adjustment (PC input mode only) ……… 70 Input Select …………………………………………… 70 Input Label …………………………………………… 71 Colour system setting (for TV/AV input mode) …… 71 AV mode selection …………………………………… 72 Wide screen signalling (WSS)

(for TV/AV input mode) …………………………… 72 Picture aspect ratio (for TV/AV input mode) ……… 72 WIDE mode (for TV/AV input mode) ………………… 73 WIDE mode (for PC input mode) …………………… 74 Input signal (PC input mode only) …………………… 75 DNR (Digital Noise Reduction) ……………………… 75 Quick Shoot …………………………………………… 75 Rotate …………………………………………………… 76 Standby Recording …………………………………… 76 Audio out ……………………………………………… 77 Sleep timer …………………………………………… 77 PIN setting for child lock

(for TV/DTV/AV input mode) …………………… 78 Centre Channel Input ………………………………… 79

Useful features …………………………………………… 80

Dual screen functions ………………………………… 80 Teletext function ……………………………………… 81

Appendix ………………………………………………… 83

Troubleshooting ……………………………………… 83 PC compatibility chart ………………………………… 84 RS-232C port specifications ………………………… 85 Connecting pin assignments for SCART …………… 87 Specifications ………………………………………… 88 Optional accessories ………………………………… 88

Dimensional drawings …………………………………… 89

The factory preset PIN is “1234”.

DO NOT turn off the power using

MAIN POWER (

X) on the Display if

only the STANDBY/ON indicator (

on the AVC System side lights up

green. (See page 45.)

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of troublefree operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings—All warnings on the product and in the instructions must be observed closely.

4. Follow instructions—All operating instructions must be followed.

5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

6. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the AC cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment

work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates

that the product needs servicing.

12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

Important Safety Precautions

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact applied. If the LCD panel is broken be careful not to be injured by broken glass.

• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

The LCD panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the Display

When transporting the Display, never carry it by holding onto the speakers. Be sure to always carry the Display by two people holding it with two hands—one hand on each side of the display.

Supplied accessories

Make sure the following accessories are provided with the product.

Display: LC-37GD1E/LC-32GD1E

Cable clamp (g1)

Page 8

AVC System: TU-37GD1E/TU-32GD1E

Remote control unit (g1)

Product shape varies in some

“AAA” size battery (g2)

AC cord (g1)

countries.

Page 7

System cable (g1)

Page 11

Stand unit (for AVC System) (g1)

Stand (g1) Stand cushion (g4) Stand spacer (g4) Stand screw (g2)

Page 10

Page 11

AC cord (g1)

Product shape varies in some

countries.

Page 7

Operation manual

LC-37GD1E TU-37GD1E LC-32GD1E TU-32GD1E

Page 7

Antenna cable (g1)

Page 12

Preparation

Where to place the System

“System” means the Display and AVC System. First select the location where to place the System.

Selecting the location of the System

• Select a place with no direct sunlight and good ventilation.

• The Display and the AVC System are connected by the system cable. (See page 7 for details.)

If you want to keep a longer distance between the Display and AVC System, please purchase the optional system cable AN-07SC2 (about 7 meters). (See page 88.)

System cable

Display

Setting the System in place

Handling the Display

CAUTION

• When using the TV with the supplied stand attached, do not remove the speaker. Doing so may disturb the balance leading to product damage or personal injury.

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

• Keep enough space above and behind the Display.

• The Display weighs about 13 kg (LC-32GD1E) and 14.5 kg (LC37GD1E). Move it with two or more people.

• When you move the Display, hold the portion of the Display, not the speaker.

Handling the AVC System

CAUTION

• Do not put a VCR or other device on the AVC System.

• Keep enough space above and on the sides of the AVC System.

• Do not block the ventilation openings on the top and left side, and the exhaust fan on the right side.

• Do not spread a thick cloth beneath the AVC System, or cover it with one, as this can cause overheating and result in malfunction.

AVC System

CAUTION

Adjust the screen with both hands. Put one hand on the Display and tilt the screen while steadying the stand with your other hand.

You can adjust the screen vertically up to 2 degrees forward or 6 degrees backward, or rotate 10 degrees horizontally.

10 cm

or more

Keep enough space

5 cm or more

5 cm or more on both sides

There is an exhaust fan on the right side.

Preparation

Setting the System

After putting the Display and the AVC System in place, connect the system cables and AC cords. Use the cable clamps for bundling the cables.

Removing the terminal cover

Display (rear view)

Press the two hooks toward the centre of the Display and remove the cover toward you.

Press down the two upper hooks to remove the cover toward you.

Connecting the system cable and the AC cord to the Display

(WHITE) Connect the plug into the terminal and secure it by tightening the thumb screws.

(BLACK)

AC cord

System cable

Connecting the system cable and the AC cord to the AVC System

System cable

(WHITE)

AVC System (rear view)

(BLACK)

AC cord

(GREY)

(GREY) Connect the plug firmly until the hooks on both sides click.

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE

AC CORD CONNECTED.

Preparation

Attaching the clamp and bundling the cables with the clamp

Cable clamp

Insert the cable clamp in the hole on the Display as shown.

Display (rear view)

Closing the terminal cover

Cables come out from the small opening.

Preparation

Removing the stand and speaker

This unit has detachable type speaker.

You can detach the system speaker when using external speaker. Before removing (or attaching) speaker, unplug the AC cord from the AC outlet and the system cable from the Display.

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

• When using the TV with the supplied stand attached, do not remove the speaker. Doing so may disturb

the balance leading to product damage or personal injury.

Before attaching/removing speaker

• Before performing work make sure to turn off the System.

• Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from being damaged.

Unfasten the screws used to secure the stand in place, and then detach the stand from the Display. (Hold the stand so it will not drop the stand from the edge of the base area.)

1 Unfasten the screws used to

secure the speaker bracket covers, and then detach them.

2 Take off the speaker terminal

cover.

Disconnect the cable from the speaker.

Unfasten the screw used to secure the speaker bracket.

CAUTION

• The speaker terminals on the Display are only for the attached speaker. Do not connect any third party plug or speaker to the terminal.

• Insert the speaker plug completely into the terminal.

NOTE

• To attach the speaker and stand, perform the above steps in reverse order.

Now the speaker can be removed from the Display.

Preparation

Setting the Display on the wall

CAUTION

• Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the Display

• You can ask a qualified service personnel about using an optional AN-37AG2 bracket to mount the Display to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2 wall mount bracket. (See the bracket instructions for details.)

About setting the Display angle

• Angular mounting is not possible with the

speaker attached.

• You can set the Display on the wall up to 20 degrees forward when the speaker is not attached. Do not set the angle outside this range.

Setting the AVC System with the stand

How to install the AVC System vertically using the stand unit.

• Use the supplied stand unit for installing the AVC System vertically in an upright position.

Stick each spacer to the stand as shown.

Peel each spacer away from the paper and attach to the four bulging areas on the stand.

Bulge

Stand spacer

Bulge

Attach the stand using the stand screws as shown.

Stand screw

Attach each cushion to the stand as shown.

Peel each cushion away from the paper and attach to the four areas at the bottom.

Attaching point

Stand cushion

Attaching point

The AVC System installed vertically with the stand.

Fit the stand to the AVC System.

Insert the stand into the AVC System, making sure that the thick and thin bulges of the stand align with the big and small holes on the AVC System.

Hole

Bulge

NOTE

• When mounting the AVC System vertically, always use the supplied stand. Be careful not to block vent holes when standing up directly on the floor or a flat surface as this can result in equipment failure.

Preparation

Inserting the batteries

Before using the System for the first time, insert two “AAA” size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert two supplied “AAA” size

batteries.

• Place batteries with their terminals

corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Place the batteries with their terminals corresponding to the (e) and (f) indications.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may prevent proper operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of the Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Display, or operate the remote control unit closer to the remote sensor window.

Preparation

Simple operations for watching a TV programme

Basic connection

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial cable.

(ex. For viewing both analogue and digital broadcasts)

Standard DIN45325 plug (IEC169-2)

75-ohm coaxial cable (round cable) (commercially available)

Antenna cable

(supplied)

For viewing only digital broadcasts, you do not need to connect the antenna cable (supplied).

(ex. For viewing analogue broadcasts)

Antenna cables–commercially available

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC 169-2), plug it into the DIGITAL IN terminal at the rear of the AVC System.

Connecting to the power outlet

Before connecting the AC cords, make sure to connect the system cable first.

Display (rear view)

Product shape varies

in some countries.

NOTE

• Always turn off the main power of Display when connecting the AC cords.

• Disconnect the AC cords from the AC outlet, Display and AVC System if the System will not be used for a long period of time.

AVC System (rear view)

Product shape varies

in some countries.

Preparation (Analogue)

Initial auto installation

When the System powers on for the first time after purchase (see page 19), the initial auto installation is invoked. You can automatically set language, country and channels in successive operations.

NOTE

• The initial auto installation functions only once. If the initial auto installation is not completed, (ex: When menu screen disappeared by not operating for a few minutes, when the power shut down, etc.), try Auto Installation from the set up menu. (See page 25.)

• The initial auto installation stops by pressing RETURN.

Setting the on-screen display language

1 Press a/b/c/d to select the desired

language listed on the screen.

2 Press OK to enter the setting.

Language list

Dutch English Finnish French German

Italian Portuguese Spanish Swedish Turkish

After this setting, auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

You do not need to do anything during the auto search.

NOTE

• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual operations.

Automatic channel searching

Channel auto search finds all channels viewable in your area.

01 55.25 02 85.25 03 102.25

NOTE

• If no channel is found, “No programme found.” displays. And the auto installation finishes.

Automatic channel labelling

After finding TV channels, the System starts naming each TV channel found.

01 SAT.1 02 PR07 03 KABEL

Setting the country or area

1 Press a/b/c/d to select your country

or area listed on the screen.

2 Press OK to enter the setting.

• The programme auto search starts at the same time.

Country list

Austria Belgium Denmark Finland France Germany Greece Ireland Italy Luxembourg Netherlands Norway

Poland Portugal Russia Spain Sweden Switzerland Turkey United Kingdom West Europe East Europe

NOTE

• The System can only name channels where the channel labelling information is provided. If no channel labelling information is provided the System only displays the channel number, leaving the channel name blank.

Automatic channel sorting

When channel auto labelling finishes, the System starts sorting the labelled channels.

01 SAT.1 02 PR07 03 KABEL

Preset download

When auto sorting finishes, the System automatically downloads and stores each sorted channel from VCR.

• When a VCR is connected via INPUT 2, the System sends all preset channel information to the VCR. (See page 64.)

• “Auto Installation completed.” displays. After that, the screen changes to the auto installation menu.

Watching TV

The setup menu disappears and you can watch the programme on channel 1.

SAT.1

PAL

B/G

Preparation (Digital)

Digital Video Broadcasting is a transmission scheme. It is much more than a simple replacement for existing analogue television transmission. DVB provides more stations, clearer picture quality and other services to be displayed on screen. It also allows a range of new features and services including subtitling and multiple audio tracks.

Press OK, and Search finds all the digital broadcasting channels viewable in your area.

Virgin mode

For viewing digital broadcasts, please follow the procedure below to setup.

• In DTV mode, some menu items displayed in black cannot be selected.

Press DTV to switch to the DTV mode.

• The Search menu disappears and you can watch the programme.

NOTE

• If you exit DTV mode while Virgin mode is still incomplete, go back to step 1 and try it again.

Country list

Austria Belgium Denmark Finland France Germany Greece Italy Luxembourg

Netherlands Norway Portugal Spain Sweden Switzerland Turkey United Kingdom

Press a/b to select the country where you are located.

Country

Spain

Sweden

Switzerland

Turkey

United Kingdom

When you cannot find the country you live in, select the country from the list which shares the same time zone.

Press OK to enter the setting.

• Installation screen displays. Press OK to go to the next step.

Press a/b to select “Service scan”, and then press OK.

Country

Service scan

System software

• Search screen displays.

Part names

Display

VOLUME buttons

( il/k )

CHANNEL buttons

(Ps/r)

INPUT button

STANDBY/ON button (B)

MAIN POWER button (

Remote control sensor

OPC sensor*

STANDBY/ON indicator

*OPC: Optical Picture Control

(See page 47.)

Part names

AVC System

Front view

STANDBY/ON indicator

POWER button

Headphone (When connecting headphones, the sound from the speakers is muted.)

INPUT 4 (VIDEO)

INPUT 4 (S-VIDEO)

CARD indicator

RESET*

SYSTEM RESET**

PC CARD slot

INPUT 4 (AUDIO L/R)

How to open the door.

* Press RESET if the system cannot return to its original state after performing various operations.

This will reset the System as shown below.

• AV MODE resets to USER.

• Analogue TV channel resets to channel 1.

• Dual screen resets to normal.

• Audio setting initialises.

• Dolby Virtual resets to Off.

• Image position is initialised.

• Still image mode deactivates.

• Teletext mode resets to normal.

• Speaker setting resets to SPEAKER-A.

• Audio Out setting resets to Fixed.

• Centre Channel Input setting resets to Off.

• Audio Only setting resets to Off.

** Press SYSTEM RESET if the system does not operate after starting up.

NOTE

• Pressing RESET will not work if the System is in standby mode (indicator lights red).

• Pressing RESET will not delete channel preset and PIN. See page 78 for resetting the PIN when you know it. See page 91 for initialising to the factory preset values when you forget your PIN.

Rear view

ANTENNA INPUT

AV OUTPUT (VIDEO)

DIGITAL ANTENNA INPUT

DIGITAL ANTENNA OUTPUT

INPUT 3

B(CB), PR(CR))

(Y, P

INPUT 1 (SCART)

INPUT 3 (SCART)

COMMON INTERFACE slot

AV OUTPUT (AUDIO)

INPUT 2 (SCART)

INPUT 5 (DVI-I)

INPUT 5 (AUDIO)

SPEAKER-B

DIGITAL AUDIO OUTPUT*

CENTRE CHANNEL INPUT

RS-232C**

DISPLAY OUTPUT 1

DISPLAY OUTPUT 2

DISPLAY OUTPUT 3

DC OUTPUT

AC INPUT

*Connect a digital audio equipment. **Provided for command from PC (see pages 85 and 86).

Part names

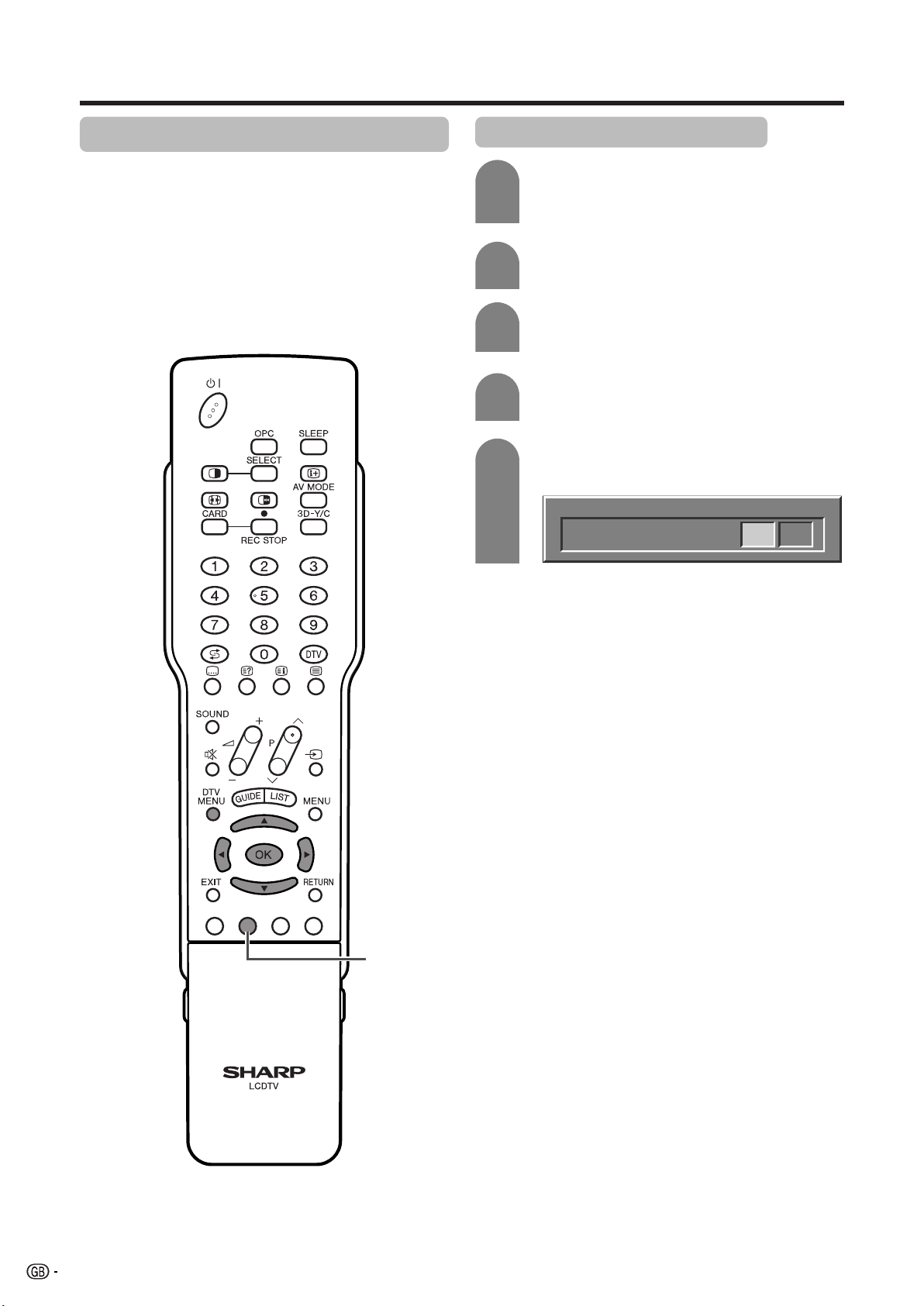

Remote control unit

3 4 5

10 11

12 13

14 15

16 29

NOTE

• When using the remote control unit, point it at the Display.

18 19 20

22 23

25 26

1 B (STANDBY/ON)

To switch the power on and off. (See page 19.)

2 OPC

To switch the Optical Picture Control on and off. (See page

47.)

3 c (DUAL screen)

Set the dual picture mode. Press c again to return to normal view. (See page 80.)

SELECT

To select either screen to be active in Dual screen mode.

4 d (FREEZE/HOLD)

TV/External input mode: Change the still image mode. TELETEXT mode: Freeze a multi-page on screen while other pages are automatically updated. Press d again to return to the normal image. (See pages 80 and 81.)

5 f (WIDE MODE)

TV/External input mode: Change the wide image mode. (See pages 73 and 74.)

TELETEXT mode: Set the area of magnification. (full/upper half/lower half) (See page 81.)

6 CARD

Switch to the card mode. Card mode: Press to turn the Card Control Panel on and off. (See page 55).

E/REC STOP

Still image: Press to capture a still image to a card after freezing the image from analogue broadcasts or external equipment. (See page 56). Motion picture: Press to start/stop recording a motion picture to a card from analogue broadcasts or external equipment. (See page 60).

70 – 9

TV/DTV/External input mode: Set the channel. TELETEXT mode: Set the page.

8 A (Flashback)

Press to return to the previous image in normal viewing mode. (See page 20.)

9 [ (SUBTITLE for TELETEXT)

TV/External input mode: To turn the subtitles on and off. (See page 82.) DTV input mode: Display the subtitle selection screen.

10 k (Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters. (See page 81.)

11 SOUND

Select the sound multiplex mode. (See page 21.)

12 il/ik (VOLUME)

Set the volume. (See page 22.)

13 e (MUTE)

Mute the sound. (See page 22.)

14 GUIDE

DTV input mode: To Display EPG (Electronic Programme Guide) screen.

15 DTV MENU

DTV input mode: Display the digital TV menu screen.

16 EXIT

Turn off the On Screen Display.

17 SLEEP

Set the Sleep timer. (See page 77.)

18 p (DISPLAY INFORMATION)

Display the programme information.

19 AV MODE

Select a video setting: AV MODE (STANDARD, MOVIE, GAME, USER, DYNAMIC), PC MODE (STANDARD, USER) (See page 72.)

20 3D–Y/C

To switch the 3D Y/C function on and off. (See page 50.)

Part names

10 11

12 13

14 15

3 4 5

18 19 20

22 23

25 26

21 DTV

Switch from the Digital-TV mode and other input source. For example, when viewing an image from INPUT2, press DTV to switch to the Digital-TV mode. Press DTV again to return to INPUT2 screen.

22 m (TELETEXT)

Select the TELETEXT mode. (all TV image, DTV/DATA image, all TEXT image, TV/TEXT image) (See pages 81 and 82.) DTV input mode: Select DTV data broadcasting and TELETEXT.

23 l (TOP Overview for TELETEXT)

TELETEXT mode: Display an index page for CEEFAX/FLOF information. TOP Overview for TOP programme. (See page

82.)

24 Pr/Ps

TV/DTV input mode: Select the channel. External input mode: Switch to either TV or DTV input mode. TELETEXT mode: Select the page. (See page 81.)

25 b (INPUT SOURCE)

Select an input source. (TV, DTV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, INPUT 5, CARD) (See pages 63, 70, 71 and 80.)

26 LIST

DTV input mode: Display the favourite digital programme list.

27 MENU

Display the menu screen.

28 a/b/c/d (Cursor)

Select a desired item on the setting screen. Select the programme information area when EPG is displayed.

Execute a command.

29 RETURN

MENU mode: Return to the previous menu screen.

30 Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Select a page. (See page 81.) DTV input mode: The coloured buttons are used to select correspondingly to the coloured items in the menu screen.

16 29

Watching TV

Display

STANDBY/ON button (B)

STANDBY/ON indicator (B)

AVC System

POWER (

STANDBY/ON indicator

MAIN POWER (

Turning on the power

Make sure that the system cable is connected before turning on the power.

Press MAIN POWER (

• STANDBY/ON indicator (Green): The System is on. (After a few seconds, programme information appears with sound.)

• STANDBY/ON indicator (Red): The System is in standby. (Go to step 2.)

Use any of the methods below to power on. Powering on changes the LED from red to green.

• Press the STANDBY/ON button (B) on the Display.

• Press POWER (B) on the AVC System.

• Press B on the remote control.

NOTE

• The initial auto installation starts when the System powers on for the first time. If the System has been turned on before, the initial auto installation will not be invoked. See page 25 to try Auto installation from the Setup menu.

X) on the Display.

STANDBY/ON indicator

Off

Red

Green

Power off

The System is in standby mode.

Indicates the side lighting up green is on.*

Turning off the power

Press B on the remote control unit or STANDBY/ON button (B) on the Display or AVC System.

• The System enters standby mode and the image on the screen disappears.

• Both STANDBY/ON indicators change from green to red.

Press MAIN POWER (

• The STANDBY/ON indicator on the Display gradually turns off.

• When the System is turned off by MAIN POWER ( turn on the power by pressing B on the remote control.

NOTE

• If you are not going to use this System for a long period of time, be sure to remove the AC cords from the power outlet.

• Weak electric power is still consumed even when both MAIN POWER ( and POWER (

• In DTV input mode, if the power is turned off immediately after a setting change from the menu screen, the new setting or channel information may not be memorised.

B) are turned off.

X) on the Display.

X) , you cannot

CAUTION

* If only the STANDBY/ON indicator on the AVC System lights up green, this indicates that the System is in

Software Download mode (see pages 44 and 45).

Do not disconnect the AC cords or switch off MAIN POWER (

X) on the

Display under this condition.

NOTE

• Check if the system cable is connected properly when display indicator flashes red.

Watching TV (Analogue)

Simple button operations for changing channels

You can change channels in several ways.

Using Pr/son the remote control unit

• Press Pr to increase channel number.

• Press Ps

NOTE

• Ps/r on the Display operates the same as Ps/ron

the remote control unit.

• In TV input mode, you cannot change the DTV input mode channel, and vice versa.

to decrease channel number.

Channel display

Channel display changes approximately after 3 seconds as shown below.

SAT.1

PAL

B/G

(Example)

SAT.1

MONO

Using Flashback (A) on the remote control unit

Ps/r

Using 0 – 9 on the remote control unit

Select the channels directly by pressing buttons 0 to

To select a 1-digit channel (e.g. channel 2):

• Press the 2 button.

To select a 2-digit channel (e.g. channel 12):

• Press 1, followed by 2.

• When you enter the channel, a 3-digit input underbar appears in digital TV mode and a 2-digit in analogue TV mode. Once you input a channel it is set after a few moments if there are no other operations. Or press OK to set immediately after input.

Press A to switch the currently tuned channel to the previously tuned channel. Press A again to switch back to the currently tuned channel.

Press A to toggle between the currently selected input source and the previously selected one.

Press A to return to the previous page in TELETEXT mode.

NOTE

• Complete this procedure within 3 seconds, otherwise the selection will not be made on the 2-digit channel mode.

When viewing Teletext information

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9.

Watching TV (Analogue)

Using SOUND on the remote control unit

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press SOUND, the mode switches between NICAM STEREO and MONO.

Stereo mode

BBC2

NICAM

STEREO

BBC2

MONO

When receiving a bilingual signal

Each time you press SOUND, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

BBC2

NICAM

CH A

BBC2

NICAM

CH B

BBC2

NICAM

CH AB

BBC2

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press SOUND, the mode switches between STEREO and MONO.

Stereo mode

BBC2

STEREO

BBC2

MONO

When receiving a bilingual signal

Each time you press SOUND, the mode switches among CH A, CH B and CH AB.

Bilingual mode

BBC2

CH A

BBC2

CH B

BBC2

CH AB

When receiving a monaural signal When you press SOUND, “MONO” displays.

Monaural mode

BBC2

MONO

NOTE

• When no signal is input, the sound mode will display “MONO”.

• “BBC2” and “99” are tentative network name and channel.

MONO

When receiving a monaural signal

Each time you press SOUND, the mode switches between NICAM MONO and MONO.

Monaural mode

BBC2

NICAM

MONO

BBC2

MONO

Watching TV

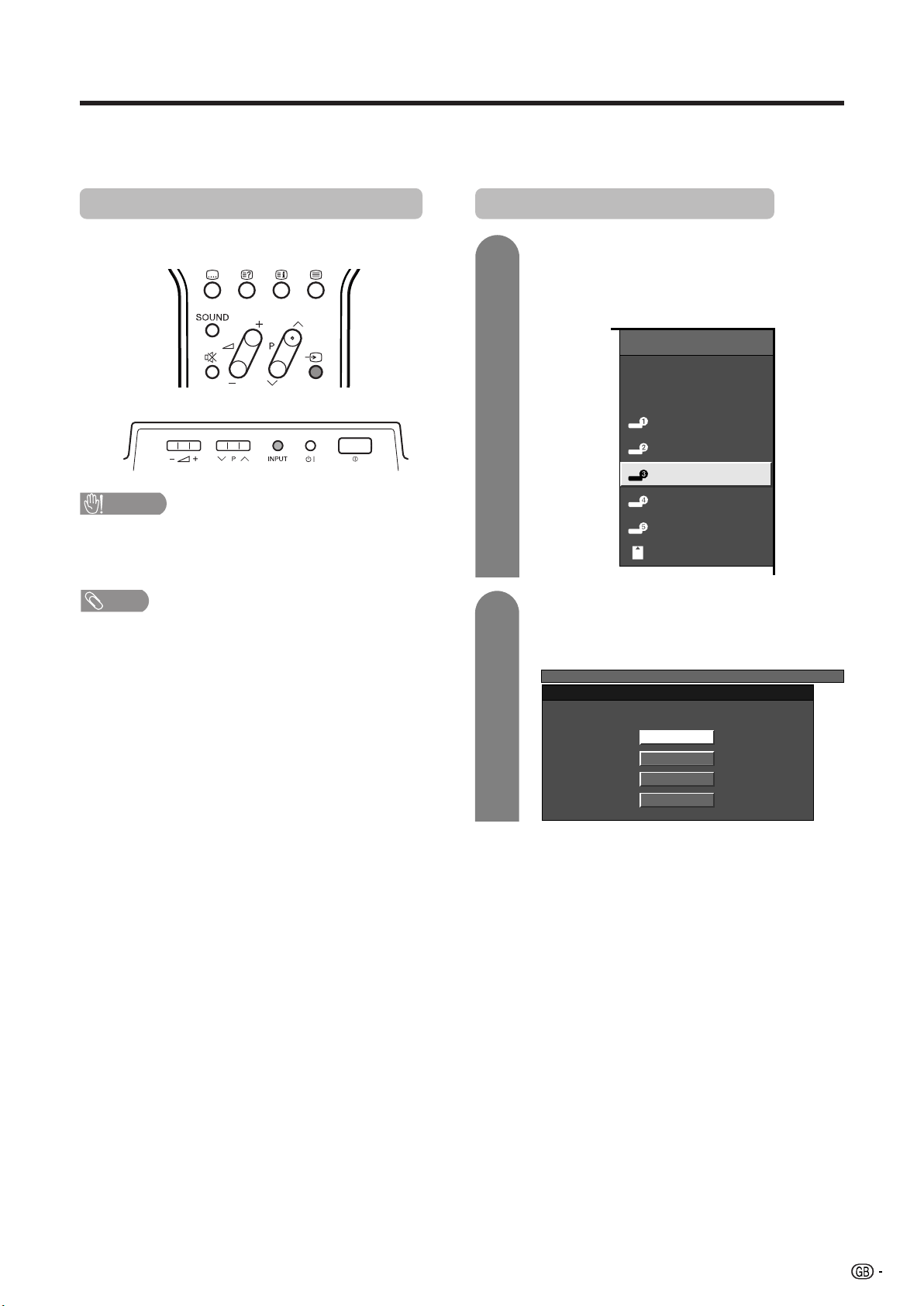

Simple button operation for changing volume/sound

Changing the volume

You can change the volume on the Display or on the remote control unit.

• To increase the volume, press i

• To decrease the volume, press i

Using e on the remote control unit

e mutes the current sound output.

Press e.

•“e” has been displayed on the screen for 30

minutes, and the sound is silenced.

Mute

NOTE

• “TV”, “DTV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4”, “INPUT5” and “CARD” modes can each store volume adjustment values separately.

When “Audio Out” is set to “Variable”, the indicator on the screen changes as shown below.

Audio status

Output device

Speaker

AV OUTPUT

Variable sound

Constant as

specified

Audio out

VariableFixed

Mute

Variable sound

NOTE

• Within 30 minutes of pressing e, mute can be cancelled

by using the methods below.

• Pressing i

• Mute will be cancelled after 30 minutes have elapsed.

However, the System will not suddenly output a loud sound as the volume level is set to 0 automatically.

f/i

e or e can also cancel the mute.

Within 30 minutes, Press e again to cancel the mute.

• Before 30 minutes, the volume level returns to the previous setting.

• After 30 minutes, increase the volume level by pressing ie.

NOTE

• See page 77 for details on the audio out function.

Basic adjustment settings (Analogue)

Menu operation buttons

Use the following buttons on the remote control to operate the menu.

On-Screen Display

Example

...

[

Audio Only

DNR

Input Select

Audio Out

Quick Shoot

Colour System

Centre Channel Input

Standby Recording

Option

Quick Shoot

1 Item displayed in yellow

• This indicates the item currently selected.

• Press OK to go to the adjustment screen for this item.

2 Item in brackets

• This indicates the current setting for the item.

[Off]

[CVBS]

[On]

[Auto]

[On]

[Off]

]

MENU: Press to open or close the menu

screen.

a/b/c/d: Press to select a desired item on the

screen or adjust a selected item.

OK: Press to go to the next step or

complete the setting.

RETURN: Press to return to the previous step.

CARD: Press to open or close the Card mode

screen.

DTV MENU: Press to open or close the DTV menu

screen.

3 Item displayed in white

• This indicates an item can be selected.

4 Item displayed in grey

• This indicates the item cannot be selected. *There are various reasons why items cannot

be selected, but the main reasons are as follows:

1. Nothing is connected to the selected input terminal.

2. The function is not compatible with the current input signal.

NOTE

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

Basic adjustment settings (Analogue)

TV/AV input mode menu items

List of AV menu items to help you with operations


OPC ................................................ Page 47

Backlight ........................................ Page 48

Contrast ......................................... Page 48

Brightness ..................................... Page 48

Colour ............................................ Page 48

Tint ................................................. Page 48

Sharpness ...................................... Page 48

Advanced

C.M.S. ................................... Page 49

Colour Temp ........................ Page 49

Black .................................... Page 49

3D-Y/C .................................. Page 50

Monochrome ....................... Page 50

Film Mode ............................ Page 50

I/P Setting ............................ Page 50

Audio

PC input mode menu items

List of PC menu items to help you with operations


OPC ................................................ Page 47

Backlight ........................................ Page 48

Contrast ......................................... Page 48

Brightness ..................................... Page 48

Red ................................................. Page 48

Green .............................................. Page 48

Blue ................................................ Page 48

Advanced

C.M.S. ................................... Page 49

Audio

Treble.............................................. Page 51

Bass ............................................... Page 51

Balance .......................................... Page 51

Dolby Virtual .................................. Page 51

Power Control

No Signal Off ................................. Page 52

No Operation Off ........................... Page 52

Setup

Auto Installation ............................ Page 25

Programme Setup .................. Pages 25-29

Child Lock ...................................... Page 78

Input Label ..................................... Page 71

Speaker Setup ............................... Page 68

Position .......................................... Page 69

WSS ................................................ Page 72

4:3 Mode ........................................ Page 72

Rotate ............................................. Page 76

Language ....................................... Page 47

Treble.............................................. Page 51

Bass ............................................... Page 51

Balance .......................................... Page 51

Dolby Virtual .................................. Page 51

Power Control

Power Management ...................... Page 52

Setup

Input Label ..................................... Page 71

Speaker Setup ............................... Page 68

Input Signal ................................... Page 75

Auto Sync. ..................................... Page 69

Fine Sync. ...................................... Page 70

Rotate ............................................. Page 76

Language ....................................... Page 47

Option

Audio Only ..................................... Page 69

DNR ................................................ Page 75

Input Select.................................... Page 70

Audio Out ....................................... Page 77

Quick Shoot ................................... Page 75

Colour System............................... Page 71

Centre Channel Input ................... Page 79

Standby Recording ....................... Page 76

Option

Audio Only ..................................... Page 69

Input Select.................................... Page 70

Audio Out ....................................... Page 77

Quick Shoot ................................... Page 75

Centre Channel Input ................... Page 79

Standby Recording ....................... Page 76

Basic adjustment settings (Analogue)

Auto installation

You can run auto installation again, even after setting up the preset channels.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Installation”, and then press OK.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Input Label

Speaker Setup

Position

WSS

4:3 Mode [Panorama]

Rotate

Language

Auto Installation

[Normal]

[English]

]

[On]

If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

––––

Programme setup

You can run the auto installation procedure again at any time, by accessing the Setup menu, then Programme Setup. Channels can be tuned automatically or manually.

Auto search

You can also automatically search and download TV channels by performing the procedure below. This is the same function as from programme auto search to preset download in auto installation.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Input Label

Speaker Setup

Position

WSS

4:3 Mode [Panorama]

Rotate

Language

Programme Setup

[Normal]

[English]

]

[On]

Press a/b to select “Auto Search”, and then press OK.

Press c/d to select “Yes”, and then press

OK.

You can set language and country the same as in the initial auto installation. Follow steps 1 and 2 on page 13. After this setting, auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

You do not need to do anything during the auto search.

NOTE

• Do not turn off the System while the message “Auto Installation completed” is displayed, for the System is saving the data found while the message is displayed.

Press c/d to select “Yes”, and then press OK.

• Auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

NOTE

• See page 13 for details.

• Do not turn off the System while the message “Programme set-up completed” is displayed, for the System is saving the data found while the message is displayed.

Basic adjustment settings (Analogue)

[

Setup

...

Programme Setup

...

Manual Adjust

]

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

[179.25]

[AUTO]

[B/G]

[Off]

[SAT.1]

[Off]

Booster [Off]

179.25 MHz

Manual setting for each channel

You can set some channel items manually. They are Fine (TV frequency), Colour sys., Sound sys., Label (Network name), Skip, Decoder, Lock (Child Lock) and Booster.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press a/b to select “Manual Adjust”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Programme Setup “Manual Adjust” menu

Fine tuning

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Fine”, and then press

OK.

Press c/d to adjust the frequency, and then press OK.

• Adjust while checking the background picture

• Instead of the above, you can also set by

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s OK.

as a reference.

directly entering the frequency number of the channel with 0 – 9.

01 SAT.1 02 PR07 03 KABEL

NOTE

• When you exit Programme Setup “Manual” menu, preset download automatically runs if you change information on that menu.

You can select one of the following settings.

1 Fine 2 Colour system (See page 27.) 3 Sound system (See page 27.) 4 Label (See page 27.) 5 Skip (See page 28.) 6 Decoder (See page 28.) 7 Lock (See page 28.) 8 Booster (See page 28.)

Basic adjustment settings (Analogue)

Manual setting for each channel (continued)

Colour system

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Colour sys.”, and then press OK.

• Receivable colour systems are listed.

Colour system menu

...

[

Setup

Programme Setup

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b to select the optimum colour system, and then press OK.

Sound system (Broadcasting system)

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

...

Manual Adjust

]

AUTO

PAL

SECAM

NTSC 4.43

PAL-60

Labelling channels

When a TV channel sends its Network Name, the auto installation detects the information and assigns a name to it. However, you can change individual channel names.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Label”, and then press OK.

• Alphabets and numbers are listed.

Labelling menu

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b/c/d to select each character

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

– _

0123456789

CLEAR

BACK

END

of the new name for the channel, and then press OK.

Repeat the above until the name is fully spelt out.

• The name can be 5 characters or less.

Press a/b to select “Sound sys.”, and then press OK.

• Receivable sound systems (Broadcasting systems) are listed.

Sound system menu

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b to select the optimum sound

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

B/G

D/K

L’

system, and then press OK.

NOTE

• Check the colour system (see above) if the sound output is not right.

Basic adjustment settings (Analogue)

Manual setting for each channel (continued)

Skipping channels

Channels with “Skip” set to “On” are passed over when using Pr/Ps even if selected while watching the image from the TV.

Setting the decoder

When connecting a decoder to the unit, you need to assign the terminal input.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Skip”, and then press OK.

• Skip menu displays.

Skip menu

...

[

Setup

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Programme Setup

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

...

Manual Adjust

]

Off

Press a/b to set “Skip” to “On”, and then press OK.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Setting the child lock

You can block the viewing of any channel.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Lock”, and then press OK.

• Child lock menu displays.

Lock menu

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b to set “Lock” to “On”, and then press OK.

NOTE

• See page 78 for setting PIN.

• When “Lock” is set to “On” for a channel, “Child lock has been activated.” displays , and the image and sound of the channel is blocked.

• When pressing OK while “Child lock has been activated.” displays, PIN input menu will display. Inputting the correct PIN lifts the child lock temporarily until the power is turned off.

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

Off

Setting the booster

Picture quality may improve in regions with weak signal strength using this function.

Press a/b/c/d to select the channel you want to edit, and then press OK.

Press a/b to select “Decoder”, and then press OK.

• Terminal inputs information displays.

Decoder menu

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b to set “Decoder” to “INPUT1”,

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

“INPUT2” or “INPUT3”, and then press OK.

NOTE

• “Off” is factory preset value.

• “INPUT1” is the recommended selection.

Off

INPUT1

INPUT2

INPUT3

Press a/b to select “Booster”, and then press OK.

• Booster menu displays.

Booster Menu

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b to set “Booster” to “On”, and then

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

Off

press OK.

NOTE

• If signal strength is strong enough for the selected channel, the effect is negligible and may produce instability. In such case, select “Off”.

Basic adjustment settings (Analogue)

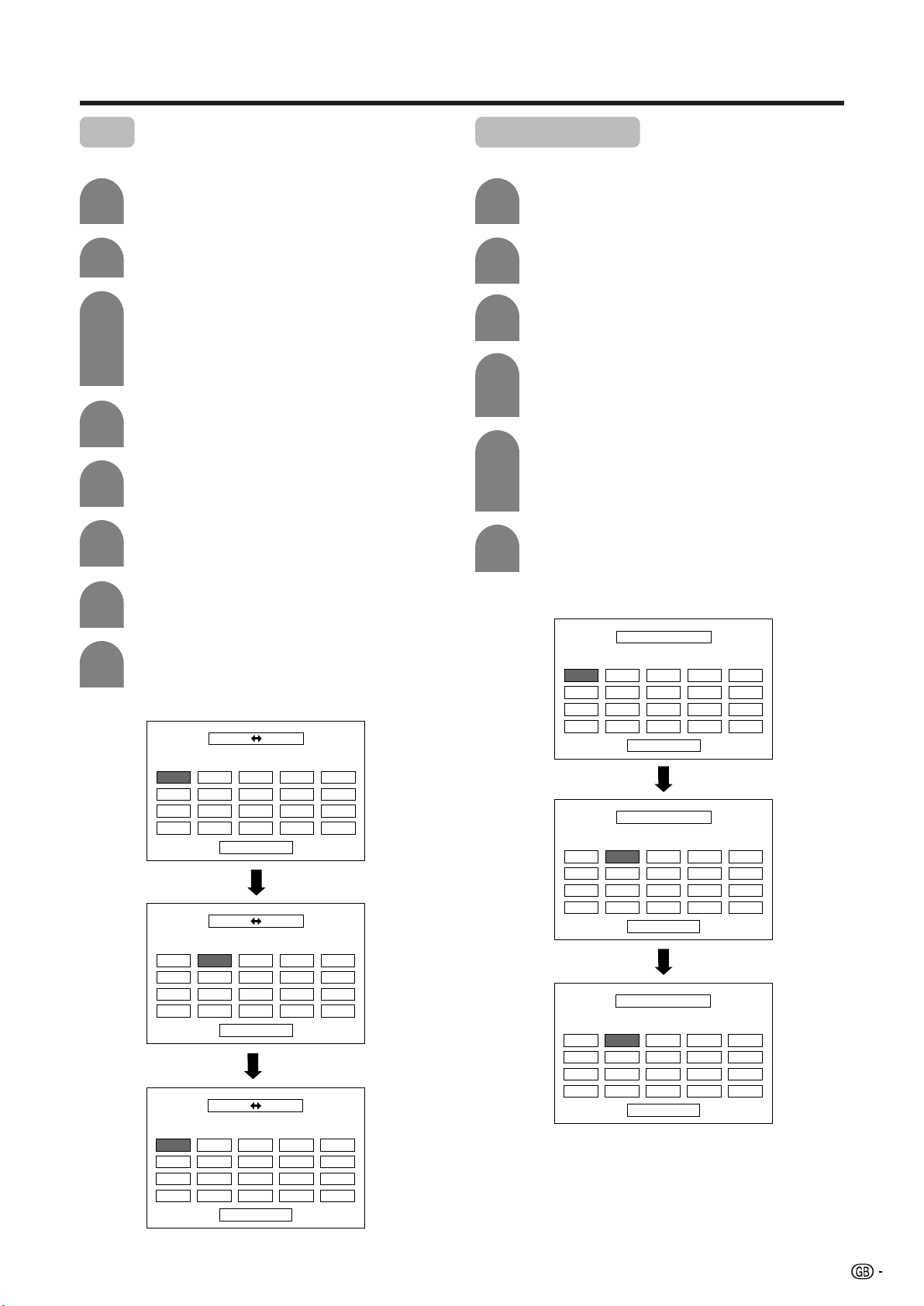

Sort

Channel positions can be sorted freely.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press a/b to select “Sort”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Press a/b/c/d to select the channel you want to move, and then press OK.

Erase Programme

The individual programme can be erased.

Repeat steps 1 to 3 in Sort.

Press a/b to select “Erase Programme”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Press a/b/c/d to select the channel you want to erase, and then press OK.

• A message screen pops up.

Press c/d to select “Yes”, and then press OK to erase the selected programme. All the subsequent programmes move up.

Repeat the step 5 until all desired channels are erased.

Move it to the desired position by pressing a/b/c/d, and then press OK.

Repeat the steps 6 and 7 until all desired channels are sorted.

Sort menus

01 SAT.1

0106SAT.1 KABEL

02 03 04 05

01 SAT.1 02 KABEL

01 SAT.1 KABEL02

01 KABEL

Erase programme menus

01 SAT.1

SAT.1

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 03 KABELPro702

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Pro702 KABEL03 04 05

02 Pro7

04 05

02 KABEL

03 04 05

01 KABEL SAT.102

Basic adjustment settings (Digital)

DTV input mode menu items

List of DTV menu items to help you with operations.

Numbers within brackets indicate the page where the topic is explained.

Guide (RED)

Theme [38] Mode [39]

Setup (GREEN)

Preference (BLUE)

Service lists Service list type

TV service lists

Radio services lists

System setting

Installation

Access restrictions Maturity rating [36]

Audio lang. [39]

Subtitle lang. [40]

Languages

Time Zone [31]

Banner duration [33] Country [43]

Service scan Search [31]

Reinstall all services [36] System software [43] Software download [44]

TV services [37] Radio services [37]

Rearrange TV services [41] New TV services [41]

Installed TV services [42]

Uninstalled TV services [42] Rearrange radio services [41]

New radio services [41]

Installed radio services [42]

Uninstalled radio services [42] Audio [34]

Subtitle [35]

Teletext [35]

Found TV services [32]

Found radio services [32]

Store [33]

Discard [33]

NOTE

• mark indicates in some cases PIN input may be required.

• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual operations.

Selecting DTV mode

Press DTV MENU to directly display DTV menu screen. Press b to access DTV mode.

About colour buttons

Press DTV MENU to display the DTV Menu screen.

Guide Setup Preference

Simply press colour button (RED/GREEN/BLUE) to directly display desired DTV menu.

Guide: RED button Setup: GREEN button Preference: BLUE button

Basic adjustment settings (Digital)

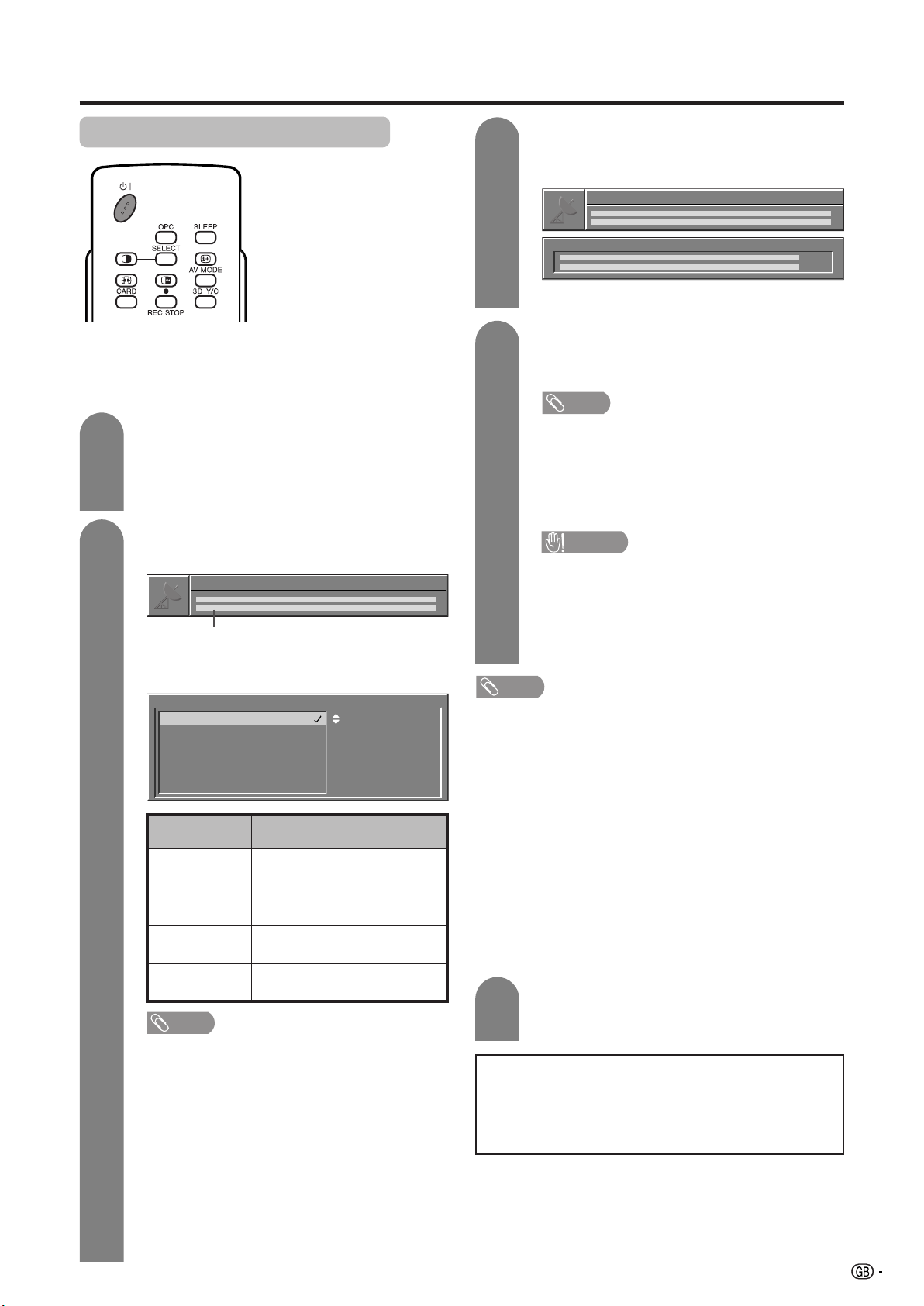

Time Zone

Select the time zone where your TV is installed.

Press DTV MENU to display the DTV Menu screen.

Guide Setup Preference

Press the GREEN button to display the Setup menu.

You can also search and download TV channels while keeping the original channel information by performing the procedure below.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Service scan”, and then press OK.

Press a/b to select “Search”, and then press OK.

If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press a/b to select “System setting”, and then press OK.

Press a/b to select “Time Zone”, and then press OK.

Press a/b to select the Time Zone where you are located, and then press OK.

Time Zone

[GMT] Lisbon, London

[GMT+ 1:00] Amsterdam, Berlin, Bern

[GMT+ 1:00] Brussels, Copenhagen

[GMT+ 1:00] Luxembourg, Madrid, Oslo

[GMT+ 1:00] Paris, Rome, Stockholm, Vienna

• This window may remain blank for a short period until services are found.

• If you only perform “Search”, you will not be able to watch programmes that were found. To watch programmes found by “Search”, you have to perform “Store”. For details about “Store” see page 33.

After “Search” is finished, press OK and “Store”.

NOTE

Basic adjustment settings (Digital)

Found TV services

The Found TV services function is used to see which new TV services were found after performing a search or after Reinstalling all services.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Service scan”, and then press OK.

Press a/b to select “Found TV services”, and then press OK.

Found TV services

Found radio services

Store

Discard

Found radio services

The Found radio services function is used to see which new radio services were found after performing a search or after Reinstalling all services.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Service scan”, and then press OK.

Press a/b to select “Found radio services”, and then press OK.

Found TV services

Found radio services

Store

Discard

Found TV services

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

Found radio services

999 - BBC PARLMNT

Basic adjustment settings (Digital)

Store

Store all found services.

NOTE

• This item can only be selected after performing “Search” or “Reinstall all services”.

Press DTV MENU to display the DTV Menu screen.

Press GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Service scan”, and then press OK.

Press a/b to select “Store”, and then press OK.

Found TV services

Found radio services

Store

Discard

Banner duration

You can set the time (in seconds) to display the banner.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “System setting”, and then press OK.

Press a/b to select “Banner duration”, and then press OK.

Press a/b to select the desired time, and then press OK.

Banner duration

• Unit: seconds

Press c/d to select “Yes”, and then press

OK.

Discard

Discard all services stored.

NOTE

• This item can only be selected after performing “Search” or “Reinstall all services”.

Press DTV MENU to display the DTV Menu screen.

Press GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Service scan”, and then press OK.

Press a/b to select “Discard”, and then press OK.

Press c/d to select “Yes”, and then press

OK.

Basic adjustment settings (Digital)

Info banner

You can see the info banner while you are watching a programme.

Press p.

1 BBC ONE 14:47

Health & Sport

Current affairs 13:30-13:45 Min. left: 0

• The banner display time will vary depending on its setting.

While the info banner is displaying, press p again to display the detailed programme information.

Audio

Select the default audio language for all services.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “System setting”, and then press OK.

Press a/b to select “Languages”, and then press OK.

Press a/b to select “Audio”, and then press OK.

Press a/b to select the desired language, and then press OK.

Audio

English

Español

Euskara

Français

Galego

• The info banner displays each time you change the channel.

• Some programmes do not contain any detailed programme information.

• It may take a few moments to download the info banner data.

Press p to turn off the info banner and the detailed programme information.

NOTE

• Languages listed may be different for each programme.

• For details about the language list see page

35.

Basic adjustment settings (Digital)

Subtitle

Select the default subtitle language for all services.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “System setting”, and then press OK.

Press a/b to select “Languages”, and then press OK.

Press a/b to select “Subtitle”, and then press OK.

Press a/b to select the desired language, and then press OK.

Subtitle

English

Español

Euskara

Français

Galego

Teletext

Select the default teletext language for all services.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “System setting”, and then press OK.

Press a/b to select “Languages”, and then press OK.

Press a/b to select “Teletext”, and then press OK.

Press a/b to select the desired language, and then press OK.

Teletext

English

Español

Euskara

Français

Galego

• Languages listed may be different for each programme.

• If you select “None”, no subtitles will be displayed.

• Languages listed in the list differ to each programme.

Language list

Basque Catalan Croatian Czech Danish Dutch English Finnish French Gaelic Gallegan German

Greek Italian Norwegian Polish Portuguese Russian Serbian Slovak Spanish Swedish Turkish Welsh

Basic adjustment settings (Digital)

Reinstall all services

Cancel all channel information then download and install again.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Reinstall all services”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press c/d to select “Yes”, and then press OK.

Reinstall all services

Yes No

Access restrictions

Allows you to set the PIN to limit viewing certain services and protect certain settings from being accidentally changed.

Maturity rating

This function allows TV and Radio services to be restricted. It prevents children from watching violent or sexual scenes that may be harmful.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Access restrictions”, and then press OK.

Press a/b to select “Maturity rating”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

After “Reinstall all services” is finished, press OK and “Store”.

• If you only perform “Reinstall all services”, you will not be able to watch programmes that were found. To watch programmes found by “Reinstall all services”, you have to perform “Store”. For details about “Store” see page 33.

• Universal viewing and Parental approval preferable only work in France.

• X-rated only works in Spain.

• For details about rating see page 90.

Press a/b to select the rating you want to set, and then press OK.

Maturity rating

None

age 4 years

age 5 years

age 6 years

age 7 years

NOTE

Basic adjustment settings (Digital)

TV services

Use this function to restrict certain TV services for viewing.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Access restrictions”, and then press OK.

Press a/b to select “TV services”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press a/b to select the TV services you want to restrict, then press c/d to select the programme, and then press OK.

TV services

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

Selecting programme

You can select a programme from the Preset list.

Press LIST.

Press a/b to select the desired programme, and then press OK.

Preset list

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

12 - BBC PARLMNT

997 - ZDFinfokanal

998 - ZDFdokukanal

999 - ZDF

Radio services

To perform “Radio services”, select “Radio services” instead of “TV services” in step 4 above and follow the same step 5 as explained in “TV services”.

Radio services

1 - BBC Radio 1

2 - BBC Radio 2

3 - BBC Radio 3

6 - BBC 6 Music

8 - BBC Asian Network

• Data is broadcast along with the regular TV programme.

1 BBC ONE 14:47

Health & Sport

Current affairs 13:30-13:45 Min. left: 0

NOTE

• When the DTV menu screen is displayed, the Preset list will not appear. In such case, press DTV MENU to turn off the DTV menu screen.

Basic adjustment settings (Digital)

Using EPG (Electronic Programme Guide)

You can select a programme from EPG while reading the programme information on the screen.

Press GUIDE.

Now Next

BBC ONE

Trading Treasures 13:45 Passport To The Sun

BBC TWO

Anthony Ant 13:45 UGetMe

BBC CHOICE

Newsround 13:45 House Invaders

BBC TEXT

Mona the Vampire 13:45 Neighbours

BBC NEW ...

BBC News 14:00 BBC World News

BBC ...

Home Affairs Committee 14:00 Home Affairs Committee

997

ZDFinfo...

Gesun dheit &Sport 14:00 Info aus den Landern

999

ZDFdok...

National Geographic 14:00 Streit um Drei

999

ZDF

Discovery

14:00 Heute - Sport

Setting the theme

You can categorise the programmes for easy channel selection.

Press GUIDE to display the EPG screen.

Now Next

BBC ONE

Trading Treasures 13:45 Passport To The Sun

BBC TWO

Anthony Ant 13:45 UGetMe

BBC CHOICE

Newsround 13:45 House Invaders

BBC TEXT

Mona the Vampire 13:45 Neighbours

BBC NEW ...

BBC News 14:00 BBC World News

BBC ...

Home Affairs Committee 14:00 Home Affairs Committee

997

ZDFinfo...

Gesun dheit &Sport 14:00 Info aus den Landern

999

ZDFdok...

National Geographic 14:00 Streit um Drei

999

ZDF

Discovery

Theme Mode

14:00 Heute - Sport

Press RED button to display the Theme screen.

Press a/b to select the desired category, then press c/d to activate and then, press OK.

• You can select multiple categories.

Theme Mode

Press a/b/ c/d to select a desired programme, and then press OK.

• Information of the selected programme is displayed on the banner.

NOTE

• Press EXIT to return to the normal screen from EPG screen without selecting a programme. You cannot return to the normal screen by pressing GUIDE.

General

Movie

News

Entertainment

Sports

Now Next

BBC ONE

Trading Treasures 13:45 Passport To The Sun

BBC TWO

Anthony Ant 13:45 UGetMe

BBC CHOICE

Newsround 13:45 House Invaders

BBC TEXT

Mona the Vampire 13:45 Neighbours

BBC NEW ...

BBC News 14:00 BBC World News

BBC ...

Home Affairs Committee 14:00 Home Affairs Committee

997

ZDFinfo...

Gesun dheit &Sport 14:00 Info aus den Landern

999

ZDFdok...

National Geographic 14:00 Streit um Drei

999

ZDF

Discovery

Theme Mode

14:00 Heute - Sport

• The categorised programmes are displayed in blue.

NOTE

• If no services are found or received, the theme screen will not appear.

Basic adjustment settings (Digital)

Mode

You can choose between TV and radio mode.

Press GUIDE.

Now Next

BBC ONE

Trading Treasures 13:45 Passport To The Sun

BBC TWO

Anthony Ant 13:45 UGetMe

BBC CHOICE

Newsround 13:45 House Invaders

BBC TEXT

Mona the Vampire 13:45 Neighbours

BBC NEW ...

BBC News 14:00 BBC World News

BBC ...

Home Affairs Committee 14:00 Home Affairs Committee

997

ZDFinfo...

Gesun dheit &Sport 14:00 Info aus den Landern

999

ZDFdok...

National Geographic 14:00 Streit um Drei

999

ZDF

Discovery

14:00 Heute - Sport

Audio language

You can select the preferred audio language from the list.

Press DTV MENU to display the DTV Menu screen.

Press the BLUE button to display the Preference menu.

Press the RED button to display the Audio language screen.

Audio lang. Subtitle lang.

Theme Mode

Press the GREEN button to change to radio mode.

Now Next

999

BBC...

House of Commons 13:45 House of Lords

Theme Mode

• Each time you press the GREEN button, the mode will change between TV and radio.

• When caution appears in radio mode screen, press EXIT to turn it off.

Press a/b to select the desired language, and then press OK.

Audio language

English

Español

Euskara

Français

Galego

• Languages listed may be different for each programme.

• This setting is disabled if the channel is changed or the programme is finished.

• For details about the language list see page

35.

Basic adjustment settings (Digital)

Subtitle language

You can select the preferred subtitle language from the list.

Press DTV MENU to display the DTV Menu screen.

Press the BLUE button to display the Preference menu.

Press the GREEN button to display the Subtitle language screen.

Audio lang. Subtitle lang.

Press a/b to select the desired language, and then press OK.

Subtitle language

English

Español

Euskara

Français

Galego

Service list type

You can select the original service list or a user-defined list.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Service lists”, and then press OK.

Press a/b to select “Service list type”, and then press OK.

Press a/b to select “Original list of services” or “User-definable list of services”, and then press OK.

Service list type

Original list of services

User-definable list of services

• Languages listed may be different for each programme.

• If you select “None”, no subtitles will be displayed.

• This setting is disabled if the channel is changed or the programme is finished.

• For details about the language list see page

35.

Selected item

Original list of services

User-definable list of services

NOTE

• When “Original list of services” is selected, the settings for “TV service lists” and “Radio service lists” are disabled and you cannot select “TV service lists”, “Radio service lists” and “Access restrictions” in the menu screen.

Original setting.

The setting user made is enabled.

Description

Basic adjustment settings (Digital)

Rearrange TV services

Channel positions can be sorted freely.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Rearrange TV services

1 - BBC TEXT

2 - BBC TWO

7 - BBC CHOICE

10 - BBC ONE

11 - BBC NEWS 24

Press a/b to select “Service lists”, and then press OK.

Press a/b to select “TV service lists”, and then press OK.

Press a/b to select the “Rearrange TV services”, and then press OK.

Press a/b to select the channel you want to move and press c/d to select the item.

Move it to the desired position by pressing a/b, and then press c/d.

Repeat the steps 6 and 7 until all desired channels are arranged.

Rearrange TV services

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

Rearrange radio services

To perform “Rearrange radio services”, select “Radio service lists” instead of “TV service lists” in step 4 above and follow the same steps 5 to 8 as explained in “Rearrange TV services”.

New TV services

Displays a list with all new installed TV services.

Repeat steps 1 to 3 in Rearrange TV Services.

Press a/b to select “TV service lists”, and then press OK.

Press a/b to select the “New TV services”, and then press OK.

Rearrange TV services

New TV services

Installed TV services

Uninstalled TV services

Rearrange TV services

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

New TV services

997 - ZDFinfokanal

998 - ZDFdokukanal

999 - ZDF

• The services found by search are listed.

New radio services

To perform “New radio services”, select “New radio services” instead of “New TV services” in step 2 above and follow the same step 3 as explained in “New TV services”.

Basic adjustment settings (Digital)

Installed TV services

You can confirm the installed services and delete the unwanted services from the TV service list.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Service lists”, and then press OK.

Press a/b to select “TV service lists”, and then press OK.

Press a/b to select the “Installed TV services”, and then press OK.

Press a/b to select the channel you want to delete from the list, then press c/d to select the item, and then press OK.

• The channel you deleted is moved to Uninstalled TV service list.

Installed TV services

1 - BBC ONE

2 - BBC TWO

7 - BBC CHOICE

10- BBC TEXT

11 - BBC NEWS 24

Uninstalled TV services

You can confirm the uninstalled services and put the services back to the TV service list.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Service lists”, and then press OK.

Press a/b to select “TV service lists”, and then press OK.

Press a/b to select the “Uninstalled TV services”, and then press OK.

Press a/b to select the channel you want to put to the installed TV services list, then press c/d to select the item, and then press OK.

Uninstalled TV services

BBC ONE

BBC TWO

BBC CHOICE

BBC TEXT

BBC NEWS 24

Installed radio services

To perform "Installed radio services", select "Radio service lists" instead of "TV service lists" in step 4 above and follow the same steps 5 and 6 as explained in "Installed TV services".

Uninstalled radio services

To perform “Uninstalled radio services”, select “Radio service lists” instead of “TV service lists” in step 4 above and follow the same steps 5 and 6 as explained in “Uninstalled TV services”.

Basic adjustment settings (Digital)

Country

Select the country where you are located.

The following information is supported by selecting country:

• The logical channel numbering.

• The frequency band to be scanned during service scan.

• The maturity rating settings to be used.

• The time zone to be used.

• The daylight saving time period to be used.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Country”, and then press OK. If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

• See page 78 for setting PIN.

Press a/b to select the country where you are located, and then press OK.

Country

Spain

Sweden

Switzerland

Turkey

United Kingdom

NOTE

System software

Displays System Software version information.

Press DTV MENU to display the DTV Menu screen.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “System software”, and then press OK.

Country

Service scan

Reinstall all services

System software

Software download

Example

System software

V1.0

• The version number may be different dependent on the installed software.

Basic adjustment settings (Digital)

Using Over Air Download function

The software for controlling the built-in DTV decoder can be upgraded when necessary. In Great Britain this can be achieved via an Over Air Download. To make use of this function it needs to be enabled in the “Setup” menu.

Preparation

• If the user would like to make use of this facility, it is necessary to set the “Software download” function to “Yes”.

Enabling Software download

Press DTV MENU while the TV set is receiving a digital TV programme. DTV MENU screen appears.

Press the GREEN button to display the Setup menu.

Press a/b to select “Installation”, and then press OK.

Press a/b to select “Software download”, and then press OK.

To enable the “Over Air Download”, press c/d to select “Yes” and then press OK.

Software download

Yes No

GREEN

Basic adjustment settings (Digital)

Performing Over Air Download

Use the remote control to enter standby mode.

Preparation

• Please confirm the current system software version and note it down. This is available via the “System software” option. See page 43.

The Update Information for the “Over Air Download” automatically appears while you are viewing a DTV program, when a new version is available. (The forwarded schedule changes the Update Information display.)

A confirmation message for the Update Information appears.

Software download

The message shows the time of software update.

• Confirm the update time and note it down.

• You can start software update immediately when no information on the update time is provided.

Please choose

Ask again later

Accept this software

Reject this software

B button on the

Select

Store

EXIT

End

With “Accept this software” selected in step 2, the screen now shows the time of next software update.

Software download

Press OK to accept.

• Press OK to return to normal screen.

After the setting is complete, the System will automatically execute Software Download while you are away.

NOTE

• If the message prompts you to turn the System off once and then on to start the update, press B to enter standby and press B again to turn back on.

• After the power on the screen automatically switches to the download channel and download screen opens.

CAUTION

• Do not use MAIN POWER ( to turn the System off or disconnect the AC cords when the software update is programmed. Doing so may cause the update to fail. If problem arises ask a qualified service personnel until the software update period expires.

NOTE

• The software update may take about 30 minutes, but may take longer (up to 1 hour) depending on the signal status. While updating, you can switch to TV or external input mode or enter standby mode using control unit.

X) on the Display

B on the remote

Selected item

Ask again later

Accept this software

Reject this software

NOTE

• If you select “Ask again later” the same message appears each time when the power is turned on with DTV input mode selected.

• We recommend that you select “Accept this software” and perform the update.

• If you select “Reject this software” and press OK, this version update will not be available again for download. (Update Information for this version will not appear again.) However, the “Over Air Download” notification will automatically appear again when a new version of software becomes available.

Use this option to perform the download at a more convenient time. The options will appear again when the power is next turned on with DTV input mode selected.

Performs a download this time.

Does not download this software version.

Description

Select from the available options you choose and confirm by pressing OK.

If Software Download starts while you are watching analogue TV broadcasts:

• The screen alerts you and the update will start automatically.

• To cancel the download, switch to the DTV mode and follow the messages displayed on screen.

If Software Download starts while you are watching DTV broadcasts:

• A confirmation message appears and the update will start by following the messages displayed on screen.

• To cancel the download, select “No”, and then press OK.

To confirm that the update was successful start the System Software (see page 43) and check the version number .

DO NOT turn off the power using

MAIN POWER (

X) on the Display

while software update is in progress.

This may lead to serious damage.

Basic adjustment settings (Digital)

Icons

345

1 General EPG icon.

2 Indicates that at least one theme is selected.

3 Indicates that additional event information is

available.

4 Indicates that at least one subtitle language is

available.

5 Indicates that at least two audio languages are

available.

6 General setup menu icon.

Common Interface

A single DVB Common Interface (CI) will be implemented to allow adoption of a Conditional Access (CA) system by means of a plug-in CA module. Scrambled Broadcasting service can be routed via the CA system. If the CA system on the CI module requires a smartcard reader, this reader shall be part of the CI module.

Common Interface Module

CA card

When the compatible CA card is inserted, you can view the programme without any operations.

When the compatible card is not inserted:

1 Select the programme which needs the compatible

CA card.

• The caution screen appears

2 Insert the compatible CA card.

• The caution screen disappears and you can view the programme.

CA system supported by

Crypto Works MediaGuard VIAccess Conax Nagra Vision Irdeto

NOTE

• To view paid TV broadcasting, you need to make a contract with a service provider. Please contact a service provider for details.

• The Common Interface Module and the CA card are neither supplied nor optional accessories.

Basic adjustment settings (Analogue/Digital)

Language setting for on-screen display

You can also select a language from setup menu. Select from among 10 languages: English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Finnish and Turkish.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then press OK.

Press a/b/c/d to select the desired language listed on the screen, and then press OK.

Language list

Dutch English Finnish French German

Italian Portuguese Spanish Swedish Turkish

OPC setting

Automatically adjusts the brightness of the screen.

Using OPC on the remote control unit

Press OPC to switch the Optical Picture Control on and off.

Using OPC on the menu screen

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

• When set to “On”, the System senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

Selected item

Off

Press a/b to select “OPC”.

Press c/d to select “On”.

NOTE

Description

The brightness is fixed at the value set in “Backlight” (see page 48).

Automatically adjusts

Basic adjustment settings (Analogue/Digital)

Picture adjustments

Adjust the picture to your preference with the following picture settings.

[

]


Picture Audio

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Adjustments items for PC sourceAdjustments items for AV source

[

]


Picture Audio

USER [TV]

OPC

Backlight [+8] –8

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Colour

Off On

[+30]

[0]

–30

[0]

–30

[0]

–30

[0]

–10

cbutton

The screen dims

For less contrast

For less brightness

For less colour intensity

+40

+30

+10

dbutton

The screen brightens

For more contrast

For more brightness

For more colour intensity

USER [PC]

OPC

Backlight [+8] –8

Contrast

Brightness

Red

Green

Blue

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Red

Off On

[+30]

[0]0–30

[0]

–30

[0]

–30

[0]

–30

cbutton

The screen dims

For less contrast

For less brightness

For weaker red

+40

+30

dbutton

The screen brightens

For more contrast

For more brightness

For stronger red

Tint

Sharpness

Skin tones become purplish

For less sharpness

Skin tones become greenish

For more sharpness

NOTE

• Select “Advanced” and then press OK to set “C.M.S-Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Colour Temp”, “Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or “I/P Setting”. See pages 49 and 50.

Green

Blue

For weaker green

For weaker blue

For stronger green

For stronger blue

NOTE

• Select “Advanced” and then press OK to set “C.M.S-Hue”, “C.M.S-Saturation” and “C.M.S-Value”.

Basic adjustment settings (Analogue/Digital)

C.M.S. (Colour Management System)

Colour tone is managed using the six-colour adjustment setting.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press OK.

Press a/b to select “C.M.S.-Hue”, and then press OK.

Press a/b to select a specific adjustment item.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Changing reds

closer to

magenta or yellow.

Reset

–30

[ 0]

–30

[ 0]

–30

[ 0]

–30

[ 0] –30

+30

Colour temperature

Adjusts the colour temperature to give the best white image.

Repeat steps 1 to 3 in C.M.S. (Colour Management System).

Press a/b to select “Colour Temp”, and then press OK.

Press a/b to select the desired level, and then press OK.

Selected item

High Mid-High Mid Mid-Low Low

Description

White with bluish tone

White with reddish tone

Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Repeat steps 1 to 3 in C.M.S. (Colour Management System).

• You can select “C.M.S-Saturation” or “C.M.SValue” here instead of selecting “C.M.S-Hue”.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Selected item

C.M.S-Hue

C.M.SSaturation

C.M.S-Value

This is a standard to adjust the colour either more reddish or more bluish in tone.

Increases or decreases the saturation of a selected colour

A higher value makes the image brighter. A lower value makes the image darker.

Description

Press a/b to select “Black”, and then press

OK.

Press a/b to select “On”, and then press OK.

C. M. S. – Hue

C. M. S. – Saturation

C. M. S. – Value

Colour Temp

Black

3D - Y/C

Monochrome

Film Mode

I/P Setting

Selected item

Off On

On Off

Description

No adjustment

For high detail in black portions

Basic adjustment settings (Analogue/Digital)

3D-Y/C

Provides high quality images with minimal dot crawl and cross colour noise.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press OK.

Press a/b to select “3D-Y/C”, and then press OK.

C. M. S. – Hue

C. M. S. – Saturation

C. M. S. – Value

Colour Temp

Black

3D Y/C

Monochrome

Film Mode

I/P Setting

Standard

Fast

Slow

Monochrome

For viewing a video in monochrome.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “Monochrome”, and then press OK.

Press c/d to select “On”, and then press

OK.

NOTE

• When Monochrome is set to “On”, the menu screen in DTV mode displays in monochrome.

Film mode

Automatically detects a film-based source (originally encoded at 24/25 frames/second, depending on the vertical frequency), analyses it then recreates each still film frame for high-definition picture quality.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select the desired level, and then press OK.

Selected item

Standard Fast Slow

NOTE

• “3D-Y/C” is not selectable depending on the input signal type.

Normal adjustment

For movie image

For still image

Description

Activating 3D-Y/C on the remote control unit

Press 3D-Y/C to switch the 3D-Y/C function on and off.

NOTE

• “3D-Y/C” is set to “On” when the System is turned back on.

• 3D-Y/C may not operate depending on the input signal type.

Press a/b to select “Film Mode”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press c/d to select “On”, and then press

OK.

I/P setting

Adjusting the image and input signal can give you a more beautiful picture.

• The I/P Setting is set to Progressive when Film Mode is “On”.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “I/P Setting”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press c/d to select “Interlace” or “Progressive”, and then press OK.

NOTE

Basic adjustment settings (Analogue/Digital)

Audio adjustment

You can adjust the sound quality to your preference with the following settings.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

Audio

Audio Power Control

USER [TV]

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

Press a/b to select a specific adjustment item.

+15

[Off]

Dolby Virtual

You can also produce Dolby Virtual effects from the “Audio” setting.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Dolby Virtual”, and then press OK.

...

[

Audio

Audio Power Control

Dolby Virtual

]

USER [TV]

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

+15

[Off]

Press c/d to adjust the item to your desired position.

Selected item

Treble

Bass

Balance

NOTE

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press OK, press c/d to select “Yes”, and then press OK.

• Audio menu items are greyed out when Audio output is variable or when headphones are in use.

• Balance is greyed out when Dolby Virtual is set to “On”.

cbutton

For weaker treble

For weaker bass

Decrease audio from the right speaker

dbutton

For stronger treble

For stronger bass

Decrease audio from the left speaker

Press c/d to select “On”, and then press

OK.

NOTE

• Audio menu items are greyed out when Audio output is variable or when headphones are in use.

• External Audio Bypass is greyed out when Dolby Virtual is set to “On”.

• Balance is greyed out when Dolby Virtual is set to “On”.

• For some discs, setup may be required on your DVD. In this case, please refer to the operation manual of your DVD player.

• You may not get the Dolby Virtual Surround effect if you adjust “Treble” or “Bass” setting.

Basic adjustment settings (Analogue/Digital)

Power control

Power control setting allows you to save energy.

Power control for AV source

No Signal off

When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “No Signal Off”, and then press OK.

Press c/d to select “Enable”, and then press OK.

• Five minutes before the power shuts down, remaining time displays every minute.

Power control for PC source

Power control setting allows you to save energy.

Power management

When set, the power will automatically shut down.

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “Power Management”, and then press OK.

Press a/b to select “Mode1” or “Mode2”, and then press OK.

Off

Mode1

Mode2

NOTE

• “Disable” is factory preset value.

• When a TV programme finishes, and the AVC System receives signal input, this function may not operate.

No Operation off

When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.

Press MENU and the MENU screen displays.

Press c/d to select “Power control”.

• Power control menu displays.

Press a/b to select “No Operation Off”, and then press OK.

Press c/d to select “Enable”, and then press OK.

• Five minutes before the power shuts down, remaining time displays every minute.

Selected item

Off

Mode1

Mode2

Description

• No power management

• Factory preset value.

• If no signal inputs for 8 minutes, the power shuts down.

• Even if you start using the PC and the signal inputs again, the System stays off.

• The System turns on again by pressing STANDBY/ON button on the Display or B on the remote control unit. (See page 19.)

• If no signal inputs for 8 seconds, the power shuts down.

• When you start using the PC and the signal inputs again, the System turns on.

• The System turns on again by pressing STANDBY/ON button on the Display or B on the remote control unit. (See page 19.)

NOTE

• “Disable” is factory preset value.

Using memory card

Important notes on using memory cards

• Sharp cannot be held responsible for misuse of the LCD TV set, any troubles during use, or other problems, or any damages arising out of the use of the LCD TV set, except for those cases for which Sharp is liable by law.

• If you or other people misuse the LCD TV set, or the LCD TV set is affected by static electricity or electrical noise, the recorded data may be in danger of being changed or lost.

• If you are making an important recording, run a test in advance to ensure that the recording would be performed correctly in terms of picture or sound quality.

• Sharp cannot be held responsible nor make any compensations even if pictures or sound cannot be recorded correctly because of any troubles when using the LCD TV set.

Note:

For U.K.

•Recording and playback of any material may require consent. Please refer particularly to the provisions of the Copyright Act 1956, the Dramatic and Musical Performers Protection ACT 1958, the Performers Protection Acts 1963 and 1972 and to any subsequent statutory enactments and orders.

For Europe

•Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to relevant law in your country.

Duplicating images and music by copying and/or editing from videocassettes and/or TV programmes that are subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With the exception of cases when the user personally is the owner of the copyrights of the object in question or when specific and written permission has been obtained from the owner(s) of the object in question, the user is not permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copyright laws, possible exposing the user to demands for compensation for damages. Therefore, be sure to strictly observe the existing copyright laws. In addition when using image data that includes third parties, since the use of such images without prior permission may constitute an intrusion on the privacy of third parties, be sure to refrain from such usage.

The recording formats

Still picture

Motion picture

* Motion picture files and still image files recorded, stored or edited with other devices may not play back correctly.

Recording/Playback file format

Size of a captured still picture

Recording file format

Size of a recorded motion picture/number of frames

Playback file format

JPEG (DCF compliant) 640g480 dots

SP/LP... ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)

EP........ ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

SP ... Size: 320g240 dots, Frame: approx. 25 frames/sec (50 Hz) LP ... Size: 320g240 dots, Frame: approx. 25 frames/sec (50 Hz) EP ... Size: 320g240 dots, Frame: approx. 12.5 frames/sec (50 Hz)

ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

Approximate number of recordable pictures/time

Still pictures

Picture size

Recordable Pictures

* Recordable numbers may vary depending on the receiving condition of the LCD TV set and/or content of images.

640g480

Approx. 300 pictures

32MB

Memory card

128MB

Approx. 1000 pictures

Motion pictures

Memory card capacity

256MB

Approx. 1h

5GB

Approx. 4h

Approx. 10h

Approx. 25h

Recordable time

Picture size

320g240 320g240 320g240

Recording mode

Approx. 10 min.

Approx. 30 min.

• Recordable time may vary depending on receiving condition of the LCD TV set or content of images.

• The maximum amount of data you can record on a memory card is 1,000 pictures in total including still and motion pictures.

• Files in excess of 4GB and files exceeding 12 hours of recording time cannot be recorded and/or played back.

Using memory card

You can use memory cards (commercially available) for recording and playing back pictures.

• Please use an appropriate PC card adapter (commercially available) for each memory card.

• Following memory cards are available. (Note that names for memory cards vary depending on manufacturers.)

Memory card name

SD Memory Card

mini SD™ Card

CompactFlash

MultiMediaCard

SmartMedia

Memory Stick

Memory Stick PRO

Microdrive

xD Picture Card

PC Card Hard Disk

Storage capacity

512 MB or less

32 MB or less

2 GB or less

128 MB or less

1 GB or less

2 GB or less

128 MB or less

5 GB or less

* Each memory card name is a trademark. * The capacity of memory card is approximate. The

capacity varies depending on the manufacturer.

• To read picture files recorded with digital cameras, use the PC card adapter recommended by the corresponding manufacturer. (The names for PC card adapters vary depending on manufacturers.)

• For directions for use of digital cameras or PC card adapters, please refer to the operation manual provided for each product.

• Depending on the card or adapter used, normal operation may not be possible.

You can playback DCF compliant JPEG pictures captured with other devices in the card playback mode.

• DCF (Design rule for Camera File system) is a standard of the Japan Electronics and Information Technology Industries Association (JEITA). This standard specifies the image file format used for images shot with a digital camera.

• Some motion pictures recorded with other devices may not be played back correctly.

Commercially available memory cards

SD Memory

Card

mini SD™ Card

MultiMediaCard

CompactFlash

SmartMedia

• Please use an appropriate PC card adapter (commercially available) for each memory card.

Preparing a memory card

Insert a memory card (commercially available) into a PC card adapter (commercially available).

Example: Inserting the SD memory card into a PC card adapter.

PC card adapter

Memory Stick Memory Stick

PRO

PC Card

Hard Disk

xD Picture Card

Microdrive

Notes on using memory cards and PC card adapter

Please note the following when using memory cards and PC card adapters to avoid corruption of data or malfunction of the LCD TV set.

• If you use memory cards other than those shown above, recording or playing back pictures are not guaranteed.

• Some PC card adapters have restrictions of memory card capacity. Refer to the relevant operation manual for such restrictions.

• Some pictures which have been created, modified, or copied on your PC may not be played back.

• Please be sure to turn off the LCD TV set when you insert or remove a PC card adapter.

• Do not bend, drop or apply a shock to memory cards or PC card adapters.

• Keep memory cards or PC card adapters away from heat, water or direct sunlight.

• Do not dismantle or modify memory cards or PC card adapters.

• Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card adapters.

• Do not turn the LCD TV set off while a memory card is in operation (e.g. playing back, recording or displaying a slideshow).

• The recorded data may be erased or changed due to incorrect operation, the influence of static electricity and electrical noise, therefore be sure to back-up the data regularly.

• Be sure to back-up important files using other media such as a PC.

Using memory card

Card Setup mode menu items

Press the CARD button first to access following items.

Still Setup Slide Show Setup

Interval

1-10/15/20/25/30/ 45/60 Sec.

15/30/60 Min.

Card

Video Setup

Format

Slide show operation panel Motion picture operation panel

CARD - STILL

SLIDE SHOW

1 Rotate the image

2 Pause

3 Go to previous image

4 Start slide show

5 Stop slide show

6 Go to next image

My Programme

Audio Select

Edit

Rec. Mode

Pre-recording

Repeat

Edit

Yes/No

0001/0045 ORDER:NORMAL REPEAT:OFF

PREV.

345 6

Order

Normal/Random/ My Programme

Repeat

On/Off

Setup/Erase

Off/TV/DTV/Input1-Input5

Protect/Delete File/ Delete All

SP/LP/EP

On/Off

Off/File/All

Protect/Delete File/Delete All

12345

CARD - VIDEO

Play

Mode : SP

00:15:25

PLAY

0001/0045 REPEAT:OFF

6 7 8 9 10 11 12 13

1 Action

2 Go back to the beginning

of the file

3 Pause

4 Repeat playback setting

5 Go to the beginning of the

next file

6 Recording mode

7 Counter

8 Current action

9 Reverse

10 Playback

11 Stop

12 Fast forward

13 Slow playback

Precautions when playing back PC image data on the LCD TV

Recording formats of image data:

When recording image data on the LCD TV, the recording formats are as follows.

• When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card, the SD_VIDEO recording format is recognised.

• When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the

DCIM recording format is recognised.

When playing the card, record PC data in a recording format the LCD TV can recognise.

1. When copying motion pictures from a PC to a card recorded with the LCD TV, only play these pictures after placing

them in the SD_VIDEO folder.

2. When copying still pictures from a PC to a card recorded with the LCD TV, only play these pictures after placing

them in the DCIM folder.

3. When using a new card for copying motion pictures, first format the card and create an SD_VIDEO folder before

placing the data in the folder for playback.

4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the

data in the folder for playback.

When creating, revising, or copying images using your PC, the edited images may not playback correctly.

Using memory card

Inserting a PC card adapter

• Press in the EJECT button if it is popped out.

• Insert a memory card to a PC card adapter beforehand. (See page 54.)

• Insert the PC adapter card slowly.

CARD indicator

PC CARD slot

• CARD indicator lights up green when the card is

inserted.

NOTE

• When “Card is not inserted” is displayed, eject the PC

card adapter, and then insert the PC card adapter slowly all the way to the end.

• When over a thousand files are in a card, it takes several

minutes to load. (approx. 5 minutes.)

• Even if the green light is on, you can not record on a card

right after you inserted it.

• Make sure the CARD indicator lights green when you take

out a card. Never take out a card when the CARD indicator lights red. This may damage the card.

Ejecting the card

• Make sure the card indicator lights up green.

Recording a still image

You can record a still image on the card.

Press d.

Cooking Time

Onion

Tomato

Potato

Still

x 1

Press EJECT button.

• EJECT button is popped up.

EJECT button

Press EJECT button again.

• PC card adapter itself pops up.

Take out the PC card adapter.

Press E.

Cooking Time

Still image was captured on a card.

• “Still image was captured on a card.” displays.

• Recording may fail depending on the input signal type or card memory status.

Press OK to update the still image.

Cooking Time

NOTE

Broadcasting types or input signals not available for recording:

1 DTV broadcasting 4 Copy guarded signal 2 COMPONENT input 5 DVI-I input 3 RGB input

Still

Onion

x 1

Tomato

x 1

Potato

x 1

Still

Cooking Time

Using memory card

Selecting Still mode

Press CARD and the card mode screen displays.

Press c/d to select “Still”, and then press OK.

• When in CARD mode, press 0-9 or b to

switch either TV or AV input mode.

Displaying a still image

Press CARD and the card mode screen displays.

Press c/d to select “Still” and press OK.

Press a/b/c/d to select a file you want to display, and then press OK.

File 1 File 2 File 3

Still Video

Setting Slide Show

You can adjust the interval, order and repeat settings.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then press OK.

Press a/b to select “Slide Show Setup” and then press OK.

Slide Show Setup

My Programme

Audio Select

Edit

Interval

Order

Repeat

5 Sec.

Normal

Off

File 4 File 5 File 6

File 7 File 8 File 9

• To display the files that are in the previous or next page, select c/d on the index screen and press OK.

• When viewing a still image, by pressing f the image size changes. Normal – Full. This function does not work when displaying the index screen.

Press a/b/c/d to select the desired slide show setting, and then press OK.

Selected item

Interval

Order

Repeat

Set the frame interval for a slideshow.

Set the frame order for a slideshow. See My Programme for details.

If set to “On”, the slideshow will play again after showing the last frame.

Displaying slide show

Repeat steps 1 to 3 in Displaying a still image.

• The operation panel displays.

CARD - STILL

SLIDE SHOW STOP

Press a/b/c/d to select d, and then press OK.

• Slide show starts.

• Operate slide show with the operation panel appears on the screen.

• To turn off the operation panel, press CARD on the remote control.

• Press F to pause the slideshow, and press H to return to the index screen.

Description

0001/0045 ORDER:NORMAL

PREV.

REPEAT:OFF

NOTE

• See page 55 for operation panel function.

• You cannot rotate the image during slide show. Stop slide show to rotate the image.

Using memory card

My Programme

You can select up to thirty-two pictures and specify the order for displaying in slide show.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then press OK.

Press a/b to select “My Programme”, and then press OK.

Slide Show Setup

My Programme

Audio Select

Edit

Setup Erase

Audio Select

You can enjoy the audio from TV or other external equipment during the still image playback.

Repeat steps 1 to 4 in My Programme.

Press a/b to select “Audio Select”, and then press OK.

Slide Show Setup

My Programme

Audio Select

Edit

Press a/b/c/d to select the desired sound

Off

DTV

INPUT2

INPUT4

INPUT1

INPUT3

INPUT5

output, and then press OK.

Protecting/unprotecting still image files

You can protect any file you do not want to delete.

Press c/d to select “Setup”, and then press

OK.

Press a/b/c/d to select the files, and then press OK.

Repeats the operation in step 7. (You can select up to 32 files.)

After selecting all the files you want, press

RETURN to return to MENU.

To cancel My Programme setting

Select “Erase” at step 6 in My Programme and then press OK.

Press c/d to select “Yes”, and then press OK.

• All the registered numbers are cleared.

Repeat steps 1 to 4 in My Programme.

Press a/b to select “Edit”, and then press OK.

Slide Show Setup

My Programme

Audio Select

Edit

Protect

Delete File

Delete All

Press a/b to select “Protect”, and then press OK.

• The list of still image files displays.

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

Press a/b/c/d to select the file you want to protect, and then press OK.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

OK to unprotect it.

NOTE

• You cannot delete a protected file on the card.

Using memory card

Deleting a still image file

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Still Setup”, and then press OK.

Press a/b to select “Edit”, and then press OK.

Press a/b to select “Delete File”, and then press OK.

Press a/b/c/d to select the file you want to delete, and then press OK.

Still Video

Deleting all still image files

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Select “Delete All” instead of “Delete File” in step 6 in Deleting a still image file.

Slide Show Setup

My Programme

Audio Select

Edit

Press c/d to select “Yes”, and then press

OK.

NOTE

Protect

Delete File

Delete All

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Press c/d to select “Yes”, and then press OK.

Repeat the operations in steps 7 and 8 above.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Using memory card

Recording a motion picture

Use this setting to record images you are currently watching. Record with the settings made in “Rec. Mode” and “Pre-recording”.

Broadcasting types or input signals not available for recording:

1 DTV broadcasting 2 COMPONENT input 3 RGB input 4 Copy guarded signal 5 DVI-I input

Press E to start recording.

• CARD indicator lights up red.

• Recording information displays in the lower right corner of the screen.

Press E to stop recording.

NOTE

To display the remaining record time.

Press p while not recording.

• Remaining record time displays in the lower right corner of the screen.

Displaying a motion picture

Press CARD and the card mode screen displays.

Press c/d to select “Video”, and then press OK.

Press a/b/c/d to select the file you want to play, and then press OK.

• Video playback starts.

CARD - VIDEO

Play

Mode : SP

00:15:25

PLAY

Press CARD again to display the operation panel.

• See page 55 for the operation panel information.

• When viewing a motion picture, by pressing f the picture size changes. Small – Medium – Large.

Rec. Mode

0001/0045 REPEAT:OFF

NOTE

• Do not press X on the display while recording. Recording

cannot finish properly and may damage the file.

• Recording stops if you press B on the remote control

while recording.

• When card has no capacity for recording, “Card is full” displays and stops recording.

• You cannot change the channel or switch the input source while recording.

Selecting Video mode

Press CARD and the card mode screen displays.

Press c/d to select “Video”, and then press OK.

• When in CARD mode, press 0-9 or b to

switch either TV or AV input mode.

Use this setting for recording images you are currently watching. You can select the recording mode (picture quality) for a motion picture.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup” and then press OK.

Press a/b to select “Rec. Mode”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

Press a/b to select the desired mode, and then press OK.

Using memory card

Pre-recording

You can record the picture slightly before the point where you pressed the record button, enabling you to record just the scene you wanted.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup” and then press OK.

Press a/b to select “Pre-recording”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

On Off

Protecting/unprotecting motion picture files

You can protect any file you do not want to delete.

Repeat steps 1 to 4 in Pre-recording.

Press a/b to select “Edit”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

Protect

Delete File

Delete All

Press a/b to select “Protect”, and then press OK.

Press a/b/c/d to select the file you want to protect, and then press OK.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

OK to unprotect it.

Press c/d to select “On”, and then press

OK.

Repeat

You can specify one file or all files to replay repeatedly.

Repeat steps 1 to 4 in Pre-recording.

Press a/b to select “Repeat”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

Off

File

All

Press a/b to select desired setting, and then press OK.

Repeat the operation in step 4.

After setting the files you want to protect, press RETURN to return to MENU.

Selected item

Off

File

All

Description

No playback or repeat.

Plays back and repeats one file.

Plays back all movie files on the card then repeats.

Using memory card

Deleting a motion picture file

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup”, and then press OK.

...

[

Card

Still Setup

Video Setup

Format

Press a/b to select “Edit”, and then press OK.

Press a/b to select “Delete File”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

Press a/b/c/d to select the file you want to delete, and then press OK.

Press c/d to select “Yes”, and then press OK.

Repeat the operations in steps 7 and 8 above.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Video Setup

]

Protect

Delete File

Delete All

Deleting all motion picture files

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Video Setup”, and then press OK.

Press a/b to select “Edit”, and then press OK.

Press a/b to select “Delete All”, and then press OK.

Rec. Mode

Pre-recording

Repeat

Edit

Press c/d to select “Yes”, and then press

OK.

NOTE

Protect

Delete File

Delete All

Format

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card”.

Press a/b to select “Format” and then press OK.

• Formatting a card deletes all files including the ones which set to protect.

Press c/d to select “Yes”, and then press

OK.

NOTE

Using external equipment

You can connect many types of external equipment to your System, like a decoder, VCR, DVD player, PC, game console and camcorder. To view external source images, select the input source from b on the remote control unit or INPUT on the Display.

Displaying an external equipment image

Explanation here is for the setting when connecting DVD to INPUT3 terminal.

CAUTION

• To protect all equipment, always turn off the AVC System before connecting to a decoder, VCR, DVD player, PC, game console, camcorder or other external equipment.

NOTE

• See pages 64 to 68 for external equipment connection.

• Please refer to the relevant operation manual (DVD player, PC, etc.) carefully before making connections.

• Each time b is pressed, the input source toggles.

• If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.

• Refer to your external equipment operation manual for the signal type.

Displaying a DVD image (Example)

To watch a DVD image, select “INPUT3” from “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display.

INPUT SOURCE

DTV

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

CARD

Select the desired signal type on “Input Select” in the “Option” menu. (See page 70.)

For INPUT3 signal

...

[

Option

Input Select

]

COMPONENT

Y/C

CVBS

RGB

The setting is stored and can be selected on the “INPUT SOURCE” menu.

Using external equipment

Connecting a decoder

You can use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

NOTE

• In cases when the decoder needs to receive signal from the System, make sure to set “Decoder” to “INPUT1” in the Programme Setup “Manual” menu. (See page 28.)

AVC System (rear view)

SCART cable (commercially available)

To watch an image from this input terminal, you need to select the input source (see page 63) and the input signal type (see page 70).

Decoder

Connecting a VCR

You can use the INPUT 2 terminal when connecting a VCR and other audiovisual equipment. If your VCR supports TV-VCR advanced “AV Link” systems (see page 65), you can connect the VCR to the INPUT 2 terminal on the AVC System using the fully-wired SCART cable.

NOTE

• TV-VCR advanced “AV Link” systems may not compatible with some external sources.

• It is recommended to connect to the INPUT 2 terminal when using a decoder for ground wave signal input with a VCR. If INPUT 2 signals preset in auto installation or programme setup, make sure to set “Decoder” to “INPUT2” in the Programme Setup “Manual” menu. (See page 28.)

To watch an image from this input terminal, you need to select the input source (see page 63) and the input signal type (see page 70).

AVC System (rear view)

SCART cable (commercially available)

VCR

Decoder

Using external equipment

Using AV Link function

This System incorporates four typical AV Link functions for smooth connections between AVC System and other audiovisual equipment.

NOTE

• Only works when the audiovisual equipment is connected to the INPUT 2 terminal on the AVC System with AV Link via a fully wired SCART.

One Touch Play

While the System is in standby mode, it automatically turns on and plays back the image from the audiovisual source (e.g. VCR, DVD).

System Standby

When the connected audiovisual equipment (e.g. VCR, DVD) enters standby mode, so does the System.

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers the channel preset information from the tuner on the System to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 terminal.

NOTE

• Refer to operation manuals of each external equipment for the details.

AVC System (rear view)

SCART cable (commercially available)

VCR

Using external equipment

Connecting a DVD player

You can use the INPUT 3 terminal when connecting to a DVD player and other audiovisual equipment.

To watch an image from this input terminal, you need to select the input source (see page 63) and the input signal type (see page 70).

AVC System (rear view)

SCART cable (commercially available)

When using component cable, select “COMPONENT” for “Input Select” in the menu.

DVD player

Component cable (commercially available)

Connecting a game console or camcorder

A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 4 terminals.

NOTE

• The S-video terminal has priority over the video terminals.

• You can also connect the game console to INPUT 1 or 3 terminals to enjoy clearer picture.

To watch an image from this input terminal, you need to select the input source (see page 63)

AVC System (front view)

Composite video cable (commercially available)

S-video cable (commercially available)

and the input signal type (see page 70).

Game console/Camcorder

Using external equipment

Connecting a PC

Use the INPUT5 terminals to connect a PC.

NOTE

• The PC input terminals are DDC1/2B-compatible.

• Refer to page 84 for a list of PC signals compatible with the System.

AVC System (rear view)

DVI cable (commercially available)

ø 3.5 mm stereo minijack cable (commercially available)

To watch the image from this input terminal, you need to select input source (see page 63) and input signal type (see page 70).

RGB/DVI conversion cable (commercially available)

ø 3.5 mm stereo minijack cable (commercially available)

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.

• When connecting to a PC, the correct input signal type is automatically detected. (See page 75.) If the PC image does not come in clearly, you may need to set the Auto Sync. adjustment in the “Setup” menu. (See page 69.)

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. PCM audio outputs from the terminal.

Optical fibre cable

To optical digital input of external audio devices

Using external equipment

Speaker Setup

Connecting external speakers

Rear view

How to connect the

speaker cable

Push down the tab.

Insert the end of the

cable.

Selecting speakers

You can output audio using the supplied speakers or other external speakers.

Selected item

SPEAKER-A

SPEAKER-B

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and then press OK.

Press a/b to select “Speaker”, and then press OK.

Press c/d to select “SPEAKER-A” or “SPEAKER-B”, and then press OK.

Description

Speaker connected to the Display.

Speaker connected to the AVC System.

External Audio Bypass

External Audio Bypass automatically optimises the audio quality to suit internal (supplied) speakers.

Repeat steps 1 to 3 in Selecting speakers above.

Lift the tab back

up.

When using external speakers

• Change the speaker setting to “SPEAKER-B”.

Make sure to connect the speaker terminal and cable polarity (L, +) properly

• The speaker terminal has plus (L) and minus (+) polarity.

• Plus is red and minus is black.

• The cables are also divided into plus and minus.

• When connecting the left/right speakers, be sure to connect the plus/minus terminals with the correct cables.

NOTE

• Unplug the AC cord from the AC outlet before installing the speakers.

CAUTION

• Make sure external speakers have 4 ohm and 10 watt specifications.

• Connect the plus/minus terminals with the correct cables. Incorrect connection may cause a short.

Selected item

Yes

• External Audio Bypass is greyed out when Dolby Virtual is set to “On”.

• External Audio Bypass is greyed out when Centre Channel Input is set to “On”.

• When using external speakers (SPEAKER-B), make sure to set “External Audio Bypass” to “Yes”.

• When Dolby Virtual is on, External Audio Bypass automatically sets to “Yes”.

Press a/b to select “External Audio Bypass”, and then press OK.

Press c/d to select “Yes” or “No”, and then press OK.

Description

Sets the optimum audio for the internal (supplied) speakers.

When you are using your own speakers, output the original sound without using External Audio Bypass.

NOTE

Useful adjustment settings

Image position (for TV/AV input mode)

For adjusting a picture’s horizontal and vertical position.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

• Adjustments are stored separately according to input

source.

• This function is available for AV input mode and TV tuner mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then press OK.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

Press c/d to adjust the item to your desired position.

NOTE

+20

Audio only

When listening to music from a music programme, you can set the Liquid Crystal display off and enjoy audio only.

Selected item

Off

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Only”, and then press OK.

Press c/d to select “On”, and then press

OK.

Description

Audio is output without screen image.

Both screen images and audio are output.

Auto Sync. adjustment (PC input mode only)

For automatically adjusting the PC image.

Press MENU and the MENU screen displays.

Selected item

H-Pos.

V-Pos.

Description

Centres the image by moving it to the left or right.

Centres the image by moving it up or down.

• When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed successfully” displays.

• Auto Sync. is likely to succeed when an input PC image has wide vertical stripes (ex. pattern with high contrast stripes, or cross-hatched). It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the AVC System and switch it on before starting Auto Sync.

Press c/d to select “Setup”.

• Setup menu displays.

Press a/b to select “Auto Sync.”, and then press OK.

Press c/d to select “Yes”, and then press OK.

• Auto Sync. starts and “Adjusting the image” displays.

30%

NOTE

Useful adjustment settings

Fine Sync. adjustment (PC input mode only)

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimise the image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then press OK.

Press a/b to select the specific adjustment item.

H-Pos. [90] – +

V-Pos.

Clock

Phase

Reset

[39]

[90]

[20]

–

Input Select

Selecting input source

Can use for selecting the input source.

Selecting input signal type

For setting the signal type of external equipment.

Press b on the remote control unit or INPUT on the Display.

Press b on the remote control unit or INPUT on the Display to select the input source.

• An image from the selected source automatically displays.

• You can also select the input source by pressing a/b.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Selected item

H-Pos.

V-Pos.

Clock

Phase

Centres the image by moving it to the left or right.

Centres the image by moving it to the up or down.

Adjusts when the image flickers with vertical stripes.

Adjusts when characters have low contrast or when the image flickers.

Description

Press a/b to select “Input Select”, and then press OK.

Press a/b/c/d to select a signal type you want to set, and then press OK.

• If the selected signal type is incorrect, an image does not display or no colour image displays.

Input type

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

NOTE

• If no (colour) image displays, try to change the other signal type.

• Check the operation manual of the external equipment for the signal type.

CVBS, RGB

Y/C, CVBS

COMPONENT, Y/C, CVBS, RGB

AUTO, S-Video, Video

PC analogue, PC digital, AV analogue, AV digital

Signal type

Useful adjustment settings

Input Label

You can assign each input source a label you like.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then press OK.

Press a/b/c/d to select each character of the new name for the channel, and then press OK.

DVD

– _

0123456789

CLEAR

BACK

END

Repeat the above until the name is fully spelt out, and then press OK.

• The name can be 6 characters or less.

INPUT SOURCE

Colour system setting (for TV/AV input mode)

You can change the colour system to one that is

compatible with the image on the screen.

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).

• This function is available for AV input mode and TV tuner mode.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Colour System”, and then press OK.

Press a/b to select a compatible video signal system of your equipment, and then press OK.

• Some items may be greyed out. They are not selectable.

AUTO

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

NOTE

DTV

INPUT1

INPUT2

DVD

INPUT4

INPUT5INPUT5

CARD

(Example)

NOTE

• You cannot change labels if the INPUT SOURCE is TV, DTV or CARD.

Useful adjustment settings

AV mode selection

AV mode gives you five viewing options to choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

Press AV MODE.

• Present AV mode displays.

Press AV MODE again before the mode displayed on the screen disappears.

• The mode changes as shown below.

AV input mode

Wide screen signalling (WSS) (for TV/AV input mode)

WSS allows a television to switch automatically among the different screen formats.

• Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled.

• This function is available for AV input mode and TV tuner mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “WSS”, and then press OK.

Press c/d to select “On” or “Off”, and then press OK.

NOTE

AV MODE: STANDARD

AV MODE: DYNAMIC

AV MODE: STANDARD

Selected item

STANDARD

MOVIE

GAME

USER

AV MODE: MOVIE

AV MODE: GAME

AV MODE: USER

PC input mode

AV MODE: USER

Description

For a highly defined image in a normally bright room

For a movie

Lowers image brightness for easier viewing.

Allows the user to customise settings as desired. You can set the mode for each input source.

Picture aspect ratio (for TV/AV input mode)

The WSS signal has 4:3 auto-switching that allows you to select between Normal and Panorama.

4:3 mode “Normal”

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “4:3 Mode”, and then press OK.

Press c /d to select “Normal” or “Panorama”, and then press OK.

WSS signal 4:3 screen

4:3 mode “Panorama”

DYNAMIC

NOTE

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

For a clear-cut image emphasising high contrast for sports viewing

Selected item

Normal

Panorama

Description

Normal range keeping 4:3 or 16:9 aspect ratio

Wide image without side bars

Useful adjustment settings

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

WIDE mode (for TV/AV input mode)

Manual Selection

Press f.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable for the type of video signal currently received.

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on page 72, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu to “On”. (See page 72.)

“4:3 Mode” menu

To set the type of the wide screen, select “Normal” or “Panorama” in the 4:3 Mode menu. (See page 72.)

Press f or a/b while the WIDE MODE menu displays on the screen.

• As you toggle down the options, each is immediately reflected on the Display. No need to press OK.

4:3 Mode set to “Normal” 4:3 Mode set to “Panorama”

Selected item

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

For 4:3 “standard” pictures. A side bar appears on each side.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

In this mode the picture is progressively stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Normal Zoom 14:9

NOTE

• If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.

• This function is available for AV input mode and TV tuner mode.

• Depending on the selected screen size, upper and lower part of an image might be cut in DTV mode.

Description

Panorama

FullCinema 16:9Cinema 14:9

Useful adjustment settings

Screen size images.

Input Signal

Input signal

(640m480)

WIDE MODE

Normal

Cinema

Full

Dot by Dot

Input signal

(1024m768)

WIDE MODE

Cinema

Full

Dot by Dot

Normal Dot by DotFullCinema

WIDE mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments. (See page

67.)

• Selectable screen size may vary with input signal type.

Press f.

• The WIDE MODE menu displays.

Press f or a/b to select a desired item on the menu.

640g480 Keeps the original

Input Signal

1024g768

aspect ratio in a full screen display.

Normal Dot by DotFullCinema

Keeps the original aspect ratio in a full screen display. The top and bottom of the image is slightly cropped.

An image fully fills the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Useful adjustment settings

Input signal (PC input mode only)

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

640g400

640g480

1024g768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 6 input signals listed above.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

• Setup menu displays.

720g400

848g480

1280g768

DNR (Digital Noise Reduction)

Produces a clearer video image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “DNR”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press a/b to select the desired level, and then press OK.

Off

High

Low

Press a/b to select “Input Signal” and then press OK.

Press a/b to select the desired input signal on the display.

640 x 480

848 x 480

(Example)

Quick Shoot

Improves LCD response when viewing fast-moving images. The effect is greater at low room temperatures (at or below 15˚C/59˚F).

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Quick Shoot”, and then press OK.

Press c/d to select “On”, and then press OK.

OffOn

NOTE

• Quick Shoot may cause image noise. If this occurs turn the function “Off”.

Useful adjustment settings

Rotate

You can set the orientation of the picture.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Rotate”, and then press OK.

Press a/b to select the desired mode, and then press OK.

Normal

Mirror

Upside Down

Rotate

Standby Recording

Even when the System is in the standby mode, you can record to external recording equipment (VCR or DVD player) connected to AV OUTPUT or SCART terminals using this function.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Standby Recording”, and then press OK.

Press c/d to select “On”, and then press OK.

OffOn

[Normal]: normal image. [Mirror]: mirror image.

ABC

[Upside Down]: upside

down image.

ABC

[Rotate]: rotated image.

ABC

Selected item

Off

NOTE

• Standby Recording is automatically set to “Off” when the System is turned back on.

AV signals output from the System even in the standby mode.

No AV signals output from the System in the standby mode.

Description

Useful adjustment settings

Audio out

Allows you to select what controls the audio output.

NOTE

• This setting is available only in TV input mode.

Selected item

Fixed

Variable

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Out”, and then press OK.

Press c/d to select “Fixed” or “Variable”, and then press OK.

VariableFixed

Description

• Sound via speakers is adjusted with

il/k on the remote control unit or the Display.

• Sound via the AV OUTPUT terminal is not adjustable and constantly outputs.

• Sound via the AV OUTPUT terminal is adjusted with il/k on the remote control unit or the Display.

• Sound via speakers is muted.

Sleep timer

Allows you to set a time when the TV automatically switches to standby.

• Select “Off” by pressing SLEEP to cancel the sleep timer.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Sleep Timer: Remain 2 hr. 00 min.

Each time you press SLEEP, the remaining time switches as shown below.

• When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the remaining time displays each minute.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

2 hr. 30 min. 2 hr. 00 min.

Useful adjustment settings

PIN setting for child lock (for TV/DTV/ AV input mode)

Allows you to use a PIN to protect certain settings from being accidentally changed.

Changing a PIN

You can change the factory preset PIN “1234” to another 4-digit number you like.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press OK.

If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

Enter the same 4-digit number as in step 6 to confirm.

• “The system PIN has been changed successfully” displays.

NOTE

• To view a locked channel (Lock setting in Programme Setup “Manual” is set to “On”), you must enter a PIN. (See page 28.) When you select a locked channel, a PIN prompt message pops up. Press OK to display the PIN input window.

Resetting the PIN

Allows you to reset your PIN.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press OK.

If you already set the PIN, enter it here. If not, enter the factory preset PIN “1234”.

––––

Press a/b to select “Change PIN”, and then press OK.

Change PIN

Reset

New PIN

Reconfirm

–––

–

––––

Enter the 4-digit number as a PIN using 0 –

Change PIN

Reset

New PIN

Reconfirm

–––

–

––––

Press a/b to select “Reset”, and then press

OK.

Press c/d to select “Yes”, and then press OK.

Change PIN

Reset

Yes No

NOTE

• As a precautionary measure, make a note of your PIN and keep it in a familiar place. If you lose or forget your PIN, initialise the System to return all settings except for the TV channel settings to factory preset values. (See page 91.)

• This function is available for AV input mode and TV tuner mode.

Useful adjustment settings

Centre Channel Input

You can use the speaker as the centre speaker when using a 5.1ch surround system.

Speaker

AV amplifier

* Connect to external audio equipment

that supports a 5.1ch surround system. Refer to your external equipment operation manual for details.

DVD player, etc.

Press MENU and the MENU screen displays.

Press c/d to select “Option”, and then press OK.

Press a/b to select “Centre Channel Input”, and then press OK.

Press c/d to select “On” , and then press OK.

• Only the sound from the Centre Channel Input terminal is output from the speaker.

OffOn

Useful features

Dual screen functions

Allows you to display two pictures on the screen at one time.

Dual screen

You can display two pictures except when inputting from a INPUT 5 terminal and card.

Press c.

• Dual screen displays and a selected input source image displays.

Picture and still image

You can freeze a motion picture on the display.

• This function does not work under the following input conditions:

1INPUT 5 mode, 2CARD mode, 3Two pictures from the same source (e.g. INPUT 1 and

4Two pictures with different vertical frequency (e.g. PAL

5HDTV signal source (480P/1080i/720P) is input on the

• When this function is not available, “No dual screen display available.” will display.

• Signals from DTV source cannot be displayed on the right side screen.

Press SELECT to set either screen to be active.

•“z” displays on the active screen, which has

sound output.

Press b to select another input source on the active screen.

• A selected image displays.

Press c to exit dual screen.

NOTE

INPUT 1),

and PAL-60),

right side screen display.

• This function does not work in INPUT 5 and CARD mode.

• When this function is not available, “No still image display available.” will display.

• Frozen image can be recorded on a PC card (see page

56).

• The still image automatically goes out after 30 minutes.

Press d.

• A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press d.

FREEZE

Update the still image by pressing OK.

• Each time you press OK, the image on the right screen updates.

Press d to exit still image.

NOTE

Useful features

Teletext function

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

DATA*

Teletext mode

Teletext is turned on/off with m on the remote control unit. You can operate your System in Teletext mode directly by inputting commands with the remote control unit.

TELETEXT

* May appear in DTV input mode.

When viewing the Teletext information

• Press Pr to increase the page number.

• Press Ps to decrease the page number.

Button functions

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding Colour (RED/GREEN/

YELLOW/BLUE) on the remote control unit.

TELETEXT

Turning on and off Teletext

Select a TV channel or external input source providing the Teletext programme.

Press m to display the Teletext.

Press m again to display the Teletext on the right screen and normal image on the left screen.

• Each time you press m, the screen switches

as shown upper right.

• If you select a programme with no Teletext signal, “No Teletext available.” displays.

• The same message displays during dual screen or other modes if no Teletext signal is available.

GREEN

RED

0 – 9: Directly select any page from 100 to 899 by using 0 – 9.

Each time you press f, the TELETEXT image switches as shown below.

Full

Upper half

Lower half

k: To reveal hidden information such as an answer to a quiz, press k.

• Press k again to hide the information.

To stop updating Teletext pages automatically, press d.

• Press d again to release the hold mode.

YELLOW BLUE

Useful features

Displaying Subtitle

You can display several subtitles as they are transmitted.

Press [ to display the subtitle.

• Subtitle is updated by the information sent by the broadcasting station.

• To stop updating Subtitle automatically, press d.

Press [ to exit the subtitle screen.

Time display

You can display the time information included in the DTV and Teletext broadcasts.

NOTE

• Skip step 1 if receiving DTV broadcasts.

Select a TV channel providing Teletext information. (The time information is automatically captured.)

Press p. The channel display will appear on the Display.

Press p again within the three-second interval the channel display is on the screen. Time information will display on the lower left of the screen for about three seconds.

Even when you change the TV channel, you can display the time information with steps 2 – 3 above.

NOTE

• Subtitle will not be displayed when the service does not contain the subtitle information.

Displaying TOP Overview

When receiving TOP Teletext, you can read a TOP text overview.

Press m to display Teletext.

Press l to display the TOP Overview as shown below.

TOP Overview screen

INDEX

BLOCK PAGES

TV PROGRAMS COLOR BAR WEATHER NEWS MOVIE LOCAL

SPORTS

BLOCK 1 BLOCK 2 BLOCK 3

GROUP PAGES

FOOT BALL BASKETBALL

TENNIS

SKI JUDO SWIM GROUP 1 GROUP 2 GROUP 3 GROUP 4

NOTE

• The time display cannot be stored once the power is turned off. When you turn on the power, perform steps 1 – 4 again.

• If acquired successfully the time information will appear in the upper-right corner of the screen by pressing MENU.

• The information acquired from DTV broadcasts is also determined by the values you set in “Time Zone” (page

31) and the Daylight Saving Time information included in the “Country” setting (page 43).

Select the desired block or group by using a/b/c/d.

Press OK to display the selected block or group pages.

Press l to exit the TOP Overview screen.

Appendix

Troubleshooting

Problem Possible Solution

• No power.

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off.

• Strange colour, light colour, or dark, or colour misalignment.

• Make sure the Display and the AVC System are connected correctly. (See page

7.)

• Check if you pressed B on the remote control unit. (See page 19.) If the indicator on the Display lights up red, press B.

• Is the AC cord disconnected? (See page 12.)

• Has the main power been turned on? (See page 19.)

• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the power off the Display and the AVC System, or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 11.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated to remote control sensor?

• Is the image position correct? (See page 69.)

• Are screen mode adjustments such as picture size made correctly? (See pages 73 to 76.)

• Adjust the picture tone. (See pages 48 to 50 and 75.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 27 and 71.)

• Check the input signal setting. (See page 70.)

• Power is suddenly turned off.

• No picture.

• No sound.

• The DTV menu screen is displayed in monochrome and hard to select the item.

• The unit’s internal temperature has increased. Remove any objects blocking vent or clean.

• Check the power control setting. (See page 52.)

• Is sleep timer set? (See page 77.)

• Is connection to other components correct? (See pages 63 to 67.)

• Has input signal setup been done correctly after connection? (See page 70.)

• Is the correct input selected? (See page 70.)

• Is a non-compatible signal being input? (See page 84.)

• Is picture adjustment correct? (See pages 48 to 50.)

• Is the antenna connected properly? (See page 12.)

• Is “On” selected in “Audio Only”? (See page 69.)

• Is the volume too low? (See page 22.)

• Is “Variable” selected in “Audio Out”? (See page 77.)

• Is the speaker connected properly?

• Is correct speaker output (“SPEAKER-A” or “SPEAKER-B”) selected in “Speaker”? (See page 68.)

• Is “On” selected in “Centre Channel Input”? (See page 79.)

• Make sure that headphones are not connected. (See page 16.)

• Check if “Monochrome” is set to “On”. If so, set it to “Off”. (See page 50.)

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: –20°C to +60°C (–4°F to +140°F).

Appendix

PC compatibility chart

PC/MAC Resolution Horizontal Frequency

MAC13" MAC16" MAC19"

640 x 400

720 x 400

VGA

640 x 480

WVGA 848 x 480

SVGA

800 x 600

1024 x 768XGA

WXGA

SXGA

VGA

SVGA

XGA

1280 x 720 1280 x 768 1366 x 768

1280 x 1024

640 x 480 832 x 624

1024 x 768

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

37.5 kHz

43.3 kHz

31.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

53.7 kHz

48.4 kHz

56.5 kHz

60.0 kHz

68.7 kHz

45.0 kHz

48.1 kHz

48.4 kHz

64.0 kHz

34.9 kHz

49.7 kHz

60.2 kHz

Vertical Frequency

60 Hz 85 Hz 60 Hz 85 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 56 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 70 Hz 75 Hz 85 Hz 60 Hz 60 Hz 60 Hz 60 Hz 67 Hz 75 Hz 75 Hz

VESA Standard

O O O O O

O O O O O O O O O

Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Appendix

RS-232C port specifications

PC Control of the System

• When a program is set, the display can be controlled from the PC using the RS-232C terminal. The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the display’s communications conditions. The display's communications settings are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS-232C connector. The Display operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

9,600 bps

8 bits None 1 bit None

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) No problem to input any numerical value for “x” on the table.

Command 4-digits: Command. The text of four characters. Parameter 4-digits: Parameter 0 – 9, x, blank, ?

Return codeCommand 4-digits Parameter 4-digits

0009

– 30

100

0055

When “?” is input for some commands, the present setting value responds.

????

Appendix

Response code format

Normal response

Problem response (communication error or incorrect command)

ERR

Commands

Return code (0DH)

CONTROL ITEM COMMAND PARAMETER

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE SELECTION

VOLUME

POWER OFF (STANDBY)

INPUT SWITCHING (TOGGLE)

TV (CHANNEL FIXED)

DTV (CHANNEL FIXED)

INPUT1 – 5 (1 – 5)

CARD

TV DIRECT CHANNEL (1 – 99)

CHANNEL UP

CHANNEL DOWN

DTV DIRECT CHANNEL (1 – 999)

DTV CHANNEL UP

DTV CHANNEL DOWN

INPUT1 (CVBS)

INPUT1 (RGB)

INPUT2 (CVBS)

INPUT2 (Y/C)

INPUT3 (CVBS)

INPUT3 (Y/C)

INPUT3 (RGB)

INPUT3 (COMPONENT)

INPUT4 (AUTO)

INPUT4 (S-VIDEO)

INPUT4 (VIDEO)

Digital PC

Analogue PC

Digital AV

Analogue AV

TOGGLE

STANDARD

MOVIE

GAME

USER

DYNAMIC

VOLUME (0 – 60)

CONTROL

CONTENTS

CONTROL ITEM COMMAND PARAMETER

POSITION

WIDE MODE

MUTE

DOLBY VIRTUAL

DUAL SCREEN

AUDIO CHANGE

SLEEP TIMER

TEXT

H-POSITION (AV) (ⳮ10 – Ⳮ10)

H-POSITION (PC) (0 – 180)

V-POSITION (AV) (ⳮ20 – Ⳮ20)

V-POSITION (PC) (0 – 100)

CLOCK (0 – 180)

PHASE (0 – 40)

TOGGLE (AV)

NORMAL (AV)

ZOOM 14:9 (AV)

PANORAMA (AV)

FULL (AV)

CINEMA 16:9 (AV)

CINEMA 14:9 (AV)

NORMAL (PC)

CINEMA (PC)

FULL (PC)

DOT BY DOT (PC)

TOGGLE

MUTE

MUTE OFF

TOGGLE

OFF

DUAL SCREEN OFF

DUAL SCREEN ON

TOGGLE

OFF

SLEEP TIMER 30 MIN

SLEEP TIMER 1 HOUR

SLEEP TIMER 1 HOUR 30 MIN

SLEEP TIMER 2 HOUR

SLEEP TIMER 2 HOUR 30 MIN

TEXT OFF

TEXT ON (TOGGLE)

DIRECT PAGE JUMP (100 – 899)

CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

CONTROL

Appendix

Connecting pin assignments for SCART

Various audio and video devices may be connected via the SCART terminals.

13579111315171921

2468101214161820

SCART (INPUT 1)

1. Audio right output

(TV Monitor out)

2. Audio right input

3. Audio left output

(TV Monitor out)

4. Common earth for audio

5. Earth for blue

6. Audio left input

7. Blue input

8. Audio-video control

9. Earth for green

10. Not used

11. Green input

12. Not used

13. Earth for red

14. Not used

15. Red input

16. Red/Green/Blue control

17. Earth for video

18. Earth for Red/Green/Blue

19. Video output

20. Video input

21. Plug shield

control

(TV Monitor out)

SCART (INPUT 2)

1. Audio right output

2. Audio right input

3. Audio left output

4. Common earth for audio

5. Earth

6. Audio left input

7. Not used

SCART (INPUT 3)

1. Audio right output

2. Audio right input

3. Audio left output

4. Common earth for audio

5. Earth

6. Audio left input

7. Blue input

8. Audio-video control

9. Earth

10. AV LINK control

11. Not used

12. Not used

13. Earth

14. Not used

8. Audio-video control

9. Earth

10. Not used

11. Green input

12. Not used

13. Earth

14. Not used

15. Chroma S-Video input

16. Not used

17. Earth for video

18. Earth

19. TV Monitor output

20. Video input/S-video input

21. Plug shield

15. Red input/Chroma S-Video input

16. Red/Green/Blue control

17. Earth for video

18. Earth

19. TV Monitor output

20. Video input/S-video input

21. Plug shield

Appendix

Specifications

Item

LCD panel

Number of dots 3,147,264 dots (1366 g 768 g 3 dots)

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV Function

Brightness 450 cd/m

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 170° V : 170°

Audio amplifier 10W g 2

Speakers Ø 8 cm 2pcs, Ø 2.5 cm 2pcs

Terminals

OSD language English/German/French/Italian/Spanish/Dutch/Swedish/Portuguese/Finnish/Turkish

Power Requirement AC 220–240 V, 50 Hz

Power Consumption

Weight 7.1 kg (w/o stand), 7.3 kg (with stand)

Accessories

TV-Standard

Receiving Channel

TV-Tuning System Auto Preset 99 ch, Auto Label, Auto Sort

STEREO/BILINGUAL NICAM/A2

AVC System

Display

AVC System

Display

Analogue

Digital DVB-T (2K/8K OFDM)

VHF/UHF E2–E69ch, F2–F10ch, I21–I69ch, IR A–IR Jch, (Digital: E5-E69ch)

CATV Hyper-band, S1–S41ch

Rear

ANTENNA IN

ANTENNA OUT

INPUT 1

INPUT 2

INPUT 3 SCART (AV input/output, Y/C input, RGB input), RCA pin (Component input)

INPUT 5 Ø 3.5 mm jack (Audio input), DVI-I (DVI-I input)

AV OUTPUT RCA pin (AV output [Audio: Variable/Fixed])

DC OUTPUT DC9V 7W MAX

SPEAKER-B External speaker output terminal (L and R)

CENTRE CHANNEL INPUT

Digital-AUDIO OUTPUT

C. I. (Common Interface)

RS-232C D-sub 9pin male connector

Front

INPUT 4 S-VIDEO (Y/C input), RCA pin (AV input)

Headphones

PC Card slot

32o LCD COLOUR TV, Model:LC-32GD1E (Display) TU-32GD1E (AVC System)

32o Advanced Super View & BLACK TFT LCD

CCIR (B/G, I, D/K, L, L’)

UHF/VHF 75 q Din type (Analogue)

UHF/VHF 75 q Din type (Digital)

UHF/VHF 75 q Din type

SCART (AV input, RGB input, TV output)

SCART (AV input/output, Y/C input, AV Link)

RCA pin (Audio input)

Square type optical digital audio connector (S/PDIF)

EN50221, R206001

Ø 3.5mm jack (Audio output)

PC Card Type II (PC Card Adapter)

45 W (0.55 W Standby)

117 W (0.3 W Standby) (Method IEC60107)

13 kg (Display only), 16.5 kg (with Display and speakers), 21 kg (with Display, speakers and stand)

Operation manual, Remote control unit (g1), System cable (g1), AC cord (g2), “AAA” size battery (g2), AVC system stand unit (g1), Cable clamp (g1), Antenna cable (g1)

37o LCD COLOUR TV, Model:LC-37GD1E (Display) TU-37GD1E (AVC System)

37o Advanced Super View & BLACK TFT LCD

157 W (0.3 W Standby) (Method IEC60107)

14.5 kg (Display only), 18.5 kg (with Display and speakers), 23 kg (with Display, speakers and stand)

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Optional accessories

The listed optional accessories are available for the LCD colour TV. Please purchase them at your nearest shop.

• Additional optional accessories may be available in near future. When purchasing,

please read the newest catalogue for compatibility and check the availability.

No.

1 AN-37AG2

2 AN-07SC2

Part name Part number

Wall mount bracket

System cable (7 meters)

Dimensional drawings

Display

NOTE

• Figures within parentheses are unique to LC-37GD1E model.

671

795(917)

700.4(822.6)

395.1(463.8)

Unit: mm

307

70.5

638(706)

200

110

400(434)

307

200

Dimensional drawings

AVC System

365

430

Unit: mm

95 303

22049

303

Maturity rating

Rating

Universal

viewing

Parental approval

preferable

X-rated

Rating

Universal

viewing

Parental approval

preferable

X-rated

AGE

5 6 7 8 9 101112131415161718

——————————————

✓

✓✓✓✓✓✓——————————

✓✓✓✓✓✓✓✓✓✓✓✓✓✓

Universal viewing

—

✓

Parental approval

preferable

—

✓

X-rated

—

Information for Customers

on environmentally friendly disposal of this SHARP product

If this product cannot be used any more, it should be disposed of in a legally correct and environmentally sound way.

DO NOT DISPOSE OF THIS PRODUCT WITH YOUR HOUSEHOLD WASTE

OR MIXED WITH OTHER WASTES! YOU MIGHT ENDANGER THE ENVIRONMENT!

Sharp Corporation is committed to protecting the environment and conserving energy. Our goal is to minimize the

environmental impact of our products by continually implementing and improving product technologies, designs, and

(1) For our customers in Belgium, The Netherlands, Sweden, and Switzerland

SHARP takes part in the respective national recycling systems for electronic equipment, which have been founded on the base of the environmental laws in these countries.

Please see here details on the respective countries.

customer information aimed at environmental conservation.

Country

Sweden

The Netherlands

Belgium

Switzerland

(2) For our customers in United Kingdom, Germany, France, and Italy

Please contact your local authorities for collection and recycling facilities, or contact a recycling service company, which is licensed for the recycling of electronic equipment.

Please use the Swedish electronics recycling system called “ELRETUR”, and see the website at http://www.el-kretsen.se

Please use the Dutch electronics recycling system called “ICT-Milieu”. and see the website at http://www.nederlandict.nl/index.php

Please use the Belgian electronics recycling system called “Recupel”. and see the website at http://www.recupel.be

Please use the Swiss electronics recycling system called “SWICO”. and see the website at http://www.swico.ch

Recycling Information for that Country

HOW TO SET THE FACTORY PRESETS

Turn off the Display by pressing MAIN POWER. Press and hold down RESET on the AVC System and press MAIN POWER on the Display to turn on the System. All setting items (except TV channel) return to the factory presetting.

NOTE

• Running the factory presetting operation also reset the PIN to the factory preset “1234”.

You can run the Auto Installation again by using the following steps.

1 Turn on the power of the Display and the AVC System. 2 Press MENU. (Make sure the menu screen displays.) 3 Press c/d to select “Setup”. 4 Press a/b to select “Auto Installation”, and then press OK. 5 The PIN setting screen displays, you need to enter the factory preset PIN “1234”. 6 Press c/d to select “Ye s”, and then press OK.

The PIN is .

NOTE

• As a precautionary measure, make a note of your PIN above, scissor it from this manual, and keep it in a familiar place.

SHARP CORPORATION

Printed on environmentally friendly paper

Auf ökologischem Papier gedruckt

Imprímé sur papíer écologique

Printed in Spain Gedruckt in Spanien Imprimé en Espagne TINS-B360WJZZ 06-2004

Sharp LC-32GD1E, LC-37GD1E, TU-32GD1E, TU-37GD1E Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
