LC-15B5M LC-20B5M

LCD COLOUR TELEVISION

ENGLISH

Printed on 100% post-consumer recycled paper.

OPERATION MANUAL

Printed in Japan

TINS-B130WJZZA

04P02-JMM

LC-15B5M LC-20B5M

LCD COLOUR TELEVISION

ENGLISH

OPERATION MANUAL

Contents

Dear SHARP customer .................................................... 2

Important Safety Precautions ......................................... 2

Supplied Accessories ...................................................... 4

Preparation ....................................................................... 5

Installing Batteries in the Remote Control ................... 5

Using Remote Control .................................................5

Power Connection .......................................................6

Antenna Connection ................................................... 6

Listening with Headphones.........................................6

Part Names of Main Unit .................................................. 7

How to fix the cables ................................................... 8

Part Names of Remote Control ....................................... 9

Basic Operation..............................................................10

Turning On and Off the Main Power .......................... 10

Standby ..................................................................... 10

Switching TV/VIDEO AV1/AV2/COMPONENT/

CARD/TV Mode .................................................. 10

Sound Volume ........................................................... 11

Changing Channels .................................................. 11

Preset .............................................................................. 12

On-Screen Display Language Selection ................... 12

Presetting the Channels (AUTO) ............................... 12

Presetting the Channels (MANUAL).......................... 13

Channel Setting ......................................................... 14

Clock Setup ............................................................... 14

Selecting Menu Items .................................................... 15

Selecting Menu Items................................................ 15

Basic Adjustment Settings............................................ 16

Picture Adjustments .................................................. 16

Colour System (Only AV1 or AV2 mode) ................... 16

I/P Setup .................................................................... 16

DNR (Digital Noise Reduction).................................. 17

Film Mode.................................................................. 17

Cool Climate .............................................................. 17

Sound Adjustments ................................................... 18

On-screen Display Language Setting ....................... 18

AV2 In/Out ................................................................. 19

Display Mode ............................................................ 19

Features .................................................................... 20

Timer Function........................................................... 21

NICAM Broadcast Selection .......................................... 22

A2 Stereo Broadcast Selection ..................................... 23

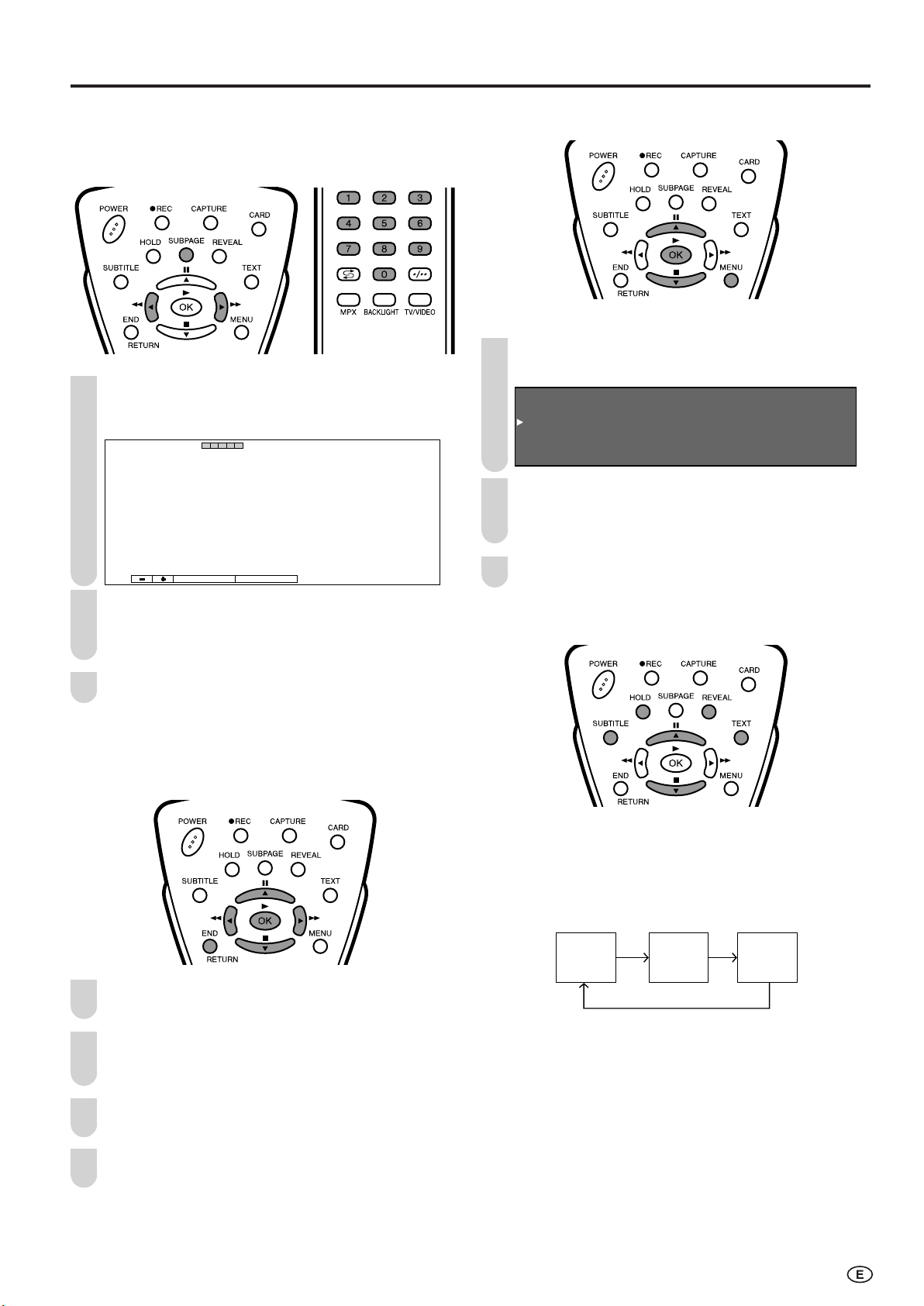

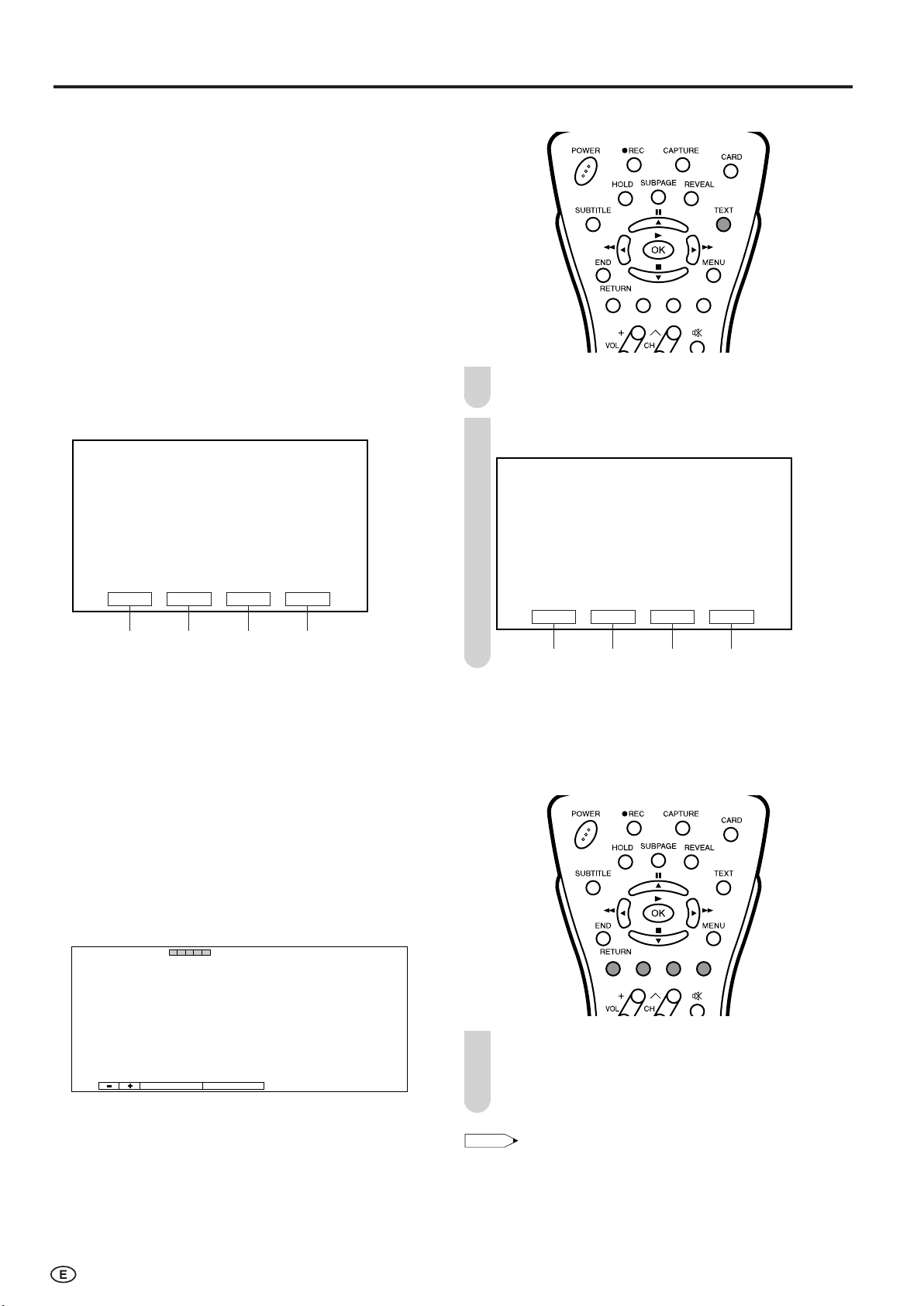

Teletext............................................................................ 24

Before Using Memory Cards ......................................... 26

About Memory Cards ..................................................... 27

Commercially Available Memory Cards .................... 27

Preparing a Memory Card......................................... 27

Notes on Using Memory Cards and

PC Card Adapters .............................................. 27

Loading a PC Card Adapter .......................................... 28

Loading a PC Card Adapter ..................................... 28

Changing from Card Mode to the TV mode .............. 28

Inserting/Removing a PC Card ................................. 28

Playing Back Mode ........................................................ 29

Select Mode .............................................................. 29

Recording/Playing Back a Memory Card ..................... 30

Recording on the Memory Card................................ 30

Playing Back the Memory Card ................................ 30

Precautions when Playing Back PC Image Data

on the LCD TV Set .............................................. 30

Recording on a Memory Card (Video Setup) ............... 31

Rec Mode .................................................................. 31

Pre-Recording ...........................................................31

Recording a TV Programme in Real-time ..................... 32

Recording as a Motion Picture .................................. 32

Easy Recording ......................................................... 32

Setting Timer Recording ................................................ 33

Adjusting the Clock ...................................................33

Timer Rec ..................................................................33

Checking the Programme List................................... 34

Checking the Recording Mode .................................35

At the Set Time ..........................................................35

If There is not Sufficient Space on a Memory Card .. 35 If Power Outage Happens/AC Cord or

DC Plug at the LCD TV Set is Unplugged

During Recording ............................................... 35

Playing Back Motion Pictures (Normal Mode)............. 36

Normal Playback .......................................................36

Repeat ....................................................................... 36

Playing Back Motion Pictures (Special Mode) ............ 37

Slowmotion ................................................................37

Zoom ......................................................................... 38

Protecting/Deleting Motion Pictures ............................ 39

Protecting Motion Picture Files.................................. 39

Unprotecting Motion Picture Files .............................39

Deleting One Motion Picture File............................... 40

Deleting All Motion Picture Files................................ 40

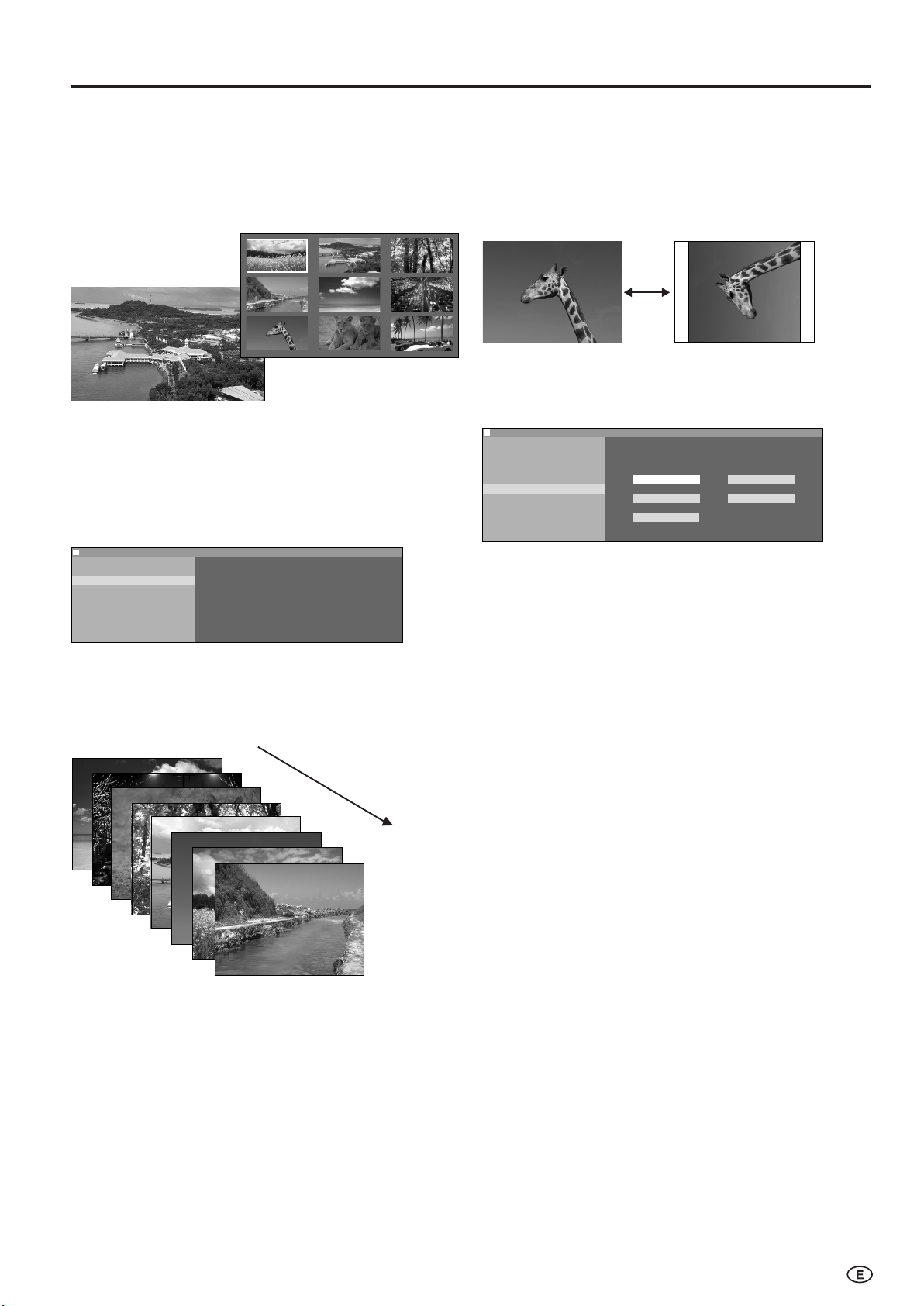

Playing Back Still Pictures ............................................41

Listing Still Pictures (Index) ....................................... 42

Displaying One Picture at a Time.............................. 42

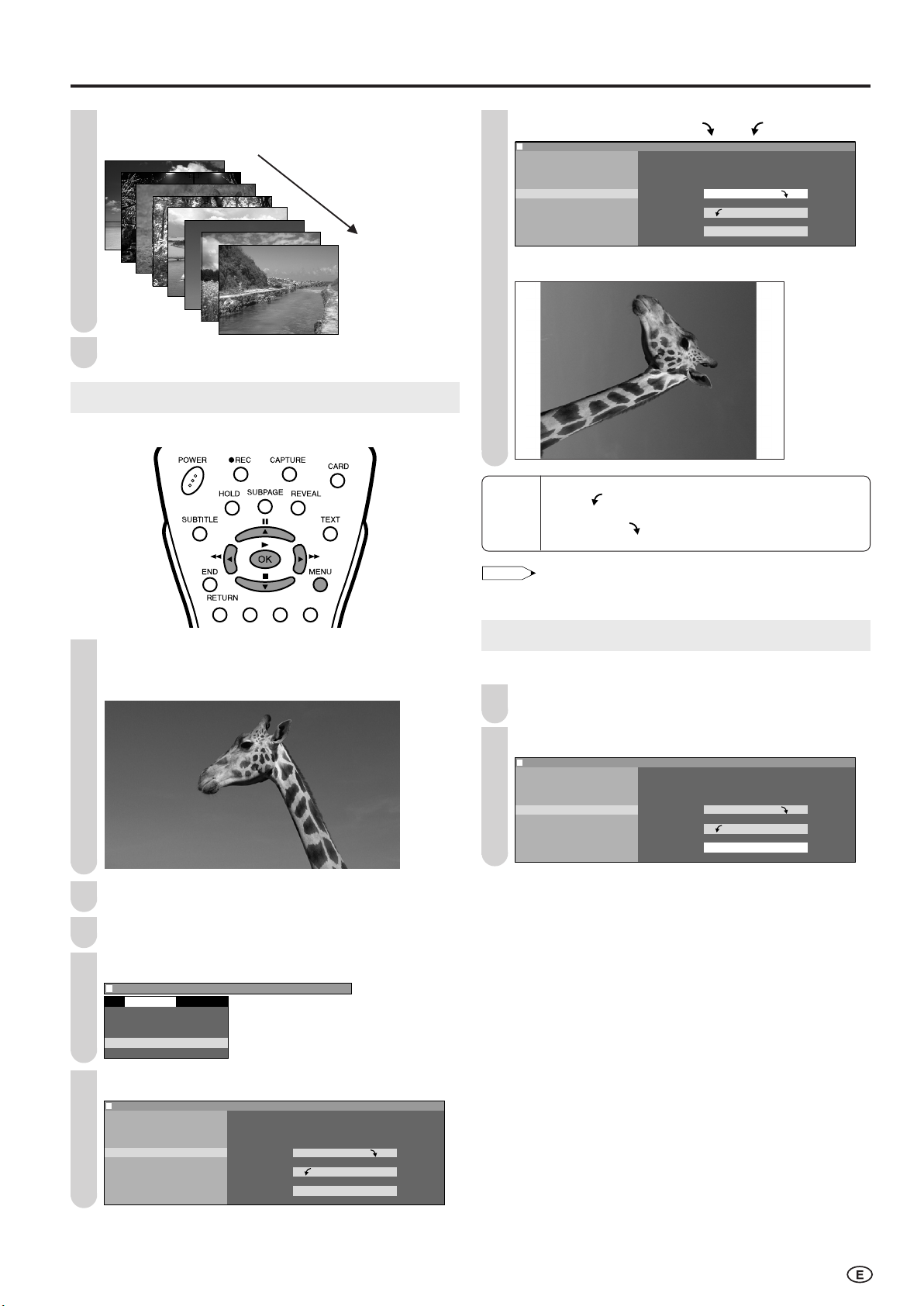

Slideshow Setup........................................................ 43

My Programme .......................................................... 44

Displaying Pictures in Slideshow in the Order

Specified in “My programme” ............................ 44

Rotate ........................................................................45

Switching Files .......................................................... 45

Audio Select ..............................................................46

Recording on a Memory Card ....................................... 47

Shutter Click ..............................................................47

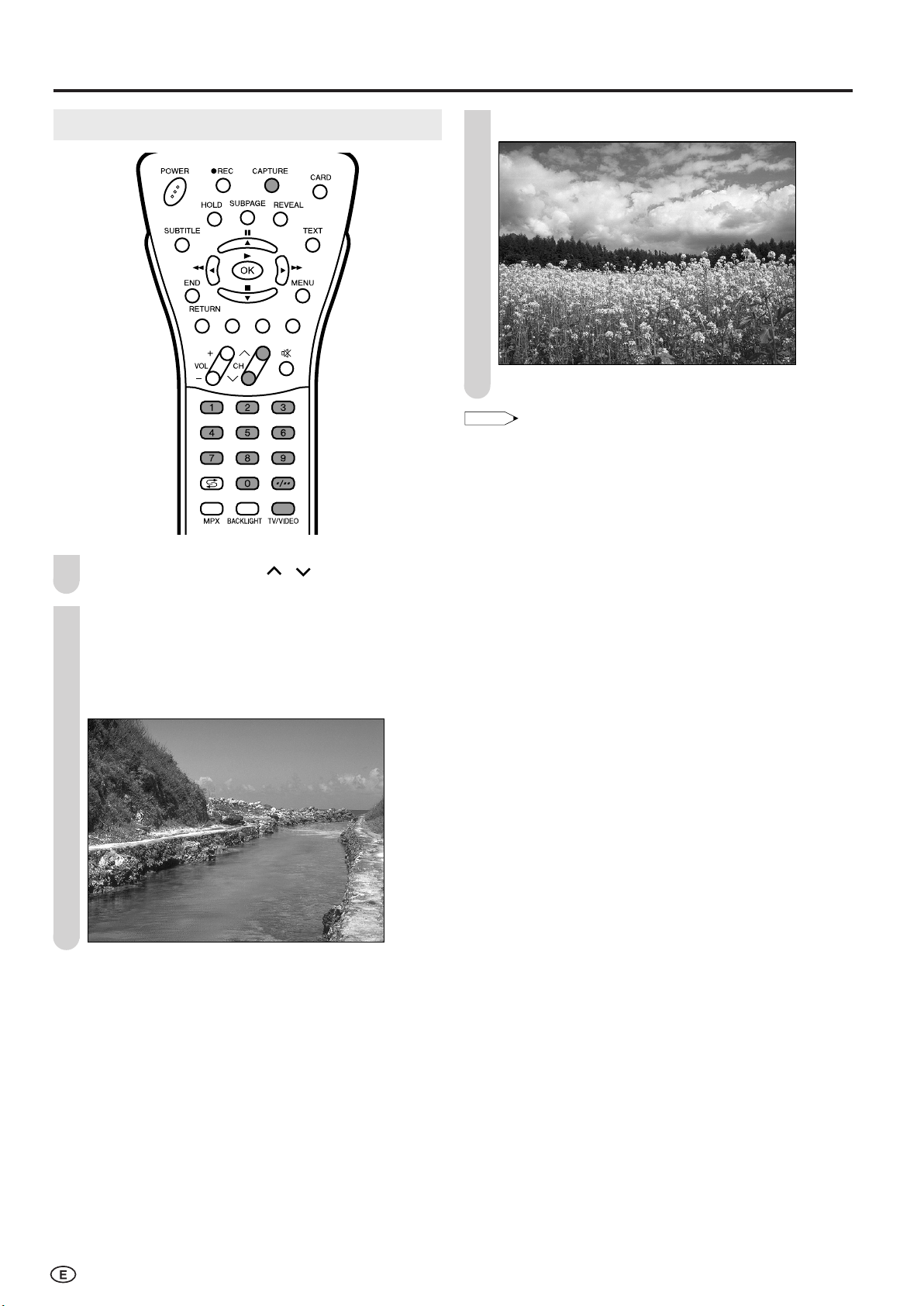

Capturing a TV Programme in Real-time...................... 48

Capturing as Still Pictures .........................................48

Protecting/Deleting Still Pictures ................................. 49

Protecting Still Picture Files ....................................... 49

Unprotecting Still Picture Files .................................. 49

Deleting One Still Picture File .................................... 50

Deleting All Still Picture Files ..................................... 50

Formatting the Card ....................................................... 51

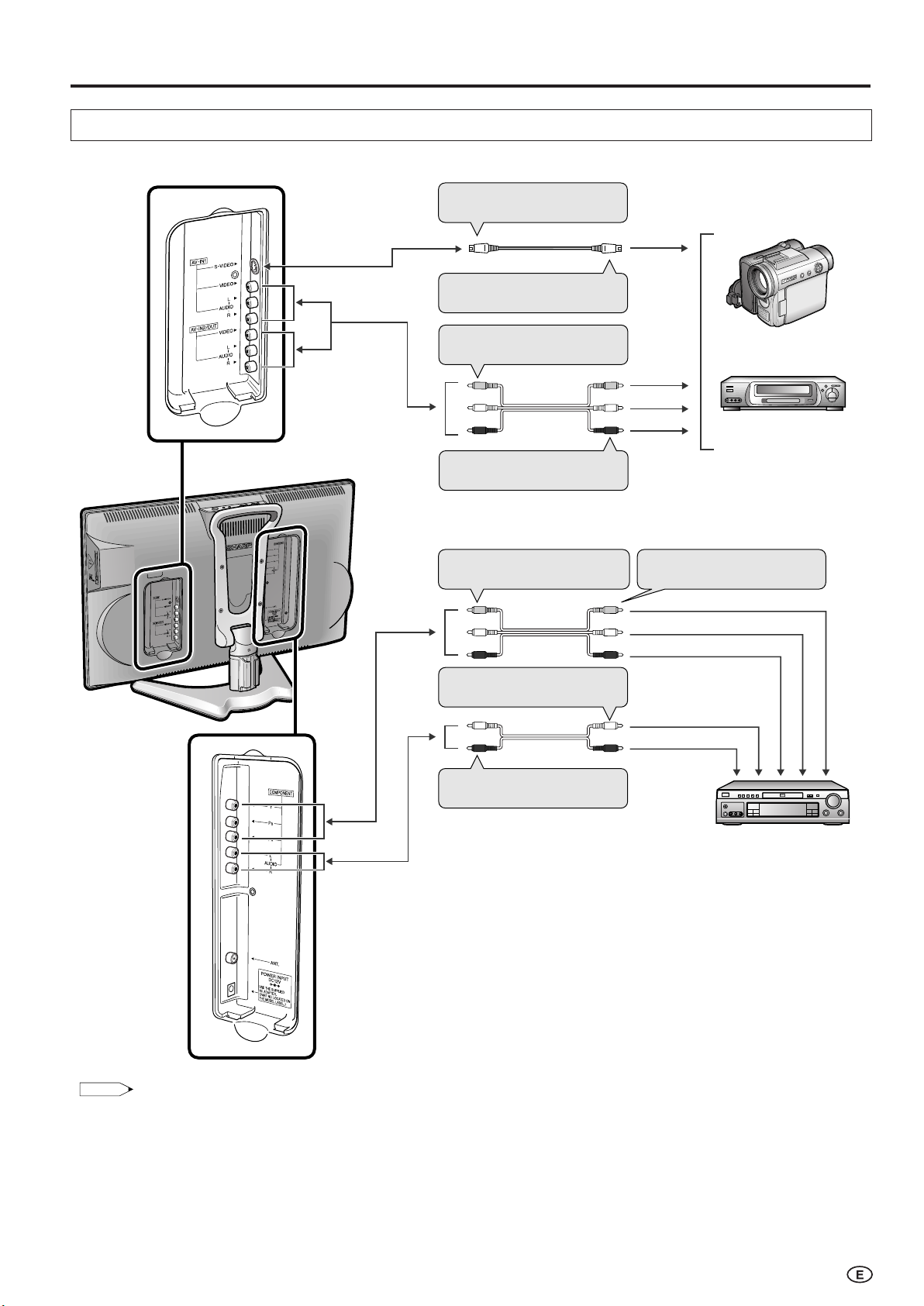

Connecting with External Devices ............................... 52

Troubleshooting ............................................................. 55

Specifications ................................................................. 57

Time Zone Table ............................................................. 58

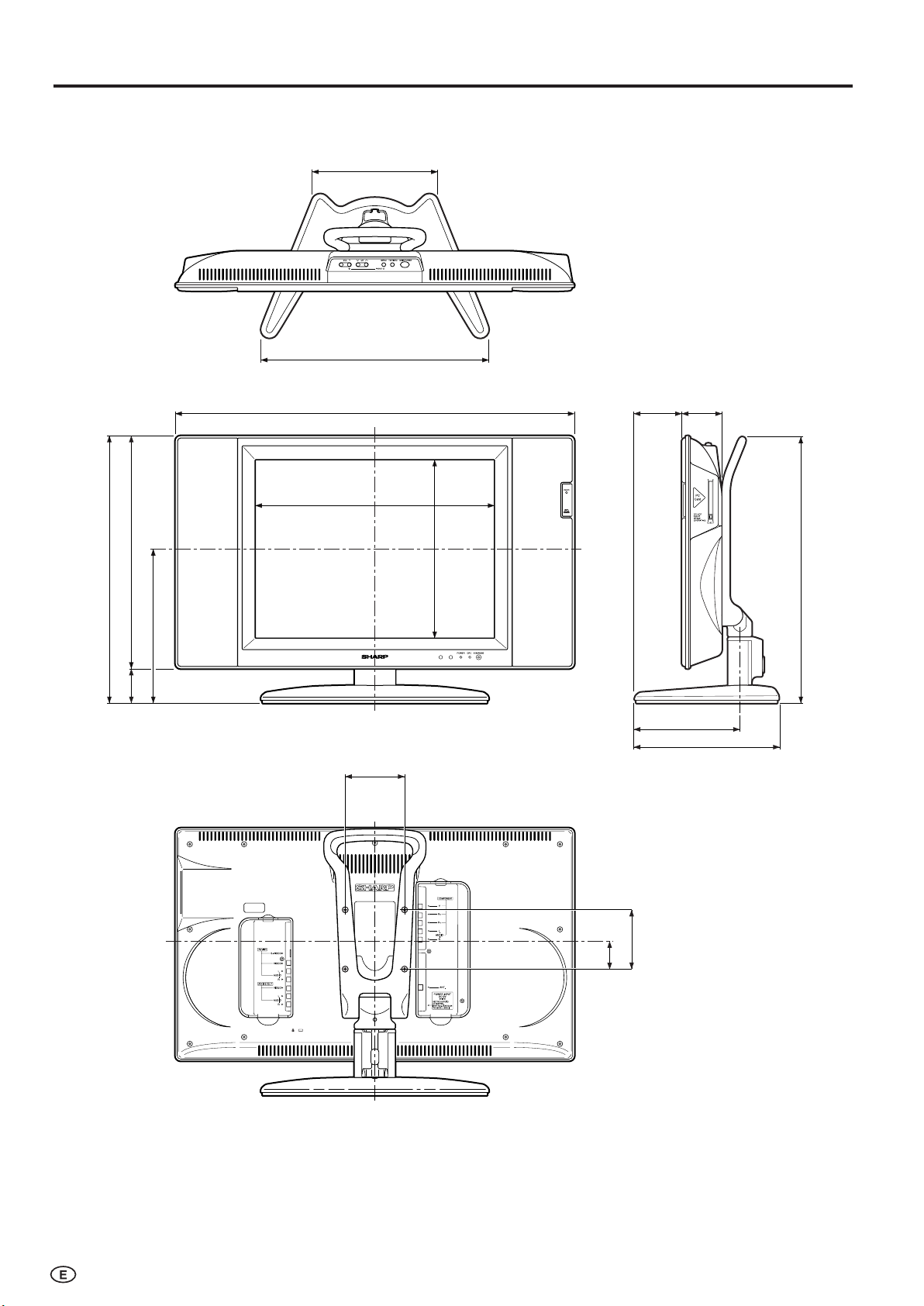

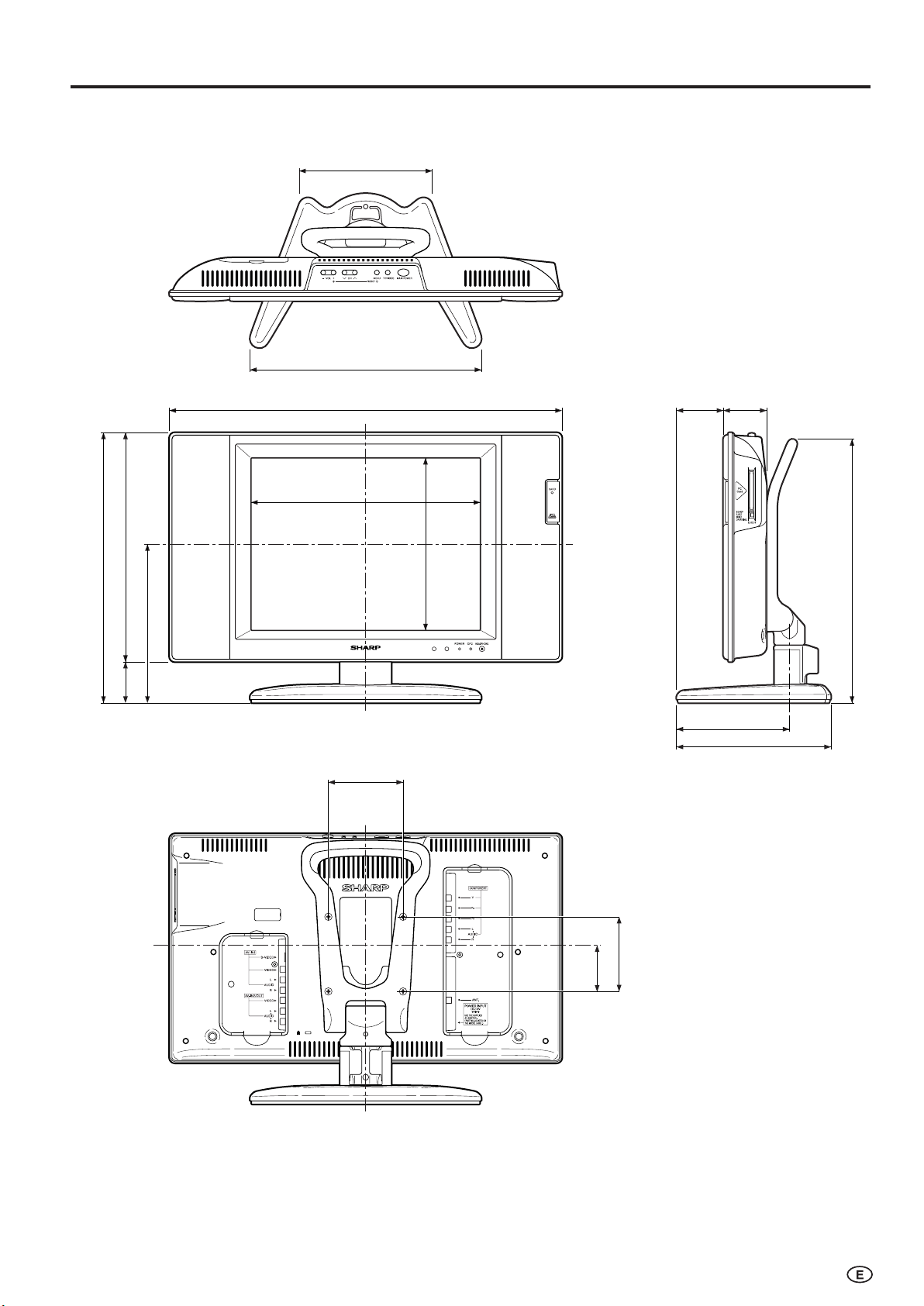

Dimensional Drawings................................................... 59

ENGLISH

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings—All warnings on the product and in the instructions must be observed closely.

4. Follow instructions—All operating instructions must be followed.

5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

6. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the AC cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work

by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that

the product needs servicing.

12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

Important Safety Precautions (Continued)

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

•Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

•To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

•Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

•To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Due to the very large number of pixels, a few non-active pixels may occasionally appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Supplied Accessories

LC-15B5M LC-20B5M

Make sure the following accessories are provided with the LCD TV set.

Remote control

pages 5 and 9 page 5

Antenna cable

“AAA” size batteries (×2)

AC cord

*Product shape varies in some countries.

page 6 page 6

AC adapter

page 6

Operation manual

Cable holder

page 8

Preparation

–

HEADPHONE jack

OPC indicator

POWER indicator

Remote sensor

OPC sensor

Installing Batteries in the Remote Control

Before using the LCD TV set for the first time, install the two “AAA” size batteries supplied in the remote control. When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover. 2 Insert two “AAA” size batteries. 3 Close the battery cover.

■ Slide the cover while pressing the (

) part.

■ Place batteries with their terminals corresponding to the (+) and (–) indications in the battery compartment.

■ Engaging the lower claw with the remote control, close the cover.

Caution!

Precautions regarding batteries

■ Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

•Place batteries with their terminals corresponding to the (+) and (–) indications.

•Different types of batteries have different characteristics. Do not mix batteries of different types.

•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.

•Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe it off with a cloth.

• The batteries supplied with the LCD TV set may have a shorter operating time due to storage conditions.

• If the remote control is not to be used for an extended period of time, remove the batteries from the remote control.

Using Remote Control

■ Use the remote control by pointing it towards the remote sensor window of the main unit. Objects between the remote control and sensor window may prevent proper operation.

Cautions regarding use of remote control

■ Do not apply shock to the remote control. In addition, do not expose the remote control to liquids, and do not place it in an area with high humidity.

■ Do not install or place the remote control under direct sunlight. The heat may cause deformation of the unit.

■ The remote control may not work properly if the remote sensor window is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or main unit, or operate the remote control closer to the remote sensor window.

Preparation (Continued)

NOTE

POWER INPUT DC12V

MAIN POWER

ANT. (Antenna terminal)

NOTE

Headphones

Connect to the DC input terminal of the LCD TV set.

Power Connection

Pull down the hook to open the cover.

■ Using the AC adapter

• Although the AC adapter may become warm during use, this is not a malfunction.

• Do not wrap or cover the AC adapter with a blanket or similar covering. This can cause a malfunction or accident.

• Do not attempt to disassemble or modify the AC adapter. The insides of the AC adapter contain high-voltage components that can result in the risk of electrical shock.

• Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet.

• Always turn the MAIN POWER switch of the LCD TV set to OFF when connecting the AC adapter.

• Unplug the AC adapter from the LCD TV set and power outlet when the LCD TV set is not to be used for a long period of time.

Pull down the hook to open the cover.

To POWER INPUT

terminal

AC adapter

Household

power outlet

Plug into an AC outlet.

AC cord*

* Product shape varies in some

countries.

Antenna Connection

• Using the supplied antenna cable, connect the room antenna terminal to the antenna terminal on the LCD TV set. (Refer to the figure below.)

Room antenna terminal

Antenna cable (supplied)

To antenna terminal

(75-ohm type)

Listening with Headphones

■ Plug the headphone mini-plug into the HEADPHONE jack located on the front of the LCD TV set.

• Headphones are not included in the supplied accessories.

• No sound is heard from the main unit speakers when a headphone mini-plug is connected into the HEADPHONE jack.

▼ On-screen display

Adjust the sound volume using VOL (+)/(–).

MAIN POWERMENUVOL

( )/( )

TV/VIDEOCH

( )/( )

LC-20B5M

LC-15B5M

Upper control panel

Part Names of Main Unit

NOTE

Tilt the display by grabbing onto the carrying handle while securely holding down the stand with your other hand.

How to adjust the angle

Controls

To change the vertical angle of the LCD TV set, tilt the screen up to 5 degrees forward or 10 degrees backward. The LCD TV set can also be rotated up to 25 degrees to right and left. Please adjust the angle so that the LCD TV set can be watched most comfortably.

Speaker

OPC sensor

Remote sensor

Card Lamp

When timer recording is set: Orange When recording: Red Standby: Green

PC Card Slot

Speaker

HEADPHONE jack

Plug the headphone mini-plug into the Headphone jack located on the front of the LCD TV set. (See page 6.)

OPC indicator (Optical Picture Control)

The Optical Picture Control indicator lights up green when the “Backlight” is set to “Auto (OPC)”. (See page 20.)

POWER indicator

POWER indicator lights up green when the power is on, and red when in the standby mode (the indicator will not light when the main power is off). The indicator lights up orange when the wake-up timer is set.

* The examples used throughout this manual are based on

the LC-20B5M model.

• TV/VIDEO, CH ( )/( ), VOL (–)/(+) and MENU on the main unit have the same functions as the same buttons on the remote control. Fundamentally, this operation manual provides a description based on operation using the remote control.

Part Names of Main Unit (Continued)

S-VIDEO

AV-IN1

VIDEO

AUDIO (R)

AUDIO (L)

VIDEO

AUDIO (R)

AUDIO (L)

AV-IN2/OUT

ANT. (Antenna terminal)

POWER INPUT (DC12V)

AUDIO (L)

AUDIO (R)

COMPONENT

Carrying handle

Rear View

Terminal cover

Cable holder

Terminal cover

Support cover

Terminals

How to fix the cables

•Pull the cables connected to each terminal through the holes and close the left and right terminal covers. Push the cables into the grooves of the support covers. Insert the cable holder (supplied) from above the support cover and fix the cables.

Part Names of Remote Control

Move the cursor to the upwards

(Select the menu items)

Still

(Pause the motion picture playback or card recording)

Move the cursor to the right

(Select the menu items)

Fast Forward

(Fast forwards the picture)

Move the cursor to the downwards

(Select the menu items)

Stop

(stop the motion picture playback or card recording)

(Set the menu or items by selecting the cursor)

Play

(Playback the card)

Move the cursor to the left

(Select the menu items)

Fast Reverse

(Fast reverses the picture)

How to use the cursor during the motion picture playback

SUBTITLE

Displays the Teletext

Subtitle directly.

(P.25)

HOLD

Temporarily holds the

current Teletext page.

(P.25)

REC

Records the motion

picture.

(P.32)

(Mute)

Switches the sound on and off. (P.11)

Yellow, Timer function Menu

(P.21)

Cyan, Status Display

(P.32)

Channel Select

(P.11)

Displays the TV menu or return to normal screen. (P.14)

VOL (+)/(

)

(P.11)

(Flashback)

Returns to the previous

channel. (P.11)

Red, Picture Menu

(P.16)

END

Returns to normal screen

in Teletext mode.

(P.25)

RETURN

Return to the previous screen.

TEXT

Displays the Teletext mode screen. (P.24)

POWER

(P.10)

MPX

Switches the audio

mode. (P.22)

REVEAL

Displays hidden information such as solutions to riddles and puzzles. (P.25)

CARD

Switches the motion and still picture. (P.29)

SUBPAGE

Displays the Teletext Subpage directly. (P.25)

CAPTURE

Records the still picture. (P.48)

TV/VIDEO

Switches the input source between AV1, AV2, COMPONENT, CARD and TV mode. (P.10)

BACKLIGHT

Selects the brightness and

OPC of the display.

(P.20)

Green, Sound Menu

(P.18)

CH ( )/( )

(P.11)

NOTE

PAL B/G

Basic Operation

NOTE

AV1

PAL

AV2

PAL

COMPONENT

VIDEO INDEX

PAL B/G

Turning On and Off the Main Power

MAIN POWER

POWER indicator

● Press MAIN POWER. The POWER indicator instantantly changes from blinking red to green and the LCD TV set is turned on.

On-screen display

Switching TV/VIDEO AV1/AV2/COMPONENT/CARD/TV Mode

Turn on the power of the connected video equipment.

Press TV/VIDEO to select the applicable input source.

The screen changes in order of AV1, AV2, COMPONENT, CARD and TV mode each time TV/VIDEO is pressed.

AV1 mode

AV2 mode

COMPONENT mode

• The On-screen display disappears after a few seconds.

● To turn off the main power, press MAIN POWER.

Standby

To turn off the LCD TV

Press POWER. The POWER indicator will turn red.

To turn the LCD TV back on

Press POWER again. The POWER indicator will turn green.

CARD mode

TV mode

• AV input mode indication remains for 5 seconds.

• AV1: Video equipment connected to the AV1 input

• AV2: AV2 mode is used to adjust the preset settings and

•

COMPONENT:

terminals. The S-video input terminal is additionally provided for the AV1 input. If both S-video terminal and normal video terminals are connected with cables, the S-video input terminal takes priority.

IN or OUT can be selected. AV2 indication is not displayed when OUT is selected. (For details on setting AV-OUT, see page 19.)

Video equipment connected to the COMPONENT input terminals.

• CARD: Select this when running a memory card. (STILL INDEX will be displayed when still picture mode and VIDEO INDEX will be displayed when motion picture mode.)

Basic Operation (Continued)

NOTE

Volume 50

Volume 10

PAL B/G

Sound Volume

■ To adjust the volume

● Press VOL (+) to increase the sound volume.

The numerical value increases.

● Press VOL (–) to decrease the sound volume. The numerical value decreases.

Changing Channels

You can select channels using Channel Select or CH ( )/( ).

•

To handle the increasing number of channels available, this LCD TV set allows you to select up to 100 positions (Channels 0 to 99). One-digit and two-digit methods of selection can be used. Follow the procedure shown below to select channels.

■ Using Channel Select

To select a one-digit channel (e.g., Channel 5):

Press 5 of Channel Select.

If “5-” is indicated and the picture does not change,

press

-/-- to switch over to the 1-digit select mode

and press 5 of Channel Select.

■ To mute the sound

● Press

e (Mute) to temporarily turn off the sound. The

MUTE mark is displayed on the screen.

e (Mute) or VOL (+)/(–) to turn the sound back to

the previous level. MUTE is automatically cleared when one of the following buttons are pressed: POWER, VOL (+)/(–) or

e (Mute).

To select a two-digit channel (e.g., Channel 15):

-/-- to set the 2-digit select mode.

Press

Press 1 of Channel Select.

Press 5 of Channel Select.

• Complete this procedure within 4 seconds, otherwise the selection will not be made.

Changing channels with CH ( )/( ) on the remote control.

Press CH ( ) and the channels change in the order shown below: 1 → 2 → 3 → . . . → 98 → 99 → 0 → 1 → 2 → 3 → . . . Press CH ( ) and the channels change in the order shown below: 3 → 2 → 1 → 0 → 99 → 98 → . . . → 3 → 2 → 1 → . . .

■ Using

● Press

A (FLASHBACK)

A to switch the currently tuned channel to the

previously tuned channel.

A again to switch back to the currently tuned

channel.

Preset

3 1, 2 4

Auto(B/G

)

VHF 1

48.25MHz

NOTE

English

Auto(B/G

)

VHF 1

48.25MHz

PAL B/G

NOTE

AUTO MANUAL LANGUAGE NORMAL SCREEN

On-Screen Display Language Selection

MENU on the LCD TV set can also be used to select the language.

Upper control panel

Press MENU (PRESET-1) on the upper part of the

LCD TV set for more than 2 seconds to display the PRESET mode screen.

Press MENU (PRESET-1) twice to display the

LANGUAGE select mode screen. Press MENU (PRESET-1) again to change the PRESET mode as shown below.

Presetting the Channels (AUTO)

Automatically tunes in and presets receivable TV stations. Make sure the antenna cable is properly connected.

Upper control panel

Press MENU (PRESET-1) on the upper part of the

LCD TV set for more than 2 seconds. The AUTO mode screen appears.

Sound System

•

Instead of pressing MENU for more than 2 seconds, you can display the LANGUAGE select mode by selecting Language on the Menu screen (see page 18).

Press CH ( )/( ) to select the language you wish

to display.

Press TV/VIDEO to return to the normal screen.

Setup

→

Press VOL (–)/(+) (PRESET-2) on the upper part of

the LCD TV set. All the TV stations in your area that can be received by the LCD TV set are automatically preset.

The screen shows whatever is on channel 1 when full

auto channel preset is finished.

•

When starting PRESET after setting the SOUND SYSTEM with MENU of the Remote Control, the SOUND SYSTEM for all channels are stored into memory.

•

Unused channels are automatically skipped.

•

The Preset mode is only available in the TV mode and cannot be operated in the AV mode.

41, 2, 63

Auto(B/G

)

VHF 1

48.25MHz

Manual(B/G

)

VHF 1

48.25MHz

Manual(B/G

)

UHF 5

623.25MHz

NOTE

Presetting the Channels (MANUAL)

41, 2, 3, 5

NOTE

Manual(B/G

)

VHF 1

48.25MHz

Fine UHF 5

623.25MHz

English

AUTO MANUAL LANGUAGE NORMAL SCREEN

Preset (Continued)

■ Setting a channel to a desired TV station:

Upper control panel

Press MENU (PRESET-1) on the upper part of the

LCD TV set for more than 2 seconds. The AUTO mode screen appears.

Sound system

■ In a weak reception area, or under bad reception

conditions.

Upper control panel

Press MENU (PRESET-1) on the upper part of the

LCD TV set for more than 2 seconds. The AUTO mode screen appears.

Press MENU (PRESET-1) to display the MANUAL

mode screen.

While the MANUAL mode screen is displayed, press

MENU (PRESET-1) for more than 2 seconds.

The channel position number remains in green.

Adjust for good reception using VOL (+)/(–).

After finishing the adjustment, press MENU

(PRESET-1) to continue channel presetting.

• While the MANUAL mode screen is displayed, press MENU (PRESET-1). (The LANGUAGE mode screen will appear.)

Press MENU (PRESET-1) to display the MANUAL

mode screen. Press MENU (PRESET-1) again to change the MANUAL mode as shown below.

Select the channel position using Channel Select or

CH (

Press VOL (+)/(–) to locate the channel you want to

preset to the position. Search is initiated and when a

)/( ).

TV signal is received during the search, the search stops.

Repeat steps 3 and 4 above, to preset the channel

positions for other broadcasts, etc.

Press MENU (PRESET-1) to return to the normal

screen.

•

SYSTEM may not have been set correctly, if noise can be heard or if there is no sound. MENU (See page 14).

In such case, reset to “Sound system” using

Preset (Continued)

Menu[Setup Clock setup

]

CH setup

Clock setup

Display mode A V2 In/Out Language Demo

Setup

Menu[Setup Clock setup]Menu[Setup Clock setup]

Adjust setting

Date Y ear T ime T ime zone

15/12 Wed 2 4 12: : :

NOTE

Menu[Setup CH setup

]

CH setup

Clock setup Display mode A V2 In/Out Language Demo

Setup

Menu[Setup CH setup]

B/G I D/K M

Auto

N358

PAL60 N443

PAL

SECAM

NOTE

Channel Setting

Press MENU to display the MENU screen.

Press \/| to select “Setup”.

Press '/" to select “CH setup”, and press OK.

Press '/" to select the desired adjustment item.

Menu[Setup CH setup] Adjust setting

Position CH 1 Colour system SECAM

Sound system B/G Skip Off Fine 871.15MHz Nicam Off A2 Off

Clock Setup

The Timer functions that turn power on at the specified time do not work unless the clock has been adjusted. Be sure to adjust the clock first.

Press MENU to display the Menu screen.

Press \/| to select “Setup”.

Press '/" to select “Clock setup”, and press OK.

Press \/| to select day/month/day of week, year or

time. Press '/" to make the adjustment.

Each time you press \/|, the setting for individual

items is as mentioned under Selected item.

Press MENU to exit.

Selected item Description

Position The channel position changes to the upper or lower number.

Colour system The mode changes in the following order:

Sound system The mode changes in the following order:

Skip The mode changes in the following order:

Fine The frequency changes to allow fine tuning.

Nicam

A2 Stereo system changes in the following order:

• Switching Colour system; Set the system to Auto for normal TV reception. The Auto mode automatically detects the receiving signal system and changes the reception system of the LCD TV set. When the picture or sound is not stable, switching to an appropriate system may improve the picture or sound quality.

• When using Fine tuning, the channel number changes from green to yellow.

• To return the channel to its original frequency setting, follow the manual channel preset procedure. (Please see page 13 “Presetting the Channels (MANUAL)” for details.)

On ←→ Off

Channel numbers with a “● (RED)” mark on the left are set to Skip. To turn off Skip, press Channel Select to select the desired channel, and then set the Skip mode on the CH setup menu to “Off”.

The broadcast sound system changes in the following order:

On (NICAM sound) ←→ Off (Monaural TV sound)

On (A2 sound) ←→ Off (Monaural TV sound)

Press MENU to exit.

• Set the time difference with global standard time of your area for “Time zone”. (See “Time Zone Table” on page 58).

■ Backup

The clock function is maintained for about 10 minutes even when the adapter has been shut off due to a power outage or when moving the LCD TV set. (Since about 30 minutes are required to charge the backup power supply, the clock function may not be able to be maintained if the charging time is excessively short.)

Selecting Menu Items

NOTE

Menu[Picture(TV)]Menu[Picture(TV)]

Picture Sound Setup Features Card

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system Advanced Reset

Select

OK:

Enter RETURN:Back MENUMENU:Exit

0 0

0 0 0 0

Treble [ ] -1 +1 Bass [ ] -1 +1 Balance [ ] -1 +1

Clear tone

0 0 0

Select mode

Select

OK:

Enter RETURN:Back MENU:Exit

Selecting Menu Items

■ Menu Setting Screens

For details on using each setting screen, refer to the page number indicated.


Page

Contrast .......................................................... 16

Brightness ....................................................... 16

Colour ............................................................. 16

Tint .................................................................. 16

Sharpness ....................................................... 16

Colour system ................................................. 16

Advanced .................................................. 16, 17

Reset............................................................... 16

The bar above is an operational guide for the remote control. The bar will change in accordance with each menu screen.

Sound

Setup

Features

Menu[Sound] Picture Sound Setup Features Card Treble [ ] -1 +1 Bass [ ] -1 +1 Balance [ ] -1 +1 Sound wide Clear tone Reset

Menu[Setup] Picture Sound Setup Features Card CH setup Clock setup Display mode AV2 In/Out Language Demo

Menu[Features] Picture Sound Setup Features Card Backlight Timer function Auto power off Blue back Reset

0 0 0

Page

Treble .............................................................. 18

Bass ................................................................ 18

Balance ........................................................... 18

Sound wide ..................................................... 18

Clear tone ....................................................... 18

Reset ............................................................... 18

Page

CH setup ............................................. 14, 22, 23

Clock setup ..................................................... 14

Display mode .................................................. 19

AV2 In/Out ...................................................... 19

Language ........................................................ 18

Demo* ............................................................. 15

Page

Backlight ......................................................... 20

Timer function ................................................. 21

Auto power off ................................................ 20

Blue Back........................................................ 20

Reset ............................................................... 20

Card

• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual appearance.

Menu[Card] Picture Sound Setup Features Card Select mode Video setup Timer Rec. Still setup Format

Page

Select mode .................................................... 29

Video setup ....................................... 31, 36 – 40

Timer Rec. ...................................................... 33

Still setup ................................... 43 – 47, 49, 50

Format............................................................. 51

*About “Demo” in “Setup”

•“Demo” is a function for demonstration display at a shop.

• To turn off the demonstration, do the following:

1. Press \/| to select “Setup” in the Menu screen.

2. Press '/" to select “Demo”, and press OK.

3. Press '/" to select “Demo”.

4. Press \/| to select “Off”, and press OK.

5. Press MENU to exit.

Menu[Picture(TV)

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system Advanced Reset


0 0

0 0 0

0 0 0 0

NOTE

Menu[Picture(AV1)Colour system

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1

Colour system

Advanced Reset


0 0

0 0 0 0

Basic Adjustment Settings

Menu[Picture

NOTE

Menu[Picture(TV)Advanced

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system

Advanced

Reset


0 0

0 0 0 0

Menu[Picture

Picture Adjustments

Adjust the picture to your preference with the following picture settings.

Press MENU to display the Menu screen.

• The Picture Menu screen can be displayed directly by pressing the Red.

Press \/| to select “Picture”.

Press '/" to select a specific adjustment item.

Press '/"/\/| to select “Auto”, “PAL”, “SECAM”,

“N358”, “N443” or “PAL60” and press OK.

Menu[Picture

Selected desired item

Auto PAL

SECAM N358

N443 PAL6

Press MENU to exit.

• Colour system is displayed only in the AV mode.

(

AV1)Colour system]

I/P Setup

Adjusting the image and input signal can give you a more beautiful picture.

Press \/| to adjust the item to your desired position.

Press MENU to exit.

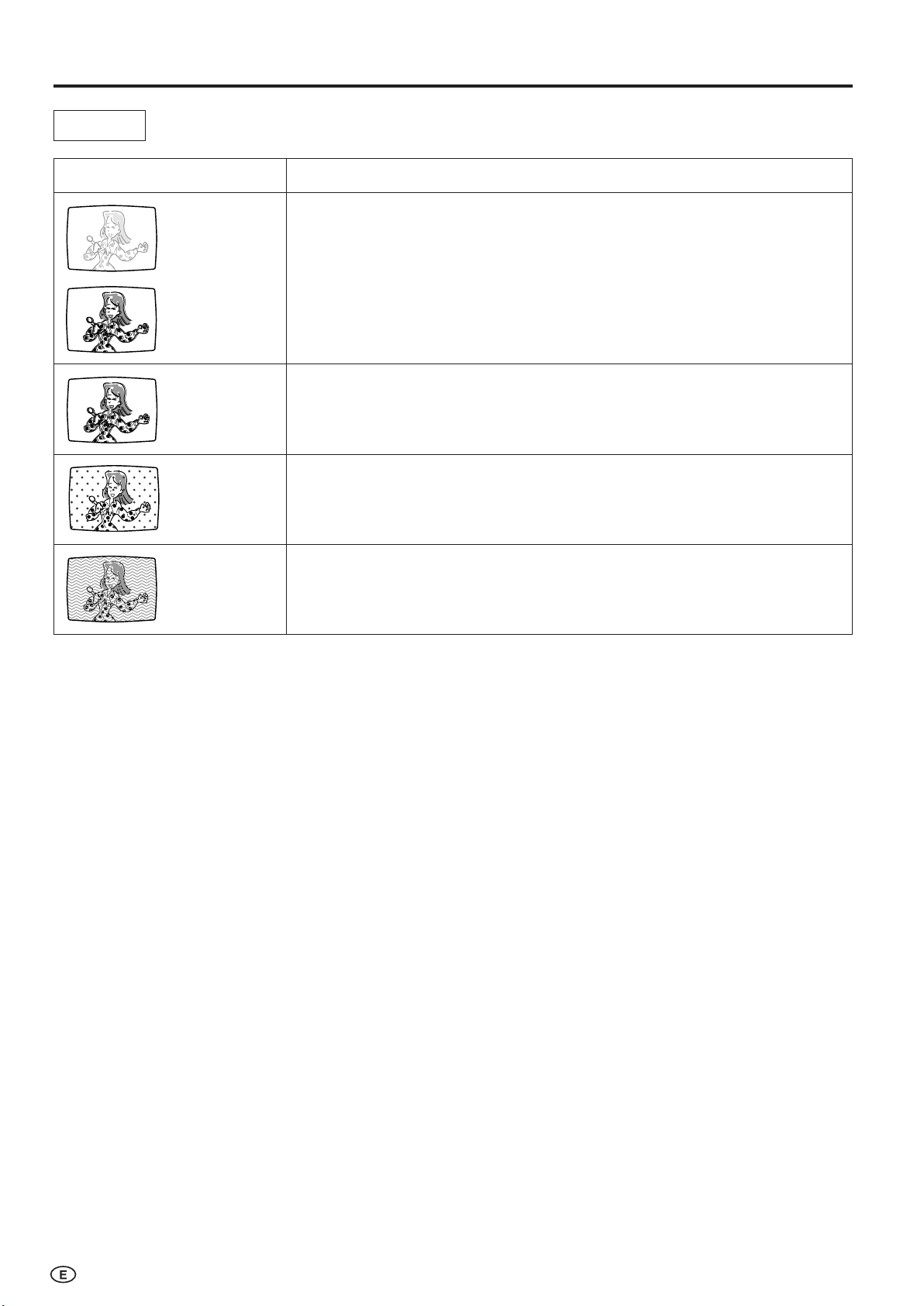

Selected item

Contrast

Brightness

Colour

Tint

Sharpness

c button

For less contrast

For less brightness

For less colour intensity

Skin tones become purplish

For less sharpness

d button

For more contrast

For more brightness

For more colour intensity

Skin tones become greenish

For more sharpness

• Select “Colour system” and press OK to select “Auto”, “PAL”, “SECAM”, “N358”, “N443” or “PAL60”. See below.

• Select “Advanced” and press OK to set “I/P Setup”, “DNR”, “Film mode” or “Cool climate”. See pages 16 and 17.

• When setting all adjustments (Except “Colour system” and “Advanced” items) to factory preset values,

1 Press '/" to select “Reset”, and press OK. 2 Press \/| to select “Yes”, and press OK.

Colour System (Only AV1 or AV2 Mode)

Set the system to “Auto” for normal reception. The “Auto” mode automatically detects the receiving signal system and changes the reception system of the set. When the picture or sound is not stable, switching to an appropriate system may improve the picture or sound quality.

Perform steps 1 and 2 in Picture Adjustments.

Press '/" to select “Colour system”, and press OK.

Press MENU to display the Menu screen.

• The Picture Menu screen can be displayed directly by pressing the Red.

Press \/| to select “Picture”.

Press '/" to select “Advanced”, and press OK.

Press '/" to select “I/P Setup”, and press OK.

Menu[Picture

I/P Setup DNR Selected desired item Film mode Cool climate Interlace

Progressive

Press '/" to select “Interlace” or “Progressive”, and

(TV)

Advanced]

press OK.

Press MENU to exit.

Selected item

Interlace

Progressive

Use this setting when you cannot get a clear picture with Progressive. (Especially suitable for media with special effects like game software.)

Normally, you should select this setting.

Description

NOTE

Menu[Picture(TV)Advanced

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system

Advanced

Reset


0 0

0 0 0

0 0 0 0

Menu[Picture

NOTE

DNR (Digital Noise Reduction)

Menu[Picture(TV)Advanced

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system

Advanced

Reset


0 0

0 0 0 0

Menu[PictureMenu[Picture(TV)Advanced]

I/P Setup DNR Selected desired item Film mode Cool climate O n

Off

Menu[Picture(TV)Advanced

]

Contrast [ 3Contrast [ 3 ] ] +6 +6 Brightness [ Brightness [ ] -3] -3 +3 +3 Colour [ Colour [ ] -3] -3 +3 +3 Tint [ Tint [ ] -3] -3 +3 +3 Sharpness [ Sharpness [ ] -1 +1 Colour system

Advanced

Reset


0 0

0 0 0 0

Menu[Picture

Produces a clearer video image.

Press MENU to display the Menu screen.

• The Picture Menu screen can be displayed directly by pressing the Red.

Press \/| to select “Picture”.

Press '/" to select “Advanced”, and press OK.

Basic Adjustment Settings (Continued)

Press '/" to select “On”, and press OK.

Press MENU to exit.

• Set the “Film mode” to “On” manually to detect a film-based source (originally encoded at 24 frames/second) when the input source has vertical frequency of 50 Hz (e.g. PAL, SECAM etc.) .

Cool Climate

(This function is only available with LC-20B5M model.)

Improves LCD response when viewing fast-moving images. The effect is greater at low room temperatures (at or below 15˚C/59˚F).

Press '/" to select “DNR”, and press OK.

Press '/" to select “On”, and press OK.

Press MENU to exit.

Film Mode

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, and then recreates each still film frame for high-definition picture quality.

Press MENU to display the Menu screen.

• The Picture Menu screen can be displayed directly by pressing the Red.

Press \/| to select “Picture”.

Press '/" to select “Advanced”, and press OK.

Press MENU to display the Menu screen.

• The Picture Menu screen can be displayed directly by pressing the Red.

Press \/| to select “Picture”.

Press '/" to select “Advanced”, and press OK.

Press '/" to select “Cool climate”, and press OK.

Menu[Picture

I/P Setup DNR Selected desired item Film mode Cool climate O n

Off

Press

'/"

to select “On”, and press OK.

Press MENU to exit.

(TV)

Advanced]

• Cool climate may cause image noise. If this occurs, set the function to “Off”.

Press '/" to select “Film mode”, and press OK.

Menu[Picture

I/P Setup DNR Selected desired item Film mode Cool climate O n

Off

(TV)

Advanced]

Menu[Sound(TV)

]

Treble [ ] -1 +1 Bass [ ] -1 +1 Balance [ ] -1 +1 Sound wide Clear tone Reset

Sound

0 0 0

Menu[Sound(TV)Sound wide]Menu[Sound(TV)Sound wide]

Selected desired item

O n Off

NOTE

Basic Adjustment Settings (Continued)

Menu[Setup Language

]

CH setup Clock setup Display mode A V2 In/Out

Language

Demo

Setup

Menu[Setup Language]Menu[Setup Language]

Selected desired item

English

Sound Adjustments

You can adjust the sound quality to your preference with the following settings.

Press MENU to display the Menu screen.

• The Sound Menu screen can be displayed directly by pressing the Green.

Press \/| to select “Sound”.

Press '/" to select a specific adjustment item.

Press \/| to adjust the item to your desired position.

• Select “Sound wide” or “Clear tone” and press OK to select “On” or “Off” of each item.

Example: Sound wide setting screen

On-screen Display Language Setting

You can select English, Chinese or Arabic as the on-screen display language.

Press MENU to display the Menu screen.

Press \/| to select “Setup”.

Press '/" to select “Language”, and press OK.

Press '/" to select the desired language, and press

OK.

Press MENU to exit.

Selected item

Treble

Bass

Balance

Sound wide*

Clear tone*

*“Sound wide” and “Clear tone” are not set when the headphone mini-

plug plug into HEADPHONE jack.

• When all adjustments (Except “Sound wide” and “Clear tone” items) set to factory preset values,

1 Press '/" to select “Reset”, and press OK. 2 Press \/| to select “Yes”, and press OK.

• When you select “Out ” in “AV2 In/Out”, you cannot adjust sound settings.

\ button

For weaker treble

For weaker bass

Increase the volume of the left speaker

On: Increase the spread of the sound.

On: Accentuates high-pitched sounds.

| button

For stronger treble

For stronger bass

Increase the volume of the right speaker

Press MENU to exit.

Basic Adjustment Settings (Continued)

Menu[Setup A V2 In/Out

]

CH setup Clock setup Display mode

A V2 In/Out

Language Demo

Setup

Menu[Setup

Menu[Setup Display mode

]

CH setup Clock setup

Display mode

A V2 In/Out Language Demo

Setup

Menu[Setup Display mode]Menu[Setup Display mode]

Selected desired item

Normal

Mirror

Rotate

Upside down

NOTE

ABC

AV2 In/Out

Press MENU to display the Menu screen.

Press \/| to select “Setup”.

Press '/" to select “AV2 In/Out”, and press OK.

Press '/" to select the desired mode, and press OK.

Menu[Setup

Selected desired item

Out

A V2 In/Out]

Display Mode

You can set the orientation of the picture.

Press MENU and the Menu screen is displayed.

Press \/| to select “Setup”.

Press '/" to select “Display mode”, and press OK.

Press '/" to select the desired mode, and press OK.

Press MENU to exit.

AV2 In/Out [In] AV-IN2 terminals

selected as input terminals

[Out ] Line Output is

selected, Output volume is fixed, Speaker output is available.

[Out ] Line output is

selected, Output volume is variable, speaker output is Mute.

Press MENU to exit.

• The Rotate is set to “Normal” at the factory setting.

[Normal]: Normal

image orientation.

[Mirror]: To display

mirror images for

special uses.

[Rotate]: To display

rotated images for

special uses.

[Upside down]: To

display upside down

images for special uses.

Basic Adjustment Settings (Continued)

Menu[Features

]

Backlight Timer function Auto power off Blue back Reset

Features

Menu[Features Backlight]Menu[Features Backlight]

Selected desired item

Auto(OPC) Bright

Normal Dark

NOTE

Backlight [Bright ]

Backlight [Normal ]

Backlight [Auto(OPC)]

Backlight [Dark ]

NOTE

Features

The Feature items can be set by the user.

Press MENU and the Menu screen is displayed.

Press \/| to select “Features”.

Press '/" to select the desired adjustment item, and

press OK.

Press '/"/\/| to set each item in each setting screen. (Except “Timer function” item.)

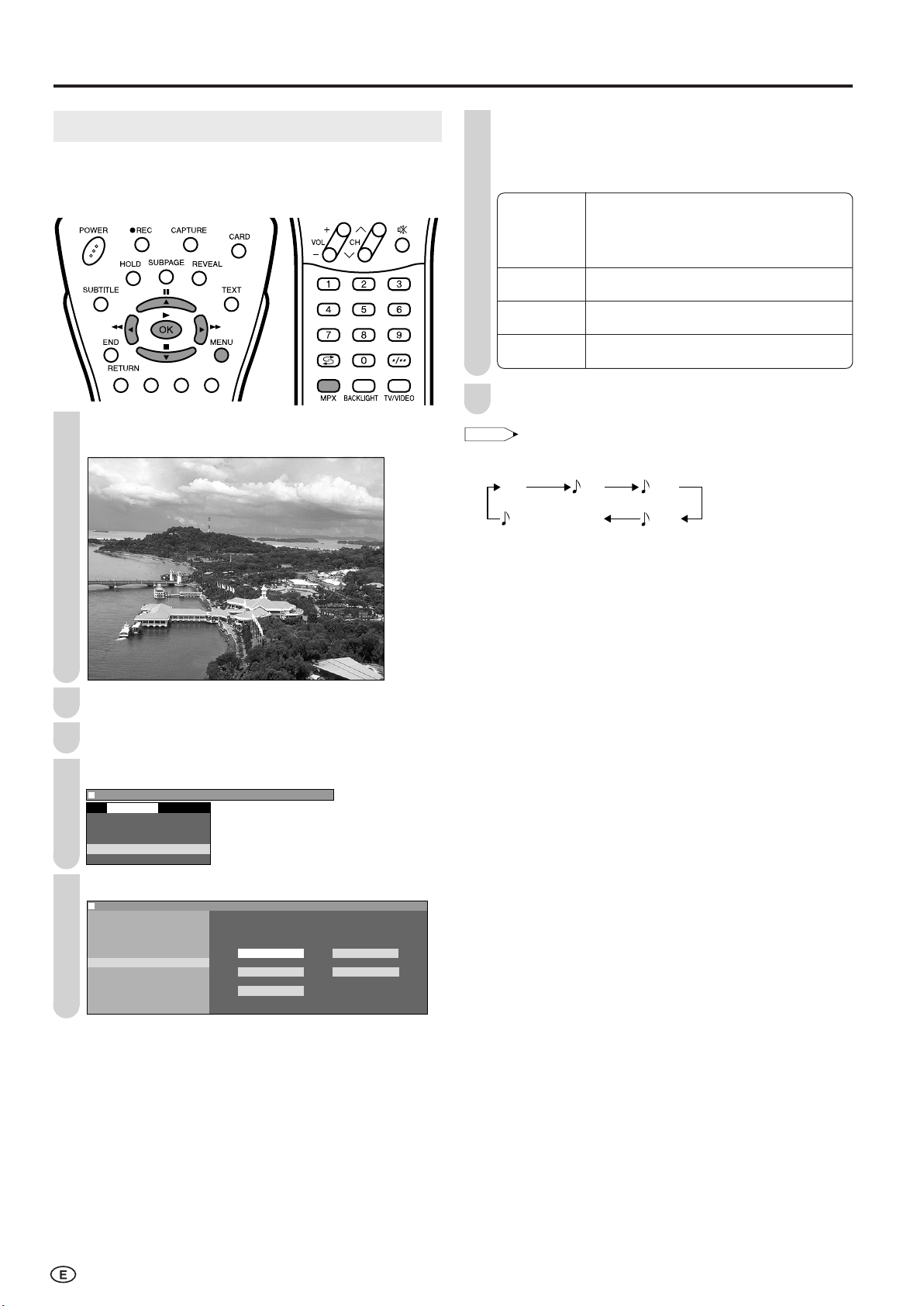

Example: Backlight setting screen

■ Directly setting the Backlight

You can change the setting of Backlight directly.

Press BACKLIGHT to display the Backlight screen.

Each time you press BACKLIGHT, the mode changes as follows. You can select the desired mode.

• The Backlight screen automatically disappears after 4 seconds.

• See the table left for details of the each backlight setting.

• When set to “Auto (OPC)”, make sure that no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

Press MENU to exit.

Selected item

Backlight*

Auto power off (only TV mode)

Blue back

* Backlight setting can be switched in one touch using the remote control

(see right).

• Select “Timer function” and press OK to set “Sleep timer” and “Wake-up timer” (See page 21).

• When all adjustments set to factory preset values,

1 Press '/" to select “Reset”, and press OK. 2 Press \/| to select “Yes”, and press OK.

Factory setting

[Bright] Maximum brightness

[

Off

] This feature

is inactive.

[On] The screen is turned blue when there is no signal.

[Normal] Brightness 60% → Suitable

[Dark]

[Auto (OPC)]

[On] The power of the LCD TV set is

[Off] This feature is inactive.

Adjustable item/range

for viewing in well-lit areas.

Saves energy. Brightness 20% → Sufficiently bright when viewing in dim areas.

Screen brightness is adjusted according to the ambient light of the room.

turned off when there is no signal for 5 minutes.

Timer Function

Menu[Features T imer function

]

Backlight

T imer function

Auto power off Blue back Reset

Features

Menu[Features

NOTE

Press MENU to display the Menu screen.

•

The Timer function Menu screen can be displayed directly by pressing the Yellow.

Press \/| to select “Features”.

Press '/" to select “Timer function”, and press OK.

Press '/" to select “Sleep timer”, and press OK.

Menu[Features

Sleep timer W ake-up timer Selected desired item

Off 9 min

3 min 12 min

6 min 15 min

T imer function] –––

Basic Adjustment Settings (Continued)

Press

'/"/\/|

90min

”, “

“

Press '/" to select “Wake-up timer”, and press OK.

Menu[Features

Sleep timer Adjust setting W ake-up timer

Set Off

W ake-up time :

Channel CH1 Volume 2

Press '/" to select the desired adjustment item, and press \/|

Press MENU to exit.

to select “Off”, “

120min

” or “

150min”, and press OK.

T imer function]

to adjust them.

30min

”, “

Press OK to set.

60min

”,

• When you set “Wake-up timer”, POWER indicator lights up orange.

• Be sure to adjust the clock with “Clock setup” in “Setup” before setting “Sleep timer” and “Wake-up timer”.

• Timer programming settings are cancelled when the duration of the power outage exceeds the backup time. (See page 14.)

NICAM

STEREO

MONO

NICAM

MONO

NICAM

MONO

NOTE

Menu[Setup CH setup

]

CH setup

Clock setup Display mode AV2 In/Out Language Demo

Setup

NICAM

NOTE

NICAM Broadcast Selection

To let you enjoy NICAM broadcasting, this LCD TV receives NICAM stereo system, bilingual, and monaural broadcasts.

Stereo

The LCD TV set is receiving a stereo broadcast.

• Each time you press MPX, the mode changes between “NICAM STEREO” and “MONO”.

•When “MONO” is selected, the TV sound is output monaurally.

(When stereo sound is received)

Bilingual

The LCD TV set is receiving a bilingual broadcast.

• Pressing MPX changes the audio mode in the order shown on

the right.

• M1=main sound, M2=sub sound, or MONO=monaural sound,

can be selected.

(When main sound is selected)

(When sub sound is selected)

If the sound quality is poor due to a weak signal or other problems during NICAM broadcast reception, set the “Off” position of the NICAM to change the TV sound to monaural.

Press MENU to display the MENU screen.

Press \/| to select “Setup”.

Press '/" to select “CH setup”, and press OK.

Press '/" to select “Nicam”, and press \/| to select

“Off”. When the NICAM sound is set to the “Off” position, the TV sound is output in monaural.

(When monaural sound is selected)

Monaural

The LCD TV set is receiving a monaural broadcast.

• Each time you press MPX, the mode changes between “NICAM MONO” and “MONO”.

(When monaural sound is received)

• If approximately 3 seconds pass without a button being pressed,

the mode setting is automatically terminated and the LCD TV set returns to the normal mode.

• The setting can be individually selected for each channel number.

Press MENU to exit.

(When off position is selected)

• When the NICAM sound is set to the “Off” position, MPX cannot be used to change the audio mode (stereo and bilingual settings).

STEREO

MONO

MAIN

SUB

NOTE

Menu[Setup CH setup

]

CH setup

Clock setup Display mode AV2 In/Out Language Demo

Setup

NOTE

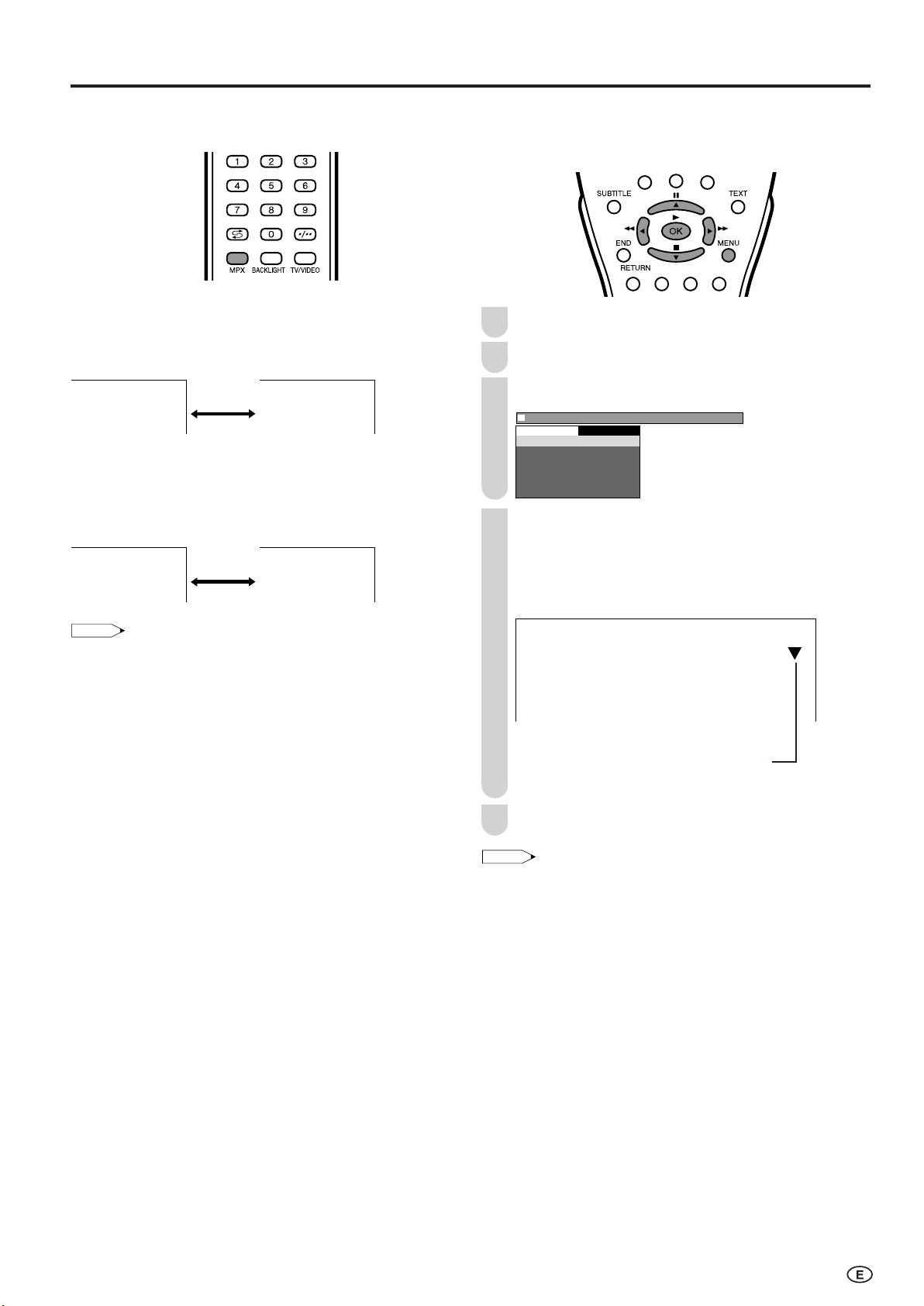

A2 Stereo Broadcast Selection

To let you enjoy A2 stereo broadcasting, this TV receives A2 stereo system and bilingual broadcasts.

Stereo

The LCD TV set is receiving a stereo broadcast.

• Each time you press MPX, the mode changes between “STEREO” and “MONO”.

•When “MONO” is selected, the TV sound is output monaurally.

(When stereo sound is received)

Bilingual

The LCD TV set is receiving a bilingual broadcast.

• Pressing MPX changes the audio mode in the order shown on

the right.

MAIN=main sound or SUB=sub sound, can be selected.

•

(When main sound is received)

(When sub sound is received)

If the sound quality is poor due to a weak signal or other problems during A2 stereo broadcast reception, set the “Off” position of the A2 to change the TV sound to monaural.

Press MENU to display the MENU screen.

Press \/| to select “Setup”.

Press '/" to select “CH setup”, and press OK.

Press '/" to select “A2”, and press \/| to select

“Off”. When the A2 sound is set to the “Off” position, the TV sound is output in monaural.

• If approximately 3 seconds pass without a button being pressed,

the mode setting is automatically terminated and the LCD TV set returns to normal mode setting.

• The setting can be selected individually for each channel number.

(When off position is selected)

b is displayed if A2 is received when A2 is set to “Off”.

Press MENU to exit.

• When the A2 sound is set to the “Off” position, MPX cannot be used to change the audio mode (stereo and bilingual settings).

TELETEXT

Red Green Yellow

Cyan

100

NOTE

TELETEXT

Red Green Yellow

Cyan

100

369 SHARP- TEXT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

02:52:21

100 200

Teletext

■ What is Teletext?

Teletext is an information service organised like a magazine, which is provided by some TV stations in addition to regular television broadcasting. Your LCD TV set receives special Teletext signals broadcast by a TV station, processes the information and displays it graphically on the screen. News, weather and sports information, stock exchange prices, programme reviews and closed captioning for people hard of hearing are among the many services available through Teletext.

■ Teletext mode

Teletext is activated with TEXT on the remote control and is also closed with it. The LCD TV set can be controlled in Teletext mode directly by inputting commands with the remote control and indirectly through the on-screen display (menu system).

[1] Turning on and off Teletext mode

Select a TV channel that is broadcasting the Teletext

programme.

Press TEXT and the Teletext screen is displayed.

■ Operating instructions in Teletext mode

• The FLOF system for teletext is transmitted in Singapore currently.

• The TOP system for teletext is transmitted in Australia currently.

• If TOP Teletext is broadcast, a control line and TOP line can be displayed on the screen. The TOP line involves the operating instructions associated with all of the Coloured buttons if TOP text is transmitted, or the operating instructions for only Red and Green if TOP text is not being transmitted.

• If there are subpages, a control line holding the operating instructions for subpages can be displayed on line

24.

● To turn off the Teletext mode, press TEXT again.

[2] Using the TOP line

When TOP Teletext is being broadcast, you can display the TOP line, which contains the operating instructions on the screen.

Press the Coloured buttons to operate the Teletext

screen.

• Press Red to display the previous page and Green to display the next page. Yellow and Cyan are as indicated on the TOP line.

• By pressing Red the previously selected page will appear down to the first page which showed up directly after switching on the teletext. Therefore Red has no function directly after switching on the teletext.

Teletext (Continued)

369 SHARP- TEXT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

02:52:21

100 200

ABC

DEF

ABC DEF

[3] Changing subpages

If a page has been selected from among several subpages, you can display a control line which contains the subpage numbers.

Press SUBPAGE. The control line with the subpage

numbers is displayed on line 24, and the number of the currently selected subpage is displayed in blue.

[5] Using Teletext menu

To select the character set

During Teletext broadcast, press MENU to display the

“Character set” screen.

Character set

Arabic/Hebrew West Europe East Europe Turkish/Greek

Press '/" to select the desired character set.

• The colour of the letters will turn to yellow. When selecting the character set, pressing OK will change the letters to grey for an instant and then return them back to yellow.

[4] Using the TOP table

Press \/| to select the desired subpage number.

The selected subpage is displayed.

•You can also use Channel Select to select the desired subpage.

Press SUBPAGE to turn off the control line.

When TOP Teletext is being broadcast, you can display the TOP table with the current programme data if one exists.

Press OK to display the TOP table. The Teletext page

is temporarily turned off.

Press '/" to select the desired item. Press \/| to

select topics (column 1) or subtopics (column 2) if they exist.

Press OK. A page associated with the selected item is

displayed.

Press END to exit.

Press MENU to exit.

[6] Useful Features for Teletext

● HOLD on the remote control can be used to hold the current teletext page. Press the button again to cancel the hold mode.

● '/" can be used to zoom the current teletext page as below.

* The screen is displayed in each mode each time '/" is

pressed.

● SUBTITLE can be used to quickly activate subtitles.

* Press TEXT to deactivate subtitles.

● REVEAL can be used to display hidden information such as solutions to riddles and puzzles. Press the button again to hide the information.

Before Using Memory Cards

■ Important Notes on Using Memory Cards

• SHARP cannot be held responsible for misuse of the LCD TV set, any troubles during use, or other problems, or any damages arising out of the use of the LCD TV set, except for those cases for which Sharp is liable by law.

• If you or other people misuse the LCD TV set, or the LCD TV set is affected by static electricity or electrical noise, the recorded data may be in danger of being changed or lost.

• If you are making an important recording, run a test in advance to ensure that the recording would be performed correctly in terms of picture or sound quality.

• SHARP cannot be held responsibility nor make any compensations even if pictures or sound cannot be recorded correctly because of any troubles when using the LCD TV set.

Note:

For Australia

• Copyright may exist in material you wish to record.

Copying such material without permission of the relevant licensee(s) or owner(s) of the copyright is prohibited by law. SHARP is not in a position to authorize the recording of copyright works and nothing in this manual should be read or implied as giving that authority.

For Asia

• Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the

owner of the copyright. Please refer to relevant law in your country.

Duplicating images and music by copying and/or editing from videocassettes and/or TV programmes that are subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With the exception of cases when the user personally is the owner of the copyrights of the object in question or when specific and written permission has been obtained from the owner(s) of the object in question, the user is not permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copyright laws, possible exposing the user to demands for compensation for damages. Therefore, be sure to strictly observe the existing copyright laws. In addition when using image data that includes third parties, since the use of such images without prior permission may constitute an intrusion on the privacy of third parties, be sure to refrain from such usage.

■ Card mode specifications

Recording/Playback File Format

Still Picture

Motion Picture

* Motion picture files and still image files recorded, stored or edited with other devices may not play back correctly.

■ Concerning the standard number of recorded images and recording time

Still Pictures

Recordable Pictures

* Recordable numbers may vary depending on the reception conditions of the LCD TV set and/or the contents of images.

Motion Pictures

Recordable Time

* Recordable time may vary depending on reception conditions of the LCD TV set or the contents of images. * The maximum amount of data you can record on a memory card is 1,024 pictures in total including still and motion pictures. * Files in excess of 4GB and files exceeding 12 hours of recording time cannot be recorded and/or played back.

Size of a Captured Still Picture

Recording File Format

Size of a Recorded Motion Picture/Number of Frames

Playback

File Format

Picture Size

640 × 480

Picture Size

320 × 240

JPEG (DCF compliant)

640×480 dots

SP/LP...ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)

EP ........ ASF (Motion Picture: MPEG-4 compliant, Sound:

SP ... Size: 320×240 dots, Frame: approx. 25 frames/sec LP ... Size: 320×240 dots, Frame: approx. 25 frames/sec EP ... Size: 320×240 dots, Frame: approx. 12.5 frames/sec

ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

Memory Card

32MB

Approx. 300 pictures

Recording Mode

Approx. 1,000 pictures

Approx. 10min.

Approx. 30min.

Approx. 1h

128MB

Memory Card Capacity

256MB

Approx. 4h

Approx. 10h

Approx. 25h

G.726-compliant

5GB

)

About Memory Cards

xD-Picture Card

SD Memory Card

miniSDTM Card

Adapter

MultiMediaCard

SmartMedia

CompactFlash

Memory Stick

PC Card Adapter

PC Card HDD

miniSD

Card

■ You can use memory cards (commercially available) for

recording and playing back pictures.

• Please use an appropriate PC card adapter (commercially available) for each memory card.

•

The following memory cards are available. (Note that names for memory cards vary depending on the manufacturer.)

Memory card name

SD Memory Card

miniSDTM Card

CompactFlash

MultiMediaCard

SmartMedia

Memory Stick

Memory Stick Pro

xD-Picture Card

Micro Drive

PC Card HDD

Storage capacity

512 MB or less

32 MB or less

2 GB or less

128 MB or less

1 GB or less

128 MB or less

2 GB or less

5 GB or less

* At present, January, 2004

The capacity of the memory stick only serves as a guide and may differ depending on brand.

Trademarks

SD Memory Card is a trademark. CompactFlash is a trademark of SanDisk Corporation of the USA. MultiMediaCard is a trademark of Infineon Technologies AG of Germany. SmartMedia is a trademark of Toshiba Corporation. Memory Stick is a trademark of Sony Corporation.

• Some motion pictures recorded with other devices may not be played back correctly.

* Depending on the card or adapter used, normal opera-

tion may not be possible.

Commercially Available Memory Cards

■ In the card mode, you can playback DCF compliant JPEG

Please note the following when using memory cards and PC card adapters to avoid corruption of data or malfunction of the LCD TV set.

●

● Some PC card adapters have restrictions in regards to memory card capacity. Refer to the relevant operation manual for

● Some pictures which have been created, modified, or copied on your PC may not be played back correctly.

● Do not bend, drop or apply a shock to memory cards or PC card adapters.

● Keep memory cards or PC card adapters away from heat, water or direct sunlight.

● Do not take apart or modify memory cards or PC card adapters.

● Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card adapters.

● Do not turn the LCD TV set off while a memory card is in operation (e.g. playing back, recording or displaying a

● The recorded data may be erased or changed due to incorrect operation, the influence of static electricity and electrical

● Be sure to back-up important files using other media such as a PC.

• To read picture files recorded with digital cameras, use the PC card adapter recommended by the corresponding manufacturer. (The names of PC card adapters vary

• Be sure to use an appropriate PC card adapter (commercially available) for each memory card.

depending on the manufacturer.)

• For directions concerning the use of digital cameras or

Preparing a Memory Card

PC card adapters, please refer to the operation manual provided with each product.

• Depending on the card or adapter used, normal opera-

Insert a memory card (commercially available) into a PC card adapter (commercially available).

tion may not be possible.

Example:

pictures captured with other devices.

Inserting the SD memory card into a PC card adapter.

* DCF (Design rule for Camera File system) is a standard

of the Japan Electronics and Information Technology Industries Association (JEITA). This standard specifies the image file format used for images shot with a digital camera.

Notes on Using Memory Cards and PC Card Adapters

If you use a memory card other than the ones specified above, its ability to record or playback pictures is not guaranteed.

such restrictions.

slideshow).

noise, therefore be sure to back-up the data regularly.

The Card Eject button

Press the Card Eject button.

The Card Eject button

PC card adapter

The Card Lamp lights up green.

When pressed, the card eject button pops up.

The PC card adapter is ejected when the button is pressed again.

The Card Eject button

Confirm the Card Lamp has turned green.

NOTE

Loading a PC Card Adapter

You need to set a memory card in a PC card adapter before loading it. (See page 27.)

Check the Card Eject button is pressed.

Insert a PC card adapter into the PC card slot on the

LCD TV set slowly.

* Insert a card straight

into the slot.

The Card Lamp turns green.

Inserting/Removing a PC Card

Important:

•

Do not allow foreign objects to enter the PC card slot. This could lead to defects.

Confirm the Card Eject button is in the depressed

position.

Insert the PC card adapter.

Changing from Card Mode to the TV mode

Press either Channel Select, TV/VIDEO or CH( )/( ).

Press the Card Eject button, and remove the PC card

adapter.

• If the Card Eject button is not in the depressed position, the card cannot operate. Please use with the Card Eject button in the depressed position.

• When ejecting the PC card adapter, confirm the Card Lamp is green before ejecting the adapter.

• Never eject the PC card adapter when the Card Lamp is red.

• When there are many files, reading can take about 5 minutes.

Menu[Card Select mode

]

Select mode

Video setup Timer rec Still setup Format

Card

Menu[Card Select mode]

NOTE

Playing Back Mode

Still 1/ 2

13/ 5/ 4 11:35

000

Select Mode

Switches the mode between motion picture and still picture.

Press CARD.

• The playback mode used when recording is displayed. Each time you press this button, the mode is switched as follows.

[Motion Picture]

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

0 0 0 0

0 0

You can also set the mode from the Menu screen.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Select mode”, and press OK.

Press \/| to select the desired mode, and press OK.

Menu[Card Select mode]

Selected desired item

Video Still

• Selected mode is displayed.

Press MENU to exit.

• Protected files are displayed with the “ ” mark.

• Files that could not be read are displayed with an “X” mark.

* When no motion picture is present, “No video file” is displayed.

[Still Picture]

* When no still picture is present, “No still image file” is displayed.

Recording/Playing Back a Memory Card

Recording on the Memory Card

When Recording Motion Pictures:

● Set the picture quality for recording motion pictures. →

● Set the date, channel, and picture quality for the programme you want to record. → Timer Rec (See page 33.)

● Make the settings not to miss the moment you want to record. → Pre-recording (See page 31.)

When Recording Still Pictures:

● Make the settings for the shutter click to be heard when a picture is captured. →

The following settings are available to help you make correct recordings.

Rec mode (See page 31.)

Shutter click (See page 47.)

Playing Back the Memory Card How to playback motion/still pictures.

Select the picture (motion picture or still picture) to be played back. →

When Playing Back Motion Pictures:

● Playback the selected picture repeatedly. → Repeat (See page 36.)

● Playback the selected picture more slowly than normal. → Slowmotion (See page 37.)

● Zooms the selected picture. → Zoom (See page 38.)

Select mode (See page 29.)

When Playing Back Still Pictures:

● Start playing back pictures with the setup as specified. → Still setup (See page 43.)

●

Displays still pictures you have selected one after another at a certain interval.→

● Displays still pictures in order you have specified. → My programme (See page 44.)

● Rotates a still picture. → Rotate (See page 45.)

● Plays a background music while playing back still pictures. → Audio select (See page 46.)

● Deletes unnecessary files or protects the files you want to keep. → Edit (See page 49, 50.)

Slideshow setup

(See page 43.)

Precautions when Playing Back PC Image Data on the LCD TV Set

Recording formats of image data:

When recording image data on the LCD TV set, the recording formats are as follows.

● When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card, the

SD_VIDEO recording format is recognized.

● When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the DCIM

recording format is recognized.

When playing the card, record PC data in a recording format the LCD TV set can recognize.

1. When copying motion pictures from a PC to a card recorded with the LCD TV set, only play these pictures after placing

them in the SD_VIDEO folder.

2. When copying still pictures from a PC to a card recorded with the LCD TV set, only play these pictures after placing

them in the DCIM folder.

3. When using a new card for copying motion pictures, first format the card and create a SD_VIDEO folder before placing

the data in the folder for playback.

4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the data in

the folder for playback.

When creating, revising, or copying images using your PC, the edited images may not playback correctly.

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card V

NOTE

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card VMenu[Card Video setup]

Rec mode Pre-recording Repeat Selected desired item Slowmotion Zoom Edit O n Off

NOTE

Recording on a Memory Card (Video Setup)

Rec Mode

Use this setting for recording images you are currently watching. Select the recording mode (picture quality) for a motion picture.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Video setup”, and press OK.

Pre-Recording

When setting pre-recording to “On”, recording will be initiated starting from 5 seconds earlier.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Video setup”, and press OK.

Press '/" to select “Rec mode”, and press OK.

Menu[Card V

Rec mode Pre-recording Repeat Selected desired item Slowmotion Zoom SP Edit LP

Press '/" to select “SP”, “LP” or “EP”, and press OK.

Press MENU to exit.

Selected item

• When using the SP mode, differences in picture quality can occur depending on the card used. In this case, it is recommended to record in the LP mode.

• When switching to the Card mode after finishing the recording, the motion picture mode is indicated.

• When switching to the Card mode after finishing recording a still picture, the still image mode is indicated.

Use this mode for normal use.

Use this mode for making long recordings.

When recording with the LP/EP mode, there is a bigger difference in the image and sound quality than recording in the SP mode.

ideo setup]

Description

Press '/" to select “Pre-recording”, and press OK.

Press \/| to select “On”, and press OK.

Press MENU to exit.

• Pre-recording is enabled only in the motion picture mode. It is not possible to capture an image a few seconds before as a still picture.

When recording with the “Pre-recording” mode set to “On”

• The LAP time at playback will be a few seconds longer than the LAP time at the end of recording.

• Depending on the timing the recording was started, the time the pre-recording can return may vary slightly, for example, immediately after selecting a channel or immediately after turning on the power.

• When timer recording has been set in “Timer Rec.”, the start time will not return even if “Pre-recording” is set to “On”.

PAUSE

Lap : :3

SP/Remain video :32

2:18

000

0 0

NOTE

Lap 0:30 1:00 1:30 2:00

REC

Lap : :3

SP/Remain video :35

2:15

0 0

Recording a TV Programme in Real-time

Recording as a Motion Picture

Press Cyan to check that the desired recording mode has been selected and that the memory card has enough space for recording.

MAIN POWER

Card Lamp

When recording: Red

■ To Pause Recording

Press .

• When resuming the recording, press ●REC once more.

■ To Stop Recording

Press ■.

• By pressing Cyan, you can confirm the conditions during recording.

• Press Cyan again to switch off the screen display.

• When the memory card runs out of space, “Card is full” will be displayed while in the Teletext mode, and the recording will stop.

• When you press TEXT during the recording, “Cannot operate” is displayed. The recording itself continues.

• During teletext broadcast, CAPTURE is functional. However,

●REC is not functional during teletext broadcast, and “Cannot operate” is displayed.

• When MAIN POWER on the LCD TV set is pressed during recording, the recording cannot be stopped normally creating the danger the file is corrupted.

• Pressing POWER on the remote control during recording stops the recording.

• When the card has no remaining capacity left, the information display shows “Card is full” and the recording is stopped.

• During recording, you cannot switch to a different channel and you cannot switch to another input.

•

When the timer reaches the stop time, the recording will be stopped.

•

When you select the COMPONENT mode, you cannot record a motion picture.

•

If the stop time is reached during timer recording the pause mode is switched on, but timer recording will continue.

Press Channel Select, CH ( )/( ) or TV/VIDEO to

select the channel you want to record.

Press ●REC to start recording.

• The recording is started from the moment the button is pressed.

* When the remaining time is indicated as [08:00], this means

you can record for eight more hours.

Easy Recording

When pressing ●REC again during normal recording, you can easily switch to timer recording. Each time you press ●REC, the recording time changes as follows.

15/05 Sat

14/05 Fri

13/05 Thu

Mon ~ Fri

Mon ~ Sat

Daily

Every Sun

Every Sat

The time is displayed in forward direction

The time is displayed in backward direction

Current Date

Next month 12/06 Sat

0:00

23:59

: 21:50 21:40

: 19:47 19:46 19:45 19:44

: 12:00

0:01

Displays times in forward direction

Displays times in backward direction

Current Time

Menu[Card Timer Rec.

]

Select mode Video setup

Timer Rec.

Still setup Format

Card

Menu[Card Timer Rec. Setup]

Menu[Card Timer Rec. Setup]Menu[Card Timer Rec. Setup]

Adjust timer rec. setting Adjust timer rec. setting

Date Start Stop CH Mode Set Date Start Stop CH Mode Set 13/0 5 Thu --:--~ --:-- CH 1 SP O n

Menu[Card Timer Rec. Setup]

Setting Timer Recording

Adjusting the Clock

The LCD TV set has a built-in clock. Be sure to adjust the clock with “Clock setup” in “Setup” before setting the timer. (See page 14.)

Timer Rec

Set the date, start time, end time, channel, and record mode for the TV programme you want to record. You can set up to 8 programmes for timer recording up to one month in advance.

Make sure that you have finished setting channels. (See pages 12 and 13.)

• Date The date can be set within the next one month. You can also set for daily or weekly recording.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Timer Rec.”, and press OK.

Press \/| to select “Setup”, and press OK.

Menu[Card Timer Rec. Setup]

Setup Programme list

Press '/" to set “Date”.

• You can set the date within the next one month, or you can select daily or weekly recording.

• Start/Stop You can set the start and stop times.

• CH In the case of channels for which “Skip” is not set, AV1 and AV2 can be selected.

• Mode SP, LP, EP, or FIT can be selected. (Please refer to page 34 for information of FIT.)

• When the time set by the timer is reached during timer recording, the power is set to standby but the recording will be continued.

Press \/| to select “Start”.

• Press ' to display the time in forward direction.

• Press " to display the time in backward direction.

Menu[Card Timer Rec. Setup]

Adjust timer rec. setting

Date Start Stop CH Mode Set

13/0 5 Thu 19:45~ --:-- CH 1 SP O n

Press \/| to select “Stop”.

• Press ' to display the time in forward direction.

• Press " to display the time in backward direction.

Menu[Card Timer Rec. Setup]

Adjust timer rec. setting

Date Start Stop CH Mode Set

13/0 5 Thu 19:45~ 21:45 CH 1 SP O n

Setting Timer Recording (Continued)

Menu[Card Timer Rec. Setup]

NOTE

Menu[Card Timer Rec. Setup]

NOTE

Menu[Card Timer Rec. Setup]

NOTE

Menu[Card Timer Rec. Setup]

Menu[Card Timer Rec. Programme list]Menu[Card Timer Rec. Programme list]

13/ 0 5 Thu 19:45~21:45 CH 1 SP O n 14/ 0 5 Fri 21: ~22: CH 15 EP O n 15/ 0 5 Sat 19: ~21: CH 15 SP O n

0 0 0 0

0 0

0 0 0

0 0

Press \/| to select “CH”.

• When you press ', channels are displayed in forward

direction.

• When you press ", channels are displayed in backward

direction.

Menu[Card Timer Rec. Setup]

Adjust timer rec. setting

Date Start Stop CH Mode Set

13/0 5 Thu 19:45~ 21:45 CH 1 SP O n

• Programmes set to “On” in “Skip” are not displayed.

Press \/| to select “Mode”, and press '/" to select

either “SP”, “LP”, “EP” or “FIT”.

Menu[Card Timer Rec. Setup]

Adjust timer rec. setting

Date Start Stop CH Mode Set

13/0 5 Thu 19:45~ 21:45 CH 1 SP O n

Checking the Programme List

You can check the current recording states in the list.

Perform steps 1 to 3 in Timer Rec to display the “Timer Rec.” screen.

Press \/| to select “Programme list”, and press OK.

Menu[Card Timer Rec. Setup]

Setup Programme list

• The recording is performed within the times set. When there is no remaining time on the card, the message “Remain 0:00” is displayed and the recording will be interrupted. In this case, use another card or delete recorded files to make more space. (See page 40.)

• FIT refers to automatic recording while adjusting image quality between SP and LP so that the recording is completed within the specified time. It may not be possible to record using FIT depending on the remaining capacity of the card.

• Two recordings cannot be programmed simultaneously for FIT.

Press \/| to select “Set”, and press '/" to select

either “On”, “Off” or “Clr”.

Menu[Card Timer Rec. Setup]

Adjust timer rec. setting

Date Start Stop CH Mode Set

13/0 5 Thu 19:45~ 21:45 CH 1 SP O n

Press OK to set the timer.

Press MENU to exit.

• Timer programming settings are cancelled when the duration of the power outage exceeds the backup time. (See page 14.)

Press '/" to select the file you want to check, and

press OK.

Press MENU to exit.

To change the programme

In the step 3 above, press '/" to select the programme to be changed or clear, and press OK. Press \/| to select the desired item, and adjust with '/".

Setting Timer Recording (Continued)

NOTE

Checking the Recording Mode

Press Cyan.

Remain still 1 7

SP/Remain video :35

2:15

At the Set Time

• Starts recording with the channel and the mode you have set, and stops at the end time.

• Do not remove the card during recording. Otherwise, problems may occur, causing the data including those previously recorded not to be recorded or kept properly.

If There is not Sufficient Space on a Memory Card

• Recording stops when the card runs out of free space.

• Make sure that there is enough space on a card, because timer recording can be set, like with VCRs, without taking free space in account.

If Power Outage Happens/AC Cord or DC Plug at the LCD TV Set is Unplugged During Recording

• Because the recording is not completed under normal conditions, the file cannot be stored while unnecessary data remains in the memory card. To delete unnecessary data, select “Delete file” in “Edit” and proceed to delete the file. (See page 40.)

• Start formatting the card after saving necessary files to a PC or other external media. All data and files are deleted upon format.

• If you turn the power off using POWER on the remote control while timer recording is set, both picture and sound go off at the preset recording start time and then the recording will start. (The recording also starts at the set time as well, when the power is on.)

MAIN POWER

When timer recording is set: Orange When recording: Red During standby: Green

• If you turn the power off using MAIN POWER on the LCD TV set, timer recording will not work.

• When the recording mode is switched to “SP”, “LP”, “EP” or “FIT” the remaining recording time will change accordingly.

• You cannot pause the timer recording.

• You cannot switch channels during timer recording.

• The clock cannot be adjusted while timer recording is set.

• When the Card Eject button is pressed and the card is removed during timer recording standby, the recording will take place as set when a card is reinserted.

0 0 0

0 0 0 0 0

0 0

Video 1/ 1 Video 1/ 1

13 13/ 0 5 / 0 4 Thu 11:

CH 13 EP 14 14/ 0 5 / 0 4 Fri 11: AV1 SP 14 14/ 0 6 / 0 4 Mon 1 :3 CH 15 LP 15 15/ 0 6 / 0 4 Tue 1 :3 AV2 LP 16 16/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

Resume

Top

0 0 0 0

0 0

NOTE

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card Video setup]

Playing Back Motion Pictures (Normal Mode)

Normal Playback

Modes for Playing Back Motion Pictures

Normal/Repeat/Slowmotion/Zoom

The Playback Quality of the Memory Card

As the memory card of this device records conforming to the MPEG-4 system (image compression technology), the replay image will not have the same picture quality as the image while it was being recorded.

Press CARD to switch to the motion picture mode.

• The recorded motion picture list is displayed.

Press '/" to select the title, and press OK.

Operations while playing back

Pause

Playback

Fast Forward

Fast Reverse

Stop

• If you press ■ while playing back, fast forwarding, fast reversing, or pausing, the respective operation is terminated and you will return to the recorded motion picture list.

• During fast forwarding and fast rereversing, no sound is output.

• When the motion picture file is recorded using a device other than this LCD TV set, the “Resume” or “Top” selection screen may not display.

Press while playing back. Press | while pausing, fast forwarding, or fast

reversing.

Press while playing back. Pressing 2, 3 or 4 times respectively fast-forwards at 8 and 32 normal speed and back to regular speed.

Press while playing back. Pressing 2, 3 or 4 times respectively fast reverses at 8 and 32 normal speed and back to regular speed.

Press ■ while playing back. You will return to the recorded motion picture list.

Repeat

You can specify one file or all files to replay repeatedly.

• When selecting a motion picture you paused while playing back the last time, the selection screen; “Resume” or “Top” will be displayed.

• Depending on the type of file, you may not resume a picture by selecting “Resume”.

Repeat[Off ]

11:

Press MENU to exit.

| Play

: :3

Press CARD to switch to the motion picture mode.

• The recorded motion picture list is displayed.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

Press MENU to display the Menu screen. Press \/| to

0 0 0 0

0 0

select “Card”.

Press '/" to select “Video setup”, and press OK.

Press '/" to select “Repeat”, and press OK.

Menu[Card Video setup]

Rec mode Pre-recording Repeat Selected desired item Slowmotion Zoom Edit Off File All

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card Video setup]

Resume

Top

| Play

: :3

Repeat[File]

11:

0 0 0 0

0 0

NOTE

Playing Back Motion Pictures (Special Mode)

Press \/| to select “Off”, “File” or “All”, and press OK.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

0 0 0 0

0 0

• The recorded motion picture list is displayed.

Slowmotion

File

All

Off

A file is played back repeatedly.

Plays back a file completely and then another in order.

Does not perform repeat playback.

Press '/" to select the file to repeat, and press OK.

• When selecting a motion picture you paused while playing back the last time, the selection screen; “Resume” or “Top” will be displayed.

Press MENU to exit.

■ When One File is Specified for Repeat Playback

Press CARD to switch to the motion picture mode.

• The recorded motion picture list is displayed.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

Press MENU to display the Menu screen. Press \/| to

0 0 0 0

0 0

select “Card”.

Press '/" to select “Video setup”, and press OK.

Press '/" to select “Slowmotion”, and press OK.

Menu[Card Video setup]

Rec mode Pre-recording Repeat Selected desired item Slowmotion Zoom Edit O n Off

• If you press ■ while playing back, fast forwarding, fast reversing, or pausing, the respective operation is terminated and you will return to the recorded motion picture list.

• During playback of motion pictures, setting for repeat playback and slowmotion cannot be performed.

Press \/| to select “On”, and press OK.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

0 0 0 0

0 0

• The recorded motion picture list is displayed.

Press '/" to select the title to playback in slowmotion,

and press OK.

Press MENU to exit.

Playing Back Motion Pictures (Special Mode) (Continued)

| Slow

: :3

Repeat[Off ]

11:

0 0 0 0

0 0

NOTE

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card Video setup]

| Play

: :3

Repeat[Off ]

11:

0 0 0 0

0 0

ZoomZoom

| PlayPlay

: :3 : :3

Repeat[Off ]Repeat[Off ]

11: 11:

0 0 0 0

0 0

NOTE

■ The Screen When Slowmotion is Specified

• During slowmotion playback, no sound is output.

• To cancel slowmotion playback, set “Slowmotion” to “Off”.

Zoom

Press '/" to select the title to zoom, and press OK.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

0 0 0 0

0 0

• The recorded motion picture list is displayed.

• Only when the “EP” recording mode is used, zoom playback can be performed.

Press MENU to exit.

■ The Screen When Zoom is Specified

Press CARD to switch to the motion picture mode.

• The recorded motion picture list is displayed.

Video 1/ 1

/ 0 5 / 0 4 Thu 11: CH 13 EP

/ 0 5 / 0 4 Fri 11: AV1 SP

/ 0 6 / 0 4 Mon 1 :3 CH 15 LP

/ 0 6 / 0 4 Tue 1 :3 AV2 LP

/ 0 6 / 0 4 Wed 1 :3 CH 15 EP

Press MENU to display the Menu screen. Press \/| to

0 0 0 0

0 0

select “Card”.

Press '/" to select “Video setup”, and press OK.

Press '/" to select “Zoom”, and press OK. Press \/|

to select “On”, and press OK.

Menu[Card Video setup]

Rec mode Pre-recording Repeat Selected desired item Slowmotion Zoom Edit O n Off

Enlarge playback is not available in SP/LP file

When you set “Zoom” to “On”.

• Only when the “EP” recording mode is used, zoom playback can be performed.

Menu[Card Video setup

]

Select mode

Video setup

Timer Rec. Still setup Format

Card

Menu[Card Video setup]Menu[Card Video setup]

Rec mode Selected desired item Pre-recording Repeat Slowmotion Protect Zoom Edit Delete file

Delete all

0 0 0 0 0

NOTE

Protecting/Deleting Motion Pictures

Press MENU to exit.

Protecting Motion Picture Files

You can protect files you do not want to be deleted.

Press CARD to display the list of recorded motion pictures.

Press MENU to display the Menu screen. Press \/| to select “Card”.

Press '/" to select “Video setup”, and press OK.

• Protecting the file: By setting to protect files, you can avoid deleting files by accident. It is recommended to protect important files.

Unprotecting Motion Picture Files

• Align the cursor with the mark and press OK.

Press '/" to select “Edit”, and press OK.

Press '/" to select “Protect”, and press OK.

Protect selected file. 1/ 1

13/ 5/ 4 Thu 11: CH 13 EP 14/ 5/ 4 Fri 11: AV1 SP 14/ 6/ 4 Mon 1 :3 CH 15 LP 15/ 6/ 4 Tue 1 :3 AV2 LP 16/ 6/ 4 Wed 1 :3 CH 15 EP

Press '/" to select the file you want to protect, and

0 0 0 0 0

0 0 0 0

0 0

press OK.

Protect selected file. 1/ 1

13/ 5/ 4 Thu 11: CH 13 EP 14/ 5/ 4 Fri 11: AV1 SP 14/ 6/ 4 Mon 1 :3 CH 15 LP 15/ 6/ 4 Tue 1 :3 AV2 LP 16/ 6/ 4 Wed 1 :3 CH 15 EP

0 0 0 0 0

0 0 0 0

0 0

will be displayed.

Protecting/Deleting Motion Pictures (Continued)

Menu[Card Video setup]

Press "OK" to delete

all video files

Menu[Card Video setup]

0 0 0 0 0

NOTE

Deleting One Motion Picture File

This operation deletes one file that have not been set for protecting.

Perform steps 1 to 4 in Protecting Motion Picture

Files to display the “Edit” screen.

Press '/" to select “Delete file”, and press OK.

Menu[Card Video setup]

Rec mode Selected desired item Pre-recording Repeat Slowmotion Protect Zoom Edit Delete file

Delete all

Deleting All Motion Picture Files

This operation deletes all files that have not been set for protecting.

Perform steps 1 to 4 in Protecting Motion Picture

Files to display the “Edit” screen.

Press '/" to select “Delete all”, and press OK.

Menu[Card Video setup]

Rec mode Selected desired item Pre-recording Repeat Slowmotion Protect Zoom Edit Delete file

Delete all

Press '/" to select the file you want to delete, and

press OK.

Delete selected file. 1/ 1

13/ 5/ 4 Thu 11: CH 13 EP 14/ 5/ 4 Fri 11: AV1 SP 14/ 6/ 4 Mon 1 :3 CH 15 LP 15/ 6/ 4 Tue 1 :3 AV2 LP 16/ 6/ 4 Wed 1 :3 CH 15 EP

Press OK again.

0 0 0 0 0

0 0 0 0

0 0

• The selected file will be deleted.

Delete selected file. 1/ 1

14/ 5/ 4 Fri 11: AV1 SP 14/ 6/ 4 Mon 1 :3 CH 15 LP 15/ 6/ 4 Tue 1 :3 AV2 LP 16/ 6/ 4 Wed 1 :3 CH 15 EP

Press MENU to exit.

0 0

• Do not turn off the power and do not eject the card during deletion of one file or all files. The card may not operate normally after that.

• Even if only one file is being deleted, it may take some time if it large. Please wait until the file is deleted.

Press OK again.

• All files will be deleted.

Deleting video files

Playing Back Still Pictures

Still 1/ 1

13/ 5/ 4 11:35

000

Menu[Card Still setup]

Slide show Slide show

Modes for Playing Back Still Pictures

You can specify various modes with “Card” in the Menu screen.

■ Listing Still Pictures; Index (page 42) (1) Lists nine still pictures at a time. (2) Displays one still picture you select in full screen.

(2) One Picture at a Time

(1) Nine Pictures at a Time

■ Slideshow Setup (page 43) You can set the interval to 1-10 seconds, 1 minute, 15 minutes or 60 minutes, and select the order from among “Normal”, “Random” or “My programme”. “Repeat” can also be selected.

The Slideshow Setup Screen

Menu[Card Still setup]

Slid e s ho w Slid e s ho w My programme Rotate Interval 5Sec Audio select Order Normal Shutter click Repeat On Edit Initial Index

start Adjust setting setup

■ Rotate (page 45) Recorded pictures can be displayed rotated 90 degrees clockwise or anticlockwise.

■ Audio Select (page 46) You can select the sound played through the speaker.

The Audio Select Screen

Menu[Card Still setup]

Slide show Slide show My programme Rotate Off T V Audio select Shutter click AV1 Edit AV2

start Selected desired item setup

COMPONENT

■ My Programme (page 44) From a large number of pictures, you can select and set up to 32 pictures. (Up to 32 set pictures can be displayed in slideshow.)

Full-screen display using the selected order

Playing Back Still Pictures (Continued)

Still 1/ 2

13/ 5/ 4 11:35

000

Still 1/ 2

13/ 5/ 4 11:35

000

Still 2/ 2

000

Page

NOTE

Still 1/ 2

13/ 5/ 4 11:35

000

NOTE

Listing Still Pictures (Index)

Fast paging in forward/backward direction

When multiple still pictures are recorded, you can speed up paging in forward/backward direction by keeping \/| depressed during paging forward/backward direction.

Insert the memory card. Press CARD to display the index of still picture.

Displaying One Picture at a Time

You can select a picture from the memory card and display individually.

Press CARD to display the index of still picture.

Press '/"/\/| to position the cursor at the last file in

the page (at the lower right), and press |.

The next index page is displayed. (The cursor moves to the top file of the page.)

Press '/"/\/| to select the picture to display, and

press OK.

• When you press ■, you will return to the index of still picture.

• Depending on the recording mode of digital still cameras, pictures may not be displayed in full screen.

• After registering My Programme, if the number of files during still picture or motion picture recording has exceeded 1,024, they are not displayed in the index but they are played back from My Programme. Files that are registered in My Programme but not displayed in the index cannot be deleted from My Programme. In that case, you can only delete those particular files by first deleting files that are displayed in the index in order to make the files to be deleted appear in the Index.

Slideshow Setup

Still 1/ 2

13/ 5/ 4 11:35

000

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

Slid

e s

Slid

e s

Menu[Card Still setup]

Slid

e s

Slid

e s

Menu[Card Still setup]

Slid

e s

Slid

e s

Menu[Card Still setup]

Slid

e s

Slid

e s

NOTE

You can set the interval to 1-10 seconds, 1 minute, 15 minutes, or 60 minutes, and select the playback order from among “Normal”, “Random” or “My programme”.

Press CARD to display the index of still picture.

Playing Back Still Pictures (Continued)

Press '/" to select “Still setup”, and press OK. Press '/" to select “Slideshow setup”, and press OK.

Press '/" to select “Interval”. Press \/| to select

“1-10 Sec”, “1 Min”, “15 Min” or “60 Min”.

Menu[Card Still setup]

Slid

e s

ho w Slid My programme Rotate Interval 5Sec Audio select Order Normal Shutter click Repeat On Edit Initial Index

Press '/" to select “Order”. Press \/| to select

“Normal”, “Random” or “My programme”.

Menu[Card Still setup]

Slid Slid My programme Rotate Interval 5Sec Audio select Order Normal Shutter click Repeat On Edit Initial Index

Press '/" to select “Repeat”. Press \/| to select

“On” or “Off”.

Menu[Card Still setup]

Slid Slid My programme Rotate Interval 5Sec Audio select Order Normal Shutter click Repeat On Edit Initial Index

start Adjust setting

e s

ho w

setup

e s

ho w

start Adjust setting

e s

ho w

setup

e s

ho w

start Adjust setting

e s

ho w

setup

Press MENU to display the Menu screen.

Press \/| to select “Card”. Press '/" to select “Still

setup”, and press OK.

Press '/" to select “Slideshow start”, and press OK.

Menu[Card Still setup]

Slid e s ho w Slid e s ho w My programme Selected desired item Rotate Audio select Shutter click Edit Yes N o

Press \/| to select “Yes”, and press OK.

• The slideshow starts according to the initial mode. Press MENU if you want to change the settings halfway through.

start setup

Press '/" to select “Initial”. Press \/| to select

“Slideshow” or “Index”, and press OK.

• The initial screen is the mode first displayed when switching to the still picture mode.

Menu[Card Still setup]

Slid

e s

ho w Slid My programme Rotate Interval 5Sec Audio select Order Normal Shutter click Repeat On Edit Initial Index

Press '/" to select “Slideshow start”, and press OK.

start Adjust setting

e s

ho w

setup

Press \/| to select “Yes”, and press OK.

• The slide show resumes in accordance with the new settings. If you press ■, the slideshow will be stopped.

• When using the slideshow for the first time after purchase, it opertes in accordance with the factory presets as follows:

Interval: 5 seconds Order: Normal Repeat: Off

• Slideshow is paused while the Menu screen is displayed.

• The display interval does not include the time it takes for the LCD TV set to process the image and display it. Therefore, the image may not be displayed for the display interval set. (In general, the processing time slows it down by 1-3 seconds.)

Playing Back Still Pictures (Continued)

Still 1/ 2

13/ 5/ 4 11:35

000

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

Still 1/ 2

13/ 5/ 4 21:35

000

2 3

NOTE

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

Slid

e s

Slid

e s

My Programme

You can select up to 32 pictures and specify the order for displaying in slideshow.

Press CARD and the index of still picture is displayed.

Perform the step above to select as many pictures as you like (up to 32).

• To delete the settings registered in “My programme”, select “Erase” at step 4, and press OK.

Press MENU to exit.

• When My Programme is set using another device, it cannot be edited.

• When My Programme is created using this device, you can add to it but you cannot edit it. Please delete all files if you want to change the order.

Displaying Pictures in Slideshow in the

Order Specified in “My programme”

Press MENU to display the Menu screen.

Press \/| to select “Card”. Press '/" to select “Still

setup”, and press OK.

Press '/" to select “My programme”, and press OK.

Menu[Card Still setup]

Slid e s ho w Slid e s ho w My programme Selected desired item Rotate Audio select Shutter click Edit Setup Erase

Press \/| to select “Setup”, and press OK.

Press '/"/\/| to select a picture, and press OK.

start setup

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Still setup”, and press OK.

Press '/" to select “Slideshow start”, and press OK.

Menu[Card Still setup]

Slid

e s

ho w

e s

ho w

start setup

Slid My programme Selected desired item Rotate Audio select Shutter click Edit Yes N o

• The selected picture will be numbered. Pictures will be displayed in numerical order.

Playing Back Still Pictures (Continued)

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

Slid

e s

Slid

e s

NOTE

Menu[Card Still setup]

Slid

e s

Slid

e s

Press \/| to select “Yes”, and press OK.

• The slideshow will be started.

Press MENU to exit.

Rotate

You can rotate a displayed picture file.

Press '/" to select “Rotate ” or “

Menu[Card Still setup]

Slid

e s

ho w Slid My programme Rotate Rotate Audio select Shutter click Rotate Edit Next file

start

e s

ho w

setup Adjust setting

Rotate”.

•The picture will be rotated to left or to right each time OK is pressed.

Rotate Rotates the file being displayed.

Select “ Rotate” to rotate the picture 90 degrees anti clockwise. Select “Rotate ” to rotate the picture 90 degrees clockwise.

Playback the memory card. Display the picture you

want to rotate in either the card playback mode or the slideshow mode.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Still setup”, and press OK.

• Pictures cannot be rotated during the index screen.

• The rotation information is deleted when the power is turned off.

Switching Files

Switches files while in the Rotate menu.

Perform steps 1 to 5 in Rotate to display the “Rotate”

screen.

Press '/" to select “Next file”, and press OK.

Menu[Card Still setup]

Slid

e s

ho w Slid My programme Rotate Rotate Audio select Shutter click Rotate Edit Next file

start

e s

ho w

setup Adjust setting

Press '/" to select “Rotate”, and press OK.

Menu[Card Still setup]

Slid e s ho w Slid e s ho w My programme Rotate Rotate Audio select Shutter click Rotate Edit Next file

start setup Adjust setting

Playing Back Still Pictures (Continued)

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

Slide show Slide show

NOTE

Off TV

COMPONENT AV2

AV1

Audio Select

Playing background music when playing back a card. You can output the sound of other devices (e.g. TV or VCR) when playing back a card.

Playback the memory card. Display the picture in either

the card playback mode or the slideshow mode.

Press '/"/\/| to select the sound to be output, and

press OK.

One of the following sound setting can be selected when playing back a card.

AV1

AV2

COMPONENT

Press MENU to exit.

• Each time MPX is pressed during playback of still pictures, the mode changes as follows.

The sound of the TV channel tuned just before you switched to the card playback mode will be output. The sound of bilingual or stereo programmes becomes the sound set using the TV screen.

The sound from the device connected to AV1 will be output.

The sound from the device connected to AV2 will be output.

The sound from the device connected to COMPONENT will be output.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Still setup”, and press OK.

Press '/" to select “Audio select”, and press OK.

Menu[Card Still setup]

Slide show Slide show My programme Rotate Off T V Audio select Shutter click AV1 Edit AV2

start Selected desired item setup

COMPONENT

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]

NOTE

Recording on a Memory Card

Shutter Click

Enables you to make sure that whenever a still picture is captured the shutter sounds.

Press MENU to display the Menu screen.

Press \/| to select “Card”.

Press '/" to select “Still setup”, and press OK.

Press '/" to select “Shutter click”, and press OK.

Menu[Card Still setup]

Slid e s ho w Slid e s ho w My programme Selected desired item Rotate Audio select Shutter click O n Off Edit

Press \/| to select “On”, and press OK.

Press MENU to exit.

•

The volume of the shutter sound can be adjusted using VOL(+)/(–).

start setup

NOTE

Capturing a TV Programme in Real-time

Whenever you want to record an image, press CAPTURE.

Capturing as Still Pictures

• For protecting the pictures, see “Protecting Still Picture Files” on page 49.

• When you try to capture an image from a fast moving picture, there may be a small temporal delay in the captured picture.

• The number of remaining pictures only serves as a guide and may differ on the reception conditions and the contents of the image.

• When you select the COMPONENT mode, you cannot capture still pictures.

Press Channel Select, CH ( )/( ) or TV/VIDEO to

select the channel you want to record.

Press CAPTURE.

• The screen freezes for a moment, and the image is recorded as a still picture.

• When “Shutter click” is set to “On”, the shutter sound can be heard at the same time. During this time, no sound from the TV or input signal can be heard.

Menu[Card Still setup

]

Select mode Video setup Timer Rec.

Still setup

Format

Card

Menu[Card Still setup]Menu[Card Still setup]

SlidSlid e se s ho w w

start

SlidSlid e se s ho w w

setup Selected desired item My programme Rotate Protect Audio select Shutter click Delete file Edit Delete all

Protect selected file. 1/ 2

13/ 5/ 4 11:35

000

Protect selected file. 1/ 2

15/ 5/ 4 9:15

000

NOTE

Protecting/Deleting Still Pictures

Protecting Still Picture Files

You can protect files you do not want to be deleted.

Press CARD to display the index of still picture.

Press MENU to display the Menu screen. Press \/| to select “Card”.

Press '/" to select “Still setup”, and press OK.

• Protecting the file: By setting to protect the file, the accidental deleting the file by

mistake can be avoided. It is recommended to protect at the important files.

Unprotecting Still Picture Files

Press '/"/\/| to select the file you want to protect, and press OK.

will be displayed.

Press MENU to exit.

Press '/" to select “Edit”, and press OK.

Press '/" to select “Protect”, and press OK.

• Align the cursor with the mark and press OK.

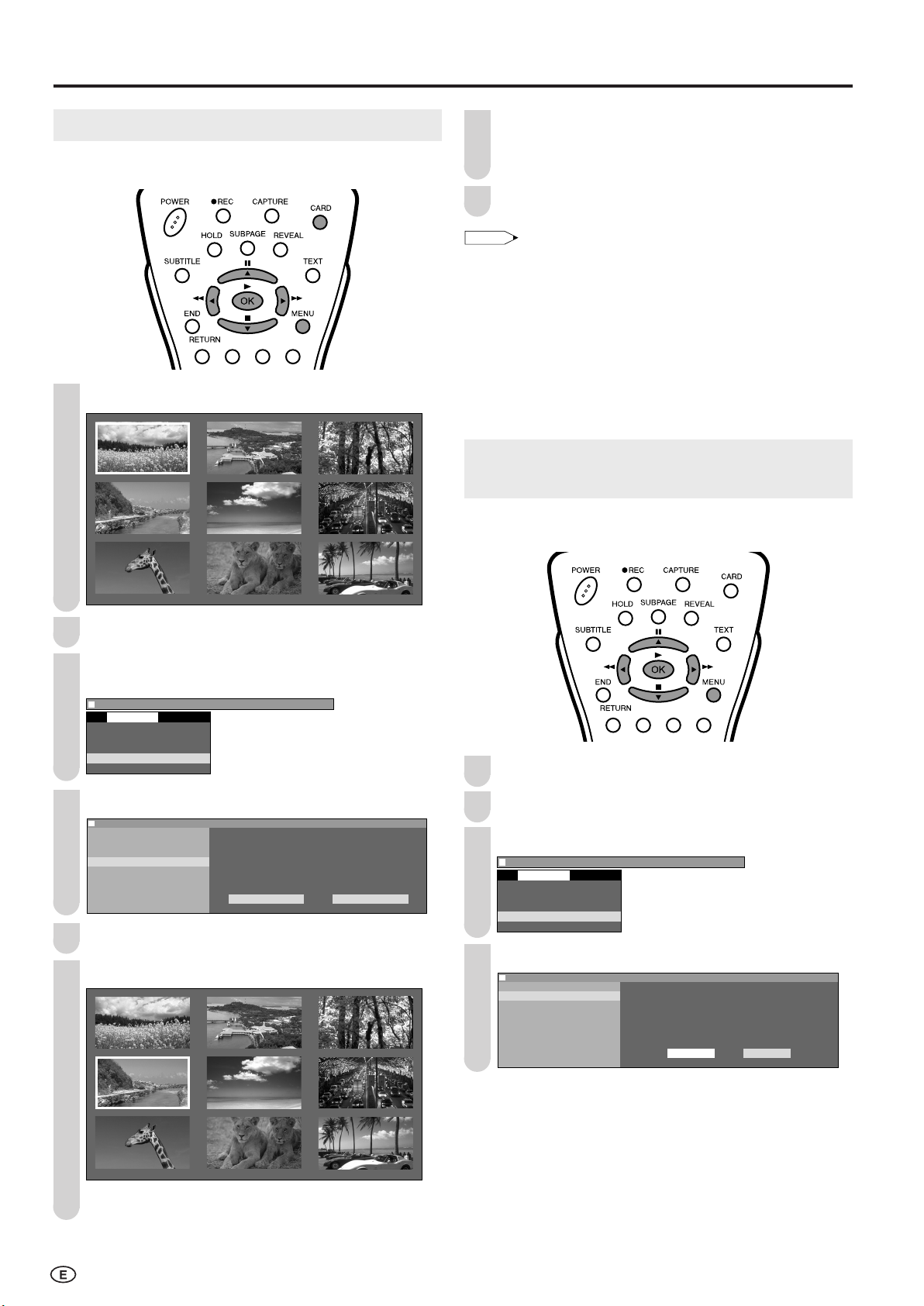

Protecting/Deleting Still Pictures (Continued)

Menu[Card Still setup]

Slid

e shoho

Slid

e shoho

Press "OK

to delete

all still image files

Menu[Card Still setup]

Slid

e shoho

Slid

e shoho

Delete selected file. 1/ 2

13/ 5/ 4 11:35

000

Delete selected file. 1/ 2

13/ 5/ 4 12:45

NOTE

Deleting One Still Picture File

This operation deletes one file that have not been set for protecting.

Perform steps 1 to 4 in Protecting Still Picture Files to

display the “Edit” screen.

Press '/" to select “Delete file”, and press OK.

Menu[Card Still setup]

Slid

e s

w Slid My programme Rotate Protect Audio select Shutter click Delete file Edit Delete all

start

e s

setup Selected desired item

Deleting All Still Picture Files

This operation deletes all files that have not been set for protecting.

Perform steps 1 to 4 in Protecting Still Picture Files to display the “Edit” screen.

Press '/" to select “Delete all”, and press OK.

Menu[Card Still setup]

Slid

e s

w Slid My programme Rotate Protect Audio select Shutter click Delete file Edit Delete all

start

e s

setup Selected desired item

Press '/"/\/| to select the file you want to delete,

and press OK.

Press OK again.

• Selected file will be deleted.

Press OK again.

• All files will be deleted.

Deleting still files

■ File display (motion picture/still picture)

When the card contains 1,024 or more motion pictures and/or still pictures, motion pictures have priority while those after number 1,024 are not displayed on the screen. When free space is created by deleting files, eject and reinsert the card or switch the power off and on again to reread the contents of the card in order to display its contents. Up to 1,024 files can be displayed with all motion pictures first followed by still pictures.

Press MENU to exit.

• Even if only one file is being deleted, it may take some time if it is large. Please wait until the file is deleted.

Menu[Card Format

]

Select mode Video setup Timer Rec. Still setup

Format

Card

Menu[Card Menu[Card Format]

Format card

Y es No

NOTE

Formatting the Card

All motion picture and still picture files are deleted including any files that have been set for protecting.

Run the memory card. Press MENU to display the Menu screen.

. Press \/| to select “Card”.

Press '/" to select “Format”, and press OK.

Press \/| to select “Yes”, and press OK.

Press OK again to start formatting.

Format card All files (video, still, including protected ones) will be deleted.

• When you use the memory card for the first time, make sure to read the Operation manual for the card.

• The card locked with card lock function cannot be formatted.

Connecting with External Devices

NOTE

You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of the LCD TV set. When connecting an external device, turn off the power of the LCD TV set first to prevent any possible damage.

Example of external devices that can be connected

External devices that can be connected to AV-IN1 terminal

• Camcorder

• Home video game system

* If your external device has an S-Video terminal,

S-VIDEO connection is recommended.

External devices that can be connected to AV-IN2 terminal

• VCR

External devices that can be connected to COMPONENT terminal

• DVD, etc.

* If your external device has a component terminal,

COMPONENT connection is recommended (you can view high-quality pictures).

• PC connection is not possible.

• For the cable, use a commercially available audio/video cord.

• Only connect audio/video signals to AV-IN1 and AV-IN2/OUT terminals. Connecting other signals may result in a malfunction.

• AV-IN1 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals (and if you select AV-

IN1), you can only view pictures from the S-VIDEO terminal. To view the picture from the VIDEO terminal, do not connect any external devices to the S-VIDEO terminal.

• For more information about external device connections, see the manuals of your external devices.

• If HDTV (720P/1080I) signals are input to the COMPONENT terminals, playback cannot be viewed.

Connecting with External Devices (Continued)

NOTE

To AV-IN1 or AV-IN2 terminal

To audio/video output terminal

To COMPONENT input (Video) terminal

To COMPONENT output (Audio) terminal

To COMPONENT input (Audio) terminal

To COMPONENT output (Video) terminal

To S-VIDEO input terminal

To S-video output terminal

Video

S-video

Audio(L)

Audio(R)

Audio(L)

Camcorder

VCR

DVD Player

Connecting a VCR, DVD player or a Camcorder (AV-IN1/2/COMPONENT)

• If your VCR (or other external devices) has an S-Video terminal, S-VIDEO connection is recommended. (Use an S-video cord.)

• When you connect external devices to both S-VIDEO and VIDEO terminals (and if you select AV-IN1), you can only view pictures from

the S-VIDEO terminal.

• You cannot view multiple or synthesized pictures by connecting two or more external devices. When connecting an external device, use care to connect the video and audio cables to the corresponding terminals.

• When a monaural audio source is connected to only one of the AUDIO input terminals, sound will be heard not from both speakers but from only one speaker.

Connecting with External Devices (Continued)

NOTE

Outputting video and audio (video output)

You can output video and audio data from the LCD TV set through the AV output terminals (AV-OUT).

• When using as an OUTPUT terminal, select “Setup” in the Menu and set “AV2 In/Out” to “Out”. (See page 19.)

• The factory setting for “AV2 In/Out” is “In”.

Connect to a VCR, audio amplifier, etc.

• AV2 has 2 Out modes (see page 19).

• When using the S-VIDEO input for AV-IN1, no video output will be made to the AV output terminal, but audio output will be made for

connection to external audio systems.

• When using the S-VIDEO input for AV-IN1 or Y, PB and PR input for COMPONENT, no video output will be made to the AV output terminal, but audio output will be made for connection to external audio systems.

Troubleshooting

Before calling for repair services, check the following items for possible remedies to the encountered sympotoms.

LCD TV set

Sound

Problem Check item

•Make sure the AC adapter is properly inserted in the power


There is no picture or sound.

There is no picture. There is no picture from AV-IN 1/2.

There is no sound.

There is no picture or sound, just noise.

outlet.

•Reception other than those of broadcasting stations can be considered.

• Make sure the input mode is set to the LCD TV set.

•Make sure the MAIN POWER switch of the LCD TV set is on.

•Make sure Picture adjustment is properly adjusted.

• The fluorescent lamp may have reached the end of its service life.

•Make sure the S-VIDEO terminal has nothing connected.

• Make sure the volume is not set to minimum.

• Make sure the sound is not set to mute.

• Make sure the antenna cable is properly connected.

• Bad reception can be considered.

Reference

page

–

10 10

–

8,53

6 –

Picture is not clear.

Picture is too light or improperly tinted.

The picture is too dark.

Remote control does not work.

Unit cannot be operated.

• Make sure the antenna cable is properly connected.

• Bad reception could be the problem.

•Check colour adjustment. (NTSC mode)

•Check if “Backlight” is set to “Dark”.

• Check “Contrast”.

• The fluorescent lamp may have reached the end of its service life.

• Check if batteries in the remote control have sufficient power.

•Make sure the remote sensor window is not under strong lighting.

• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the power of the Display, or umplugging the AC cord and re-plugging it in after 1 or 2 minutes.

6 –

20 16

–

5 5

–

■ Cautions regarding use in high and low temperature environments

•

When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

•Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. (Storage temperature: –20°C to +60°C)

Troubleshooting (Continued)

Antenna

Problem Check item

•The reception may be weak.

The picture is not sharp.

The picture moves.

The picture is doubled or tripled.

The picture is spotted.

•The state of the broadcast may also be bad.

•Make sure the antenna is facing the correct direction.

•Make sure the outside antenna has not been disconnected.

•Make sure the antenna is facing the correct direction.

•Broadcast waves may be reflected from adjacent mountains or buildings.

•There may be interference from automobiles, trains, high-voltage lines, neon lights, etc.

•There may be interference between the antenna cable and power cable. Try positioning them further apart.

There are stripes on the screen or colours fade.

• Is the unit receiving interference from other devices? Transmission antennas of radio broadcasting stations and transmission antennas of amateur radios and cellular phones may also cause interference.

• Use the unit as far apart as possible from devices that may cause possible interference.

Specifications

LCD COLOUR TV COMPARISON

ITEMS

LCD panel Number of pixels 921,600 dots Video colour systems World multi system

TV Standard (CCIR) I/DK/M/BG TV Tuning System Auto preset tuning

TV function STEREO/BILINGUAL NICAM-BG, I, DK/A2 stereo-BG

AUTO PRESET Yes

CATV S1~S41 ch. Hyper Band 4-LINE DIGITAL COMB FILTER Yes Brightness 430 cd/m Lamp life 60,000 hours* Viewing angles H: 170° V: 170° Audio output 2.1 W ⳯ 2 Speakers 4 ⳯ 7 cm, 2 pcs. 5.7 cm ø, 2 pcs.

AV1 Composite Video, S-Video, Audio

AV2 IN/OUT Composite Video, Audio IN/Composite Video, Audio OUT Terminals

Image File Format JPEG files complying with DCF format OSD LANGUAGE English/Chinese/Arabic Power requirement DC 12 V, AC 110–240 V, 50/60 Hz Power Consumption 43 W (0.7 W Standby): For Asia

Weight 5.7 kg w/o accessories 9.2 kg w/o accessories Accessories Remote control, Batteries (⳯2), Antenna cable, AC adapter,

* The typical period of time after which the lamp’s power output will have decreased by about half, given that the AQUOS is used continuously

in a 25°C room under standard lighting and brightness conditions.

■ As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for the LCD TV set improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

COMPONENT Y, PB, PR/Audio Headphone jack 3.5 mm ø jack (Front) PC Card Slot PC Card Type II (PC Card Adapter)

MODEL

LC-15B5M

15” (38 cm) Advanced Super View & BLACK TFT LCD 19.7” (50 cm) Advanced Super View & BLACK TFT LCD

AC 230 V (With AC adapter) 63 W (1.2 W Standby):

34 W : DC 12 V 55W : DC 12 V

AC cord, Cable holder, Operation manual

450 cd/m

AC 230 V (With AC adapter) For Australia 65 W (1.2 W Standby): AC 230 V (With AC adapter)

LC-20B5M

Time Zone Table

Only major regions are shown below. Check the actual time difference of your area.

Region

*New Zealand * Fiji

New Caledonia

Australia (AEST) *• ACT (Canberra) *• NSW (Sydney)

• QLD (Brisbane) *• VIC (Melbourne) *• TAS (Hobart)

Papua New Guinea Australia (ACST)

• Broken Hill

• NT (Darwin) *• SA (Adelaide)

Japan (JST) South Korea Indonesia (Eastern area) Indonesia (Central area) Australia (AWST)

• WA (Perth)

Singapore China Hong Kong Taiwan Philippines Malaysia Indonesia (Western area) Cambodia Thailand Vietnam Laos Myanmar Sri Lanka Bangladesh Nepal India Pakistan Afghanistan U.A.E. Oman

*Iran

Republic of Yemen

*Iraq

Ethiopia Qatar Kuwait Saudi Arabia Sudan

Bahrain * Egypt * Greece * Syria

Libya

Time difference with global standard time

+ 12

+ 11 + 10

+ 9:30

+ 9

+ 8

+ 7

+ 6:30 + 6

+ 5:45 + 5:30 + 5 + 4:30 + 4

+ 3:30 + 3

+ 2

*Daylight saving adoption area

310

178

307

231

213

363 (including rubber foot)

526

30756

5863

207

151

354 (including rubber foot)

100

Dimensional Drawings

LC-15B5M

Unit: mm

Dimensional Drawings (Continued)

6880

244

178

403.3

300.8

261

452 (including rubber foot)

673

384

212

39359

450 (including rubber foot)

100

LC-20B5M

Unit: mm

Sharp LC-15B5M, LC-20B5M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
