Sharp IM-DR420H User Manual

1-BIT PORTABLE MINIDISC RECORDER

MODEL

IM-DR420H

OPERATION MANUAL

IM-DR420H(E) TINSE0554AWZZ

1

If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without Internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).

IM-DR420H(E) (TINSE0554AWZZ)

Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.

0101

TINSE0554AWZZ

03G R YT 1

E

IM-DR420H

Importa n t Introduction

Special Notes

NOTES FOR USERS IN THE U.K. AND

IRELAND

SERVICE INFORMATION

In the unlikely event of your equipment requir ing re­pair, please use the supplied postage paid label to
send your unit to the Sharp repair centre or contact
the dealer or supplier from whom it was purchased.
Where this is not possible, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).

Please note; all calls will be charged at local rate.
Certain replacement parts and accessor ies may be

-Special Notes-

obtained from our main parts distributor.

WILLOW VALE ELECTRONICS LTD.

In the unlikely event of this equipment requiring re­pair during the guarantee period, you will need to
provide proof of the date of purchase to the repairing
company. Please keep your invoice or receipt, which
is supplied at the time of purchase.

0121 766 5414

0303

! Warnings

"

The supplied AC adaptor contains no user serviceable
parts. Never remove covers unless qualified to do so.
It contains dangerous voltages, always remove the
mains plug from the main outlet socket before any
service operation or when not in use for a long period.

"

The AC adaptor supplied with the IM-DR420H must
not be used with other equipment.

"

To prevent fire or shock hazard, do not expose this
appliance to dripping or splashing liquids. No objects
filled with liquids, such as vases, shall be placed on
the apparatus.

"

Never use an AC adaptor other than the one specified.
Otherwise, problems or serious hazards may be cre­ated.

! Caution

"

When recording important selections, make a prelimi­nary test to ensure that the desired material is prop­erly recorded.

"

SHARP is not liable for damage or loss of your record­ing arising from malfunction of this unit.

2

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_1.fm

"

At full volume, prolonged listening to a personal stereo
may damage the user's hearing. This model complies
with the law if used with the correct earphones (model
number RPHOH0021AWZZ). If the earphones are
damaged in any way, please order using the model
number given above.

"

This product is classified as a CLASS 1 LASER
PRODUCT.

"

Use the Portable MiniDisc Recorder only in accord­ance with the instructions given in this manual and do
not attempt to interfere with the interlock switch or
make any other adjustment as this may result in expo­sure to hazardous radiation.

Laser Diode Properties

"

Material: GaAIAs

"

Wavelength: 785 nm

"

Pulse time:
Read mode: 0.8 mW Continuous
Write mode: max 12 mW 0.5S
min cycle 1.5S
Repetition

! Notes

"

Recording and playback of any material may require
consent, which SHARP is unable to give. Please refer
particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection
Act 1958, the Performers Protection Acts 1963 and
1972 and to any subsequent statutory enactments
and orders.

"

This equipment complies with the requirements of
Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.

"

US and foreign patents licensed from Dolby Laborato­ries.

"

The letters in brackets contained in the model number
indicate the colour of the product only. Operation and
specifications are unaffected.

IM-DR420H

-Special Notes-

1

6

5

Importa n t Introduction

4

3

2

1

3

03/7/21 IM-DR420H_UK_1.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Features

! A P o rtable MD player w it h " Mobile 1-bit

digital amplifier"

"

The 1-bit digital signal is sent to a constant voltage cir­cuit directly from a high-order modulation circuit.
The amplifier transmits and amplifies the signal, and
allows extremely natural and clear sound with little
deterioration.

"

High-quality sound is achieved by vast improvement s
in the sound resolution. The speed and the s mooth­ness of rise of the sound are consequently ensured.

! "4-pole plug earphone" optimizes

"Mobile 1-bit digital amplifier"

"

Sharp has adopted "4-pole plug" earphone that com­pletely separate right and left sound. Enjoy the high
quality sound of the "Mobile 1-bit digital amplifier".

-Features-

4-pole plug for mobile
1-bit digital amplifier

L+ R+ L- R-

Importa n t Introduction

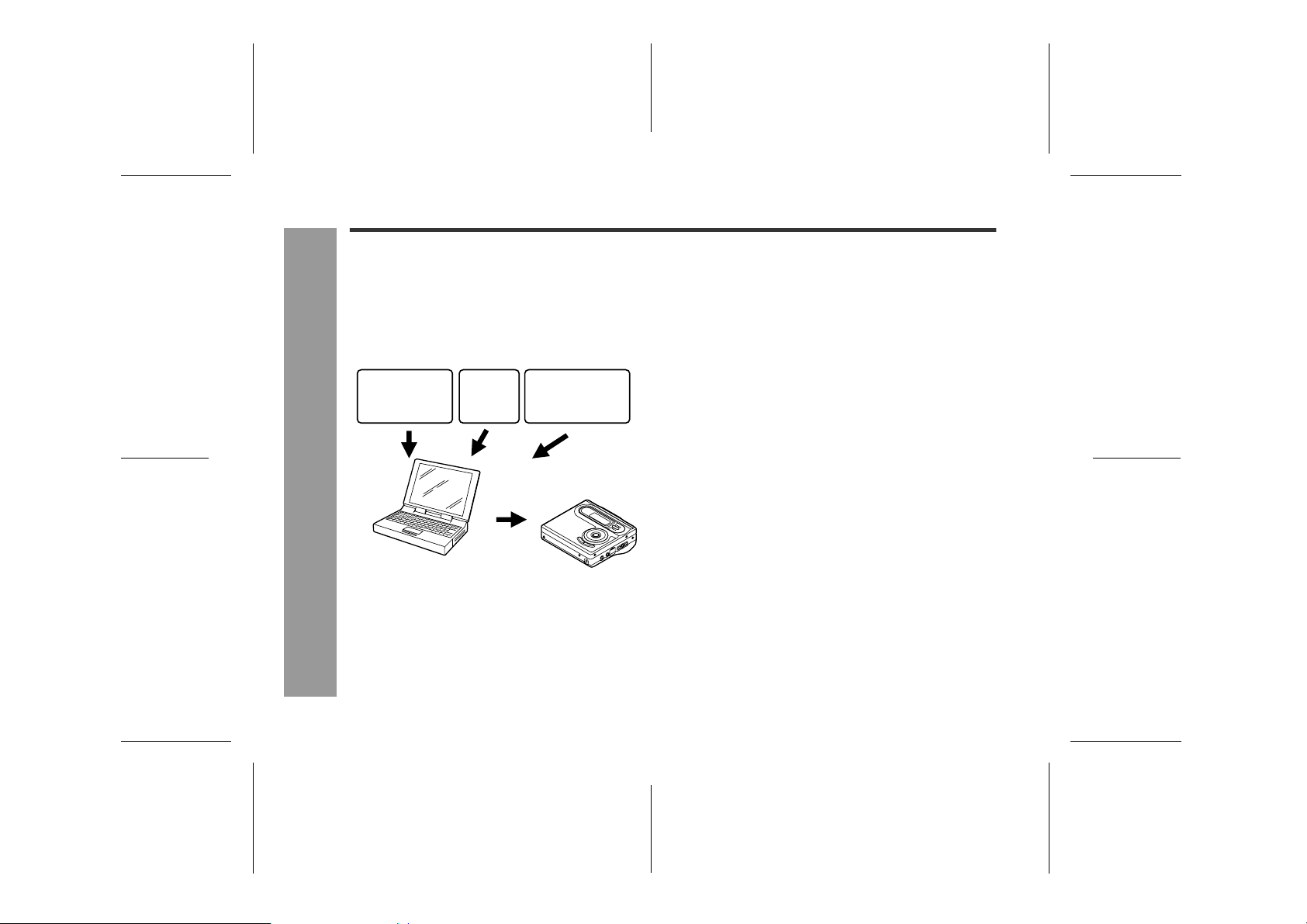

! A Net MD portable recorder

Audio data saved on the hard disk of a PC can be trans­ferred to a Net MD-compatible recorder using the pro­vided software "BeatJam".

! This product features up to 50 times

high speed transfer from PC to MD in
LP4 mode

"

Transfer speed varies by the recording mode. In SP
mode, the speed is less than 1/4 of that in LP4 mode.

"

Time for initialisation and the termination process is
omitted from the calculation of transfer speed.

"

To achieve maximum speed, use the AC adaptor and
a high capacity battery together.

"

Transfer speed depends on the performance of your
PC or the number of tracks to record.

4

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_1.fm

Contents

IM-DR420H

! Important Introduction

Page

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Names of Controls and Indic a tors . . . . . . . . . . . . 7 - 8

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

! Power Source

Using with the Rechargeable Battery . . . . . . . .10 - 11

Using with the AC Adaptor . . . . . . . . . . . . . . . . . . . .12

Using with the Alkaline Batt e ry. . . . . . . . . . . . . . . . .12

! Preparation

Inserting a MiniDis c . . . . . . . . . . . . . . . . . . . . . . . . . .13

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15

Hold Funct ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Before Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

! Basic Operation

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 19

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 - 21

! Useful Features

Advanced Playback . . . . . . . . . . . . . . . . . . . . . . 22 - 23

Advanced Recording . . . . . . . . . . . . . . . . . . . . .24 - 28

Recording from a Microphone. . . . . . . . . . . . . .29 - 32

Changing Default Settings. . . . . . . . . . . . . . . . . . . . .33

Checking Disp lay s . . . . . . . . . . . . . . . . . . . . . . . 3 4 - 3 5

! Advanced Features

Titling a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . 36 - 39

Editing a Record e d Min iDis c. . . . . . . . . . . . . . . 40 - 42

Listening through Another System . . . . . . . . . . . . . .43

Resuming au to play . . . . . . . . . . . . . . . . . . . . . . . . . .43

! Net MD

Page

About Net MD . . . . . . . . . . . . . . . . . . . . . . . . . . 44 - 45

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . 46

Software Installa ti on . . . . . . . . . . . . . . . . . . . . . . . . . 47

Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . 48 - 49

Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

! References

MiniDisc S y s te m Limitatio ns . . . . . . . . . . . . . . . . . . 51

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . 52 - 53

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 5 4 - 55

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Specificat ions. . . . . . . . . . . . . . . . . . . . . . . . . . . 56 - 57

The operation manual of th is produc t consists
of 2 volumes.

Unit operation manual:

Guides you through preparation and operation of this
system. Be sure to read this before operating the unit.

BeatJam:

Guides you through operation of the bundled software
"BeatJam".

-Contents-

Importa n t Introduction

5

1

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_1.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Accessories

4-pole

plug

-Accessories-

Importa n t Introduction

6

Remote Control x 1 Earphones x 1 AC Adaptor

Battery Carrying Case x 1 Connection Cable

Carrying Bag x 1 CD-ROM x 1 USB Connection Cable x 1

Notes:

"

You can hear the sound only from one earphone if you use the supplied earphones with other equipment.

"

Parts and equipment mentioned in this operation manual other than those detailed above are not included.

"

The AC adaptor may be different from the one in the drawing.

(for digital recording) x 1

(RADPA8066AWZZ) x 1

Connection Cable

(for analogue recording) x 1

Rechargeable Nickel­Metal Hydride Battery

(AD-N70BT) x 1

Output Conversion Cable

(4-pole to 3-pole plug

conversion) x 1

4-pole

plug

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_1.fm

2

1

IM-DR420H(E) TINSE0554AWZZ

2

Names of Controls and Indicators

! Main unit

1.Open Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.Menu/Enter B utton . . . . . . . . . . . . . . . . . 19, 21, 36

4.Play/Pause/Stop/Power Off/Hold/
Fast Forward/Fast Reverse/
Recording Level/Menu Select/

Name Select Button . . . . . . . . . . 16, 18, 20, 22, 36

5.Volume/Cursor Button . . . . . . . . . . . . . . . . . 21 , 37

1

2

3

4

5

6

10

11

12

7

8

9

6.Remote Co ntrol/Earphone s /

Line Output Socket . . . . . . . . . . . . . . . . . . . . 20, 43

7.USB Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

8.Microphone Input Socket . . . . . . . . . . . . . . . . . . 2 9

9.Optical/ Line Input So cket . . . . . . . . . . . . . . . . . . 1 4

10. Record/Track Mark Button . . . . . . . . . . . 18, 26, 27

11.Bass/ Delete/Syn chro/

Charge Button . . . . . . . . . . . . . . . . . . 10, 21, 26, 37

12.3 V DC Input Socket . . . . . . . . . . . . . . . . . . . . . . 10

Note:

When the battery cover comes off, attach the cover back
as shown below.

Reference page

IM-DR420H

Importa n t Introduction

1

6

5

-Names of Controls and Indicators-

4

3

2

1

7

03/7/21 IM-DR420H_UK_1.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Names of Controls and Indicators (continu ed)

Importa n t Introduction

-Names of Controls and Indicators-

123 45

6
7

8

91011 13

23 4

1

56 7

12

14

! Display panel

Reference page

1.Level Meter . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 30

2.Random Indicator . . . . . . . . . . . . . . . . . . . . . . . . 23

3.Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.Long-Play/ Recording Mode Indicator . . . . . . . . 24

5.Monaural Mode Indicator . . . . . . . . . . . . . . . . . . 24

6.Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.Play Indicat or . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.Pause Indic a to r . . . . . . . . . . . . . . . . . . . . . . . . . . 18

9.Disc Name Indicator . . . . . . . . . . . . . . . . . . . . . . 34

10.R ecord Indicator . . . . . . . . . . . . . . . . . . . . . . 18, 30

11.Synchro Recording Indicator . . . . . . . . . . . . . . 26

12.Character/Time Information Indicator . . . . 18, 34

13.TOC Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

14.Track Number Indicat or . . . . . . . . . . . . . . . . . . . 18

! Remote control unit

Reference page

1.Earphones Sock e t . . . . . . . . . . . . . . . . . . . . . . . 20

2.Bass/Delete/Track Mark Button . . . . . . . 21, 27, 37

3. Volume/Cursor Buttons . . . . . . . . . . . . . . . . 21, 37

4.Hold Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5. Play/Pause Bu t t o n . . . . . . . . . . . . . . . . . . . . 19, 20

6.Fast Forward/Fast Reverse/
Recording L evel/Menu Selec t/

Name Select Buttons . . . . . . . . . . . . . . . 18, 22, 36

7. Stop/Power Off B utton . . . . . . . . . . . . . . . . . 19 , 20

8

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_1.fm

Precautions

IM-DR420H

! Important

"

Do not wear your earphones when you are crossing
streets or near traffic.

"

Do not use your earphones whilst driv­ing a motor vehicle, it may create a traf­fic hazard and may be illegal.
Remember to obey all of the safety
rules in your area.

"

Do not play the unit at a high volume.
Hearing experts advise against extend­ed listening at high volume levels.

"

If you experience ringing in your ears, reduce the vol­ume or discontinue use.

"

No naked flame sources, such as lighted candles,
should be placed on the apparatus.

"

Attention should be drawn to the environmental as­pects of battery disposal.

"

The apparatus is designed for use in moderate climate.

"

This portable MD should only be used within the range
of 0°C - 40°C (32°F - 104°F).

To avoid accidental electric shock or other possible
problems, observe the precautions listed below.

"

Do not disassemble or modify the unit.

"

Do not drop or subject the unit to shock.

"

Do not use the unit near open flames.

"

Do not spill liquid on the unit.

"

Do not use an external power supply, other than the 3
V DC supplied with this unit, as it m ay damage the
unit.

"

SHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorised serv ­ice centre.

! Storing the unit

Avoid using or leaving the unit in the following
places.

"

Places exposed to direct sunlight for many hours
(especially in cars with the doors and windows closed)
or near heaters. (The cabinet may deform, change col­our or the unit may malfunction.)

"

Places exposed to excessive dust.

"

Places exposed to water.

"

Places where temperatures are excessively high or
low.

"

Places (bathrooms) where the humidity is extremely
high.

"

Places with strong magnetic fields such as TVs or
loudspeakers.

"

Places exposed to vibration.

"

Places where sand can easily enter the inside of the
unit (beaches etc.).

"

If the unit is used near radio tuners or TVs, noise an d/
or picture interference may result. If you experience
these problems, move the unit away from such
devices.

It is not recommended to put the
portable MD into a rear pocket, as
this may damage the product when
sitting.

Using this unit near mobile phones
may cause noise pickup. If it oc­curs, move it away from them.

-Precautions-

Importa n t Introduction

9

1

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_1.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Power Source

Using with the Rec hargeable Battery

! Charging the rechargeable battery

When the rechargeable battery is used for the first time
or when you want to use it after a long period of disuse,
be sure to charge it fully.

1

Insert the rechargeable battery according

AC 110 - 240V,
50/60 Hz

1

To the DC IN 3V socket

2

to the direction indicated in the battery
compartment.

A rechargeable battery other than the one supplied
or the optional one AD-N70BT cannot be charged.

2

Plug the AC adaptor into the wall socket,
and then in sert the plug on the other end

into the DC IN 3V socket.

3

Press the CHARGE button.

The battery indicator will scroll, and battery will begin
charging.

10

3

-Using with the Rechargeable Battery-

IM-DR420H(E) TINSE0554AWZZ

4

"

After the rechargeable battery is charged or used, it
will get slightly warm. This is normal.

"

When the portable MD is turned on or operating, the
battery will not be charged.

"

For information about the battery life, see the battery
item in the "Specifications" on page 57.

Scrolling

03/7/21 IM-DR420H_UK_2.fm

IM-DR420H

! About charging time

After about 3.4 hours have passed, " " will
go out. The battery is charged up to 90% if it is
completely discharged.

To charge the batter y fully, continue charging for about 2
more hours. In this case, you do not need to press the
CHARGE button. Even if the CHARGE button is pressed,
" " will not appear.

Notes:

"

Charge the battery within the range of 5°C - 35°C
(41°F - 95°F).

"

The unit can be left in the charging state after it is
completed.

"

Carry the battery in the supplied case.

Caution:

"

Use the specified battery AD-N70BT only. Do not
charge a battery (nickel-cadmium, alkaline, etc.) other
than that specified.

"

Do not remove the outer cover of the re­chargeable battery. It may cause heat gen­eration, fire, or explosion.

"

Do not dip the battery in water, do not dis­pose of it in a fire, and do not take it apart.

"

If the rechargeable battery terminal is dirty, charging
may not start. In such a case, wipe off the dirt with a dry
cloth.

"

Do not disassemble the battery.

! Rechargeable battery

"

A rechargeable nickel-metal hydride battery is the only
kind that can be used. Even if the battery is not used,
you should charge it at least once every three months
because of the special quality of this battery.

"

The rechargeable battery can be charged approxi­mately 300 times.

"

When the operating time is reduced to about half the
normal amount of time, even after a full charge is per­formed, replace the battery with a new one (AD­N70BT).

"

When the battery is charged for the first time or is
charged after not being used for a long period, the
operating time may be shorter than normal. The bat­tery life will recover with normal use i.e. charging and
discharging.

"

To avoid shortening the service life of the battery only
recharge the battery after it has been completely dis­charged.

"

If the rechargeable battery is used in a cold environ­ment, the operating time will be reduced.

"

Do not carry the battery in your pocket or a bag
together with metal objects (keys, coins, jewelry, etc.).
The battery may short out and generate significant
amounts of heat.

"

Do not short-circuit the terminals as they will become
very hot and will damage the battery.

"

Do not drop or subject the battery to shock.

"

Do not insert objects (metal etc.) into the batter y com ­partment of this product.

2

6

Power Source

5

4

-Using with the Rechargeable Battery-

3

2

1

11

03/7/21 IM-DR420H_UK_2.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Using with the AC Adaptor

Using with the Alkaline Battery

Plug the AC adaptor into the wall socket, and then insert
the plug on the other end into the DC IN 3V socket.

To the wall socket

AC 110 - 240V,
50/60 Hz

To the DC IN 3V socket

Caution:

"

Insert the plugs firmly.

"

When the unit is not in use for extended periods,

Power Source

remove the AC adaptor from the wall socket.

Notes:

"

If power failure occurs whilst playing a disc using the
AC adaptor, disconnect it from the wall socket. Other­wise, playback ma y start automatically when electricity
resumes.

-Using with the AC Adaptor/Alkaline Battery-

"

This unit can be used with the AC adaptor when the
rechargeable or an alkaline battery is in the unit.

Use one commercially available alkaline battery (LR6,
"AA" size).

1

1

Push and slide the battery cover.

2

Open the battery cover.

3

Insert an alkaline battery according to the
direction indicated in the battery compart­ment.

When inserting or removing the battery, push it to­wards the battery terminal.

4

Close the battery cover.

Notes:

"

Do not replace the battery during operation.

"

Do not use a nickel-cadmium battery.

"

Remove the battery if the unit will not be used for long
periods of time. This will prevent pot ential damage due
to battery leakage.

"

Installing the battery incorrectly may cause the unit to
malfunction.

2

3

12

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_2.fm

Inserting a MiniDisc

Recording
prevented

Recordable

IM-DR420H

1

Slide the OPEN lever to release the com­partment door.

2

Lift up the compartment door.

3

Insert a MiniDisc.

Insert according to the direction arrow.

4

Close the compartment door.

Notes:

"

"

12

"

"

34

Do not place the MiniDisc under the holder.

If any resistance is felt, do not force the MiniDisc into
the unit, as it may cause damage to the unit. If resist­ance is felt, remove the MiniDisc and reload it.
The lid cannot be opened if "TOC" is displayed; refer
to the instruction on page 17.
When you record on a MiniDisc, check that the erase
prevention tab is set to the "Recordable" position.

13

Preparation

3

6

-Inserting a MiniDisc -

5

4

3

2

1

03/7/21 IM-DR420H_UK_2.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Connections

You can record your favourite CDs or tapes to MD.
When recording, it is recommended to use the AC adaptor and also install the battery. Should the power failure occur,

the power source would be automatically switched to the battery.

■ To connect to a stereo system with "LINE OUT" or "AUDIO OUT" sockets (analogue connection)

If the audio system has only one pair of sockets, they are usually for input only and recording via this connection is
not possible.

14

Preparation

To the wall socket

-Connections-

AC 110 - 240V,
50/60 Hz

To the DC IN
3V socket

IM-DR420H(E) TINSE0554AWZZ

To the OPTICAL/
LINE IN socket

Supplied

RIGHT

LEFT

connection
cable

RIGHT

LEFT

Red : to right
White : to left

03/7/21 IM-DR420H_UK_2.fm

IM-DR420H(E) TINSE0554AWZZ

3

■ To connect to a stereo system with a "DIGITAL OUT" or "OPTICAL OUT" socket (digital con-

nection)

When compared with an analogue connection recording, using a digital connection will give higher quality.

Some audio systems do not have a DIGITAL OUT socket.
Check before connecting.

To the wall socket

AC 110 - 240V,
50/60 Hz

To the DC IN
3V socket

Note:

Some of the above optional accessories may not be available depending on the area.

To the OPTICAL/
LINE IN socket

Optional
connection cable (AD-M2DC)

Supplied
connection
cable

DIGITAL OUT

DIGITAL OUT

IM-DR420H

Preparation

15

3

-Connections-

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_2.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Preparation

Hold Function

The operation can be kept even if other buttons are accidentally pressed in a place such as a crowded train. (T he main
unit and remote control operate independently.)

Move the HOLD switch to the safety position
(direction indicated by the arrow).

Orange mark

Hold Release

Hold down the HOLD button for 2 seconds or more.

-Hold Function-

If the battery is inser ted or the AC adaptor is connected,
you can set this function even when the power is turned
off.

To cancel the hold mode

Press and hold down the HOLD button for 2 seconds or
more whilst the unit is in the hold mode.
"HOLD OFF" will be shown.

Hold Release

To cancel the hold mode

Move the HOLD switch away from the safety position (the
opposite direction of the arrow).

If the hold function is active whilst the power is turned
off, the power cannot be turned on by mistake and the
battery will not be drained.

16

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_2.fm

Before Recording

IM-DR420H

! About the TOC

Whilst recording or editing, "TOC" (Table Of Contents)
appears. If you stop recording or turn off the power after
editing, TOC will be written on the MD ("TOC" will flash
followed by "TOC EDIT!"). During the process, the lid is
locked and you cannot remove the MiniDisc.

TOC display

Warning:

If the power is removed (Battery/AC adaptor) whilst
"TOC" is displayed, t he MiniDisc unit lid will remain
locked until the battery/main power is restored and
the unit is turned on. Your new recordings or edited
changes will be lost and your MiniDisc may become
unusable.

Caution:

Whilst "TOC" or "TOC EDIT!" is displayed, follow the
instructions below.

- Do not jerk or bump the unit.

- Do not unplug the AC adaptor.

- Do not remove the battery.

- Do not subject the unit to shock.
Otherwise, tracks may not be recorded properly.

! To prevent recorded MiniDiscs from

being erased accidentally

Slide the accidental erase prevention tab, located on the
side of the MiniDisc, in the direction indicated by the
arrow.
The MiniDisc will then be protected against accidental
erasure.

Recordable

To add a recording to such a MiniDisc, slide the acciden­tal erase prevention tab back to its original position.

Recording
prevented

! Helpful tip when attaching a label

When attaching a label to a MiniDisc cartridge, be sure to
note the following. If the label is not at tached properly, the
MiniDisc may jam inside the unit and you may not be able
to remove it.

"

If the label peels off or partially lifts
away, replace it with a new one.

"

Do not put a new label on top of an ex­isting one.

"

Attach the label only in the specified
location.

17

Preparation

3

6

-Before Recording-

5

4

3

2

1

03/7/21 IM-DR420H_UK_2.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Basic Operation

Recording

-Recording-

Before recording

Cancel the hold mode.

The portable MD does not work whilst in the hold mode.
As for the details, see page 16.

1

Press the REC button.

2

Begin playback on the stereo system con­nected to this portable MD.

3

Press the REC LEVEL or button to
adjust the recording level.

Analogue recording ( connecting with analogue
cable)

Adjust the recording level so
that the maximum sound vol­ume from the source makes the
reading swing somewhere be­tween -4 dB and 0 dB.

Digital recording (co nne c ting with digital cabl e)

You can adjust the level in 1 dB
increments between + 10 dB
and - 10 dB.

+ 10 dB to - 10 dB

Once you adjust the recording level, the setting is re­tained even after the recording stops. (For cancella­tion instructions for the digital recording level, see
page 33.)

The sound from the earphones does not change
even if the digital recording level is adjusted.

4

Press the PAUSE button on the st er eo sy s­tem to enter the playback pause mode.

Here, you can search for the track to be recorded.

0 - 30

18

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_3.fm

5

Press the MENU/ENTER button.

6

Press the or button repeatedly to se­lect "REC MODE".

7

Press the MENU/ENTER button.

8

Press the or button repeatedly to se­lect the recording mode (page 24).

(Stereo recording)

SP

(2 times long recording)
(4 times long recording)
(Monaural recording)

9

Press the MENU/ENTER button.

The mode will be set automatically after 7 seconds
even if the MENU/ENTER button is not pressed.

10

Press the button to start the MiniDisc

unit recording.

11

Begin playback on the stereo system, the

output will be recorded.

Notes:

!

Complete the operation within 7 seconds whilst select­ing the menus.

!

Changing the volume level whilst recording does not
affect the recording.

!

You cannot adjust the bass level whilst recording.

!

Whilst "TOC" is displayed, the MiniDisc recorded con­tents are not yet updated.

TOC display

To interrupt recording

Press the button.

!

To resume recording, press the button again.

!

The track number will be increased by one each time
the recording is interrupted.

To stop recording

Press the :OFF/HOLD button.
When recording is stopped, TOC is written on the MD.
The "TOC" indicator disappears.

IM-DR420H

Basic Operation

-Recording-

4

6

5

4

3

2

1

19

03/7/21 IM-DR420H_UK_3.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Playback

20

Basic Operation

Left
channel

L

4-pole

To the REMOTE
/ PHONES socket

1

-Playback-

Insert the earphone plug firmly into the ear­phone socket on the remote control.

2

Plug the remote control into the REMOTE/
PHONES socket on the unit.

3

Insert a MiniDisc (page 13).

4

Press the button.

Playback starts automatically
with a playback only MiniDisc
or a MiniDisc which is protect­ed against accidental erasure
(Auto-play function).

To interrupt playback

Press the button.
To resume playback, press the button again.

To stop playback

Press the :OFF/HOLD button.
The power will turn off automatically after 2 minutes if the
unit is left in the stop mode.

To turn off the power

Press the :OFF/HOLD button whilst in the stop mode.

plug

Right
channel

R

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_3.fm

B3

Volume control

"

Press the VOL + button to increase
the volume and the VOL - button to
decrease the volume.

The sound escaping from your earphones may annoy
people around you. In particularly crowded places (such
as on trains or buses), reduce the volume.

Bass control

"

Each time the BASS/SYNC (BASS) button is pressed,
the bass response will be switched as follows.

BASS 1 Emphasised slightly.
BASS 2 Emphasised more.
BASS 3 Emphasised fully.
BASS OFF Cancelled. (Default setting)

To customise low and high levels

"

You can set 3 types of bass settings (BA SS 1 - BAS S 3)
by adjusting low (Lo) and high (Hi) boost for each setting.

Emphasising low (Lo) a nd high (Hi ) sou nd of BASS 3.

Lo5

BASS 3

level

Sound

Lo

Frequency

Volume (0 - 30)

Hi5

Default

Hi

1

During playback, press the MENU/ENTER
button.

2

Press the or button repeatedly to se­lect "SOUND ADJ" and then press the

MENU/ENTER button.

3

Press the or but­ton repeatedly to select

bass setting, and the
VOL + or VOL - button to
select "B3".

4

After selecting "Lo" or
"Hi" with the or

button, press the VOL +
or VOL - button to adjust
the low or high sound
setting.

5

Press the MENU/ENTER button.

Repeat steps 1 - 5 to change the other bass setting.

Notes:

!

If you set the vol ume to 23 or more, the bass boost will
be adjusted automatically.

!

When you make the setting of "To customise low and
high levels" with the volume level set to 23 or more,
the volume level will be reduced to 22 automatically.

IM-DR420H

Basic Operation

21

4

-Playback-

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_3.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Advanced Playback

! To locate the desired portion

For audible fast forward:

Press and hold down the button during playback.

For audible fast reverse:

Press and hold down the button during playback.

-Advanced Playback-

"

Useful Features

Normal playback will resume when the or but­ton is released.

"

When the end of the last track is reached during fast
forward, the unit will enter the pause mode. When the
beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.

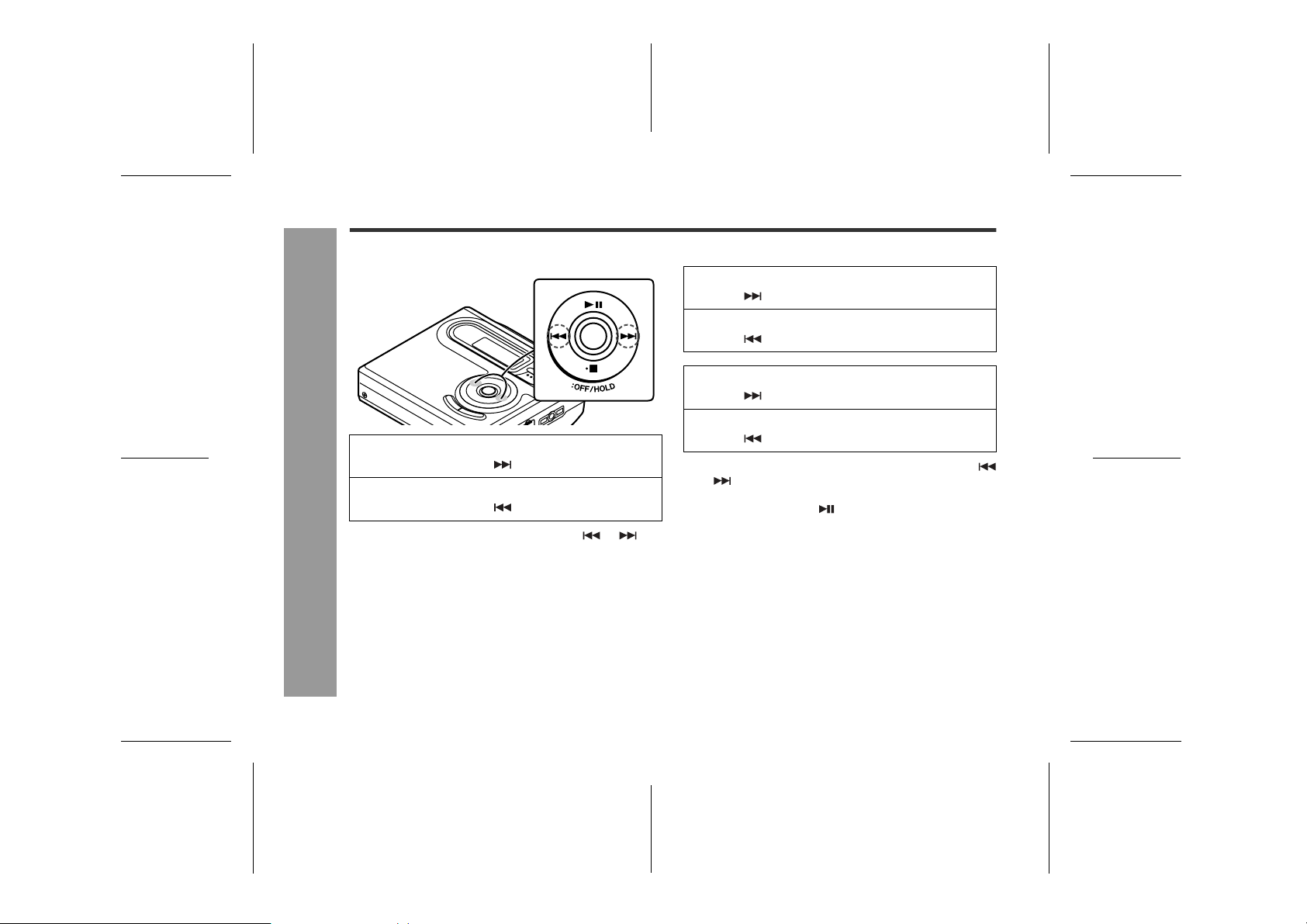

! To locate the beginning of a track

To move to the beginning of the next track:

Press the button during playback.

To restart the track being played:

Press the button during playback.

To locate the next track:

Press the button whilst the unit is stopped.

To locate the previous track:

Press the button whilst the unit is stopped.

"

To skip a number of tracks at one time, press the
or button repeatedly until the desired track number
is shown.

"

When you press the button, playback starts from
the beginning of the track.

22

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

IM-DR420H(E) TINSE0554AWZZ

4

! Random play or repeat play

1

During playback, press the MENU/ENTER
button.

2

Press the or but­ton repeatedly to select

"PLAY MODE".

3

Press the MENU/ENTER button.

4

Press the or button repeatedly to select
the desired playbac k m ode.

RANDOM : Random play
RANDOM REP : Repeat play of tracks in random order
ALL REPEAT : Repeat play of all of the tracks
1Tr REPEAT : Repeat play of a single track
NORMAL : Normal playback

5

Press the MENU/ENTER but to n.

The mode will be set automatica lly after 7 seconds even
if the MENU/ENTER button is not pressed.

Notes:

"

Complete the operation within 7 seconds whilst select­ing the menus.

"

If the playback mode is selected whilst stopped, press
the button to start playback.

"

When "TOC" is displayed, random play or repeat play
is impossible.

"

In random play, the unit will select and play tracks
automatically. (You cannot select the order of the
tracks.) After all of the tracks are played once in ran­dom order, the unit will stop automatically.

"

During random, random repeat, or single track repeat
play, you can forward or reverse the MiniDisc only
within the track being played.

"

During random play, the unit cannot find the beginning
of any track which has been played.

"

Repeat play lasts until you st op the unit.

"

When you stop and resume random play, the rest of
tracks are played starting from the last played track. If
you turn the power off and resume random play, all the
tracks are played in random order starting from the
interrupted track.

IM-DR420H

Useful Features

23

5

6

-Advanced Playback-

5

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Advanced Recording

! Long-play recording

2 times and 4 times long recording

Double or quadruple time of stereo recording is possible.

Monaural recording

In monaural, you can record twice as long as the stereo
recording.

-Advanced Recording-

Useful Features

1

When recording is paused, press the MENU /
ENTER button.

2

Press the or button repeatedly to se­lect "REC MODE".

3

Press the MENU/ENTER button.

4

Press the or button repeatedly to se­lect the desired recording mode.

Stereo recording (SP)

5

Press the MENU/ENTER button.

The mode will be set automatically after 7 seconds
even if the MENU/ENTER button is not pressed.

6

Start recording.

Notes:

"

Complete the operation within 7 seconds whilst select­ing the menus.

"

The recording mode remains unchanged until a new
mode is selected.

2 times long recording (LP2)

4 times long recording (LP4)Monaural recording (MONO)

24

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

IM-DR420H

Notes:

"

In monaural recording, the sound on the right and left
channels is mixed even if the input source is in stereo.
Although you can hear the stereo sound from the ear­phones, the recorded sound is monaural.

"

Tracks recorded in 2 times long recording and 4
times long recording modes cannot be played with
the unit that does not support these modes. On
such a unit, no soun d is heard. (The operation may
vary depending on the unit .)

"

Tracks recorded in monaural cannot be played on a
unit that does not support monaural playback.

! About ATRAC

The ATRAC (Adaptive TRansform Acoustic Coding) sys­tem compresses the sound data into 1/5 by cutting out
the inaudible sound. Since the sound is selected based
on psychoacoustics masking, the sound quality is not
impaired. This unit is equipped with the ATRAC3 com­pressing system that can reduce the sound data to 1/10
or 1/20 of its original size. By employing this system, 2
times and 4 times long recordings are enabled in stereo
mode.

! About the recording mode

You can select the recording mode from stereo recording,
2 times long recording, 4 times long recording, and mon­aural recording. Recordable time varies depending on
the recording mode. If the tracks are recorded on an 80­minute MiniDisc, its recording time changes as follows:

Indication Recording mode Recording

SP Stereo MAX. 80 min.
LP2 2 times long (MDLP

stereo)

LP4 4 times long (MDLP

stereo)

MONO Monaural MAX. 160 min.

time

MAX. 160 min.

MAX. 320 min.

! Caution for 4 times long recording

(LP4)

Special compression methods are used to achieve 4
times long recording. This may cause some noise to be
recorded occasionally. When the highest quality is
required, stereo or LP2 recording is recommended.

Useful Features

25

-Advanced Recording-

5

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Advanced Recording (continued)

! Playback sound-actuated recording

Recording automatically starts or pauses by detecting
sound from the stereo system (synchronised recording).

1

Press the REC button.

2

Begin playback on the stereo system con­nected to this portable MD.

3

Press the or button to adjust the re-

-Advanced Recording-

Useful Features

cording level (see page 18).

4

Press the PAUSE button on the stereo sys­tem to enter the playback pause mode.

Select the starting point for your recording and press
the PAUSE button.

5

Press the MENU/ENTER button.

6

Press the or button repeatedly to se­lect "REC MODE".

7

Press the MENU/ENTER button.

8

Select the recording mode (step 4, page 24)
and press the MENU/ENTER button.

The mode will be set automatically after 7 seconds
even if the MENU/ENTER button is not pressed.

9

Press the MENU/ENTER button.

10

Press the or button repeatedly to se-

lect "SYNC ON".

11

Press the MENU/ENTER button.

"

The BASS/SYNC button can be used instead of
steps 9 - 11.

"

"SYNC" will flash.

"

To cancel the operation, press the :OFF/HOLD
button.

12

Begin playback on the stereo system.

Recording will begin automatically.

To interrupt recording

"

When the stereo system is stopped, the unit will enter
the synchro recording pause mode. When playback is
resumed, recording will also resume.

"

If a silence lasts for 3 seconds or more, recording will
be paused (pause function does not work for approxi­mately 10 seconds after recording star ts). When the
unit receives sound again, recording automatically
starts.

"

A new track number is created when recording
resumes.

26

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

IM-DR420H

! To create your own track numbers

You can create your own track numbers at any point.

Whilst recording, press the REC button at the point
where you want to create track numbers.

The track number will be increased by one.

"

One track number will be added every time the REC
button is pressed.

"

The BASS button on the remote control can also be
used to add track numbers.

Numbering restriction

If you try to number more than 10 tracks in certain
amount of time, "SORRY" will be displayed and the oper­ation will be disabled.
In that case, wait until the next operation can be
resumed.

In stereo recording Within 40 seconds
In 2 times long recording Within 80 seconds
In 4 times long recording Within 160 seconds
In monaural recording Within 80 seconds

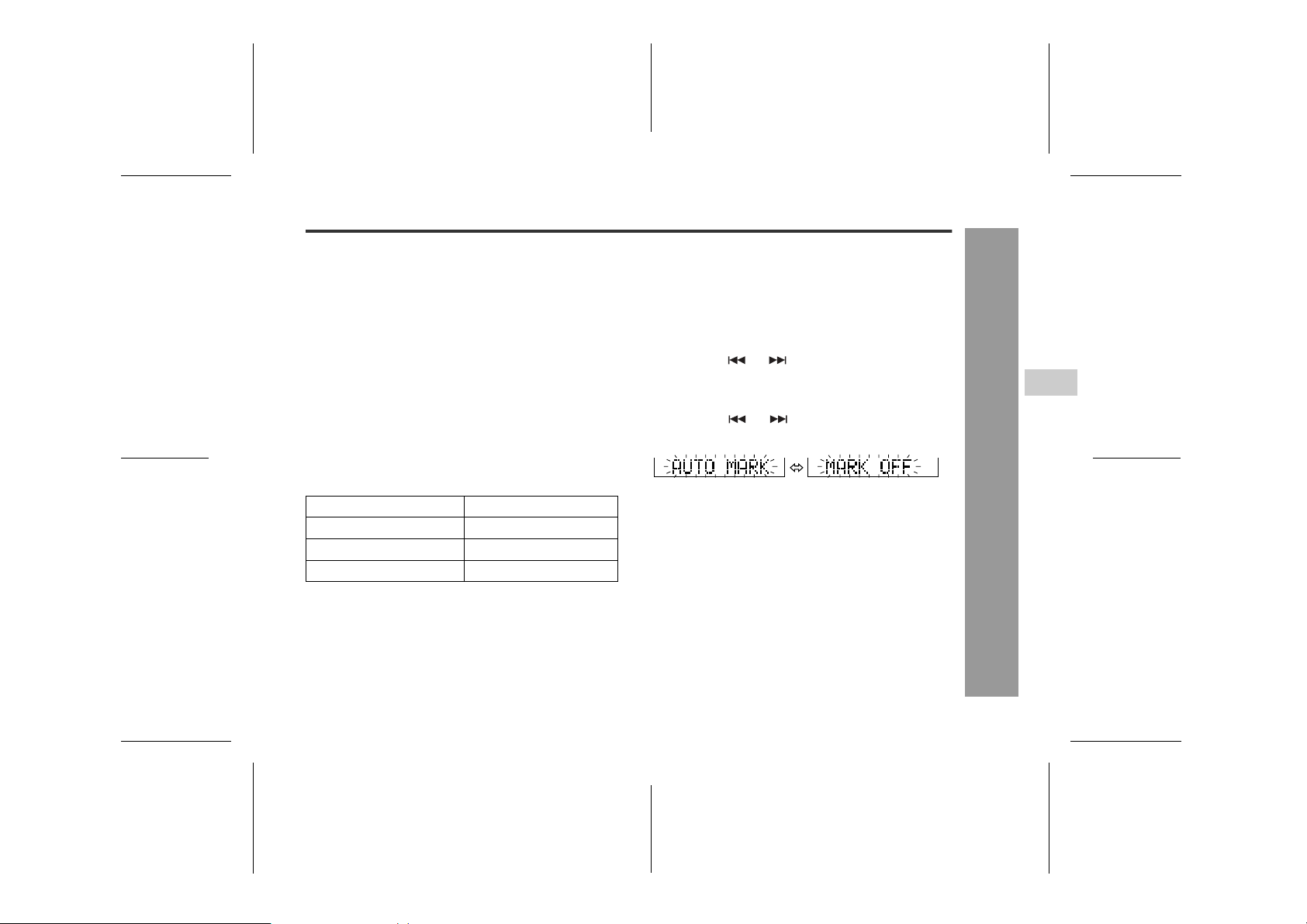

! Recording tracks as a single track

You can record several pieces of music as a single track
by disabling the auto marker function.

When recording is paused or whilst recording...

1

Press the MENU/ENTER button.

2

Press the or button repeatedly to se­lect "MARK".

3

Press the MENU/ENTER button.

4

Press the or button to select "MARK
OFF".

5

Press the MENU/ENTER button.

Notes:

"

Complete the operation within 7 seconds whilst select­ing the menus.

"

When making digital recordings using a CD player or
an MiniDisc player, track numbers will be created auto­matically regardless of the setting of the auto marker
function.

Useful Features

27

-Advanced Recording-

5

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Useful Features

Advanced Recording (continued)

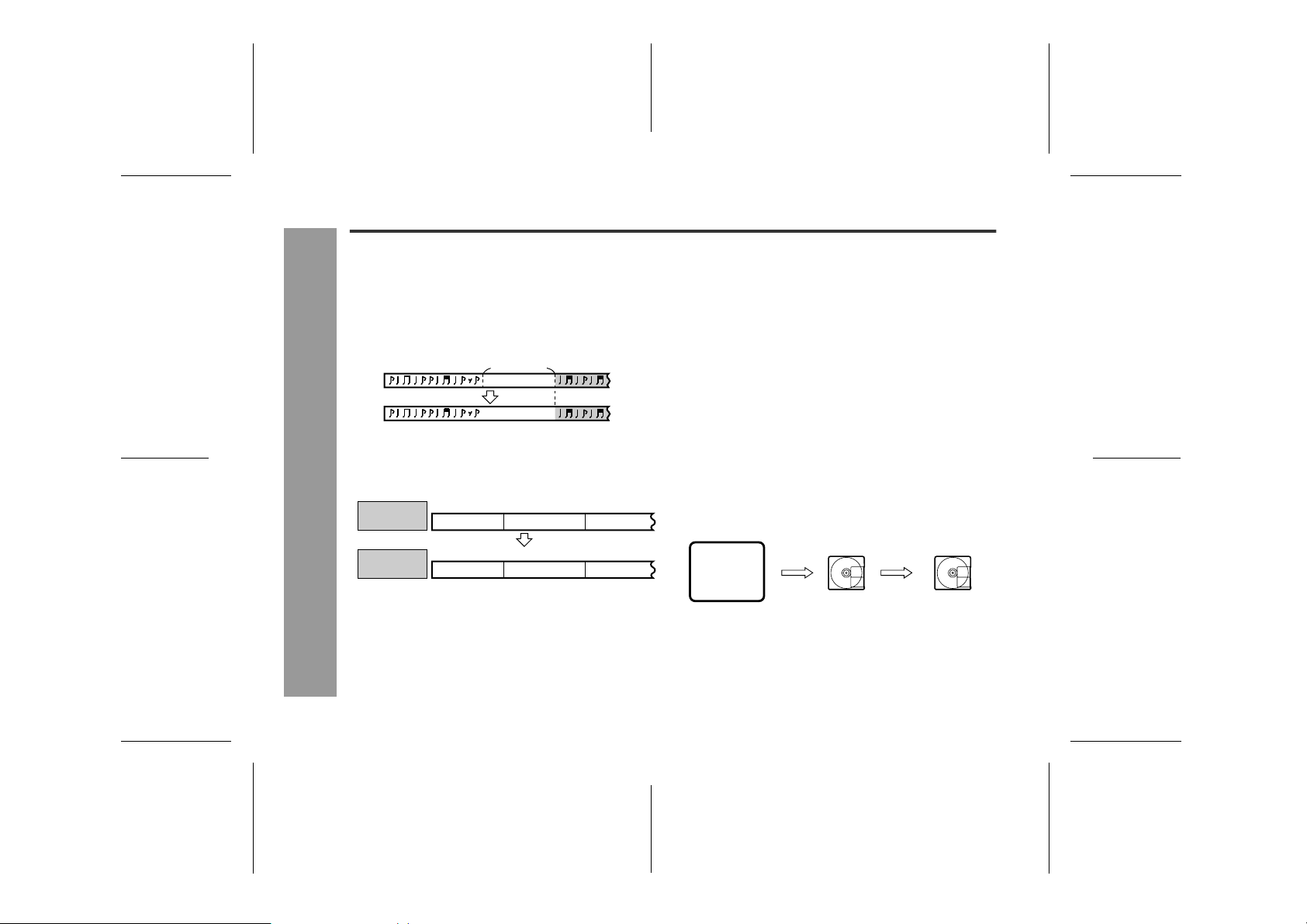

! About track numbers

1. Track numbers are created automatically during re­cording via the analogue connection when a silence of
1 second or more is detected (auto marker function).
A series of tracks can be recorded as one by disabling
the auto marker function (see page 27).

About

1 second

Silence

First track

2. When recording from a CD or a MiniDisc using the dig­ital connection, track numbers will be created at the
same points as on the CD or MiniDisc (synchro mark­er function).

Playback
side

First track

Track A

Second track Third track

-Advanced Recording-

Recording
side

"

Track numbers may not be created in proper places,
depending on the source to be recorded from, such as
signals with noise.

"

The track numbers on the playback side may not
match the track numbers recorded on the MiniDisc.

First track

Track A

Track B

Track B

Second track

Track C

Third trackSecond track

Track C

"

When recording, if a programmed playback is per­formed by the source or playback is performed by
selecting tracks manually, the MiniDisc track numbers
may not be the same as on the source.

"

Track numbers may not be created properly, depend­ing on the connected stereo system.

! About sampling rate converter

This portable MD incor porates a sam pling rate converter
so that it can record from digital radios or DAT tape
recorders.

! Note for digital recording

You cannot copy a MiniDisc that you recorded from digital
inputs to another MiniDisc or DAT. It is prevented by the
SCMS (Serial Copy Management System). Recording
from analogue inputs is not affected.

Digital signals Digitally recorded

CD player,
MiniDisc
player,
etc.

MiniDisc

Digital

connection

Cannot record

Digital

connection

28

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

Recording from a Microphone

5

Press the or button repeatedly to se­lect "Mic Level".

6

Press the MENU/ENTER button.

7

Press the or button repeatedly to se­lect "Auto-Hi", "Auto-Lo" or "MANUAL".

"

Stereo
microphone
(commercially
available)

1

Connect a stereo microph one to the MIC IN
socket.

2

Insert a recordable MiniDisc (page 13).

3

Press the REC button.

4

Press the MENU/ENTER button.

To the MIC IN

PLUG IN

( )

POWER

socket

"

8

Press the MENU/ENTER button.

The mode will be set automatically after 7 seconds
even if the MENU/ENTER button is not pressed.

9

Select the recording mode (steps 1 - 5,
page 24).

10

Recording will start.

When "Auto-Hi" or "Auto-Lo" is selected, the re­cording level is automaticall y adjusted according t o
changes in sound volume. Normally select "Auto­Hi". When the recording level frequently reaches
"OVER", switch to "Auto-Lo" to l ower t he lev el. Set
the maximum level between "-4 dB" and "0 dB".

The automatic level adjustment may be delayed
by a few seconds where source sounds show
sudden and rapid changes (especially in meet­ings and conversations). In this case adjust the
recording level manually (see page 30).

Press the button.

IM-DR420H

Useful Features

29

5

6

5

-Recording from a Microphone-

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Recording from a Microphone (continued)

! Adjusting the microphone recording

level (Manual)

1

Press the REC button.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "Mic Level".

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to se­lect "MANUAL".

6

Press the MENU/ENTER button.

7

Press the or button to adjust the re­cording level.

Adjust the recording level so that
the maximum sound volume from
the source makes the reading

Useful Features

swing somewhere between -4 dB
and 0 dB.

-Recording from a Microphone-

8

Select the recording mode (steps 1 - 5, page

24).

9

Press the button.

L: 0 - 20

H: 21 - 30

To interrupt recording

Press the button whilst recording.
To resume recording, press the button.
The track number will be increased by one each time you
interrupt recording.

To stop recording

Press the :OFF/HOLD button.

Note:

Complete the operation within 7 seconds whilst selecting
the menus.

30

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

IM-DR420H

! Sound-actuated recording

(Mic Synchronised recording)

1

Press the REC button.

2

Select the mic recording level from auto or
manual adjustment (steps 4 - 8, page 29).

3

Select the recording mode (steps 1 - 5, page

24).

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to select
"SYNC ON".

6

Press the MENU/ENTER button.

7

Press the or button to select the record­ing start level.

MIC SYNC H :Recording starts when the unit detects -

MIC SYNC L :Recording starts when the unit detects -

8

Press the MENU/ENTER button.

9

When a sound, such as person speaking, is
picked up by the microphone, recording will

begin automatically.

24 dB or more (the unit can start record­ing from quiet sounds).

12 dB or more.

About pause function

The unit automatically pauses when the microphone
does not pick up any sound for 3 seconds or more.
(Pause function does not work for approximately 10 sec­onds after a recording starts.) When the microphone
picks up sound again, recording starts automatically.

Notes:

"

Whilst making a mic recording, do not connect any­thing to the OPTICAL/LINE IN socket on the portable
MD.

"

To use a microphone, be sure it is a plug-in-power
type microphone.

- When a plug-in-power type microphone is plugged in,
the portable MD will provide power for the micro­phone's operation.

- If a different type of microphone is plugged in, it may
not operate properly or it may cause the unit to mal­function.

"

Insert the plug firmly. If you don't, the recording will not
be made properly.

"

Use a microphone with a 3.5 mm (1/8") diameter
stereo mini plug.

"

If the unit starts recording too often from low unwanted
noises, set the microphone input to "MIC SYNC L".

"

Recording sensitivity can be changed whilst recording.

"

When using a microphone, do not bring too close
to the unit. Also do not use a plug-in type (without
lead). Noise pickup may occur.

Useful Features

31

5

6

5

-Recording from a Microphone-

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Recording from a Microphone (continued)

Useful Features

32

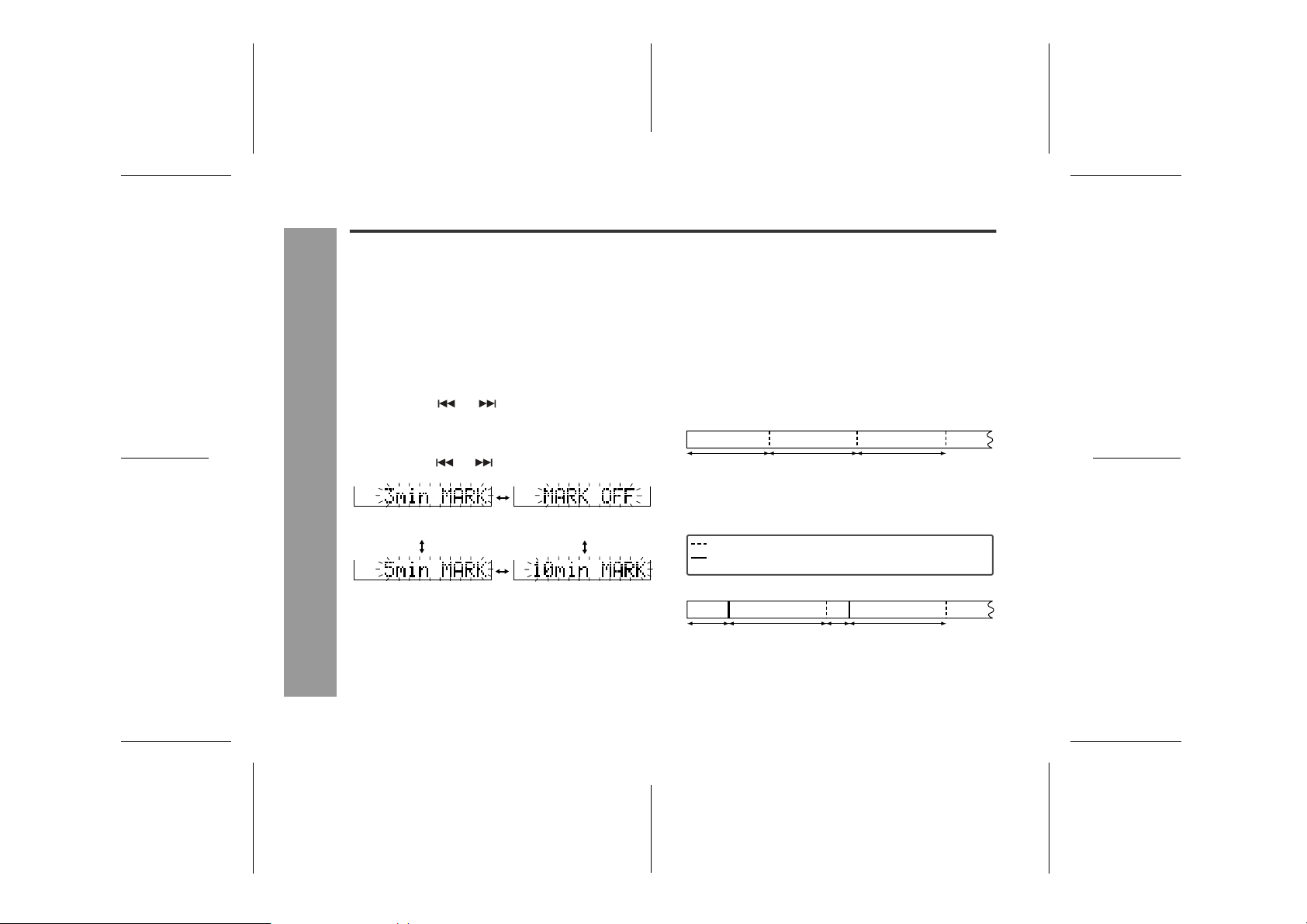

! Track intervals

When recording from the microphone, track numbers will
be created automatically at regular intervals (default set­ting: approximately every 5 minutes). During a mic syn­chro recording, the unit pauses when a silence lasts for 3
seconds or more, and creates a track number.

Changing intervals between tracks

1

Press the MENU/ENTER button.

2

Press the or button repeatedly to se­lect "MARK".

3

Press the MENU/ENTER button.

4

Press the or button.

(A new track number is
created every 3 minutes.)

(No automatic track numbers
are created.)

-Recording from a Microphone-

(A new track number is
created every 5 minutes.)

The interval between marks may vary slightly com­pared with the actual recording time.

(A new track number is
created every 10 minutes.)

5

Press the MENU/ENTER button.

The mode will be set automatically after 7 seconds
even if the MENU/ENTER button is not pressed.

6

Track numbers will be created automatic ally
at regular intervals.

Example: Se t to "5 minutes".

During a mic manual recording

Timed auto marks will be created every 5 minutes.

Track
number 1

5 minutes

Track
number 2

5 minutes

Track
number 3

5 minutes

Track
number 4

During a mic synchro recording

If a silence lasts for 3 seconds or more, a timed auto
mark will be created 5 minutes after the previous mark is
created.

: Track number which is created by the timed auto mark function.
: Track number which is created when a silence lasts for 3 seconds

or more during synchro recording.

Track

Track

number 1

number 2

2 minutes 5 minutes 5 minutes1 minute

Track
number 3

Track
number 4

Track
number 5

Creating track numbers manually

"

Press the REC button whilst recording.

"

The BASS button on the remote control c an also be
used to add track numbers.

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

Changing Default Settings

IM-DR420H

Whilst in the stop mode ...

1

With a MiniDisc inserted, press the MENU/
ENTER button for 2 seconds or more. "SET

UP" will appear.

When you release the button, "BEEP" will flash.

2

Press the or button to select the menu.

3

Press the MENU/ENTER button to display
the setting item.

4

Press the or button to select the set­ting items.

5

Press the MENU/ENTER button.

MENU SETTING ITEM

BEEP (Confirmation
sound)

AUTO PLAY (Auto
play)

POWER SAVE (Auto
power save)

D-LEVEL (Digital re­cording level)

(*) indicates default setting.

BEEP ON* Beep
BEEP OFF Silent
A-PLAY ON* Set.
A-PLAY OFF Cancelled.
AUTO Psave* Set.
Psave OFF Cancelled.
D.L MODE 1* Setting re-

tained.

D.L MODE 2 Cance lled.

! Beep sound

You can eliminate the confirmation sound that beeps
when you press a button.

! Auto play

You can make the unit not play automatically when you
insert a playback-only MiniDisc or an accidental erasure
protected MiniDisc.

! Auto power save

When the unit is used in a place exposed to much vibra­tion, sound skipping can be decreased by cancelling the
auto power save function. (Battery will drain faster.)

What is auto power save function?

During playback, maximum 40 seconds (in stereo) of
musical information is stored. Auto power save function
automatically adjusts the storage time between 5 and 40
seconds to reduce the power consumption. If this func­tion is cancelled, the storage time cannot be adjusted.

"

If this unit is used with the AC adaptor, the storage
time will be 40 seconds regardless of the settings.

"

The storage time varies depending on the recording
mode.

! Digital recording level

"D.L MODE 1"

The digital recording level you set will be kept even after
cancelling recording.

"D.L MODE 2"

Every time you cancel recording, the level will return to
[D.L 0dB].

Useful Features

33

5

6

5

-Changing Default Settings-

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Checking Displays

! To check the elapsed time and remain-

ing time of the track

1

During playback, press the MENU/ENTER
button.

2

Press the or button repeatedly to se­lect "DISPLAY".

3

Press the MENU/ENTER button.

4

Press the or button.

Each time the or button
is pressed, the display will
change as follows.

Track name
Elapsed playback time
Remaining playback time

Notes:

-Checking Displays-

Useful Features

"

If the disc name or the track name was not originally
recorded on the MiniDisc, "NO NAME" will be dis­played.

"

Elapsed playback time and remaining playback time
may be different from the actual time.

"

The selected display will not change even after the
disc is replaced.

! To check the remaining recording time

and the total playing time

1

Whilst in the stop mode, press the MENU/
ENTER button.

2

Press the or button repeatedly to se­lect "DISPLAY".

3

Press the MENU/ENTER button.

4

Press the or button.

Each time the or button

A

B

C

is pressed, the display will
change as follows.

Disc name
Remaining recording time
Total playing time

Notes:

"

Remaining recording time varies depending on the set
recording mode.

"

Remaining recording time will not be displayed with a
playback only MiniDisc.

A

B

C

34

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_4.fm

IM-DR420H

! To display the playing time of an indi-

vidual track

1

Whilst in the stop mode, press the or
button to display the tra ck number a nd track

name.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "DISPLAY".

4

Press the MENU/ENTER button.

5

Press the or button to select the play­ing time.

6

Press the MENU/ENTER button.

Track number
Track name

Playing time

! Checking the remaining amount of bat-

tery level

The remaining amount of battery level is shown by the
battery indicator ( ) during operation.

How to read the battery indicator

When the battery
level is high

"

When the battery level is very low, the battery indicator
will flash. Recharge the battery or replace the alkaline
battery with a new one.

"

When the battery has run out completely, "BATT
EMPTY" will appear. Then, the power will be discon­nected automatically.

Notes:

"

If you use the battery which you stopped charging
halfway, " " m ay appear. It does not mean that the
battery is completely charged.

"

The battery indicator will not correctly display the
remaining capacity for approximately 10 seconds after
the power has been turned on.

"

When the AC adaptor is used, the battery indicator will
not be shown.

"

The number of bars shown in the battery indicator may
increase or decrease, depending on the operation
being performed. This is normal.

When the battery
level is very low

Useful Features

35

5

6

-Checking Displays-

5

4

3

2

1

03/7/21 IM-DR420H_UK_4.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Titling a MiniDisc

! Creating disc and track names

Load a MiniDisc to be named. A playback only or record­ing prevented MiniDisc cannot be edited.

1

2
3

4

5

-Titling a MiniDisc-

<Disc name> <Track name>

Whilst in the stop
mode, press the MENU/
ENTER button.

Press the or button repeatedly to se­lect "EDIT".
Press the MENU/ENTER button.

<Disc name> <Track name>

Press the or but­ton repeatedly to select
"DISC NAME".

Press the MENU/ENTER button.

Whilst in the pause
mode, press the MENU/
ENTER butt o n.

Press the or but­ton repeatedly to select
"TRACK NAME".

Advanced Features

Cursor

"

The unit will enter the character input mode.

"

To cancel the operation, press the :OFF/HOLD
button.

6

Press the button repeatedly to select the
type of characters.

(Capital letters) (Lower-case letters) (Numbers and symbols)

The first 3 characters in the group of the selected
characters will be displayed for about 1 second.

7

Press the or button repeatedly to se­lect the letter.

8

Press the MENU/ENTER button to enter it.

Position where the next letter will be entered

Note:

Complete the operation within 7 seconds whilst selecting
the menus.

36

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_5.fm

IM-DR420H

9

To enter more letters, repeat steps 6 - 8.

10

When the name is completely entered,

press and hold down the MENU/ENTER but­ton for 2 seconds or more.

"

"TOC" will be displayed. To write the updated con­tents to the MiniDisc, press the :OFF/HOLD but­ton.

"

You cannot remove the MiniDisc whilst "TOC" is
displayed. "TOC" will not disappear until the re­corded contents have been updated.

! Characters (symbols)

Capital letters

D

A C D E F G H

B

L

S U V W X Y ZT

Lower-case letters

D

a c d e f g h

b

L

s u v w x y zt

Numbers and symbols

D

1 3 4 5 6 7 8

2

L

+

)

*

D
L

(Delete) : erases a character.

:

/.,

(Space) : indicates a space.

I J K L M

.,

/

i j k l m

.,

/

9 0

<; =

! " #

O

$

%

&

_

`

@>?

! To erase a character

Press the VOL + or VOL - button to move the cursor to
the character you want to erase, and then press the
BASS/SYNC button.
You can also erase a character by selecting "DL" and
pressing the MENU/ENTER button.

! To enter a space

Press the VOL + button to move the cursor to the right.

6

RNQP

Notes:

"

One disc name and up to 255 track names can be cre-

rn o qp

ated per disc (a maximum of 40 characters for the disc
and each track name and a total of about 1,700 char­acters can be entered).

"

(

'

If you enter "LP:" at the beginning of a name, "LP:"
may not be displayed.

Space

6

-Titling a MiniDisc-

5

Advanced Features

4

3

2

1

37

03/7/21 IM-DR420H_UK_5.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Advanced Features

Titling a MiniDisc (continued)

! To add characters ! Stamping titles from another MiniDisc

1

Put the unit in the character input mode.

(Perform steps 1 - 5 on page 36.)

2

Press the VOL + or VOL - button to move the
cursor to the character before which you

want to add a new character.

3

Select the character to add.

(Perform steps 6 - 8 on page 36.)

4

Press and hold down the MENU/ENTER but­ton for 2 seconds or more.

"

"TOC" will be displayed. To write the updated con­tents to the MiniDisc, press the :OFF/HOLD but­ton.

"

-Titling a MiniDisc-

You cannot remove the MiniDisc whilst "TOC" is
displayed. "TOC" will not disappear until the re­corded contents have been updated.

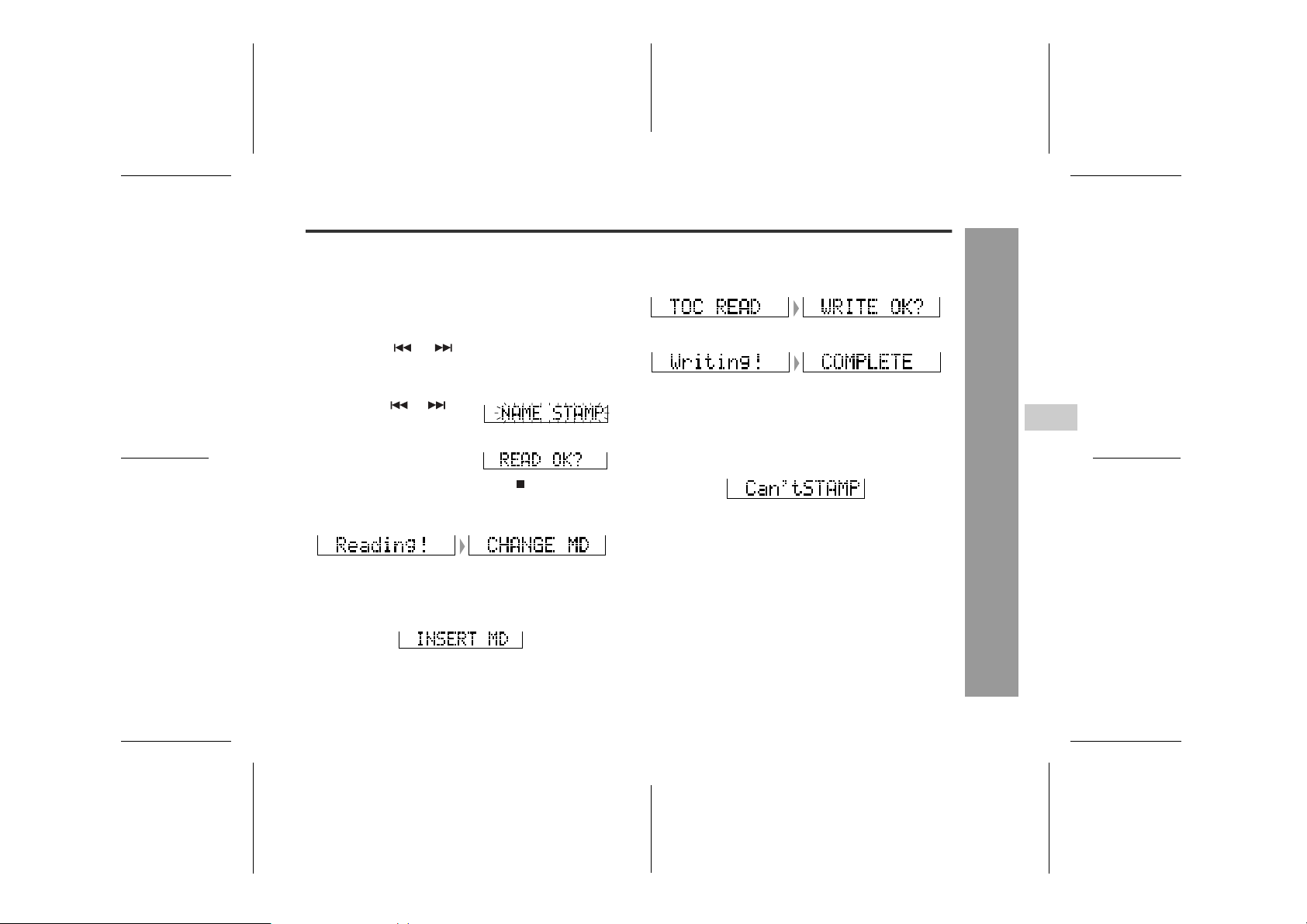

Before stamping

When there are 2 MiniDiscs on which the same tracks
are recorded, you can transfer the character information
(disc and track names) of the master MiniDisc to another
MiniDisc (for stamping).

1. What is a master MiniDisc?

A recordable MiniDisc that contains tracks and charac­ter information. (You cannot transfer the information
from a playback-only MiniDisc.)

2. What is a MiniDisc for stamping?

A MiniDisc that contains the same tracks in the same or­der as the master MiniDisc. (Make sure that the total
number of tracks of the master MiniDisc and the one for
stamping are the same.)

38

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_5.fm

Master MiniDisc operation Operation of the MiniDisc for stamping

1

Insert a master MiniDisc.

Do not mistake the master MiniDisc for the target one.

2

Whilst in the stop mode, press the MENU/
ENTER button.

3

Press the or button repeatedly to se­lect "EDIT".

4

Press the MENU/ENTER button.

5

Press the or but­ton repeatedly to se-

lect "NAME STAMP".

6

Press the MENU/EN­TER button.

To cancel the operation, press the :OFF/HOLD but­ton.

7

Press the MENU/ENTER button.

8

When the unit displays "CHANGE MD", re­move the master MiniDisc.

Remove it without turning off the power. Or, the oper­ation will be cancelled.

9

Load a MiniDisc for stamping.

10

Press the MENU/ENTER button.

The unit will finish recording the character information
and enter the stop mode.

Note:

If the total number of tracks on the master MiniDisc does
not match that on the MiniDisc for stamping, the unit will
display "Can'tSTAMP" and turn off.

If this happens, adjust the total number of tracks on the
newly recorded MiniDisc using the edit operation.

IM-DR420H

6

6

-Titling a MiniDisc-

5

Advanced Features

4

3

2

1

39

03/7/21 IM-DR420H_UK_5.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Editing a Recorded MiniDisc

! To erase one track at a time

1

Start playing the track to be erased, and
press the button.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "EDIT".

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to se­lect "ERASE".

6

Press the MENU/ENTER button.

To cancel the operation, press the :OFF/HOLD but­ton.

7

Advanced Features

Press the MENU/ENTER button again.

-Editing a Recorded MiniDisc-

The track will be erased.

8

To erase other tracks, repeat steps 1 - 7.

Note:

Complete the operation within 7 seconds whilst selecting
the menus.

! To erase all of the tracks at once

1

Whilst in the stop mode, press the MENU/
ENTER button.

2

Press the or button repeatedly to se­lect "EDIT".

3

Press the MENU/ENTER button.

4

Press the or button repeatedly to se­lect "ALL ERASE".

5

Press the MENU/ENTER button.

To cancel the operation, press the :OFF/HOLD but­ton.

6

Press the MENU/ENTER button again.

All of the tracks will be erased.

Caution:
Once a track has been erased, it cannot be recov­ered. Check the track number before erasing it.

40

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_5.fm

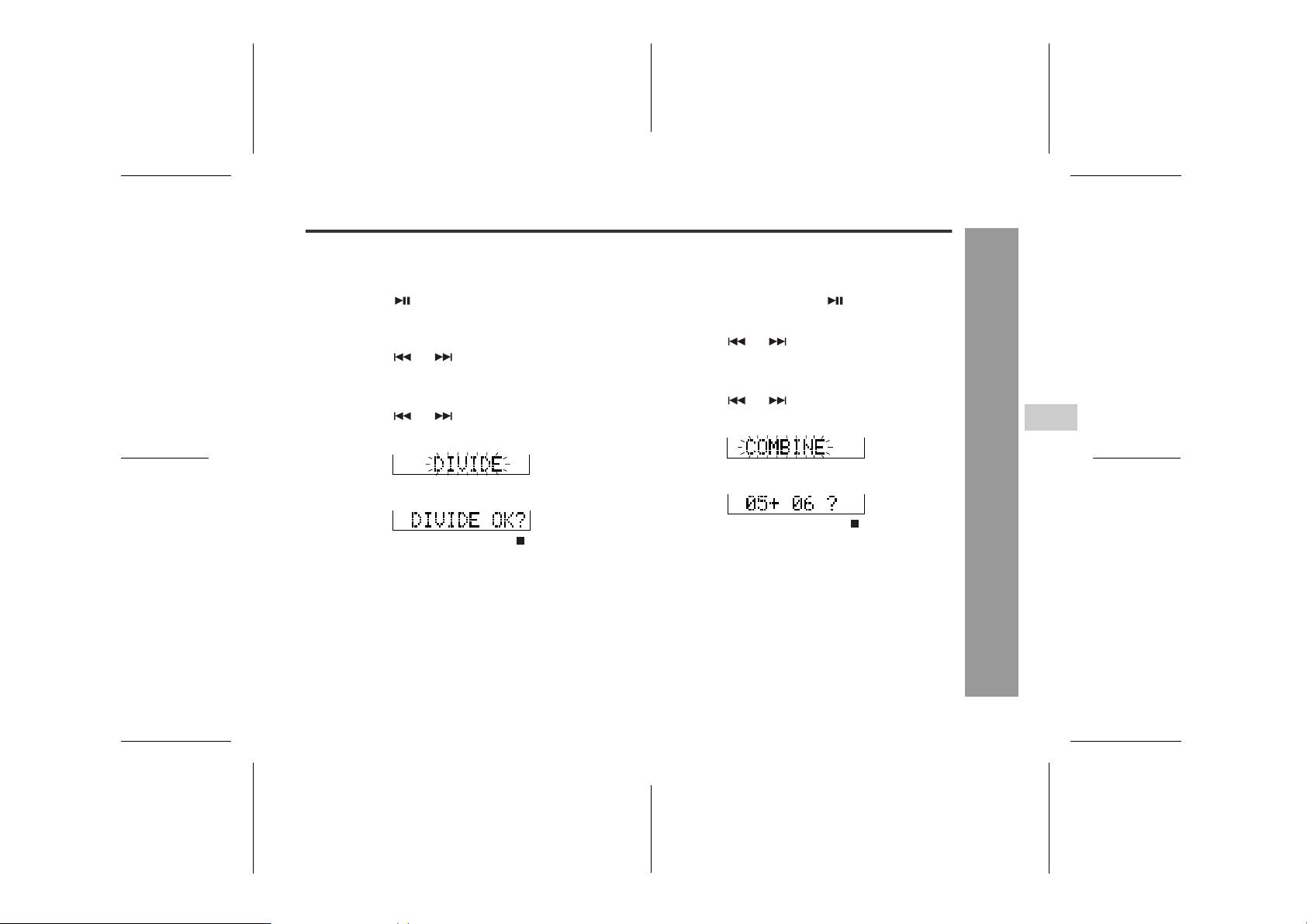

! To divide a track ! To combine tracks

IM-DR420H

1

Start playing the tr ack to be d ivided into two.
Press the button at the point where you

want to divide the track.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "EDIT".

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to se­lect "DIVIDE".

6

Press the MENU/ENTER button.

To cancel the operation, press the :OFF/HOLD but­ton.

7

Press the MENU/ENTER button again.

The track will be divided into two tracks, and the unit
will be paused at the beginning of the second of the
two new tracks.

1

Start playing the latter of the two tracks to be
combined, and press the button.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "EDIT".

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to se­lect "COMBINE".

6

Press the MENU/ENTER button.

To cancel the operation, press the :OFF/HOLD but­ton.

7

Press the MENU/ENTER button again.

The two tracks will be combined, and the unit will be
paused at the beginning of the combined track.

Advanced Features

41

-Editing a Recorded MiniDisc-

6

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_5.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Editing a Recorded MiniDisc (continued)

! To move a track

1

Play the track to be move d, a nd press the
button.

2

Press the MENU/ENTER button.

3

Press the or button repeatedly to se­lect "EDIT".

4

Press the MENU/ENTER button.

5

Press the or button repeatedly to se­lect "MOVE".

6

Press the MENU/ENTER button.

To cancel the operation, press the :OFF/HOLD but­ton.

7

Advanced Features

Press the or button to select the di rec-

-Editing a Recorded MiniDisc-

tion.

8

Press the MENU/ENTER button again.

The track will be moved, and the unit will be paused at
the beginning of the track.

When a track has a name before dividing:

The two new tracks wil l ha v e t he same name. Ho wever, in
the "TOC FULL" condition, the second track may not be
named.

Total number of tracks that can be divided:

Each disc can hold up to 255 tracks. Howev er, even if the
number of assigned tracks has not reached 255, it might
not be possible to make any further divisions of tracks.

To combine two non-adjacent tracks:

First, put the two tracks next to each other in the order
you want using the MOVE function. Then combine them
using the COMBINE function.

When one or both tracks to be combined have a
name:

The first track name will be used. However, when the first
track does not have a name, the second track name will
be used.

In the following cases, tracks may not be combined.

"

Tracks recorded by different input modes/sources can­not be combined.

Examples:

"

Digital recorded track and analogue recorded track.

"

Different recording modes (stereo recording, 2 times
long recording, 4 times long recording, monaural re­cording).

"

Tracks whose recording time is less than 12 seconds.

42

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_5.fm

Listening through
Another System

When connecting with other equipment, turn off the
power or turn down the volume to "0".

Supplied
connection cable

To the REMOTE/
PHONES socket

Notes:

"

It is recommended that the volume level of the
MiniDisc unit be set to maximum when listening
through a stereo system.

"

When recording with a stereo system, eliminate the
confirmation sound (page 33). Otherwise, it will also
be recorded.

"

Recording will be made in the analogue mode.

"

Character information will not be recorded.

4-pole
plug

Supplied output
conversion cable
(4-pole to 3-pole
plug conversion)

Resuming auto play

When you stop and then restart playback without remov­ing the disc, playback will resume from the point at which
the disc was stopped.

Stopping

First track

Once you remove the MiniDisc, playback starts from the
first track.

First track

Playing

If you unplug and plug in the AC adaptor without a bat­tery in the unit, playback starts from the beginning of the
stopped track.

First track

Stopped track

Playing

Stopping

Stopped track

Stopping

Stopped track

Playing

IM-DR420H

6

6

5

Advanced Features

4

3

2

-Listening through Another System/Resuming auto play-

1

43

03/7/21 IM-DR420H_UK_5.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

About Net MD

! What is a Net MD portable recorder?

The USB is adopted to ensure high compatibility of PCs
and MDs.
Audio data save d on the hard disk of a PC can be trans­ferred to a Net MD-compatible recorder using the pro­vided software "BeatJam".
Not only the basic operations but also the title editing of
audio data on an MD can be performed via the PC.

Net MD

EMD service
(Electronic Music
Distribution)

Audio CD

MP3, WA V type
audio files

MD portable recorder
compatible with Net MD

-About Net MD-

USB connection

PC hard disk
(BeatJam)

Digital audio data can be imported into the hard disk of a
PC in the following methods:

"

Converting the music downloaded via the music distri­bution service on the Internet into ATRAC3 of the
OpenMG system.

"

Recording an audio CD via the CD-ROM drive of a PC
on the hard disk. (Compressing data with the ATRAC3
sound compressing system)

"

Converting the existing MP3, WAV audio files into
ATRAC3 of the OpenMG system.

The saved audio data can be played on the existing MD
player, as its recording method is not changed when
being recorded on an MD. (To play audio data saved in
the MDLP mode, the MDLP-support MD player is
required.)

All the audio data managed by "BeatJam" is encrypted by
the OpenMG system and recorded on the har d disk of
the PC, which preven ts its unauthorised use or distribu­tion.

44

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

IM-DR420H

! Transferring audio data from a PC to

MD portable recorder IM-DR420H
(check-in/check-out)

By using the provided software "BeatJam", you can
transfer audio data from the hard disk of the PC to IM­DR420H, the Net MD-support MD portable recorder.

"Check-out" is to transfer audio data from a PC to a Net
MD-support MD por table recorder, and "check-in" is to
return it from the recorder to the same PC.

Check-out

Check-in

PC

Net MD-support
MD portable
recorder

! Restrictions on check-in and check-out

"

One piece of audio data can be checked out up to 3
times (except for some pieces).

You cannot check out a track more than 3 times. How­ever, if the track is returned to the PC once by using
the check-in function, you can check out the same
track again.

"

You can check in the checked-out audio data to the
same PC only. You cannot check it in to other PCs.

! Restrictions on audio data

Along with the popularization of the music distribution
service via the Inter net, high-quality digital music can be
obtained easily, whereas some pieces are distributed
with restrictions on the number of check-out or the
recording/playback method to prevent infringement of
copyrights caused by unauthorised distributions. This
unit mounts the copyright protection technology to realise
playback or recording in compliance with the will of the
copyright owners. For details in possibilities and the fre­quency of audio data check-out to a Net MD-support
device, contact respective music distribution service
companies.

45

Net MD

7

-About Net MD-

6

5

4

3

2

1

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

System Requirements

See the table below for the system requirements, especially free space and memory.

46

OS Windows XP Home Edition*1/

CPU Pentium 300 MHz or higher

Memory
Others

*1 To use this software, login as system administrator

(computer administrator).

Professional*1

(MMX Pentium 233 MHz
minimum)

128 MB or more (64 MB minimum)

"

Display...1024 x 768 resolution, High Color or upper

"

Sound source...Sound card

Hard disk space

120 MB or more

"

Net MD

Additional space is required to store music data.

"

The required space depends on the format or
reserved space.

Notes:

"

USB ports are required to connect with external devices

-System Requirements-

or media. The operation via U SB hub is not guaranteed.

"

Depending on the driver or CD-ROM drive, audio CDs
may not be recorded.

"

Operations are not guaranteed when using BeatJam

on dual-boot computers.
with other music software simultaneously.
with different version simultaneously.

"

You cannot use BeatJam with programs that create
virtual CD-ROM drives.

"

You cannot use BeatJam when more than one Open­MG compatible audio device is connected.

Windows Mil­lennium Edition

MMX Pentium 233 MHz or
higher (MMX Pentium 200
MHz minimum)

64 MB or more 64 MB or more

Windows 98
Second Edition

"

"BeatJam" is a copy protected material of Justsystem
Corporation. Copyrights and other rights related to
"BeatJam" belong to Justsystem Corporation.

"

"BeatJam" is a registered trademark of Justsystem
Corporation.

"

"ATRAC3" and its logo, "OpenMG" and ,
"Net MD" and , OpenMG Jukebox and Sonic­Stage are trademarks of Sony Corporation.

"

Pentium and MMX are registered trademarks of Intel
Corporation in the United States.

"

Microsoft, Windows, and DirectX are trademarks or
registered trademarks of Microsoft Corporation in the
United States and/or other countries.

"

Screen shots are used according to the guide lines of
Microsoft Corporation.

"

"ATRAC3" and its logo indicate audio compression
technology of Sony Corporation. The compatibility is
not guaranteed.

"

Other company names and product names are trade­marks or registered trademarks of their respective
owners or Justsystem Corporation.

Windows 2000 Professional*1

MMX Pentium 233 MHz or
higher (MMX Pentium 200
MHz minimum)

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

Software Installation

IM-DR420H

! Installation of BeatJam

Plugin and USB driver required for transferring music
files are also installed along with BeatJam.
(Example: Windows XP English version)

1

Insert BeatJam CD-RO M into the CD-ROM drive.

Setup application appears.

2

Click "BeatJam Setup".

Setup starts.
Follow the instructions on the screen.

Installation does not start even if CD-ROM is inserted

If the setup application does not appear, perform the following.

Click Windows "Start" b utton and select " My Computer".

1.
Double click "My Computer" on the desktop if you use
Windows Me, 98SE or 2000.

2. Right click on "OMGBJ" indicating CD-ROM drive and
select "Open" from the menu.

3. Double click AUTOPLAY.EXE from the list.

Caution:
Windows XP/2000

User with Administrator* rights needs to log on. Confirm
with the network or computer Administrator if you are in a
workgroup.

* User name in Administrator or Administrators group

under Windows 2000.

For Windows XP and Me user

When you use the "System Restore" system tool in Win­dows XP or Windows M e, all the music files that you
recorded or imported may become unplayable.
Please back up all your music files using the Backup Tool
before ex ecuti ng "System Restore".

If a previous version of OpenMG Jukebox* or Sonic­Stage* is currently installed on your computer

OpenMG Jukebox or SonicStage should be upgraded.
The screen appears to prompt you to upgrade the soft­ware. Click "Continue" to proceed.

* OpenMG Jukebox and SonicStage are softwares of

Sony Corporation.

Hard disk contains old BeatJam database

You can select to reuse or delete the database during
setup.

47

Net MD

7

6

-Software Installation-

5

4

3

2

1

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Net MD

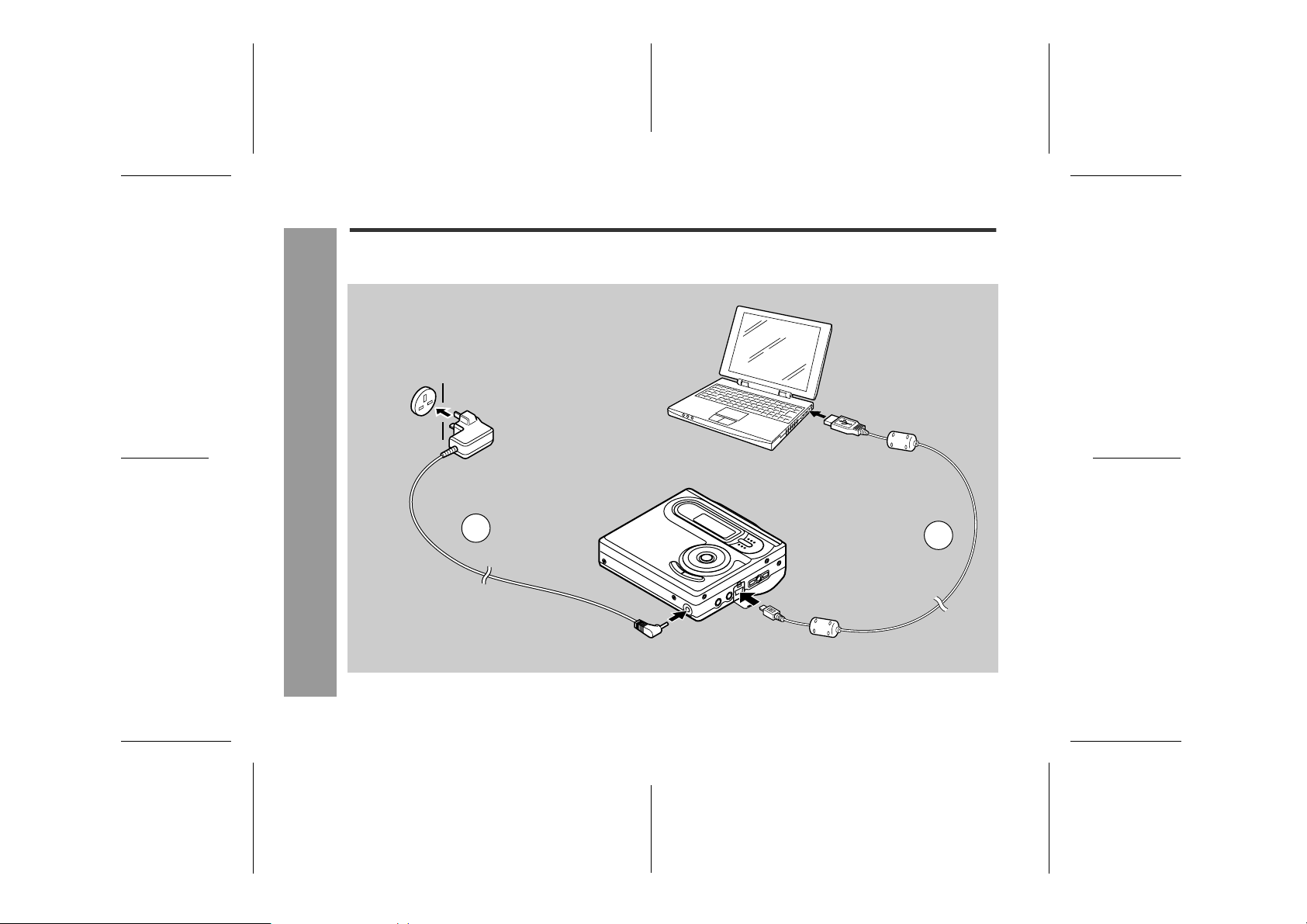

Connecting to a PC

Connect your PC and the MD portable recorder with the supplied USB connection cable.

PC

To the USB port

AC 110 - 240V,
50/60 Hz

MD portable recorder

48

-Connecting to a PC-

1

IM-DR420H(E) TINSE0554AWZZ

2

To the USB socket

To the DC IN 3V socket

03/7/21 IM-DR420H_UK_6.fm

IM-DR420H

Caution:

"

The operation is not guaranteed if 2 or more USB
devices are connected to your PC.

"

Insert the USB connection cable directly into the USB
port on the PC. We do not guarantee the operation
with it connected via a USB hub, etc.

"

When connecting the MD por table recorder, discon­nect all the other USB devices from the PC. The
sound may skip if they are connected.

"

It is recommended that the MD portable recorder
be used with an AC adaptor.

"

If the power supply to the PC or the MD portable
recorder stops during the operation of this system,
TOC information may not be written on the MD. If it
occurs, restart the operation from the beginning.

"

We do not guarantee the operation with the self built
computers or modified motherboards.

"

If cables such as an extension cable or two-way cable
is connected instead of a connection cable, the line
quality will be degraded and the software may not
operate properly.

"

When connecting the unit to your PC, use a battery as
well as an AC adaptor. It not only prevent s data loss
from disconnection, but also speeds up data writing to
MD.

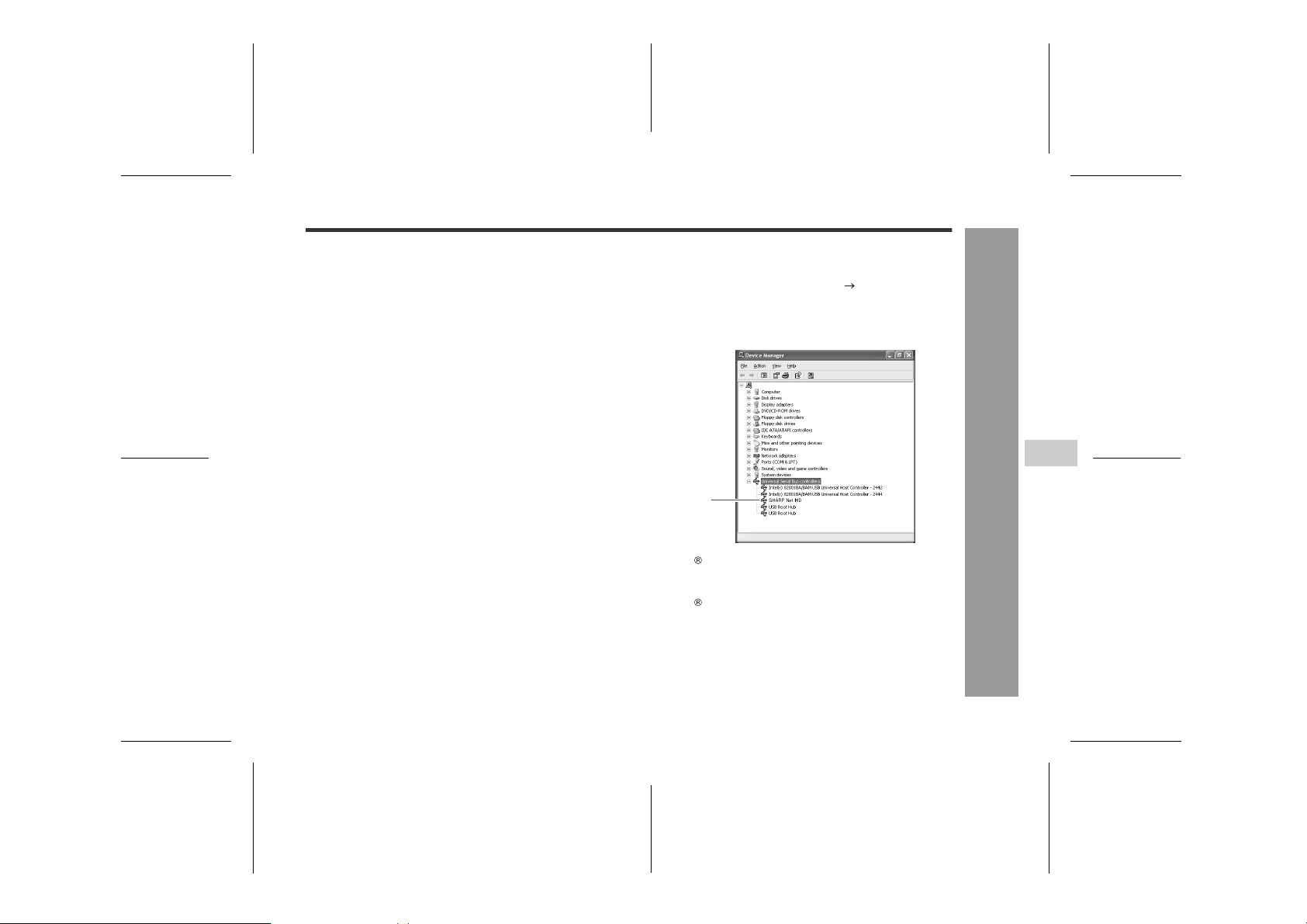

! Checking the USB driver

Whilst the MD portable recorder is connected to the com­puter, after clicking "Control Panel" "System", select
the "Hardware" tab and click "Device Manager" to check
the following device name.

"

Universal Serial Bus controllers

Net MD

Windows 2000:

Open "System" in "Control Panel", select the "Hardware"
tab and click "Device Manager".

Windows 98 Second Edition:

Open "System" in "Control Panel", and click the "Device
Manager".

49

Net MD

7

6

-Connecting to a PC-

5

4

3

2

1

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Transferring Data

! Checking out

Check-out is to transfer tracks to OpenMG compatible
players. You can check out recorded tracks with BeatJam
up to 3 times.

1

Connect this unit to the PC.

"PC" appears on the unit display and operations with
the unit are disabled.

However, "PC" is not displayed whilst in the record­ing, recording pause or menu operation mode.

2

Transfer music files to the unit (check -out).

For details, refer to the manual of BeatJam.

Follow the instructions below to take out the MD after

Net MD

check-out:

1. Remove the USB connector from the MD portable re­corder.

-Transferring Data-

2. Turn off the MD recorder.

3. Remove the MD.

! Checking in

Check-in means to return the tracks from external
devices to the PC. You can check-in tracks only to the
source PC.

1

Connect this unit to the PC.

"PC" appears on the unit display and operations with
the unit are disabled.

However, "PC" is not displayed whilst in the record­ing, recording pause or menu operation mode.

2

Return a music file to your PC.

For details, refer to the manual of BeatJam.

Caution:

"

If the USB connection or the power supply to the com­puter or the MD portable recorder is cut off during
check-in or check-out operation, audio data may be
lost.

"

If a checked-out track is deleted in another computer,
it cannot be checked in any more.

TOC writing on an MD:

"

TOC writing will start when check-in or check-out is
complete. Whilst writing, TOC indicator on the unit will
flash. (Refer to page 17.)

50

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

MiniDisc System Limitations

The unit may have the following symptoms whilst recording or editing. The unit is not out of order.

SYMPTOM LIMITATIONS

"DISC FULL" or "TOC FULL" appears
even though the MiniDisc still has re­cording time left.

The remaining recording time does not
increase even though you erased
tracks.

The total of the recorded time and the
remaining time does not match the max­imum recordable time.

Combine function does not work.

Sound skips in fast reverse/forward.

A track number is created in the middle
of a track.

More than 255 tracks (maximum) cannot be recorded regardless of
the recording time. If the MiniDisc is recorded or edited repeatedly or
if it has scratches (recording skips scratched parts), you may not be
able to record the maximum tracks above.

The unit does not count non-recorded portions that last 12 or fewer
seconds to display the remaining recording time. The time may not
increase even if you erase short tracks.

One cluster (approximately 2 seconds) is the minimum unit for re­cording. For example, a 3-second track uses 2 clusters (approximate­ly 4 seconds). Therefore, the actual recordable time may be shorter
than the displayed time.

A MiniDisc on which recording and editing are repeated may not al­low the combine function.

If one track is divided and recorded in separate places on a repeat­edly recorded or edited MiniDisc, sound may skip.

A track number may be created if there are scratches or dust on the
MiniDisc.

IM-DR420H

References

8
6

5

-MiniDisc System Limitations-

4

3

2

1

51

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Error Messages

References

-Error Messages-

ERROR

MESSAGES
BATT EMPTY
BLANK MD

Can't COPY

Can't EDIT

Can't LOCK

Can't PLAY

Can't READ
(*)

Can't REC

MEANING

"

The battery has run down.

"

Nothing is recorded.

(Replace the disc with a recorded disc.)

"

You tried to record from a copy pro­hibited MiniDisc.

(Record using the analogue cable.)

"

You tried to record signals other than
music (such as data).

"

A track cannot be edited.

(Change the stop position of the track
and then edit it.)

"

You tried to remove the MD whilst re­cording or editing.

"

You tried to play back a track that
cannot be played with this equip­ment.

"

The disc data cannot be read be­cause the disc is damaged.

(Reload the Minidisc or replace it with
another one.)

"

Recording cannot be performed cor­rectly due to vibration or shock.

ERROR

MESSAGES

"

Can'tSTAMP

Can'tWRITE

DEFECT!

DISC FULL
Er-MD (**)

HOLD
LOCKED

NO DISC

A number or symbol appears in (*) position.

Stamp function does not work.

(Check the number of tracks.)

"

Cannot save the TOC information
correctly to a MiniDisc.

"

The disc is scratched.

(If the recorded sound is not right, retry
recording or replace the disc with a re­cordable one.)

"

The disc is out of recording space.

"

The microprocessor has reported a
system fault and the unit is out of or­der.

(To have it repaired, go to the distributor
where you purchased the unit.)

"

The unit is in the hold mode.

"

You removed a MiniDisc whilst re­cording or editing.

(Turn off the power before removing the
MiniDisc.)

"

A disc has not been loaded.

MEANING

52

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

IM-DR420H

ERROR

MESSAGES

NO SIGNAL

PLAY MD

POWER?
PROTECTED

SORRY

MEANING

"

Poor connection of the digital cable.

"

No output signal comes out from the
connected unit.

(Use the AC power for the connected
unit.)

"

The input signal has improper sam­pling frequency.

"

You tried to record on a playback­only disc.

"

AC adaptor other than specified.

"

The write protection tab of a MiniDisc
is set to the protected position.

"

Since a track number is currently be­ing located or updated, the unit can­not accept your command.

(Wait a while and try the operation
again.)

ERROR

MESSAGES

"

TEMP OVER

TOC FORM
(**)

TOC FULL

Tr. Protect

? DISC

A number or symbol appears in (*) position.

The temperature is too high.

(Turn off the power, and wait a while.)

"

There is an error in the recording sig­nal.

(Erase all of the tracks, and then record
again.)

"

There is no space left for recording
character information (track names,
disc names, etc.).

"

The track has been protected from
being erased.

(Edit the track with the device on which
it was recorded.)

"

A disc which contains data other
than music was played.

(A disc which contains nonmusic data
cannot be played.)

"

There is an error in the signal record­ed on the disc.

MEANING

References

53

8
6

-Error Messages-

5

4

3

2

1

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Troubleshooting

Many potential "problems" can be resolved by the owner without calling a service technician. If something seems to be
wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

References

54

The unit does not turn on.

"

Is the AC adaptor disconnected?

"

Is the battery exhausted?

"

Is the unit in the hold mode?

"

Has condensation formed inside the unit?

"

Is the unit being influenced by mechanical shock or
by static electricity?

No sound is heard from the earphones.

"

Is the volume set too low?

"

Are the earphones plugged in?

"

Are you trying to play a MiniDisc with data on it in­stead of a MiniDisc containing music?

When the operation buttons are pressed, the unit
does not respond.

"

Is the unit in the hold mode?

"

-Troubleshooting-

Is the battery exhausted?

"

Is the earphones plug inserted firmly?

Some sounds are skipped.

"

Is the battery exhausted?

"

Is the unit being subjected to excessive vibration?

The MiniDisc cannot be ejected.

"

Has the track number or character information been
written on the disc yet?

"

Is the unit in the recording or editing mode?

Recording and editing are impossible.

"

Is the MiniDisc protected against accidental eras­ure?

"

Is the unit connected properly to the other equip­ment?

"

Is the AC adaptor unplugged or did a power failure
occur whilst recording or editing?

"

Is the unit in the hold mode?

"

Is an optical signal being output from the stereo sys­tem? Read the operation manual for the stereo sys­tem.

The operation is unstable whilst the PC and the unit
are connected.

"

Are you using the USB cable that was purchased
separately?

The display does not show anything or malfunc­tions.

"

Is the PC out of order?

"

Are you using another application with this pro­gramme simultaneously?

Editing is not possible.

"

Are the PC and the MD portable recorder connect­ed improperly?

"

Is the MD recorder in the hold mode?

"

Is a commercial playback-only MD inserted?

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

Maintenance

IM-DR420H

! If trouble occurs

When this product is subjected to strong external interfer­ence (mechanical shock, excessive static electricity,
abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.

Should a failure occur, the lid may not open by sliding the
OPEN lever.

If such a problem occurs, do the following:

1. Unplug the AC adaptor from the wall socket.

2. Remove the battery.

3. Leave the unit completely unpowered for approximately
30 seconds.

4. Plug the AC adaptor back into the wall socket.

5. After about 30 seconds, press the button as a test.

! Moisture condensation

When the unit has condensation inside, the disc signals
cannot be read, and the unit may not function properly.

In the following cases, condensation may form inside the
unit.

"

Shortly after turning on a heater.

"

When the unit is placed in a room where there is
excessive steam or moisture.

"

When the unit is moved from a cool place to a warm
place.

To remove condensation:

Remove the MiniDisc and leave the unit for approxi­mately 1 hour. The condensation should evaporate and
the unit will work properly.

! Cleaning

When the unit becomes dirty

Clean it with a soft cloth. When the unit is excessively
dirty, use a soft cloth dampened in water (exter nal sur­face s only).

Clean the plugs and the connecting sockets.

If the plugs or sockets are dirty, noise may be heard.
Cleaning will prevent noise.

Caution:

"

Do not use chemicals for cleaning (petrol, paint thin­ner, etc.). It may damage the cabinet finish.

"

Do not apply oil to the inside of the unit. It may cause
malfunctions.

References

55

8
6

5

-Troubleshooting/Maintenance-

4

3

2

1

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

IM-DR420H

Specifications

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification chang­es for product improvement without prior notice. The performance specification figures indicated are nominal values
of production units. There may be some deviations from these values in individual units.

References

56

Power source:

Power consumption:
Output power:

Charging time:
Dimensions:

Weight:
Input socket:
Output socket:
Type:

-Specifications-

Signal readout:
Audio channels:
Frequency response:
Rotation speed:
Error correction:
Coding:
Recording method:
Sampling frequency:
Wow and flutter:

DC 1.2 V: Rechargeable Nickel-Metal Hydride Battery (AD-N70BT) x 1
DC 3 V: AC adaptor (AC 110 - 240 V, 50/60 Hz)
DC 1.5 V: Commercially available, "AA" size (LR6), alkaline battery x 1
60 mA (AC adaptor)
RMS: 16 mW (8 mW + 8 mW)
(0.2 % T.H.D.)
Approx. 3.4 hours (90 %)
Approx. 5.4 hours (fully charged)(When using the AC adaptor included with the unit)
Width: 83 mm (3-9/32")
Height: 28 mm (1-1/8")
Depth: 76 mm (3")
Excluding the projection around the USB connection terminal
143 g (0.32 lbs.) with rechargeable battery
Line/optical digital, microphone (powered by the main unit)
Earphones (impedance: 32 ohms)/remote control
Portable MiniDisc recorder
Non-contact, 3-beam semiconductor laser pickup
Stereo 2 channels/monaural 1 channel
20 - 20,000 Hz ( 3 dB)
Approx. 400 - 1,800 rpm CLV (Playback), approx. 400 - 2,700 rpm CLV (Recording)
ACIRC (Advanced Cross Interleave Reed-Solomon Code)
ATRAC/ATRAC3 (Adaptive TRansform Acoustic Coding), 24-bit computed type
Magnetic modulation overwrite method

44.1 kHz (32 kHz and 48 kHz signals are converted to 44.1 kHz, and then recorded.)
Unmeasurable (less than 0.001 % W. peak)

IM-DR420H(E) TINSE0554AWZZ

03/7/21 IM-DR420H_UK_6.fm

Battery life:

Stereo 2 times long 4 times long

When using the rechargeable
battery (fully charged) includ­ed with the unit

When using a commercially
available, high capacity, "AA"
size (LR6), alkaline battery

"

The continuous recording time is for analogue inputs when the volume level is set to "VOL 0".

"

The continuous play time shows the value when the volume level is set to "VOL 15".

"

The above values are the standard values when the unit is used at an ambient temperature of 25°C (77°F).

"

The operating time when using an alkaline battery may be different, depending on the type and manufacturer of the
battery, and on the operating temperature.

Input sensitivity: Output level:

Reference input

level
MIC H 0.25 mV 10 k ohms
MIC L 2.5 mV 10 k ohms
LINE 100 mV 20 k ohms

Continuous
recording:
Approx.
8 hours

Continuous
recording:
Approx.
4 hours

Input impedance

Continuous
play: Ap­prox.
33 hours

Continuous
play: Ap­prox.
44 hours

Continuous
recording:
Approx.
13 hours

Continuous
recording:
Approx.
7 hours

Ear­phones

LINE 125 mV

*1 When using the supplied output conversion cable.

Continuous
play: Ap­prox.
44 hours

Continuous
play: Ap­prox.
62 hours

Specified
output

-

(-12 dB) *1

Continuous
recording:
Approx.
18 hours

Continuous
recording:
Approx.
11 hours

Maximum
output level

8 mW + 8 mW

- 10 k ohms

Continuous
play: Ap­prox.
51 hours

Continuous
play: Ap­prox.
75 hours

Load imped­ance

32 ohms

IM-DR420H

References

8

-Specifications-

6

5

4

3

2

1

57

03/7/21 IM-DR420H_UK_6.fmIM-DR420H(E) TINSE0554AWZZ

MEMO

IM-DR420H(E) (TINSE0554AWZZ)

MEMO

IM-DR420H(E) (TINSE0554AWZZ)

TERMS OF GUARANTEE

Subject to the terms listed below, Sharp Electronics (U.K.)
Ltd. (hereinafter called “the Company”) guarantee to pro­vide for the repair of, or at its option replace this Sharp
Equipment, or any component thereof, (other than bat­teries), which is faulty or below standard, as a result of
inferior workmanship or materials.

The conditions of this guarantee are:

1. The guarantee shall only apply to defects which occur
within one year from the date of purchase, provided
that this equipment is sent to the repair address within
this period.

2. This guarantee covers equipment intended for private
domestic use only. This guarantee does not apply to
equipment used in the course of a business, trade or
profession.

3. The guarantee does not cover MiniDiscs or batteries.

SHARP ELECTRONICS (U.K.) LTD.

Sharp House, Thorp Road, Newton Heath, Manchester, M40 5BE

This guarantee does not cover any faults or defects

4.
caused by accident, misuse, fair wear and tear, neglect,
tampering with the equipment, or any attempt at ad­justment or repair other than by a Service Facility ap­pointed by Sharp.

5. In the unlikely event of a defect occuring, the product
must be returned to the Company’s repair centre with
proof of purchase. A postage paid label and a fault re­port form are supplied with the product for this purpose.

It is your responsibility to ensure that the packaging is

adequate, and to obtain proof of posting.

Further details of the repair service, which is available

after the guarantee period on a chargeable basis, and
additional report forms and labels can be obtained by
telephoning 0870 738 0000.

6.

No person has any authority to vary the terms or condi-

tions of this guarantee.

7. This guarantee is offered as an additional benefit to
the consumer’s statutory rights and does not affect
these rights in any way.

IM-DR420H(E) (TINSE0554AWZZ)

SHARP CORPORATION

9906

TINSE0554AWZZ

03G R YT 1

E
