Device of this mark is a trademark of Sharp Corporation.
Plasmacluster is a registered trademark or a trademark of Sharp Corporation.
Sharp
Plasmacluster Sharp
IG-BL20A
Plasmacluster Ion Generator
OPERATION MANUAL
*The number in this technology mark indicates an approximate number of ions supplied into air 1 cm3, which is measured around the center of a room with the applicable floor area (at 1.2m height above the floor) at the maximum wind volume, when plasmacluster ion evolving equipment using the high-density plasmacluster ion evolving unit is placed close to a wall.
* HD1.225,000
ENGLISH
BL20A_CH.indd 1 |
2009/12/10 11:29:02 |
|
|
|
|
|
|
||
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BL20A_CH.indd 2 |
2009/12/07 9:13:47 |
|
|
|
|
||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ENGLISH
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ......................E-2
• WARNING............................................................................E-2
• CAUTIONS CONCERNING OPERATION ...........................E-2
• INSTALLATION GUIDELINES .............................................E-2 PARTS NAME.....................................................................E-3
• FRONT.................................................................................E-3
• BACK ...................................................................................E-3 INSTALLATION POSITION .............................................E-4 OPERATION .......................................................................E-4
CLEANING AND MAINTENANCE.................................E-5
• MAIN UNIT...........................................................................E-5
• FILTER.................................................................................E-5
PLASMACLUSTER ION GENERATING UNIT REPLACEMENT ... E-6

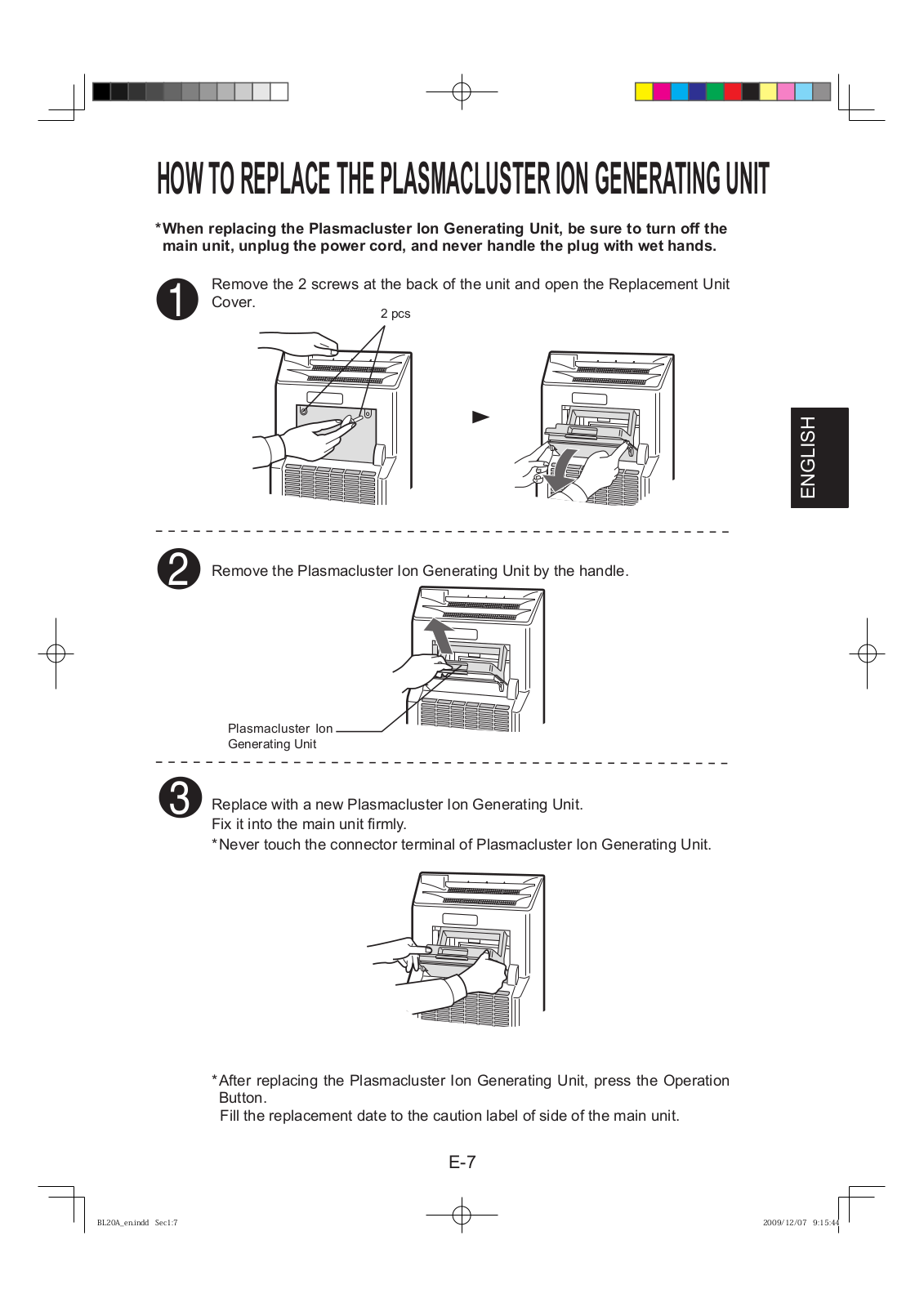

HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT... E-7
SPECIFICATIONS .............................................................E-8 TROUBLESHOOTING......................................................E-8
•While IG-BL20A can inactivate suspended viruses and other contaminants, it cannot create a completely sterilized environment.
SHARP does not guarantee its ability to prevent microbial infection.
•To enable stable emission of high-density Plasmacluster ions, the Plasmacluster Ion Generating Unit mounted in IG-BL20A will need to be replaced periodically*.
*Replacement is required approximately every 2 years (17,500 hours) when operated 24 hours a day. IG-BL20A will stop operating after about 26 months (19,000 hours) if the Plasmacluster Ion Generating Unit is not replaced.
Thank you for purchasing this SHARP Plasmacluster Ion Generator. Please read this manual carefully before using Plasmacluster Ion Generator. After reading, keep the manual in a convenient location for future reference. The information provided in this manual is subject to change without notice.
E-1
ENGLISH
BL20A_en.indd Sec1:1 |
2009/12/07 9:15:42 |
|
|
|
|
|
|
||
|
|
|
||
|
|
|
|
|

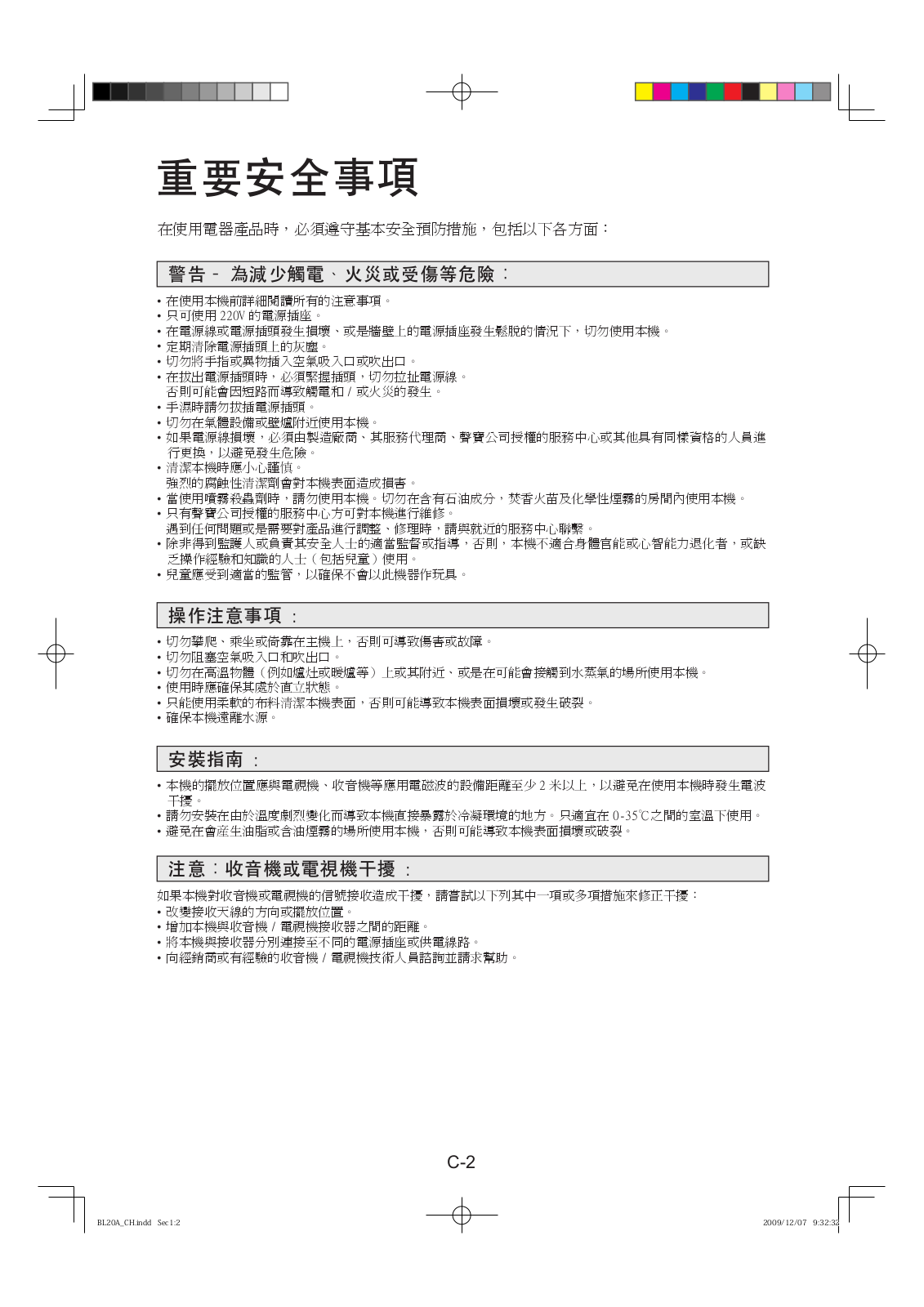

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of electric shock, fire or injury :
•Read all instructions before using the unit.
•Use only a 220 volt outlet.
•DO NOT use the unit if the power cord or plug is damaged, or the connection to the wall outlet is loosened.
•Periodically remove dust from the plug.
•DO NOT insert fingers or foreign objects into the air intake or air outlet.
•Always hold the plug and never pull on the cord when removing the power plug. Electric shock and/or fire from a short circuit may result.
•DO NOT remove the plug when your hands are wet.
•DO NOT use the unit near gas appliances or fireplaces.
•If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp Authorized Service Center or similarly qualified person in order to avoid a hazard.
•Be cautious when cleaning the unit.
Strong corrosive cleansers may damage the exterior.
•DO NOT operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air, or in locations where the unit may get wet, such as a bathroom.
•Only Sharp Authorized Service Center should service this Plasmacluster Ion Generator. Contact the nearest Service Center for any problems, adjustments, or repairs.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
CAUTIONS CONCERNING OPERATION:
•Do not ride on the main unit and do not sit on or lean it, it may cause injury or malfunction.
•DO NOT block the air intake and/or air outlet.
•DO NOT use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam.
•Always operate the main unit in an upright position.
•Clean the exterior with a soft cloth only, otherwise the main unit surface may be damaged or cracked.
•Keep the main unit away from water.
INSTALLATION GUIDELINES:
•Place at least 2m away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference when using the unit.
•Avoid using in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate room temperature is between 0-35ºC.
•Avoid locations where grease or oily smoke is generated, otherwise the main unit surface may crack as a result.
NOTE - Radio or TV Interference:
If this Plasmacluster Ion Generator may cause interference to radio or television reception, try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the unit and radio/TV receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
E-2
BL20A_en.indd Sec1:2 |
2009/12/07 9:15:42 |
|
|
|
|
|
|
||
|
|
|
||
|
|
|
|
|
PARTS NAME
FRONT
CONTROL PANEL
Lights Control Button |
Operation Button |
Filter Reset Button |
Fan Speed Indicator |
|
|
(3sec) |
|
Ion Generating |
LOW |
Unit Light |
MED |
Filter Clean Light |
|
|
HIGH |
Front Louver |
Caution Label |
Air Outlet (Front) |
|
ENGLISH
BACK
Back Louver
Air Outlet (Back)
Handle
Replacement Unit |
|
|
Cover |
Plasmacluster Ion |
|
Power Cord |
||
Generating Unit |
||
Plug |
|
Shape of plug depends on country.
Filter (Air Intake)
E-3
BL20A_en.indd Sec1:3 |
2009/12/07 9:15:42 |
|
|
|
|
|
|
||
|
|
|
||
|
|
|
|
|
INSTALLATION POSITION
Place the main unit on a smooth, stable surface in a room, and insert the plug into an outlet.
Installation Guidance
Leave at least 10cm of clearance behind the unit.
UPSIDE More than 60cm
BACKSIDE More than 10cm
SIDE More than 60cm
SIDE More than 60cm
DO NOT USE the below items near the unit.
silicone-containing products*
SPRAY WAX PESTICIDES
*Hair care products, cosmetic products, water proof sprays, polish glass cleaner, wipe and wax.
OPERATION
Press the operation button to directly turn on the power and select the preferred mode.
Operation Button
Lights Control Button |
LOW |
Release high-density Plasmacluster ions quietly.
Release high-density MED Plasmacluster ions at
medium fan speed.
Release high-density HIGH Plasmacluster ions at high
fan speed.
'OFF' Power 'OFF'.
LIGHTS CONTROL
If you feel indicator lights are too bright, press the Lights Control Button. The brightness is changed.
