SOUND BAR HOME THEATER SYSTEM
OPERATION MANUAL
Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.
HT-SB35D Sound Bar Home Theater System consisting of HT-SB35D (sound bar system) and CP-SW35D (active subwoofer system).
/
ON
BY ND­A
ST E T
U M
ODE
M
S
D
W
UN
O
NE
S
IC US M
A M
E N I C
UT
INP
UND
RO
SUR SS A
BYP
V
T
H C
L
VO
L O
V
WSA
9A
MCGA36 RR
Note: This product is recommended for at panel TV (LED, LCD and plasma).

Accessories

The following accessories are included.
ON/
STAND-BY
MUTE
MUSICCINEMA NEWS
SOUND MODE
INPUT
SURROUND
TV
BYPASS
CHVOL
VOL
RRMCGA369AWSA
Remote control x 1
(RRMCGA369AW02)
Velcro tape
(hook type) x 1
(PSHEZA373AW01)
TINSZB888AWZZ
AC/DC adaptor x 2
(RADPAA100AWZZ)
Velcro tape
(loop type) x 2
(PSHEZA372AW01)
AC power cord x 2
(QACCDA005AWZZ)
HT-SB35D
NFC tag x 1
(GCASP9168AW01)
Optical cable x 1
(QCNWGA095AWPZ)
Pattern paper x 1
(TCAUHA034AWZZ)
Printed in Malaysia
14M R KI 1

Special notes

For users in U.S.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols:
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and re
ceiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suf­cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor­tant operating and maintenance (servicing) instruc­tions in the literature accompanying the appliance.
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. It must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment should be installed and operated with a mini mum distance of 20 cm between the radiator and person’s body.
IC Radiation Exposure Statement (For Users In Canada)
This Class B digital apparatus complies with the Canadian ICES-003 Class B specications. This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including interfer ence that may cause undesired operation of the device.
This equipment should be installed and operated with a mini mum distance of 20 cm between the radiator and person’s body.
Note to CATV system installer:
-
This reminder is provided to call the CATV system installer’s attention to Article 820 of the National Electrical Code that provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
-
-
-
-
FOR YOUR RECORDS
For your assistance in reporting this unit in case of loss or theft, please record below the model number and serial number which are located on the rear of the unit. Please retain this in formation.
Model number ..............................
Serial number ..............................
Date of purchase ..............................
Place of purchase ..............................
E-1
-

Important Safety Instructions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or re. In order to prevent potential danger, please observe the following instructions when install ing, operating and cleaning the product. To ensure your safety and prolong the service life of this product, please read the fol lowing precautions carefully before use.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or ground ing-type plug. A polarized plug has two blades with one wid­er than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manu facturer.
12) Use only with the cart, stand, tripod, brack et, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ap paratus combination to avoid injury from tip­over.
13) Unplug this apparatus during lightning storms or when un used for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Additional Safety Information
15) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For product intended to operate from battery power, or other sources, refer to the operating instructions.
16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of re or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dan gerous voltage points or short-out parts that could result in a re or electric shock.
-
-
To prevent re or shock hazard, do not expose this appli
ance to dripping or splashing. No objects lled with liquids, such as vases, shall be placed on the apparatus.
18) Damage Requiring Service - Unplug this product from the
-
-
-
-
-
-
wall outlet and refer servicing to qualied service personnel
under the following conditions: a. When the AC cord or plug is damaged, b. If liquid has been spilled, or objects have fallen into the
product, c. If the product has been exposed to rain or water, d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper ad
justment of other controls may result in damage and will
often require extensive work by a qualied technician to
restore the product to its normal operation, e. If the product has been dropped or damaged in any way,
and f. When the product exhibits a distinct change in perfor
mance - this indicates a need for service.
19) Replacement Parts - When replacement parts are required,
be sure the service technician has used replacement parts specied by the manufacturer or have the same character istics as the original part. Unauthorized substitutions may result in re, electric shock, or other hazards.
20) Safety Check - Upon completion of any service or repairs
to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21) Wall or ceiling mounting - When mounting the product on a
wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
22) Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touch ing such power lines or circuits as contact with them might be fatal.
23) Protective Attachment Plug - The product is equipped with
an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a re placement plug specied by the manufacturer that has the same overload protection as the original plug.
24) Stand - Do not place the product on an unstable cart, stand,
tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious person al injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s in structions. Use only the mounting hardware recommended by the manufacturer.
-
-
-
-
-
-
-
-
E-2
1 Sharp Plaza, Suite 1, Mahwah, NJ 07495-1123

For U.S. customer only

CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when ship in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.
Model Specific Section
Your Product Model Number & Description:
Warranty Period for this Product:
Additional Item(s) Excluded from Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
HT-SB35D SOUND BAR HOME THEATER SYSTEM
(Be sure to have this information available when you need service for your Product.)
One (1) year parts and labor from the date of purchase.
Non-functional accessories, supplies, and consumable items.
At a Sharp Authorized Servicer located in the United States. To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP
SHARP ELECTRONICS CORPORATION

Special Notes

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by SHARP is under license. Other trademarks and trade names are those of their respective owners.
The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
E-3
14
SOUND BAR HOME THEATRE SYSTEM HT-SB35D

Precautions

■ General
● Keep your equipment at least 4” (10 cm) of free space
along the sides, top and back for proper ventilation.
4” (10 cm)
4” (10 cm)
● Use the unit on a firm, level surface free from vibration.
● Keep the unit away from direct sunlight, strong magnet-
4” (10 cm)
4” (10 cm)
ic fields, excessive dust, humidity and electronic/electri­cal equipment (home computers, facsimiles, etc.) which generate electrical noise.
● Do not place anything on top of the unit.
● Do not expose the unit to moisture, to temperatures
higher than 140°F (60°C) or to extremely low tempera­tures.
● If the unit does not work properly, unplug and plug it in
again. Then turn on the unit.
● In case of an electrical storm, unplug the unit for safe-
ty.
● Hold the AC power plug by the head when removing
it from the AC outlet, as pulling the cord can damage internal wires.
4” (10 cm)
4” (10 cm)
4” (10 cm)
● The AC power plug is used as a disconnect device and
shall always remain readily operable.
● Do not remove the outer cover, as this may result in
electric shock. Refer internal service to your local SHARP service facility.
● This unit should only be used within the range of 41°F
- 95°F (5°C - 35°C).
● SHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorised service center.
Warning:
● The supplied AC/DC adaptor contains no user ser-
viceable parts. Never remove covers unless qualified to do so. It contains dangerous voltages, always remove mains plug from the AC outlet before any service opera­tion or when not in use for a long period.
● The AC/DC adaptor supplied with the HT-SB35D must
not be used with other equipment.
● Never use an AC/DC adaptor other than the one speci-
fied. Otherwise, problem or serious hazards may be created.
● The voltage used must be the same as that specified on
this unit. Using a higher voltage is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage re­sulting from such usage.
● In case of repairing, please bring the entire system set
to the service center.
■ Volume control
The sound level at a given volume setting depends on speaker efficiency, location and various other factors. It is advisable to avoid exposure to high volume levels, which oc­curs while turning the unit on with the volume control setting up high, or while continually listening at high volumes.

Controls and indicators

■ Front Panel
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
1 2
43 5 6 7 98 10 11 12 13
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
E-4
1. Left Channel Speakers
2. Right Channel Speakers
3. On/Standby/Input/Bluetooth Pairing Indicator
4. On/Standby Button
5. Input Button
6. Pairing Button
7. Subwoofer Pairing Indicator
8. Surround Indicator
9. Surround Button
10. Volume Down Button
11. Volume Up Button
12. Audio Format Indicator
13. Remote Sensor
14. NFC detection area
CHVOL
CH
10
14 15
16
17
11
12
1
13
18
1
4
Controls and indicators (continued)
1
2
■ Rear panel
1. DC In Jack
2. Optical In Jack
3. Audio In Jack
3
■ Subwoofer
1. Bass Reflex Duct
2
3
MUTE
2
SOUND MODE
3 4
BYPASS
5
SURROUND
6
7
ON/
STANDBY
MUSICCINEMA NEWS
INPUT
TV
CHVOL
8 9
VOL
RRMCGA369AWSA
2. Woofer
3. DC In Jack
4. SW LINK (Subwoofer Link) button
■ Remote Control
1. Remote Control Transmitter
2. Mute Button
3. Cinema (Sound Mode) button
4. Music (Sound Mode) button
5. Surround Button
6. Bypass (Sound Mode) button
7. TV Operation Buttons (only SHARP TV)
8. Bluetooth Pairing Button
9. Bluetooth Play/Pause Button
10. Bluetooth Skip Up Button
11. Bluetooth Skip Down Button
12. Subwoofer Level Down Button
13. Subwoofer Level Up Button
14. On/Standby Button
15. News (Sound Mode) button
16. Input Button
17. Volume Up/Down Buttons
18. Subwoofer Link Button
Note:
Before using remote control, please remove plastic shield at battery holder.

Remote control

Plastic shield
TV Operation Buttons (Only SHARP TV):
On/Standby Button
Volume Up and Down Buttons
Note: Some models of SHARP TV may not be operable.
SHARP TV remote control will not work with HT-SB35D system.
Sets the TV power to “ON” or “STANDBY”. Turn up/down the TV
VOL
volume.
Input Select Button (TV) Channel Up and Down Buttons
E-5
Battery holder
Press the button to switch the input source.
Switch up/down the TV
CH
channels.
509 mm

System preparation

Make sure to unplug the AC power cord before in­stalling the sound bar or changing the position.
To mount the sound bar on the wall
Caution:
Be very careful to prevent the sound bar [5.1 lbs.
(2.3 kg)] from falling when mounting on the wall.
Before mounting, check the wall strength. (Do not put on
the veneer plaster or whitewashed wall. The sound bar may fall.) If unsure, consult a qualied service techni­cian.
Mounting screws are not supplied. Use appropriate
ones.
Check all wall mount angle screws for looseness.
Select a good location. If not, accidents may occur or the
sound bar may get damaged.
● SHARP is not responsible for accidents resulting
from improper installation.
■ Driving screws
SHARP designed the sound bar so you may hang it on the wall. Use proper screws (not supplied). See below for size
and type.
3/16” (5 mm)
1/8” (3.2 mm)
3/8” (9 mm)
7/8” (Min. 22 mm)
■ Installing the sound bar
1 Fix the pattern paper to the wall in horizontal posi-
tion as below.
21-5/8” (548 mm)
Wall surface
44 mm
2 Make a hole on the wall following the screw point
marks on the pattern paper by using a drill.
3/8” (8-9 mm)
1-1/4” (32 mm)
Wall surface
3 Fix a wall mount plug into the hole using a hammer,
until it is ush with the wall surface.
1-1/4” (32 mm)
3/8” (8-9 mm)
Wall sur
face
4 Fasten the screws to the wall as shown below. (Total
screw is 2 pieces)
Screw using
Wall surface
screwdriver
3/16” (4.5 mm - 5 mm)
Wall surface
Gap from wall surface
5 Hang the sound bar onto the screws.
Pattern paper (supplied)

Falling prevention

● Safety wires (not supplied) are useful to prevent the
sound bar from falling.
■ When mounting on the wall
Screw eye (not supplied)
Sound bar
Wall
Safety wires
(not supplied)
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
E-6
Falling prevention (continued)
■ When placing on the shelf/table
Sound bar
Rack/ table
Screw eye
(not supplied)
Safety wires
(not supplied)
Screw eye
(not supplied)

Placing the system

Installation image:
TV
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
VCR
Place the system as shown.

System connection

After checking all the connections have been made correctly, connect the AC power cord to the AC power input jack, then to the AC outlet.
DVD player
Subwoofer
■ Using with the AC/DC adaptor
1 Plug the AC power cord into the AC/DC adaptor. 2 Plug the AC/DC adaptor cable into the DC INPUT jack on the sound bar and subwoofer. 3 Plug the AC power cord into an AC outlet. The Subwoofer Pairing indicator lights up.
Notes:
● Unplug the AC/DC adaptor from the AC outlet if the system will not be used for a prolonged period of time.
● Use only the supplied AC/DC adaptor. Using other AC/DC adaptor may cause an electric shock or fire.
Make sure to unplug the AC power cord before making any connections.
Notes:
● Remove the protective film covering the sound bar
and subwoofer before turning on the system.
● The front panel of the sound bar is not removable.
Caution:
● Do not change the installation direction when the
sound bar is turned on.
● Do not stand or sit on the sound bar or subwoofer as
you may be injured.
● Do not allow any objects to fall into or to be placed in
the bass reflex duct.
AC/DC Adaptor
CAUTION:
TO PREVENT
ELECTRIC SHOCK,
MATCH WIDE BLADE
OF PLUG TO WIDE
SLOT, FULLY INSERT.
AC power cord
AC outlet
Cable
DC IN jack
(DC 19V)
2
1
AC/DC Adaptor (AC 100 - 240 V ~ 50/60 Hz)
AC outlet
E-7
AC power cord
DC IN jack
(DC 19V)
1
AC/DC Adaptor (AC 100 - 240 V ~ 50/60 Hz)
2

Sound bar connections to TVs

Caution:
Turn off all other equipment before making any connections.
Notes:
To connect to TV/player, use AUDIO IN or OPTICAL IN terminals located at the rear of the sound bar.
Refer the operation manual of the equipment to be connected.
Fully insert the plugs to avoid fuzzy pictures or noises.
If the TV volume is continuously at low level, the sound bar will automatically power off. Increase the TV output volume
to enjoy the sound from the system.
To avoid desynchronized audio and video when using an external player, connect the output signal from the player to TV and the audio output (from TV) to the sound bar.
■ Connecting a TV, or DVD player, etc.
If the TV/monitor has an audio or optical output, connect it to the AUDIO IN jack or OPTICAL IN jack on the rear of the sound bar.
TV
or
Blu-Ray/DVD player/
Digital Tuner
Optical digital audio
Sound bar
cable
To audio output terminals
To optical digital audio output terminal
To OPTICAL IN
(optical) input
terminal
Audio signal
Audio cable
To AUDIO IN input terminal
Press the INPUT button repeatedly to select:
Function On/Standby/Input/
OPTICAL IN Turns green AUDIO IN Turns cyan Bluetooth Turns blue
Optical digital audio cable (supplied)
Audio cable available)
(commercially
Bluetooth Pairing Indicator

Remote control

WARNING
DO NOT INGEST BATTERY,
The remote control supplied with this product
contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two (2) hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention.
This product contains a CR Coin Lithium Battery which con­tains Perchlorate Material – special handling may apply. California residents, see www.dtsc.ca.gov/hazardouswaste/perchlorate/
CHEMICAL BURN HAZARD
■ Battery installation
1 While pushing the locking tab toward the center of the
remote control, slide out the battery holder.
Back of remote control
Locking tab
2 Remove the old battery from the battery holder, insert
the new battery and then slide the battery holder back into the remote control.
Battery holder
Polarity (+) symbol
Battery type
Locking tab
Positive (+) side up
E-8
Remote control (continued)
Precautions for battery use:
Remove the battery if the sound bar will not be used for a long period of time. This will prevent potential damage due to battery leakage.
Caution:
● Do not use rechargeable battery (nickel-cadmium bat-
tery, etc.).
● Danger of explosion if battery is incorrectly replaced.
● Replace only with the same or equivalent type.
● Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, fire or the like.
● Installing the battery incorrectly may cause the sound
bar to malfunction.
Notes concerning use:
● Replace the battery if the operating distance is re-
duced or if the operation becomes erratic. Purchase “CR 2025”, coin lithium battery.
● Periodically clean the transmitter on the remote control
and the sensor on the sound bar with a soft cloth.
● Exposing the sensor on the sound bar to strong light
may interfere with operation. Change the lighting or the direction of the sound bar if this occurs.
● Keep the remote control away from moisture, heat,
shock, and vibrations.

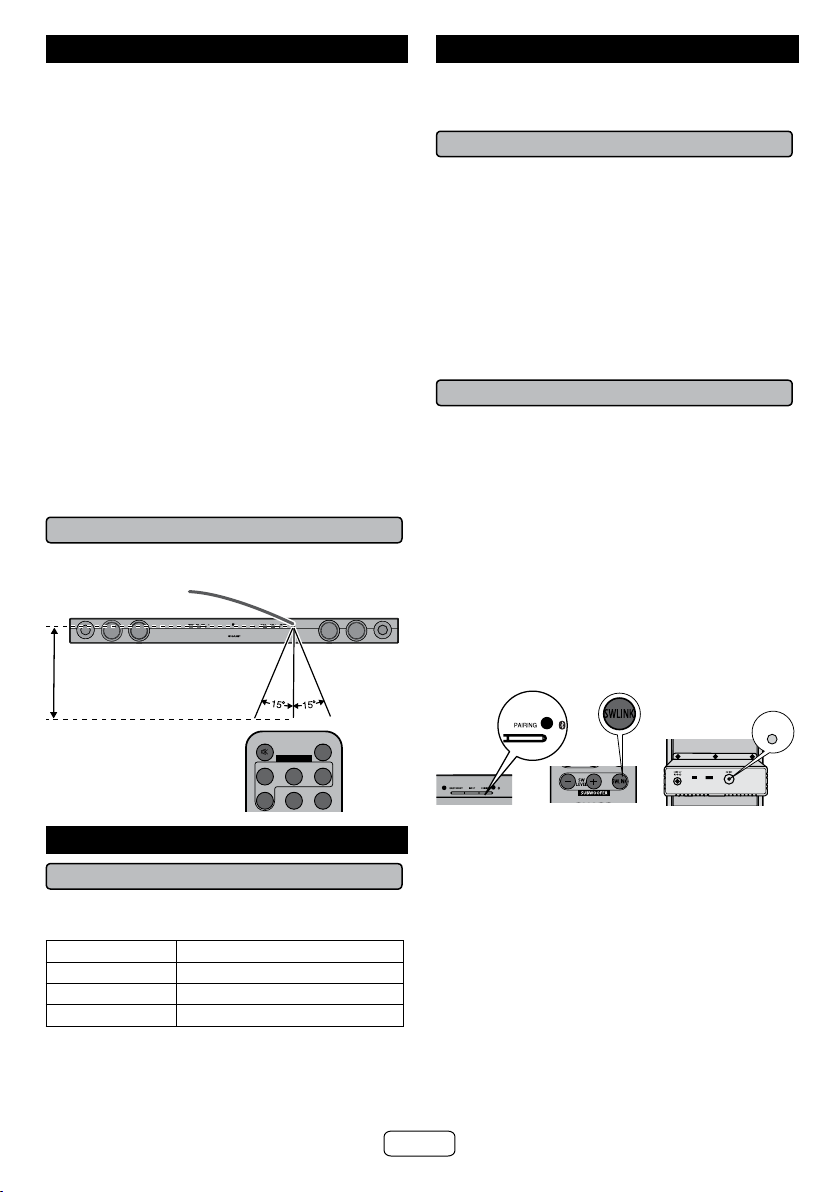

■ Test of the remote control
The remote control can be used within the range shown below:
Remote sensor
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
8” - 20’ (0.2 m - 6 m)
General control (continued)
To set the sound bar to standby mode:
Press the ON/STANDBY button again. The Subwoofer Pairing indicator lights up.
■ Bluetooth standby mode
● The first time the sound bar is plugged in, it will enter
the Bluetooth standby mode (Subwoofer Pairing indi­cator lights up).
● To cancel the Bluetooth standby mode, press and hold
the ON/STANDBY button during Bluetooth standby mode. The sound bar will enter the low power con­sumption mode (Subwoofer Pairing indicator turns off). The subwoofer will enter the low power consumption mode approximately 3 minutes later.
● During low power consumption mode, to return to the
Bluetooth standby mode, turn the sound bar on and off again.
● During Bluetooth standby condition, NFC function is
activated once your device touches the NFC detection area or the supplied NFC tag.
■ Connecting the wireless Subwoofer
The sound bar and subwoofer will link automatically (wire­lessly) when turned on as it is already pre-linked at the factory. If the link cannot be established, please set the connection by the following method.
● During pairing process:
Subwoofer Pairing indicator will blink.
● When pairing is successful:
Subwoofer Pairing indicator lights up. During sound bar standby and subwoofer power off mode (AC power cord unplugged):
1. Press and hold the PAIRING button on the sound bar
or SW LINK button on the remote control for more than
3 seconds. Subwoofer Pairing indicator will blink.
2. Within 3 minutes, plug in the AC power cord of the
subwoofer and turn it on. Subwoofer pairing indicator
will light up.
● In case the link is still not established (Subwoofer Pair-
ing indicator blinks), press and hold the SW LINK button
at the back of the subwoofer until Subwoofer Pairing
indicator lights up.
SOUND MODE
MUSICCINEMA NEWS
SURROUND
STANDBY
INPUT
ON/
MUTE
BYPASS

General control

■ To turn the power on
Press the ON/STANDBY button.
The On/Standby/Input/Bluetooth Pairing indicator lights up according to input source:
Input source Indicator
OPTICAL IN Turns green
AUDIO IN Turns cyan
Bluetooth Turns blue
Note:
If the power does not turn on, check whether the power cord is plugged in properly.
Sound bar
Notes:
● If a device such as microwave oven, wireless LAN
card, Bluetooth device or any other device that uses
the same 2.4GHz frequency near the system, some
sound interruption may be heard due to interference.
● The maximum transmission distance of the wireless
signal between the subwoofer and sound bar is about
32’ (10 m), but may vary depending on your operating
environment.
Remote control
Subwoofer
E-9
SW LINK
General control (continued)
● If a steel-concrete or metallic wall is between the sub-
woofer and the sound bar, the system may not oper­ate at all, because the wireless signal cannot penetrate
metal.
Caution:
● Keep the subwoofer away from water and moisture.
● To get the optimum listening performance, make sure
the area around the sound bar and subwoofer is clear of any obstacles.
■ Volume auto fade-in
If you turn off and on the sound bar again, volume will start at lower level and gradually increase to the last set level.
■ Volume control
Sound bar operation:
Press volume up (VOLUME + ) to increase the volume and press volume down (VOLUME – ) to decrease the volume.
Remote control operation:
Press the VOL + button to increase the volume and the VOL – button to decrease the volume.
Notes:
● When volume is maximum or minimum the SURROUND
indicator blinks 3 times
● To increase or decrease the volume continuously, press
and hold the VOLUME +/- buttons (main unit) or VOL +/- buttons (remote control).
■ Muting
The volume is muted temporarily when pressing the MUTE button on the remote control (SURROUND indicator blink­ing). Press again to restore the volume.
■ Surround
When the SURROUND button is pressed, the SURROUND sound is ON. (SURROUND indicator lights up (orange))
■ Subwoofer level control
The output level of the subwoofer can be adjusted with SW LEVEL buttons. To increase the level, press the SW LEVEL + button. To decrease the level, press the SW LEVEL - button.
Notes:
● When the level is maximum or minimum the SUR-
ROUND indicator blinks 3 times.
■ Sound Mode
Remote control operation:
Press the desired sound mode button on the remote control.
The SURROUND indicator blinks once.
CINEMA (for cinema sound effect)
MUSIC (for standard sound effect)
NEWS (for news)
BYPASS (for flat sound effect)
■ Function
When the INPUT button is pressed, the input source will change. 1 Optical In Function - the On/Standby/Input/Bluetooth
Pairing indicator turns green.
2 Audio In Function - the On/Standby/Input/Bluetooth
Pairing indicator turns cyan.

3 Bluetooth Function - the On/Standby/Input/Bluetooth

Pairing indicator turns blue.
Note:
The backup function will protect the memorized function mode for a few hours should there be a power failure or the AC power cord becomes disconnected.
■ Auto power on function
● Auto power on function works only during Bluetooth
standby mode (Subwoofer Pairing indicator lights up). It will not work if the sound bar is in low power consump-
tion mode (Subwoofer Pairing indicator is off). Optical In: Turn off the external source. The sound bar
will automatically power ON if the external source is turned ON again.
Audio In/Bluetooth: The sound bar will automati­cally power ON if it detects audio signal from connected equipment.
■ Auto power off and auto detect signal
● The sound bar will automatically go to standby mode
(Subwoofer Pairing indicator lights up) if: Optical In: No audio signal is detected after approxi­mately 15 minutes. Audio In: No audio signal is detected after approxi­mately 15 minutes.
Bluetooth:
- No connection after approximately 1 minute.
- In the pause or stop mode and no incoming signal from device after approximately 15 minutes.
■ Audio format
During the OPTICAL IN function the AUDIO FORMAT indicator will light up to indicate the audio format.

Audio format Audio format

Dolby Digital
PCM (Pulse Code Modulation)
Note:
This product supports “Dolby Digital” and “PCM” signal format for optical input. If there is no sound from optical input, please set your optical source equipment to output “Dolby Digital” or “PCM” signal format.
One of the digital audio systems for theatrical use. You can also enjoy the stereophonic effect in the home theater system. Lights up when detecting Dolby Digital signal.
This is a general term for digitally encoded audio signals on a CD or DVD. This sound bar lets you enjoy playback of digital signals from sources such as CD or DVD.
indicator
Blue
Violet
E-10

Bluetooth one touch connection via NFC

■ About NFC technology
Near Field Communication (NFC) is a set of standards for devices (smartphones/tablets) to establish radio communi­cation with each other by touching/tapping them together or bringing them into close proximity. Using NFC in this product simplifies the pairing method of Bluetooth connectivity.
Notes for Android devices
● This audio system supports NFC-enabled device with Android
4.1, Jelly Bean and higher.
● For device with a lower Android version, refer the operation
manual of the device for recommended app (application).
Unlike other wireless technology, NFC requires no discovery or pairing. Simply tap the source device to NFC detection area on the main unit or the NFC tag to instantly enjoy seam­less connectivity between your smart device and the audio system.
■ NFC detection area
NFC detection area location may vary depending on the device (smartphone/tablet). Refer operation manual of the device for detail.
Search/scan
u
n
a
M
(during Bluetooth standby mode)
A Bluetooth audio source device (smartphone/tablet).
Switch ‘ON’
Bluetooth

NFC detection area

■ NFC tag set up
The NFC tags can be placed anywhere convenient to you. The velcro tapes supplied will help to secure the tags onto the desired location.
Caution:
● Make sure that the NFC tag is placed on a flat and level
surface.
● If you choose not to use the velcro tape, do not pla-
ce the NFC tag near metal surface to avoid connec­tion interference during tagging.
Important:
● NFC tag has unique ID for each sound bar.
● SHARP will not be held liable for the damages caused
by rewriting the tags.
Keep all small parts away from children as they may be accidentally swallowed.
Pairing
t
o
e
o
u
l
t
h
B
l
a
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
or
s
e
t
t
i
n
HT-SB35D
NFC tag
g
Connect
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
1 Peel the separator off the velcro tape (loop type)
and stick it on a desired surface.
Separator
Velcro tape
(loop type)
2 Peel the separator off the velcro tape (hook type)
and stick it to the rear of the NFC tag. Then place the tag onto the desired location.
Velcro
tape
Separator
rear view of the NFC tag
(hook
type)
E-11
Bluetooth one touch connection via NFC (continued)
■ NFC connection for audio playback
Check that:
● Your device (smartphone/tablet) has an NFC function.
● NFC function on your device is enabled.
● Screen lock function of the device is off.
● This unit is not in low power consumption mode.
● Your device and NFC tag must be within 30 feet (10 meters) from the unit.
1 Touch your device to the NFC detection area on the main unit or supplied NFC tag. (NFC detection area of
your device must touch to the NFC detection area of the main unit or supplied NFC tag.)
NFC
detection
area
Main
unit
Device
2 A pop-up window asking whether to proceed with the Bluetooth connection appears on the device. Select
<YES>.
● The ‘connected’ message appears when the connection is complete.
3 Playback will start automatically, otherwise press play (on remote control or source device).
● Sound will be heard from the speakers of this unit via audio streaming.
● Your device and NFC tag must be within 30 feet (10 meters) from the unit.
● To disconnect, simply touch your device to the NFC detection area on the main unit or the NFC tag again.
Bluetooth operation buttons (remote control only)
Press the button to play or pause.
Press the button to skip up.
Press the button to skip down.
Notes:
● This product switches to Bluetooth function automati- cally when NFC tagging was done by your device.
● If your device does not support NFC, or if you wish to listen to audio via Bluetooth connectivity without NFC tag; refer “Pairing with other Bluetooth source de- vices” on the next page.
● Some Bluetooth devices will connect to this product
automatically when the device or its Bluetooth mode was turned on. In such case, it will also change the function selection of this product. If you do not want it to connect automatically, please disable Bluetooth on your device.
or
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
● It takes about 6-8 seconds for a Bluetooth enabled de- vice (eg. smartphone) to establish Bluetooth connec­tion with this unit via NFC or manual connection.
● If “Empty tag” or similar message appears on your de- vice, touch the device again to the NFC detection area on the main unit or supplied NFC tag.
NFC tag

Listening to Bluetooth enabled devices

Bluetooth wireless technology is a short-range radio technology that enables wireless communication between various types of digital devices, such as mobile phone or computer. It operates within a range of about 30 feet (10 meters) without the hassle of having to use cables to con­nect these devices.
This sound bar supports the following:
Communication System: Bluetooth Specification version
2.1 Bluetooth + Enhanced Data Rate (EDR). Support Profile : A2DP (Advanced Audio Distribution Profile) and AVRCP (Audio/Video Remote Control Profile)
Notes when using unit with a mobile phone
● This unit cannot be used to talk over the telephone even
when there is a Bluetooth connection made to a mobile phone.
● Please refer to the operating manual supplied with the
mobile phone for details on operation of your mobile phone while transmitting the sound using a Bluetooth connection.
■ Pairing Bluetooth devices
Bluetooth devices need to be initially paired first before they can exchange data. Once paired, it is not necessary to pair them again unless:
● pairing is made with more than 99 devices.
Pairing can only be made one device at a time. This sound bar can be paired to a maximum of 99 devices. If subsequent device is paired, the oldest device paired, will be deleted and replaced with the new one.
● pairing information is deleted while repairing, etc.
Bluetooth connection status
Status INPUT indicator (blue) Unconnected Blinks Pairing mode Blinks quickly Connected Lights up
However, the indicator status is not displayed during low power consumption mode.
E-12
Listening to Bluetooth enabled devices
(continued)
■ Pairing with other Bluetooth source device
1 Press the ON/STANDBY button to turn the power
on.
2 Press the INPUT button to select Bluetooth func-
tion. (INPUT indicator blinks in blue.)
3 Press and hold the PAIRING button on the remote
control for 3 seconds or more.
INPUT indicator blinks quickly. The sound bar is now in pairing mode and is ready to be paired with other Bluetooth source device.
4 Perform pairing procedure on the source device
to detect this sound bar. “HT-SB35D SHARP” will appear in the detected devices list (if available) in the source device. (Refer the source device oper­ating manual for details).
Notes:
Place the devices to be paired within 3 feet (1 me-
ter) of each other when pairing.
Some source devices are unable to display lists of
detected devices. To pair this sound bar with the source device, refer to the source device operating manual for details.
5 Select “HT-SB35D SHARP” from the source list. If
Passcode* is required, enter “0000”.
* Passcode may be called PIN Code, Passkey, PIN number or Password.
6 INPUT indicator (blue) will stop blinking once the
sound bar is successfully paired with the source device. (Pairing information is now memorized in the sound bar.)
Some audio source devices may connect with the sound bar automatically after pairing is completed, otherwise follow the instructions in the source device operating manual to start connection.
7 Press the play button on remote control or source
device to start Bluetooth streaming playback.
Notes:
● If a device such as microwave oven, wireless LAN card,
Bluetooth device or any other device that uses the same
2.4 GHz frequency is placed near the system some sound interruption may be heard.
● The transmission maximum distance of the wireless
signal between the device and the sound bar is about 32‘ (10 m), but may vary depending on your operating environment. If a steel concrete or metallic wall is be­tween the device and the sound bar, the system may not operate at all, because the wireless signal cannot penetrate metal.
● If this sound bar or the source device is turned off be-
fore Bluetooth connection is completed, pairing will not be completed and the pairing information will not be memorized. Repeat step 1 onward to start pairing again.
● To pair with other devices, repeat steps 1 - 5 for each
device. This sound bar can be paired to a maximum of 99 de­vices. If subsequent device is paired, the oldest device paired, will be deleted and replaced with the new one.
● Once a device is ousted or deleted from the pairing list,
the pairing information for the device is also deleted. To listen to the sound from the device again, it needs to be re-paired. Perform steps 1 - 5 to pair the device again.
● HT-SB35D supports Bluetooth profile AVRCP 1.4. If
your device supports the same profile (refer to device manufacturer’s specification), HT-SB35D is able to con­trol the volume of the device.
Note:
Some music applications do not support this feature, hence there will be no volume synchronisation between your device and the sound bar even if your Bluetooth device supports such profile.
■ Listening to the sound
Check that:
● The source device Bluetooth functionality is ON.
● Pairing of this sound bar and the source device is com-
pleted.
● Sound bar is in connected mode (INPUT indicator (blue)
lights up.)
● Any device connected to the AUDIO IN or OPTICAL IN
jack is turned off.
1 Press the ON/STANDBY button to turn the power
on.
2 Press the INPUT button to select Bluetooth func-
tion.
3 Start the Bluetooth connection from the Blue-
tooth stereo audio source device.
4 Playback will start automatically, otherwise
press play (on the remote control or the source device).
Notes:
● For various Bluetooth operations, refer “NFC
connection for audio playback” on page 12.
● If the source device has an extra bass function or
equalizer function, set them to off. If these functions are on, sound may be distorted.
Notes:
● Make the Bluetooth connection again if the source de-
vice is not turned on, or its Bluetooth functionality is off or is in sleep mode.
■ To disconnect the Bluetooth device
Perform any of the followings.
- Disconnect the Bluetooth connection on the audio source device.
Refer the operating manual supplied with the device.
- Turn off the Bluetooth stereo audio source device.
- Turn off this sound bar.
Note:
The volume of this sound bar may not be controlled as intended depending on the device.
E-13

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the fol­lowing before calling your authorised SHARP dealer or service center.
■ General
Symptom Possible cause
No sound is heard.
Noise is heard during playback.
Sound is distorted.
When a button is pressed, the sound bar does not respond.
The power is not turned on.
No sound is heard at subwoofer.
■ NFC / Bluetooth
Symptom Possible cause
NFC-enabled de­vice cannot con­nect to Bluetooth via NFC tag. No sound is heard.
Bluetooth sound is interrupted or distorted.
● Is the input signal (selection)
set properly?
● Is the volume level set to
minimum?
● Is muting activated?
● Are the connections made
correctly?
● Move the sound bar away
from any computers or mobile phones.
● TV output sound is distorted.
Reduce the TV volume or sound bar volume.
● Set this sound bar to the
standby mode and then turn it back on.
● If the sound bar still
malfunctions, reset it. (Refer to “Factory reset, clearing all setting”.)
● Is the sound bar unplugged?
(Refer to page 7.)
● The protection circuit may be
activated. Unplug and plug in the power cord again after 5 minutes or more.
● Is the AC for subwoofer
plugged in?
● The subwoofer is not
connected with the sound bar.
● Is the sound bar in mute?
● If the subwoofer still
malfunctions, reconnect it to the sound bar. (Refer page 9.)
● Main unit is not in Bluetooth
pairing mode. Perform “NFC connection for audio playback”. (Refer page 12.)
● Is the sound bar too far from
the Bluetooth stereo audio source device?
● Is the sound bar paired with the
Bluetooth stereo audio source device?
● Is the Bluetooth stereo audio
source device in playback condition?
● Is a headphone plugged to the
Bluetooth stereo audio source device?
● Is the sound bar too near
to a device that generates electromagnetic radiation?
● Is there any obstacle between
the sound bar and the Bluetooth stereo audio source device?
■ Remote control
Symptom Possible cause
The remote control does not operate properly.
The sound bar cannot be turned on with the remote control.
● Is the battery polarity correct?
● Is the battery dead?
● Is the distance or angle
incorrect?
● Are there any obstructions in
front of the sound bar?
● Is there a strong light shining
on the remote sensor?
● Is the remote control for
another equipment used simultaneously?
● Is the AC power cord of the
sound bar plugged in?
● Is the battery inserted?
● Has the plastic shield at the
remote control battery holder been removed?
■ Condensation
Sudden temperature changes, storage or operation in an ex­tremely humid environment may cause condensation inside the cabinet or on the transmitter on the remote control. Condensation can cause the sound bar to malfunction. If this happens, leave the power on until normal operation is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the sound bar.
■ Factory reset, clearing all setting
Make sure to disconnect all audio input cables attached to the sound bar before performing the factory reset.
1. Press ON/STANDBY button to enter the power standby mode.
2. While pressing down the PAIRING button on the main unit, press the ON/STANDBY button.
3. Press the ON/STANDBY button again. (Subwoofer Pairing indicator will turn blue.)
Caution:
This operation will erase all data stored in memory.
■ If problem occurs during operation
When this product is subject to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the sound bar to the standby mode and turn the
power on again.
2 If the sound bar is not restored in the previous
operation, unplug and plug in the sound bar, and then turn the power on.
E-14

Maintenance

■ Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth.
Cautions:
● Do not use chemicals for cleaning (gasoline, paint thin-
ner, etc.). It may damage the cabinet finish.
● Do not apply oil to the inside of each component. It may
cause malfunctions.
SOUND BAR HOME THEATRE SYSTEM HT-SB35D
Specications
As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The perform­ance specification figures indicated are nominal values of production unit. There may be some deviations from these values in individual unit.
■ Sound bar
Power source DC IN 19V 3.42A: AC/DC
Power consumption
Maximum output power
Speaker 2-way Speaker System
Input terminals Analog input (AUDIO IN):
Bluetooth
Frequency Band Compatible
Bluetooth Profile
Dimensions Width: 37” (940mm)
Weight 5.1 lbs. (2.3 kg)
adaptor (AC 100 - 240V ~ 50/60Hz)
10 W
RMS: Total 60 Watts 30 Watts per channel into 6 ohms at 1 kHz, 10% total harmonic distortion FTC: Minimum 23 watts per channel into 6 ohms at 100 Hz to 20 kHz, 1% total harmonic distortion
2-1/4” (5.7cm) Woofer 1” (2.5cm) Soft Dome
Stereo mini jack Ø 3.5mm 500mV / 47kohms Optical digital input (OPTICAL): Square type x 1
2.400GHz - 2.480GHz
A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/ Video Remote Control Profile) Bluetooth 2.1 +EDR
Height: 2-7/8” (73mm) Depth: 3-1/4” (83mm)
■ Subwoofer
Power source DC IN 19V 3.42A: AC/DC
Power consumption
Output power RMS: Total 60 Watts
Speaker 5-1/8”(13 cm) Woofer
Dimensions Width: 7-3/8” (188 mm)
Weight Weight: 6.4 lbs. (2.9 kg)
adaptor (AC 100 - 240V ~ 50/60Hz)
10 W
30 Watts per channel into 6 ohms at 1 kHz, 10% total harmonic distortion FTC: Minimum 23 watts per channel into 6 ohms at 100 Hz to 20 kHz, 1% total harmonic distortion
Height: 11-1/8” (282 mm) Depth: 11-3/4” (299 mm)
E-15
Loading...
