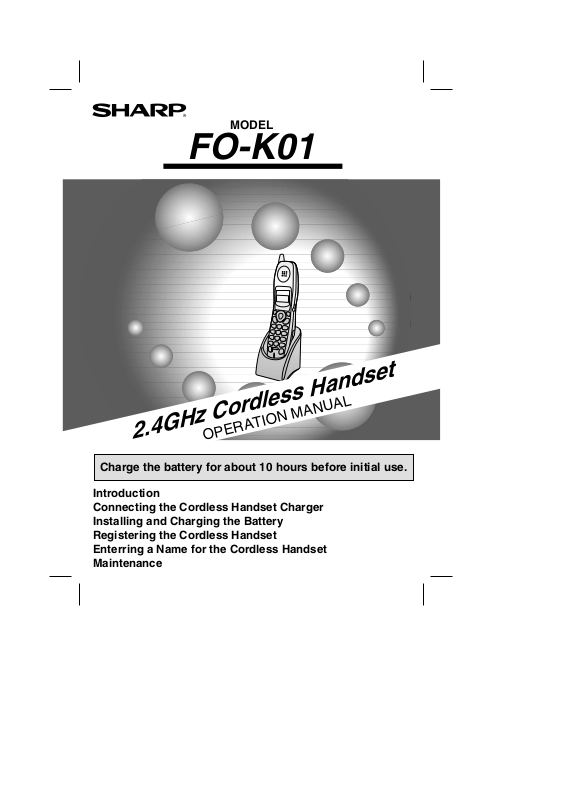

Sharp FO-K01 Operating Manual

MODEL

FO-K01

2.4GHz Cordless Handset

Charge the battery for about 10 hours before initial use.

Introduction Connecting the Cordless Handset Charger Installing and Charging the Battery Registering the Cordless Handset Enterring a Name for the Cordless Handset Maintenance

OPERATION MANUAL

Introduction

Thank you for purchasing a FO-K01 cordless handset.

To use the FO-K01 cordless handset, you must have a SHARP FO-CC500 fax machine.

Accessories

Operation manual

Battery cover

Battery pack

AC adapter

Cordless handset charger

Specifications

Frequency 2.4 GHz (2.405 to 2.475 GHz)

Dimensions Width: 46 mm

Weight Approx. 115 g (without battery)

Battery 3.6 V Ni-MH battery; capacity: 850 mAh

Power consumption Approx. 1.6 W in standby mode (after charging)

Initial charging time Approx. 10 hours for initial charge

Battery life Battery life in standby mode

Depth: 42 mm Height: 180 mm (not including antenna)

Approx. 4 hours (240 minutes) (at room temp.) Approx. 2 days with one full charge (at room temperature)

Battery life (both normal and in standby mode) may vary depending on usage, range from base machine, and environmental conditions such as temperature

English

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Important safety information

Do not disassemble this product or attempt any procedures not described in this manual. Refer all servicing to qualified service personnel.

Do not use this product near water, or when you are wet. For example, do not use this product near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. Take care not to spill any liquids on the product.

Unplug the product from the power outlet and consult a qualified service representative if any of the following situations occur:

- Liquid has been spilled into the product or the product has been exposed to rain or water.

- The product produces odors, smoke, or unusual noises.

- The power cord is frayed or damaged.

- The product has been dropped or the housing damaged.

Do not allow anything to rest on the power cord, and do not install the product where people may walk on the power cord.

The AC adapter must only be connected to a 220 - 240 V, 50/60 Hz outlet. Connecting it to any other kind of outlet will damage the machine and void the warranty.

Never insert objects of any kind into slots or openings on the product. This could create a risk of fire or electric shock. If an object falls into the product that you cannot remove, unplug the product and consult a qualified service representative.

Do not place this product on an unstable cart, stand or table. The product could be seriously damaged if it falls.

Battery

Use only the battery specified in this manual. Use only the provided charger to charge the battery.

Do not open or mutilate the battery pack. Corrosive fluid may leak out and cause injury or burns to the eyes and skin. The fluid may be toxic if swallowed. In case of contact with eyes, flush with clean water (do not rub), and seek medical attention immediately.

Do not store or carry the battery with other metal objects such as keys or pins. These may short the battery and cause it to overheat.

Do not allow the battery to become wet.

Do not dispose of the battery in a fire or heat the battery. The battery may explode.

Health care facilities and equipment

Radio frequency energy emitted from the cordless handset equipment may cause medical equipment to malfunction. Verify that any personal medical equipment you are using is adequately shielded from external radio frequency energy before using the cordless handset equipment. Do not use the cordless handset equipment in health care facilities where such use is prohibited.

Connecting the Cordless Handset Charger

Connect the AC adapter to the cordless handset charger.

Plug the AC adapter into a standard 220 - 240 V AC outlet.

Important: Never cover the charger

and AC adapter with a blanket, cloth, or other material. Excessive heating may result, causing a fire.

Place the cord in the holders.

Installing and Charging the Battery

Connect the battery connector ➊, and then place the battery pack in the cordless handset.

English

Black

Red

Place the battery cover on the cordless handset, making sure it snaps firmly

into place.

Red

Black

• Make sure the wires are not caught or

pinched by the cover.

Place the cordless handset in the charger with the dial pad facing

forward.

• Important! The dial pad must face

forward, or the battery will not charge.

• While charging the first time, the display

may show PLEASE REGISTER. Be sure to let the battery charge for 10 hours, and then register the cordless handset as explained on the following page.

Charge the battery

10 hours

at least the first time!

♦ The cordless handset and charger may feel warm while charging. This is

normal.

♦ The battery cannot be overcharged. When not using the cordless handset,

keep it in the charger to ensure that it is always charged.

When the battery needs charging, LOW BATTERY will appear in the display and you will hear beeps during a phone conversation. Place the cordless handset in the charger and let it charge.

Note: If the battery is extremely low, nothing may appear in the display during the first several minutes that the cordless handset is in the charger. The battery will begin to charge normally after several minutes.

Walkie-Talkie capability

Two cordless handsets can be used for walkie-talkie like communication. The talking range of the cordless handsets is 360 m (line of sight; talking range may decrease depending on transmission conditions), and there is no need to be in the talking range of the fax machine.

Talking range (distance from fax machine) for phone calls

The talking range of the cordless handset for phone calls is approximately 360 m (line of sight; talking range may decrease depending on transmission conditions) from the fax machine. If you hear noise or interference while talking, move closer to the fax machine.

♦ When outside the talking range, OUT OF RANGE appears in the display. If

you move out of the talking range while talking on the cordless handset, the handset will beep and you may hear interference.

Large metal objects, metal structures, and thick walls reduce the talking range.

Reinforced concreteMetalAluminum sash

Registering the Cordless Handset

After the initial charging, the cordless handset display shows:

PLEASE REGISTER

On the cordless handset, hold down

INTER

until the display at right appears.

COM

Press on the cordless handset.

On the fax machine, hold down until the display at right appears.

Press on the fax machine.

On the fax machine, enter a number from 2 to 4. This number identifies the

cordless handset.

• This completes the registration

procedure.

To use the cordless handset, you must first register it with the fax machine.

Cordless handset display:

INTERCOM

Fax machine display:

Example: “2” is selected

Both displays return to the normal standby display

MODE SELECT 1: HS ENTRY 2: HS DELETE

HS ENTRY MODE

MODE SELECT

1: HS ENTRY

2: HS DELETE

PRESS HS NUMBER

HS2 ENTERED

English

Note: If ALREADY STORED appears in the display, the number you selected has already been assigned to another cordless handset. Try a different number. (If you need to use a number that is already in use, delete the cordless handset that uses that number as explained on page 10.)

Note: If you pause more than one minute between any of the above steps, registration will be canceled.

Note: If you take no action for one minute during the registration procedure,

the procedure will be canceled. In this case, start from Step 1 again.

The fax machine is identified by the number “0”, and the cordless handset that was included with the fax is identified by the number “1”.

Entering a Name for the Cordless Handset

Enter a name for the cordless handset in the fax machine.

♦ The fax machine will transmit the name that you enter to your cordless

handset. The name will appear in the cordless handset’s display.

FUNCTION

Press once and 3 times on the fax machine.

Press once and once.

Press once.

Press to select SET.

Enter the number of the cordless handset for which you wish to enter a

name.

Example:

Fax machine display:

ENTRY MODE

HS NAME SET

1=SET, 2=CLEAR

SELECT HS NO.

ENTER (1-4)

Example: Cordless handset 2

HS2 SELECTED

Enter the name by pressing number keys for each letter as shown in the chart below. Up to 10 characters can be entered.

Example: BILL = 22 444 555 555

SPACE =

A =

B =

C =

D =

E =

F =

G =

H =

I =

J =

K =

L =

M =

N =

O =

P =

Q =

R =

S =

T =

U =

V =

W =

X =

Y =

Z =

♦ To enter two letters in succession that require the same key, press

after entering the first letter.

♦ To clear a mistake, press .

SPEAKER

♦ To enter a lower case letter, continue pressing the key for the letter until the

lower case letter appears.

♦ To enter one of the following symbols, press or repeatedly:

. / ! " # $ % & ’ ( ) + + , - : ; < = > ? @ [ ¥ ] ^ _ ' { | }

) (

English

START/MEMORY

Press to store the name.

STOP

Press to exit.

Display:

OWN NUMBER SET

The handset number and name appear in the standby display:

HANDSET2 BILL

Note: If other cordless handsets for the FO-CC500 fax machine are in use when the above procedure is performed, the name of the new cordless handset will not be transmitted to those cordless handsets (the name will not

appear by the cordless handset number when is pressed on those

INTER

COM

cordless handsets to use the intercom and call transfer functions). In this event, repeat the name entry procedure. The stored name automatically

appears in the display in Step 6, so simply press to retransmit the

START/MEMORY

name to those cordless handsets, and then exit the procedure with Step 8.
