Sharp CDBA-3000 Service manual

CD-BA3000

SER VICE MANUAL

No. S5044CDBA3000

MINI COMPONENT SYSTEM

MODEL CD-BA3000

CD-BA3000 Mini Component System consisting of
CD-BA3000 (main unit), CP-BA3000 (speaker system).

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

CONTENTS

Page

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

OPERATION MANUAL ...................................................................................................................................................... 5

DISASSEMBLY.................................................................................................................................................................. 6

REMOVING AND REINSTALLING THE MAIN PARTS..................................................................................................... 9

ADJUSTMENT ................................................................................................................................................................. 10

BLOCK DIAGRAM ........................................................................................................................................................... 13

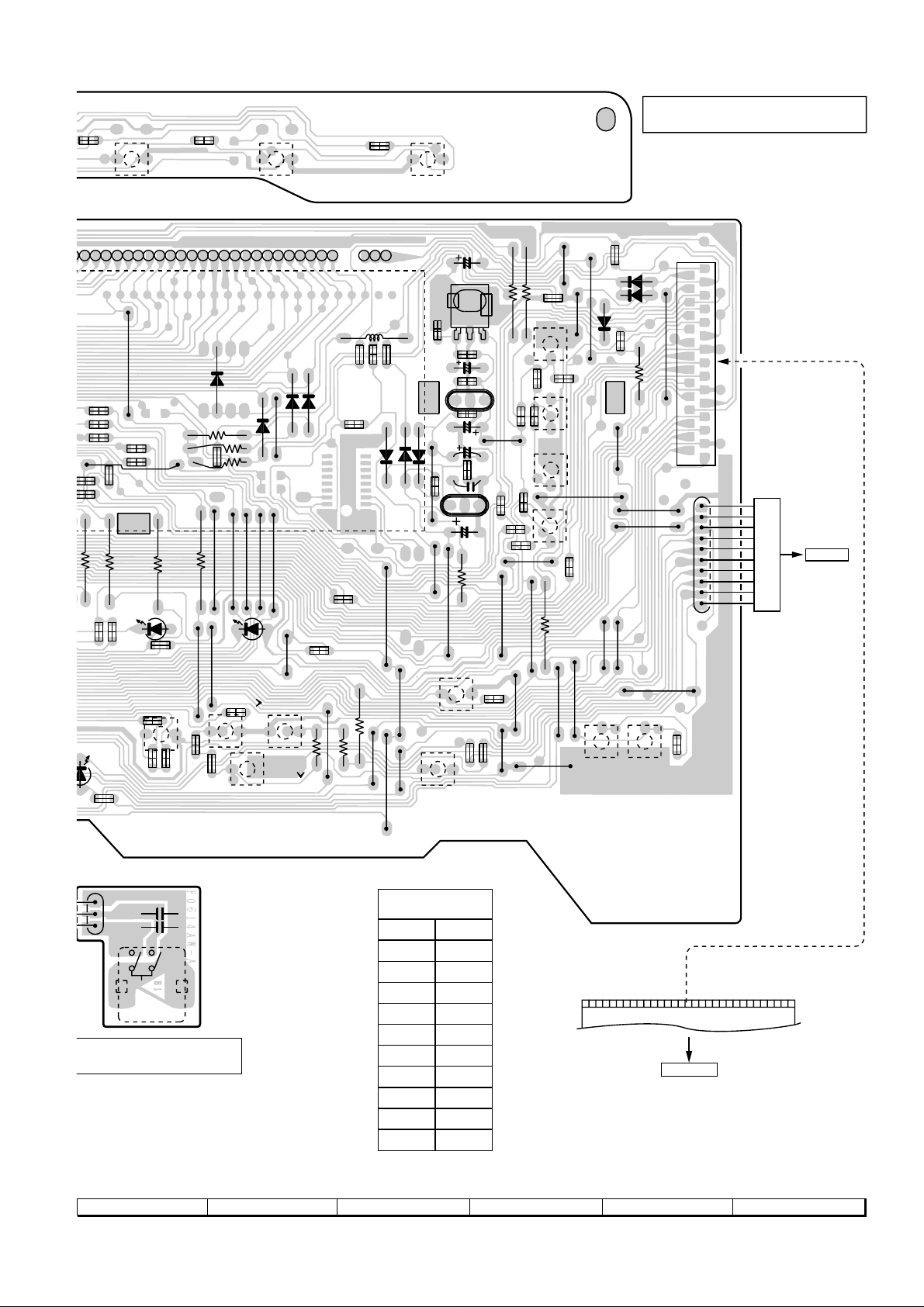

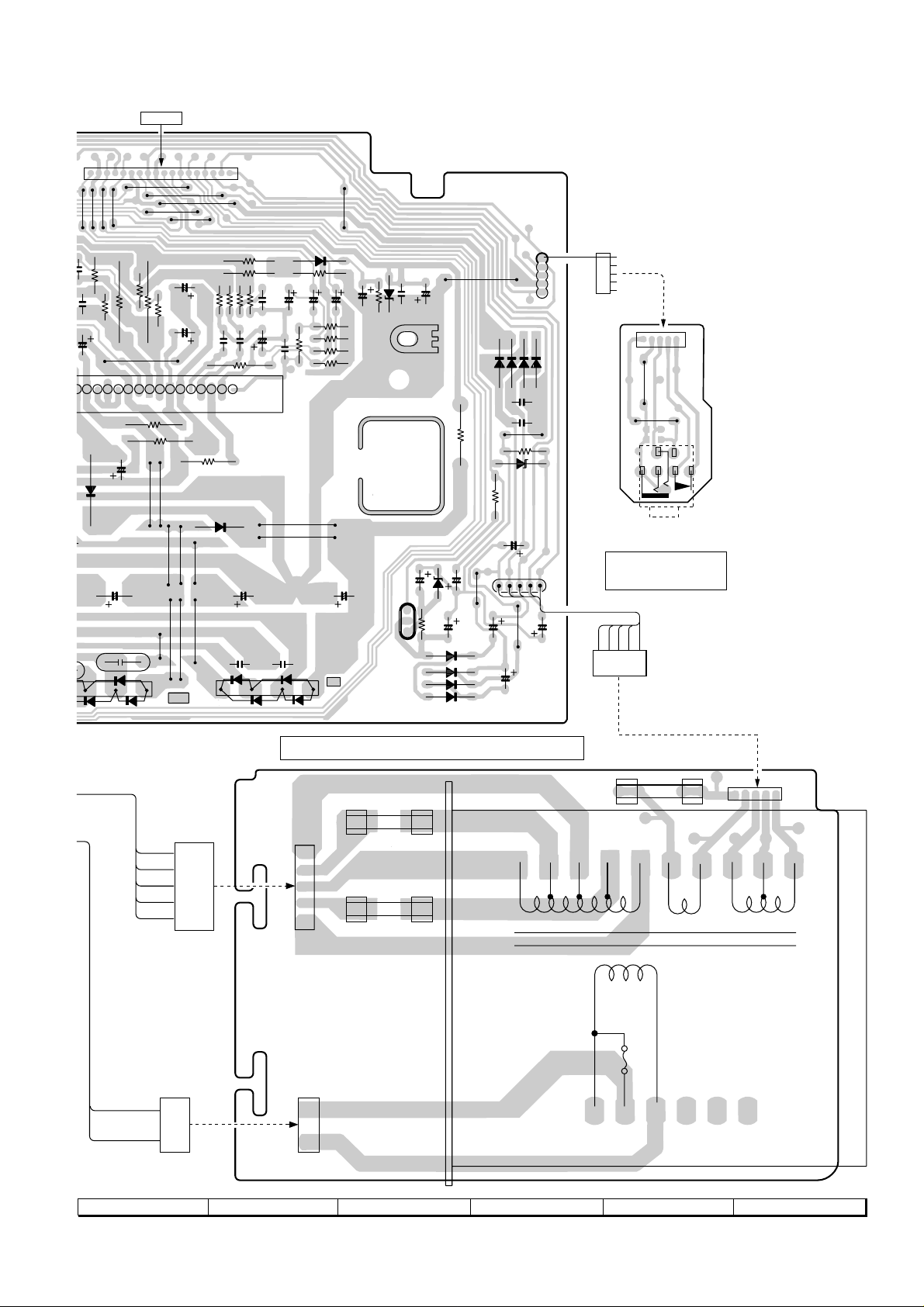

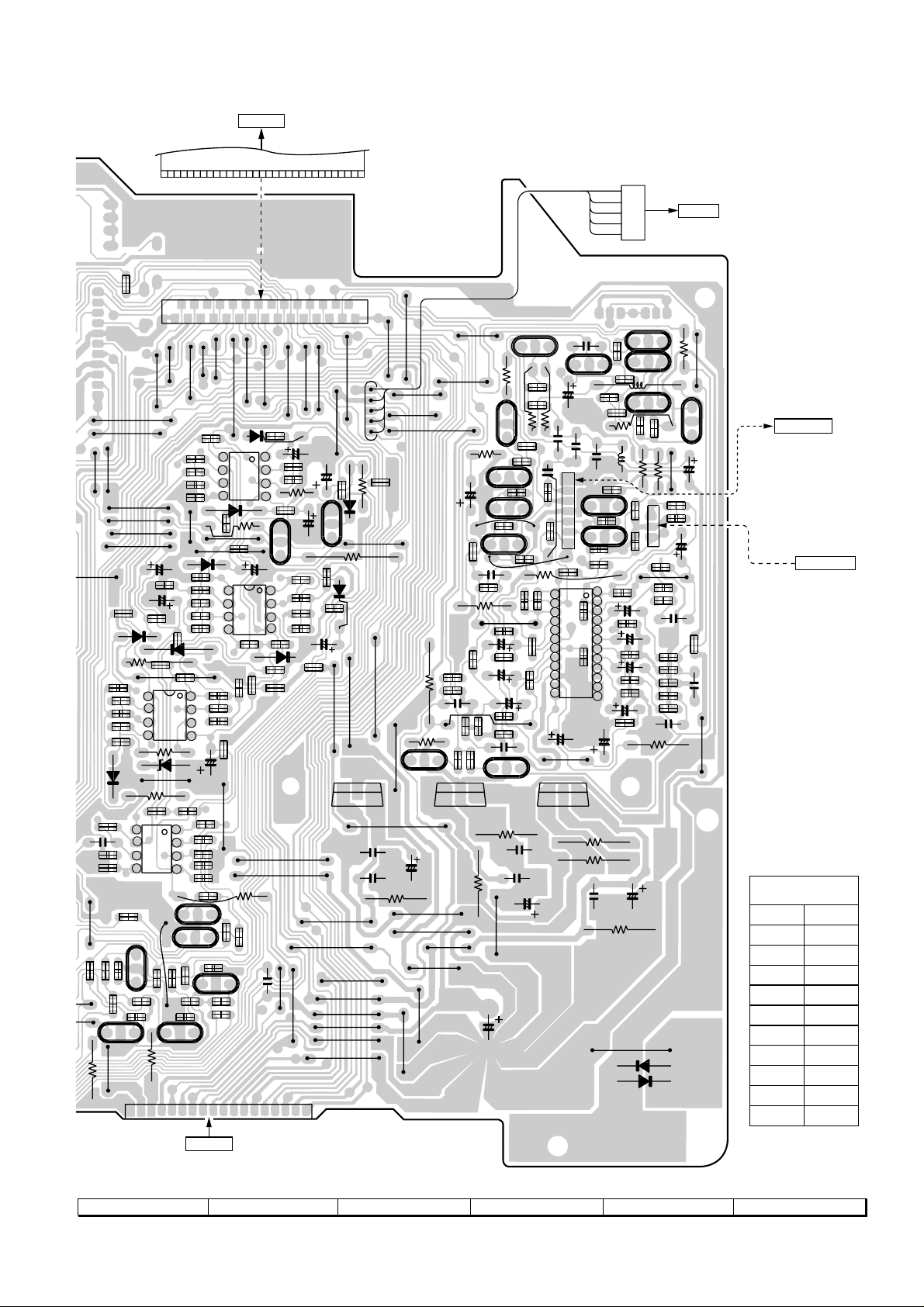

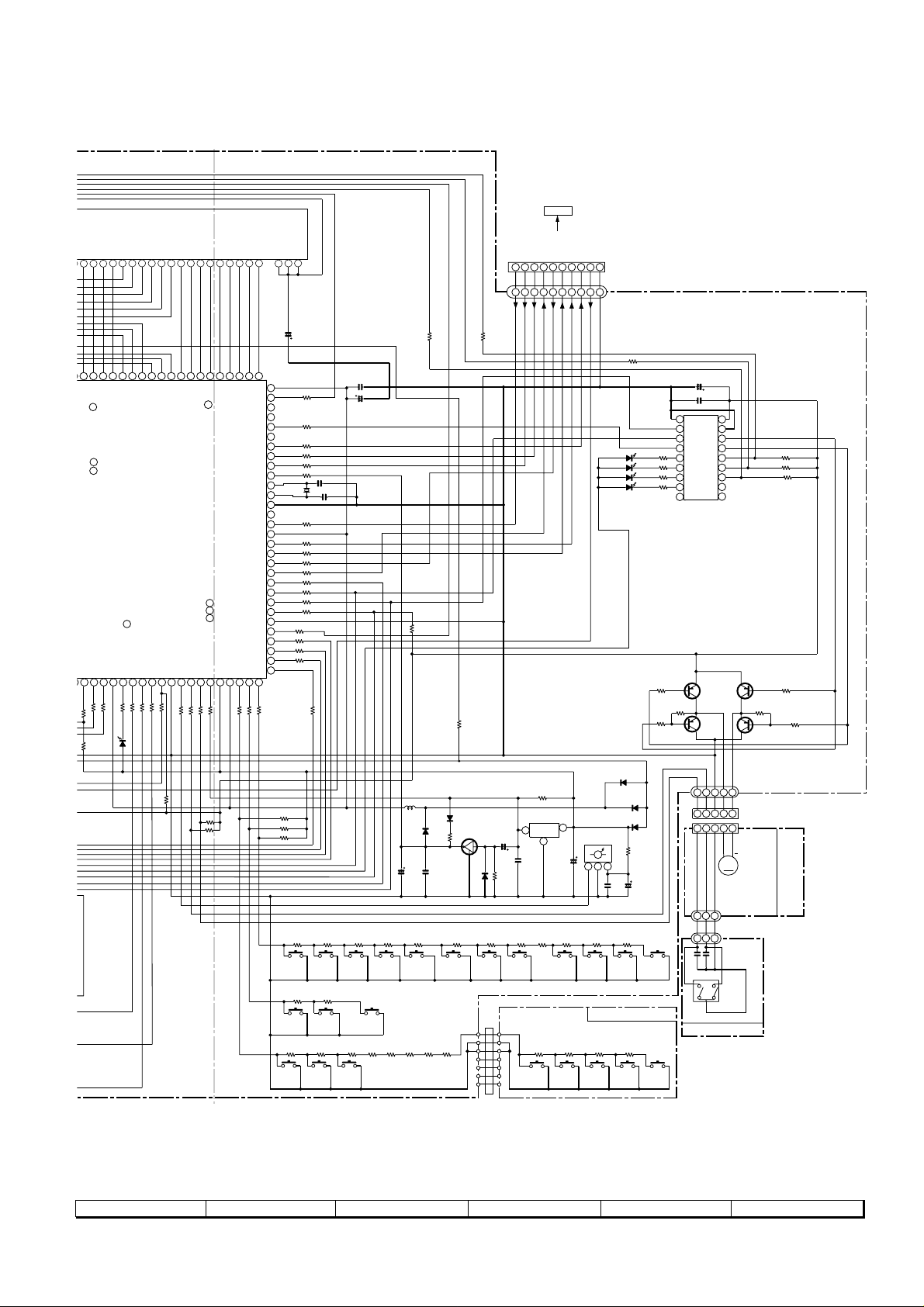

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD..............................................................................................16

VOLTAGE ........................................................................................................................................................................ 34

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 35

WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 36

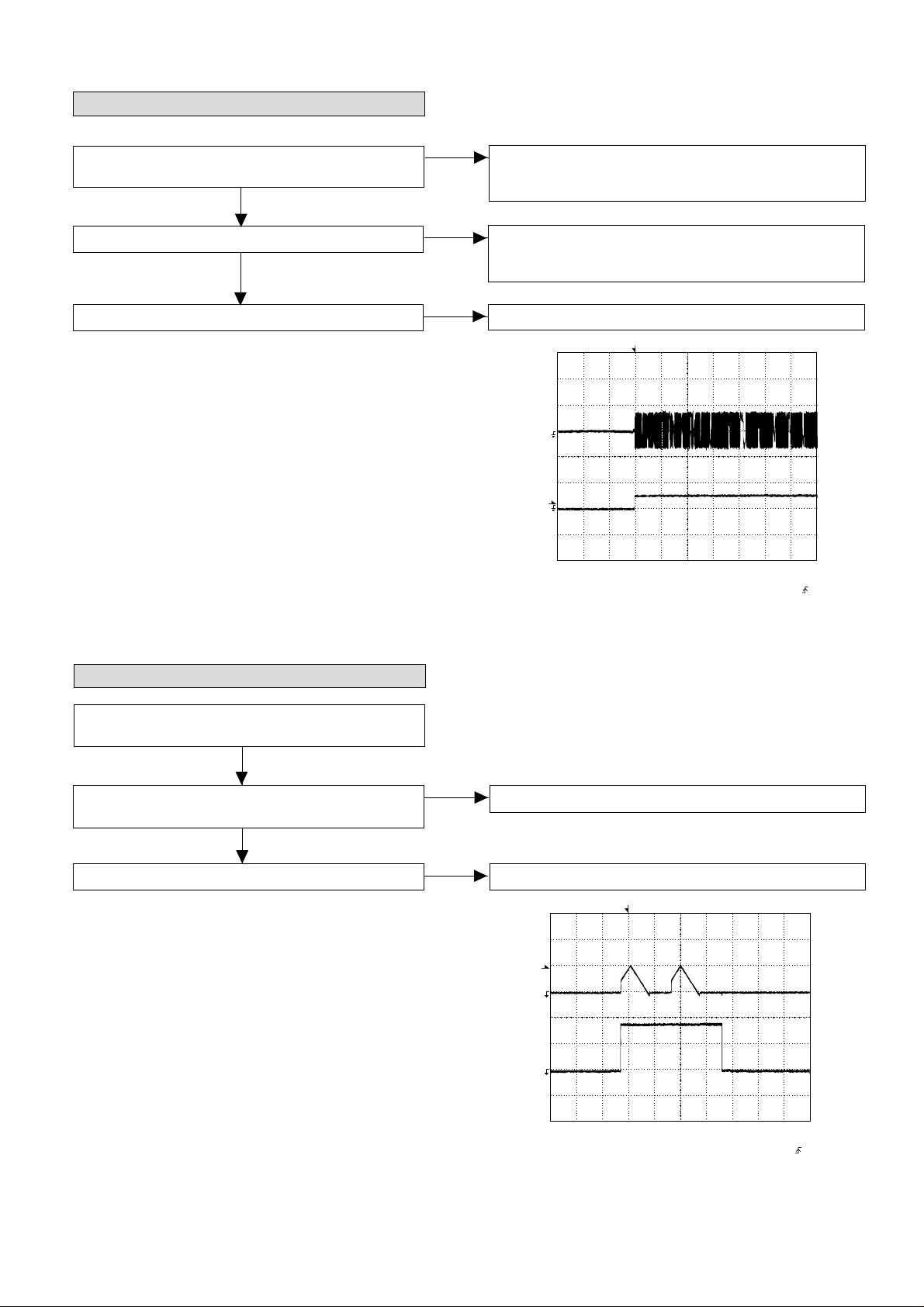

TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 37

FUNCTION TABLE OF IC................................................................................................................................................ 41

FL DISPLAY......................................................................................................................................................................47

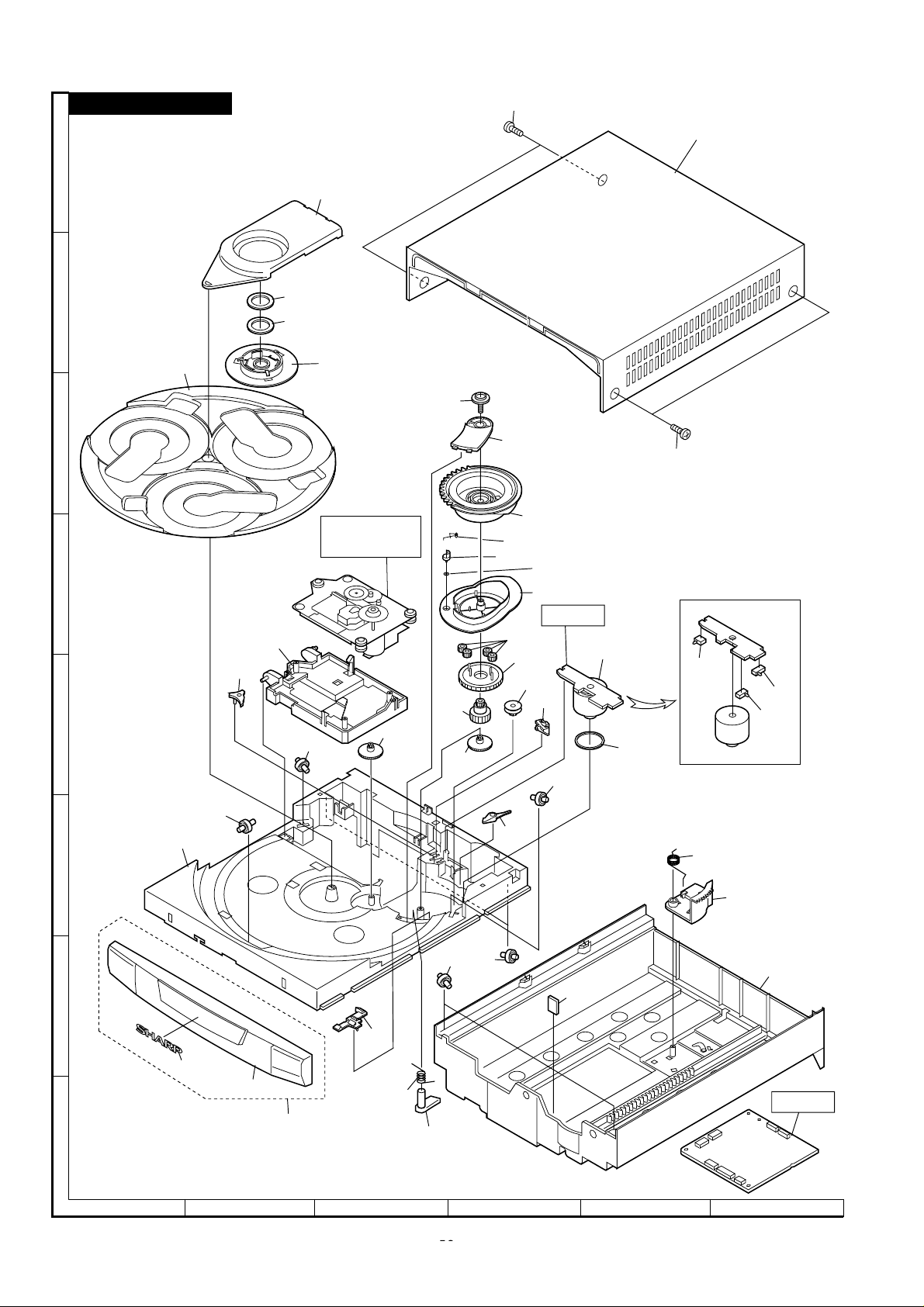

REPLACEMENT PARTS LIST/EXPLODED VIEW

SHARP CORPORATION

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

CD-BA3000

CD-BA3000

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

SPECIFICATIONS

● General

Power source: AC 120 V, 60 Hz
Power consumption: 210 W
Dimensions: Width; 270 mm (10-5/8")

Height; 330 mm (13")
Depth; 332 mm (13-1/16")

Weight: 9.8 kg (21.5 lbs.)

● Amplifier section

Output power: RMS; 300 W (150 W + 150 W)

(10 % T.H.D)

Output terminals: Speakers; 6 ohms

Headphones; 16-50 ohms
(recommended; 32 ohms)
CD digital output (optical)

Input terminals: Video/Auxiliary (audio signal);

500 mV/47 kohms

● Compact disc player section

Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semiconductor

laser pickup

D/A converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)

● Tuner section

Frequency range: FM; 87.5-108 MHz

AM; 530-1,720 kHz

● Cassette deck section

Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter: 0.3 % (WRMS)

CP-BA3000

Type: 3-way type [20 cm (8") woofer,

8 cm (3") tweeter and super tweeter]

Maximum input
power: 300 W
Rated input power: 150 W
Impedance: 6 ohms
Dimensions: Width; 250 mm (9-13/16")

Height; 330 mm (13")
Depth; 335 mm (13-1/4")

Weight:

Specifications for this model are subject to change without
prior notice.

6.1 kg (13.4 lbs.)/each

– 2 –

CD-BA3000

■ Front panel

01

. (CD) Disc Tray

02

. (CD) Disc Skip Button

03

. (CD) Disc Number Select Buttons

04

. (CD) Open/Close Button

05

. Extra Bass Indicator

06

. Spectrum Analyzer/Volume Level Indicator

07

. (CD) Disc Number Indicators

08

. (CD/TUNER) Memory Indicator

09

. (TAPE 2) Record Indicator

10

. (CD) Play Indicator

11

. (CD) Music Schedule Indicators

12

. (CD) More Tracks Indicator

13

. (CD) Pause Indicator

14

. (TAPE) Play Indicator

15

. (CD) Repeat Indicator

16

. Sleep Indicator

17

. FM Stereo Mode Indicator

18

. FM Stereo Indicator

19

. Timer Record Indicator

20

. Timer Play Indicator

CD-BA3000

NAMES OF PARTS

21

. On/Stand-by Button

22

. Clock Button

23

. Timer/Sleep Button

24

. Dimmer Button

25

. Extra Bass/Demo Mode Button

26

. Equalizer Mode Selector Button

27

. Volume Control

28

. Headphone Socket

29

. Function Selector Buttons

30

. Tuning and Time Up/Down Buttons

31

. (CD) Track Down/Review Button

(TUNER) Preset Down Button
(TAPE 2) Rewind Button

32

. Memory/Set Button

33

. (CD/TAPE) Stop Button

34

. Timer Set Indicator

35

. (CD) Play/Repeat Button

(TAPE) Play Button

36

. (TAPE 2) Record/Pause Button

37

. (CD) Track Up/Cue Button

(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button

38

. (TAPE 1) Cassette Compartment

39

.(T

2) Cassette

APE

Compartment

APE

– 3 –

CD-BA3000

CD-BA3000

■ Rear panel

01

. AC Power Lead

02

. CD Digital Output Socket

03

. FM/AM Loop Aerial Socket

04

. Video/Auxiliary (Audio Signal) Input Sockets

05

. Speaker Terminals

■ Remote control

01

. Remote Control Transmitter LED

● CD control section

02

. Disc Number Select Buttons

03

. Memory Button

04

. Pause Button

05

. Clear Button

06

. Track Down/Review Button

07

. Track Up/Cue Button

08

. Disc Skip Button

09

. Play/Repeat Button

10

. Stop Button

11

. Random Button

● Tuner control section

12

. Preset Up/Down Buttons

2
3

4
5

6
7

1

8
9

10
11
12

● Tape control section

13

. (TAPE 1) Play Button

14

. (TAPE 2) Record Pause Button

15

. (TAPE 1/2) Stop Button

16

. (TAPE 2) Play Button

17

. (TAPE 2) Rewind Button

18

. (TAPE 2) Fast Forward Button

● Common section

19

. Equalizer Mode Selector Button

20

. Function Selector Buttons

21

. On/Stand-by Button

22

. Extra Bass Button

23

.

Volume Up/Down Buttons

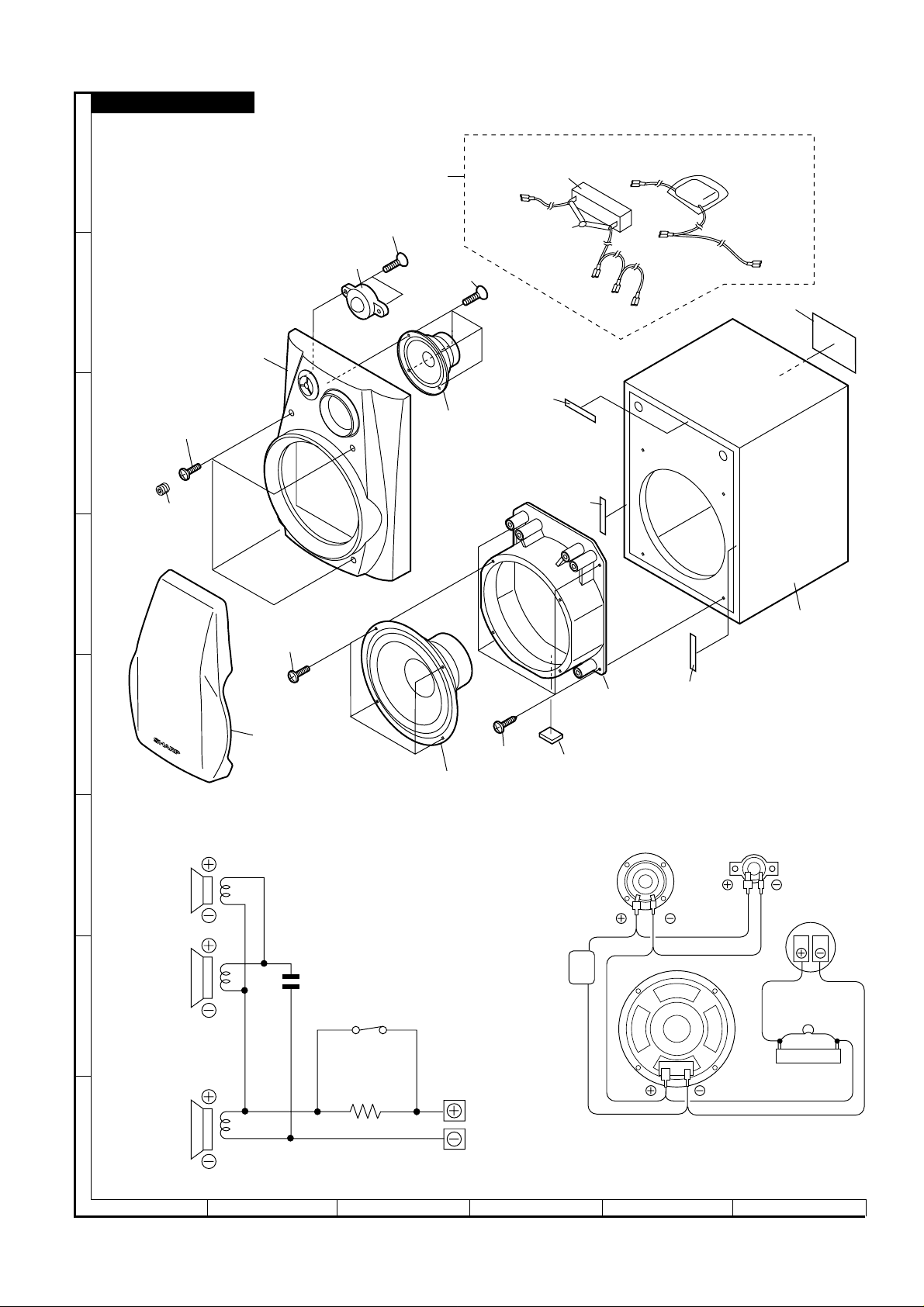

CP-BA3000

11

. Super Tweeter

12

. Tweeter

13

. Woofer

14

. Bass Reflex Ducts

15

. Speaker Terminals

16 17 18

13 14

15

19
20

21 23
22

– 4 –

OPERATION MANUAL

CD-BA3000

DEMO button, hold down the ON/STAND-BY button for at

least 1 second.

settings, and tuner and CD presets).

Reset the microcomputer under the following con-

ditions:

● To erase all of the stored memory contents (clock and timer

Press the ON/STAND-BY button to enter the stand-by mode.

● If the display is not correct.

● If the operation is not correct.

1

● “CLEAR AL” will appear.

Whilst pressing down the button and the X-BASS/

2

CD presets.

memory including clock and timer settings, and tuner and

Caution:

● The operation explained above will erase all data stored in

RESETTING THE MICROCOMPUTER

if the operation becomes erratic.

■ Remote control

● Periodically clean the transmitter LED on the remote con-

Notes concerning use:

● Replace the batteries if the operating distance is reduced or

PREPARATION FOR USE

or

or

shock, and vibrations.

interfere with operation. Change the lighting or the direction

of the unit.

trol and the sensor on the main unit with a soft cloth.

● Keep the remote control away from moisture, excessive heat,

● Exposing the sensor on the main unit to strong light may

0.2 m - 6 m

(8" - 20’)

or

or

(0:00 - 23:59)

(AM 0:00 - PM 11:59)

(AM 12:00 - PM 11:59)

stalled or it has been reset.

● Note that this can only be set when the unit is first in-

“0:00” →The 24-hour display will appear.

“AM 0:00” →The 12-hour display will appear.

display mode.

Press the ON/STAND-BY button to enter the stand-by mode.

In this example, the clock is set for the 12-hour (AM 12:00)

(Main unit operation)

SETTING THE CLOCK

Press the CLOCK button.

system.

1

2

“AM 12:00” →The 12-hour display will appear.

Within 5 seconds, press the MEMORY/SET button.4Press the TUNING/TIME ( or ) button to select the time

3

vance the time by 1 hour. Hold it down to advance con-

tinuously.

● Press the TUNING/TIME ( ) button once to ad-

Press the MEMORY/SET button.6Press the TUNING/TIME ( ) button to adjust the hour.

● When the 12-hour display is selected, “AM” will change

5

automatically to “PM”.

Press the MEMORY/SET button.8Press the TUNING/TIME ( ) button to adjust the min-

vance the time by 1 minute. Hold it down to change the

utes.

● Press the TUNING/TIME ( ) button once to ad-

7

– 5 –

time in 5 minute intervals.

from “59” to “00”.

● The hour setting will not advance even if minutes advance

onds.

(Seconds are not displayed.)

And then the clock display will disappear after a few sec-

● The clock starts operating from “0” second.

Press the MEMORY/SET button.

9

To see the time display:

Press the CLOCK button.

CLOCK button when the AC power supply is restored after

a power failure occurs or after the AC power lead is discon-

nected.

● The time display will appear for about 5 seconds.

Note:

If this happens, follow the procedure below to change the

● The clock display will flash on and off at the push of the

clock time.

Within 5 seconds, press the MEMORY/SET button. 3Perform steps 6 - 9 above.
2

To change the clock time:

1 Press the CLOCK button.

To change the time display mode:

CROCOMPUTER”. 2Perform steps 1 - 9 above.

1 Perform steps 1 - 2 in the section “RESETTING THE MI-

CD-BA3000

(C3)x1

(D1)x2
ø3x10mm

CD Player
Unit

CD Tray Cover

Pull

(C3) x1

(C4)x3

1

1

2

CD Servo
PWB

(C1)x1
ø3x10mm

(D1)x5
ø3x10mm

Power Supply
PWB

(D2)x1

Rear
Panel

Main PWB

(C2) x2

(C2) x1

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

CD-BA3000

STEP REMOVAL

1 Top Cabinet 1. Screw ..................... (A1) x4 6-1

2 Side Panel 1. Screw ..................... (B1) x8 6-1

(Left/Right)

3 CD Player Unit/ 1. Turn on the power supply, 6-2

CD Tray Cover open the disc tray, take out

4 Rear Panel with 1. Screw ..................... (D1) x7 6-2

Fan Motor 2. Connector .............. (D2) x1

5 Main PWB 1. Screw ..................... (E1) x1 7-2

6

Power Supply PWB

7 Front Panel 1. Screw ..................... (G1) x2 7-3

8 Volume Motor 1. Knob....................... (H1) x1 7-4

Ass'y/ 2. Screw ..................... (H2) x4

Volume Motor 3. Connector .............. (H3) x1

9 Switch PWB 1. Screw ..................... (J1) x2 7-4

10 Display PWB/ 1. Screw ..................... (K1) x5 7-4

Headphones PWB

11 Tape Mechanism 1. Open the cassette holder. 7-4

12 Turntable 1. Hook....................... (M1) x2 7-5

13 Disc Tray 1.

14 CD Servo PWB 1. Hook....................... (P1) x2 8-1

15 CD Mechanism 1. Hook....................... (Q1) x2 8-2

16

Note 1: How to open the changer manually. (Fig. 6-3)

1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom.

2.

While holding the lock lever, rotate the cam gear anticlockwise until the

cam gear rib engages with the clamp lever.

3. After that, push forward the CD slide holder.

(Note 2) 2. Socket .................... (P2) x4

Loading Motor PWB

the CD tray cover, and close.
(Note 1)

2. Screw ..................... (C1) x1

3. Hook....................... (C2) x3

4. Hook....................... (C3) x2

5. Connector .............. (C4) x3

2. Connector .............. (E2) x3

3. Tip Wire.................. (E3) x1

4. Flat Cable .............. (E4) x1

1. Screw ..................... (F1) x6 7-3

2. Connector .............. (F2) x3

3. Flat Wire................. (F3) x1

4. Holder .................... (F4) x2

2. Hook....................... (G2) x2

4. Belt ......................... (H4) x1

5. Screw ..................... (H5) x2

2. Bracket................... (J2) x1

2. Bracket................... (K2) x1

3. Flat Cable .............. (K3) x1

2. Screw...................... (L1) x5

2. Cover ..................... (M2) x1

2.

3.

2. Hook....................... (Q2) x3

1. Hook....................... (R1) x5 8-2

PROCEDURE

Turn fully the lock lever in the

.

(N1) x6

(Fig. 7-1)

arrow direction
While holding the lock lever,rotate
the cam gear until the cam gear
rib engages with the clamp lever.

Push the slide holder backward to

engage the claw with the groove
and remove it in the direction

of the arrow. ...............

DISASSEMBLY

FIGURE

6-3
7-1

7-6

– 6 –

CD-BA3000

Side Panel
(Right)

(B1)x2
ø3x10mm

(B1)x4
ø3x10mm

(A1)x2
ø3x12mm

Rear
Panel

Top Cabinet

(B1)x2
ø3x10mm

(A1)x2
ø3x12mm

Side Panel
(Left)

Figure 6-1

Figure 6-2

Lock Lever

CD Player Unit
(Bottom View)

Note 2:

1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electro­static damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front
movement.

Figure 6-3

(E2)x2

Headphones
PWB

(K2)x1

(K3)x1

(H2)x4
ø3x12mm

(H5)x2
ø2x5mm

(H3)x1

(H1)x1

(H4)x1

Volume
Motor
Ass'y

Volume
Motor

(L1)x5
ø3x10mm

(K1)x5
ø3x10mm

(J1)x2
ø3x10mm

(J2)x1

Display PWB

Switch PWB

Open

Cassette
Holder

Tape
Mechanism

Turntable

Disc Tray

(M2) x1

CD Player Unit

(M1) x2

CD-BA3000

Clamp Lever

CD Player Unit
(Top View)

Cam Gear Rib

Figure 7-1

Figure 7-4

Power
Supply
PWB

(F2)x3

(F4)x1

(E3)x1

Power
Transformer
PWB

Push

(E4)x1

Power
Supply
PWB

(F1)x2
ø3x6mm

(G2)x1

Power
Supply
PWB

Figure 7-2

(F1)x4
ø3x10mm

Figure 7-3

(E2)x1

Main PWB

(F3)x1

(F4)x1

(G1)x2
ø3x10mm

(G2)x1

(E1)x1
ø3x10mm

Display
PWB

Headphones
PWB

Figure 7-5

Disc Tray

(N1) x3

3

2

1

(N1) x3

Figure 7-6

– 7 –

CD-BA3000

(P1) x2

(P2) x2

(P2) x2

CD

CD Servo

PWB

CD Player

Chassis

Mechanism

(Q1) x1

Figure 8-1 Figure 8-2

(Q2) x3

(Q1) x1

Loading
Motor
PWB

(R1) x5

CP-BA3000

STEP

REMOVAL PROCEDURE FIGURE

1 Front Panel 1. Net Frame Ass'y .... (A1) x1 8-3

2. Caching Holder ...... (A2) x4

3. Screw ..................... (A3) x4

2 Tweeter 1. Screw ..................... (B1) x4 8-4

3 Super Tweeter 1. Screw .................... (C1) x2 8-4

4 Woofer 1. Screw .................... (D1) x4 8-4

(A3)x4

(A1)x1

ø4x20mm

(A2)x4

Front Panel

Super
Tweeter

Tweeter

(B1)x4
ø3x10mm

(C1)x2
ø3x10mm

Woofer

Figure 8-3

(D1)x4
ø4x12mm

Figure 8-4

– 8 –

REMOVING AND REINSTALLING THE MAIN PARTS

(A1)x2
Ø2 x 9mm

TAPE 2

Record/Playback
Head

Erase Head

(B1)x2
Ø2 x 9mm

TAPE 1

Playback
Head

Pinch Roller
(C1)x1

<A>

<B>

Pinch
Roller
Pawl

Pull

TAPE 2

TAPE 1
Main Belt
(E1)x1

TAPE 2
Main Belt
(D1)x1

TAPE 1

Main Belt
(D1)x1

FF/REW
Belt
(D2)x1

FF/REW
Belt
(E2)x1

Motor

Motor

TAPE MECHANISM SECTION

Perform steps 1 to 7 and 11 of the disassembly method to
remove the tape mechanism.

How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 9-1)

1. When you remove the screw (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.

How to remove the playback head (TAPE 1)
(See Fig. 9-2)

1. When you remove the screw (B1) x 2 pcs., the playback
head.

How to remove the pinch roller (TAPE 1/2)
(See Fig. 9-3)

1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring
mounting position.

CD-BA3000

Figure 9-1

How to remove the belt (TAPE 2) (See Fig. 9-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 9-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 9-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Motor

(F1) x2

Ø 2.6 x 5mm

Figure 9-2

Figure 9-3

Figure 9-4Figure 9-5

– 9 –

CD-BA3000

(B1) x2
ø2.6 x6mm

Shaft
(B2) x1

Stop Washer
(B3) x1

Gear
(B4) x1

CD Mechanism

Pickup

TAPE MECHANISM

Tape
Motor

Variable Resistor in motor

CD MECHANISM SECTION

Perform steps 1, 2, 3, 12 and 15 of the disassembly method
to remove the CD mechanism.

How to remove the loading motor
(See Fig. 10-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

2. Remove the drive belt (A2) x 1pc.

How to remove the pickup (See Fig. 10-2)

1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2).

2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).

3. Remove the pickup.

Note

After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.

CD Player
Chassis

(A1)x2

Figure 10-1

Loading Motor

(A1)x1

(A1)x2

Loading
Motor

Pulley

Drive Belt
(A2) x1

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

• Torque Check

Torque Meter

Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm

Tape 2: Over 80 g

Tape 1

Specified Value

Tape 2

ADJUSTMENT

• Tape Speed

Normal MTT-111 Variable 3,000 ± Speaker
speed Resistor in 30 Hz terminal

– 10 –

Test Tape

Figure 10-2

Adjusting

Point

motor. (Load
(MM1) resistance:

Figure 10-3

Specified

Value

Instrument

Connection

6 ohms)

CD-BA3000

IC301

AM IF

FM IF

FM RF

T303

T306

T302

L312

AM
TRACKING fL

AM BAND
COVERAGE fL

T301

T351

FM BAND
COVERAGE fL

MAIN PWB

CNP301

FM/AM LOOP

ANTENNA

TP302

R357

1

P

TP301

T

T

EFBL

FDO

TE

Stopped

CH 1=500m V

DC 10:1

CH 2=200m V

DC 10:1

CH3=1V

DC 10:1

500m s/div

(500m s/div)

NO RM :20kS /s

1

2

3

=Record Length=

Sm o othing : ON CH 1 : 0.000V

CH 2 : 0.000V

M ain : 100K
Zoom : 2k

M ode : SINGLE
T y p e : E D G E C H 1
D e la y : 0 .0 n s
H o ld o ff : 0 .2 u s

C H 3 : 0 .0 0 V
C H 4 : 0 .0 0 V

BW : FULL

=T rigg er==Filter= =Offset=

CH2
v /D IV
200m V

1999/04/05 20:26:47

TUNER SECTION

fL: Low-range frequency
fH: High-renge frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

Test Stage

AM IF 450 kHz 1,720 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

• FM RF

Signal generator: 1 kHz, 75 kHz dev., FM modulated

Test Stage

FM Band — 87.50 MHz T301(fL): *1
Coverage 1.3 V ± 50 mV

FM RF 98.00 MHz 98.00 MHz L312 *2

Frequency Frequency

Display

(10-30 dB)

Setting/

Adjusting

Point

Instrument

Connection

*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal

CD SECTION

• Adjustment

Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is
compensated inside the IC.)

* Focus offset adjustment
* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.11-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will
be 0 dB.)

* Focus gain adjustment
* Tracking gain adjustment

Figure 11-1 ADJUSTMENT POINTS

CD ERROR CODE DESCRIPTION

Error State Code

[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error

[Error during close operation]
0101 Open/Close SW not functioning (Low → High)
0103 Open/Close SW not functioning (High → Low)

[Error during open operation]
0201 Open/Close SW not functioning (Low → High)
0203 Open/Close SW not functioning (High → Low)

[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW

or Disc SW do not change to low.
0307 Clamp SW not function (Low → High)
0308 Clamp SW not function (High → Low)

Figure 11-2

– 11 –

CD-BA3000
TEST MODE

·Setting the test mode
Any one of test mode can be set by pressing several keys as fallows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test

Function:-CD test mode.

-Enter test mode.

C D T E S T

OPEN/CLOSE operation is using manual.

<< >>, << >> buttons make pick's slide possible.

IL isn't done

<<PLAY>> key input.

Do TOC IL. Do normal play
When these following key is input
into PLAY key, track number can
be appoint directly

<< 1>> key: Track 4
<<

2>> key: Track 9
3>> key: Track 15

<<

<<STOP>> key input.

STOP

VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF

<<MEMORY>> key input.

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that
specific point.

<<MEMORY>> key input.

Tracking ON play at that
specific point.

<<STOP>> key input.

STOP

Sliding the PICKUP with
<<

>>, << >> button

must only be in STOP mode.

To cancel : Power OFF

– 12 –

CD-BA3000

CNP12

CNP11

Q2

+3.3V

+5V

CONT5

CONT2

CONT3

CONT4

CONT7

CONT6

SLD0

SPD0

FD0
TD0

+5V

TO DISPLAY SECTION

CLAMP SW

CDINT

WRQ

CE

DO

CLK

DI

CD RES

GND

DRF

CNS4

BI4

CNP4

M2

SLED

MOTOR

M1

SPINDLE

MOTOR

M

M

TRACKING COIL

FOCUS COIL

PICKUP UNIT

TE

FE

RFEV

HFL

VVDD

ADAVDD

VDD

LVDD

RVDD

XVDD

VDD5V

RFEV

FE-

FE

TE-

TE

HFL

+3.3V

Q1

LDD

PD

TIN2

TIN1

FIN2

FIN1

IC3

M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER

IC1

LA9235M

SERVO AMP.

TO MAIN SECTION

(TO IC601)

R-CH

L-CH

AGND

DGND

DGND

DIGITAL

OUT

+B6(+5V)

+B5(+5V)

RCHO

RVSS

LVSS

LCHO

IC2

LC78641E

SERVO/SIGNAL

CONTROL

–

+

M

SW1
OPEN/
CLOSE

XL1

16.934MHz

6

5

43

3

2

5

4

1

12

34

7

8

217

89

10

12

4

3

5

TO DIGITAL

OUTPUT SECTION

CNS99

SW2

CLAMP

SW3

DISC

NUMBER

M3

T/T

UP/DOWN

MOTOR

6

12

4

3

56

12

4

3

56

7537

76

45 46

47 48 32 31

30
65
66
67
68
69
70
71
72

CE
CL

DI
DO
INT
WRQ
RES
DRF

52

51

XOUT

XIN

73

5

183644 49 50 7 14 15 16

23

24

25

26

33

3

13

19

40

64

74

17

18 19 20

21

22

30

23
11

9

1

45671516 26 27

2 1725 4142 3839

35

29
22
21
14

8

40
24
23
28

3

21

Q3

LASER

DRIVER

CONSTANT

VOLTAGE

+3.3V

+5V

VCC4

18

VCC1

TO

VCC2

VCC3

FD

SLDO

SPO

LD_M–

LD_M+

LOADING

M–

LOADING

M+

FO+

FO–

TR+

TR–

SL–

SL+

SP+

SP–

SW4

PICKUP IN

CNP5

Figure 13 BLOCK DIAGRAM (1/3)

– 13 –

CD-BA3000

FM

AM

CNP301

TAPE MECHANISM
ASSEMBLY

MM1

TAPE

MOTOR

SOLM1,SOLM2

SOLENOID

SWM2

T2 PLAY

SWM1

T1 PLAY

SWM4

R. PLAY

SWM3

F. PLAY

TAPE 1

PB HEAD

TAPE 2

REC/PB HEAD

ERASE

HEAD

1

1 3

2
3

MOTOR
DRIVER

Q708 +B3

M

Q704
Q705

IC701
54PIN

IC701
53PIN

IC701
56PIN

IC701
55PIN

FROM CD SECTION

CNP5

FROM CD SECTION

CNP11

L-CH
R-CH

REC

P.B

L-CH
R-CH

AC BIAS

BF301
B.P.F

AM

TRACKING

T303 T306

+B3

3
2

1

CNS99

1
2

3

CNS11

SWITCHING

Q103­Q106

POP REDUCE

Q107
Q108

SWITCHING

BIAS
OSC

TA7358AP

1

FM FRONT END

4

3

L312 T301

FM RF

TOTX1784

OPTICAL FIBER

DATA LINK

PLAYBACK AND RECORD

L(T1)

1

24

R(T1)

L(T2)

2

R(T2)

23

L NF

3
4

R NF

6

L REC

9

16

R REC

REF

14

12

+B4

Q109

SWITCHING

Q128
L104

IC301

8

5

7

FM

OSC

OSC BUFF

Q302

AM BAND

COVERAGE

+B5

IC99

IC101

AN7345K

/PLAYBACK AMP.

T1/T2

REC

NOR/
HIGH

15

SWITCHING

Q111

P.B

VCC

H/N

T1/T2

19

Q110

6
9

FM OSC

JK601

VIDEO IN

13

4

21

5

20

7

18

8

17

10

L
R

L
R

L NF
R NF

ALC

FM IF
T302

VCC

+B4

FM +B

SWITCHING

L
R

+B4

P.B

REC

FM OSC

VT

Q360

AUX

TAPE

TUNER

+B4

Q124
L103

SWITCHING

CF303

20

CD

X352

4.5MHZ

1

OSC

FM

L

9

R

16

L

10

R

15

L

11

R

14

L

12

R

13

BIAS

Q126

CF352

T351
AM IF

1

2

AM MIX

LA1832S

FM IF DET./FM MPX./AM IF

23

24

AM OSC OUT

AM OSC IN

AM IN

22

IC302

LC72131

PLL(TUNER)

7

IC303

21

AM RF IN

FM IN

1615

FM/AM

4

7

STEREO

11

MO/ST

10

9

+B4

23

IC601

LC75341

AUDIO PROCESSOR

R

L

18

17

8

7

3

Q121
Q122

MUTING

5

GNDAM IF

FM/AM

CE

3

OUT

18

+5V

VCC

9

CF351

8

FM

DET

16

VCO

17

X351
456kHz

MO/ST

FM/AM MPXIN

12

ZD351

13

L

14

15

R

+B4

+B4

+B6

Q
Q

5

~

8

12
13
14

DO

CL

DI

5

4

6

17

VDD

21

IC860

KIA4558P

OPE AMP.

Q603
Q604

+B4

-20dB

R

21

L

4

Q862

1

Q863

4 7

–B2

8

+B4

ATT

Q605
Q606

MUTE

SYSTEM

REC

8

1

IC561
IC562
IC563

-B2

4

OPE

AMP.

KIA4558P

7

T1/T2

BIAS

Figure 14 BLOCK DIAGRAM (2/3)

– 14 –

CD-BA3000

M

Q715

+B6 +B6

Q716

+B6

+B4

5

~

8

12

IC702

BU2902F

13
14

M701

MOTOR

VOLUME

Q713
Q714

151816

17

1
2

DI

CL

3

EXPANDER

LCK

4

INPUT/OUTPUT

SP. DET.

Q910
Q911

+B6

Q701-Q703
Q710-Q712

Q901
Q902
Q903
Q904

DISPLAY

2

60

78
79
80

85
86

91

92

~~~

100

14

3

585756 55

59

VLOAD

VDD

12

+B7

151

6

~~~

5

4

7

RESET

FL701

20

53 56

29

52 5150494847

54 53

IC701(1/2)
IX0334AW

SYSTEM

MICROCOMPUTER

RESET

10

9

11

XL701

4.1943MHz

Q709

58

57

JOG701

41 40

23

Q905

AVDD

JOG

RX701

REMOCON

SENSOR

39
38

37

36

35
34
33

~

31

25

DO

24

1

DRIVER
Q907

RL901

2

+B7

KEY
SW701-SW703
SW709-SW716
SW723-SW729
SW731-SW734

+B3

JK670
HEADPHONES

TO CD
SECTION

+B6

M

M901

FAN MOTOR

3

+B7

L-CH

+B7

44

46

VDD

VDD

15

12

16

13

17

+B7

IC704

KIA7042P

3

RESET

2

42

45

43

SYS. STOP

CEDICL

24

20

~~

21

1

+B7

Q864
Q865

10Hz

27

IC701(2/2)
IX0334AW

SYSTEM

MICROCOMPUTER

28

63Hz

-VF

R

18
22

L

13

IC901
STK4113E
POWER AMP.

VH-

VH+

1

+B1

-B1

+B3

+B4

VF2

+B5

+B7

UNSWITCH 5V

-B2

4

7

VL+

VL-

2

R-OUT

14

L-OUT

15

12

8

CONSTANT

Q851

KIA7810AP

VOLTAGE

REGULATOR

VF1

+5V

Q852
KIA7805P
VOLTAGE

REGULATOR

CONSTANT

VOLTAGE

REGULATOR

VOLTAGE

Q850

Q801

M10V

A10V

+B6

CD+B

D809

+B2

D810

D811-D814

CONSTANT

VOLTAGE

Q803

ZD801

Q802

F804

5A/125V

F805

5A/125V

F806

2A/250V

D802-D805

T801

POWER TRANSFORMER

T.F

T802

POWER

TRANSFORMER

D801

SO901
SPEAKER
TERMINAL

RY801

R-CH

F801

5A/125V

C801

AC POWER

SUPPLY CORD

AC 120V 60Hz

Figure 15 BLOCK DIAGRAM (3/3)

– 15 –

CD-BA3000

A

CD SERVO PWB-C

C54

47/10

+B

R50

47

TIN1
FIN1
FIN2
TIN2

R55

68K

FIN1

1

REF

FIN2

2

REF

TIN1

C55

0.01

C7

10/16

C8

0.022

+B

R25
10K

TIN2

C6
100/6.3

REF1
VREF

LDD
GND
LDON

AGON
EFBL

TEST0

TES1

3

REF

4

REF

5
6
7

APC

8

9
10
11
12
13
14
15

LA9235M

SERVO AMP.

REF

ODRV
AGCON

LPF

REF

IC1

30

ODRV

REF

29

AGCON

ODRV

PH/BH

REF

REF

REF
REF

28

REF

PH

27
26
25

DH

24
23
22

REF

21

LPF

20

REF

LPF

19

REF

18
17
16

VCC

RFSW

R42

120K

RF-

RF
NC

PH
BH

RFEV
FE­FE
TE­TE
HFL

TEST

C11

47/6.3

C12

0.022

C18

R7

3P

6.8K
(CH)

R6

R5

27K

39K

5

C13

0.01

C14

0.33

R3

47K

R4

10K

C20

0.1

C17

0.0047

4

C82

0.022

C23

R

0.047

6
R

1

C24

2.2/50
C

0

C22

C25

100P

C41

100/6.3

R
12

R80

1M

R15
10K

C26

0.047

C28

47/10

0.022

R10
27K

R8
330

C42
68P

(CH)

CNS1A

CNS1B

Vcc

7

7

7

Vref

6

6

E

5

A

4

4

B

3

3

B

F

2

2

C

1

1

7

6

6

5

R51 68K

5

5

R52 68K

4

4

R53 68K

3

3

R54 68K

2

2

1

1

CNP1

R56

68K

C

+B

C51

C53

47/10

0.001

R47

3.3

D

Q3

KTA1266GR
LASER DRIVER

13

E

F

ACTUATOR

PICKUP UNIT

G

CD MOTOR PWB-D

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

SW4

PICKUP IN

H

TR+
FO+

FO­TR-

C52

0.01

+B

TDO

TR­TR+

FO+

FO-

GND

+

M

­+

M

-

PD

VR
LD

CNP3A

1

1

2

2

3

3

4

4

5

5

6

6

7

7
8

CNS2B

CNS3B

6

6

5

5

4

4

3

3

2

2

1

1

1
2
3
4
5
6
7
88

CNS2A

CNS3A

6
5
4
3
2
1

TR-

1

TR+

2

FO+

3

FO-

4

GND

5

PD

6

VR

7

LD

8

CNP2

+B

R96

1.5K
R48

6.8K

100/6.3

SP-

6

SP+

5

SL+

4

SL-

3

PUIN

2

GND(D)

1

CNP3

+B

TO

FDO

FD
FO

C46

0.022

FO+

FO-

TR+

TR-

GND

SL-

SL+
SLDO
VCC1

STANDBY

Vref

MUTE

C50

C49

100/6.3

-

1
2
3
4

-

+

+

-

+

-

+

5
6
7
8

9
10
11
12
13
14

IC3

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

15
16

-

-

+

17
18
19

+

+

-

20
21

+B

+

-

LD_M+

42

+

LD_M-

-

41

VCC4

+

40

-

LOADING M+

39

LOADING M-

38
37
36
35

C47

100/6.3

+B

34
33

GND

32
31
30
29

VCC3

28

SP-

27

SP+

26

SPDO

SPO

-

-

25

+

+

+

-

VCC2(SPN)

+

24

-

23

+

-

22

+B

• NOTES ON SCHEMATIC DIAGRAM can be found on page 35.

1

23456

Figure 16 SCHEMATIC DIAGRAM (1/10)

– 16 –

CD-BA3000

0

42

P

H)

7

/6.3

C41

100/6.3

+B

C23

0.047

C24

2.2/50

C22

100P

R15
10K

CD SIGNAL

R94
10K

R95

EFMO

JITER

DEFECT

R39

470

+B

80

D/A

SLDO

+B

Q2

KRC102M

10K

79 78

FRAME SYNC
DEFECT,PROTECT
EFM DECODE

CLV
CONTROL

SW

AUTO

ADJUST

LASER

27

28

FG(D_Vref)

+B

R22
470

D22

1SS133

FSEQ

1

8

7

R12
680

PDO1

R13
680

PDO2
VVSS

C81

0.022
PCKIST

VVDD

R14

1.2K

SLCIST

SLCO

EFMIN

JITTV
JITTC

PH(RFENV)

VREF

ADAVDD

C29

0.022
ADAVSS

PHREF
BHREF

TBLO

TDO

R44

FDO

1K

R35

1K

TDO

FDO

HFL

1

2
3

PLL
VCEC

4
5

FR

6
7
8

SLICE
LEVEL

9

CONTROL

10
11
12

BH

13
14

FE

15

TE

16

CONTROL

A/DSW

17
18

+

-

19
20
21

S/H

22
23
24

26

25

SPDO

1

R38
270

SLDO

SPDO

6

R21
470

D21

1SS133

R79

1.5M

C21

0.1

R11
12K

R80

1M

C27

0.1

C26

0.047

C28

47/10

2

EFBL

DISC_NO

CONT7

V/vP

77

76

GENERAL

PROCESSEROR

CONT2

CONT1

30

29

R40 1.2K

32

C71 100P
C72 0.01
C73 100P

O/C

C74 100P
C75 100P
C76 100P
C77 100P
C78 100P

R67 1K

R68 1K

CONT6

VSS

74

75

SERVO

GENERAL

CONT4

CONT3

32

31

R46 1K

R45 1.2K

+B

+B

C80

DRF

0.022
VDD5V

73

72

LC78641E

SERVO/SIGNAL

CONTROL

ERROR

CORRECT

CONT5

33

35

34

36

VDD

C2F

PCK

R17 1K

R16
10K

IC2

RES

71

AUDIO

OUT

37

DOUT

FSX

100/6.3

INT

WRQ

70

68

69

INTERFACE

SERIAL

EXTERNAL

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

DIGITAL

1BIT

EFLG

40

39

38

C30

0.022

C31

COMMAND

AUDIO IN

FILTER

DAC

R71 1K
R72 1K
R73 1K
R74 1K
R75 1K
R76 1K
R77 1K
R78 1K

L62

CE

CL

DI

DO

OUT

67

SUBCODE
DECODE
CRC

TEST

66

CLOCK

GENERATOR

9

2.2mH

65

SBCK

64

PW

63

SBSY

62

SFSY

61

16M

60

DATA

59

DATACK

58

LRSY

57

ASDFIN

56

ASDACK

55

ASLRCK

54

XVSS

53
52

XOUT

XIN

51

XVDD

50

RVDD

49

RCHO

48

RVSS

47

LVSS

LPF

46

LCHO

45

C39

LVDD

44

10/16

MUTER

43

MUTEL

42

EMPH

41

+B

L61

0.82µH

C44

0.022

C45

100/6.3

12
11

10

XL1

16.934MHz

R20

220

+B

+B

C34

0.022

R82

2.2K

C38

10/16

R81

2.2K

+B

C56

330/6.3

47

R19

C84

+B

0.001

R87
120

CONSTANT VOLTAGE

Q1

KTC3203Y

+B

ZD61

DZ3.9BSB

C40

0.0015

C43

0.0015

DRF
RES
WRQ
INT
DO
DI
CL
CE

+B

C35

8P

C36
10P

R-CH

1

AGND

+B

DGND

INT
WRQ
DRF
CE
DO
DI
CL
RES

L-CH

+5V

+B

CNP11

CNP5

CNP12

2
3
4
5

1
2
3

1

2
3
4

5
6

7

8

9

10

P19 12 - C

CNS11

TO MAIN PWB

DIGITAL OUTPUT
PWB-A4

D OUT

3

3

+4.3V

2

2

CD GND

1

1

CNS99 BI99

CDINT
WRQ
DRF
CE

P21 10 - A

DO

CNS703

DI

TO DISPLAY PWB

CLK
CD RES
CLAMP SW

GND

TOTX178A

OPTICAL FIBER

DATA LINK

L99

2.2mH

+B

C99

100/10

IC99

0.022

3
2
1

C98

10K

R84

10K

R83

C83

0.022

+B

220

R58

C64

47/6.3

+B

3

+B

+B

• The numbers 1 to 13 are waveform numbers shown in page 36.

7

8 9 10 11 12

Figure 17 SCHEMATIC DIAGRAM (2/10)

– 17 –

GND(D)

DISC_NO

CNS4

O/C

1
2
3
4

M+

5

M-

CNP4

1
2
3
4
5665

BI4

1

2
3
4

6

SW1

OPEN/

CLOSE

SW2

CLAMP

SW3

DISC

NUMBER

+

-

M3

M

T/T

UP/DOWN

MOTOR

CD LOADING
MOTOR PWB-F

CD-BA3000

A

B

C

D

E

F

ERASE HEAD

G

PLAYBACK HEAD

CNP901

P22 2 - G

TO POWER SUPPLY PWB

CHASSIS

R-CHL-CH

PLAYBACK HEAD

R-CH

L-CH

TAPE2

RECORD/

TAPE1

L_CH

1

A_GND

2

R_CH

3

A_GND

4

LVL-CTRL

5

+B

6

GND

7

M_+10V

8

-15V

9

M_GND

10

SP_DET

11

SP_RLY

12

UN_SW 5V

13

+5V

14

AC_RLY CON

15

VF2

16

-VF

17

VF1

18

CNS901

MECHANISM
CHASSIS
EARTH

1
2
3
4
5
6
7

R609
330

+B

C604

0.022

C606
100/16

C607

C644

0.0022

R852

M_GND

R853
22K

A_GND

R870
1K

222324

3

C117

0.033

22K

C860
47/25

C118

0.033

R122
100K

C114
330P

R121
100K

+B

+B

R871
10K

-

+
Hich=T1

+

-

0.1

C611 0.0027

C619 1/50

C621 4.7/50
C623 1/50
C625 1/50

C627 1/50

C629 1/50

C852

0.047(ML)

A_+10V

+B

R854
10K

+B

Q864
KRC102M

3

1

C120
560P

C124

0.0022

R124

C122

3.9K

1/50

21

112K

112K

4 652

R123

3.9K

C119

C121

560P

1/50

R131

5.6K

R605 3.9K

C613

10/50

R607
10K

R611

3.9K

R621

R610

330

+B

+B +B

-B

+B

-B
+B

+B

+B

+B

M_GND

D101
1SS133

D102
1SS133

Q109
KTA1266GR
SWITCHING

C102
560P

CNP101

T1_R

1

1

A_GND

2

2

T1_L

3

3

M_GND

1

ERASE

2

T2_R2

3

A_GND

4

T2_R1

5

T2_L1

6

T2_L2

7

CNP102

C101
560P

C106
180P

C105
180P

R102
1K

R101
1K

Q104
2SC1845F

0V

0V

0V

Q106
2SC1845F

Q105
2SC1845F

0V

0V

0V

Q103
2SC1845F

Q605

KTC3199GR

Q606
KTC3199GR

C850

3300/25

GND

9.3V

9.3V

R112
15K

0.7V

R104

2.2K

R106

3.3K

0.7V

0.7V

R105

3.3K

0.7V

R103

2.2K

+B

2.2K
C635

0.001

C636

0.001

R622

2.2K

C618
1/50

R855

3.3(1/2W)

+B

C109

0.047

R850

3.3
(1/2W)

8.6V

R110

C855

0.1(ML)

R113
10K

4.7K

R109

0V

R107

0V

R612

3.9K

R620
22K

VOLTAGE

REGULATOR

Q851

KIA7810AP

1

C858

0.1(ML)

R114
10K

R108
47K

0V

0V

Q108

KTC3199GR

4.7K

0V

0V

Q107

47K

R613

Q603

KTC3199GR

R614

Q604

KTC3199GR

330

3

2

0V

R115

4.7K

C108

SWITCHING

C107

560P

KTC3199GR

SWITCHING

330

R615

2.2K

C615

0.001
C616

0.001
R616

2.2K

C617
1/50

CONSTANT

VOLTAGE

Q850

KTC2026

KIA7805P

1

SWITCHING

Q110
KRC104M

2

1

0V

0V

2

LVL-CTRL

L

560P

R619
22K

R851

33

C856

0.1

(ML)

Q852

3

2

3.4V
3

1

3

3.4V

Q111

KRC104M
SWITCHING

R120

R

56

R118
1K

1

C111
330P

R117
1K

C115
100/25

R119
56

C851

22/25

C857
47/25

VOLAGE

REGULATOR

C859

0.1

(ML)

L

R155
150

C153
100/16

Q865
KTC3199GR

C116
100/25

C112
330P

L

C113
330P

R111
15K

DI

1

CE

+B

C609

0.1

20

2
3
4
5
6
7
8
9
10
11
12

L

5.6K

R869

R

2

R132

5.6K

R126

5.6K

R134

68K

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

L4

L3

L2

L1

R617
820

R

Q863
KTC3199GR

Q122

KTC3199GR

R136

3.9K

R138

IC101
AN7345K

R868

Q862
KTC3199GR

CCB

INTERFACE

+

-

+

-

IC601

LC75341

AUDIO PROCESSOR

+

-

AUX

DECK

TUNER

CD

C642

0.0033(ML)

C866

0.022

5.6K

R156
220K

0V

0V

MUTING

R140

820

C132

270P

6.8K

1819

17

Hich=CHROME

87

C127

0.022

R137

C123

C128

0.0022

3.3/50

6.8K

C131 270P

R135

3.9K

PLAYBACK AMP.

R139 820

R125

5.6K

IC101: PLAYBACK AND RECORD/

-

+

+

-

+

-

+

-

R878
22K

R879
22K

R880
100K

D861
1SS133

0.7V

R154
10K

R142

100

C136

0.022

C134
22/25

-

+

-

C133
22/25

R141

C135 0.022

CLK

VDD

VREF

ROUT

+

-

RBASS

RTRE

RIN

RSEL0

R4

R3

R2

R1

R576
330

D860
1SS133

D862
1SS133

R874

100K

C864 22/25

C865
47/25

R153
10K

R146

10K

C140

0.0033

C142

47/25

16

56K

Nor/CrO2

56K

ALC

9

100

C141
47/25

R145
10K

C139 0.0033

24
23

C602 22/50

22
21

C610

20
19
18
17
16

C626 1/50

15

C628 1/50

14

C630 1/50

13

R872
1K

R873
1K

C863

22/25

Q121
KTC3199GR
MUTING

0.7V

C145

22/25

C146

1415

RIPPLE

ALC

1110

C608

0.1

0.1
C612 0.002

C620 1/50

C622 4.7/50
C624 1/50

C641

0.0033(ML)

-20dBATT

S_MUTE

R864
150K

7
4

1

R875

100K

IC860

KIA4558P

OPE AMP.

REC_R

0V

0V

R158

220

100/10

13

Vcc

GND

12

+B

C61
10/5

+

5

-

6
8

+

3

-

2

R15
220

11.7V

Q124

2SA1015GR

L103

100µH

R166

22K

0V

R
47

C
0

C
0
(

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 35.

1

23456

Figure 18 SCHEMATIC DIAGRAM (3/10)

– 18 –

CD-BA3000

+B

22/50

608

1

612 0.0027

1/50

4.7/50
1/50

1/50
1/50

1/50

3(ML)

0dBATT

_MUTE

864

50K

+

5

-

6
8

+

3

-

2

IC860
A4558P

E AMP.

R

0V

0V

220

Q124

2SA1015GR

L103

R166

C614
10/50

R157
220K

11.7V

100µH

22K

R167
47K

R608
10K

R606

3.9K

C643

0.0022

R618
820

R860
22K

R637
470K

+B

11.6V

0V

82

R160

11.6V

0V

C154

0.047(ML)

C150

0.0082
(P.P)

C151

0.039(ML)

R862
33K

C862

0.022

R863
33K

C861

0.022

R638
470K

REC_L

R162

47K

SWITCHING

R164

4.7K

1

2

0V

0V

+B

+B

+B

R168

L104

R861
68K

R574
100

+B

0V

0V

3

4.7

330µH

+B

Q126
KRC104M

BIAS

Q128
KTC3203Y

BIAS OSC

C152

47/25

MAIN PWB-A1(1/ 2)

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

VIDEO SIGNAL

FM SIGNAL

R-CH

A_GND

L-CH

CD_+B

BI11

DO

CE

DI

+B

REC/PLAY

1
2
3
4
5

8
6

10

5
2
3
4
9
1
7

M_+10V

29

FFC701

L-ch

JK601

VIDEO IN

R-ch

CHASIS

1
2
3

TO CD SERVO

4
5

CNS11

P25 12 - H

TO TUNER SECTION

P17 12 - D

CNP11

PWB

R631

C631

4.7K

R632

4.7K

4
1

8
7

R587
390K

-B

+B

D562

+B

1SS133

+B

D563
1SS133

C565

2.2/50
R570
100K

+B-B

ZD561
MTZJ6.2C

4

-B

1

+VCC

+B

C578

2.2/50

+B

D565
1SS133

+B

D566
1SS133

SP-DET

C571

C579

-VCC

0.022

2.2/50

+5V

8

7

4
1

8
7

R569

100K

C564

2.2/50

C573

0.022

330

330

R580

R577

R

L

C572

47/25

R590

100K

R589

100K

L-CH 1K

R-CH 1K

SPAN

LCH

S_MUTE

AC_RLY

CON

12 13 14 1511 17 18 1910 16

10KHz

63Hz

SPAN

RCH

63Hz

10KHz

CNS701

P21 1 - D

TO DISPLAY PWB

TUN_SM

CLK

VF2

DICEDO

+B

D_GND

IC561~IC563: OPE AMP.

C561

CD_GND

CNP702

R

L

R563
12K

R562
470K

R

C569

0.022

L

R582 12K

R583
68K

R584
12K

1

270P
C562

R564

270P

33K

C563

0.0068

R567

R561

2.2M

47K

D561

1SS133

C567

0.022

C568

0.022

C570

0.022

C575

R581

0.0027

68K

C576

R586

0.0027

220K

D564

1SS133

+B

5V

UN SW

D_GND

2 3 4 51 7 8 96

R578
150K

R585
220K

R566
220K

C566

0.0068

R575

150K

C574

0.0027

C577

0.0027

M_+10V

-

2

+

3

-

6

+

5

IC562

KIA4558P

-

2

+

3

IC561

KIA4558P

-

6

+

5

-

2

+

3

IC563

KIA4558P

-

6

+

5

R568

2.2M

R573
220K

R579
220K

R565
390K

R588
390K

R633

390P

39K

R634

C632

39K

390P

-VF
VF1

SP_RLY

-20dBATT

22 23 24 2521 27 28 2920 26

T_BIAS

D601
1SS133

D602
1SS133

C603

0.022

CD_GND

TUN_R

A_GND

TUN_L

CLK

D_GND

A_+10V

TUN_SM

T_T1 T2

7

8 9 10 11 12

Figure 19 SCHEMATIC DIAGRAM (4/10)

– 19 –

CD-BA3000

DISPLAY PWB-A2

A

B

C

D

E

CNP702

P19 10 - H

TO MAIN PWB

FFC701

R713
100K

Q710

KTC3199GR

R701
100K

Q701

KTC3199GR

R702

1K

29

1

RS723

29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

CNS701

Q711

1K

Q702

M_+10V
REC/PLAY
T_T1 T2
T_BIAS
SP_RLY

-20dB ATT
VF1

-VF
VF2
CE
CLK
DI
DO
TUN_SM
10KHz
63Hz
SPAN_RCH
SPAN_LCH

S_MUTE
AC_RLY CON
+5V
SP DET
MIC IN

SPN_A
SPN_B
M_+10V
UN_SW 5V
D_GND

R714
100K

KTC3199GR

R704
100K

KTC3199GR

R705

1K

RS724

1K

R715
100K

R716
100K

R719

Q703

KTC3199GR

+B

FL701

Q712

1K

RS725

KTC3199GR

1K

C709

47/50

R724

33

+B

D722

R725

1SS133

10K

R726

D723

10K

1SS133

+B

+B

+B

+B

+B

+B

F

F

F

56 5052 51 434445474849 46 4042 41

C715
47/50

R791
10K

D709

D707

R710

1K

R709

10K

P25

P24

535758

P21

P22

P23

D707,709:1SS133

R708

10K

R707

R732

10K

68K

P20

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57

R794 1K

56

R740 1K

55

R741 1K

54

R742 1K

53

R743 1K

52

R744 1K

51

R747

R706

R733

10K

68K

R777

R712

10K

10K

29

333435373839 36 3032 31

82 83 84 8581 87 88 8986 90 92 93 94 9591 97 98 9996

P5P4P3

P2

VLOAD

P6

80

P7
P8
P9
P10
P11
P12

CD CLAMP SW

51

P13

T2 RUN

50

P14
P15/DIST0
P16/DIST1
P17/DIST2
P18/DIST3
P19
P20
P21
P22
P23 /MOV VOL CONT CLOSE
P24 /MOV VOL CONT OPEN
P25/SPN B
DIST_OUT/SW OUT/SPN A
KOK LATCH
MIC IN
FPB (R_REC)
FPA (F-REC)
T2 PLAY SW_B
T1 PLAY SW_A

SP DET

TI RUN

SP RLY

50

R748

1K

1K

R750 1K

R717 1K

LED722
4204SRT7

R749

10K

+B

R746

10K

P01

P02

P03

P04

P05

P06

P07

P08

P09

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

G11

G15

G14

G12

G13

20

P1

SYSTEM MICROCOMPUTER

VDD

G15

G14

G13

AC RLY_CONT

T_MOTOR

T_SOL 1

TIMER LED

R755 2.2K

R754 2.2K

R753 1.8K

G11

G12

IC701

IX0334AW

SMUTE

T_SOL 2

R758 1K

R756 2.2K

R751

10K

G10

G10

VSS

G08

G09

12131415 11171819 1016

REMOCON

JOG 0

373839 364042 4143444547474849 46

R760 1K

R759 1K

G06

G07

1

VDD

KEY 0

33

KEY 1

32

KEY 2

31

TUN SM / M-BUSY

JOG 1

SYS STOP

R761 1K

R795
10K

G03

G04

G05

-20dBATT

DP REQ

RES OUT

CD CLK

SPEANA3
10KHz

SPEANA2
63Hz

SPEANA1
R
SPEANA0

AVREF

AVDD

L

R762 1K

+B

R757
10K

G01

G02

789 6

100

G1G2G3G4G5G6G7G8G9

S-BUSY

LCK 1
LCK 0

DRF

WRQ

RESET

X2
X1

VPP/IC

XT2

CD INT

VDD

CD DI
CD DO
CD CE

CE

CLK

DI

DO

AVSS

32333435 31

R767 1K

R766 1K

5V BACK

F

3

1
2
3
4
5
6
7
8
9
10
11
12

4.19

13
14
15
16
17
18
19
20
21
22
23
24
25

R77

26

R77

27

R77

28

R77

29
30

R768 1K

R763
R764

R765

2

R

R

R
R
R
R

X

R

R
R
R
R
R
R
R
R

F

+B

+B

TAPE MECHANISM PWB-E

+

MM1

M

TAPE

MOTOR

-

SWM2

T2 PLAY

SOLM2

SOLENOID

SOLM1

G

SOLENOID

SWM4

R. PLAY

SWM1

T1 PLAY

SWM3

F. PLAY

PH1

PH2

FFC702

T2 PLAY

1

1

+5V

2

2

T2 RUN

3

3

+MTR

4

4

SOL2

5

5

SOL1

6

6

R_REC

7

7

T1 RUN

8

8

9

9

10

10

11

11

12

12

13

13

CNS702

T1 PLAY
GND

F_REC

C719
47/25

D712
1SS133

D713
1SS133

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 35.

1

23456

Figure 20 SCHEMATIC DIAGRAM (5/10)

+B

– 20 –

C716

2.2/50

D714

1SS133

Q708
KTA1273Y
MOTOR
DRIVER

Q704
KTA1271Y

Q705
KTA1271Y

C717

2.2/50
R734

1K

470K

+B

SW
CD

+B

SW
DIM

RD
680

SW70
POWE

Q707
KTC3199GR

R738
1K

R739

D715

470K

12V

Q706

10V

10V

10V

1SS133

KTC3199GR

+B

R752
10K

+B

R736
10K

+B

R737
10K

R735

0V

0V

P17 12 - E

TO CD SERVO PWB

CNP12

CD-BA3000

G15

G14

20

P1

G15

G14

AC RLY_CONT

T_MOTOR

TIMER LED

VDD

R754 2.2K

R753 1.8K

G11

G12

G13

G11

G13

G12

IC701

IX0334AW

T_SOL 1

SMUTE

T_SOL 2

R755 2.2K

R758 1K

R756 2.2K

R751

10K

G10

G10

VSS

G08

G09

12131415 11171819 1016

REMOCON

JOG 0

373839 364042 4143444547474849 46

R760 1K

R759 1K

G07

JOG 1

R795
10K

P01

P02

P03

P04

29

3032 31

82 83 84 85 87 88 8986 90 92 93 94 9591 97 98 9996

P4

P3

P2

AD

P6

80

CD CLAMP SW

51

T2 RUN

50

/DIST0
/DIST1
/DIST2
/DIST3

SYSTEM MICROCOMPUTER

/MOV VOL CONT CLOSE
/MOV VOL CONT OPEN
/SPN B
T_OUT/SW OUT/SPN A

K LATCH

IN
B (R_REC)
A (F-REC)
PLAY SW_B
PLAY SW_A

SP DET

SP RLY

R748

1K

R750 1K

R717 1K

LED722
4204SRT7

10K

+B

+B

+B

G02

G03

G04

G05

G06

789 6

-20dBATT

1

VDD

S-BUSY

LCK 1
LCK 0

DP REQ

RES OUT

DRF

WRQ

RESET

VPP/IC

CD INT

VDD

CD CLK

CD DI

CD DO

CD CE

KEY 0

33

KEY 1

32

KEY 2

31

AVSS

TUN SM / M-BUSY

SPEANA3
10KHz

SPEANA2
63Hz

SPEANA1
R
SPEANA0

AVREF

SYS STOP

AVDD

L

32333435 31

R766 1K

R762 1K

R761 1K

+B

R757
10K

G01

100

1

G1G2G3G4G5G6G7G8G9

2
3
4
5
6
7
8
9
10

X2

11

X1

12
13

XT2

14
15
16
17
18
19
20

CE

21

CLK

22

DI

23

DO

24
25
26
27
28
29
30

R767 1K

R768 1K

5V BACK UP

R763 10K
R764 10K

R765 10K

F

2

3

R773 1K

R776 1K

R778 1K
R779 1K

R780 1K
R781 1K

XL701

4.1943MHz

R782 1K

R783 1K
R784 1K
R785 1K
R786 1K
R787 1K
R788 1K
R789 1K
R790 1K

R775 1K
R770 1K

R771 1K
R772 1K

SW719
CD

SW714
DIMMER

RD01
680

SW701
POWER

F

C722
47/50

R769
1K

RD25

680

RD13
680

F

1

SW723
TAPE

SW715
X-BASS

RD02
820

SW702
CLOCK

+B

C723

15P

RD26

820

RD14
820

C724

18P

SW724
TUNING
DOWN

SW703
TIMER/
SLEEP

C725

0.022

C726

470/6.3

+B

+B

+B

RD27

RD28

1K

1.5K

SW725
MEMORY/
SET

SW716
EQUALIZER

RD031KRD05

2.2K

RD04

1.5K

R810
1K

R700

+B

L701
100µH

D716

C727

SW726
PRESET
DOWN

RD06

2.7K

10K

1SS133

0.1/50

RD29

2.2K

RD07

3.9K

C728

0.01

R728

3.9K

R796

47K

SW727
PRESET
UP

RD08

5.6K

Q709:RESET

D717
1SS133

Q709
KRC102M

2

3

1

D718

RD30

2.7K

SW728
PLAY

1

7

R812
1K

1SS133

RD31

3.9K

C729

3.3/50

FW701

R797

100K

SW729
STOP

1

7

CD INT

WRQ(DSP)

2 3 4 51 7 8 96

2 3 4 51 7 8 96

KIA7042AP

3

C730

RD32

5.6K

SW709
DISC 1

DRF

R798

4.7K
IC704

RESET

2

0.022

RD33

10K

RD09
10K

CD CE

CD DO

CD DI

RES OUT

D_GND

CLAMP SW

CD CLK

CNS703

10

10

BI703

R811 1K

LED709
LED710
LED711
LED712

+B

LED709~LED712: SLI325YC
LED722: 4204SRT7

D705
1SS133

D721
1SS133

D720

REMOTE

1SS133

SENSOR

1

RX701

N63H380A

3

2

1

C731

10/50

C732

RD35

RD34

18K

SW731
REC
PAUSE

33K

SW732
TUNING
UP

RD36

100K

SW733
VIDEO/
AUX

SWITCH PWB-A5

RD12

RD11

SW710
DISC 2

RD10
18K

SW711
DISC 3

33K

SW712
DISC
SKIP

100K

IC702: INPUT/OUTPUT EXPANDER

C736
47/16

IC702

1

RS712 1K
RS713 1K
RS714 1K

RS728

1K

RS727

1K

Q715
KTA1271Y

+B

+B

+B

SW734
TUNER
(BAND)

2
3
4
5
6
7
8
9

RS730

680

VSS

DATA
CLOCK
LCK
Q0
Q1

Q2

Q3

C721

A

+B

Q716
KTA1271Y

M+

VOL_UP

0.001

0.022

BU2092F

R799
100

C733
47/25

RS710 1K

JOG PWB-G2

SW713
OPEN/
CLOSE

C737

0.022

VDD

18

__

17

OE

16

Q11

15

Q10

Q9

14

Q8

13
12

Q7
Q6

11

Q5Q4

10

4 3 2 15

4 3 2 15
42332 15

+

VOL_DOWN

1

23

1

BI705B

B

JOG701

M+
M-

M

BI705A

C720

0.001

JOG

Q714
KTA1271Y

RS729
680

Q713
KTA1271Y

BI704

CNS704

CNP704

M701

VOLUME

MOTOR

RS720 1K
RS719 22K

RS718 10K

RS722

1K

RS721

1K

VOLUME MOTOR

PWB-G1

+B

+B

7

8 9 10 11 12

Figure 21 SCHEMATIC DIAGRAM (6/10)

– 21 –

CD-BA3000

R901
1K

R911
33K

C918

2.2/50

R908

390

C912
220P

R904
56K

C914
47P

R910
56K

-

C916

+

+B

47/50

-B

R902
1K

R906

-B

1K

C919

100/100

C920

R959

8.2K

SP DET

R912

100(1/4W)

100/100

Q911
KRC107M

3

R913

100(1/4W)

Fusible

12131415 11171819 1016

Fusible

1

C957

2

3

100/100

Q910
KRC107M

1

R960
10K

+B

C921

100/50

2

C952
220/25

R917

0.1(3W)

C923

0.022(ML)

R921

4.7K

Q902
KTC3199GR

R922

4.7K

C924

0.022(ML)

R918

0.1(3W)

VL+

345

R919

1.5K

R920

1.5K

D910

1SS133

ZD951
MTZJ13B

2

Q901

KTC3199GR

D908
1SS133

VL-

VH-

789 6

-B

C922

100/50

-B

C951

0.022
(ML)

+

A

-

22 21 20

C913
47P

C911
220P

R903
56K

R905
1K

C915

47/50

B

R907

390

R909
56K

C917

2.2/50

C

D

POWER AMP.

VH+

1

D907
1SS133

R943
680(2W)

IC901

STK4113E

R961

R962

47K

47K

VH-

D902
1N4004S

-B

ZD902

MTZJ8.2C

-B

-B

D904
1SS133

D906

1N5402M

VL-

C902
3300/100

R916

3.9K

C904
4700/35

D903
1SS133

-B

R915

3.9K

VL+

C903

4700/35

C901

3300/100

+B

VH+

+B

ZD901

D905

+B

D909
1SS133

MTZJ8.2C

1N5402M

D901
1N4004S

Q904

KTC3199GR

Q903
KTC31

C925

+B

+B

+B

E

+B

-15V
M_GND

+B

+B

12 13 14 1511 17 1810 16

+5V

SP_RLY

SP_DET

UN_SW_5V

-VF

VF2

AC_RLY_CON

CNP901

VF1

F

2 3 4 51 7 8 96

G

L CH

A_GND

R CH

A_GND

+B

LVL_CTRL

GND

M_+10V

CNS901

P18 1 - C

TO MAIN PWB

H

C946

100/6.3

+B

R804
1K

R949

470K

Q802
KTC3199GR

R809

47K

R950

2.2K

D913

1SS133

+B

+B

1SS133

D807

C805

2200/6.3

+B

+B

+B

R801

C804

+B

R803

100

10/16

-B

12K

C820

ZD802
MTZJ6.2A

CONSTANT

VOLTAGE

Q801

AN78L05

1

2

D806

1SS133

D810
D10XB60F

100/35

3

C803

-B

C819

+B

+B

470/35

47/50

R805

+B

D808
1SS133

D804
1N4004S

D805
1N4004S

10

+B

D813
1N4004S

D814
1N4004S

C818

47/50

D802
1N4004S

D803
1N4004S

-B

-B

D809
TS6B04GM

D811
1N4004S

D812
1N4004S

R802

Q803
KTA1274Y

D801
1SS133

C802

0.047(ML)

ZD801

MTZJ36C

2.2K

RL801

T802

POWER

TRANSFORME

C817

1N40

+B

C
0

C
0

220/63

D8

• NOTES ON SCHEMATIC DIAGRAM can be found on page 35.

1

23456

Figure 22 SCHEMATIC DIAGRAM (7/10)

– 22 –

3

C903

4700/35

C901

3300/100

+B

+B

VL+

VH+

ZD901

MTZJ8.2C

D905

1N5402M

+B

D909
1SS133

D901
1N4004S

Q904

KTC3199GR

Q903
KTC3199GR

C925

47/50

+B

L901

0.29µH

R925
10(1/2W)

R927
10(1/2W)

R928
10(1/2W)

R926
10(1/2W)

L902

0.29µH

R923

56K

R929
56K

R930
56K

C927

0.22

C929

0.22

R931

4.7(1/2W)

R932

4.7(1/2W)
C930

0.22
C928

0.22

R942

560(2W)

R941

560(2W)

RL901

D911

1

1SS133

3

2

Q905

KRC107M

CD-BA3000

POWER SUPPLY PWB-B1

FM SIGNAL

SO901
SPEAKER
TERMINAL

L-CH

SPEAKER

6 OHMS

R-CH

R935

4.7(1/2W)

+B

R934

2.2K

R933

2.2K

+B

D912
1SS133

15K

C943
10/50

HP_RLY
M_+10V

HP_L-CH

HP_GND

HP_R-CH

R937

+B

+B

R938

1

5

R939
1K

Q907
KTC3203Y
DRIVER

68K

FW902

C945
47/25

WT601

1
2
3
4
5

CNP903

220

R936

212

CNS903

M901

FAN MOTOR

+

1

M

JK670

HEADPHONES

D814
1N4004S

805
10

04S

S

+B

D813
1N4004S

C818

47/50

D802
1N4004S

D803
1N4004S

-B

-B

D809
TS6B04GM

D811
1N4004S

D812
1N4004S

R802

Q803
KTA1274Y

D801
1SS133

C802

0.047(ML)

ZD801

MTZJ36C

2.2K

RL801

T802

POWER

TRANSFORMER

+B

C813

0.22
C814

0.22

C816

C817

220/63

D817

1N4004S

C811

0.22
(ML)

C812

0.22
(ML)

100/50

D816
1N4004S

D818
1N4004S

C801

0.0047

D815

1N4004S

C815

100/50

C809

0.22

C810

0.22

C821

100/63

5A/125V

+B

F801

HEADPHONES
PWB-A3

3
2
1

CNP803

F804

5A/125V

F805

5A/125V

F806

2A/250V

+B

T801

POWER TRANSFORMER

T.F

+B

+B

CNP801

CNS801

BI801

1

1

1

2

2

2

3

3

3

4

4

4

5

5

5

1

1

1

2

2

2

3

3

3

4

4

4

5

5

5

BI802

CNS802

CNP802

CNS803

BI803

3

3

2

2

1

1

POWER TRANSFORMER PWB-B2

AC POWER SUPPLY

CORD (229)

AC 120V 60Hz

7

8 9 10 11 12

Figure 23 SCHEMATIC DIAGRAM (8/10)

– 23 –

CD-BA3000

TP

SPARE

VSS

AOUT

CL

DI

CE

X IN

X OUT

REG

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

3

3

3

4

5

2

2

2

1

1

1

7

8

9

6

2 3 4 51

1

22 21 20

2 31

222324

OSC BUFF

2

1

3

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

MAIN PWB-A1(2/2)

AM ANT.

AM TRACKING fL

AM BAND
COVERAGE fL

AM OSC.

FM RF

FM IF

FM OSC.

AM

CNP301

FM

AM

R313

33K

C317

0.001

C316

0.022

R311

100K

C315

0.0047

R325
47K

C314

0.0047

R314
22

C312

0.022

T302

R322
680

Q302
KTC3194Y

R327
33

C318
100P

CF303

C381
12P(CH)

X352

4.5MHz

R375
470

R316

4.7K

C382
15P(CH)

R374 1K

R372 1K

R373 1K

R380

1.5K

R381

10K

C393

1/50

R379

C392

C397

0.022

C394
47/16

C3
10

R382
150

T35

C352

10/16

C351

0.022

C350

0.022

R351

5.6K

C361

0.022

C362

3.3/50

R365

10K

C342

0.022

R358

3.9K

C334
27P
(UJ)

R323
68K

T306

C323

0.022

C330
15P

C331

0.047

C332

0.022

R336

10K

C335
560P

VD301
SVC348S

D302
1SS133

D301
1SS133

D303
1SS133

D304
1SS133

C338

0.001

C301

0.001

C303

10P(CH)

BF301

B.P.F

C305

4.7P(UJ)

D305

1SS133

C309

0.001

VD302

SVC211C

C304

0.01

C308

4.7P(UJ)

L312

T303

T301

C307
10/16

C311

18P

R302

10

C324

3.9P(UJ)

C306

0.022

IC301

TA7358AP

FM FRONT END

R309
10K

C310

15P(CH)

IC302

LC72131

VD303
SVC211C

C313
22P(CH)

C319

0.001

A

B

C

D

E

F

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 35.

1

23456

Figure 24 SCHEMATIC DIAGRAM (9/10)

– 24 –

FM SIGNAL
AM SIGNAL

CD-BA3000

+B

+B

382

50

H)

X352

2
(CH)

C342

SPARE

C397

0.022

4.5MHz

R365

10K

0.022

R358

3.9K

R351

5.6K

AM OSC OUT

FM IF IN

C351

0.022

C352

10/16

C394
47/16

R381

10K

C393

22 21 20

VSS

AOUT

X OUT

LC72131

X IN

2 3 4 51 7 8 96

C362

3.3/50

C361

0.022
C363

0.022

C364

10/16

C365

222324 21 20

AM RF IN

VSM

AM LOW CUT

FM AFC

AM OSC IN

REG

AM MIX OUT

2 3 4 51 7 8 96

R352

1K

1

C350

0.022

+B

1/50

IC302

CE

R380

1.5K

DI

T351

AM IF

C392

C380
10/16

CL

0.001

R379

2.2K

AIN

+B

PD

DO

2

C387

VDD

FM IN

FM/AM

IF

3

0.022

L351

100µH

AM IN

CONT

TP

C366

0.001

R350

2.7K

0.022

C367
1/50

IC303

LA1832S

FM IF DET./FM MPX./AM IF

FM/AM OUT

SD

GND

AM IF IN

CF352

C385

0.01

FM/AM

C353

0.022

+B

12131415161819 17

SD

MO/ST

IF IN

1110

47K

R377

C386
330P

ST IND

R376
1K

STEREO

C354

R393

1K

0.022

X351

FM DET

R353

270

CF351

R357

C368

456kHz

171819

MPX VCO

VCC

C399

0.022

+B

R395
47K

R360

4.7K

470K

1/50

16

C398

R356

MPX IN

IF OUT

11

10

C356

0.001

100/10

+B

1K

C369

PHASE

C357

2.2/50

+B

C374

0.015

27P(UJ)

R-CH OUT

R355

3.3K

C355

22P(CH)

R387

5.6K

+B

C373

0.015

C371
1/50

C372
1/50

131415

MO/ST

L-CH OUT

PHASE

12

C358
1/50

R388

3.9K

R359

1.8K

R361

1.2K

R362

1.2K

(FM/AM)

C370

R364

1.8K

1/50

L352
100µH

+B

SWITCHING

Q360

KTA1266GR

R385

5.6K

R384

5.6K

R363

1.8K

+B

C391
47/16

ZD351
MTZJ5.1B

C396
100/10

R392
270

R391

270

R383

5.6K

C395

0.022

+B

R370

1K

R375
470

7

R374 1K

R373 1K

IC302: PLL(TUNER)

R372 1K

R378 1K

R386
22K

+B

+B

C388

0.001

DICED0

+B

123456789 10

CLK

P18 12 - D

TO MAIN SECTION

TUN_SM

A_GND

8 9 10 11 12

Figure 25 SCHEMATIC DIAGRAM (10/10)

– 25 –

D_GND

TUN_R

TUN_L

CD-BA3000

A

B

C

D

E

F

G

ANTENNA

FM/AM LOOP

R-CH

JK601

VIDEO IN

L-CH

MAIN PWB-A1

C301

CNP301

3
2
1

1
2
3

D301

D302

C603

D303

C323

D601

D304

IC301

C304

BF301

C331
C338

C631
R633

C305

1 2 3

C330

R634

R632

R631

D602

9
8
7
6
5
4
3
2
1

C303

T303

C632

C626

R381

C307

R638

C622

C643

C382

C394

L702

R314

L312

C315

C314

C317

VD301

C602

R606

C612

C628

C641

C381

R322

T302

C308

C608

C610

R618

X352

C392

C397

C380

C319

R325

VD302

R316

R336

R323
C332
C335

C620

C624

R379

22 21 20

C393

B C E

R302

C310

C334

C604

C614

C644

R374

2 3 4 51 7 8 96

IC302

L351

R380

R327

C311

C312

D305

C309

R313

C316

C362

C336

T306

24
23
22
21
20
19
18
17
16
15
14
13

C630

R373

R377

T301

Q302

R309

1 2 3

CF303

C613

1
2
3
4
5
6

IC601

7
8

9
10
11
12

C623

R372

C387

C318

VD303

R311

C361

C342

R620

C607

C619

R378

C385

C324

C313

C350
R365

C363

C617

R605

C627

R617

1110

12131415171819 16

R375

R382

C352

C609

C611

C629

R387

C386

R393

3
2

CF352

1

C351

R352

2 3 4 51 7 8 96

R351

222324 21 20

C367

R358

R350

C364

C606

R359
R360

R384

Q360

T351

R370

C618

C642

R386

B
C
E

C353

IC303

C365

R619

R637

C621

C625

R388

R376

C391

R383

C354

C366

R392

C398

C399

C396

R391

R385

131415171819 16

C369

R357

C395

R395

L352

ZD351

CF351

R353

121110

R356

C370

R355

C357

C371

C368

C356

C355

X351

C372

R363

R361

R362

C388

C358

C373

C374

R364

C566

R568
C563
R567

R562

C570

R621

R579

R578

R609

D563

D561

C569

R868

R613

C635

E C B

Q605

R574

R561

R577

Q603

C615

R607

1

13

R864
R860
C862
R862

C565

C573

R583

R584

C564

R569

R588
C576

8

7

IC562

6
5

R56

ZD561

1

8

7

2

6

3

5

4

IC561

Q863

Q862

E

R615

C
B

R611

C636

E C

R610

CNS9

123456

2

D5

D

R5

B

E

R622

R6

H

1

23456

TO PO

P

Figure 26 WIRING SIDE OF P.W.BOARD (1/8)

– 26 –

P29 12 - H

TO DISPLAY PWB

CNS701

CD-BA3000

C566

R568
C563
R567

R562

570

R621

R609

R583

C564

D563

R574

ZD561

D561

R561

R577

R579

8

C569

7
6

5

R578

IC561

R868

Q603

E

C615

R613

C
B

R611

R607

C635

E C B

Q605

123456789

1

C565

R569

8

7

6
5

C636

R864
R860
C862
R862

IC562

R615

E C B

R610

CNS901

2468

13579

R861

8

7

6
5

D860

R872

R590

D566
C573
R584

C577

R588
C576

R585

D562

R563

C561

1
2
3

C562

4

R566

C572

R580

R573

1

C567

2

R575

3
4

C568

C571

B C E

Q863

E C B

Q862

C616

R622

R616

B C E

R612

R608

Q606

10111213 1415 16 1718

CNP702

10 12 14 16 18 20 22 24 26 28

11 13 15 17 19 21 23 25 27 29

R873

D862

IC860

R871

C578

1
2
3
4

Q865

C861

E
C
B

R880

C865

R863

C864

C863

1
2
3

Q864

R587

R582

C575

1

8

2

7
6
5

IC563

3
4

R586

R581

C574

R589

C579

D564

R564

R570

R565

R879

R576

R878

R869

Q604

R614

C866

FFC701

29

BI11

1

5

R874

D861

R875

R870

D565

C118
R122

R134

R126

R156

R136

R142

E C B

R154

Q852

Q122

1 2 3 1 2 3

Q851

C858

C859

C860

R854

R120

C116

R105

C120
C122

R132
C124

R855

Q106

B C E

Q104

R103

B C E

Q103

B C E

R111

R124

R112

C134

R146

B C E

R153

Q121

C850

R106

B
C
E

C142

C136

R853

C855

B C E

R104

C114

C140
R140

C856

C857

Q128

R167
R166

R160

Q105

R119

Q109

C154

C105

C106

R118

24
23

C112

22
21
20
19
18
17
16
15
14

R138

13

C146

B C E

Q850

C109

E C B

R168

C150

CNP102

1

Q108

2
3
4

C108

5
6
7

R102

C113

IC101

C132

R850
R851

R113

R115

C153
R155

C151

R108

E C B

E C B

Q107

1
2
3
4
5
6
7
8

9
10
11
12

C141

C852

R852

RD

WH

GY

WH

GY

C107
R117

C111

C145

CNS11

1
2
3
4
5

R114

L104

C121

C131

R137

C139

R145

Q110

3 2 1
3 2 1

1 2 3

R164

C102

C128

R158

C851

R110

CNP101

C127

P32 4 - A

CNP11

TO CD SERVO

Q111

L103

E

Q126

C
B

R162

R109

R101

C101

3

R107

2
1

R121

C119
R123

C117

R125

R131

C133

R139

R141

R135

C135

D102

D101

PWB

R157

C115

TO TAPE2 RECORD/

PLAYBACK/ERASE HEAD

Q124

P33 11 - E

C152

C123

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

P33 10 - E
TO TAPE1

PLAYBACK HEAD

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNP901

P30 6 - A

TO POWER SUPPLY

PWB

7

8 9 10 11 12

Figure 27 WIRING SIDE OF P.W.BOARD (2/8)

– 27 –

CD-BA3000

A

FW701

1

7

SW713

LED715

SW711

RD10

LE

RD11

FW701

1

Q713

E C B

B

BI704

GY

WH

GY

WH

RD

C

RS710
RS712
RS713
RS714

D

Q716

E C B

Q714

B C E

Q715

RS729

E
C
B

C736

IC702

5

15

R810

18

10

R811

1

9

7

1

5

E

Q705

R737

B C E

F

G

Q708

B

E

C

C

R736

Q704

E

B

R752

113

TO TAPE MECHANISM PWB

RD08

RS721

RS728

RS730
RS722

RS727

RD06

C737

RS720

RS719
RS718

R812

C719

24681012

135791113

RD07

C716

CNS702

P33 9 - A

R701

RD04

R714

RD05

Q707

B C E

R735

D714

R739

R738

R716

R704

R715

R713

R732

FFC702

Q712

E C B

E C B

C709

C726

C722

D715

R734

E C B

Q706

C717

R706

R733

Q703

E C B
E C B

Q702
E C B
E C B

RD36

D712

Q711

R782

D713

Q701

Q710

R784

R783

SW734
TUNER

R777

R724

RS723
RS724
RS725

R702
R705
R719

C725

R773

R776

C723

R778

R779

R785

SW733

VIDEO/AUX

R780

R786

RD35

C724

DISPLAY PWB-A2

GY

1

WH

2

GY

3

WH

4

RD

5

CNS704

R781

R787

R709

XL701

R788

R707

RD34

9876321

95

100

1

5

10

R770

R790

R789

LED711

R775

SW732
TUNING/
TIME

CNP704

R746

SW731
REC/
PAUSE

1
2

1

3
4

BI705A

5

+

M701

VOLUME MOTOR

85

90

IC701

15

20

R771

SW727
PRESET

3

—

8081

75

25

30 31

R772

R768

R708

70

65

35

60

45

40

RD30

SW728
PLAY

55

WH

FL701

R761

BK

RD

51
50

R760

R717
R750

R756

LED710

R794
R740
R741

R755

JOG

R754

333323130292019181716151413121110

R

R753

R757

R795

SW7
STO

LED722

1

BI705B

3

A

H

VOLUME MOTOR
PWB-G1

1

23456

Figure 28 WIRING SIDE OF P.W.BOARD (3/8)

– 28 –

CD-BA3000

D11

4
0
1

R754

LED714

R753

R742

SW710

R743

R747

RD09

R726
R725

R744

D709

R791

LED713

D707

SW709

D722

D723

L701

R751

R767

RD12

R758

585756535251504948474645444342414039383736353433323130

D718

SW712

D717

D716

C732

C730

R796

3 2 1

3 2 1

C731

3 2 1

C727

C715

C729

R797

Q709

R762

R799

C733

R798

C728

R728

RX701

IC704

R763

R764

R748

R759

R749

RD03

SW701
POWER

RD02

R766

RD01

SW702
CLOCK

SW703
TIMER/
SLEEP

SW714
DIMMER

R769

D720

SWITCH PWB-A5

CNS701

BI703

10

1

13579

2468

10121416182022242628

11131517192123252729

CNS703

RD

BK

WH

BK

WH

BK

WH

BK

WH

234567 8910

BK

1

D721

D705

R710

R700

P32 5 - A

TO CD SERVO

PWB

CNP12

LED709

R757

R795

RD33

SW729
STOP

LED722

1

3

RD32

C720

BI705B

C721

AB

JOG701

JOG

RD31

RD29

RD28

JOG PWB-G2

LED712

SW726

PRESET

SW725
MEMORY
SET

SW724
TUNING/
TIME

R712

RD27

RD25

RD26

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

SW719

CD

SW723
TAPE

BROWN

ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

RED

PINK

R765

RD13

SW716
EQUALIZER

29

SW715
X-BASS

TO MAIN PWB

RD14

1

FFC701

CNP702

P27 7 - A

7

8 9 10 11 12

Figure 29 WIRING SIDE OF P.W.BOARD (4/8)

– 29 –

CD-BA3000

POWER SUPPLY PWB-B1

P27 7 - H

TO MAIN PWB

CNS901

A

B

C

D

E

F

G

L-CH

SO901
SPEAKER
TERMINAL

R-CH

M901

FAN MOTOR

RD
BR

COLOR TABLE

BROWN

BR

OR

YL

GR

BL
VL
GY

BK
PK

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

RD(R)

WH(W)

CNS903

2
1

Q904

R923

Q905

1
2
3

R933

+

–

–

+

Q907

R938

R939

B
C

CNP903

E

2
1

C945

F801

5A / 125V

R937

R963
R935

C943

D912

3

1

R934

BI803

BR

RD

E
C

B

B

C

R931

E

Q903

RL901

D808

D806

D805

T802

POWER

D803

C802

C929

1

5

D802

C925

TRANSFORMER

C927

D804

R929

D911

BI801

Q801

C803

C805

R932

R930

3 2 1

C804

L902

C930

C928

C901

D807

R809

E C B

D801

C801

L901

Q910

R801

RL801

BL
OR
OR
RD
RD

R804

Q802

D910

1 2 3
1 2 3

Q911

R942

R941

R927
R925
R928

R926

D907

D908

R959

R960

1 2 3 4 5 6 7 8 9

R916
R915

ZD902

D904

C921

D909

ZD901

D903

D901

C812

B
C
E

B
C
E

123456789

R920

C923

Q901

Q902

C957

D905

R918

R922

C924

IC901

10 11 12 13 14 15 16 17 18 19 20 21 22

R913

R912

C922

D906

C902 C903

C811

D810

101112 13 1415 1617 18

R917

R919

R921

BL
OR
OR

RD

RD

CNP901

C919

C920

R911

CNS801

R906

D902

1
2
3
4
5

R961
R962

R904

C912

C809

R901

R902

C914

R903

WH

AC POWER SUPPLY CORD (229)
AC 120V,60Hz

BK

H

1

23456

RD

BW

CNS803

1

2
3

Figure 30 WIRING SIDE OF P.W.BOARD (5/8)

– 30 –

P27 7 - H

TO MAIN PWB

CNS901

CD-BA3000

R919

R912

C922

R917

CNP901

101112 13 1415 1617 18

R961
R962

C919

R921

C920

R904

C912

R906

R911

D902

R902

C914

C809

R903

R901

C913

D809

D913
R950

C915

C911

C916

C810

123456789

R920

C923

R918

R922

Q902

C924

IC901

8 9

10 11 12 13 14 15 16 17 18 19 20 21 22

R913

D906

C902 C903 C904

C811

D810

C917

R905

C918

R909
R907
R908
R910

C946

R949

ZD951

C951

LG901

E
C

Q803

B

C818

D817
D815

D816
D818

C952

R802

C817

ZD801

R943

C819

C815

C821

FW902

D813

C814

R803

ZD802

R805

BI802

C816

D814

1

5

D811

C813

D812

51

C820

12345

WT601

JK670

HEADPHONES

HEADPHONES
PWB-A3

RD

GYWHGY

WH

54321

CNS802

RD

BW

BL
OR
OR
RD
RD

CNS803

1

2
3

CNS801

POWER TRANSFORMER PWB-B2

F806

2A / 250V

T801

F804

CNP803

5A / 125V

F805

5A / 125V

1
2
3
4
5

1
2
3
4

5

CNP801

1

2
3

POWER TRANSFORMER

T.F

12345

CNP802

7

8 9 10 11 12

Figure 31 WIRING SIDE OF P.W.BOARD (6/8)

– 31 –

CD-BA3000

P27 9 - A

TO MAIN PWB

CD SERVO PWB-C

5

A

C52

C51

C53

CNP2

E C B

8
7
6
5
4
3

R50

2
1

7
6
5

4
3
2
1

CNP1

B

13

4

C

2

1

C46

5

IC3

10

D

R48

C49

15

20

21

C50

Q3

R55

C55

R52

30

C7

40

35

25

R53

42

22

C8

C54

R51

R56

R47

1

5

10

15

C6

R54

R96

C47

C45

IC1

C44

R25

30

25

20

16

CNP3

CNS11

R4

R44

R35
R39

1 2 3

Q2
R17

R16

1 2 3 4 5

CNP11

R7

C18

R42

C14

C13

R3

C26
C27

C28

C29

D21

D22

R46

R5

R6

C83

R8

R21

C41

R38

R22

C11

C17

C20

R40

C64

ZD61

R10

R15

C42

C82

R95

CNP4

R58

C22

R45

6 5 4 3 2 1 6 5 4 3 2 1

P29 12 - D

TO DISPLAY PWB

CNS703

C12

Q1

B C E

L62

R14

C21

R80

C25
R11

C81

15

20

24

25

30

35

C30

C31

R94

BI1A

2

10

40

C56

1

CNP12

R19

C24

R13

5

IC2

45

41

R87

R79

1

C84

C39

R71

C23

50

C71

80

C38

R78

75

C78

55

R73

R12

70

C73

60

R74

R75

C74

L61

C34

R81

BI1B

C75

C80

65
64

R20

C43

1 2 31 2 3 4 5 6 7 8 9 10

R76

R82

R83

R77

C76

R67
R68

XL1

C40

CNP5

2

R72

C77

C36

R84

1

C72

8
7

3
12
11

C35

10

9

E

F

G

1
2
3

H

CNS99

WH

CNS1A

RD

1

WH

2

BK

3

WH

4

PK

5

YL

6

BL

7
1

2
3
4
5
6
7
8

WH
PK
BK

PK
BK

BI99

GY

RD
WH
GY
WH
GY

WH
GY

WH

L99

1

C99

3

C98

1 6

CNS1B

RD

1

WH

2

BL

3

PK

4

WH

5

YL

6

BK

7
1

2
3
4
5
6
7
8

CNS2BCNS2A

3
2
1

DIGITAL OUTPUT
PWB-A4

PICKUP UNIT(306)

17

8

OPTICAL FIBER

1

IC99

DATA LINK

CNS3A

CNS3B

-

6

WH

6

6

CNP3A

PICKUP IN

+

GR

SW4

12345

RD

GR

WH

WH

12345

CD MOTOR
PWB-D

12345

-

M1

SPINDLE MOTOR

M2

SLED MOTOR

+

• The numbers 1 to 13 are waveform numbers shown in page 36.

1

23456

Figure 32 WIRING SIDE OF P.W.BOARD (7/8)

– 32 –

CD-BA3000

TAPE MECHANISM
ASSEMBLY

SOLENOIDE SOLENOIDE

PH

TO DISPLAY PWB

1

1

SW

P28 2 - H

CNS702

3

56789

2

4

101112

FFC702

13

13

1

SW

4

MM1

TAPE MOTOR

B

A

+

-

TAPE 1

PLAYBACK HEAD

WH

BK

PK

GY

TAPE MECHANISM PWB-E

RECORD/PLAYBACK HEAD

TAPE 2

ERACE HEAD

WH

RD

SW

PH

TAPE 2

YL

BL

WH

BK

WH

SW3

DISC

NUMBER

456

WH

BI4

BK

WH

123

RD

CNS4

16

+

M3

T/T UP/DOWN

MOTOR

PK

BK

WH

21

3

CNP101

P27 11 - D

TO MAIN PWB

CD LOADING MOTOR
PWB-F

–

SW1

OPEN/

CLOSE

SW2

CLAMP

WH

WH

1234567

CNP102

P27 12 - C

TO MAIN PWB

RD

YL

COLOR TABLE

BROWN

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

BL

7

8 9 10 11 12

Figure 33 WIRING SIDE OF P.W.BOARD (8/8)

– 33 –

CD-BA3000

IC1

PIN

VOLTAGE

NO.

1.6V

1

1.6V

2

1.6V

3

1.6V

4

1.6V

5

1.6V

6

0V

7

2.6V

8

0V

9

0V

10

0V

11

3.3V

12

1.6V

13

1.6V

14

1.6V

15

0V

16

0V

17

1.6V

18

1.6V

19

1.6V

20

1.6V

21

1.6V

22

0V

23

1.6V

24

0V

25

0V

26

0V

27

1.6V

28

1.6V

29

3.3V

30

IC3

PIN

VOLTAGE

NO.

1.6V

1

1.6V

2

1.8V

3

2.1V

4

2.1V

5

2.1V

6

2.1V

7

0V

8

0V

9

0V

10

0V

11

0V

12

0V

13

0V

14

2.1V

15

2.1V

16

1.6V

17

4.9V

18

3.5V

19

1.6V

20

0V

21

0V

22

4.9V

23

4.9V

24

1.6V

25

2.1V

26

2.1V

27

1.9V

28

0V

29

0V

30

0V

31

0V

32

0V

33

0V

34

0V

35

4.2V

36

0V

37

2.1V

38

2.1V

39

4.9V

40

2.1V

41

2.1V

42

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

1
2
3
4
5
6
7
8
9

IC2

VOLTAGE

0.7V
0V
0V
0V

3.3V

2.4V
0V
0V

1.6V
0V

4.7V

1.7V
0V

1.6V

1.6V

1.6V

1.6V

3.3V
0V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V
0V
0V

2.1V

2.1V
0V

3.3V

3.5V

3.3V

3.3V

3.3V

1.6V

1.6V
0V
0V

3.3V

3.3V

3.0V

1.5V
0V
0V

1.5V

3.0V

3.3V

1.8V

3.0V
0V
0V
0V
0V

1.7V

3.3V
0V

3.0V

1.6V
0V

2.4V
0V
0V
0V
0V

4.8V

4.9V

4.9V

4.6V
0V

4.9V
0V
0V
0V

3.2V
0V
0V

3.4V

PIN
NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

PIN
NO.

1

2

3

4

5

6

7

8

9

PIN
NO.

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22

IC101

VOLTAGE

0V (0V)
0V (0V)

0.5V (0.5V)

1.9V (1.9V)
0V (0V)
0V (0V)
0V (0V)

0.6V (0.6V)

3.3V (3.3V)

3.3V (3.3V)
0V (0V)
0V (0V)

6.7V (6.7V)

4.0V (4.0V)
0V (0V)

3.3V (3.3V)

0.6V (0.6V)
0V (0V)
0V (0V)
0V (0V)

1.9V (1.9V)

0.5V (0.5V)
0V (0V)
0V (0V)

IC301

VOLTAGE

0.8V (0V)

1.5V (0V)

3.6V (0.4V)

1.5V (0V)
0V (0V)

3.6V (0.4V)

2.8V (0.2V)

3.5V (0.3V)

3.6V (0.3V)

IC302

VOLTAGE

2.4V (2.4V)
0V (0V)
0V (0V)
0V (0V)

2.9V (2.9V)

4.8V (4.9V)

0.1V (9.9V)

4.2V (0V)

3.3V (0V)
0V (3.9V)

5.1V (5.1V)

2.2V (0V)

5.0V (5.0V)
0V (0V)
0V (2.4V)

2.3V (0V)

5.0V (5.0V)

0.6V (0.8V)

0.8V (1.8V)

2.0V (1.0 V)
0V (0V)

2.5V (3.0V)

VOLTAGE

IC303

PIN

VOLTAGE

NO.

2.1V (2.1V)

1

4.5V (4.8V)

2

2.1V (2.1V)

3

2.1V (2.1V)

4

0V (0V)

5

4.6V (4.9V)

6

4.6V (4.9V)

7

2.4V (3.2V)

8

4.5V (4.8V)

9

3.9V (0V)

10

3.3V (1.8V)

11

3.3V (1.1V)

12

3.5V (2.0V)

13

1.2V (1.2V)

14

1.2V (1.2V)

15

2.0V (2.0V)

16

2.7V (0V)

17

2.1V (0.9V)

18

0V (1.9V)

19

0.3V (0.9V)

20

2.6V (2.0V)

21

2.6V (2.0V)

22

4.5V (4.8V)

23

3.0V (3.3V)

24

IC561

PIN

VOLTAGE

NO.

13.1V

1

13.1V

2

1.3V

3

0V

4

1.3V

5

13.1V

6

13.1V

7

18.3V

8

IC562

PIN

VOLTAGE

NO.

13.0V

1

13.0V

2

12.8V

3

0V

4

12.8V

5

13.0V

6

13.0V

7

18.3V

8

IC563

PIN

VOLTAGE

NO.

13.1V

1

13.1V

2

1.4V

3

0V

4

1.4V

5

13.1V

6

13.1V

7

18.3V

8

IC860

PIN

VOLTAGE

NO.

–6V

1

2V

2

0.6V

3

–7.6V

4

0V

5

0V

6

0V

7

6.3V

8

PIN

VOLTAGE

NO. NO.

4.6V

1

4.6V

2

4.6V

3

0V

4

0V

5

0V

6

4.6V

7

0V

8

4.9V

9

4.7V

10

4.9V

11

2.6V

12

0V

13

0V

14

4.8V

15

4.6V

16

4.6V

17

0V

18

4.9V

19

0V

20

0V

21

0V

22

0V

23

4.8V

24

0V

25

0V

26

0V

27

0V

28

0V

29

0V

30

4.9V

31

5.0V

32

4.9V

33

4.6V

34

5.0V

35

4.9V

36

4.9V

37

0V

38

4.8V

39

0V

40

1.9V

41

9.1V

42

9.1V

43

0V

44

3.8V

45

4.6V

46

4.5V

47

4.5V

48

4.9V

49

3.0V

50

PIN

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

IC702

IC701

PIN
NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18

VOLTAGE

0V
0V
0V
0V
9V
9V
9V
5V
9V
0V
9V
0V
5V

1.8V
9V
9V
0V
5V

PIN
NO.

PIN
NO.

PIN
NO.

VOLTAGE

Q851

VOLTAGE

1
2
3

Q850

VOLTAGE

1
2
3

Q852

VOLTAGE

1
2
3

4.9V
0V
0V

4.9V

4.9V

4.9V

4.9V
0V

34.3V

–20.1V
–16.4V
–12.2V
–16.5V
–14.2V
–31.9V
–29.7V
–31.9V
–29.7V
–18.5V
–29.7V
–27.5V
–29.8V
–18.8V
–18.8V
–27.7V
–23.4V
–23.1V
–20.9V
–34.1V
–18.9V
–28.7V
–26.0V
–29.8V
–27.6V
–29.7V
–20.6V
–20.5V
–31.9V
–31.8V
–31.8V
–32.0V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V
–31.9V

20V
0V
10V

10V
20V

9.5V

20V
0V

5.0V

PIN
NO.

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22
23

1
2
3

1
2
3
4
5
6
7
8
9

IC704

VOLTAGE

5.0V
0V

5.0V

IC901

VOLTAGE

77.6V
0V
37V
37V
37V

–23V
–37V
–77V

0V
0V
0V
0V

3.1V
0V
0V
–75V
75V
0V
0V
–75V
0V
0V
0V

– 34 –

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

CD-BA3000

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

( ) indicates AM
< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

REF. NO DESCRIPTION POSITION POSITION

SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW702 CLOCK ON—OFF
SW703 TIMER/SLEEP ON—OFF
SW709 DISC-1 ON—OFF
SW710 DISC-2 ON—OFF
SW711 DISC-3 ON—OFF
SW712 DISC SKIP ON—OFF
SW713 OPEN/CLOSE ON—OFF
SW714 DIMMER ON—OFF

REF. NO DESCRIPTION

SW715 EQUALIZER ON—OFF
SW716 X-BASS ON—OFF
SW719 CD ON—OFF
SW723 TAPE ON—OFF
SW724 TUNING/TIME DOWN ON—OFF
SW725 MEMORY SET ON—OFF
SW726 PRESET DOWN ON—OFF
SW727 RESET UP ON—OFF
SW728 PLAY ON—OFF
SW730 STOP ON—OFF
SW731 REC/PAUSE ON—OFF
SW732 TUNING/TIME UP ON—OFF
SW733 VIDEO/AUX ON—OFF
SW734 TUNER ON—OFF

FRONT

VIEW

FRONT

FRONT
VIEW

VIEW

E C B

(S) (G) (D)

(1) (2) (3)

KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1274 Y
2SC1815 F

KTA1273 Y
KTC3203 Y
KTC3199 GR
KTC107 M
KTC3194 Y
2SA1015 GR

BCE

KTC2026

Figure 35 TYPES OF TRANSISTOR AND LED

– 35 –

4204SRT7
SLI325YC

CD-BA3000

T

T

EFBL

FDO

TE

Stopped

CH1=500mV

DC 10:1

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2k

Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2
v/DIV
200mV

1999/04/05 20:26:47

1

IC2 24

4

IC1 18 ,
IC2 16

IC1 13 ,
IC2 22

13

T

T

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K
Zoom : 100

Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3
v/DIV
2 V

1999/04/05 20:50:17

10

IC2 57

IC2 58

IC2 59

11

12

T

T

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

1

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K
Zoom : 100

Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

9

IC2 37

T

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

4

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1999/04/05 17:33:17

1

IC2 24

7

IC2 1

8

IC2 2

1

2

1

3

4

IC2 24

IC2 23

IC2 24

IC2 72

IC1 18 ,
IC2 16

Stopped

CH1=500mV

DC 10:1

T

FDO

1

TDO

3

Smoothing : ON CH1 : 0.000V
BW : FULL

T

Smoothing : ON CH1 : 0.000V
BW : FULL

CH2 : 0.0V
CH3 : 0.000V
CH4 : 0.00V

Stopped

CH1=500mV

DC 10:1

FDO

1

DRF

2

TE

3

-3div -1div 0div +1div +3div

CH2 : 0.0V
CH3 : 0.00V
CH4 : 0.00V

CH2=10V

DC 10:1

CH Position To

CH3=500mV

DC 10:1

=Record Length=

Main : 100K
Zoom : 2K

CH3=1V

DC 10:1

=Record Length=

Main : 100K
Zoom : 2K

WAVEFORMS OF CD CIRCUIT

500ms/div

(500ms/div)

NORM:20kS/s

CH1
v/DIV
500mV

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us

500ms/div

(500ms/div)

NORM:20kS/s

CH2
Position

0.20div

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us

IC1 27

5

IC1 18 ,

4

IC2 16

IC2 72

3

IC2 24

1

IC2 25

6

DC 10:1

DC 10:1

T

CH2=1V

DC 10:1

CH2 : 0.00V
CH3 : 0.00V
CH4 : 0.00V

T

CH2=500mV

DC 10:1

CH2 : 0.000V
CH3 : 0.00V
CH4 : 0.00V

Stopped

CH1=10V

TE

2

DRF

T
1

=Filter= =Offset=
Smoothing : ON CH1 : 0.0V
BW : FULL

Stopped

CH1=200mV

T

FDO

2

SPDO

1

=Filter= =Offset=
Smoothing : ON CH1 : 0.000V
BW : FULL

=Record Length=

Main : 100K
Zoom : 2K

=Record Length=

Main : 100K
Zoom : 2K

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

100ms/div

(100ms/div)

NORM:100kS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us

1999/04/07 09:51:15

500ms/div

(500ms/div)

NORM:20kS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us

– 36 –

CD-BA3000

TROUBLE SHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

HOW TO USE

1.

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.

2.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.

3.

You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to turn, press the stop button.

Cleaning fluid

CAUTION

The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rinse with clean water and seek medical
advice.
The CD cleaner disk must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved.Unauthorized duplicating, broadcasting and renting this product is
prohibited by law.

Cleaner disc

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.934 MHz) and the status of the RESET terminal
(pin 71 on IC2).
(2) Does the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others

– 37 –

CD-BA3000

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

5

IC1 27

T

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us

CH3 : 0.000V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1

IC2 24

2

IC2 23

(1) Focus-HF system check

Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.

Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.

1. Does the pickup move to the PICKUP-IN Switch (SW4)
position?

Yes

No

Figure 38-1

Sled motor (M2)

2. Does the focus (lens) move up and down?

(Waveform drawing Figure 38-1).

Yes

3. Is the laser lit?

Yes

4. Is the turntable rotating?

When a disc is loaded, start playback operation.

1. Is focus servo activated? (Waveform drawing Figure 38-2)

Yes

No

2. Does DRF change from "L" to "H"?

Is the disc rotating?

Yes

3. Is the HF waveform normal? (Waveform drawing
Figure 38-3)

No

No

No

No

No

Check the focus peripheral circuit.

Check the laser diode driver Q3 peripheral circuit.

Spindle motor (M1).

Pins 1~11 on IC1
Check the laser diode driver Q3 peripheral circuit.
Focus error circuit (pins 20 and 21 on IC1)

No

Check the spin system.

If the disc is spinning and a HF waveform is generated,
DRF will go H.

If the level is not normal, check around pins 27~29 on IC1.

1

3

4

IC2 24

IC2 72

IC1 18 ,
IC2 16

Stopped

CH1=500mV

FDO

1

T

DRF

2

TE

3

-3div -1div 0div +1div +3div

Smoothing : ON CH1 : 0.000V
BW : FULL

DC 10:1

CH2=10V

DC 10:1

CH Position To

CH2 : 0.0V
CH3 : 0.00V
CH4 : 0.00V

CH3=1V

DC 10:1

=Record Length=

Main : 100K
Zoom : 2K

Figure 38-2

500ms/div

(500ms/div)

NORM:20kS/s

CH2
Position

0.20div

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us

Figure 38-3

– 38 –

T

T

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

T

T

TE

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

(2) Tracking system check

Check the TE waveform at pin 18 on IC1.

CD-BA3000

If the waveform shown in Figure 39-1 appears and soon after
NO DISC appears.

No

"Initialization" is possible, but play is not possible.

No

"Initialization" is not possible.

Yes

Yes

The tracking servo is not activated.
Check the peripheral circuits at pins 18 and 19 on IC1, pin 23 on
IC2, and CNS1A/B.

A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 23 on IC2.

Data cannot be read. Check the VCO-PLL system.

(3) Spin system check

Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.

1. The turntable rotates a little. (Waveform drawing
Figure 39-2)

No

2. The turntable doesn't rotate.

Figure 39-1

The spin driver circuit is OK.

Yes

Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.

Figure 39-2

– 39 –

CD-BA3000

T

T

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

1

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K
Zoom : 100

Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

T

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

4

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1999/04/05 17:33:17

(4) PLL system check

When a disc is loaded, start play operation.

The HF waveform is normal, but the TOC data cannot be
read.

Check the PDO waveform. (Figure 40-1)

Check around pins 1~6 on IC2.

(5) Others

The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound
has dropouts.

Is pin 35 (C2F) on IC2 "L"?

Yes

1. When playing at normal speed
Check the peripheral circuit at pin 37 (DOUT) on IC2 and
the waveform (Figure 40-2).

If 1. is OK.

No

Figure 40-1

There are too many error flags on a damaged disc which
makes error correction impossible.

Check again using a known good disc.

Figure 40-2

– 40 –

FUNCTION T ABLE OF IC

IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)

CD-BA3000

1 30FIN1 VCC

REF

FIN2

2

REF

3FIN3

REF

FIN4

4

REF

5REF1

REF

6VREF

TESI

7LDS
8LDD

9VEE
10LDOF
11ODRV
12AGON
13EFBL
14TESO
15

APC

ODRV
AGCON

LPF

LA9235M

REF
REF

ODRV

REF

AGCON

PH

BH

PH/BH

REF

LPF

REF

LPF

REF
REF

REF

ODRV

REF

REF

29

RFSW

28 RF-

27

RF
26 N/C
25 PH
24 BH
23 N/C

22 RFEV

21 FE­20 FE

19 TE­18 TE
17 HFL

16

TES

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)

EFMO

DEFECT

FSEQ

V/P

CONT7

CONT6

VSS

VDD

DRF

807978777675747372717069686766

PDO1

1

PDO2

2

VVSS

3

PCKIST

SLCIST

PH(RFENV)

ADAVDD

ADAVSS

PHREF
BHREF

VVDD

FR

HFL

SLCO

EFMIN

JITTV
JITTC

BH

FE
TE

VREF

TBLO

TDO
FDO

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

4
5
6
7
8
9

LC78641E

RES

WRQ

INTDODICLCE

65

64
63
62
61
61
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

SBCK
PW
SBSY
SFSY
16M
DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
XVSS
XOUT
XIN
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD
MUTER
MUTEL
EMPH

25

26

27FG28

29

SLDO

SPDO

LASER

CONT130CONT2

313233

CONT3

CONT4

CONT5

34

PCK

35

C2F

36

VDD

37

DOUT

Figure 41 BLOCK DIAGRAM OF IC

– 41 –

38

FSX

39

TEST

EFLG

40

CD-BA3000

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)

Pin No.

1 PDO1 Output – For PULL Phase-comparison output terminal for built-in VOC control.
2 PDO2 Output – Phase-comparison output terminal for built-in VOC control.

3 VVSS –– Ground terminal for built-in VCO.
4 PCKIST AI – Resistor terminal for setting the PDO output current.
5 VVDD –– Power terminal for built-in VCO.
6FR AI – Resistor terminal for setting the VCO frequency range.
7 HFL Input – Mirror detection signal input terminal.
8 SLCIST AI – For slice level control

9 SLCO Output – Control output.
10 EFMIN Input – EFM signal input terminal.
11* JITTV Output Unfixed Jitter detection/monitor terminal.
12 JITTC Output – Jitter detection/adjustment terminal.
13 BH Input – BH signal input terminal. A/D input.
14 PH(RFENV) Input – PH signal or RFENV signal input terminal. A/D input.
15 FE Input – FE signal input terminal. A/D input.
16 TE Input – TE signal input terminal. A/D input.
17 VREF Input – VREF signal input terminal. A/D input.
18 ADAVDD ––AD for servo, D/A power terminal.
19 ADAVSS ––AD for servo, D/A ground terminal.
20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.
21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.
22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.
23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.
24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.
25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.
26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.
27* FG Input – FG signal input terminal. (When not used,connect to 0V)
28 LASER Output L LASER ON/OFF control terminal.
29 CONT1 In/Output Input mode General purpose input/output terminal 1.
30 CONT2 In/Output Input mode General purpose input/output terminal 2.
31 CONT3 In/Output Input mode General purpose input/output terminal 3.
32 CONT4 In/Output Input mode General purpose input/output terminal 4.
33 CONT5 In/Output Input mode General purpose input/output terminal 5.
34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218MHz as phase clock.
35* C2F Output H C2 flag output terminal.
36 VDD ––Power terminal of digital system.
37 DOUT Output L Output terminal of digital OUT. (EIAJ format)
38* FSX Output L
39* EFLG Output L C1,C2 correct monitor terminal.
40 TEST Input – Input terminal for test. Surely connected to 0V.
41* EMPH In/Output Input mode

42* MUTEL Output H Mute output terminal for L channel.
43* MUTER Output H Mute output terminal for R channel.

Terminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Setting in Reset

Function

Rough servo : OFF, phase servo : ON.

Resistance connection terminal for current adjustment of
SLCO output.

Controlled with serial data command
from microcomputer. When not used,
set it as the input terminal
open it by connecting to 0V, or set it
as the output terminal and open it.

Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.

Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It is also becomes a emphasis monitor terminal under command control.

and

– 42 –

CD-BA3000

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)

Pin No.

44 LVDD ––L channel Power terminal for L channel.
45 LCHO Output 1/2VDD D/A converter L channel output terminal.
46 LVSS –– Ground terminal for L channel. Surely connected to 0V.
47 RVSS ––R channel Ground terminal for R channel. Surely connected to 0V.
48 RCHO Output 1/2VDD D/A converter R channel output terminal.
49 RVDD –– Power terminal for R channel.
50 XVDD ––For quartz Power terminal for quartz oscillation.
51 XIN Input Oscillation oscillation Ground terminal of 16.9344MHz quartz oscillation.
52 XOUT Output Oscillation
53 XVSS –– Ground terminal for quartz oscillation. Surely connected to 0V.
54 ASLRCK Input – For anti L/R clock input terminal. (When not used,connect to 0V)
55 ASDACK Input – shock mode Bit clock input terminal. (When not used,connect to 0V)
56 ASDFIN Input – L/R channel data input terminal. (When not used,connect to 0V)
57* LRSY Output L For digital L/R clock output terminal.
58* DATACK Output L data output Bit clock output terminal.
59* DATA Output L L/R channel data output terminal.
60* 16M Output Clock output 16.9344MHz output terminal.
61* SFSY Output L Output terminal of synchronous signal of subcode frame.

62* SBSY Output L Output terminal of synchronous signal of subcode block.
63* PW Output L Output terminal of subcodes P,A,R,S,T,U and W.
64 SBCK Input – Clock input terminal to read subcode. (When not used,connect to 0V)
65 CE Input – For Chip enable signal input terminal.
66 CL Input –
67 DI Input – interface Data input terminal.
68 DO Output L Data output terminal.
69 INT Output H Interruption signal output terminal.
70 WRQ Output H Interruption signal output terminal.
71 RES Input – Reset input terminal of LC78640. When turning on power, set it at "L".
72 DRF Output L Focus ON detection terminal.
73 VDD5V ––Power terminal for microcomputer interface.
74 VSS ––Ground terminal of digital system. Surely connected to 0V.
75 CONT6 In/Output Input mode General purpose input/output terminal 6.

76 CONT7 In/Output Input mode General purpose input/output terminal 7.

77* V/ *P Output H Monitor output terminal for automatic switch of rough servo/phase control.

78* FSEQ Output L

79* DEFECT In/Output Input mode

80* EFMO Output Unfixed

Terminal Name

Input/Output

Setting in Reset

Function

It drops when subcode stand by.

microcomputer

"H" for rough servo, and "L" for phase servo.
Output terminal synchronous signal detection. "H" is output when synchronous

detected by EFM signal matches synchronous signal
Defect terminal. After resetting, it is configured as an input terminal. It can be controlled

from the outside. It also becomes a defect monitor terminal under command control
EFM signal output terminal.

Data transmission clock input terminal.

Controlled with serial data command
from microcomputer. When not used,

set it as the input terminal
open it by connecting to 0V, or set it
as the output terminal and open it.

internally generated.

and

signal

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)

Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE (65pin), CL (66pin), DI (67pin), DO (68pin), INT (69pin), WRQ (70pin), RES (71pin), DRF (72pin),
CONT6 (75pin), CONT7 (76pin)

– 43 –

CD-BA3000

IC701 RH-iX0334AWZZ: System Microcomputer (IX0334AW) (1/2)

Pin No.

1 VDD VDD — (+) POWER SUPPLY
2 P37 -20dBATT Output -20dB ATTENUATOR
3* P36 S-BUSY Output Not used
4* P35 LCK1 Output LED DRIVER LCK (BU2092-2)
5 P34 LCK0 Output LED DRIVER LCK (BU2092-1)
6* P33 DP REQ Output DOLBY PRO LOGIC REQ TERMINAL
7 P32 RES OUT Output CD DSP RESET&MPEG MICROCOMPUTER RESET
8 P31 DRF Input CD RF LEVEL DETECTION
9 P30 WRQ Input CD DSP WRITE REQUEST
10 RESET RESET Input MICROCOMPUTER RESET
11 X2 X2 Output MAIN CLOCK
12 X1 X1 Input MAIN CLOCK
13 VPP/IC VPP/IC — GND
14* XT2 XT2 — OPEN
15 P04 CD INT Input CD DSP INTERRUPT
16 VDD VDD — (+) POWER SUPPLY
17 P27 CD CLK/MCLK Output CD DSP CLOCK/MPEG MICROCOMPUTER CLOCK
18 P26 CD DI/MDI Output CD DSP COMMAND/MPEG MICROCOMPUTER COMMAND
19 P25 CD DO/MDO Input CD DSP CODE Q OUT/MPEG MICROCOMPUTER DATA INPUT
20 P24 CD CE Output CD DSP CE OUTPUT
21 P23 CE Output CE OUTPUT
22 P22 CLK Output CLOCK OUTPUT
23 P21 DI Output DATA OUTPUT
24 P20 DO Input DATA INPUT
25 AVSS AVSS — ANALOG GROUND
26* ANI7 TUN SM/M-BUSY Input TUNER SIGNAL METER INPUT
27 ANI6 SPEANA3 Input SPEANA DATA INPUT L, R 16 kHz
28 ANI5 SPEANA2 Input SPEANA DATA INPUT L, R 63Hz
29 ANI4 SPEANA1 Input SPEANA DATA INPUT R-CH 1kHz
30 ANI3 SPEANA0 Input SPEANA DATA INPUT L-CH 1kHz
31-33 ANI2-ANI0 KEY2-KEY0 Input KEY INPUT
34 AVDD AVDD — ANALOG VDD
35 AVREF AVREF — ANALOG REF VOLTAGE
36 INTP3 SYS STOP Input SYSTEM STOP INPUT
37 INTP2 JOG1 Input KEY JOG INPUT 1
38 INTP1 JOG0 Input KEY JOG INPUT 2
39 INTP0 REMOCON Input REMOCON INPUT
40 VSS VSS — GROUND VOLTAGE
41 P74 SMUTE Output SYSTEM MUTE CONTROL
42 P73 T_SOL 2 Output TAPE 2 SOLENOID CONTROL
43 P72 T_SOL 1 Output TAPE 1 SOLENOID CONTROL
44 P71 T_MOTOR Output TAPE MOTOR CONTROL
45 P70 TIMER LED Output TIMER OED CONTROL
46 VDD VDD — (+) POWER SUPPLY
47 P127 AC RLY_CONT Output AC RELAY CONTROL
48 P126 SP RLY Output SPEAKER OUTPUT RELAY CONTROL
49 P125 SP DET Input SPEAKER OUTPUT DETECTION
50 P124 T1 RUN Input TAPE 1 RUN PULSE TNPUT
51 P123 T2 RUN Input TAPE 2 RUN PULSE TNPUT
52 P122 CD CLAMP SW Input CD CHANGER CLAMP SWITCH
53 P121 T1 PLAY SW_A Input PLAY SWITCH FOR T1

Port Name

Terminal Name

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 44 –

IC701 RH-iX0334AWZZ: System Microcomputer (IX0334AW) (2/2)

1
2

3

4
5

6
7

8

9
10
11
12
13
14

15
16
17
18
19
20
21

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

27
26
25
24
23
22

IN2–
IN1A–
IN1B–

OUT1–
OUT1+
OUT2–
OUT2+

OUT3+
OUT3–

IN3–

VCC1

STANDBY

VTEF

MUTE

GND

GND

VCC3
OUT4+
OUT4–
IN4–
VCC2
IN5+
IN5–

IN6+
IN6–
VCC4
OUT6–
OUT6+
OUT5–
OUT5+

M63001FP

CD-BA3000

Pin No.

Port Name

Terminal Name

Input/Output

Function

54 P120 T2 PLAY SW_B Input PLAY SWITCH FOR T2
55 P119 FPA Input TAPE 2 A-SIDE FULL PROOF
56 P118 FPB Input TAPE 2 B-SIDE FULL PROOF
57* P117 MIC IN Input MIC SWITCH
58* P116 KARAOKE LATCH Output KARAOKE LATCH (When not used, connect to 0V.)
59 P115

DIST_OUT/SW OUT/SPAN A

Output DESTINATION OUTPUT/SWITCH OUTPUT

60 P112 SPN B Input TUNER SPAN CHANGE

FIP39 P25 Output FL DISPLAY SEGMENT DRIVER

61 P111

MOV VOL CONT OPEN

Input MOVING VOLUME CONTROL OPEN SWITCH

FIP38 P24 Output FL DISPLAY SEGMENT DRIVER

62 P110

MOV VOL CONT CLOSE

Input MOVING VOLUME CONTROL CLOSE SWITCH

FIP37 P23 Output FL DISPLAY SEGMENT DRIVER
63-66 FIP36-FIP33 P22-P19 Output FL DISPLAY SEGMENT DRIVER
67 P103 DIST3 Input DESTINATION INPUT

FIP32 P18 Output FL DISPLAY SEGMENT DRIVER
68 P102 DIST2 Input DESTINATION INPUT

FIP31 P17 Output FL DISPLAY SEGMENT DRIVER
69 P101 DIST1 Input DESTINATION INPUT

FIP30 P16 Output FL DISPLAY SEGMENT DRIVER
70 P100 DIST0 Input DESTINATION INPUT

FIP29 P15 Output FL DISPLAY SEGMENT DRIVER
71-78 FIP28-FIP21 P14-P7 Output FL DISPLAY SEGMENT DRIVER
79 VLOAD VLOAD — FL DRIVER (-) POWER SUPP. -30V
80-85 FIP20-FIP15 P6-P1 Output FL DISPLAY SEGMENT DRIVER
86-100 FIP14-FIP0 G15-G1 Output FL DISPLAY SEGMENT DRIVER

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

IC3 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)

Pin No. Terminal

Name

1 IN2- CH2 inverted input.
2 IN1A- CH1 inverted input.
3* IN1B- CH1 output offset control.
4 OUT1- CH1 inverted output.
5 OUT1+ CH1 non-inverted output.
6 OUT2- CH2 inverted output.
7 OUT2+ CH2 non-inverted output.
8-14 GND GND
15 OUT3+ CH3 non-inverted output.
16 OUT3- CH3 inverted output.
17 IN3- CH3 inverted input.
18 VCC1 Power supply 1 (CH1, CH2, CH3)
19 STANDBY STANDBY signal input.
20 VRFE CH1-CH4 Reference voltage input.
21 MUTE Mute signal input (CH6).
22 IN5- CH5 inverted input.
23 IN5+ CH5 non-inverted input.
24 VCC2 Power supply 2 (CH4).
25 IN4- CH4 inverted input.
26 OUT4- CH4 inverted output.
27 OUT4+ CH4 non-inverted output.
28 VCC3 Power supply 3 (CH5).
29-35 GND GND
36* OUT5+ CH5 non-inverted output.
37* OUT5- CH5 inverted output.
38 OUT6+ CH6 non-inverted output.
39 OUT6- CH6 inverted output.
40 VCC4 Power supply 4 (CH6).
41 IN6- CH6 inverted input.
42 IN6+ CH6 non-inverted input.

Function

Figure 45 BLOCK DIAGRAM OF IC

– 45 –

CD-BA3000

IC601 VHiLC75341/-1: Audio Processor (LC75341)

CE

YSS

123

DI

CL

VDD

Yref

222324

LOUT

LBASS

0.1uF

LIN

LSEL0

4

LVref

CCB

5

INTERFACE

6

CIRCUIT

CONTROL

CIRCUIT

CONTROL

7

8

RVref

CIRCUIT

CONTROL

21

20

19

18

17

ROUT

RBASS

0.1uF

RTRELTRE

R1N

RSEL0

CD

9

L4

CL

24 23 22 21 20 19 18 17 16 15 14 13

Tape

Tuner

Video

10 11 12 13 14 15 16

RTRB

RIN

R1 R2

RSEL0R4R3

R3 R4

R2

L3

VDD

L2 L1

VREF

ROUT

RBASS

LC75341

123456789101112

DI

CE

VSS

LOUT

LBASS

Figure 46 BLOCK DIAGRAM OF IC

LIN

LTRE

– 46 –

L4

LSEL0

L3

L2

R1

L1

FL701 VVKBJ744GNK-1: FL Display

11G 14G 15G 13G

CD-BA3000

10G

PIN CONNECTION

PIN NO.

20 19

CONNECTION

12G

1G

2G 3G 4G 5G 6G 7G 8G

S3

h

f

r

e

(1G~8G)

S1

p

d

S2

S4

a

j

bk

mg

n

c

Dp

9G9G

181716151413121110987654321

10G11G12G13G14G15G 9G 8G 7G 6G 5G 4G 3G 2G

1G

NP NP

F1 F1 F1

PIN NO.

40 39

CONNECTION

PIN NO.

CONNECTION

58 57 56 55 54 53 52 51 50

F2 F2 F2

38

37 36 35 34 33 32 31

P10P11P12 P9 P8 P7 P6 P5 P4 P3

49 48 47 46 45 44 43 42 41

NP NP

Figure 47 FL DISPLAY

30 29 28 27 26 25 24 23 22 21

P1

P2

P20P21P22P23P24P25 P19 P18 P17 P16 P15 P14 P13

NXNXNXNXNXNXNXNX

– 47 –

CD-BA3000

–– MEMO ––

– 48 –

PARTS GUIDE

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

CD-BA3000

MINI COMPONENT SYSTEM

MODEL CD-BA3000

CD-BA3000 Mini Component System consisting of
CD-BA3000 (main unit), CP-BA3000 (speaker system).

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

– 49 –

CD-BA3000

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTIONNO.

CD-BA3000

INTEGRATED CIRCUITS

IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

IC99 VHPTOTX178A-1 J AP Optical Fiber Data Link,
IC101 VHIAN7345K/-1 J AM Rec./P.B. Amp.,AN7345K

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC561~563 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0334AWZZ J AX System Microcomputer,

IC702 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F
IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP
IC860 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC901 VHISTK4113E-1 J BL Power Amp.,STK4113E

M63001FP
TOTX178A

LA1832S

IX0334AW

TRANSISTORS

Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR
Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q603~606 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q704,705 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q706,707 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q710~712 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q713~716 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q801 VHIAN78L05/-1 J AE Constant Voltage Regulator,

Q802 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q803 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q850 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q851 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810 AP
Q852 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805 P
Q862,863 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q864 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q865 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q901~904 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q905 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q907 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q910,911 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

AN78L05

DIODES

D21,22 VHD1SS133//-1 J AA Silicon,1SS133
D101,102 VHD1SS133//-1 J AA Silicon,1SS133
D301~305 VHD1SS133//-1 J AA Silicon,1SS133
D561~566 VHD1SS133//-1 J AA Silicon,1SS133
D601,602 VHD1SS133//-1 J AA Silicon,1SS133
D705 VHD1SS133//-1 J AA Silicon,1SS133
D707 VHD1SS133//-1 J AA Silicon,1SS133
D709 VHD1SS133//-1 J AA Silicon,1SS133
D712~718 VHD1SS133//-1 J AA Silicon,1SS133
D720~723 VHD1SS133//-1 J AA Silicon,1SS133
D801 VHD1SS133//-1 J AA Silicon,1SS133
D802~805 VHD1N4004S/-1 J AB Silicon,1N4004S
D806~808 VHD1SS133//-1 J AA Silicon,1SS133
D809 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D810 VHDD10XB60F-1 J AL Silicon,D10XB60F
D811~818 VHD1N4004S/-1 J AB Silicon,1N4004S
D860~862 VHD1SS133//-1 J AA Silicon,1SS133

PRICE

RANK

D901,902 VHD1N4004S/-1 J AB Silicon,1N4004S
D903,904 VHD1SS133//-1 J AA Silicon,1SS133
D905,906 VHD1N5402M/-1 J AE Silicon,1N5402M
D907~913 VHD1SS133//-1 J AA Silicon,1SS133
LED709~712 VHPSLI325YC-1 J AB LED,Yellow,SLI325YC
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZD561 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C
ZD801 VHEMTZJ360C-1 J AB Zener,36V,MTZJ36C
ZD802 VHEMTZJ6R2A-1 J AA Zener,6.2V,MTZJ6.2A
ZD901,902 VHEMTZJ8R2C-1 J AB Zener,8.2V,MTZJ8.2C
ZD951 VHEMTZJ130B-1 J AC Zener,13V,MTZJ13B

DESCRIPTION

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T301 RCILB0065AWZZ J AC OSC,FM
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Antenna
T306 RCILB0058AWZZ J AC OSC,AM
T351 RCILI0019AWZZ J AD AM IF

! T801 RTRNP0309AWZZ J BH Power
! T802 RTRNP0312AWZZ J AM Power

COILS

L61 VP-XHR82K0000 J AC 0.82 µH
L62 VP-DH2R2K0000 J AB 2.2 mH,Peaking
L99 VP-DH2R2K0000 J AB 2.2 mH,Peaking
L103 VP-DH101K0000 J AB 100 µH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L701 VP-DH101K0000 J AB 100 µH,Choke
L901,902 RCILZ0137AFZZ J AA 0.29 µH

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0015AWZZ J Crystal,4.5 MHz
XL1 RCRSP0005AWZZ J AF Crystal,16.934 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz

CAPACITORS

C6 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C8 VCKYTV1EF223Z J AA 0.022 µF,25V
C11 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C12 VCKYTV1EF223Z J AA 0.022 µF,25V
C13 VCKYTV1HB103K J AA 0.01 µF,50V
C14 VCFYDA1HA334J J AC 0.33 µF,50V,Thin Film
C17 VCKYTV1HB472K J AA 0.0047 µF,50V
C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V
C20,21 VCTYPA1CX104K J AB 0.1 µF,16V
C22 VCKYTV1HB101K J AA 100 pF,50V
C23 VCTYPA1CX473K J AA 0.047 µF,16V
C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C25 VCKYTV1EF223Z J AA 0.022 µF,25V
C26 VCTYPA1CX473K J AA 0.047 µF,16V
C27 VCKYBT1HF104Z J 0.1 µF,50V
C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C29,30 VCKYTV1EF223Z J AA 0.022 µF,25V
C31 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C34 VCKZPA1HF223Z J AA 0.022 µF,50V
C35 VCCSPA1HL8R0J J AB 8 pF,50V
C36 VCCSPA1HL100J J AA 10 pF,50V
C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C40 VCKYTV1HB152K J AA 0.0015 µF,50V
C41 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic

– 1 –

CD-BA3000

PRICE

RANK

C42 VCCCTV1HH680J J AA 68 pF (CH),50V
C43 VCKYTV1HB152K J AA 0.0015 µF,50V
C44 VCKYTV1EF223Z J AA 0.022 µF,25V
C45 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C46 VCKYTV1EF223Z J AA 0.022 µF,25V
C47 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C49,50 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C52 VCTYPA1CX103K J AA 0.01 µF,16V
C53 VCKYTV1HB102K J AA 0.001 µF,50V
C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C55 VCKYTV1HB103K J AA 0.01 µF,50V
C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C64 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C71 VCKYTV1HB101K J AA 100 pF,50V
C72 VCKYTV1HB103K J AA 0.01 µF,50V
C73~78 VCKYTV1HB101K J AA 100 pF,50V
C80~83 VCKYTV1EF223Z J AA 0.022 µF,25V
C84 VCKYBT1HB102K J AA 0.001 µF,50V
C98 VCKZPA1HF223Z J AA 0.022 µF,50V
C99 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C105 VCKYBT1HB181K J AA 180 pF,50V
C106 VCKYMN1HB181K J AA 180 pF,50V
C107,108 VCKYMN1HB561K J AA 560 pF,50V
C109 VCKZPA1HF473Z J AA 0.047 µF,50V
C111~114 VCKYMN1HB331K J AA 330 pF,50V
C115,116 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C117,118 VCTYPA1EX333K J AA 0.033 µF,25V
C119,120 VCKYMN1HB561K J AA 560 pF,50V
C121,122 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C123,124 VCTYPA1HB222K J AA 0.0022 µF,50V
C127 VCTYMN1EF223Z J AA 0.022 µF,25V
C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C131,132 VCKYMN1HB271K J AA 270 pF,50V
C133,134 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C135,136 VCTYPA1CX223K J AA 0.022 µF,16V
C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V
C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C145 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C146 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C301 VCKYMN1HB102K J AA 0.001 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C308 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCSMN1HL180J J AA 18 pF,50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C319 VCKYBT1HB102K J AA 0.001 µF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V
C330 VCCSMN1HL150J J AA 15 pF,50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCCMN1HH220J J AA 22 pF (CH),50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V

DESCRIPTION

NO.

C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C365 VCTYPA1CX223K J AA 0.022 µF,16V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C561,562 VCKYMN1HB271K J AA 270 pF,50V
C563 VCTYMN1CX682K J AA 0.0068 µF,16V
C564,565 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C566 VCTYMN1CX682K J AA 0.0068 µF,16V
C567,568 VCTYMN1EF223Z J AA 0.022 µF,25V
C569 VCKZPA1HF223Z J AA 0.022 µF,50V
C570,571 VCTYMN1EF223Z J AA 0.022 µF,25V
C572 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C573 VCTYMN1EF223Z J AA 0.022 µF,25V
C574~577 VCTYMN1CX272K J AA 0.0027 µF,16V
C578,579 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C602 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C603 VCKZPA1HF223Z J AA 0.022 µF,50V
C604 VCTYMN1EF223Z J AA 0.022 µF,25V
C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C607~610 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
C611,612 VCTYMN1CX272K J AA 0.0027 µF,16V
C613,614 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C615,616 VCKYMN1HB102K J AA 0.001 µF,50V
C617,618 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C619,620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C621,622 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C631,632 VCKYMN1HB391K J AA 390 pF,50V
C635,636 VCKYMN1HB102K J AA 0.001 µF,50V
C641,642 VCQYKA1HM332K J AA 0.0033 µF,50V,Mylar
C643,644 VCKYPA1HB222K J AA 0.0022 µF,50V
C709 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C715 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C716,717 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C719 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C720,721 VCKYBT1HB102K J AA 0.001 µF,50V
C722 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C723 VCCSMN1HL150J J AA 15 pF,50V
C724 VCCSMN1HL180J J AA 18 pF,50V
C725 VCTYBT1EF223Z J AA 0.022 µF,25V
C726 VCEAZA0JW477M J AC 470 µF,6.3V,Electrolytic
C727 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C728 VCTYPA1CX103K J AA 0.01 µF,16V
C729 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C730 VCTYMN1EF223Z J AA 0.022 µF,25V
C731 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C732 VCTYMN1EF223Z J AA 0.022 µF,25V
C733 VCEAEA1EW476M J 47 µF,25V,Electrolytic
C736 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C737 VCTYMN1EF223Z J AA 0.022 µF,25V
C801 RC-KZ002LAWZZ J AE 0.0047 µF,250V,Ceramic
C802 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar
C803 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic
C804 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C805 VCEAZV0JW228M J AC 2200 µF,6.3V,Electrolytic
C809,810 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film
C811,812 VCQYKU2AM224K J AB 0.22 µF,100V,Mylar
C813,814 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film
C815,816 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C817 VCEAZV1JW227M J AC 220 µF,63V,Electrolytic
C818,819 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C820 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C821 VCEAZV1JW107M J 100 µF,63V,Electrolytic

PARTS CODENO. PARTS CODE

PRICE

RANK

DESCRIPTION

– 2 –

CD-BA3000

PARTS CODE NO. PARTS CODE

C850 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C851 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C852 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C855,856 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C857 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C858,859 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C860 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C861,862 VCTYMN1EF223Z J AA 0.022 µF,25V
C863,864 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C865 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C866 VCKZPA1HF223Z J AA 0.022 µF,50V
C901,902 RC-EZ0029AWZZ J AN 3300 µF,71V,Electrolytic
C903,904 VCEAZW1VW478M J AL 4700 µF,35V,Electrolytic
C911,912 VCCSPA1HL221J J AA 220 pF,50V
C913,914 VCCSPA1HL470J J AA 47 pF,50V
C915,916 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C917,918 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C919,920 VCEAZV2AW107M J 100 µF,100V,Electrolytic
C921,922 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C923,924 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
C925 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C927~930 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
C943 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C945 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C946 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C951 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
C952 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic
C957 VCEAZV2AW476M J 47 µF,100V,Electrolytic

PRICE

RANK

DESCRIPTIONNO.

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R3 VRS-TV2AB473J J AA 47 kohms,1/10W

VRS-TV2AB000J J AA

R4 VRS-TV2AB103J J AA 10 kohm,1/10W
R5 VRS-TV2AB393J J AA 39 kohms,1/10W
R6 VRS-TV2AB273J J AA 27 kohms,1/10W
R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R8 VRS-TV2AB331J J AA 330 ohms,1/10W
R10 VRS-TV2AB273J J AA 27 kohms,1/10W
R11 VRS-TV2AB123J J AA 12 kohms,1/10W
R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W
R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R15 VRS-TV2AB103J J AA 10 kohm,1/10W
R16 VRD-ST2CD103J J AA 10 kohm,1/6W
R17 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD470J J AA 47 ohms,1/6W
R20 VRS-TV2AB221J J AA 220 ohms,1/10W
R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W
R25 VRD-ST2CD103J J AA 10 kohm,1/6W
R35 VRD-ST2CD102J J AA 1 kohm,1/6W
R38 VRD-ST2CD271J J AA 270 ohms,1/6W
R39 VRD-ST2CD471J J AA 470 ohms,1/6W
R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R42 VRS-TV2AB124J J AA 120 kohms,1/10W
R44 VRD-ST2CD102J J AA 1 kohm,1/6W
R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R46 VRS-TV2AB102J J AA 1 kohm,1/10W
R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W
R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R50 VRS-TV2AB470J J AA 47 ohms,1/10W
R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W
R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W
R58 VRD-ST2CD221J J AA 220 ohms,1/6W
R67,68 VRD-ST2CD102J J AA 1 kohm,1/6W
R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W
R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W
R80 VRD-ST2CD105J J AA 1 Mohm,1/6W
R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W
R87 VRD-ST2CD121J J AA 120 ohms,1/6W
R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W
R96 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R106 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R111,112 VRD-MN2BD153J J AA 15 kohms,1/8W
R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W
R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W

0 ohm,Jumper,ø1.25×2mm,Green

PRICE

RANK

R117,118 VRD-MN2BD102J J AA 1 kohm,1/8W
R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W
R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W
R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R131,132 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R134 VRD-ST2CD683J J AA 68 kohms,1/6W
R135 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R136 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R137,138 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R139,140 VRD-MN2BD821J J AA 820 ohms,1/8W
R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W
R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W
R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W
R155 VRD-ST2EE151J J AA 150 ohms,1/4W
R156,157 VRD-ST2CD224J J AA 220 kohms,1/6W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R160 VRD-RT2HD820J J AA 82 ohms,1/2W
R162 VRD-MN2BD473J J AA 47 kohms,1/8W
R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R166 VRD-MN2BD223J J AA 22 kohms,1/8W
R167 VRD-MN2BD473J J AA 47 kohms,1/8W
R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361,362 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R363,364 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R370 VRD-ST2CD102J J AA 1 kohm,1/6W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R561 VRD-ST2CD473J J AA 47 kohms,1/6W
R562 VRD-MN2BD474J J AA 470 kohms,1/8W
R563 VRD-MN2BD123J J AA 12 kohms,1/8W
R564 VRD-MN2BD333J J AA 33 kohms,1/8W
R565 VRD-MN2BD394J J AA 390 kohms,1/8W
R566 VRD-ST2CD224J J AA 220 kohms,1/6W
R567,568 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
R569,570 VRD-MN2BD104J J AA 100 kohm,1/8W
R573 VRD-MN2BD224J J AA 220 kohms,1/8W
R574 VRD-ST2EE101J J AA 100 ohm,1/4W
R575 VRD-MN2BD154J J AA 150 kohms,1/8W
R576 VRD-ST2EE331J J AA 330 ohms,1/4W
R577 VRD-MN2BD331J J AA 330 ohms,1/8W
R578 VRD-MN2BD154J J AA 150 kohms,1/8W
R579 VRD-MN2BD224J J AA 220 kohms,1/8W
R580 VRD-MN2BD331J J AA 330 ohms,1/8W

DESCRIPTION

– 3 –

CD-BA3000

PRICE

RANK

R581 VRD-MN2BD683J J AA 68 kohms,1/8W
R582 VRD-MN2BD123J J AA 12 kohms,1/8W
R583 VRD-MN2BD683J J AA 68 kohms,1/8W
R584 VRD-MN2BD123J J AA 12 kohms,1/8W
R585,586 VRD-MN2BD224J J AA 220 kohms,1/8W
R587,588 VRD-MN2BD394J J AA 390 kohms,1/8W
R589,590 VRD-MN2BD104J J AA 100 kohm,1/8W
R605,606 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R607,608 VRD-MN2BD103J J AA 10 kohm,1/8W
R609,610 VRD-ST2CD331J J AA 330 ohms,1/6W
R611,612 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R613,614 VRD-MN2BD331J J AA 330 ohms,1/8W
R615,616 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R617,618 VRD-MN2BD821J J AA 820 ohms,1/8W
R619 VRD-MN2BD223J J AA 22 kohms,1/8W
R620 VRD-ST2CD223J J AA 22 kohms,1/6W
R621,622 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R631,632 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R633,634 VRD-MN2BD393J J AA 39 kohms,1/8W
R637 VRD-MN2BD474J J AA 470 kohms,1/8W
R638 VRD-ST2CD474J J AA 470 kohms,1/6W
R700 VRD-ST2CD103J J AA 10 kohm,1/6W
R701 VRD-ST2CD104J J AA 100 kohm,1/6W
R702 VRD-ST2CD102J J AA 1 kohm,1/6W
R704 VRD-ST2CD104J J AA 100 kohm,1/6W
R705 VRD-ST2CD102J J AA 1 kohm,1/6W
R706~709 VRD-MN2BD103J J AA 10 kohm,1/8W
R710 VRD-MN2BD102J J AA 1 kohm,1/8W
R712 VRD-MN2BD103J J AA 10 kohm,1/8W
R713~715 VRD-MN2BD104J J AA 100 kohm,1/8W
R716 VRD-ST2CD104J J AA 100 kohm,1/6W
R717 VRD-MN2BD102J J AA 1 kohm,1/8W
R719 VRD-ST2CD102J J AA 1 kohm,1/6W
R724 VRD-MN2BD330J J AA 33 ohms,1/8W
R725,726 VRD-ST2CD103J J AA 10 kohm,1/6W
R728 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R732,733 VRD-MN2BD683J J AA 68 kohms,1/8W
R734 VRD-MN2BD102J J AA 1 kohm,1/8W
R735 VRD-MN2BD474J J AA 470 kohms,1/8W
R736,737 VRD-MN2BD103J J AA 10 kohm,1/8W
R738 VRD-MN2BD102J J AA 1 kohm,1/8W
R739 VRD-MN2BD474J J AA 470 kohms,1/8W
R740~743 VRD-MN2BD102J J AA 1 kohm,1/8W
R744 VRD-ST2CD102J J AA 1 kohm,1/6W
R746 VRD-ST2CD103J J AA 10 kohm,1/6W
R747 VRD-ST2CD102J J AA 1 kohm,1/6W
R748 VRD-MN2BD102J J AA 1 kohm,1/8W
R749 VRD-MN2BD103J J AA 10 kohm,1/8W
R750 VRD-MN2BD102J J AA 1 kohm,1/8W
R751,752 VRD-MN2BD103J J AA 10 kohm,1/8W
R753 VRD-ST2CD182J J AA 1.8 kohms,1/6W
R754~756 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R757 VRD-MN2BD103J J AA 10 kohm,1/8W
R758,759 VRD-MN2BD102J J AA 1 kohm,1/8W
R760~762 VRD-ST2CD102J J AA 1 kohm,1/6W
R763~765 VRD-MN2BD103J J AA 10 kohm,1/8W
R766,767 VRD-MN2BD102J J AA 1 kohm,1/8W
R768 VRD-ST2CD102J J AA 1 kohm,1/6W
R769~773 VRD-MN2BD102J J AA 1 kohm,1/8W
R775 VRD-ST2CD102J J AA 1 kohm,1/6W
R776 VRD-MN2BD102J J AA 1 kohm,1/8W
R777 VRD-MN2BD103J J AA 10 kohm,1/8W
R778~780 VRD-MN2BD102J J AA 1 kohm,1/8W
R781~786 VRD-ST2CD102J J AA 1 kohm,1/6W
R787~790 VRD-MN2BD102J J AA 1 kohm,1/8W
R791 VRD-ST2CD103J J AA 10 kohm,1/6W
R794 VRD-MN2BD102J J AA 1 kohm,1/8W
R795 VRD-MN2BD103J J AA 10 kohm,1/8W
R796 VRD-MN2BD473J J AA 47 kohms,1/8W
R797 VRD-MN2BD104J J AA 100 kohm,1/8W
R798 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R799 VRD-MN2BD101J J AA 100 ohm,1/8W
R801 VRD-ST2CD101J J AA 100 ohm,1/6W
R802 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R803 VRD-ST2CD123J J AA 12 kohms,1/6W
R810~812 VRD-ST2CD102J J AA 1 kohm,1/6W
R804 VRD-ST2CD102J J AA 1 kohm,1/6W
R805 VRD-ST2EE100J J AA 10 ohm,1/4W
R809 VRD-ST2CD473J J AA 47 kohms,1/6W
R850 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R851 VRD-ST2CD330J J AA 33 ohms,1/6W
R852 VRD-ST2EE223J J AA 22 kohms,1/4W

DESCRIPTION

NO.

R853 VRD-ST2CD223J J AA 22 kohms,1/6W
R854 VRD-ST2CD103J J AA 10 kohm,1/6W
R855 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R860 VRD-MN2BD223J J AA 22 kohms,1/8W
R861 VRD-MN2BD683J J AA 68 kohms,1/8W
R862,863 VRD-MN2BD333J J AA 33 kohms,1/8W
R864 VRD-MN2BD154J J AA 150 kohms,1/8W
R868,869 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R870 VRD-ST2CD102J J AA 1 kohm,1/6W
R871 VRD-ST2EE103J J AA 10 kohm,1/4W
R872,873 VRD-MN2BD102J J AA 1 kohm,1/8W
R874 VRD-ST2CD104J J AA 100 kohm,1/6W
R875 VRD-MN2BD104J J AA 100 kohm,1/8W
R878,879 VRD-MN2BD223J J AA 22 kohms,1/8W
R880 VRD-ST2CD104J J AA 100 kohm,1/6W
R901,902 VRD-ST2CD102J J AA 1 kohm,1/6W
R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W
R905,906 VRD-ST2CD102J J AA 1 kohm,1/6W
R907,908 VRD-ST2CD391J J AA 390 ohms,1/6W
R909,910 VRD-ST2CD563J J AA 56 kohms,1/6W
R911 VRD-ST2CD333J J AA 33 kohms,1/6W

! R912,913 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R915,916 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R917,918 VRN-VV3LAR10J J 0.1 ohm,3W
R919,920 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R921,922 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R923 VRD-ST2CD563J J AA 56 kohms,1/6W
R925~928 VRD-RT2HD100J J AA 10 ohm,1/2W
R929,930 VRD-ST2CD563J J AA 56 kohms,1/6W
R931,932 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
R933,934 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R935 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
R936 VRD-ST2EE221J J AA 220 ohms,1/4W
R937 VRD-ST2CD153J J AA 15 kohms,1/6W
R938 VRD-ST2CD683J J AA 68 kohms,1/6W
R939 VRD-ST2CD102J J AA 1 kohm,1/6W
R941,942 VRS-VV3DA561J J AC 560 ohms,2W
R943 VRS-VV3DA681J J AC 680 ohms,2W
R949 VRD-ST2CD474J J AA 470 kohms,1/6W
R950 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R959 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R960 VRD-ST2CD103J J AA 10 kohm,1/6W
R961,962 VRD-ST2CD473J J AA 47 kohms,1/6W
RD1 VRD-MN2BD681J J AA 680 ohms,1/8W
RD2 VRD-MN2BD821J J AA 820 ohms,1/8W
RD3 VRD-ST2CD102J J AA 1 kohm,1/6W
RD4 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD5 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD6 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD7 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD8 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD9 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD183J J AA 18 kohms,1/8W
RD11 VRD-MN2BD333J J AA 33 kohms,1/8W
RD12 VRD-MN2BD104J J AA 100 kohm,1/8W
RD13 VRD-ST2CD681J J AA 680 ohms,1/6W
RD14 VRD-MN2BD821J J AA 820 ohms,1/8W
RD25 VRD-ST2CD681J J AA 680 ohms,1/6W
RD26 VRD-ST2CD821J J AA 820 ohms,1/6W
RD27 VRD-ST2CD102J J AA 1 kohm,1/6W
RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD33 VRD-MN2BD103J J AA 10 kohm,1/8W
RD34 VRD-ST2CD183J J AA 18 kohms,1/6W
RD35 VRD-ST2CD333J J AA 33 kohms,1/6W
RD36 VRD-MN2BD104J J AA 100 kohm,1/8W
RS710 VRD-MN2BD102J J AA 1 kohm,1/8W
RS712~714 VRD-MN2BD102J J AA 1 kohm,1/8W
RS718 VRD-MN2BD103J J AA 10 kohm,1/8W
RS719 VRD-MN2BD223J J AA 22 kohms,1/8W
RS720~722 VRD-MN2BD102J J AA 1 kohm,1/8W
RS723~725 VRD-ST2CD102J J AA 1 kohm,1/6W
RS727,728 VRD-MN2BD102J J AA 1 kohm,1/8W
RS729,730 VRD-MN2BD681J J AA 680 ohms,1/8W

PARTS CODENO. PARTS CODE

PRICE

RANK

DESCRIPTION

OTHER CIRCUITRY PARTS

BI1A/B QCNWN1608AWZZ J Connector Ass’y,2/2Pin

– 4 –

CD-BA3000

PARTS CODE NO. PARTS CODE

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI11/CNS11 QCNWN1540AWZZ J AF Connector Ass’y,5/5Pin
BI99/CNS99 QCNWN1616AWZZ J Connector Ass’y,3/3Pin
BI703/CNS703 QCNWN1562AWZZ J AH Connector Ass’y,10/10Pin
BI704/CNS704 QCNWN1561AWZZ J AF Connector Ass’y,5/5Pin
BI705A/B QCNWN1580AWZZ J Connector Ass’y,3/3Pin
BI801/CNS801 QCNWN1575AWZZ J Connector Ass’y,5/5Pin
BI802/CNS802 QCNWN1576AWZZ J Connector Ass’y,5/5Pin
BI803/CNS803 QCNWN1647AWZZ J AG Connector Ass’y,3/3Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP5 92LCONE3P53254 J AB Plug,3Pin
CNP11 92LCONE5P53254 J AB Plug,5Pin
CNP12 92LCONEAP53254 J AD Plug,10Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP301 92LCONE3P5268 J AC Plug,3Pin
CNP702 QCNCWZX29AWZZ J AE Socket,29Pin
CNP704 92LCONE5P53254 J AB Plug,5Pin
CNP801 QCNCM051EAWZZ J AD Plug,5Pin
CNP802 92LCONE5P5267X J AB Plug,5Pin
CNP803 QCNCM049BAWZZ J AC Plug,3Pin
CNP901 QCNCM010TAWZZ J AD Plug,18Pin
CNP903 92LCONE2P53253 J AB Plug,2Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS701 QCNCWZF29AWZZ J AE Socket,29Pin
CNS702 QCNCWZY13AWZZ J AC Socket,13Pin
CNS901 QCNCW010TAWZZ J AE Socket,18Pin
CNS903 QCNWN1582AWZZ J Connector Ass’y,2Pin

! F801 QFS-D502CSJNI J AC Fuse,5A/125V
! F804,805 QFS-D502CSJNI J AC Fuse,5A/125V
! F806 QFS-D202DSJNI J AD Fuse,2A/250V

FFC701 QCNWN1651AWZZ J AG Flat Cable,29Pin
FFC702 QCNWN1544AWZZ J AE Flat Cable,13Pin
FL701 VVKBJ744GNK-1 J BD FL Display
FW701 QCNWN1649AWZZ J AC Flat Wire,7Pin
FW902 QCNWN1543AWZZ J AD Flat Wire,5Pin
JK601 QSOCJ0219AWZZ J AD Jack,Video In
JK670 QJAKM0010AWZZ J AF Jack,Headphones
JOG701 QSW-Z0010AWZZ J AF Switch,Rotary Type [JOG]
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J AR Motor with Worm Pulley

M701 RMOTV0027AWZZ J AM Motor,Volume
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
RL801 RRLYD0012AWZZ J AM Relay
RL901 RRLYD0004AWZZ J AP Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO901 QTANA0401AWZZ J AG Terminal,Speaker
SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW701 92LSWICHT1663T J AC Switch,Push Type [POWER]
SW702 92LSWICHT1663T J AC Switch,Push Type [CLOCK]
SW703 92LSWICHT1663T J AC Switch,Push Type

SW709 92LSWICHT1663T J AC Switch,Push Type [DISC-1]
SW710 92LSWICHT1663T J AC Switch,Push Type [DISC-2]
SW711 92LSWICHT1663T J AC Switch,Push Type [DISC-3]
SW712 92LSWICHT1663T J AC Switch,Push Type [DISC SKIP]
SW713 92LSWICHT1663T J AC Switch,Push Type

SW714 92LSWICHT1663T J AC Switch,Push Type [DIMMER]
SW715 92LSWICHT1663T J AC Switch,Push Type [EQUALIZER]
SW716 92LSWICHT1663T J AC Switch,Push Type [X-BASS]
SW719 92LSWICHT1663T J AC Switch,Push Type [CD]
SW723 92LSWICHT1663T J AC Switch,Push Type [TAPE]
SW724 92LSWICHT1663T J AC Switch,Push Type

SW725 92LSWICHT1663T J AC Switch,Push Type
SW726 92LSWICHT1663T J AC Switch,Push Type
SW727 92LSWICHT1663T J AC Switch,Push Type [PRESET UP]

SW728 92LSWICHT1663T J AC Switch,Push Type [PLAY]

PRICE

RANK

DESCRIPTIONNO.

[T/T Up/Down Loading]

[TIMER/SLEEP]

[OPEN/CLOSE]

[TUNING/TIME DOWN]
[MEMORY SET]
[PRESET DOWN]

PRICE

RANK

SW729 92LSWICHT1663T J AC Switch,Push Type [STOP]
SW731 92LSWICHT1663T J AC Switch,Push Type [REC/PAUSE]
SW732 92LSWICHT1663T J AC Switch,Push Type

SW733 92LSWICHT1663T J AC Switch,Push Type [VIDEO/AUX]
SW734 92LSWICHT1663T J AC Switch,Push Type [TUNER]
WT601 QCNCW012EAWZZ J AC Socket,5Pin

DESCRIPTION

[TUNING/TIME UP]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion

! 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit
306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

(Not Replacement Item)

CABINET PARTS

201 92LCAB3308AASY J Front Cabinet Ass’y
201- 1 ———— — Front Panel

201- 2 GDORF0076AWSA J AE Holder,Cassette,Tape 1
201- 3 GDORF0077AWSA J AE Holder,Cassette,Tape 2
201- 4 GCOVA1282AWSA J AL Cover,Cassette,Tape 1
201- 5 GCOVA1283AWSA J AL Cover,Cassette,Tape 2
201- 6 HDECQ0559AWSA J AE Panel,Cassette,Tape 1
201- 7 HDECQ0560AWSA J AE Panel,Cassette,Tape 2
201- 8 HDECQ0570AWSA J AK Decoration Panel,Amp.
201- 9 HDECQ0558AWSA J AH Decoration Panel,Main Control
201-10 JKNBZ0702AWSA J AH Knob,Disc Number
201-11 JKNBZ0703AWSA J AG Knob,Main Operation
201-12 JKNBZ0700AWSA J AG Knob,Power/Clock
201-13 JKNBZ0705AWSA J AG Knob,CD/Tape
201-14 JKNBZ0722AWSA J AF Knob,Tuner/AUX
201-15 JKNBZ0708AWSA J AM Knob,X-Bass/Equalizer
201-16 HDECQ0569AWSA J AF Filter,Display
201-17 HDECQ0562AWSA J AC Decoration Ring
201-18 GCOVA1286AWSA J AG Cover,X-Bass/Equalizer Knob
201-19 GCOVA1289AWSA J AG Cover,Mode Indicator
201-20 GCOVA1290AWSA J AF Cover,Timer/Rec.Indicator
201-21 MLIFP0008AWZZ J AD Damper
201-22 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1
201-23 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2
201-24 GCOVA1287AWSA J AG Cover,Remote Control Sensor
202 92LCAB3308BASY J Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left

202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3308CASY J Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right

203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 92LCOV3308AASY J CD Tray Cover Ass’y
204- 1 ———— — Cover,CD Tray

204- 2 92LBADGE1671A J AC Badge,SHARP
205 GCAB-1184AWSA J AP Top Cabinet
206 GITAR0588AWSA J Rear Panel [For Canada]
206 GITAR0626AWSA J Rear Panel [For Mexico]
207 JKNBZ0707AWSA J AG Knob,Volume
208 LANGK0110AWFW1J AD Bracket,Tape Mechanism Lock,

209 LANGK0111AWFW1J AD Bracket,Tape Mechanism Lock,
210 LANGK0188AWFW J AF Bracket,Fan Support

211 LANGK0206AWFW J Bracket,PWB Support
212 LBSHC0005AWZZ J AD Bushing,AC Power Supply Cord
213 LCHSM0103AWFW J Main Chassis
214 LHLDZ1254AWSA J Holder,FL Display

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

Tape 1
Tape 2

– 5 –

CD-BA3000

PRICE

RANK

215 LHLDZ1230AWZZ J AC Holder,LED
219 MLOKC0003AWZZ J AD Lock Lever,Tape Mechanism,

220 MLOKC0004AWZZ J AD Lock Lever,Tape Mechanism,
221 MSPRD0109AWFJ J AB Lock Spring,Tape Mechanism,
222 MSPRD0110AWFJ J AB Lock Spring,Tape Mechanism,
223 NFANP0001AWZZ J AD Rotary Fan

224 92LPT0331105 J AM Turntable
225 PCUSG0022AWZZ J AB Cushion,Leg
226 PRDAR0160AWFW J Heat Sink,Main
227 PRDAR0158AWFW J Heat Sink,Sub

! 229 QACCD0022AWZZ J AM AC Power Supply Cord

230 QCNWN1481AWZZ J AD Lug Wire

! 231 QFSHD0001AWZZ J AB Holder,Fuse

232 92LBE241414 J AD Belt
233 92LCSPR1431C J AA Spring,Ring
234 92LEVA0330702 J AD Velvet Carpet,Cushion
235 92LMAG0104302 J AE Magnet
237 92LNBAND1318A J AA Nylon Band,80mm
238 92LNM0305401 J AB Velvet Carpet
239 92LPT0303002 J AB Roller
240 92LPT0304303 J AB Lever,Stop
241 92LPT0304304 J AB Stopper
242 92LPT0304305 J AE Lever,Lock
243 92LPT0304306 J AG Stabilizer
244 92LPT0304307 J AC Support,Cam
245 92LPT0304308 J AB Lock Gear,Pin
246 92LPT0304309 J AB Cap,Pulley Stopper
247 92LPT0305413 J AG Cam Gear,Lower
248 92LPT0309506 J AD Gear,Turntable Drive
249 92LPT0309507 J AD Gear,Open/Close Drive
250 92LPT0309508 J AD Gear,Planet
251 92LPT0309509 J AD Gear,Drive
252 92LPT0309510 J AE Gear,Pulley
253 92LPT0309511 J AD Gear,Middle
254 92LPT0311101 J AB Lever,Clamp
255 92LPT0311102 J AC Lever,Disc
256 92LPT0312005 J AL Gear,Cam
257 92LPT0320201 J AE Support,Stabilizer
258 92LPT0330301 J AU Chassie,CD Player
259 92LPT0330803 J AK CD Mechanism,Chassis
260 92LPT0331003 J AT CD Player Base
262 92LSP0304303 J AB Spring,Stopper
263 92LSP0304305 J AB Spring,Lock Lever
264 92LSP0304306 J AB Spring,Lock Gear
265 KMECB0011AWZZ J BH Tape Mechanism Ass’y
266 92LMT0304302 J AB Metal Plate
272 PSPAZ0022AWZZ J Spacer A
273 LANGK0195AWFW J AC Bracket,Headphones PWB
274 LX-LZ0012AWZZ J AB Holder,Power Supply PWB
275 PSLDM3068AWFW J Shield,Power Transformer
276 LANGK0057AWFW J AE Bracket,Heat Sink A
277 LANGK0058AWFW J AE Bracket,Heat Sink B
278 PGIDM0029AWZZ J AC Guide,Volume
279 LCHSZ0016AWZZ J Volume Chassis
280 NGERW0012AWZZ J AD Warm Gear
281 NBLTK0036AWZZ J AC Belt,Volume Motor
282 NGERH0093AWZZ J AE Wheel,Volume
283 LHLDZ1257AWZZ J Holder,Volume
284 NPLYM0017AWZZ J AB Pulley,Volume Motor
285 QLUGP0001AWZZ J AC Lug Terminal
286 QLUGP0002AWZZ J AB Lug Terminal
601 XBBSD20P04000 J AA Screw,ø2×4mm
604 XEBSD30P12000 J AA Screw,ø3×12mm
605 XESSD30P10000 J AA Screw,ø3×10mm
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 XHBSD30P06000 J AA Screw,ø3×6mm
608 XJBSD30P10000 J AA Screw,ø3×10mm
609 XJBSD30P14000 J AA Screw,ø3×14mm
610 XJBSF30P10000 J AA Screw,ø3×10mm
611 XJSSD30P10000 J AA Screw,ø3×10mm
613 LX-HZ0082AFZZ J AA Screw,ø4×8mm
614 LX-JZ0010AFFD J AA Screw,ø3×10mm
616 92LSC0308MBZI J AB Screw,ø3×8mm
617 LX-HZ0009AWFD J AC Screw,Special
618 XBBSD20P05000 J AA Screw,ø2×5mm

DESCRIPTION

Tape 1
Tape 2
Tape 1
Tape 2

NO.

PARTS CODENO. PARTS CODE

PRICE

RANK

DESCRIPTION

ACCESSORIES/PACKING PARTS

QANTL0007AWZZ J AK AM/FM Loop Antenna
SPAKA0255AWZZ J Packing Add.,Left/Right
SPAKC0911AWZZ J Packing Case [For Canada]
SPAKC0912AWZZ J Packing Case [For Mexico]
SPAKP0013AWZZ1 J AC Polyethylene Bag,Unit
TCAUS0042AWZZ J AB Caution,Energy Star
TINSK0105AWZZ J AF Operation Manual [For Canada]
TINSZ0593AWZZ J Operation Manual [For Mexico]
TLABN0112AWZZ J Serial No.Label
TLABRF240AWZZ J Label,Bar Code
TLABZ0593AWZZ J AB Energy Star Caution Label [Unit]
TLABZ0767AWZZ J Feature Label,Tape 1
TLABZ0768AWZZ J Feature Label,Tape 2

1 RRMCG0219AWSA J AR Remote Control
1- 1 GFTAB1022AWSB J AK Battery Lid,Remote Control

92LBAG1460C1 J AB Polyethylene Bag,Accessories

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~5 92LPWB3408MANS J — Main/Display/Headphones/Digital

! PWB-B1,2 92LPWB3408PWRS J — Power Supply/Power

PWB-C 92LPWB3306CDUS J — CD Servo
PWB-D QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-E ——————— — Tape Mechanism
PWB-F 92LPC99C017 J AE CD Loading Motor (PWB Only)
PWB-G1,2 92LPWB3352VOLS J — Volume Motor/Jog

Output/Switch (Combined Ass’’y)
Transformer (Combined Ass’y)

(Combined Ass’y)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Optical Pickup Lens Cleaner

CP-BA3000

Disc

SPEAKER BOX PARTS

901 92LJ1918B J AN Net Frame Ass’y
902 92LJ1919LB J AY Front Panel,Left
902 92LJ1919RB J AY Front Panel,Right
903 92LJ1920 J AU Woofer Support
904 92LE5834 J BA Crossover Network Ass’y

905 92LJ9802 J AF Catching Holder
906 92LJ9803 J AD Rubber Cushion
907 92LJ9804 J AD Felt
908 92LP5881 J Label,Specifications
909 92L9569C J BE Speaker Box Ass’y
910 92LF1228A J AC Screw,ø4×12mm
911 92LF1080 J AB Screw,ø3×10mm
912 92LF1678A J AB Screw,ø4×16mm
913 92LF2019 J AB Screw,ø4×20mm
SP1,2 VSP0020WBA56A J BE Woofer
SP3,4 VSP0080TBP36A J BA Tweeter
SP5,6 92LC2827AS J AP Super Tweeter Ass’y

(With Capacitor/Cement
Resistor)

ACCESSORY/PACKING PARTS

92LN1887F J Packing,Add.,Top
92LN1887R J Packing,Add.,Bottom
92LTD8675NM J AV Speaker Cord Ass’y
92LV1017CA J AG Mirror Mat
92LV4974B J AE Polyethylene Bag,Speaker
92LV5795E J AF Layer Pad

– 6 –

CD-BA3000

CD-BA3000

A

701

306

306-2

304

701

306-1

B

704

306-3

302

C

301

702

303

D

703x2

E

M1

F

305

M2

G

305x2

SW4

PWB-D

H

1

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 56 –

– 7 –

202

202-1

PWB-A1

202-2

PWB-A2

PWB-A3

PWB-A5

Silicon

Grease

Silicon

Grease

227

Q851

Q850

Q852

PWB-G2

PWB-A4

281

M701

M901

PWB-G1

PWB-E

233

223

230

206

210

209

220

222

265

IC901

208

219

221

201-24

201-16

201-14

201-11

201-19

201-13

201-20

201-12

201-21

214

FL701

201-21

201

207

201-1

233

285

201-2

201-17

201-4

201-6

201-7

201-5

201-3

201-22

225x2

201-23

213

274

274

275

237

212

229

203

203-2

203-1

231x2

231x4

231x2

PWB-B2

PWB-B1

201-17

201-18

201-10

201-15

215

201-9

201-8

226

276

614x2

282

273

605x2

605

605x4

286

610x2

283

280

277

278

279

272x3

284

T801

TAPE

MECHANISM

WITH

JOG701

Motor

Motor

TAPE 2

Flywheel

Ass'y

TAPE 1

Flywheel Ass'y

TAPE 1

FF/REW

Roller Ass'y

TAPE 2

FF/REW

Roller
Ass'y

BELT CONNECTION

Main Belt

211

JOG701

614

614x2

608x2

617

606x2

605x5

604x4

618x2

608x3

608x11

601x2

606x2

617

607

614

608x2

609x2

614

607

608x2

611x2

613x2

614x2

608x2

A

613x2

A

B

C

A

D

E

F

G

CD-BA3000

CD-BA3000

H

Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.

1

23456

Figure 8 CABINET EXPLODED VIEW (1/2)

– 57 –

– 8 –

CD-BA3000

CD-BA3000

604x2

205

A

257

B

266
235

224

243

616

C

CD
MECHANISM

D

244

262

241

604x2

256

238
247

PWB-F

259

246

249

E

248

239

250x4

251

252

255

M3

SW3

SW1

SW2

232

253

239

239

260

F

254

263

242

239x4

258

234

G

240

204-2

204-1

264

204

H

1

23456

Figure 9 CABINET EXPLODED VIEW (2/2)

245

– 58 –

– 9 –

PWB-C

CP-BA3000

CD-BA3000

A

904

911x2

Resistor

Polyswitch

Cement

Film
Capacitor

SP5,6

911x4

B

908

902

907

913x4

C

SP3,4

907

905x4

D

E

Super

F

Tweeter
SP5 (L-ch)
SP6 (R-ch)

Tweeter
SP3 (L-ch)
SP4 (R-ch)

G

Woofer
SP1 (L-ch)
SP2 (R-ch)

H

910x4

901

Film Capacitor

3.3µF/100V

Polyswitch

Cement
Resistor

6.8Ω/40W

SP1,2

912x4

Film
Capacitor

906

RD

903

Tweeter
SP3 (L-ch)
SP4 (R-ch)

RD

BK

Woofer
SP1 (L-ch)
SP2 (R-ch)

907

Super Tweeter
SP5 (L-ch)
SP6 (R-ch)

RD

BK

RD

909

Speaker
Terminal

BK

Polyswitch

Cement
Resistor

1

23456

Figure 10 SPEAKER EXPLODED VIEW (1/2)

– 59 –

– 10 –

CD-BA3000

COPYRIGHT © 2000 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

– 60 –

SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0005-464DS•HA•M

SL • LAG
