DIGITAL MULTIFUNCTIONAL SYSTEM

OPERATION GUIDE

MODEL: AR-6020

AR-6023 AR-6020D AR-6023D AR-6020N AR-6023N AR-6026N AR-6031N

INTRODUCTION ................................................ 6

USING THE MANUAL ....................................... 6

DIFFERENCES BETWEEN MODELS............... 7

1 SETUP

BEFORE SOFTWARE SETUP .......................... 8

l SOFTWARE......................................................8

l HARDWARE AND SOFTWARE

REQUIREMENTS .............................................9

INSTALLING THE SOFTWARE ...................... 10

l AR-6020/AR-6023/AR-6020D/AR-6023D .......10

l FOR A MODEL THAT HAS THE NETWORK

FUNCITON AS A STANDARD FEATURE OR WHEN THE NETWORK EXPANSION KIT IS

INSTALLED ....................................................14

l INSTALLING THE PS DISPLAY FONTS........22

CONFIGURING THE PRINTER DRIVER ........ 23

SETTING UP BUTTON MANAGER ................ 24

TROUBLESHOOTING ..................................... 25

SETUP IN A MACINTOSH ENVIRONMENT ... 27

l MAC OS X ......................................................27

2 BEFORE USING THE MACHINE

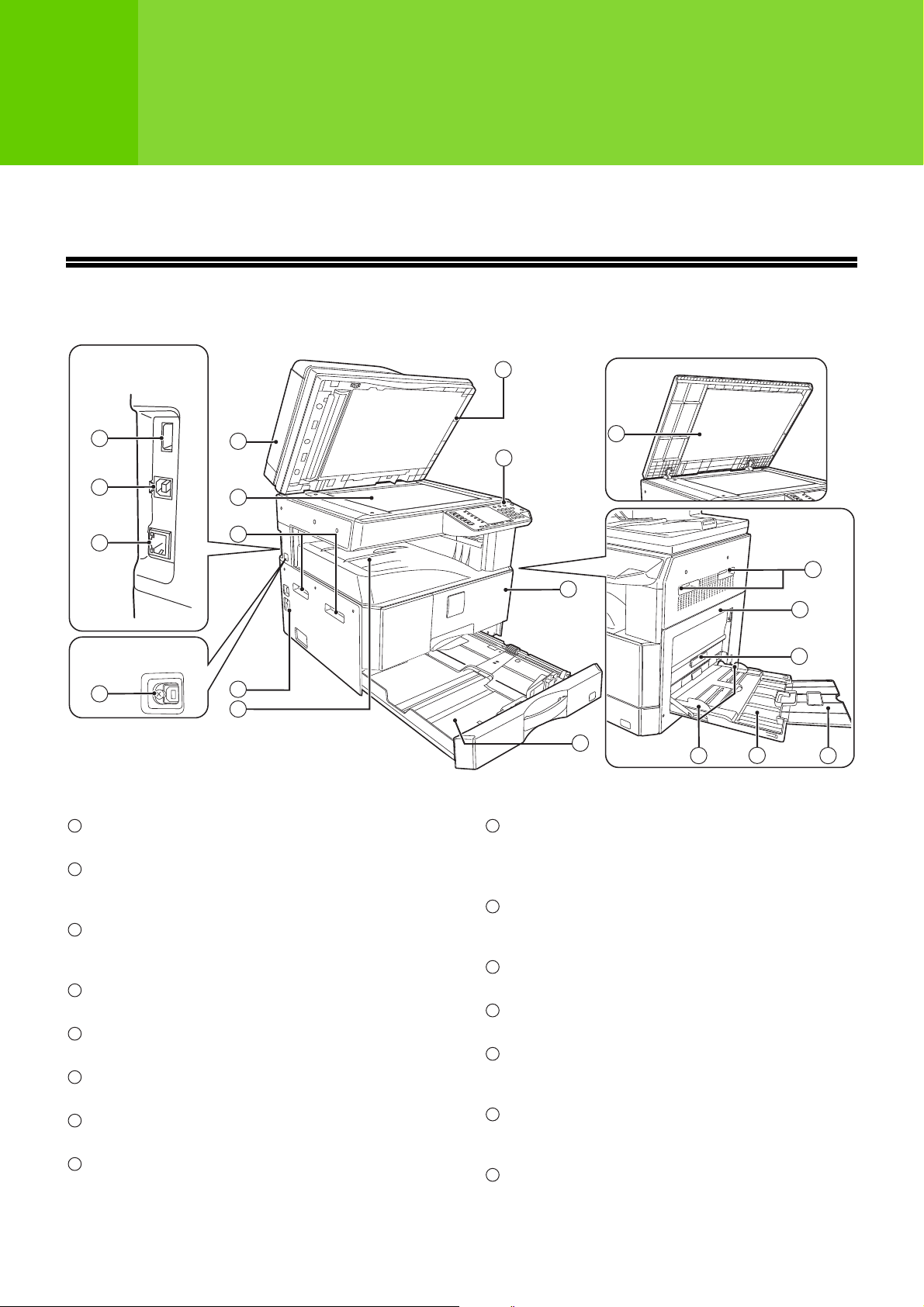

PART NAMES AND FUNCTIONS ................... 31

l OPERATION PANEL ......................................33

l DISPLAY.........................................................35

l NOTIFICATION INDICATOR..........................36

POWER ON AND OFF..................................... 37

l POWER ON ....................................................37

l POWER OFF ..................................................37

LOADING PAPER............................................ 38

l PAPER............................................................38

l LOADING PAPER...........................................39

CHANGING A TRAY'S PAPER SIZE SETTING

CHANGING THE PAPER TYPE IN A TRAY

OPERATION IN COPY, PRINTER, AND

SCANNER MODES.......................................... 43

....41

.........42

3 COPY FUNCTIONS

NORMAL COPYING ........................................ 44

l MAKING A COPY DARKER OR LIGHTER ... 47

l SELECTING THE TRAY................................ 47

l SETTING THE NUMBER OF COPIES .......... 48

REDUCTION/ENLARGEMENT/ZOOM ........... 48

l AUTOMATIC RATIO SELECTION................. 48

l MANUAL RATIO SELECTION....................... 49

l SELECTING THE VERTICAL AND

HORIZONTAL COPY RATIOS SEPARATELY

(XY ZOOM Copying) ...................................... 50

AUTOMATIC TWO-SIDED COPYING (Model that has the duplex copy print function as

standard feature only.)................................... 52

l IMAGE ROTATION IN DUPLEX COPYING .. 54

TWO-SIDED COPYING USING THE BYPASS

TRAY................................................................ 55

DUAL PAGE COPYING................................... 56

INTERRUPTING A COPY RUN (Interrupt

Copying).......................................................... 57

CONVENIENT COPY FUNCTIONS................. 58

l ROTATING THE IMAGE 90 DEGREES

(Rotation Copy) .............................................. 58

SORT COPY/GROUP COPY/ROTATE SORT

l COPYING MULTIPLE ORIGINALS ONTO A

SINGLE SHEET OF PAPER (2 IN 1 / 4 IN 1

Copy) ............................................................. 61

l CREATING MARGINS WHEN COPYING

(Margin Shift) ................................................. 63

l ERASING SHADOWS AROUND THE EDGES

OF A COPY (Erase Copy) ............................. 64

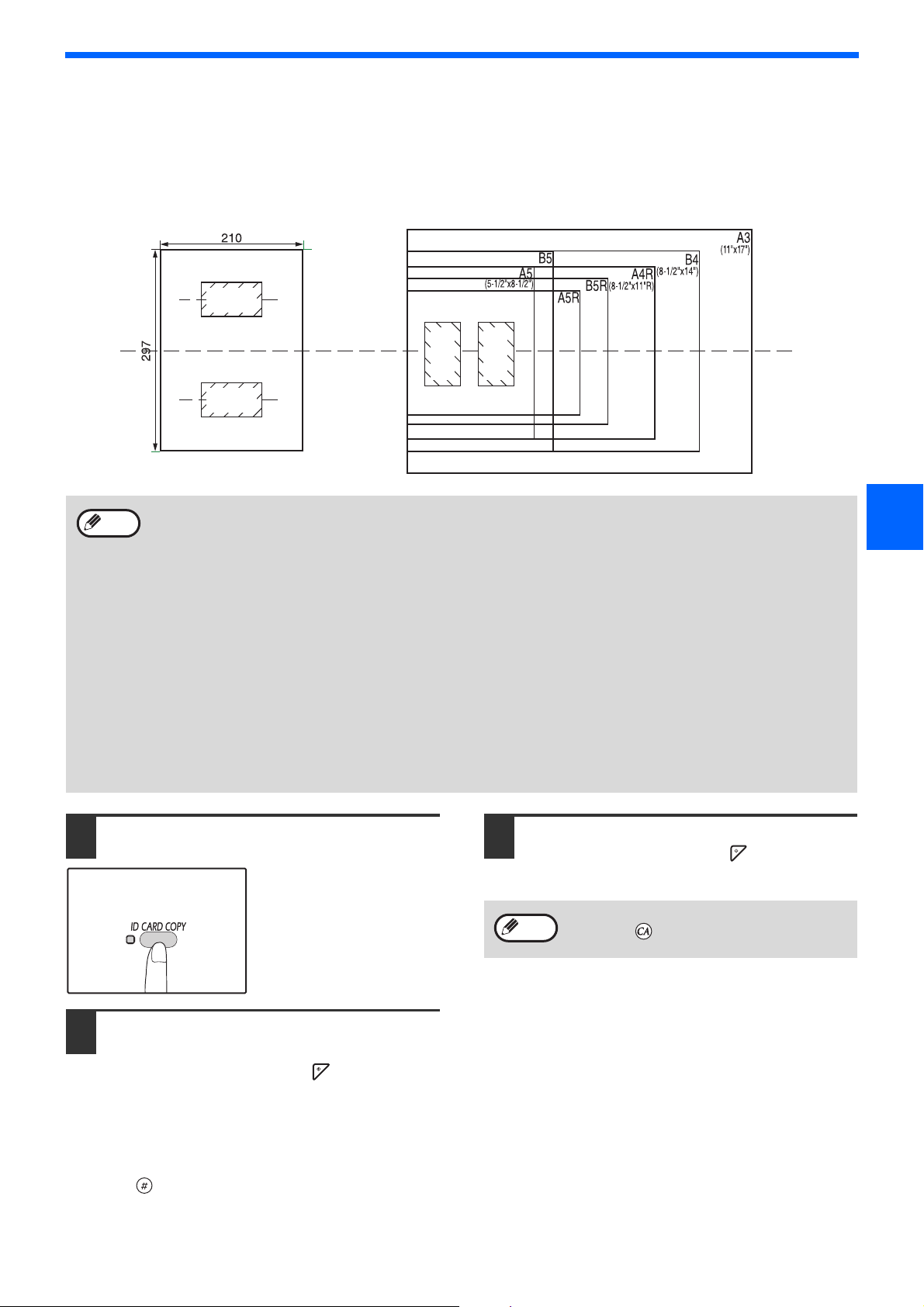

l ID CARD COPY ............................................. 65

............................................................ 59

4 PRINTER FUNCTIONS

6 USER SETTINGS

BASIC PRINTING ............................................ 66

l OPENING THE PRINTER DRIVER FROM THE

"Start" BUTTON ..............................................68

PRINTER DRIVER SETTING SCREEN........... 69

SETTING ADVANCED PRINT FUNCTIONS

l PRINTING MULTIPLE PAGES ON ONE PAGE

(N-Up Printing) ................................................70

l FITTING THE PRINTED IMAGE TO THE

PAPER (Fit To Paper Size).............................71

l ROTATING THE PRINT IMAGE 180 DEGREES

(Rotate 180 degrees) ......................................71

l ENLARGING/REDUCING THE PRINT IMAGE

(Zoom) ............................................................72

l PRINTING FAINT TEXT AND LINES IN BLACK

(Text To Black/Vector To Black) .....................72

l ADJUSTING THE BRIGHTNESS AND

CONTRAST OF THE IMAGE (Image

Adjustment).....................................................73

ADDING A WATERMARK TO PRINTED PAGES

(Watermark) .....................................................73

TWO-SIDED PRINTING (Model that has duplex copy

/ print function as standard feature only)................. 74

........ 70

SAVING FREQUENTLY USED PRINT

SETTINGS........................................................ 75

l SAVING SETTINGS AT THE TIME OF

PRINTING (User Settings) ..............................75

OUTLINE OF THE PRINT STATUS WINDOW BASIC PRINTING (MACINTOSH)

......................... 77

....... 76

5 SCANNER FUNCTIONS

SCANNING OVERVIEW .................................. 78

SCANNING USING THE KEYS ON THE

MACHINE......................................................... 79

l USING BUTTON MANAGER..........................79

l OUTLINE OF BUTTON MANAGER ...............80

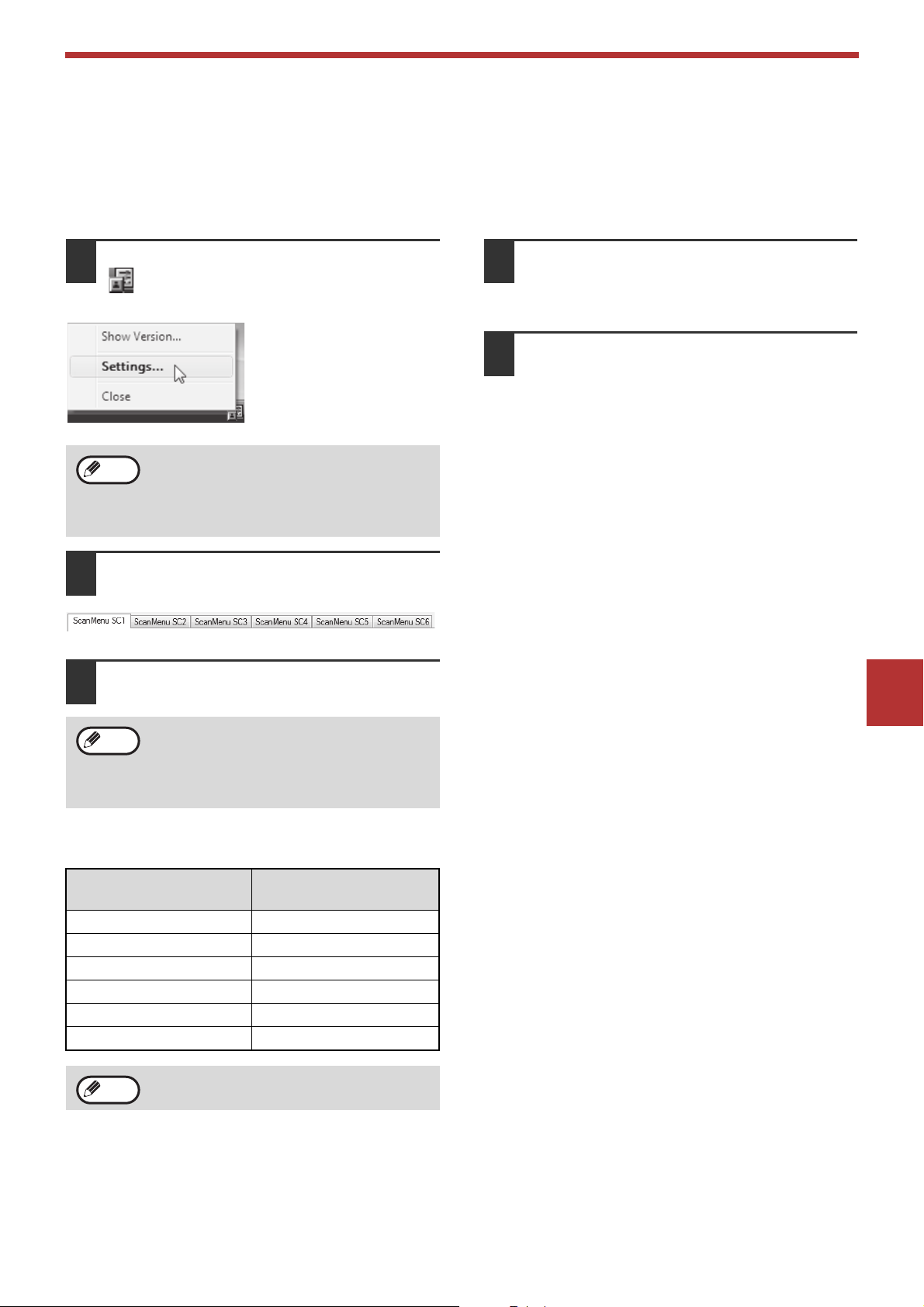

l BUTTON MANAGER SETTINGS ...................81

SENDING AN IMAGE IN USB MEMORY MODE .....82

SENDING AN IMAGE IN USB MEMORY MODE

l USB MEMORY MODE SETTINGS.................82

SCANNING FROM YOUR COMPUTER.......... 83

SCANNING FROM A TWAIN-COMPLIANT

APPLICATION ..................................................83

l SCANNING FROM A WIA-COMPLIANT

APPLICATION (Windows Vista/7/8) ...............87

.......82

ADJUSTING THE AUTOMATIC EXPOSURE

LEVEL.............................................................. 89

TONER SAVE MODE AND HIGH IMAGE

QUALITY MODE.............................................. 90

CUSTOMISING SETTINGS (System Settings)

l SYSTEM SETTINGS ..................................... 91

l SELECTING A SETTING FOR A SYSTEM

SETTING ....................................................... 94

...... 91

SETTING THE IP ADDRESS OF THE MACHINE BY SYSTEM SETTINGS

l ENABLING/DISABLING DHCP...................... 95

l SETTING THE IP ADDRESS

AUTOMATICALLY ......................................... 95

l SETTING THE IP ADDRESS......................... 96

............................................. 95

SETTINGS FOR AUDITING MODE................. 97

l AUDITING MODE .......................................... 97

l AUDITING MODE SETTINGS ....................... 97

SELECTING AUDITING MODE SETTINGS

..... 98

7 TROUBLESHOOTING

TROUBLESHOOTING................................... 102

l MACHINE/COPYING PROBLEMS .............. 102

PRINTING AND SCANNING PROBLEMS

l NETWORKING PROBLEMS ....................... 109

INDICATORS AND DISPLAY MESSAGES

MISFEED REMOVAL .................................... 112

l MISFEED IN THE RSPF.............................. 112

l MISFEED IN THE BYPASS TRAY .............. 113

l MISFEED IN THE MACHINE....................... 114

MISFEED IN THE UPPER PAPER TRAY

MISFEED IN THE LOWER PAPER TRAY

REPLACING THE TONER CARTRIDGE ...... 119

.... 105

...... 111

..... 117

...... 118

8 ROUTINE MAINTENANCE

WEB FUNCTIONS IN THE MACHINE

CHECKING THE TOTAL OUTPUT COUNT AND

TONER LEVEL .............................................. 120

CHECKING THE TOTAL OUTPUT COUNT

l CHECKING THE TONER LEVEL .................121

ROUTINE MAINTENANCE............................ 122

l CLEANING THE DOCUMENT GLASS AND

RSPF/DOCUMENT COVER .........................122

CLEANING THE ORIGINAL SCANNING GLASS

(ONLY WHEN AN RSPF IS INSTALLED) ......... 122

l CLEANING THE BYPASS TRAY PAPER FEED

ROLLER

CLEANING THE ORIGINAL FEED ROLLER

............................................................ 123

....120

......123

9 APPENDIX

PERIPHERAL DEVICES................................ 124

l 500-SHEET PAPER FEED UNIT..................125

STORAGE OF SUPPLIES ............................. 126

l PROPER STORAGE ....................................126

ABOUT THE WEB PAGES ........................... 127

l HOW TO ACCESS THE WEB PAGE AND

VIEW HELP ................................................. 127

CHECKING THE IP ADDRESS IN THE WEB

PAGE ............................................................. 128

ABOUT THE WEB PAGES (FOR USERS)........ 129

CONFIGURING THE PRINTER CONDITION

SETTINGS ..................................................... 130

l HOW TO CONFIGURE THE SETTINGS..... 130

l PRINTER CONDITION SETTING MENU .... 131

l PRINTER CONDITION SETTINGS ............. 131

ABOUT THE WEB PAGES (FOR THE

ADMINISTRATOR) ........................................ 133

PROTECTING INFORMATION PROGRAMMED

IN THE WEB PAGE ([Passwords]) .............. 134

ADMINISTRATOR SETTINGS ...................... 135

l CONFIGURING A SETTING IN THE

ADMINISTRATOR SETTINGS .................... 135

l ADMINISTRATOR SETTINGS .................... 135

SSL SETTINGS ............................................. 136

E-MAIL STATUS AND E-MAIL ALERT

SETTINGS ..................................................... 137

l INFORMATION SETUP ............................... 137

l SMTP SETUP .............................................. 137

l STATUS MESSAGE SETUP ....................... 138

l ALERTS MESSAGE SETUP ....................... 138

INTRODUCTION

Note

This manual describes the copier, printer, and scanner functions of the AR-6020/AR-6023, AR-6020D/AR-6023D, AR6020N/AR-6023N and AR-6026N/AR-6031N digital multifunctional system. And also explains how to configure network settings to enable the machine to be used as a network printer/scanner.

• Where "AR-xxxx" appears in this manual, please substitute the name of your model for "xxxx". For the name of your model, see "DIFFERENCES BETWEEN MODELS" (p.7).

• The screen images and procedures that appear in this manual are mainly for Windows 7. With other versions of Windows, some screen images may be different from those in this manual.

• For information on using your operating system, refer to your operating system's manual or online Help.

The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product improvements and modifications.

USING THE MANUAL

This machine has been designed to provide convenient copying features in a minimum amount of office space and with maximum operational ease. To get full use of all machine features, be sure to familiarise yourself with this manual and the machine. For quick reference during machine use, SHARP recommends printing out this manual and keep it in a handy location.

ABOUT THE MANUALS

The manuals for the machine are as follows:

Start Guide

This manual explains:

• Specifications

• Cautions for using the machine in safety

Operation Guide (this guide)

This manual explains:

• How to install the software that allows the machine to be used as a printer and scanner for your computer

• Part names of the machine

• Available paper type for this machine

• Basic copy procedure and advanced copy functions (For example: rotating the image 90 degrees, copying multiple originals onto a single sheet of paper)

• Basic print procedure and other frequently used print functions (For example: fitting the printed image to the paper, enlarging/reducing the print image)

• Scanning on the machine and from a computer

• Toner cartridge replacement and peripheral devices

• Troubleshooting for using the machine

THE MEANING OF "R" IN ORIGINAL AND PAPER SIZE INDICATIONS

An "R" appearing at the end of an original or paper size (A4R (5-1/2" x 8-1/2"R, 8-1/2" x 11"R), etc.) indicates that the original or paper is oriented horizontally as shown on the right. Sizes that can be placed only in the horizontal (landscape) orientation (B4, A3 (8-1/2" x 14", 11" x 17")) do not contain the "R" in their size indication.

CONVENTIONS USED IN THIS MANUAL

Warning

Caution

Warns the user that injury may result if the contents of the warning are not properly followed.

Cautions the user that damage to the machine or one of its components may result if the contents of the caution are not properly followed.

Note

Notes provide information relevant to the machine regarding specifications, functions, performance, operation and such, that may be useful to the user.

RSPF

This manual refers to the Reversing Single Pass Feeder as the "RSPF".

DIFFERENCES BETWEEN MODELS

This manual covers the following models.

Model

Appearance

AR-6020 AR-6023

AR-6020D AR-6023D

AR-6020N AR-6023N

AR-6026N AR-6031N

Copy speed

Duplex - Standard

Network function Optional Standard

Paper trays One (250 x 1) Two (500 x 2)

AR-6020 20CPM AR-6020D 20CPM AR-6020N 20CPM AR-6026N 26CPM

AR-6023 23CPM AR-6023D 23CPM AR-6023N 23CPM AR-6031N 31CPM

AB series (metric) and inch series references

Both specifications are quoted where applicable.

For example:

Page 6..................................B4 and A3 (8-1/2" x 14" and 11" x 17")

Start Guide ........................... 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200% (50%, 64%, 77%, 95%,

100%, 121%, 129%, 141%, 200%)

Although AB series size indications are shown on the operation panel of this manual, inch series indications are displayed on the inch series machines.

Note

BEFORE SOFTWARE SETUP

This chapter explains how to install and configure the software that is required for the printer and scanner functions of the machine.

SOFTWARE

Chapter 1

SETUP

This manual refers to the CD-ROM that accompanied the machine simply as "CD-ROM".

The CD-ROM that accompanies the machine contains the following software:

AR-6020/AR-6023/AR-6020D/AR-6023D

MFP driver

Printer driver

The printer driver enables you to use the printer function of the machine. The printer driver includes the Print Status Window. This is a utility that monitors the machine and informs you of the printing status, the name of the document currently being printed, and error messages.

Scanner driver

The scanner driver allows you to use the scanning function of the machine with TWAIN-compliant and WIA-compliant applications.

Button Manager

Button Manager allows you to use the scanner menus on the machine to scan a document.

AR-6020N/AR-6023N/AR-6026N/AR-6031N

Printer driver

The printer driver enables you to use the printer function of the machine.

Scanner driver

The scanner driver allows you to use the scanning function of the machine with TWAIN-compliant software applications.

• To use the machine with a USB connection, the printer expansion kit is required.

• On a USB connection, the scanner driver cannot be installed.

When the network expansion kit or the printer expansion kit is installed

Software for Windows

Printer driver

These allow the machine to be used as a printer.

- PCL6 printer driver

PCL6 printer driver

- PS printer driver*

The PS printer driver supports the PostScript 3 page description language developed by Adobe Systems Incorporated.

- PPD driver*

The PPD driver enables the machine to use the standard Windows PS printer driver.

Printer Status Monitor

This allows you to monitor the status of the machine on your computer screen.

Scanner driver (TWAIN driver)

This allows you to use the scanner function of the machine from a TWAIN-compliant software application.

Software for Macintosh

PPD file*

The printer description file supports the PostScript 3 page description language developed by Adobe Systems Incorporated.

SETUP

* The PS3 expansion kit is required.

HARDWARE AND SOFTWARE REQUIREMENTS

Check the following hardware and software requirements before installing the software.

AR-6020/AR-6023/AR-6020D/AR-6023D

Computer type

Printer driver

Operating

system

Scanner driver

Other hardware requirements An environment on which any of the operating systems listed above can fully operate

*1When the network expansion kit is installed, 10BASE-T/100BASE-TX LAN functions can be used.

When the machine is connected using a USB cable, it cannot be used as a printer. To use the machine as a printer with a USB

connection, the printer expansion kit is required.

The machine's USB 2.0 port will transfer data at the speed specified by the USB 2.0 (Hi-Speed) only if the Microsoft USB 2.0

driver is preinstalled in the computer, or if the USB 2.0 driver for Windows Vista/7/8, Windows server 2003/2008/2012 that Microsoft provides through its "Windows Update" is installed.

Compatible with Windows Vista, or Windows 7, Windows 8,

Windows server 2003, Windows server 2008, Windows server 2012 preinstalled models equipped with a USB interface as standard.

*5• The machine does not support printing from a Macintosh environment.

• Administrator’s rights are required to install the software using the installer.

The network expansion kit is required.

The PS3 expansion kit is required.

IBM PC/AT or compatible computer equipped with a USB 2.0*3/1.1

Windows Vista, Windows 7, Windows 8 Windows server 2003*6, Windows server 2008*6, Windows server 2012 Mac OS X 10.4 to 10.9

Windows Vista, Windows 7, Windows 8 Windows server 2003*6, Windows server 2008 Windows server 2012

*6,*7

AR-6020N/AR-6023N/AR-6026N/AR-6031N

IBM PC/AT or compatible computer equipped with a 10BASE-T/100BASE-TX LAN connector

Windows Vista, Windows 7, Windows 8, Windows server 2003, Windows server 2008, Windows server 2012 Mac OS X 10.4 to 10.9

Windows Vista, Windows 7, Windows 8, Windows server 2003, Windows server 2008, Windows server 2012

INSTALLING THE SOFTWARE

Note

Caution

• AR-6020/AR-6023/AR-6020D/AR-6023D: this page

• AR-6020N/AR-6023N/AR-6026N/AR-6031N: page 14

• When the network expansion kit or the printer expansion kit is installed : page 14

• The screen images in this manual are mainly for Windows 7. With other versions of Windows, some screen images may be different from those in this manual.

• If an error message appears, follow the instructions on the screen to solve the problem. After the problem is solved, the installation procedure will continue. Depending on the problem, you may have to click the "Cancel" button to exit the installer. In this case, reinstall the software from the beginning after solving the problem.

AR-6020/AR-6023/AR-6020D/AR-6023D

The USB cable must not be connected

to the machine. Make sure that the cable is not connected before proceeding.

If the cable is connected, a Plug and Play window will appear. If this happens, click the "Cancel" button to close the window and disconnect the cable.

The cable will be connected in step 12.

Insert the CD-ROM into your CD-ROM

drive.

Click the "Start" button ( ), click

"Computer", and then double-click the "CD-ROM" icon ( )

In Windows 8, double-click the "CD-ROM" icon.

* If no icon is displayed, right-click in the Start

screen (or swipe upward from the bottom edge), then select the App Bar "Computer" and then double-click "CD-ROM".

Double-click the "Setup" icon ( ).

Þ "All apps" Þ

The "SOFTWARE LICENSE" window

will appear. Make sure that you understand the contents of the software license, and then click the "Yes" button.

Note

Read the message in the "Welcome"

You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.

window and then click the "Next" button.

To connect the machine and a computer

directly via a USB cable, normally click the "Standard" button and go to step 11. When you click the "Custom" button, go to the next step.

To automatically install the MFP driver (printer/scanner driver) and Button Manager, select “Standard”.

• In Windows 7/8, if a message screen appears asking you for confirmation, click "Yes".

• In Windows Vista, if a message screen appears asking you for confirmation, click "Allow".

Click the "MFP Driver" button.

Click the "Display Readme" button to show information on packages that are selected.

SETUP

Caution

Note

Select "Connected to this computer"

and click the "Next" button.

Follow the on-screen instructions.

When "The installation of the SHARP software is complete." appears, click the "OK" button and go to the next step.

If you are using Windows Vista/7/8

If a security warning window appears, be sure to click "Install this driver software anyway".

When installing is finished, click the

"Close" button.

A message will appear instructing you to connect the machine to your computer. Click the "OK" button.

Note

Connect the machine to your

After the installation, a message prompting you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

computer with a USB cable.

(1) Make sure that the machine is powered

(p.37)

on.

(2) Connect the cable to the USB connector

(B type) on the machine.

The USB interface on the machine complies with the USB 2.0 (Hi-Speed) standard. Please purchase a shielded USB cable.

You will return to the window of step 8.

If you wish to install Button Manager, click the "Button Manager" button.

If you do not wish to install the Button Manager, go to step 11.

Follow the on-screen instructions.

After the installation, a message prompting you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

(3) Connect the other end of the cable to the

USB connector (A type) on your computer.

SETUP

Caution

Follow the instructions in the Plug

and Play window to install the driver.

Follow the on-screen instructions.

If you are using Windows Vista/7/8

If a security warning window appears, be sure to click "Install this driver software anyway".

This completes the installation of the software.

System requirements for USB 2.0 (Hi-Speed mode)

• The machine's USB 2.0 connector will transfer data at the speed specified by the USB 2.0 (Hi-Speed) only if the Microsoft USB 2.0 driver is preinstalled in the computer, or if the USB 2.0 driver for Windows Vista/7/8, Windows server 2003/2008/2012 that Microsoft provides through its "Windows Update" Web page is installed.

• Even when the Microsoft USB 2.0 driver is used, it may not be possible to obtain full USB 2.0 speed if a PC card supporting USB 2.0 is used. To obtain the latest driver (which may enable a higher speed), contact the manufacturer of your PC card.

• Connection is also possible using a USB 1.1 port on your computer. However, the specifications will be USB 1.1 specifications (Full-Speed).

• If your computer is not compatible with USB 2.0 (Hi-Speed), the "USB 2.0 mode switching" setting in the machine's system setting must be set to "Full-Speed". For more information, see "SYSTEM SETTINGS" (p.91).

SETUP

Note

Caution

Note

USING THE MACHINE AS A SHARED PRINTER

If the machine will be used as a shared printer on a Windows network, follow these steps to install the printer driver in the client computer.

Note

Perform steps 2 through 6 in

"INSTALLING THE SOFTWARE" (p.10).

Click the "Custom" button.

Click the "MFP Driver" button.

To configure the appropriate settings in the print server, see the operation manual or help file of your operating system.

Click the part you want to use with this

printer.

(1) Select the MFP port. (2) Click the "Next" button.

Click the "Next" button.

Follow the on-screen instructions.

If the shared printer does not appear in the list, check the settings on the print server.

If you are using Windows Vista/7/8

If a security warning window appears, be sure to click "Install this driver software anyway".

When the installation completed screen

appears, click the "OK" button.

Click the "Display Readme" button to show information on packages that are selected.

Select "Connected via the network"

and click the "Next" button.

Click the "Close" button in the window

of step 3.

After the installation, a message prompting you to restart your computer may appear. In this case, click the "Yes" button to restart your computer.

This completes the installation of the software.

SETUP

FOR A MODEL THAT HAS THE NETWORK FUNCITON AS A STANDARD FEATURE OR WHEN THE NETWORK EXPANSION KIT IS INSTALLED

Installing the printer driver

When the machine is connected to a network

Insert the LAN cable into the LAN

connector on the machine.

Use a network cable that is shielded.

Insert the CD-ROM into your CD-ROM

drive.

Click the "Start" button ( ), click

"Computer", and then double-click the "CD-ROM" icon ( ).

• In Windows Server 2003/2008, click the "start" button, click "My Computer", and then double-click the "CD-ROM" icon.

• In Windows 8/Server 2012, double-click the "CD-ROM" icon. * If no icon is displayed, right-click in the Start

screen (or swipe upward from the bottom edge), then select the App Bar "Computer" and then double-click "CD-ROM".

Þ "All apps" Þ

Double-click the "Setup" icon ( ).

• In Windows 7/8/Server 2012, if a message

Note

The "SOFTWARE LICENSE" window

will appear. Make sure that you understand the contents of the software license, and then click the "Yes" button.

Read the message in the "Welcome"

window and then click the "Next" button.

screen appears asking you for confirmation, click "Yes".

• In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click "Allow".

SETUP

Caution

Note

Click the "Printer Driver" button.

Click the "Standard installation"

button.

When "Custom installation" is selected, you

Note

can change any of the items below. When "Standard installation" is selected, the installation will take place as indicated below.

• Machine connection method: LPR Direct Print (Auto Search)

• Set as default printer: Yes

• Printer driver name: Cannot be changed

• PCL printer display fonts (Only at the time

of PCL, PS printer driver or PPD driver

installation): Installed. If you selected "Custom installation", select "LPR Direct Print (Auto Search)" and click the "Next" button.

Printers connected to the network are

detected. Select the machine and click the "Next" button.

• This screen is not displayed when only 1

Note

Follow the on-screen instructions.

Read the message in the window that appears and click the "Next" button. Installation begins.

device is found in the search results.

• If the machine is not found, make sure that the machine is powered on and that the machine is connected to the network, and then click the "Re-search" button.

• You can also click the "Specify condition" button and search for the machine by entering the machine's name (host name) or IP address.

• If you are using Windows Vista/Server

2008/7/8 /Server 2012

If a security warning window appears, be sure to click "Install this driver software anyway".

• If you are using Windows Server 2003 If a warning message regarding the Windows logo test or digital signature appears, be sure to click the "Continue Anyway" or "Yes" button.

When the installation completed

screen appears, click the "OK" button.

Click the "Close" button in the

window of step 7.

After the installation, a message prompting you to restart your computer may appear. If this message appears, click the "Yes" button to restart your computer.

SETUP

Caution

When the machine will be connected with a USB cable (When the network expansion kit or the printer expansion kit is installed)

Perform steps 2 through 6 in "When

the machine is connected to a network" (p.14).

Click the "Printer Driver" button.

Click the "Custom installation"

button.

Follow the on-screen instructions.

Read the message in the window that appears and click the "Next" button. When the installation completed screen appears, click the "OK" button.

• If you are using Windows Vista/Server

2008/7/8 /Server 2012

If a security warning window appears, be sure to click "Install this driver software anyway".

• If you are using Windows Server 2003 If a warning message regarding the Windows logo test or digital signature appears, be sure to click the "Continue Anyway" or "Yes" button.

Click the "Close" button in the

window of step 2.

When a message appears prompting you to connect the machine to your computer, click the "OK" button.

After the installation, a message prompting

Note

you to restart your computer may appear. If this message appears, click the "Yes" button to restart your computer.

When you are asked how the printer is

connected, select "Connected to this computer" and click the "Next" button.

Connect the machine to your

Caution

computer with a USB cable.

(1) Make sure that the machine is powered

(p.37)

on.

(2) Connect the cable to the USB connector

(B type) on the machine.

The USB interface on the machine complies with the USB 2.0 (Hi-Speed) standard. Please purchase a shielded USB cable.

SETUP

(3) Connect the other end of the cable to the

USB connector (A type) on your computer.

Installation of the PCL6 printer driver

begins.

When the "Found New Hardware Wizard" appears, select "Install the software automatically (Recommended)", click the "Next" button, and follow the on-screen instructions.

• If you are using Windows Vista/Server

2008/7/8/Server 2012

If a security warning window appears, be sure to click "Install this driver software anyway".

• If you are using Windows Server 2003 If a warning message regarding the Windows logo test or digital signature appears, be sure to click the "Continue Anyway" or "Yes" button.

This completes the installation.

SETUP

Note

Caution

When installing the PS printer driver or PPD driver

Installation is possible even after the USB cable has been connected.

Click the "Printer Driver" button.

Click the "Custom installation" button.

When you are asked how the printer is

connected, select "LPR Direct Print (Specify Address)" and click the "Next" button.

When the printer driver selection

window appears, remove the "PCL6" checkmark and select the printer driver to be installed, and then click the "Next" button.

Click the checkbox of the printer driver to be installed so that a checkmark ( ) appears.

Note

Follow the on-screen instructions.

Read the message in the window that appears and click the "Next" button. Installation begins.

The PS3 expansion kit is required to use the PS printer driver or the PPD driver.

When selecting "Connected to this computer", the PS printer driver or PPD driver can not be installed. Only selecting excluded from "Connected to this computer" can go to step 5.

When the model selection window

appears, select the model that you want to use and click the "Next" button.

• If you are using Windows Vista/Server 2008/7/8/Server 2012

If a security warning window appears, be sure to click "Install this driver software anyway".

• If you are using Windows Server 2003 If a warning message regarding the Windows logo test or digital signature appears, be sure to click the "Continue Anyway" or "Yes" button.

When the installation completed

screen appears, click the "OK" button.

Click the "Close" button in the

window of step 1.

After the installation, a message prompting

Note

This completes the installation.

you to restart your computer may appear. If this message appears, click the "Yes" button to restart your computer.

SETUP

Installing the printer status monitor (when the network expansion kit or the printer expansion kit is installed)

Printer Status Monitor is a printer utility that allows general users to check the current status of the machine on their computer screen, such as whether or not the machine is ready to print. The Printer Status Monitor shows error information such as paper misfeeds, printer configuration information as an image, the paper sizes that can be used, and the amount of paper remaining. Administrator's rights are required to install the software.

Note

Click the "Utility Software" button and

then click the "Printer Status Monitor" button.

The Printer Status Monitor cannot be used in the following situations:

• When the machine is connected by a USB cable.

Click the "Close" button in the

window of step 1.

After the installation, a message prompting

Note

This completes the installation.

For the procedures for using the Printer Status Monitor, see the Help file. Follow these steps to view the Help file: Click the Windows "start" button, select "All Programs", select "SHARP Printer Status Monitor" and then select "Help". In Windows 8/Server 2012, right-click in the startup window (or swipe upward from the bottom edge), then select "Taskbar" → "All Applications" → "Help" in the SHARP Printer Status Monitor menu.

you to restart your computer may appear. If this message appears, click the "Yes" button to restart your computer.

Follow the on-screen instructions.

When the installation completed

screen appears, click the "Finish" button.

To have the Printer Status Monitor start automatically when your computer is started, select the "Add this program to your Startup folder" checkbox and click the "Finish" button.

SETUP

Note

Installing the scanner driver

Perform steps 2 through 6 in "When

the machine is connected to a network" (p.14).

Click the "Scanner Driver (TWAIN) "

button.

If the network expansion kit or the printer expansion kit is installed, click the "Utility Software" button and then click "Scanner Driver (TWAIN)".

Click the "start" button, select "All

Programs", select "SHARP MFP TWAIN AC" ("SHARP MFP TWAIN K" on a network connection), and then select "Select Device".

Click the "Search" button.

If you know the IP address, you can click the "Input" key and enter the IP address without searching.

Follow the on-screen instructions.

Read the message in the window that appears and click the "Yes" button.

When the finish setup window

appears, click the "OK" button.

Click the "Close" button in the

window of step 2.

After the installation, a message prompting you to restart your computer may appear. If this message appears, click the "Yes" button to restart your computer.

This completes the installation. Next, configure the IP address of the machine in the scanner driver.

When the scanner driver is installed, the "Select Device" utility is also installed. The IP address of the machine is configured in the scanner driver using "Select Device".

Select the IP address of the machine

AR-xxxx

from the "Address" menu and click the "OK" button.

• Be sure to ask your system administrator (network administrator) for the IP address of the machine.

• The name (host name) or IP address of the machine can be directly entered in "Address".

• If the port number used by the scanner function of the machine has been changed, enter a colon ":" following the IP address and then enter the port number. (Normally the port number does not need to be entered.)

SETUP

Click the "OK" button.

This completes the configuration of the scanner driver.

SETUP

Note

INSTALLING THE PS DISPLAY FONTS

Fonts that can be used by the PS printer driver are contained on the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. Install these fonts as needed for the PS printer driver.

To install on Mac OS, see ReadMe on the “PRINTER UTILITIES" CD-ROM that is included in the PS3 expansion kit.

Insert the "PRINTER UTILITIES"

CD-ROM that accompanies the PS3 expansion kit into your computer's CD-ROM drive.

Click the "Start" button ( ), click

"Computer", and then double-click the "CD-ROM" icon ( )

In Windows 8, double-click the "CD-ROM" icon.

*If no icon is displayed, right-click in the Start

screen (or swipe upward from the bottom edge), then select the App Bar "Computer" and then double-click "CD-ROM".

Double-click the "Setup" icon ( ).

• In Windows 7/8/Server 2012, if a message screen appears asking you for confirmation, click "Yes".

• In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click "Allow".

Þ "All apps" Þ

Click the "PS Display Font" button.

Follow the on-screen instructions.

The "SOFTWARE LICENSE" window

will appear. Make sure that you understand the contents of the license agreement and then click the "Yes" button.

Read the message in the "Welcome"

window and then click the "Next" button.

Click the "Close" button in the screen

of step 6.

CONFIGURING THE PRINTER DRIVER

After installing the printer driver, you must configure the printer driver settings appropriately for the number of paper trays on the machine and the size of paper loaded in each.

Click the "Start" button and then click

"Devices and Printers".

• In Windows Server 2003, click the "start" button and then click "Printers and Faxes".

• For Windows 8, right-click in the Start screen (or swipe upward from the bottom edge), then click the App Bar Þ "All apps" Þ "Control Panel" Þ "Hardware and Sound" Þ "Devices and Printers" Þ "Printers".

Right-click the "SHARP AR-xxxx"

printer driver icon, and then click "Printer properties".

In Windows Vista click the "SHARP AR-xxxx" printer driver icon and select "Properties" from the "Organize" menu.

Click the "Configuration" tab and set

the printer configuration based on the options that have been installed.

Set the printer configuration properly. If not, printing may not take place correctly.

Click the "Set Tray Status" button and

select the size of paper that is loaded in each tray.

Select a tray in the "Paper Source" menu, and select the size of paper loaded in that tray from the "Set Paper Size" menu. Repeat for each tray.

Click the "OK" button in the "Set Tray

Status" window.

Click the "OK" button in the printer

properties window.

Note

For the PCL Driver, to configure the settings automatically based on the detected machine status, click the "Auto Configuration" button.

SETTING UP BUTTON MANAGER

u SC1:S

(For AR-6020/AR-6023/AR-6020D/AR-6023D)

Button Manager is a software program that works with the scanner driver to enable scanning from the machine. To scan using the machine, Button Manager must be linked with the scan menu on the machine. Follow the steps below to link Button Manager to scanner events .

Click the "Start" button and then click

"Devices and Printers".

• In Windows Vista click the "Start" button, click "Control Panel", click "Hardware and Sound", and then click "Scanners and Cameras".

Right-click the "SHARP AR-xxxx" icon

and select "Scan properties".

In Windows Vista click the "SHARP AR-xxxx" icon and select "Properties".

In the "Properties" screen, click the

"Events" tab.

Select "ScanMenu SC1:" from the

"Select an event" pull-down menu.

Select "Start this program" and then

select "Sharp Button Manager AC" from the pull-down menu.

SC1:

canMen

Repeat Steps 4 and 5 to link Button

Manager to "ScanMenu SC2:" through "ScanMenu SC6:".

Select "Scanmenu SC2:" from the "Select an event" pull-down menu. Select "Start this program", select "Sharp Button Manager AC" from the pull-down menu. Do the same for each scan menu through "Scanmenu SC6:".

Click the "OK" button.

Button Manager is now linked to the scan menu (1 through 6). The scan settings for each of scan menu 1 through 6 can be changed with the setting window of Button Manager. For the factory default settings of the scan menu and the procedures for configuring Button Manager settings, see "BUTTON MANAGER

SETTINGS" (p.81).

TROUBLESHOOTING

Note

If the software is not installed correctly, check the following items on your computer.

Plug and Play window does not appear

If the Plug and Play window does not appear after you connect the machine to your computer with a USB cable and turn on the machine, follow the steps below to verify that the USB port is available.

Click the "Start" button, select

"Control Panel", and then click "System".

For Windows 8, right-click in the Start screen (or swipe upward from the bottom edge), then click the App Bar and Sound"

Click "Device Manager", and if a

message screen appears asking you for confirmation, click "Continue".

"Universal Serial Bus controllers" will appear in the list of devices.

Click the icon beside "Universal

Serial Bus controllers".

"All apps" Þ "Control Panel" Þ "Hardware

"Devices Manager" .

The driver cannot be correctly installed by Plug and Play

If the driver cannot be correctly installed by Plug and Play (for example, Plug and Play takes place without copying the required files for the driver installation), follow these steps to remove unneeded devices and then install the driver as explained in "INSTALLING

THE SOFTWARE" (p.10).

Click the "Start" button, select

"Control Panel", and then click "System and Maintenance".

For Windows 8, right-click in the Start screen (or swipe upward from the bottom edge), then click the App Bar and Sound"

Click "Device Manager", and if a

message screen appears asking you for confirmation, click "Continue".

Click the icon beside "Other

devices".

"All apps" Þ "Control Panel" Þ "Hardware

"Devices Manager" .

Two items should appear: your controller chipset type and Root Hub. If these items appear, you can use the USB port. If the "Universal Serial Bus controllers" shows a yellow exclamation point or does not appear, you must check your computer manual for USB troubleshooting or contact your computer manufacturer.

Once you have verified that the USB

port is enabled, install the software as explained in "INSTALLING THE

SOFTWARE" (p.10).

If "SHARP AR-xxxx" appears, select and delete the item.

If "Other devices" does not appear, close the "Device Manager" window.

Install the software as explained in

"INSTALLING THE SOFTWARE" (p.10).

SETUP

Removing the software

If you need to remove the software, follow these steps.

Click the "start" button and then click

"Control Panel".

In Windows 8/Server 2012, right-click in the startup window (or swipe upward from the bottom edge), then select "Taskbar" Þ "All Applications" Þ "Control Panel".

Click "Program and Function".

In Windows Server 2003, click "Add or Remove Programs".

Select the program or driver that you

wish to delete.

For more information, see the manual for the operating system or Help.

Restart your computer.

SETUP IN A MACINTOSH

• The printer expansion kit and PS3 expansion kit are required to use the machine as a printer in a Macintosh environment. In addition, the machine must be connected to a network. A USB connection cannot be used.

•

The scanner driver driver cannot be used in a Macintosh environment.

ENVIRONMENT

This chapter explains how to install the PPD file to enable printing from a Macintosh and how to configure the printer driver settings.

MAC OS X

Note

The explanations of screens and procedures are primarily for Mac OS X v10.8. The screens may vary in other versions of the operating system.

Insert the "Software CD-ROM" into

your computer's CD-ROM drive.

Double-click the "CD-ROM" icon ( )

on the desktop.

Double-click the "MacOSX" folder.

Before installing the software, be sure to read "ReadMe First". "ReadMe First" is in the "US-English" folder ("English" folder in areas other than the U.S.) in the "Readme" folder

Double-click the folder corresponding

to the versions of the operating system.

Double-click the "SH-L01" icon ( ).

Click the "Continue" button.

SETUP

Note

The License Agreement window will

appear. Make sure that you understand the contents of the license agreement and then click the "Continue" button.

A message will appear asking you if you agree to the terms of the license. Click the "Agree" button.

• If the license appears in the different language, change the language in the language menu.

• In Mac OS X v10.4 to 10.7, select the hard drive and click the "Install" button. Be sure to select the hard drive on which your operating system is installed. In Mac OS X v10.5 to 10.7, you click the "Change Install Location" button if you change the hard drive which the printer driver is installed.

Click the "Install" button.

Installation begins.

When the installation completed

screen appears, click the "Close" button.

This completes the installation of the software. Next, configure the printer driver settings.

Click "System Preference" in the

Apple menu ( ) and select "Print & Scan" ( ).

• If you are using Mac OS X v10.5 to 10.6, click "System Preferences" in the Apple menu ( ) and select "Print & Fax" ( ).

• In Mac OS X v10.4, select "Utilities" from the "Go" menu and double-click the "Printer Setup Utility"( )*. When the screen for adding a printer appears, click "Add" and then go to step 12. * If this is the first time you are installing a printer

driver on your computer, a confirmation message will appear. Click the "Add" button.

Click the button and select "XXXX".

If the "Authenticate" window appears, enter the password and click the "Install Software" button. In Mac OS X v10.4 to 10.6, enter the password and click the "OK" button.

In Mac OS X v10.5 to 10.7, when the screen for adding a printer appears, click the button.

SETUP

(2)

(1)

(4)

(3)

Note

(1)

(2)

Configure the printer driver.

If you wish to use the IPP function, see "Printing

using the IPP function" (p.30) to configure the

printer driver settings.

Click the "Default" icon.

If you are using Mac OS X v10.4, click the "Default Browser" icon.

Click the machine's model name.

• Using with AppleTalk: The machine's model name usually appears as "SCxxxxxx"*.

• Using with Bonjour: The machine's model name usually appears as "xxxxxx"*.

* "xxxxxx" is a sequence of characters that varies

depending on your model.

Make sure that the PPD file of your model

is selected.

The PPD file of the machine is automatically selected.

Click the "Add" button.

• Using with AppleTalk: The PPD file of the machine is automatically selected and the peripheral devices installed on the machine are detected and automatically configured.

• Using with Bonjour: The "Installable Options" screen appears. Select the machine configuration and click the "Continue" button.

The PPD file is installed in the following folders on the startup disk. "Library" - "Printers" - "PPDs" - "Contents" "Resources" - "en.lproj"

Click the "Option & Supplies" button

and click the "Driver" tab.

In Mac OS X v10.4, click the machine's name and click the "Show Info" icon.

Select the machine configuration.

If you selected "Auto Select" in (3) of step 12, the machine configuration is detected and automatically configured. Check the configured settings to make sure they are correct.

Select the options that are installed on the

machine.

In Mac OS X v10.4, before you are selecting the option, select "Installable Options".

Click the "OK" button.

If you are using Mac OS X v10.4, click the "Apply Changes" button.

Click to close the window.

You can check the options that are installed

Note

This completes the configuration of the printer driver.

on the machine by printing out the "All Custom Setting List". (However, note that "Input Tray Options" must be set to the number of trays on the machine.) To print out the "All Custom Setting List", see the Operation Guide.

SETUP

(2)

(1)

(4)

(3)

Printing using the IPP function

The machine can print using the IPP function. When the machine is in a remote location, this function can be used in place of the fax function to print a higher quality image than a fax. If you wish to use the IPP function, follow these steps to select the PPD file when configuring the printer driver (step 12 on page 29).

Note

Click the "IP" icon.

If you are using Mac OS X v10.4, click the "IP Printer" icon.

Select "Internet Printing Protocol" in

This function can be used on network function standard models and on models with the network expansion kit installed.

"Protocol". Enter the address of the machine (IP address or domain name) and the queue name.

Enter "ipp" in "Queue".

Select "Select a driver to use" (or "Select

Printer Software") from "Print Using" and click the PPD file for your model.

If you are using Mac OS X v 10.5 to 10.7, select "Sharp" in "Print Using" and click the PPD file of your model.

Click the "Add" button.

The screen for the machine configuration appears. Make sure that the settings are correct and click the "OK" button. If you are using Mac OS X v10.5 to 10.6, click the "Continue" button.

Chapter 2

AR-6020/AR-6023 AR-6020D/AR-6023D

A model that has the network function as standard feature

BEFORE USING THE MACHINE

This chapter contains basic information that should be read before using the machine.

PART NAMES AND FUNCTIONS

Glass cleaner (when the RSPF is installed)

Use to clean the original scanning glass. (p.122)

Document feeder cover (when the /document cover

Open to make copies from the document glass. (p.44)

Document glass

Place an original that you wish to scan face down here. (p.44)

Handles

Use to move the machine.

Power switch

Press to turn the machine power on and off. (p.37)

Paper output tray

Copies and prints are deposited to this tray.

Operation panel

Contains operation keys and indicator lights. (

Front cover

Open to remove paper misfeeds and perform machine maintenance. (p.114, p.115, p.119)

Paper trays

The tray holds 250 sheets of paper. (p.39)

RSPF

is installed)

p.33

)

When AR-6026N/AR-6031N is used, each tray holds 500 sheets of paper trays in option paper feeding unit.

Side cover

Open to remove paper misfeeds and perform machine maintenance.

Side cover handle

Pull to open the side cover. (p.113)

Bypass tray guides

Adjust to the width of the paper. (p.40)

Bypass tray

Paper including special paper (such as transparency film) can be fed from the bypass tray. (p.40

Bypass tray extension

Pull out when feeding large paper such as B4 and A3 (8-1/2" x 14" and 11" x 17"). (p.40)

USB 2.0 connector (Type A) (when the network expansion kit is installed)

Connect to the USB device.

(p.113, p.114)

p.55)

BEFORE USING THE MACHINE

161718

Warning

Note

2726

USB 2.0 connector

Connect to your computer to use the printer and scanner functions.

10BASE-T/100BASE-TX LAN connector

Connect to your network to use the printer and scanner functions. (p.14)

Document feeder tray (when the RSPF is installed)

Place the original(s) that you wish to scan face up here. Holds up to 100 originals. (p.46)

Original guides (when the RSPF is installed)

Adjust to the size of the originals. (p.45)

Feeding roller cover (when the RSPF is installed)

Open to remove misfed originals. (p.112)

Exit area (when the RSPF is installed)

Originals exit the machine here after copying.

Toner cartridge lock release lever

To replace the toner cartridge, pull out the toner cartridge while pushing on this lever. (p.119)

Toner cartridge

Contains toner. (p.119)

Roller rotating knob

Turn to remove misfed paper. (p.114, p.115)

Fusing unit release levers

To remove a paper misfeed from the fusing unit, push down on these levers and remove the paper. (p.115)

The fusing unit is hot. Do not touch the fusing unit when removing misfed paper. Doing so may cause a burn or injury.

Photoconductive drum

Copy images are formed on the photoconductive drum.

Fusing unit paper guide

Open to remove misfed paper. (p.116)

The model name can be seen on the machines front cover.

OPERATION PANEL

12 13

14 15 16

8 9

678

BEFORE USING THE MACHINE

SCAN MENU key

Use to scan by means of the provided Button Manager software and Scan to USB. (p.81)

ORIGINAL TO COPY key ( )

Press to select duplex copy.

(p.52)

SORT/GROUP/ROTATE SORT key ( ) / indicators

Press to select the "SORT", "GROUP" or "ROTATE SORT" mode. (p.59)

2 IN 1 / 4 IN 1 key ( ) / indicators

Press to select the "2 IN 1" or "4 IN 1" mode. (p.61)

DUAL PAGE COPY key ( ) / indicator

Use to make individual copies of the two pages of an open book or other two-page original. (p.56)

ERASE key ( ) / indicators

Press to select the "EDGE ERASE", "CENTRE ERASE" or "EDGE + CENTRE ERASE" mode. (p.64)

MARGIN SHIFT key ( ) / indicator

Shifts text or image on the copy to leave a binding margin on the edge of the copy. (p.63)

Display

Shows the set number of copies, as well as the copy ratio, system setting function or setting code, or an error code when an error occurs.

ID CARD COPY key/indicators

Press to use ID Card copy. (p.65)

Zoom key ( )

Hold down when the machine is not in use to display the copy ratio in the display. (p.50)

Copy ratio keys ( , ) Use to select any reduction or enlargement copy ratio

from 25% to 400% in increments of 1%. (p.50)

Data Notification indicator (Green) ( )

The indicator lights solidly or blinks to indicate the status of a job. (p.36)

ORIGINAL key

Use to enter the original size. (p.41)

PAPER key

Use to set the paper size in the paper trays. (

p.41

SIZE key

Use to select a paper size. (p.35)

TRAY SETTING key

Use to manually select a paper tray. (p.41)

, p.47)

BEFORE USING THE MACHINE

AUTO

ACC.#-C

17 19

20 21

25 26 27 28

18 22

AUTO/TEXT/PHOTO key ( / / ) / indicators

Use to select the exposure mode: "

AUTO

", "

TEXT

", or "


". (p.47)

ONLINE key ( ) / indicator

Press to toggle the machine between online and off-line. The indicator lights up when the machine is online, and goes off when the machine is off-line.

(p.66)

SCAN key ( ) / indicator

Press to switch the machine to scanner mode and scan by means of the provided Button Manager software. (p.79) The indicator blinks during scanning and transmission of the scanned data.

Numeric keys

Use to select the desired copy quantity or to make system setting entries. (p.48)

To display the total number of pages output by the machine, hold the [0] key down. (p.120)

INTERRUPT key ( ) / indicator

Interrupts a copy run. (p.57)

CLEAR key ( )

Clears the copy quantity display or terminates a copy run.

POWER SAVE key ( ) / indicator

Use to switch the machine to "Auto power shut-off" mode, which is a power save function.

[Power save key] ( ) blinks when the machine is in an auto power shut-off mode. (p.37)

CLEAR ALL key ( )

Press to return the copy and scan settings to the initial settings. (p.37)

Light and Dark keys ( , ) / indicators The selected exposure level indicator lights up.

(p.47)

Audit clear key ( ) ( )

While using the copy enabling the auditing mode, press to return the machine to the status of the waiting for account number-in. (p.100)

Error indicator ( )

Lights solidly or blinks to indicate the status of the error. (p.36)

READ-END key ( )

Copying starts if you press this key when you check the total number of copies made and have finished scanning the original pages. (p.120)

START key ( ) / indicator

Press to make a copy. (p.44) Also, press to configure the system settings. Copying is possible when the indicator is on.

DISPLAY

BEFORE USING THE MACHINE

8 9

[ ] Maintenance indicator (p.111) [ ] Toner cartridge replacement required

indicator (p.111)

[ ] Developer replacement required

indicator (p.111)

The number of copies display

Shows the set number of copies, system setting function or setting code, or an error code when an error occurs. Also, shows the program number when the scanner function is used.

Ratio display

Shows the copy ratio.

Auto ratio selection indicator. Appears when the ratio has been selected automatically.(p.48)

Appears when XY ZOOM Copying is used.(p.48)

Size display

Shows the placed original/paper size. The sign "R" indicates that the original and the paper are placed in a horizontal direction.

When an original is placed, this shows the orientation and size of the original.

(p.48)

The paper orientation and size appears when you check or set the tray paper.

(p.48)

Original detection indicator

Lights up when there is an original in the RSPF.

Original size auto detection indicator

Lights up when the original size is detected automatically.

[ ] Misfeed indicator (p.111)

Paper tray indicator

Blinks when the tray has run out of paper.

Auto Paper select indicator

Paper of the proper size will be automatically selected depending on the original size and selected copy ratio when this indicator is on. (p.46)

Auto rotation indicator

Appears when rotation copy is used. (p.46)

Bypass tray indicator

Appears when the bypass tray is selected. (p.46)

Paper tray indicator

The currently selected paper tray lights up. (p.46)

Misfeed position indicator

The location where the misfeed occurred lights up. () (p.112)

BEFORE USING THE MACHINE

NOTIFICATION INDICATOR

The data notification indicator ( ) and the error indicator ( ) lights solidly or blinks to indicate the status of the machine.

Tray Error indicator ( ) (red)

Errors that do not stop

Solidly

Blinks

“Pattern 1” and “Pattern 2” on the data notification indicator ( ) can be set in the user settings. See

SETTINGS" (p.91).

machine operation, such as almost out of toner.

Errors that stop machine operation, such as misfeeds and out of toner.

Job in progress, such as paper feeding or output.

Scanning an original or processing data

Data notification indicator ( ) (green)

Pattern1 Pattern2

Ready state or other state where jobs can be accepted.

Job processing in progress

"SYSTEM

POWER ON AND OFF

Note

Initial settings

The machine assumes the initial settings when it is first turned on, when the [CLEAR ALL] key ( ) is pressed, and approximately one minute after the last copy is made in any mode.

Copy ratio: 100%, Exposure: Automatic Copy quantity: 0, All special copier modes: Off Auto paper selection

: On,

Paper feed station

: The tray selected in the "Default tray setting" in the system settings. (p.93)

The power switch is located on the left side of the machine.

POWER ON

Turn the power switch to the "ON" position.

While the machine is warming up, the START indicator will blink. (The START indicator will light when the machine is ready to copy.)

• The machine reverts to the initial settings when it is first turned on, when the [CLEAR ALL] key ( ) is pressed, or when no keys are pressed for the preset "Auto clear" time following the end of a copy job. When the machine reverts to the initial settings, all settings and functions selected to that point are cancelled. The "Auto clear" time can be changed in the user settings. (p.91)

• The machine is initially set to automatically enter power save mode if not used for copying or printing, for a preset period of time. This setting can be changed in the system settings. (p.91)

POWER OFF

Make sure that the machine is not in operation and then turn the power switch to the "OFF" position.

If the power switch is turned off while the machine is in operation, a misfeed may occur and the job that was in progress will be cancelled.

Check the following to make sure the machine is not in operation:

• The START indicator is lit. (Initial state)

• The POWER SAVE indicator ( ) and [START] key ( )will lit. (Preheat mode)

• The POWER SAVE indicator ( ) will blink. (Auto power shut-off mode)

Power save modes

The machine has two power save modes to reduce overall power consumption thereby reducing the cost of operation. In addition, these modes conserve natural resources and help reduce environmental pollution. The two power save modes are "Preheat mode" and "Auto power shut-off mode".

Preheat mode

This function automatically switches the machine to a low power consumption state if the set duration of time elapses without the machine being used when the power is on. The POWER SAVE indicator ( ) lights up, however, the keys on the operation panel can be used. Normal operation automatically resumes when a key on the operation panel is pressed, an original is placed, or a print job is received.

Auto power shut-off mode

This function automatically switches the machine to a state that consumes even less power than preheat mode if the set duration of time elapses without the machine being used when the power is on. The POWER SAVE indicator ( ) will blink. To resume normal operation, press the [POWER SAVE] key ( ). Normal operation also resumes automatically when a print job is received. While in auto power shut-off mode, no keys (except the [POWER SAVE] key ( )) can be used.

Note

The preheat activation time and the "Auto power shut-off timer" can be changed using system settings. It is suggested that you set times that are appropriate for your usage of the machine. (p.91)

LOADING PAPER

The paper display blinks, and the display of the paper tray that ran out of paper blinks. or when the selected paper tray is not installed or is improperly installed.

PAPER

For best results, use only SHARP recommended paper.

Paper tray type Paper type Size Weight Capacity

Paper tray Standard paper

Paper tray (AR-6026N/ AR-6031N) 500-sheet paper feed unit

Bypass tray*

Recycled paper Thin paper*

Standard paper Recycled paper Thin paper*

Transparency film Labels

Heavy paper 1 A6R to A4

Heavy paper 2 129 g/m

Envelopes International DL

A5R B5R B5 A4R A4 B4 A3 (5-1/2" x 8-1/2"R (Invoice)) (8-1/2" x 11"R (Letter R)) (8-1/2" x 11" (Letter)) (8-1/2" x 13" (Foolscap)) (8-1/2" x 13-1/2") (8-1/2" x 13-2/5") (8-1/2" x 14" (Legal)) (11" x 17" (Ledger))

A6R to A3 (5-1/2" x 8-1/2" (Invoice) to 11" x 17" (Ledger))

(5-1/2" x 8-1/2" (Invoice) to 8-1/2" x 11" (Letter))

(110 mm x 220 mm) Monarch (3-7/8" x 7-1/2") Commercial 10 (4-1/8" x 9-1/2") Envelope Chou 3 YOKEI-2 Kaku-2 Kaku-3 YOKEI-4

g/m

2 *1

250 sheets (Load paper lower

than the line on the tray)

500 sheets (Load paper lower than the line on the tray)

100 sheets

paper each time on the bypass tray.

You can load multiple sheets of paper on the bypass tray.

Load one sheet of paper each time on the bypass tray.

55 g/m2 to 105 g/m (15 lbs. to 24 lbs.)

g/m2 to

(15 lbs. to 24 lbs.)

- Load one sheet of

106 g/m (28 lbs. to 33 lbs.)

(33 lbs. to 110 lbs.)

-5 sheets

105

to 128 g/m

to 200 g/m

*1When making a large number of copies or prints using more than 90 g/m2 (24 lbs.) paper, remove the output from the paper

output tray when about 100 pages have been printed. The output may not stack correctly if more than 100 pages are allowed to accumulate.

The number of sheets of the paper which can be set changes with the weight of a paper.

Thin paper cannot be used for two-sided copying.

Bypass tray is not supported for two-sided copying.

Special papers

Follow these guidelines when using special papers. l Use SHARP recommended transparency film and label sheets. Using other than SHARP recommended paper

may result in misfeeds or smudges on the output. Feed each sheet one at a time using the bypass tray (do not attempt continuous copying or printing).

l There are many varieties of special paper available on the market, and some cannot be used with this machine.

Before using special paper, contact your authorised service representative.

l Before using other than SHARP recommended paper, make a test copy to see if the paper is suitable.

BEFORE USING THE MACHINE

Partition (A)

Partition (B)

Note

LOADING PAPER

Make sure that the machine is not copying or printing, and then follow these steps to load paper.

Loading the paper tray

Gently pull out the paper tray until it

stops.

Push the pressure plate down until it

locks in place.

Push the centre of the pressure plate down until it locks into place.

Extend the partition plates in the tray.

• Do not load paper higher than the line on the tray (up to 250 sheets (up to 500 sheets, when AR-6026N/AR-6031N is used)).

• Do not add paper to the loaded paper. It may cause multiple feed of paper.

Adjust the partition plates in the tray

to match the length and width of the paper.

Gently push the paper tray into the

machine.

Load paper into the tray.

• Open the package of the paper and load it without fanning the paper.

• Make sure the stack of paper is straight before loading it.

• If you loaded a different size of paper than was loaded previously in the tray, go to

"CHANGING A TRAY'S PAPER SIZE SETTING" (p.41).

• When misfeed occurs, rotate the paper 180 degrees and reload it.

• Straighten curled paper before using it.

BEFORE USING THE MACHINE

Note

Available

Not

available

Loading the bypass tray

Unfold the bypass tray.

When feeding large paper such as B4 and A3 (8-1/2" x 14" and 11" x 17"), open the bypass tray extension.

Set the paper guides to the copy

paper width.

Insert the paper (print face down) all

the way into the bypass tray.

To prevent a misfeed, verify once more that the paper guides are adjusted to the width of the paper.

• If you loaded paper in the bypass tray, press the [TRAY] key to select the bypass tray. The bypass tray will not be selected automatically.

• When loading heavy paper in the bypass tray, hold down the [PAPER] key for at least 5 seconds, use the [TRAY] key to select the bypass tray, and press the [Copy ratio] key

, ) to select “1” for Heavy Paper 1

( or "2" for Heavy Paper 2. For the types of heavy paper that can be used, refer to

"PAPER" (p.38).

Important points when inserting paper in the bypass tray

• Up to 100 sheets of standard copy paper can be set in the bypass tray.

• Be sure to place A6, B6 or 5-1/2" x 8-1/2" size paper or envelopes horizontally as shown in the following diagram ().

• When loading envelopes, make sure that they are straight and flat and do not have loosely glued construction flaps (not the closure flap).

• Special papers except SHARP recommended transparency film, labels, and envelopes must be fed one sheet at a time through the bypass tray.

• When adding paper, first remove any paper remaining in the tray, combine it with the paper to be added and then reload as a single stack. The paper to be added must be the same size and type as the paper already in the tray.

• Do not use paper that is smaller than the original. This may cause smudges or unclean images.

• Do not use paper that has already been printed on by a laser printer or plain paper fax machine. This may cause smudges or unclean images.

BEFORE USING THE MACHINE

Note

Envelopes

Do not use the following envelopes, as misfeeds will occur.

• Envelopes with metal tabs, clasps, strings, holes, or windows.

• Envelopes with rough fibres, carbon paper, or glossy surfaces.

• Envelopes with two or more flaps.

• Envelopes with tape, film, or paper attached to the flap.

• Envelopes with a fold in the flap.

• Envelopes with glue on the flap to be moistened for sealing.

• Envelopes with labels or stamps.

• Envelopes that are slightly inflated with air.

• Envelopes with glue protruding from the seal area.

• Envelopes with part of the seal area peeled off.

CHANGING A TRAY'S PAPER SIZE SETTING

Follow these steps to change a tray's paper size setting.

• The paper size setting cannot be changed when the machine has stopped temporarily due to running out of paper or a misfeed, or during interrupt copying.

• During printing (even in copy mode), the paper size setting cannot be changed.

• Do not load paper that is a different size than the paper size setting. This may cause smudges, unclean image, positional displacement in printing and dirty. Copying will not be possible.

Hold down the [PAPER] key for more

than 5 seconds to set the selected paper size.

The currently selected paper feed location indicator will blink and the corresponding paper size (which is currently set) indicator will display.

If the machine has two or more paper

trays, use the [TRAY] key to select the paper tray for which you wish to change the paper size setting.

Each time the [TRAY] key is pressed, a paper tray will be indicated with a blinking paper feed location indicator.

Use the [SIZE] key to select the paper

size.

Changing bypass tray's paper size setting

To change the bypass tray's paper size setting, hold down the [PAPER] key for more than 5 seconds, use the [TRAY] key to select the bypass tray, and select the desired paper size.

Customise the bypass tray setting

If the bypass tray is selected and then "EXTRA" is selected as desired paper size, you can change the paper size setting with following procedure.

• Enter a value for the horizontal/vertical direction by pressing the numeric keys. Press the [ZOOM] key ( horizontal/vertical direction.

The horizontal direction is selected:

horizontal indicator ( ) lights up

The vertical direction is selected:

vertical indicator ( ) lights up

Available value

Direction min. (mm) max. (mm)

horizontal 100 297

vertical 139 420

Value can be entered only in metric (AB series).

) to switch the

BEFORE USING THE MACHINE

Note

Metric (AB series) and inch series reference

Inch series (inch)

5-1/2" x 8-1/2" (Invoice) 140 x 216

8-1/2" x 11" (Letter) 216 x 279

8-1/2" x 13" (Foolscap) 216 x 330

8-1/2" x 13-2/5" 216 x 340

8-1/2" x 13-1/2" 216 x 353

8-1/2" x 14" (Legal) 216 x 355

11" x 17" (Ledger) 279 x 432

Change the selected tray’s paper size.

See "LOADING PAPER" (p.39)

Metric series

(AB series) (mm)

Press the [START] key ( ) and then

the [PAPER] key.

To change the paper size setting of another tray, repeat steps 2 to 5 after pressing the [START] key ( ).

The paper size indicator sheet of the size set in step 3 appears in the window on the right side of the tray.

Important points when using the printer mode

Make sure that the tray's paper size setting is the same as the tray's paper size setting in the printer driver. For example, if the tray's paper size setting is A4R (8-1/2" x 11"R), set "Set Paper Size" to "A4R" ("Letter-R"). For more information, see

"CONFIGURING THE PRINTER DRIVER" (p.23).

Easy setting mode (Only the bypass tray)

If you are using the bypass tray, you can be easily set the paper size in the easy setting mode.

• You can not set the paper type at the moment.

• If the paper size is EXTRA, numerical can not be registered.

Use the [TRAY] key to select the

bypass tray.

The bypass tray indicator will light.

Use the [SIZE] key to select the paper

size.

The bypass tray indicator will blink.

Press the [START] key ( ).

Paper size for the bypass tray is confirmed.

CHANGING THE PAPER TYPE IN A TRAY

When you change the type of paper used in a tray, always follow the procedure below to change the paper setting of the tray.

• The paper type cannot be set when operation is paused due to running out of paper or a paper misfeed, or during interrupt copy. The paper type cannot be set during printing.

• Change the paper type setting in copy mode. The setting cannot be changed while copying is being executed or in scanner mode.

• Do not load a type of paper that is different from the tray setting. This may cause paper misfeeds.

BEFORE USING THE MACHINE

Perform steps 1 to 5 of "CHANGING A

TRAY'S PAPER SIZE SETTING" (p.41),

and select the tray whose paper type you want to change.

Press the [Copy ratio] key ( , ).

The light of the tray selected for the paper type setting will blink, and the ratio display will change as follows.

Ratio display Paper type

Off Standard paper

Thin paper

Heavy paper 1*

Heavy paper 2*

Envelopes

For the ratio display

and envelope types, refer to “Envelope display”.

After pressing the [START] key ( ),

press the [PAPER] key to exit the settings.

To change the paper size setting of another tray, repeat steps 2 to 5 after pressing the [START] key ( ).

Envelope display

Ratio display Envelope types

Monarch

Com-10

Envelope Chou 3

YOKEI-2

Labels

Transparency film

* For the difference between Heavy 1 and Heavy 2,

refer to "PAPER" (p.38).

Note

Only plain paper, recycled paper and thin paper can be set for paper trays 1 to 4.

Kaku-2

kaku-3

YOKEI-4

OPERATION IN COPY, PRINTER, AND SCANNER MODES

Some operations cannot be performed simultaneously when the machine is being used in printer mode, copy mode, or scanner mode.

Modes Copying Printing

Scanning from a

computer

Scanning from

the machine

Copy

Printer During printing Ye s Ye s Ye s

Scanner

Copy key input Ye s Ye s Ye s N o During copying No No No

During scan preview/ during scanning

No Yes

Chapter 3

Note

COPY FUNCTIONS

This chapter explains how to use the copy functions.

NORMAL COPYING

This section explains how to make a regular copy. If "Auditing mode" has been enabled (p.97), enter your 3-digit account number.

Copying from the document glass

Open the document cover/RSPF, and

place the original.

Place the original face down on the document glass.

[

Note

Close the document cover/RSPF.

An original up to A3 (11" x 17") can be placed on the document glass.

Specify the size of the original with

the [SIZE] key.

When the original size is selected, the tray with the same size of paper is automatically selected. (When there are two or more paper trays)

Make sure that the TRAY indicator lights up. If the indicator is not lit, no tray has the same size of paper as the original. Load paper of the required size in a tray, or select the bypass tray with the [TRAY] key and copy from the bypass tray.

l The bypass tray must be manually selected. l

To copy on paper of a different size than the original, select the paper with the [PAPER] key and [SIZE] key.

When you have finished setting the original size, press the [START] ( ) key.

Set the number of copies.

After placing the original, be sure to close the document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Press the [ORIGINAL] key.

Press the [START] key ( ) to begin

copying.

The copy is delivered to the paper output tray.

• The paper output tray can hold up to 250 sheets of paper.

• About one minute after copying ends, "Auto clear" activates and restores the copy settings to the initial settings. (p.37) The setting for "Auto clear time" can be changed in the system settings. (p.91)

• Press the [CLEAR] key ( ) to stop copying in the middle of a run.

Copying from the RSPF

Note

COPY FUNCTIONS

Make sure that an original has not

been left on the document glass. Close the RSPF.

Adjust the original guides to the size

of the original(s).

Set the original(s) face up in the

document feeder tray.

l Insert the original into the document feeder tray as

far as it will go. When the original is set, the RSPF indicator will light up.

l The size of the original appears in the size display. l

If the

ORIGINAL SIZE the original so that it is in the same orientation as the blinking

l Make sure that the PAPER SIZE indicator is lit.

If the indicator is not lit, no tray has the same size of paper as the original. Load paper of the required size in a tray, or select the bypass tray with the [TRAY] key and copy from the bypass tray.

l The bypass tray must be manually selected. l To copy on paper of a different size than the

original, select the paper with the [ [SIZE] key.

ORIGINAL SIZE

indicator is blinking, rotate

indicator.

PAPER

] key and

Press the [START] key ( ) to begin

copying.

The copy is delivered to the paper output tray. The default output mode for copying from the RSPF is sort mode

(p.59).

The default output mode can be changed using "Sort auto select" in the system settings (p.93).

• The paper output tray can hold up to 250 sheets of paper.

• About one minute after copying ends, "Auto clear" activates and restores the copy settings to the initial settings. (p.37) The setting for "Auto clear" time can be changed in the system settings. (p.91)

• Press the [CLEAR] key ( ) to stop copying in the middle of a run.

• If you find it difficult to remove the original from the document feeder tray, open the feeding roller cover first and then remove the original. If you remove the original without opening the feeding roller cover, the original may become dirty.

Do not place originals of different sizes

Note

Set the number of copies.

together in the document feeder tray. This may cause misfeeds.

COPY FUNCTIONS

Note

Auto paper select mode (when there are two or more paper trays)

When the AUTO PAPER SELECT indicator lights up, "Auto paper select mode" is enabled. This function automatically selects the paper that is the same size as the original A5, B5, B5R, A4, A4R, B4, A3 (5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 13-1/2", 8-1/2" x 13-2/5", 8-1/2" x 14" and 11" x 17") paper. "Auto paper select mode" can be disabled in the system settings. (p.91)

• The sizes of paper that can be used vary by country and region.

• If a zoom setting is selected after placing the original, the paper size that is appropriate for the zoom setting will be automatically selected.

• "Auto paper select mode" is cancelled if the automatic ratio selection is enabled (p.48) or if a tray is selected with the [PAPER] key. Auto paper select resumes operation when the [CLEAR ALL] key ( ) is pressed or when "Auto clear time" activates.

Removing the document cover

To copy large originals like newspapers, remove the document cover. To remove it, open the document cover and lift it at a slightly backward angle. To replace the cover, do the reverse. The RSPF cannot be removed.

Copying books or originals with folds or creases

Press down on the document cover/RSPF while copying as shown. If the document cover/RSPF is not completely closed, shadows may appear on the copy or it may be fuzzy. Straighten originals with folds or creases well before placing.

Originals that can be used in the RSPF

Originals that are A5 to A3 (8-1/2" x 11R" to 11" x 17") and 50 g/m lbs.) (2-sided copying or scanning : 50 g/m (15 lbs. to 28 lbs.)) can be used. A maximum of 100 pages can be placed at once. Insert a number of originals that does not exceed the indicator line on the document feeder tray.

• Make sure that there are no paper clips or staples on the original.

• Straighten curled originals before placing them in the document feeder tray. Curled original may cause misfeeds.

• When you set multiple sheets of thick original, if the original is not fed, reduce the number of the set originals.

to 128 g/m2 (15 lbs. to 24

to 105 g/m

Originals that cannot be used in the RSPF

The following originals cannot be used. These may cause misfeeds or smudging and unclear images.

• Transparencies, tracing paper, other transparent or translucent paper, and photographs.

• Carbon paper, thermal paper.

• Originals that are creased, folded, or torn.

• Glued originals, cut-out originals.

• Originals with binder holes.

• Originals printed using an ink ribbon (thermal transfer printing), originals on thermal transfer paper.

Stream feeding mode

If "Stream feeding mode" is enabled in the system settings (p.91), the RSPF indicator will blink for about 5 seconds after all originals are fed. If a new original is placed in the RSPF during this time, the original will be automatically fed in and copying will begin.

COPY FUNCTIONS

AUTO

Note

MAKING A COPY DARKER OR LIGHTER

Automatic exposure adjustment is initially enabled. This function automatically adjusts the copy image according to the original being copied. If you wish to select the exposure level yourself, follow the steps below. (Select from two original types and five exposure levels for each original type.) The exposure level used in automatic exposure adjustment can also be changed. ("ADJUSTING THE AUTOMATIC EXPOSURE LEVEL" (p.89))

Original types

AUTO ( ) ........ Automatic exposure adjustment is enabled and the exposure is automatically adjusted

according to the original being copied. The exposure is lowered for coloured areas and background shadows.

TEXT ( ) ........ The exposure is raised for light areas and lowered for dark backgrounds to make text easier to

read.

PHOTO ( ).........Halftones in the photo are reproduced with greater clarity.

Press the [AUTO/TEXT/PHOTO] key

( / / ) to select the original type.

To adjust the exposure of a text original manually, press until the TEXT indicator ( ) lights. To copy a photo, press until the PHOTO indicator ( ) lights.

Note

To return to automatic adjustment, press until the AUTO indicator ( ) lights.

Press the [Light] key ( ) or [Dark]

key ( ) to adjust the exposure.

For a darker image, press the [Dark] key ( ). For a lighter image, press the [Light] key ( ). If exposure level 2 or 4 is selected, the two indicators will light simultaneously.

Exposure value guidelines

1 – 2 Dark originals like newspapers 3 Normal originals 4 – 5 Coloured text or text written in pencil

SELECTING THE TRAY

Auto paper select mode (p.46) normally operates (unless it has been disabled), and thus when the original is placed on the document glass and the original size is selected, or when the original is placed in the RSPF, the tray with the same size of paper as the original is automatically selected. If you wish to use a tray other than the automatically selected tray (for example you wish to enlarge or reduce the copy or use the bypass tray), press the [TRAY] key to select the desired tray.

•

If the paper size you want to use does not appear, change the paper in a tray to the desired size. (p.41)

• Automatic ratio selection (p.48) does not operate when a special paper size is selected.

Auto tray switching (when there are two or more paper trays)

If the tray runs out of paper during copying and there is another tray with the same size of paper and the same feeding orientation (horizontal or vertical), the other tray is automatically selected and copying continues. "Auto tray switching" can be disabled in the system settings (p.92).

COPY FUNCTIONS

Note

SETTING THE NUMBER OF COPIES

Press the numeric keys to set the number of copies.

Important note when making a large number of copies

When the maximum number of pages (about 250 pages) that can be held in the paper output tray are output, copying will temporarily stop. When this happens, promptly remove the copies and press the [START] key ( ) to resume copying. Copying will

l The set number of copies appears in the Number of

copies display. A maximum of 999 copies (factory default setting) can be set.

l If you wish to make only a single copy, copying is

possible with the display showing "0".

If you enter the wrong number, press the [CLEAR] key ( ) and enter the correct number.

also stop after about 500 pages and 750 pages. Remove the pages and resume copying in the same way.

The maximum number of copies can be changed in the system settings. (p.92)

REDUCTION/ENLARGEMENT/ZOOM

The zoom function enables precise copy ratio selection from 25% to 400% in increments of 1%. There are three ways to enlarge and reduce copies, as explained below.

• Reduction and enlargement ratios can be selected automatically.

"AUTOMATIC RATIO SELECTION" (below)

• Reduction and enlargement ratios can be selected manually.

"MANUAL RATIO SELECTION" (p.49)

• Separate settings can be selected for the vertical and horizontal ratios.

"SELECTING THE VERTICAL AND HORIZONTAL COPY RATIOS SEPARATELY (XY ZOOM Copying)" (p.50)

Ratios that can be selected will vary depending on whether the original is placed on the document glass or in the RSPF.

Original position Selectable ratios

Document glass 25% – 400%

RSPF 50% – 200%

AUTOMATIC RATIO SELECTION

Place the original(s) in the document

feeder tray or on the document glass.

If the original is placed on the document

glass, select the original size. (p.44)

• Automatic ratio selection can be used when

Note

the original size is A5, B5, B5R, A4, A4R, B4, A3, (5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 14" or 11" x 17"). The sizes of paper that can be used vary by country and region. It cannot be used for other sizes.

• After placing the original, be sure to close the document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Use the [TRAY] key to select the paper

tray with the desired paper size.

This feature will not work when using copy paper of non-standard size or when using the bypass tray.

COPY FUNCTIONS

Note

Press the [ZOOM] key ( ).

Set the number of copies and other

copy settings, and then press the [START] key ( ).

The copy will be delivered to the paper output tray.

To cancel automatic ratio selection, press the [ZOOM] key ( ) again.

Note

The AUTO IMAGE indicator and the appropriate ratio for the original size and paper size is selected. (The selected ratio appears.)

• If the [R] indicator blinks, change the orientation of the placed original.

• If the copy is made when a Ratio display indicator is blinking, the copied image may run off the page.

()

lights up

MANUAL RATIO SELECTION

Copies can be reduced down to 25% or enlarged up to 400%. The [ZOOM] selector keys ( ) can be pressed to quickly select a ratio from among ten preset ratios. In addition, the [Copy ratio] keys ( , ) can be pressed to select the ratio in increments of 1%.

Place the original(s) in the document

feeder tray or on the document glass.

If the original is placed on the document

glass, select the original size. (p.44)

After placing the original, be sure to close the

Note

Use the [ZOOM] selector keys ( )

document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

and [Copy ratio] keys ( , ) to select the desired copy ratio.

Selecting a preset ratio

Press the [ZOOM] selector key ( ) to select the preset ratios of "AUTO","25%","50%","70 %","81%","86%","115%", "122%","141%","200%" and "400%".

Press a [ZOOM] selector key ( ) to set the approximate ratio, then press the [Copy ratio] keys ( or ) to increase or decrease the ratio.

To decrease or increase the zoom ratio rapidly, hold down the [Copy ratio] keys ( or ).

If the paper size you want to use does not appear, change the paper in a tray to the desired size and then go to step 4. (p.39)

Set the number of copies and other

copy settings, and then press the [START] key ( ).

The copy will be delivered to the paper output tray.

Fine adjustment of the ratio

Any ratio from 25% to 400% can be set in increments of 1%.

COPY FUNCTIONS

Original Copy

Note

SELECTING THE VERTICAL AND HORIZONTAL COPY RATIOS SEPARATELY (XY ZOOM Copying)

The XY ZOOM feature allows the horizontal and vertical copy ratios to be changed independently.

Example:

Ratios that can be selected will vary depending on the position of the original.

Reduction only in the horizontal direction.

• This feature cannot be used with the 2 IN 1 or 4 IN 1 feature. (p.61)

• To use the XY ZOOM feature with the DUAL PAGE COPY feature, set the DUAL PAGE COPY feature first and then the XY ZOOM feature.

• The XY ZOOM feature cannot be used in combination with the AUTO IMAGE function.

Original position Selectable ratios

Document glass 25% – 400%

RSPF 50% – 200%

Place the original(s) in the document feeder tray or on the document glass.

Use the [Copy ratio] keys ( , ) to

change the copy ratio in the vertical direction.

If the original is placed on the

document glass, select the original size. (p.44)

After placing the original, be sure to close the

Note

document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Press the [Copy ratio] keys ( , ) to adjust the ratio in increments of 1%. The ratio appears in the ratio display.

Hold down the [ZOOM] key ( ) for

more than 5 seconds to set the ratio of original.

XY-ZOOM Indicator ( ) blinks. The current value for the vertical direction will appear in the ratio display.

Press the [START] key ( ).

The selected ratio for the vertical direction will be entered. XY-ZOOM Indicator ( ) blinks. The current value for the horizontal direction will appear in the ratio

display.

Use the [Copy ratio] keys ( , ) to

change the copy ratio in the horizontal direction.

Press the [Copy ratio] keys ( , ) to adjust the ratio in increments of 1%. The ratio appears in the display.

Press the [START] key ( ).

The selected ratio for the horizontal direction will be entered and the number of copies can be set in the display.

Set the number of copies and other

copy settings, and then press the [START] key ( ).

The copy will be delivered to the paper output tray.

COPY FUNCTIONS

Note

• To verify the copy ratios, press the [Copy ratio] keys (, ) and the selected vertical ratios will be displayed, press the [START] key ( ) after confirming. The selected horizontal ratios will be displayed, press the [START] key ( ) after confirming.

• If you need to change the ratios, press the [Copy ratio] keys with the vertical ratio. (step 4)

• To cancel XY ZOOM copy, press the [ZOOM] key ( ).

(, ), beginning

AUTOMATIC TWO-SIDED COPYING

Note

B4 or A3 (8-1/2" x 14" or 11" x 17") portrait original

Orientation of the placed original

Normal automatic two-sided copying

If the orientation of two-sided copying is changed

The top and bottom of the images on the front and back are reversed.

The top and bottom of the images on the front and back are the same.

(Model that has the duplex copy print function as standard feature only.)

Two originals placed on the document glass can be copied onto each side of a single sheet of paper. In addition, an RSPF can be used to copy two originals onto one sheet of paper, or one two-sided original onto two sheets of paper, or one two-sided original onto each side of one sheet of paper.

Original → Paper Usable paper

One-sided original → Two sides

A5R to A3

Document

glass

RSPF

One-sided original → Two sides

Two-sided original → One side

Two-sided original → Two sides

(8-1/2" x 11" to 11" x 17") The bypass tray cannot be used.

A5R, B5, B5R, A4, A4R, B4, A3 (8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 13-1/2", 8-1/2" x 13-2/5", 8-1/2" x 14", 11" x 17")

• Special paper and 5-1/2" x 8-1/2" paper cannot be used.

• The bypass tray can only be used when making one-sided copies from two-sided originals.

• The sizes of paper that can be loaded vary by country and region.

• To use paper in the bypass tray, make a two-sided copy as explained in "TWO-SIDED COPYING USING THE

BYPASS TRAY" (p.55).

• When performing automatic two-sided copying of a one-sided original, or one-sided copying of a two-sided original, the image on the back can be rotated 180 degrees to reverse the top and bottom (Image rotation in duplex copying). To rotate the image 180 degrees, enable the setting as explained in "IMAGE ROTATION IN

DUPLEX COPYING" (p.54) or in the system settings (p.91), and then follow the steps below. In particular, when

a one-sided vertical (portrait) original is placed in a horizontal orientation (B4 or A3 (8-1/2" x 14" or 11" x 17") size) for two-sided copying, the top and bottom of the images on the front and back of the paper will be reversed, and thus this function can be conveniently used to make the top and bottom of the images agree.

• Automatic two-side copy cannot be used in combination with ID card copy.

COPY FUNCTIONS

The first original

The second original

Note

Using the document glass

Place the original that you wish to

copy onto the front side of the paper on the document glass and close the document cover.

After placing the original, be sure to close the

Note

Select the original size. (p.44)

Press the [ORIGINAL TO COPY] key

( ), and make sure that the ( ) indicator is lit.

document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Using the RSPF

Place originals in the RSPF. (p.45)

If you place an odd number of originals for one-sided to two-sided copying, the last page will be one-sided.

When the machine is selected two-sided copies from two-sided originals mode or one-sided copies from two-sided originals mode, 5-1/2" x 8-1/2" size original cannot be used. (This is because a 5-1/2" x 8-1/2" original cannot be reversed.)

Press the [ORIGINAL TO COPY] key

( ) and select the two-sided copy mode that you wish to use.

• Two-sided copies from one-sided originals

• Two-sided copies from two-sided originals

Set the number of copies and other

settings, and then press the [START] key ( ).

The data notification indicator ( ) blinks, and the original is scanned into memory.

• If you need to clear the data scanned into

Note

When the start indicator lights, remove

memory, press the [CLEAR] key ( ).

• If you wish to cancel two-sided copying and just make a copy of the first original, press the [READ-END] key ( ).

the first original and then place the original that you wish to copy onto the back side of the paper on the document glass. Close the document cover.

Place the second original in the same orientation as the first original.

• One-sided copies from two-sided originals

Set the number of copies and other

copy settings, and press the [START] key ( ).

The copy will be delivered to the paper output tray.

To cancel automatic two-sided copying, press the [CLEAR ALL] key ( ).

Press the [START] key ( ).

The copy will be delivered to the paper output tray.

COPY FUNCTIONS

IMAGE ROTATION IN DUPLEX COPYING

This function is used to invert the top and bottom of the image on the front side of the paper during two-sided copying.

Hold down the [ORIGINAL TO COPY]

key ( ) until the ( ) indicator blinks.

The currently set setting code blinks in the first digit of the number of copies display.

Press a numeric key to enter the

setting code.

To enable the setting, press [1] key. To disable the setting, press [0] key. The factory default setting is "0". The entered number appears in the first digit of the number of copies display.

Press the [START] key ( ).

The selected setting code stops blinking and lights steadily. This completes the setting.

Press the [ORIGINAL TO COPY] key

( ) to exit the setting.

The display returns to the normal number of copies display.

"Image rotation in duplex copying" can also

Note

be enabled or disabled in the system settings.

(p.92)

TWO-SIDED COPYING USING THE

Original A

Original B

Copy

Original A

Copied original A

Original A

Copied original A

Original B

Copied original A

Original B

Copied original A

Note

BYPASS TRAY

To perform manual two-sided copying, follow these steps.

Example: Copying originals A and B onto each side of one sheet of paper

Copy original A.

Place original B as shown below.

Vertically-oriented original:

If the original is oriented vertically, place it in the same orientation as original A.

Turn the copy of original A over, and

without changing the position of the edge closest to you, insert it in the bypass tray.

Insert the paper all the way in.

Horizontally-oriented original:

If the original is oriented horizontally, place it with the top and bottom and left and right sides reversed with respect to the placement of original A.

Select the bypass tray with the [TRAY]

• Copies made on the back side of paper should always be made one sheet at a time using the bypass tray.

• Straighten curled or wavy paper before using it. Curled paper may cause misfeeds, creases, or a poor-quality image.

• After placing the original, be sure to close the document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

key, and then press the [START] key ().

The copy is delivered to the paper output tray.

DUAL PAGE COPYING

Original

Copy

Note

A4B5

Note

A dual page original can be automatically separated into two pages during copying. This feature is convenient for making copies of books and other dual page originals on individual sheets of paper.

• A4 (8-1/2" x 11") paper is used for dual page copying.

• When rotation copy is enabled, A4R (8-1/2" x 11"R) paper can also be used.

• Dual page copying can be enabled when Sort/Group copy (p.59).

• When used in combination with XY ZOOM copying, enlargement is not possible.

• Dual page copying cannot be used in combination with the following functions:

• Enlargement

• 2 IN 1 / 4 IN 1 copying

• Centre erase

• Automatic ratio selection cannot be used when dual page copying is used.

• Dual page copying cannot be selected when an original is placed in the RSPF.

Place the original on the document

glass, aligning the division between the pages with the size marker ( A4 (81/2)). cover/

Note

Set the original size to A3 (11" x 17").

Close the document

RSPF

Copying will begin from the page to the right of the size marker.

• To keep the copies in the correct page order when performing dual page copying over multiple pages, make sure that the original is always placed on the document glass with the smaller page number to the right.

• After placing the original, be sure to close the document cover/RSPF. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Press the [DUAL PAGE COPY] key

().

The dual page copy indicator lights.

Make sure that a paper tray with A4

(8-1/2" x 11") size paper is selected.

Set the number of copies and other

copy settings, and press the [START] key ( ).

The copy will be delivered to the paper output tray.

To cancel dual page copying, press the [DUAL PAGE COPY] key ( ). The DUAL PAGE COPY indicator ( ) will go off, indicating that the function is cancelled.

INTERRUPTING A COPY RUN

Note

(Interrupt Copying)

A copy run can be temporarily interrupted to allow another copy job to be performed. When the other job is finished, the copy run will resume using the original copy settings.

Sort/group/rotate sort copying, 2 IN 1 / 4 IN 1 copying, two-sided copying, or ID card copying cannot be performed as an interrupt copy job. System settings and scanning function are also not available when interrupt copying.

Press the [INTERRUPT] key ( ) to

interrupt the copy run.

The INTERRUPT indicator will light up and the machine will revert to the initial settings. (p.37) The INTERRUPT indicator will blink until the current copy run stops.

Note

Remove the previous original(s) and

place the original(s) of the interrupt copy job.

Set the number of copies and other

copy settings and then press the [START] key ( ).

If "Auditing mode" is enabled:

"- - -" will appear in the number of copies display. Enter your 3-digit account number. Copying will not be possible unless a correct account number is entered. (p.92)

When the copy job is finished, press

the [INTERRUPT] key ( ) and remove the original(s).

The INTERRUPT indicator will go off, indicating that the interrupt function is no longer operating. The copy settings will automatically revert to the settings selected for the copy run before the run was interrupted.

Replace the previous original(s) and

press the [START] key ( ).

The interrupted copy run will resume.

CONVENIENT COPY FUNCTIONS

Note

Orientation of

the placed original

Orientation of

the loaded paper

Copy

This section explains major convenient copy functions.

ROTATING THE IMAGE 90 DEGREES (Rotation Copy)

When "Auto paper select mode" or "automatic ratio selection" are in operation and the original is placed in a different orientation (vertical or horizontal) than the paper, the original image will be automatically rotated 90 degrees to enable correct copying onto the paper. This function is convenient for copying B4 or A3 (8-1/2" x 14" or 11" x 17") originals, which can only be placed horizontally, onto paper that is loaded vertically. The rotation copy function is initially enabled. It can be disabled in the system settings. (p.91)

• Rotation copy will not operate when a copy is enlarged to a paper size greater than A4 (8-1/2" x 11"). In this case, place the original in the same orientation as the paper.

• When 2 IN 1 / 4 IN 1 copy is used (p.61), rotation copy will operate even if disabled in the system settings.

COPY FUNCTIONS

Note

SORT COPY/GROUP COPY/ROTATE SORT

When copying a multi-page original, you can select the output method.

• The machine can scan standard originals (A4 (8-1/2" x 11")) with approximately 160 pages, however, the number will vary for photos and other types of originals. Less pages can be scanned for interrupt copying.

• Only A4, B5 and 8-1/2" x 11" paper sizes can be used for rotation sort.

Function name Description Icon

Sort copy

Group copy

rotate sort

Copies of multiple original pages can be sorted into sets.

Copies of multiple original pages can be grouped by page.

A multi-page document can be sorted into sets and rotated before output.

Paper for rotation sort

To use rotation sort, the same size of paper must be loaded in the vertical orientation in one tray, and in the horizontal orientation in another tray. For example, load A4 size paper vertically in tray 1, and load A4 size paper horizontally in the bypass tray.

COPY FUNCTIONS

Note

Using the document glass

Place the first original. (p.44)

Select the original size. (p.44)

Press the [SORT/GROUP/ROTATE

SORT] key ( ) to select the desired mode.

• SORT/GROUP The modes are selected in the order "SORT" ( ), "GROUP" ( ), "Off".

• ROTATE SORT Hold down the [ROTATE SORT] key ( ) for more than 5 seconds until the ROTATE SORT indicator ( ) appears, and set the selected paper tray.

Set the number of copies and other

settings, and then press the [START] key ( ).

The data notification indicator ( ) blinks, and the original is scanned into memory.

When the start indicator lights,

replace the original with the next original, and then press the [START] key ( ).

Repeat step 5 until all originals have been scanned into memory.

Using the RSPF

Place the originals. (p.45)

Sort mode is normally the default output mode, and thus the RSPF and SORT indicators light up.

• If "Sort auto select" has been set to "1: OFF" in the system settings, follow the steps below to select sort mode.

• "Sort auto select" can also be used to change the default output mode (p.93).

Press the [SORT/GROUP/ROTATE

SORT] key ( ) to select the desired mode.

• SORT/GROUP The modes are selected in the order "SORT" ( ), "GROUP" ( ), "Off".

• ROTATE SORT Hold down the [ROTATE SORT] key ( ) for more than 5 seconds until the ROTATE SORT indicator ( ) appears, and set the selected paper tray.

Set the number of copies and other

settings, and then press the [START] key ( ).

The copies are delivered to the paper output tray.

• To cancel the Sort/Group copy job, press the [CLEAR] key

• To cancel Sort or Group mode, press the [SORT/GROUP] key ( ) repeatedly until the SORT/GROUP indicators ( / ) are both off.

().

Note

When all originals have been

To clear the data in memory, press the [CLEAR] key

().

scanned, and then press the [READ-END] key ( ).

The copies are delivered to the paper output tray.

• To cancel the Sort/Group copy job, press

Note

the [CLEAR] key ().

• To cancel Sort or Group mode, press the [SORT/GROUP] key ( ) repeatedly until the SORT/GROUP indicators ( / ) are both off.

If the memory becomes full

• If the memory becomes full while scanning the originals, the ERROR indicator ( ) will light up, "FUL" will appear in the number of copies display, and the machine will stop copying.

• To copy the originals that have been scanned up to that point, press the [START] key ( ).

• To clear the data that has been scanned into memory, press the [CLEAR ALL] key ( ) or the [CLEAR] key ( ).

If the paper output tray becomes full

COPY FUNCTIONS

Pattern 1

Pattern 2

Pattern 1 Pattern 2 Pattern 3 Pattern 4

2 IN 1 COPY

4 IN 1 COPY

Note

COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER (2 IN 1 / 4 IN 1 Copy)

Multiple originals can be copied onto a single sheet of paper in a selected layout pattern. This function is convenient for compiling multi-page reference materials into a compact format, or for providing an overview of all pages of a document on a single page.

•

First select the layout pattern as explained in "Setting the layout pattern" (p.62), and "Border line for 2 IN 1 / 4 IN 1" (solid line or broken line) in the system settings (p.91). When finished, follow the steps below.

• An appropriate ratio setting will be automatically selected based on the size of the originals, the size of the paper, and the selected number of originals. When using the document glass, reduction is possible to 25%. When using the RSPF, reduction is possible to 50%. Certain combinations of original size, paper size, and number of images may result in images being cut off.

• Even if "Rotation copy" is disabled in the system settings, the original images may be rotated if necessary depending on their orientation and the orientation of the paper.

• 2 IN 1 / 4 IN 1 copy cannot be used in combination with dual page copying (p.56), XY Zoom (p.50), margin shift

(p.63), or erase copy. (p.64)

Using the document glass

Place the first original. (p.44)

Select the original size. (p.44)

If the original size was not selected, 2 IN 1 / 4 IN 1 copy cannot be used.

Press the [2 IN 1 / 4 IN 1] key () to

select the desired mode.

Set the number of copies and other

settings, and then press the [START] key ( ).

The data notification indicator ( ) blinks, and the original is scanned into memory.

The mode is selected in the order "2 IN 1" ( ), "4 IN 1" ( ), "Off".

When the start indicator lights,

replace the original with the next original, and then press the [START] key ( ).

Repeat step 5 until all originals have been scanned into memory.

To clear the data in memory, press the [CLEAR] key

When all originals have been scanned,

().

press the [READ-END] key ( ).

The copy is delivered to the paper output tray.

• To cancel 2 IN 1 / 4 IN 1 copying, press the

[CLEAR] key ().

• To cancel 2 IN 1 / 4 IN 1 copy mode, press the [2 IN 1 / 4 IN 1] key ( ) repeatedly until the 2 IN 1 / 4 IN 1 indicators ( / ) are both off.

Using 2 IN 1 / 4 IN 1 copy in combination with sort copy

• When 2 IN 1 / 4 IN 1 copying is used, the group function (p.49) is automatically selected for output.

• If 2 IN 1 / 4 IN 1 copying is selected after sort copying is selected, the copies will be sorted into sets.

COPY FUNCTIONS

Note

Using the RSPF

Place the originals. (p.45)

Press the [2 IN 1 / 4 IN 1] key () to

select the mode.

The mode is selected in the order "2 IN 1" ( ), "4 IN 1" ( ), "Off".

Set the number of copies and other

settings, and press the [START] key ( ).

The copy is delivered to the paper output tray.

If the memory becomes full

• If the memory becomes full while scanning the

originals, the ERROR indicator ( ) will light up, "FUL" will appear in the display, and the machine will stop copying.

• To copy the originals that have been scanned up

to that point, press the [START] key ( ).

• To clear the data that has been scanned into

memory, press the [CLEAR ALL] key ( ) or the [CLEAR] key ( ).

• To cancel 2 IN 1 / 4 IN 1 copying, press the

[CLEAR] key ().

• To cancel 2 IN 1 / 4 IN 1 copy mode, press the [2 IN 1 / 4 IN 1] key ( ) repeatedly until the 2 IN 1 / 4 IN 1 indicators ( / ) are both off.

Setting the layout pattern

You can select the layout pattern for copying 2 original pages or 4 original pages onto one sheet of paper. The available layout patterns are shown on the first page of this section.

The layout pattern can also be selected in the system settings. (p.92)

Use the [2 IN 1 / 4 IN 1] key ( ) to

access the setting.

Selecting the layout for 2 IN 1 copy

With the 2 IN 1 / 4 IN 1 indicators off, hold down the [2 IN 1 / 4 IN 1] key ( ) until the 2 IN 1 indicator ( ) blinks.

The setting code of the currently selected pattern will blink in the first digit of the number of copies display.

Selecting the layout for 4 IN 1 copy

With the 2 IN 1 indicator lit ( ), hold down the [2 IN 1 / 4 IN 1] key ( ) until the 4 IN 1 indicator ( ) blinks.

The setting code of the currently selected pattern will blink in the first digit of the number of copies display.

Select the setting code by pressing a

numeric key.

To select "Pattern 2", press the [2] key.

Function Setting code (p.92)

2 IN 1 layout

4 IN 1 layout

See page 61 for layout pattern. The factory default settings are indicated by " * ". The entered number blinks in the first digit of the

copies

display.

Press the [START] key ( ).

The selected setting code stops blinking and lights steadily. This completes the setting.

* 1 (Pattern 1)

2 (Pattern 2)

* 1 (Pattern 1)

2 (Pattern 2) 3 (Pattern 3) 4 (Pattern 4)

number of

Press the [2 IN 1 / 4 IN 1] key ( ) to

exit the setting.

The display returns to the number of copies display.

COPY FUNCTIONS

Margin

Original Left Edge

Margin

Top Edge

Note

CREATING MARGINS WHEN COPYING (Margin Shift)

The MARGIN SHIFT feature, in its initial setting, automatically shifts the text or image to increase the margin by approximately 10mm (1/2"). The location of the margin to be increased can be selected to be either at the left edge or the top of the page.

• The margin width can be changed in the system settings. (p.92)

• Note that a margin is created by shifting the image, and thus if the image is shifted too far, the edge of the image may be cut off.

• If the ORIGINAL SIZE indicator blinks when margin shift is selected, rotate the original so that it is in the same orientation as the blinking ORIGINAL SIZE indicator.

Place the original(s).

If you are using the document glass, place the side of the original where you wish to create the margin on the right.

If you are using the RSPF, place the side of the original where you wish to create the margin on the right.

Set the number of copies and other

settings, and then press the [START] key ( ).

The copy is delivered to the paper output tray.

To cancel margin shift, press the [MARGIN SHIFT] key ( ) repeatedly until the MARGIN SHIFT indicator ( ) is off.

Select the location of the margin

Hold down the [MARGIN SHIFT] key

( ) until the MARGIN SHIFT indicator ( ) blinks.

The currently selected setting code for the margin position blinks in the number of copies display.

If the original is placed on the document

glass, select the original size. (p.44)

When using the RSPF, make sure that the same size as the size of the placed original appears in the size display.

Press the [MARGIN SHIFT] key ( ).

The margin indicator lights.

1: Left edge 2: Top edge

Press the [1] key or the [2] key, and

then press the [START] key ( ).

The selected setting code for the margin position lights.

Press the [MARGIN SHIFT] key ( ).

The MARGIN SHIFT indicator ( ) stops blinking.

COPY FUNCTIONS

Original

Copy

Original Copy

Original

Copy

EDGE ERASE

CENTRE ERASE

EDGE + CENTRE ERASE

Note

ERASING SHADOWS AROUND THE EDGES OF A COPY (Erase Copy)

l This feature is used to erase shadows that appear around the edges of copies of books and other thick originals.

(EDGE ERASE)

l The feature can also erase the shadow that appears down the centre of books and other originals that open up.

(CENTRE ERASE)

l The factory default setting for the width of the erasure is approximately 10 mm (1/2"). The width can be changed

in the system settings. (p.92)

• Centre erase cannot be used in combination with dual page copy.

• Erase copy cannot be used in combination with 2 IN 1 / 4 IN 1 copy. (p.61)

• Erase copy cannot be used when the paper is a special size or copying from the bypass tray.

• Note that if the width of the erasure is too large, the edge of the image may be partially erased.

Place the original(s). (p.44)

If the original is placed on the

document glass, select the original size. (p.44)

When using the RSPF, make sure that the same size as the size of the placed original appears in the size display.

Press the [ERASE] key ( ) to select

the desired erase mode.

To select the "EDGE + CENTRE ERASE" mode, press the [ERASE] key( ) repeatedly until the ERASE indicators ( ) lights up.

Set the number of copies and other

settings, and then press the [START] key ( ).

The copy is delivered to the paper output tray.

• To cancel erase copy, press the [ERASE] key ( ) repeatedly until the ERASE indicators ( / ) are both off.

• If the original size was not selected in step 2, erase copy cannot be used.

COPY FUNCTIONS

Pattern 2

Pattern 1

Front

Back

Centre Line

Front

Back

Note

ID CARD COPY

You can copy the front and back sides of ID card onto a page through this function. The specified patterns of ID card copy are shown as follows.

• Select the layout patterns as explained in "ID card" of SYSTEM SETTINGS (p.93) first, then follow the steps below to perform the copy. For changing a system setting, refer to "SELECTING A SETTING FOR A SYSTEM

SETTING" (p.94).

• ID card copy feature cannot be used in combination with interrupt copy, two-sided copy, dual page copy, XY-zoom, margin shift, edge + centre erase, 2 in 1/4 in 1, sort/group and rotation copy functions.

• The following paper sizes can be used: Pattern 1: A4 (8-1/2''x11'') is recommended. Pattern 2: A5 to A3 ((5-1/2''x8-1/2'' to 11"x17"). (A5 (5-1/2''x8-1/2'') can only be used in bypass tray.)

• When using Pattern 1, the image may cut off even if using standard paper size.

• In ID card mode, refer to "CUSTOMISING SETTING (system settings)"(page 86), if you want to set the number of copies. Scan area is: X: 98mm, Y: 66mm.

• Auto paper selection and auto tray switch are invalid in ID card copy mode. Please select paper and tray manually.

• The ID card should be placed 5mm from the original size scale in order that the image will not be cut off when copying.

• For ID card copy, enlargement ratios can be selected. However, depending on the paper size, copy image may be an omission.

Press the [ID CARD COPY] key.

The ID CARD COPY indicator will light up.

Turn the ID card to the other side, and

press the [START] key ( ).

When scan finished, Copy will begin.

To cancel ID card copy, press the [CLEAR ALL] key ( ) and make sure the ID CARD COPY indicator is off.

Place the ID card on the document

glass, align with the ID card mark, and press the [START] key ( ).

When scanning, ORIGINAL DATA indicator will blink after scan is finished, ORIGINAL DATA indicator will go off and one side of the ID card is scanned into memory. (In this case, print will start if pressing [READ-END] key ( ).)

Chapter 4

Note

PRINTER FUNCTIONS

This chapter explains how to use the printer functions. The procedure for loading paper is the same as for loading copy paper. See "LOADING PAPER" (p.38).

• Print jobs received while the machine is copying or scanning will be stored in memory. When the copy job is finished, the print jobs will begin printing.

• Printing is not possible when the front or side cover is opened for machine maintenance, or when a misfeed occurs or the machine runs out of paper or toner, or when the drum cartridge reaches its replacement time.

• If an original misfeed occurs in the RSPF, printing will not be possible until the misfed original is removed and the RSPF is restored to a usable state.

BASIC PRINTING

The following example explains how to print a document from WordPad. Before printing, make sure that the correct size of paper for your document has been loaded in the machine.

Make sure that the ONLINE indicator

on the operation panel is lit.

If the ONLINE indicator is not lit, press the [ONLINE] key ( ).

When the indicator is:

• Lit, the machine is online and ready to print, or is printing.

• Off, the machine is off-line and cannot print.

Start WordPad and open the

document that you wish to print.

Select "Print" from the application's

"File" menu.

The "Print" dialog box will appear.

Make sure that "SHARP AR-xxxx" is

selected as the printer.

If you need to change any print settings, click the "Preferences" button to open the printer driver setup screen.

The printer driver setup screen will appear.

"PRINTER DRIVER SETTING SCREEN" (p.69) "SETTING ADVANCED PRINT FUNCTIONS" (p.70)

Click the "Print" button.

Printing begins. When the machine is connected USB and the print job starts, print status window will appear.

"OUTLINE OF THE PRINT STATUS WINDOW" (p.76)

The print job will be delivered to the output tray.

PRINTER FUNCTIONS

Note

If the tray runs out of paper during printing

Add paper to the tray or press the [TRAY] key to select a different tray, and then press the [ONLINE] key ( ) to resume printing. Note that if the "Auto tray switching" setting in the system settings is enabled on a model that has two or more paper trays and there is the same size of paper in another tray, the machine will automatically switch to the other tray and continue printing.

Pausing a print job

To pause a print job during printing, press the [ONLINE] key ( ) on the operation panel to switch the machine off-line. Printing will be paused and the ONLINE indicator will go off.

• To cancel a print job, press the [CLEAR] key ( ) or the [CLEAR ALL] key ( ).

• To resume printing, press the [ONLINE] key ( ) to switch the machine online.

When "Paper Source" is set to "Auto Select"

If "Paper Source" is set to "Auto Select" in the "Paper" tab of the printer driver setup screen and the correct size of paper for a print job is not loaded in the machine, the printing procedure will vary depending on the "Use Close Paper Size" setting in the system settings (p.93).

When "Use close paper size" is disabled

You can press the [TRAY] key to select a tray manually, or load paper in the bypass tray and press the [ONLINE] key ( ) to begin printing. * The paper sizes that appear in the operation panel will vary by country and region.

When "Use close paper size" is enabled

Printing will take place using a size of paper that is close to the size of the print image.

• For limitations on copying in print mode, scanner mode limitations, and print mode limitations in copy and scanner mode, see "OPERATION IN COPY, PRINTER, AND SCANNER MODES" (p.43).

• The print image is automatically rotated to fit the paper in the event that the paper is loaded in an orientation different from the print image.

PRINTER FUNCTIONS

OPENING THE PRINTER DRIVER FROM THE "Start" BUTTON

You can open the printer driver and change the printer driver settings from the Windows "Start" button. Settings adjusted in this way will be the initial settings when you print from an application. (If you change the settings from the printer driver setup screen at the time of printing, the settings will revert to the initial settings when you quit the application.)

Click the "Start" button, and then click

"Devices and Printers".

• In Windows Vista, click the "Start" button and select "Control Panel" and then select "Printer".

• For Windows 8, right-click in the Start screen (or swipe upward from the bottom edge), then click the App Bar [Hardware and Sound] [Printers].

Right-click the "SHARP AR-xxxx"

printer driver icon, and then click "Printer properties".

In Windows Vista, select "Properties" from the "Organize" menu.

Þ [All apps] Þ [Control Panel] Þ

Þ [Devices and Printers] Þ

Click the "Preferences" button in the

"General" tab.

In Windows Vista,click the "Printing Preferences" button in the "General" tab. The printer driver setup screen will appear.

"PRINTER DRIVER SETTING SCREEN" (p.69)

PRINTER DRIVER SETTING

Note

567

SCREEN

Some restrictions exist on the combinations of settings that can be selected in the printer driver setup screen. When a restriction is in effect, an information icon ( ) will appear next to the setting. Click the icon to view an explanation of the restriction.

Tab

The settings are grouped on tabs. Click on a tab to bring it to the front.

Checkbox

Click on a checkbox to activate or deactivate a function.

Print setting image

This shows the effect of the selected print settings.

Drop-down list

Allows you to make a selection from a list of choices.

Image of paper trays

The tray selected in "Paper Selection" in the "Paper" tab appears in blue. You can also click on a tray to select it.

Check button

Allows you to select one item from a list of options.

The settings and the image of the machine will vary depending on the model.

"OK" button

Click this button to save your settings and exit the dialog box.

"Cancel" button

Click this button to exit the dialog box without making any changes to the settings.

"Apply" button

Click to save your settings without closing the dialog box.

"Help" button

Click this button to display the help file for the printer driver.

SETTING ADVANCED PRINT

Note

FUNCTIONS

This section explains major advanced print functions. The explanations assume that the paper size and other basic settings have already been selected. For the basic procedure for printing and the steps for opening the printer driver, see "BASIC PRINTING" (p.66).

PRINTING MULTIPLE PAGES ON ONE PAGE

This function can be used to reduce the print image and print multiple pages on a single sheet of paper. This is convenient when you want to print multiple images such as photos on a single sheet of paper, and when you want to conserve paper. This function can also be used in combination with two-sided printing for maximum conservation of paper. The following print results will be obtained, depending on the order selected.

Print results

N-Up

(Pages per sheet)

2-Up

(2 pages per

sheet)

N-Up

(Pages per sheet)

4-Up

(4 pages per

sheet)

Left To Right Right To Left

Right, and Down Down, and Right Left, and Down Down, and Left

(when the print orientation is

(N-Up Printing)

Top To Bottom

landscape)

6-Up

(6 pages per

sheet)

In PCL6 or PS printer driver, 8-Up, 9-Up, and 16-Up can be selected. The page orders are the same as for 4-Up. In a Windows environment, the page order can be viewed in the print image in the printer driver properties window.

Click the "Main" tab in the printer

driver setup screen.

Select the number of pages per sheet.

If you wish to print borderlines, check the "Border" box.

Select the order of the pages.

PRINTER FUNCTIONS

Paper Size: A3 or Ledger Fit To Paper Size: A4 or Letter

A3 or Ledger size document (Paper Size)

A4 or Letter size paper (Fit To Paper Size)

FITTING THE PRINTED IMAGE TO THE PAPER

(Fit To Paper Size)

The printer driver can adjust the size of the printed image to match the size of the paper loaded in the machine. Follow the steps shown below to use this function. The explanation below assumes that you intend to print an A3 or Ledger size document on A4 or Letter size paper.

Click the "Paper" tab in the printer

driver setup screen.

Select the original size (A3 or Ledger)

of the print image in "Paper Size".

Check the "Fit To Paper Size" button.

Select the actual size of paper to be

used for printing (A4 or Letter).

The size of the printed image will be automatically adjusted to match the paper loaded in the machine.

ROTATING THE PRINT IMAGE 180 DEGREES

(Rotate 180 degrees)

The feature rotates the image 180 degrees so that it can be printed correctly on paper that can only be loaded in one orientation (such as envelopes).

Click the "Main" tab in the printer

driver setup screen.

ABCD

Check the "Rotate 180 degrees" box.

PRINTER FUNCTIONS

Note

ENLARGING/REDUCING THE PRINT IMAGE (Zoom)

This function is used to enlarge or reduce the image to a selected percentage. This allows you to enlarge a small image or add margins to the paper by slightly reducing an image.

The "Zoom" setting is not available when "N-Up Printing" is selected.

Click the "Paper" tab in the printer

Select the zoom ratio.

driver setup screen.

Directly enter a number or

Select "Zoom" and click the

"Settings" button.

The actual paper size to be used for printing can be selected from the pop-up menu.

• You can also select [Upper Left] or [Centre] for the base point on the paper.

• When using the PS printer driver (Windows), you can set the width and length percentages separately to change the proportions of the image. (XY-Zoom)

click the button to change the ratio in increments of 1%.

PRINTING FAINT TEXT AND LINES IN BLACK

(Text To Black/Vector To Black)

When printing a colour image, colour text and lines that are faint can be printed in black. (Raster data such as bitmap images cannot be adjusted.) This allows you to bring out colour text and lines that are faint and difficult to see.

Click the "Advanced" tab in the printer

driver setup screen.

ABCD

Check the "Text To Black" box and/or

the "Vector To Black" box.

• "Text To Black" can be selected to print all text other than white text in black.

• "Vector To Black" can be selected to print all vector graphics other than white lines and areas in black.

PRINTER FUNCTIONS

Note

ADJUSTING THE BRIGHTNESS AND CONTRAST OF THE IMAGE (Image Adjustment)

The brightness and contrast can be adjusted in the print settings when printing a photo or other image. These settings can be used for simple corrections when you do not have image editing software installed on your computer.

Click the "Advanced" tab in the printer

driver setup screen.

Click the "Image Adjustment" button.

ADDING A WATERMARK TO PRINTED PAGES

Faint shadow-like text can be added to the background of the printed image as a watermark. The size, density, and angle of the watermark text can be adjusted. The text can be selected from a pre-stored list, or entered to create an original watermark.

Adjust the image settings.

To adjust a setting, drag the slide bar or click the or

button.

(Watermark)

Click the "Watermarks" tab in the

printer driver setup screen.

Select the watermark settings.

If you wish to create a new watermark, enter the text of the watermark in the "Text" box and click the "Add" button.

Select a stored watermark from the pull-down menu. You can click the "Edit" button to edit the font and select other detailed settings.

PRINTER FUNCTIONS

Note

TWO-SIDED PRINTING (Model that has duplex copy / print function as standard feature only)

The machine can print on both sides of the paper. This function is useful for many purposes, and is particularly convenient when you want to create a simple pamphlet. Two-sided printing also helps conserve paper.

When using two-sided printing, select a source other than "Bypass Tray" for the "Paper Source" in the "Paper" tab.

Paper orientation Printing result

2-Sided (Book) 2-Sided (Tablet)

Ver t ical

Horizontal

The pages are printed so that they can be bound at the side.

Click the "Main" tab in the printer

driver setup screen.

2-Sided (Book) 2-Sided (Tablet)

The pages are printed so that they can be bound at the top.

Select "2-Sided(Book)" or

"2-Sided(Tablet)".

In PCL6 or PS printer driver, you can also select [Pamphlet Style].

SAVING FREQUENTLY USED PRINT

Note

SETTINGS

Settings configured on each of the tabs at the time of printing can be saved as user settings. Saving frequently used settings or complex colour settings under an assigned name makes it easy to select those settings the next time you need to use them.

SAVING SETTINGS AT THE TIME OF PRINTING

(User Settings)

Settings can be saved from any tab of the printer driver properties window. Settings configured on each tab are listed at the time of saving, allowing you to check the settings as you save them. For the steps for opening the printer driver, see "BASIC PRINTING" (p.66).

Configure print settings on each tab

and click the "Save" button on any tab.

Using saved settings

Select the user settings that you wish to use on any tab.

After checking the displayed settings,

enter a name for the settings (maximum of 20 characters).

• Up to 30 sets of user settings can be saved.

• A watermark that you created cannot be saved in user settings.

Click the "OK" button.

Deleting saved settings

Select the user settings that you want to delete in "Using saved settings" (above), and click the "Delete" button.

OUTLINE OF THE PRINT STATUS

Note

WINDOW

When printing begins, the Print Status Window automatically opens. The Print Status Window is a utility that monitors the machine and shows the name of the document being printed and any error messages that occur.

Status window

Provides information on the current status of the printer.

Status icon

The status icons appear to alert you to printer errors. Nothing appears when printing is taking place normally.

The icons are explained below. Follow the instructions in the status window to solve the problem.

Icon Print Status

An error has occurred that requires immediate attention.

Tab

Click a tab to bring it to the front. The "Options" tab allows you to select display options for the Print Status Window.

Document Name

Shows the name of the document currently being printed.

"Cancel Job" button

Printing can be cancelled by clicking this button before the machine receives the job.

"Help" button

Click this button to display the help file for the Print Status Window.

"Close" button

Click this button to close the Print Status Window.

An error has occurred that requires attention soon.

The Print Staus WIndow can be used only when the machine is connected with a USB cable. When the machine is connected to a network, use the print status monitor contained on the CD-ROM that accompanies the machine.

BASIC PRINTING (MACINTOSH)

Note

l AR-6020/AR-6023/AR-6020D/AR-6023D

The network expansion kit and the PS3 expansion kit must be installed and the machine must be connected to a network.

l AR-6020N/AR-6023N/AR-6026N/AR-6031N

The printer expansion kit and the PS3 expansion kit must be installed and the machine must be connected to a network.

Before printing, make sure that the correct size of paper for your document has been loaded in the machine.

Start the application and open the

document that you wish to print.

Select "Print" from the application's

"File" menu.

Make sure that the correct printer is

selected.

•

The machine name that appears in the

Note

"Printer" menu is the name that was entered when the settings were configured from the "Software CD-ROM". Unless the name was changed when configuring the settings, it will be "AR-xxxx" (where "xxxx" is a sequence of characters that varies depending on your machine).

• The Print window varies depending on the operating system version, the printer driver version, and the application.

Select print settings.

Click and select the settings that you wish to configure from the pull-down menu. The corresponding setting screen will appear.

[

The settings vary depending on the operating system version, the printer driver version, and the application.

Click the "Print" button.

Printing begins.

Chapter 5

Note

Scanning from a

TWAIN*

-compliant or

WIA*

3, *4

-compliant application

Place the original in the scanning position

For more information, refer to "SCANNING USING THE KEYS ON THE MACHINE" (p.79).

Start up a TWAIN-compliant or WIA-compliant application, and select the machine's scanner

driver.

Change the machine to scanner mode and select

the scan menu. (ScanMenu SC1: to ScanMenu

SC6:)

Set the scan preferences

(only if the preferences are set to appear)

Set the scan preferences

Scanning

"SCANNING FROM A TWAIN-COMPLIANT

APPLICATION" (p.83)

"SCANNING FROM A WIA-COMPLIANT

APPLICATION (Windows Vista/7/8)" (p.87)

Scanning

"OUTLINE OF BUTTON MANAGER" (p.80)

Scanning from the machine*

SCANNER FUNCTIONS

This chapter explains how to use the scanner functions.

• Scanning is not possible when the front or side cover is opened for machine maintenance, or when a misfeed occurs or the machine runs out of paper or toner, or when the drum cartridge reaches its replacement time.

• If an original misfeed occurs in the RSPF, scanning will not be possible until the misfed original is removed and the RSPF is restored to a usable state.

SCANNING OVERVIEW

The flow chart shown below provides an overview of scanning.

*1 To scan using the machine's operation panel, you must first install Button Manager and establish the appropriate settings

in the Control Panel. For details, see "SETTING UP BUTTON MANAGER" (p.24).

*2 TWAIN is an international interface standard for scanners and other image acquisition devices. By installing a TWAIN

driver on your computer, you can scan and work with images using a variety of TWAIN-compliant applications.

*3 WIA (Windows Imaging Acquisition) is a Windows function that allows a scanner, digital camera or other imaging device to

communicate with an image processing application. The WIA driver for this machine can only be used in Windows Vista/7/8.

WIA cannot be used on network function standard models and on models with the network expansion kit installed.

SCANNING USING THE KEYS ON

Note

Original size scale

mark

Note

THE MACHINE

USING BUTTON MANAGER

When scanning is performed by this method, the application that has been set in Button Manager will automatically start and the scanned image will be pasted into the application. For the steps to allocate applications using the Button Manager or other settings, see "BUTTON MANAGER SETTINGS" (p.81).

• If the machine is in copy mode, press the [SCAN] key ( ) to switch to scanner mode and clear the previously set copy settings.

• Button Manager cannot be used when the network expansion kit is installed, or with the AR-6020N/AR-6023N/AR-6026N/AR-6031N.

Scanning from the operation panel of the machine

Press the [SCAN] key ( ).

When the SCAN indicator lights up, the machine enters scanner mode.

Place the original(s) that you wish to

scan on the document glass/RSPF.

[When scanning from the document glass]

Place the original face down on the document glass. Align the corner of the original with the tip of the arrow mark ( ) on the document glass scale.

[When scanning from the RSPF]

Set the original(s) face up in the document feeder tray.

Press the [SCAN MENU] key to begin

scanning.

Scanning will start and the scanned data will be transferred to the application. The target application can be selected by the [SCAN MENU] key. For the default application allocated to each key, see

"BUTTON MANAGER SETTINGS" (p.81).

The number of copies display will show the number of the [SCAN MENU] key that you pressed, and the number will light and the DATA indicator will be blinking.

• To return to copy mode from scanner mode, press the [SCAN] key ( ) or [CLEAR ALL] key ( ).

• For limitations on copying and printing in scanner mode, and scanner mode while copying or printing, see "OPERATION IN

COPY, PRINTER, AND SCANNER MODES" (p.43).

SCANNER FUNCTIONS

5 6

OUTLINE OF BUTTON MANAGER

Button Manager is a software utility that allows you to use the scanner function at the machine. Button Manager allows you to configure six sets of scanning settings as a scan menu on the machine. To view Help for a setting, click the button in the upper right-hand corner of the window and then click the setting. To begin scanning using the machine's operation panel, settings must be established in the Control Panel after Button Manager is installed. For information on installing Button Manager and establishing the Control Panel settings, see "SETTING UP BUTTON MANAGER" (p.24). For information on scanning using the machine's operation panel, see "SCANNING USING THE KEYS ON THE MACHINE" (p.79). You can use Button Manager to select and change the functions of the six scan menus. Refer to "BUTTON

MANAGER SETTINGS" (p.81).

Tab

Click to set scan menu options. Each tab contains scan settings for the scan menu.

"Application Selection" area

Select the start-up application here.

"Show TWAIN setting screen when scanning" Checkbox

You can select whether or not the TWAIN screen is shown. When the checkbox is selected, the TWAIN screen appears when scanning is executed to let you adjust the scanning conditions.

"Scan Setup" area

"OK" button

Click to save your settings and exit the dialog box.

"Cancel" button

Click this button to exit the dialog box without making any changes to the settings.

"Apply" button

Click to save your settings without closing the dialog box.

"Help" button

Click this button to display the help file for Button Manager.

Set the scan conditions.

Note

Some applications may limit your choice of settings.

SCANNER FUNCTIONS

Note

BUTTON MANAGER SETTINGS

Once installed, Button Manager normally runs in the background in the Windows operating system. If you need to change Button Manager settings, follow the steps below. For details on Button Manager settings, see Button Manager Help.

"OUTLINE OF BUTTON MANAGER" (p.80)

Right-click the Button Manager icon

( ) on the task bar, and select "Settings" from the pop-up menu.

The setting screen of Button Manager will open.

Note

Click the tab of the scan menu that

If the Button Manager icon does not appear on the task bar, click the "Start" button, select "All Programs", select "Sharp Button Manager AC", and then click "Button Manager" to start Button Manager.

you want to set up.

Select the start-up application in the

"Application Selection" area.

Note

When the "Show TWAIN setting screen when scanning" checkbox is selected, the scan setting screen appears when scanning is executed to let you adjust the scanning conditions.

Set up the "Colour Mode", "Edge" and

other scan settings in the "Scan Setup" area.

Click the "OK" button.

This completes the settings.

Button Manager scan menu (factory default)

Display/Button Manager menu

ScanMenu SC1: Sharpdesk

ScanMenu SC2: Email

ScanMenu SC3: FAX

ScanMenu SC4: OCR

ScanMenu SC5: Microsoft Word

ScanMenu SC6: Filing

The start-up application must be installed before using.

Application that starts

SENDING AN IMAGE IN USB MEMORY MODE

When you are using the network expansion kit or the AR-6020N/AR-6023N/AR-6026N/AR-6031N, you can send an image in USB memory mode. Store the scan settings in a SCAN MENU key in advance, and then connect a USB memory device to the machine to scan an image into the USB memory. For the scan settings that can be stored in a SCAN MENU key, refer to "USB MEMORY MODE SETTINGS" (p.82).

Connect the USB memory device to

the USB connector on the machine.

Press the [SCAN] key ( ).

The scanner mode selection indicator lights up and the machine enters scanner mode.

Place the original on the document

glass or in the RSPF.

Press the [SCAN MENU] key that has

the settings you want to use.

"USb" appears in the number of copies display, and the number of the pressed [SCAN MENU] key appears in the ratio display. For the settings assigned to each key, refer to

"USB MEMORY MODE SETTINGS" (p.82).

Press the [START] key ( ).

The original is scanned and the image data is saved in the USB memory device.

Remove the USB memory device from

the machine.

USB MEMORY MODE SETTINGS

This section explains how to store settings for USB Memory Mode in a SCAN MENU key.

Resolution, color mode, and image format settings

The resolution, color mode, and image format can be set in the machine's Web page. Access the machine's Web page with administrator rights, and configure the settings.

Enter the IP address of the machine in

your Web browser to access the Web page.

Click "Administrator mode", and then

open the administrator’s Web screen.

For the administrator’s account and password, see the Start Guide.

Click "USB memory Scan setup" in

"Image Send Management".

The settings appear.

Click one of [USB1] to [USB6], and set

the resolution, color mode, and format.

[USB1] to [USB6] correspond to each of the scan menu key numbers. For example, select [USB1] to store settings in [SCAN MENU] key "1".

When you have finished storing

settings, click the [Submit] key.

The settings are saved. Close your Web browser.

SCANNING FROM YOUR COMPUTER

Note

The machine supports the TWAIN standard, making it possible to scan from TWAIN-compliant applications. The machine also supports WIA (Windows Image Acquisition), making it possible to scan from WIA-compliant applications. For information on TWAIN and WIA settings, see the help file for the scanner driver or Windows Help.

WIA and "Scanner and Camera Wizard" cannot be used on network function standard models and on models with the network expansion kit installed.

SCANNING FROM A TWAIN-COMPLIANT APPLICATION

The SHARP scanner driver is compatible with the TWAIN standard, allowing it to be used with a variety of TWAIN-compliant applications.

Place the original(s) that you wish to

scan on the document glass/RSPF.

For information on setting an original for scanning, refer to "SCANNING USING THE

KEYS ON THE MACHINE" (p.79).

Press the [SCAN] key ( ).

The scanner mode selection indicator lights up and the machine enters scanner mode.

When the machine is connected to a network, the scanner driver cannot be used if the machine is in copy mode.

After starting TWAIN-compliant

application, click the "File" menu and select a menu to scan.

Note

The method for accessing the menu to select the scanner depends upon the application. For more information, refer to the manual or the help file of your application.

Depending on your system, "SHARP MFP TWAIN 1.0 (32-32)" and "WIA-SHARP AR-xxxx 1.0 (32-32)" may appear in the above "Select Source" screen. The machine is connected to a USB, "u-2" is display on the number of copies display. And also the machine is connected to a network, "n-t" is display on the number of copies display.

Select the menu to acquire an image

from the application’s "File" menu.

The scanner driver setup screen will appear.

"Scanner driver settings" (p.85)

In the "Scanning Source" menu,

select the location where you placed the original in Step 1.

• If you placed a one-sided original in the RSPF, select "SPF (Simplex)".

• If you placed a two-sided original in the RSPF, select "SPF (Duplex-Book)" or "SPF (Duplex-Tablet)" according to the binding position of the original.

Select "SHARP MFP TWAIN AC"

([SHARP MFP TWAIN K] on a network connection), and click the "Select" button.

If you selected "SPF (Duplex-Book)" or "SPF (Duplex-Tablet)" in the "Scanning Source" menu, select whether the orientation of the placed original is "Left edge is fed first" or "Top edge is fed first".

SCANNER FUNCTIONS

Click the "Preview" button.

The preview image will appear.

Note

Specify the scanning area and set the

• If the angle of the image is not correct, reset the original, and click the "Preview" button again.

• If the preview image is not oriented correctly, click the "Rotate" button in the preview screen. This rotates the preview image 90 degrees clockwise, allowing you to correct the orientation without resetting the original. "Preview screen" (p.86)

• If you set multiple pages in the RSPF, the machine previews only the top page of the originals, and then sends it to the original exit area. Return the previewed original to the RSPF before starting the scanning job.

scan preferences.

For information on specifying the scan area and setting the scan preferences, see scanner driver Help.

"Scanner driver settings" (p.85)

Scanning a large area at high resolution

Caution

results in a large quantity of data and a prolonged scanning time. It is recommended that you set appropriate scanning preferences for the type of original being scanned, i.e., Web page (monitor), Photo, FAX, or OCR.

When you are ready to begin

scanning, click the "Scanning" button.

To cancel a scanning job after clicking the "Scanning" button, press the [Esc] key on your keyboard.

SCANNER FUNCTIONS

Set-up screen

Note

Scanner driver settings

The scanner driver setup screen consists of the "Set-up screen", which lets you select scan settings, and the "Preview screen", which shows the scanned image. For details on the scan settings, click the "Help" button in the preview screen to display Help.

"Scanning Source" menu

Select the location where the original is placed. Selections are "Platen" (document glass), "SPF (Simplex)", "SPF (Duplex-Book)" or "SPF (Duplex-Tablet)".

"SCANNING FROM A TWAIN-COMPLIANT APPLICATION" (p.83)

Scan side menu

If you placed a two-sided original in the RSPF, select "Left edge is fed first" or "Top edge is fed first" from the scan side menu according to the orientation of the placed original.

"Scanning Mode" menu

Select "Standard" or "Professional" for the scanning mode. For details on the settings, click the "Help" button in the preview screen to display Help.

"Zoom Preview" Checkbox

When this is selected, the selected part of the preview image will be enlarged when the "Preview" button is clicked. To return to the regular view, remove the checkmark.

Note

"Zoom Preview" can be used when "Platen" is selected in the "Scanning Source" menu.

"Preview" button

Previews the document.

If "Preview" is cancelled by immediately pressing the [Esc] key on your keyboard, or the [CLEAR] key ( ) or [CLEAR ALL] key ( ) on the machine, nothing will appear in the preview screen.

"Scanning" button

Click to scan an original using the selected settings. Before clicking the "Scanning" button, make sure the settings are correct.

To cancel a scanning job after clicking the "Scanning" button, press the [Esc] key on your keyboard, or the [CLEAR] key ( ) or [CLEAR ALL] key ( ) on the machine.

"Close" button

Click to close the scanner driver setup screen.

SCANNER FUNCTIONS

Preview screen

Click the "Preview" button in the Set-up screen to display the scanned image. You can specify the scanning area by dragging the mouse inside the window. The inside of the frame that is created when you drag the mouse will be the scanning area. To cancel a specified scanning area and clear the frame, click anywhere outside the frame.

"Rotate" button

Click to rotate the preview image 90 degrees clockwise. This allows the orientation to be corrected without resetting the original. Upon scanning, the image file is created in the orientation shown in the preview screen.

"Image Size" button

Click to open a dialog box that allows you to specify the scanning area by entering numbers. Pixels, mm, or inches can be selected for the units of the numbers. By initially specifying a scanning area, numbers can be entered to change that area relative to the top left corner as a fixed origin.

"Auto Scan Area Judgement" button

Click when the preview screen is displayed to automatically set the scanning area to the entire preview image.

Click the "Auto Scan Area Judgement" button to automatically set the scanning area to the entire preview image.

Preview image

Preview screen

"Help" button

Click to display the help file for the scanner driver.

SCANNER FUNCTIONS

Note

SCANNING FROM A WIA-COMPLIANT APPLICATION (Windows Vista/7/8)

If you are using Windows Vista/7/8, you can use the WIA driver to scan from Paint and other WIA-compliant applications. The procedure for scanning using Paint is explained in the following.

WIA cannot be used on network function standard models and on models with the network expansion kit installed.

Place the original that you wish to

scan on the document glass/RSPF.

For information on setting an original for scanning, refer to "SCANNING USING THE

KEYS ON THE MACHINE" (p.79).

Start Paint and then click the "File"

menu and select "From Scanner or Camera".

The scan screen of the WIA driver will appear.

Note

If you have WIA drivers for other devices installed in your computer, the "Select Device" screen will open. Select "SHARP AR-xxxx" and click the "OK" button.

Select the paper source and picture

type, and click the "Preview" button.

The preview image will appear. If you placed the original on the document glass, select "Flatbed" for the "Paper source". If you placed the original in the RSPF, select "Document Feeder" for the "Paper source" and specify the original size in "Page size".

• If you select "Document Feeder" for the "Paper source" and click the "Preview" button, the top original in the RSPF is previewed. The previewed original is sent to the original exit area, so you will need to return it to the RSPF before starting the scanning job.

SCANNER FUNCTIONS

Click the "Scan" button.

Scanning begins and the image is acquired into Paint. Use "Save" in your application to specify a file name and folder for the scanned image, and save the image. To cancel a scanning job after clicking the "Scan" button, click the "Cancel" button.

Chapter 6

Note

AUTO

Note

USER SETTINGS

This chapter explains how to set the automatic exposure level, toner save mode/high image quality mode, network settings through your web browser, and the system settings, which are custom settings that control fine points of the machine's operation.

ADJUSTING THE AUTOMATIC EXPOSURE LEVEL

The exposure level used in automatic exposure adjustment, which automatically adjusts the copy exposure according to the original, can be adjusted. If copies tend to be too dark or too light when automatic exposure adjustment is used, follow the steps below to adjust the automatic exposure level. The automatic exposure level can be adjusted separately for the document glass and the RSPF.

The copy, scanner and printer functions cannot be used while the automatic exposure level is being adjusted.

To adjust the automatic exposure

level in the RSPF, place the original in the RSPF. (p.45)

Make sure that the RSPF indicator is lit.

To adjust the automatic exposure level for copies made from originals placed on the document glass, proceed to step 2.

Press the [AUTO/TEXT/PHOTO] key

( / / ) to select "PHOTO"

AUTO

().

Hold down the [AUTO/TEXT/PHOTO]

key ( / / ) until the AUTO

AUTO

indicator ( ) blinks.

AUTO

The exposure level indicators show the current setting.

Press the [Light] key ( ) or [Dark]

key ( ) to lighten or darken the automatic exposure level as desired.

Press the [AUTO/TEXT/PHOTO] key

( / / ) to complete the setting.

The AUTO indicator ( ) stops blinking and lights steadily.

After adjusting the automatic exposure level, it is recommended that you make a test copy to check the new level.

TONER SAVE MODE AND HIGH

Note

AUTO

IMAGE QUALITY MODE

Toner save mode can be enabled to reduce toner consumption by about 10%. (The amount of the saved toner varies depending on the type of original.) The high image quality mode improves copy image quality in the automatic and manual exposure modes by increasing copy density with a slight increase of toner consumption. To switch between toner save mode and high image quality mode, follow the steps below.

In Europe, high image quality mode is initially selected. In regions other than Europe, toner save mode is initially selected.

Press the [AUTO/TEXT/PHOTO] key

( / / ) to select "TEXT"

AUTO

().

Hold down the [AUTO/TEXT/PHOTO]

key ( / / ) until the PHOTO indicator ( ) blinks.

The exposure level indicators show the current setting.

To enable toner save mode, press the

[Light] key ( ). To enable high image quality mode, press the [Dark] key ( ).

When enabling toner save mode, make sure that "1" is lit. When enabling high image quality mode, make sure that "5" is lit.

Press the [AUTO/TEXT/PHOTO] key

( / / ) to complete the setting.

The PHOTO indicator ( ) stops blinking and lights steadily.

CUSTOMISING SETTINGS

The system settings allow you to customise the machine to match your needs.

SYSTEM SETTINGS

(System Settings)

Program

number

1 Auto clear time

2 Preheat mode

7 Rotation copy

Program name

Auto power shut-off timer

Stream feeding mode

Border line for 2 IN 1 / 4 IN 1

Auto paper select mode

Setting codes

(factory default setting

appears in bold)

1: OFF 2: 10 sec. 3: 20 sec.

4: 60 sec.

5: 90 sec. 6: 120 sec.

1: 1 min.

2: 5 min. 3: 15 min. 4: 30 min. 5: 60 min.

1: 5 min.

2: 15 min.

3: 30 min. 4: 60 min.

0: OFF

1: ON

1: OFF

2: Solid line 3: Broken line

0: OFF

1: ON

0: OFF

1: ON

• "Auto clear time" automatically returns the copy settings to the initial settings (p.37) when a certain period of time elapses after a copy is made. This program is used to select the period of time. "Auto clear time" can also be disabled.

• This function automatically switches the machine to a low power consumption state if the set duration of time elapses without the machine being used when the power is on. The POWER SAVE indicator ( ) lights up, however, the keys on the operation panel can be used. Normal operation automatically resumes when a key on the operation panel is pressed, a print job is received or an original is placed.

• This function automatically switches the machine to a state that consumes even less power than preheat mode if the set duration of time elapses without the machine being used when the power is on. All lights except the POWER SAVE indicator ( ) and ONLINE indicator go off. To resume normal operation, press the [START] key ( ). Normal operation also resumes automatically when a print job is received. While in auto power shut-off mode, no keys (except the [START] key ( )) can be used.

• When copying using the RSPF, during the period of time that the RSPF indicator blinks after an original has been scanned (about 5 seconds), a subsequent original can be placed and automatically fed into the machine.

• When copying multiple originals onto a single sheet of paper (2 IN 1 / 4 IN 1 copy), this function can be used to print a solid or broken borderline around each original image.

• When the auto paper select function is enabled and there is no paper that is the same size as the original and loaded in the same orientation, this function will automatically select paper of the same size that is loaded in the opposite orientation, and rotate the image 90 degrees so that it is copied on the paper in the correct orientation.

• When the auto ratio select function is operating and the original and paper are loaded in opposite orientations, this function rotates the image so that it is copied on the paper in the correct orientation.

• This function automatically selects paper that is the same size as the original placed in the RSPF, or the same size as that selected with the [ORIGINAL] key ( ). The function can be disabled.

Explanation

USER SETTINGS

Program

number

10 to 15 Auditing mode – See "AUDITING MODE SETTINGS" (p.97).

22 Margin width

25 Key auto repeat

26 Key press time

Program name

Auto tray switching

Erase width adjustment

Layout in 2 IN 1 copy

Layout in 4 IN 1 copy

Image rotation in duplex copying

Location of the margin

Memory allocated to printer mode

Audible signals volume

Base setting beep signal

Number of copies limit

Setting codes

(factory default setting

appears in bold)

0: OFF

1: ON

1: 0 mm (0") 2: 5 mm (1/4")

3: 10 mm (1/2")

4: 15 mm (3/4") 5: 20 mm (1")

1: Pattern 1

2: Pattern 2

1: Pattern 1

2: Pattern 2 3: Pattern 3 4: Pattern 4

0: OFF

1: ON

1: Left edge

2: Top edge

1: 0 mm (0") 2: 5 mm (1/4")

3: 10 mm (1/2")

4: 15 mm (3/4") 5: 20 mm (1")

1: 30% 2: 40%

3: 50%

4: 60% 5: 70%

0: OFF

1: ON

1: Minimum

(current response

speed) 2: 0.5 sec. 3: 1.0 sec. 4: 1.5 sec. 5: 2.0 sec.

1: Short beep

2: Long beep 3: OFF

0: OFF

1: ON

1: 99 copies

2: 999 copies

Explanation

• If the paper runs out during printing and there is paper of the same size and orientation in another tray, this function automatically switches to that tray (excluding the bypass tray). The function can be disabled.

• Use this setting to set the width of erasure of shadows that appear around the edges and at the binding margin when a book or similar original is copied.

• Use this setting to select the layout pattern when two original pages are copied onto a single sheet of paper (see page 62 for the layout patterns).

• Use this setting to select the layout pattern when four original pages are copied onto a single sheet of paper (see page 62 for the layout patterns).

• When a one-sided vertical (portrait) original is placed in a horizontal orientation (B4 or A3 (8-1/2" x 14" or 11" x 17") size) for two-sided copying, the top and bottom of the images on the front and back of the paper will be opposite to each other.

• Use this setting to switch between the margin at the top edge and the margin at the left edge.

• Use this setting to set the margin width.

• Use this to change the proportion of machine memory used for printer mode.

• Use this setting to select whether or not holding down a key causes repeated input of the key. For keys that normally cause a set value to increase when held down (for example, holding down the [ZOOM] key (

, )), this program can be used to have the

set value not change when the key is held down.

• Use this setting to select how long a key must be pressed for the input to be accepted. By selecting a longer time, you can prevent settings from being changed by the accidental pressing of a key.

• This sets the volume of beep signals. (p.94)

• Use this to sound a beep when a base setting is selected. (p.94)

• Use this setting to select 99 or 999 for the maximum number of copies.

USER SETTINGS

Program

number

35 ID card

Program name

Use close paper size

Default tray setting

Default exposure mode

USB 2.0 mode switching

Sort auto

select

Auto power shut-off switching immediately after print job finishes

IP ADDRESS SETTING

Status display pattern switching

The number of ID Card copy setting

The memory method of paper type on bypass tray settings

Setting codes

(factory default setting

appears in bold)

0: OFF

1: ON

1: Tray1

2: Tray2 3: Tray3 4: Tray4 5: Bypass tray

1: AUTO

2: TEXT 3: PHOTO

1: Full-Speed

2: Hi-Speed

1: OFF

2: Sort

3: Group

1: Pattern 1

2: Pattern 2

0: OFF

1: ON

1:ENABLE DHCP

- YES

- NO

IP ADDRESS SETTING

-IP ADDRESS

-SUBNET MASK

1: Pattern 1

2: Pattern 2

1: Single

2: Multi

0: Memory

1: No memory

*2 *2 *2

DEFAULT GATEWAY

Explanation

• When this function is enabled, printing in printer mode will automatically continue using a different size of paper if the specified size of paper runs out in all trays. This feature does not function in copy mode.

• Use this program to select a default tray. This tray is automatically selected each time the power is turned on or each time the machine reverts to the initial settings.

• Use this program to set "AUTO", "TEXT", or "PHOTO" as the default exposure mode.

• This sets the USB 2.0 data transfer speed. If your computer is not compatible with USB 2.0 (Hi-Speed), use this program to change the USB 2.0 mode to "Full-Speed". For AR-6020N/6023N/6026N/6031N,"Hi-Speed" cannot be set.

• Use this setting to select the default output mode for copying from the RSPF.

• Use this setting to copy the front and back sides of ID card onto a page, and to use margin shift feature.

• This function automatically switches the machine to auto power shut-off mode immediately after a print job finishes. If "OFF" is set, the duration of time for the Auto power shut-off timer set in the program number (3) is enabled.

• If "YES" is selected (factory default setting) and the machine is connected to a TCP/IP network, the IP address will be acquired automatically. This is the factory default setting. If you will manually assign an IP address, select "NO". For the detailed procedure, see

"ENABLING/DISABLING DHCP" (p.95).

• This program is used to set the IP address (IP address, Subnet Mask, and Gateway) of the machine when TCP/IP protocol is used on the network. For the detailed procedure, see "SETTING THE IP

ADDRESS" (p.96).

• This sets the display pattern of the data notification indicator ( ).

• This function is used to set the number of copies when copying ID card.

• This function is used to set the paper type on bypass tray.

*1When the RSPF is installed.

When the 500-sheet paper feed units are installed.

When pressed [CLEAR ALL] key( ), exceeding the auto clear time, resumed auto-power shut-off mode , or power on and off, the paper type on bypass tray will resume to plain paper.

USER SETTINGS

Note

AUTO

SELECTING A SETTING FOR A SYSTEM SETTING

Hold down the [Light] key ( ) until

the alarm indicators ( , , , , ) blink.

The number of copies display shows "- -" with the left hyphen blinking.

Enter the program number with the

numeric keys.

• See "SYSTEM

SETTINGS" (p.91 to p.93) for the program

numbers.

• The selected program number blinks.

• For example, to select "Auto clear timer", press the [1] key.

Enter the desired setting code by

pressing a numeric key.

• For the setting codes, see "SYSTEM

SETTINGS". (p.91 to p.93).

• The selected setting code blinks.

• For example, to select 90 seconds, press the [5] key.

If you enter the wrong number, press the [CLEAR] key ( ) and return to step 2.

Press the [START] key ( ).

The selected setting code stops blinking and lights steadily.

Note

Press the [START] key ( ).

If you enter the wrong number, press the [CLEAR] key ( ) and then enter the correct number.

• The selected program number stops blinking and lights steadily.

• The currently selected setting code blinks on the right side of the display.

To select a setting for another system setting, press the [CLEAR] key ( ) and then return to step 2.

Press the [Light] key ( ) to complete

the settings.

The alarm indicators ( , , , , ) go off and the display returns to the number of copies display.

Audible signals (key entry beep, invalid key beep, base setting beep)

The machine sounds three different types of beep signals: a key entry beep that sounds when a valid key is pressed, an invalid key beep that sounds when an invalid key is pressed, and a base setting beep that sounds when a setting is the same as the base setting (base settings are explained below). The base setting beep is initially disabled. If you wish to enable the base setting beep, see "Base setting beep signal" on page 92. If you wish to change the volume of the beep signals or disable them, see "Audible signals volume" on page 92. The beep patterns of each type of beep signal are as follows:

Key entry beep ......................... One beep

Invalid key beep ......................Two beeps

Base setting beep ................Three beeps

Base settings

The base settings are preset standard selections for each copy setting. The base settings are as follows:

Copy ratio ........................................ 100%

Light and Dark indicator ......................... 3

Paper feed location....... Upper paper tray

ORIGINAL SIZE ..................A4 (8-1/2" x 11")

AUTO/TEXT/PHOTO (/ /)

............................................................ AUTO

SETTING THE IP ADDRESS OF THE

Note

MACHINE BY SYSTEM SETTINGS

To set the IP address of the machine, perform the program number (37) in the system settings (p.91).

ENABLING/DISABLING DHCP

Use this setting to have the IP address obtained automatically using DHCP (Dynamic Host Configuration Protocol). When this setting is enabled, it is not necessary to manually enter an IP address.

Press the [ZOOM] key ( ).

• Every press of [ZOOM] key ( ) switches enabling and disabling of DHCP.

• DHCP is enabled by the factory default.

SETTING THE IP ADDRESS AUTOMATICALLY

When the DHCP is set to on, set IP address of the machine by the following operation.

Turn the machine power off and then

back on.

The IP address of the machine will be detected and set.

When the ZOOM indicator is lit:

DHCP is enabled.

When the ZOOM indicator is off:

DHCP is disabled.

Note

If DHCP is used, the IP address assigned to the machine may change automatically. If the IP address changes, printing will not be possible.

USER SETTINGS

SETTING THE IP ADDRESS

This section explains how to set the IP address on the machine.

Refer to the system settings

procedure on page 100 to enter setting code "37", and press the [START] key ( ).

The left 3 digits of the IP address appear in the number of copies display. "IP1" appears in the ratio display.

Press the [ZOOM] key ( ).

The ratio auto select indicator ( ) turns off, and the leftmost 3 digits of the IP address can be entered. The ratio auto select indicator lights up for factory default settings. It is necessary to press the [ZOOM] key when you set the IP address for the first time. When you change the IP address, go to step 3.

Enter the IP address with the numeric

keys.

To return the display to 000, press the [Clear] key ().

Press the [START] key ( ).

The leftmost 3 digits of the IP address are finalized. "IP2" appears in the ratio display, and the second 3 digits from the left can be entered.

Repeat steps 3 and 4 to enter the

remaining digits of the IP address.

Enter the second 3 digits from the left, the third 3 digits from the left, and the rightmost 3 digits of the IP address in the same way.

Press the [Copy ratio] key ( ).

Press the [START] key ( ).

The leftmost 3 digits of the subnet mask are finalized. "SU2" appears in the ratio display, and the second 3 digits from the left can be entered.

Repeat steps 8 and 9 to enter the

remaining digits of the subnet mask.

Enter the second 3 digits from the left, the third 3 digits from the left, and the rightmost 3 digits of the subnet mask in the same way.

Press the [Copy ratio] key ( ).

"dE1" appears in the ratio display, and the default gateway can be entered.

Enter the default gateway with the

numeric key.

To return the display to 000, press the [Clear] key ( ).

Press the [START] key ( ).

"dE2" appears in the ratio display, and the second 3 digits from the left can be entered.

Repeat steps13 and 14 to enter the

remaining digits of the default gateway.

Enter the second 3 digits from the left, the third 3 digits from the left, and the rightmost 3 digits of the default gateway in the same way.

Press the [Light] key ( ) to complete

the settings.

The alarm indicators ( , , , , ) go off and the display returns to the number of copies display. Complete the setting, restart the machine.

"SU1" appears in the ratio display, and the subnet mask can be entered.

Enter the subnet mask with the

numeric key.

To return the display to 000, press the [Clear] key ().

SETTINGS FOR AUDITING MODE

Note

AUDITING MODE

When "Auditing mode" is enabled, a count is kept of the number of copies made by each account (up to 20 accounts can be established), and the counts can be displayed and totalled as necessary. In "Auditing mode", the number of copies display shows "- - -", and this indicates that a 3-digit account number must be entered in order to use the machine for copying.

The administrator of the machine should complete the following settings:

• Enable "Auditing mode" (p.99)

• Account number entry (p.99)

AUDITING MODE SETTINGS

Program

number

10 Auditing mode

11 Account number entry None

15 Resetting account

Program name

Account number change

Account number deletion

Number of copies per account

Setting codes

(factory default settings

are indicated in bold)

0: OFF

1: ON

None Use to change an account number.

0: Delete single account

1: Delete all accounts

None

0: Reset single account

1: Reset all accounts

Use to enable or disable "Auditing mode". "Auditing mode" is initially disabled.

Use to set up account numbers. Up to 20 accounts can be established.

Use to delete an account number. A single account number can be deleted, or all account numbers at once.

This displays the number of copies made by each account. The maximum count is 49,999. If this number is exceeded, the count will start over from 0.

Use to reset the copy count of an account to 0. The copy count of a single account or of all accounts can be reset.

Explanation

USER SETTINGS

SELECTING AUDITING MODE SETTINGS

Hold down the [Light] key ( ) until

the alarm indicators ( , , , , ) blink.

The number of copies display shows "- -" with the left hyphen blinking.

Enter the program number with the

numeric keys.

• See "AUDITING MODE

SETTINGS" (p.97) for

the program numbers.

• The selected program number blinks.

• For example, to select "Auditing mode", enter "10".

Note

If you enter the wrong number, press the [CLEAR] key ( ) and then enter the correct number.

Press the [Light] key ( ) to complete

the settings.

The alarm indicators ( , , , , ) go off and the display returns to the number of copies display.

Press the [START] key ( ).

• The selected program number stops blinking and lights steadily.

• The currently selected setting code blinks on the right side of the display.

Enter the desired setting code for the

program as explained in the detailed procedures on the following pages.

For the setting codes, see "AUDITING MODE

SETTINGS" (p.97).

Note

• If you enter the wrong number, press the [CLEAR] key ( ) and return to step 2.

• If "E" (error code) blinks in the first digit of the display, press the [CLEAR] key ( ) and return to step 2.

USER SETTINGS

Note

Auditing mode

(program No.10)

Press the [1] key to enable "Auditing

mode" or the [0] key to disable it, and then press the [START] key ( ).

Note

Press the [CLEAR] key ( ).

After enabling "Auditing mode", use "Account number entry" to establish account numbers for each account (up 20 accounts can be established).

Account number entry

(program No.11)

If 20 accounts have already been established, the error code "11E" will appear in the number of copies display.

Use the numeric keys to enter a 3-digit

number (any number except "000") and then press the [START] key ( ).

Note

• If you enter "000" or a number that has already been stored, the number will blink in the display. Enter a different number. (Up to 20 accounts can be established.)

• Repeat the same procedure to enter any other account numbers that you wish to establish.

• Keep a record of what group is using each account number (account names cannot be stored, so keep a record to prevent confusion when totalling account values).

Account number deletion

(program No.13)

Use this procedure to delete account numbers. A single account number can be deleted, or all account numbers at once. If no account numbers have been established, the error code "13E" will appear in the display.

[Deleting all accounts at once] Press the [1] key and then press the [START]

key ( ).

All account numbers will be deleted.

[Deleting a single account]

Press the [0] key, and then press the

[START] key ( ). Select the account number to be deleted

with the [ZOOM] key ( ) and then press the [START] key ( ).

To delete another account number, enter the program number (13) for account number deletion and then repeat the procedure for "Deleting a single account".

Number of copies per account

(program No.14)

Use this procedure to display the copy count of each account. If no account numbers have been established, the error code "14E" will appear in the display.

Press the [CLEAR] key ( ).

Account number change

(program No.12)

Use this procedure to change an account number. If no account numbers have been established, the error code "12E" will appear in the number of copies display.

Press the [ZOOM] key ( ) to select the

account number that you wish to change, and then press the [START] key ( ).

The number of copies display will show 3 blinking hyphens "- - -".

Press the numeric keys to enter a new

account number (any 3-digit number except "000"), and then press the [START] key ( ).

Note

• If you enter "000" or a number that has already been stored, the number will blink in the display. Enter a different number.

• To change another account number, repeat steps 1 and 2.

Select the account number with the

[ZOOM] key ( ). Hold down the [0] key.

The copy count of the selected account will appear in the number of copies display while you hold down the [0] key. The count is displayed sequentially as shown below.

Example: 12,345 copies

• Each A3 (11" x 17") size page is counted as two pages.

• To view the copy count of another account, repeat steps 1 and 2.

When finished, press the [CLEAR] key ( ).

USER SETTINGS

Note

ACC.#-C

Resetting account

(program No.15)

The copy count of a single account or all accounts can be reset to 0. If no account numbers have been established, the error code "15E" will appear in the display.

[Resetting all accounts] Press the [1] key and then press the [START]

key ( ).

The copy counts of all accounts will be deleted.

[Resetting a single account]

Press the [0] key, and then press the

[START] key ( ). Select the account number to be reset with

the [ZOOM] key ( ) and then press the [START] key ( ).

To reset another account number, enter the program number (15) for account number deletion and then repeat the procedure for "Resetting a single account".

Copying when "Auditing mode" is enabled

When "Auditing mode" is enabled, "- - -" appears in the number of copies display.

Enter your 3-digit account number

with the numeric keys.

When you enter your account number, "0" appears in the number of copies display to indicate that copying is possible.

If you enter an incorrect number, press the [CLEAR] key ( ) and then enter the correct number.

Follow the appropriate steps to make

the copy.

If you are performing an interrupt copy (p.57), be sure to press the [INTERRUPT] key ( ) when finished to exit interrupt mode.

When finished, press the [ ] key

().

ACC.#-C

If a misfeed occurs or the paper runs out during copying, your session will not end even if the ( ) key ( ) is pressed.

100

Sharp AR 6031N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

INTRODUCTION

USING THE MANUAL
