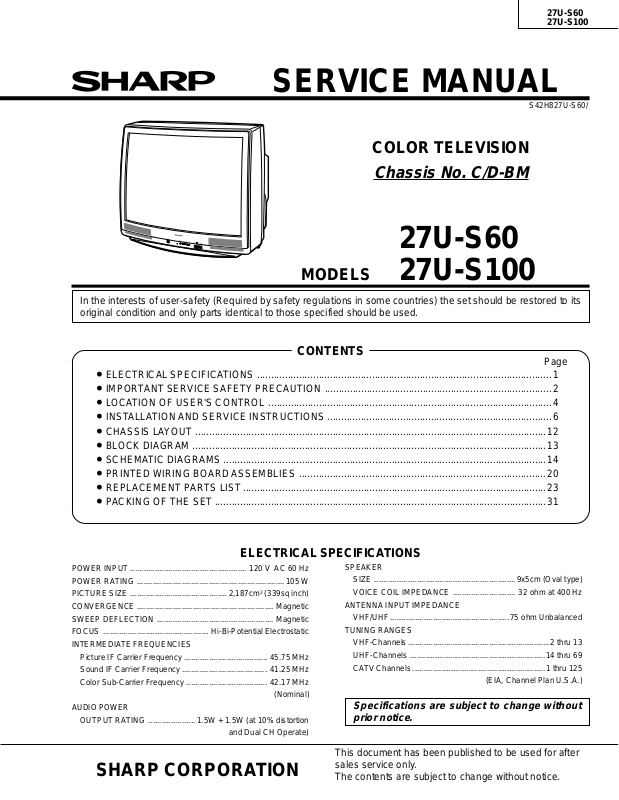

27U-S60
27U-S100
SERVICE MANUAL
S42H827U-S60/
COLOR TELEVISION
Chassis No. C/D-BM
27U-S60
MODELS
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.
27U-S100
CONTENTS
Page
» ELECTRICAL SPECIFICATIONS .........................................................................................................1
» IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2
» LOCATION OF USER'S CONTROL .....................................................................................................4
» INSTALLATION AND SERVICE INSTRUCTIONS................................................................................6
» CHASSIS LAYOUT .............................................................................................................................12
» BLOCK DIAGRAM ..............................................................................................................................13
» SCHEMATIC DIAGRAMS ...................................................................................................................14
» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................20
» REPLACEMENT PARTS LIST............................................................................................................23
» PACKING OF THE SET ......................................................................................................................31
ELECTRICAL SPECIFICATIONS
POWER INPUT.................................................... 120 V AC 60 Hz
POWER RATING ..................................................................105 W
PICTURE SIZE ........................................... 2,187cm2 (339sq inch)
CONVERGENCE ............................................................. Magnetic
SWEEP DEFLECTION .................................................... Magnetic
FOCUS ............................................... Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ..................................... 45.75 MHz
Sound IF Carrier Frequency...................................... 41.25 MHz
Color Sub-Carrier Frequency .................................... 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING .....................1.5W + 1.5W (at 10% distortion
and Dual CH Operate)
SPEAKER
SIZE ...............................................................9x5cm (Oval type)
VOICE COIL IMPEDANCE ............................ 32 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF.....................................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels...............................................................2 thru 13
UHF-Channels ............................................................14 thru 69
CATV Channels ...........................................................1 thru 125
(EIA, Channel Plan U.S.A.)
Specifications are subject to change without
prior notice.
SHARP CORPORATION
This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
27U-S60
27U-S100
IMPORTANT SERVICE SAFETY PRECAUTION
Ë
Service work should be performed only by qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE ONL Y
4A 125V
WITH SAME TYPE 4A-125V
FUSE.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the picture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral implosion
protection.
2. Replace with tube of the same type number for
continued safety .
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely .
X-RADIA TION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. However, the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a color chassis is serviced, the brightness should
be tested while monitoring the high voltage with a
meter to be certain that the high voltage does not
exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
2
2
2
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
27U-S60
27U-S100
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
• Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
• Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.
• Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
• Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a nonpolarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
1.5k ohm
10W
0.15µF
TEST PROBE
TO EXPOSED
MET AL PARTS
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
CONNECT TO
KNOWN EARTH
GROUND
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
3
27U-S60
27U-S100
Front Panel
POWER
→
Press On.
Press again Off.
→
LOCATION OF USER'S CONTROL
(27U-S60)
VIDEO IN 2 L-AUDIO-R
(VIDEO/AUDIO terminals are also
provided on the rear.)
SENSOR AREA FOR
REMOTE CONTROL
MENU
→
Press Accesses MAIN
MENU.
Press again Exits MAIN
MENU.
Basic Remote Control Functions
POWER
Press On.
→
Press again Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MUTE
Press Mutes sound.
Press again Restores sound.
• CLOSED CAPTION appears when
sound is muted.
→
→
→
→
VOLUME UP/DO WN
(+) Increases sound.
(–) Decreases sound.
CHANNEL UP/DOWN – MENU
\
( ) Selects next higher channel.
( ) Selects next lower channel.
\
• Press both at the same time to
access the MAIN MENU
screen.
Infrared T r ansmitter Window
INPUT
Press Switch to external video
→
INPUT 1 mode.
Press 2 times Switch to external
video INPUT 2 mode.
Press 3 times Switch back to the
original TV mode.
CHANNEL UP/DOWN
\
( ) Selects next higher channel.
( ) Selects next lower channel.
\
• Moves the “
screen.
MENU
→
Press Accesses MAIN MENU.
Press again Exits MAIN MENU.
DISPLAY
→
Press Displays receiving channel f or
four seconds.
Press again Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
→
→
” mark of the MENU
→
→
TV
4
LOCATION OF USER'S CONTROL
Front Panel
POWER
Press On.
→
Press again Off.
SENSOR AREA FOR
REMOTE CONTROL
MENU
Press Accesses MAIN MENU.
Press again Exits MAIN MENU.
→
→
→
(27U-S100)
VOLUME UP/DO WN
(+) Increases sound.
(–) Decreases sound.
VIDEO IN 2 L-AUDIO-R
(VIDEO/AUDIO terminals are also
provided on the rear.)
CHANNEL UP/DOWN – MENU
\
( ) Selects next higher channel.
( ) Selects next lower channel.
\
• Press both at the same time to
access the MAIN MENU
screen.
27U-S60
27U-S100
Basic Remote Control Functions
POWER
Press On.
→
Press again Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
PERSONAL PREFERENCE
With the Personal Pref erence buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MENU
Press Accesses MAIN MENU.
Press again Exits MAIN MENU.
CATV/DVD-TV/VCR MODE SELECT
SWITCH
In TV/VCR position, sends power and
channel select commands (Channel
up/down and Random Access buttons)
to the TV and VCR control.
In CATV/DVD position, sends power
and channel select commands to a
cable TV con verter and DVD control.
DVD/VCR CONTROL
→
→
→
POWER
TV
DVD
DISPLAY
VCR
1 2 3
4 5 6
7 8 9
FLASHBACK
PERSONAL PREFERENCE
A B C D
VOL
—
MENU MUTE
REW PLAY FF
PAUSE
TV • CATV • VCR • DVD
0
CH
CH
STOP REC
ENTER
100
CATV TV
DVD VCR
CH/SKIP
INPUT
VOL
Infrared Transmitter Window
DISPLAY
→
Press Displays receiving channel for
four seconds.
Press again Removes display.
→
• Temporarily displays receiving
channel when in Closed Caption
mode.
INPUT
→
Press Switch to external video
INPUT 1 mode.
Press 2 times Switch to external video
→
INPUT 2 mode.
Press 3 times Switch back to the
→
original TV mode.
+
ENTER
Used in some instances where a Cable
Converter Box requires an “enter”
command after selecting channels,
when using the REMOTE KEYPAD
button.
CHANNEL UP/DOWN
\
( ) Selects next higher channel.
( ) Selects next lower channel.
\
• Moves the “
” mark of the MENU
screens.
MUTE
→
Press Mutes sound.
Press again Restores sound.
→
• CLOSED CAPTION appears when
sound is muted.
Note:
• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the
remote control, place it under a fluorescent light or other lighting.
• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
• The degree of illumination will vary depending on the strength of lighting used.
• The degree of illumination will decrease with time and depending on the temperature.
• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
• Sunlight and fluorescent lighting are the most effective when charging the display.
5
27U-S60
27U-S100
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIA TION PROTECTOR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120V AC using a variac transformer for accurate
input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 21.9 ±1.4V.
5. Apply external 27.8V DC at TP653 by using an
external DC supply, TV must be shut off.
6. To reset the protector , unplug the AC cord and make
a short circuit between TP651 and TP652. Now make
sure that normal picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.
3. Enter the service mode and select the service
adjustment "S03" and Bus data "01" (Y-mute on).
4. The voltage should be approximately , 30.5kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.
6
27U-S60
Window 2: DEF
DEF
RETURN
RETURN
FIX V ALUE
NEXT
FEATURE
D01
D03
D05
RETURN
D02
D04
D06
Window 5: FIX VALUE
Window 1: ADJUSTMENT CATEGORIES
SERVICE MODE
DEF
SIGNAL
FEATURE
FIX V ALUE
EEPROM
RETURN
RETURN
Window 3: SIGNAL
SIGNAL
S01
S13
RETURN
S02
S14
F01 F02
F13 F14
RETURN NEXT
F15 F16
F27
F26
RETURNPREVIOUS
PREVIOUS
Window 4: FEATURE
M01 M02
M05
M03 M04
RETURN
27U-S100
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage. Follow
the steps below whenever the service adjusment is required.
To enter the service mode and exit service mode.
While pressing the Vol-up and Ch-up buttons at the sametime, plug the AC cord into a wall socket.
Now, the TV set is switched on and enters the service mode.
To exit the service mode, turn the television off by pressing the power button.
1. Service mode.
Before putting unit into the service mode, check that customer adjustments are in the normal mode. Use the reset
function in the video adjustment menu to ensure customer control are in their proper (reset) position.
2. Service number selection.
In the service mode, you will see the window screen as window 1. There are 4 adjustment categories 2DEF,
3SIGNAL, 4FEATURE, 5FIX VALUE as show in Figure A.
Press CH UP/DOWN button for selection and enter by VOL UP or VOL DOWN.
Press CH UP/DOWN button to select the adjustment item and VOL UP/DOWN
to adjust the data number for each categories.
(OSD disturbance can be erased by R/C display key)
(Note: EEPROM - factory used only)
Figure A: ADJUSTMENT CATEGORIES
7
27U-S60
27U-S100
Below are the adjustments ranges and initial values for FIX V ALUE category.
FIX V ALUE
SERVICE
POSITION
F01 OPTION 1 00-FF B1 *1
F02 OPTION 2 00-FF 07 27
F03 E-SAVE 00-3F 2A 2A
F04 TUNER SETUP 00, 01 00 00
F05 R-TONE RD 00-7F 03 03
F06 R-T ONE BD 00-7F 7C 7C
F07 B-TONE RD 00-7F 00 00
F08 B-TONE BD 00-7F 04 04
F09 FM LEVEL 00-1F 16 16
F10 AFC GAIN 00, 01 00 00
F11 G DRIVE 00, 0F 0F 0F
F12 FBT BLK SW 00, 01 01 01
F13 V COMP 00-07 07 07
F14 OSD CONT 00-03 01 01
F15 SHARPNESS 00-3F 0D *2
F16 FLT SYS 00-07 01 01
F17 KILLER OP 00-07 02 02
F18 PRE SHOOT 00-03 00 00
F19 CORING 00-03 04 04
F20 DC REST 00-03 02 02
F21 BS S TART 00-03 01 01
F22 BS GAIN 00-03 01 01
F23 ABL START 00-07 00 00
F24 R/B ANGLE 00-0F 08 08
F25 H BLK R 00-0F 03 03
F26 H BLK L 00-0F 00 00
F27 YC 00-07 05 04
ADJUST ITEM
RANGE
DATA
INITIAL VALUE
(Hex)
*1: adjust item
ADJUST ITEM
OPTION 1 B1 B3
27U-S60 27U-S100
MODEL
*2: type of tuner
TUNER TYPE
VTUVTST5UF740 13 15
A68ADT2506 A68QDN891X
CRT
Table - A
Below are the ranges and initial values for each adjustment and in each categories.
DEF
SERVICE
POSITION
D01 H-PHASE 00-1F 0C
D02 V-SIZE 00-7F 40
D03 V-POSITION 00-3F 20 Must be "20"
D04 CC-POSITION 00-FF 1A
D05 V-LINEARITY 00-1F 10 Must be "13"
D06 V-S-CORRECTION 00-1F 10 Must be "14"
ADJUST ITEM
RANGE
DATA
INITIAL VALUE
ADJUSTMENT CONTENTS
T able - B
8
SIGNAL
SERVICE
POSITION
S01 RF AGC 00-3F 14
S02 VIDEO LEVEL 00-07 03 Must be "4"
S03 Y-MUTE 00-03 00
S04 SUB BIAS 00-FF 30 Must be "30"
S05 R-BIAS 00-FF 00
S06 G-BIAS 00-FF 00
S07 B-BIAS 00-7F 00
S08 R-DRIVE 00-7F 53
S09 B-DRIVE 00-7F 53
S10 CONTRAST 00-7F 5A
S11 TINT 00-7F 40
S12 COLOR 00-7F 40
S13 BRIGHTNESS 00-7F 40
S14 BRIGHTNESS 2 00-7F 40
ADJUST ITEM
RANGE
Note: Refer to the SERVICE ADJUSTMENT for each corresponding values.
DATA
T able - C
INITIAL VALUE
ADJUSTMENT CONTENTS
"01": Y -MUTE, "02": V-STOP & Y-MUTE
Activate color killer circuit.
"03":
FEATURE
SERVICE
POSITION
M01 MS LEVEL 00-0F 0A
M02 MTS-VCO 00-3F 20
M03 FILTER 00-3F 1C
M04 LOW SEPARA TION 00-3F 20
M05 HIGH SEPARATION 00-3F 1B
ADJUST ITEM
RANGE
Note: Refer to the SERVICE ADJUSTMENT for each corresponding values.
DATA
T able - D
INITIAL VALUE
ADJUSTMENT CONTENTS
27U-S60
27U-S100
Holding down both the Vol-up/Ch-down buttons on the TV set at service mode for more than 2 seconds will
automatically write the above initial values into IC2102.
P ART REPLACED
NECESSARY
IC2001
IC201
IC2102
IC3001 X
CRT X
ADJUSTMENT
X
X
UNNECESSARY
X
NOTES
Data is stored in IC2102.
The adjustment is needed to compensate for characteristics
of parts including IC201.
Holding down both the Vol-up/Ch-down buttons on the TV set
in the service mode for more than 2 seconds will automatically
write the above initial values into IC2102.
Adjust items related MTS only.
Adjust items related to picture tube only.
T able - E
9
27U-S60
27U-S100
Ë
SERVICE ADJUSTMENT
Note: Before making the service adjustment, make the
bus data settings.
+B Adjustment
1. Receive a good local channel.
2. Select VIDEO ADJUSTMENT RESET on the
menu to get the video reset.
3. Connect a DC voltmeter between the +B line (at
SW transformer) of R61 1 and the ground terminal.
4. Make sure that the voltmeter reads 128.5±1.5V.
Video Level (TV Det Video Level)
Adjustment
1. Receive a good local channel.
2. Enter the service mode signal category and select
the service adjustment "S02".
3. Set the data value to "02" first, then adjust the data
to "04". (If out of spec, readjust the data in the range
of "00" to "07" to obtain a normal contrast level.)
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode signal category and select
the service adjustment "S01".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note: You have to exit the service mode first to
select another channel.
Screen Adjustment
1. Connect to oscilloscope probe between TP854 and
ground of the CRT unit.
2. Receive a good local channel.
3. Enter the service mode Signal category and set the
service adjustment "S04" to step 30. Then select the
service adjustment "S12" and set the data value to
"00" to set the color level to the minimum level. (record
the original data first). You may skip this step, if you
selected a B/W picture or monoscope pattern. Set
also the "S05/S06/S07" data to minimum level ("00").
2.35 Vdc
GND
Figure B: WAVEFORM FOR SCREEN ADJUSTMENT
4. Select the service adjustment "S03" and set the data
value to "01" to turn off the luminance signal (Y -mute).
5. Select the service adjustment "S14" and adjust the
data value to obtain 2.35 volts as shown in Figure B.
6. Adjust the master screen control until the raster
darkens to the point where raster is barely seen.
7. Adjust the service adjustment "S05" red, "S06" green,
"S07" blue to obtain a good grey scale with normal
white at low brightness level.
8. Select the service a adjustment "S03" and reset data
to "00". Select the service adjustment "S12" and reset
data to obtain normal color level.
9. Remove probe and reset the master screen control
to obtain normal brightness range.
White Balance Adjustment
1. Receive a good local channel.
2. Select the service adjustment "S12" and set the data
value to "00" to set the color level to the minimun. Y ou
may skip this step, if you selected a B/W picture or
monoscope.
3. Alternately adjust the service adjustment data of
"S08" and "S09" until a good grey scale with normal
white is obtained.
4. Select the service adjustment "S12" and reset data
to obtain normal color level.
Sub-Picture Adjustment
1. Receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Enter the service mode and select the service
adjustment "S10".
4. Adjust the data value to achieve normal contrast
range.
Sub-Tint Adjustment
1. Receive a good local channel.
2. Set the customer tint control to the center of it’s range.
3. Enter the service mode and select the service
adjustment "S11".
4. Adjust "S1 1" data value to obtain normal fresh tones.
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position.
3. Enter the service mode and select the service
adjustment "S12".
4. Adjust "S12" data value to obtain normal color level.
Sub-Brightness Adjustment
1. Receive a good local channel.
2. Make sure the customer brightness control is set to
center position.
3. Enter the service mode and select the service
adjustment "S13".
4. Adjust "S13" data value to obtain normal brightness
level.
10
27U-S60
27U-S100
V ertical-Size, V-Linearity and
V-S Correction Adjustments
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D02" for Vertical Size, "D05" for VLinearity and "D06" for V-S Correction Adjustment.
3. Set in order "D05" for V-Linearity, "D06" for V-S
Correction and set the data to get the best linearity.
4. Then adjust "D02" data until it become a proper
vertical size.
Horizontal Position Adjustment
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D01".
3. Adjust "D01" data value to center the picture.
V ertical-Phase Adjustment
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D03".
3. Adjust "D03" bus data to get the most acceptable
vertical position.
Note: The step range is 20 (32)+12 (3 steps)/
-20 (5 steps).
(Push once move 4 steps.)
Caption Position Adjustment (Horizontal)
1. Receive a good local channel.
2. Enter the service mode DEF category and select the
adjustment "D04".
3. A black text box will appear on the screen. (see Figure
C. below)
4. Adjust "D04" data value to balance the text box
position in the center. (A=B).
Ë
MTS ADJUSTMENT
MTS Level Adjustment
1. Feed the following monaural signal to pin (14) of
IC3001.
Monaural signal: 300Hz, 245mVrms
2. Connect the rms voltmeter to pin (39) of IC3001.
3. Enter the service mode and select the service
adjustment "M01".
4. Adjust the data so that the rms voltmeter reads 490
±10mVrms.
MTS VCO Adjustment
1. Keep the unit in no-signal state.
2. Connect the frequency counter to pin (39) of IC3001.
3. Connect a capacitor (100µF, 50V) in between
positive(+) side of C3005 and ground.
4. Enter the service mode and select the service
adjustment "M02"
5. Adjust the data so that the frequency counter reads.
62.94 ±0.75kHz.
Filter Adjustment
1. Feed the following stereo pilot signal to pin (14) of
IC3001 .
Stereo pilot signal: 9.4kHz, 600mVrms.
2. Enter the service mode and select the service
adjustment "M03".
3. Adjust the data at the point where "OK" appears on
the screen. The "OK" represents the approximate
center of the adjustable range of the data.
Separation Adjustment
1. Connect the rms voltmeter to pin (39) of IC3001.
2. Receive the following composite stereo signal 1.
Composite stereo signal: 30% modulation, left
channel only, noise reduction on, 300Hz
3. Enter the service mode and select the service
adjustment "M04".
4. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.
5. Receive the following composite stereo signal 2.
Stereo signal: 30% modulation, left channel only,
noise reduction on, 3kHz
6. Enter the service mode and select the service
adjustment "M05".
7. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.
8. Take the above steps 1 thru 7 again for fine
adjustment.
Figure C.
11
27U-S60
27U-S100

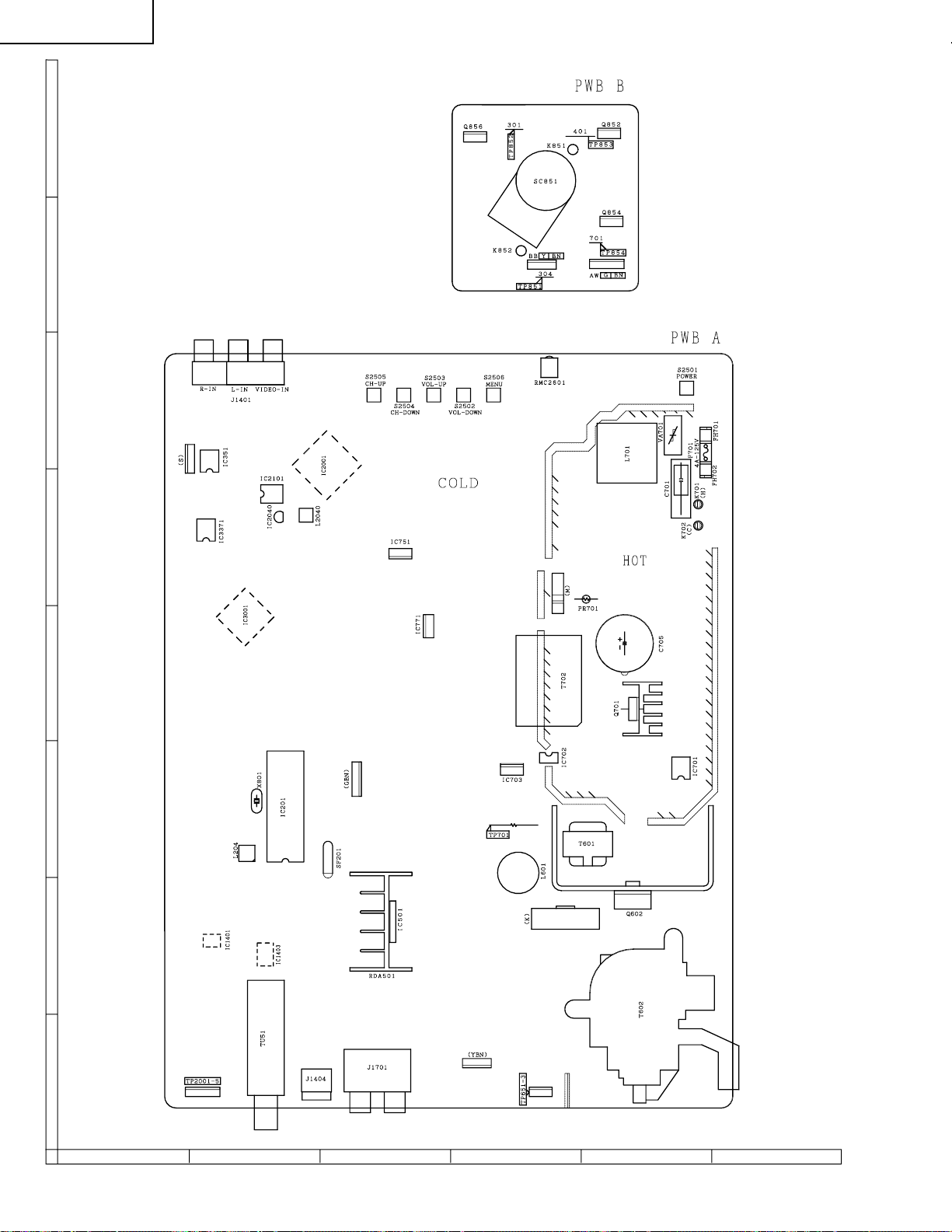

CHASSIS LAYOUT
H
G
F
E
D
C
B
A
654321
12
BLOCK DIAGRAM
H
G
F
27U-S60
27U-S100
E
D
C
B
A
654321
13
27U-S60
27U-S100
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=kΩ=1000Ω, M=MΩ)
2. All resistors are 1/16 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)
4. (G) indicates ±2% tolerance may be used.
5. indicates line isolated ground.
VOL TAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.
2. All voltages measured with 1000µ V B & W or Color
signal.
WAVEFORMS
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
å
AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
'
MARK= X-RA Y RELATED PARTS.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.
14
SCHEMATIC DIAGRAM: CRT Unit
H
G
F
27U-S60
27U-S100
E
D
C
B
A
654321
15
SCHEMATIC DIAGRAM: MAIN-1 Unit
H
(DUNTKA462WEA1)
G
F
27U-S60
27U-S100
E
D
C
B
A
121110987654321
16
17
SCHEMATIC DIAGRAM: MAIN-2 Unit
H
(DUNTKA462WEA1)
G
F
27U-S60
27U-S100
E
D
C
B
A
121110987654321
18
19
27U-S60
27U-S100
PRINTED WIRING BOARD ASSEMBLIES
H
G
F
E
D
C
B
A
PWB-A: MAIN Unit (Wiring Side)
654321
20
27U-S60
27U-S100
H
G
F
E
D
C
B
A
PWB-A: MAIN Unit (Chip Parts Side)
654321
21
27U-S60
27U-S100
H
G
F
E
D

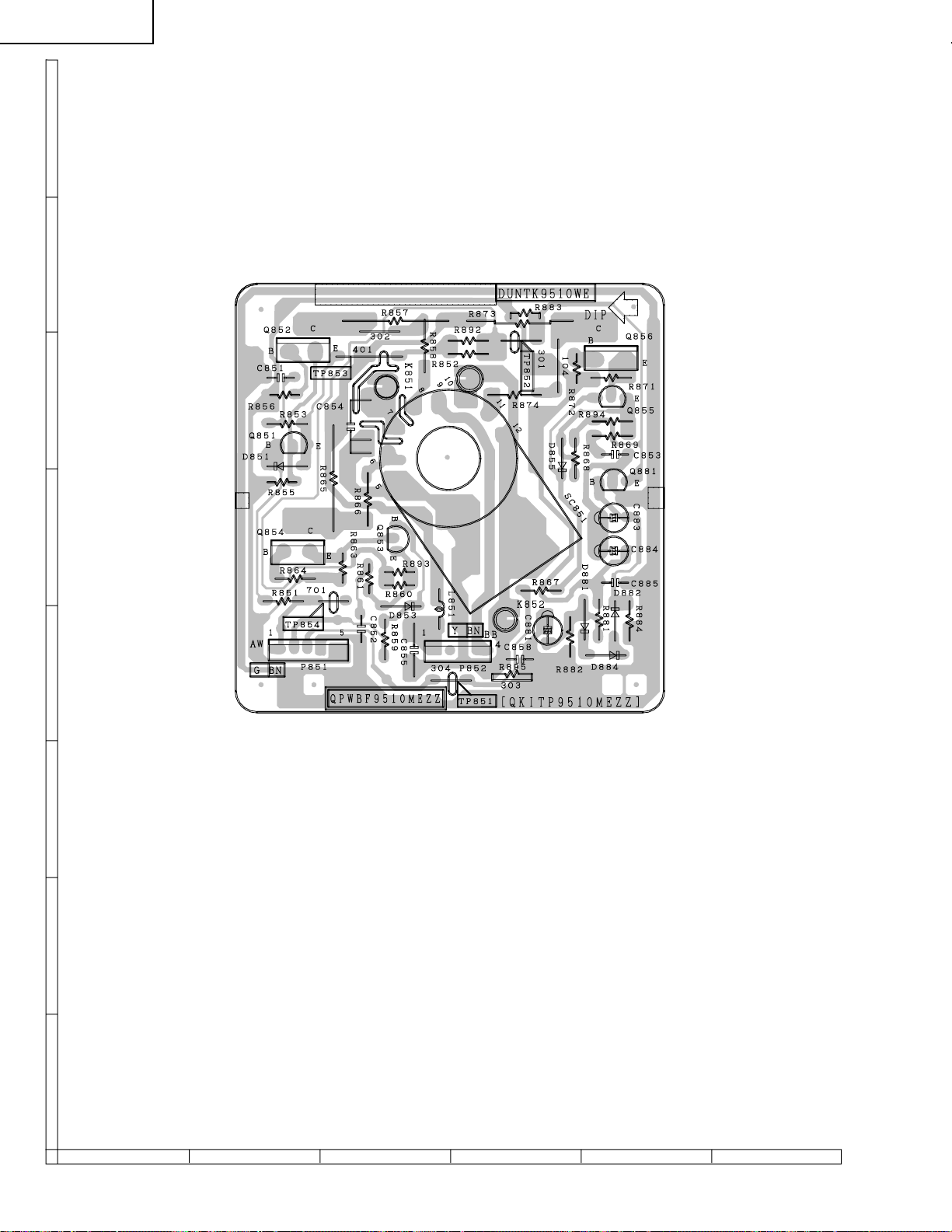

PWB-B: CRT Unit (Wiring Side)
C
B
A
654321
22
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call TollFree; 1-800-BE-SHARP
★ MARK: SPARE PARTS-DELIVERY SECTION
▲ MARK: X- RAY RELATED PARTS
Ref. No. Part No. ★ Description Code
PICTURE TUBE
'åV101 VB68ADT2506~S X Picture Tube(I.T.C) CK
or
VB68QDN891X1E
å L703 RCiLG0120GJZZ X Degaussing Coil AU
LHLDW0102GJKZ X Wire Holder, x4 AC
MSPRT0002MEZZ X Spring AE
QCNW-0239MEZZ X Connecting Cord(K) AM
QEARC2702MEZZ X Grounding Strap AF
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PWB-A DUNTKA462WEA1 – MAIN Unit —
PWB-B DUNTK9510WEW3 – CRT Unit —
PWB-A: DUNTKA462WEA1
MAIN UNIT
TUNER
NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
å TU51 VTUVTST5UF740 X Tuner AX
or
VTUENV56DA1G3
INTEGRATED CIRCUITS
'åIC201 RH-iX3354CEN1 J LA76843N AT
IC351 VHiAN7511//-1 J AN7511 AK
å IC501 VHiLA7841//-1 J LA7841 AM
å IC701 VHiTEA1507/-1 J TEA1507P/N1 AL
å IC702 RH-FX0034CEZZ J PC817 AE
or
RH-FX0002GEZZ
or
RH-FX0029CEZZ
å IC703 VHiSE125N//-1 X SE125N AK
å IC751 VHiKA7809AP-1 J KA7809AP AE
å IC771 VHiKA7805AP-1 J KA7805AP AE
or
VHiTA7805S/-1
IC1401 VHiMM1111XF1E J MM1111XFBE AE
IC1403 VHiM52055FP-1 J M52055FP AH
IC2001 RH-iX3528CEZZ X TMPA8700CPF-3B AT
IC2040 VHiPST994C/-1 J PST994C AD
IC2101 VHiM24C16B/-1 J M24C16-BN6 AG
or
VHiBR24C16/-1
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
IC3371 VHiAN7511//-1 J AN7511 AK
TRANSISTORS
Q101 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q201 VS2SC2735//1E J 2SC2735 AC
Q301 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
Q401 VS2SC3928AR-1 J 2SC3928AR AB
or
VS2PD601ARQ-1
Q451 VS2SB709AR/-1 J 2SB709AR AC
Q452 VS2SA1266-Y-1 J 2SA1266-Y AA
Q491 VS2SB709AR/-1 J 2SB709AR AC
Q601 VS2SC2482//-1 J 2SC2482 AD
å Q602 VS2SD2539//1E J 2SD2539 AP
or
VS2SD2634//1E
Q631 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q651 VS2SB709AR/-1 J 2SB709AR AC
Q652 VS2SA1266-Y-1 J 2SA1266-Y AA
Q653 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
å Q701 VSSPP07N60C-1 J SPP07N60C AM
or
VSSPP07N60S-1
or
VSSPP04N60S-1
or
VS2SK2708++1G
or
VS2SK2645//-G
23
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
or
VSSTP6NC60+-1
or
VSSTP6NC60FP
or
VSSTP7NB60FP
Q704 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
Q705 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q752 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q1403 VS2SC3928AR-1 J 2SC3928AR AB
or
VS2PD601ARQ-1
Q1440 VS2SD601AR/-1 J 2SD601AR AC
Q2201 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
Q2211 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
DIODES
D52 RH-EX0676GEZZ J Zener Diode, 32V AA
D101 RH-EX0616GEZZ J Zener Diode, 5.6V AA
D453 RH-EX0616GEZZ J Zener Diode, 5.6V AA
D455 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
D494 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
D495 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
D496 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
D497 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
å D502 RH-DX0131CEZZ J Diode AC
D511 RH-DX0441CEZZ J Diode AC
D632 RH-EX0630GEZZ J Zener Diode, 9.1V AA
D641 RH-EX0630GEZZ J Zener Diode, 9.1V AA
'åD651 VHD1SS244//-1 J Diode AB
'åD653 RH-EX0666GEZZ J Zener Diode, 27V AB
D654 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
å D661 RH-DX0468CEZZ J Diode AE
or
RH-DX0229CEZZ
å D701 RH-DX0154CEZZ J Diode AC
or
RH-DX0490CEZZ
or
RH-DX0279CEZZ
å D702 RH-DX0154CEZZ J Diode AC
or
RH-DX0490CEZZ
or
RH-DX0279CEZZ
å D703 RH-DX0154CEZZ J Diode AC
or
RH-DX0490CEZZ
or
RH-DX0279CEZZ
å D704 RH-DX0154CEZZ J Diode AC
or
RH-DX0490CEZZ
or
RH-DX0279CEZZ
D707 VHD1SS119//-1 J Diode AB
or
VHD1SS244//-1
D708 VHD1SS119//-1 J Diode AB
or
VHD1SS244//-1
å D709 RH-DX0229CEZZ J Diode AF
å D712 RH-DX0532CEZZ X Diode AF
or
RH-DX0302CEZZ
or
RH-DX0468CEZZ
or
RH-DX0487CEZZ
D725 RH-DX0131CEZZ J Diode AC
or
RH-DX0468CEZZ
D726 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
D752 RH-DX0441CEZZ J Diode AC
D753 RH-DX0441CEZZ J Diode AC
or
RH-DX0110CEZZ
D757 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
å D758 RH-DX0131CEZZ J Diode AC
D1411 RH-EX0630GEZZ J Zener Diode, 9.1V AA
D1412 RH-EX0630GEZZ J Zener Diode, 9.1V AA
D1413 RH-EX0630GEZZ J Zener Diode, 9.1V AA
D1414 VHD1SS119//-1 J Diode AB
D1415 VHD1SS119//-1 J Diode AB
D2201 VHD1SS119//-1 J Diode AB
or
RH-DX0475CEZZ
VA701 RH-VX0019CEZZ J Varistor AC
or
RH-VX0035CEZZ
or
RH-VX0048CEZZ
or
RH-VX0074CEZZ
P ACKAGED CIRCUITS
å PR701 RMPTP0092CEZZ J Packaged Circuit AH
X801 RCRSAA010WJZZ X Crystal AH
or
RCRSB0001PEZZ
FIL TERS AND COILS
CF2040
RFiLA0099CEZZ J Ceramic Filter AE
SF201 RFiLC0405CEZZ J SAW Filter AH
L201 VP-XF1R2K0000 J Peaking 1.2µH AB
L203 VP-XF220K0000 J Peaking 22µH AB
L204 RCiLi0632CEZZ J IF Coil AE
L301 VP-XF150K0000 J Peaking 15µH AB
L601 RCiLZ0102MEZZ J Coil AH
or
RCiLZ0101MEZZ
å L701 RCiLF0078PEZZ R Coil AF
or
RCiLF0025PEZZ
L705 RCiLP0179CEZZ J Coil AD
L2040 RCiLB0131CEZZ J Oscillation Coil AE
TRANSFORMERS
å T601 RTRNZ0057PEZZ R Transformer AK
or
RTRNZ0731CEZZ
24
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
'åT602 RTRNF0049MEZZ X H-V olt Transformer AY
å T702 RTRNW0001GJZZ X Transformer AN
'åC610 RC-FZ1034CEZZ X
å C701 RC-FZ037SCEZZ J 0.22
or
RTRNFA004WJZZ
CAPACITORS
[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]
C51 VCEA0A1AW108M J 1000 10V EL. AC
C53 VCEA0A1HW105M J 1 50V EL. AB
C54 VCEA0A1HW475M J 4.7 50V EL. AB
C101 VCEA0A1CW476M J 47 16V EL. AB
C201 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C202 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C203 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C204 VCQYTA1HM223K J 0.022 50V Mylar AB
C205 VCKYCY1HB103K J 0.01 50V Ceramic AA
C206 VCKYCY1HB102K J 1000p 50V Ceramic AA
C207 VCEA0A1CW476M J 47 16V EL. AB
C208 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C209 VCEA0A1HW105M J 1 50V EL. AB
C210 VCEA0A1HW474M J 0.47 50V EL. AB
C212 VCEA0A1HW474M J 0.47 50V EL. AB
C220 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C301 VCCCCY1HH220J J 22p 50V Ceramic AA
C302 VCKYCY1HB102K J 1000p 50V Ceramic AA
C303 VCCCCY1HH331J J 330p 50V Ceramic AA
C304 VCCCCY1HH220J J 22p 50V Ceramic AA
C305 VCKYCY1HB103K J 0.01 50V Ceramic AA
C356 VCKYCY1HB332K J 3300p 50V Ceramic AA
C357 VCEA0A1HW106M J 10 50V EL. AB
C358 VCEA0A1HW106M J 10 50V EL. AB
C361 VCEA0A1CW477M J 470 16V EL. AC
C401 VCCCCY1HH470J J 47p 50V Ceramic AA
C411 VCEA0A1AW108M J 1000 10V EL. AC
C412 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C414 VCEA0A1HW225M J 2.2 50V EL. AB
C416 VCEA0A1HW105M J 1 50V EL. AB
C451 VCQYTA1HM104K J 0.1 50V Mylar AC
C454 VCEA0A1HW475M J 4.7 50V EL. AB
C456 VCEA0A1HW106M J 10 50V EL. AB
C491 VCEA0A1CW107M J 100 16V EL. AC
C492 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C510 VCEA0A1VW477M J 470 35V EL. AB
C511 VCCSPA2HL180K J 18p 500V Ceramic AA
C512 VCFYSA1JB224J X 0.22 63V Mylar AF
C513 VCFYSA1JB473J J 0.047 63V Mylar AC
C514 VCEA0A1EW108M J 1000 25V EL. AD
C515 VCEA0A1HW475M J 4.7 50V EL. AB
C516 VCKYCY1HB222K J 2200p 50V Ceramic AA
C517 VCEA0A1CW226M J 22 16V EL. AB
C520 VCEA0A1HW107M J 100 50V EL. AB
C530 VCFYFA1HA334J J 0.33 50V Mylar AB
C531 VCFYFA1HA564J J 0.56 50V Mylar AB
C606 VCKYPA2HB561K J 560p 500V Ceramic AA
C607 VCKYPA1HB472K J 4700p 50V Ceramic AA
C608 VCKYPA2HB331K J 330p 500V Ceramic AA
C612 VCFPVC2DB474J J 0.47 200V M-Poly. AE
C632 VCKYCY1EB153K J 0.015 25V Ceramic AA
C633 VCEA0A1AW337M X 330 10V EL. AE
C634 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C635 VCEA0A1HW105M J 1 50V EL. AB
C637 VCEA0A1CW476M J 47 16V EL. AB
C652 VCEA0A1HW475M J 4.7 50V EL. AB
C653 VCEA0A1HW105M J 1 50V EL. AB
C654 VCFYSA1HB184J J 0.18 50V AB
C662 VCEA0A1CW477M J 470 16V EL. AC
or
RC-FZ012SGEZZ
or
13500p
1.8kV Plastic AG
AC250V
Plastic AD
RC-FZ017SGEZZ
or
RC-FZ029SGEZZ
C702 RC-KZ0029CEZZ J 0.01
or
RC-KZ0016CEZZ
C703 RC-KZ0029CEZZ J 0.01
or
RC-KZ0016CEZZ
å C705 RC-EZ0719CEZZ X 560 200V EL. AN
or
RC-EZ0800CEZZ
å C706 RC-KZ0092GEZZ J 0.0033
or
RC-KZ021SCEZZ
C710 VCKYPH3DB561K J 560p 2kV Ceramic AC
or
RC-KZ0338CEZZ
C717 VCKYPA2HB472K J 4700p 500V Ceramic AB
C723 RC-EZ0724CEZZ J 100 160 EL. AG
å C725 RC-EZ0809CEZZ J 220 160 EL. AL
or
RC-EZ0006PEZZ
C726 VCKYPH3DB561K J 560p 2kV Ceramic AC
or
RC-KZ0338CEZZ
C727 VCKYPA2HB472K J 4700p 500V Ceramic AB
å C730 VCEA0A1CW108M J 1000 16V EL. AD
å C731 VCEA0A1EW337M J 330 25V EL. AC
C732 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C736 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C737 VCEA0A1EW226M J 22 25V EL. AB
C738 RC-KZ0040CEZZ J 820p 2kV Ceramic AD
or
RC-KZ0340CEZZ
C739 VCEA0A1HW104M J 0.1 50V EL. AB
C740 VCEA0A1EW476M J 47 25V EL. AB
C742 VCKYPA2HB102K J 1000p 500V Ceramic AA
C743 VCKYPH3DB561K J 560p 2kV Ceramic AC
or
RC-KZ0338CEZZ
C750 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C752 VCEA0A1CW476M J 47 16V EL. AB
C753 VCKYPH3DB561K J 560p 2kV Ceramic AC
or
RC-KZ0338CEZZ
C754 VCEA0A1CW476M J 47 16V EL. AB
C758 VCEA0A2EW106M J 10 250 EL. AD
C760 VCEA0A1CW108M J 1000 16V EL. AD
C771 VCEA0A1CW476M J 47 16V EL. AB
C772 VCEA0A1CW476M J 47 16V EL. AB
C783 VCQYTA1HM103K J 0.01 50V Mylar AB
C784 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C801 VCCCCY1HH180J J 18p 50V Ceramic AA
C807 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C808 VCEA0A1HW106M J 10 50V EL. AB
C809 VCEA0A1HW105M J 1 50V EL. AB
C811 VCKYCY1CB473K J 0.047 16V Ceramic AA
C812 VCEA0A1HW474M J 0.47 50V EL. AB
C901 VCEA0A1HW105M J 1 50V EL. AB
C925 VCEA0A1HW106M J 10 50V EL. AB
C1401 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1402 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1403 VCEA0A1CW476M J 47 16V EL. AB
C1405 VCEA0A1HW106M J 10 50V EL. AB
C1406 VCEA0A1HW106M J 10 50V EL. AB
C1430 VCEA0A1CW106M J 10 16V EL. AB
C1433 VCKYCY1CF104Z J 0.1 16V Ceramic AA
C1434 VCEA0A1CW106M J 10 16V EL. AB
C1435 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C1441 VCEA0A1CW106M J 10 16V EL. AB
C1442 VCCCCY1HH220J J 22p 50V Ceramic AA
C2001 VCCCCY1HH101J J 100p 50V Ceramic AA
C2002 VCCCCY1HH101J J 100p 50V Ceramic AA
C2003 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2004 VCKYCY1EF104Z J 0.1 25V Ceramic AA
AC250V
Ceramic AC
AC250V
Ceramic AC
AC250V
Ceramic AC
25
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
C2006 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2040 VCEA0A1AW107M J 100 10V EL. AB
C2041 VCEA0A1HW105M J 1 50V EL. AB
C2060 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2061 VCKYCY1HB222K J 2200p 50V Ceramic AA
C2062 VCEA0A1AW107M J 100 10V EL. AB
C2201 VCKYCY1HB682K J 6800p 50V Ceramic AA
C2202 VCCCCY1HH151J J 150p 50V Ceramic AA
C2203 VCCCCY1HH331J J 330p 50V Ceramic AA
C2601 VCEA0A1CW476M J 47 16V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA
C3001 VCEA0A1HW475M J 4.7 50V EL. AB
C3002 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3003 VCKYCY1EB123K J 0.012 25V Ceramic AA
C3004 VCEA0A1HW105M J 1 50V EL. AB
C3005 VCEA0A1HW475M J 4.7 50V EL. AB
C3006 VCEA0A1HW106M J 10 50V EL. AB
C3007 VCEA0A1HW475M J 4.7 50V EL. AB
C3008 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3009 VCEA0A1CW227M J 220 16V EL. AC
C3010 VCEA0A1HW475M J 4.7 50V EL. AB
C3011 VCEA0A1HW475M J 4.7 50V EL. AB
C3012 VCEA0A1HW475M J 4.7 50V EL. AB
C3013 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3014 VCKYCY1CB473K J 0.047 16V Ceramic AA
C3015 VCEACA1HC335K J 3.3 50V EL. AC
C3016 VCEA0A1HW475M J 4.7 50V EL. AB
C3017 VCEACA1CC106K J 10 16V EL. AC
C3018 VCEA0A1HW105M J 1 50V EL. AB
C3374 VCEA0A1HW225M J 2.2 50V EL. AB
C3375 VCEA0A1HW225M J 2.2 50V EL. AB
C3376 VCKYCY1HB332K J 3300p 50V Ceramic AA
C3501 VCEA0A1HW106M J 10 50V EL. AB
C3502 VCEA0A1HW475M J 4.7 50V EL. AB
C3503 VCEA0A1HW475M J 4.7 50V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide, M-Film··· Metal Film]
RJ1 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ2 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ3 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ4 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ5 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ6 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ10 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ11 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ14 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ16 VRS-CY1JF000J J 0 1/16W M-Ox. AA
RJ17 VRS-CY1JF000J J 0 1/16W M-Ox. AA
å R53 VRS-RG3LB223J X 22k 3W M-Ox. AF
R54 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R55 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R56 VRS-CY1JF823J J 82k 1/16W M-Ox. AA
R57 VRD-RA2BE563J J 56k 1/8W Carbon AA
R58 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R59 VRS-CY1JF1R0J J 1 1/16W M-Ox. AA
R101 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R102 VRS-CY1JF100J J 10 1/16W M-Ox. AA
R201 VRS-CY1JF151J J 150 1/16W M-Ox. AA
R202 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R203 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R204 VRS-CY1JF270J J 27 1/16W M-Ox. AA
R205 VRS-CY1JF331J J 330 1/16W M-Ox. AA
R206 VRD-RA2EE151J J 150 1/4W Carbon AA
R207 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R209 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R210 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R211 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R212 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R220 VRS-CY1JF331J J 330 1/16W M-Ox. AA
R301 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R302 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R304 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R305 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R306 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R308 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R354 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R355 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R357 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R359 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R401 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R402 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R403 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R404 VRD-RA2BE102J J 1k 1/8W Carbon AA
R410 VRS-CY1JF471J J 470 1/16W M-Ox. AA
R411 VRS-CY1JF684J J 680k 1/16W M-Ox. AA
R412 VRS-CY1JF391J J 390 1/16W M-Ox. AA
R413 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R417 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R418 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R423 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R426 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R427 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R431 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R432 VRD-RA2BE472J J 4.7k 1/8W Carbon AA
å R451 VRS-RG2HC103J J 10k 1/2W M-Ox. AA
R453 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R454 VRD-RM2HD184J J 180k 1/2W Carbon AA
R455 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R456 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R457 VRD-RA2BE102J J 1k 1/8W Carbon AA
R458 VRD-RA2EE564J J 560k 1/4W Carbon AA
R461 VRS-CY1JF274J J 270k 1/16W M-Ox. AA
R462 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R491 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R492 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R493 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R494 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R495 VRS-RG3DB820J X 82 2W M-Ox. AD
R496 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R497 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R512 VRD-RM2HD102J J 1k 1/2W Carbon AA
R513 VRD-RM2HD102J J 1k 1/2W Carbon AA
R514 VRD-RM2HD1R0J J 1 1/2W Carbon AA
R515 VRS-RG3DB271J X 270 2W M-Ox. AE
R516 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R517 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R518 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R519 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R520 VRN-RL3AB1R0J X 1 1W M-Film AE
R522 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA
R523 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R525 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R527 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
å R604 VRS-RG3LB472J X 4.7k 3W M-Ox. AF
R605 VRD-RA2BE121J J 120 1/8W Carbon AA
R606 VRD-RA2BE102J J 1k 1/8W Carbon AA
å R607 VRS-RG3LB472J X 4.7k 3W M-Ox. AF
å R609 VRS-RG3AB562J X 5.6k 1W M-Ox. AF
R610 VRD-RM2HD220J J 22 1/2W Carbon AA
å R611 VRS-KA3NG3R3K J 3.3 7W M-Ox. AD
R612 VRS-RG2HC102J J 1k 1/2W M-Ox. AA
å R621 VRN-RL3DB1R2J X 1.2 2W M-Film AF
R622 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R623 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R624 VRN-RA2BK472F J 4.7k 1/8W M-Film AA
R634 VRD-RM2HD121J J 120 1/2W Carbon AA
R635 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R636 VRD-RA2EE221J J 220 1/4W Carbon AA
å R641 VRS-RG3AB682J X 6.8k 1W M-Ox. AE
'åR651 VRS-RG2HC270J X 27 1/2W M-Ox. AE
'åR653 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
'åR654 VRS-CY1JF154J J 150k 1/16W M-Ox. AA
'åR655 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R656 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R657 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R658 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
26
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
R659 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
å R661 VRN-RL3ABR47J X 0.47 1W M-Film AE
å R701 RR-DZ0049CEZZ J 3.9M 1/2W Solid AB
or
RR-HZ0048CEZZ
å R703 VRW-KQ3NC1R2K J 1.2 7W Cement AE
R705 VRN-RL3ABR33J X 0.33 1W M-Film AE
R706 VRN-RL3ABR22J X 0.22 1W M-Film AE
R707 VRD-RM2HD270J J 27 1/2W Carbon AA
R708 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R710 VRS-RG2HC103J J 10k 1/2W M-Ox. AA
R711 VRD-RA2BE334J J 330k 1/8W Carbon AA
R712 VRD-RA2BE100J J 10 1/8W Carbon AA
R713 VRS-RG2HC122J X 1.2k 1/2W M-Ox. AE
R715 VRD-RA2BE150J J 15 1/8W Carbon AA
R716 VRS-RG3AB121J X 120 1W M-Ox. AE
R730 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R731 VRS-RG2HC821J+ X 820 1/2W M-Ox. AE
R733 VRS-SV2HC332J J 3.3k 1/2W M-Ox. AA
R736 VRS-SV2HC222J J 2.2k 1/2W M-Ox. AA
å R737 VRN-RL3ABR39J X 0.39 1W M-Film AE
R740 VRD-RM2HD470J J 47 1/2W Carbon AA
R742 VRS-CY1JF000J J 0 1/16W M-Ox. AA
å R744 VRN-RL2HCR68J X 0.68 1/2W M-Film AE
R745 VRD-RA2BE393J J 39k 1/8W Carbon AA
R746 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R747 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R752 VRD-RA2BE562J J 5.6k 1/8W Carbon AA
å R758 VRS-RG2HC100J X 10 1/2W M-Ox. AE
å R773 VRS-RG3LB270J X 27 3W M-Ox. AF
å R774 VRS-RG3LB680J X 68 3W M-Ox. AF
R801 VRD-RM2HD470J J 47 1/2W Carbon AF
R807 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R808 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R809 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R810 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R816 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R925 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R926 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R961 VRD-RA2BE101J J 100 1/8W Carbon AB
R962 VRD-RA2BE101J J 100 1/8W Carbon AB
R1401 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1402 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R1403 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1404 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R1410 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R1419 VRD-RA2BE101J J 100 1/8W Carbon AB
R1420 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1421 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R1422 VRD-RA2BE101J J 100 1/8W Carbon AB
R1423 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA
R1426 VRD-RA2BE750J J 75 1/8W Carbon AA
R1428 VRD-RA2BE750J J 75 1/8W Carbon AA
R1429 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R1431 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1432 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R1434 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R1435 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R1440 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R2001 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R2002 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2006 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2008 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R2009 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2010 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2012 VRD-RA2BE101J J 100 1/8W Carbon AB
R2016 VRD-RA2BE223J J 22k 1/8W Carbon AA
R2018 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2020 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2022 VRS-CY1JF333J J 33k 1/16W M-Ox. AA
R2023 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2024 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2025 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2026 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2027 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R2028 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2029 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2032 VRD-RA2BE471J J 470 1/8W Carbon AA
R2033 VRD-RA2BE684J J 680k 1/8W Carbon AA
R2034 VRS-CY1JF684J J 680k 1/16W M-Ox. AA
R2040 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2041 VRD-RA2BE333J J 33k 1/8W Carbon AA
R2042 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2043 VRD-RA2BE101J J 100 1/8W Carbon AB
R2044 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R2045 VRD-RA2BE101J J 100 1/8W Carbon AB
R2047 VRS-CY1JF221J J 220 1/16W M-Ox. AA
R2048 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R2049 VRD-RA2BE333J J 33k 1/8W Carbon AA
R2060 VRS-CY1JF221J J 220 1/16W M-Ox. AA
R2061 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA
R2062 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R2063 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R2064 VRD-RA2BE391J J 390 1/8W Carbon AA
R2065 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R2067 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2068 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2069 VRD-RA2BE102J J 1k 1/8W Carbon AA
R2070 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2072 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2101 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2102 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2201 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R2202 VRS-CY1JF473J J 47k 1/16W M-Ox. AA
R2203 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R2211 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA
R2212 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA
R2213 VRS-CY1JF223J J 22k 1/16W M-Ox. AA
R2401 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2402 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2403 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2404 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R2501 VRD-RA2BE123J J 12k 1/8W Carbon AA
R2503 VRS-CY1JF273J J 27k 1/16W M-Ox. AA
R2504 VRS-CY1JF123J J 12k 1/16W M-Ox. AA
R2505 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R2506 VRS-CY1JF563J J 56k 1/16W M-Ox. AA
R2507 VRS-CY1JF823J J 82k 1/16W M-Ox. AA
R2508 VRS-CY1JF153J J 15k 1/16W M-Ox. AA
R2509 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA
R2601 VRD-RA2BE100J J 10 1/8W Carbon AA
R2602 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R2604 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R2605 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3001 VRD-RA2BE221J J 220 1/8W Carbon AA
R3002 VRD-RA2BE221J J 220 1/8W Carbon AA
R3003 VRS-CY1JF105J J 1 M 1/16W M-Ox. AA
R3004 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3005 VRS-CY1JF623J J 62k 1/16W M-Ox. AA
R3007 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R3008 VRS-CY1JF302J J 3k 1/16W M-Ox. AA
R3010 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R3011 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3012 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3013 VRD-RA2BE101J J 100 1/8W Carbon AB
R3014 VRD-RA2BE101J J 100 1/8W Carbon AB
R3373 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3374 VRS-CY1JF103J J 10k 1/16W M-Ox. AA
R3375 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3377 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
R3378 VRD-RA2BE223J J 22k 1/8W Carbon AA
R3379 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R3501 VRS-CY1JF750J J 75 1/16W M-Ox. AA
R3502 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3503 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3504 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3507 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
R3508 VRS-CY1JF102J J 1k 1/16W M-Ox. AA
27
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
S2501 QSW-K0003AJZZ J Power AB
or
QSW-K0079GEZZ
S2502 QSW-K0003AJZZ J VOL-Down AB
or
QSW-K0079GEZZ
S2503 QSW-K0003AJZZ J VOL-Up AB
or
QSW-K0079GEZZ
S2504 QSW-K0003AJZZ J CH-Down AB
or
QSW-K0079GEZZ
S2505 QSW-K0003AJZZ J CH-Up AB
or
QSW-K0079GEZZ
S2506 QSW-K0003AJZZ J Menu AB
or
QSW-K0079GEZZ
MISCELLANEOUS PARTS
RY701 RRLYJ0081CEZZ J Relay AL
å F701 QFS-B4023CEZZ J Fuse, 4A-125V AC
or
QFS-B4021GEZZ
FH701 QFSHD1013CEZZ J Fuse Holder AC
FH702 QFSHD1014CEZZ J Fuse Holder AC
FB601 RBLN-0047CEZZ J Ferrite Bead AB
FB2002RBLN-0037CEZZ J Ferrite Bead AB
J1401 QJAKGA009WJZZ X Front A/V Jack AD
J1404 QSOCD0430CEZZ J Socket, S-Video AE
J1701 QTANJ0340CEZZ X Rear A/V Terminal AG
P303 QPLGN0461CEZZ J Plug, 4-pin(S) AB
P401 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB
P601 QPLGN0160FJZZ J Plug, 5-pin(K) AD
P651 QPLGN0361CEZZ J Plug, 3-pin(TP651-3) AB
P701 QPLGN0260CEZZ J Plug, 2-pin(M) AC
P751 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB
P2001 QPLGN0561CEZZ J Plug, 5-pin(TP2001-5) AB
RMC2601
RRMCU0222CEZZ J R/C Receiver AL
RDA501
PRDAR0280PEFW R Heat Sink, for IC501 AF
RDA604
PRDAR0233PEFW R Heat Sink, for Q602 AK
RDA701
PRDAR0265PEFW R Heat Sink, for Q701 AD
TLABN0101GJZZ X Label AE
LX-BZ3049GEFD J Screw AA
LX-BZ3100CEFD J Screw AA
LX-TZ3004CEFD J Screw AA
SWITCHES
PWB-B: DUNTK9510WEW3
CRT UNIT
TRANSISTORS
Q851 VS2SC3198-Y-1 J 2SC3198-Y AA
Q852 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q853 VS2SC3198-Y-1 J 2SC3198-Y AA
Q854 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q855 VS2SC3198-Y-1 J 2SC3198-Y AA
Q856 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q881 VS2SA1266-Y-1 J 2SA1266-Y AA
DIODES
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D884 VHD1SS119//-1 J Diode AB
COIL
L851 VP-MK820K0000 J Peaking 82µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCSPA1HL391J J 390p 50V Ceramic AA
C852 VCCSPA1HL331J J 330p 50V Ceramic AA
C853 VCCSPA1HL391J J 390p 50V Ceramic AA
C854 RC-KZ0024CEZZ J 0.001 2kV Ceramic AC
or
VCKYPB3DE472Z J 0.00472kV Ceramic AC
C883 VCEA0A1HW106M J 10 50V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide]
R851 VRD-RA2BE470J J 47 1/8W Carbon AA
R852 VRD-RA2BE181J J 180 1/8W Carbon AA
R853 VRD-RA2BE121J J 120 1/8W Carbon AA
R855 VRD-RA2BE471J J 470 1/8W Carbon AA
R856 VRD-RA2BE221J J 220 1/8W Carbon AA
å R857 VRS-VV3LB123J J 12k 3W M-Ox. AB
R858 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R859 VRD-RA2BE470J J 47 1/8W Carbon AA
R860 VRD-RA2BE181J J 180 1/8W Carbon AA
R861 VRD-RA2BE121J J 120 1/8W Carbon AA
R863 VRD-RA2BE471J J 470 1/8W Carbon AA
R864 VRD-RA2BE221J J 220 1/8W Carbon AA
å R865 VRS-VV3LB123J J 12k 3W M-Ox. AB
R866 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R868 VRD-RA2BE181J J 180 1/8W Carbon AA
R869 VRD-RA2BE121J J 120 1/8W Carbon AA
R871 VRD-RA2BE471J J 470 1/8W Carbon AA
R872 VRD-RA2BE221J J 220 1/8W Carbon AA
å R873 VRS-VV3LB123J J 12k 3W M-Ox. AB
R874 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R881 VRD-RA2BE102J J 1k 1/8W Carbon AA
R882 VRD-RA2BE331J J 330 1/8W Carbon AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R895 VRD-RA2BE470J J 47 1/8W Carbon AA
28
P851 QPLGN0541CEZZ J Plug, 5-pin(GBN) AB
MISCELLANEOUS PARTS
P852 QPLGN0441CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0937CEZZ J CRT Socket AL
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
SUPPLIED ACCESSORIESMISCELLANEOUS PARTS
å
ACC701
QACCD3064CESA J AC Cord 120V/60Hz AM
or
QACCD3090CESA
LHLDK0014PEZZ R AC Cord Holder AD
LHLDW1003PEZZ R Wire Holder, x2 AA
LHLDW1009PEZZ R Wire Holder, x1 AA
LHLDW1033PEZZ R Wire Holder, x AA
LHLDW1060CEZZ J Wire Holder, x5 AB
LHLDZ1003GJZZ X Holder, x2 AC
LHLDZ1037MEZZ X Anode Clamp Holder, x2 AD
LX-TZ0104GJFD X CRT Screw, x4 AF
LX-TZ3004CEFD J Screw, x4 AA
LX-WZ0112GJFD X CRT Washer, x4 AE
PSPAN0103GJZZ X Spacer AD
QCNW-0134MEZZ X Connecting Cord(SP) AF
QCNW-0166MEZZ X Connecting Cord(GBN) AE
QCNW-0167MEZZ J Connecting Cord(YBN) AE
TCAUH3045GJZZ X Caution Label AB
TLABM0002GJZZ X Model Label AB
VSP9050PB40YA X Speaker, x2(9x5cm)32ohm AK
XTASD30P12000 J Screw, x4 AA
XTASD40P20000 J Screw, x6 AA
(NOT REPLACEMENT ITEM)
TiNS-7653GJZZ X Operation Manual(27U-S60) AD
TiNS-A076WJZZ X Operation Manual AH
RRMCG1324CESA J
RRMCGA035WJSA X
TGAN-0001GJZZ X Guarantee Card AB
(27U-S100)
Infrared R/C Unit(27U-S60)
Infrared R/C Unit(27U-S100)
AT
AQ
PACKING PARTS
SPAKC0251GJZZ – Packing Case —
SPAKP0109GJZZ – Wrapping Paper —
SPAKX0134GJZZ – Buffer Material —
SSAKA0101GJZZ – Polyethylene Bag —
TLABZ0203GJZZ – Carton Label(27U-S60) —
TLABZA023WJZZ – Carton Label(27U-S100) —
29
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
CABINET PARTS
1 CCABA0177WEH0 X Front Cabinet Ass’yBC
1 CCABAA024WEH0 X Front Cabinet Ass’yBC
1-1
Not Available
1-2 GCOVA0121GJSA X RC/LED Cover AF
1-3 HBDGB1009MESB X ”SHARP” Badge AG
1-4 JBTN-0138GJKA X Button, Power AL
1-5 JBTN-0139GJSA X Button, CH-Up/Down, AL
2 GCABB0153GJKA X Rear Cabinet AY
(27U-S60)
(27U-S100)
– Front Cabinet —
VOL-Up/Down, Menu
CABINET PARTS LOCATION
30
★ Polyethylene Mat
PACKING OF THE SET
★ Polyethylene Bag
Operation Manual
Infrared R/C unit
★
Batteries
★Buffer Material
27U-S60
27U-S100
★ MARK : Not replacement items.
FRONT
★ Packing Case
Use tape to
fix the top side of
packing case.
REAR
Use 12 staples to
fix the bottom side
of packing case.
31
27U-S60
27U-S100
COPYRIGHT © 2002 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
D SEM P SEMEX TQ1314-S
May. 2002 Printed in Japan
MI. KG
SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Yaita, Tochigi 329-2193, Japan
Loading...
